4.1.1
Movements of water in the hydrosphere are driven by solar radiation and gravity
4.1.2
The global hydrological cycle operates as a system with stores and flows
4.1.3
Main stores in the hydrological cycle
4.1.4
Flows in the hydrological cycle
4.1.1
MOVEMENTS OF WATER IN THE HYDROSPHERE ARE DRIVEN BY SOLAR RADIATION AND GRAVITY
The hydrosphere is the Earth system that contains water in liquid, solid and gaseous forms. Water doesn’t circulate on its own. Solar radiation provides the energy, while gravity moves water down potential gradients.
By heating surface water, solar energy supplies the latent heat required for evaporation. Water vapour can then travel through the atmosphere. When it condenses, latent heat passes into the surrounding air, linking the water cycle with atmospheric energy and weather systems.
Example: Solar radiation heats seawater, supplying energy for evaporation. After the water vapour condenses into cloud droplets, rain falls onto a hillside under gravity. Gravity then drives surface run-off downhill towards streams and the sea.
Gravity brings water back towards lower elevations. It pulls precipitation to the surface and drains water through soil and rock. Gravity also drives surface run-off and streamflow, eventually moving much continental water towards the sea.
Worked example: Explain how solar radiation and gravity drive water from the sea through the atmosphere and back towards the sea.
Answer: Solar radiation supplies the latent heat needed to evaporate seawater, transferring water into the atmosphere. After condensation, gravity causes precipitation to fall onto land and drives surface run-off and streamflow downhill towards the sea.
A useful pattern to remember: solar radiation drives the upward transfer into the atmosphere, whereas gravity controls the downward and downhill flows. Both forces are needed to maintain the global cycle.
The schematic distinguishes the energy input from the movement of water.
4.1.2
THE GLOBAL HYDROLOGICAL CYCLE OPERATES AS A SYSTEM WITH STORES AND FLOWS
The hydrological cycle describes the continuous movement of water between oceans, freshwater, and the biosphere. Solar radiation and gravity drive this movement. A system is any set of interrelated components connected to form a working unit.
A store is a system component where matter accumulates for a period of time. A flow moves matter between stores. At the global scale, no substantial external input or output of water occurs in the hydrological cycle. Energy does cross its boundary: solar radiation enters and heat leaves.
In a systems diagram, represent each water store with a rectangular box and each flow with a labelled arrow. The arrow must run from the store that water leaves to the store it enters. Arrow width can show relative magnitude. However, don’t confuse a large store with a large flow; they are different properties of the system.

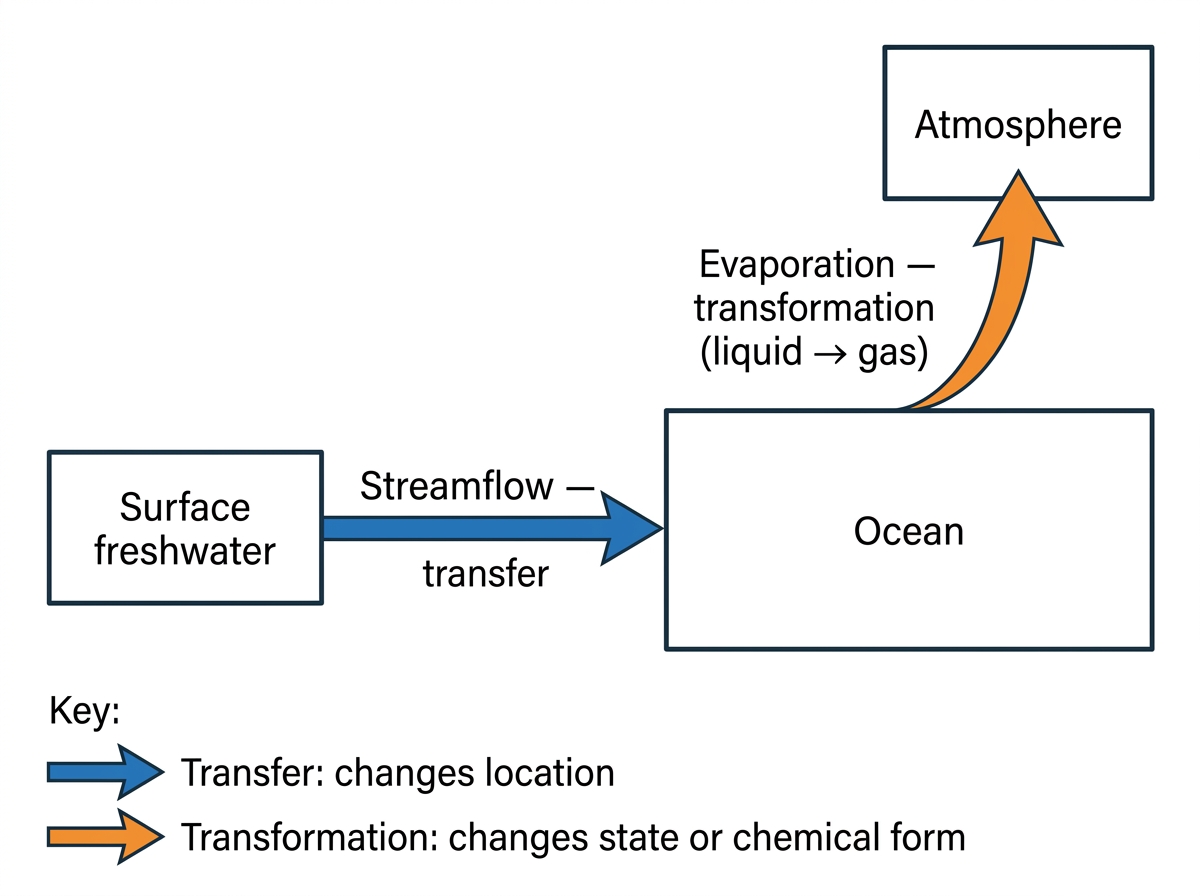

A transfer is a flow where matter changes location without changing state or chemical form. A transformation is a process that changes the state or chemical form of matter. Streamflow is a transfer. Evaporation involves both movement and a liquid-to-gas transformation.
4.1.3
MAIN STORES IN THE HYDROLOGICAL CYCLE

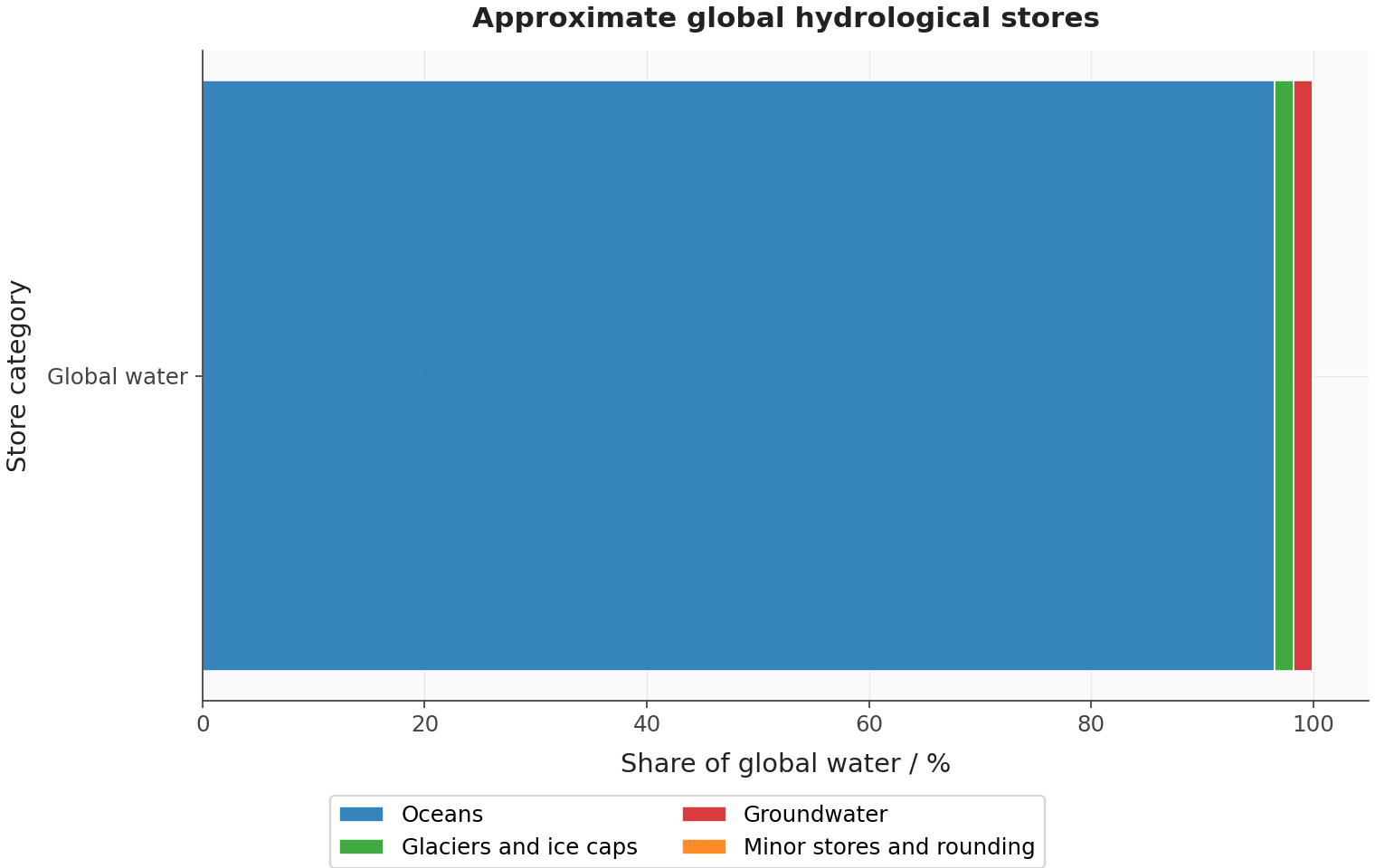

The main water stores differ greatly in size. The table gives their approximate shares of the world’s water.
| Store | Approximate percentage of global water | Concrete example |
|---|---|---|
| Oceans | 96.5% | Pacific Ocean |
| Glaciers and ice caps | 1.7% | Antarctic ice sheet |
| Groundwater | 1.7% | Water in an aquifer |
| Surface freshwater | 0.02% | Water in a lake |
| Atmosphere | 0.001% | Atmospheric water vapour |
| Organisms | 0.0001% | Water in a tree |
There’s no need to memorize these figures digit by digit; focus on their order of magnitude. Almost all water is saline ocean water. Most water outside the oceans is either frozen or underground, while only a tiny fraction is immediately available in rivers, lakes, the atmosphere and living organisms.
The size of a store doesn’t show how quickly water cycles through it. Although the atmospheric store is small, it is replenished and emptied quickly. By contrast, water can remain in an ice sheet or deep aquifer for a very long time.
Example: For the question “Compare the atmospheric and ice-sheet water stores”, a model answer is: “The atmosphere stores much less water than ice sheets, but atmospheric water is replenished and emptied rapidly, whereas water in an ice sheet can remain stored for a very long time. Percentage stored measures the relative size of a store, not its flow rate or how accessible its water is for human use.”
4.1.4
FLOWS IN THE HYDROLOGICAL CYCLE
Transpiration describes moisture leaving plants through the stomata in their leaves. Evaporation from surfaces combines with transpiration from plants to form evapotranspiration.
Sublimation is the transformation of ice directly to water vapour. The liquid state is bypassed. During evaporation, liquid water becomes water vapour; during condensation, water vapour becomes liquid water.
Advection is the wind-blown movement of water vapour or condensed/frozen water droplets (clouds). This is a horizontal atmospheric transfer, not a phase change. Precipitation occurs when atmospheric water reaches the Earth's surface as rain, snow, sleet or hail.
In melting, solid water becomes liquid water. Freezing reverses this: liquid water becomes solid water.
Surface run-off is water flowing across the land surface. Infiltration is water entering the soil. Percolation is water movement in the soil. So, infiltration crosses the land–soil boundary. Percolation continues within the soil and may recharge groundwater—an easy distinction to lose.
Streamflow refers to water moving within a defined surface channel. Groundwater flow is water moving through saturated, permeable soil or rock.

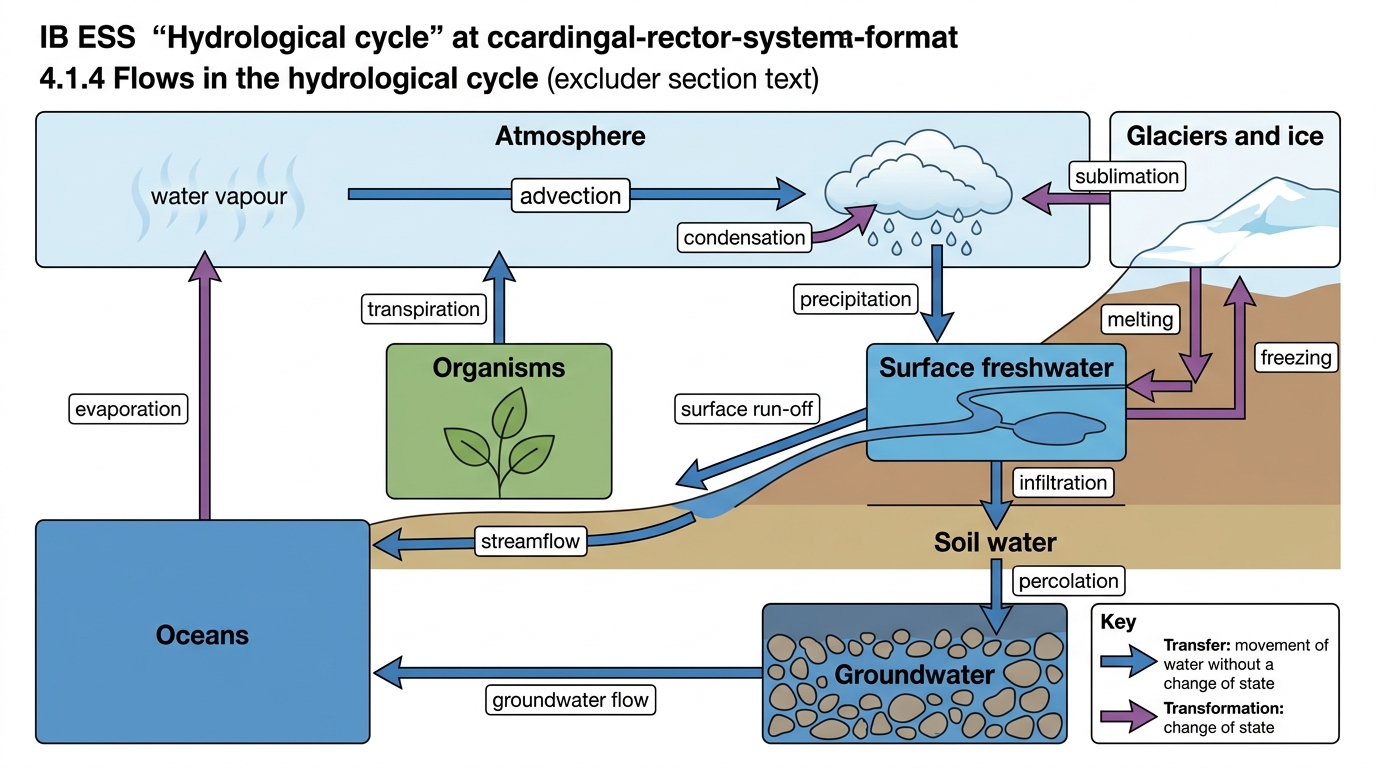

A complete systems diagram should connect atmospheric water, oceans, surface freshwater, ice, soil water, groundwater and organisms. Include transfers such as advection and streamflow, as well as transformations such as evaporation, condensation, melting and freezing. Check every arrow: its direction matters.
When using the diagram, trace one route and name each process along it. Ocean water, for example, may evaporate, move by advection, condense and fall as precipitation. It may then infiltrate, percolate to groundwater and return through groundwater flow or streamflow. The cycle may be shown globally or at the smaller scale of a drainage basin.
4.1.5
HUMAN ACTIVITIES CAN ALTER HYDROLOGICAL FLOWS AND STORES
Irrigation removes water from rivers, lakes and aquifers, which reduces these stores and alters downstream flow. Heavy machinery and livestock can compact the soil, leaving less pore space for infiltration. As a result, more water travels quickly to channels as surface run-off. Irrigated crops may also raise local evapotranspiration. The impact therefore depends on the farming system, not simply on the label “agriculture”.
Example: Diversion of the Amu Darya and Syr Darya for irrigation reduced river inflow to the Aral Sea. The altered flow was the river input to the lake; the resulting store change was a decline in lake-water storage as inputs no longer balanced losses.
When forests are removed, canopy interception falls and transpiration usually decreases. The loss of roots and disturbance of soil may reduce infiltration, while reduced vegetation allows rainfall to reach the ground rapidly. After intense rain, surface run-off and stream discharge rise more quickly. Sediment may also clog channels, reducing their capacity. The exact response varies with soil, slope and forest-management method, though reduced evapotranspiration and increased run-off are common outcomes.
Urban development covers permeable, vegetated ground with roofs, roads and paving. These impermeable surfaces reduce infiltration, soil-water storage, groundwater recharge and evapotranspiration. Drains and storm sewers then carry water rapidly into channels. Discharge peaks higher and sooner after rainfall, increasing the risk of flash floods.
A flash flood is a flood that develops rapidly after intense rainfall or sudden water release. Urbanization and deforestation make flash floods more likely when they reduce temporary storage and deliver water to river channels faster.

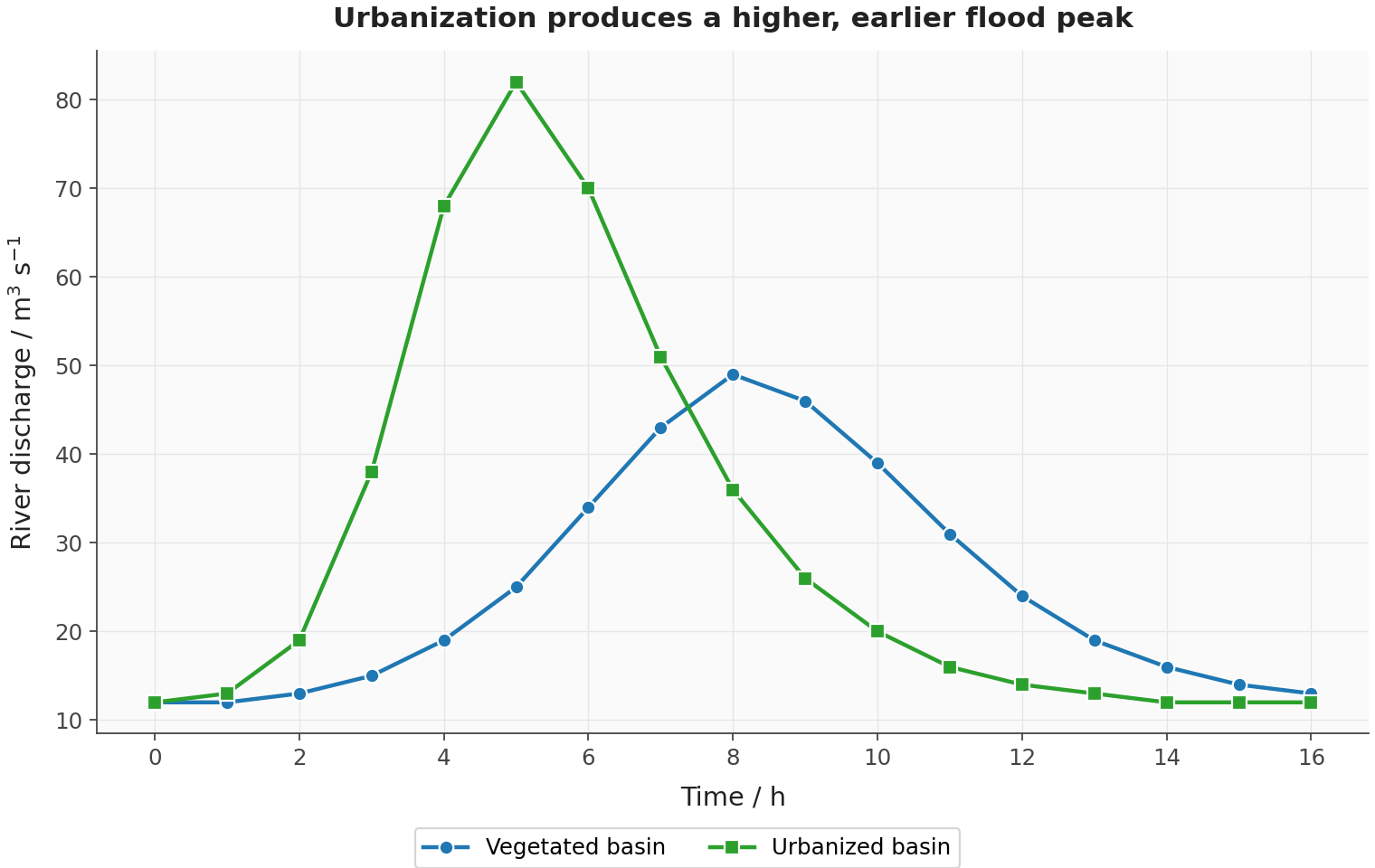

Worked example: Compare the discharge peaks of the urbanized and vegetated basins shown in the hydrograph, then explain the difference.
Read both the peak discharge and the time at which it occurs:
| Basin | Peak discharge / | Time of peak / |
|---|---|---|
| Urbanized | 82 | 5 |
| Vegetated | 49 | 8 |
Answer: The urbanized basin has a higher and earlier peak, reaching at , compared with at in the vegetated basin. Impermeable surfaces reduce infiltration, while rapid drainage delivers more water to channels in a shorter time.
Exam tip: For “Compare”, refer directly to both basins and support the comparison with data; for “Explain”, link the difference to a physical mechanism. Without rainfall timing data, describe the time of peak discharge rather than a rainfall-to-discharge lag.
4.1.6
STEADY STATE OF WATER BODIES
A steady state is a dynamic condition where a system’s stores stay approximately constant over the period considered because total inputs equal total outputs. Water continues to move, so “steady” doesn’t mean motionless.
In a lake, water moves through the following routes:

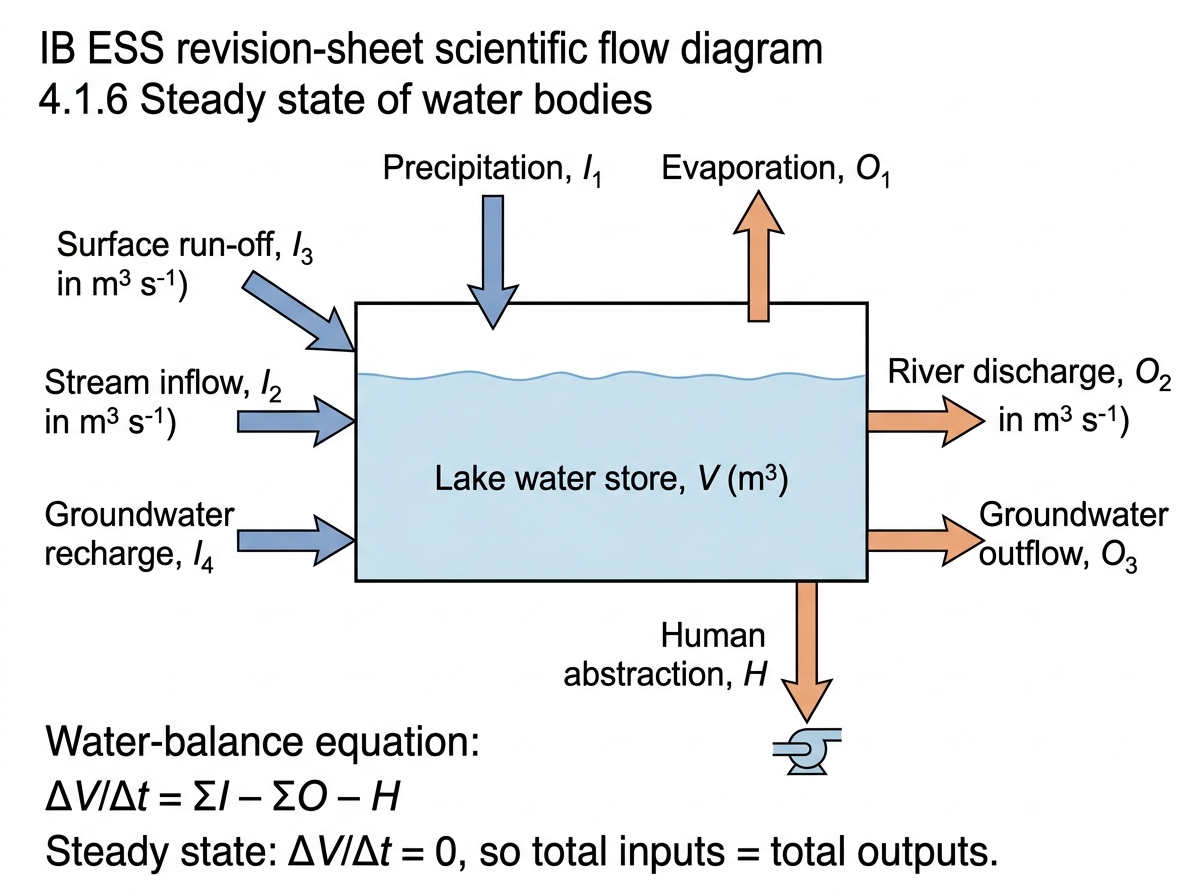

A flow diagram represents the water body as a box, with arrows showing each input and output.
The water balance can be written as:
At steady state, . The potentially sustainable harvesting rate is therefore the surplus of renewable inputs over natural outputs. When abstraction exceeds this surplus, the store declines. In an aquifer, the water table may fall; in a lake, the water level drops.
Worked example: A lake has total inputs of and natural outputs of . Calculate the abstraction rate that maintains steady state. Then calculate the storage change over one day if abstraction rises to , assuming all rates remain constant.
Answer: The abstraction rate that maintains steady state is . At an abstraction rate of , over one day; the negative sign means the lake loses stored water.
Common mistake: Subtracting abstraction twice. In this equation, includes only natural outputs; human abstraction is accounted for separately by . Do not include it in and then subtract again.
“Sustainable” needs careful interpretation. Average recharge can hide dry years. Extraction may harm dependent ecosystems before the store runs out, while fossil groundwater may recharge so slowly that meaningful replacement doesn’t occur on a human timescale.
4.1.7
PHYSICAL AND CHEMICAL PROPERTIES OF WATER THAT SUPPORT LIFE

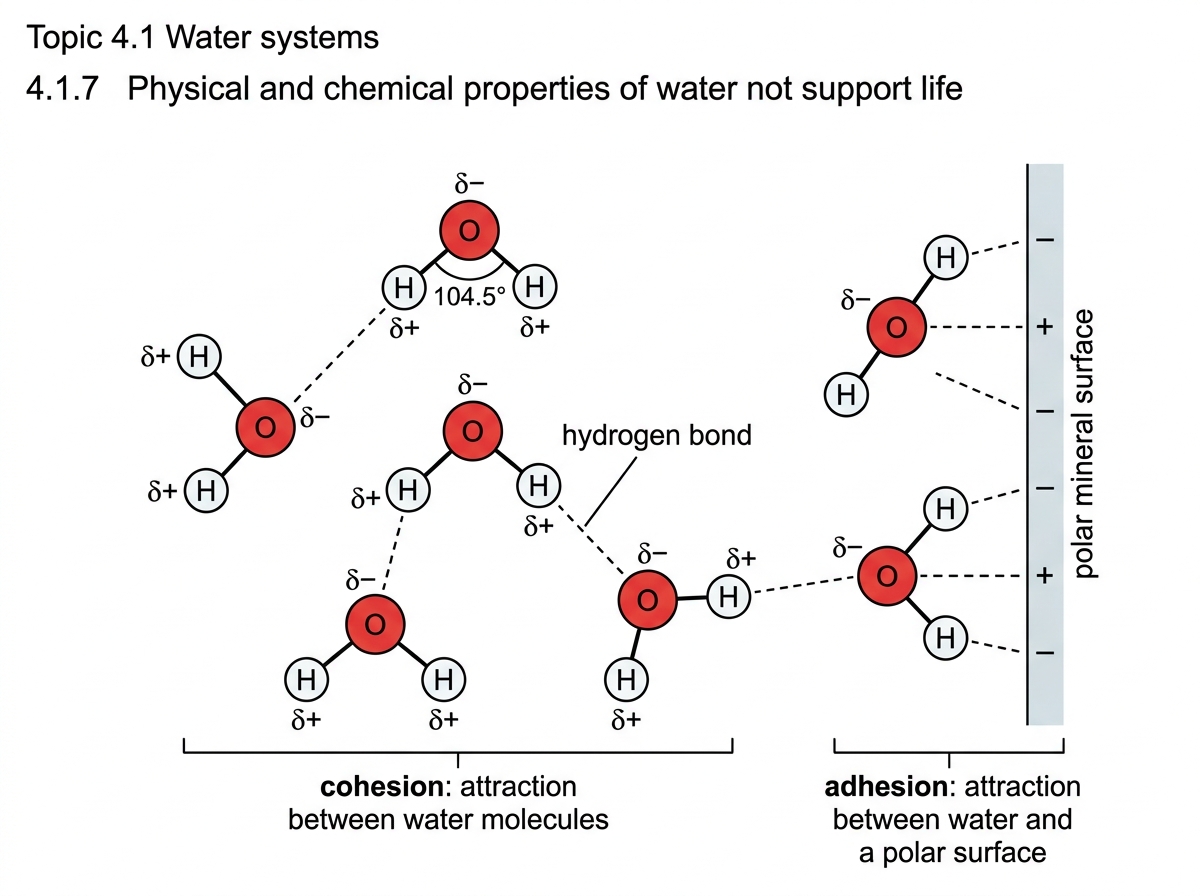

A polar molecule has an uneven distribution of electrical charge. In , oxygen attracts the shared electrons more strongly than hydrogen does. As a result, oxygen has a partial negative charge, while each hydrogen has a partial positive charge. The molecule itself remains neutral overall.
These partially charged regions attract opposite regions on neighbouring molecules, creating hydrogen bonds. Cohesion is attraction between water molecules due to hydrogen bonding. This produces surface tension and helps plants maintain continuous columns of water. Adhesion is attraction between water and other substances. Because of adhesion, water clings to mineral and biological surfaces, which also contributes to capillary movement.
A solvent dissolves a solute to form a solution. Because water is polar, it can surround many ions and polar molecules. This makes water an effective medium for biochemical reactions and for transporting dissolved nutrients, gases and wastes. However, it cannot dissolve every substance. Non-polar materials such as oils are poorly soluble.
Transparency allows light to pass through a substance. In water, this lets photosynthesis take place below the surface. Light penetration falls when suspended sediment, plankton and dissolved or particulate organic matter are present, limiting the depth of the productive zone.
Specific heat capacity is the amount of heat energy required to raise the temperature of 1 g of a substance by . Water warms and cools slowly because disrupting its hydrogen-bond network requires considerable energy. Its high specific heat capacity gives aquatic habitats smaller, slower temperature changes than nearby land. Oceans also moderate coastal climates.
Liquid freshwater has its maximum density at approximately . It becomes less dense when warmed above this temperature and when cooled towards freezing. Ice is less dense than liquid water, so it floats.
Gas solubility is the maximum amount of a gas that can dissolve in a solvent under specified conditions. As water temperature rises, the solubility of oxygen, , and carbon dioxide, , decreases. Solubility increases as pressure rises. Cold deep water can therefore generally hold more dissolved gas than warm surface water, though biological activity and mixing also affect measured concentrations.
These properties allow water to support life. It provides a stable thermal environment and a transparent medium for photosynthesis. Water also acts as a solvent and transport medium, shows cohesive and adhesive behaviour, and forms surface ice that can protect the liquid habitat below.
4.1.8
THE OCEANS AS A CARBON SINK
A carbon sink is a reservoir that absorbs more carbon than it releases over a specified period. Oceans act as sinks when atmospheric crosses the air–sea boundary, then dissolves or is converted into other forms of ocean carbon. Carbon sequestration refers to capturing carbon and storing it away from the atmosphere for a period of time.
This uptake has slowed the rise in atmospheric caused by fossil-fuel combustion. In systems terms, some of the anthropogenic carbon flow moves from the atmospheric store into the ocean store. That weakens—but certainly does not remove—the increase in greenhouse forcing.

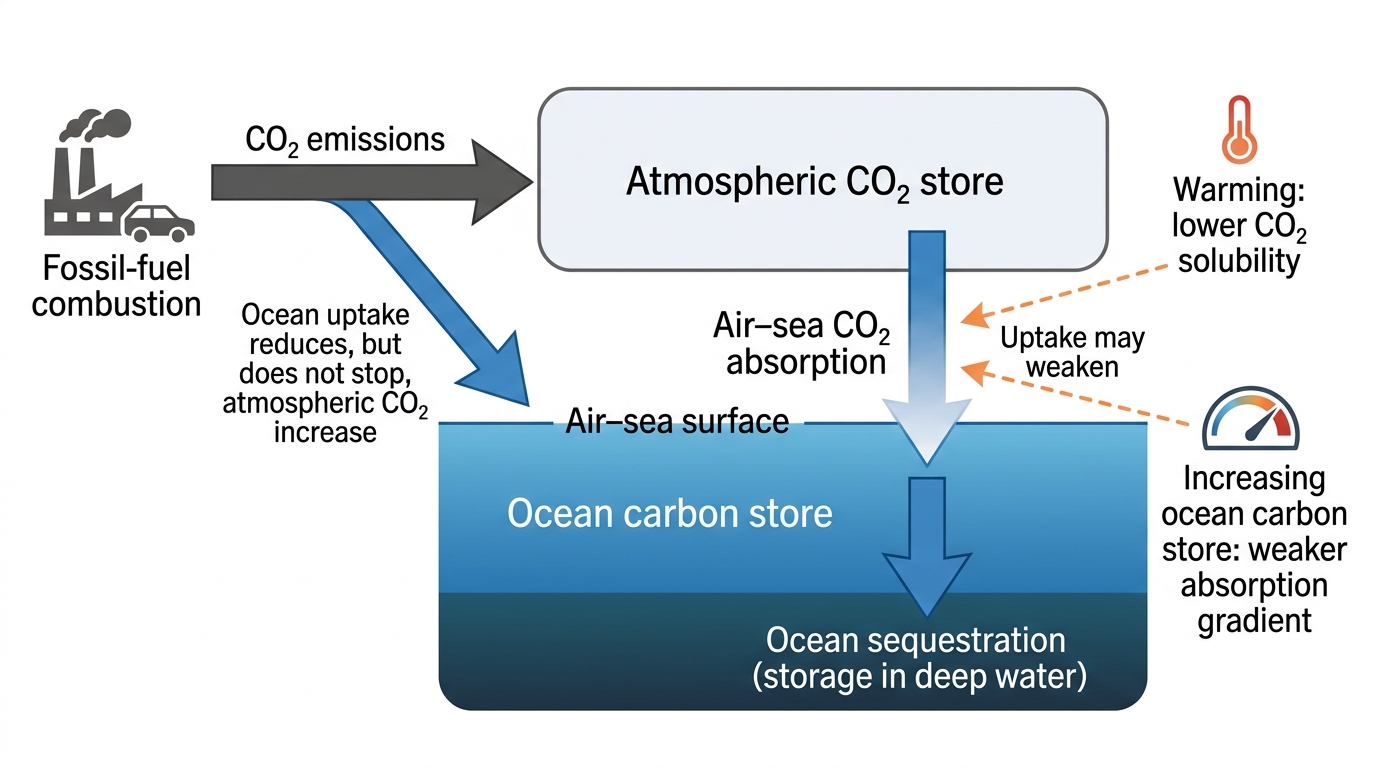

The oceans cannot take up carbon indefinitely. As the ocean carbon store grows, the net gradient that drives further absorption can weaken. Warming also reduces the solubility of and may strengthen stratification, limiting transfer into deeper water. The system may therefore approach a saturation point where additional uptake slows substantially.
If ocean absorption weakens while human emissions remain high, more of the emitted stays in the atmosphere. The water and carbon systems are tightly linked. Changes in ocean temperature and circulation alter carbon storage, while atmospheric carbon affects climate and, in turn, the water system.
4.1.9
SHORT-TERM AND LONG-TERM OCEAN CARBON SEQUESTRATION

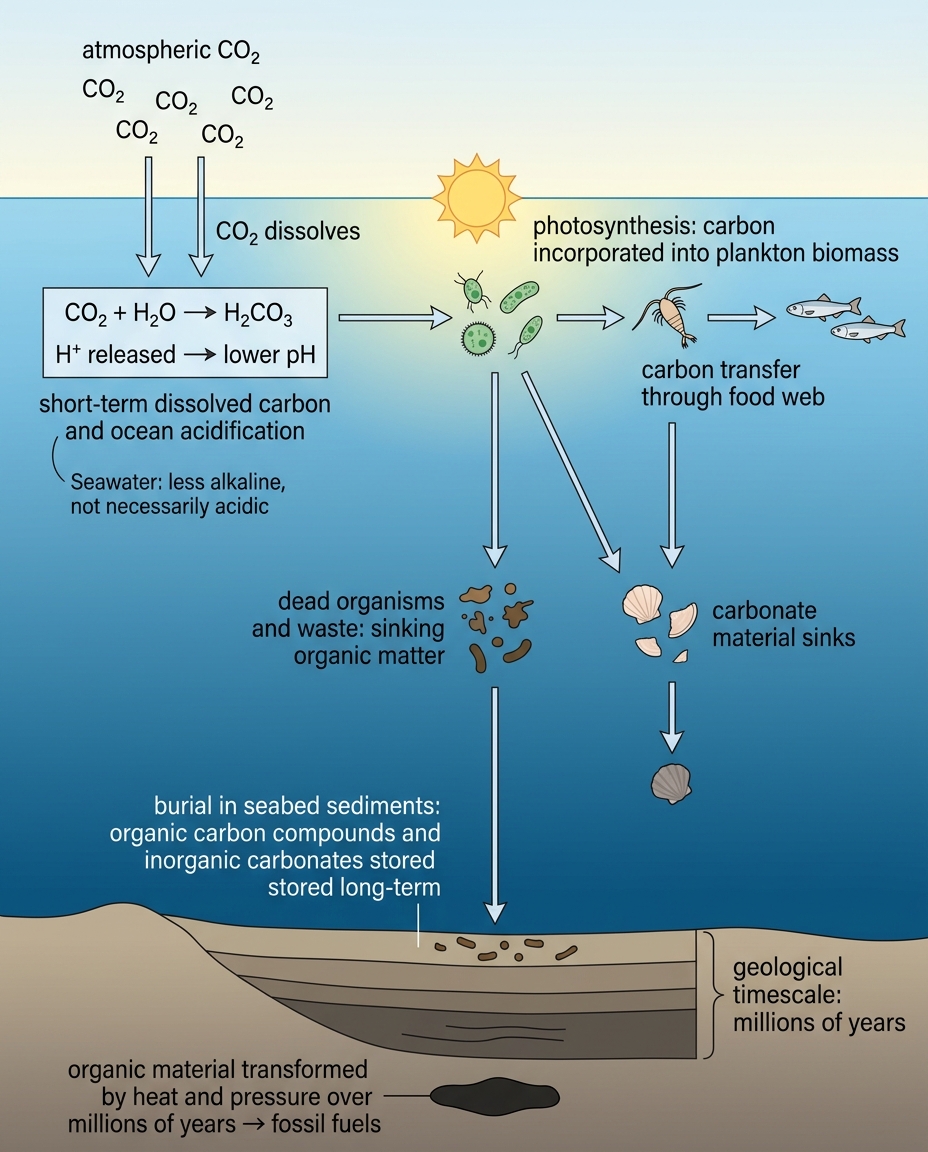

Over short timescales, absorbed dissolves in seawater. Some of it reacts with water, producing carbonic acid:
The reaction is reversible, and carbonic acid can release hydrogen ions in a second reversible step:
An increase in hydrogen-ion concentration lowers pH. Ocean acidification is a sustained decrease in ocean pH caused principally by uptake of atmospheric carbon dioxide. The ocean stays alkaline overall; it simply becomes less alkaline. “Acidification” doesn’t mean the entire ocean suddenly becomes acidic.
Photosynthetic organisms absorb dissolved carbon and incorporate it into biomass, the biological material derived from living or recently living organisms. That carbon then passes through aquatic food webs. Dead organisms, waste and carbonate structures may sink, carrying some of it into deep water and down to the seabed.
Seabed sediments store inorganic carbonates alongside organic carbon compounds that escaped complete decomposition. Once buried, this carbon can remain isolated for long periods. Over millions of years, heat and pressure may turn some buried organic material into fossil fuels.
Example: Phytoplankton take up dissolved carbon during photosynthesis and build it into biomass. When they die, some dead material sinks. Decomposition returns much of its carbon to dissolved forms in the water or near the seabed, so only a fraction escapes decomposition and becomes buried as organic carbon in sediments. A coccolithophore also produces calcium-carbonate plates: these can sink and, if they escape dissolution, become part of carbonate sediment. Burial of these plates stores inorganic carbon, whereas burial of its undecomposed biomass stores organic carbon. Sinking alone therefore does not guarantee durable burial.
These pathways work on very different timescales:
| Pathway | Timescale and storage |
|---|---|
| Dissolution of | Alters seawater chemistry relatively quickly. |
| Sediment burial and fossil-fuel formation | Provide long-term storage through geological processes; fossil fuels may form over millions of years. |
When those fuels are extracted and burned, part of this long-term storage is reversed: carbon returns to the atmosphere, where some of it is absorbed by the oceans again.
4.1.10
WATER TEMPERATURE, DENSITY AND PERSISTENT STRATIFICATION
Solar radiation warms the surface most strongly, so water temperature commonly decreases with depth. Warm water above is less dense than the cooler water below. This arrangement, with less-dense water resting on denser water, is stable. Substantial energy is therefore needed to mix the layers.
Stratification occurs when density differences separate a body of water into distinct vertical layers. A large density difference limits vertical mixing and can cause stratification to persist.
Freshwater reaches its greatest density at approximately . As the surface cools towards this temperature, the water becomes denser and sinks, which promotes mixing. Below , however, surface water becomes less dense. It stays above the denser water and eventually freezes at the surface.

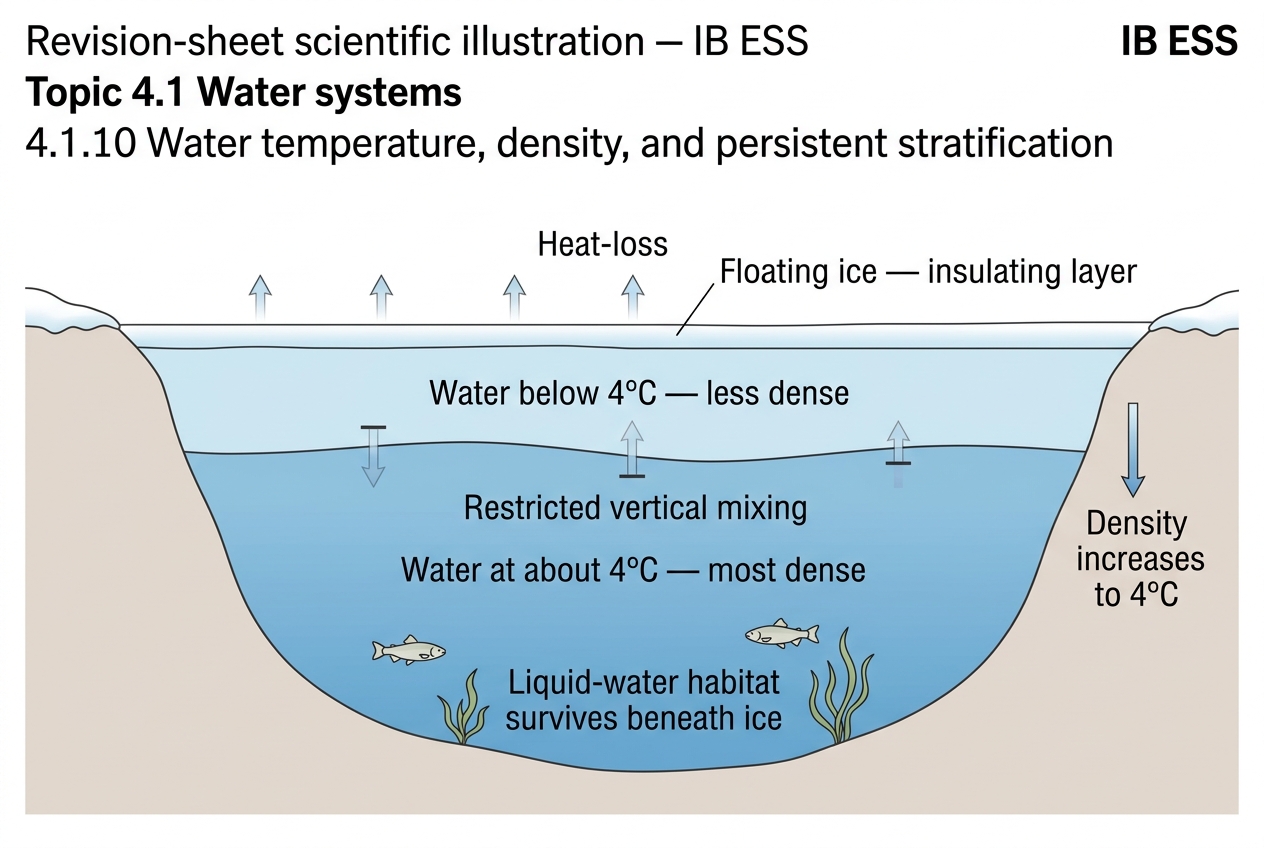

Ice floats because it is less dense than liquid water. A surface layer of ice also reduces heat loss from the water below. Liquid habitat remains underneath, allowing freshwater organisms to survive when the surface freezes.
4.1.11
STRATIFICATION AND THE THERMOCLINE
Persistent stratification may develop in deeper lakes, coastal waters, enclosed seas and the open ocean. At the surface, wind mixes a relatively warm layer of water. Cooler, denser water remains underneath.

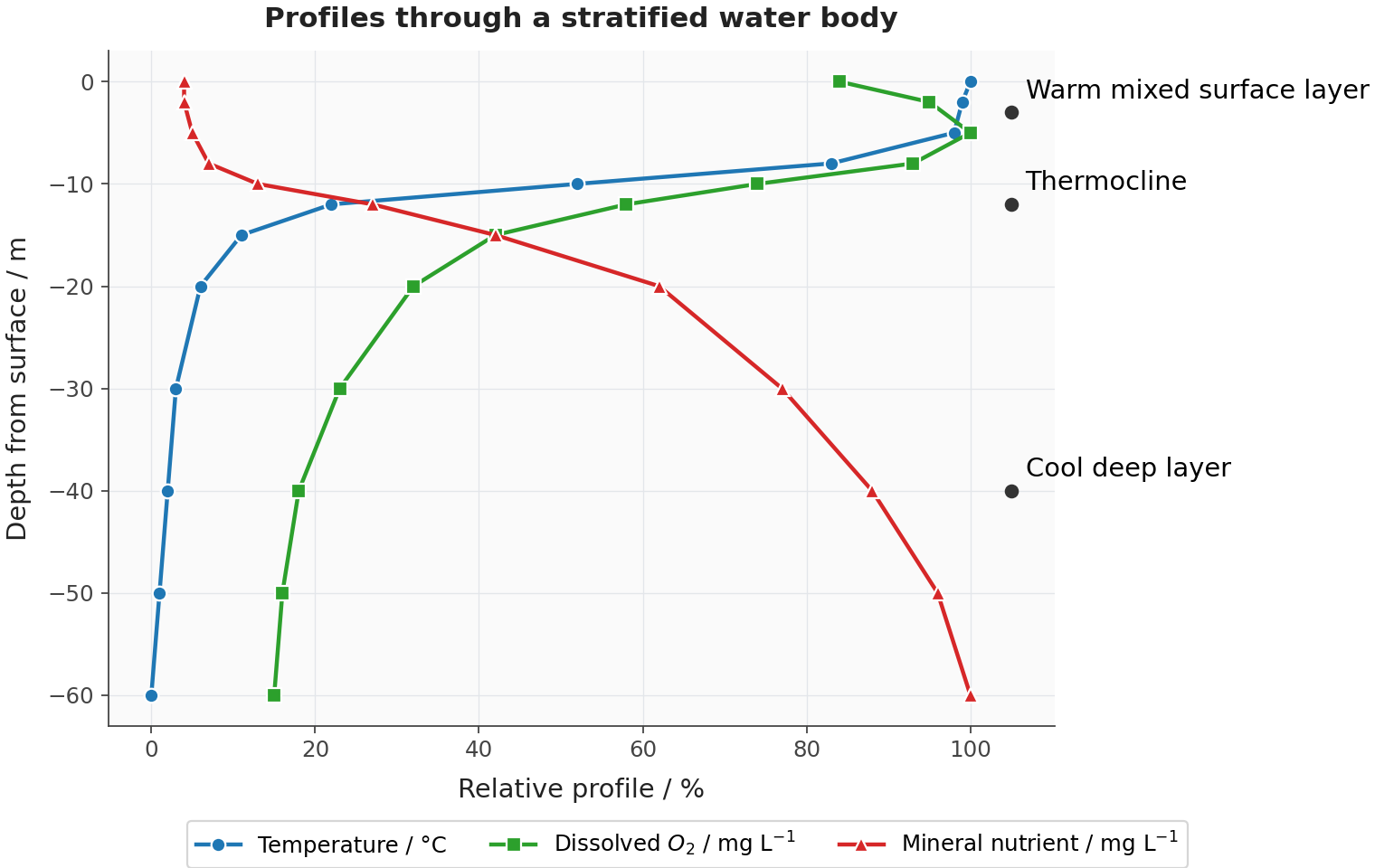

A thermocline is the transition layer between warmer surface water and the cooler deep water below. Temperature changes rapidly with depth in this layer. The resulting density gradient limits vertical mixing.
The layers differ chemically as well. Surface water is exposed to the atmosphere and receives light, allowing it to gain oxygen through gas exchange and photosynthesis. However, warm water can dissolve less oxygen than cold water.
Sinking organic matter reaches the deep water. As decomposers break it down, they consume oxygen. Deep-water dissolved oxygen may therefore fall if stratification prevents it from being replenished. Decomposition also releases mineral nutrients. As a result, deep water may become nutrient-rich while producers deplete nutrients at the surface.
Example: In a summer-stratified lake, cold deep water can become oxygen-poor as decomposers break down sinking organic matter. Although cold water can dissolve more oxygen than warm water, this does not guarantee a high oxygen concentration: decomposition consumes oxygen, while restricted mixing limits its replacement from oxygenated surface water.
Worked example: Explain why the cold deep water of a summer-stratified lake may become oxygen-poor.
Answer: Decomposers consume dissolved oxygen as they break down organic matter in the deep water. Stratification restricts replenishment from oxygenated surface water, so oxygen concentrations may fall despite the greater oxygen solubility of cold water.
The pattern varies between water bodies. Biological productivity and water clarity both have an effect, as do wind, inflows and the length of time stratification lasts. Restricted mixing is the central mechanism: it allows vertical differences in temperature, oxygen and nutrients to persist.
4.1.12
GLOBAL WARMING, SALINITY AND INTENSIFIED OCEAN STRATIFICATION

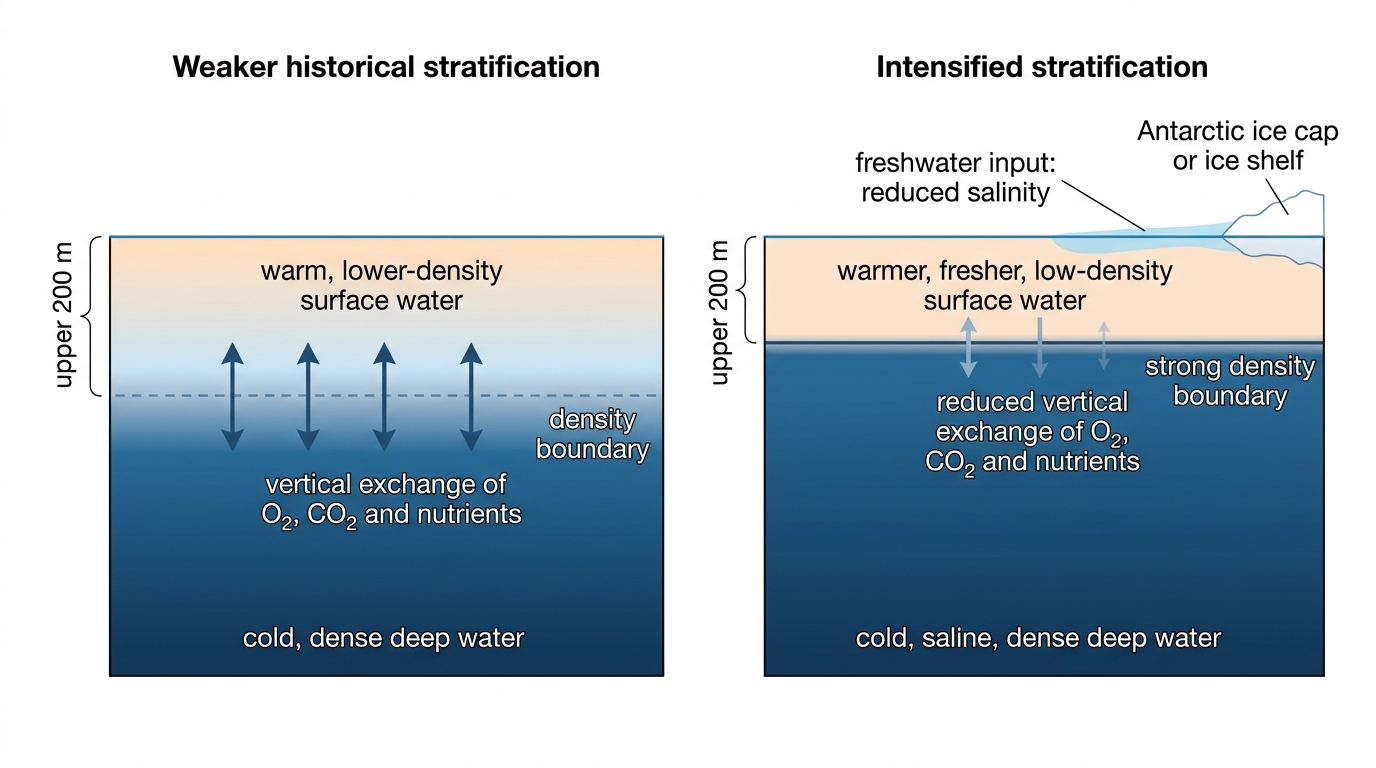

Global warming heats surface water faster than deep water. As the surface warms, it becomes less dense. This increases the density contrast between surface water and the colder water below, so vertical mixing becomes more difficult. The clearest observed changes occur in the upper of the ocean, though temperature-driven effects occur globally.
Salinity affects seawater density too. More saline water is generally denser; fresher water is less dense. Around Antarctica, melting ice caps add freshwater, lowering both surface salinity and density. The resulting fresh, buoyant surface layer can strengthen stratification further.
With stronger stratification, less heat, dissolved , and mineral nutrients move vertically through the water. Warm surface water also holds less dissolved oxygen and carbon dioxide. Likely consequences include reduced oxygen replenishment in deep water, a lower nutrient supply to the sunlit surface and changes in marine productivity and carbon uptake.
To investigate these relationships, extract matched observations of water temperature, dissolved oxygen and salinity from a reliable database. For each observation, record:
Keep comparisons consistent. Combining data from different depths or seasons may produce a misleading relationship.
A scatter graph can show the relationship between two continuous variables. Spearman's rank correlation coefficient may be suitable for non-normal data, ranks or a monotonic relationship:
where is Spearman's rank correlation coefficient (dimensionless), is the difference between the paired ranks (dimensionless), and is the number of paired observations (dimensionless).
This shortcut formula applies directly when ranks are untied. If values are tied, assign each tied value the mean of the ranks those values would occupy, then use an appropriate tie-aware calculation or statistical software rather than applying the shortcut unchanged.
Rank both variables using a consistent method:
If the result is beyond the critical value, the association is statistically significant. It does not prove that one variable caused the other.
Temperature may be analysed in kelvin or degrees Celsius. Dissolved oxygen should be recorded as a concentration such as , while salinity is normally given as a dimensionless practical salinity value. A sensible analysis examines temperature–oxygen, temperature–salinity or depth-related associations in the context of the proposed mechanism.
Worked example: Use the explicitly hypothetical six-pair dataset below to test for an association between water temperature and dissolved oxygen concentration. Assume that observations were collected at a consistent depth and season. There are no tied values. Use a two-tailed test at the significance level; for , the critical value of is approximately .
| Temperature / | Dissolved oxygen / | Temperature rank | Oxygen rank | ||
|---|---|---|---|---|---|
| 10 | 0.010 | 1 | 6 | 25 | |
| 12 | 0.009 | 2 | 5 | 9 | |
| 14 | 0.008 | 3 | 4 | 1 | |
| 16 | 0.006 | 4 | 2 | 2 | 4 |
| 18 | 0.007 | 5 | 3 | 2 | 4 |
| 20 | 0.005 | 6 | 1 | 5 | 25 |
The result is statistically significant at the level, so reject the null hypothesis of no association between temperature and dissolved oxygen concentration.
Answer: (dimensionless), indicating a strong, statistically significant negative association: warmer water tends to have lower dissolved oxygen concentration in this hypothetical dataset. This is consistent with warm water holding less dissolved oxygen, but the correlation alone does not establish causation.
4.1.13
UPWELLING IN OCEANS AND FRESHWATER BODIES

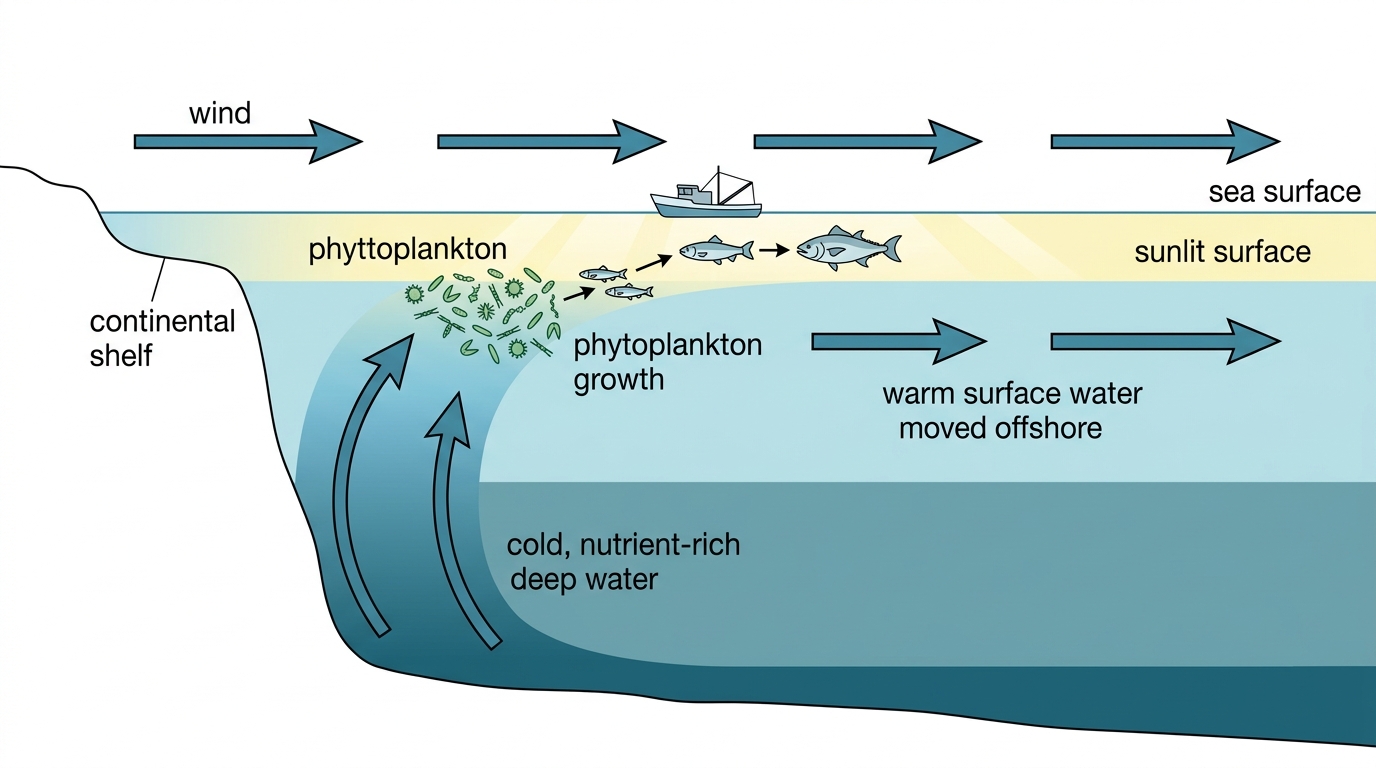

Upwelling is the mass, vertical movement of cold, nutrient-rich waters from the depths to the surface in response to displacement of wind-blown surface waters. As wind pushes surface water away, deeper water rises to take its place.
Exam tip: Explain the mechanism as a linked chain: surface displacement deep-water replacement nutrient supply to the sunlit zone increased primary productivity.
Nutrients released during decomposition often build up at depth. Upwelling carries these mineral nutrients into the illuminated surface waters, where phytoplankton productivity can increase. This supports larger food webs and productive fisheries. The rising water is usually cold because it comes from below the warm surface layer.
Ocean upwelling can vary with the El Niño–Southern Oscillation. Changes in winds and surface-water displacement can therefore affect nutrient delivery and biological productivity.
Example: Off the coast of Peru, winds drive surface water offshore, allowing cold, nutrient-rich water to rise. These nutrients support phytoplankton growth and a food web that includes anchoveta, an important fishery species. During El Niño, changes in winds and a deeper warm surface layer can suppress the supply of nutrient-rich water to the sunlit zone, reducing phytoplankton productivity and the food available to anchoveta.
Upwelling also occurs outside the oceans. In stratified lakes, seasonal cycles may develop when winds and changing density structures allow deep water to rise. Local wind-driven upwelling is distinct from whole-lake seasonal turnover, which mixes the water column as seasonal density differences weaken.
Example: In a stratified lake, sustained wind pushes surface water toward one shore. Deep, colder water rises at the opposite shore to replace the displaced surface water, bringing nutrients toward the sunlit zone. This is local upwelling: it does not mean that the whole lake has mixed, as occurs during seasonal turnover.
4.1.14
THERMOHALINE CIRCULATION AND THE OCEAN CONVEYOR BELT
Thermohaline circulation describes large-scale ocean circulation driven by density differences caused by temperature and salinity. Cold water is denser than warm water; saline water is denser than fresher water. When surface water becomes cold and saline enough, it sinks to form a deep current.

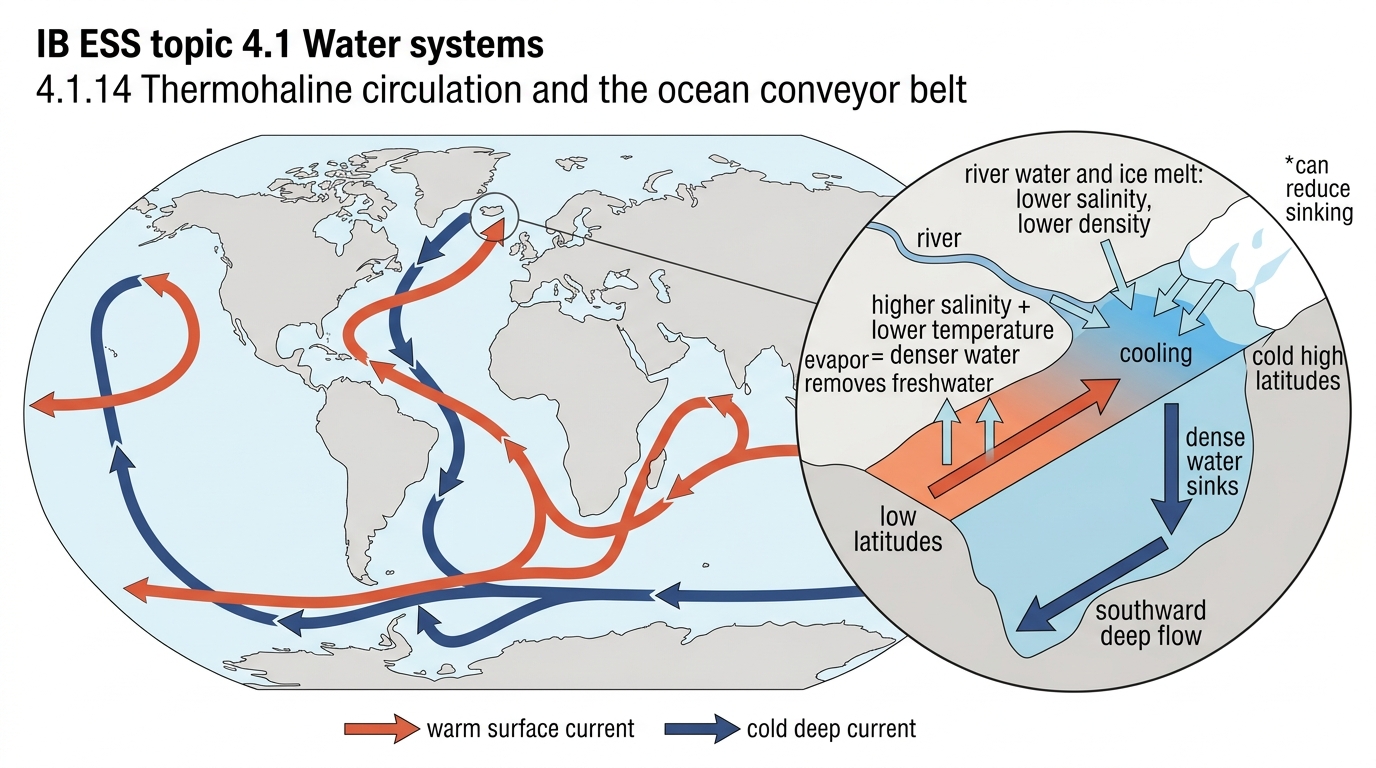

The ocean conveyor belt is a connected system of surface and deep ocean currents that moves water and heat around the world. Warm surface currents carry thermal energy away from low latitudes. Cold deep currents return water towards lower latitudes. By redistributing heat, this system moderates regional climates and links the water system with the climate and carbon systems.
Rivers and melting ice caps add low-salinity, low-density water to the North Atlantic. Meanwhile, wind-driven currents move surface water northwards from lower latitudes. Evaporation removes freshwater along the way, raising salinity, and the water cools at high latitude.
Higher salinity combined with lower temperature increases the water's density. The dense water then sinks, forming deep currents that flow back towards the equator and complete the North Atlantic conveyor pathway. Freshwater input works against this process because it lowers surface salinity and density. As a result, sinking may decrease and circulation may weaken.
The conveyor transports heat, so a substantial change in its strength could alter climate patterns. Deep circulation also carries dissolved gases, nutrients and carbon. It therefore connects ocean stratification and biological productivity with long-term carbon sequestration. Water's physical properties shape circulation, which supports aquatic life. That same circulation affects both climate and the carbon cycle.
