4.2: Water access, use and security

Master IB ESS 4.2: Water access, use and security with notes created by examiners and strictly aligned with the syllabus.

Verified by Veronica
Verified by Veronica

19 sections · ~38 min read

This content can't be printed from the browser. Use Export PDF with Pro for an offline copy.

IB Syllabus Requirements for Water access, use and security

4.2.1

Water security and sustainable societies

4.2.2

Factors affecting freshwater availability and equitable access

4.2.3

Growing demand for water

4.2.4

Increasing water supplies

4.2.1

WATER SECURITY AND SUSTAINABLE SOCIETIES

The central idea

Water security is having access to sufficient amounts of safe drinking water. “Sufficient” means there is reliably enough water to meet people’s needs. “Safe” water doesn’t expose users to unacceptable health risks.

A dependable supply is needed for drinking, cooking, hygiene and sanitation. When households have to use contaminated water or spend hours collecting it, their health, education and livelihoods suffer.

Example: In a hypothetical village, a well provides safe water during the wet season but dries up during the dry season. A nearby river flows throughout the year but is polluted by untreated sewage. Neither source alone provides water security: the well is unreliable, while the river water is unsafe to drink without treatment. Protecting the well’s recharge area from contamination, treating river water and maintaining reliable delivery can provide safe water throughout the year. Reduced exposure to contaminated water lowers illness, helping children attend school. Keeping abstraction within replenishment limits and maintaining river flows protects the ecosystems on which the village depends.

Why it supports sustainability

Water security plays a major role in sustainable societies. Human well-being cannot be maintained over the long term if water supplies are polluted, depleted faster than they can be replenished, or distributed so unevenly that some groups are excluded.

Example: For an “Explain how water security supports sustainable societies” question: reliable access to safe water reduces waterborne illness, so children miss fewer school days. Improved school attendance supports education and future livelihood opportunities, contributing to long-term well-being.

This causal chain links water security to long-term well-being.

Exam tip: Build a causal chain: identify an improvement in water security, explain its effect on people and link that effect to long-term well-being. Merely listing drinking, cooking and sanitation does not explain how these uses contribute to sustainability.

Managing water also links people to ecosystems. Wetlands, rivers and aquifers store, filter and move freshwater. Degrading them can reduce water security in the future. At the same time, excessive withdrawal for human use may leave aquatic ecosystems without sufficient environmental flows. The practical challenge in this topic is to secure water for people without damaging the hydrological systems that supply it.

4.2.2

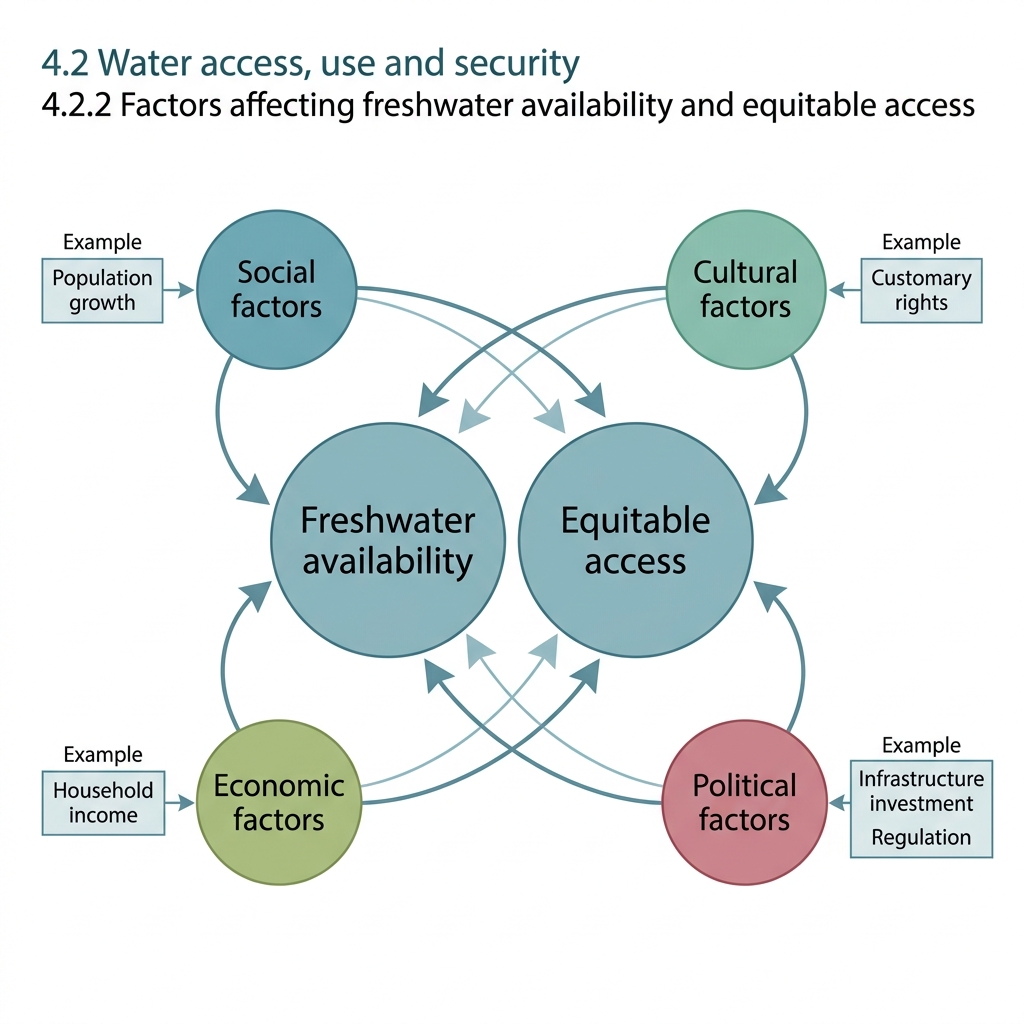

FACTORS AFFECTING FRESHWATER AVAILABILITY AND EQUITABLE ACCESS

Availability is not the same as access

Freshwater may be present in a place, yet some people still cannot obtain safe water. Equitable access is a pattern of access that is fair in relation to people’s needs and circumstances. This doesn’t necessarily mean everybody receives an identical volume.

The main influences overlap; they rarely operate on their own:

  • Social factors: rapid population growth increases total demand. Informal settlements may grow faster than piped-water and sanitation networks, while discrimination related to gender, ethnicity or social status may affect who controls water points.
  • Cultural factors: customary rights may decide who can use a spring or well, and beliefs about water can shape which uses are acceptable. Established preferences for water-intensive diets or landscaped gardens can also increase demand.
  • Economic factors: low-income households may not be able to afford connection charges or storage tanks. Wealthier users, by contrast, can pay for private wells or delivered water. Agricultural and industrial users may also outbid domestic users.
  • Political factors: governments choose where to build pipes, treatment plants and reservoirs. Weak regulation, corruption or conflict may divert water away from marginalized communities. Effective public investment can widen access.

The first guiding question has a clear answer: water inequity comes from unequal power, income, infrastructure and recognition of rights—not simply from unequal rainfall. Possible responses include affordable tariffs, public investment and recognition of community rights, alongside anti-discrimination measures, pollution control and transparent allocation. No single measure can fix every cause, so the response must match the local context.

4.2.3

GROWING DEMAND FOR WATER

Why demand rises

As populations grow, more people need water. Economic development can push demand up as well, so societies must either increase the water supply or use existing supplies more efficiently. Per-person demand may rise with piped sanitation, appliances, manufactured goods, energy production and changing diets.

Worked example: In a hypothetical community, population rises from 10,000 to 12,000 while per-person water demand rises from 100 L person−1 day−1100\ \text{L person}^{-1}\text{ day}^{-1} to 120 L person−1 day−1120\ \text{L person}^{-1}\text{ day}^{-1}. Calculate the change in total daily demand and distinguish the two drivers.

  1. Use the relationship:

    Total daily demand=population×per-person daily demand\text{Total daily demand} = \text{population} \times \text{per-person daily demand}

  2. Calculate initial demand:

    10,000 persons×100 L person−1 day−1=1,000,000 L day−110{,}000\ \text{persons} \times 100\ \text{L person}^{-1}\text{ day}^{-1} = 1{,}000{,}000\ \text{L day}^{-1}

  3. Isolate population growth by keeping per-person demand at its initial value:

    12,000 persons×100 L person−1 day−1=1,200,000 L day−112{,}000\ \text{persons} \times 100\ \text{L person}^{-1}\text{ day}^{-1} = 1{,}200{,}000\ \text{L day}^{-1}

    Population growth alone raises demand by 200,000 L day−1200{,}000\ \text{L day}^{-1}, or 20%20\%.

  4. Now include the higher per-person demand:

    12,000 persons×120 L person−1 day−1=1,440,000 L day−112{,}000\ \text{persons} \times 120\ \text{L person}^{-1}\text{ day}^{-1} = 1{,}440{,}000\ \text{L day}^{-1}

    At the larger population, increased per-person demand adds a further 240,000 L day−1240{,}000\ \text{L day}^{-1}.

  5. Calculate the overall percentage increase:

    1,440,000−1,000,0001,000,000×100%=44%\frac{1{,}440{,}000 - 1{,}000{,}000}{1{,}000{,}000} \times 100\% = 44\%

Answer

Answer: Total demand rises to 1,440,000 L day−11{,}440{,}000\ \text{L day}^{-1}, an increase of 440,000 L day−1440{,}000\ \text{L day}^{-1} or 44%44\%. Population and per-person demand each rise by 20%20\%, but their effects multiply rather than simply add.

People use water in three broad ways:

  • Domestic use: water for drinking, cooking, washing, cleaning and sanitation.
  • Agricultural use: water for irrigating crops and raising livestock, including the water needed to grow animal feed.
  • Industrial use: water used in processing, cooling, cleaning, mining, energy production and manufacturing.

Agriculture is often the main consumptive user, particularly in dry regions. Development can also shift water between sectors as growing cities and industries compete with irrigation and ecosystem needs.

Supply or efficiency?

ApproachWhat it involvesMethods
Increasing supplyObtaining more usable waterStorage, treatment, transfer or desalination
Increasing efficiencyProviding the same service or output with less waterRepairing urban leaks; applying irrigation directly to roots

Efficiency is often cheaper and causes less environmental disruption, although lower costs may encourage a large expansion in total use and cancel the savings.

Changes to the water cycle

Population growth and changes in land use affect the water cycle too. Urban surfaces reduce infiltration and groundwater recharge but increase rapid runoff. Groundwater abstraction lowers water tables, while vegetation removal alters interception and evapotranspiration. Reservoirs change river flow and evaporation. Even if annual rainfall stays similar, these changes can reduce water security.

Investigating local changes

For a useful local investigation, students could map paved surfaces, drains, streams, wells and vegetation, then compare current flows with earlier maps or records. They could share their findings with the school community through a map-based poster or digital campaign. The guiding question—how populations affect the water cycle and water security—then becomes observable rather than abstract.

4.2.4

INCREASING WATER SUPPLIES

Supply-side options

Water supply can be expanded by building dams, reservoirs, rainwater catchment systems or desalination plants. Enhancing natural wetlands is another option.

A dam is a barrier constructed across a watercourse to control or retain its flow. Water held behind it forms a reservoir, an artificial or enlarged storage body used to keep water for later. Dams can provide reliable supplies for domestic use and irrigation, regulate floods and generate hydroelectricity. However, they may displace communities, block the movement of sediment and fish, inundate habitats and lose water through evaporation.

A rainwater catchment system is an installation that collects and stores precipitation from a defined surface. Roof tanks are relatively cheap and decentralized. Their supply varies with rainfall, though, and the stored water may need treatment.

Worked example: Calculate the potential yield from a hypothetical 100 m2100\ \text{m}^2 roof receiving 20 mm20\ \text{mm} of rainfall, with a collection efficiency of 0.800.80.

  1. Convert rainfall depth to metres: 20 mm=20÷1000=0.020 m20\ \text{mm} = 20 \div 1000 = 0.020\ \text{m}.
  2. Multiply roof area by rainfall depth and collection efficiency: 100 m2×0.020 m×0.80=1.6 m3100\ \text{m}^2 \times 0.020\ \text{m} \times 0.80 = 1.6\ \text{m}^3.
  3. Convert to litres: 1.6×1000=1,600 L1.6 \times 1000 = 1{,}600\ \text{L}.
Answer

Answer: The potential yield is 1.6 m31.6\ \text{m}^3, or 1,600 L1{,}600\ \text{L}. Storage capacity and treatment requirements can further constrain usable yield.

Desalination is removal of salt and other minerals from water in order to obtain freshwater. For coastal settlements, it offers a supply that does not depend on rainfall. The process requires energy and produces concentrated waste.

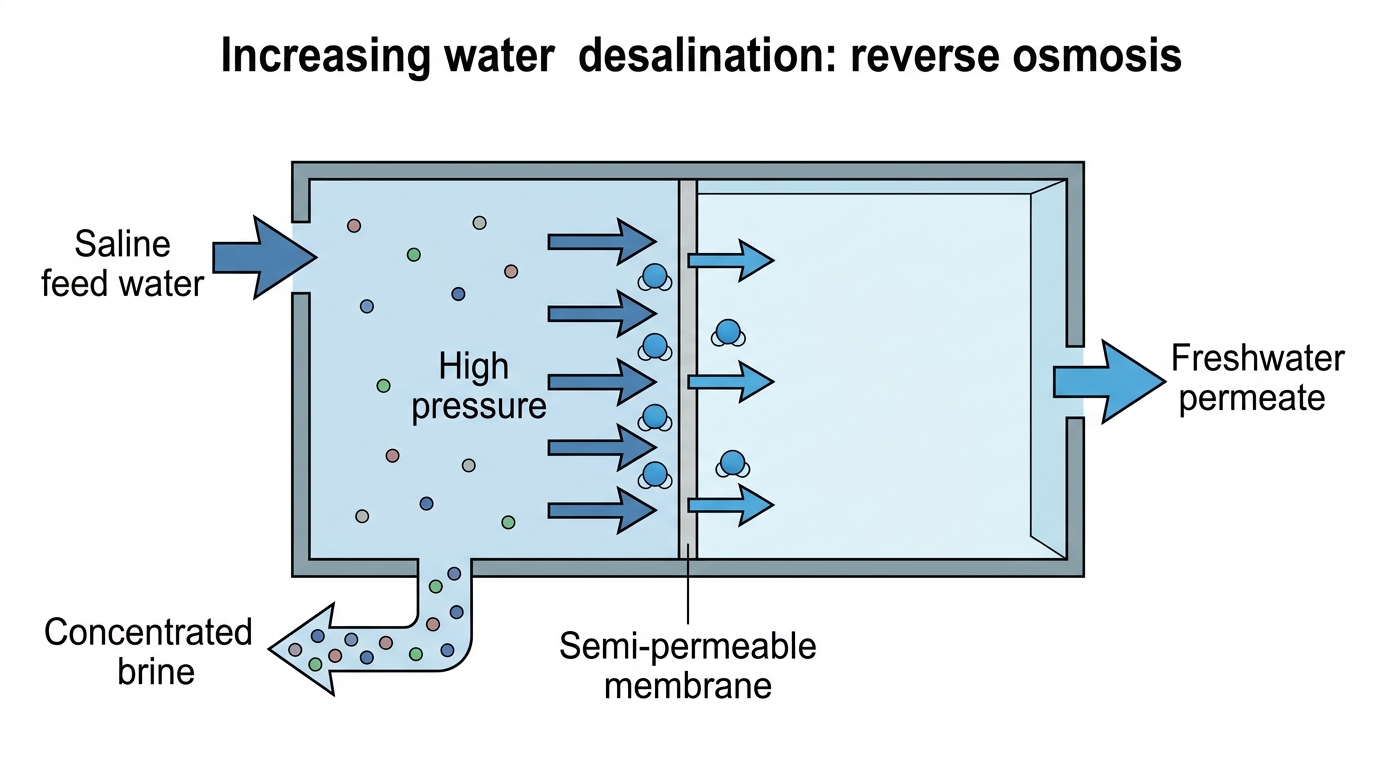

Reverse osmosis is a method of desalination using a semi-permeable membrane. Pressure pushes water through the membrane, leaving most dissolved salts on the feed-water side.

Wetland enhancement is active management that improves a wetland’s capacity to perform ecological functions. Reconnecting floodplains and restoring native vegetation can increase water storage and natural filtration, as can controlling pollution. These measures also support biodiversity. Wetlands are not limitless reservoirs: abstraction and drainage must stay below the rates that damage the ecosystem.

Example: Compare these applications by identifying where the water comes from, who benefits and what limits its use.

ApplicationWater sourceIntended user or beneficiaryContext-specific limitation
Lake Mead, behind Hoover DamStored Colorado River waterHouseholds and irrigators in the southwestern United StatesDrought reduces inflows.
Hypothetical household roof tankRainfall collected from the roofHousehold garden usersDry spells interrupt collection.
Singapore desalinationSeawater processed into freshwaterDomestic and industrial usersEnergy-intensive treatment adds costs.
River Quaggy floodplain restoration, Sutcliffe Park, LondonRiver floodwater temporarily stored on the floodplainDownstream residents benefiting from flood protectionFlood storage does not directly provide treated drinking water.

When evaluating supply projects, consider reliability, water quality, energy use and financial cost. Ecological effects, social displacement and who receives the water also matter. More engineering does not automatically produce more equitable water security.

4.2.5

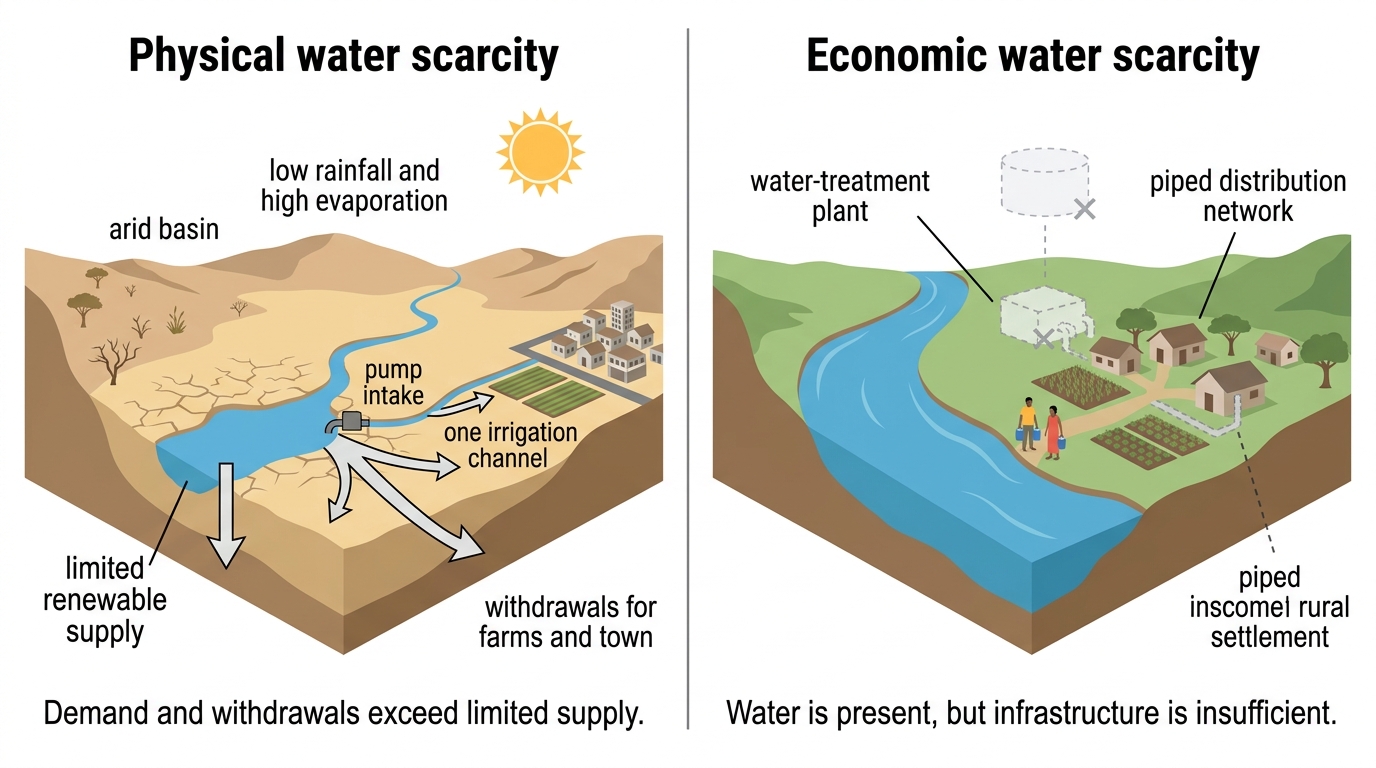

PHYSICAL AND ECONOMIC WATER SCARCITY

Two reasons for limited availability

Water scarcity refers to the limited availability of water to human societies. The issue is whether enough water is available for people to use—not whether it is clean, affordable or fairly distributed in every respect.

A genuine shortage of water is known as physical scarcity. By contrast, economic scarcity results from inadequate storage and transport systems.

Physical scarcity develops when renewable supplies are small compared with demand. It may result from low precipitation, prolonged drought, high evaporation or abstraction that exceeds recharge. Climate change can intensify the problem, as can irrigation and urban demand.

With economic scarcity, water exists, but investment, institutions or infrastructure are insufficient to capture, treat, store and deliver it. For example, a low-income rural community beside a seasonally abundant river may still experience economic scarcity if it has no treatment plant or distribution network.

Each form of scarcity requires a different response. Physical scarcity usually calls for reduced demand, allocation rules, reuse or carefully chosen additional sources. Economic scarcity is addressed especially through investment, maintenance, affordable services and effective governance. The two may also reinforce each other: limited infrastructure creates dependence on a few sources, while depleted sources make that infrastructure more expensive to operate.

4.2.6

DOMESTIC WATER CONSERVATION

Household techniques

Water conservation is the management of water use that reduces unnecessary withdrawal or loss. In the home, it can lower bills and delay expensive supply projects. It also leaves more water available for other users and ecosystems.

TechniqueHow it conserves waterBenefits or limitations
MeteringRecords how much water a household uses, allowing charges to reflect consumption.Gives people a financial reason to save water, though safeguards are needed so low-income households can still meet essential needs.
RationingRestricts the volume, timing or permitted purpose of water use.Can reduce demand quickly during a drought, but may be inconvenient and hard to enforce fairly.
Grey-water recyclingCollects relatively lightly contaminated wastewater from activities such as washing, then reuses it for non-drinking purposes.Separate plumbing and treatment prevent health risks and cross-contamination.
Low-flush toiletsRequire a smaller volume of water per flush.Reduce demand without changing the service people receive.
Rainwater harvestingCaptures precipitation from roofs or other surfaces and stores it.Water can be used for toilet flushing or gardens, but untreated water shouldn’t be assumed safe to drink.

Example: A household can collect shower and basin wastewater separately from toilet sewage, treat and store it, then reuse it for toilet flushing or irrigation. Drinking-water pipes remain separate, with backflow protection preventing reused water from entering the drinking-water supply. The recycled supply is labelled “not for drinking”.

These measures can be supported by:

  • Repairing leaks.
  • Using efficient appliances.
  • Shortening showers.
  • Avoiding unnecessary outdoor watering.

Conservation works best as a package. Technology cuts the amount used per activity, prices create an incentive, while regulation protects supplies during severe shortages.

Calculating household savings

Worked example: A four-person household uses 600 L day−1600\ \text{L day}^{-1}. Calculate its daily water use per person. Then calculate the daily volume and percentage saved by replacing 9 L9\ \text{L} flushes with 4.5 L4.5\ \text{L} flushes, assuming five flushes per person per day and no other changes in use.

  1. Divide household use by the number of people:
Use per person=600 L day−14 persons=150 L person−1 day−1\text{Use per person} = \frac{600\ \text{L day}^{-1}}{4\ \text{persons}} = 150\ \text{L person}^{-1}\text{ day}^{-1}
  1. Calculate the saving per flush:
Saving per flush=9−4.5=4.5 L flush−1\text{Saving per flush} = 9 - 4.5 = 4.5\ \text{L flush}^{-1}
  1. Multiply by the number of flushes made by the household each day:
Daily saving=4 persons×5 flushes person−1 day−1×4.5 L flush−1=90 L day−1\text{Daily saving} = 4\ \text{persons} \times 5\ \text{flushes person}^{-1}\text{ day}^{-1} \times 4.5\ \text{L flush}^{-1} = 90\ \text{L day}^{-1}
  1. Express the saving as a percentage of the original household total:
Percentage saving=90 L day−1600 L day−1×100=15%\text{Percentage saving} = \frac{90\ \text{L day}^{-1}}{600\ \text{L day}^{-1}} \times 100 = 15\%
Answer

Answer: Original water use is 150 L person−1 day−1150\ \text{L person}^{-1}\text{ day}^{-1}. Replacing the toilets saves 90 L day−190\ \text{L day}^{-1}, or 15%15\% of the household’s original water use.

Investigating household water use

For a simple weekend investigation, students can record each household activity and estimate or meter the volume of water used. They can then compare per-person totals among socio-economic groups or countries.

Any comparison should account for:

  • Household size.
  • Climate.
  • Income.
  • Access to appliances.

Otherwise, unlike households may be treated as equivalent. The evidence could support a school water-saving campaign, such as leak reporting or a commitment to reduce unnecessary tap use.

4.2.7

WATER CONSERVATION IN FOOD PRODUCTION SYSTEMS

Producing food with less water

Food producers can conserve water in several ways:

  • Cut evaporation and leakage.
  • Recycle water.
  • Choose suitable crops.
  • Change the type of food being produced.

Controlled and recirculating systems

Greenhouses can collect runoff from their roofs and reuse water that condenses from humid air. Because the environment is enclosed, irrigation can be controlled precisely. However, building and regulating a greenhouse requires materials and expertise, and may use substantial amounts of energy.

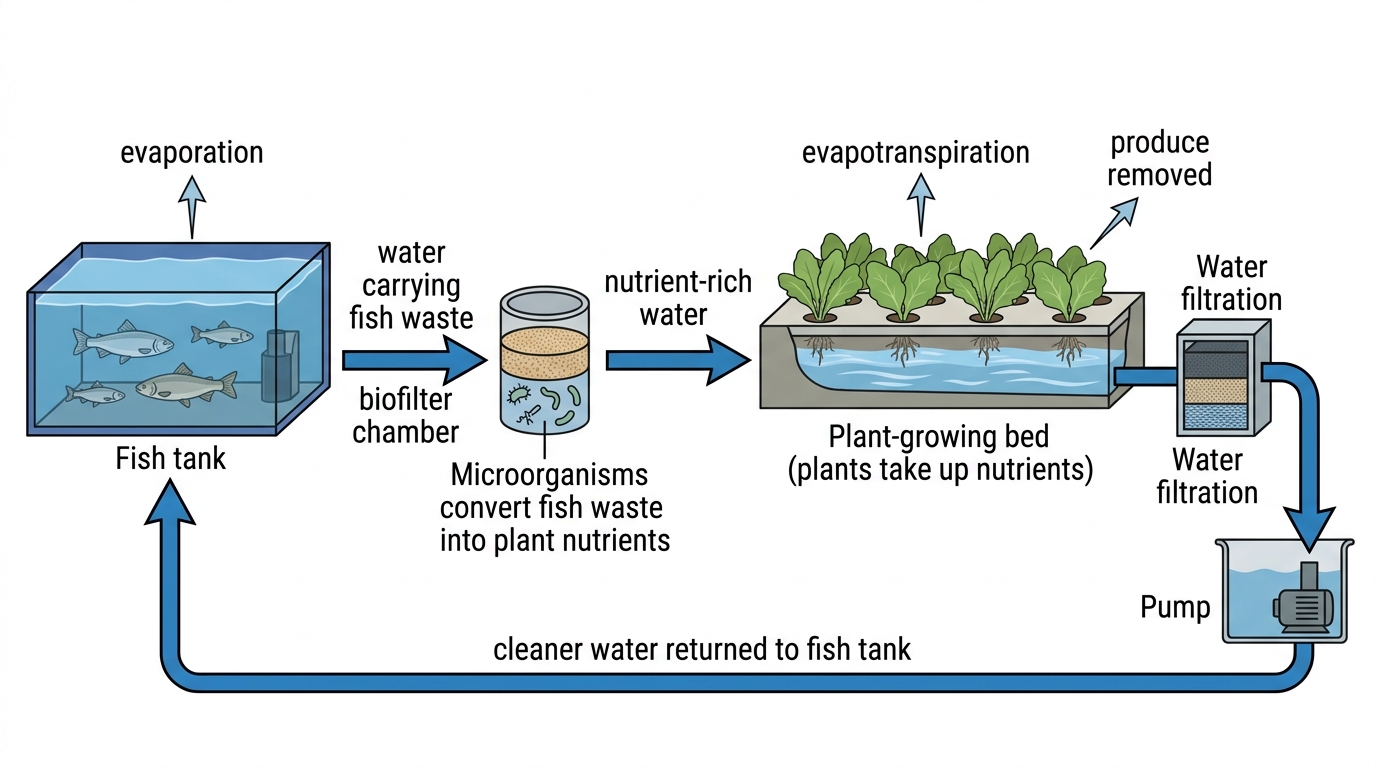

Aquaponics is a recirculating food-production system that combines aquatic animals with plants grown without soil. Microorganisms turn animal waste into nutrients that plants can absorb. Plant uptake and filtration then help clean the water before it flows back to the animal tanks. Most water loss occurs through evapotranspiration and the removal of produce. The system also needs close monitoring and energy to run its pumps.

Irrigation and crop choice

Drip irrigation is an irrigation system that delivers water slowly near individual plant roots. Compared with flooding a whole field, it reduces evaporation and runoff. Emitters may clog, while poor management can still waste water or cause salts to accumulate.

Drought-resistant crops have traits that let them produce useful yields when water availability is limited. Growing them can reduce irrigation demand, though their suitability also depends on nutrition, markets, soils and local culture.

Example: Sorghum is grown in the semi-arid Sahel, where rainfall is limited and unreliable. Deep rooting can help it access water below the drying surface soil, while leaf rolling during water stress can reduce water loss. These traits support useful yields in water-limited conditions, but choosing sorghum still requires attention to local soils, nutritional needs, markets and food culture.

Changing food production

A shift towards vegetarian food production can lower water demand because feeding crops to livestock introduces another trophic level. Water is needed to grow feed, maintain the animals and process the products. Savings vary greatly between crops, livestock systems and climates, so this isn’t an identical rule everywhere.

Each strategy brings trade-offs involving water, energy, land, capital, labour and food preferences. A strong judgement compares whole systems rather than praising a technology simply because it uses less water on site.

4.2.8

MITIGATION STRATEGIES FOR WATER SCARCITY

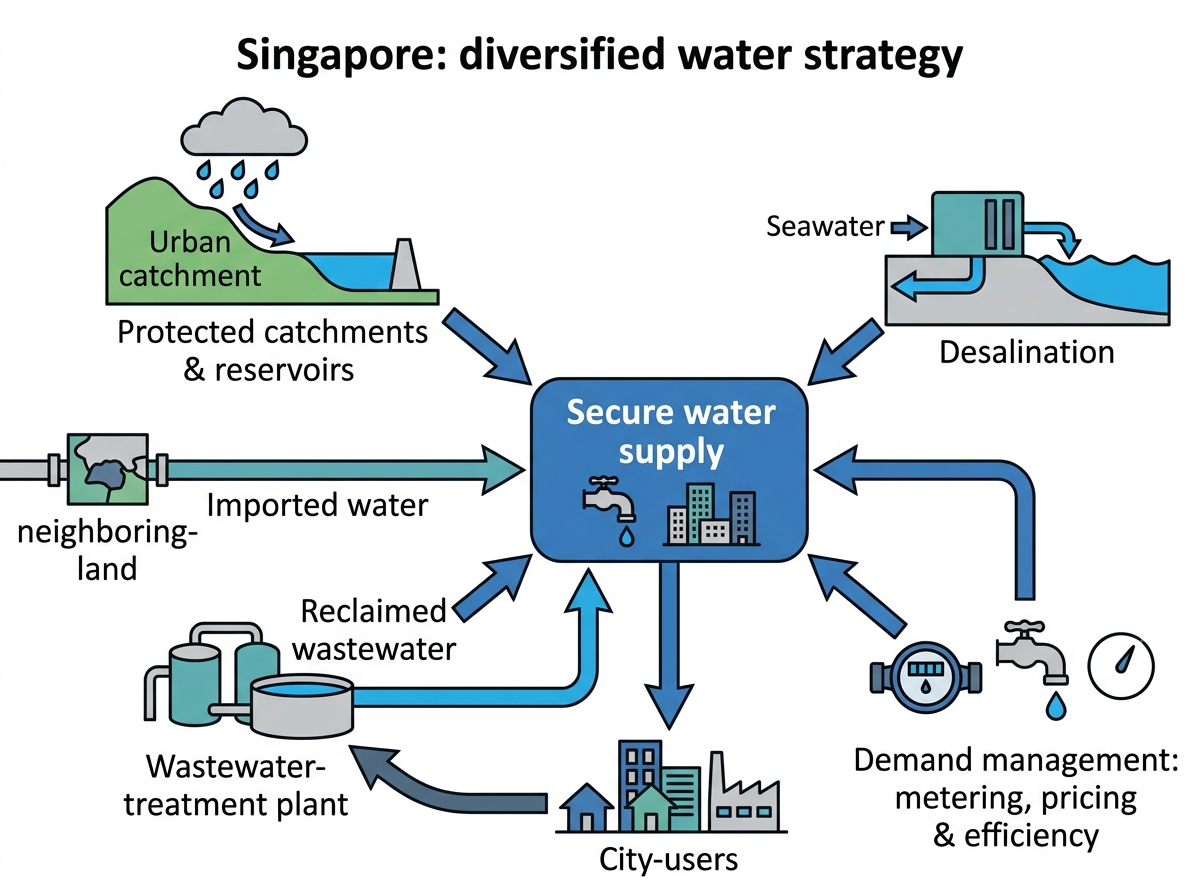

A national example: Singapore

Mitigation is action that reduces the severity or likelihood of a harmful impact. For water scarcity, mitigation may increase supply, cut demand, improve water quality or make current supplies more reliable.

Singapore has little land available for natural freshwater storage, while urban demand is high. To manage this, the country uses several strategies that support one another:

  • protected catchments and reservoirs collect rainfall within the city;
  • imported water adds another source, though it leaves Singapore exposed to external agreements;
  • highly treated wastewater is reused, especially to meet industrial demand, which reduces the need for newly abstracted freshwater;
  • desalination supplies water independently of rainfall, although the process is energy-intensive;
  • metering, water pricing, efficiency standards and public campaigns help restrain demand;
  • leakage control prevents treated water from being lost from the network before it reaches users.

Using a range of sources improves resilience: if one fails, the whole supply isn’t lost. However, advanced treatment and desalination carry high energy and financial costs. The system also depends on effective institutions and must manage concentrated waste and greenhouse-gas emissions.

The lesson isn’t that every country should adopt the same technologies. A named-country strategy needs to fit its climate, income, geography, technical capacity and demand patterns. In lower-income or rural societies, leak repair, watershed protection, rainwater storage and decentralized treatment may offer greater benefits than expensive desalination.

4.2.9

FRESHWATER USE AS A PLANETARY BOUNDARY

HL

A limit within the Earth system

A planetary boundary is a precautionary limit for human pressure on an Earth-system process beyond which the risk of large-scale, abrupt or irreversible change rises. Freshwater use qualifies as one because rivers, lakes, groundwater, soil moisture, atmospheric moisture and ecosystems all connect through the hydrological cycle.

As demand for limited freshwater grows, so does water stress. Excessive withdrawals can dry out wetlands, reduce river discharge and lower water tables. They may also alter vegetation and weaken moisture recycling between land and atmosphere. Feedbacks link these effects, so crossing a threshold can push a hydrological system into a new state that may be difficult or impossible to reverse.

Example: Diversion of rivers feeding the Aral Sea reduced inflows, shrinking the water body and increasing salinity, with ecological consequences including loss of freshwater habitats and fisheries. This illustrates regional hydrological disruption, not proof by itself of global boundary transgression.

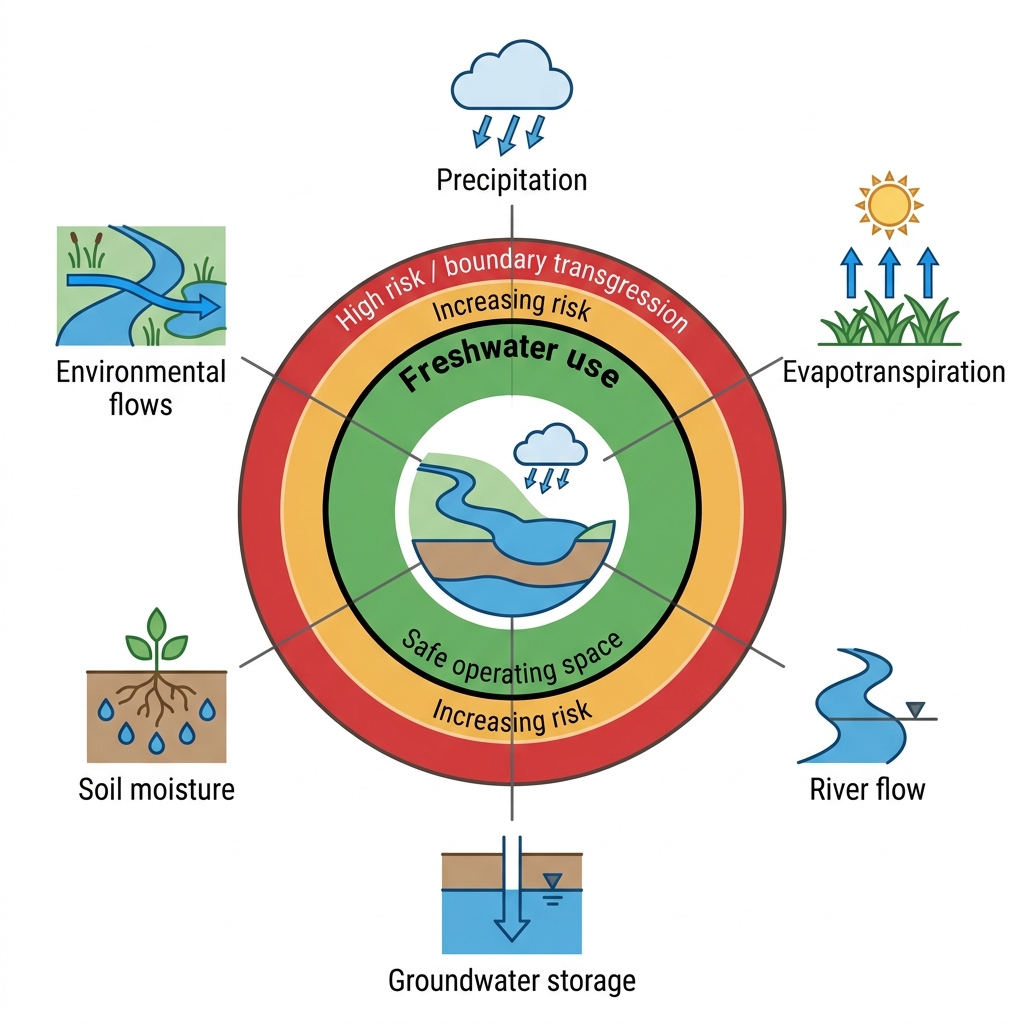

Measuring the boundary

One global total for water withdrawals doesn’t tell the whole story. An identical volume can have very different effects in a wet basin compared with a dry one. Damage may also occur during a particular season, well before the annual global total appears dangerous.

Blue water is water in rivers, lakes and aquifers. Green water is water held in soils. Contemporary freshwater-change boundary assessments use departures in streamflow and root-zone soil moisture from reference variability as control variables for blue and green water respectively. Withdrawal totals, storage measurements and environmental-flow allocations provide complementary evidence, not interchangeable measures of the boundary.

Monitoring therefore combines boundary-relevant observations with supporting basin-management indicators:

  • withdrawals and consumptive use relative to renewable supply;
  • river flows, lake levels and groundwater storage;
  • soil moisture in the root zone;
  • seasonal and geographical variation;
  • water retained as environmental flows;
  • changes in precipitation, evapotranspiration and terrestrial moisture recycling.

Researchers can combine satellite observations with river gauges, groundwater wells and hydrological models. Uncertainty remains, especially where monitoring is sparse or groundwater extraction goes unreported.

Avoiding boundary transgression

Possible mitigation measures include efficient irrigation, lower-leakage urban networks and wastewater reuse. Other approaches protect wetlands and catchments, limit abstraction, reduce water-intensive production, or use allocation rules that preserve environmental flows. Global totals still matter, but freshwater pressures vary greatly from place to place, so action must happen basin by basin. A global boundary therefore depends on many local hydrological realities.

ComparisonFreshwater planetary boundaryWater-stress screening threshold (4.2.14)
PurposePrecautionary limit addressing Earth-system riskScreens water availability relative to population in a country or region
MeasureDepartures in streamflow and root-zone soil moisture from reference variabilityAnnual renewable freshwater availability per person; below 1,700 m3 person−1 year−11{,}700\ \text{m}^3\ \text{person}^{-1}\ \text{year}^{-1} indicates water stress

Exam tip: Do not give 1,700 m3 person−1 year−11{,}700\ \text{m}^3\ \text{person}^{-1}\ \text{year}^{-1} as the planetary-boundary value. Distinguish a per-capita water-stress screening threshold from a global precautionary boundary concerned with Earth-system change.

4.2.10

LOCAL AND GLOBAL GOVERNANCE OF FRESHWATER USE

HL

Why governance is necessary

Governance is the system of institutions, rules and decision-making processes through which a resource is managed. Shared rivers and aquifers cannot be protected by markets and individual choices alone. When one user abstracts water or causes pollution, others may have less water available or face poorer water quality.

Local regulation

During Cape Town’s severe drought in South Africa, municipal authorities set per-person consumption targets and restricted activities such as garden watering. They also raised tariffs for heavy users and kept the public informed about reservoir levels. Demand fell quickly. Whether these measures were fair depended on recognizing that wealthy households could cut more discretionary use, whereas many low-income households already consumed very little.

Local rules can target particular uses and change quickly when conditions shift. Enforcement, though, may be uneven. Restrictions reduce demand; they cannot create rainfall. Long-term planning still needs leakage control, diverse sources and catchment protection.

International cooperation

Transboundary water is freshwater that crosses or forms an international border. Agreements between countries are needed because an upstream state can change the flow, timing, sediment or water quality experienced downstream.

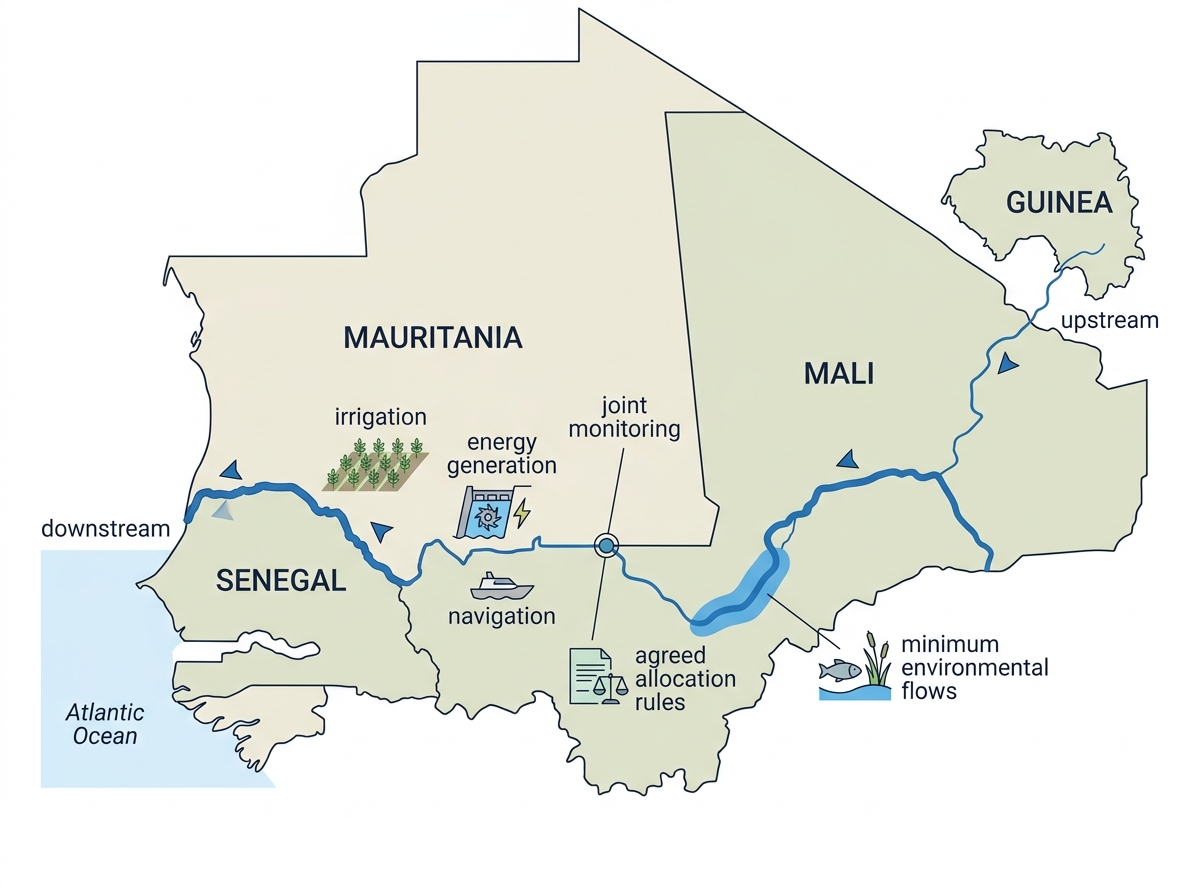

Guinea, Mali, Mauritania and Senegal share the Senegal River. Basin institutions help them coordinate dams, irrigation, navigation, energy generation and environmental protection. Joint monitoring, together with agreed operating rules, can distribute benefits and limit unilateral action. Negotiations are still influenced by unequal power, finance and national priorities.

Effective agreements set out allocation principles, minimum flows and arrangements for data sharing. They also cover pollution responsibilities, drought procedures and dispute resolution. Local and global governance work together: local rules control users, while international institutions coordinate connected water systems across borders.

4.2.11

WATER FOOTPRINTS AND DECISION-MAKING

HL

Measuring direct and indirect use

A water footprint is a measure of the use of water by individual humans or nations, or the amount needed to grow crops or livestock or manufacture textiles, steel or other products. It covers water drawn directly from a tap, as well as water used elsewhere to produce the goods and services people consume.

This indirect, or embedded, use matters because trade shifts water demand from one place to another. By importing water-intensive food or manufactured products, a country may reduce withdrawals within its own borders. The environmental pressure, however, moves to the country producing those goods.

Informing decisions

Water-footprint evidence can help:

  • households compare diets and purchasing choices;
  • farmers and manufacturers pinpoint water-intensive stages of production;
  • businesses assess how drought could affect their supply chains;
  • governments judge whether production or imports put unacceptable pressure on scarce basins;
  • societies compare consumption with renewable supplies and environmental-flow needs.

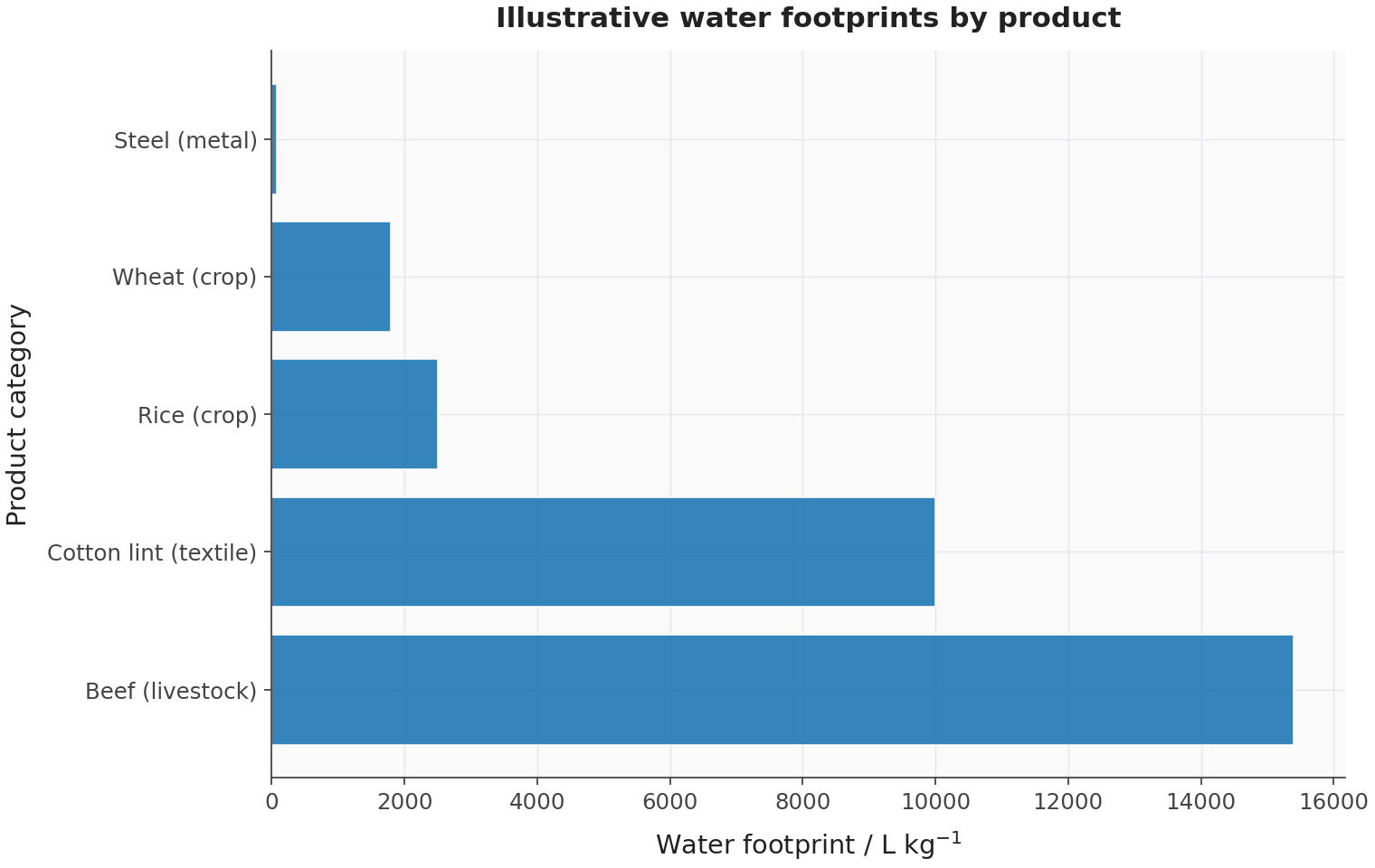

Worked example: Using the illustrative product estimates, compare the embedded footprints of 0.20 kg0.20\ \text{kg} of beef and 0.20 kg0.20\ \text{kg} of wheat.

  1. Beef, using 15,400 L kg−115{,}400\ \text{L kg}^{-1}:

    0.20 kg×15,400 L kg−1=3,080 L0.20\ \text{kg} \times 15{,}400\ \text{L kg}^{-1} = 3{,}080\ \text{L}

  2. Wheat, using 1,800 L kg−11{,}800\ \text{L kg}^{-1}:

    0.20 kg×1,800 L kg−1=360 L0.20\ \text{kg} \times 1{,}800\ \text{L kg}^{-1} = 360\ \text{L}

Answer

Answer: The illustrative footprints are 3,080 L3{,}080\ \text{L} for beef and 360 L360\ \text{L} for wheat. Wheat has the smaller footprint by mass, but equal masses are not nutritionally equivalent; basin location and season are needed before judging sustainability.

Checking source and scope

Treat the graph’s estimates as illustrative: check the original sources for each product’s production stages, location and method before assuming the estimates are comparable.

ComponentWhat it accounts for
Green waterRainfall stored in soil and consumed during production, principally through evapotranspiration.
Blue waterSurface water and groundwater consumed during production, rather than all water withdrawn.
Grey waterA calculated volume needed to dilute pollutants to a specified water-quality standard, not an actual withdrawal.

Check which components each estimate includes: these litres do not all represent equivalent withdrawals.

Interpreting the result

The measure still needs careful interpretation. National or product averages can hide differences in rainfall, irrigation efficiency, pollution and season. A large footprint in a wet basin may cause less damage than a smaller one in a dry basin during drought. On their own, footprints also don’t show who has access to water, or whether workers and ecosystems are protected.

For decision-making, footprint size should be considered alongside location, timing, water quality, scarcity and social equity. Used this way, it acts as an indicator of sustainable use—not a complete verdict.

4.2.12

CITIZEN SCIENCE IN WATER-RESOURCE MANAGEMENT

HL

What makes it citizen science?

Citizen science is also called community science or crowdsourced science. Common features of citizen science are that anyone can take part. All participants use the same protocol so that high-quality data can be combined and data is open access. Members of the public contribute observations, allowing results to be compared across different sites and times.

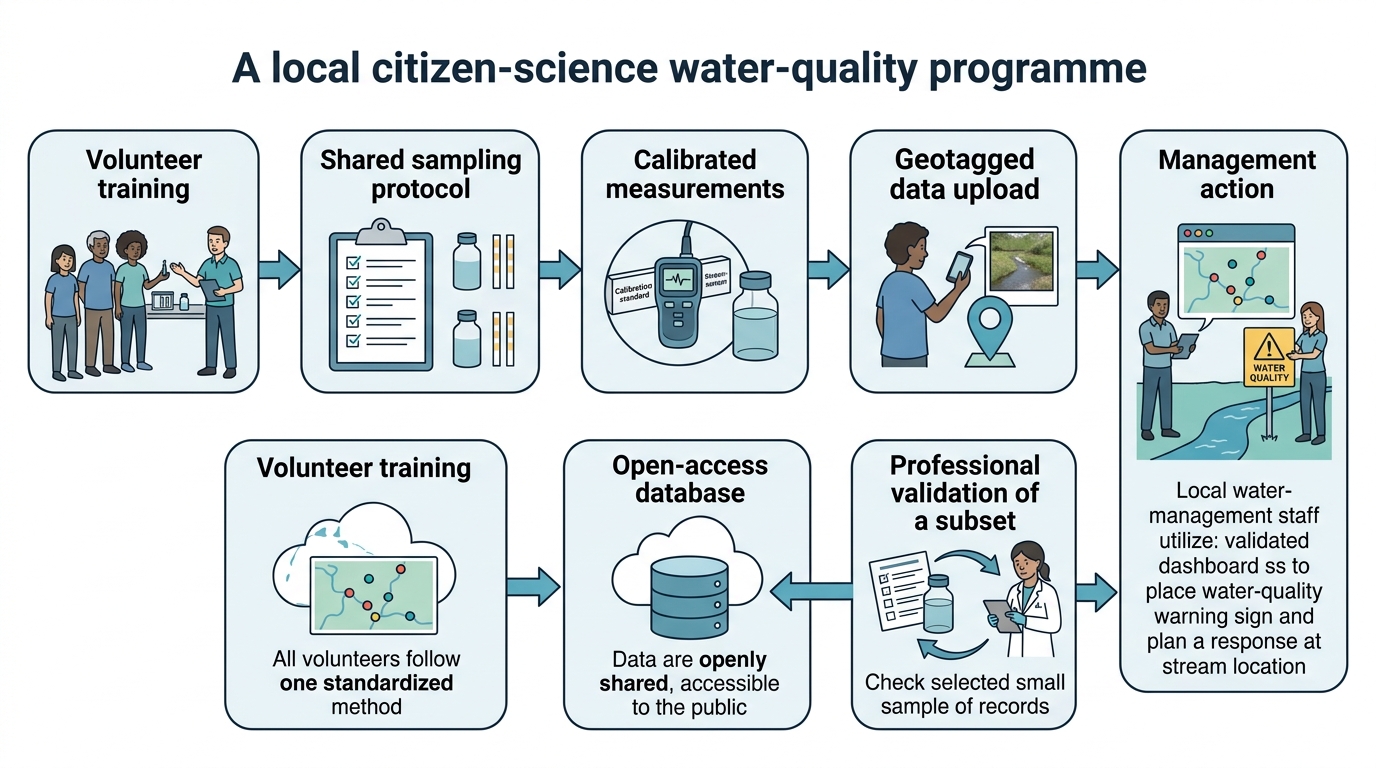

In local water monitoring projects, participants might measure stream depth, flow, turbidity or temperature. They may also record litter, visible algal growth and results from standardized chemical test kits. When these observations are repeated, they can reveal pollution events, seasonal shortages and sites that need professional investigation.

Metadata is information about how, when and where observations were collected. Recording it helps others judge whether measurements are comparable.

Example: In a hypothetical stream turbidity investigation, volunteers sample at two fixed, safely accessible sites, one upstream and one downstream of a built-up area. They collect water from 10 cm10\ \text{cm} below the surface every Saturday at 09:00, without disturbing the stream bed. All volunteers follow the same protocol, use the same model of turbidity meter and calibrate it against the manufacturer's specified standards before each sampling session. They take three repeat readings per site and record each result in nephelometric turbidity units (NTU). Metadata includes the site, date, time, sampling depth, calibration record and rainfall during the previous 24 h24\ \text{h}, obtained from the same local weather station. If downstream turbidity repeatedly exceeds upstream turbidity, the project flags the pattern to the water-management authority for professional investigation. This pattern does not prove a particular pollutant source: runoff, tributary inputs or disturbed sediment could also explain it.

Benefits

Citizen science offers broad geographical coverage and frequent sampling at relatively low cost. Because they know the area, local participants may spot changes quickly and contribute detailed place-based knowledge. Taking part can also strengthen their sense of stewardship. Open data helps make agencies more accountable and can support community management decisions.

Limitations

Measurement faults and gaps in participation can weaken the dataset. Quality control should address each limitation directly.

LimitationQuality-control response
Inconsistent training leads to different sampling methods.Train participants using one shared protocol and check their technique before independent sampling.
Uncalibrated equipment produces unreliable measurements.Use identical equipment and calibration standards; keep a calibration record.
Transcription errors occur when results are entered.Use clear recording forms, check entries against original readings and flag implausible values for review.
Inaccessible sites and sampling near participants’ homes create site bias.Plan coverage in advance, record gaps and arrange safe alternative sites or professional sampling where needed.
Volunteer dropout makes long-term records uneven.Recruit backup volunteers, maintain a sampling rota and document missed visits.

Some hazards and laboratory analyses need trained professionals, while publishing open location data may create privacy or ecological risks.

Crowdsourced water-quality data can be accurate if the question and protocol are suitable. A robust project uses simple indicators and records clear metadata alongside repeat samples and photographs where useful. Professional checks on a subset of observations help assess data quality.

Citizen science can screen many locations and pick out patterns, but it shouldn’t automatically replace regulatory monitoring. The strongest approach pairs broad community coverage with professional quality assurance—and requires authorities to respond to the findings.

4.2.13

UNDERSTANDING WATER STRESS

HL

Broader than scarcity

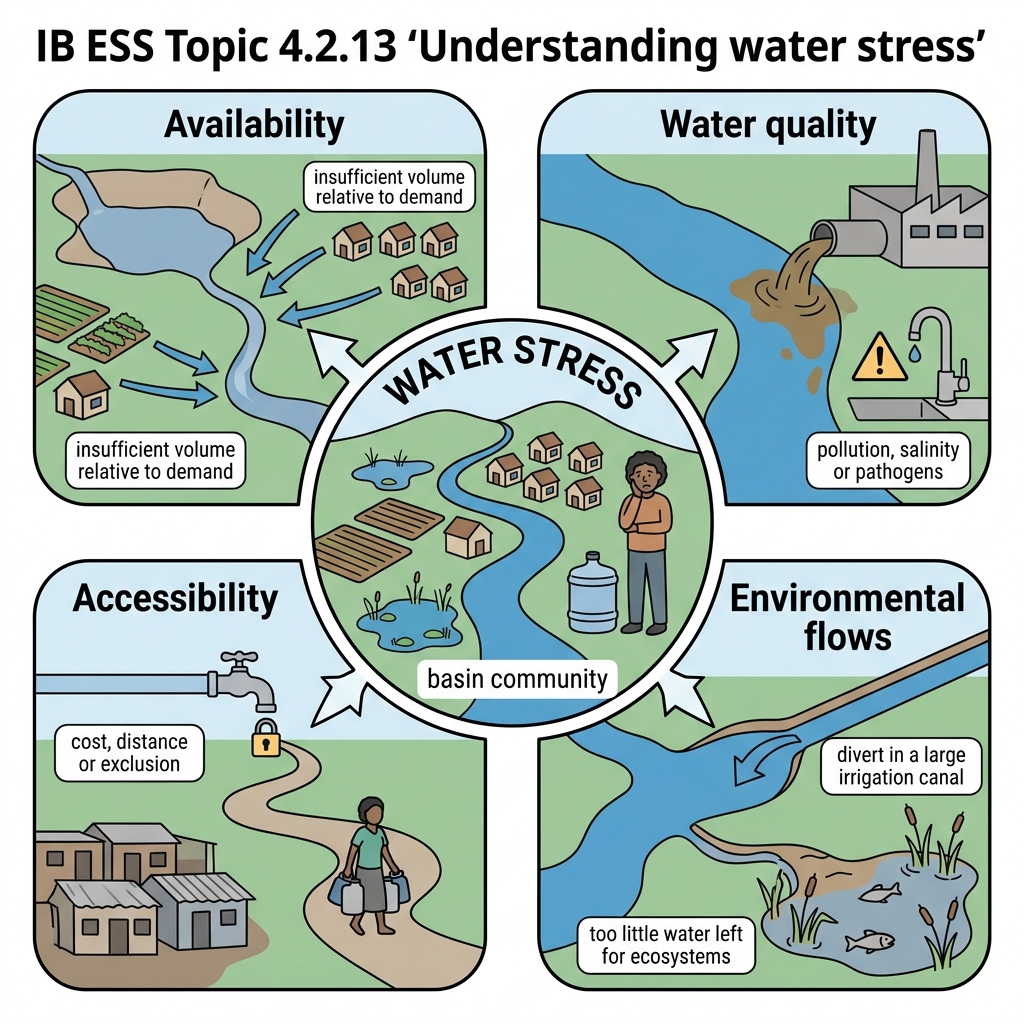

“Water stress” like “water scarcity” is another measure of the limitation of water supply; it not only takes into account the scarcity of availability but also the water quality, environmental flows and accessibility. Water stress therefore covers more than physical availability alone.

It has four dimensions:

  • Availability: whether the volume of water can meet demand.
  • Quality: whether pollution, salinity or pathogens make the water unsafe or unsuitable.
  • Environmental flows: whether sufficient water remains in rivers and wetlands to support ecological processes.
  • Accessibility: whether infrastructure, cost, distance, institutions or discrimination stop people from obtaining water.

A region may have ample supplies and face no water scarcity, yet still experience water stress because water quality is low. Likewise, plentiful clean water can remain inaccessible when communities cannot afford connections or distribution systems exclude them.

Water stress may differ across a single basin and change throughout the year. Annual national averages can hide dry seasons, polluted urban reaches, falling groundwater beneath irrigated farms or insecure access in informal settlements. Assessments should therefore draw on evidence at an appropriate spatial and temporal scale.

4.2.14

THE WATER-STRESS THRESHOLD

HL

Quantifying the condition

Water stress is defined as a clean, accessible water supply of less than 1,700 cubic metres per year per capita. Per capita means per person, so this indicator compares the usable annual supply with the size of the population.

Worked example: A hypothetical country has an annual clean, accessible water supply of 3.0×109 m3 year−13.0 \times 10^9\ \text{m}^3\ \text{year}^{-1} and a population of 2.0×1062.0 \times 10^6 people. Calculate its annual per-capita supply and classify it using the water-stress threshold.

  1. Divide annual supply by population:
Annual per-capita supply=Annual clean, accessible supplyPopulation\text{Annual per-capita supply} = \frac{\text{Annual clean, accessible supply}}{\text{Population}}
  1. Substitute the values:
Annual per-capita supply=3.0×109 m3 year−12.0×106 people=1,500 m3 person−1 year−1\text{Annual per-capita supply} = \frac{3.0 \times 10^9\ \text{m}^3\ \text{year}^{-1}}{2.0 \times 10^6\ \text{people}} = 1{,}500\ \text{m}^3\ \text{person}^{-1}\ \text{year}^{-1}
  1. Compare with the threshold:
1,500 m3 person−1 year−1<1,700 m3 person−1 year−11{,}500\ \text{m}^3\ \text{person}^{-1}\ \text{year}^{-1} < 1{,}700\ \text{m}^3\ \text{person}^{-1}\ \text{year}^{-1}
Answer

Answer: The annual supply is 1,500 m3 person−1 year−11{,}500\ \text{m}^3\ \text{person}^{-1}\ \text{year}^{-1}, so the country is water-stressed under this indicator.

Common mistake: Do not confuse annual national water supply per person with daily household consumption. The threshold compares annual clean, accessible supply divided by population, not the volume a household uses each day.

This threshold helps with screening and comparison, but it only gives an annual average. It may hide:

  • Seasonal drought.
  • Unequal household access.
  • Localized pollution.
  • Water reserved for ecosystem functioning.

The quality of the data matters too, particularly where groundwater abstraction and informal supplies aren’t recorded accurately.

Example: Jordan

Jordan is below the threshold. An arid climate covers much of the country, bringing low and variable precipitation alongside high evaporation. As a result, renewable supplies are limited. Demand has risen with population growth and the arrival of displaced people. At the same time, irrigated agriculture and expanding towns compete for the same sources.

Example: Jordan’s Ministry of Water and Irrigation, in its National Water Strategy 2023–2040, reports renewable water availability of 61 m3 person−1 year−161\ \text{m}^3\ \text{person}^{-1}\ \text{year}^{-1} in 2021. This measure concerns renewable water resources—naturally replenished surface water and groundwater—per resident, rather than water delivered to households. It is far below 1,700 m3 person−1 year−11{,}700\ \text{m}^3\ \text{person}^{-1}\ \text{year}^{-1}. This reported case statistic is distinct from the hypothetical calculation above; renewable resource availability is also not an exact measure of how much clean water people can access.

When groundwater abstraction exceeds natural recharge, water tables fall and salinity can worsen. Shared surface waters require cross-border coordination. Accessibility is also limited by the cost of pumping, treatment and distribution. Because household supply is intermittent, storage capacity and income affect how securely different groups can obtain water.

The threshold should therefore be the starting point for analysis, not the end. Jordan’s low per-person supply comes from the combined effects of physical climate, demographic change, abstraction, infrastructure and regional politics.

4.2.15

SOCIO-ECONOMIC CONTEXTS OF WATER STRESS

HL

The same symptom can have different causes

Why water stress increases often depends on the socio-economic setting. Income levels shape infrastructure and the technical options available. Political priorities, meanwhile, decide whether water goes to households, food production, industry or ecosystems.

Perspective 1: industrialization in an emerging economy

Mechanism

Governments in emerging economies may encourage factories, mining, power generation and urban expansion to generate employment and export income. Indonesia shows the tension clearly. Industrial and urban growth increases water withdrawals and wastewater production around major cities and manufacturing areas. If treatment and enforcement fail to keep pace, rivers may contain abundant water yet still create stress because the water quality is poor.

Example: Indonesia's Citarum basin illustrates these pressures: textile effluent and domestic wastewater both degrade river quality. The World Bank Water and Sanitation Program's 2013 assessment, Downstream Impacts of Water Pollution in the Upper Citarum River, West Java, Indonesia, attributed about 64% of the organic pollution load to domestic and municipal sources. This dated pollution-load indicator shows why industrial discharge controls alone would be insufficient: household sanitation and wastewater treatment also matter. It describes the assessed conditions, not necessarily water quality today.

Stakeholder perspectives

Additional industrial water supports jobs from a development perspective. For downstream households and ecosystems, however, pollution and competing abstraction shift costs onto less powerful users. A government pursuing employment and export income may therefore judge water allocation differently from a household that needs safe water downstream.

Perspective 2: population pressure in a low-income country

Mechanism

Rapid population growth in Niger raises domestic demand and the need for water for food production in a largely dry environment. Rural livelihoods rely heavily on rainfall, wells and irrigated land. At the same time, limited public finance restricts storage, treatment and distribution. Water stress therefore reflects both physical constraints and limited capacity to make water reliably accessible.

Stakeholder perspectives

Over-abstraction can lower local groundwater levels, but limiting pumping without alternatives may put food security and income at risk. Households may focus on immediate survival even when long-term recharge is inadequate. Restrictions that protect future supplies can impose immediate costs on farmers unless alternative supplies or livelihood support are available.

Comparing the contexts

Both settings may experience degraded water quality and a falling supply per person, though the main causes differ. Industrializing economies may have access to capital but prioritize economic output and struggle to control pollution. Low-income countries may instead face severe climatic constraints and rapid demographic growth, alongside insufficient infrastructure or administrative capacity.

AspectIndonesia: industrial and urban growthNiger: population pressure in a dry environment
DriverGrowing industrial withdrawals and wastewater production, alongside urban demandGrowing domestic demand and water requirements for food production
Physical constraintPoor river quality can reduce usable supplies even where water is abundantLimited rainfall and groundwater recharge constrain reliable supplies
Infrastructure/governance constraintTreatment and pollution enforcement may lag behind industrial and urban growthLimited public finance restricts storage, treatment, distribution and administrative capacity
Affected stakeholdersIndustrial workers and businesses benefit from development; downstream households and ecosystems bear pollution and abstraction costsHouseholds and farmers need immediate supplies; future users face risks from groundwater depletion
Suitable responseEnforceable discharge permits, cleaner production, reuse and allocation rules, alongside domestic wastewater treatmentAffordable rural supply, efficient irrigation, groundwater monitoring, livelihood support, and family health and education services

Policy needs to match the diagnosis rather than assume that every country in an income category faces the same problem. In both contexts, decisions should account for environmental flows and the needs of marginalized groups.

Testing the explanation with secondary data

A sound investigation combines:

  • Population records and sectoral withdrawals to examine changes in demand.
  • Groundwater levels and rainfall to assess supply pressures.
  • River quality and industrial output to investigate pollution pressures.
  • Maps of infrastructure to identify differences in access and treatment provision.

Check dates, definitions and scale, compare independent sources, and separate correlation from causation. This moves the explanation beyond simply claiming that “population” or “industry” causes stress by showing the mechanism and the socio-economic perspective behind it.

4.2.16

TRANSBOUNDARY DISPUTES OVER WATER RESOURCES

HL

Shared water, competing claims

Transboundary water sources cross or straddle political boundaries, including rivers, lakes and aquifers shared between regions or countries. A transboundary dispute occurs when users across these boundaries disagree over access, allocation or control of the shared water.

Upstream abstraction can reduce the water reaching downstream users. Reservoir filling can temporarily reduce downstream flows, while dam operation can change their seasonal timing. Disputes can therefore increase water stress by making supplies less reliable for households, irrigation and ecosystems. Political boundaries divide authority, but do not divide the hydrological system.

This chain shows how upstream storage decisions can increase downstream water stress.

The Nile: Ethiopia, Sudan and Egypt

Example: Ethiopia began constructing the Grand Ethiopian Renaissance Dam (GERD) on the Blue Nile in 2011 to generate hydroelectricity. Egypt, downstream, depends heavily on Nile water for agriculture and domestic supplies. The dispute centres particularly on reservoir filling and dam operation during drought, when retaining water upstream could reduce downstream availability.

Historical agreements shape the competing claims. A 1959 agreement between Egypt and Sudan allocated Nile water between those two countries; Ethiopia was not a party. Egypt treats established access as essential to national water security, whereas Ethiopia challenges arrangements that excluded it and emphasizes its right to use the river for development.

CountryMain interest and concern
EthiopiaHydroelectricity supports development; restrictions on the dam are viewed as constraints on using its water resources.
EgyptReliable downstream flows support irrigation and drinking-water supplies; reduced flows during drought could intensify water stress.
SudanMore regulated flows could benefit water management, but dam safety and coordination of releases remain concerns.

The conflict is therefore not simply caused by low rainfall. It also reflects unequal dependence on the river, upstream control over flow timing and disagreement over historical entitlements. These factors can turn a shared physical resource into a source of political insecurity.

Common mistake: Hydroelectric generation does not itself consume all the water passing through a dam: most continues downstream. Explain the effects of reservoir filling, evaporation and release timing rather than claiming that the GERD permanently stops the Nile.

Exam tip: For a named dispute, connect the historical or political context to a specific mechanism of water stress. Naming countries without explaining how upstream decisions affect downstream supplies is not enough.

4.2.17

ADDRESSING WATER STRESS AT AN INDUSTRIAL LEVEL

HL

Matching technology to the cause

Industrial-scale strategies address water stress by storing, redistributing or treating water, or by obtaining freshwater from additional sources. Their suitability depends on climate, location, energy supply and the capacity to operate and maintain infrastructure.

These sketches distinguish evaporation-driven solar distillation from direct condensation in dew harvesting.

StrategyHow it addresses water stressMain constraint
DamsImpound rivers to store wet-season flows for use during dry periods.Require suitable sites; evaporation reduces stored supplies.
Water transferMoves water from a relatively water-rich area to a deficit area through canals or aqueducts.Depends on a reliable donor supply and allocation agreements.
Pipelines or tankersTransport water to settlements, including during emergencies.Pumping or repeated deliveries can be costly.
Estuary storage with barragesBarriers across estuaries retain river water before it mixes with seawater.Salinity must be controlled to maintain freshwater quality.
Rainmaking or cloud seedingIntroduces particles into suitable clouds to encourage precipitation.Requires suitable clouds; additional rainfall is not guaranteed.
DesalinationRemoves salt and other minerals from water to obtain freshwater.Requires energy and specialist infrastructure.
Solar distillationUses solar energy to evaporate water, then condenses the vapour, leaving salts behind.Output depends on sunlight and collection area.
Dew harvestingCollects water that condenses on surfaces cooled below the air’s dew point.Yield depends on humidity and surface temperature.
Water treatment plantsRemove contaminants through processes such as filtration and disinfection, making water usable.Treatment must match the contaminants present.

Storing water underground

Aquifer storage and recovery (ASR) stores water in an aquifer for later withdrawal. Surplus water is injected into an aquifer, then stored groundwater is pumped out when demand rises.

Artificial recharge of aquifers (AR) deliberately increases groundwater recharge through infiltration basins or injection wells. Infiltration basins allow water to seep into an aquifer.

ApproachMain purpose
ARReplenishes groundwater.
ASRSpecifically includes planned recovery of stored water.

Both require suitable geology and water-quality controls.

These routes distinguish aquifer recharge from planned storage and recovery.

Example: In a hypothetical seasonal ASR system, a water utility injects treated surplus water into an aquifer during a wet period, stores it underground and pumps it out during peak demand. By contrast, infiltration basins could be used primarily to replenish an overdrawn aquifer, without planned recovery of that stored water. Before either scheme proceeds, the utility checks whether the geology permits infiltration or injection and storage, and whether source-water quality is suitable to avoid contaminating groundwater.

Investigating causes using secondary data

Secondary data are data already collected by others. An investigation should explain why a particular society experiences water stress before selecting an engineering response.

  • Compare rainfall and river-flow records with population trends, sectoral withdrawals and groundwater levels.
  • Examine water-quality results and infrastructure records to distinguish insufficient water from unsafe or inaccessible supplies.
  • Use government, water-utility and research sources; check dates, units, geographical scale and missing records, and compare independent sources.

Example: In Yemen, aridity limits renewable supplies, while conflict has damaged water infrastructure. Comparing rainfall records with utility service reports helps distinguish climatic shortages from disrupted access; population and abstraction data can test whether rising demand adds pressure.

Exam tip: Link each proposed strategy to an evidenced cause. A treatment plant can improve water quality, but it cannot by itself replace water lost through declining rainfall or excessive abstraction.

4.2.18

ENVIRONMENTAL IMPACTS OF INDUSTRIAL FRESHWATER PRODUCTION

HL

Environmental costs of freshwater production

Industrial freshwater production can improve water security, but it also creates environmental costs. Energy use, waste discharges and abstraction affect ecosystems beyond the production site. These impacts can be minimized through technology and management, but not usually eliminated.

Impacts and ways to reduce them

Brine is water containing a high concentration of dissolved salts. Desalination produces concentrated brine because salts removed from the freshwater remain in the waste stream.

Source of impactPotential environmental effectsHow impacts can be minimized
Concentrated brine dischargeRaises salinity near the outlet, causing osmotic stress to marine organisms. Treatment chemicals in the discharge may also harm aquatic life.Use diffusers and carefully locate outlets to improve mixing; reduce harmful chemical residues before discharge. Dilution disperses the salt rather than removing it.
Noise from pumps, turbines and constructionDisturbs nearby wildlife and communities; underwater noise can interfere with marine animals’ communication and behaviour.Install acoustic enclosures, maintain machinery and locate equipment away from sensitive habitats.
Air pollution associated with energy productionNitrogen oxides and sulfur dioxide from fossil-fuel combustion can contribute to acid deposition and damage vegetation; particulate pollution reduces air quality.Use cleaner energy sources and appropriate exhaust-emission controls.
Combustion of fossil fuels for energyReleases carbon dioxide, strengthening the greenhouse effect and contributing to climate change. Desalination requires energy for pressurizing or heating water.Improve energy efficiency, recover energy within the plant and replace fossil-fuel energy with renewable sources.

Effects on aquifers

Saline intrusion is the movement of saline water into a freshwater aquifer. Excessive pumping from a coastal aquifer lowers freshwater levels and can allow seawater to move inland. Saline intrusion reduces groundwater quality and can damage soils when saline groundwater is used for irrigation. Limiting abstraction and maintaining recharge reduce the risk, but restoring an already salinized aquifer can be difficult.

This chain shows how coastal groundwater pumping can reduce freshwater quality.

Example: In the United Arab Emirates (UAE), desalination supports freshwater supply in an arid environment. Where plants use fossil-fuel energy, freshwater production causes carbon dioxide emissions and other air pollution. Cleaner electricity can reduce these impacts, but it does not eliminate the concentrated brine discharge.

Exam tip: Link each source to a specific environmental effect, then explain how a measure reduces it. Avoid claiming that renewable energy makes desalination impact-free: energy-related emissions may fall while brine disposal and other local impacts remain.

4.2.19

INEQUITABLE ACCESS TO DRINKABLE WATER AND SANITATION

HL

Unequal access and human well-being

Equitable access means fair access to resources and services according to people’s needs. Sanitation involves the safe management of human excreta, including toilets and sewage disposal or treatment. Access is inequitable when some groups face disproportionate barriers to obtaining safe drinking water and adequate sanitation.

A marginalized group is a population with limited access to resources, opportunities and decision-making power. Discrimination, low incomes or insecure legal status can leave these groups underserved even where water infrastructure exists nearby. National averages can therefore conceal serious inequalities within a society.

From inadequate services to development losses

Inadequate sanitation allows faecal material to contaminate water. Drinking contaminated water increases exposure to pathogens, which can cause diarrhoeal disease. Too little water for handwashing makes infection prevention harder. Repeated diarrhoea can contribute to dehydration and undernutrition, particularly in children.

This pathway shows how inadequate sanitation can create health risks.

Water-related illness can increase absence from school and work. These absences reduce learning and earnings, while healthcare costs place additional pressure on household budgets. Time spent collecting water or waiting for toilets also reduces time available for education and paid employment. These effects undermine sustainable development: meeting present needs without compromising future generations’ ability to meet theirs. Poor health and lost income can reinforce poverty, making improved services even harder to obtain.

Rohingya refugees in Bangladesh

Example: Rohingya refugees living in camps at Cox’s Bazar, Bangladesh, are a marginalized group displaced following discrimination and persecution in Myanmar. Most households receive less than 15 L person−1 day−115\ \text{L person}^{-1}\text{ day}^{-1} of treated water, compared with the WASH recommendation of at least 20 L person−1 day−120\ \text{L person}^{-1}\text{ day}^{-1}. WASH means water, sanitation and hygiene. The 2021 Joint Assessment Mission report found that almost 60% of refugees reported inadequate access to sanitation because of waiting times, cleanliness, distance and overcrowding. These figures demonstrate unmet needs for both treated water and usable sanitation facilities, rather than simply a shortage of water in the wider region.

Exam tip: Name the marginalized group and its location, give statistical evidence, and explain the mechanism linking unequal access to health and development. A statistic about toilet access supports an argument about sanitation barriers; it does not, by itself, establish how many people became ill.

Were those notes helpful?

4.1 Water systems

4.3 Aquatic food production systems
