8.2 Urban systems and urban planning

Practice exam-style IB ESS questions for Urban systems and urban planning, aligned with the syllabus and grouped by topic.

Verified by Veronica
Verified by Veronica
Paper
Difficulty
Status
Level

This content can't be printed from the browser. Use Export PDF with Pro for an offline copy.

Question 1
SL • Paper 2
Easy
Calculator Permitted
SL • Paper 2
Easy
Calculator Permitted

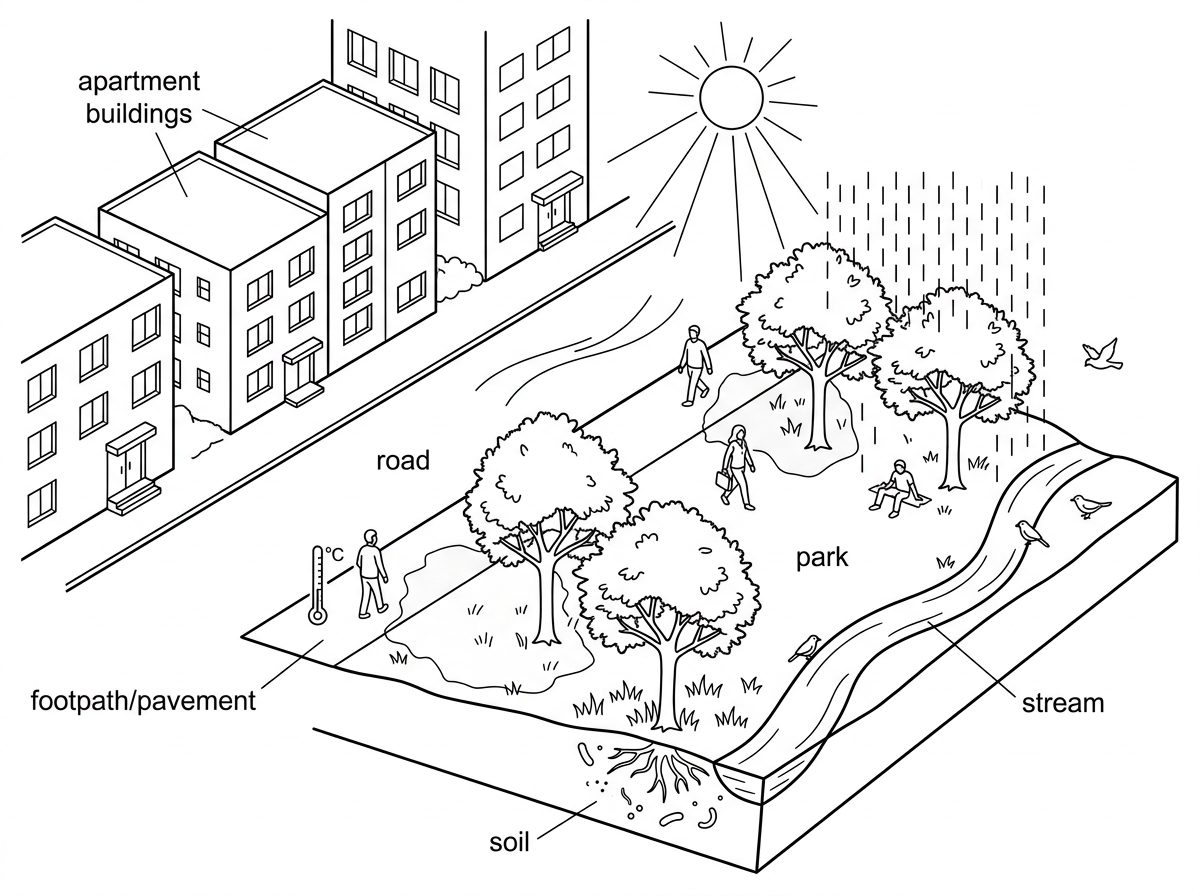

Figure 1 shows part of an urban area containing apartment buildings, a park and a waterway.

A

one biotic component and one abiotic component shown in Figure 1.

[2]
B

one interaction between biotic and abiotic components shown in Figure 1.

[1]
Question 2
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

In 2005, a country had an urban population of 2.4 million and a rural population of 1.6 million. In 2025, its urban population was 4.8 million and its rural population was 1.2 million.

A

the percentage of the country's population living in urban areas in 2005.

[1]
B

the change in the urban percentage between 2005 and 2025.

[2]
Question 3
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

A farming household moves from a rural district to a city after several years of drought and falling crop income. The city advertises technical-college places and higher-paid employment. Ten years later, one household member moves from the city to a small rural settlement because remote working is available and urban housing is expensive.

A

one push factor and one pull factor affecting the household's move to the city.

[2]
B

the term for the household member's later movement away from the city.

[1]
C

between voluntary and forced migration.

[1]
Question 4
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

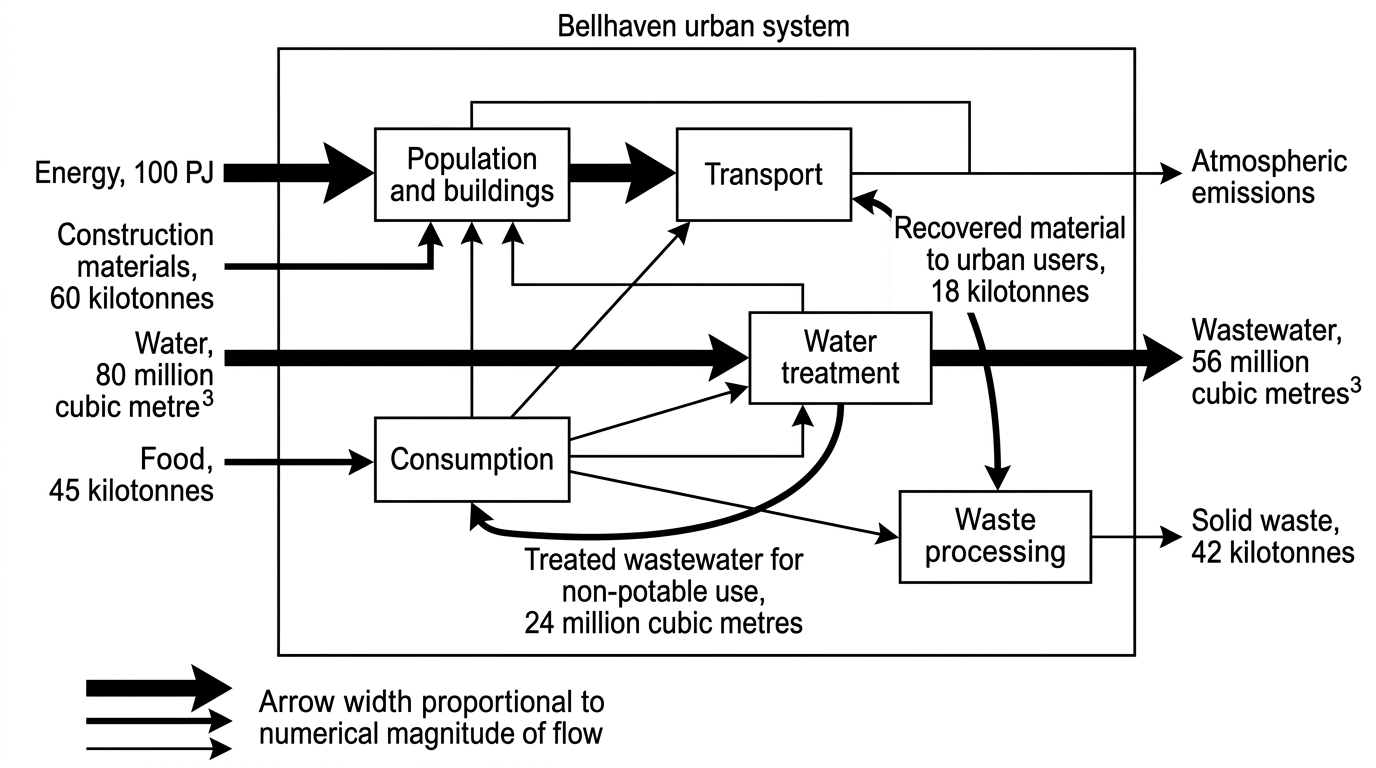

Figure 1 represents selected annual flows through the urban system of Bellhaven. Arrow widths are proportional to the size of each flow.

A

the largest external input by numerical magnitude.

[1]
B

the recycled-water flow as a percentage of the external water input.

[2]
C

how the two feedback loops shown may increase the sustainability of Bellhaven.

[3]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 5
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

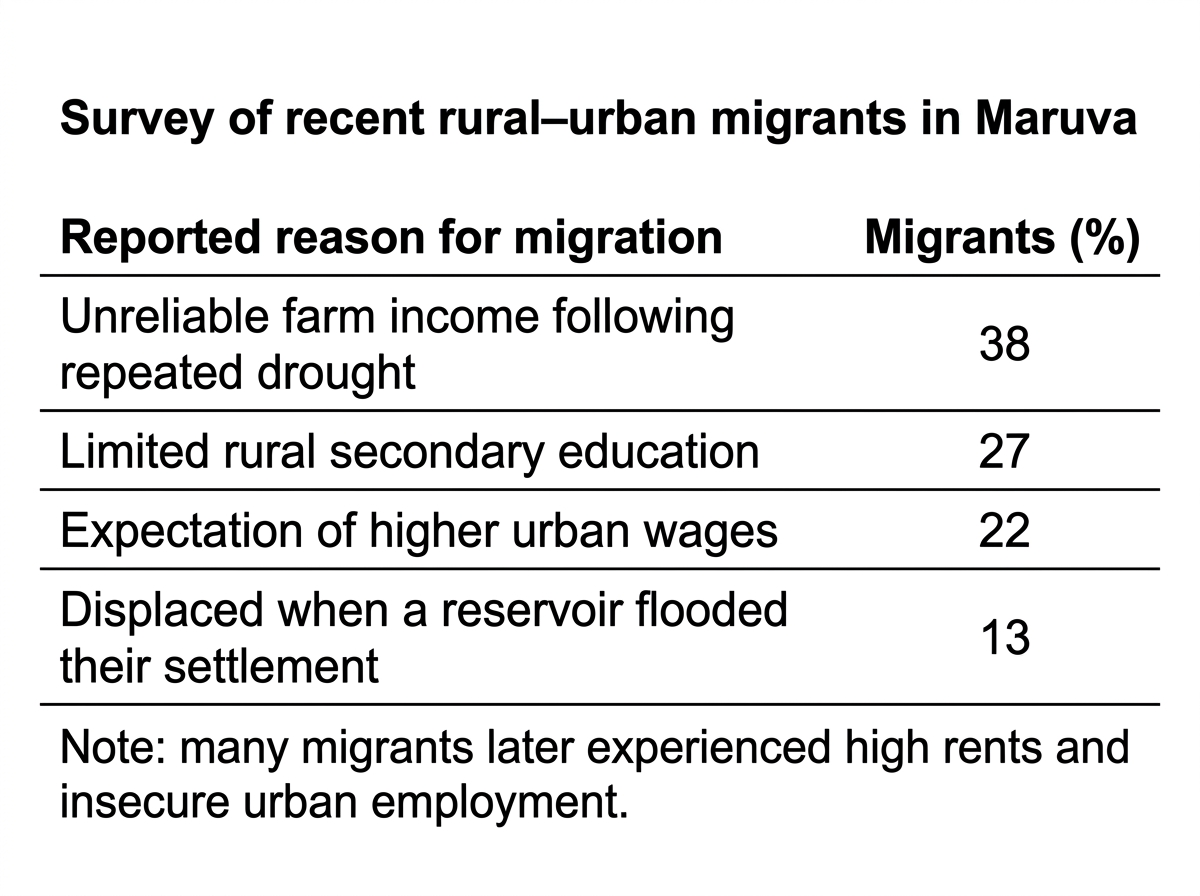

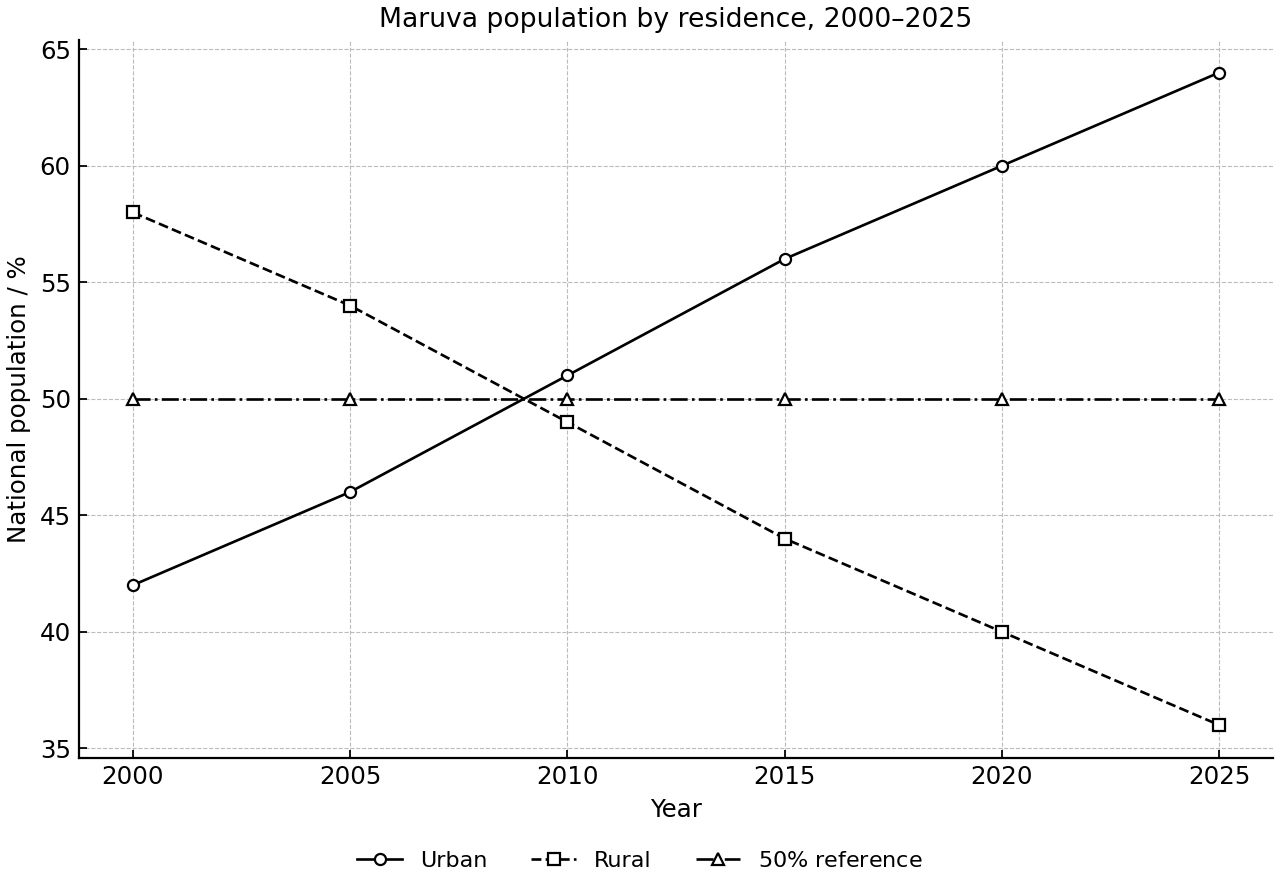

Figures 2(a) and 2(b) show population change and selected reasons for migration in the country of Maruva.

A

the change in the proportion of Maruva's population living in urban areas between 2000 and 2025.

[1]
B

two features of the population trends shown in Figure 2(a).

[2]
C

the migration reasons in Figure 2(b) using the concepts of push factors, pull factors and forced migration.

[3]
Question 6
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

A

a systems flow diagram for an urban system. Include one input, two storages, one output and one recycling feedback flow.

[4]
Question 7
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

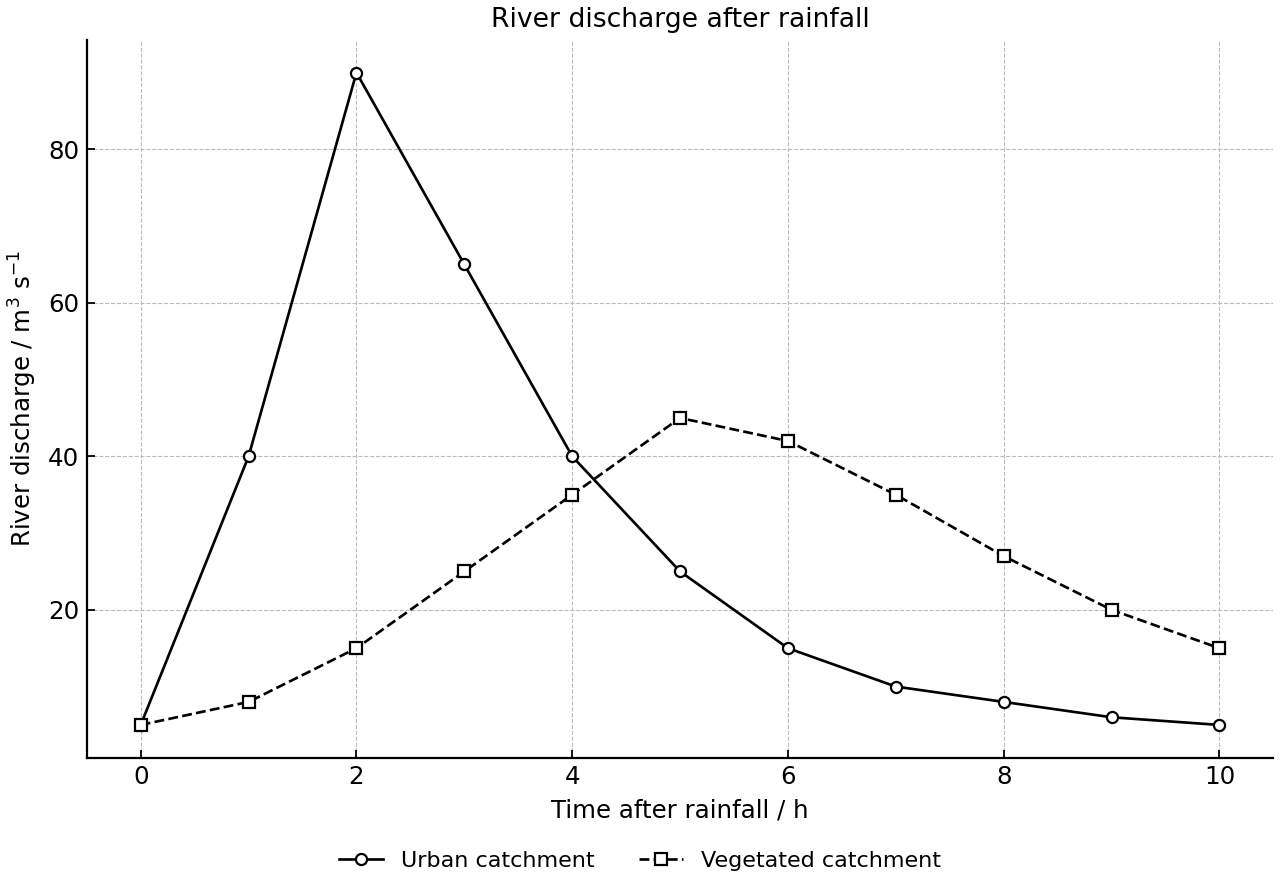

Figure 2 compares river discharge following the same rainfall event in an urban catchment and a vegetated catchment.

A

the difference in time between the peak discharges of the two catchments.

[1]
B

why the urban catchment has an earlier and higher peak discharge.

[3]
Question 8
SL • Paper 1
Medium
Calculator Permitted
SL • Paper 1
Medium
Calculator Permitted

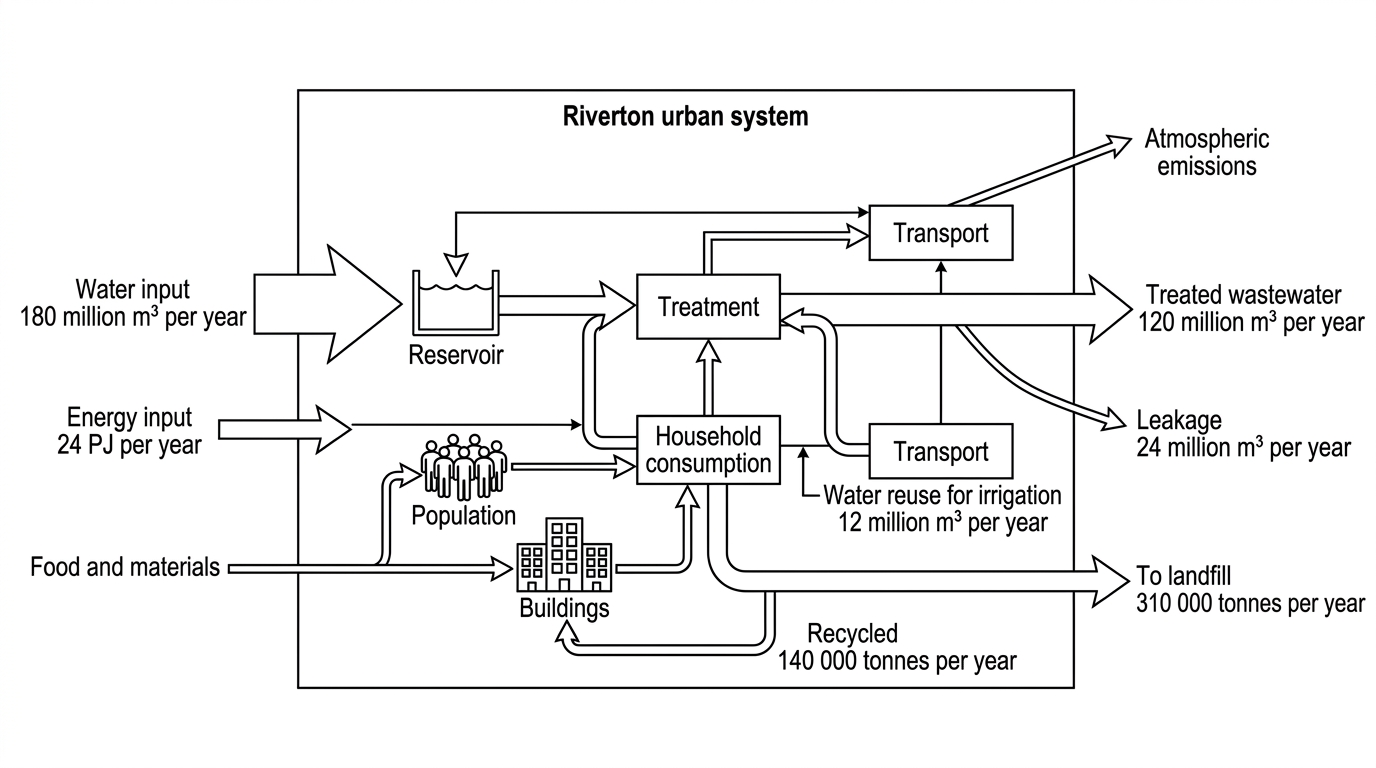

The city of Riverton has a population of 600 000. Figure 1 shows selected annual flows through its urban water, energy and waste systems. Arrow widths are proportional to flow magnitude.

A

the percentage of Riverton's water input that leaves the urban system as treated wastewater.

[2]
B

one storage and one process shown within the urban-system boundary.

[2]
C

two characteristics that show Riverton is an open system.

[2]
D

how reducing leakage and increasing water reuse could improve urban efficiency.

[3]
E

whether Riverton should prioritize water reuse rather than solid-waste recycling to improve its sustainability.

[3]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 9
SL • Paper 1
Medium
Calculator Permitted
SL • Paper 1
Medium
Calculator Permitted

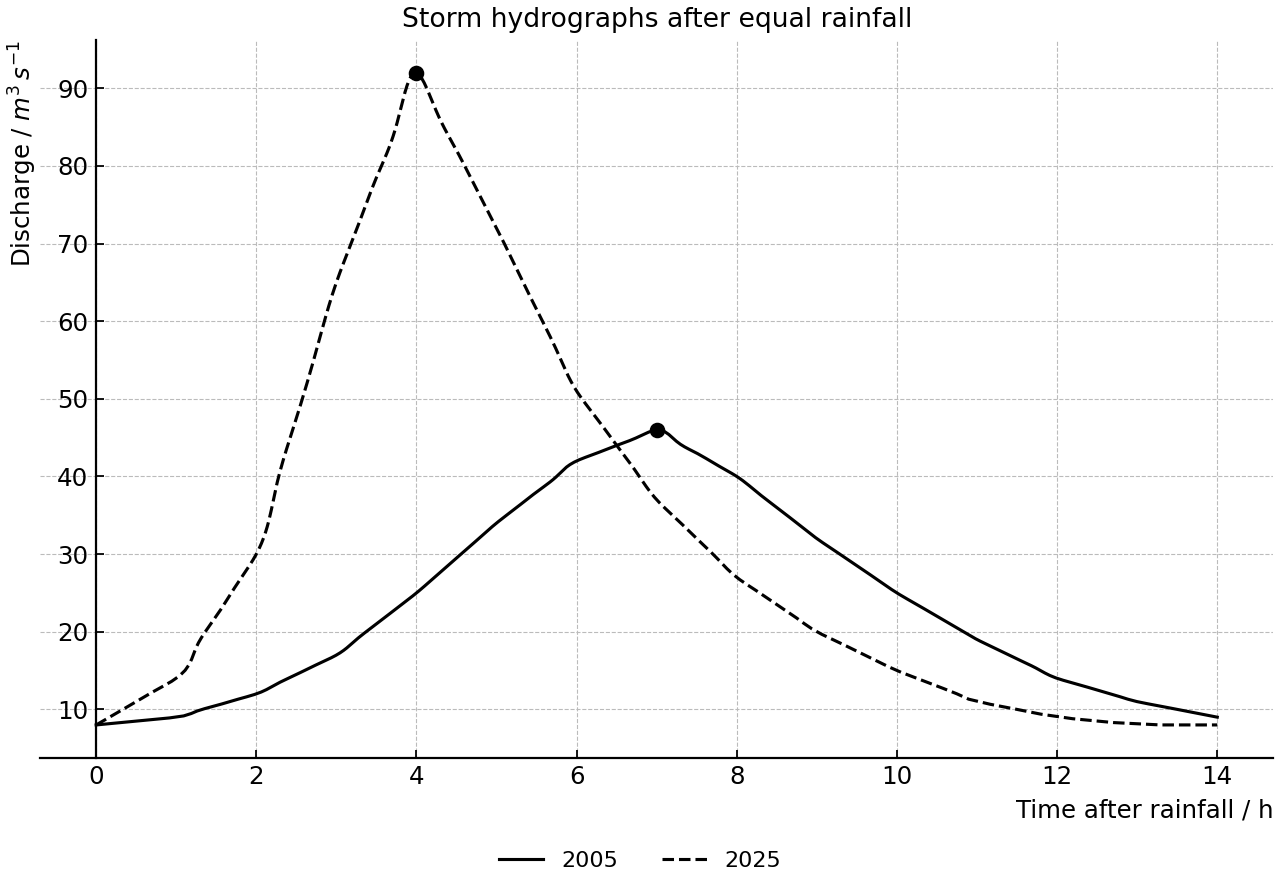

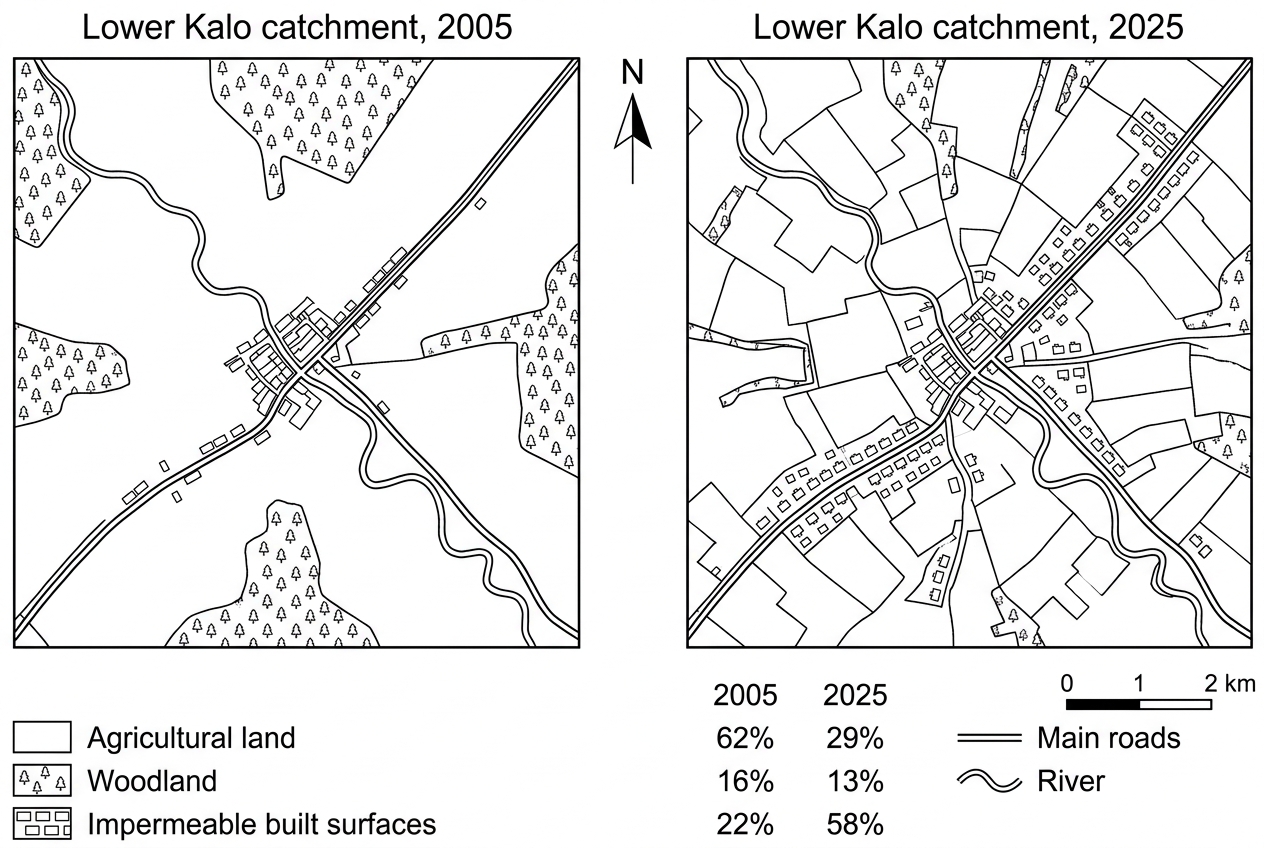

Between 2005 and 2025, low-density housing expanded across the Lower Kalo catchment. Figures 2(a) and 2(b) show land-use and river-flow changes following a storm of the same rainfall intensity and duration.

A

the percentage decrease in agricultural land between 2005 and 2025.

[2]
B

Compare the storm hydrographs for 2005 and 2025.

[3]
C

how the land-use change shown could have produced the change in river flow.

[3]
D

two environmental impacts, other than altered river discharge, associated with the pattern of suburbanization shown.

[2]
E

the use of a boundary restricting further development beyond the existing built-up area.

[3]
Question 10
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

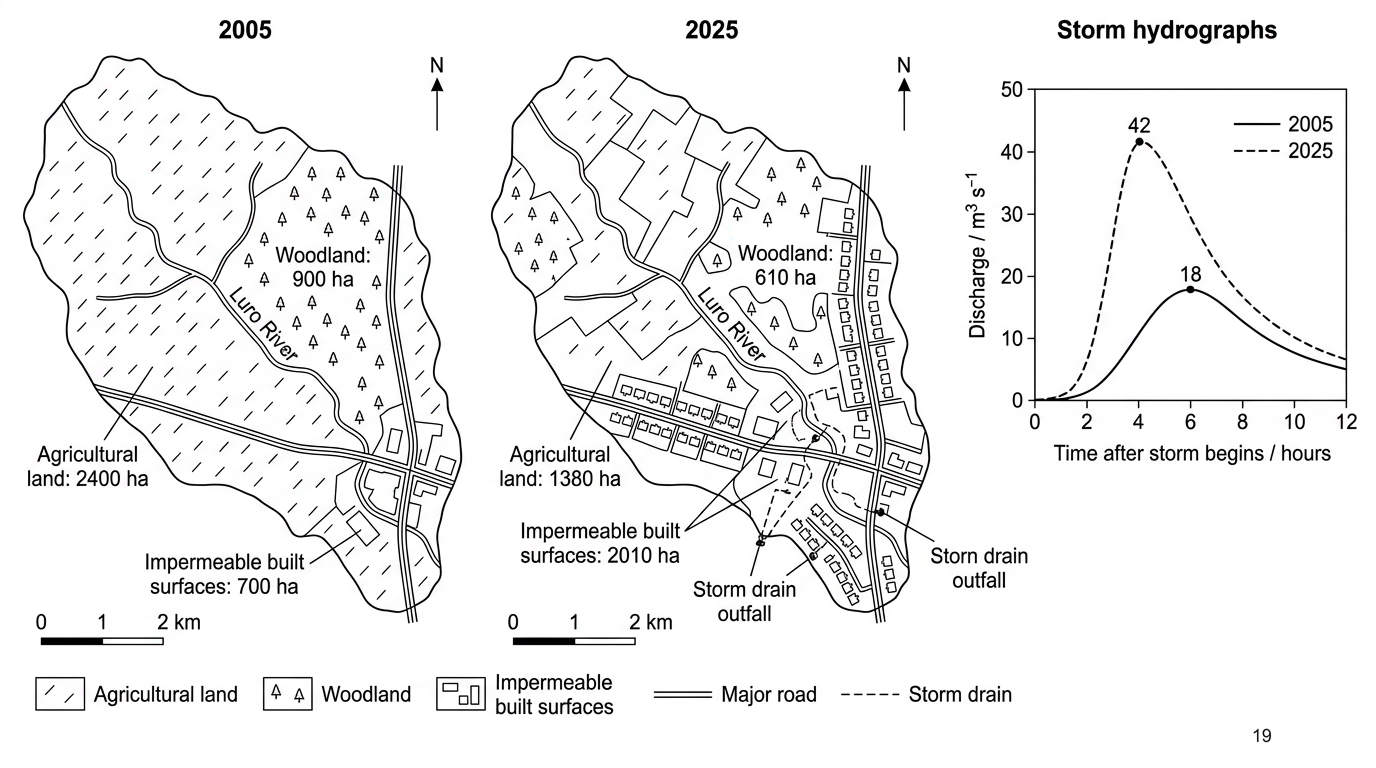

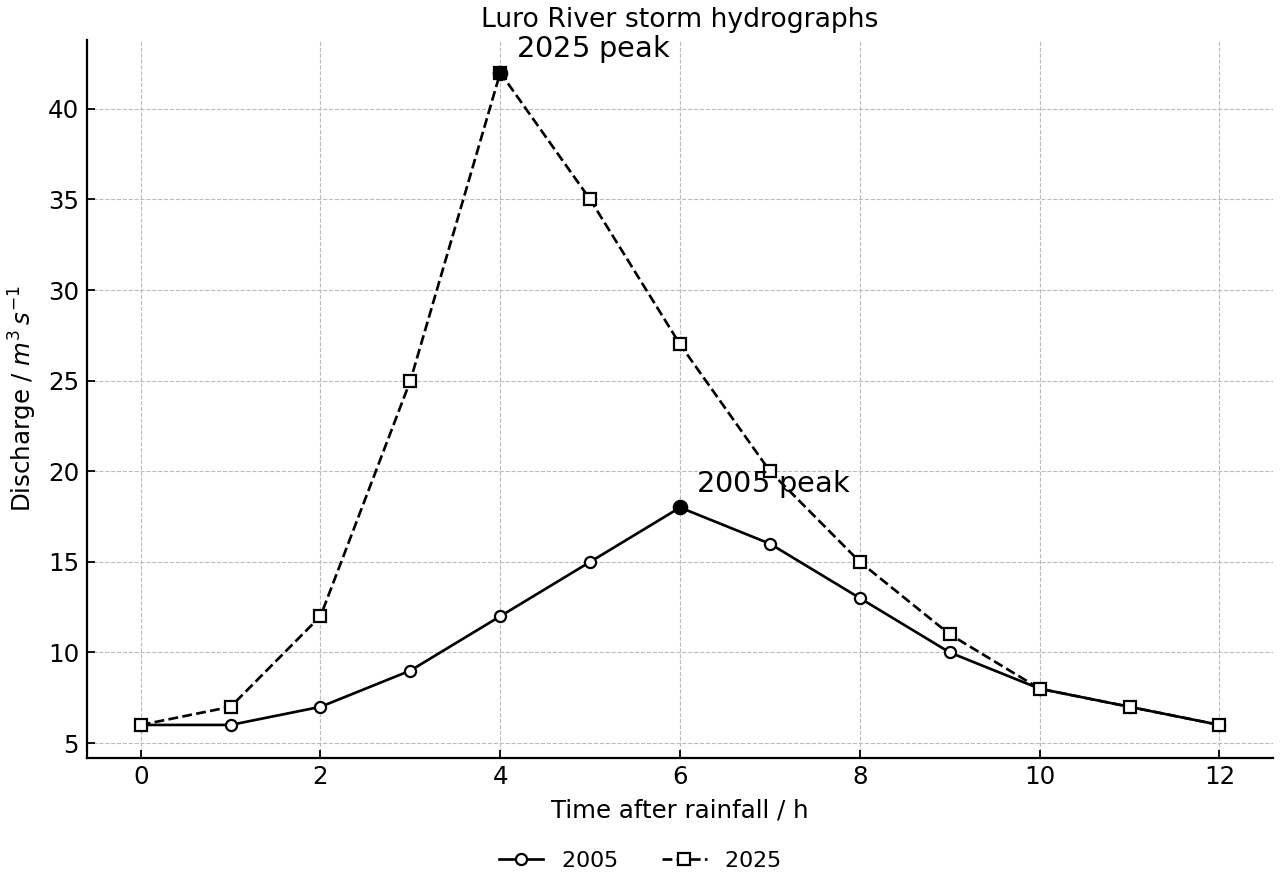

Figures 3(a) and 3(b) show changes in the Luro River catchment following suburban expansion.

A

the percentage decrease in agricultural land between 2005 and 2025.

[2]
B

Compare the storm hydrographs for 2005 and 2025.

[2]
C

how the land-use changes shown could affect river flow and water quality.

[3]
Question 11
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

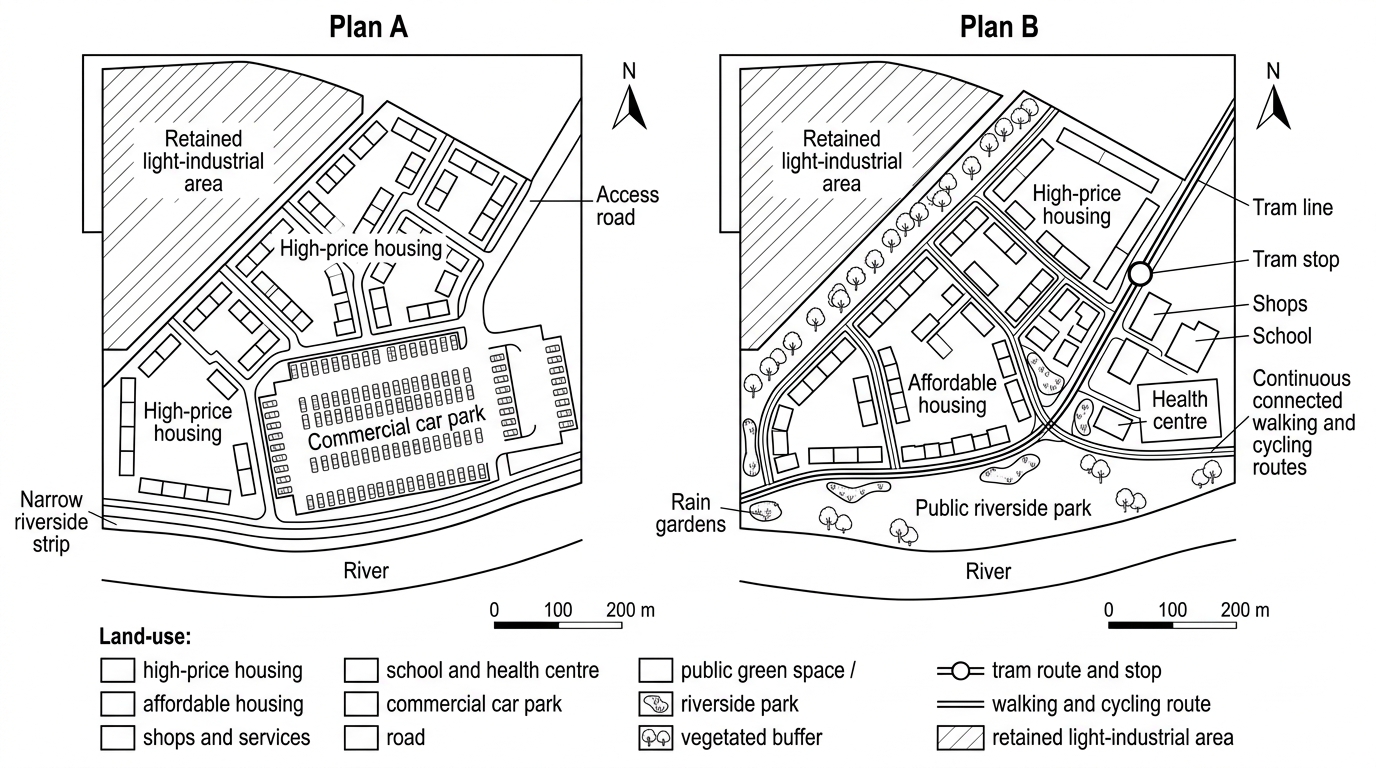

A city council is considering two plans for redeveloping the former East Dock industrial site. Figure 4(a) shows the proposed land uses and Figure 4(b) compares selected outcomes predicted for 2035.

Predicted outcomes for East Dock redevelopment plans in 2035.

Predicted outcome (2035)Plan APlan B
Affordable dwellings / %832
Residents within 400 m of public transport / %3588
Daily private-car trips18 0009500
Public green space / ha615
Development cost / million local currency units420510
A

two predicted outcomes for which Plan B performs better than Plan A.

[2]
B

one environmental and one social advantage of Plan B.

[2]
C

which plan the council should select, using evidence to consider environmental, social and economic needs.

[3]
Question 12
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

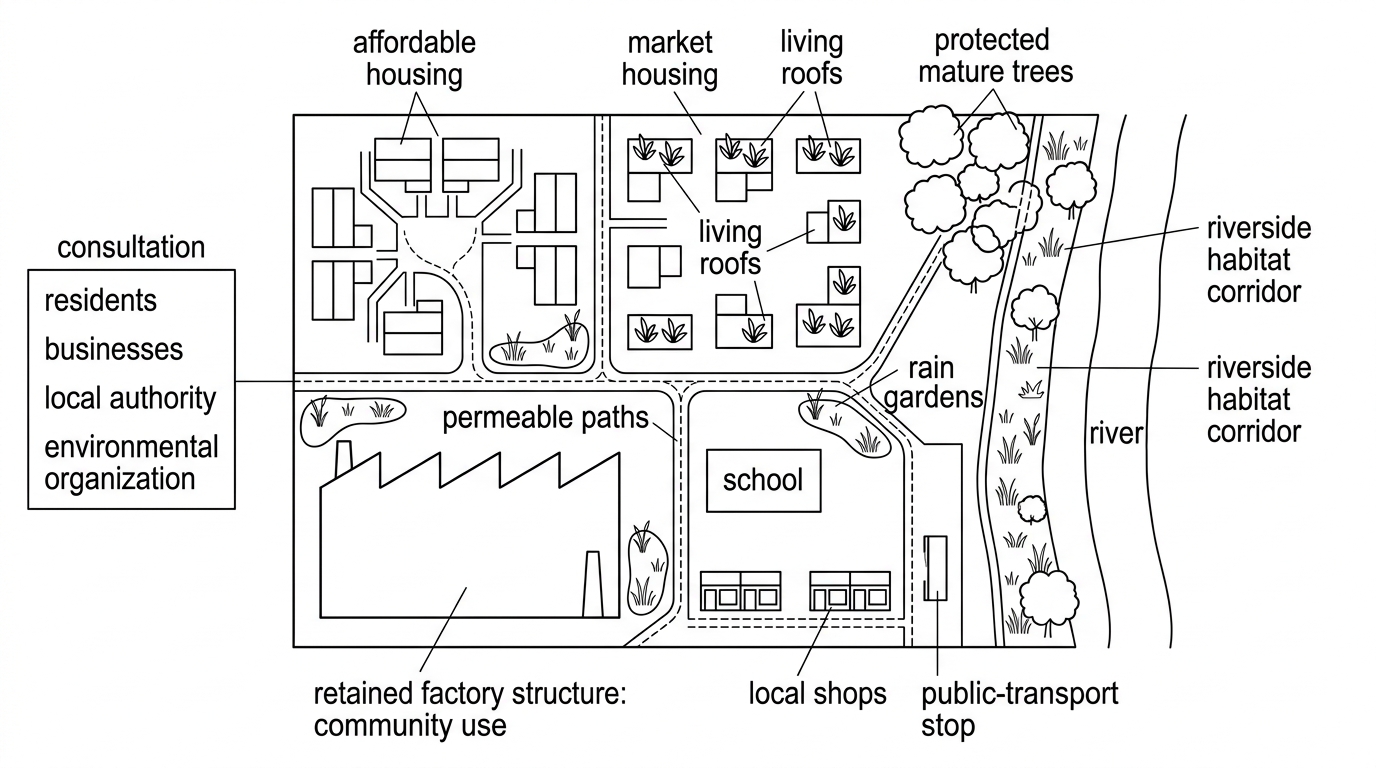

Figure 3 summarizes a proposal to redevelop a former industrial site.

A

two features of the proposal that may increase urban sustainability.

[2]
B

why the living roofs and rain gardens represent ecological urban planning.

[2]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 13
HL • Paper 2
Medium
Calculator Permitted
HL • Paper 2
Medium
Calculator Permitted

Figure 4 compares two proposed neighbourhoods occupying equal-sized areas.

A

the district that best demonstrates urban compactness and mixed land use.

[1]
B

two ways in which the planning of District A may reduce car dependency compared with District B.

[2]
C

one feature of District A that promotes social mix.

[1]
Question 14
HL • Paper 2
Medium
Calculator Permitted
HL • Paper 2
Medium
Calculator Permitted

Figure 5 shows selected characteristics of two districts in the same city.

Selected green-space, access and heat characteristics of two districts.

Public green space / ha per 1000 residentsResidents with safe 10-minute walk access / %Mean summer surface temperature / °C
Public green space [ha per 1000 residents]0.82.5
Residents with safe 10-minute walk access [%]3588
Mean summer surface temperature [∘C^\circ\mathrm{C}]3932
A

why the distribution of green space shown in Figure 5 is an environmental-justice issue.

[2]
B

one planning strategy that could improve environmental justice in District L.

[1]
Question 15
HL • Paper 2
Medium
Calculator Permitted
HL • Paper 2
Medium
Calculator Permitted

Figure 6 shows annual flows of organic material through part of an urban system.

A

the percentage of the input that is returned to use through anaerobic digestion and composting.

[2]
B

two ways in which these feedback flows support a circular economy.

[2]
Question 16
HL • Paper 2
Medium
Calculator Permitted
HL • Paper 2
Medium
Calculator Permitted

A

the meaning of the social foundation and ecological ceiling in the doughnut economics model.

[2]
B

why a low-carbon housing project may still fail to place a city within the safe and just operating space of the model.

[2]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 17
HL • Paper 2
Medium
Calculator Permitted
HL • Paper 2
Medium
Calculator Permitted

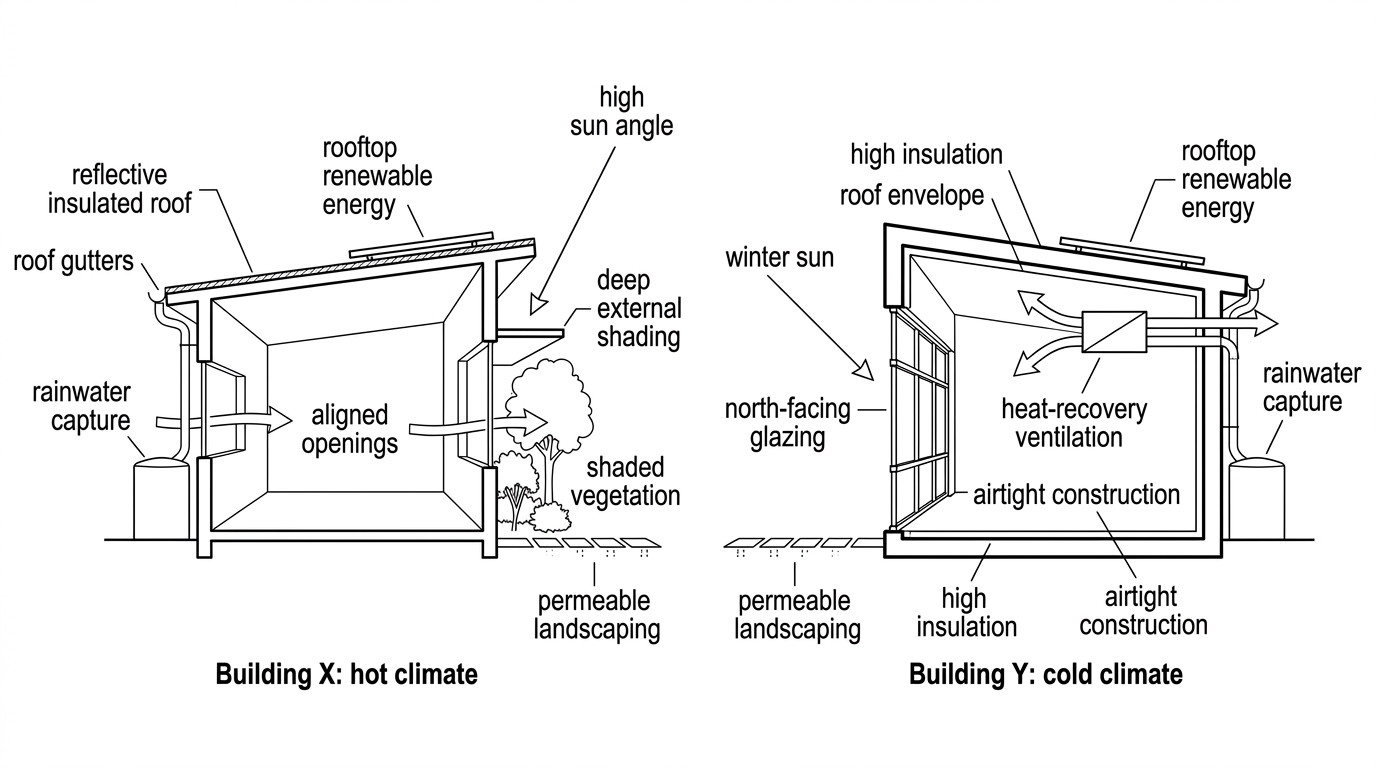

Figure 7 shows proposed green-building features for two different climates.

A

one feature of Building X that reduces cooling demand and how it does so.

[2]
B

one feature of Building Y that reduces heating demand and how it does so.

[2]
Question 18
SL • Paper 1
Hard
Calculator Permitted
SL • Paper 1
Hard
Calculator Permitted

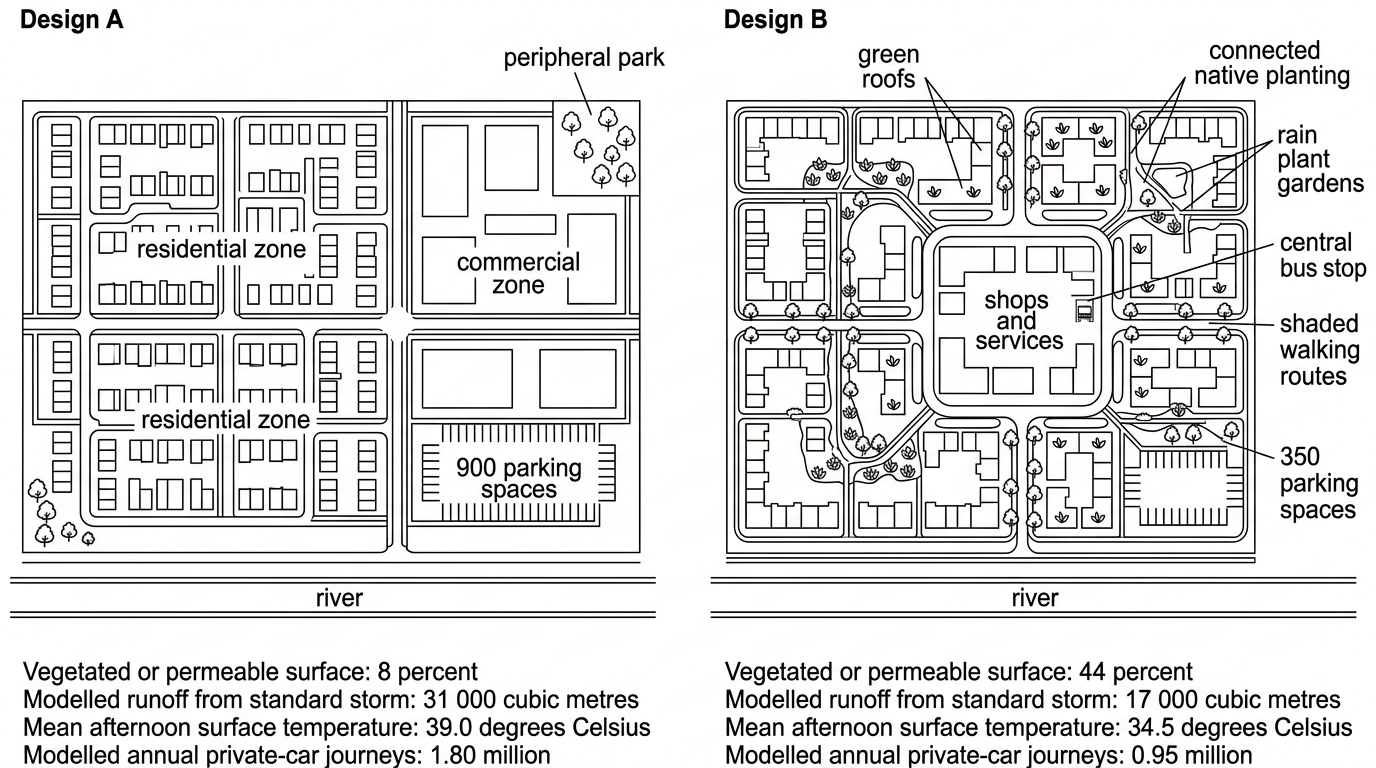

A planning authority is considering two designs for a former industrial site in the hot, seasonally wet city of San Aurelio. The site will contain 1000 dwellings. Figure 3 compares the designs.

Modelled urban-environment performance of the two site designs.

A B
Permeable or vegetated cover / %\%844
Mean afternoon surface temperature / ∘C^\circ\text{C}39.034.5
Runoff from standard storm / m3\text{m}^331 00017 000
Annual private-car journeys / million1.800.95
A

two biotic components included in B.

[2]
B

the percentage reduction in modelled storm runoff from A to B.

[2]
C

two ways in which the biophilic features of B could improve the urban environment.

[3]
D

why B may reduce private-car use.

[2]
E

which the planning authority should approve.

[3]
Question 19
SL • Paper 1
Hard
Calculator Permitted
SL • Paper 1
Hard
Calculator Permitted

Nambara is a middle-income country experiencing rapid population redistribution. Figures 4(a) and 4(b) show national population trends and changes in the city of Lutana.

Nambara population trends and reported motives of recent rural-to-urban migrants.

YearUrban population / millionRural population / millionReported migration motive (all years)Respondents / %
2000817Employment46
20101217Education18
20201815Drought or crop failure16
20252114Healthcare11
———Family or other9

A

Nambara's urban population as a percentage of its total population in 2025.

[2]
B

between urbanization and rural–urban migration.

[2]
C

the push and pull factors contributing to migration in Nambara.

[3]
D

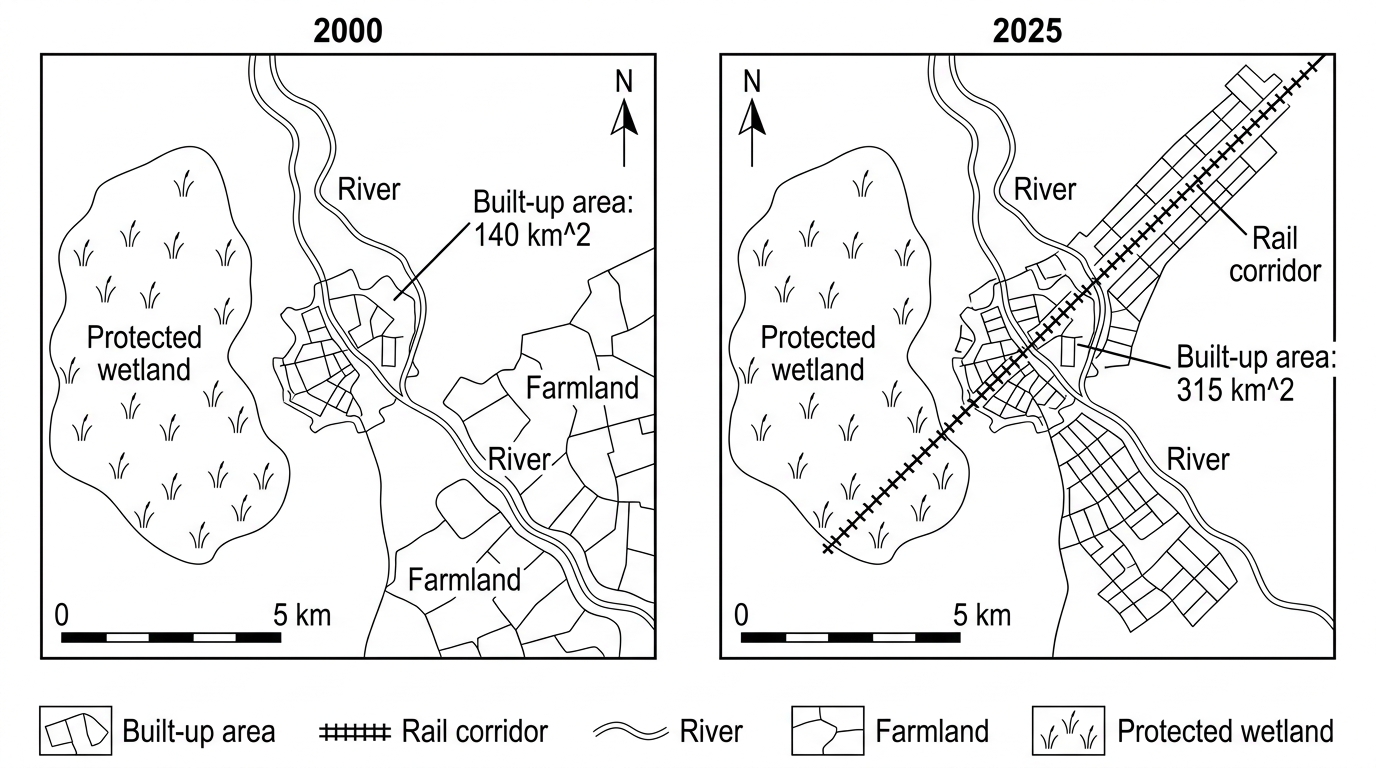

the pattern of Lutana's urban development between 2000 and 2025.

[3]
E

the reliability of the figures for explaining why Lutana expanded in the pattern shown.

[3]
Question 20
HL • Paper 2
Hard
Calculator Permitted
HL • Paper 2
Hard
Calculator Permitted

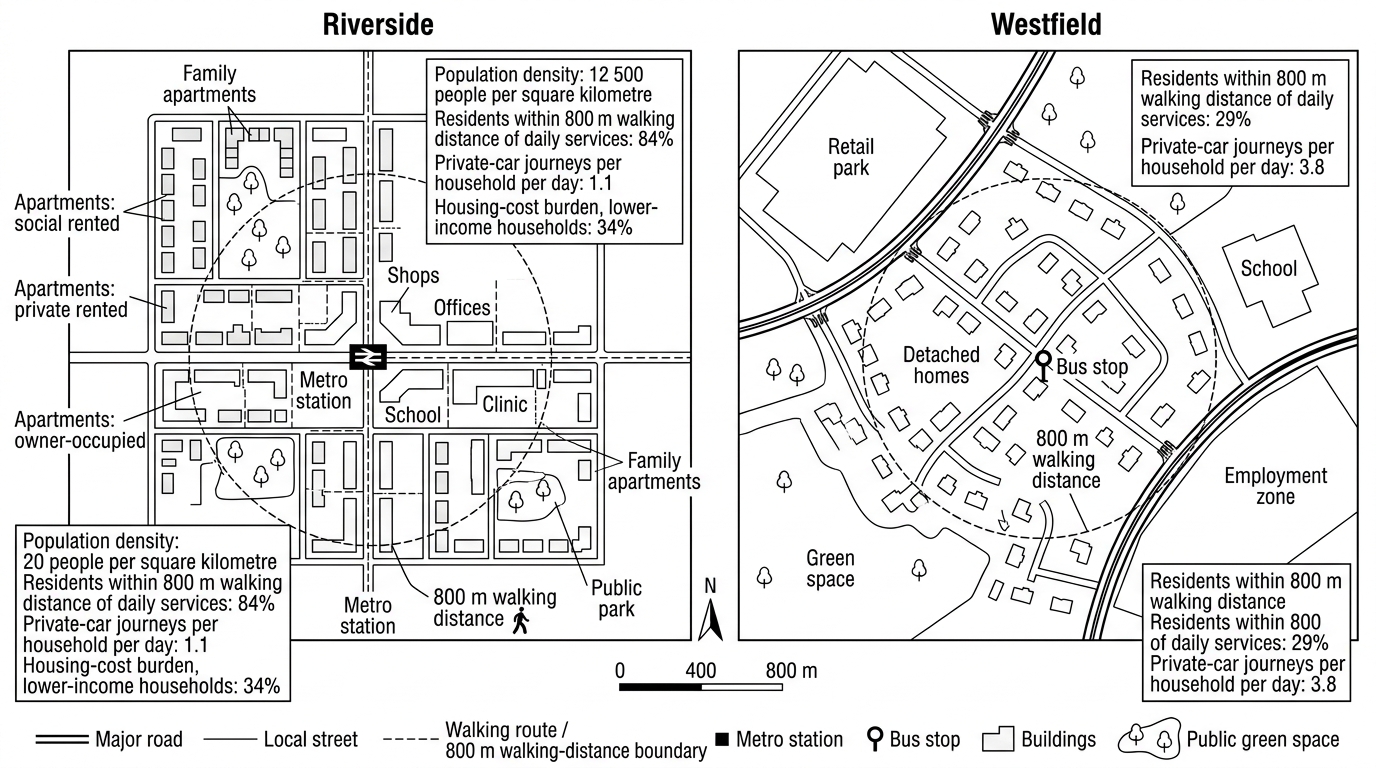

Figures 5(a) and 5(b) compare two neighbourhoods within the city of Norchester.

Neighbourhood indicators for Riverside and Westfield, Norchester.

IndicatorRiversideWestfield
Population density / people km−2\text{km}^{-2}12 5003 200
Residents within 800 m of daily services / %8429
Private-car journeys per household per day1.13.8
Residents within 10-minute walk of green space / %7681
Lower-income households spending over 40% of income on housing / %3412
Land uses presentHousing; shops; employment; education; healthcareNot stated
Housing provisionDifferent housing types and tenuresNot stated
A

one indicator suggesting that Riverside is more accessible than Westfield.

[1]
B

the percentage reduction in private-car journeys per household in Riverside compared with Westfield.

[2]
C

the extent to which Riverside applies the principles of compactness, mixed land use, social mix and environmental justice.

[4]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 21
HL • Paper 2
Hard
Calculator Permitted
HL • Paper 2
Hard
Calculator Permitted

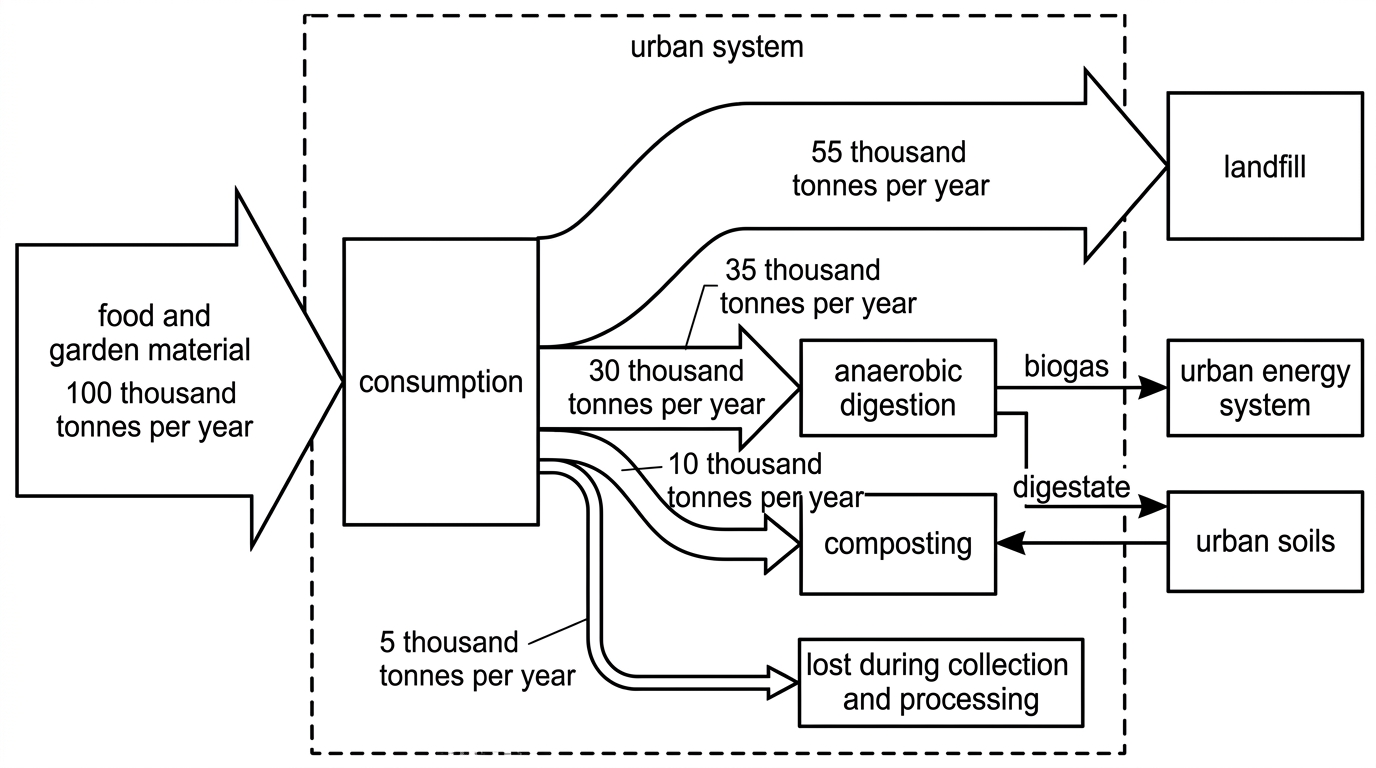

The diagram represents annual food and organic-material flows in the city of Aramoor after the introduction of a circular organic-waste programme.

A

the percentage of collected organic waste diverted from landfill.

[2]
B

two ways in which the programme applies circular-economy principles.

[2]
C

why the system shown is not a fully circular urban economy.

[3]
Question 22
HL • Paper 2
Hard
Calculator Permitted
HL • Paper 2
Hard
Calculator Permitted

Figure 7 is a doughnut-economics dashboard for the city of Valmere. A social score below 100 indicates a shortfall in meeting human needs. An ecological-pressure score above 100 indicates that the city's ecological ceiling has been exceeded.

Doughnut-economics dashboard for Valmere; benchmark score is 100.

DimensionIndicatorScorePreferred direction
Social foundationAffordable housing68Higher toward 100
Social foundationHealth access91Higher toward 100
Social foundationEducation96Higher toward 100
Social foundationEmployment security78Higher toward 100
Social foundationPolitical participation74Higher toward 100
Social foundationPublic transport access88Higher toward 100
Ecological pressureClimate emissions145Lower toward 100
Ecological pressureMaterial use160Lower toward 100
Ecological pressureFreshwater use92Lower toward 100
Ecological pressureAir pollution118Lower toward 100
Ecological pressureHabitat loss126Lower toward 100
Ecological pressureNutrient pollution84Lower toward 100
A

the largest social shortfall and the largest ecological overshoot.

[2]
B

the percentage by which the material-use score must decrease to reach the ecological ceiling.

[2]
C

how a housing policy could reduce both the affordable-housing shortfall and the material-use overshoot.

[3]
Question 23
HL • Paper 2
Hard
Calculator Permitted
HL • Paper 2
Hard
Calculator Permitted

A developer proposes demolishing a structurally sound office building and replacing it with a tower that would use no net external energy during operation. An alternative proposal would adapt and reuse the existing building while improving its insulation and ventilation.

A

why zero net external energy during operation does not necessarily mean that the new tower has a lower whole-life environmental impact.

[2]
B

two environmental advantages of adapting and reusing the existing building.

[2]
Question 24
HL • Paper 1
Hard
Calculator Permitted
HL • Paper 1
Hard
Calculator Permitted

The city of Meridia is choosing between two redevelopment plans for a former freight yard. Both plans provide 6000 dwellings. Figure 5(a) compares their land use, while Figure 5(b) shows accessibility for different household-income groups.

Accessibility and predicted private-car trips under the two redevelopment plans.

PlanLow-income residents reaching essential destinations within 20 min without a private car / %Middle-income residents reaching essential destinations within 20 min without a private car / %High-income residents reaching essential destinations within 20 min without a private car / %Predicted daily private-car trips
Plan C8288909600
Plan D31487222800
A

the percentage by which the land area of Plan D exceeds that of Plan C.

[2]
B

one feature representing each of urban compactness, mixed land use and social mix in Plan C.

[3]
C

how Plan C could reduce energy consumption compared with Plan D.

[3]
D

why the accessibility data indicate an environmental-justice concern in Plan D.

[3]
E

whether Plan C is necessarily the more sustainable option.

[3]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 25
HL • Paper 1
Hard
Calculator Permitted
HL • Paper 1
Hard
Calculator Permitted

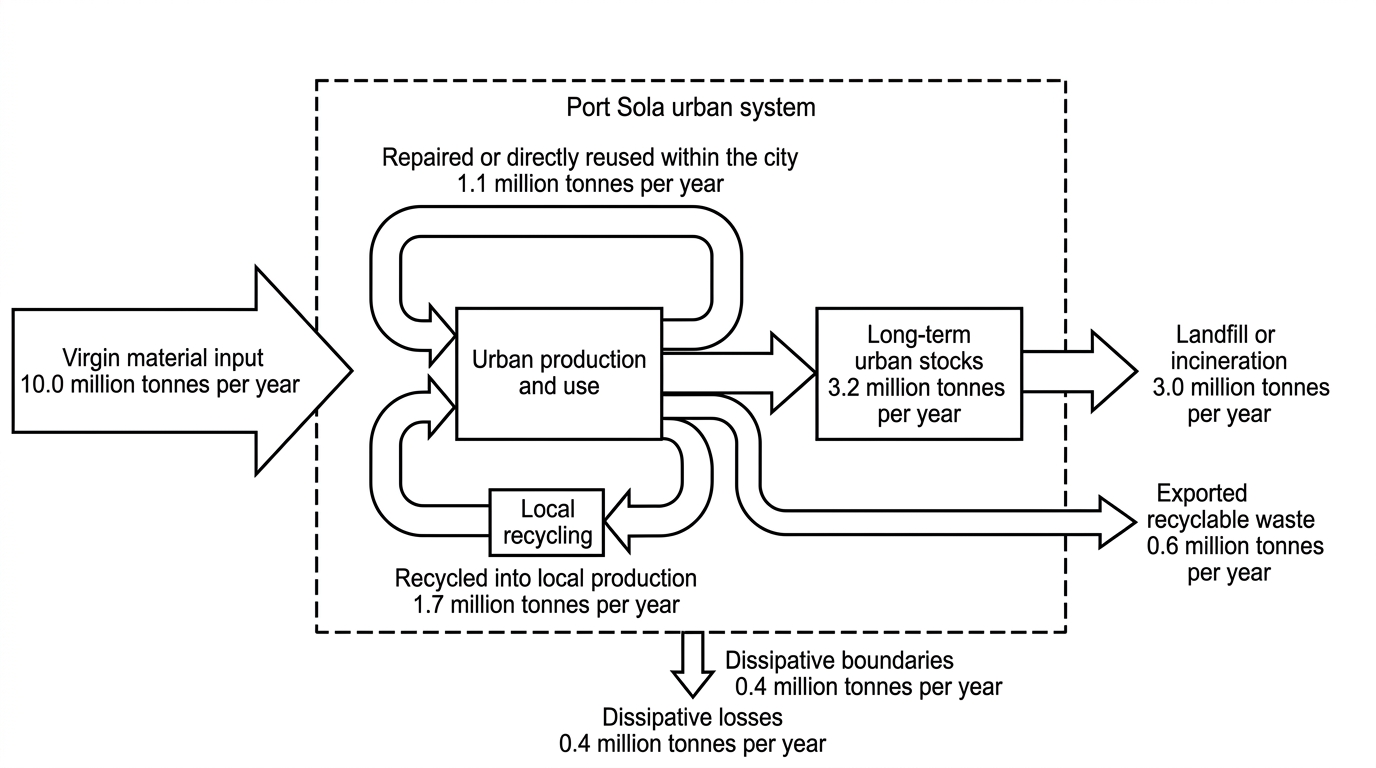

Port Sola has adopted circular-economy and doughnut-economics models for its 2035 development strategy. Figures 6(a) and 6(b) summarize the city's current material flows and social and ecological performance.

Port Sola social foundation and ecological ceiling indicators.

DomainIndicatorCurrentTarget / ceiling
Social foundationAffordable housing68%90%
Social foundationSecure employment74%90%
Social foundationHealth93%90%
Social foundationEducation95%90%
Ecological ceilingGHG emissions6.2 t CO2e per person6.2\ \text{t CO}_2\text{e per person}3.0 t CO2e per person3.0\ \text{t CO}_2\text{e per person}
Ecological ceilingVirgin material use10.0 t per person10.0\ \text{t per person}5.0 t per person5.0\ \text{t per person}
Ecological ceilingFine-particle pollution12 μg m−312\ \mu\text{g m}^{-3}10 μg m−310\ \mu\text{g m}^{-3}
Ecological ceilingFreshwater use82 m3 per person82\ \text{m}^{3}\text{ per person}90 m3 per person90\ \text{m}^{3}\text{ per person}
A

the percentage of material input that is repaired, reused or recycled within Port Sola.

[2]
B

between the circular-economy and doughnut-economics models.

[2]
C

Port Sola's position relative to the safe and just operating space.

[3]
D

how increasing the reuse of construction materials could improve both ecological and social outcomes.

[3]
E

the claim that raising the city's recycling rate will be sufficient to make Port Sola sustainable.

[4]
Question 26
HL • Paper 1
Hard
Calculator Permitted
HL • Paper 1
Hard
Calculator Permitted

A municipal authority must choose how to provide offices for 800 workers over the next 50 years. Option R retrofits an existing building, while Option N demolishes it and constructs a new high-performance building.

Comparison of environmental and financial indicators for office-building options R and N. Fifty-year GHG totals use upfront embodied emissions plus 50 times annual operational emissions, assuming a constant annual rate and excluding unprovided maintenance, replacement and end-of-life emissions.

IndicatorOption ROption N
Upfront embodied GHG / t CO2CO_2e18007200
Annual operational GHG / t CO2CO_2e per year5525
Mains-water use / m3m^3 per year11 0006500
Storm runoff / m3m^3 per standard storm780310
Capital cost / million currency units919
A

the total life-cycle greenhouse-gas emissions of each option over 50 years.

[3]
B

two features of Option N that respond to the local climate without requiring continuous mechanical cooling.

[2]
C

how two features of Option N could safeguard water or urban ecosystems.

[3]
D

why assessing annual operational emissions alone could produce a misleading decision.

[3]
E

which option should be selected.

[3]
Question 27
HL • Paper 2
Hard
Calculator Permitted
HL • Paper 2
Hard
Calculator Permitted

A housing authority in the warm, seasonally wet city of Delora is comparing three options for a 60-apartment building. Figure 8(a) shows selected building features and Figure 8(b) gives predicted environmental performance.

Predicted environmental performance over a 30-year assessment; end-of-period demolition emissions excluded.

OptionEmbodied emissions / t CO2e\text{t CO}_2\text{e}Operational emissions / t CO2e yr−1\text{t CO}_2\text{e yr}^{-1}Mains-water use / m3 yr−1m^3\ \text{yr}^{-1}Surface runoff / %
Retain existing018720082
Deep retrofit609480044
Demolish and new1905390028
A

the total carbon emissions over 30 years for each option.

[3]
B

how two features in Figure 8(a) are appropriate for Delora's climate.

[2]
C

which option the housing authority should select.

[3]
Question 28
SL • Paper 2
Hard
Calculator Permitted
SL • Paper 2
Hard
Calculator Permitted

A

two similarities and two differences between an urban system and a natural ecosystem.

[4]
B

how resource-recovery feedbacks and green infrastructure may increase both the efficiency and resilience of an urban system.

[7]
C

Using named examples, the contribution of ecological urban planning to the sustainability of cities.

[9]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 29
SL • Paper 2
Hard
Calculator Permitted
SL • Paper 2
Hard
Calculator Permitted

A

between urbanization, suburbanization and deurbanization.

[4]
B

how rural–urban migration and subsequent suburbanization may produce environmental and social change.

[7]
C

Using named examples, can urban planning reduce the negative impacts of rapid urban and suburban expansion?

[9]
Question 30
SL • Paper 2
Hard
Calculator Permitted
SL • Paper 2
Hard
Calculator Permitted

A

four stakeholder needs that may influence decisions about urban land use.

[4]
B

how integrated land-use and transport planning may improve the sustainability of an urban system.

[7]
C

Using named examples, the claim that reducing private-car use should be the main priority of sustainable urban planning.

[9]
Question 31
HL • Paper 1
Hard
Calculator Permitted
HL • Paper 1
Hard
Calculator Permitted

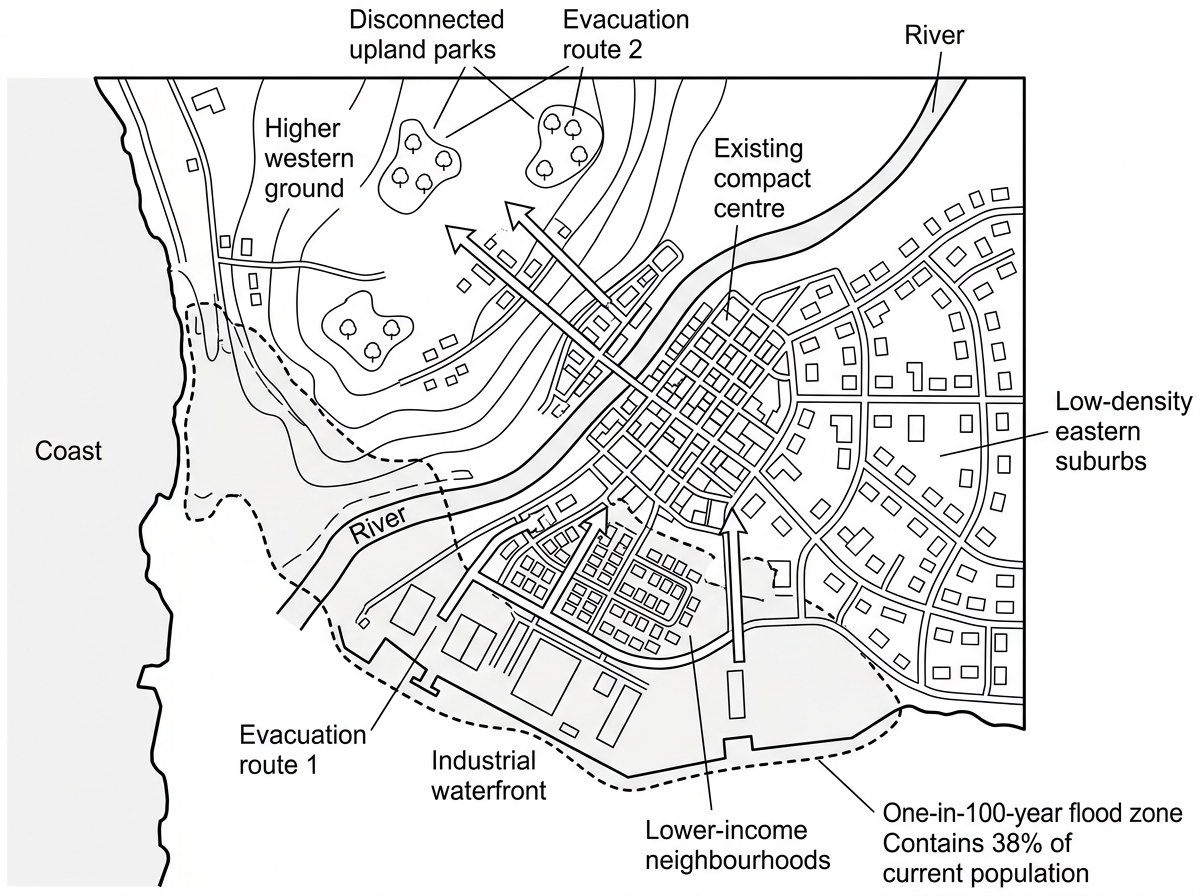

The coastal city of Darsana is planning for population growth and increased flooding. Three policy packages have been modelled for 2045. The current population is 1.2 million, of whom 38% live in districts exposed to a one-in-100-year coastal or river flood.

Projected 2045 outcomes for three urban policy packages in Darsana.

Policy packageNew dwellingsAffordable housing / %Land converted / km²Change in daily car travel / km day−1^{-1}New dwellings in flood zone / %Capital cost / billion units
Package 1: Peripheral expansion70 0001246+520 000+414.2
Package 2: Compact transit redevelopment70 000359+90 000+185.1
Package 3: Compact regenerative redevelopment70 0004011-40 00046.8

A

the number of current Darsana residents living in districts exposed to the one-in-100-year flood.

[2]
B

Compare the predicted urban form and transport outcomes of Packages 1 and 2.

[3]
C

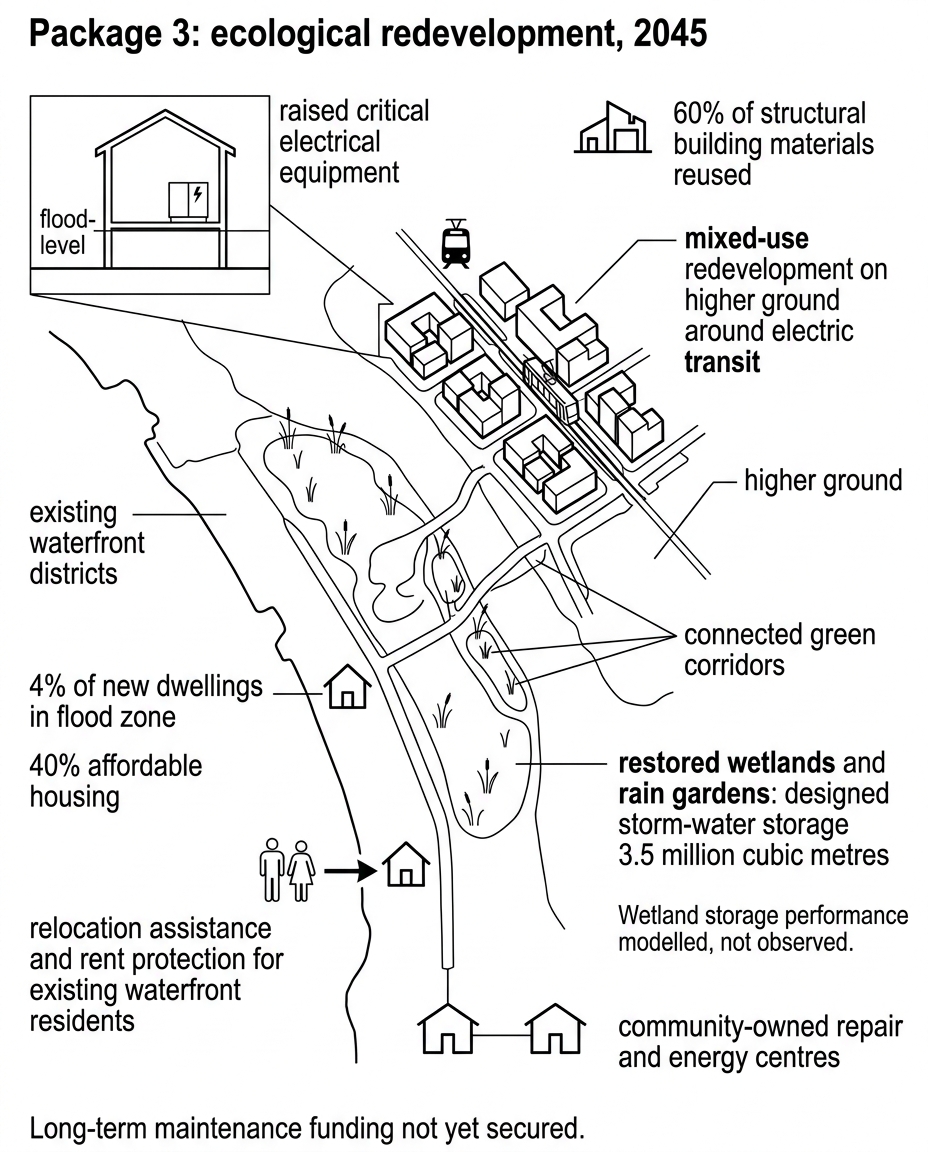

how Package 3 applies ecological urban planning and circular-economy principles.

[3]
D

how Package 3 may improve resilience and environmental justice.

[3]
E

which policy package Darsana should adopt.

[4]
Question 32
HL • Paper 2
Hard
Calculator Permitted
HL • Paper 2
Hard
Calculator Permitted

A

the principles of urban compactness, mixed land use, social mix practice and environmental justice.

[4]
B

how applying these principles together may produce synergies and trade-offs within an urban system.

[7]
C

Using named examples, whether compact, mixed-use and socially mixed development necessarily creates a sustainable and environmentally just city.

[9]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 33
HL • Paper 2
Hard
Calculator Permitted
HL • Paper 2
Hard
Calculator Permitted

A

between a circular economy and doughnut economics as models for urban sustainability.

[4]
B

the opportunities and limitations involved in applying these models to an urban system.

[7]
C

Using named examples, can circular-economy and doughnut-economics models transform cities into sustainable systems?

[9]
Question 34
HL • Paper 2
Hard
Calculator Permitted
HL • Paper 2
Hard
Calculator Permitted

A

four principles used to reduce the whole-life environmental impact of a building.

[4]
B

how climate-responsive green architecture may affect energy, water, biodiversity and human health within an urban system.

[7]
C

Using named examples, the claim that green architecture is the most effective way to reimagine cities for a sustainable future.

[9]

8.1 Human populations

8.3 Urban air pollution
