2.3: Biogeochemical cycles

Master IB ESS 2.3: Biogeochemical cycles with notes created by examiners and strictly aligned with the syllabus.

Verified by Veronica
Verified by Veronica

25 sections · ~25 min read

This content can't be printed from the browser. Use Export PDF with Pro for an offline copy.

IB Syllabus Requirements for Biogeochemical cycles

2.3.1

Biogeochemical cycles ensure chemical elements continue to be available to living organisms

2.3.2

Biogeochemical cycles have stores, sinks and sources

2.3.3

Organic and inorganic stores of carbon

2.3.4

Carbon flows between stores in ecosystems

2.3.1

BIOGEOCHEMICAL CYCLES ENSURE CHEMICAL ELEMENTS CONTINUE TO BE AVAILABLE TO LIVING ORGANISMS

A biogeochemical cycle is the route a chemical element takes between Earth’s living and non-living components. “Bio” refers to organisms, “geo” to Earth materials, and “chemical” to the element moving through the cycle.

Energy enters ecosystems and is eventually dispersed as heat. Matter, by contrast, is reused. Organisms take up elements, which later return to the air, water or soil and become available again. Carbon, for example, may pass from atmospheric CO2CO_2 into plant biomass before respiration or decomposition returns it.

This recycling keeps biological molecules supplied with the elements needed to build them. Human activities may change the size of stores, as well as the rate or direction of flows. When inputs or removals become seriously unbalanced, the effects can spread to nutrient availability, productivity, biodiversity and therefore ecosystem sustainability. Human activity changes nutrient cycling, and these changes can weaken the long-term functioning of environmental systems.

2.3.2

BIOGEOCHEMICAL CYCLES HAVE STORES, SINKS AND SOURCES

A store, or storage, is a part of a system that holds a quantity of an element. A balanced store is in equilibrium with the environment: absorption and release are balanced, so the quantity stays broadly stable even while material enters and leaves.

A sink accumulates an element because input exceeds output. A source does the reverse: output exceeds input, causing a net release. A store can therefore also act as a sink or a source; it does not have to be in equilibrium to hold an element.

These labels describe the current balance of flows rather than a fixed identity. If conditions or management change, the same forest or soil can switch from sink to source.

Reading a systems diagram

Systems diagrams use rectangular boxes for stores and arrows for flows. The arrows point in the direction that matter moves, while their width may show the magnitude of the flow. Compare total inputs with total outputs to determine whether the quantity held in a store is stable, increasing or decreasing.

These three forest stores show how the balance of flows determines net change.

Worked example: Classify a forest carbon store under three different input–output balances. All flows are measured in tonnes of carbon per year.

  1. Calculate the net change using input minus output.
  2. Use the sign of the result to classify the forest.
Input / tonnes C year−1\text{tonnes C year}^{-1}Output / tonnes C year−1\text{tonnes C year}^{-1}Net change / tonnes C year−1\text{tonnes C year}^{-1}Classification
101010−10=010 - 10 = 0Balanced store: quantity stays stable
12812−8=+412 - 8 = +4Sink: quantity increases
696−9=−36 - 9 = -3Source: quantity decreases
Answer

Answer: The forest is a balanced store at 0 tonnes C year−10\ \text{tonnes C year}^{-1} net change, a sink at +4 tonnes C year−1+4\ \text{tonnes C year}^{-1}, and a source at −3 tonnes C year−1-3\ \text{tonnes C year}^{-1}.

2.3.3

ORGANIC AND INORGANIC STORES OF CARBON

An organic carbon store holds carbon in living organisms, their remains or materials formed from past organic matter. Organisms, crude oil and natural gas are organic stores. Biomass contains carbon in carbohydrates, lipids, proteins and nucleic acids.

An inorganic carbon store holds carbon in inorganic chemical forms, including atmospheric or dissolved CO2CO_2, hydrogencarbonate ions and carbonates in soils and oceans. The distinction depends on chemical form, not whether the material is living. Take care with the ESS classification: CO2CO_2 and carbonates count as inorganic carbon even though they contain carbon.

Organic carbon storesInorganic carbon stores
WoodAtmospheric CO2CO_2
Dead leavesDissolved hydrogencarbonate
OilLimestone

Residence time is the average period that a carbon atom remains in a store. The size of the store and the rates of flow into and out of it determine this period. Without mining, fossil carbon would stay underground for hundreds of millions of years. Human extraction sharply reduces that effective residence time, transferring ancient carbon into the active carbon cycle.

2.3.4

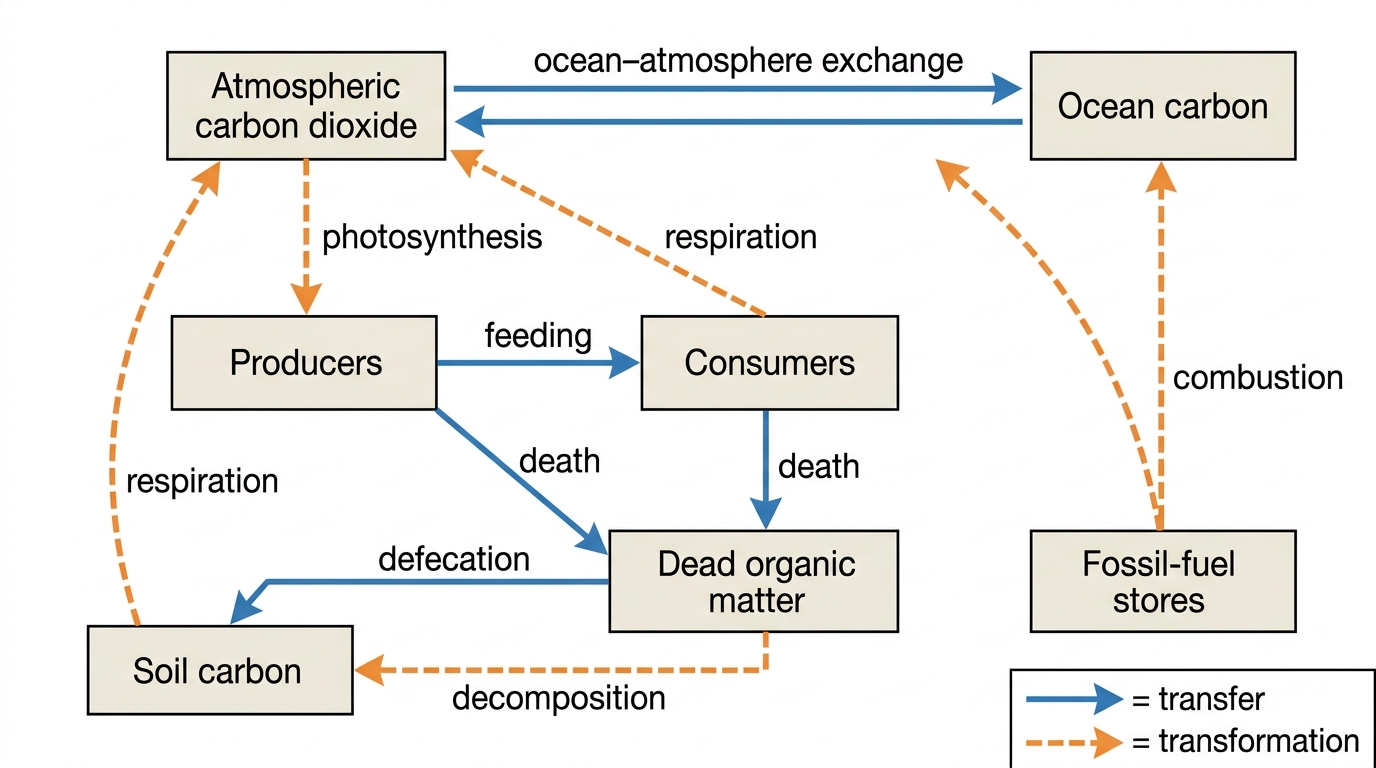

CARBON FLOWS BETWEEN STORES IN ECOSYSTEMS

The carbon cycle is a biogeochemical cycle that moves carbon between living organisms, the atmosphere, water, soil and geological stores.

A transfer moves matter from one location or store to another without altering its chemical form. For example, feeding transfers organic carbon from prey to consumer. Defecation moves carbon into waste, while death moves biomass into dead organic matter. A transformation, by contrast, changes the chemical form or state of matter. Photosynthesis transforms atmospheric CO2CO_2 into organic carbon, cellular respiration transforms organic carbon into CO2CO_2, and decomposition converts dead organic matter into simpler organic and inorganic forms.

The principal ecosystem flows are:

  • Photosynthesis: producers convert atmospheric or dissolved CO2CO_2 into organic matter.
  • Feeding: organic carbon moves through food chains.
  • Defecation: unabsorbed organic carbon passes into detritus or soil.
  • Cellular respiration: organisms release carbon as CO2CO_2.
  • Death: carbon stored in biomass moves into dead organic matter.
  • Decomposition: decomposers process dead material and release carbon, including through respiration.

When drawing a systems diagram, use rectangular boxes for the atmosphere, producers, consumers, dead organic matter, soil, oceans and fossil fuels. Join the boxes with directional arrows labelled by process. Check the direction of each arrow: photosynthesis must point from CO2CO_2 to producers, whereas respiration points back towards atmospheric or dissolved CO2CO_2.

2.3.5

CARBON SEQUESTRATION

Carbon sequestration is the process of capturing gaseous and atmospheric carbon dioxide and storing it in a solid or liquid form. It removes CO2CO_2 from the atmosphere, keeping the carbon in a different store.

The two pathways show how carbon is captured and stored, and how it could be released.

Natural sequestration

Trees do this naturally. During photosynthesis, they absorb CO2CO_2 and convert it into biomass. Some of that carbon enters wood and soils, where it can remain for years or even centuries. Over geological time, buried organic matter may be fossilized into coal, oil and natural gas.

Example: A growing forest stores carbon in wood and soils. Respiration, decomposition and fires can release stored carbon back to the atmosphere as CO2CO_2.

Artificial sequestration

Artificial sequestration captures CO2CO_2 and deliberately places it in a long-lived liquid or solid-associated store.

Example: At the Sleipner project, separated CO2CO_2 is compressed and injected into a deep saline formation beneath the North Sea. Porous storage rock provides pore spaces that hold the injected CO2CO_2, while an impermeable caprock acts as a barrier to upward movement. Monitoring tracks the stored CO2CO_2 and helps detect possible leakage. If leakage reaches the atmosphere, stored carbon is released as CO2CO_2; this is a possible release pathway, not a claim that Sleipner is leaking.

2.3.6

ECOSYSTEMS AS CARBON STORES, SINKS OR SOURCES

Every ecosystem contains carbon stores. An ecosystem’s role depends on the balance between its total carbon inputs and outputs over a stated interval: sink and source describe its net carbon balance, not whether it contains stored carbon.

Balance over the stated intervalEffect on the carbon storeDescription
Inputs equal outputsStored carbon remains constantA store in equilibrium
Inputs exceed outputsStored carbon increasesA net sink
Outputs exceed inputsStored carbon decreasesA net source

Photosynthesis provides a major carbon input; cellular respiration is a major output. Considering these two flows alone, when photosynthesis exceeds respiration, there is a net uptake of CO2CO_2. When respiration exceeds photosynthesis, there is a net release.

Worked example: An ecosystem has a photosynthetic carbon uptake of 14 tonnes C ha−1 year−114\ \text{tonnes C}\ \text{ha}^{-1}\ \text{year}^{-1} and total carbon outputs of 11 tonnes C ha−1 year−111\ \text{tonnes C}\ \text{ha}^{-1}\ \text{year}^{-1}. Calculate its annual net change in stored carbon and identify whether it is a sink or source.

  1. Identify all outputs. The total must include respiration, combustion and carbon exported in harvested material when present; do not subtract these again if they are already included in the total.

  2. Calculate the net change:

    Net change=total inputs−total outputs\text{Net change} = \text{total inputs} - \text{total outputs}

    Net change=14−11=+3 tonnes C ha−1 year−1\text{Net change} = 14 - 11 = +3\ \text{tonnes C}\ \text{ha}^{-1}\ \text{year}^{-1}

  3. Interpret the positive sign: inputs exceed outputs, so stored carbon increases over the year.

Answer

Answer: The net change is +3 tonnes C ha−1 year−1+3\ \text{tonnes C}\ \text{ha}^{-1}\ \text{year}^{-1}, so the ecosystem is a carbon sink over the stated year.

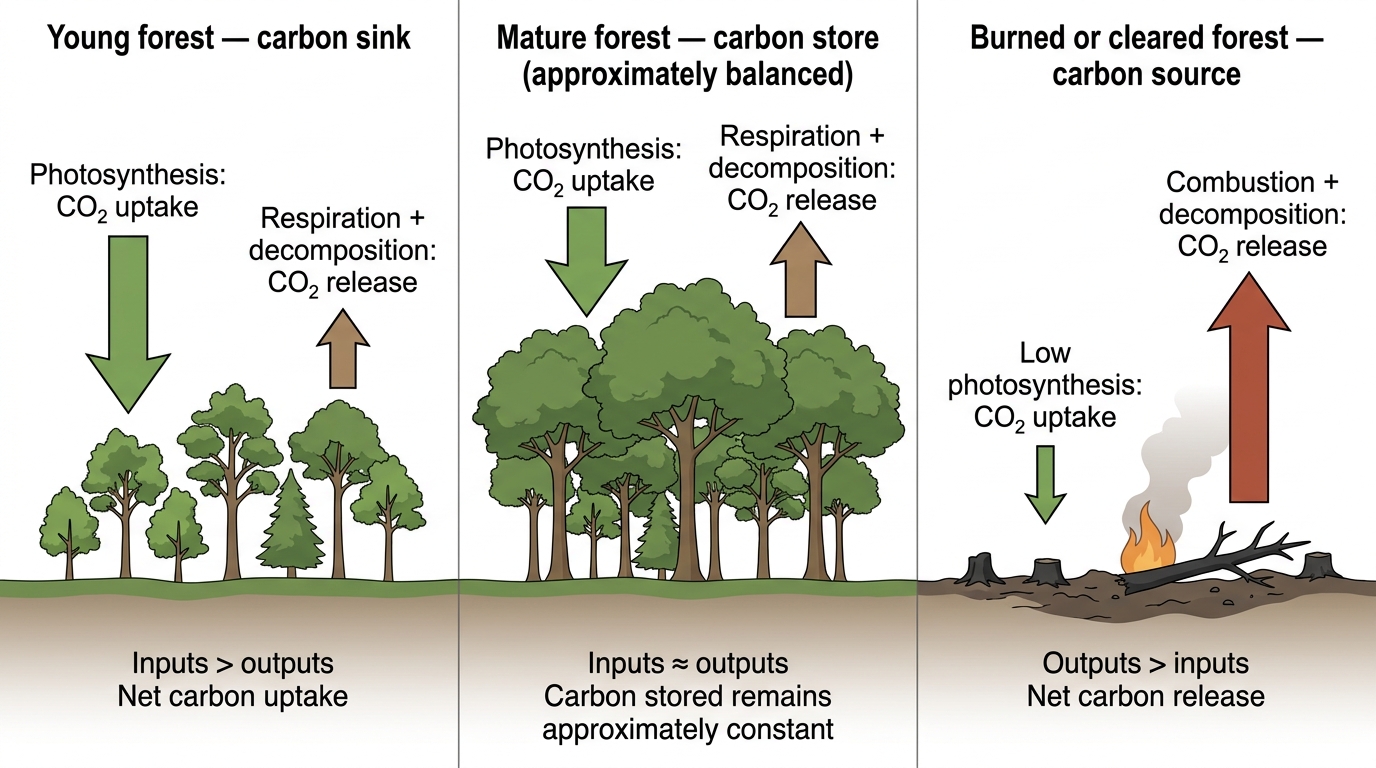

Forest development shows this distinction clearly. All three examples contain stored carbon, but their net balances differ:

Forest conditionCarbon flowsRole over the stated interval
A young forestUsually gains biomass quickly because photosynthesis exceeds respirationA sink while total inputs exceed total outputs
A mature forestPhotosynthesis and respiration may be close to balanceA large store; in equilibrium if total inputs equal total outputs
A forest destroyed by fire or deforestationCombustion, decomposition and soil disturbance release carbon, while photosynthetic uptake fallsA source when total outputs exceed total inputs

These labels can change over time. A large carbon store isn’t necessarily a sink; it is only a sink while the quantity of stored carbon is increasing.

2.3.7

FOSSIL FUELS AS CARBON STORES AND SOURCES

Fossil fuels are carbon-rich geological materials formed from organic matter that built up when past ecosystems acted as carbon sinks. Coal, oil and natural gas keep this carbon outside the rapid biological cycle.

The IB syllabus treats these fuels as stores with unlimited residence times. Without human extraction and combustion, the carbon would remain stored on human timescales. Burning fossil fuels turns them into carbon sources: combustion moves ancient geological carbon into the atmosphere as CO2CO_2, adding it far faster than slow geological processes can replace the store.

At this level, concentrate on the store-to-source relationship rather than detailed geological formation or the dates of individual fuels.

2.3.8

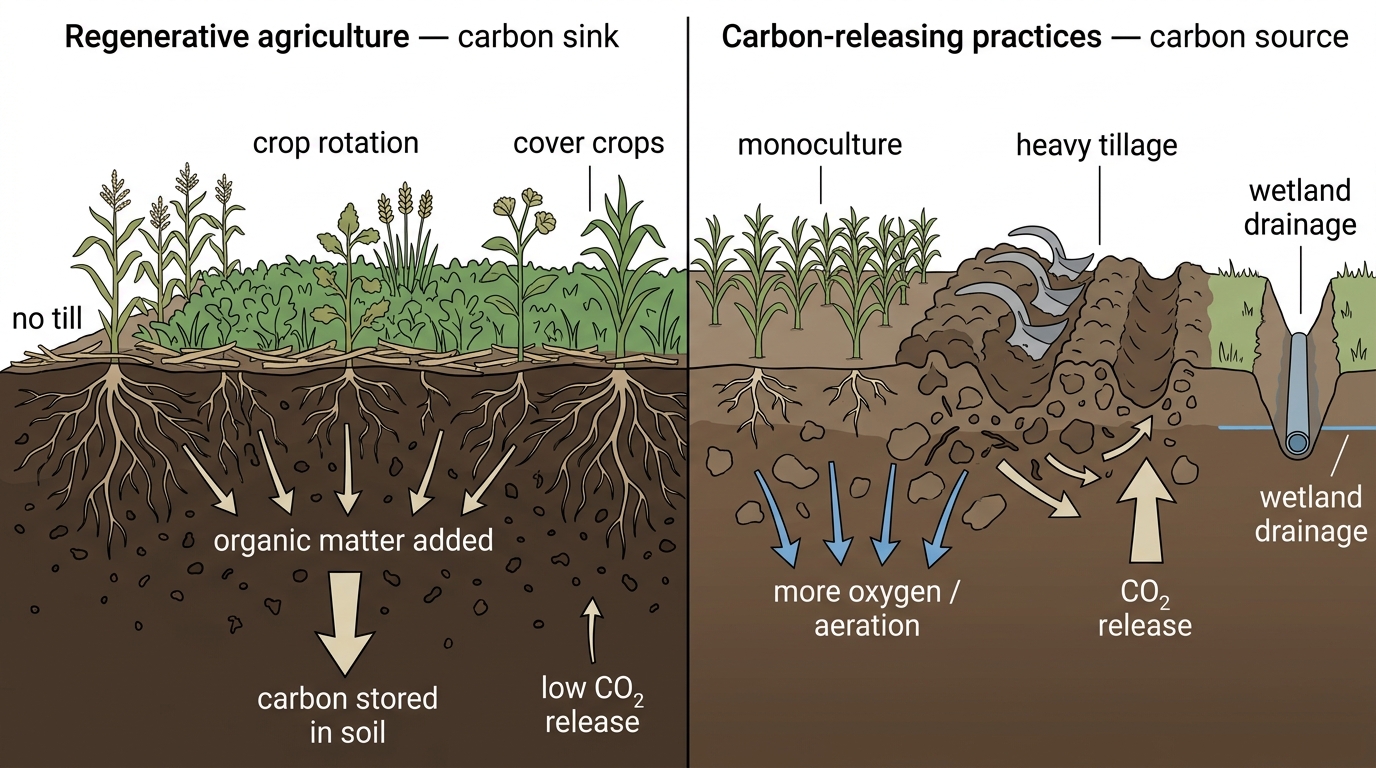

AGRICULTURAL SYSTEMS AS CARBON STORES, SOURCES AND SINKS

Agricultural land may store, build up or release carbon, depending on how it is managed. What matters is how much organic matter enters the soil, how quickly it decomposes, and whether existing soil carbon is exposed or removed.

Regenerative methods generally encourage soil to act as a carbon sink:

  • Crop rotation changes the crops grown, helping to maintain productive roots and plant residues.
  • Cover crops leave living roots in the soil between harvests and supply organic matter.
  • No-till farming limits soil disturbance, so less soil organic matter is exposed to rapid decomposition.

Wetland drainage has the opposite effect. It brings oxygen into carbon-rich soils, speeding up decomposition. Monoculture may reduce the diversity and continuity of organic inputs. Heavy tillage also breaks up soil structure and exposes organic matter. As a result, these practices encourage soil to act as a carbon source.

Timescale matters, as does what happens to harvested material. Long-lived crops may accumulate carbon over many years, though harvesting moves that carbon elsewhere. Durable products store it for longer than material that is soon burned or decomposed.

2.3.9

CARBON DIOXIDE EXCHANGE BETWEEN THE ATMOSPHERE AND OCEANS

Atmospheric CO2CO_2 dissolves into the ocean at the air–water boundary. The reverse can also happen: dissolved CO2CO_2 can leave the solution and return to the atmosphere as a gas. Exchange runs in both directions.

At present, the oceans absorb more CO2CO_2 globally than they release, making them a net carbon sink. However, not every ocean region absorbs carbon all the time. Temperature, circulation and concentration gradients influence both the local direction and the rate of exchange.

Fossil-fuel combustion by humans releases inorganic carbon faster than the oceans can absorb it. As a result, atmospheric carbon keeps accumulating even though the oceans take up a substantial share of emissions. This ocean uptake slows the accumulation, but it doesn’t remove the cause of the imbalance.

2.3.10

OCEAN ACIDIFICATION AND MARINE ANIMALS

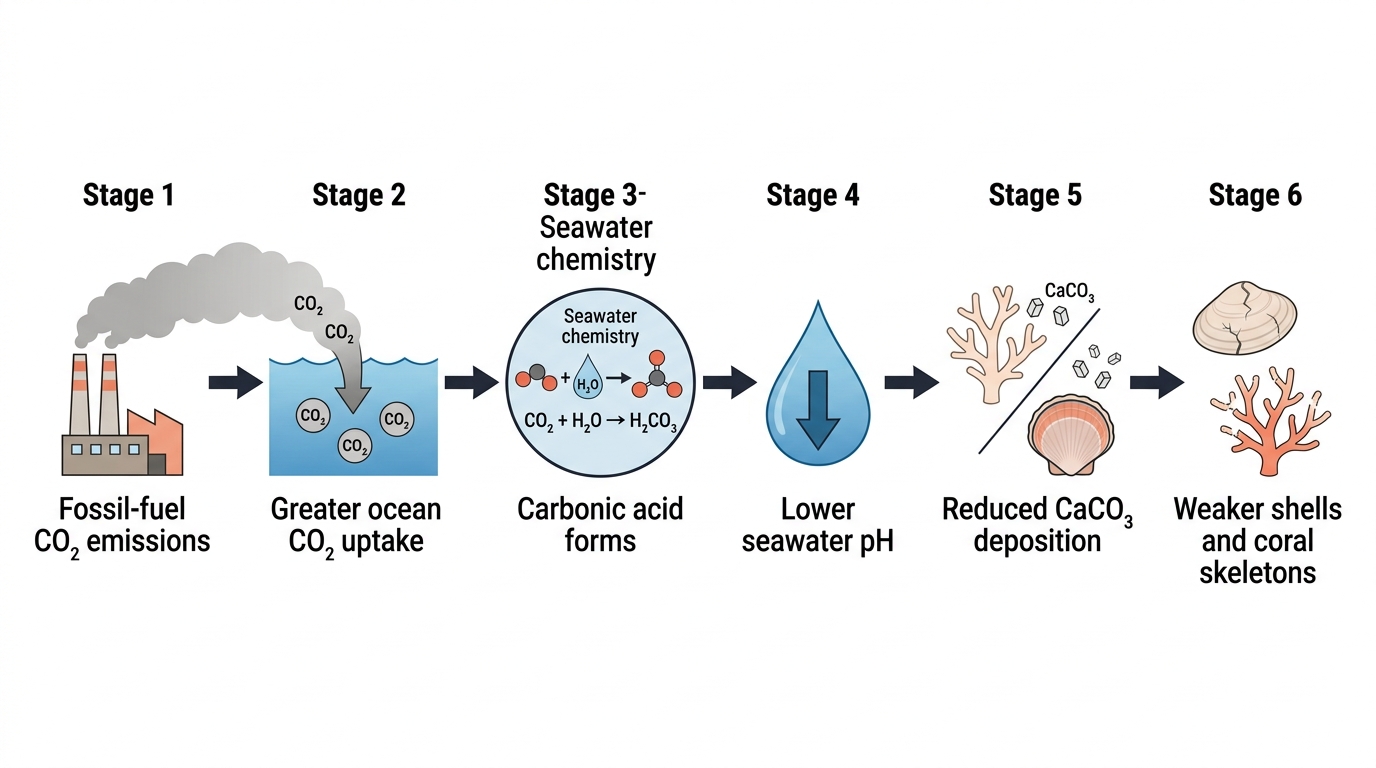

Ocean acidification is a chemical change in seawater caused when the ocean absorbs additional atmospheric CO2CO_2, lowering its pH. The dissolved carbon dioxide reacts with water and forms carbonic acid:

CO2+H2O→H2CO3CO_2 + H_2O \to H_2CO_3

How carbonate availability falls

The formation of carbonic acid is reversible. The linked aqueous equilibria explain how additional dissolved carbon dioxide reduces carbonate availability:

CO2+H2O⇌H2CO3H2CO3⇌H++HCO3−H++CO32−⇌HCO3−\begin{aligned} CO_2 + H_2O &\rightleftharpoons H_2CO_3 \\ H_2CO_3 &\rightleftharpoons H^+ + HCO_3^- \\ H^+ + CO_3^{2-} &\rightleftharpoons HCO_3^- \end{aligned}
  • Carbonic acid dissociates, increasing the concentration of hydrogen ions and lowering pH.
  • Hydrogen ions react with carbonate ions to form hydrogencarbonate ions.
  • This leaves less carbonate available to deposit calcium carbonate, CaCO3CaCO_3, during calcification.

Effects on marine animals

As a result, even a small drop in pH can make it harder for molluscs and reef-building corals to form shells and skeletons. Existing calcium carbonate structures may become more vulnerable to dissolution too.

Biological effects can include:

  • Slower growth.
  • Weaker shells or skeletons.
  • Reduced survival.
  • Damage to reef habitat.

Reefs support complex food webs, so changes affecting calcifying organisms can spread through the wider ecosystem.

Common mistake: Ocean acidification means that seawater pH is falling, not necessarily that seawater becomes acidic. Explain the mechanism through increased hydrogen-ion concentration and reduced carbonate availability, rather than saying only that carbonic acid damages shells.

2.3.11

MEASURES TO ALLEVIATE HUMAN IMPACTS ON THE CARBON CYCLE

Effective management has two jobs: reduce the flow of new carbon into the atmosphere and increase secure uptake. Since no single measure tackles every source, several approaches must work together.

  • Low-carbon technologies cut demand for fossil-fuel combustion, particularly when they run on low-carbon electricity.
  • Reduced fossil-fuel burning directly slows the transfer of carbon from geological stores into the atmosphere.
  • Reduced soil disruption protects soil organic carbon and may allow more to accumulate.
  • Reduced deforestation prevents emissions from combustion and decomposition while maintaining photosynthetic uptake.
  • Reforestation increases biological sequestration in biomass and soils. However, uptake takes time, and fire or clearance can release the stored carbon again.
  • Artificial sequestration captures CO2CO_2 and transfers it to a longer-lived store. It requires infrastructure and energy, as well as reliable long-term containment.

Measures in practice

Example: Wind electricity replacing coal generation, rewetting drained peatland, reforestation and geological CO2CO_2 storage illustrate how management can reduce carbon transfers or increase storage.

MeasureCarbon flow reduced or store increasedOne limitation
Wind electricity replacing coal generationReduces the transfer of carbon from geological fossil-fuel stores to the atmosphere through combustion.Variable wind output requires a reliable way to balance electricity supply and demand.
Rewetting drained peatlandReduces oxygen availability, slowing aerobic decomposition and the loss of peat carbon to the atmosphere.Maintaining suitable water levels may conflict with agricultural use of the land.
ReforestationPhotosynthetic uptake increases carbon stored in biomass and soils.Fire or clearance can reverse the storage gain.
Geological CO2CO_2 storageTransfers captured CO2CO_2 into a long-lived geological store rather than releasing it to the atmosphere.Secure containment requires suitable geology and long-term monitoring.

Evaluating the whole-system effect

Each measure should be judged by its net effect across the whole system. A technology isn’t genuinely low-carbon if manufacturing it and supplying its energy simply shift large emissions elsewhere.

Worked example: Evaluate reforestation as a carbon-management strategy.

  1. Explain the benefit: growing trees take up atmospheric CO2CO_2 through photosynthesis, increasing biomass carbon; litter and root inputs can also increase soil carbon storage.
  2. Weigh the limitations: uptake takes time, so planting does not immediately compensate for ongoing fossil-fuel emissions. Fire or clearance can release stored carbon again.
Answer

Answer: Reforestation can increase carbon storage in biomass and soils, but uptake is gradual and storage can be reversed by fire or clearance. It is therefore most effective where forests are protected over the long term and planting complements, rather than replaces, reductions in fossil-fuel burning.

2.3.12

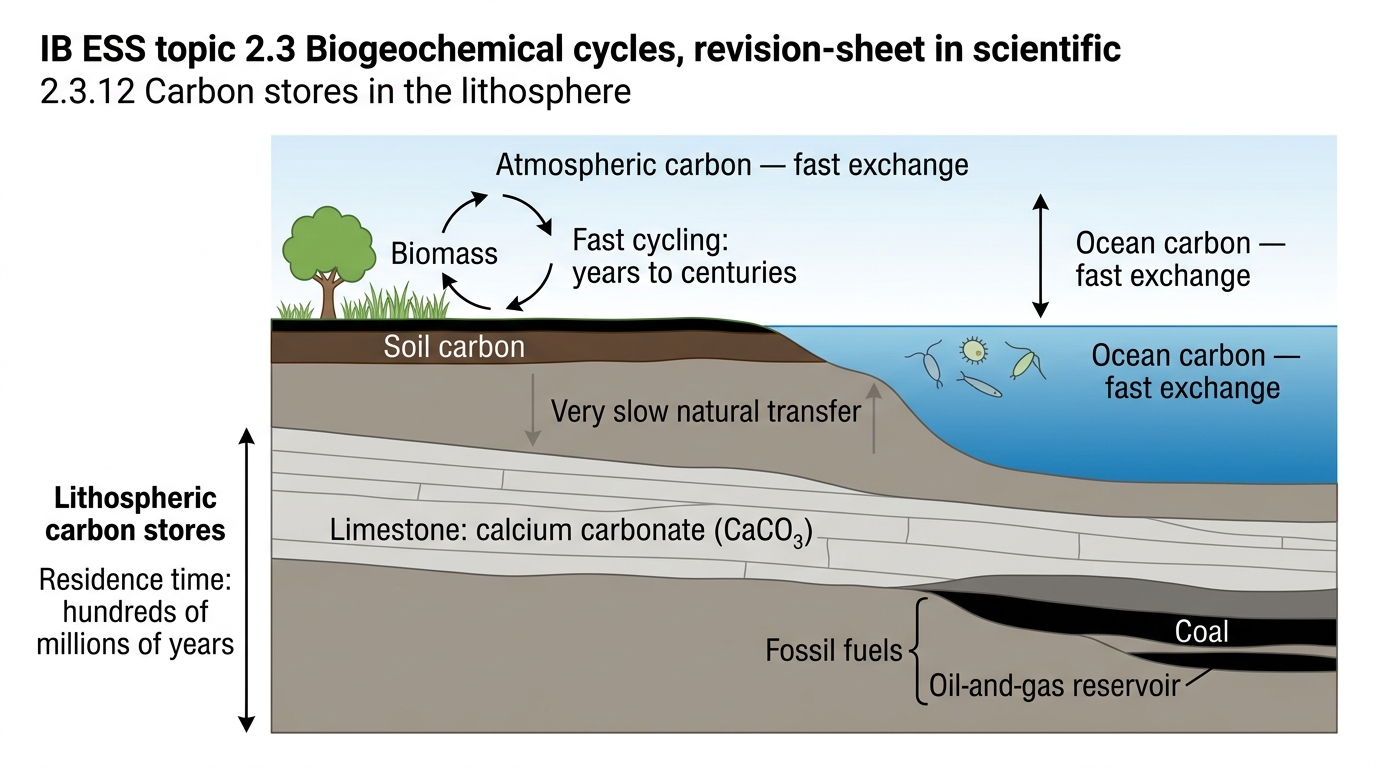

CARBON STORES IN THE LITHOSPHERE

HL

The lithosphere is Earth’s solid, rocky outer layer. It stores carbon in fossil fuels and in rocks such as limestone, which contains calcium carbonate, CaCO3CaCO_3.

Under natural conditions, carbon enters and leaves lithospheric stores extremely slowly. Its residence time can reach hundreds of millions of years. As a result, these stores remain largely separate from the rapid carbon exchanges between the atmosphere, organisms, soils and surface waters—until extraction or other human disturbance speeds up its release.

2.3.13

CALCIUM CARBONATE, FOSSILIZATION AND LIMESTONE

HL

Reef-building corals deposit calcium carbonate in their skeletons; molluscs deposit it in their shells. After the organisms die, some of these hard parts accumulate and become buried, eventually contributing to limestone.

The cross-section traces carbon from seawater into biological hard parts and then into a long-term geological store.

Limestone is the largest carbon store in Earth systems. But not every limestone deposit consists entirely of fossilized animal remains. It can form through biological or non-biological processes, though the chemical and geological details of these pathways aren’t required here.

The sequence to know is:

  • Carbon in dissolved inorganic compounds.
  • Incorporation into calcium carbonate hard parts.
  • Burial.
  • Long-term storage in limestone.

2.3.14

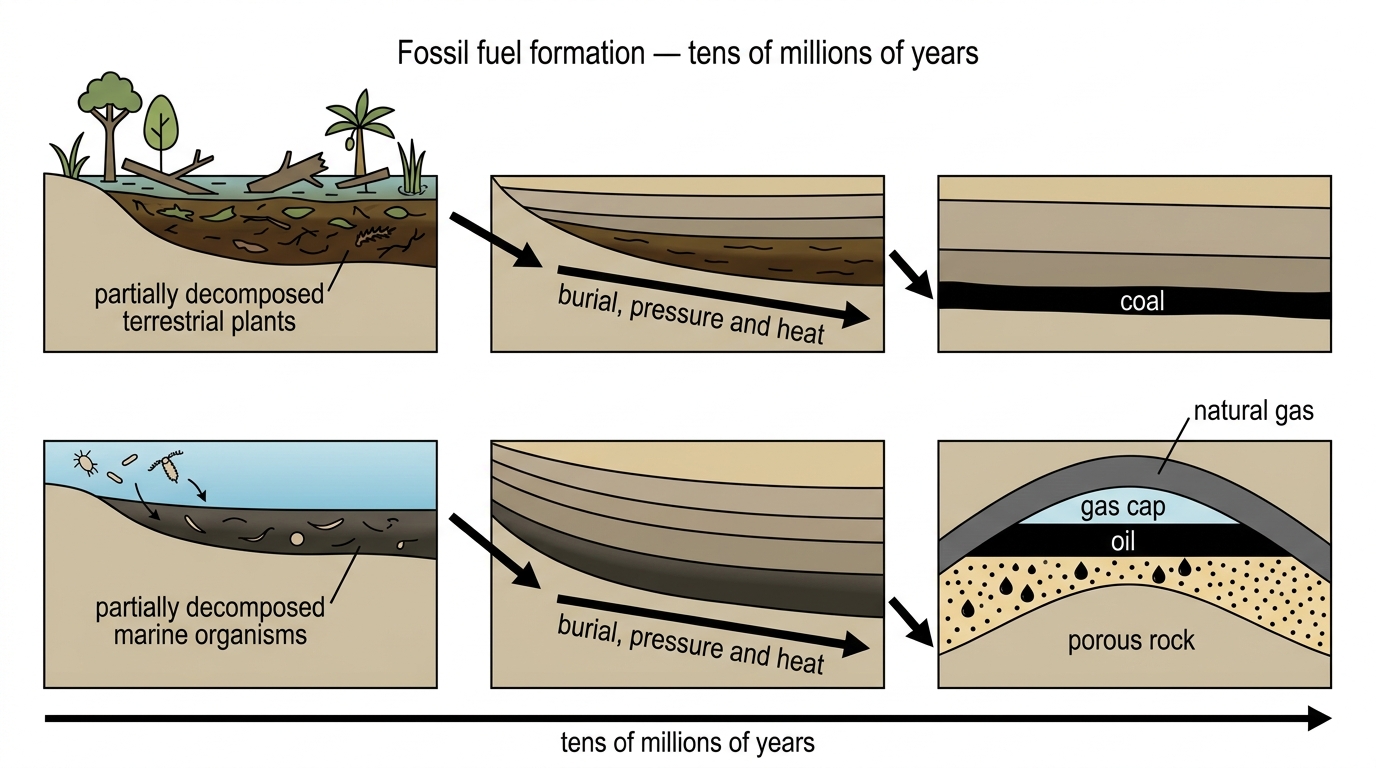

FORMATION OF COAL, OIL AND NATURAL GAS

HL

During past geological eras, some dead organic matter didn’t decompose completely. Partially decomposed terrestrial plants became fossilized in coal, while partially decomposed marine organisms contributed to oil and natural gas that accumulated in porous rocks.

The conditions needed to form these fuels were especially common during particular geological eras. Even so, significant stores took tens of millions of years to accumulate. We now extract fossil fuels enormously faster than they form, so they’re non-renewable on human timescales.

2.3.15

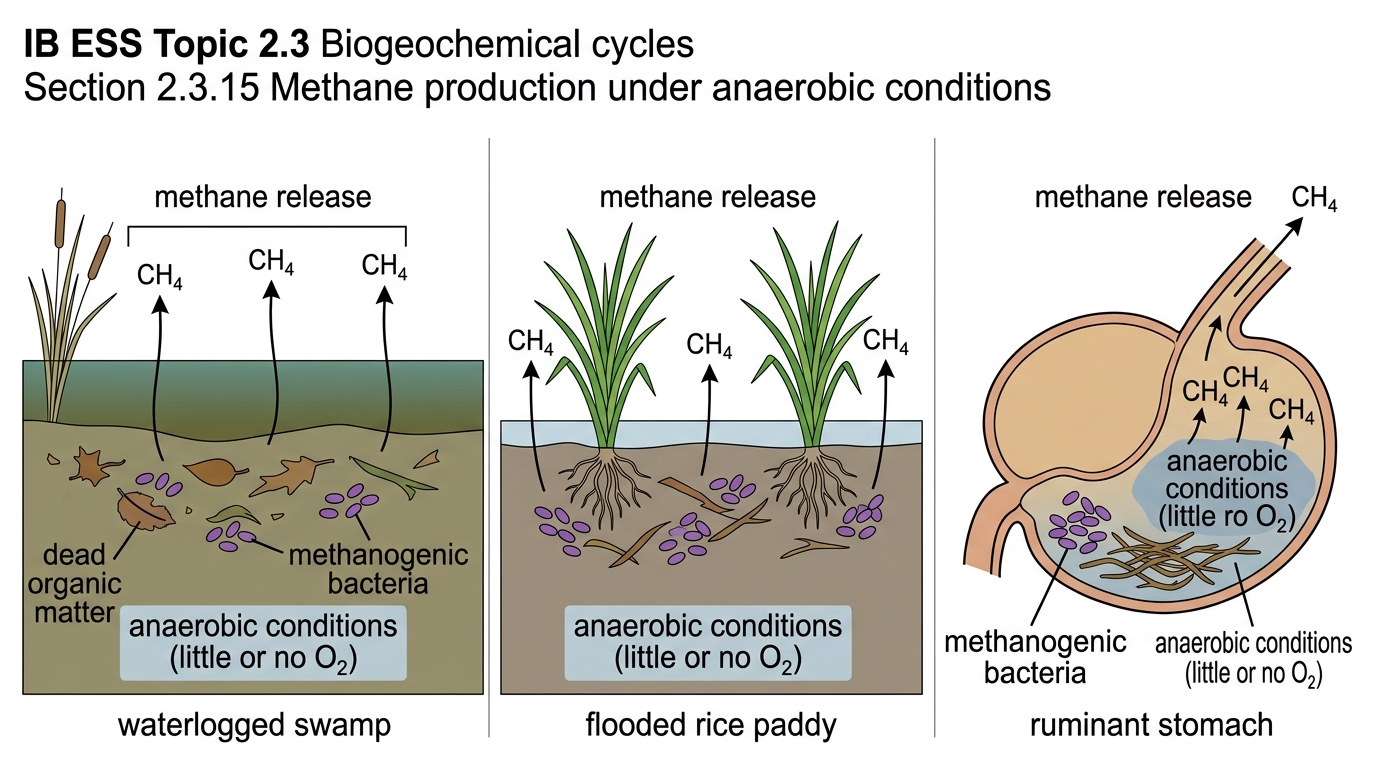

METHANE PRODUCTION UNDER ANAEROBIC CONDITIONS

HL

Anaerobic conditions are environments where molecular oxygen is absent or extremely limited. Methanogenic bacteria are anaerobic microorganisms that produce methane from dead organic matter through a process called methanogenesis.

These conditions are found in waterlogged swamps and rice paddies because oxygen cannot diffuse easily into saturated material. They also occur inside the digestive systems of cattle and other ruminants. In both settings, abundant organic matter combined with a lack of oxygen allows methane, CH4CH_4, to be produced.

2.3.16

ATMOSPHERIC METHANE

HL

Methane remains in the atmosphere for about 10 years. It doesn’t stay unchanged forever; atmospheric oxidation eventually converts it to CO2CO_2.

As a greenhouse gas, methane absorbs outgoing infrared radiation in the atmosphere and contributes to atmospheric warming. It is potent, so methane released today can cause strong warming during its comparatively short atmospheric lifetime. Once converted to CO2CO_2, its carbon remains in the broader carbon cycle even though the methane itself has been removed.

2.3.17

ORGANIC AND INORGANIC STORES IN THE NITROGEN CYCLE

HL

The nitrogen cycle is a biogeochemical cycle that moves nitrogen between the atmosphere, organisms, dead organic matter, soil and water.

Proteins and other nitrogenous carbon compounds in living organisms and dead organic matter form the organic nitrogen stores. Inorganic stores include atmospheric nitrogen, ammonia, ammonium, nitrites and nitrates in soil and water.

Atmospheric dinitrogen, N2N_2, forms the largest atmospheric store, although most plants can’t use it directly. Bacteria transform it into biologically available compounds. Producers then incorporate these compounds into organic matter, while food-web transfers move nitrogen through organisms.

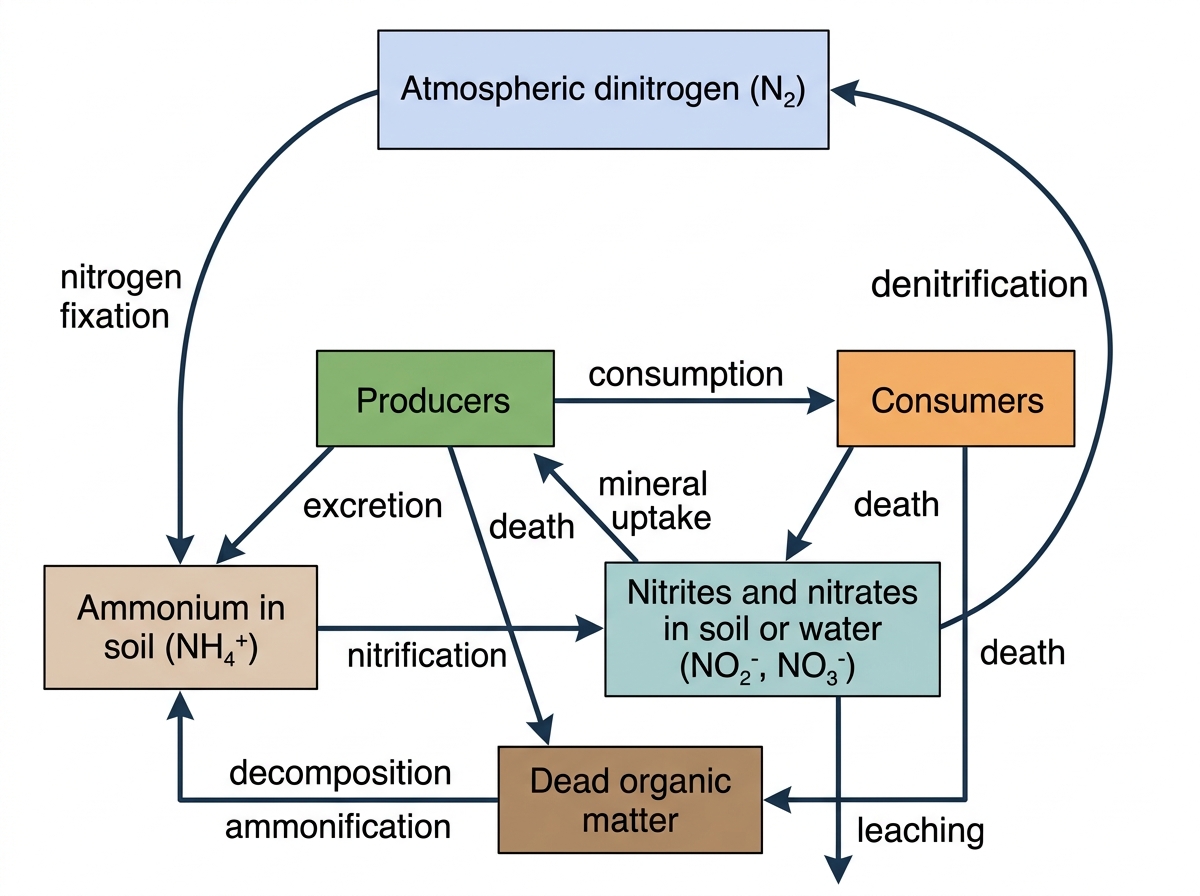

For a systems diagram, draw boxes for atmospheric N2N_2, soil ammonium, soil nitrates, producers, consumers and dead organic matter. Connect them with labelled arrows showing fixation, nitrification, uptake, consumption, excretion, death, decomposition, ammonification and denitrification.

2.3.18

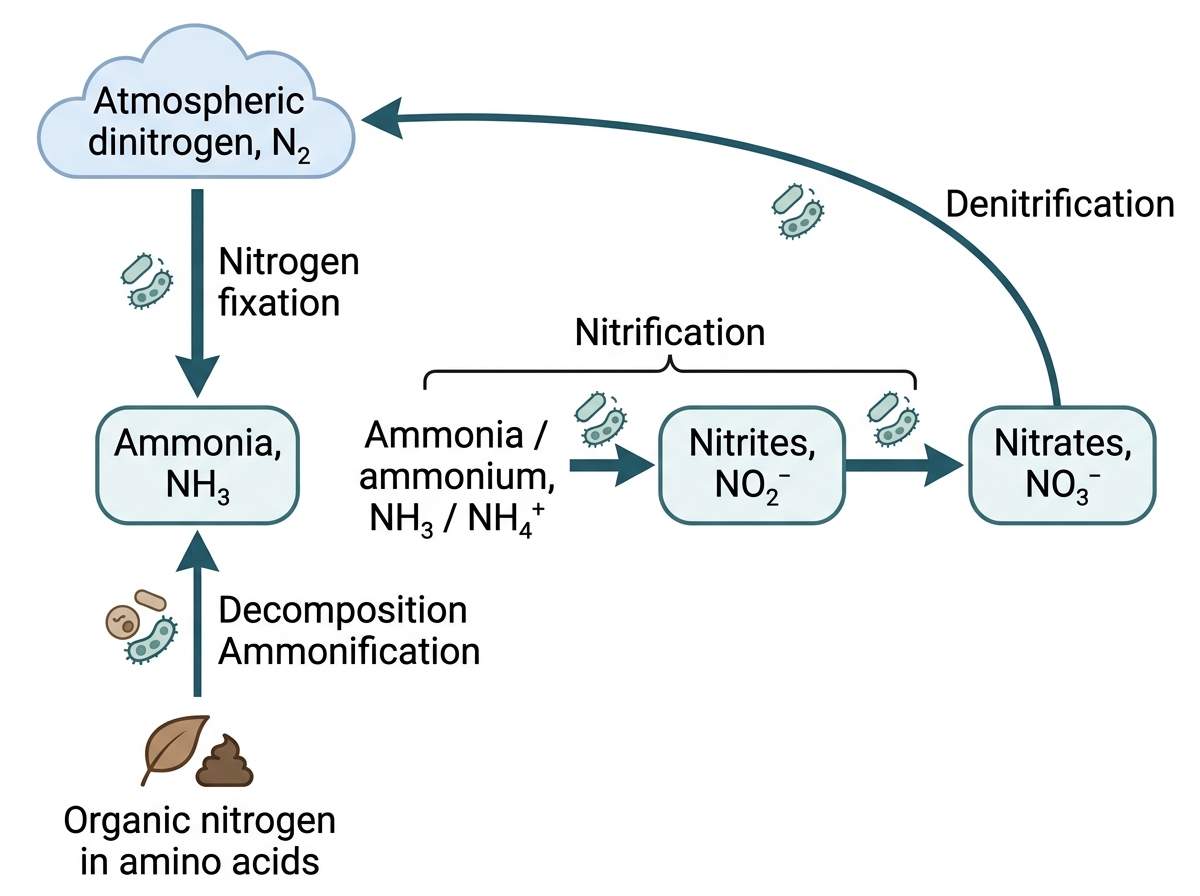

ESSENTIAL ROLES OF BACTERIA IN THE NITROGEN CYCLE

HL

Bacteria carry out transformations that make atmospheric nitrogen available to organisms. Eventually, they return it to the atmosphere.

Process and definitionStarting nitrogen formProductOxygen conditions where relevant
Nitrogen fixation is conversion of nitrogen from the atmosphere into ammonia.Atmospheric nitrogen, N2N_2Ammonia, NH3NH_3—
Nitrification is conversion of ammonia to nitrates.Ammonia or ammoniumNitrites, then nitratesAerobic: oxygen available
Denitrification is conversion of nitrates to nitrogen.NitratesAtmospheric nitrogen, N2N_2Anaerobic: oxygen absent
Decomposition is the conversion of amino acids into ammonium.Organic nitrogen in amino acidsAmmonium—

During nitrogen fixation, nitrogen-fixing bacteria transform N2N_2 into NH3NH_3. Nitrification happens in stages: ammonium is first converted to nitrites, then to nitrates. You don't need to know the detailed chemical reactions. Denitrifying bacteria return nitrogen to the atmospheric N2N_2 store.

Decomposers break down the organic nitrogen found in dead material and waste. In Ammonification, decomposers transform organic nitrogen into ammonia or ammonium.

These processes are easy to mix up, so track the form of nitrogen. Use the starting form and product to identify each process below.

Example: Clover-associated bacteria convert atmospheric N2N_2 into NH3NH_3. Identify the process and its starting and product forms. The answer is nitrogen fixation: atmospheric nitrogen becomes ammonia.

Example: In aerated soil, ammonium becomes nitrate. Identify the process and its starting and product forms. The answer is nitrification: ammonium becomes nitrite, then nitrate.

Example: Nitrate is lost from waterlogged soil as bacteria release nitrogen gas. Identify the process and its starting and product forms. The answer is denitrification: nitrate becomes atmospheric nitrogen, N2N_2.

Example: Nitrogen in the amino acids of fallen leaves becomes ammonium as decomposers break down the leaves. Identify the process and its starting and product forms. The answer is decomposition, specifically ammonification: organic nitrogen becomes ammonium.

2.3.19

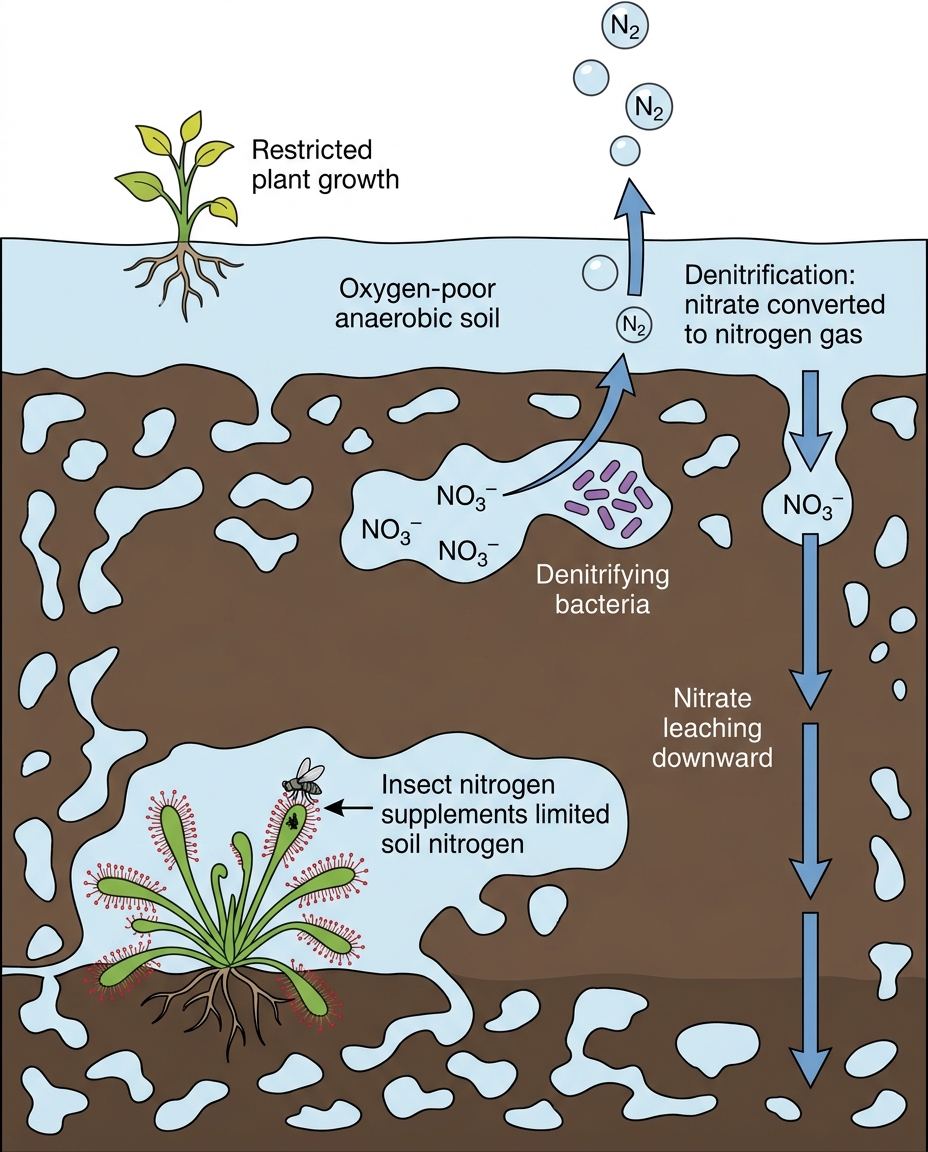

DENITRIFICATION IN ANAEROBIC SOILS

HL

Denitrification only occurs under anaerobic conditions. When soil becomes waterlogged, water fills its pores and greatly slows oxygen diffusion. This creates suitable conditions for denitrifying bacteria.

These bacteria convert nitrates to nitrogen gas, which is then lost from the soil. Nitrates can also be removed by leaching, the downward transport of dissolved substances through soil water. As less nitrogen is available, plant growth slows or may stop altogether.

Some insectivorous plants have adapted to these nitrogen-poor habitats. Rather than relying only on mineral nitrogen from the soil, they trap and digest insects, using the insects’ tissues as an additional nitrogen source. This allows them to obtain nitrogen where ordinary root uptake is strongly limited.

2.3.20

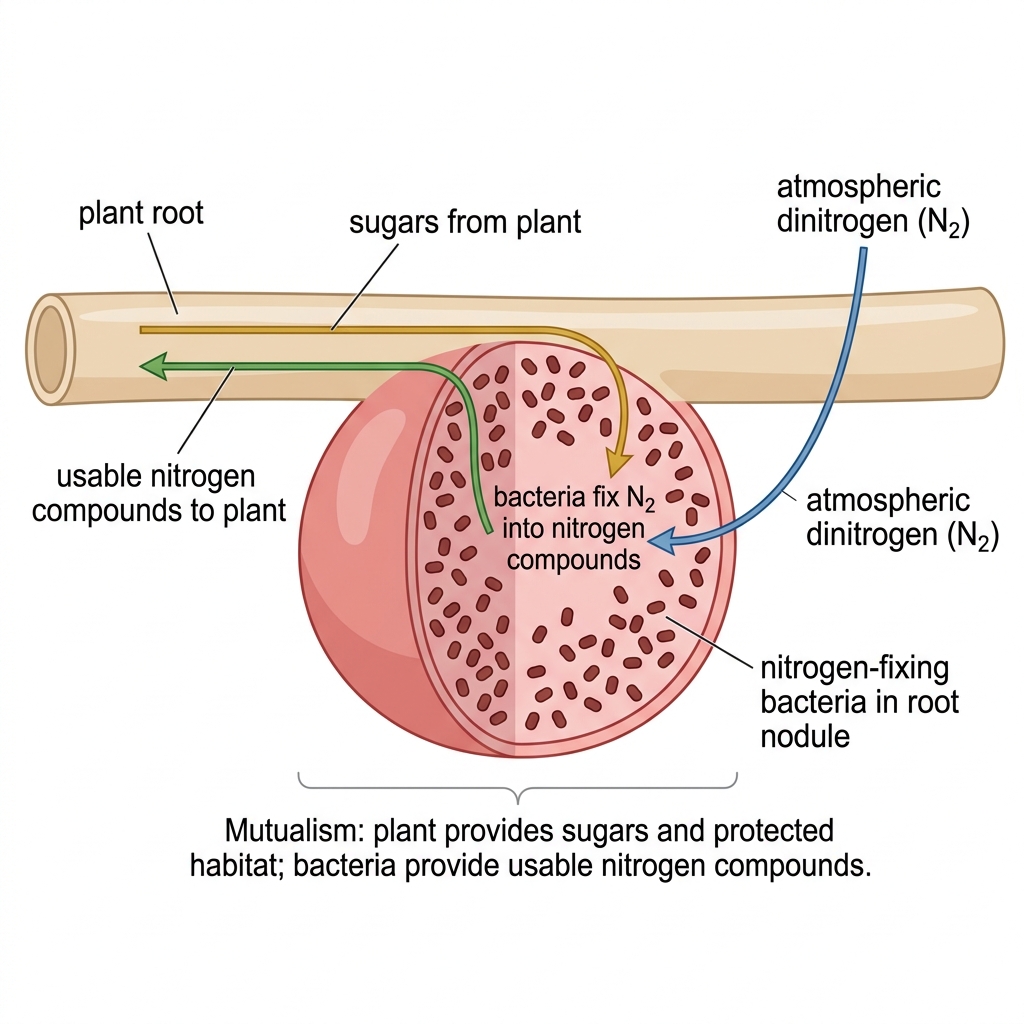

MUTUALISTIC NITROGEN FIXATION

HL

Plants can’t fix nitrogen themselves. Atmospheric dinitrogen is therefore unavailable to them unless they form a mutualistic association with nitrogen-fixing bacteria.

Mutualism is an interspecific relationship in which both species benefit. Leguminous plants, including peas and clover, provide nitrogen-fixing bacteria with sugars and a protected habitat inside root nodules. In return, the bacteria fix atmospheric N2N_2 into nitrogen compounds that the plant can ultimately use to make amino acids and proteins.

This association gives legumes a competitive advantage where available nitrogen limits plant growth. Even when soil nitrate is scarce, they can still obtain usable nitrogen, allowing greater growth, survival or reproduction than plants that depend entirely on the soil nitrate store.

2.3.21

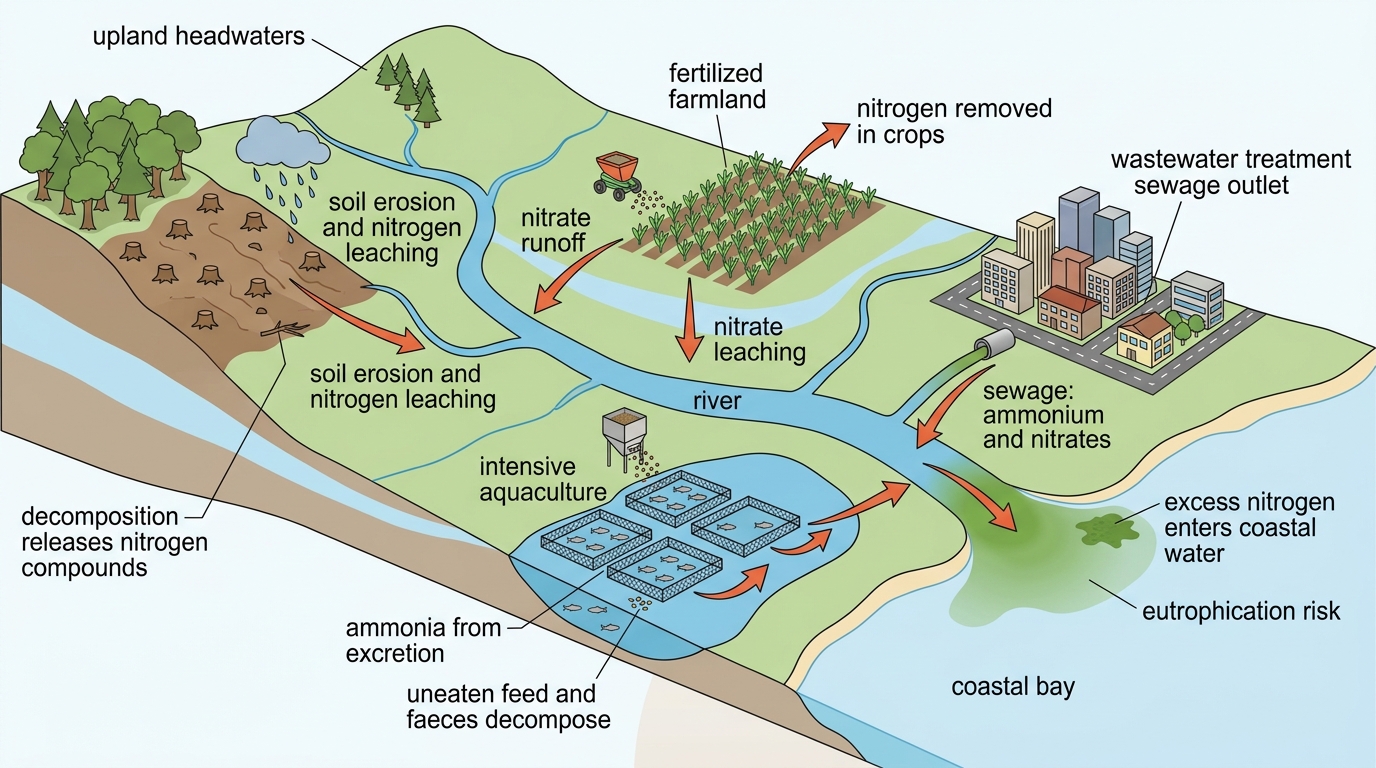

FLOWS IN THE NITROGEN CYCLE

HL

Nitrogen moves through ecosystems in transfer and transformation flows.

Flow typeWhat happens to nitrogen?Examples
Transfer flowsNitrogen moves from one place or organism to another without necessarily changing its chemical form.Mineral uptake by producer roots; consumption along food chains; excretion; death; movement of dead material to decomposers.
Transformation flowsNitrogen changes chemical form.Assimilation into organic compounds; decomposition; ammonification; fixation; nitrification; denitrification.

Photosynthesis and nitrogen assimilation

Photosynthesis supplies organic carbon and captures light energy for growth. Nitrogen assimilation incorporates absorbed inorganic nitrogen into amino acids, which producers use to make proteins. Photosynthesis supports growth, but it is not itself the process that incorporates mineral nitrogen into proteins.

Decomposition breaks complex organic material into simpler substances, while ammonification converts organic nitrogen into ammonia or ammonium. Other transformations—fixation, nitrification and denitrification—link atmospheric, soil and biological stores.

Following nitrogen through a food chain

Example: Follow nitrogen from soil nitrate through grass and a rabbit. Grass roots absorb soil nitrate: this is a transfer into the producer. Assimilation converts the absorbed inorganic nitrogen into grass protein: this is a transformation. A rabbit eats the grass, transferring nitrogen from grass to rabbit. Rabbit death transfers nitrogen from the living rabbit to dead organic material. Ammonification then transforms organic nitrogen in the dead material into ammonia or ammonium. Trace these steps on the nitrogen-cycle systems diagram in section 2.3.17, distinguishing root uptake from assimilation/organic synthesis.

This sequence distinguishes transfers from transformations along the same nitrogen pathway.

Systems-diagram checklist

A complete systems diagram of the nitrogen cycle should include:

  • Mineral uptake by producer roots.
  • Photosynthesis in producers, supplying organic carbon and energy.
  • Assimilation/organic synthesis in producers, incorporating absorbed inorganic nitrogen into amino acids and proteins.
  • Consumption, excretion and death.
  • Decomposition and ammonification.
  • The three named bacterial conversions: fixation, nitrification and denitrification.

2.3.22

HUMAN ACTIVITIES CHANGE THE NITROGEN CYCLE

HL

Human activities can alter nitrogen stores, as well as the rates and directions of nitrogen flows.

Deforestation

When vegetation is removed, less organic nitrogen remains stored in biomass. The exposed soil becomes more vulnerable to erosion and leaching, so its nitrogen stores decline. Dead residues may also decompose and release nitrogen compounds.

Agriculture

Inorganic fertilizer raises soil nitrogen above natural fixation rates. Harvesting crops removes nitrogen, while runoff and leaching carry excess nitrates into aquatic systems, where they can contribute to eutrophication. Farming activities that kill soil organisms or simplify habitats may also change the rates of decomposition, nitrification and denitrification.

Aquaculture

Cultured animals excrete ammonia. Uneaten feed and faecal material also decompose, adding more biologically available nitrogen. If a system is poorly flushed, this nitrogen builds up and degrades water quality.

Urbanization

Clearing habitats removes nitrogen stored in biomass. At the same time, concentrated sewage carries ammonium and nitrates into rivers, lakes and coastal waters. Greater urban demand for food also moves nitrogen through agricultural production, transport, consumption and waste disposal.

For each case, trace the nitrogen. Identify its original store, the flow that changed and the store receiving it. This shows how a local activity can produce downstream effects.

2.3.23

THE HABER PROCESS

HL

The Haber process is an industrial process that produces ammonia from nitrogen and hydrogen for use as fertilizer. By industrializing nitrogen fixation, it greatly increases the supply of reactive nitrogen available for growing crops.

Atmospheric nitrogen reacts with hydrogen in the Haber process to produce ammonia, which is used to manufacture nitrogen fertilizer. The balanced equation is:

N2+3H2⇌2NH3N_2 + 3H_2 \rightleftharpoons 2NH_3

Benefits for food production

The main advantage is a higher crop yield. Nitrogen often limits plant growth, so crop uptake of nitrogen fertilizer can boost growth and help produce food for a large human population. Farming also becomes possible in places where natural nitrogen inputs or recycling wouldn’t provide enough.

Energy use and pollution

There are disadvantages throughout the system:

  • Ammonia production uses substantial amounts of energy, often from fossil fuels, so the manufacturing stage adds to greenhouse-gas emissions.
  • Crops don’t absorb all the fertilizer applied. Nitrate may leach or run off into water, where it promotes eutrophication and biodiversity loss.
  • Using too much fertilizer causes pollution and wastes resources.

Evaluating the balance

Haber-process fertilizer has played a central role in food security, but uncontrolled or inefficient use is environmentally unsustainable. More precise application, nutrient recycling and reduced losses can keep the yield benefits while limiting the damage.

Example: On a hypothetical wheat farm, a plot receiving nitrogen fertilizer timed to crop demand produces more grain than an unfertilized comparison plot. A more heavily fertilized plot produces little additional grain but loses more nitrate in drainage water. These imagined observations illustrate how fertilizer can improve food production while excess application increases pollution without a matching yield benefit.

Exam tip: For an “Evaluate” response, weigh benefits against costs and make a supported judgement: “On this hypothetical wheat farm, fertilizer improves food security because the crop-demand application produces more grain than the unfertilized plot. However, manufacturing requires energy and contributes to greenhouse-gas emissions, while heavier application adds little grain and increases nitrate pollution, so its benefits are more likely to outweigh its costs when efficient application maintains yields and limits losses.”

2.3.24

THE PLANETARY BOUNDARY FOR THE NITROGEN CYCLE

HL

A planetary boundary is a proposed limit for a major Earth-system process. Beyond it, the risk of large-scale and potentially irreversible environmental change rises sharply.

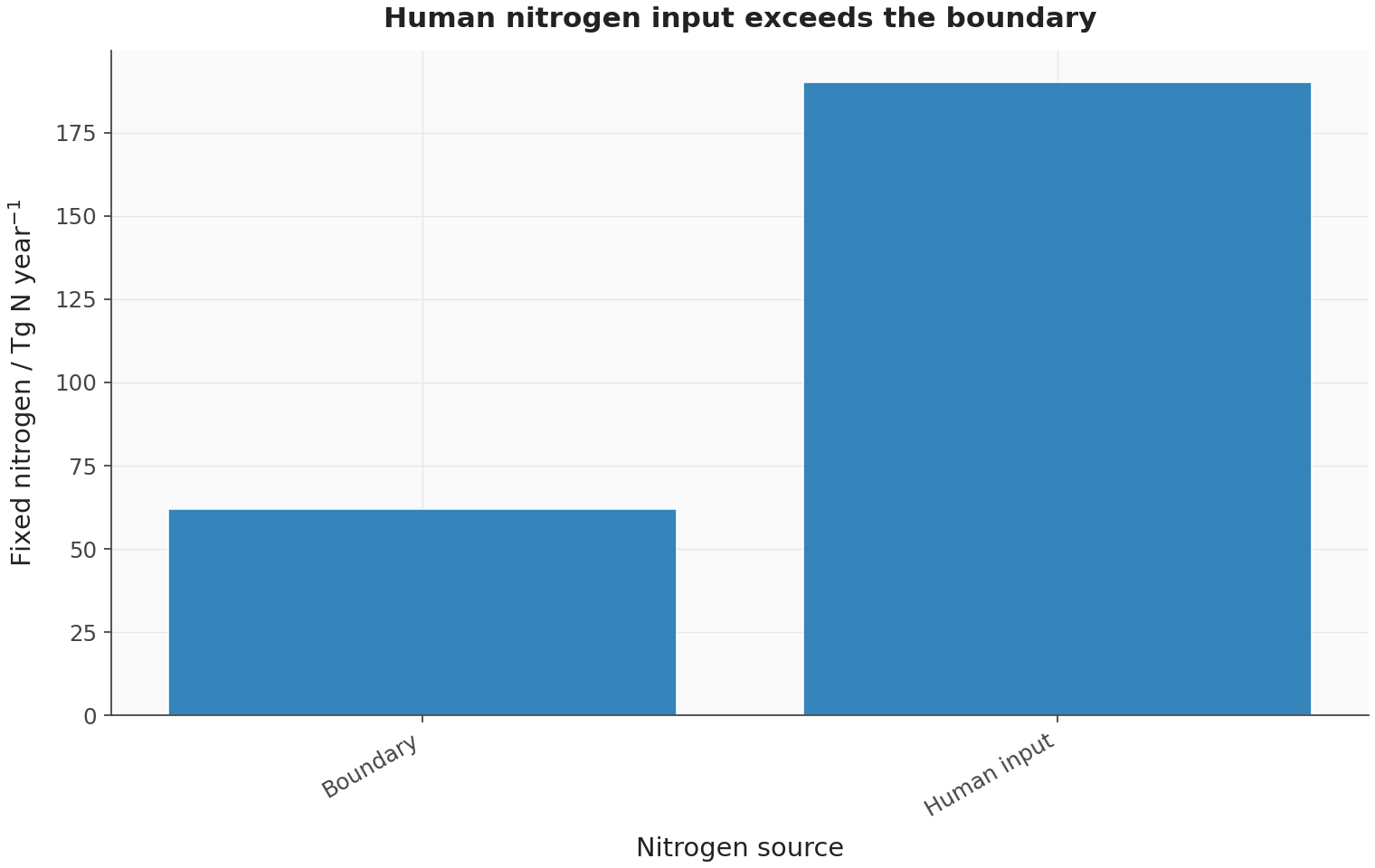

Humans have increased nitrate availability far above natural rates by fixing and applying nitrogen. The cited boundary for intentionally fixed nitrogen applied to agriculture is 62 Tg N year−162\ \text{Tg N year}^{-1}, yet estimated anthropogenic input is about 190 Tg N year−1190\ \text{Tg N year}^{-1}. Human input is more than three times the boundary value.

Worked example: Calculate how many times the nitrogen boundary the estimated input represents, the excess input and the percentage above the boundary. A teragram (Tg) is 1012 g10^{12}\ \text{g}, so the input values measure the mass of nitrogen per year.

  1. Divide the estimated input by the boundary. The units cancel, giving a dimensionless multiple:
19062=3.06≈3.1\frac{190}{62} = 3.06 \approx 3.1
  1. Subtract the boundary from the estimated input to find the excess:
Excess input=190−62=128 Tg N year−1\text{Excess input} = 190 - 62 = 128\ \text{Tg N year}^{-1}
  1. Divide the excess by the boundary, then multiply by 100 to find the percentage above it:
Percentage above boundary=12862×100≈206%\text{Percentage above boundary} = \frac{128}{62} \times 100 \approx 206\%
Answer

Answer: Estimated input is about 3.1 times the boundary, exceeding it by 128 Tg N year−1128\ \text{Tg N year}^{-1}, or approximately 206%206\%.

Common mistake: Confusing the percentage of the boundary with the percentage above it. The calculation 19062×100≈306%\frac{190}{62} \times 100 \approx 306\% gives input as a percentage of the boundary. Subtracting the boundary’s own 100%100\% gives approximately 206%206\% above it—not 306%306\% above it.

Environmental consequences

The numerical overshoot is only part of the evidence. Excess reactive nitrogen moves from agricultural and urban land into rivers and coastal waters. There, it contributes to eutrophication and oxygen depletion, as well as biodiversity loss. Nitrogen pollution also interacts with climate change and biosphere integrity.

Global crop production relies heavily on inorganic fertilizers. At this scale, the Haber process is the main mechanism used to convert atmospheric nitrogen into fertilizer, so this dependence is a principal cause of the boundary being crossed. That doesn’t mean every change becomes irreversible immediately. It means the likelihood of severe and irreversible Earth-system change has become unacceptably high.

2.3.25

GLOBAL COLLABORATION TO MANAGE NITROGEN

HL

Nitrogen crosses political borders in rivers, groundwater and air, as well as through food trade and marine systems. As a result, one country may face costs that arise partly from production or consumption elsewhere. Local controls alone aren’t enough; countries need to coordinate their actions.

Measures to reduce nitrogen losses

Measures include:

  • setting national targets for fertilizer losses and nitrogen emissions;
  • regulating excessive fertilizer use, with stronger enforcement;
  • using precision application to match fertilizer supply to crop need;
  • safely recycling nutrients from manure, sewage and organic waste;
  • improving soil management and introducing crop rotations with nitrogen-fixing plants;
  • cutting ammonia and nitrogen losses from intensive livestock production;
  • collecting comparable data and sharing national action plans;
  • reducing food waste and demand for nitrogen-intensive livestock products through dietary change;
  • backing international commitments that reduce excess nutrients entering the environment.

International commitments and implementation

Global agreements can set common goals. Their success, however, depends on monitoring, finance, technology transfer and fair implementation. Lower-income producers may need support so they can improve nutrient efficiency without sacrificing food security. Farmers aren’t solely responsible: consumers, businesses and governments also shape the system.

Example: The 2019 Colombo Declaration on Sustainable Nitrogen Management set an ambition to halve nitrogen waste by 2030. It is a voluntary declaration, not a legally enforceable treaty: its ambition does not itself compel countries to achieve the target. Comparable monitoring is needed to assess progress, while finance and technology transfer can help producers reduce losses. National implementation must translate the shared ambition into funded action plans and practical changes in nutrient management.

To bring the cycle back within planetary boundaries, new reactive nitrogen inputs must fall, while useful nitrogen must be prevented from turning into pollution. The strongest strategy combines efficient production and nutrient recovery with changed consumption and enforceable international cooperation.

Exam tip: For “Discuss the need for international cooperation”, build a reasoned outline: explain how nitrogen transport in rivers and air makes pollution a transboundary problem; use the 2019 Colombo Declaration and its ambition to halve nitrogen waste by 2030 as named evidence of cooperation; then evaluate an implementation barrier, such as insufficient finance for lower-income producers or the declaration’s voluntary status. Judge that coordinated targets are necessary because countries share nitrogen flows, but are insufficient without effective national policies, monitoring and farm-level changes such as precision fertilizer application. Link each measure to how it reduces nitrogen losses rather than simply listing measures.

Were those notes helpful?

2.2 Energy and biomass in ecosystems

2.4 Climate and biomes
