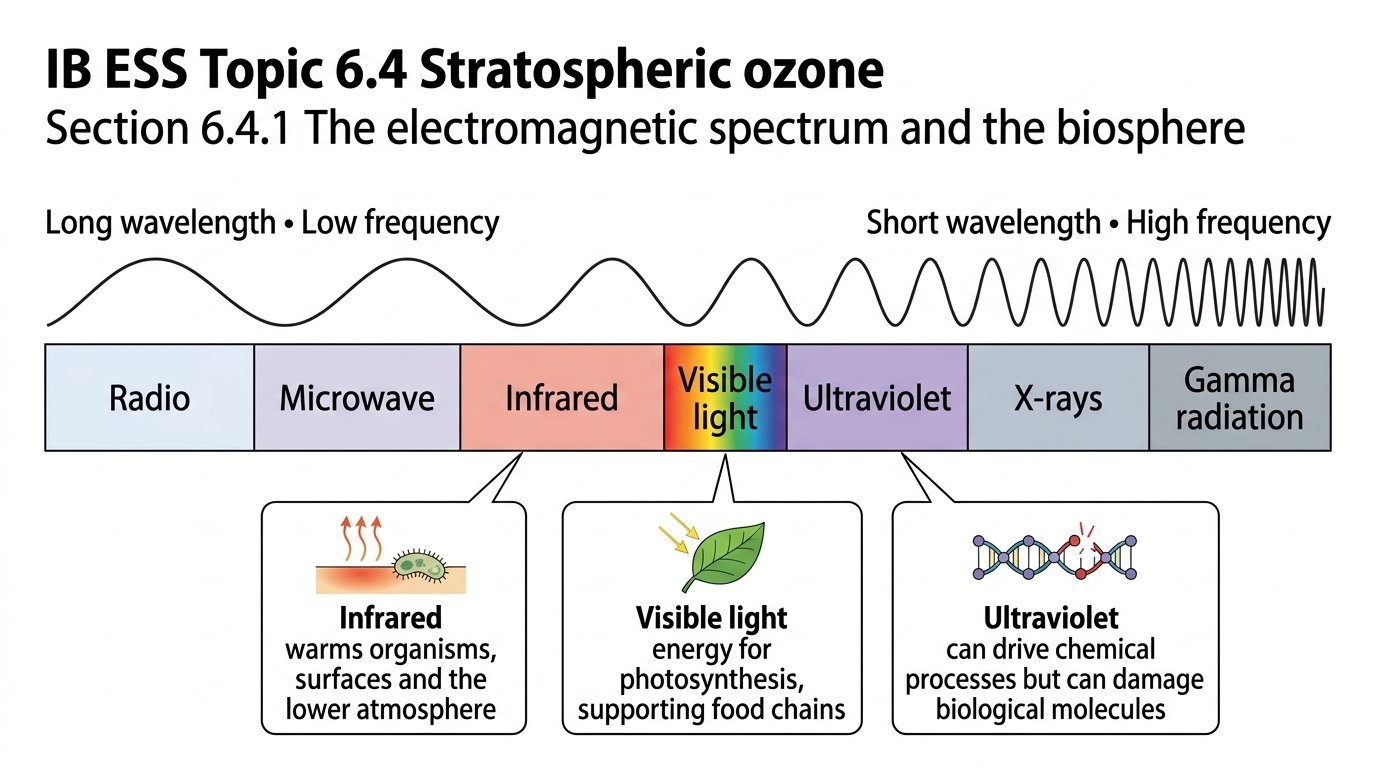

From radio waves to gamma radiation

Electromagnetic radiation is energy that travels through space as linked electric and magnetic waves. Its complete range is called the electromagnetic spectrum. This stretches from long-wavelength, low-frequency radio waves to short-wavelength, high-frequency gamma radiation.

Wavelength is the distance between corresponding points on successive waves, whereas frequency is the number of complete waves passing a point per unit time. The two are inversely related: frequency increases as wavelength decreases.

Radiation in the biosphere

Three regions have particular relevance here:

• Infrared radiation is electromagnetic radiation with wavelengths longer than visible light but shorter than microwaves. It is linked to heat transfer, helping to warm organisms, surfaces and the lower atmosphere.
• Visible light is electromagnetic radiation detectable by the human eye. Photosynthetic organisms capture its energy, so it supports most food chains.
• Ultraviolet radiation is electromagnetic radiation with wavelengths shorter than visible light but longer than X-rays. It can trigger useful chemical processes. However, its relatively high energy also allows it to damage biological molecules.

These regions aren’t separate substances. They are adjoining parts of one spectrum, distinguished by wavelength and frequency.

Why shorter wavelengths are more dangerous

Short-wavelength radiation has a high frequency, so it carries more energy. As a result, ultraviolet radiation can disrupt chemical bonds and damage cells. The shortest UV wavelengths pose the greatest danger.

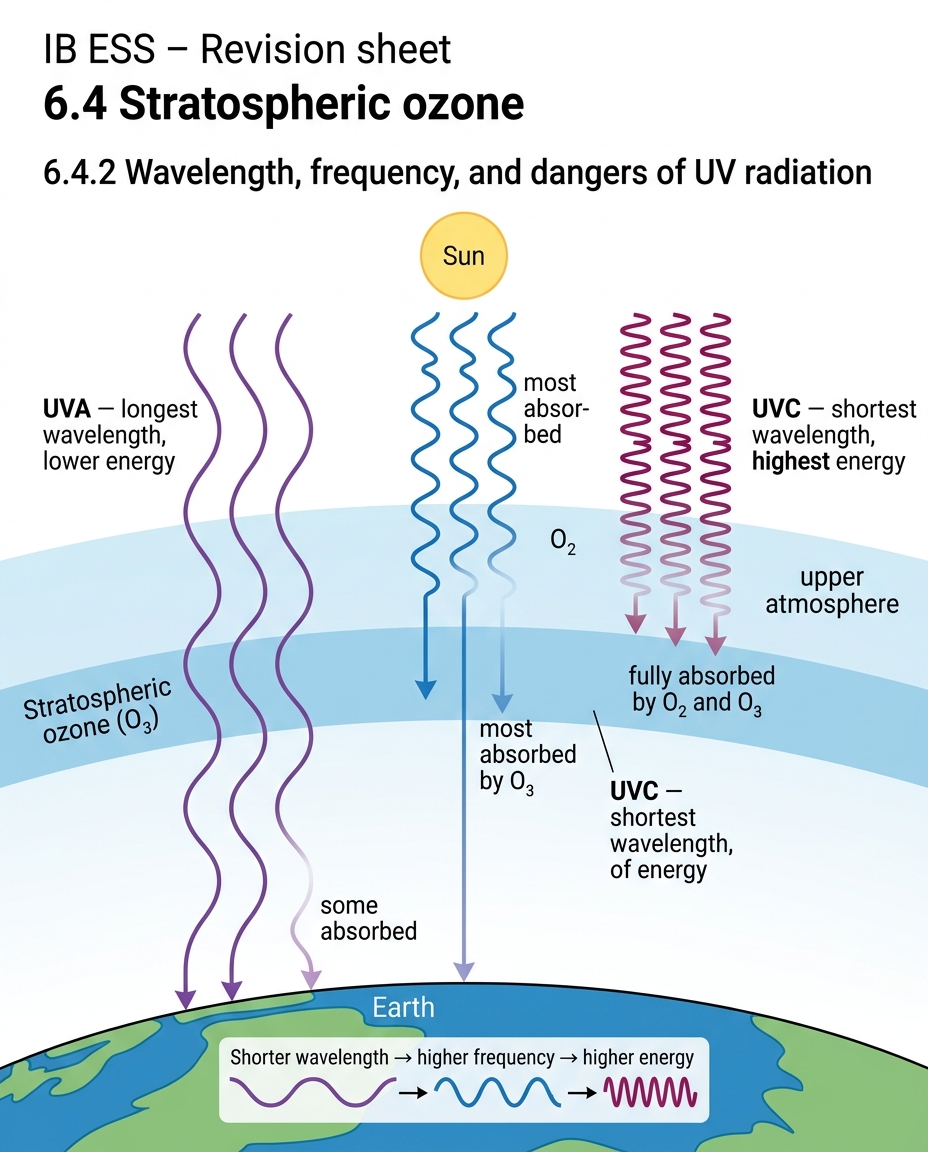

Ultraviolet radiation is split into UVA, UVB and UVC. Each type can damage organisms, though their wavelengths, energies and atmospheric absorption differ:

• UVA is the longest-wavelength category of UV radiation. Much of it reaches the surface. UVA can contribute to vitamin D production, but it can damage the skin and eyes too.
• UVB is an intermediate-wavelength category of UV radiation. More energetic than UVA, it is strongly associated with DNA damage, sunburn and skin cancer. Stratospheric ozone absorbs most incoming UVB, but some still passes through.
• UVC is the shortest-wavelength and highest-energy category of UV radiation. Stratospheric ozone and atmospheric oxygen absorb essentially all incident UVC before it reaches Earth’s surface.

Remember the protective pattern: all UVC and most UVB are absorbed, while a larger proportion of UVA reaches the surface.

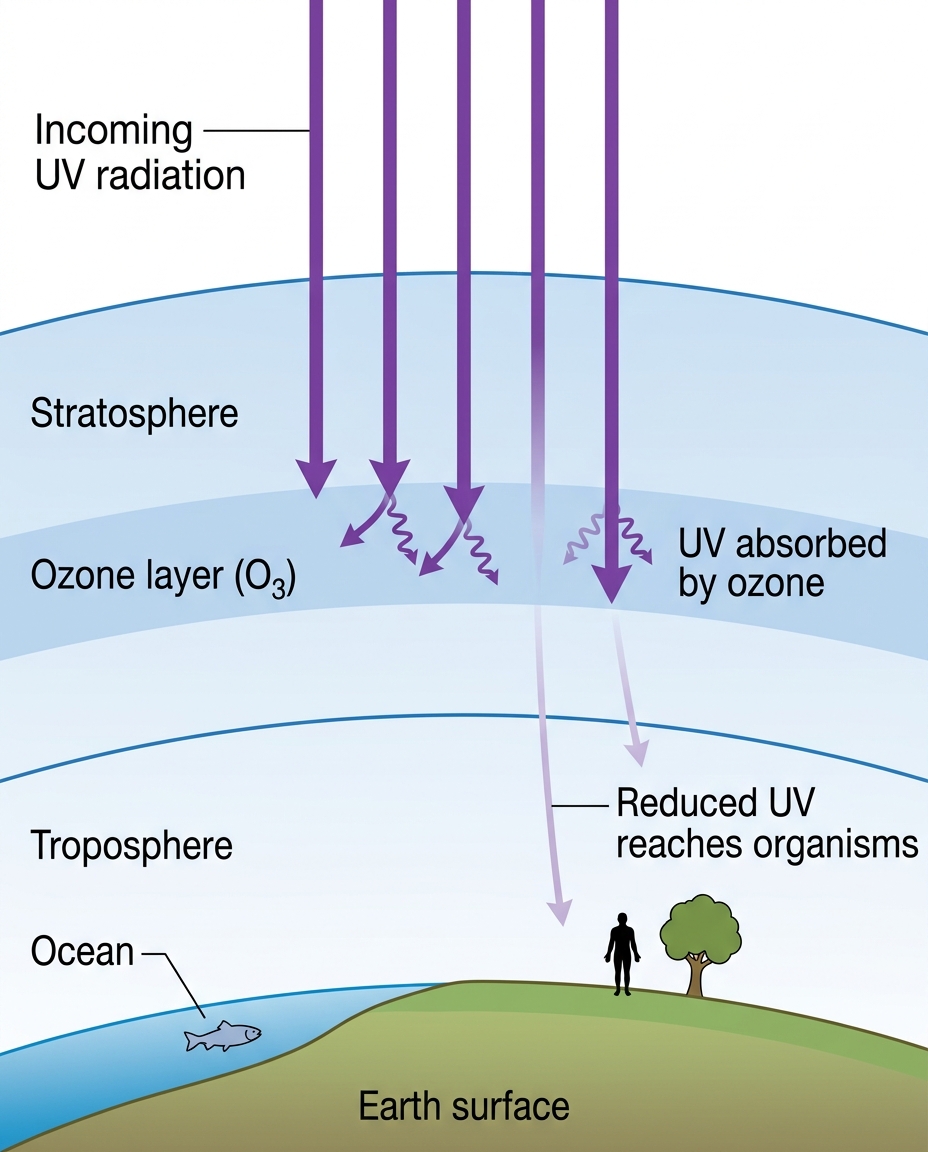

The ozone shield

Stratospheric ozone is ozone located in the stratosphere that absorbs incoming ultraviolet radiation. It reaches its highest concentration in the ozone layer, far above the troposphere where people live and weather occurs.

As ozone absorbs UV radiation, it transfers the radiation’s energy to atmospheric molecules instead of allowing it to continue towards Earth’s surface. Terrestrial and aquatic organisms are therefore exposed to less UV radiation, particularly UVC and UVB. The shortest UV wavelengths cause the most damage because they carry the most energy.

Stratospheric ozone protects life. Near ground level, however, ozone is an air pollutant. Its effect depends greatly on where it occurs in the atmosphere.

Effects on ecosystems

Elevated UV exposure damages cellular components in phytoplankton and reduces photosynthesis. Since phytoplankton are primary producers, this drop in productivity can leave less energy and biomass available to aquatic food webs. UV exposure may reduce plant growth and crop productivity too.

A mutation is a change in the genetic material of a cell or organism. By damaging DNA, UV radiation can increase the frequency of mutations. Some mutations disrupt cell function or the control of cell division, so they may cause cancer.

Effects on human health

Greater UV exposure can lead to sunburn and premature ageing of the skin. The risks of skin cancer and eye damage also rise. A cataract is a clouding of the eye’s lens that reduces the transmission of light and may impair vision.

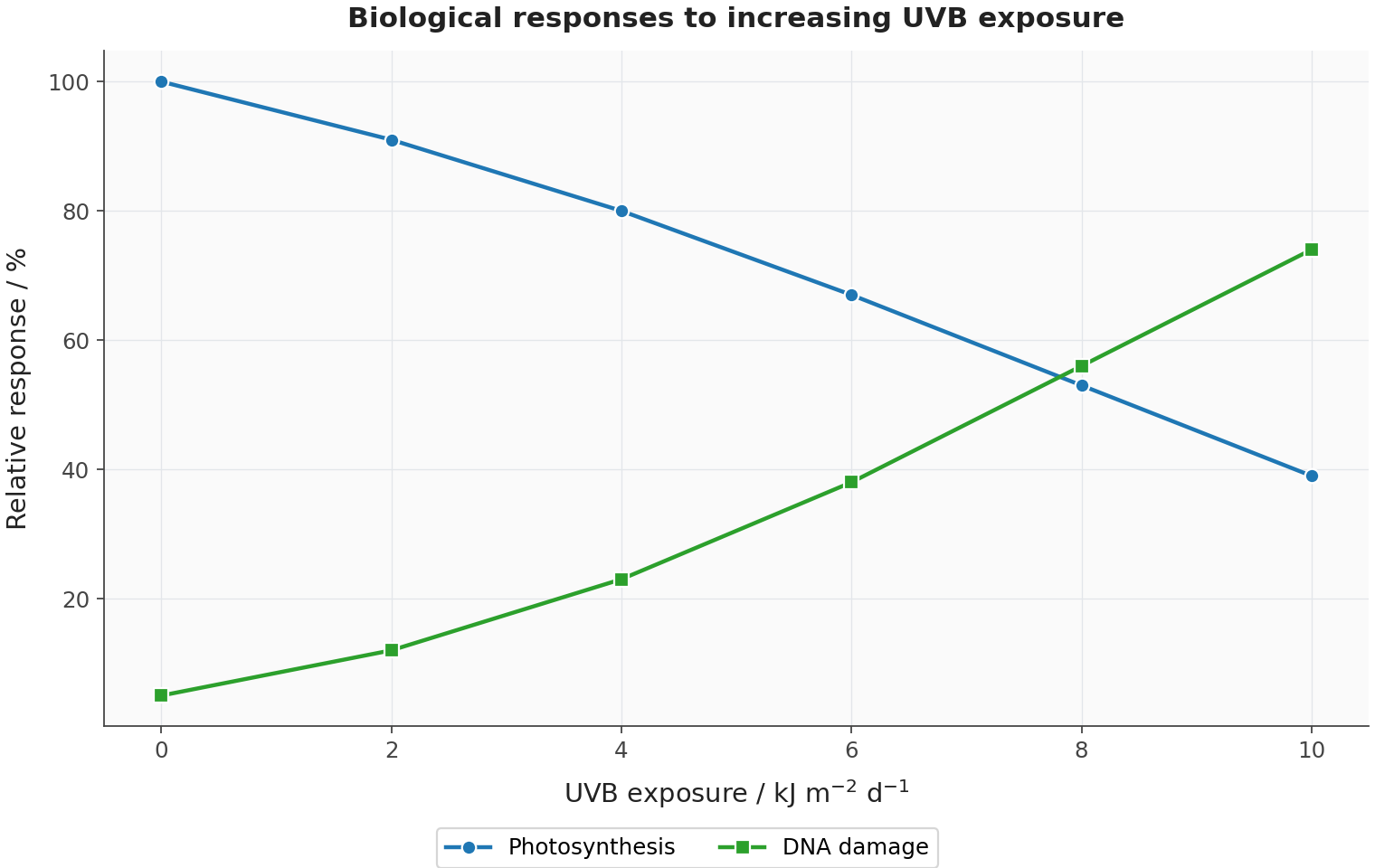

When interpreting data about UV impacts, look for a dose-response relationship, not just two different values. Increasing UV exposure, for example, may match a decline in photosynthetic rate or a rise in the frequency of DNA damage. Before deciding whether the data support a causal conclusion, check the axes and units, then consider sample size and uncertainty.

Formation and destruction occur together

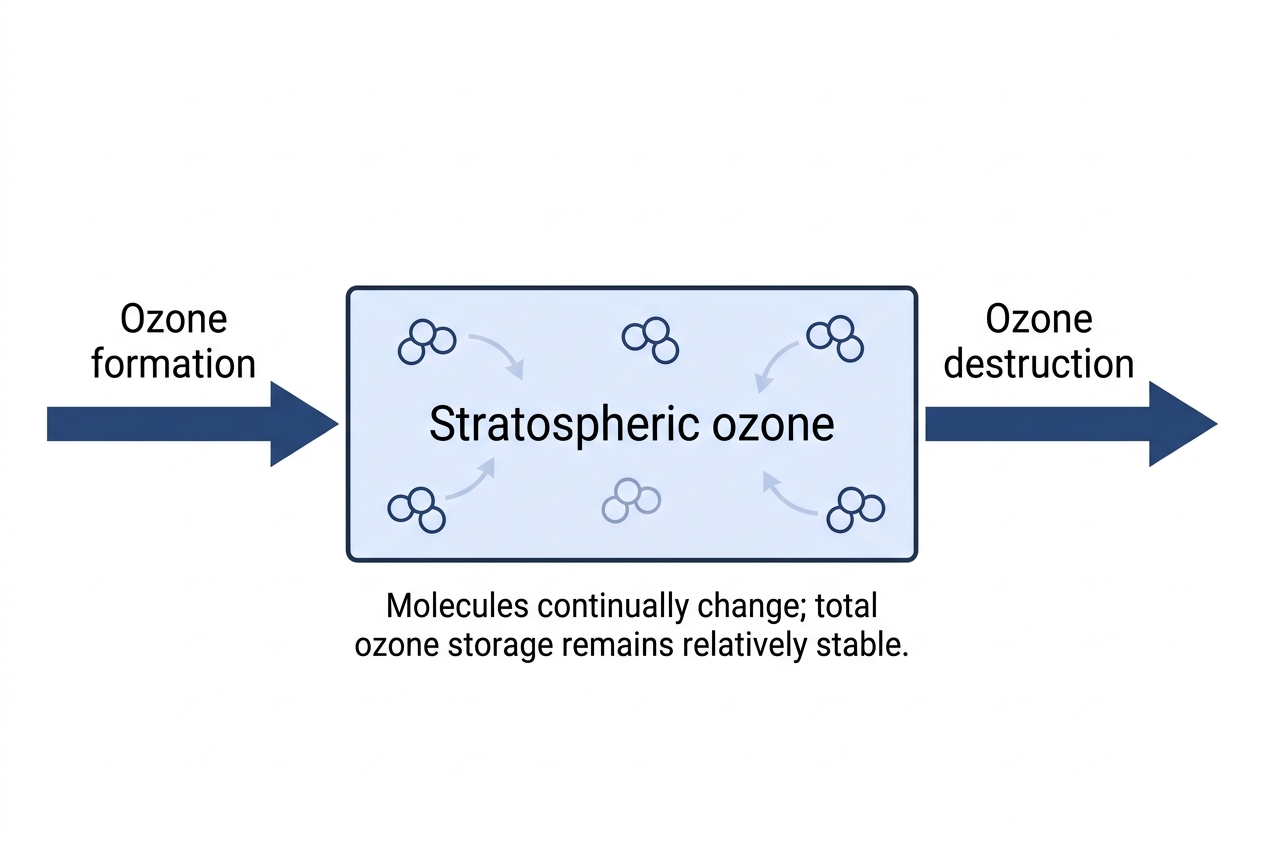

Ozone equilibrium is a steady state in which concurrent ozone formation and destruction maintain a relatively stable long-term concentration of ozone molecules. Ozone molecules are constantly produced. They absorb UV radiation and are then broken down, so a “constant concentration” doesn’t mean that individual molecules stay unchanged.

At steady state, ozone forms at the same rate as it is destroyed. As a result, the ozone store can remain approximately constant while material continues to flow into and out of it.

This answers the first guiding question: the ozone layer stays in equilibrium because formation and destruction happen simultaneously at equal rates. Short-term variation still occurs. Over longer periods, however, the relative concentration remains stable as long as those opposing rates are equal. Chemical equations aren’t needed to explain this basic steady-state idea.

Human activity changes the balance

An ozone-depleting substance is a manufactured chemical that increases the destruction of stratospheric ozone. Chlorofluorocarbons are key examples. A chlorofluorocarbon is an organic compound containing carbon, chlorine and fluorine that is sufficiently stable to persist in the lower atmosphere. In the past, CFCs were widely used in refrigeration, aerosol propellants and foam production.

ODSs speed up the natural breakdown of ozone. When destruction outpaces formation, the steady-state balance shifts and the ozone concentration falls. If formation is faster, the concentration rises instead. Human activity can therefore change the equilibrium described in the second guiding question.

Don’t present ozone depletion as a cause of global warming. These are separate atmospheric problems. Ozone depletion increases surface UVB exposure, whereas global warming results from an enhanced greenhouse effect. Some chemicals affect both, but one problem does not cause the other.

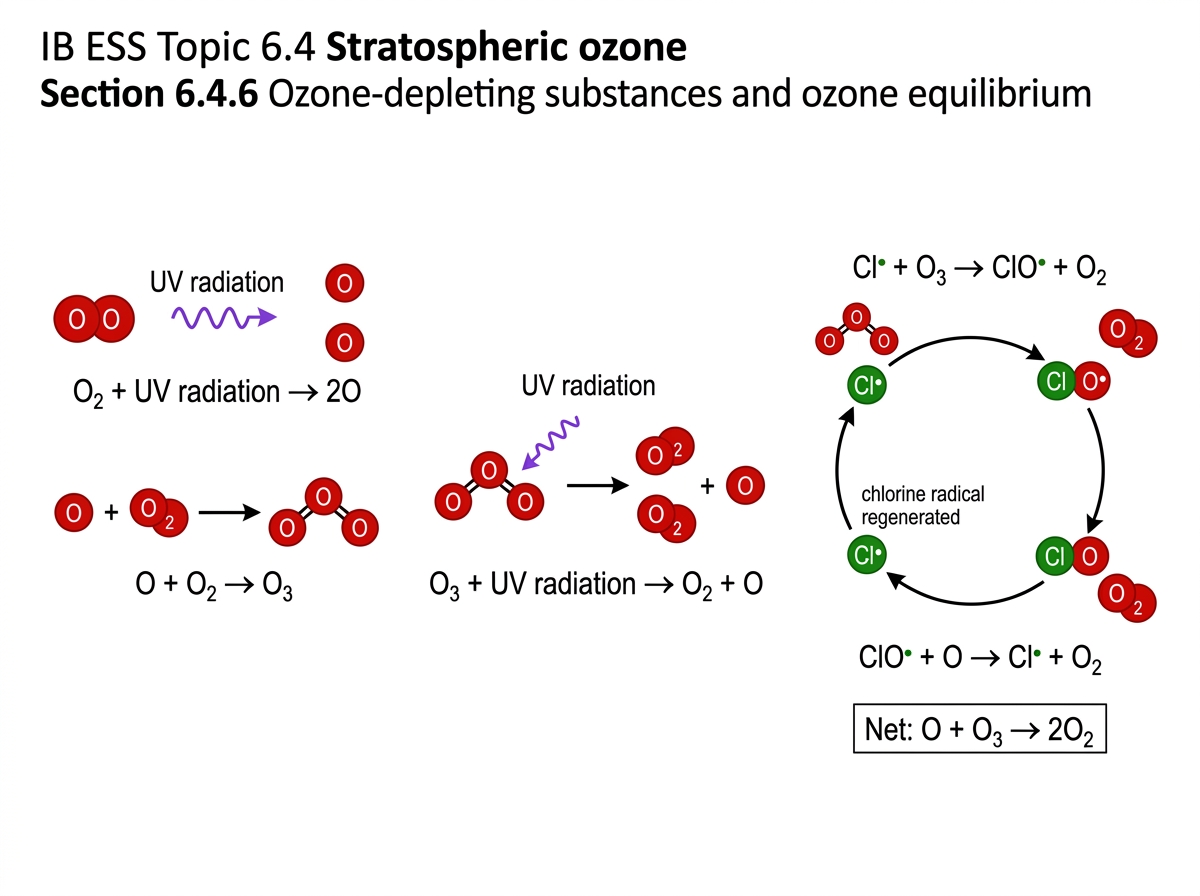

Chemical formation and destruction

High-energy UV radiation splits oxygen molecules. The resulting atomic oxygen then combines with molecular oxygen to form ozone:

$$O_2 + \text{UV radiation} \to 2O$$ $$O + O_2 \to O_3$$

Ozone absorbs UV radiation and breaks apart:

$$O_3 + \text{UV radiation} \to O_2 + O$$

A chlorine radical released from an ODS can enter a catalytic cycle:

$$\text{Cl}\mathbin{\bullet} + O_3 \to \text{ClO}\mathbin{\bullet} + O_2$$ $$\text{ClO}\mathbin{\bullet} + O \to \text{Cl}\mathbin{\bullet} + O_2$$

The cycle regenerates the chlorine radical, giving this net reaction:

$$O + O_3 \to 2O_2$$

Because the chlorine radical reappears at the end, it can take part repeatedly instead of being consumed after destroying a single ozone molecule.

From ozone loss to biological harm

When ozone is depleted, more UVB radiation reaches Earth’s surface. Keep the causal chain clear: lower stratospheric ozone leads to less UVB absorption and greater exposure at the surface, which then affects organisms and ecosystems.

Greater UVB exposure can reduce photosynthesis and primary productivity in ecosystems, particularly among phytoplankton. It may also damage DNA, increase mutation rates and lower survival or reproduction. When primary producers are affected, the damage can move through food webs, changing ecosystem productivity and biodiversity. For humans, the effects include more sunburn, premature skin ageing, cataracts and skin cancers.

Global depletion and polar ozone holes

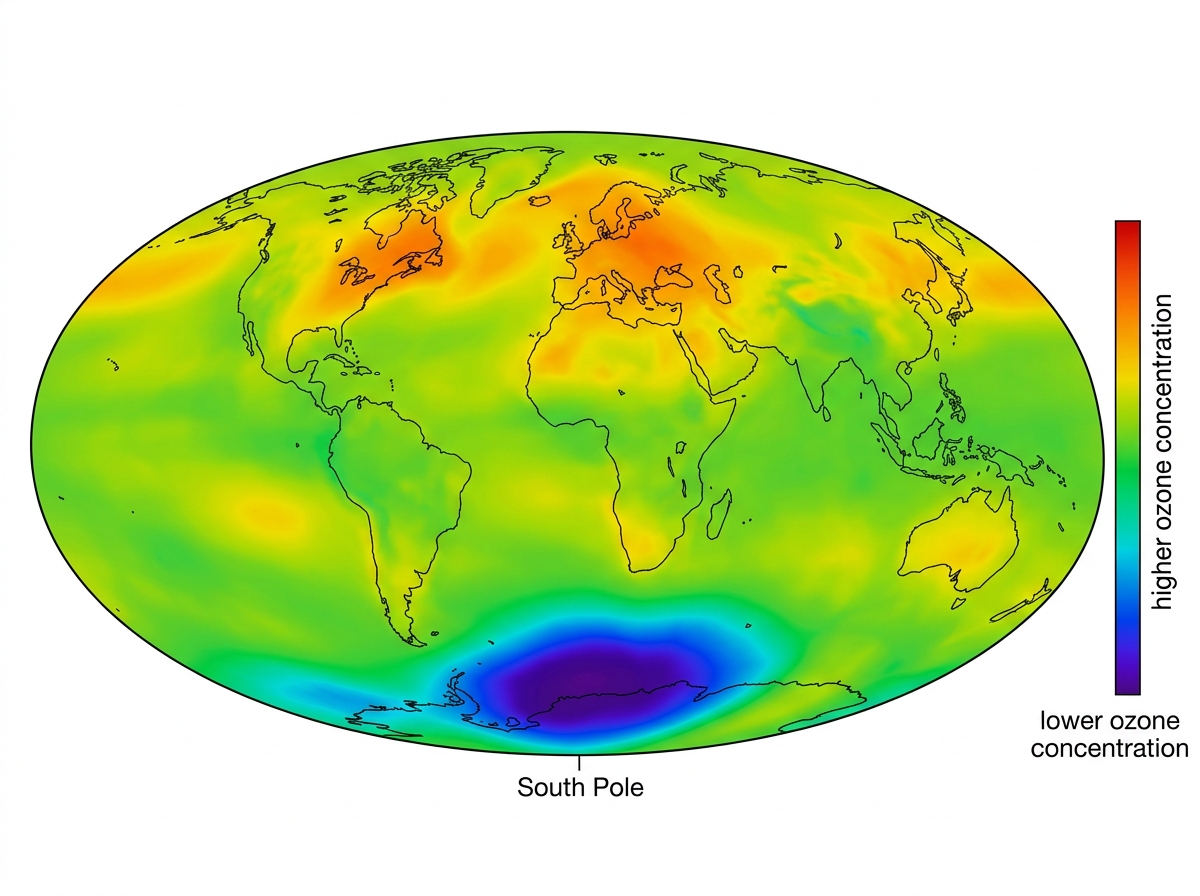

Stratospheric ozone depletion has occurred across the whole planet, not just at the poles. A polar ozone hole is a seasonal region of exceptionally low stratospheric ozone concentration rather than a literal opening in the atmosphere. Depletion is greatest over the polar regions each spring, when ODS chemistry interacts with seasonal atmospheric conditions.

Global decline and the dramatic seasonal polar holes are related, but they aren’t the same pattern. One is widespread depletion; the other is an especially severe, recurring regional minimum.

International management

The Montreal Protocol is an international treaty that regulates the production, trade and use of chlorofluorocarbons (CFCs) and other ODSs. It is regarded as the most successful example yet of international cooperation in management and intervention to resolve a significant environmental issue. Governments worked together to cut pollutants that travel through a shared global atmosphere.

Several connected features made it successful:

• scientific evidence showed a clear causal link between particular chemicals and ozone loss;
• the treaty focused on a manageable group of substances, with timetables for phasing them out;
• controls could be tightened as evidence and technology developed;
• trade restrictions made remaining outside the agreement less attractive to countries;
• financial and technical support enabled lower-income countries to adopt substitutes;
• monitoring supplied evidence of compliance and environmental response;
• substitutes existed for many major uses of CFCs.

Environmental protection was tied to regulation, finance and technological change. Different societies could move at different rates while still working towards a shared objective.

A precedent—but not a template to copy blindly

The protocol suggests that global environmental action has a better chance of success when the cause can be identified scientifically, targets can be measured, alternatives are available and costs are shared fairly. These principles can guide cooperation on other transboundary issues, including greenhouse gas emissions and biodiversity loss.

The comparison has limits. Fossil fuels are embedded much more deeply in energy, transport and economic systems than CFCs were. Climate policy also affects a wider range of interests. So, the Montreal Protocol offers a useful precedent, but it doesn’t prove that every global problem can be solved in exactly the same way. This distinction matters when discussing how far it provides a model for international environmental management.

Evidence of avoided boundary crossing

A planetary boundary is a scientifically proposed limit for an Earth-system process beyond which the risk of destabilizing environmental change rises substantially. Under the Montreal Protocol, action has prevented the planetary boundary for stratospheric ozone depletion from being crossed.

Restrictions cut the production and consumption of major ODSs. The atmosphere responds slowly, though, because many existing chemicals persist for decades, while old equipment may continue to leak. ODS production therefore falls first. Atmospheric halogen loading declines later, followed by gradual ozone recovery.

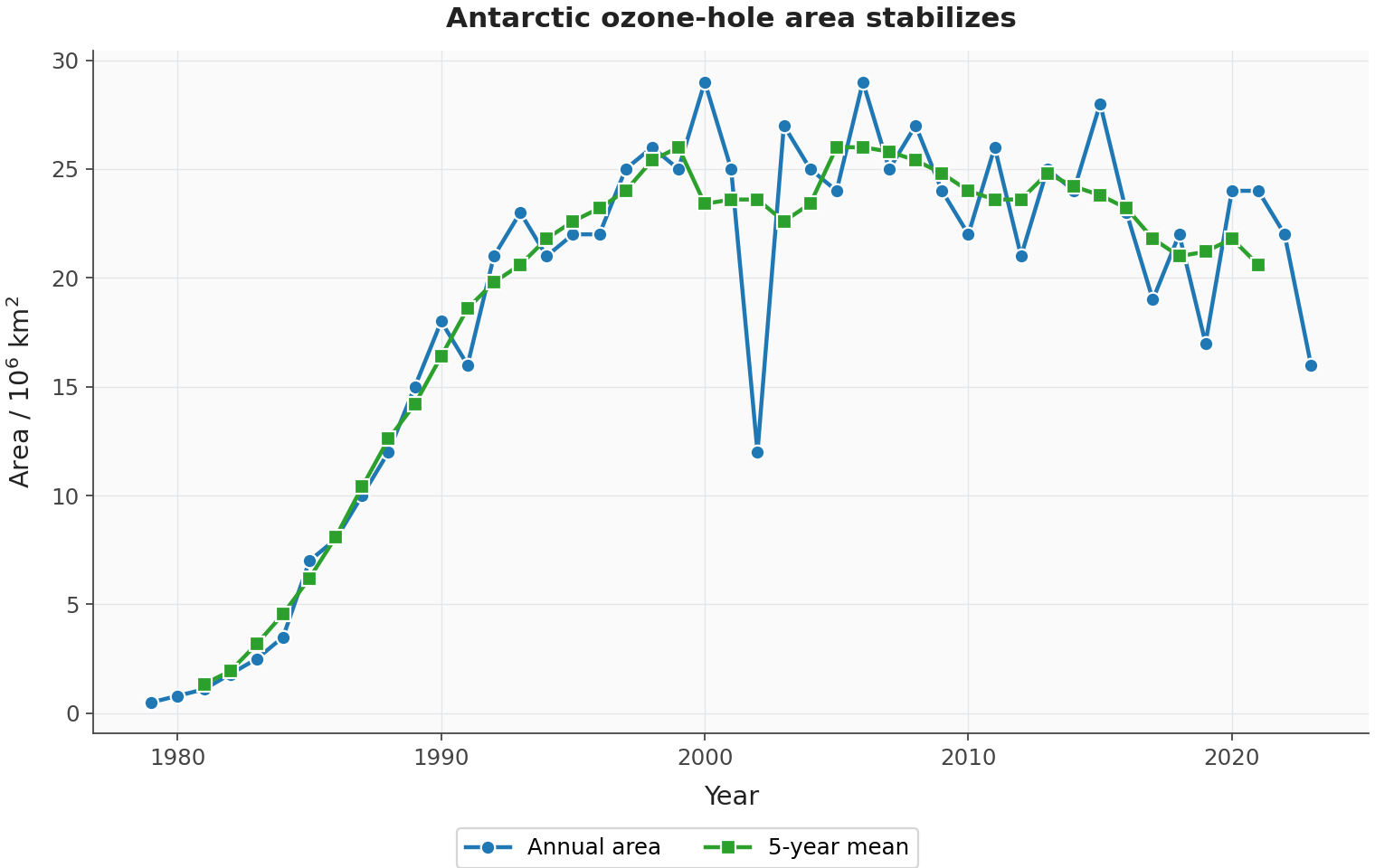

Long-term ozone-hole data support this conclusion. Results fluctuate from year to year as stratospheric temperature, circulation, volcanic aerosols and other weather conditions vary. Rather than treating one unusually large or small spring ozone hole as decisive evidence, the multi-year trend should be examined.

If ozone-hole severity levels off or falls in the long term after controls are introduced, this supports the conclusion that intervention prevented continued movement towards the boundary. Seasonal holes may still occur during recovery; their continued existence alone doesn’t show that the treaty failed.

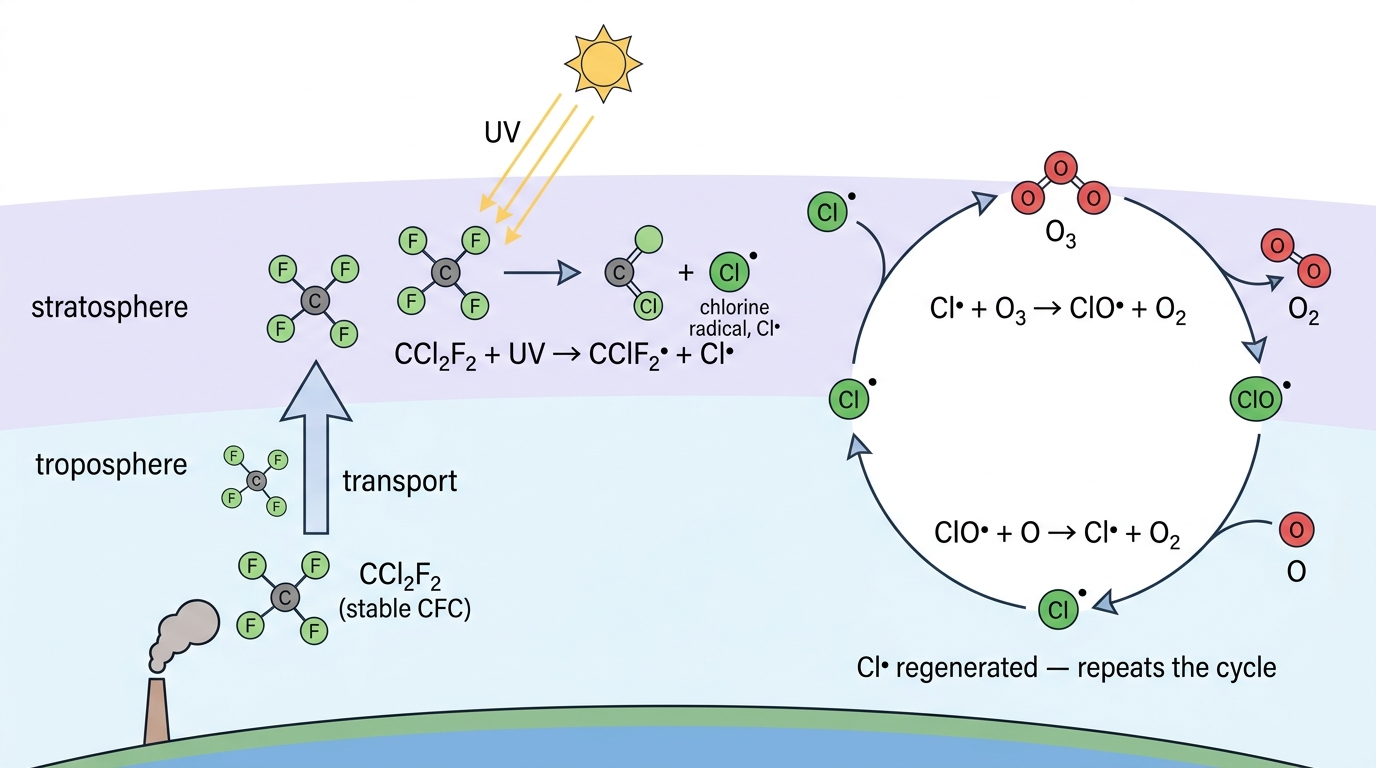

From stable compounds to reactive atoms

A halogen is an element in group 17 of the periodic table, including fluorine and chlorine, that readily forms compounds through reactions involving its outer electrons. Many CFCs and other ODSs are carbon compounds that contain halogens.

Their stability in the troposphere creates the problem. They persist long enough to spread through the atmosphere and eventually reach the stratosphere. Once there, energetic UV radiation breaks chemical bonds, releasing highly reactive chlorine or fluorine species.

A radical is a chemical species containing an unpaired electron and is therefore usually highly reactive. UV radiation, for example, can release a chlorine radical from a CFC:

$$CCl_2F_2 + \text{UV radiation} \to CClF_2\mathbin{\bullet} + \text{Cl}\mathbin{\bullet}$$

The chlorine radical then catalyses ozone destruction:

$$\text{Cl}\mathbin{\bullet} + O_3 \to \text{ClO}\mathbin{\bullet} + O_2$$ $$\text{ClO}\mathbin{\bullet} + O \to \text{Cl}\mathbin{\bullet} + O_2$$

Because the reaction regenerates the chlorine radical, it can enter the cycle again. As a result, even a relatively small concentration of a long-lived ODS can cause substantial ozone loss.

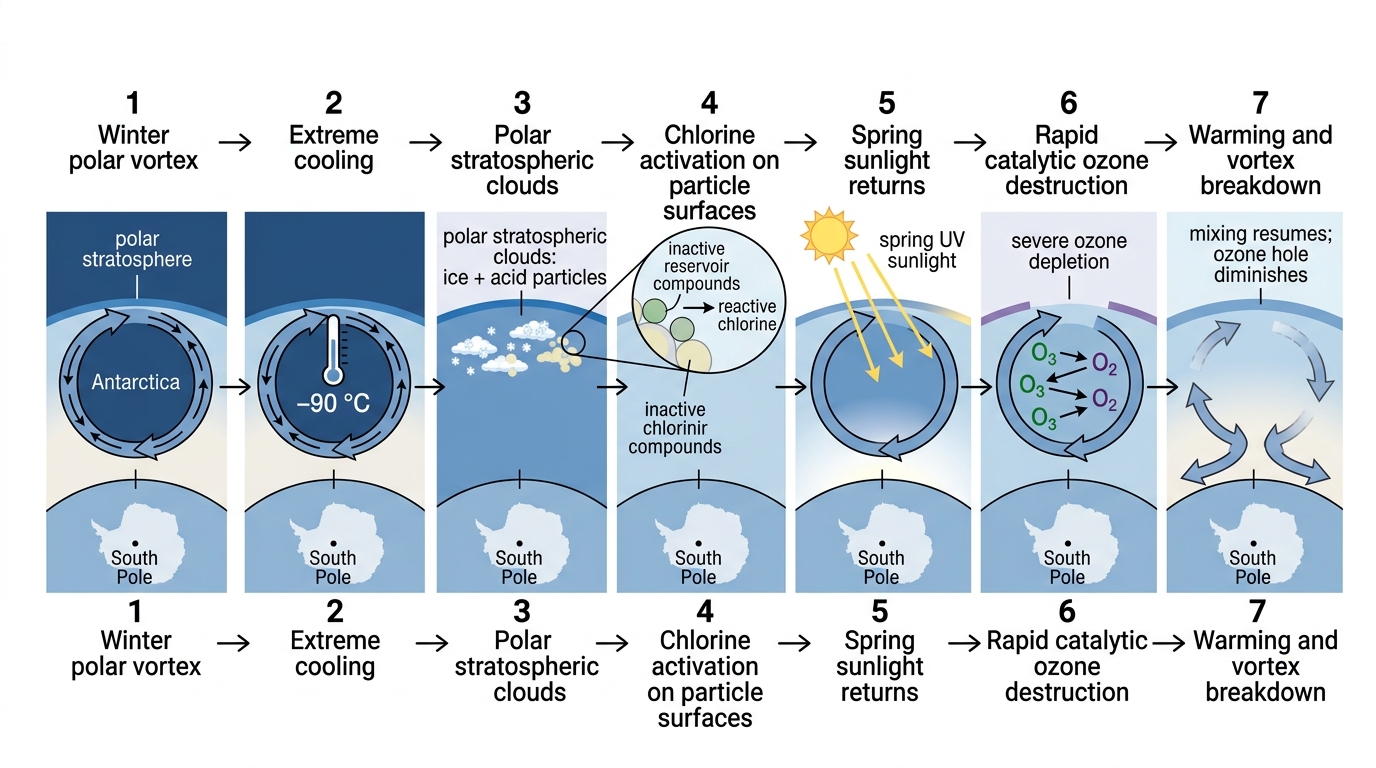

Why the strongest depletion occurs in spring

Severe polar ozone depletion requires a particular mix of atmospheric isolation, extremely low temperatures, reactive surfaces and the return of sunlight. In the polar winter, strong circumpolar winds create a polar vortex. This rotating atmospheric system restricts mixing between cold polar air and warmer air at lower latitudes.

The Antarctic stratosphere can cool to roughly $-90\ ^\circ\text{C}$. In these conditions, polar stratospheric clouds are high-altitude clouds of ice and acid-containing particles that form in the exceptionally cold polar stratosphere. The cloud particles act as surfaces where relatively unreactive chlorine-containing compounds change into forms that can release reactive chlorine. Volcanic aerosols can add more reaction surfaces.

Reactive chlorine is prepared during the dark winter, but without sunlight, strong photochemical ozone destruction remains limited. Spring sunlight changes that. UV radiation activates the chlorine chemistry, and rapid catalytic ozone destruction follows while the polar vortex still isolates the air. As temperatures rise later, the vortex weakens. Mixing resumes and the ozone hole diminishes.

The sequence is: winter isolation and cooling, formation of active surfaces, chemical activation of chlorine, return of spring sunlight, and rapid ozone loss. Cold conditions alone don’t produce the seasonal pattern; the full combination does.

Solving one problem without creating another

Hydrofluorocarbons are synthetic carbon compounds containing hydrogen and fluorine that were developed for uses similar to CFCs while causing much less ozone depletion. HFCs contain no chlorine, so their ozone-depletion potential is far lower. As a result, they came into use in refrigeration, air conditioning and some aerosol applications.

There was a drawback. Many HFCs are potent greenhouse gases, which are atmospheric gases that absorb and re-emit infrared radiation and thereby contribute to the greenhouse effect. Switching from CFCs to HFCs reduced one environmental pressure, but raised concerns about climate change.

The Kigali Amendment is an addition to the Montreal Protocol that controls the production and consumption of HFCs. International management now goes beyond ozone protection to limit the climatic impact of substitute refrigerants.

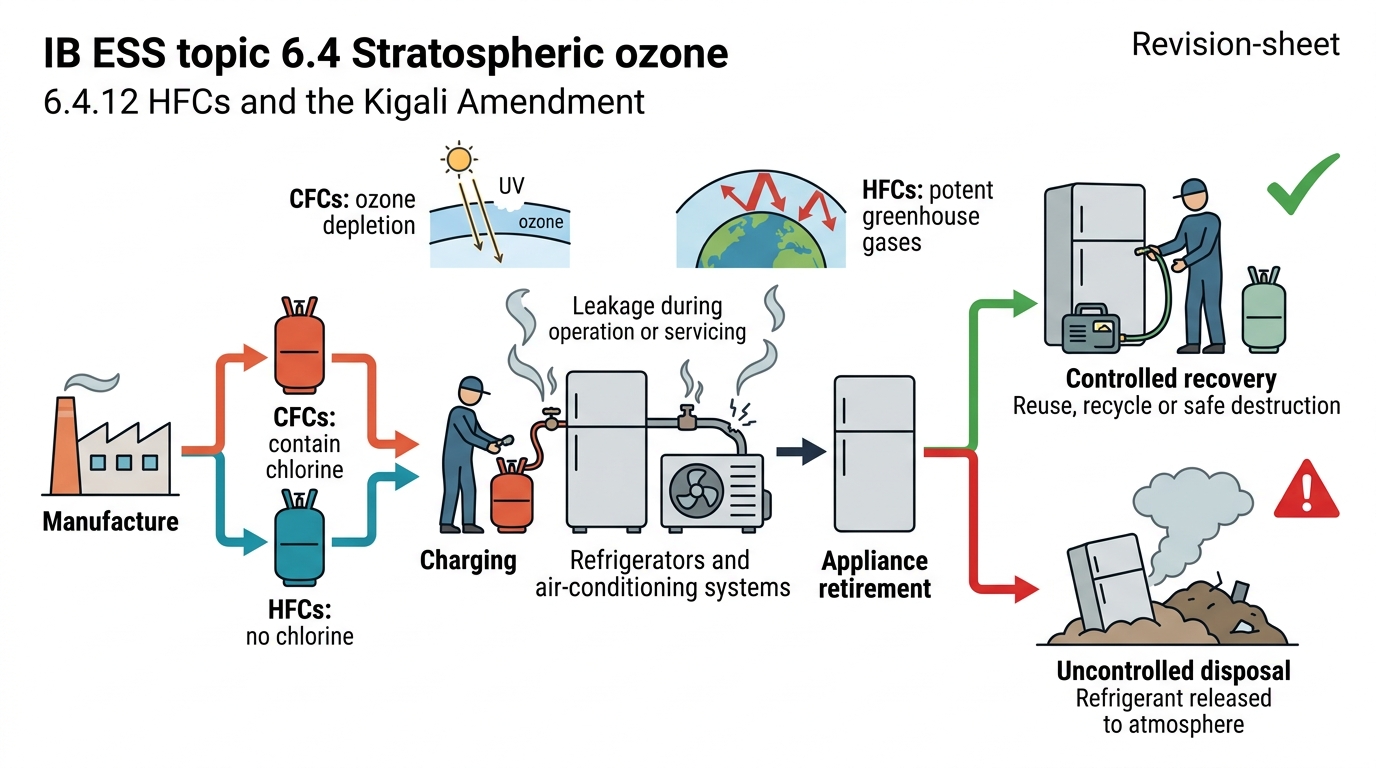

Leakage and end-of-life management

CFCs and HFCs may escape when refrigerators and air-conditioning systems are manufactured, operated, serviced or disposed of. Trained operators should handle redundant appliances, recovering the refrigerant into sealed containers for reuse, recycling or safe destruction. If an old cooling unit is simply sent to landfill, its remaining refrigerant may be released.

The environmental costs of cooling

Air-conditioning units place three linked pressures on the environment. They use substantial amounts of electricity, and generating that electricity may release greenhouse gases. Older systems have also often contained ODS refrigerants. Although newer units may use HFCs or other substitutes, leaks from a refrigerant with high global-warming potential can still have a considerable climatic impact.

Cooling demand differs between societies. Per-capita use may reflect climate, income, access to electricity and its price, as well as housing quality, urban form, cultural expectations, working conditions and the population’s age structure. Hotter conditions don’t automatically lead to higher ownership: many households may be unable to afford the equipment or lack reliable electricity.

Reviewing alternatives

There’s no single alternative that works for every building and climate. Options should be compared as a whole system, rather than judged only by their purchase price:

• substitute refrigerants with very low ozone-depletion and global-warming effects;
• efficient heat pumps and well-maintained equipment, reducing electricity demand and leakage;
• insulation, reflective roofs, external shading and natural ventilation to stop heat entering buildings;
• building orientation and layouts designed to promote airflow;
• trees, green roofs and other urban greening that offer shade and evaporative cooling;
• rewilded urban spaces that reduce heat storage while supporting biodiversity;
• district cooling or shared cool spaces where they are more efficient than many separate units.

Passive design can cut cooling demand sharply, though humidity, existing building stock, dense development or extreme heat may limit its use. Efficient mechanical cooling protects health during heatwaves, but it can raise peak electricity demand. Substitute refrigerants reduce one impact; poor installation or disposal may still lead to leakage. A sound review weighs effectiveness and cost alongside the energy source, refrigerant risk, equity, local climate and feasibility.

Using databases and presenting evidence

When comparing societies, choose a credible database and record its year, definition and source. First identify what the measure represents: household ownership, number of units, cooling-energy use or another indicator. These measures aren’t interchangeable. Before comparing populations of different sizes, convert totals to a common per-capita basis. Data from incompatible years shouldn’t be combined.

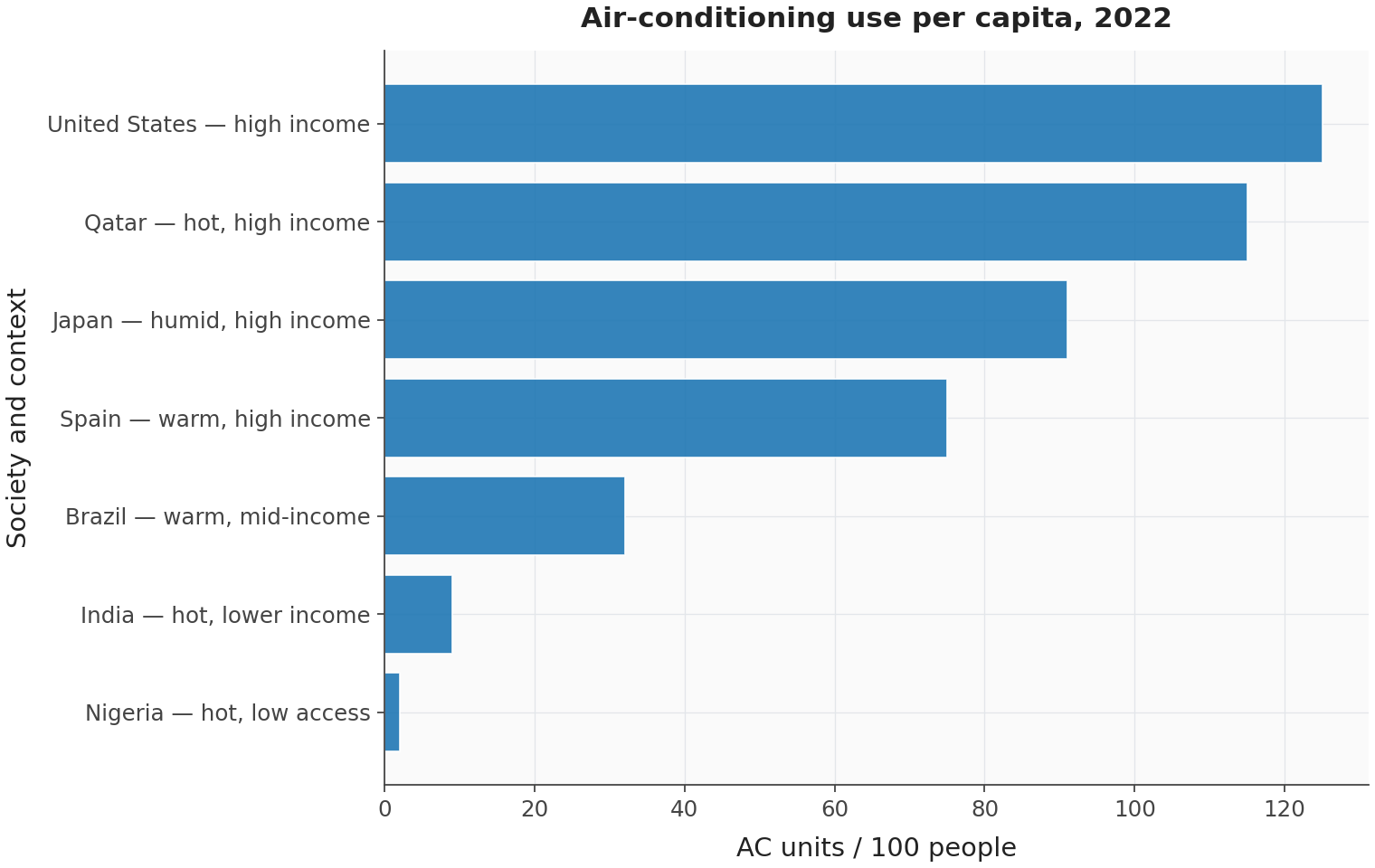

A horizontal bar chart is useful for comparing several societies because the country names stay readable. Put air-conditioning use per capita on the horizontal axis and societies on the vertical axis. Relevant contextual variables—such as mean summer temperature, income or electricity access—can then be annotated. Correlation alone doesn’t show which factor caused the difference.

The findings can be presented to school leadership as an evidence-based cooling plan. Reduce heat gain first. Use greening and ventilation where suitable, retain efficient mechanical cooling where health requires it, and make sure refrigerants are serviced and recovered responsibly.
