IB Syllabus Requirements for Introduction to the atmosphere
6.1.1
The atmosphere as the boundary of the biosphere
6.1.2
Differential heating and the tricellular circulation model
6.1.3
Greenhouse gases, aerosols and infrared radiation
6.1.4
The natural and enhanced greenhouse effects
6.1.1

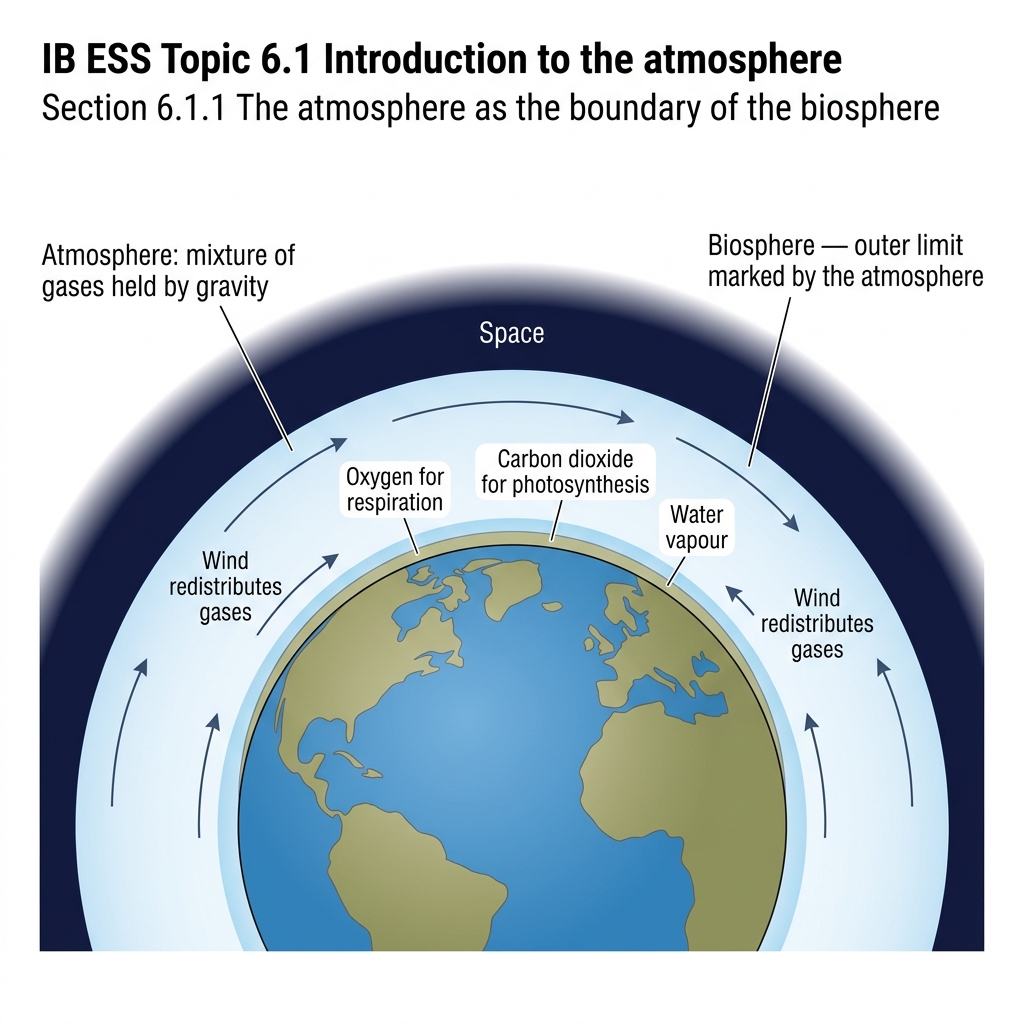

THE ATMOSPHERE AS THE BOUNDARY OF THE BIOSPHERE
Earth's atmosphere is the mixture of gases that surrounds the planet and is held there by gravity. It forms the boundary between Earth and space. It also marks the outer limit of the biosphere, the part of Earth where life exists.
The atmosphere isn't a rigid shell. Physical processes, particularly wind, continually redistribute its gases. This movement connects different places and Earth systems by transporting heat and water vapour, supplying organisms with essential gases and carrying airborne particles.
Example: Water evaporates from the Atlantic Ocean into the atmosphere, where winds transport the water vapour inland. It then condenses, forming clouds, and returns to land as rainfall. Evaporation connects the hydrosphere to the atmosphere; wind transports the water through the atmosphere; rainfall transfers it to land, where it supplies soil water and terrestrial organisms.
Its composition supports life in several ways:
Both its composition and its constant movement contribute to the stability of life.
Exam tip: For the practice prompt “Explain how the atmosphere supports life”, link each gas or process to its biological consequence rather than simply listing functions. For example: “Atmospheric carbon dioxide supplies the carbon used in photosynthesis, allowing producers to build organic matter.”
6.1.2
DIFFERENTIAL HEATING AND THE TRICELLULAR CIRCULATION MODEL
Earth’s surface doesn’t heat evenly. Near the equator, incoming solar rays hit the surface more directly, concentrating their energy over a smaller area. At higher latitudes, the rays arrive at a lower angle. Their energy spreads across a larger area, and they travel through more atmosphere. As a result, low latitudes gain more energy than high latitudes.
This unequal distribution of thermal energy, caused by spatial differences in incoming solar radiation, is called differential heating. It produces pressure differences and drives convection. Warm, less-dense air rises; cooler, denser air sinks.

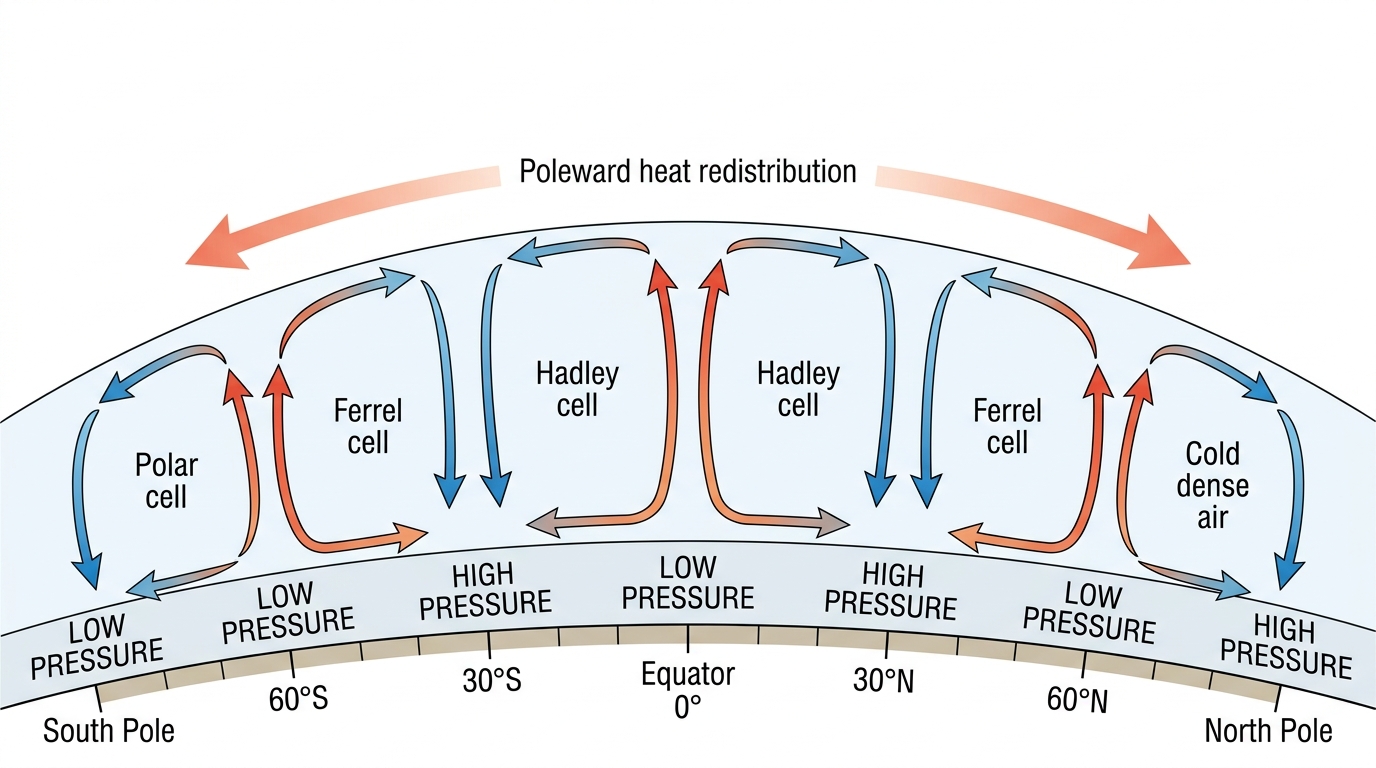

The tricellular model divides atmospheric circulation in each hemisphere into the Hadley, Ferrel and Polar cells. Together, these cells transfer thermal energy from the equator towards the poles.
In each hemisphere:
| Cell | Latitudinal extent | Air movement |
|---|---|---|
| Hadley cell | From the equator to about latitude | Strongly heated air rises near the equator, travels polewards at altitude and sinks in the subtropics. |
| Ferrel cell | In the mid-latitudes between approximately and | Circulates between the Hadley and Polar cells. |
| Polar cell | From approximately to the pole | Cold, dense air sinks at the pole and moves towards lower latitudes near the surface. |
Where air rises, air converges at ground level and moves upwards, creating surface low pressure. Sinking air creates surface high pressure and outward movement at ground level. The resulting winds redistribute heat across the planet. They reduce the energy surplus at the equator and raise temperatures at higher latitudes. Real atmospheric circulation is less regular than the model suggests, but the model shows the main direction of global heat redistribution clearly.
Worked example: Explain how atmospheric circulation helps account for high rainfall in the equatorial Amazon and dry conditions in the Sahara near the subtropical descending branch.
Answer: The equatorial Amazon receives high rainfall because moist air rises, cools and condenses. The Sahara is dry because descending air warms, reducing relative humidity and suppressing cloud formation and rainfall.
Exam tip: For an “Explain” question, build a causal chain from air movement to temperature change, then condensation and rainfall. Naming the Hadley cell alone does not explain the contrast.

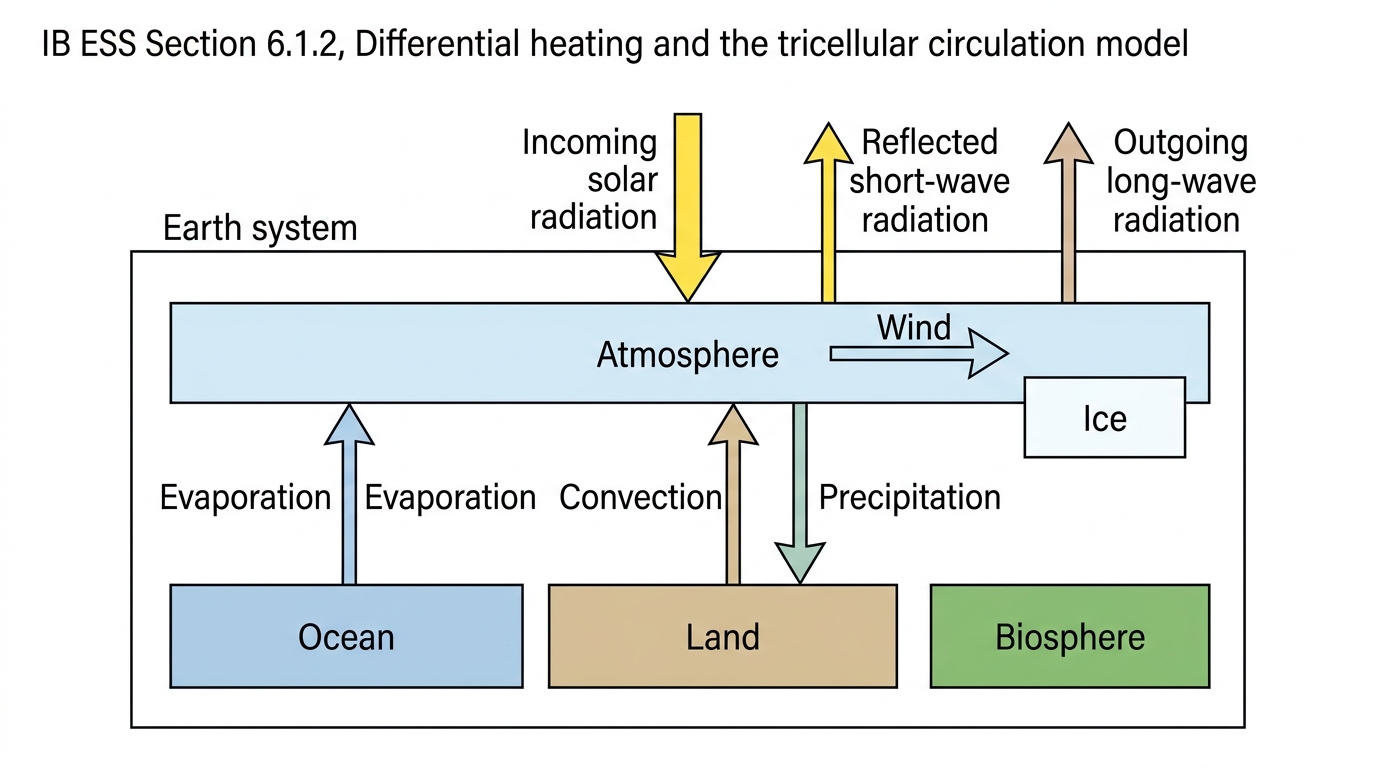

A system diagram is a graphical model in which boxes represent storages and arrows show transfers within or between them.
Useful storages in the atmospheric system include:
| System component | Energy or matter movement |
|---|---|
| Input | Solar radiation enters the system. |
| Outputs | Reflected short-wave radiation and outgoing long-wave radiation leave the system. |
| Transfers | Radiation, evaporation, precipitation, convection and wind move energy or matter within or between storages. |
To create the diagram, begin with a clear system boundary. Label every storage and transfer, then use arrow direction to show where energy or matter moves. Different arrow sizes may show differences in transfer magnitude. The systems approach highlights that atmospheric circulation doesn’t operate alone: it interacts with the hydrosphere, lithosphere and biosphere.
6.1.3
GREENHOUSE GASES, AEROSOLS AND INFRARED RADIATION

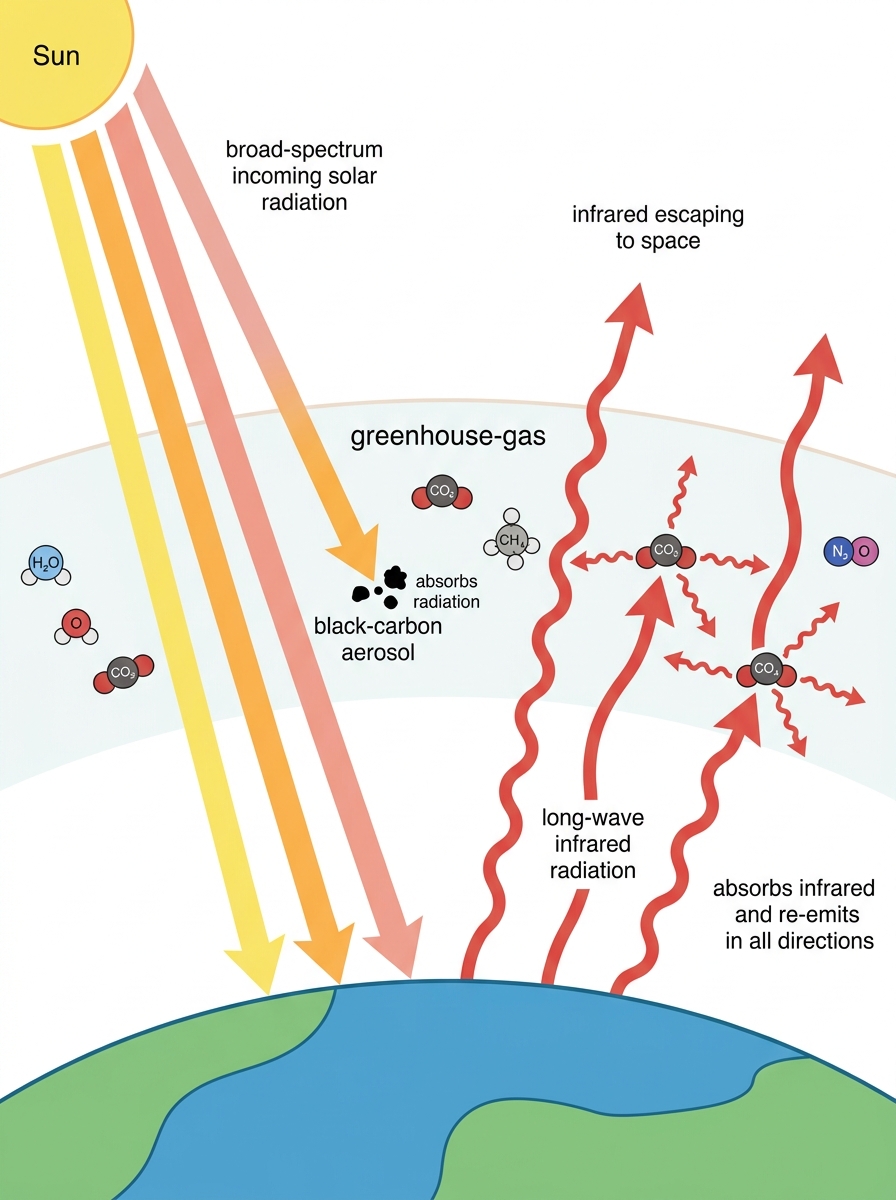

A greenhouse gas is an atmospheric gas that absorbs and re-emits some of the infrared radiation released by Earth's surface. Incoming solar radiation spans a broad spectrum. Much of it passes through the atmosphere and warms the surface, which then emits energy as infrared, or long-wave, radiation.
Molecules of greenhouse gases absorb specific wavelengths of this outgoing radiation before re-emitting the energy in all directions. Some travels back towards the surface and lower atmosphere instead of escaping directly into space. As a result, Earth loses energy more slowly. Greenhouse gases don't act as a solid barrier or simply “bounce heat back”.
Water vapour and carbon dioxide are important greenhouse gases, as are methane and nitrous oxides. Of those identified here, carbon dioxide and water vapour are the most abundant, while methane has a significant warming effect. Other atmospheric gases can change Earth's energy balance and contribute to radiative forcing, a change in the balance between incoming and outgoing radiation.
An aerosol is a suspension of fine solid particles or liquid droplets in a gas. Its effect on Earth's energy balance depends on its composition. Some aerosols also absorb and re-emit some of the terrestrial infrared radiation emitted from Earth's surface, but aerosols do not all act like greenhouse gases.
| Aerosol | Interaction with radiation | Effect on energy balance |
|---|---|---|
| Sulfate aerosols | Mainly scatter incoming sunlight, reflecting some back to space. | Tend to cool Earth's surface by reducing the solar energy it receives. |
| Black carbon is a light-absorbing aerosol made of soot from incomplete combustion. | Absorbs sunlight in the atmosphere. It can also darken reflective surfaces such as snow or ice, causing them to absorb more solar energy. | Tends to warm. |
Water vapour is a powerful greenhouse gas, but its abundance in the atmosphere changes rapidly with temperature through evaporation and condensation. Warming can increase atmospheric water vapour, which may strengthen the warming further. Climate models therefore commonly treat it as a dynamic response within the atmospheric system, rather than as a directly controlled emission like carbon dioxide.
Water vapour is essential to life and the water cycle, so eliminating it isn't possible or an appropriate mitigation strategy. Discussions of emission reductions usually focus instead on greenhouse gases released directly by human activities.
Common mistake: Water vapour is mainly a feedback, not a directly controlled emissions target. Human activities can directly increase carbon dioxide: an increase in carbon dioxide causes warming; warming increases atmospheric water vapour; increased water vapour causes additional warming. This reinforcing response is called water-vapour feedback. Being a powerful greenhouse gas does not make water-vapour removal a practical emissions-mitigation strategy: evaporation replenishes it, and its atmospheric abundance responds rapidly to temperature.
This chain shows how water vapour amplifies warming initiated by increased carbon dioxide.
6.1.4
THE NATURAL AND ENHANCED GREENHOUSE EFFECTS

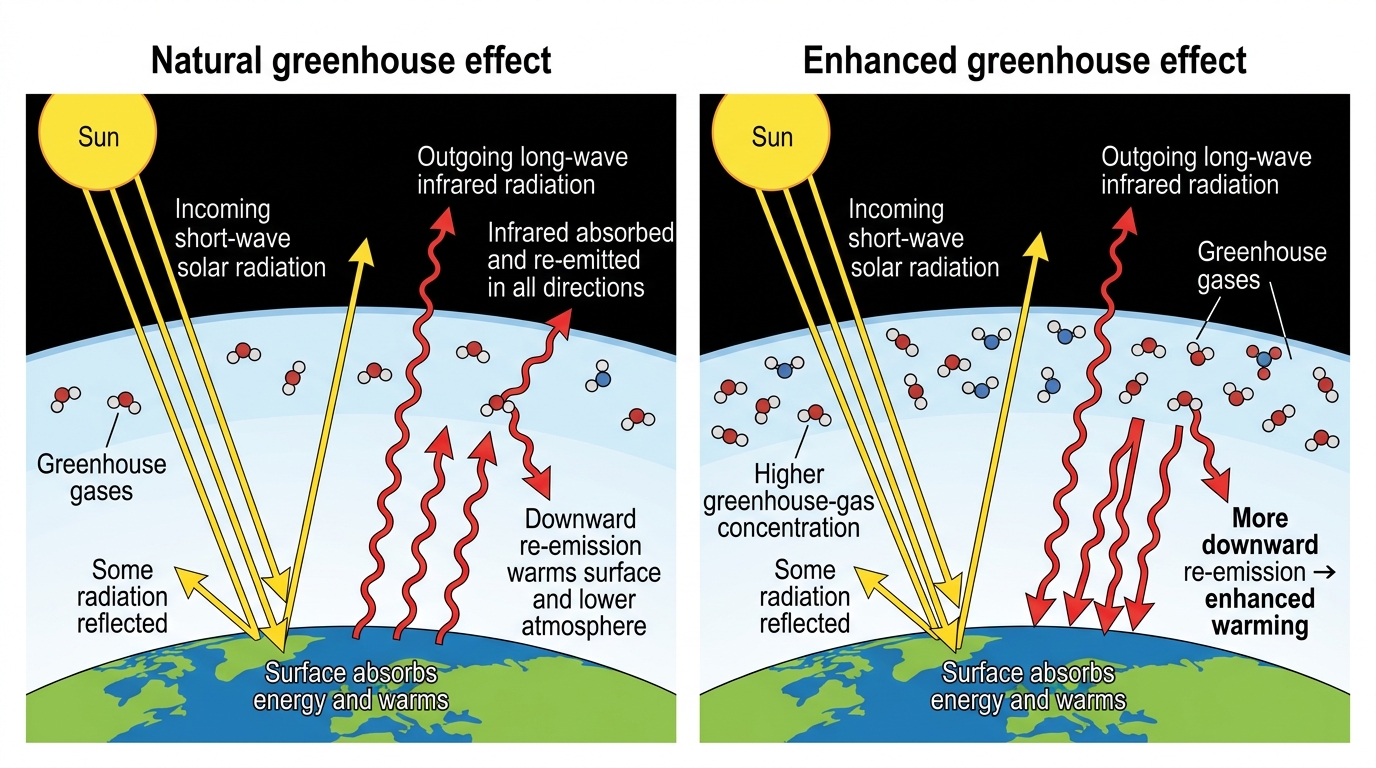

The greenhouse effect is a natural atmospheric process. Greenhouse gases allow much of the incoming short-wave solar radiation to reach Earth's surface, but they absorb and re-emit a proportion of the outgoing long-wave radiation. As a result, atmospheric and surface temperatures rise.
The sequence matters:
This natural process keeps temperatures suitable for liquid water and life. Earth's temperature depends partly on atmospheric greenhouse-gas concentrations, since these affect how much outgoing infrared radiation is absorbed and re-emitted.
The enhanced greenhouse effect is an increase in the natural greenhouse effect caused by greenhouse gases accumulating through human activities. Higher greenhouse-gas concentrations increase the absorption and re-emission of outgoing infrared radiation. Energy then escapes to space more slowly until the climate system warms towards a new energy balance.
This extra warming contributes to global warming, an increase in Earth's mean global temperature. The distinction is clear: the natural greenhouse effect makes Earth habitable, whereas human-driven enhancement changes the established climate conditions on which ecological and social systems depend.
Climate change encompasses global warming but refers to the broader range of changes happening to the planet as a result. It includes changes in rainfall patterns, melting ice and rising sea levels, rather than temperature rise alone.
Atmospheric composition, global circulation and the natural greenhouse effect work together to help stabilize life on Earth. The atmosphere supplies essential substances, redistributes excess equatorial heat and limits rapid energy loss to space. Changing its composition can therefore disturb that stability, rather than simply altering the air itself.
6.1.5
THE ATMOSPHERE AS A DYNAMIC SYSTEM
The atmosphere is a dynamic system: its components continually move and undergo transformations. Its composition and layers result from ongoing physical and chemical processes, rather than being fixed structures. Continuous change can occur even when average atmospheric conditions remain relatively stable.
A physical process changes the movement, temperature or physical state of matter without changing its chemical identity. A chemical process forms different substances by rearranging atoms. Both operate continuously in the atmosphere.
Temperature and pressure differences drive air movement:
These movements transfer energy and redistribute atmospheric gases and particles. They connect different parts of the atmospheric system rather than leaving each region isolated.
Global warming is also a physical process within the atmospheric system. Rising mean temperatures alter the atmosphere's energy storage and can change evaporation, temperature contrasts and patterns of air movement. Warming does not itself turn one gas into another.
Example: During a daytime sea breeze, land heats faster than the nearby sea. Air over the land warms and rises, helping create lower surface pressure. Cooler air moves inland from the relatively higher-pressure area over the sea, demonstrating how unequal heating produces air movement.
Ozone production illustrates how chemical processes change atmospheric composition. In the stratosphere, ultraviolet radiation splits oxygen molecules into free oxygen atoms. A free oxygen atom then combines with an oxygen molecule to form ozone.
This sequence shows how oxygen is converted into ozone.
The simplified reactions are:
Ozone is a molecule containing three oxygen atoms, unlike the two-atom oxygen molecule. Its continuous production helps maintain the ozone-rich region of the stratosphere. Atmospheric layers therefore reflect ongoing processes, not solid boundaries separating sealed compartments.
Common mistake: Wind does not create new gases: it redistributes existing substances. Ozone formation is chemical because oxygen atoms are rearranged into a different molecule. Use this distinction when explaining why the atmosphere is dynamic.
6.1.6
ATMOSPHERE AND ALTITUDE
Atmospheric molecules are pulled towards Earth's surface by gravity, the attractive force between masses. This holds the atmosphere around Earth rather than allowing its gases to disperse freely into space.
As altitude increases, the atmosphere becomes thinner: there are fewer molecules per unit volume, so air density, the mass of air per unit volume, decreases. Air nearer the surface is compressed by the weight of the air above it. At higher altitudes, there is less overlying air, so atmospheric pressure also decreases.
The schematic shows how molecular spacing changes with altitude.
The IB syllabus describes gravitational force as inversely proportional to distance; more precisely, it follows an inverse-square relationship with distance from Earth's centre. Gravity therefore weakens with increasing altitude, although it still acts throughout the atmosphere.
The lapse rate is the change in air temperature with altitude. For calculations, the IB syllabus uses a standard lapse rate of about decrease for every increase in altitude. This is a simplified approximation for the lower atmosphere: actual temperature gradients vary, and temperature does not decrease throughout every atmospheric layer.
Using this approximation:
Worked example: Air temperature at the base of a hill is . Estimate the temperature at a point higher using the IB syllabus standard lapse rate.
Answer: The estimated temperature is .
Exam tip: Distinguish atmospheric thinning from cooling. Thinning means fewer molecules per unit volume, not smaller molecules. You should explain the qualitative changes in density and pressure with altitude; calculating gas volumes or pressures at particular altitudes is not required.
6.1.7
MILANKOVITCH CYCLES AND LONG-TERM CLIMATE CHANGE
Milankovitch cycles are long-term variations in Earth's orbit and rotational axis that affect how much solar radiation reaches Earth and how it is distributed across seasons and latitudes. They produce climate cycles over tens to hundreds of thousands of years, rather than the short timescale of current warming.
The three cycles act together, so their combined effects matter more than any one change considered alone.
| Cycle | What changes? | Relationship to climate |
|---|---|---|
| Eccentricity | The shape of Earth's orbit varies from more circular to more elliptical. | Changes the variation in Earth–Sun distance during the year, influencing the seasonal distribution of incoming radiation. |
| Obliquity | The angle of Earth's axial tilt changes. | Greater tilt increases seasonal contrasts, especially at high latitudes; smaller tilt produces cooler summers and milder winters there. |
| Precession | The orientation of Earth's axis of rotation changes as the axis wobbles. | Changes when the seasons occur relative to Earth's closest and furthest positions from the Sun, altering seasonal intensity. |
Summer conditions at high northern latitudes are particularly significant: cooler summers allow more winter snow to survive, encouraging ice sheets to grow.
Example: Reduced obliquity means a smaller axial tilt, producing cooler summers at high northern latitudes. More winter snow survives the summer, encouraging ice-sheet growth. The expanding ice reflects more incoming solar radiation, reinforcing cooling. Reduced tilt is the orbital trigger; the subsequent ice-albedo feedback amplifies its effect.
A positive feedback loop occurs when a change produces effects that reinforce the original change. Orbital changes initiate climate shifts, while feedbacks amplify them. Glaciation is the expansion of glaciers and ice sheets; an interglacial is a warmer interval between glacial periods.
Cooling can lower atmospheric carbon dioxide concentrations, partly because colder oceans can hold more dissolved carbon dioxide. Lower atmospheric carbon dioxide weakens greenhouse warming, reinforcing cooling and encouraging glaciation.
Warming can increase atmospheric carbon dioxide concentrations, partly because warmer oceans hold less dissolved carbon dioxide. Higher atmospheric carbon dioxide strengthens greenhouse warming, reinforcing warming and favouring interglacial conditions.
These two feedback loops amplify cooling or warming.
Example: If an orbital configuration reduces summer solar radiation at high northern latitudes, more snow can survive into the following year. Expanding ice increases reflectivity, reducing solar energy absorption and reinforcing cooling. Carbon dioxide feedbacks can amplify this initial cooling further.
Common mistake: Milankovitch cycles do not explain current warming. Their changes operate over many thousands of years, whereas current rapid warming is driven primarily by human increases in atmospheric greenhouse-gas concentrations. In an explanation, distinguish the orbital trigger from the positive feedbacks that amplify its effects.
6.1.8
GLOBAL WARMING BEYOND THE GLACIAL–INTERGLACIAL CYCLE
The Quaternary period began 2.5 million years ago. Its climate has been characterized by repeated glacial–interglacial cycles: alternations between colder conditions with extensive ice sheets and warmer conditions with less extensive ice.
| Climate phase | Main characteristics |
|---|---|
| Glacial period | Colder global conditions; continental ice sheets expand |
| Interglacial period | Warmer conditions between glacials; continental ice sheets retreat |
Climate changed over geological time without human influence. However, current anthropogenic changes, meaning changes caused by human activities, are exceptionally rapid. According to the IPCC Sixth Assessment Report, global surface temperature has increased faster since 1970 than in any other 50-year period over at least the past 2000 years. This comparison does not claim that today's warming is faster than every climatic change in Earth's history.
Global warming is moving Earth away from the Quaternary glacial–interglacial cycle towards new, hotter climatic conditions, rather than simply continuing its natural alternation. This describes a human-driven departure from the cycle's natural trajectory, not evidence that every past Quaternary temperature has already been exceeded. Observed warming is already measurable; continued greenhouse gas emissions could drive future temperatures beyond the range of Quaternary interglacials.
The IB syllabus describes these human-driven changes as part of the Anthropocene epoch, a term for a period in which human activity strongly shapes Earth's systems; it is not a formally ratified geological epoch.
Common mistake: Evidence that climate changed naturally in the past does not show that current warming is natural. Distinguish the causes and rate of present changes from earlier climatic variation.
Albedo is the proportion of incoming radiation reflected by a surface.
Worked example: A surface receives incoming radiation of and reflects . Calculate its albedo.
Answer: The albedo is , or . Albedo is dimensionless because the radiation units cancel.
A higher-albedo surface reflects more radiation and absorbs less. A closed system exchanges energy, but not matter, with its surroundings, so a sealed container can still warm under a lamp.
Use two identical sealed transparent containers with equal areas of black and white card respectively covering their bases. Place temperature probes at the same height, without touching the card, and position both containers equally far from a lamp.
This setup compares surface albedo while controlling the energy input.
Example: Under the same illumination, the black surface is expected to absorb more radiation than the white surface, producing a greater temperature rise. This models how replacing bright ice with a darker surface can increase energy absorption. It does not reproduce the full complexity of Earth's climate.
Exam tip: Identify the independent variable as surface colour or albedo and the dependent variable as temperature change. Explain why sealing the containers makes them closed systems, not isolated systems: energy still enters and leaves.
6.1.9
EVOLUTION OF LIFE AND ATMOSPHERIC COMPOSITION
The pre-biotic atmosphere is the atmosphere that existed before life developed. Its percentage composition was very different from today's atmosphere. Life did not simply adapt to the atmosphere: biological processes changed it, creating new conditions that influenced further evolution.
| Component | Pre-biotic atmosphere | Present atmosphere |
|---|---|---|
| Carbon dioxide | Much higher proportion than today | Much lower proportion |
| Oxygen | Little or no free oxygen | About 21% |
Photosynthesis uses light energy to produce organic substances from carbon dioxide and water, releasing oxygen. Over Earth's history, photosynthesis decreased atmospheric carbon dioxide concentration and increased oxygen concentration. These changes affected both the physical environment and the opportunities available to organisms.
These pathways show how photosynthesis changed the atmosphere and conditions for life.
Increasing oxygen allowed stratospheric ozone, a form of oxygen with the formula , to form. Ozone absorbs harmful ultraviolet radiation, reducing the exposure of organisms at Earth's surface. This protection helped make terrestrial environments more suitable for life.
Increasing oxygen also supported aerobic respiration, the release of energy from organic substances using oxygen. This provides more usable energy per molecule of glucose than anaerobic pathways, supporting the evolution of more complex organisms. However, oxygen was harmful to some organisms adapted to oxygen-free conditions: atmospheric change did not benefit all life equally.
Oxygen also caused the oxidation of metals, in which metals react with oxygen to form oxides. This altered the chemical composition of rocks and contributed to the formation of iron ore.
Example: In ancient oceans, oxygen released by photosynthetic organisms reacted with dissolved iron. Insoluble iron oxides formed and accumulated in sediments, contributing to banded iron formations that are important sources of iron ore.
Exam tip: Explain both directions of influence: photosynthesis changed atmospheric composition, and the changed atmosphere altered conditions for subsequent evolution. Link increased oxygen to ozone formation, aerobic respiration and metal oxidation. The IB syllabus does not require dates or a chronology of oxygenation.
