5.1: Soil

Master IB ESS 5.1: Soil with notes created by examiners and strictly aligned with the syllabus.

Verified by Veronica
Verified by Veronica

21 sections · ~27 min read

This content can't be printed from the browser. Use Export PDF with Pro for an offline copy.

IB Syllabus Requirements for Soil

5.1.1

Soil as a dynamic system

5.1.2

Components of soil

5.1.3

Soil profiles and horizons

5.1.4

Soil system inputs

5.1.1

SOIL AS A DYNAMIC SYSTEM

A living, open system

Soil is a dynamic system within the larger ecosystem that has its own inputs, outputs, storages and flows. Matter and energy continually enter, leave, move and change within it. That’s what makes soil dynamic—not the simple movement of the soil itself.

A soil system is an open environmental system, exchanging matter and energy with its surroundings. It stores mineral particles, organic matter, organisms, water, air and nutrients. Through inputs and outputs, the system connects with the atmosphere, vegetation, underlying rock and nearby aquatic systems.

Soils provide resources for life, yet they differ greatly according to parent material, climate, organisms, relief, time and human management. These differences affect fertility and drainage, as well as carbon storage and the communities each soil can support.

The central idea in this topic is that soils sustain natural systems. They support plants and habitats, enable decomposition and nutrient recycling, and regulate water. Human activities can alter soil stability by changing inputs, removing upper layers, compacting the soil, accelerating erosion or disrupting transfers and transformations.

5.1.2

COMPONENTS OF SOIL

Four interacting components

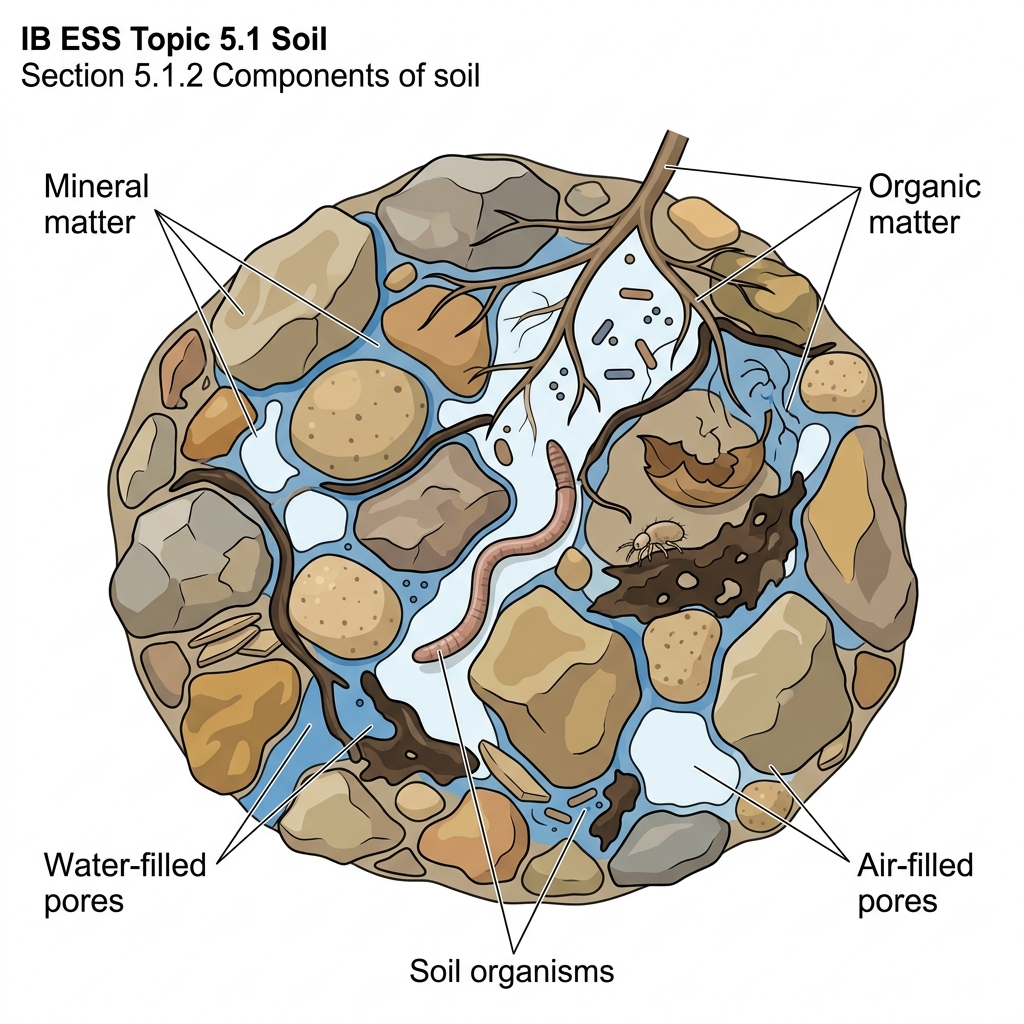

Soil contains inorganic components, organic components, water and air. Rather than forming separate piles, these materials interact within a soil ecosystem that contains distinct soil organisms.

  • Mineral matter is the inorganic component of soil formed from weathered parent rock, such as rock fragments, sand, silt and clay.
  • Organic matter is carbon-containing material in soil derived from living organisms or their remains, including roots, microorganisms, animals, litter and partly decomposed material.
  • Water fills pore spaces and transports dissolved nutrients.
  • Air occupies pore spaces that aren't filled with water, supplying gases for respiration and other biological processes.

Rainfall, drainage, compaction and decomposition can alter this balance. In waterlogged soil, for instance, fewer pores contain air, so less oxygen is available.

Published identification keys use observable or measured properties to classify soils. For a key to work well, observations must be consistent. Colour, texture and other features should therefore be recorded according to the stated criteria, not guessed.

5.1.3

SOIL PROFILES AND HORIZONS

Development of a profile

A soil profile is the vertical development in soils characterized by different layers which can be distinguished by texture, structure, colour and pH. It is a vertical section through the soil, rather than a surface view.

A soil horizon is a horizontal soil layer with physical or chemical properties that distinguish it from adjacent layers. Over long periods, weathering and decomposition help create a relatively stable layered profile. Water movement, biological mixing and nutrient transfers also contribute. Organic material tends to be more abundant near the surface; further down, inorganic material increasingly dominates.

Comparing two B-horizon samples

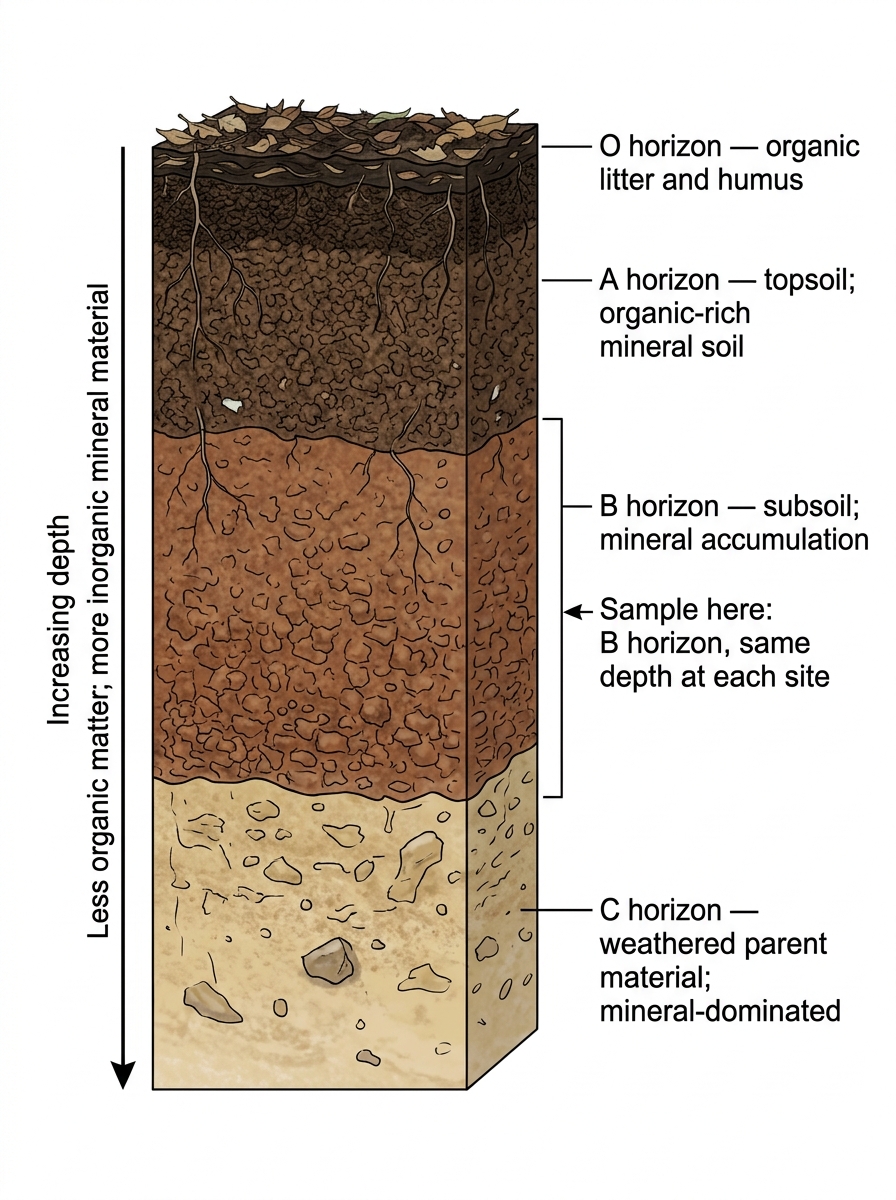

To make the investigation fair, collect B-horizon samples from two contrasting sites: one in a garden or field and the other in a natural ecosystem. First examine each soil profile, using differences in texture, structure, colour and pH to distinguish its horizons and identify the B horizon. Do not assume that it starts at the same depth at both sites.

Choose the sampling approach to match the investigation:

ApproachWhat to standardizeWhat to record and consider
Matched-horizon comparisonSample at the same position within the B horizon, such as the same distance below its upper boundary.Record the actual depth below the soil surface at each site; these depths may differ. Use this approach to compare two B-horizon samples.
Fixed-depth comparisonKeep the sampling depth below the soil surface the same at both sites.Record which horizon is sampled; the same depth may intersect different horizons. This does not necessarily compare two B-horizon samples.

Keep sample volume, equipment and procedures the same. Soil can vary over very short distances, so take replicates.

Properties to investigate

  • Texture: use a feel test or sedimentation.
  • Organic matter: estimate using loss on ignition, as described below.
  • Nitrogen, phosphorus and potassium concentrations: nutrient kits can estimate NPK.
  • Aeration.
  • Drainage: time infiltration or drainage using equal volumes of water.
  • Water retention: use changes in mass to show how much water was retained.

Estimating organic matter

Organic matter can be estimated to provide an operational estimate related to soil carbon. Dry a known sample to constant mass, then heat it safely in a crucible to burn off the organic matter. Cool it in a desiccator and reweigh it. Calculate:

PLOI=md−mamd×100P_{\mathrm{LOI}}=\frac{m_d-m_a}{m_d}\times 100

Worked example: A dry soil sample has a mass of 0.050 kg0.050\ \text{kg}. After ignition, the ash has a mass of 0.046 kg0.046\ \text{kg}. Calculate the percentage loss on ignition. Both masses exclude the container mass.

  1. Calculate the mass lost:

    md−ma=0.050−0.046=0.004 kgm_d-m_a=0.050-0.046=0.004\ \text{kg}

  2. Substitute into the loss-on-ignition formula:

    PLOI=0.0040.050×100=8.0%P_{\mathrm{LOI}}=\frac{0.004}{0.050}\times 100=8.0\%

Answer

Answer: The loss on ignition is 8.0%8.0\%, estimating the organic matter content, not pure carbon. The mass lost provides an estimate of organic matter, but it isn’t necessarily pure carbon because other volatile material may also be lost.

Wear eye protection and use heatproof equipment and tongs. Avoid inhaling soil dust or combustion products.

5.1.4

SOIL SYSTEM INPUTS

Matter and energy entering soil

An input is a flow of matter or energy entering a system. Inputs to soil can come from the surrounding ecosystem or another ecosystem. People may add them too.

Inputs can be grouped by what enters the soil:

  • Organic matter: naturally occurring inputs include plant litter, dead animal biomass and guano. Guano supplies both organic matter and nutrients. Manure and compost may be added to managed soils; manure can also enter naturally from animals.
  • Mineral matter: sources include the weathering of underlying parent rock, deposition of wind-blown or waterborne particles, and precipitation carrying dissolved minerals. Whether weathering supplies an external input depends on whether the parent rock lies outside the chosen soil-system boundary. Fertilizers are managed additions that supply nutrients.
  • Water and gases: natural inputs include water, air and other gases, including water vapour associated with humidity. Irrigation water is a managed addition.
  • Energy: solar energy is a natural input.

Whether a flow counts as an input depends on the system boundary. Wind-blown mineral dust crosses the soil-system boundary, so it is an input. By contrast, decomposition of litter already stored inside that boundary releases mineral nutrients internally: it is a transformation, not a new input.

People also add agrochemicals to managed soils. Managed inputs can increase productivity, though their effects depend on how much is used and how it is managed. Excess fertilizer may be leached. Agrochemicals can affect non-target organisms, while irrigation may contribute to salinization. Strictly speaking, salinization is the resulting transformation or condition; the direct input is usually salt-bearing water or added salts.

5.1.5

SOIL SYSTEM OUTPUTS

Losses from the system

An output is a flow of matter or energy leaving a system. In soil, outputs include losses of minerals, water and heat. Dead organic matter may also be lost or modified through decomposition.

Wind and water erosion can carry away mineral particles. Plant roots draw water and dissolved mineral nutrients from the soil store, while leaching moves soluble nutrients and water downward, potentially beyond the soil system. Gases diffuse between the soil and atmosphere. Water leaves through evaporation, and thermal energy is lost as heat.

Keep two ideas separate here. Erosion may remove the soil body itself. Root uptake, decomposition, leaching, gas diffusion and evaporation, by contrast, remove or transform particular components without necessarily taking away the whole soil. Repeated outputs can still reduce fertility, alter structure and degrade productive soil.

5.1.6

TRANSFERS ACROSS SOIL HORIZONS

Movement without chemical change

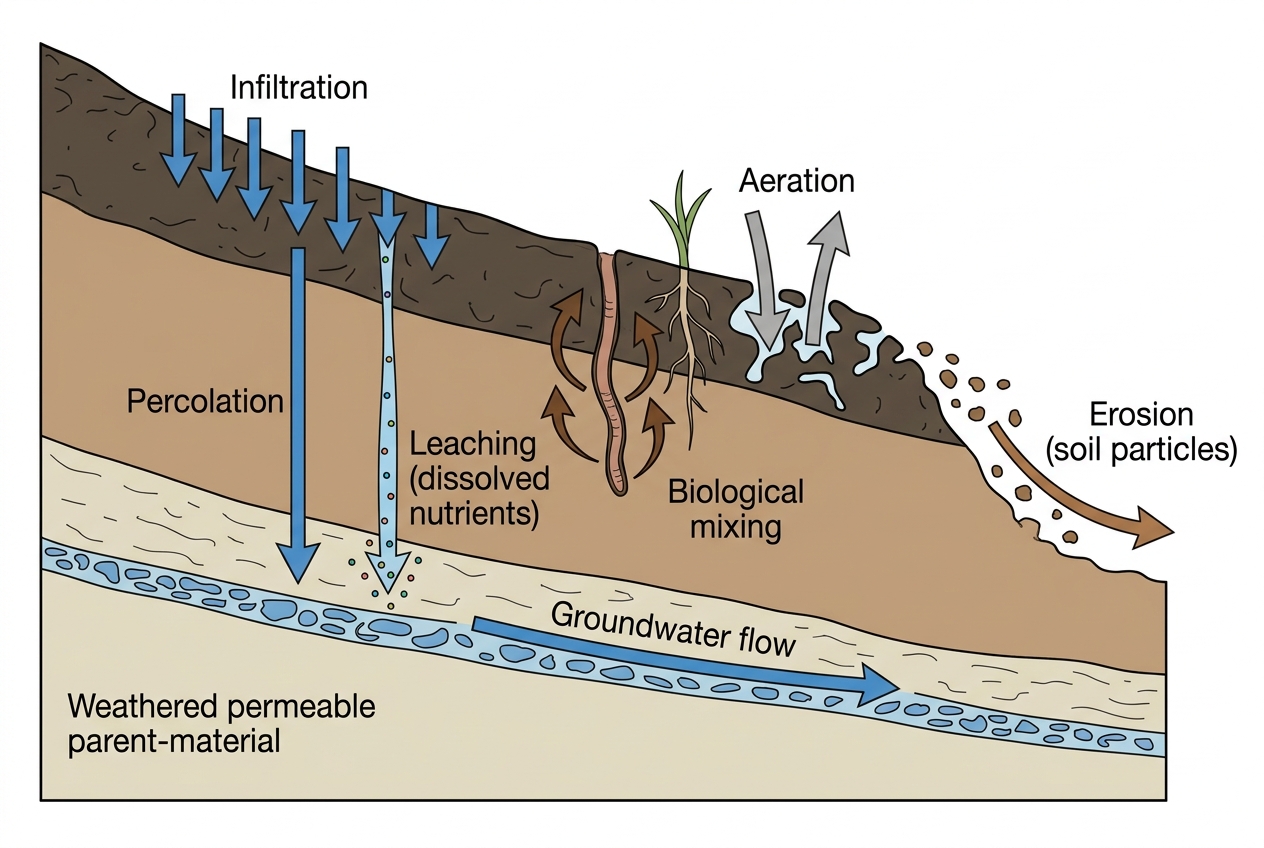

A transfer is the movement of matter or energy between locations without changing its chemical nature. It may occur within a horizon or across horizon boundaries. Matter and energy can also move into or out of the soil.

  • Infiltration is the transfer of water from the ground surface into soil.
  • Percolation is the downward transfer of water through soil and permeable material under gravity.
  • Groundwater flow is the subsurface transfer of water through saturated pores and fractures.
  • Biological mixing is the redistribution of soil material by organisms, including burrowing animals, roots and microorganisms.
  • Aeration is the exchange and movement of gases between soil pores and the atmosphere.
  • Erosion is the detachment and transport of soil material by agents such as water or wind.
  • Leaching is the downward transfer of dissolved substances through soil by percolating water.

These processes shouldn’t be confused. Infiltration takes water across the soil surface, while percolation carries it through the profile. Erosion moves particles; leaching moves dissolved material.

5.1.7

TRANSFORMATIONS WITHIN SOILS

Processes that change soil components

A transformation is a process that changes matter or energy into a different form within a system. In soil, transformations alter individual components and may gradually change the character of the whole soil.

Decomposition is the biological and chemical breakdown of dead organic matter into simpler substances. Mineral nutrients are released for reuse, while respiration transfers some carbon to the atmosphere.

Example: Microorganisms break down fallen leaves, releasing mineral nutrients into the soil. The starting material is dead organic matter; the products include simpler substances that plants can take up.

Weathering is the physical, chemical or biological breakdown of rock in place. This produces mineral particles and can release mineral nutrients into the soil.

Example: Freeze–thaw fragmentation is physical weathering: water enters cracks in parent rock, freezes and expands, widening the cracks. Repeated freezing and thawing breaks the rock into smaller mineral fragments. Unlike decomposition, this process starts with rock rather than dead organic matter.

Nutrient cycling is the repeated transfer and transformation of chemical elements between organisms and the physical environment. Plants take up mineral nutrients and incorporate them into biomass. These nutrients return through litter, death and decomposition.

Salinization is the accumulation of soluble salts in soil to concentrations that impair soil functioning or plant growth. Dissolved salts enter through irrigation water. Capillary movement can then draw saline water upward; when the water evaporates, the salts remain. Poor drainage worsens this accumulation.

5.1.8

SOIL SYSTEMS FLOW DIAGRAMS

Representing the soil system

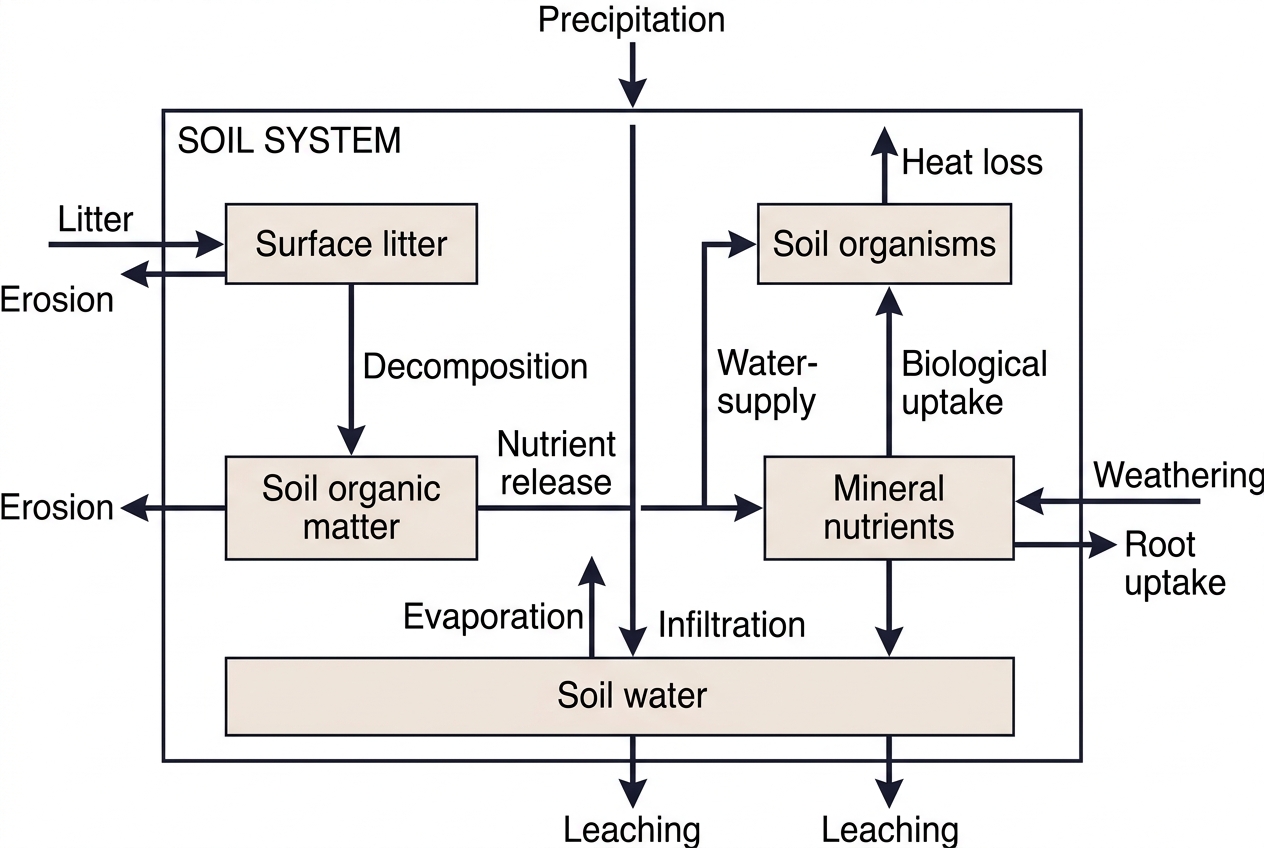

A systems flow diagram is a model that represents storages as boxes and flows as arrows connecting them. Arrows that cross the system boundary show inputs or outputs, while arrows between boxes show internal transfers. Label each transformation beside the flow or storage where it occurs.

A soil diagram might show storages such as surface litter, soil organic matter, mineral nutrients, soil water and soil organisms. Precipitation, litter and weathering can act as inputs. Outputs may include leaching, erosion, evaporation, root uptake and heat loss, while infiltration, decomposition and nutrient release are internal flows.

Start by drawing a clear system boundary. Add the storages next, then connect them using labelled arrows. Different arrow widths should only be used when they genuinely show relative flow magnitude.

Soil connects the water, carbon and nitrogen cycles. It stores and transfers water, receives and decomposes carbon-rich organic matter, and changes nitrogen between organic and mineral forms. Damage to soil can therefore affect several larger Earth systems at the same time.

5.1.9

SOIL AS A MEDIUM FOR PLANT GROWTH

Foundation of terrestrial ecosystems

Soil anchors plant roots and provides a seed bank, a water store and a nutrient store. Air-filled pores within it also supply the oxygen roots need for respiration.

The schematic contrasts uptake through roots with carbon uptake through leaves and shows how waterlogging limits root function.

The main mineral nutrients stored in soil are nitrogen, phosphorus and potassium.

Mineral nutrientFunctions in plants
NitrogenNeeded to make amino acids and other nitrogen-containing compounds.
PhosphorusForms part of compounds used in energy transfer and genetic material.
PotassiumHelps with processes such as water regulation and enzyme activity.

Carbon is the key exception. Rather than absorbing it from soil as a mineral nutrient, plants obtain most of their carbon from atmospheric CO2CO_2. They convert this carbon into organic matter, some of which eventually enters the soil through litter and dead roots.

Plants form the producer base of terrestrial food webs. As a result, soil depth, water availability, aeration and nutrient supply affect productivity throughout terrestrial ecosystems.

5.1.10

SOIL AND BIODIVERSITY

Habitat and niche

A habitat is the environment in which an organism lives. A niche is the role of a species in an ecosystem, including how it uses resources and interacts with biotic and abiotic conditions. For many species, soil provides both.

Example: An earthworm lives in moist topsoil and litter: these are its habitat. Consuming detritus, mixing soil and creating burrows describe aspects of its niche. A predatory soil centipede may share this habitat, but occupies a different niche because it feeds on other soil animals rather than detritus.

Microhabitats and roles

Soil communities contain bacteria and other microorganisms, fungi, plant roots and animals of many sizes. Contrasting microhabitats occur in:

  • Pore spaces
  • Litter
  • Aggregates
  • Varying soil depths

These microhabitats differ in moisture, oxygen, temperature, pH and food availability. As a result, species fill different niches as decomposers, detritivores, predators, grazers, parasites and ecosystem engineers.

Much of soil biodiversity remains undescribed. Apparently plain ground can support a remarkably complex community, and soil degradation may remove species before they are identified.

5.1.11

SOIL IN BIOGEOCHEMICAL CYCLES

Recycling elements

A biogeochemical cycle is a pathway through which a chemical element moves between living organisms and the non-living environment. Within these cycles, soil acts as both a store and a processing zone.

Most organic input comes from dead plant material. Detritivores are consumers that ingest dead organic material and fragment it, which increases the surface area available to decomposers. Saprotrophs are organisms that digest dead organic matter externally and absorb the soluble products. Important soil saprotrophs include fungi and bacteria.

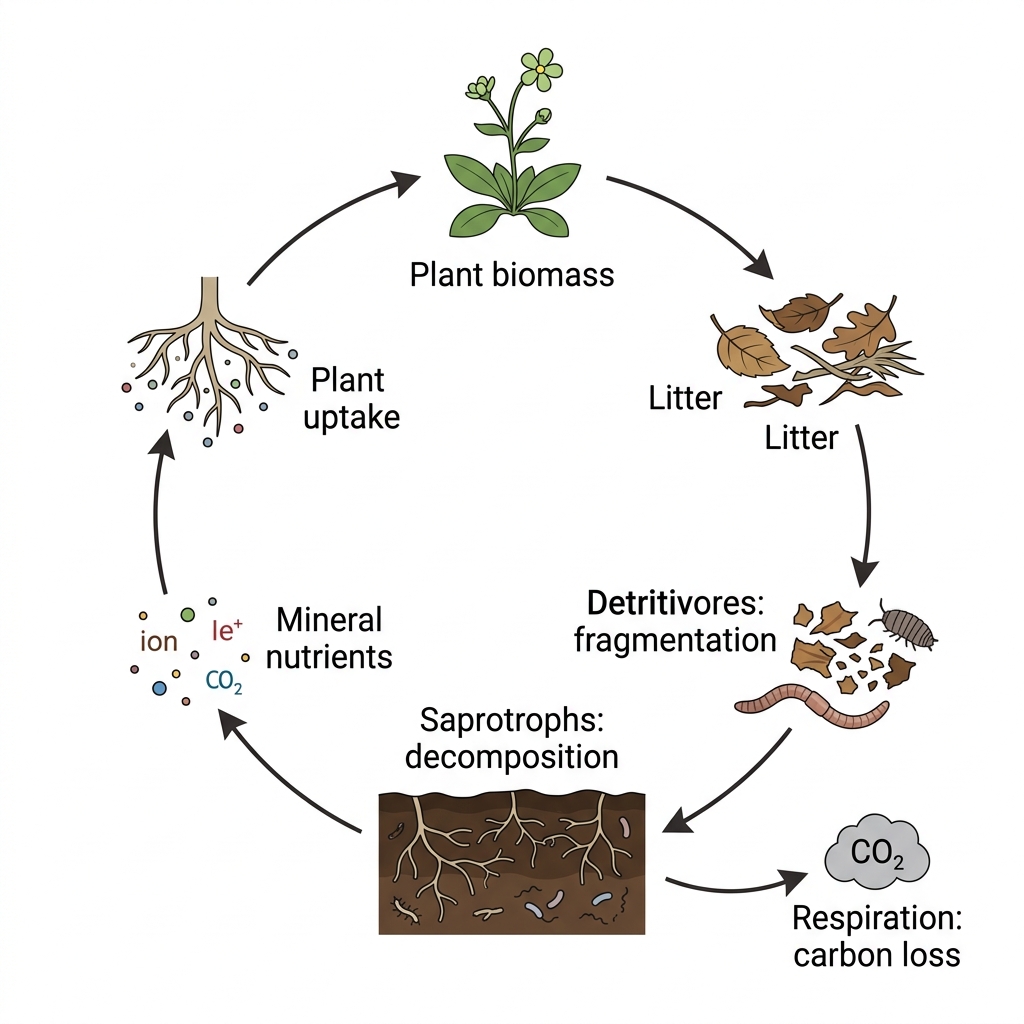

The sequence begins with litter input. Detritivores fragment the material, then saprotrophs decompose it chemically. Mineral nutrients are released, taken up by plants and incorporated into new biomass. Carbon may enter longer-term soil organic stores or leave through respiration; mineral nutrients can be retained, absorbed or leached.

5.1.12

SOIL TEXTURE

Determining physical make-up

Soil texture defines the physical make-up of the mineral soil. It depends on the relative proportions of sand, silt, clay and humus. Put simply, texture describes the balance between coarse and fine particles, including the contribution made by humus.

A classification key or feel test can give an estimate of soil texture.

ComponentFeel-test observations
SandFeels gritty.
SiltHas a smooth or floury feel.
ClayIs sticky when wet and can be moulded.

Although quick, the feel test is subjective, so every sample should be tested using the same procedure and under the same moisture conditions.

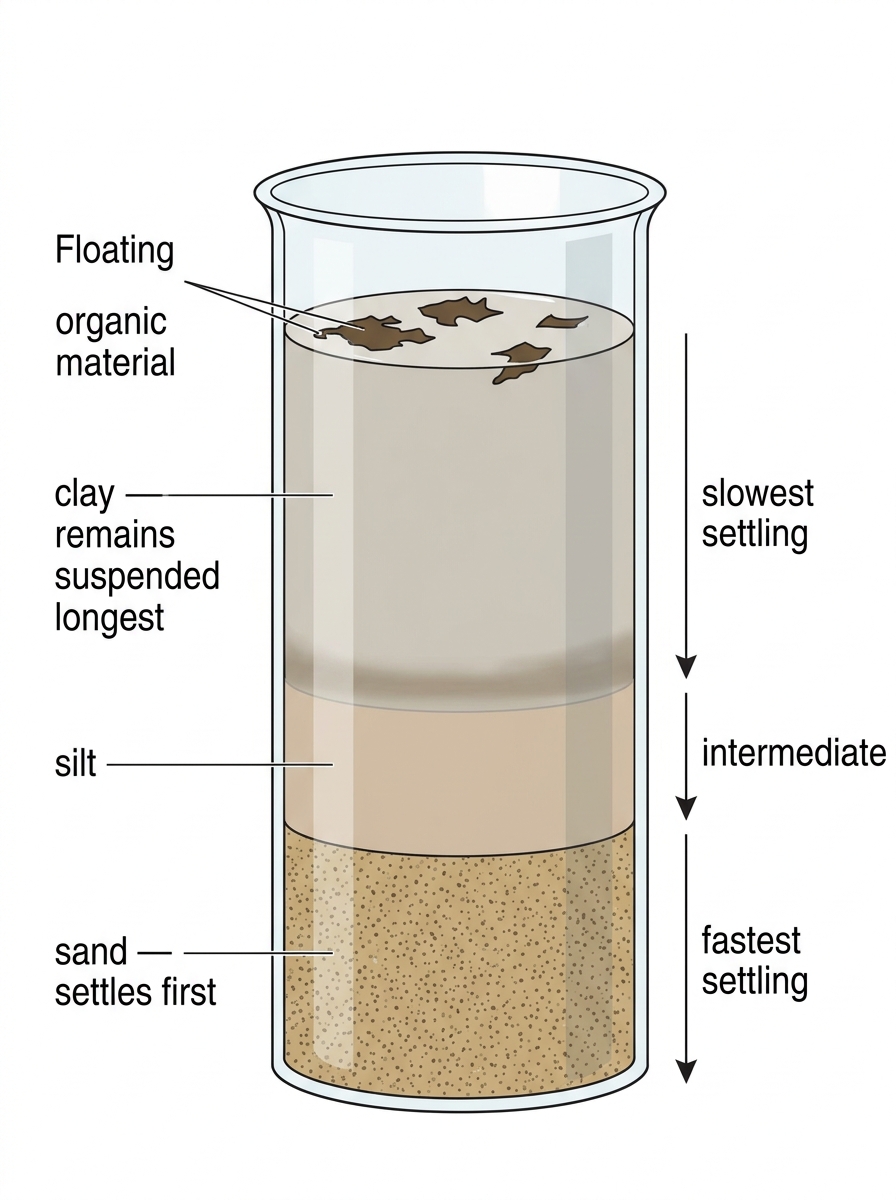

For a sedimentation test, mix the soil thoroughly with water and leave the particles to settle before measuring the separate layers. The larger sand particles settle first, followed by silt; clay stays suspended for the longest time. Organic material may float. Use the proportion of each mineral fraction with an appropriate classification key.

Worked example: A settled soil sample has layers of sand measuring 30 mm30\ \text{mm}, silt measuring 15 mm15\ \text{mm} and clay measuring 5 mm5\ \text{mm}. Water lies above the mineral layers, and organic material floats at the surface. Calculate the percentage of each mineral fraction using layer depth.

  1. Calculate the total mineral depth. Exclude both the overlying water and the floating organic material:

    dtotal=30+15+5=50 mmd_{\text{total}} = 30 + 15 + 5 = 50\ \text{mm}

  2. Calculate the sand percentage:

    Sand percentage=30 mm50 mm×100=60%\text{Sand percentage} = \frac{30\ \text{mm}}{50\ \text{mm}} \times 100 = 60\%

  3. Calculate the silt percentage:

    Silt percentage=15 mm50 mm×100=30%\text{Silt percentage} = \frac{15\ \text{mm}}{50\ \text{mm}} \times 100 = 30\%

  4. Calculate the clay percentage:

    Clay percentage=5 mm50 mm×100=10%\text{Clay percentage} = \frac{5\ \text{mm}}{50\ \text{mm}} \times 100 = 10\%

Layer-depth estimates are approximate: boundaries between layers may be indistinct, and some fine particles may remain suspended.

Answer

Answer: The mineral fractions are approximately 60%60\% sand, 30%30\% silt and 10%10\% clay. These percentages describe the settled mineral material only, not the water or floating organic material.

5.1.13

SOIL TEXTURE AND PRIMARY PRODUCTIVITY

Texture controls growing conditions

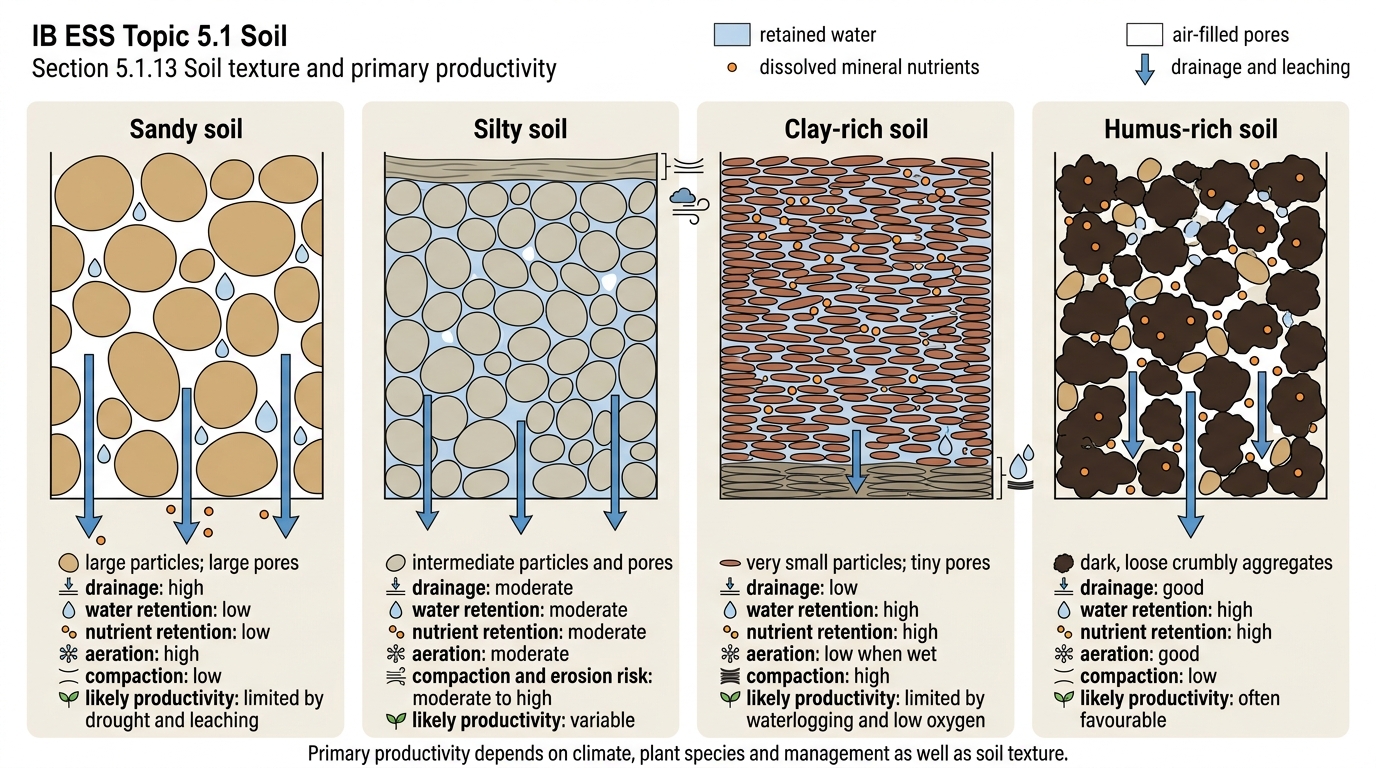

Primary productivity is the biomass gained by producers in a specific area in a specific amount of time. Soil texture affects primary productivity through nutrient retention and leaching. It also controls water retention and drainage, as well as aeration, compaction and waterlogging.

Sand has relatively large particles and pores, so it usually drains and aerates well. However, it holds less water and fewer dissolved nutrients. Drought and leaching can therefore limit plant growth. Clay has very small particles and pores. It holds water and mineral ions effectively, but it may drain poorly, become compact and develop oxygen-deficient conditions. Silt has intermediate-sized particles and can retain water. When silty soil has a weak structure, though, it’s vulnerable to erosion and compaction.

Humus is a dark brown or black, loose and crumbly substance beneath leaf litter formed by the partial decay of dead plant material. When abundant, humus contributes strongly to soil texture. It retains water and mineral nutrients while improving aggregation and aeration.

A balanced soil contains water-holding pores alongside larger, air-filled drainage pores. No single texture is universally perfect because productivity also depends on climate, plant species and management. Even so, a mixture that prevents both rapid drought and prolonged waterlogging is often favourable.

5.1.14

SOILS AS CARBON SINKS, STORES AND SOURCES

The balance of inputs and decomposition

A carbon sink is a reservoir that absorbs more carbon than it releases over a stated period.

A carbon store is a reservoir that contains carbon for a period of time.

A carbon source is a reservoir or process that releases more carbon than it absorbs over a stated period.

Whether soil acts as a sink, store or source depends on the balance between inputs of dead organic matter and outputs from decomposition.

  • When inputs exceed decomposition losses, the carbon store grows and the soil acts as a sink.
  • When the two rates are balanced, the store stays broadly stable.
  • If decomposition and other losses become greater than inputs, the store shrinks and the soil acts as a source.

Worked example: A hypothetical soil receives carbon inputs of 5 t C ha−1 yr−15\ \text{t C ha}^{-1}\ \text{yr}^{-1} and loses 3 t C ha−1 yr−13\ \text{t C ha}^{-1}\ \text{yr}^{-1}. Calculate its net carbon balance and identify whether it is a sink or source. Repeat with losses increased to 6 t C ha−1 yr−16\ \text{t C ha}^{-1}\ \text{yr}^{-1}, keeping inputs unchanged.

  1. Calculate the net carbon balance as inputs minus losses:
Net carbon balance=5−3=+2 t C ha−1 yr−1\text{Net carbon balance} = 5 - 3 = +2\ \text{t C ha}^{-1}\ \text{yr}^{-1}

The positive balance means the soil gains carbon over the year.

  1. Repeat for the increased losses:
Net carbon balance=5−6=−1 t C ha−1 yr−1\text{Net carbon balance} = 5 - 6 = -1\ \text{t C ha}^{-1}\ \text{yr}^{-1}

The negative balance means the soil loses carbon over the year.

Answer

Answer: The soil is initially a sink, gaining 2 t C ha−1 yr−12\ \text{t C ha}^{-1}\ \text{yr}^{-1}; with increased losses, it becomes a source, losing 1 t C ha−1 yr−11\ \text{t C ha}^{-1}\ \text{yr}^{-1}. Either soil can still contain a large carbon store: the store is the amount present, whereas sink or source describes the net flow over a stated period.

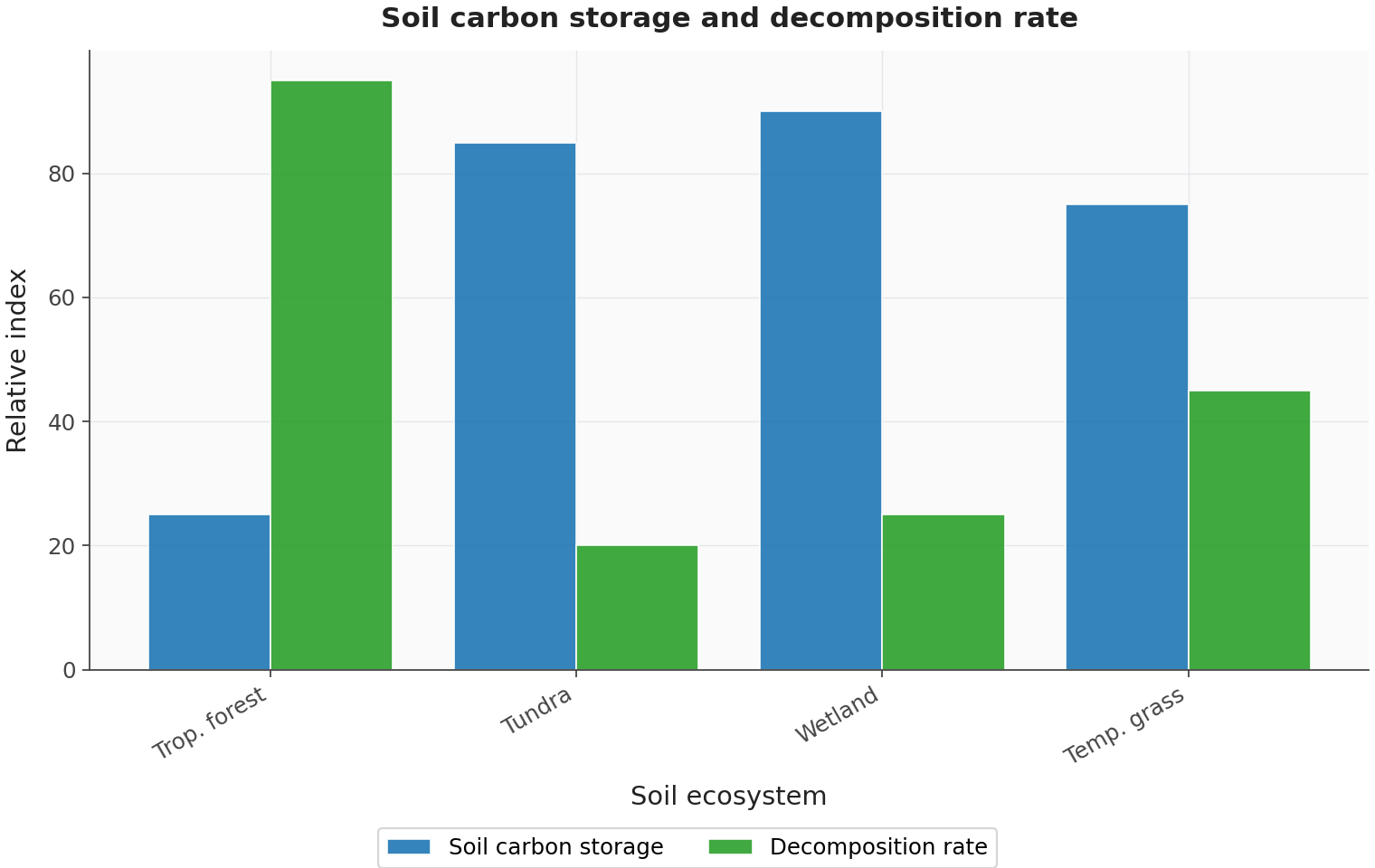

Tropical forest soils usually contain relatively little carbon. Warm, moist conditions allow rapid decomposition, while released nutrients are quickly absorbed into biomass. As a result, the forest may store considerable carbon above ground despite having a modest soil carbon store.

Tundra soils contain more carbon because low temperatures reduce decomposer activity. Frozen or waterlogged conditions also restrict oxygen. Wetland soils are saturated and often oxygen-poor, which slows decomposition and allows partly decomposed organic matter to accumulate. In temperate grasslands, dense root systems provide substantial below-ground inputs, allowing carbon to build up in the soil.

Warming, drainage or disturbance may speed up decomposition, turning a former sink or stable store into a source. Soil stability is therefore directly connected to climate regulation.

5.1.15

SOIL CLASSIFICATION AND MAPPING

HL

Reading the whole profile

Soils are classified and mapped by looking at the entire soil profile, not just a handful taken from the surface. Evidence comes from the sequence and thickness of horizons, along with colour, texture, structure, organic content and signs of leaching or mineral accumulation.

A profile drawing works as a descriptive model. Show the layers in the correct vertical order and at their relative thicknesses. Then annotate the transfers and transformations that produced the visible features—for example, litter input, decomposition near the surface, downward leaching and mineral accumulation deeper in the profile.

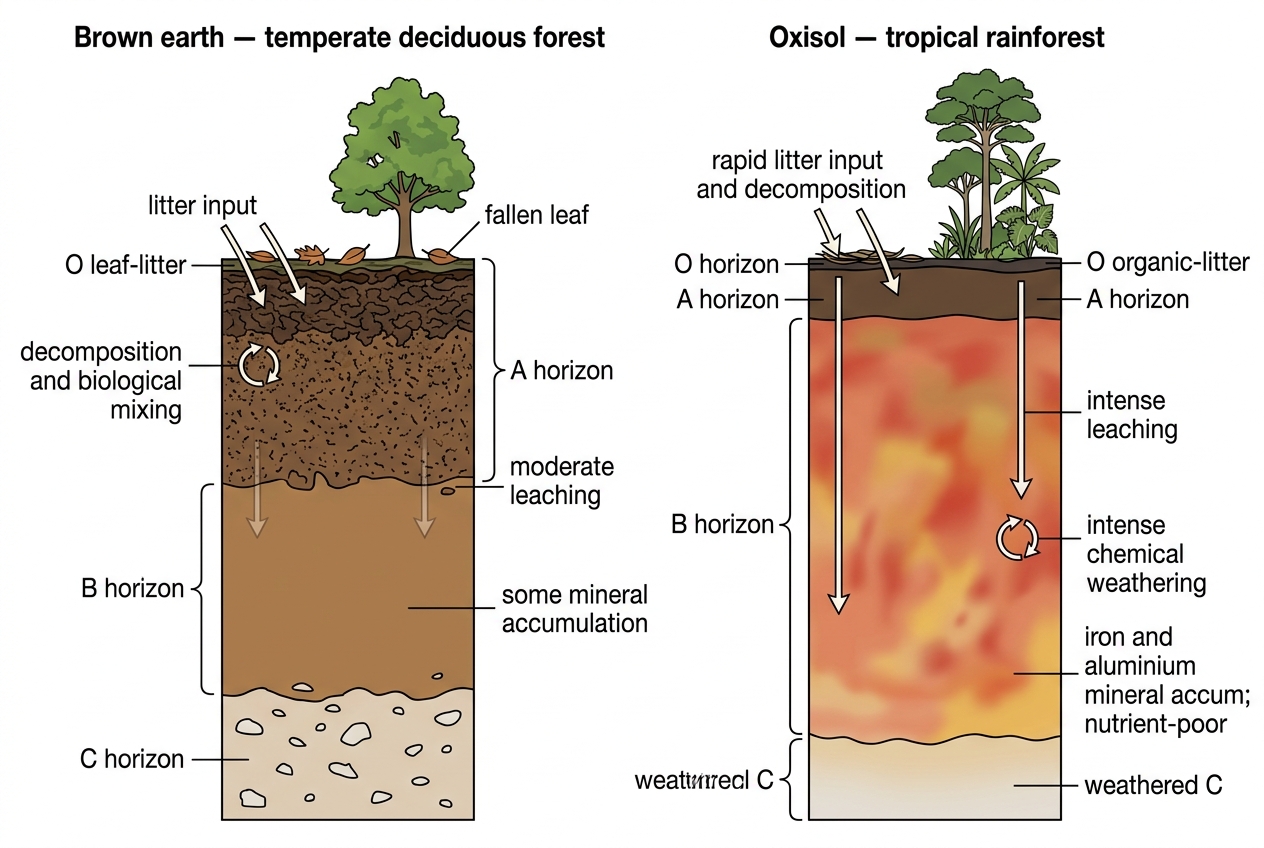

Profile diagrams can help connect soils with biomes. Brown earth profiles are linked to temperate deciduous forest conditions. Here, litter decomposition and biological mixing create a relatively well-developed upper soil. Oxisol profiles occur under tropical rainforest conditions, where intense chemical weathering and leaching form deeply weathered, mineral-rich soil that is often nutrient-poor.

To classify an unfamiliar diagram, focus on the evidence in the profile rather than its name. Look at which horizons are present, where organic matter occurs, and whether leaching or accumulation dominates.

5.1.16

SOIL HORIZONS

HL

O, A, B and C horizons

Horizons are horizontal strata that are distinctive to the soil type. The key horizons are organic layer, mixed layer, mineral soil and parent rock (O, A, B and C horizons). Together, these layers show the effects of inputs, transfers and transformations.

  • The O horizon forms the organic surface layer. It contains litter and material at different stages of decomposition.
  • The A horizon is the organic-rich mixed layer, or topsoil. It contains mineral particles and humus, with abundant biological activity.
  • The B horizon is the mineral subsoil. It commonly receives clay or dissolved minerals transferred from the layers above.
  • The C horizon lies beneath the developed soil and consists of partly weathered parent material.

Natural soil systems commonly keep all four horizons: O, A, B and C. With intensive agriculture, repeated cultivation, vegetation removal and erosion may remove or severely degrade the O and A horizons, leaving mainly B and C material. The effects are substantial. The soil loses its seed bank, humus, soil organisms, nutrients, water-holding capacity and productive structure. Fertilizer inputs alone cannot recreate the full function of the upper soil ecosystem.

5.1.17

THE A HORIZON

HL

The productive mixed layer

The A horizon is the layer of soil just beneath the uppermost organic humus layer, where present. It is rich in organic matter and is also known as the mixed layer or topsoil. Here, mineral particles mix with humus. Roots and soil organisms closely connect the layer to plant growth and decomposition.

For plant growth, this is normally the most valuable horizon. It contains nutrients, biological activity and a seed bank, while storing water and providing a structure that allows root penetration and aeration. Along with the O horizon, it is the layer most exposed to erosion by wind and water.

Compared with lower soil horizons, topsoil has more oxygen, organic matter and microorganisms, and more nutrient recycling. These conditions make it the main zone of root growth and other biological activity.

Loss and protection of the A horizon

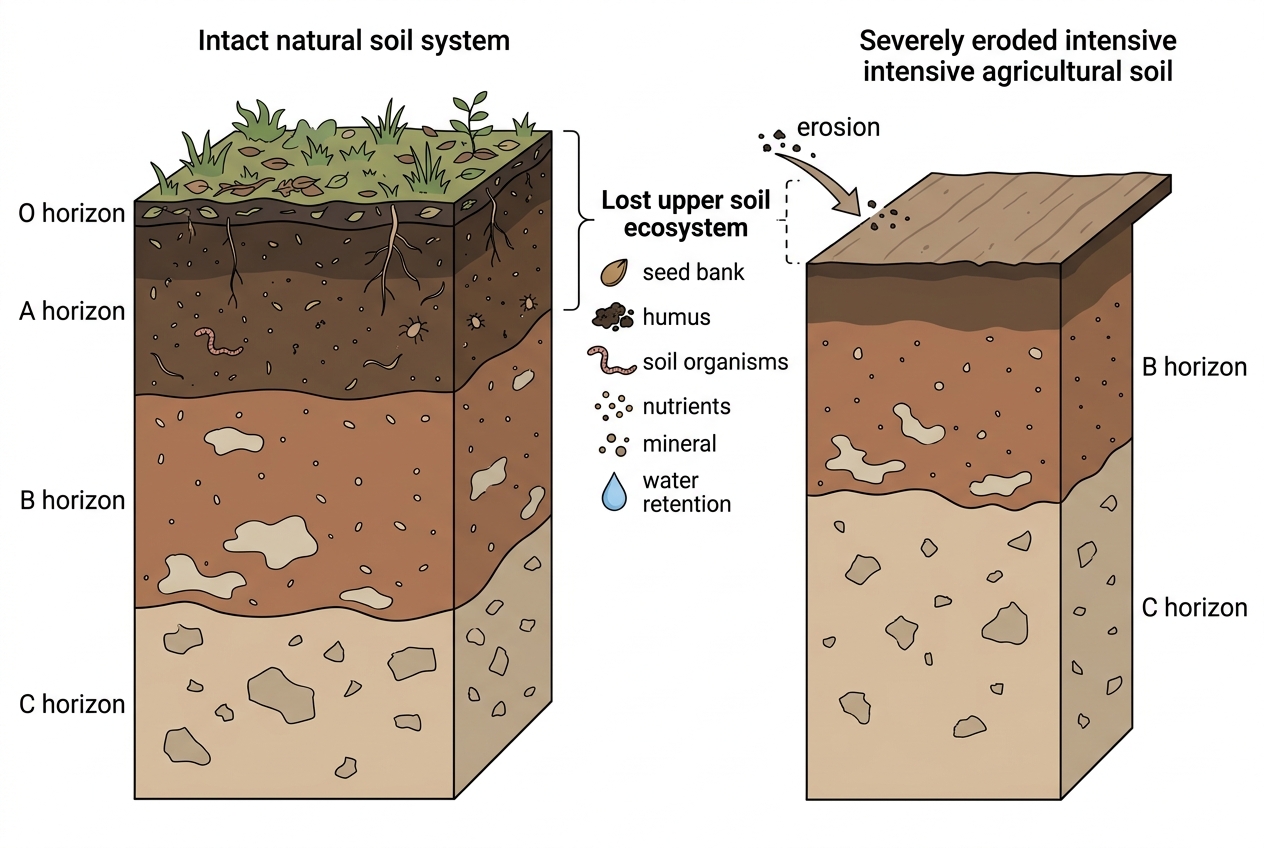

Removing or degrading the A horizon destabilizes the soil system. Nutrient and carbon stores decline, infiltration may fall, and runoff and erosion can increase. Primary productivity also drops.

Intensive farming removes the A horizon and requires the addition of fertilizers to replace lost nutrients.

Sustainable management protects this productive layer through the following measures:

  • Keeps the layer covered.
  • Limits compaction and disturbance.
  • Maintains organic inputs.
  • Reduces erosive runoff.

5.1.18

FACTORS INFLUENCING SOIL FORMATION

HL

How soils develop

Soil formation is the development of soil through interactions between climate, organisms, geomorphology (landscape), geology (parent material) and time. These factors act together: the same parent rock can produce different soils under different climatic and drainage conditions.

Climate and organisms

Climate influences soil formation through temperature and precipitation, which affect weathering, decomposition and water movement. Temperature contrasts between biomes help explain differences in soil development.

Region and biomeClimatic influence on soil formation
Tropical rainforestWarm, wet conditions promote chemical weathering and rapid decomposition. Abundant rainfall promotes leaching.
Temperate deciduous forestSeasonal temperatures produce seasonal changes in decomposition and biological activity. Rainfall supports weathering and movement of dissolved minerals.
Polar tundraLow temperatures slow decomposition and chemical weathering. Frozen ground can restrict drainage, causing seasonal waterlogging.

Organisms influence soil formation by adding organic matter, decomposing litter and mixing soil. Plant roots can widen cracks in rock, while earthworms mix organic and mineral material and create channels that improve aeration and drainage.

Landscape and parent material

Geomorphology describes landscape characteristics that influence soil formation, including slope, aspect and drainage.

  • Slope affects erosion and deposition. Steep slopes often lose material faster, producing thinner soils; lower slopes may accumulate deposited material.
  • Aspect is the direction a slope faces. Slopes receiving more solar radiation tend to be warmer and drier, affecting weathering, vegetation and decomposition.
  • Drainage controls how readily water leaves the soil. Poor drainage promotes waterlogging, reducing aeration and slowing aerobic decomposition; freely drained soils usually have more oxygen available.

Geology, through the parent material, influences the minerals available for weathering and the soil’s developing chemical and physical properties. Permeable parent materials can favour drainage and aeration, whereas less permeable materials may promote waterlogging.

Parent rock typeInfluence on soil formation
Calcareous rock, such as limestone or chalk, contains calcium carbonateWeathering supplies calcium and tends to produce alkaline soils, although prolonged leaching can reduce this influence.
Volcanic rock forms from volcanic materialWeathering can supply mineral nutrients; soils developed from volcanic ash often retain water well. Their properties depend on the material and conditions.

Time

Time determines how long weathering, biological activity and material movement have operated. Longer periods allow greater alteration of parent material and soil differentiation. Erosion can remove developing soil, while deposition adds fresh material, so an older surface does not necessarily have deeper soil.

Example: On a limestone hillside, a steep upper slope may have thin, calcium-rich soil because erosion removes material. A lower hollow may accumulate sediment and become waterlogged, reducing aeration despite sharing the same parent rock.

Exam tip: Explain a causal link rather than simply listing factors: poor drainage causes waterlogging, which reduces oxygen availability and slows aerobic decomposition.

5.1.19

DIFFERENCES BETWEEN SOILS RICH IN SAND, SILT OR CLAY

HL

Particle size and nutrient retention

Soils rich in sand, silt or clay differ in both particle size and chemical properties. Sand has the largest particles of these three fractions, silt has intermediate-sized particles, and clay has the smallest. Their mineral composition helps explain differences in nutrient retention.

Cation-exchange capacity (CEC) is the ability of a soil to hold and exchange positively charged ions, called cations. These include plant nutrients such as calcium, magnesium and potassium, present as Ca2+\text{Ca}^{2+}, Mg2+\text{Mg}^{2+} and K+\text{K}^+.

PropertySand-rich soilSilt-rich soilClay-rich soil
Relative particle sizeLargestIntermediateSmallest
Mineral composition in the IB syllabusDerived from quartzDerived from quartzComplex silicates
CECLowLowMuch greater
Retention of nutrient cationsRelatively weakRelatively weakStronger; increases availability to plants

The IB syllabus describes sand and silt as derived from quartz; real soils may also contain other minerals. Quartz has little capacity to retain nutrient cations, so dissolved nutrients are more easily lost through leaching.

Clay surfaces carry negative charges that attract nutrient cations. These ions are retained on exchange sites rather than immediately being washed away. They can exchange with other cations in soil water and become available for uptake by roots. Retention therefore does not mean that nutrients are permanently locked away.

The schematic contrasts nutrient-cation retention on quartz and clay surfaces.

Example: After a fertilizer containing potassium dissolves, a quartz-rich sandy soil retains relatively little of the added K+\text{K}^+ on mineral surfaces. A clay-rich soil has more capacity to retain these ions at exchange sites, keeping a nutrient reserve available to plants.

Exam tip: When comparing these soils, link mineral composition to CEC and then to nutrient availability. Do not explain clay’s greater CEC only by saying that it holds more water: CEC concerns the retention and exchange of positively charged ions.

5.1.20

SOIL PROPERTIES

HL

Measuring and interpreting soil properties

Soil properties can be determined by analysing mineral particle percentages, organic matter, water content, infiltration, bulk density, colour and pH. Use measurements together: a single property cannot fully describe a soil’s condition. When comparing sites, sample at the same depth and use the same procedures.

PropertyMeasurement and interpretation
Sand, silt and clay percentagesSeparate mineral particles by sieving and sedimentation, then calculate their proportions. Use a soil texture triangle to classify the mineral soil.
Percentage organic matterDry the sample, weigh it, then heat strongly to burn off organic matter and reweigh. Estimate organic matter as mass lost divided by initial dry soil mass, multiplied by 100. Exclude the container mass.
Percentage waterWeigh fresh soil, dry to constant mass and reweigh. Using a wet-mass basis, calculate water lost divided by initial wet soil mass, multiplied by 100.
InfiltrationMeasure the volume of water entering a known soil area over time, or record how quickly a measured water depth enters the soil.
Bulk densityDivide dry soil mass by its undisturbed total volume, including pore spaces. Higher values in otherwise comparable soils suggest greater compaction.
ColourCompare samples under consistent lighting and moisture conditions. Dark colour can indicate organic matter; grey colours can indicate prolonged waterlogging. Colour alone is not conclusive.
pHTest a standardized soil–water mixture using a calibrated pH meter. This measures acidity or alkalinity, which affects nutrient availability.

Infiltration rate is the rate at which water enters soil, commonly expressed in mm h−1\text{mm h}^{-1}.

Bulk density is dry soil mass per unit total volume, commonly expressed in g cm−3\text{g cm}^{-3}.

Worked example: A water depth of 20 mm20\ \text{mm} infiltrates into soil in 15 minutes15\ \text{minutes}. Calculate the average infiltration rate over the measurement interval.

  1. Convert the measurement time to hours:
t=1560=0.25 ht = \frac{15}{60} = 0.25\ \text{h}
  1. Divide the water depth by the elapsed time:
Average infiltration rate=water depthtime=2015/60=80 mm h−1\text{Average infiltration rate} = \frac{\text{water depth}}{\text{time}} = \frac{20}{15/60} = 80\ \text{mm h}^{-1}
Answer

Answer: The average infiltration rate over the 15 minutes15\ \text{minutes} measurement interval is 80 mm h−180\ \text{mm h}^{-1}.

Using the soil texture triangle

The soil texture triangle classifies mineral soil from its sand, silt and clay percentages. These must total 100%; organic matter and water are excluded.

  • Locate each percentage on its axis.
  • Follow the corresponding gridline parallel to the opposite side.
  • Read the textural class at the intersection.

Example: A soil containing 25% sand, 55% silt and 20% clay is classified as silt loam. Plotting the third percentage provides a check that the first two were read correctly.

Worked example: A fresh soil sample has a mass of 50.0 g50.0\ \text{g}. After drying to constant mass, it weighs 40.0 g40.0\ \text{g}. Its undisturbed volume was 32.0 cm332.0\ \text{cm}^3. Calculate percentage water on a wet-mass basis and bulk density.

  1. Calculate percentage water:
Water content=50.0−40.050.0×100=20.0%\text{Water content} = \frac{50.0-40.0}{50.0}\times100 = 20.0\%
  1. Calculate bulk density using dry mass:
Bulk density=40.032.0=1.25 g cm−3\text{Bulk density} = \frac{40.0}{32.0} = 1.25\ \text{g cm}^{-3}
Answer

Answer: Water content is 20.0%20.0\% on a wet-mass basis; bulk density is 1.25 g cm−31.25\ \text{g cm}^{-3}.

Exam tip: Check the denominator specified for percentage water: wet-mass and dry-mass methods give different results. When interpreting soil data, connect a measured difference to its likely effect, rather than assuming that one measurement proves fertility.

5.1.21

CARBON RELEASED FROM SOILS

HL

Carbon release and warming feedbacks

Carbon is released from soils as methane or carbon dioxide. Decomposition of soil organic matter releases carbon dioxide (CO2CO_2) when oxygen is available. Under anaerobic conditions, microbial breakdown can also produce methane (CH4CH_4). Both gases contribute to the greenhouse effect.

Human activities can increase the rate at which stored soil carbon is released:

  • Global warming can accelerate decomposition where temperature limits microbial activity, increasing carbon release.
  • Agricultural practices, such as ploughing, expose organic matter to air and increase aeration, which can accelerate decomposition and release carbon dioxide.
  • Drainage of wetlands introduces oxygen into previously waterlogged soils, allowing faster aerobic decomposition of accumulated organic matter.
  • Other activities, including vegetation clearance, can expose and disturb soils, increasing decomposition and carbon losses.

Example: Draining a peat wetland for agriculture lowers its water table and exposes peat to oxygen. Microorganisms decompose the accumulated organic matter more rapidly, releasing carbon dioxide. Although drainage may reduce methane production, it can increase the loss of stored carbon as carbon dioxide.

A positive feedback amplifies an initial change. Rising temperatures can accelerate soil decomposition. Increased decomposition releases more greenhouse gases. These emissions strengthen the greenhouse effect, causing further warming. This feedback may help push a system towards a tipping point: a threshold beyond which a small further change can trigger a large, potentially self-sustaining shift.

These two carbon-release pathways can reinforce warming.

Methane clathrates are ice-like structures in which water molecules trap methane within underlying geological structures. The IB syllabus identifies a tipping point at which increasing temperatures cause methane clathrates to break down. Clathrate breakdown releases methane, which strengthens the greenhouse effect and promotes further warming. This is distinct from methane production by microorganisms in waterlogged soil.

Exam tip: When explaining a warming feedback, complete the loop: warming increases carbon release, the released greenhouse gases strengthen the greenhouse effect, and this causes further warming. Do not describe clathrate breakdown as decomposition of soil organic matter; they are different mechanisms of carbon release.

Were those notes helpful?

5.2 Agriculture and food
