Pollutants entering the urban atmosphere

Urban air pollution occurs when substances contaminate an urban atmospheric system at concentrations that harm organisms, materials or environmental processes. Major human inputs come from transport, electricity generation, industry, construction and fuel use in buildings.

The pollutants covered in this topic are nitrogen oxides ($NO_x$), sulfur dioxide ($SO_2$), carbon monoxide ($CO$) and particulate matter. Nitrogen oxides form a group that includes nitrogen monoxide ($NO$) and nitrogen dioxide ($NO_2$). Incomplete combustion commonly produces carbon monoxide, while burning sulfur-containing fuels is particularly associated with sulfur dioxide.

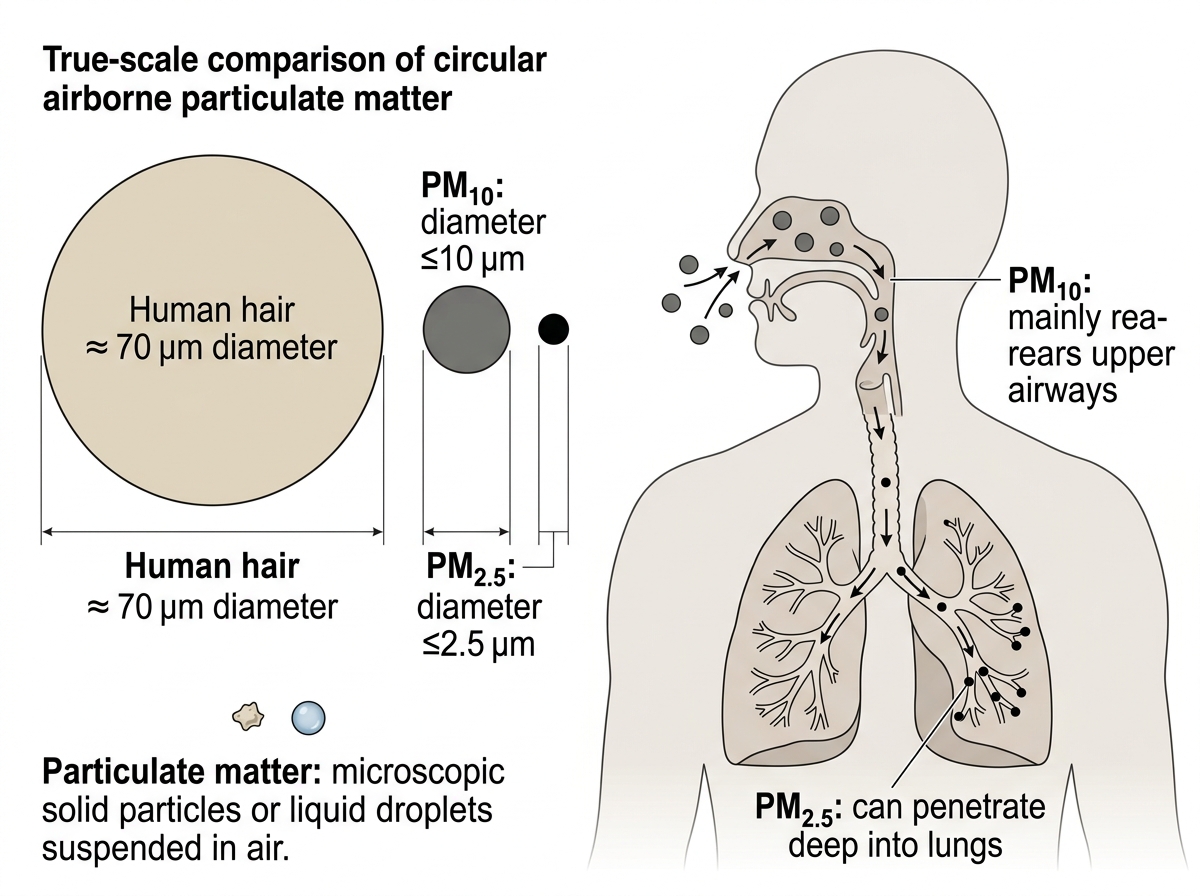

Particle size

Particulate matter (PM) is airborne pollution made up of microscopic solid particles or liquid droplets. Scientists classify it by particle diameter, since size affects how long particles stay airborne and how deeply they enter the respiratory system.

PM$_{2.5}$ is fine particulate matter with a diameter of $2.5\ \mu\text{m}$ or less. PM$_{10}$ is particulate air pollution with a diameter of $10\ \mu\text{m}$; by convention, the PM$_{10}$ category includes particles no larger than this diameter. Because the smaller PM$_{2.5}$ fraction can penetrate more deeply into the lungs, don’t treat these two labels as measures of concentration. They are size categories.

Sources at the point of emission

Primary pollutants are active as soon as they’re emitted. They enter the atmosphere as pollutants; they don’t need to form there first.

Natural sources include forest fires, wind-blown dust and volcanic eruptions. Human, or anthropogenic, sources include fossil fuel and biomass combustion for energy, vegetation burned during agricultural or forest clearance, and dust from roads and construction sites. The same pollutant may come from both natural and anthropogenic sources. Its origin determines its classification, not its chemical identity.

Using an indicator species

An indicator species is an organism whose presence, absence, abundance or condition helps assess a particular environmental condition. Pollution-sensitive lichens are useful examples: their abundance or diversity may fall as atmospheric pollution increases.

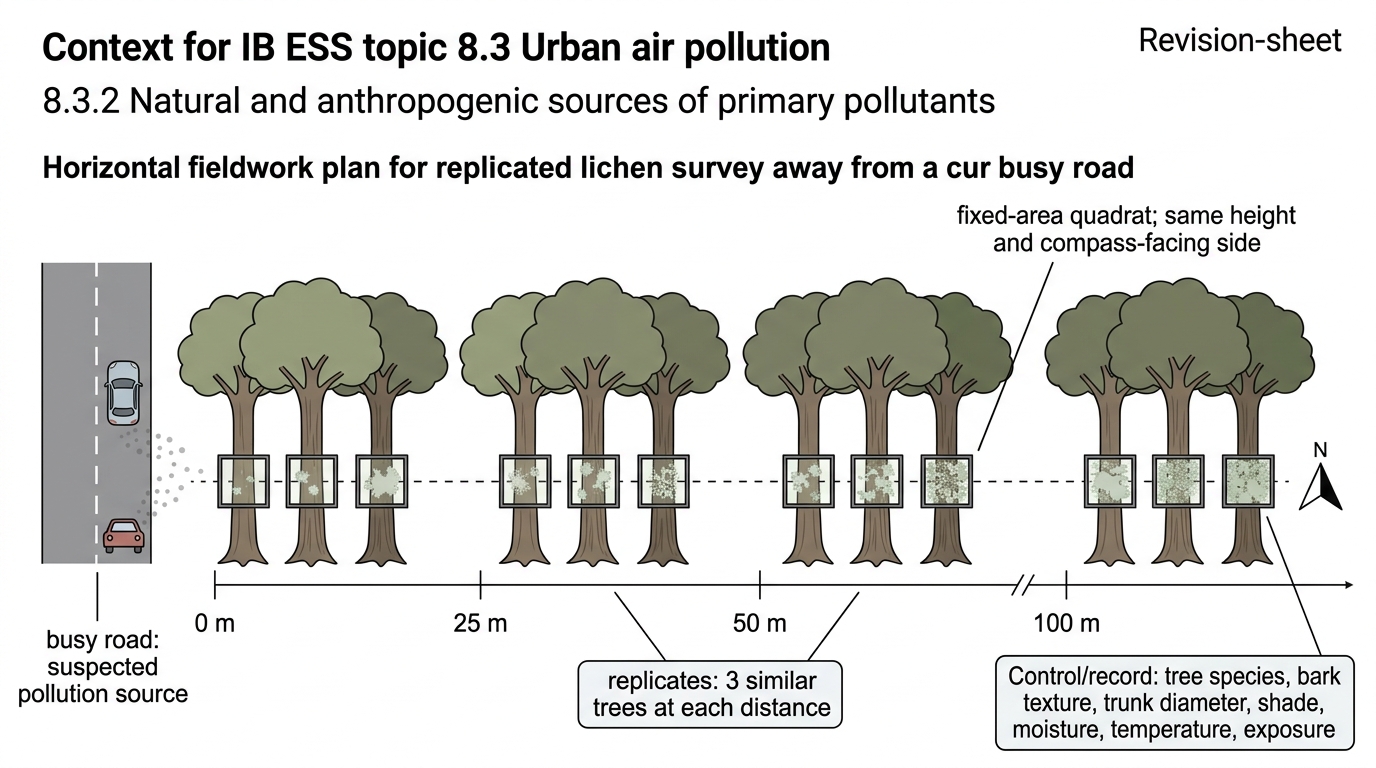

A local investigation could test whether lichen cover changes with distance from a busy road:

• Set a focused question and prediction—for example, that lichen percentage cover will increase with distance from traffic.
• Treat distance from the road as the independent variable. The dependent variable could be percentage lichen cover, lichen frequency or species richness.
• Choose several distances and sample multiple similar trees at each one. Place a fixed-area quadrat at the same height and on the same compass-facing side of every trunk.
• Control, record or standardize tree species, bark texture, trunk diameter, shading, moisture, temperature and exposure. Any of these factors could affect lichens independently of pollution.
• Repeat the sampling at each distance, calculate suitable summaries, then plot the lichen measurement against distance or measured pollutant concentration.
• Sample randomly or systematically, identify lichens consistently and avoid damaging the organisms.

Any relationship found would make the indicator a correlate of pollution because the two variables change together. On its own, though, it wouldn’t prove that pollution caused the lichen pattern; uncontrolled environmental variables may also be involved.

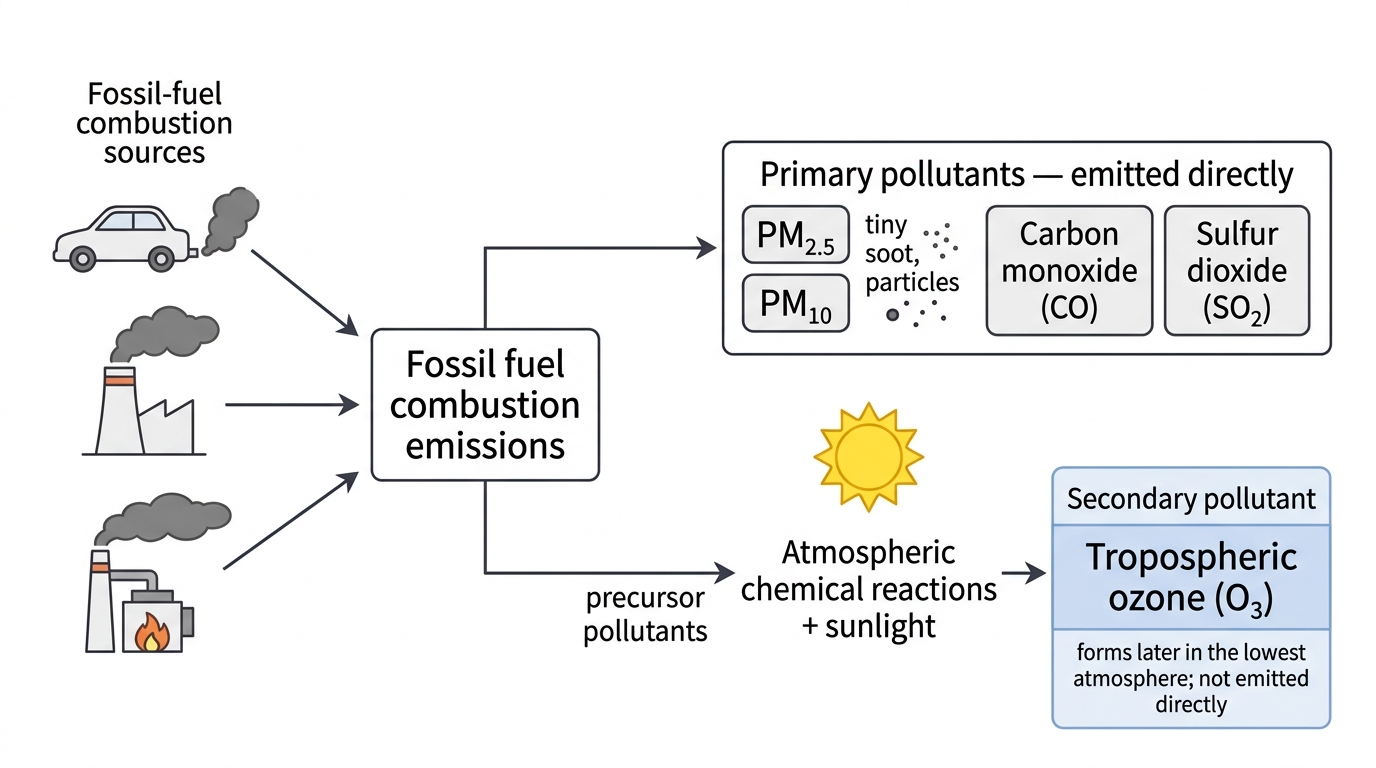

Direct and indirect products of combustion

Most common urban air pollutants come either directly or indirectly from burning fossil fuels. Vehicle engines, power stations, industrial furnaces and building heating systems concentrate these emissions within and around cities.

PM$_{2.5}$, PM$_{10}$, carbon monoxide and sulfur dioxide are primary pollutants. Smoke and soot release particles, while incomplete combustion produces carbon monoxide. Burning fuels that contain sulfur releases sulfur dioxide.

A secondary pollutant is a pollutant formed in the environment when precursor substances undergo a physical or chemical transformation. Tropospheric ozone is ozone found in the lowest layer of the atmosphere, where it acts as a secondary air pollutant. It doesn't come straight from an exhaust pipe. Instead, it forms later through reactions involving primary pollutants and sunlight.

The distinction affects how pollution is managed. Primary emissions can often be controlled at their source. Secondary pollution also depends on atmospheric chemistry and sunlight, as well as the movement of precursor pollutants.

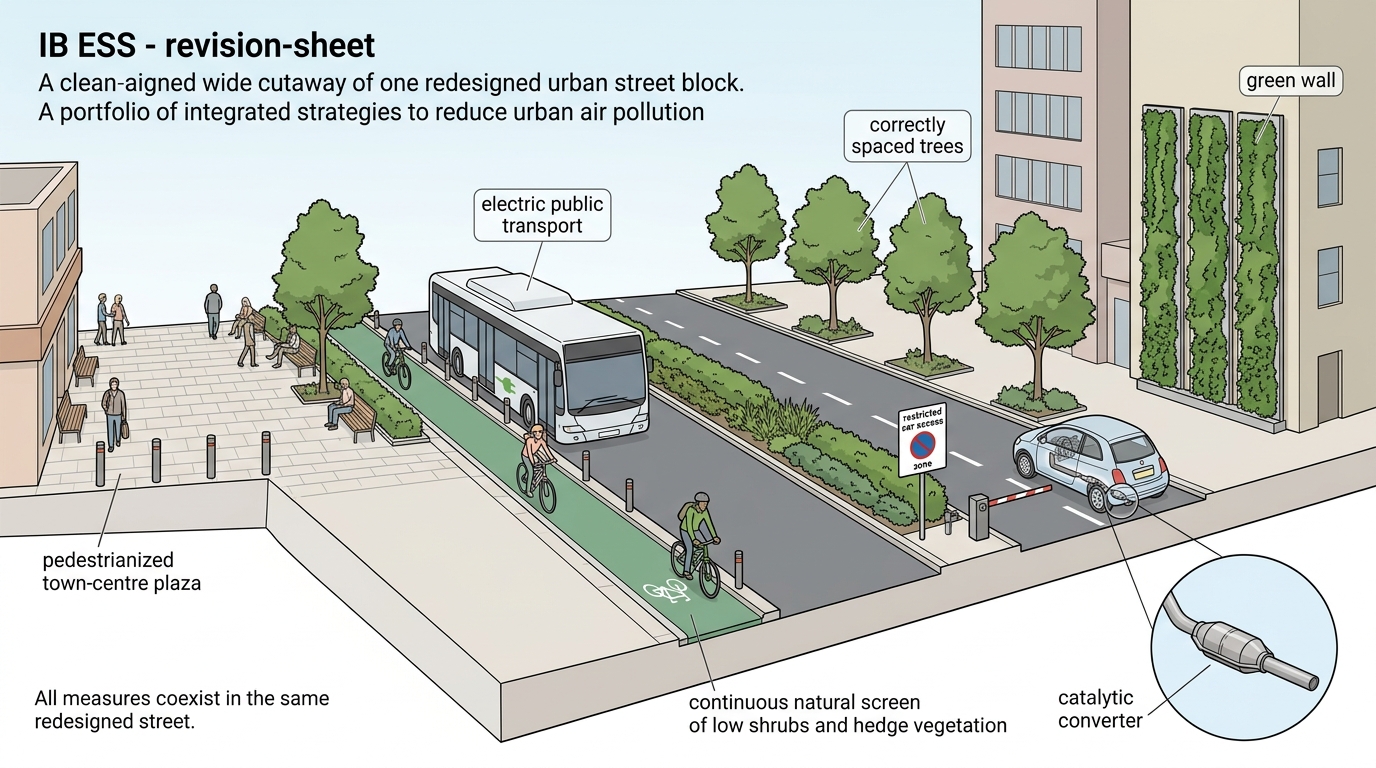

A portfolio of interventions

Urban air pollution is usually managed most effectively through a mix of strategies, rather than a single technological fix. The right combination depends on the dominant pollution sources and settlement pattern, as well as funding and governance. It also depends on whether people have practical alternatives to private cars.

• Improved public transportation reduces emissions per passenger journey when services are affordable, reliable, frequent and widely used.
• Cycling infrastructure, such as connected protected routes and secure parking, makes low-emission travel safer and more practical.
• Trees and natural screens can intercept some particles while separating people from emission sources. Placement and species choice matter: dense vegetation in a narrow street may restrict air circulation.
• Green walls provide vegetation where ground space is limited. They can trap particles on leaf surfaces, although their performance depends on maintenance and local airflow.
• A catalytic converter is an exhaust-control device that converts harmful gases from an internal-combustion engine into less harmful substances. Compulsory converters reduce vehicle emissions, but they don’t eliminate particulate emissions from tyres, brakes or roads.
• Limited car use through low-emission zones, congestion charging, parking controls or time restrictions can reduce traffic where rules are enforced and alternatives are available.
• A pedestrianized town centre is an urban central area from which motor vehicles are excluded for all or much of the time. This can improve local air quality and safety while reducing noise.

Each measure has trade-offs. Public transport and active travel tackle emissions at source and can bring health and congestion benefits, but they require infrastructure and changes in behaviour. Vegetation provides useful local interception rather than complete removal. Vehicle technology may reduce emissions per vehicle quickly, yet growing traffic volumes can offset that gain.

To apply the guiding question locally, begin by identifying the main pollutants and their sources. Then compare possible interventions by considering air-quality benefits, cost, feasibility, equity and unintended effects. A local investigation or debate should link the observed causes and consequences with strategies suited to that particular urban environment.

From gaseous pollutants to acids

Acid rain is wet acid deposition. It occurs when atmospheric pollutants form acids that dissolve in rainwater. The broader term acid deposition also covers snow, mist and the deposition of acidic particles and gases.

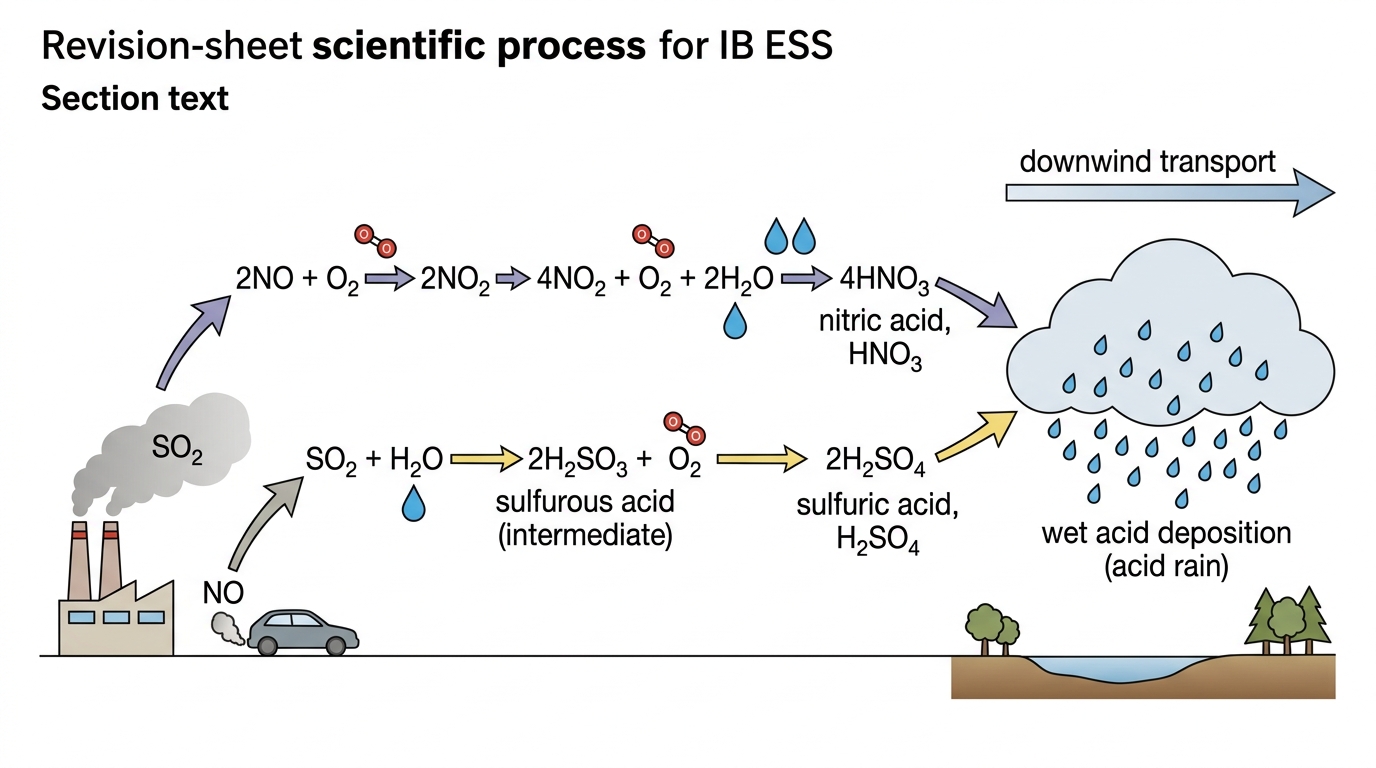

In the atmosphere, nitrogen oxides and sulfur dioxide react with oxygen and water, producing nitric acid ($HNO_3$) and sulfuric acid ($H_2SO_4$). A simplified sequence for nitrogen oxides is:

$$2NO + O_2 \to 2NO_2$$ $$4NO_2 + O_2 + 2H_2O \to 4HNO_3$$

For sulfur, a simplified pathway is:

$$SO_2 + H_2O \to H_2SO_3$$ $$2H_2SO_3 + O_2 \to 2H_2SO_4$$

Sulfurous acid ($H_2SO_3$) acts as an intermediate and is oxidized to sulfuric acid. These acids dissolve in atmospheric water and can travel downwind before being deposited. As a result, acid rain may affect a location far from where the original pollutants were emitted.

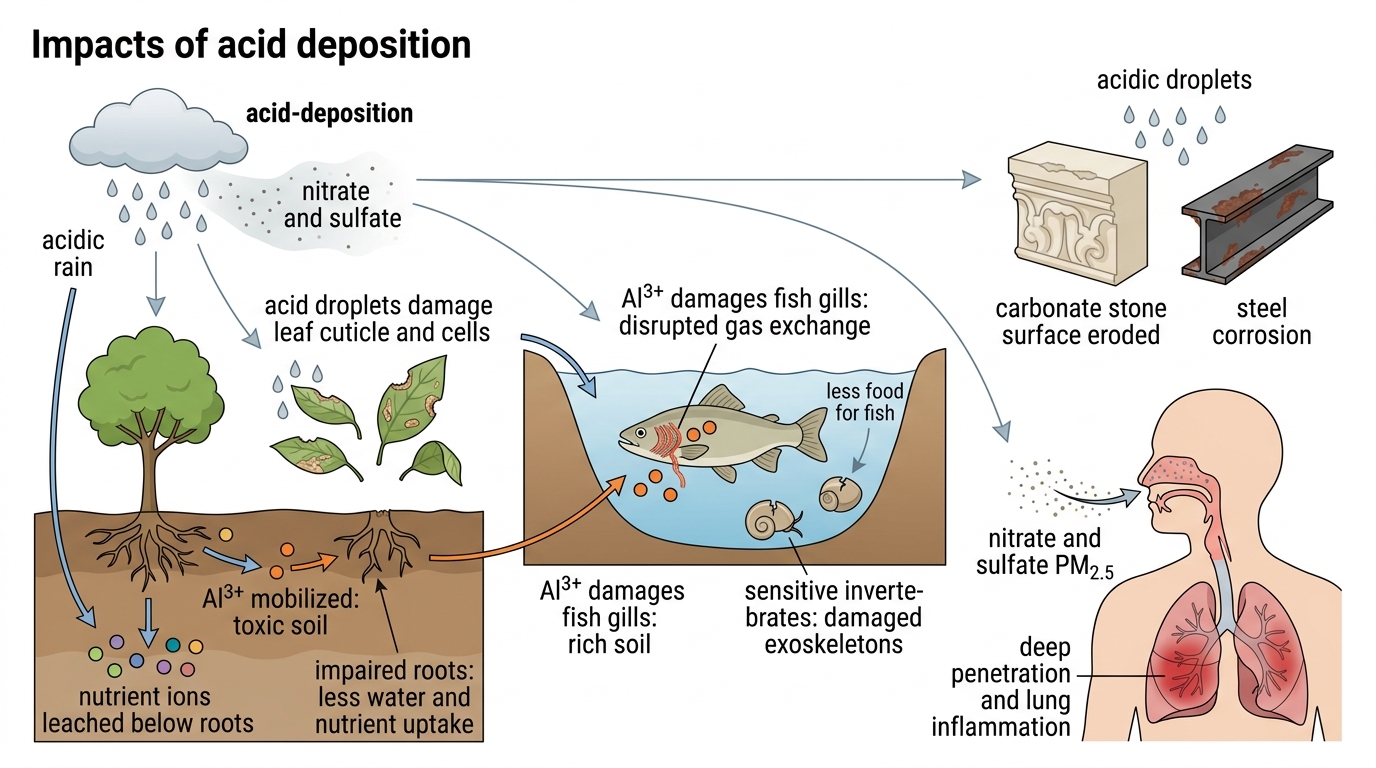

Terrestrial habitats

Acid deposition can wash mineral nutrient ions out of soil and carry them below the reach of plant roots. At the same time, it increases the solubility and mobility of toxic metal ions, which can poison the soil. Roots are left with fewer nutrients and greater exposure to harmful substances.

Acidic droplets and gases may also damage leaf cuticles and cell membranes through direct contact. Once foliage is damaged, it loses some control over water loss and its capacity for photosynthesis falls. Weakened roots absorb less water and fewer nutrients. As a result, plants become less resistant to drought, frost, pests and disease.

Freshwater habitats

When freshwater becomes more acidic, aluminium compounds in nearby soils become more soluble. Aluminium ions then enter lakes and streams, where they damage fish gills and disrupt ion balance and gas exchange. Eggs and young fish can be especially sensitive.

Aquatic invertebrates are also affected by acidic conditions and mobilized metals. Mineralized exoskeletons may be damaged, while sensitive invertebrate populations can disappear. This leaves less food for fish, spreading the effects through the food web.

Buildings and human health

Acid deposition speeds up the weathering and corrosion of marble, limestone, steel, paint and other construction materials. Carbonate stone is particularly vulnerable: acids react with its mineral components and gradually erode surfaces and architectural detail.

Nitrate and sulfate particles contribute to PM$_{2.5}$. When inhaled, these fine particles can travel deep into the respiratory system, where they damage tissue and cause lung inflammation. Acid deposition is therefore linked to breathing problems, although contact with rainwater itself is not the main pathway affecting human health.

Three points of intervention

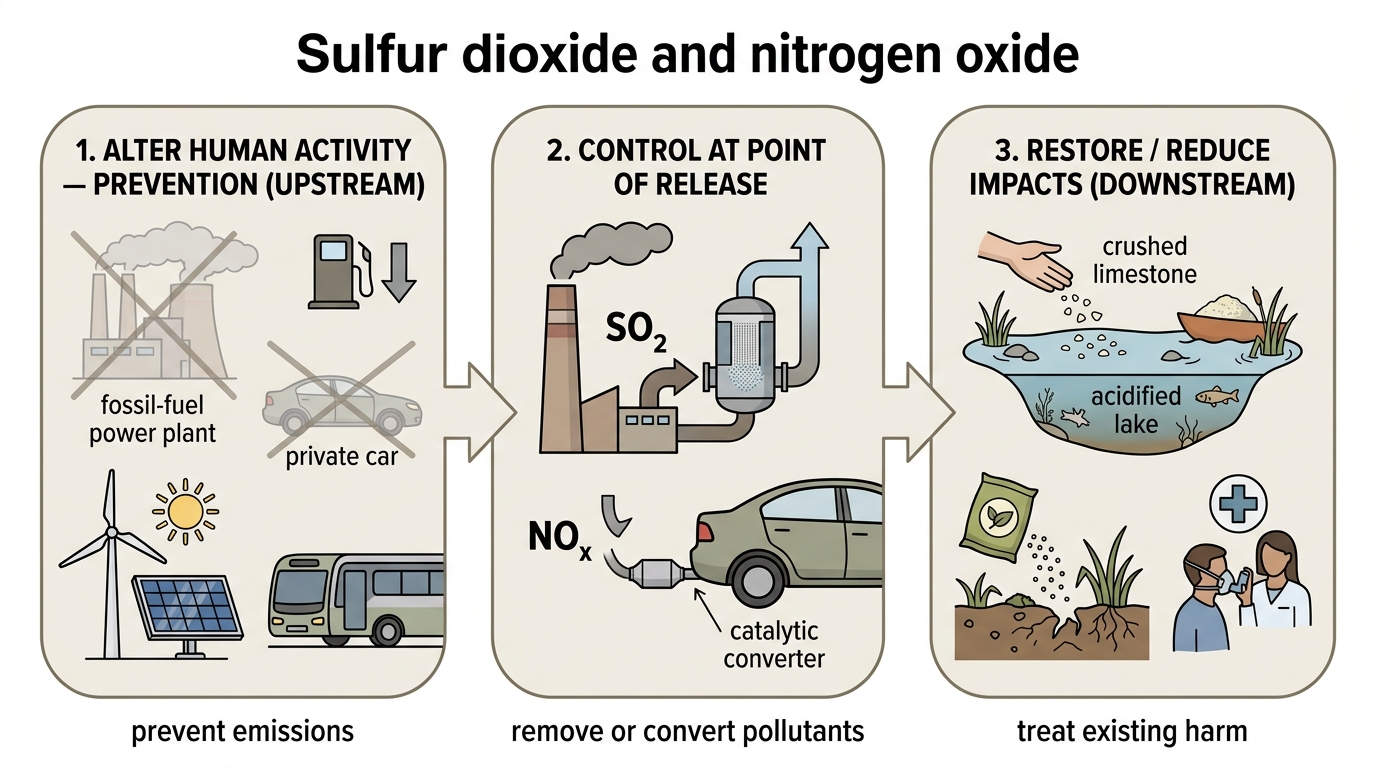

Sulfur dioxide and nitrogen oxide pollution can be tackled at three broad stages. People can change the activities that produce emissions, control pollutants where they are released, or help damaged systems recover.

Altering human activity stops emissions at the source. Measures include replacing fossil fuels with lower-emission energy sources and improving energy efficiency. Greater use of public transport and less demand for private vehicle travel can also help. This approach targets the cause, though it may need major investment, supportive policy and a fair transition for affected workers and households.

Point-of-release control removes pollutants, or converts them, before they reach the wider atmosphere. Scrubbers remove sulfur dioxide from industrial exhaust gases. Catalytic converters reduce nitrogen oxide emissions from vehicle exhaust. Equipment alone isn't enough: regulation, maintenance and monitoring are essential if controls are not to be bypassed or poorly operated.

Restoration and impact reduction take place after pollution has caused harm. Crushed limestone can be added to an acidified lake to neutralize some acidity, while fertilizer may replace nutrients lost from affected systems. Healthcare treats people with respiratory effects. These measures protect organisms and people, but continuing emissions remain. Liming may also have to be repeated.

Prevention usually lasts longer than repeated restoration, although existing damage still needs treatment. Effective management combines emission reduction with enforced controls and targeted restoration. Monitoring then shows whether ecosystem condition actually improves.

Sunlight-driven secondary pollution

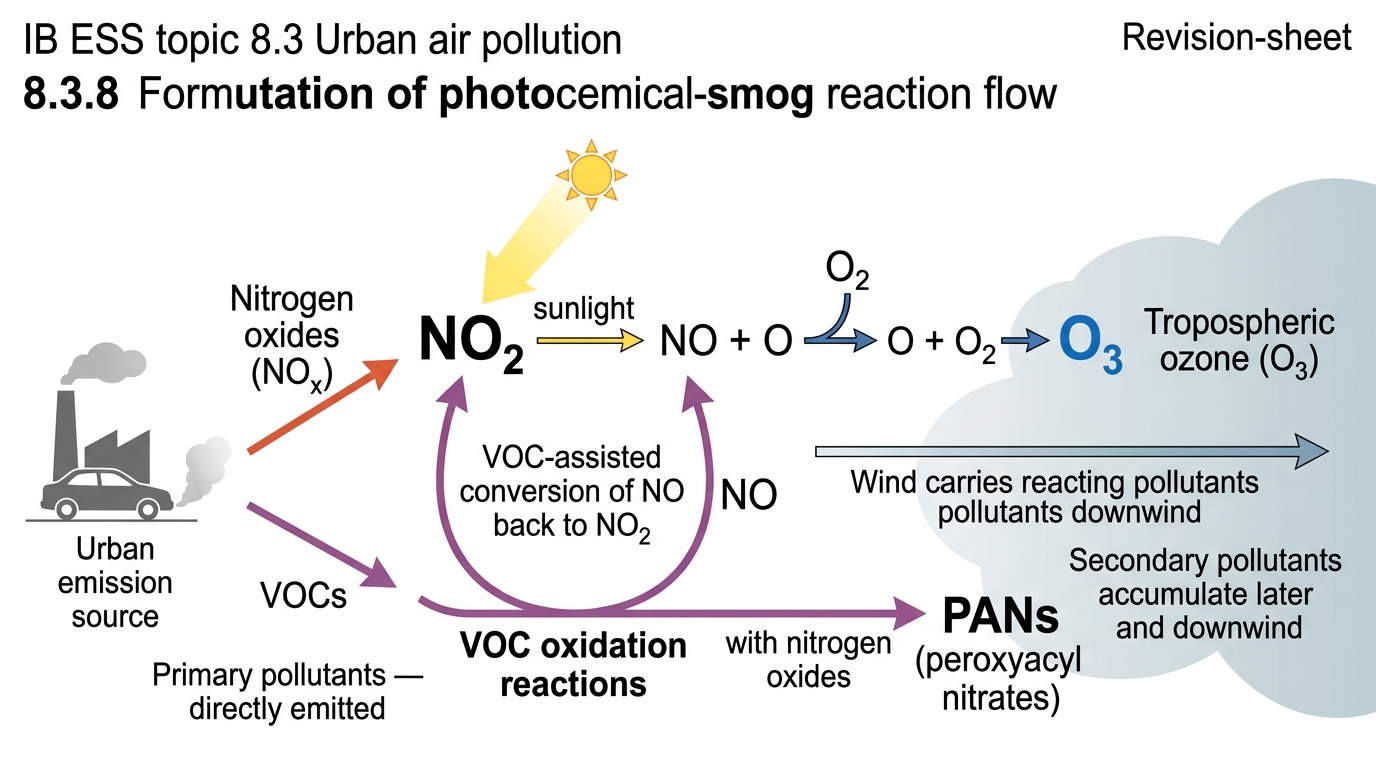

Photochemical smog forms when sunlight chemically transforms primary pollutants into secondary pollutants. Nitrogen oxides and volatile organic compounds are emitted directly, so they are primary pollutants. Peroxyacyl nitrates and tropospheric ozone, by contrast, are secondary pollutants and the main components of the smog.

Volatile organic compounds (VOCs) are carbon-containing compounds that evaporate easily and take part in atmospheric photochemical reactions. Major urban sources include fuel vapours, vehicle exhaust and solvents from products such as paints, inks and adhesives.

Peroxyacyl nitrates (PANs) form as secondary pollutants when oxidized compounds derived from VOCs react in the presence of nitrogen oxides. They irritate the eyes and respiratory system.

Sunlight can split nitrogen dioxide and release an oxygen atom:

$$NO_2 \xrightarrow{\text{sunlight}} NO + O$$

That oxygen atom then combines with molecular oxygen to produce ozone:

$$O + O_2 \to O_3$$

VOCs take part in reaction sequences that convert nitrogen monoxide back into nitrogen dioxide without using up all the ozone produced. As a result, ozone and other oxidants can build up. These reactions take time, so ozone concentrations may peak later in the day and downwind of the main emission source.

Meteorological controls

Abundant insolation, meaning incoming solar radiation received at a surface, provides the energy needed for photochemical reactions. Strong sunshine speeds up the conversion of nitrogen oxides and VOCs into ozone and PANs.

When winds are weak, less pollution is diluted or removed. Precursors stay concentrated over the urban area for longer, allowing the secondary pollutants they produce to build up. Stronger winds may disperse local pollution, but they can also carry precursors and ozone into surrounding regions.

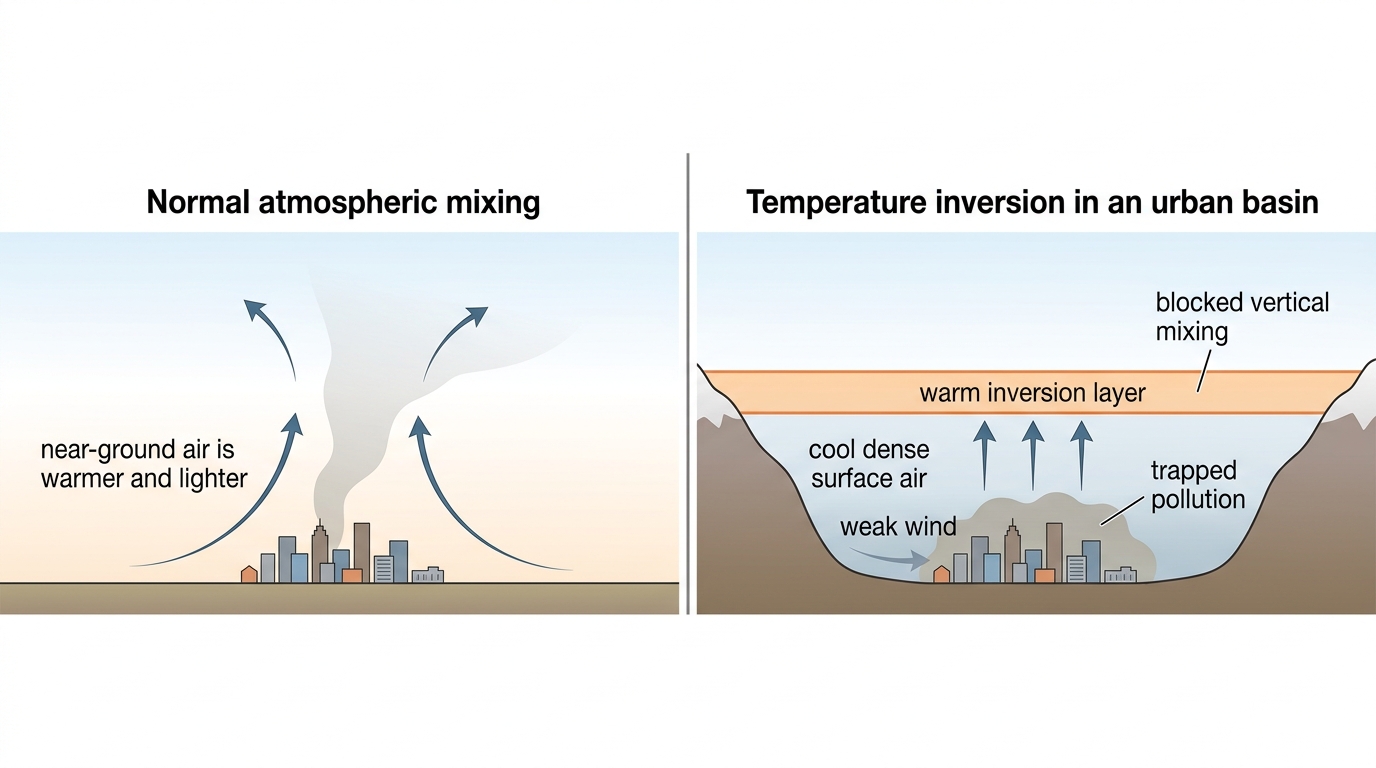

A temperature inversion is an atmospheric condition in which a layer of warmer air lies above cooler air near the ground, reversing the usual decrease in air temperature with increasing altitude. Because the cool surface air is dense, it cannot easily rise through the warmer layer. Vertical mixing is suppressed, trapping pollutants close to people and emission sources.

Mountain basins are especially vulnerable. Dense cool air can collect at low altitude, while the surrounding relief restricts horizontal air movement. Closely spaced high buildings may also block airflow, creating poorly ventilated street canyons. These effects can combine: sunshine and weak winds may occur alongside an inversion and enclosing topography rather than acting independently.

Working with air-quality data

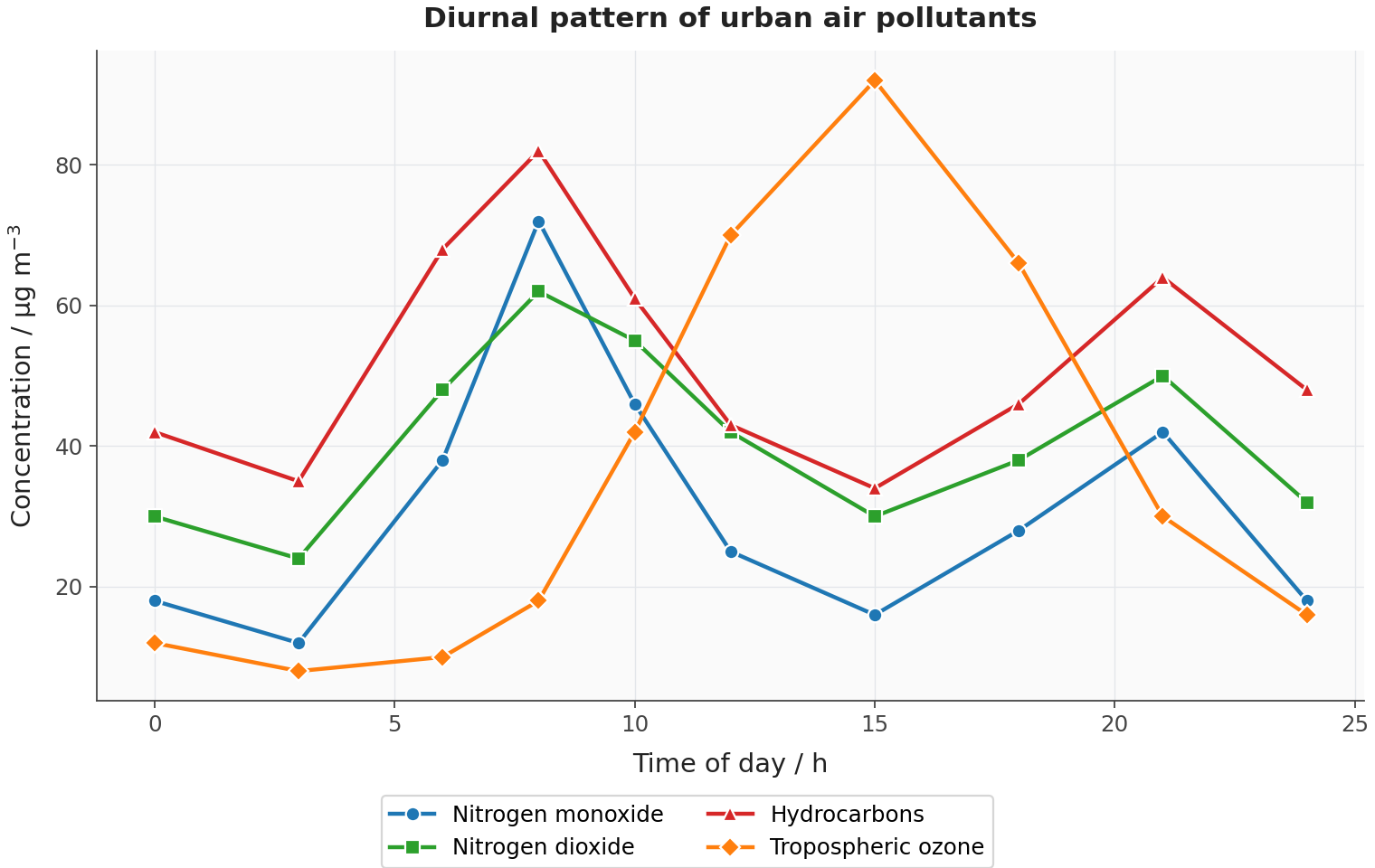

Diurnal variation is change occurring over a 24-hour day-night cycle. In a typical urban profile, traffic emissions may cause morning peaks in primary pollutants. Ozone increases later because sunlight-driven reactions take time. It often reaches a maximum around or after midday, then declines as sunlight weakens.

Start by reading the graph axes and units. Identify maxima and minima, calculate ranges where appropriate, compare when peaks occur and describe any lag between primary and secondary pollutants. Two simultaneous peaks do not prove causation.

For an investigation of long-term local air quality, use a reliable secondary database. Keep the monitoring station, pollutant, unit and sampling interval consistent. Define comparable periods and check for missing values or changes in instrumentation. Then graph concentration against time and apply an appropriate statistical test to decide whether the observed change is statistically significant. When the assumptions of a parametric test are not met, a Mann–Whitney test could be used to compare two independent time periods. Statistical significance does not automatically show that a change is environmentally large or that a particular policy caused it.

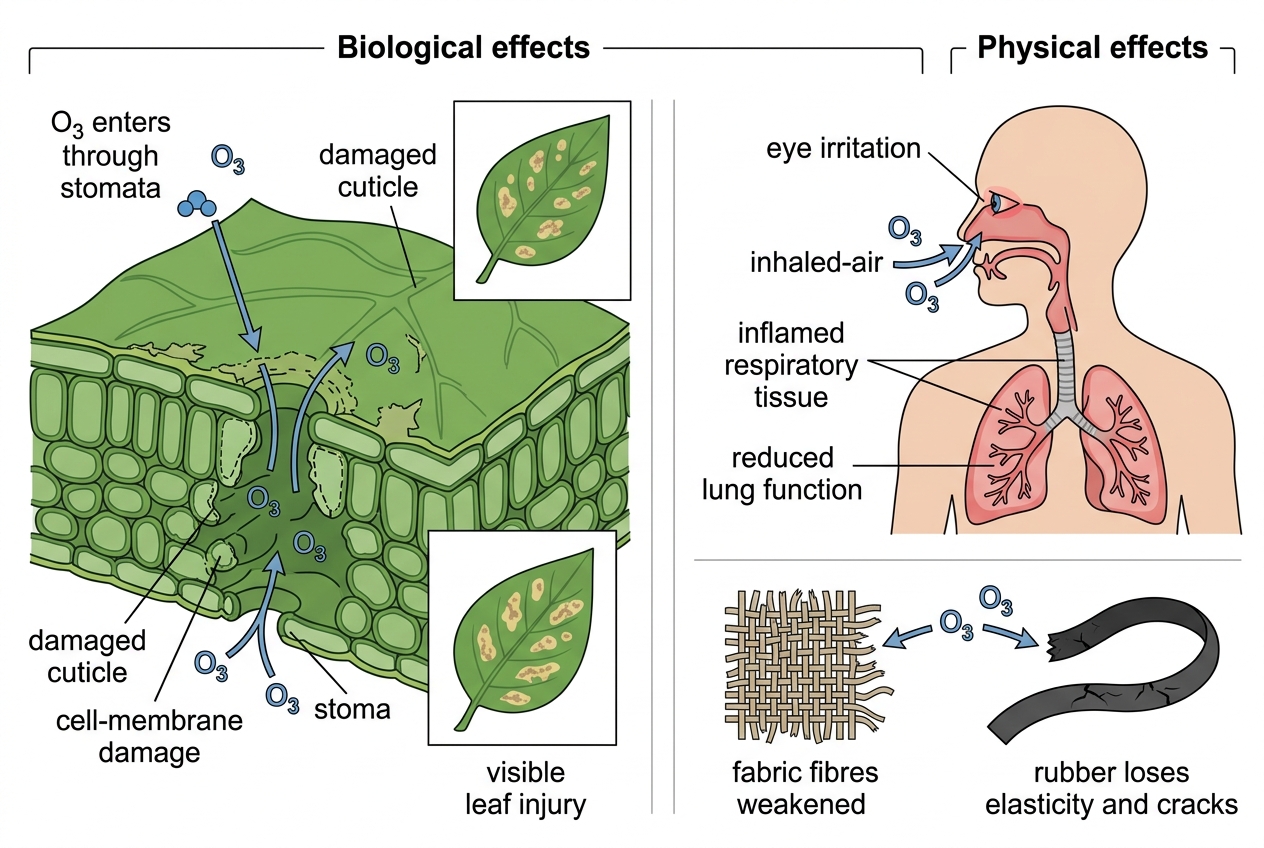

Biological effects

A direct impact is an immediate effect caused by direct exposure to a pollutant. Tropospheric ozone is a strong oxidant. When it comes into contact with biological tissues, it damages molecules and cell structures.

In plants, ozone enters through the stomata and damages both cell membranes and the protective cuticle. Photosynthesis and water regulation are impaired. The results include visible leaf injury and slower growth, with potentially lower crop or timber yields.

In humans and other mammals, ozone irritates the eyes and respiratory system. Exposure may inflame and damage respiratory tissues, reduce lung function and aggravate illnesses such as asthma. During exercise, exposure can increase because a person breathes more air into the lungs.

Physical effects

Ozone reacts with non-living materials too. It weakens fabric fibres and attacks rubber, leading to lost elasticity, cracking and faster deterioration. These are physical impacts on materials, not biological health effects.

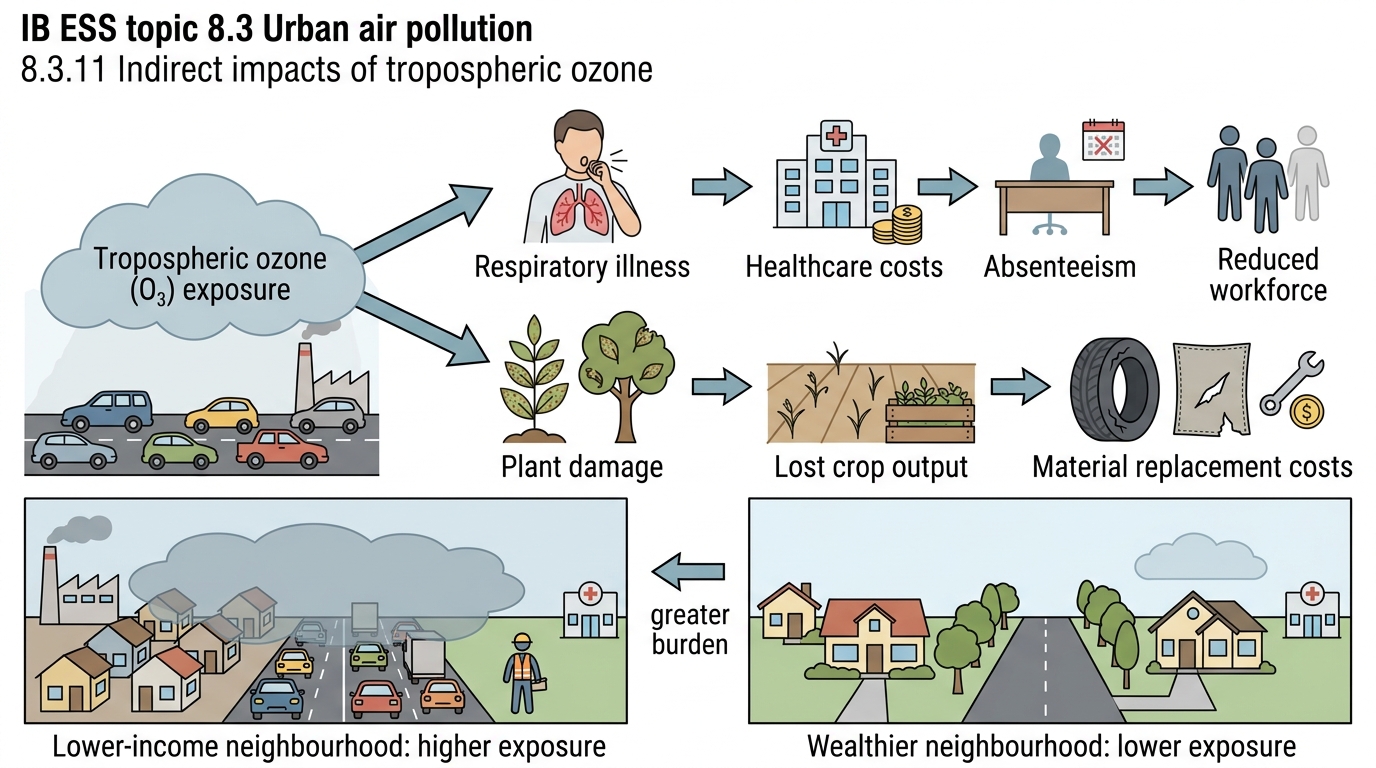

Costs transmitted through society and the economy

An indirect impact is a consequence that arises through an intermediate social, economic or ecological process, rather than from immediate contact with the original hazard. Tropospheric ozone directly harms health and vegetation. Those effects, in turn, create wider costs.

Respiratory illness raises demand for consultations, medicines and hospital treatment, as well as long-term care. This puts extra pressure on healthcare staff and budgets. It also leads to more absence from work. Fewer working hours, impaired performance, long-term disability and premature retirement reduce the effective workforce and economic output.

Injury to plants can reduce agricultural and forestry production. Income falls, while costs rise elsewhere in supply chains. Damage to rubber and fabrics also brings maintenance and replacement costs. Across an urban economy, these losses can build up even if each individual effect seems modest.

Unequal exposure and vulnerability

The burden is not shared equally across society. Poorer communities may be more likely to live near busy roads or industrial areas. They may also have less access to healthcare, work outdoors, live in poorly ventilated housing or lack the resources to avoid exposure. As a result, they can bear a larger share of the health costs and lost income despite contributing relatively little to the pollution.

Effective management shouldn’t be judged only by the average reduction in pollution. Who benefits matters too. Monitoring across neighbourhoods, affordable low-emission transport, protection for exposed workers and targeted healthcare can make the distribution of impacts less unequal.
