SYSTEMS AS INTERACTING COMPONENTS
A system consists of interacting or interdependent components, organized to form a functional whole. Interaction is the key: unrelated objects don’t become a system just because a boundary is drawn around them.
The components may depend on each other directly or through chains of processes. In a local wetland, for instance, plants and consumers interact with decomposers, water and sediment. A change in water level can affect several biological components rather than staying isolated.
We identify a system by choosing a boundary: a conceptual or physical limit that separates it from its surroundings. Its placement depends on the question being investigated. The same woodland might be studied as a tree community, a whole ecosystem or one component of a wider landscape.
1.2.2
THE SYSTEMS APPROACH
A systems approach offers a holistic view of a complex set of interactions. It can be used for ecological or societal situations. Rather than explaining each component by itself, a holistic approach examines the connected whole. This makes it easier to trace indirect effects and feedback, as well as links between environmental and social processes.
All systems contain storages and flows. Storages are accumulations of energy or matter held within the system. Flows are movements or processes that carry energy or matter between storages or across the system boundary. An input is a flow of energy or matter into the system, while an output is a flow out of it.
Take a reservoir that supplies a town. The stored water is one storage. Rainfall and river inflow act as inputs, while abstraction, evaporation and downstream discharge are outputs. There’s also a link to the societal system because demand, pricing and regulation influence abstraction. Systems thinking is useful for environmental issues because it keeps these ecological and societal interactions in the same picture.
1.2.3
SYSTEMS DIAGRAMS

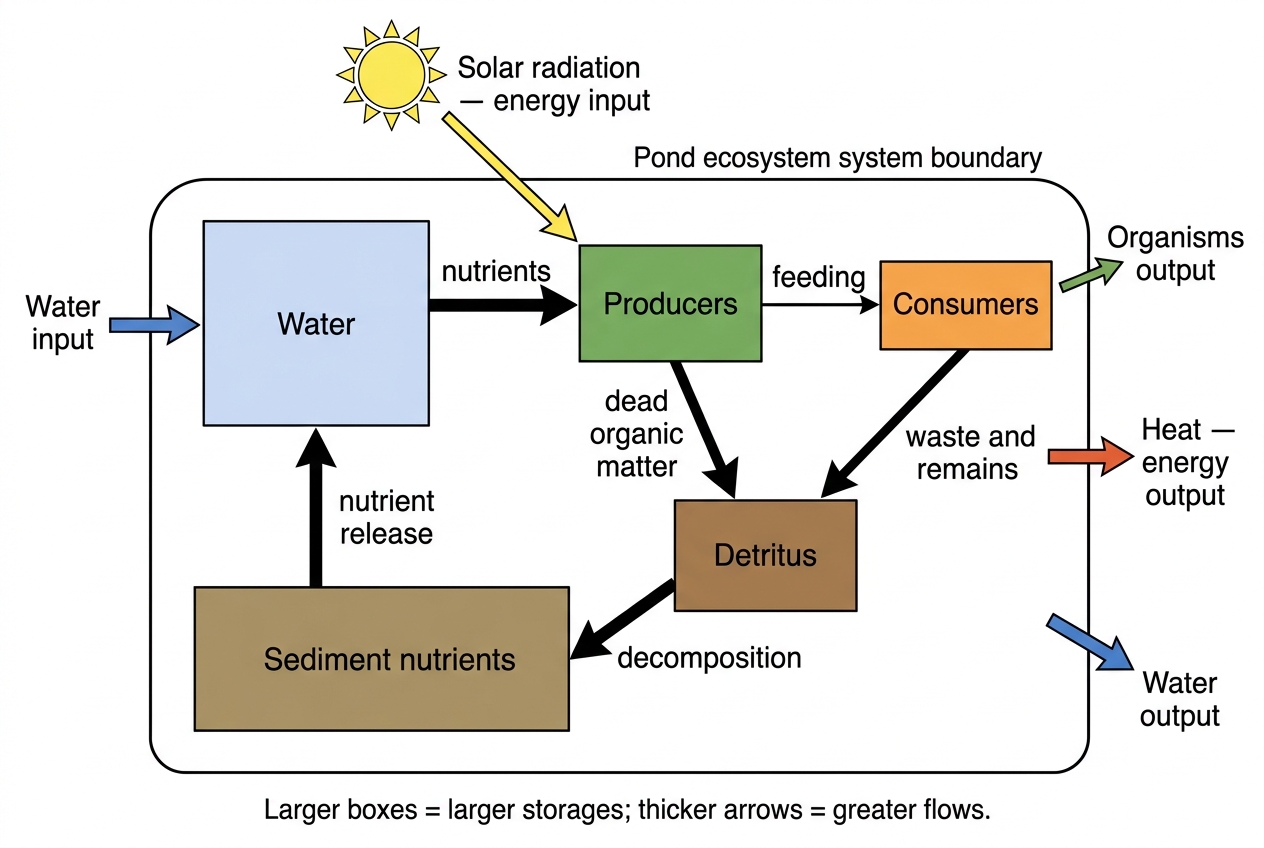

A systems diagram is a visual model. Rectangular boxes usually show storages, while arrows show flows. The arrowhead indicates the direction in which energy or matter moves. Inputs pass through the system boundary inwards; outputs cross it outwards.
First, define the boundary and identify the main storages. Draw each one once as a labelled rectangle. Next, add and label the internal flows, followed by the inputs and outputs that cross the boundary. Avoid clutter. The diagram should show relationships rather than copy every detail of reality.
In a laboratory microcosm or local pond, possible storages include water, producers, consumers, detritus and sediment nutrients. Solar radiation enters as an energy input. Water or organisms may enter and leave as matter, while heat leaves as an energy output. Each arrow must link the correct source to its destination instead of floating beside a box.
If quantitative information is available, larger boxes can show larger storages, and thicker arrows can indicate flows of greater magnitude. This convention is optional unless scale matters. However, any differences in size must be used consistently and explained.
1.2.4
TRANSFERS AND TRANSFORMATIONS
Flows are processes that can be classed as transfers or transformations.
A transfer moves energy or matter from one location to another. During that process, the material or energy being tracked stays in the same form. Examples include water moving from soil into a root and organic litter falling onto the ground.
A transformation changes chemical nature, state or energy. In photosynthesis, light energy becomes chemical energy and new chemical substances are produced. During evaporation, liquid water changes into water vapour.
The process determines the classification, not the substance itself. Water flowing along a stream undergoes transfer, while the same water evaporating from the surface undergoes transformation. In a systems diagram, label the arrow with the process name so the classification can be justified by what happens.
1.2.5
OPEN AND CLOSED SYSTEMS

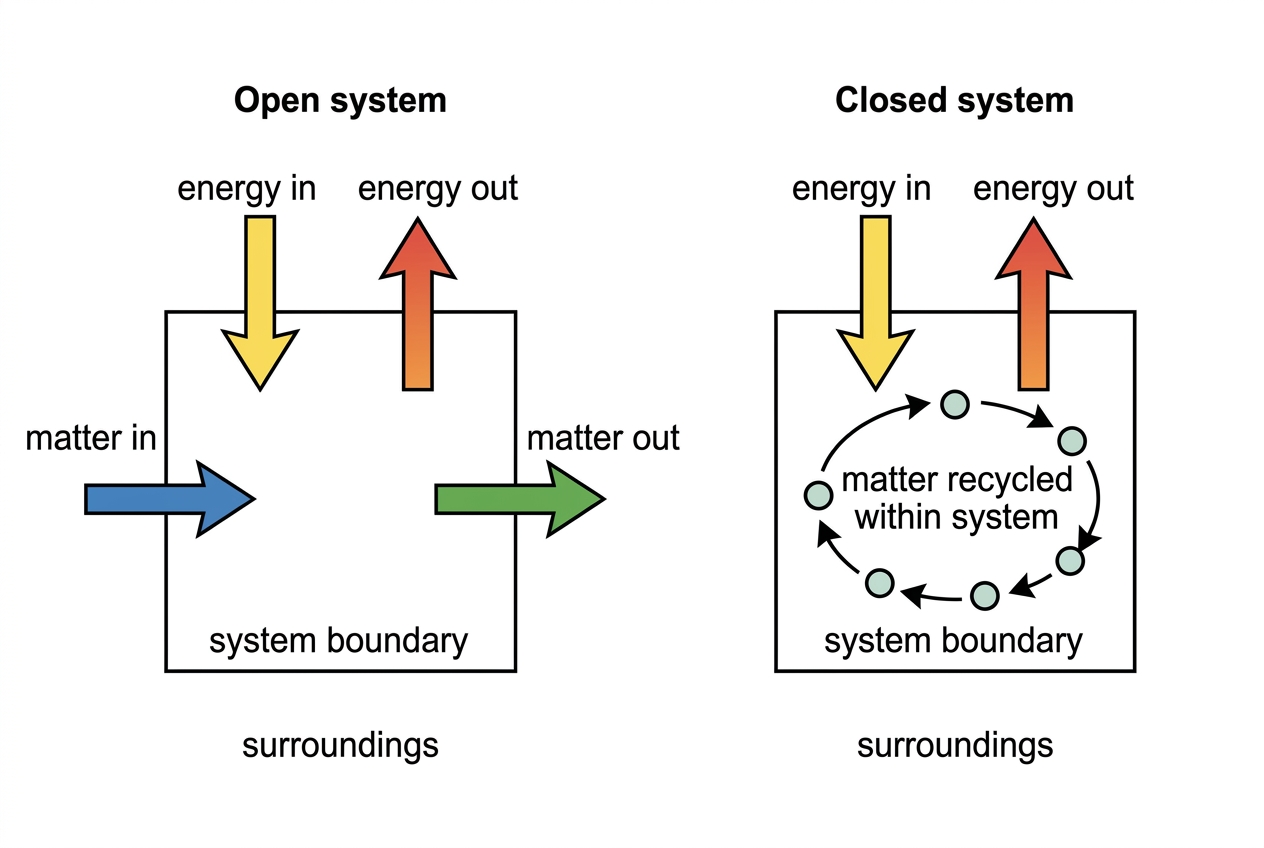

An open system exchanges energy and matter across its boundary. A closed system exchanges energy, but not matter. The key question, then, is whether matter crosses the boundary—not whether anything crosses it.
Most environmental and societal systems are open. For example, a local ecosystem gains solar radiation, precipitation, organisms and airborne material. It loses heat, water and organisms, so both matter and energy cross its boundary.
Global geochemical cycles are the only systems that come close to being closed. Matter is largely recycled within Earth, while solar radiation enters and heat leaves. Even so, these cycles are approximations, not perfectly sealed systems. Biosphere 2 is another example of a closed system: this constructed ecological facility was designed to recycle matter while exchanging energy through its enclosure.
1.2.6
EARTH AS AN INTEGRATED SYSTEM

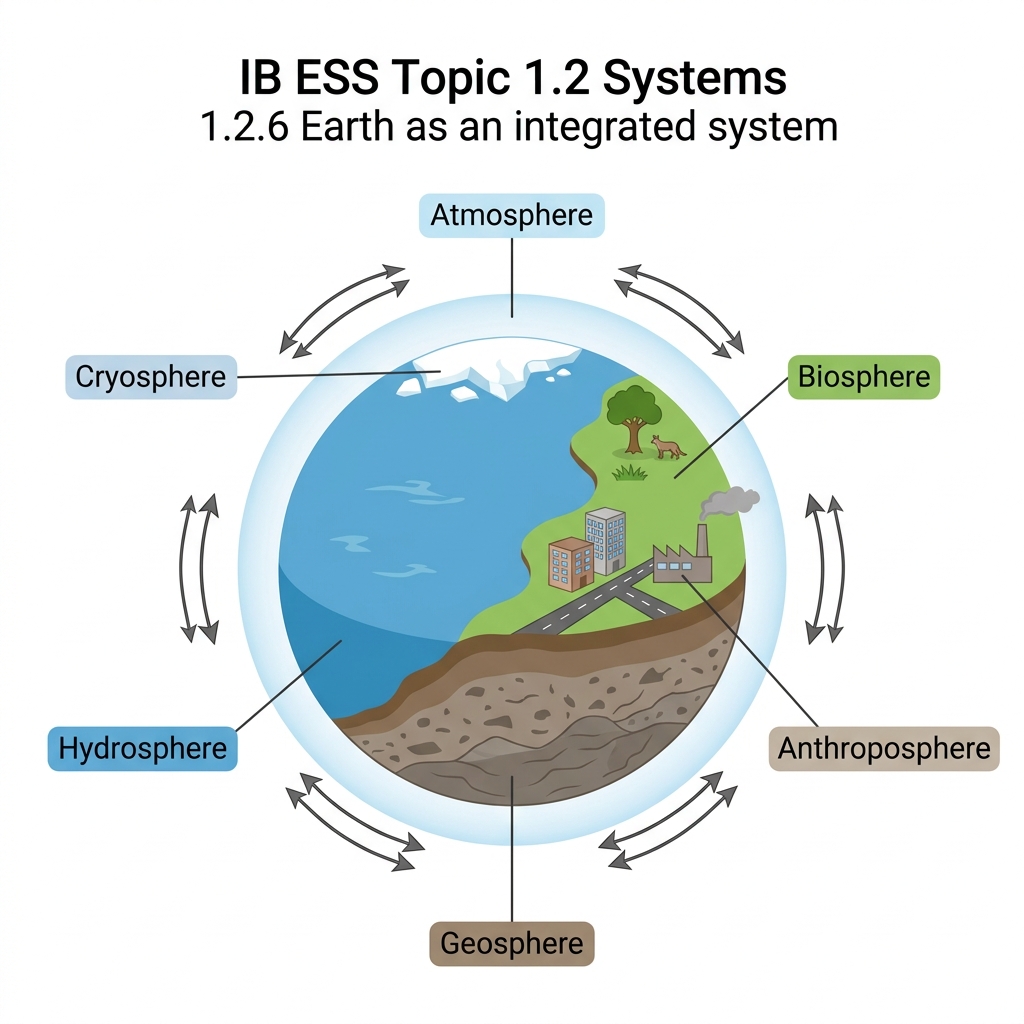

Earth works as one integrated system made up of six interacting spheres:
The spheres don't operate as sealed compartments. Combustion in the anthroposphere, for instance, changes atmospheric composition. Atmospheric warming then melts the cryosphere, which changes the hydrosphere. Those altered water conditions affect the biosphere.
The Gaia hypothesis, also known as the Gaia theory, models the Earth as a single integrated system. It was introduced to explain how feedback control mechanisms interrelate atmospheric composition and temperatures. Interactions between living and non-living components may therefore help regulate environmental conditions.
James Lovelock introduced the hypothesis. Lovelock and Lynn Margulis later developed many versions of it. Gaia should be treated as a model of interconnected regulation, not as a claim that Earth literally has the organs or intentions of an organism.
1.2.7
SYSTEMS AT DIFFERENT SCALES
The idea of a system works across a range of spatial scales. Its boundary and level of detail will change, but the same language of components, interactions, storages and flows still applies.
On a small local scale, a water-filled tree hollow can count as an ecosystem. Water, microorganisms and detritus interact within its narrow boundary. At a much larger ecosystem scale, a tropical forest holds vast biomass and nutrient storages, connected through water, nutrient and energy flows. Moving to the global scale, atmospheric circulation forms a system of energy-driven movements that link regions across the planet. The Gaia hypothesis models the entire Earth system.
What we can see depends on the scale. Decomposition may be a central process in the tree hollow, yet appear as just one aggregated flow in a global model. A useful systems approach matches the model’s scale and complexity to the environmental issue under investigation.
1.2.8
NEGATIVE FEEDBACK LOOPS
Negative feedback loops occur when the output of a process inhibits or reverses the operation of the same process in such a way as to reduce change. They are stabilizing as they counteract deviation. Here, “negative” means opposition to change; it doesn’t mean the outcome is undesirable.

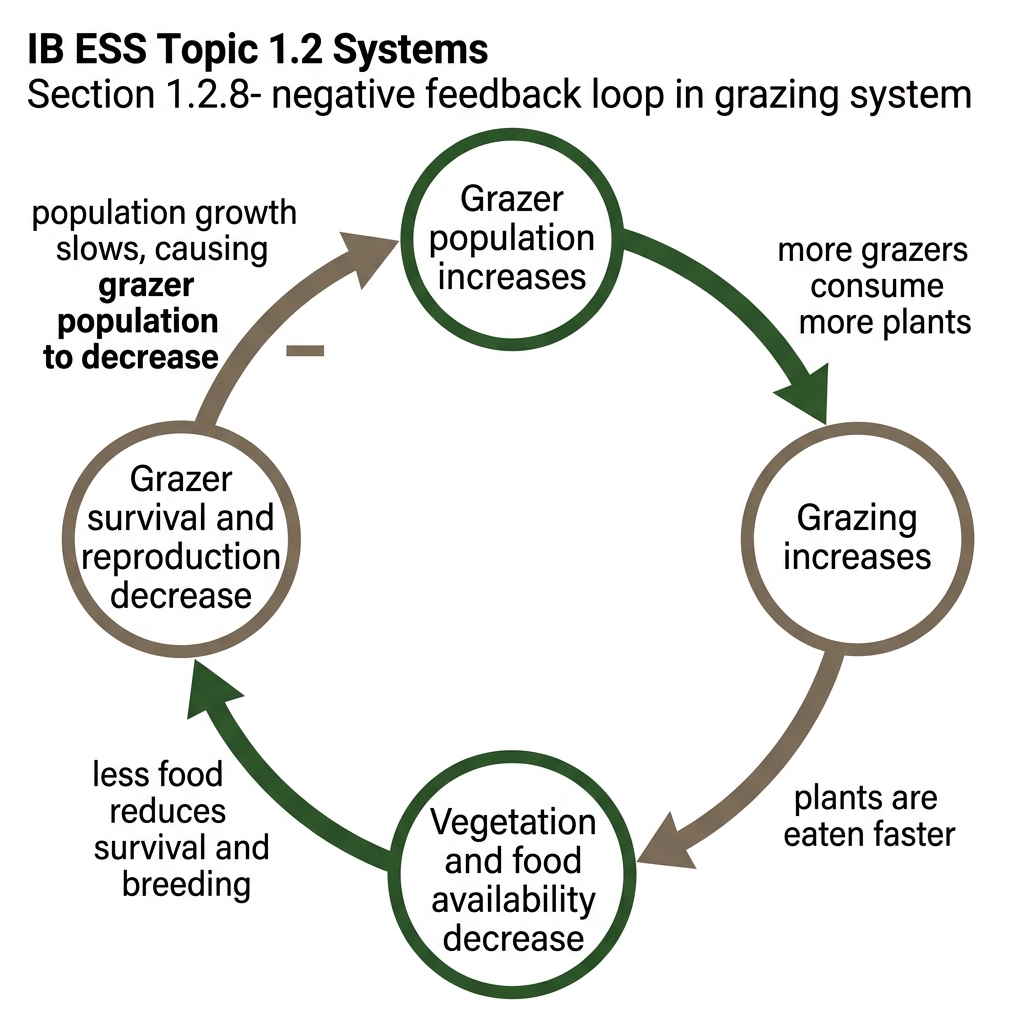

A feedback diagram needs to show a complete causal loop. Label each link clearly so the reader can trace how an initial increase or decrease eventually triggers an opposing effect. If grazing animals become more abundant, for instance, they consume vegetation faster. Food availability then falls, reducing survival or reproduction and bringing animal abundance back down.

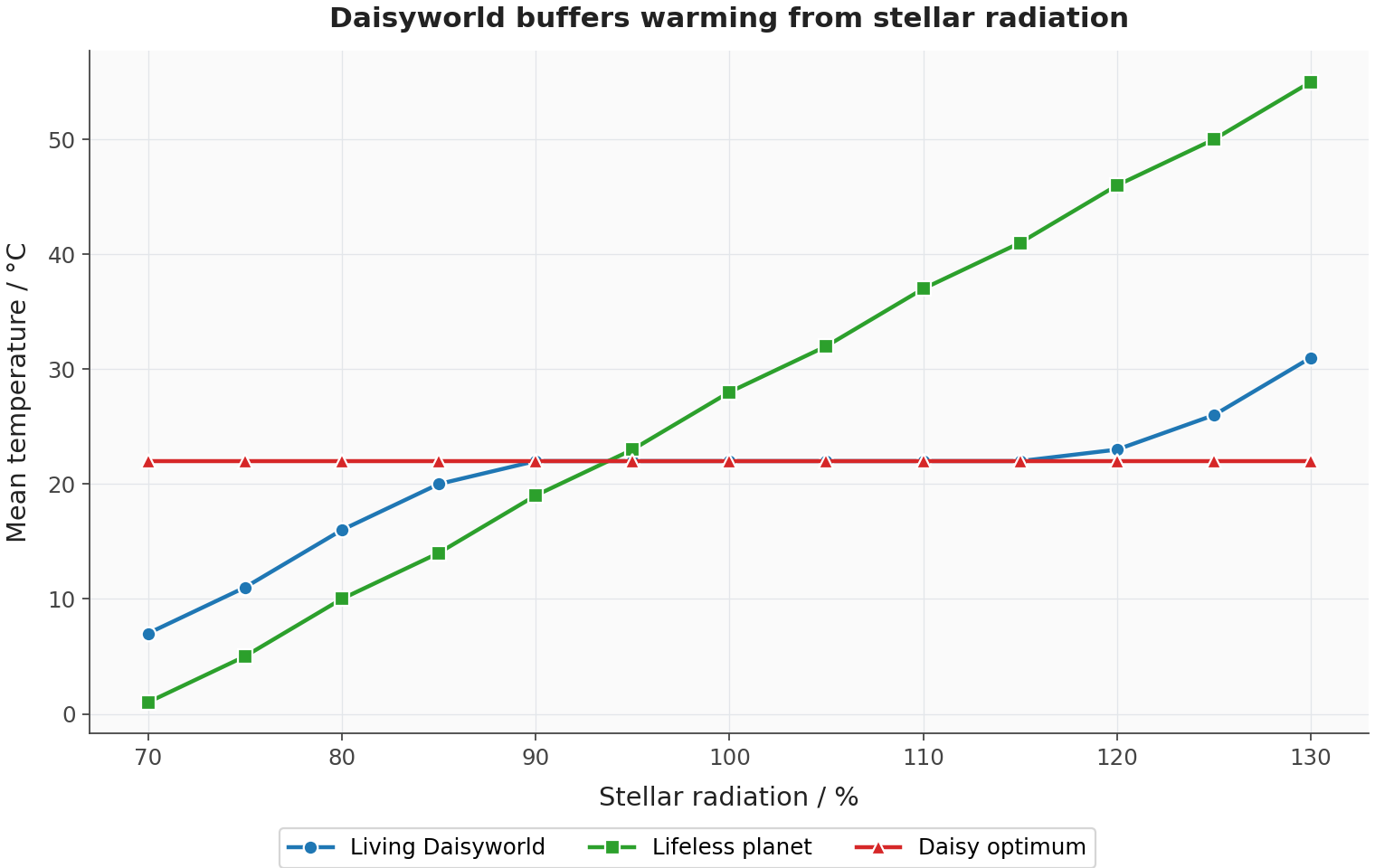

James Lovelock and Andrew Watson developed Daisyworld as a conceptual planetary model. It shows how interactions between living organisms and their non-living environment can regulate temperature. The daisies vary in colour, so they have different albedo—the proportion of incoming radiation that a surface reflects.
When Daisyworld is cool, dark daisies absorb more radiation. They warm their immediate environment and reproduce more successfully, so their cover increases. This lowers planetary albedo and raises the temperature. As stellar radiation strengthens and the planet warms, pale daisies gain an advantage. They reflect more radiation, cooling the surface and limiting further warming. Shifts in daisy abundance therefore oppose departures in temperature.
A lifeless comparison planet has no vegetation cover that can shift in response to conditions. Its temperature therefore tracks changes in stellar input much more directly. Daisyworld demonstrates one possible mechanism through which life could broaden the range of conditions over which planetary temperature stays relatively stable. It supports the regulatory logic of Gaia, but the model is deliberately simplified and doesn’t show that the real Earth behaves exactly like Daisyworld.
1.2.9
EQUILIBRIUM IN OPEN SYSTEMS

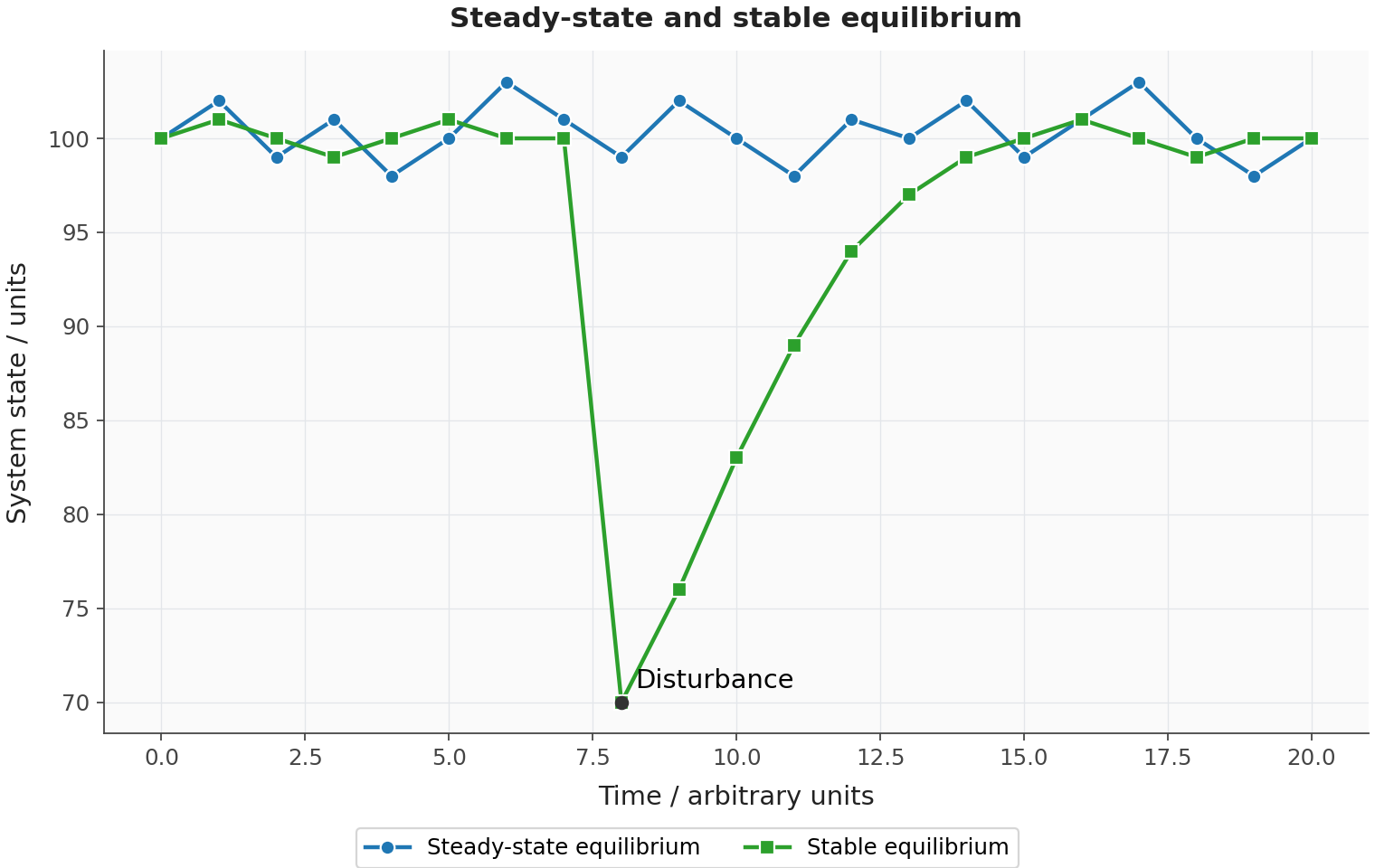

An ecosystem is an open system and will normally exist in a stable equilibrium maintained by stabilizing negative feedback loops. Stability and steady state describe different properties, so a system can exhibit both.
| Property | Question it answers |
|---|---|
| Stable equilibrium | Does the system tend to return to its previous equilibrium following a disturbance? |
| Steady-state equilibrium | Do ongoing inputs and outputs balance so that the overall state remains roughly constant? |
A stable equilibrium is the condition of a system in which there is a tendency for it to return to the previous equilibrium following disturbance. For example, a temporary fall in population size may reduce competition. Survival and reproduction can then increase until the population returns to its earlier range.
A steady-state equilibrium is the condition of an open system in which flows are still occurring but inputs are constantly balanced with outputs. Here, balance is assessed over an appropriate timescale, not necessarily at every instant. The system is dynamic rather than motionless. Individual organisms die and are replaced, while matter and energy keep flowing. Even so, the overall state fluctuates around a long-term level.
Example: A reservoir can exhibit both properties. If inflow balances discharge, abstraction and evaporation over the period considered, its water storage is in steady state. If a temporary rise in water level increases discharge, bringing the level back towards its previous equilibrium, it also shows stability through negative feedback. Balanced flows alone do not demonstrate how the reservoir responds to disturbance.
Worked example: A reservoir has an inflow of , discharge of , abstraction of and evaporation of . Calculate its rate of storage change, then recalculate when abstraction increases to , with all other flows unchanged.
Answer: Initially, storage changes at , consistent with steady state. After abstraction increases, storage changes at : the reservoir loses water and is no longer in steady state while these flows persist.
During succession, community composition and storages change directionally, rather than remaining in a fixed steady state. The system's equilibrium can develop over time, and negative feedback may still stabilize the system around its current trajectory. A “stable” system, then, isn’t necessarily fixed permanently at one numerical value.
1.2.10
POSITIVE FEEDBACK LOOPS
Positive feedback loops occur when a disturbance leads to an amplification of that disturbance, destabilizing the system and driving it away from its equilibrium. Here, “positive” means self-reinforcing, not environmentally beneficial.
An increase or a decrease can both be amplified by positive feedback. When a small population declines, fewer potential breeding pairs remain. Reproductive potential then falls, and the population may shrink further. The reverse can also happen: population growth increases the number of reproducing individuals, which creates further growth.

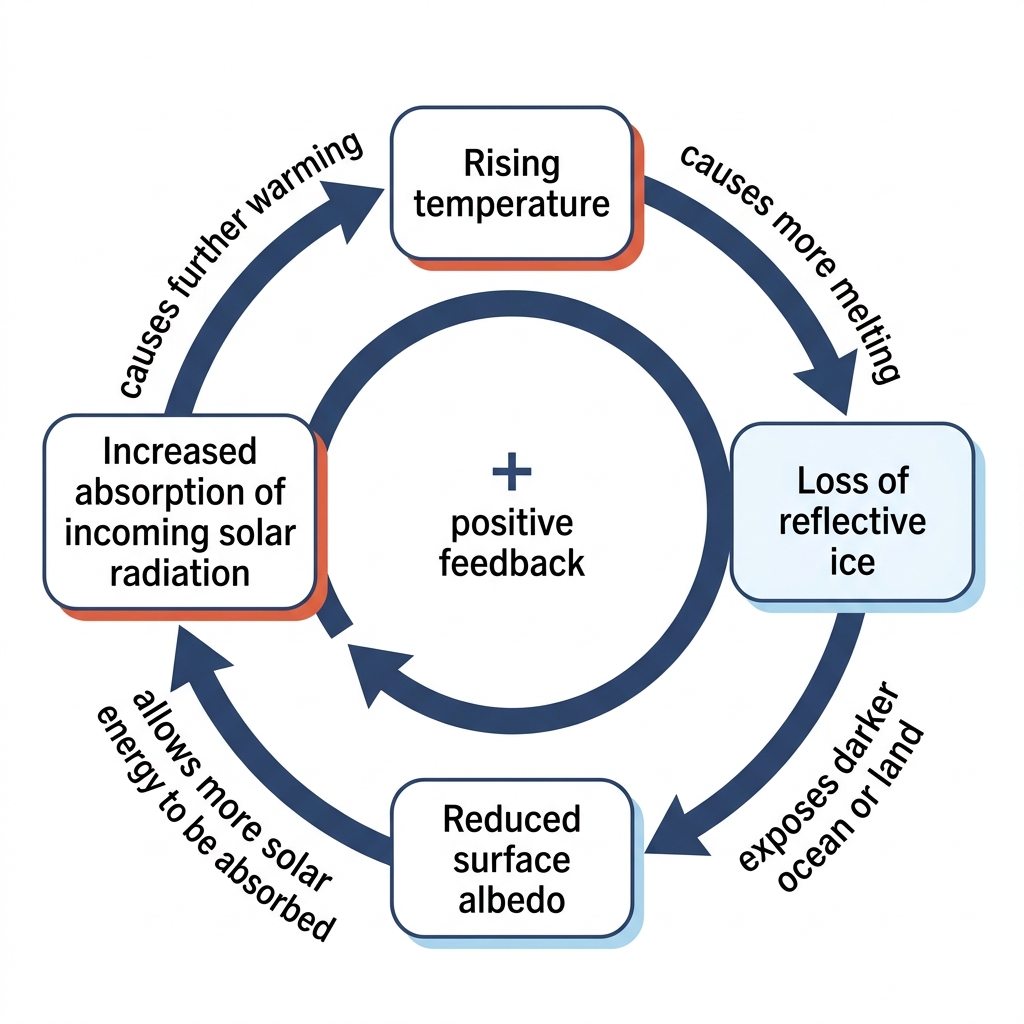

One climate example starts when warming melts reflective ice. The exposed ocean or land has lower albedo and absorbs more incoming radiation. This greater absorption causes further warming, leading to more melting.
Draw positive feedback as a closed loop, labelling every causal connection. Follow one complete circuit and check that it reinforces the original direction of change. Both kinds of feedback can operate in the same system. Population growth may reinforce itself, while resource depletion creates a negative feedback that restrains growth.
1.2.11
POSITIVE FEEDBACK AND TIPPING POINTS
Positive feedback loops push a system towards a tipping point. With each round of feedback, the initial departure from equilibrium grows larger.

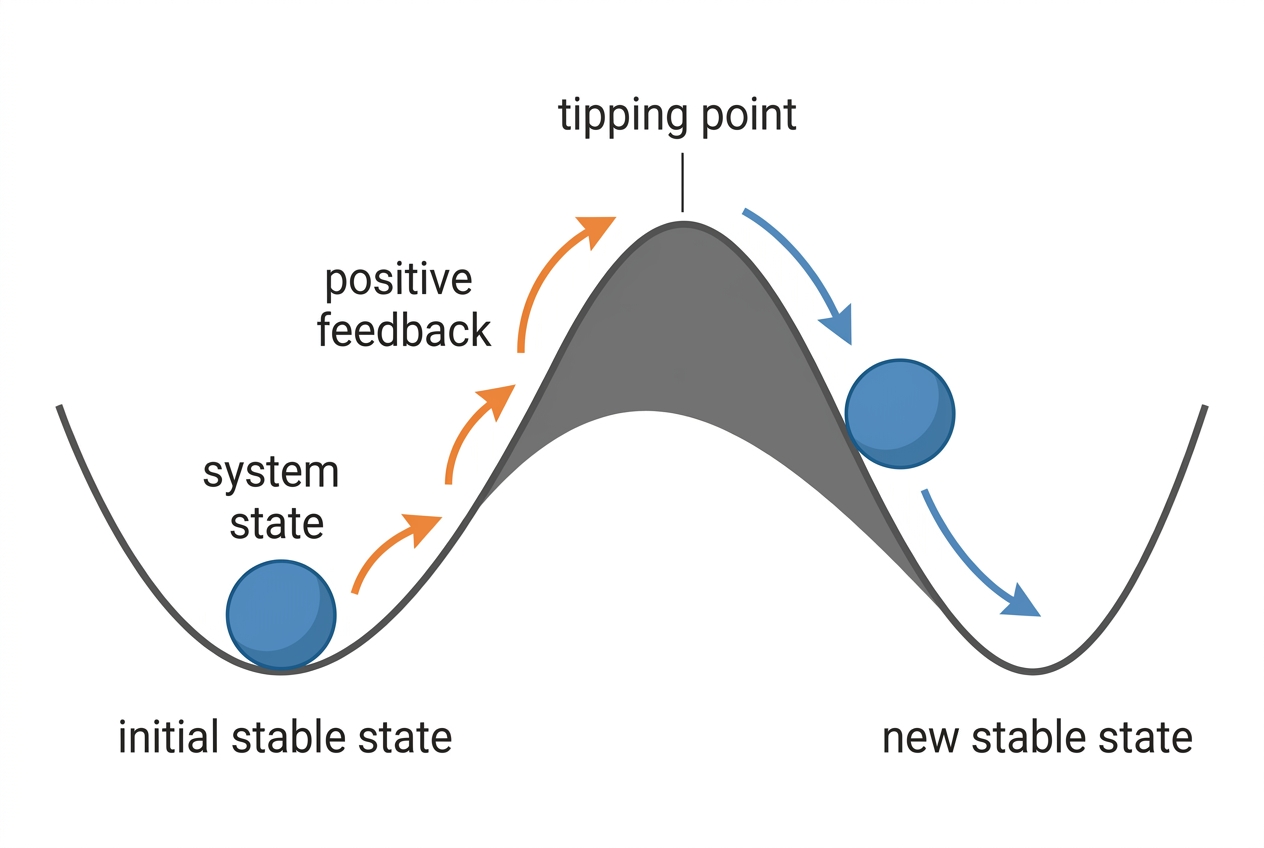

A tipping point is the minimum amount of change that will cause destabilization within a system. The system then shifts to a new equilibrium or stable state. It acts as a threshold. Before the system crosses it, stabilizing processes may restore the original state. After crossing it, reinforcing processes drive the system towards a different state.
That new state may be stable, even if the change happened rapidly. Removing the original pressure, then, won’t always cause an immediate return. A different set of feedbacks may now hold the system in its new equilibrium.
1.2.12
TIPPING POINTS AND REGIME SHIFTS
A small change in one part of a system can sometimes trigger much larger changes throughout it, shifting the equilibrium. These points are called tipping points. A regime shift occurs when a system undergoes substantial reorganization from one stable state to an alternative stable state.

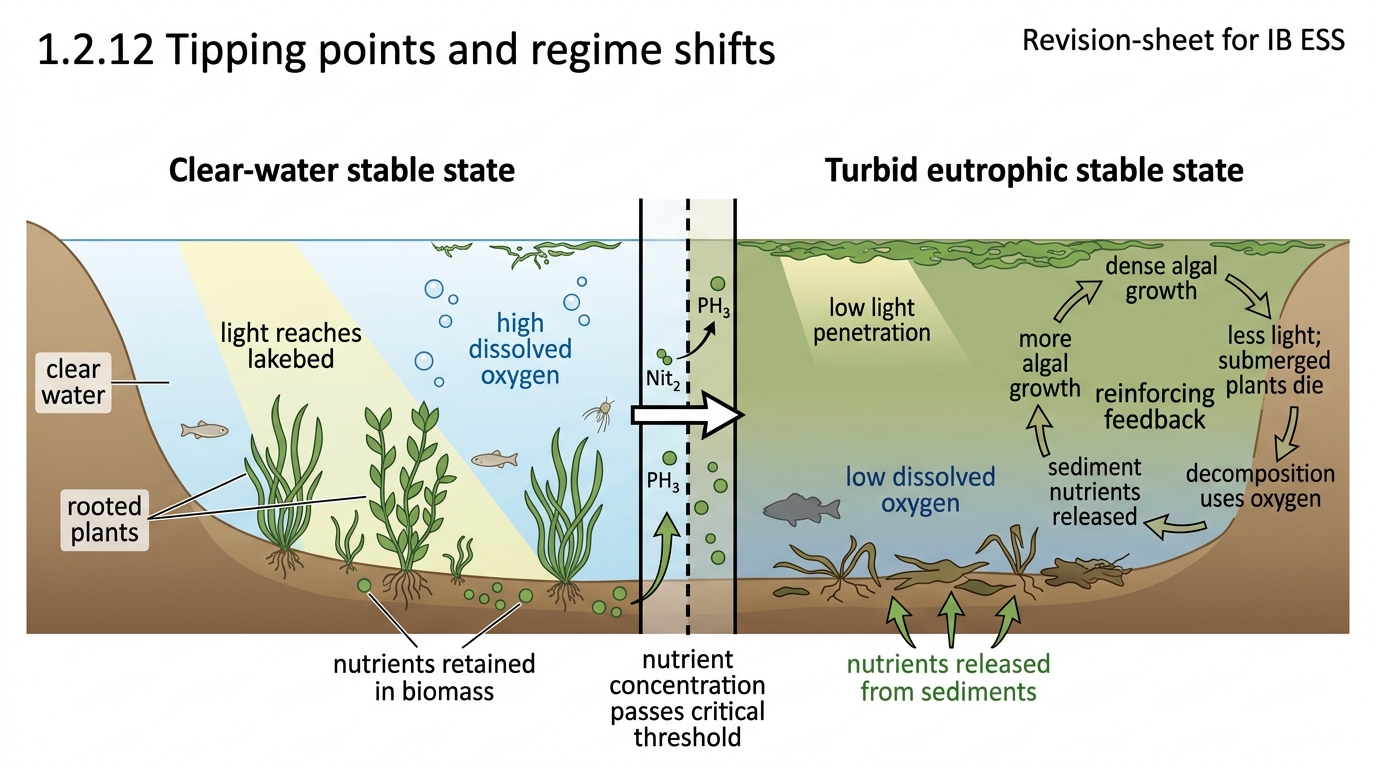

One clear example is a lake shifting from clear water to a turbid, algae-dominated state. At first, gradual increases in nitrate and phosphate stimulate some plant and algal growth. Once nutrient concentrations cross a critical threshold, however, algal growth becomes dense and blocks light. Submerged plants die, decomposition uses up dissolved oxygen, and nutrients released from sediments fuel further algal growth. These reinforcing interactions can cause eutrophication and a rapid regime shift.
The effects spread across the whole system. Water clarity and oxygen availability change, as do species composition and nutrient cycling. Even if nutrient inputs return to just below the original threshold, clear water may not return immediately because internal nutrient recycling can keep the lake in its turbid state.
Other systems may cross thresholds too. In a dry region, vegetation loss can expose the soil, increase erosion and reduce water retention. Plant recovery then becomes more difficult, pushing the system towards a sparsely vegetated state. In warm-water coral systems, repeated heat stress can reduce coral cover and leave space for algae, which may inhibit coral recruitment. Each explanation must include a threshold, amplifying interactions and a shift between alternative stable states—not simply a large gradual change.
1.2.13
MODELS OF SYSTEMS
A model is a simplified representation of reality; it can be used to understand how a system works and to predict how it will respond to change. That simplification is deliberate. The model picks out relationships that matter for a particular purpose and leaves the rest aside.
Models come in many forms: graphs, diagrams, equations, simulations or words.
| form | concrete example | what it helps investigate |
|---|---|---|
| Systems diagram | A pond systems diagram showing water storage and flows into and out of the pond | How storages and flows connect within a system |
| Graph | A predator–prey graph showing changes in both populations over time | Patterns in population changes and relationships between populations |
| Equation | , with inputs and outputs expressed as rates | The quantitative relationship between flows and the rate of change in storage |
| Computer simulation | Daisyworld simulation, which repeatedly applies rules linking daisies, albedo and temperature as conditions change | How feedback between life, albedo and temperature can produce regulation |
| Verbal model | An ice–albedo feedback model: warming reduces ice cover, lowering albedo; greater absorption of solar radiation then causes further warming | The proposed causal links in a reinforcing feedback |
Models let us investigate complex systems that would be too large, slow, dangerous or expensive to manipulate directly. We can quickly change inputs or assumptions and compare predicted outcomes. They can also make a complicated explanation clearer. Daisyworld, for example, isolates feedback between life, albedo and temperature, making the regulatory mechanism easier to examine.
There’s a trade-off. Leaving out detail brings clarity, but it may also remove an important interaction. Predictions rely on:
As a result, different models may produce different predictions from similar evidence. Users may also interpret outputs selectively.
A model should be judged according to its purpose. Ask:
A systems approach can model environmental issues at many levels of complexity and scale, but no single model works equally well at every scale or for every question.
Example: To answer “Evaluate Daisyworld as a model of temperature regulation”, link each judgment to its purpose: Daisyworld isolates feedback between life, albedo and temperature, making it useful for explaining how life can contribute to temperature regulation. However, it simplifies vegetation to black and white daisies, leaving out the diversity of real ecosystems and their interactions. It is therefore useful for explaining a possible mechanism of regulation, rather than for predicting Earth's temperature.
1.2.14
SIMPLIFICATION AND MODEL ACCURACY
Simplification involves approximation and therefore a loss of accuracy. An approximation represents a feature or relationship using something close to, but not exactly matching, reality. Accuracy is how closely a model represents the real system or matches observations. Removing detail makes a system easier to investigate, but can leave out processes that affect its response to change.
Simplification introduces approximations into a model. These approximations can reduce the accuracy of its predictions, especially when omitted interactions become important under changing conditions. For example, treating a variable as constant may work over a short period but become unrealistic over a longer one.
This chain links simplification to reduced predictive accuracy.
The systems approach uses models throughout the course. Climate predictions and human population projections illustrate how different simplifications can produce very different results, even when models investigate the same system.
| Model | Possible simplification | Consequence for the output |
|---|---|---|
| Climate model | Representing cloud processes approximately | Different representations can produce different estimates of future warming. |
| Human population model | Assuming fertility and mortality rates remain constant | The projection will not capture population changes caused by changing rates. |
Differences between outputs should therefore be traced to the models’ assumptions and representations, rather than treated automatically as calculation errors. A projection based on constant rates describes what would happen under that assumption, not what must happen.
Example: A laboratory bottle ecosystem may be used to investigate how nutrient addition affects algal growth. Compared with a natural pond, it contains fewer organisms and has controlled light and temperature. It also lacks many natural exchanges, such as runoff and the arrival of organisms. These simplifications help isolate the nutrient effect, but the observed response may not accurately represent the pond’s response.
A laboratory model can therefore be useful without closely reproducing every feature of a natural ecosystem. Its conclusions should be limited to the processes and conditions it represents adequately.
Exam tip: When explaining loss of accuracy, identify a specific simplification, state what real variation or interaction it excludes, and explain how this could change the output. “Models are simplified” alone does not explain the limitation.
1.2.15
EMERGENT PROPERTIES
An emergent property is a property that appears through interactions between components of a system, but is not possessed by the individual components themselves. Studying each component separately therefore cannot fully explain the behaviour of the whole system. The relationships between components matter as much as the components present.
Predator–prey oscillations are recurring rises and falls in linked predator and prey populations. More prey provide more food, allowing predator numbers to increase. Greater predation then reduces prey numbers. With less food available, predator numbers fall, reducing pressure on the prey and allowing their population to recover. Predator population changes typically lag behind changes in prey abundance.
Example: Snowshoe hares and lynx in the North American boreal forest show linked population fluctuations. Hare availability affects lynx food supply, while lynx predation affects hare survival. The coupled pattern emerges from their interaction; it is not a property of an isolated hare or lynx. Other environmental influences also affect these populations.
Trophic cascades occur when changes at one trophic level cause indirect changes at other trophic levels. For example, an increase in predators can reduce herbivore abundance. Fewer herbivores can reduce grazing pressure, allowing vegetation to increase. The vegetation response is an indirect effect of predators, produced by interactions across the food chain rather than by predators acting on plants directly.
This chain shows how predators can indirectly increase vegetation.
Another example is the coordinated movement of a school of fish. Each fish responds to nearby fish, but their interactions produce an organized group pattern. An individual fish can swim, but cannot display the collective movement pattern of a school on its own.
Exam tip: To explain an emergent property, identify the components, describe their interactions and state the resulting system-level pattern. For a trophic cascade, trace the effect across trophic levels rather than simply listing feeding relationships.
Common mistake: Calling any characteristic of a component an emergent property. A lynx catching a hare is an individual interaction; linked population oscillations are the emergent pattern generated over time.
1.2.16
RESILIENCE OF SYSTEMS
Resilience is the tendency of a system, ecological or social, to avoid tipping points and maintain stability. It is the capacity to resist damage and recover from, or adapt efficiently to, disturbance. A disturbance may temporarily change a system without causing it to shift into an alternative stable state.
Resilience therefore means more than remaining unchanged. A resilient system can experience damage or disruption but still retain its essential functioning. Three aspects of its response help explain this:
| Aspect | Meaning |
|---|---|
| Resistance | The system withstands a disturbance with limited damage. |
| Recovery | The system restores its functioning after damage occurs. |
| Efficient adaptation | The system adjusts to changed conditions while maintaining essential functioning. |
These responses help a system maintain stability and avoid crossing a tipping point. They are not necessarily separate stages: recovery and adaptation can occur together, and a system may resist some effects of a disturbance while recovering from others.
The diagram shows three possible responses that contribute to resilience.
Example: A woodland experiences a storm that damages some trees. If woodland functioning continues and vegetation recovers without a shift to a different ecosystem state, this demonstrates ecological resilience. The initial damage alone does not show that the woodland lacks resilience; its subsequent response matters.
Example: A town experiences flooding that disrupts transport. Restoring transport services demonstrates recovery, while changing routes to maintain access during future floods demonstrates adaptation. These responses illustrate resilience in a social system because essential activities can continue despite disturbance.
Exam tip: When explaining resilience, link a named disturbance to resistance, recovery or efficient adaptation, then explain how this helps maintain stability and avoid a tipping point. Do not define resilience only as “no change”: temporary changes and damage can occur in a resilient system.
1.2.17
DIVERSITY, STORAGES AND RESILIENCE
Diversity and the size of storages can help a system withstand disturbance and maintain its functions. They also affect how quickly the system responds. A time lag is a delay between a change or disturbance and the system’s response.
Greater diversity can provide alternative pathways within a system. If one prey species declines, predators may feed on other species, helping to maintain food-web functions. Different species also vary in their susceptibility to drought, disease or other disturbances, so they are less likely to decline together. This can slow or reduce the response of the system as a whole.
Alternative feeding pathways can help maintain system functions after disturbance.
Example: Replacing a diverse North American prairie with a monoculture crop can reduce resilience. Prairie plants differ in rooting depth and responses to dry conditions, so some may continue growing when others are affected. A monoculture is the cultivation of a single crop species. Its plants share similar requirements and vulnerabilities, making widespread crop failure more likely when a suitable pest or disease spreads. The loss of alternatives reduces the system’s capacity to maintain plant production after disturbance.
Larger storages of water, nutrients or biomass can buffer a system against changes in inputs and outputs. For the same amount removed, a larger storage experiences a smaller proportional loss. Resources may therefore remain available for longer, delaying the system’s response.
| Feature | Puddle | Lake |
|---|---|---|
| Water storage | Small | Large |
| Effect of losing the same volume of water | Large proportional reduction | Small proportional reduction |
| Response to a period without rainfall | May dry out quickly | Usually retains water for longer |
| Relative stability of water availability | Lower; shorter time lag before shortage | Higher; longer time lag before shortage |
The comparison assumes other conditions are comparable. Actual drying rates also depend on evaporation, inflows and the shape of the water body. A larger storage buffers change; it does not prevent change indefinitely.
Exam tip: Explain the mechanism rather than writing only “more diversity means more resilience”. Link diversity to alternative species or pathways, and storage size to the proportional effect of a disturbance. A time lag means a response is delayed, not that the system is unaffected.
1.2.18
HUMAN IMPACTS ON SYSTEM RESILIENCE
Human activities can weaken a system by reducing its storages and diversity. Resilience is a system’s tendency to avoid tipping points and maintain stability: its capacity to resist damage and recover from, or adapt efficiently to, disturbance. Deforestation illustrates how human actions can reduce this capacity, not simply change the appearance of an ecosystem.
Deforestation reduces resilience through two connected pathways. Removing trees reduces resource storages, while habitat loss reduces biological diversity. These changes can make a forest less able to withstand further disturbance or recover afterwards.
The two pathways connect tree removal to reduced resilience.
Storages are quantities of matter or energy held within a system. Harvesting and removing timber exports biomass and the carbon and nutrients it contains. Clearing vegetation also exposes soil to rainfall and runoff, which can remove nutrient-rich topsoil. Reduced nutrient and water storages can limit plant regrowth, slowing recovery after clearance or drought.
The mechanism matters: carbon storage loss describes one consequence of tree removal, but reduced soil nutrients and water availability explain directly why vegetation may struggle to recover.
Biological diversity is the variety of life within a system. Deforestation removes habitats and can reduce species diversity. Loss of species can remove alternative feeding relationships and sources of regeneration. If remaining species are affected by disease or drought, fewer organisms may be available to maintain ecological functions such as pollination and seed dispersal.
Example: Clearing Amazon rainforest for cattle pasture removes much of the standing woody biomass and replaces a diverse forest community with a much simpler system. Where clearance also causes topsoil loss, forest recovery is constrained by both reduced nutrient storage and fewer surviving sources of seeds.
Exam tip: Explain both pathways: reduced storages and reduced diversity. Link each to a reduced capacity to resist or recover from disturbance. Simply saying that deforestation is harmful, or that an ecosystem has low human interference, does not explain its resilience.
