Question 1

SL • Paper 1

Easy

Non Calculator

SL • Paper 1

Easy

Non Calculator

A school has $720$ students. The numbers of students in Years 10, 11 and 12 are $180$ , $240$ and $300$ respectively. A researcher wants to take a stratified random sample of $60$ students.

A

State the population and the sample size.

[2]

B

Find the number of students that should be selected from each year group using proportional allocation.

[2]

C

Suggest one reason why asking the first $60$ students who enter the school in the morning may give biased results.

[1]

Question 2

SL • Paper 1

Easy

Non Calculator

SL • Paper 1

Easy

Non Calculator

The following grouped frequency table shows the time, $t$ minutes, taken by $20$ students to complete a puzzle.

Time, $t$ minutes	$0\le t<10$	$10\le t<20$	$20\le t<30$	$30\le t<40$
Frequency	$3$	$5$	$8$	$4$

A

Write down the modal class.

[1]

B

Estimate the mean time taken.

[3]

C

State why the value found in part (b) is only an estimate.

[1]

Question 3

SL • Paper 1

Easy

Non Calculator

SL • Paper 1

Easy

Non Calculator

A data set $X$ has mean $12$ , standard deviation $3$ and median $13$ . Each value $x$ in the data set is transformed to a new value $y$ , where

$y=2x-5$

A

Find the mean of the transformed data set.

[2]

B

Write down the standard deviation of the transformed data set.

[1]

C

Find the variance of the transformed data set.

[1]

D

Find the median of the transformed data set.

[1]

Question 4

SL • Paper 1

Medium

Non Calculator

SL • Paper 1

Medium

Non Calculator

A grouped frequency table for the distance, $d$ km, travelled by $40$ cyclists is shown.

Distance, $d$ km	$0\le d<2$	$2\le d<4$	$4\le d<6$	$6\le d<8$
Frequency	$5$	$9$	$16$	$10$

A

Find the cumulative frequency up to $d=4$ and the cumulative frequency up to $d=8$ .

[2]

B

State the class interval containing the median.

[1]

C

Estimate the mean distance travelled.

[3]

Question 5

SL • Paper 1

Medium

Non Calculator

SL • Paper 1

Medium

Non Calculator

The five-number summary for the masses, in kg, of some parcels is

$12,\ 18,\ 21,\ 28,\ 43$

where the values are the minimum, lower quartile, median, upper quartile and maximum respectively.

A

Find the interquartile range.

[2]

B

Find the upper outlier boundary.

[2]

C

Determine whether the maximum value is an outlier. Give a reason.

[1]

Question 6

SL • Paper 1

Medium

Non Calculator

SL • Paper 1

Medium

Non Calculator

The ordered data set

$2,\ 4,\ 5,\ 8,\ k,\ 12,\ 14$

has mean $8$ .

A

Find the value of $k$ .

[3]

B

Write down the median and the range of the data set.

[2]

Question 7

HL • Paper 1

Medium

Non Calculator

HL • Paper 1

Medium

Non Calculator

A town has $1440$ households in three districts. Districts A, B and C contain $540$ , $360$ and $540$ households respectively. A survey of $80$ households is to be carried out.

A

systematic sample is taken from a list of all households. Find the sampling interval.

[1]

B

Find the number of households that should be selected from each district in a proportional stratified sample.

[2]

C

The household list is arranged in a repeating pattern by street type, and every $18$ th household is then selected after a random start. Explain why this systematic sample may be biased.

[2]

Question 8

SL • Paper 2

Medium

Calculator Permitted

SL • Paper 2

Medium

Calculator Permitted

A school has $840$ students. The numbers of students in Years 10, 11 and 12 are $210$ , $350$ and $280$ respectively. A researcher wants to take a sample of $60$ students to investigate the time spent on homework.

A

Find the number of students that should be chosen from each year group if a stratified sample proportional to year-group size is used.

[3]

B

The researcher instead asks the first $60$ students who enter the library after school. State the sampling method used and give one reason why this may be biased.

[2]

Question 9

SL • Paper 2

Medium

Calculator Permitted

SL • Paper 2

Medium

Calculator Permitted

The grouped frequency table shows the time, $t$ minutes, taken by $50$ students to travel to school.

Class interval, $t$ [min]	Frequency
$0\le t<10$	4
$10\le t<20$	11
$20\le t<30$	18
$30\le t<40$	12
$40\le t<50$	5
Total	50

A

State the modal class.

[1]

B

Use mid-interval values to estimate the mean travel time.

[3]

C

Briefly explain why the answer to part (b) is an estimate.

[1]

Question 10

SL • Paper 2

Medium

Calculator Permitted

SL • Paper 2

Medium

Calculator Permitted

The following are the recorded waiting times, in minutes, for $12$ customers at a service desk.

$18,19,21,22,23,24,26,27,28,30,31,48$

For these data, a GDC gives $Q_1=21.5$ and $Q_3=29.0$ .

A

Find the interquartile range and the upper outlier boundary.

[3]

B

Determine whether $48$ minutes is an outlier.

[1]

C

Give one reason why the value $48$ should not automatically be removed from the data set.

[1]

Question 11

SL • Paper 2

Medium

Calculator Permitted

SL • Paper 2

Medium

Calculator Permitted

A data set of temperatures in degrees Celsius has mean $42$ , median $41$ , variance $25$ and interquartile range $8$ . Each temperature $x$ is converted to degrees Fahrenheit using

y=1.8x+32

A

Find the mean and median of the Fahrenheit temperatures.

[2]

B

Find the standard deviation and variance of the Fahrenheit temperatures.

[2]

C

Find the interquartile range of the Fahrenheit temperatures.

[1]

Question 12

HL • Paper 1

Medium

Non Calculator

HL • Paper 1

Medium

Non Calculator

Data set $A$ contains $8$ values and has mean $15$ . Data set $B$ contains $12$ values and has mean $m$ . When the two data sets are combined, the mean is $18$ . The combined data set has standard deviation $6$ . Each combined value $x$ is transformed to

$z=\frac{x-18}{4}$

A

Find the value of $m$ .

[3]

B

Find the mean of the transformed values $z$ .

[1]

C

Find the variance of the transformed values $z$ .

[2]

Question 13

HL • Paper 1

Medium

Non Calculator

HL • Paper 1

Medium

Non Calculator

The following grouped frequency table shows values of a continuous variable $x$ .

Class interval	$0\le x<10$	$10\le x<20$	$20\le x<30$	$30\le x<40$
Frequency	$2$	$p$	$6$	$4$

The estimated mean, using mid-interval values, is $21$ .

A

Find the value of $p$ .

[4]

B

Write down the modal class.

[1]

C

Find the proportion of the data values which are less than $30$ .

[1]

Question 14

HL • Paper 1

Medium

Non Calculator

HL • Paper 1

Medium

Non Calculator

A data set $X$ has mean $6$ and standard deviation $2$ . A new data set $Y$ is formed using

$y=ax+b$

where $a>0$ . The data set $Y$ has mean $17$ and standard deviation $6$ .

A

Find the values of $a$ and $b$ .

[3]

B

Find the variance of $Y$ .

[1]

C

The median of $X$ is $5$ . Find the median of $Y$ .

[1]

Question 15

HL • Paper 1

Medium

Non Calculator

HL • Paper 1

Medium

Non Calculator

The five-number summaries for the waiting times, in minutes, at two clinics are shown.

Clinic A: $10,\ 14,\ 20,\ 32,\ 58$

Clinic B: $16,\ 19,\ 22,\ 25,\ 31$

In each summary, the values are the minimum, lower quartile, median, upper quartile and maximum respectively.

A

Find the interquartile range for each clinic.

[2]

B

Compare the medians and the spreads of the waiting times at the two clinics.

[2]

C

Use the $1.5\operatorname{IQR}$ rule to determine whether the maximum waiting time at Clinic A is an outlier.

[2]

Question 16

SL • Paper 2

Medium

Calculator Permitted

SL • Paper 2

Medium

Calculator Permitted

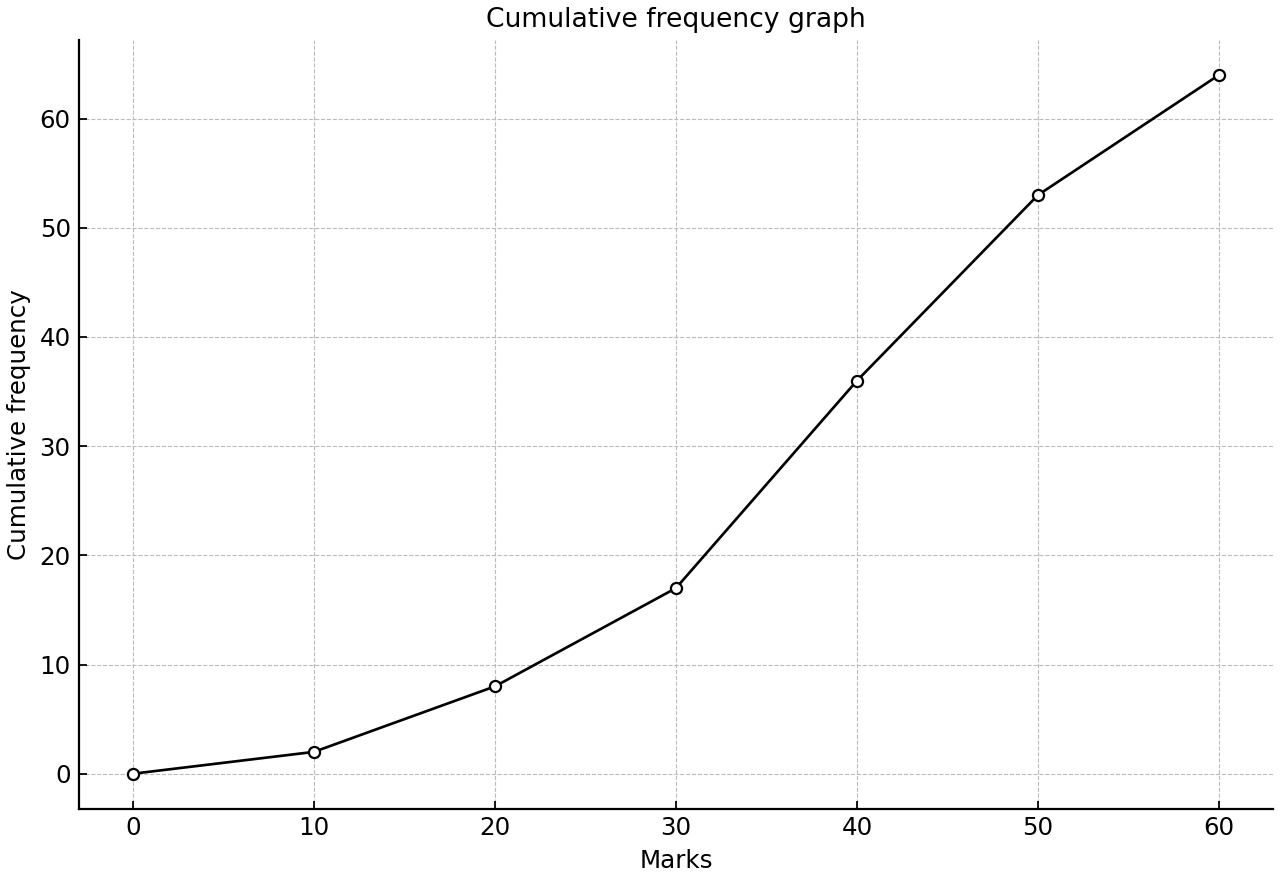

The cumulative frequency graph shows the marks, $x$ , obtained by $64$ students in a test.

Cumulative frequency graph of test marks for 64 students.

A

Estimate the median mark.

[2]

B

Estimate the interquartile range.

[3]

C

Estimate the mark below which $70\%$ of the students scored.

[1]

Question 17

SL • Paper 2

Medium

Calculator Permitted

SL • Paper 2

Medium

Calculator Permitted

The table shows the five-number summaries for the daily number of bicycle rentals from two locations, A and B, over the same period.

Location	Min	$Q_1$	Median	$Q_3$	Max
A	2	8	12	18	30
B	4	10	14	20	24

A

Find the range and interquartile range for each location.

[3]

B

Compare the two distributions using the five-number summaries.

[2]

Question 18

HL • Paper 2

Medium

Calculator Permitted

HL • Paper 2

Medium

Calculator Permitted

A university has $1250$ undergraduate students in four faculties. The numbers of students in Science, Arts, Business and Other faculties are $480$ , $360$ , $250$ and $160$ respectively. A stratified random sample of $90$ students is required.

A

Determine the number of students to select from each faculty, using proportional stratified sampling. Use the largest remainder method if needed.

[3]

B

The students are listed alphabetically within each faculty, and a systematic sample is taken by choosing every $14$ th student after a random start. This procedure may produce $89$ or $90$ students. Explain why this may not be as effective as the stratified sample in part (a).

[2]

C

State one feature required for the sample in part (a) to be a stratified random sample.

[1]

Question 19

HL • Paper 2

Medium

Calculator Permitted

HL • Paper 2

Medium

Calculator Permitted

The grouped frequency table shows the masses, $m$ kg, of $52$ parcels. One frequency is missing. The estimated mean mass, using mid-interval values, is $62.5$ kg.

Mass, m [kg]	Mid-interval value [kg]	Frequency
50 ≤ m < 55	52.5	6
55 ≤ m < 60	57.5	a
60 ≤ m < 65	62.5	18
65 ≤ m < 70	67.5	14
70 ≤ m < 75	72.5	4

A

Find the missing frequency $a$ .

[3]

B

Using $a=10$ , estimate the standard deviation of the parcel masses.

[2]

C

State the modal class.

[1]

Question 20

HL • Paper 2

Medium

Calculator Permitted

HL • Paper 2

Medium

Calculator Permitted

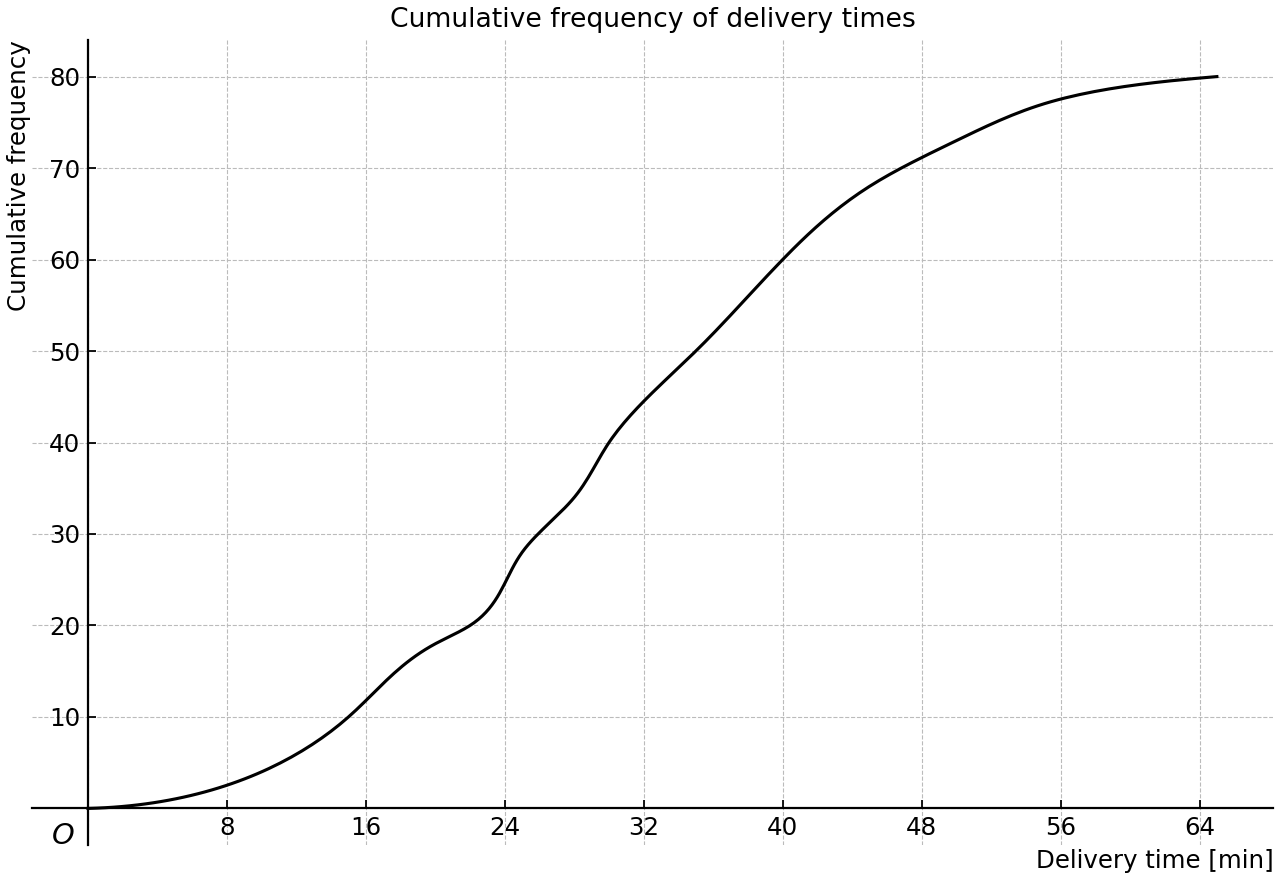

The cumulative frequency graph shows the delivery times, $t$ minutes, for $80$ packages. The largest recorded delivery time in the original data set was $65$ minutes. A later check finds an additional delivery time of $70$ minutes.

Cumulative frequency curve of delivery times for 80 packages.

A

Estimate the number of packages delivered in less than $28$ minutes.

[2]

B

Estimate the interquartile range of the original data set.

[2]

C

Using your answer to part (b), determine whether the additional delivery time of $70$ minutes would be classified as an outlier.

[1]

Question 21

HL • Paper 2

Medium

Calculator Permitted

HL • Paper 2

Medium

Calculator Permitted

The following data give the pH values of $10$ water samples.

$6.2,7.1,5.9,8.4,6.8,7.5,9.0,6.4,7.8,8.1$

A

Use your GDC to find the mean and standard deviation of the pH values.

[2]

B

Each pH value $x$ is transformed to $y=3-2x$ . Find the mean and standard deviation of the transformed values.

[2]

C

A constant $k$ is added to each original pH value so that the new mean is $10.0$ . Find $k$ .

[1]

Question 22

HL • Paper 2

Medium

Calculator Permitted

HL • Paper 2

Medium

Calculator Permitted

For a set of measurements from production line B, the coded variable

y=\frac{x-50}{5}

is used, where $x$ is the measurement in millimetres. A GDC gives the mean of $y$ as $-0.420$ and the variance of $y$ as $0.3844$ . For production line A, the standard deviation of the measurements is $3.20$ mm.

A

Find the mean and standard deviation of the original measurements from line B.

[3]

B

A technician subtracts $2$ mm from every measurement from line B. Find the new mean and standard deviation for line B.

[2]

C

After the technician's adjustment, determine which production line has less variation in measurements.

[1]

Question 23

SL • Paper 1

Medium

Non Calculator

SL • Paper 1

Medium

Non Calculator

The heights, $h$ cm, of $40$ seedlings are recorded in the grouped frequency table.

Height, $h$ cm	$0\le h<10$	$10\le h<20$	$20\le h<30$	$30\le h<40$	$40\le h<50$
Frequency	$4$	$9$	$15$	$10$	$2$

The standard deviation of the original heights is given as $\frac{56}{5}$ cm.

For each seedling, define a new variable $y$ by $y=\frac{h+5}{2}$ .

A

I.

Find the cumulative frequency up to $h=20$ and the cumulative frequency up to $h=40$ .

[2]

II.

Write down the median class and the modal class.

[2]

B

I.

Use mid-interval values to estimate the mean height of the seedlings.

[4]

II.

State why the answer to part (b)(i) is only an estimate.

[1]

C

A new variable $y$ is defined by $y=\frac{h+5}{2}$ .

I.

Using your answer to part (b)(i), estimate the mean of $y$ . If you did not obtain $\frac{97}{4}$ , use this value.

[2]

II.

Find the standard deviation of $y$ .

[1]

Question 24

SL • Paper 1

Medium

Non Calculator

SL • Paper 1

Medium

Non Calculator

A city council wants to survey residents about a new public transport route. The city has $4800$ adult residents, divided into three districts as shown.

District	North	Central	South
Number of adult residents	$1200$	$1600$	$2000$

A sample of $120$ residents is to be selected.

A

I.

State the population for this survey.

[1]

II.

Find the number of residents that should be selected from each district in a proportional stratified sample.

[4]

B

I.

The council instead selects every $40$ th name from an alphabetical list of all adult residents, after choosing a random starting point. State the sampling method used.

[1]

II.

Explain why asking the first $120$ people leaving the central train station on a Monday morning may give biased results.

[2]

III.

Some residents in the South district do not have internet access and so cannot complete an online version of the survey. State one possible effect on the reliability of the results.

[1]

Question 25

SL • Paper 1

Medium

Non Calculator

SL • Paper 1

Medium

Non Calculator

The five-number summaries for the daily water usage, in litres, of two households over the same month are shown.

Household A: $120,\ 180,\ 230,\ 310,\ 520$

Household B: $150,\ 220,\ 240,\ 290,\ 370$

In each summary, the values are the minimum, lower quartile, median, upper quartile and maximum respectively.

A

I.

Find the range and interquartile range for Household A.

[2]

II.

Find the range and interquartile range for Household B.

[2]

B

Use the $1.5\operatorname{IQR}$ rule to determine whether the maximum value for Household A is an outlier.

[3]

C

I.

Compare the typical daily water usage of the two households.

[1]

II.

Compare the spread of the daily water usage of the two households.

[2]

Question 26

SL • Paper 1

Medium

Non Calculator

SL • Paper 1

Medium

Non Calculator

The following ordered data set contains seven values:

$2,\ 6,\ 9,\ k,\ 15,\ 20,\ 25$

The mean of the data set is $13$ .

A

I.

Find the value of $k$ .

[3]

II.

Write down the median and the range of the data set.

[2]

B

For this question, take $Q_1$ and $Q_3$ to be the medians of the lower and upper halves of the ordered data after excluding the overall median.

I.

Find the interquartile range of the data set.

[2]

II.

A new value, $49$ , is added to the data set. Determine whether $49$ is an outlier compared with the original data set.

[2]

Question 27

SL • Paper 1

Medium

Non Calculator

SL • Paper 1

Medium

Non Calculator

The times, $t$ minutes, taken by a group of students to complete an online task are shown in the grouped frequency table.

Time, $t$ minutes	$0\le t<5$	$5\le t<10$	$10\le t<15$	$15\le t<20$
Frequency	$2$	$p$	$8$	$4$

There are $20$ students in the group.

A

I.

Find the value of $p$ .

[2]

II.

Write down the modal class.

[2]

B

Use $p=6$ for this part.

I.

Estimate the mean time taken to complete the task.

[3]

II.

Find the percentage of students who took less than $10$ minutes.

[1]

C

Each task time is increased by $3$ minutes because of a delay in logging in.

I.

Find the new estimated mean time.

[1]

II.

State what happens to the standard deviation of the task times.

[1]

Question 28

HL • Paper 1

Medium

Non Calculator

HL • Paper 1

Medium

Non Calculator

For this question, take $Q_1$ and $Q_3$ to be the medians of the lower and upper halves of the ordered data, after excluding the overall median.

The ordered data set is

$1,\ 3,\ 4,\ 6,\ 8,\ 10,\ a$

where $a>10$ and $a$ is an integer.

A

Find the median and the interquartile range in terms of the given data.

[2]

B

Find the least possible value of $a$ such that $a$ is an outlier.

[3]

C

Explain why changing $a$ from $21$ to a larger value does not change the median or the interquartile range.

[1]

Question 29

SL • Paper 2

Medium

Calculator Permitted

SL • Paper 2

Medium

Calculator Permitted

A wildlife charity has $5400$ annual pass holders. The pass holders are divided into three categories: local adult, family and concession. The numbers in these categories are $2160$ , $1890$ and $1350$ respectively. The charity wants to survey $120$ pass holders about the time they spend in the park on each visit. A proportional stratified sample is to be selected, with each category represented in the same proportion as in the population.

A pilot survey of $120$ pass holders produced the following grouped frequency table for the time, $t$ hours, spent in the park on one visit.

$t$ / hours	$0\le t<2$	$2\le t<4$	$4\le t<6$	$6\le t<8$	$8\le t<10$
Frequency	$14$	$31$	$39$	$24$	$12$

A

The charity decides to use proportional stratified sampling.

I.

Determine the number of pass holders that should be selected from each category.

[3]

II.

If a systematic sample of $120$ pass holders is taken from the complete list of $5400$ pass holders, find the sampling interval.

[2]

III.

The complete list is ordered by the month in which the pass expires. Suggest one reason why the systematic sample may be biased.

[2]

B

Use the pilot survey data.

I.

Write down the modal class.

[1]

II.

Use mid-interval values to estimate the mean time spent in the park.

[3]

III.

State why the mean found in part (b)(ii) is only an estimate.

[1]

Question 30

SL • Paper 2

Medium

Calculator Permitted

SL • Paper 2

Medium

Calculator Permitted

The number of hours of sleep, $x$ , recorded by $80$ athletes on the night before a competition is shown in the grouped frequency table.

Sleep, $x$ / hours	$4\le x<5$	$5\le x<6$	$6\le x<7$	$7\le x<8$	$8\le x<9$	$9\le x<10$
Frequency	$4$	$10$	$22$	$28$	$12$	$4$

A

A cumulative frequency graph is to be drawn.

I.

Write down the cumulative frequencies at $x=6$ and $x=8$ .

[2]

II.

Estimate the median number of hours of sleep.

[2]

B

Use linear interpolation within each class interval.

I.

Estimate the lower quartile and the upper quartile.

[3]

II.

Find the interquartile range.

[1]

III.

Estimate the $85$ th percentile.

[1]

C

Use the grouped frequency table to estimate the mean number of hours of sleep and comment briefly on what comparison with the estimated median suggests about the distribution.

[4]

Question 31

SL • Paper 2

Medium

Calculator Permitted

SL • Paper 2

Medium

Calculator Permitted

In an escape room, the time, $t$ minutes, taken by $60$ groups to solve the final clue was recorded. The grouped frequency table is shown.

Time, $t$ minutes	$5\le t<10$	$10\le t<15$	$15\le t<20$	$20\le t<25$	$25\le t<30$
Frequency	$6$	$a$	$18$	$14$	$7$

A

The total number of groups is $60$ .

I.

Find the value of $a$ .

[2]

II.

Write down the class interval containing the median time.

[2]

B

Use $a=15$ and mid-interval values.

I.

Estimate the mean solving time.

[2]

II.

Use your GDC to estimate the standard deviation of the solving times.

[2]

C

After the room is redesigned, the time for each group is modelled by $T=0.85t+2$ , where $t$ is the original solving time in minutes. Calculate the new mean and standard deviation of the solving times, and state how the transformation affects these measures.

[3]

Question 32

SL • Paper 2

Medium

Calculator Permitted

SL • Paper 2

Medium

Calculator Permitted

The table shows the battery life, in hours, of two brands of portable charger tested under the same conditions.

Brand	Minimum / h	Lower quartile / h	Median / h	Upper quartile / h	Maximum / h
Brand A	6	9	12	15	24
Brand B	8	10	13	17	20

A

Use the five-number summaries in the table.

I.

Write down the median battery life for each brand.

[2]

II.

Find the interquartile range for each brand.

[2]

B

Compare the two distributions, using the five-number summaries in the table.

[3]

C

Use the $1.5\operatorname{IQR}$ rule for Brand A.

I.

Find the upper outlier boundary for Brand A.

[2]

II.

State whether the maximum battery life for Brand A is an outlier. Give a reason.

[1]

Question 33

HL • Paper 2

Medium

Calculator Permitted

HL • Paper 2

Medium

Calculator Permitted

A laboratory records the reaction times, in seconds, for $15$ trials.

$4.8,5.1,5.3,5.4,5.6,5.8,5.9,6.0,6.1,6.3,6.4,6.5,6.7,6.8,16.2$

A

Use your GDC to find the mean and median reaction time.

[2]

B

For these data, $Q_1=5.40$ and $Q_3=6.50$ . Determine whether $16.2$ seconds is an outlier.

[3]

C

The laboratory suspects that $16.2$ seconds was caused by a faulty sensor. State which measure from part (a), the mean or the median, would be less affected if this value were removed.

[1]

Question 34

HL • Paper 3

Medium

Calculator Permitted

HL • Paper 3

Medium

Calculator Permitted

A city council investigates the weekly number of minutes, $x$ , that residents spend using a new public bicycle scheme. The city is divided into four districts.

A total sample of $180$ residents is to be selected.

District	Population	Mean from respondents [minutes]
A	1200	14.2
B	1800	11.8
C	900	18.5
D	1500	9.6

A

I.

Find the number of residents that should be selected from each district using proportional stratified sampling.

[3]

II.

State one condition needed for the sample in part (a)(i) to be a stratified random sample.

[1]

III.

Explain why asking only people who arrive at bicycle stations between $07:00$ and $09:00$ would not be an effective method for this investigation.

[1]

B

I.

Use the district means to estimate the mean weekly time for all residents in the city.

[3]

II.

A student instead calculates the mean of the four district means. Find this value and explain why it is not the most appropriate estimate for the city mean.

[2]

C

District C has the lowest response rate. Suggest how this missing data could affect the estimate in part (b)(i), given that District C has the largest sample mean.

[2]

Question 35

SL • Paper 1

Hard

Non Calculator

SL • Paper 1

Hard

Non Calculator

The times, $x$ minutes, taken by $30$ participants to complete a fitness course have mean $48$ , median $47$ , standard deviation $6$ and interquartile range $8$ .

A coded variable $y$ is defined by

$y=\frac{x-40}{4}$

A

I.

Find the mean and median of the coded values $y$ .

[3]

II.

Find the standard deviation and interquartile range of the coded values $y$ .

[3]

B

Another group of $20$ participants completes the same course. Their coded values have mean $3$ and median $2$ .

I.

Find the combined mean of the coded values for all $50$ participants.

[3]

II.

Explain why the combined median cannot be found from the two group medians alone.

[1]

Question 36

HL • Paper 1

Hard

Non Calculator

HL • Paper 1

Hard

Non Calculator

A company has $1400$ employees working on three shifts.

Shift	Morning	Afternoon	Night
Number of employees	$280$	$420$	$700$

The company wants to take a sample of $100$ employees to investigate job satisfaction.

A

I.

Find the number of employees from each shift that should be selected in a proportional stratified sample.

[4]

II.

State one requirement for the sample in part (a)(i) to be a stratified random sample.

[1]

B

The company instead lists all employees in a repeating shift pattern: Morning, Afternoon, Night, Morning, Afternoon, Night, and so on. It then selects every $14$ th employee after a random start.

I.

Find the sampling interval that would be used for a systematic sample of $100$ employees from $1400$ employees.

[1]

II.

Explain why the systematic sample described may not represent the three shifts fairly.

[2]

C

After the sample is selected, six night-shift employees do not return the questionnaire. Their manager says that these non-respondents are more likely to be dissatisfied.

I.

State whether this missing data should simply be ignored. Give a reason.

[2]

II.

Suggest one way to reduce this source of bias.

[1]

Question 37

SL • Paper 2

Hard

Calculator Permitted

SL • Paper 2

Hard

Calculator Permitted

The following data give the maximum sound levels, in decibels, recorded at $16$ road junctions during one morning.

$58,61,63,64,65,66,67,68,69,70,71,72,74,75,76,94$

A GDC gives $Q_1=64.5$ and $Q_3=73.0$ for these data.

A

Use your GDC for the full data set.

I.

(a)(i) Find the mean sound level.

[2]

II.

(a)(ii) Find the standard deviation of the sound levels.

[1]

III.

(a)(iii) Write down the median sound level.

[1]

B

Use the $1.5\operatorname{IQR}$ rule.

I.

(b)(i) Find the upper outlier boundary.

[2]

II.

(b)(ii) Determine whether $94$ dB is an outlier. Give a reason.

[2]

C

The value $94$ dB is removed after it is found to have been caused by roadworks next to the sensor.

I.

(c)(i) After removing the outlier of $94$ dB, find the new mean and standard deviation.

[2]

II.

(c)(ii) After removing $94$ dB, each of these $15$ remaining readings is recalibrated by subtracting $3$ dB. Find the mean and standard deviation of these recalibrated readings.

[2]

Question 38

SL • Paper 2

Hard

Calculator Permitted

SL • Paper 2

Hard

Calculator Permitted

A plant nursery records the number of seeds germinating in each of $20$ trays. Each tray originally contained $80$ seeds.

The numbers of seeds that germinated are

$42,44,45,46,47,48,48,49,50,50,51,51,52,53,54,55,56,57,58,72$ .

A

Use your GDC for the full data set.

I.

Find the mean and standard deviation of the number of seeds germinating.

[2]

II.

Find the median number of seeds germinating.

[1]

III.

The GDC gives $Q_1=47.5$ and $Q_3=54.5$ . Determine whether $72$ is an outlier.

[2]

B

The nursery converts each value $x$ to a germination percentage $p$ using $p=\frac{x}{80}\times 100$ . Find the mean, standard deviation and median of the germination percentages.

[3]

C

The nursery manager says that the tray with $72$ germinated seeds should be deleted because it is an outlier.

I.

Give one possible valid reason why the value $72$ should not automatically be deleted.

[2]

II.

The first $20$ trays on the lowest shelf were used for the sample. State the sampling method and explain why this may be biased.

[2]

Question 39

HL • Paper 2

Hard

Calculator Permitted

HL • Paper 2

Hard

Calculator Permitted

The weekly training distances, $d$ km, of $100$ runners are summarized in the following table.

Distance, $d$ km	$0\le d<10$	$10\le d<20$	$20\le d<30$	$30\le d<40$	$40\le d<50$	$50\le d<60$	$60\le d<70$
Frequency	$3$	$8$	$17$	$28$	$25$	$14$	$5$

A

A cumulative frequency graph is drawn from the table.

I.

Write down the cumulative frequency at $d=40$ and at $d=60$ .

[2]

II.

Estimate the median weekly training distance.

[3]

B

Use linear interpolation within classes.

I.

Estimate the interquartile range.

[3]

II.

Estimate the $90$ th percentile.

[1]

C

Use mid-interval values to estimate the mean weekly training distance, and then compare it with the median found in part (a)(ii). If you did not obtain a median, use $37.9$ km.

[3]

Question 40

HL • Paper 3

Hard

Calculator Permitted

HL • Paper 3

Hard

Calculator Permitted

A research group records the travel times, $t$ minutes, of $70$ ferry passengers.

Time, $t$ / min	$0\le t<10$	$10\le t<20$	$20\le t<30$	$30\le t<40$	$40\le t<50$	$50\le t<60$
Frequency	$4$	$9$	$17$	$22$	$13$	$5$

Time, $t$ [min]	Frequency
$0\le t<10$	4
$10\le t<20$	9
$20\le t<30$	17
$30\le t<40$	22
$40\le t<50$	13
$50\le t<60$	5

A

I.

State the modal class.

[1]

II.

Estimate the mean travel time.

[4]

B

I.

Construct the cumulative frequencies at the upper class boundaries.

[2]

II.

Using linear interpolation within the relevant classes, estimate the median and the interquartile range.

[4]

C

A later check finds one additional recorded travel time of $72$ minutes. Using your estimates from part (b)(ii), determine whether this value would be classified as an outlier. If you did not obtain an interquartile range in part (b)(ii), use $17.7$ minutes.

[4]

Question 41

HL • Paper 3

Hard

Calculator Permitted

HL • Paper 3

Hard

Calculator Permitted

A manufacturer measures the fill volume, $x$ ml, of bottles from two machines. For Machine A, the five-number summary is

$48,\,51,\,54,\,58,\,67$

and for Machine B it is

$44,\,50,\,53,\,56,\,60$

For Machine A, the mean is $54.8$ ml and the standard deviation is $5.10$ ml. A calibration changes each Machine A value to $y=1.02x-3$ .

Machine	Min [ml]	Q1 [ml]	Median [ml]	Q3 [ml]	Max [ml]
Machine A	48	51	54	58	67
Machine B	44	50	53	56	60

A

I.

Find the median, interquartile range and range for Machine A before calibration.

[3]

II.

Determine whether the maximum value for Machine A is an outlier.

[2]

B

I.

Find the mean and standard deviation of the calibrated Machine A values.

[2]

II.

Find the median and interquartile range of the calibrated Machine A values.

[2]

C

Using the summaries, compare the calibrated Machine A distribution with Machine B in terms of centre and spread.

[3]

Question 42

HL • Paper 3

Hard

Calculator Permitted

HL • Paper 3

Hard

Calculator Permitted

The lifetimes, $h$ hours, of a sample of components are grouped as follows.

Lifetime, $h$ hours	$0\le h<5$	$5\le h<10$	$10\le h<15$	$15\le h<20$	$20\le h<25$
Frequency	$6$	$p$	$18$	$12$	$4$

Using mid-interval values, the estimated mean lifetime is $11.5$ hours.

Lifetime [h]	Frequency
$0\le h<5$	6
$5\le h<10$	$p$
$10\le h<15$	18
$15\le h<20$	12
$20\le h<25$	4

A

I.

Find the value of $p$ .

[4]

II.

State the modal class.

[1]

III.

Explain why the mean found from this table is an estimate.

[1]

B

I.

Using $p=20$ , estimate the standard deviation of the lifetimes.

[4]

II.

Find the median class.

[1]

C

A component is described as unusually long-lasting if its lifetime is more than two estimated standard deviations above the estimated mean. Using your answers above, determine the smallest integer lifetime, in hours, that would be described as unusually long-lasting. If you did not obtain the standard deviation, use $5.39$ hours.

[3]

Question 43

HL • Paper 3

Hard

Calculator Permitted

HL • Paper 3

Hard

Calculator Permitted

Two farms record the masses, $m$ kg, of pumpkins harvested on the same day. The five-number summaries are shown.

Farm	Minimum [kg]	Q1 [kg]	Median [kg]	Q3 [kg]	Maximum [kg]
East	1.8	3.1	3.6	4.0	5.2
West	1.2	2.4	3.7	5.0	6.3

A

I.

Find the interquartile range for each farm.

[2]

II.

Find the range for each farm.

[2]

B

I.

Determine whether the maximum mass for West farm is an outlier.

[3]

II.

Comment on whether the West farm distribution may be approximately symmetric, using the five-number summary.

[2]

C

The farms want pumpkins with consistent masses close to $3.7$ kg. Evaluate which farm appears more suitable, based only on these summaries.

[4]

Question 44

HL • Paper 3

Hard

Calculator Permitted

HL • Paper 3

Hard

Calculator Permitted

A national park wants to estimate the mean number of hours spent by visitors on walking trails. Last year, visitor numbers were recorded by entrance.

Entrance	North	South	East	West
Visitors	$46000$	$28000$	$16000$	$10000$

A sample of $250$ visitors is required.

Entrance	Visitors
North	46000
South	28000
East	16000
West	10000

A

I.

Find the exact proportional sample size for each entrance.

[3]

II.

Name the sampling technique used in part (a)(i).

[1]

III.

State why a complete list of visitors for each entrance (stratum) would be useful.

[1]

B

I.

Explain why a quota sample with the same numbers as in part (a)(i) may still be biased.

[2]

II.

Give one example of a convenience sample in this context.

[1]

C

The park later finds that visitors leaving through the West entrance were less likely to respond because mobile reception was poor there. Discuss the possible effect on the estimate of the mean trail time.

[4]

Question 45

HL • Paper 1

Hard

Non Calculator

HL • Paper 1

Hard

Non Calculator

A data set $X$ has $n$ values $x_1,x_2,\ldots,x_n$ , mean $\mu$ and variance $\sigma^2$ . A new data set $Y$ is formed by

$y_i=3-2x_i,\quad i=1,2,\ldots,n$

A

I.

Show that the mean of $Y$ is $3-2\mu$ .

[3]

II.

Show that the variance of $Y$ is $4\sigma^2$ .

[4]

B

For a particular data set $X$ , $\mu=5$ , $\sigma^2=7$ , the median is $6$ and the interquartile range is $4$ .

I.

Find the mean and variance of $Y$ . If you did not obtain the results in part (a), use $\bar y=3-2\mu$ and $\operatorname{Var}(Y)=4\sigma^2$ .

[2]

II.

Find the median and interquartile range of $Y$ .

[3]

III.

Explain why the negative multiplier does not make the interquartile range negative.

[1]

Question 46

HL • Paper 1

Hard

Non Calculator

HL • Paper 1

Hard

Non Calculator

A continuous variable $x$ is recorded for $30$ observations and grouped as shown.

Class interval	$0\le x<10$	$10\le x<20$	$20\le x<30$	$30\le x<40$
Frequency	$3$	$p$	$q$	$5$

Using mid-interval values, the estimated mean is $22$ .

A

I.

Write down an equation involving $p$ and $q$ using the total frequency.

[1]

II.

Write down a second equation involving $p$ and $q$ using the estimated mean.

[2]

III.

Hence find $p$ and $q$ .

[3]

B

Use $p=8$ and $q=14$ for this part.

I.

Write down the modal class.

[1]

II.

Find the proportion of observations for which $x<30$ .

[2]

C

A coded variable $z$ is defined by $z=\frac{x-20}{10}$ .

I.

Find the estimated mean of $z$ .

[1]

II.

Given that the estimated standard deviation of $x$ is $9$ , find the estimated standard deviation of $z$ .

[1]

Question 47

SL • Paper 1

Hard

Non Calculator

SL • Paper 1

Hard

Non Calculator

For this question, take $Q_1$ and $Q_3$ to be the medians of the lower and upper halves of the ordered data, after excluding the overall median.

Consider the ordered data set

$4,\ 6,\ 8,\ 10,\ 12,\ 14,\ a$

where $a>14$ and $a$ is an integer.

A

I.

Find the median, $Q_1$ and $Q_3$ .

[3]

II.

Find the interquartile range.

[1]

B

I.

Find the upper outlier boundary.

[2]

II.

Find the least possible value of $a$ such that $a$ is an outlier.

[2]

C

I.

Explain why increasing $a$ beyond $27$ does not change the median or interquartile range.

[1]

II.

State which measure, the range or the interquartile range, is more affected by increasing $a$ .

[1]

Question 48

HL • Paper 1

Hard

Non Calculator

HL • Paper 1

Hard

Non Calculator

An ordered data set contains nine integer values:

$2,\ 4,\ 5,\ 7,\ 8,\ 10,\ 12,\ 13,\ M$

For this data set, the mean is $9$ .

A

I.

Find the value of $M$ .

[3]

II.

Write down the median.

[1]

B

For this question, take $Q_1$ and $Q_3$ to be the medians of the lower and upper halves of the ordered data, after excluding the overall median. Use $M=20$ for this part.

I.

Find $Q_1$ , $Q_3$ and the interquartile range.

[3]

II.

Determine whether $M=20$ is an outlier.

[1]

C

The value $M=20$ is replaced by an integer $R$ . The mean of the resulting nine values is $11$ .

I.

Find $R$ .

[2]

II.

State one measure from part (b)(i) that is unchanged when $M$ is replaced by $R$ .

[1]

Question 49

HL • Paper 1

Hard

Non Calculator

HL • Paper 1

Hard

Non Calculator

A researcher records the lifetimes, $t$ hours, of a sample of batteries from a production batch. The grouped frequency table is shown.

Lifetime, $t$ hours	$0\le t<20$	$20\le t<40$	$40\le t<60$	$60\le t<80$	$80\le t<100$
Frequency	$3$	$7$	$18$	$10$	$2$

A second sample from the same production line contains only batteries tested during the first hour after maintenance.

A

I.

Write down the modal class.

[1]

II.

Use mid-interval values to estimate the mean lifetime.

[4]

B

The researcher uses the grouped table to form cumulative frequencies.

I.

Find the cumulative frequency up to $t=40$ and up to $t=80$ .

[2]

II.

State the class interval containing the median.

[1]

C

A second sample from the same production line contains only batteries tested during the first hour after maintenance.

I.

Explain why this second sample may be biased as evidence about the whole production batch.

[2]

II.

Suggest a more appropriate sampling method and justify your choice.

[2]

Question 50

HL • Paper 2

Hard

Calculator Permitted

HL • Paper 2

Hard

Calculator Permitted

A researcher records the lengths, $l$ cm, of $50$ fish caught and released from a lake. The grouped frequency table is shown.

Length, $l$ / cm	$10\le l<15$	$15\le l<20$	$20\le l<25$	$25\le l<30$	$30\le l<35$	$35\le l<40$
Frequency	$4$	$9$	$a$	$14$	$8$	$3$

A

The total frequency is $50$ .

I.

Find the value of $a$ .

[2]

II.

Write down the modal class.

[1]

B

Use $a=12$ and mid-interval values.

I.

Estimate the mean length of the fish.

[2]

II.

Use your GDC to estimate the standard deviation of the lengths.

[2]

C

Use linear interpolation on the grouped data.

I.

Estimate the median length.

[2]

II.

Estimate the interquartile range.

[3]

D

A fish of length $46.2$ cm is caught the following day. If you did not obtain an interquartile range in part (c)(ii), use $9.74$ cm. Determine whether the fish is an outlier, giving a reason.

[2]

Question 51

HL • Paper 2

Hard

Calculator Permitted

HL • Paper 2

Hard

Calculator Permitted

A technician records the daily energy output, in kWh, of $24$ solar panels of the same model. For these $24$ values, the mean is $412$ , the standard deviation is $18.5$ , $Q_1=398$ and $Q_3=424$ .

A further recorded value of $490$ kWh is later found in the data file.

A

Use the original $24$ values.

I.

Find the upper outlier boundary.

[2]

II.

State whether $490$ kWh is an outlier. Give a reason.

[1]

B

Assume that $490$ kWh is added as a $25$ th value.

I.

Find the new mean.

[2]

II.

Given that the original standard deviation is the population standard deviation, find the new standard deviation.

[3]

C

The recorded value of $490$ kWh is found to be erroneous and is replaced by a corrected value $k$ kWh, so that the mean of all $25$ values remains $412$ kWh.

I.

Find $k$ .

[2]

II.

Find the standard deviation of all $25$ values after this correction.

[2]

III.

Explain why the standard deviation in part (c)(ii) is less than the original standard deviation.

[1]

Question 52

HL • Paper 2

Hard

Calculator Permitted

HL • Paper 2

Hard

Calculator Permitted

A city library system has $15000$ registered users in four age groups. The numbers of users are shown in the table.

Age group	$16$ to $25$	$26$ to $45$	$46$ to $65$	$66+$
Number of users	$4200$	$5600$	$3500$	$1700$

The library wants a sample of $300$ users to estimate the mean number of library visits per month.

A

A proportional stratified sample is planned.

I.

Determine the number of users to select from each age group.

[4]

II.

Find the sampling interval if a systematic sample of $300$ users is taken from the full list of $15000$ registered users.

[1]

B

The questionnaires returned from the stratified sample are summarized below.

Age group	$16$ to $25$	$26$ to $45$	$46$ to $65$	$66+$
Number returned	$70$	$91$	$63$	$20$
Mean visits per month	$5.8$	$4.6$	$3.2$	$2.5$

I.

Calculate the unweighted mean number of visits per month for the users who returned questionnaires.

[2]

II.

Calculate a weighted estimate of the mean number of visits per month for all registered users, using the population proportions of the four age groups.

[3]

C

Evaluate possible bias in the data collection.

I.

Explain why non-response may bias the unweighted respondent mean.

[2]

II.

Evaluate the risk that this systematic sampling method may be biased. Give one reason.

[1]

Question 53

HL • Paper 2

Hard

Calculator Permitted

HL • Paper 2

Hard

Calculator Permitted

A manufacturer measures the width, $x$ mm, of $30$ metal washers. The coded variable

$z=\frac{x-50}{2}$

is used. A GDC gives the mean of $z$ as $1.20$ and the standard deviation of $z$ as $0.850$ .

For the original widths, a GDC gives $Q_1=51.1$ , $Q_3=53.2$ and maximum $56.4$ .

The machine is adjusted so that each width is transformed to $y=0.96x+1.5$ , where $y$ is measured in mm.

A

Part (a): Use the coded variable.

I.

Find the mean width of the washers.

[2]

II.

Find the standard deviation and variance of the original widths.

[2]

B

Part (b): The machine is adjusted so that each width is transformed to $y=0.96x+1.5$ .

I.

Find the mean and standard deviation of the adjusted widths.

[2]

II.

Find the adjusted upper quartile and adjusted interquartile range.

[2]

C

Part (c): Use the $1.5\operatorname{IQR}$ rule to consider outliers.

I.

Determine whether the original maximum width $56.4$ mm is an outlier.

[2]

II.

Hence determine whether the adjusted value corresponding to $56.4$ mm is an outlier.

[2]

Question 54

HL • Paper 3

Hard

Calculator Permitted

HL • Paper 3

Hard

Calculator Permitted

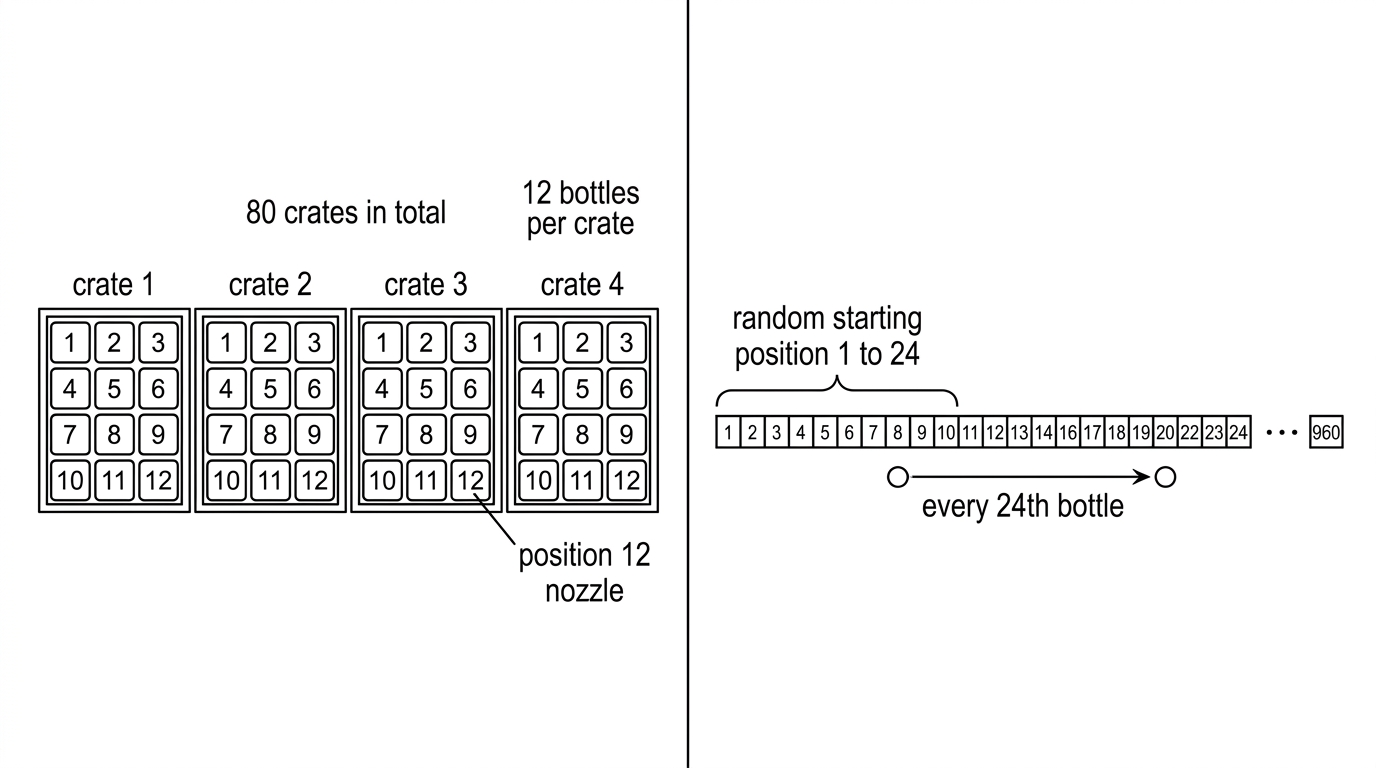

A drinks company checks bottles packed in crates of $12$ . There are $80$ crates, giving $960$ bottles in total. In every crate, the bottle in position $12$ is filled by the same nozzle, which is distinct from the nozzles filling the other positions. A quality controller takes a systematic sample of $40$ bottles from the ordered list of all bottles, choosing a random starting position from $1$ to $24$ and then selecting every $24$ th bottle.

A diagram of consecutive crates, each with 12 numbered bottle positions, and an ordered list showing a systematic sample taken at a fixed interval.

A

I.

Verify that the sampling interval is consistent with a sample of $40$ bottles.

[2]

II.

State the sampling method used.

[1]

B

I.

Find the probability that the systematic sample consists only of bottles from position $12$ in their crates.

[3]

II.

If the starting position is not $12$ or $24$ , how many bottles from position $12$ are selected?

[1]

III.

Explain why this systematic sample may be biased if the nozzle for position $12$ is poorly calibrated.

[1]

C

Suggest a more effective sampling method for this situation and justify your answer.

[4]

Question 55

HL • Paper 3

Hard

Calculator Permitted

HL • Paper 3

Hard

Calculator Permitted

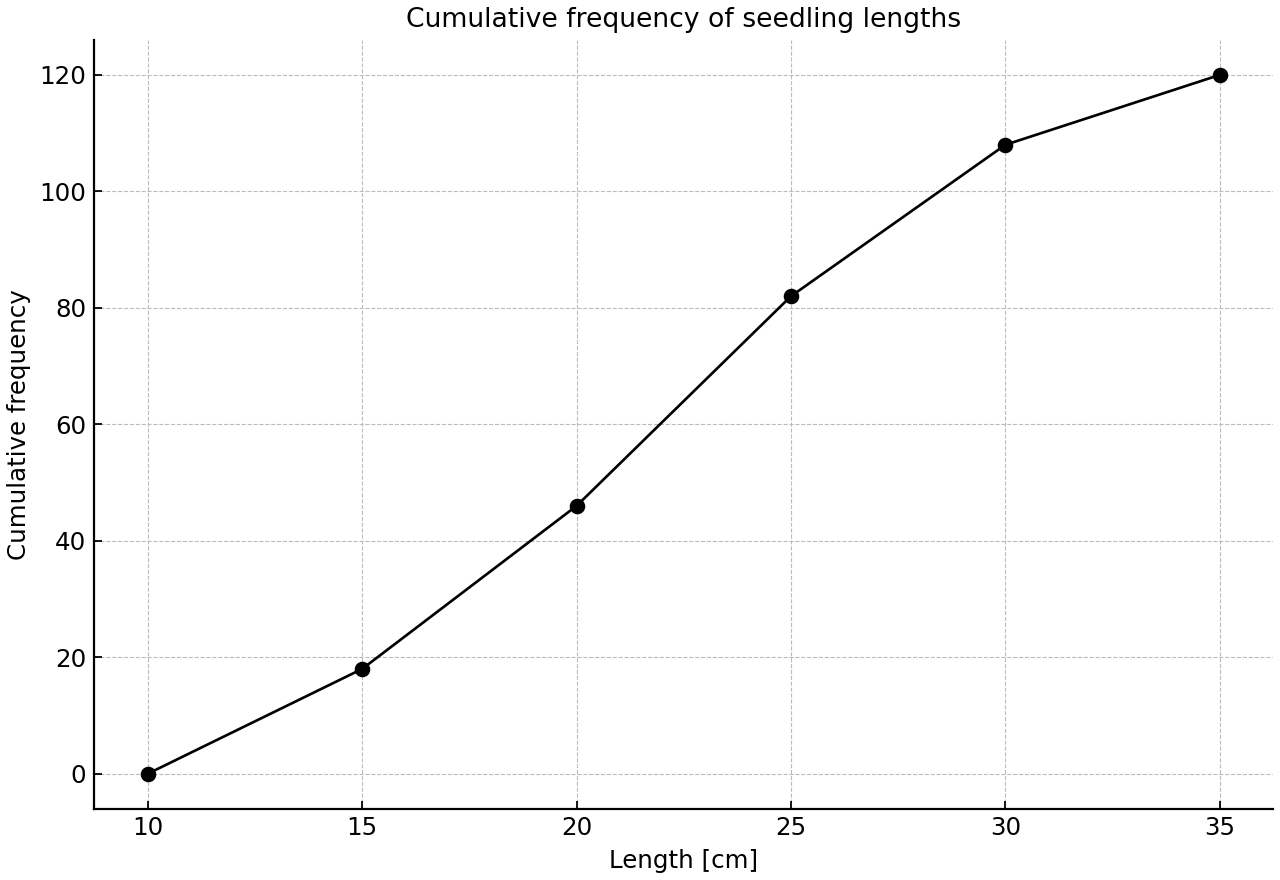

The cumulative frequency graph for the lengths, $l$ cm, of $120$ seedlings is approximated by joining the following points with straight line segments:

$(10,0),\ (15,18),\ (20,46),\ (25,82),\ (30,108),\ (35,120)$

Cumulative frequency graph of 120 seedling lengths joined by straight line segments.

A

I.

Use the graph approximation to estimate the median length.

[2]

II.

Estimate the $80$ th percentile.

[3]

B

I.

Use the cumulative frequencies to form a grouped frequency table with class intervals of width $5$ cm.

[3]

II.

Estimate the mean seedling length from this grouped table.

[2]

C

Seedlings shorter than $18$ cm are classified as small. Estimate the number of small seedlings, and state one limitation of this estimate.

[4]

Question 56

HL • Paper 3

Hard

Calculator Permitted

HL • Paper 3

Hard

Calculator Permitted

A data logger records $n$ temperature readings, in degrees Celsius. The readings have mean $\bar{x}=18.4$ and standard deviation $s=2.50$ . A further reading $a$ is then added to the data set.

A

I.

If $n=24$ and $a=31.0$ , find the new mean.

[2]

II.

Comment on whether $31.0$ is likely to have a larger effect on the mean or on the median.

[2]

III.

State one reason why the reading $31.0$ should not automatically be removed.

[1]

B

Let the original $n$ readings have mean $\bar{x}$ . Show that after adding one further reading $a$ , the new mean is

\bar{x}_{new}=\bar{x}+\frac{a-\bar{x}}{n+1}

[4]

C

I.

Hence, treating $18.9\,^\circ\text{C}$ as an exact target, find the formal value of $n$ for which adding $a=31.0$ would increase the mean from $18.4\,^\circ\text{C}$ to $18.9\, ^\circ\text{C}$ , and explain why this is not an allowable integer count. If you did not show the result in part (b), use it here.

[3]

II.

Explain why the answer in part (a)(i), rounded to $3$ significant figures, is consistent with your result in part (c)(i).

[3]

Question 57

HL • Paper 3

Hard

Calculator Permitted

HL • Paper 3

Hard

Calculator Permitted

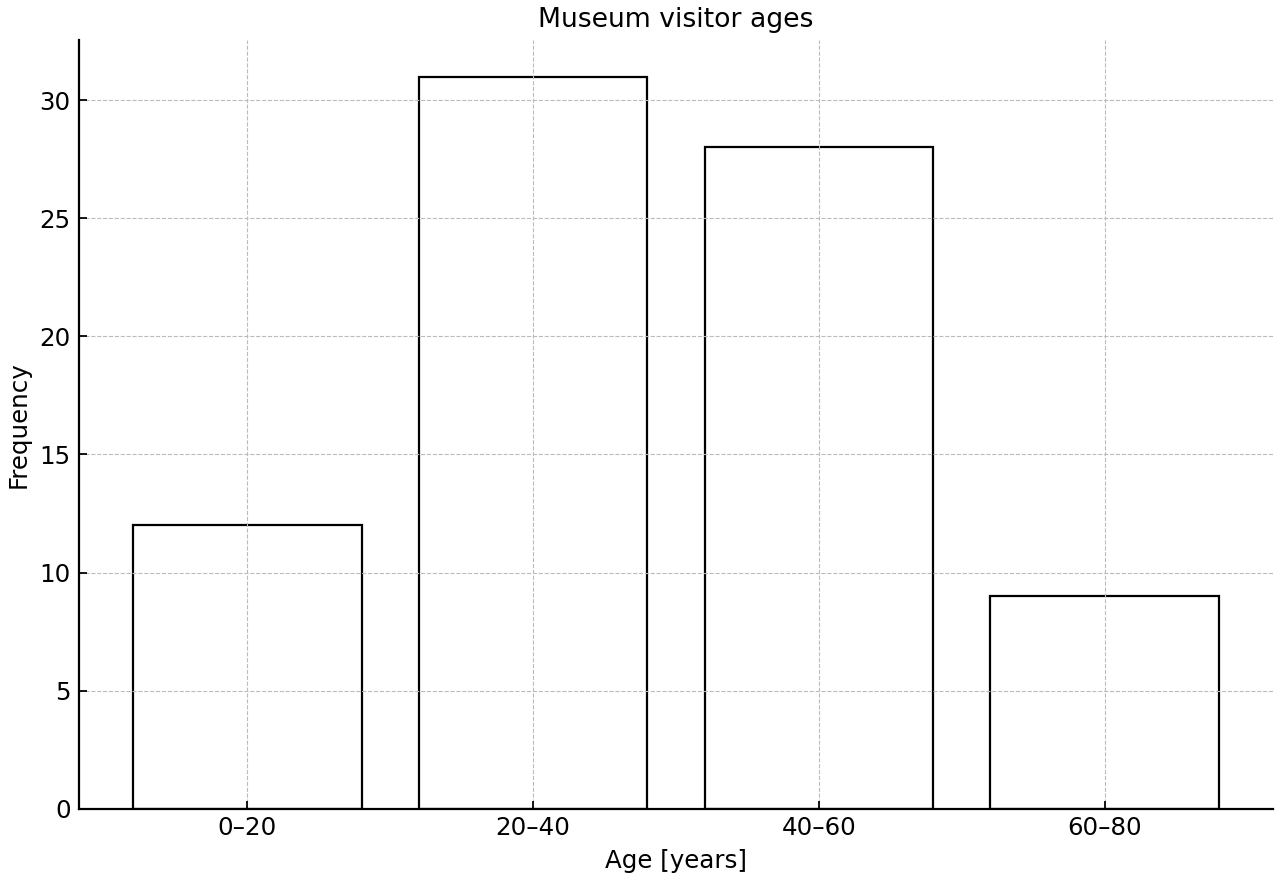

A museum records the ages, $x$ years, of visitors during one afternoon. The ages are grouped in equal class intervals.

Age $x$ / years	$0\le x<20$	$20\le x<40$	$40\le x<60$	$60\le x<80$
Frequency	$12$	$31$	$28$	$9$

Grouped ages of museum visitors in equal 20-year classes.

A

I.

Estimate the mean age.

[3]

II.

Estimate the standard deviation of the ages.

[2]

B

I.

Determine the class containing the median.

[2]

II.

Estimate the median using linear interpolation.

[2]

C

A publicity report states that the typical visitor is about $39$ years old. Evaluate this statement using your results.

[4]

Question 58

HL • Paper 2

Hard

Calculator Permitted

HL • Paper 2

Hard

Calculator Permitted

A data set of breaking strengths, $x$ newtons, for ceramic samples has five-number summary

$25,32,36,41,60$ ,

where the values are the minimum, lower quartile, median, upper quartile and maximum respectively.

A new variable is defined by $y=0.8x+12$ .

A

Use the five-number summary for $x$ .

I.

Find the interquartile range and the upper outlier boundary for $x$ .

[2]

II.

Determine whether the maximum value is an outlier.

[2]

B

Find the five-number summary for $y$ .

[3]

C

Consider a general linear transformation $y=ax+b$ , where $a\ne 0$ .

I.

Justify why the interquartile range of $y$ is $|a|$ times the interquartile range of $x$ .

[2]

II.

Hence state why an outlier remains an outlier under any transformation $y=ax+b$ , where $a\ne 0$ .

[1]

Question 59

HL • Paper 3

Hard

Calculator Permitted

HL • Paper 3

Hard

Calculator Permitted

Two laboratories measure the same chemical concentration, $x$ mg l $^{-1}$ , using different instruments. Laboratory A has $30$ readings with mean $42.0$ and standard deviation $3.20$ . Laboratory B has $20$ readings with mean $45.0$ and standard deviation $4.10$ . Treat each laboratory data set as a population.

A

I.

Find the mean of the combined $50$ readings.

[2]

II.

Find the combined standard deviation.

[4]

B

I.

Laboratory B discovers that each of its readings was $1.5$ mg l $^{-1}$ too high. Find the corrected mean and standard deviation for Laboratory B.

[2]

II.

Find the corrected combined mean.

[2]

III.

Explain why subtracting $1.5$ from every Laboratory B reading does not change its standard deviation.

[1]

C

After correction, a single combined mean is reported. Discuss one advantage and one limitation of reporting only this value.

[4]

Question 60

HL • Paper 3

Hard

Calculator Permitted

HL • Paper 3

Hard

Calculator Permitted

A data set $X$ consists of ordered values $x_1,x_2,\ldots,x_n$ with mean $\bar{x}$ , variance $\\sigma^2$ , median $M$ , lower quartile $Q_1$ and upper quartile $Q_3$ . A new data set $Y$ is formed by $y_i=ax_i+b$ , where $a>0$ .

A

I.

Show that the mean of $Y$ is $a\bar{x}+b$ .

[3]

II.

Show that the standard deviation of $Y$ is $a\sigma$ .

[3]

B

I.

Explain why the median of $Y$ is $aM+b$ .

[2]

II.

Deduce an expression for the interquartile range of $Y$ .

[2]

C

A set of exam scores has mean $62$ , standard deviation $8$ , median $64$ and interquartile range $12$ . A school reports scaled scores using $y=1.25x-10$ . Use the results above to find the mean, standard deviation, median and interquartile range of the scaled scores. If you did not prove the results above, you may still use them.

[5]
