4.1 Water systems

Practice exam-style IB ESS questions for Water systems, aligned with the syllabus and grouped by topic.

Verified by Veronica
Verified by Veronica
Paper
Difficulty
Status
Level

This content can't be printed from the browser. Use Export PDF with Pro for an offline copy.

Question 1
SL • Paper 2
Easy
Calculator Permitted
SL • Paper 2
Easy
Calculator Permitted

A

the largest global water store and the two largest non-ocean water stores.

[3]
Question 2
SL • Paper 2
Easy
Calculator Permitted
SL • Paper 2
Easy
Calculator Permitted

A

how solar radiation and gravity drive movements of water in the hydrosphere.

[3]
Question 3
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

Figure 1 shows the approximate distribution of water among the main stores in the global hydrological cycle.

Approximate distribution of water among the main global hydrological stores; values are rounded.

Water storeApproximate share of global water / %
Oceans96.5%96.5\%
Glaciers and ice caps1.7%1.7\%
Groundwater1.7%1.7\%
Surface freshwater0.02%0.02\%
Atmosphere0.001%0.001\%
Organisms0.0001%0.0001\%
A

the largest water store shown in Figure 1.

[1]
B

the approximate percentage of global water stored outside the oceans.

[1]
C

how many times greater the surface freshwater store is than the atmospheric store.

[2]
D

why the small atmospheric store is nevertheless important to the hydrological cycle.

[1]
Question 4
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

A

a systems diagram connecting the atmosphere, ocean and surface freshwater stores. Include and evaporation, precipitation and streamflow.

[4]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 5
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

A

between infiltration and percolation.

[2]
B

between advection and sublimation.

[2]
Question 6
SL • Paper 1
Medium
Calculator Permitted
SL • Paper 1
Medium
Calculator Permitted

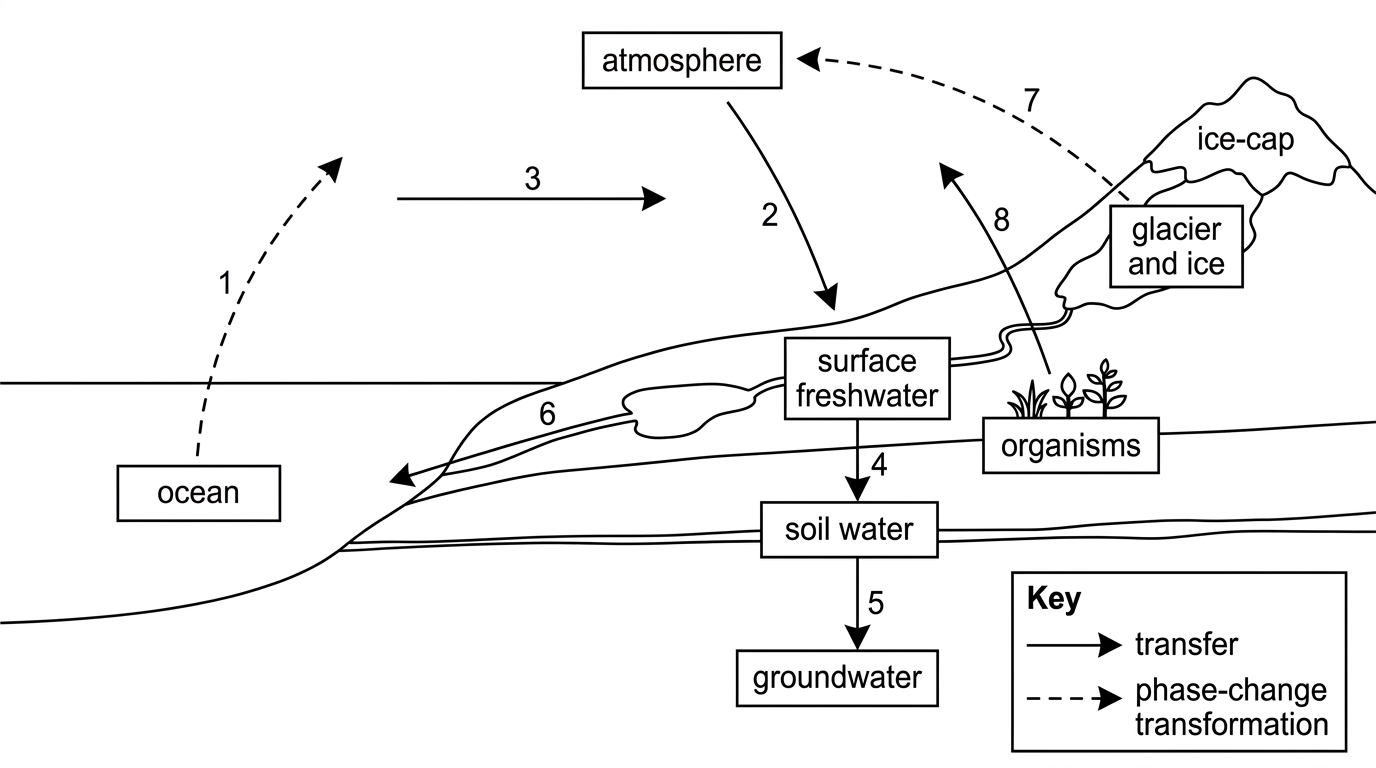

Figures 2(a) and 2(b) represent the global hydrological cycle and the relative sizes of its water stores.

Approximate relative sizes of selected global water stores.

Water storeShare of global water / %\%
Oceans96.5%96.5\%
Glaciers and ice caps1.7%1.7\%
Groundwater1.7%1.7\%
Surface freshwater0.02%0.02\%
Atmosphere0.001%0.001\%
Organisms0.0001%0.0001\%
A

Using Figure 2(a), the flows numbered 4, 5 and 7.

[3]
B

how many times larger the glacier and ice-cap store is than the surface freshwater store.

[2]
C

between infiltration and percolation.

[2]
D

how solar radiation and gravity maintain the flows shown in Figure 2(a).

[3]
E

why the size of a water store does not necessarily indicate the rate at which water cycles through it.

[2]
Question 7
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

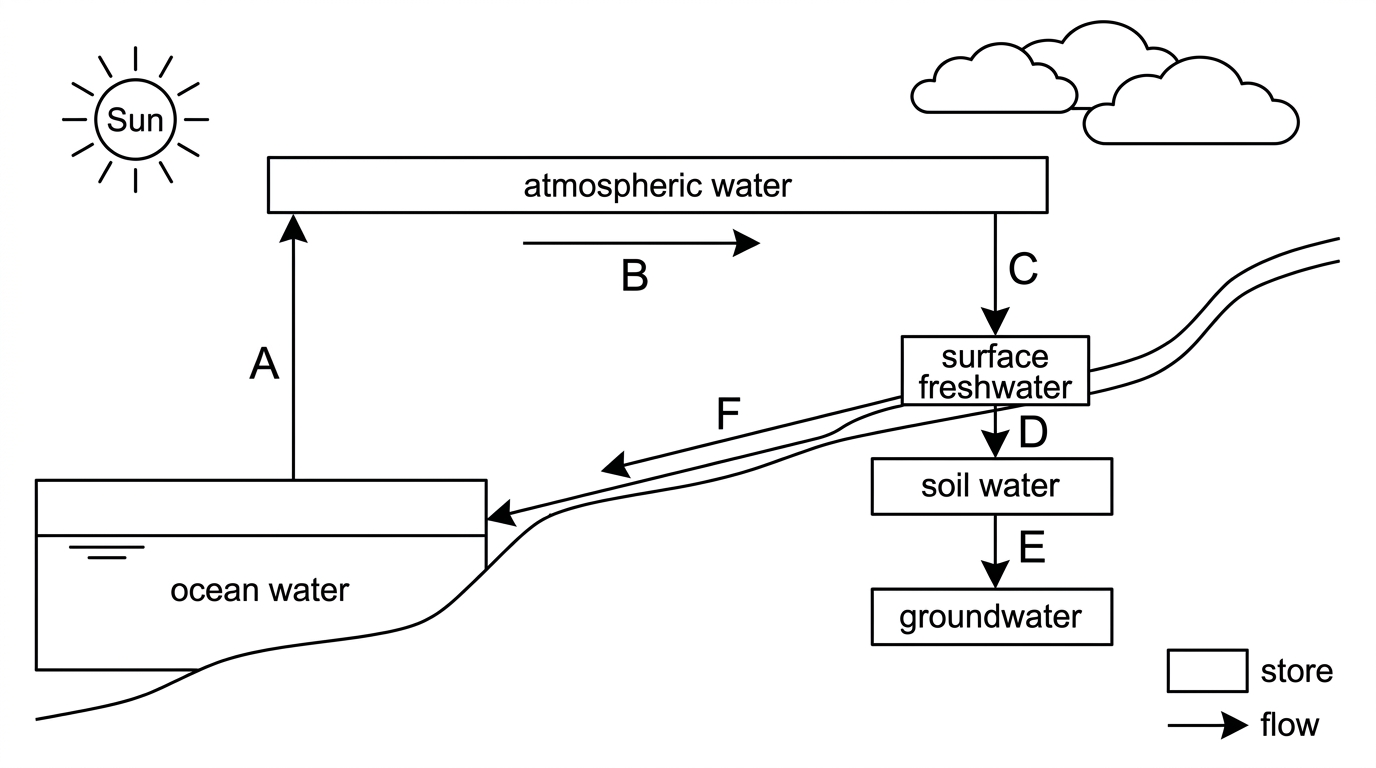

Figure 4 is a simplified systems diagram showing one route taken by water through the hydrological cycle.

A

flows A and B.

[2]
B

between flows D and E.

[2]
C

how solar radiation and gravity drive the route A–B–C–F shown in Figure 4.

[2]
Question 8
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

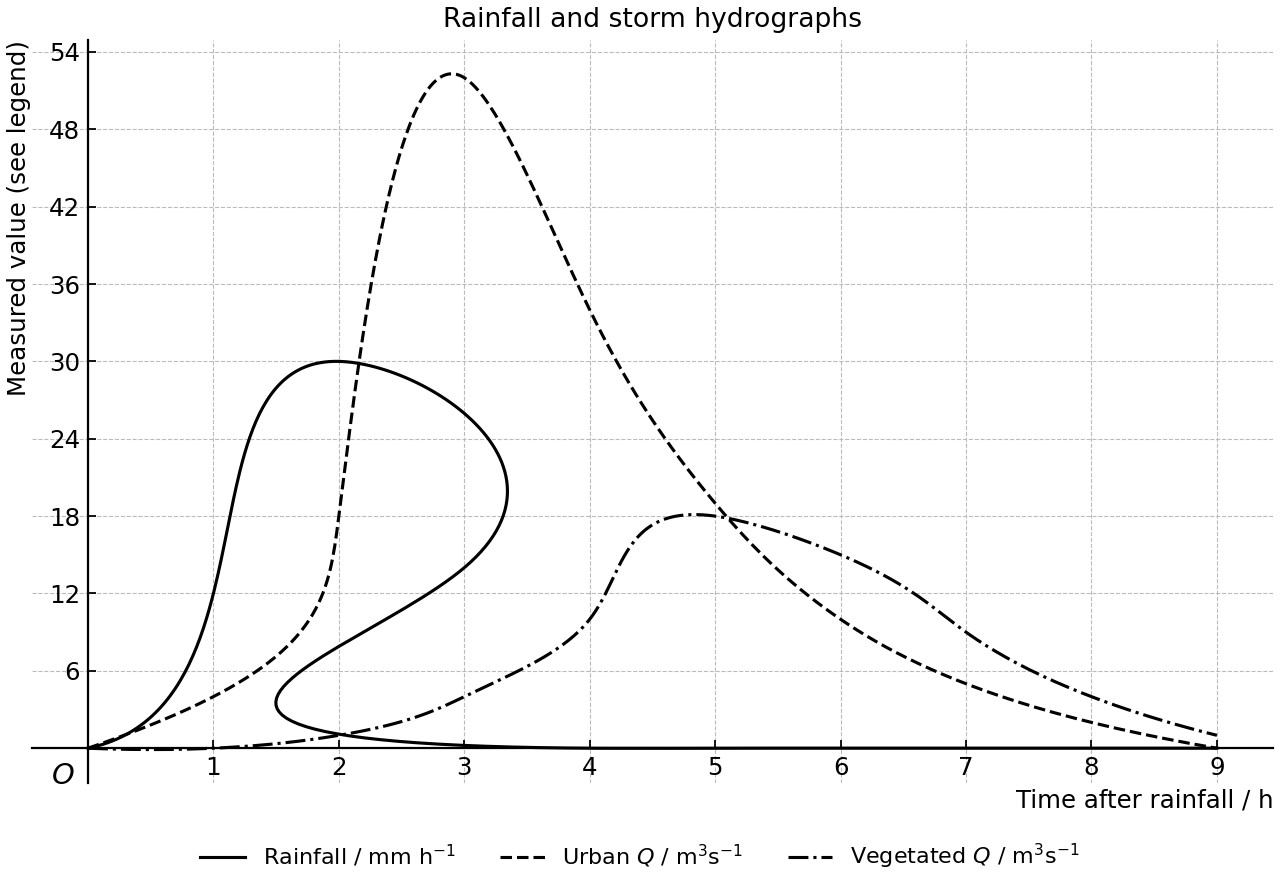

Figure 1 compares river responses to the same rainfall event before and after extensive urbanization of a drainage basin. The peak rainfall intensity occurred at t=0 ht=0\ \text{h} in both cases. For this question, lag time is measured from peak rainfall to peak river discharge.

A

the change in lag time following urbanization.

[1]
B

the change in the storm hydrograph following urbanization.

[3]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 9
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

A lake receives natural inputs totalling 9.4 m3 s−19.4\ \text{m}^3\,\text{s}^{-1}. Its natural outputs total 6.1 m3 s−16.1\ \text{m}^3\,\text{s}^{-1}.

A

the maximum human abstraction rate that would maintain the lake at steady .

[2]
B

the rate of change of the lake's water store if abstraction is increased to 4.0 m3 s−14.0\ \text{m}^3\,\text{s}^{-1}.

[1]
Question 10
HL • Paper 2
Medium
Calculator Permitted
HL • Paper 2
Medium
Calculator Permitted

A

how four properties of water support aquatic or terrestrial life.

[4]
Question 11
SL • Paper 1
Medium
Calculator Permitted
SL • Paper 1
Medium
Calculator Permitted

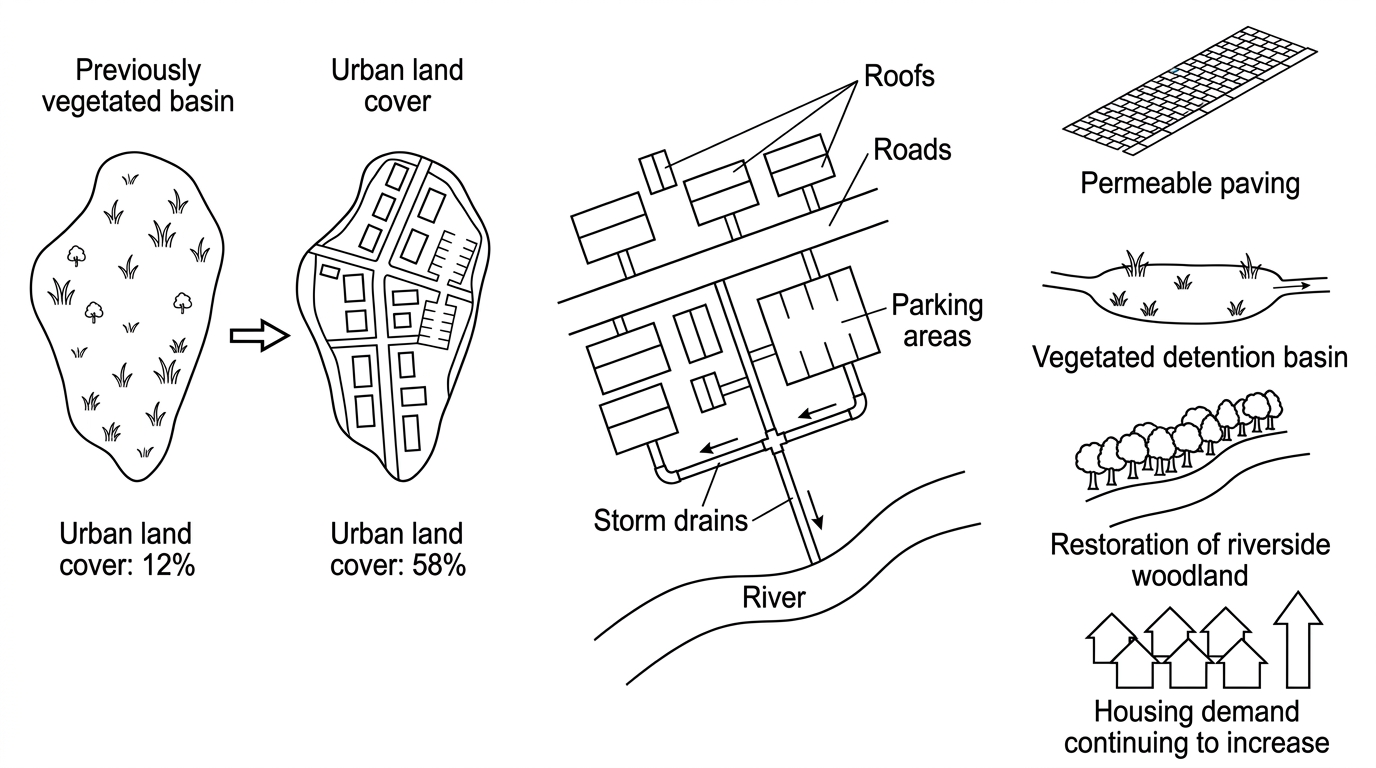

The town of Selvara expanded across part of the previously vegetated Luma drainage basin. Figure 1 compares river responses to the same rainfall event before and after urbanization.

Figure 1(a). Hourly rainfall and river discharge for the same 30 mm rainfall event before and after urbanization in the Luma drainage basin.

Time after rainfall begins / h\text{h}Rainfall / mm h−1\text{mm h}^{-1}Discharge before urbanization / m3 s−1\text{m}^3\,\text{s}^{-1}Discharge after urbanization / m3 s−1\text{m}^3\,\text{s}^{-1}
00108
18108
214108
361030
4212100
501870
602848
703634
804025
903619
1003015
1102412
1201910
130159
140128
150118
160108

A

the peak discharge after urbanization and the lag time between peak rainfall and peak discharge after urbanization.

[2]
B

the percentage increase in peak discharge following urbanization. Show your working.

[2]
C

how urbanization produced the changes in the storm hydrograph.

[4]
D

the proposed measures for reducing flash-flood risk in the Luma drainage basin.

[4]
Question 12
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

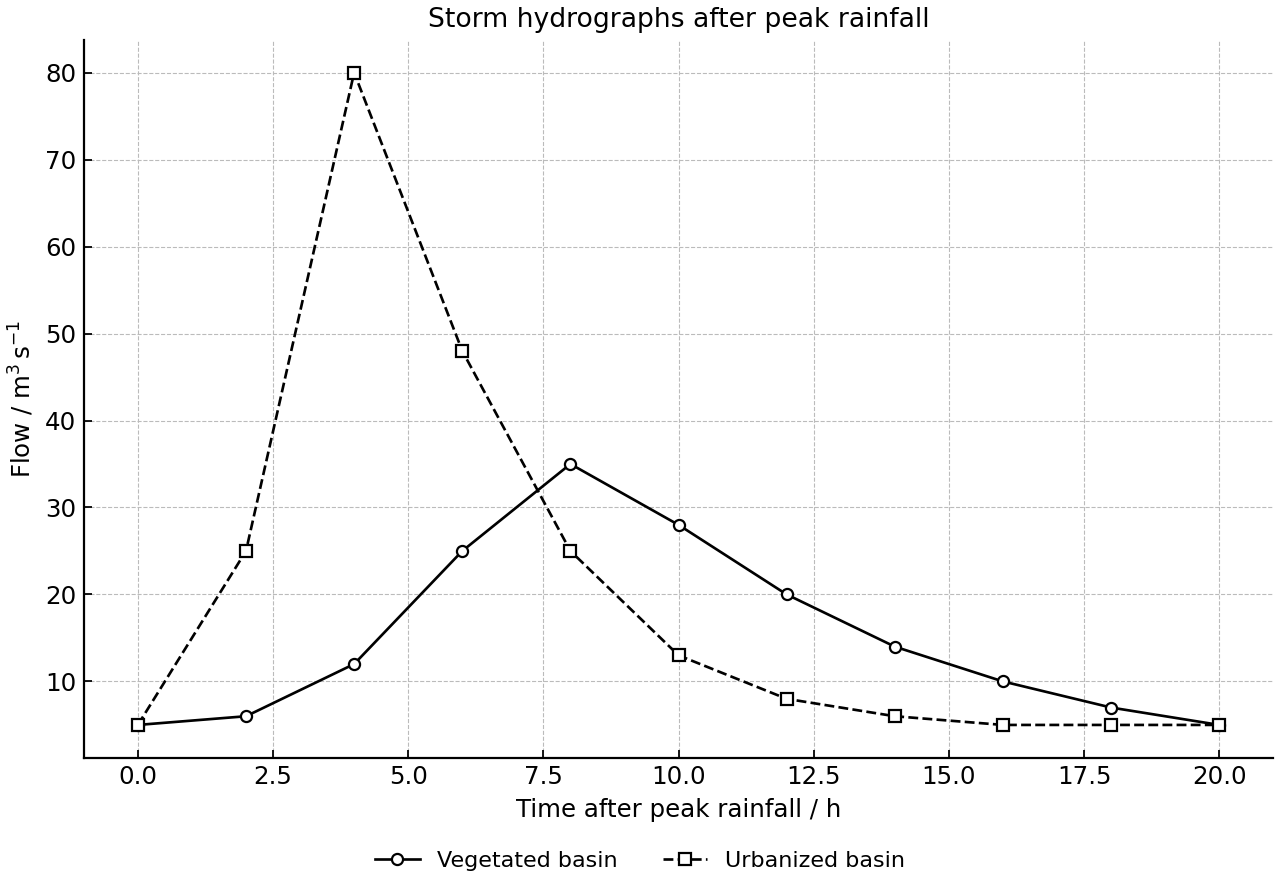

The same rainfall event occurred over two drainage basins of equal area. One basin was mainly vegetated and the other was highly urbanized. Figure 2 shows the rainfall and river-discharge responses.

A

the peak discharge and lag time of the urbanized basin.

[2]
B

the percentage by which the peak discharge of the urbanized basin exceeds that of the vegetated basin.

[2]
C

the differences between the two hydrographs.

[3]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 13
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

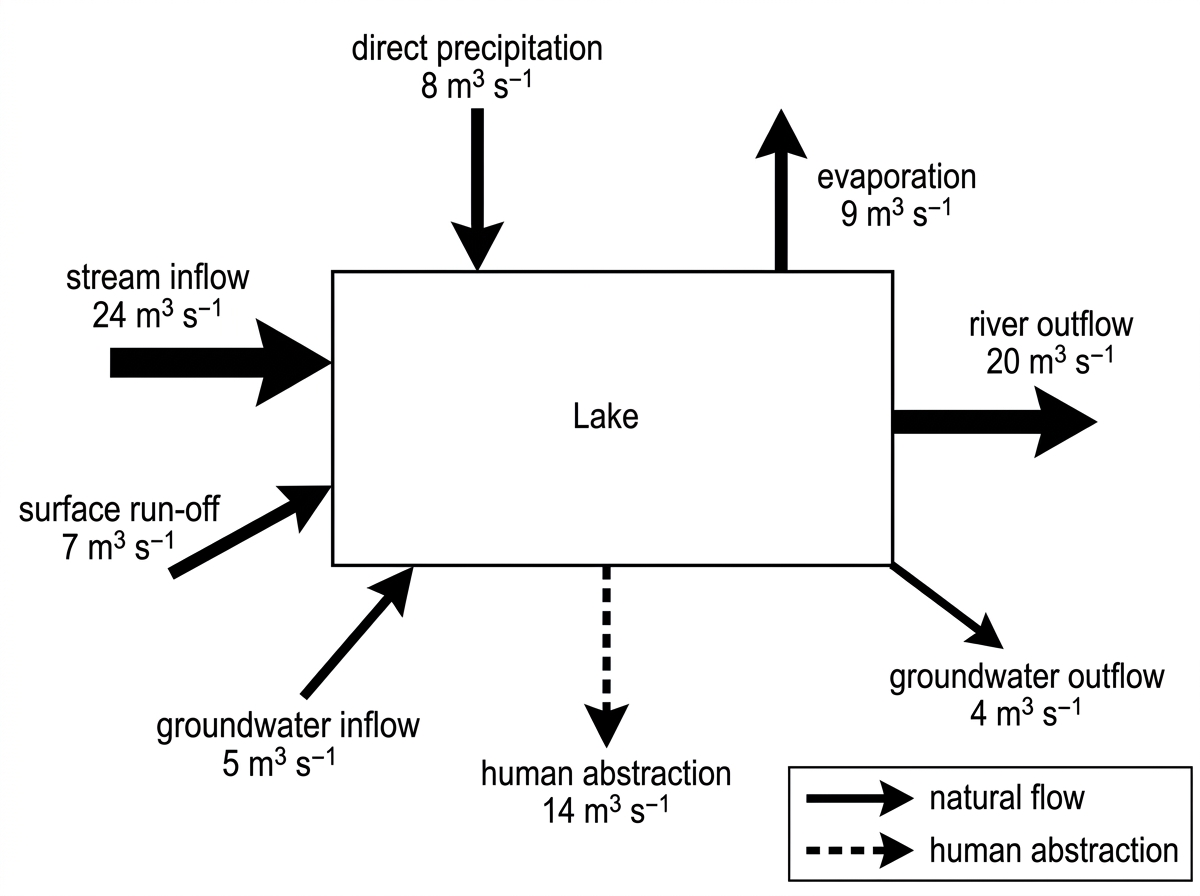

Figure 3 shows the mean annual water flows for a lake. Assume that the flow rates remain constant over the period considered.

A

the total natural input rate and the total natural output rate for the lake.

[2]
B

the maximum human-abstraction rate that would maintain the lake at steady .

[2]
C

the change in the lake's stored water volume over one day at the abstraction rate shown in Figure 3.

[2]
Question 14
HL • Paper 2
Medium
Calculator Permitted
HL • Paper 2
Medium
Calculator Permitted

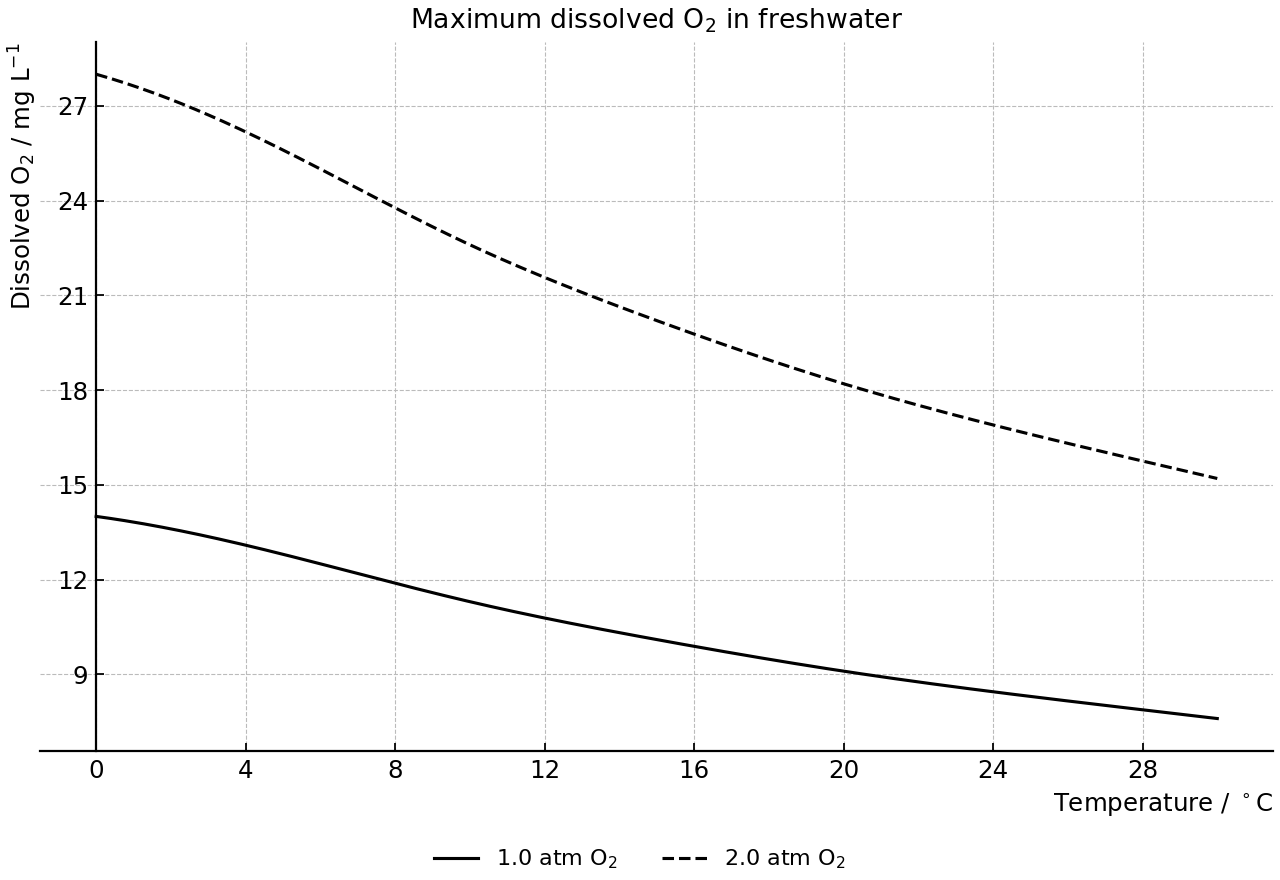

Figure 5 shows the maximum concentration of dissolved oxygen in freshwater at different temperatures and pressures.

A

the percentage decrease in maximum dissolved oxygen concentration between 5 ∘C5\,^{\circ}\text{C} and 25 ∘C25\,^{\circ}\text{C} at an oxygen partial pressure of 1.0 atmosphere.

[2]
B

the effect of doubling oxygen partial pressure at 25 ∘C25\,^{\circ}\text{C}.

[1]
C

how increasing water temperature could affect organisms in a freshwater ecosystem.

[3]
Question 15
HL • Paper 2
Medium
Calculator Permitted
HL • Paper 2
Medium
Calculator Permitted

A

why the oceans currently act as a carbon sink and why the strength of this sink may decrease.

[3]
Question 16
HL • Paper 2
Medium
Calculator Permitted
HL • Paper 2
Medium
Calculator Permitted

A

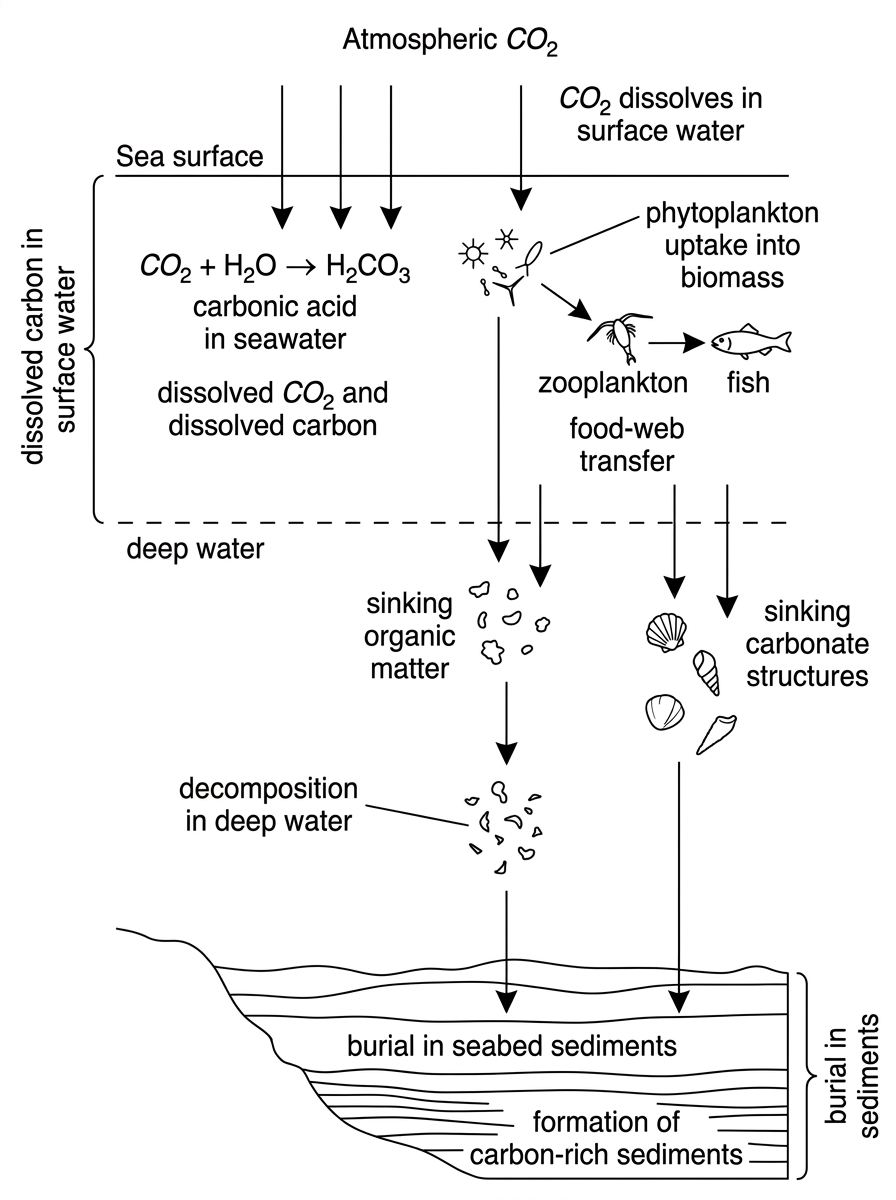

how short-term ocean carbon sequestration can cause ocean acidification.

[2]
B

how carbon can be sequestered in the ocean over geological timescales.

[2]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 17
HL • Paper 2
Medium
Calculator Permitted
HL • Paper 2
Medium
Calculator Permitted

A

why a freshwater lake freezes from the surface downwards.

[3]
B

one way in which the surface ice supports the survival of the freshwater ecosystem.

[1]
Question 18
HL • Paper 2
Medium
Calculator Permitted
HL • Paper 2
Medium
Calculator Permitted

A

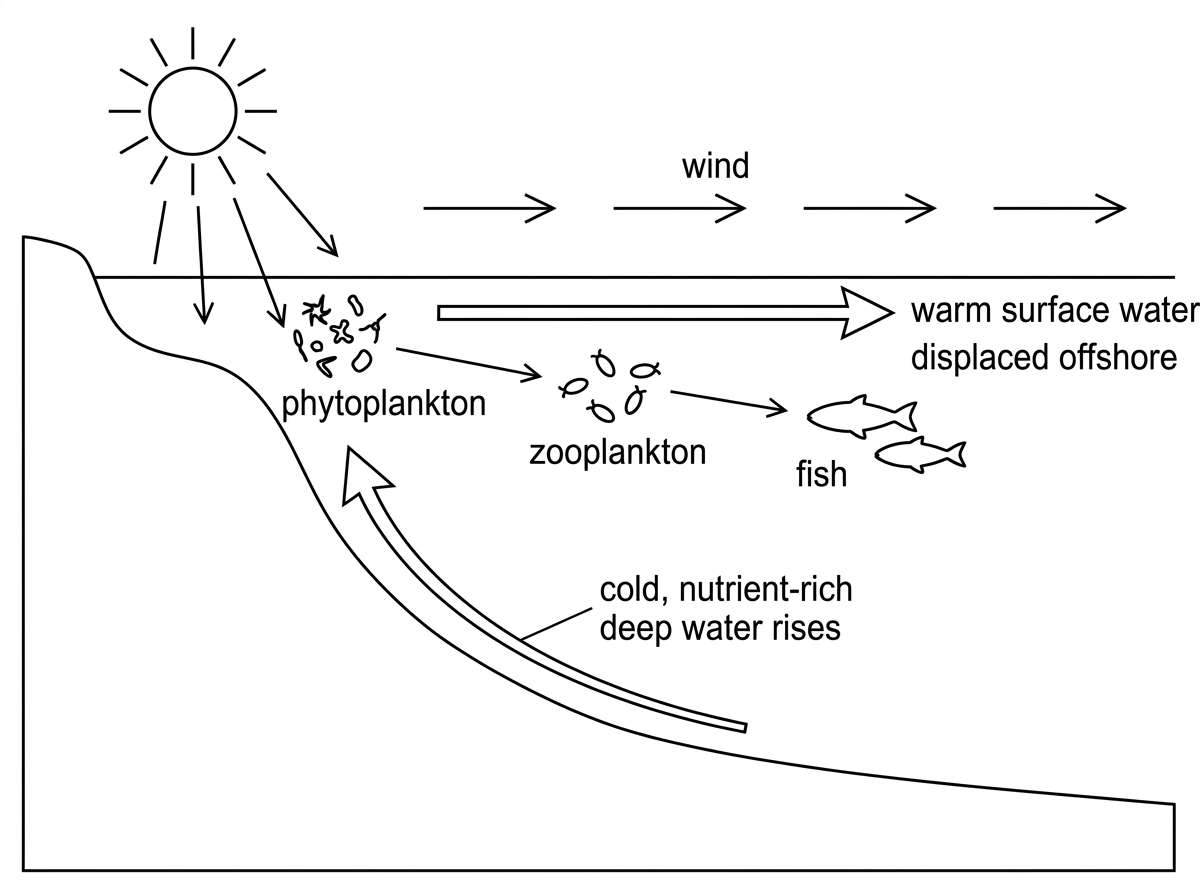

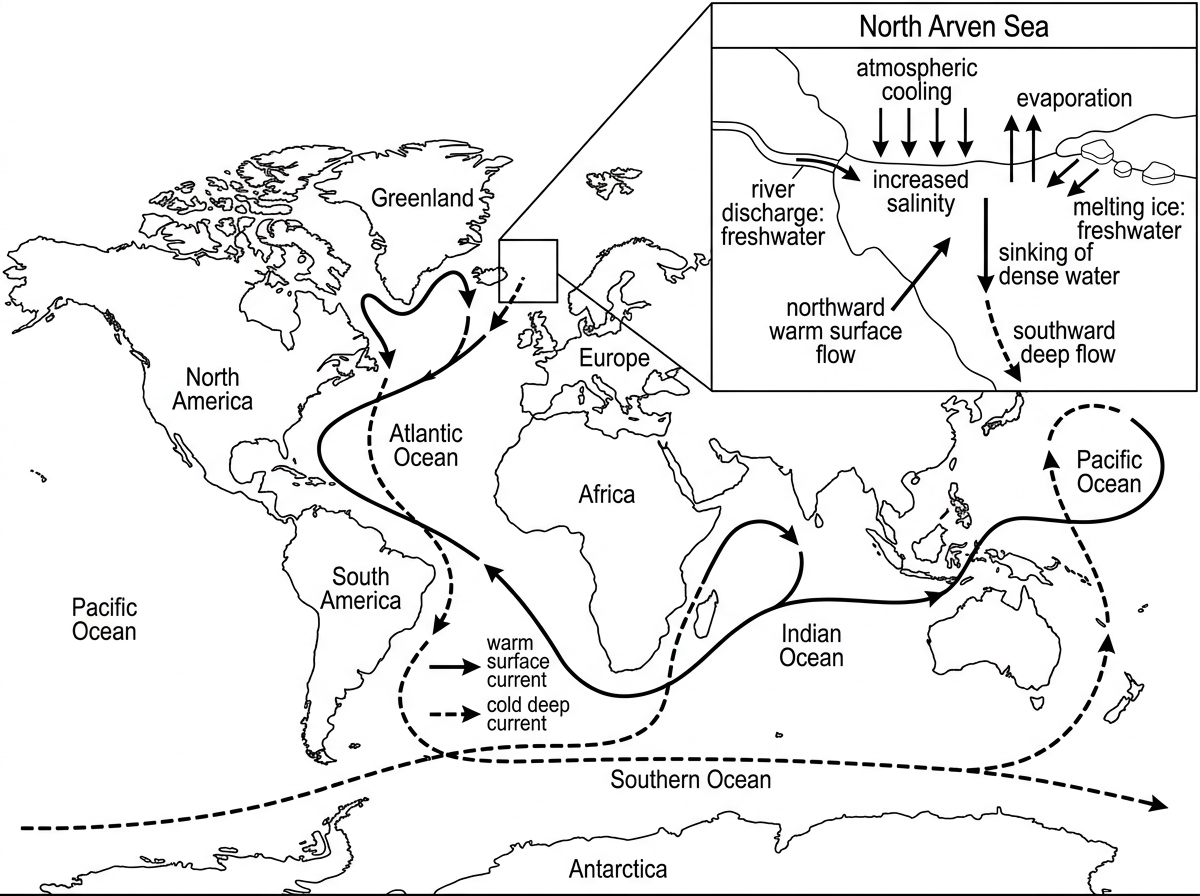

how coastal upwelling can increase marine productivity.

[2]
B

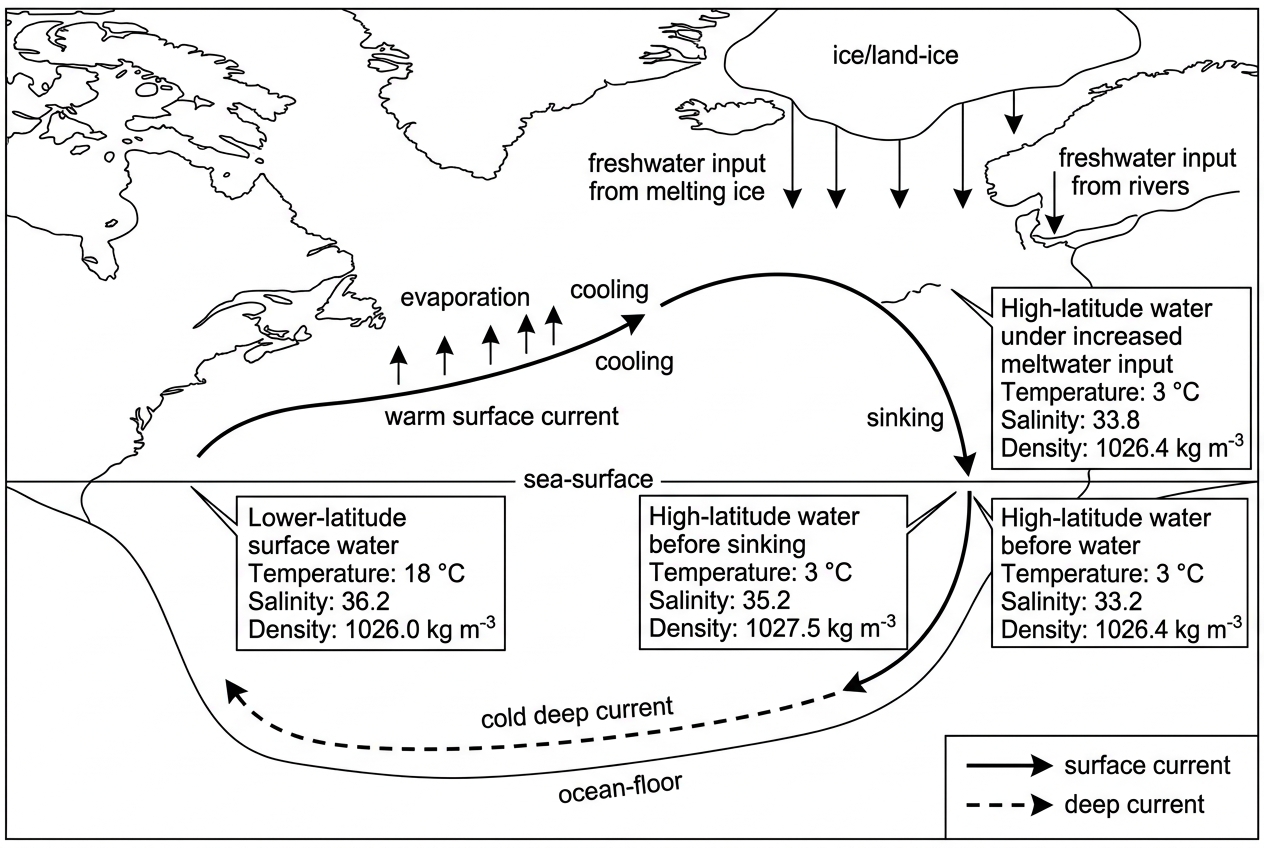

how temperature and salinity create a deep current in the North Atlantic thermohaline circulation.

[2]
Question 19
SL • Paper 1
Hard
Calculator Permitted
SL • Paper 1
Hard
Calculator Permitted

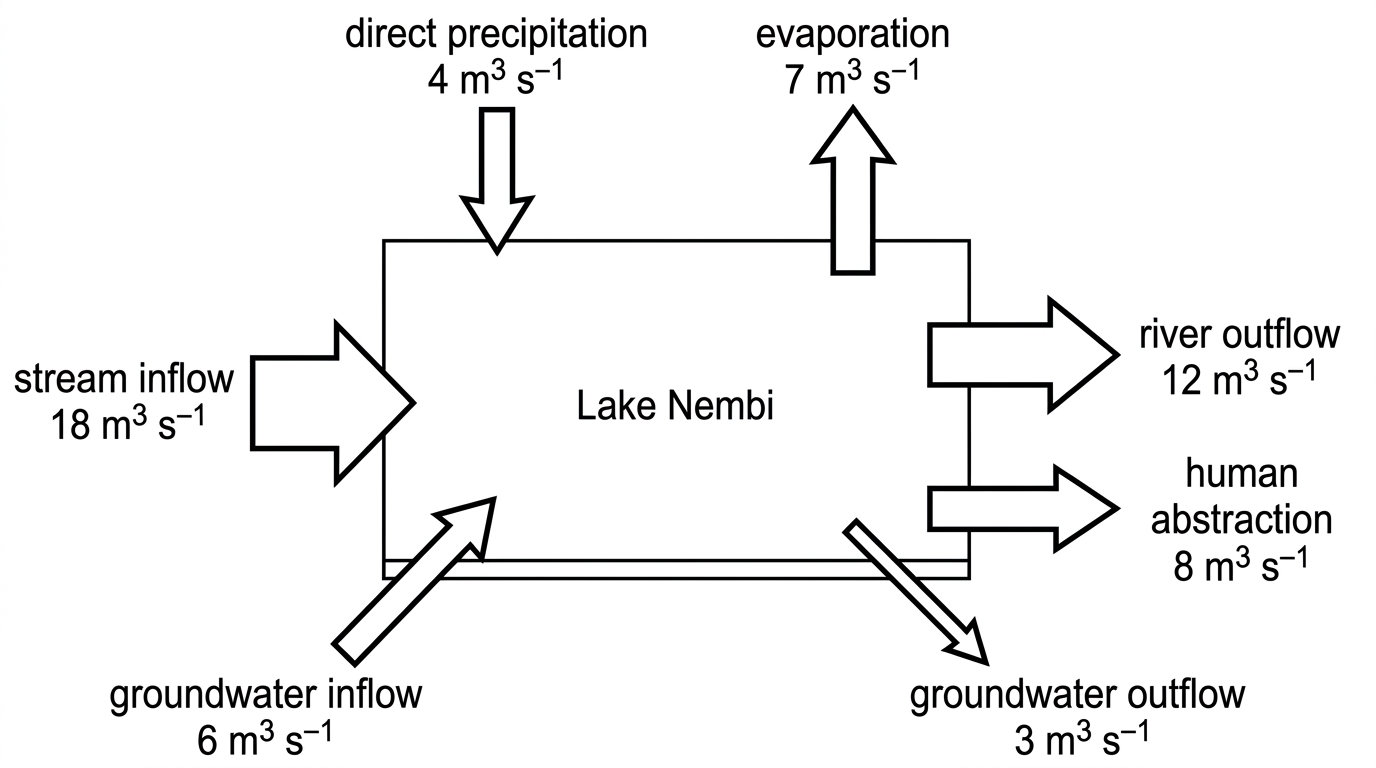

Lake Nembi supplies water to nearby settlements. Figure 3 shows the lake's mean annual water balance. Assume that one year contains 31 536 000 seconds.

A

the mean annual rate available for abstraction if the lake is to remain at steady .

[2]
B

the annual change in the volume of Lake Nembi at the current abstraction rate. Give the sign and units.

[3]
C

why a water body at steady is not a static system.

[3]
D

the use of the mean annual water balance to set a sustainable abstraction limit for Lake Nembi.

[4]
Question 20
SL • Paper 1
Hard
Calculator Permitted
SL • Paper 1
Hard
Calculator Permitted

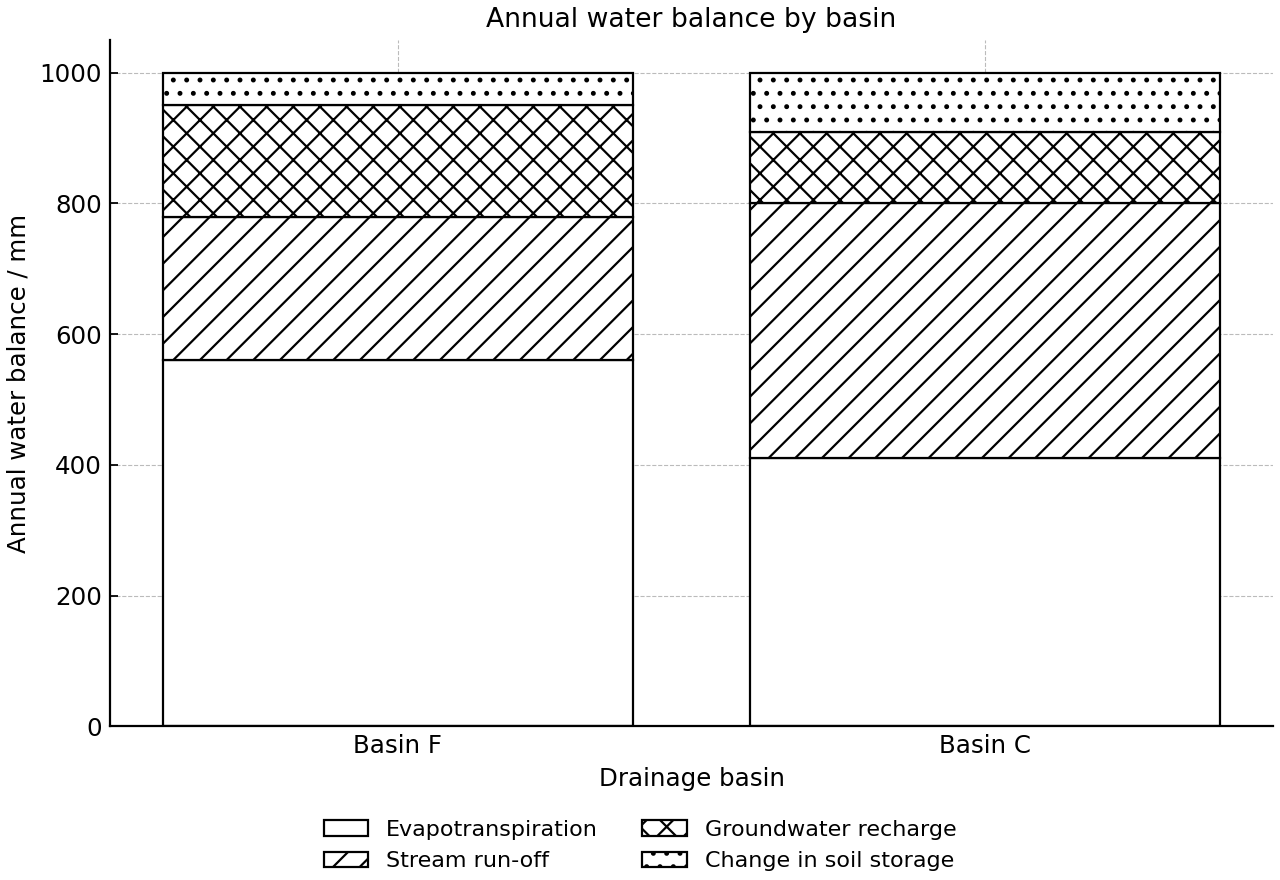

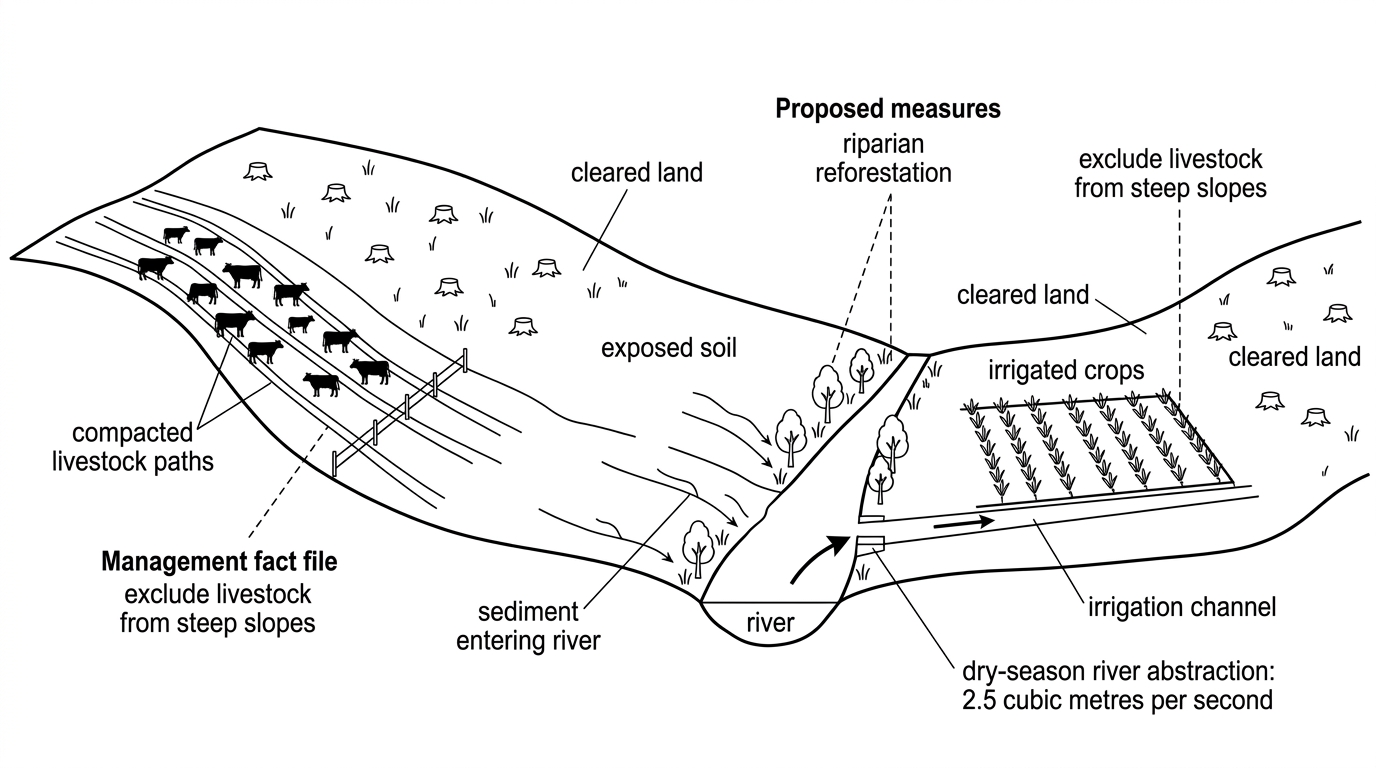

Two neighbouring agricultural drainage basins received similar annual precipitation. Basin F retained native forest, while Basin C was cleared for grazing and later used for irrigated crops.

A

the run-off coefficient for Basin C using annual stream run-off as a percentage of annual precipitation.

[2]
B

two differences between the annual water balances of Basin F and Basin C.

[2]
C

how forest clearance and livestock grazing may account for the differences in run-off and groundwater recharge.

[4]
D

the proposed measures for improving the sustainability of water management in Basin C.

[5]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 21
HL • Paper 1
Hard
Calculator Permitted
HL • Paper 1
Hard
Calculator Permitted

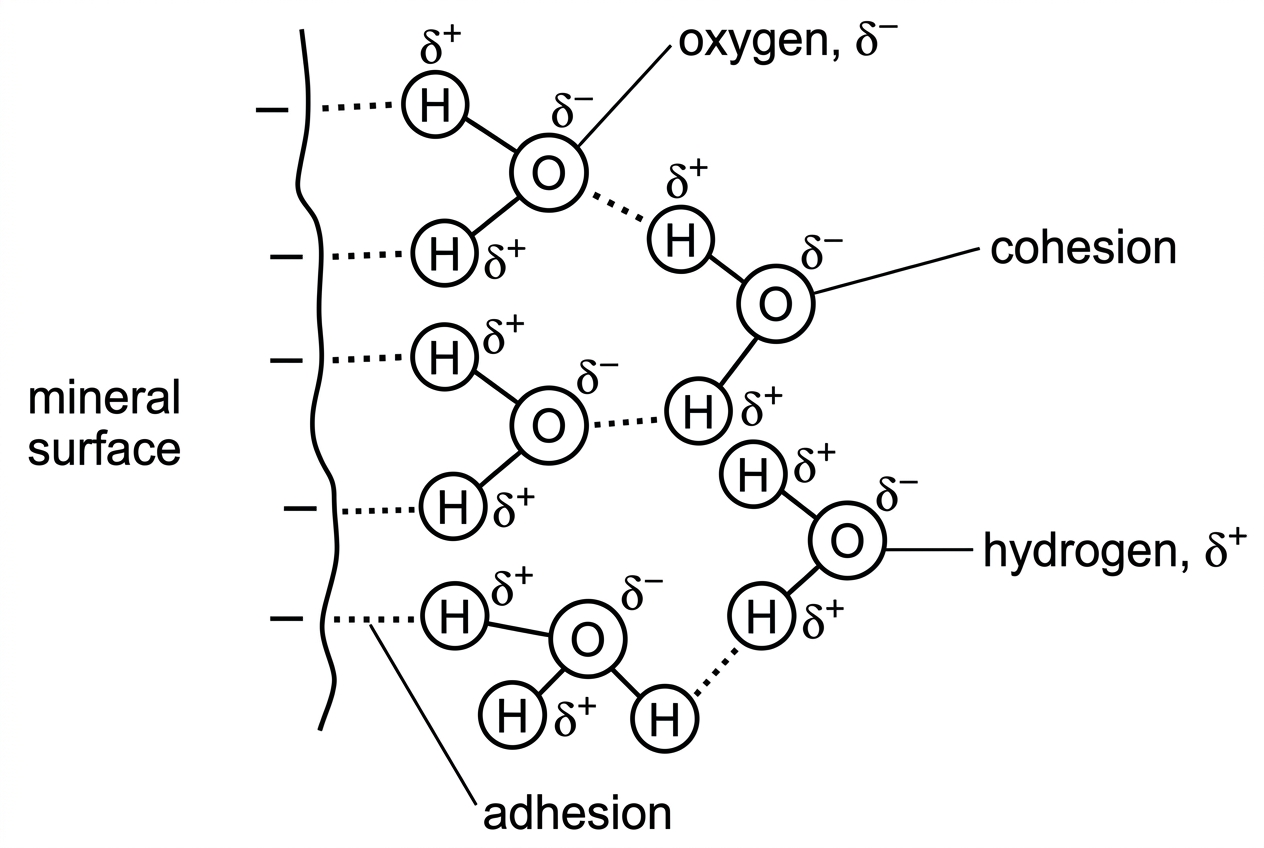

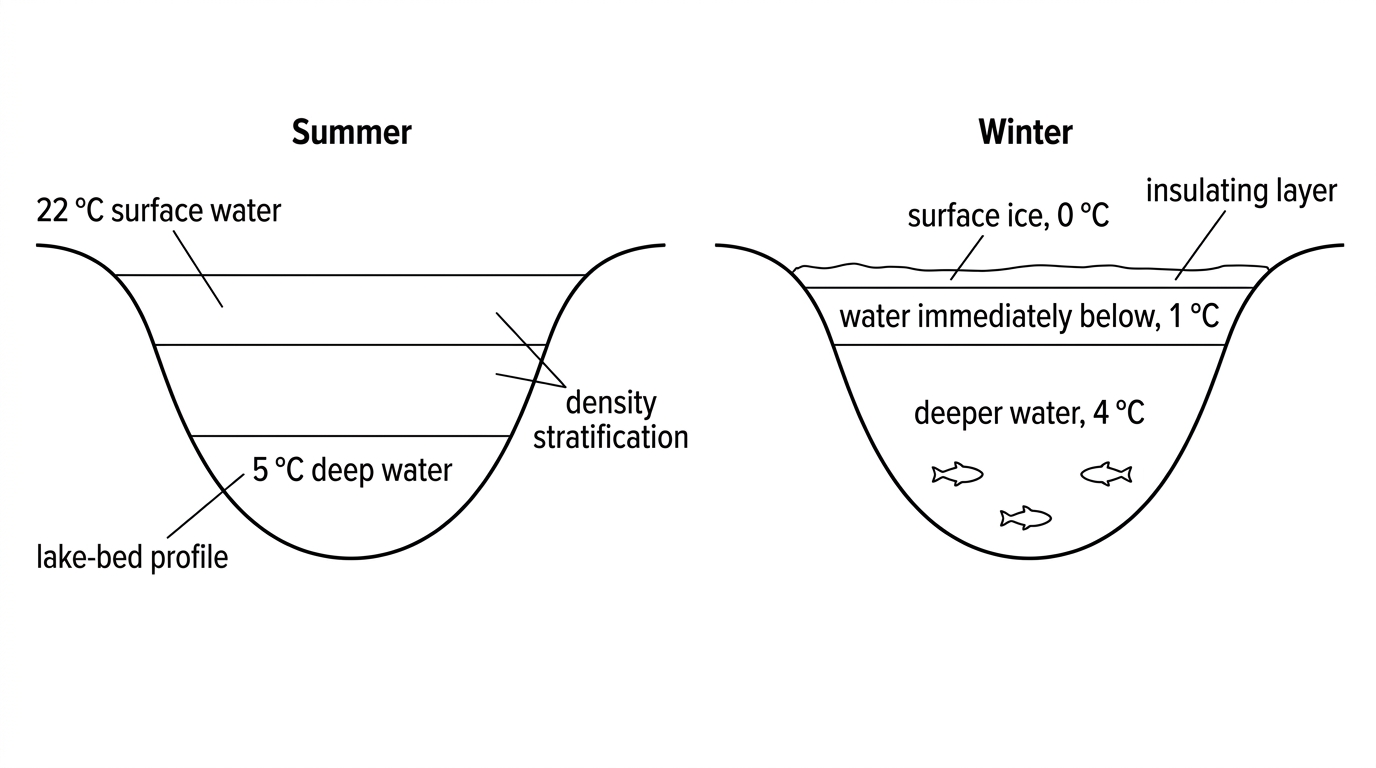

Lake Orin experiences warm summers and cold winters. Figures 5(a) to 5(c) show properties of water that influence its ecosystem.

A

Using Figure 5(a), between cohesion and adhesion.

[2]
B

the percentage decrease in oxygen solubility as water warms from 10 ∘C10\,^{\circ}\text{C} to 30 ∘C30\,^{\circ}\text{C}.

[2]
C

how the properties represented in Figures 5(a) and 5(b) support aquatic life.

[4]
D

why Lake Orin freezes at the surface while liquid water remains beneath the ice.

[3]
E

two reasons, other than temperature, why measured dissolved oxygen may differ from the solubility values in Figure 5(b).

[2]
Question 22
HL • Paper 2
Hard
Calculator Permitted
HL • Paper 2
Hard
Calculator Permitted

Figure 6 shows vertical profiles measured during summer in a deep, stratified lake.

Summer vertical profiles in a deep stratified lake.

Depth / mTemperature / ∘C^\circ\text{C}Dissolved oxygen / mg L−1\text{mg L}^{-1}Nitrate / mg L−1\text{mg L}^{-1}
0229.20.3
10219.00.4
20208.70.5
30157.21.1
40105.42.1
5064.03.0
6063.43.6
8062.64.3
10062.04.8
A

the depth range of the thermocline.

[1]
B

the changes in dissolved oxygen and nitrate concentration between 10 m and 100 m depth.

[2]
C

the contrasting dissolved oxygen and nitrate profiles shown in Figure 6.

[4]
Question 23
HL • Paper 2
Hard
Calculator Permitted
HL • Paper 2
Hard
Calculator Permitted

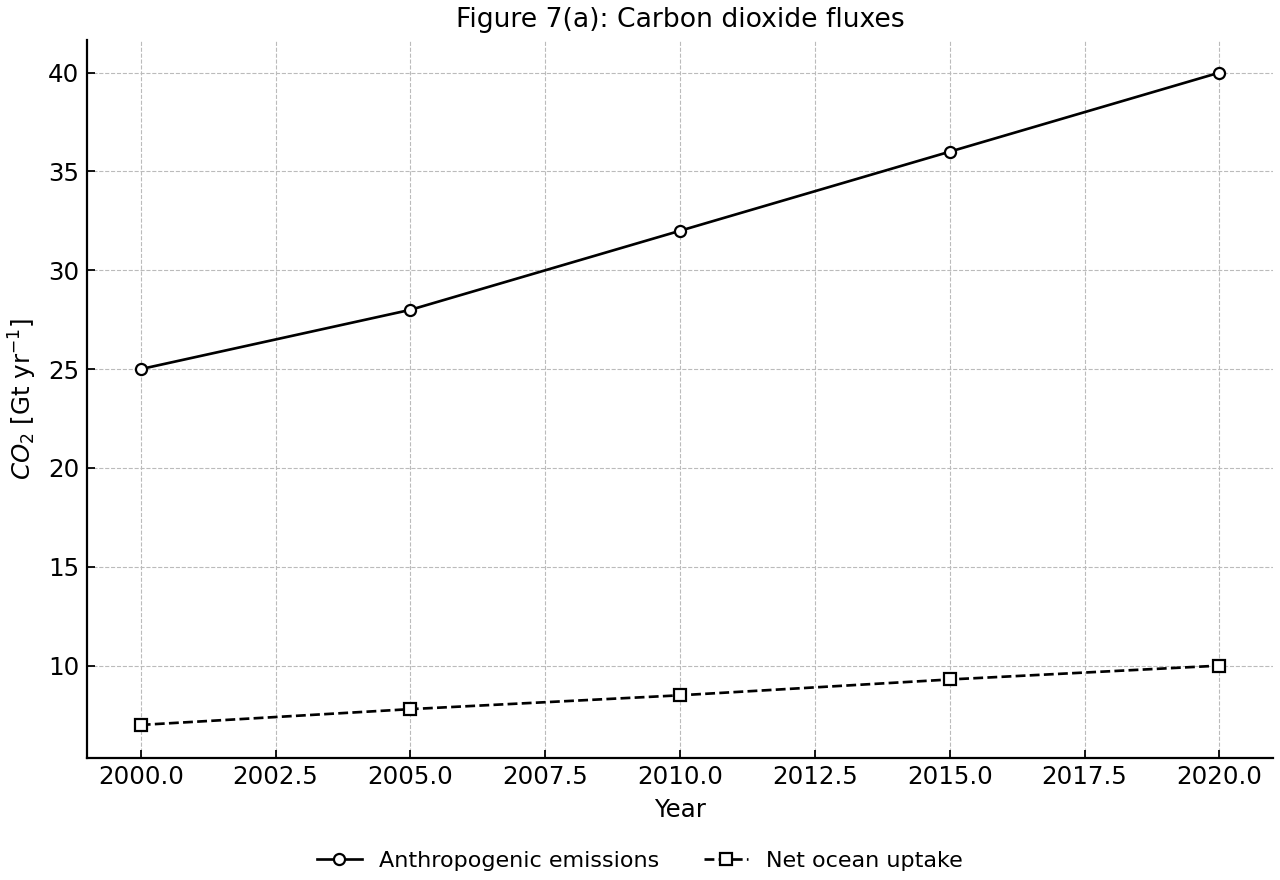

Figures 7(a) and 7(b) show changes in anthropogenic carbon emissions, ocean carbon uptake, sea-surface temperature and mean surface-ocean pH between 2000 and 2020.

Figure 7(b): Changes in global mean sea-surface temperature anomaly and mean surface-ocean pH, 2000–2020.

YearSea-surface temperature anomaly / ∘C^\circ\text{C}Mean surface-ocean pH
20000.408.11
20050.558.10
20100.708.08
20150.908.06
20201.108.05
A

the percentage of anthropogenic carbon dioxide emissions absorbed by the oceans in 2020.

[2]
B

the change in mean surface-ocean pH between 2000 and 2020.

[1]
C

how ocean uptake of carbon dioxide may cause the pH trend shown in Figure 7(b).

[2]
D

two reasons why the percentage of emissions absorbed by the oceans could decline if the trends continue.

[2]
Question 24
HL • Paper 2
Hard
Calculator Permitted
HL • Paper 2
Hard
Calculator Permitted

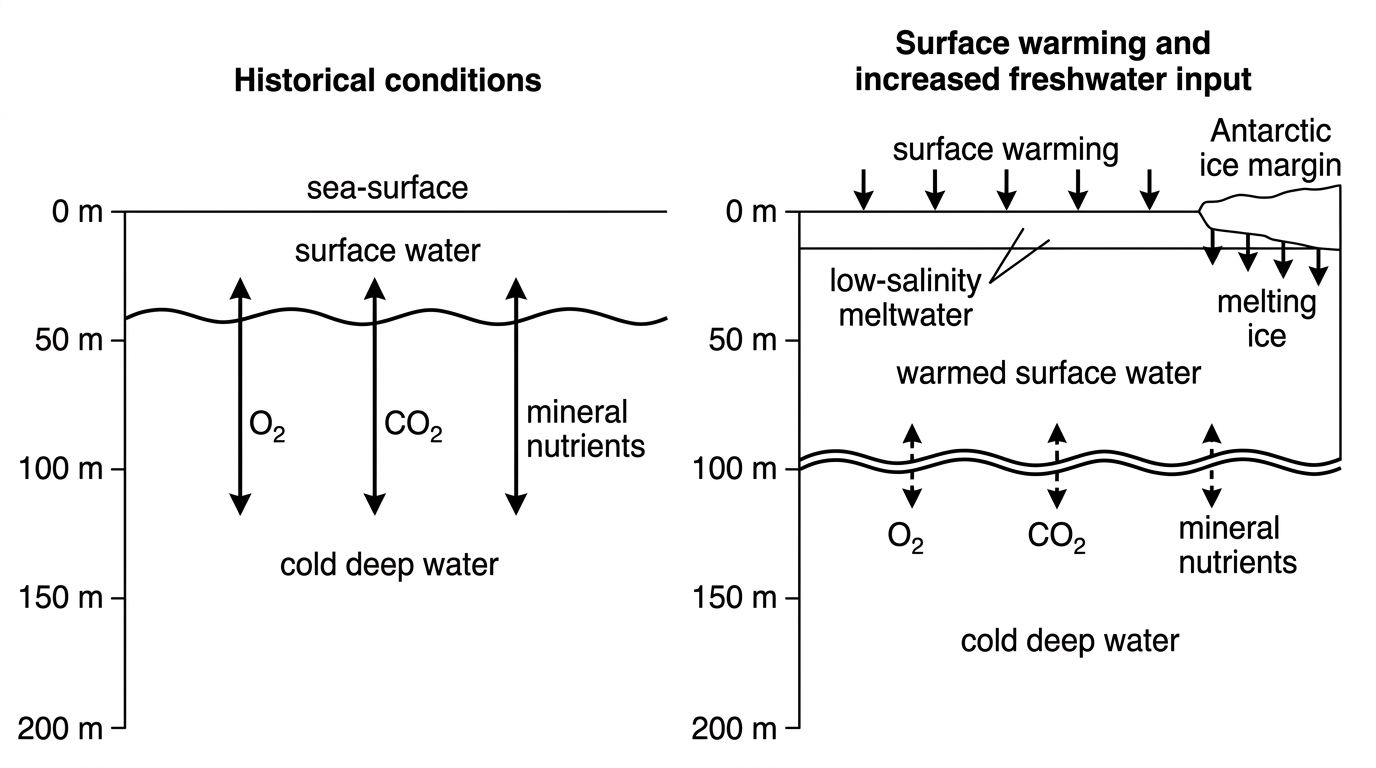

Figure 2 compares ocean stratification under historical conditions and under conditions of surface warming and increased freshwater input from melting ice.

A

how surface warming and melting ice intensify ocean stratification.

[3]
B

one possible ecological or environmental consequence of intensified stratification.

[1]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 25
HL • Paper 1
Hard
Calculator Permitted
HL • Paper 1
Hard
Calculator Permitted

Researchers investigated carbon uptake and seawater chemistry in the fictional Pelagos Sea between 1980 and 2020.

A

the percentage of annual anthropogenic carbon emissions absorbed by the Pelagos Sea in 1980 and in 2020.

[3]
B

the relationship between carbon emissions and ocean uptake shown in Figure 6(a).

[2]
C

how ocean uptake of atmospheric carbon dioxide causes the pH change shown in Figure 6(b).

[3]
D

between short-term and long-term ocean carbon sequestration shown in Figure 6(c).

[2]
E

the claim that ocean uptake can continue to offset increasing anthropogenic carbon emissions indefinitely.

[4]
Question 26
HL • Paper 1
Hard
Calculator Permitted
HL • Paper 1
Hard
Calculator Permitted

Seasonal stratification and coastal upwelling occur in the Maruva coastal water body. Figures 7(a) to 7(c) show conditions during summer.

Figure 7(a): summer vertical profiles in the Maruva coastal water body.

Depth / mWater layerTemperature / ∘C^{\circ}\text{C}Dissolved oxygen / mg L−1^{-1}Nitrate / mg L−1^{-1}
0Warm mixed layer (0–20 m)248.01
20Thermocline (20–60 m)238.51
40Thermocline (20–60 m)145.55
60Thermocline (20–60 m)93.010
100Cool deep layer (>60 m)72.014

Summer coastal conditions during periods with and without upwelling.

Non-upwellingUpwelling
Mean surface temperature / ∘C^\circ\text{C}2215
Surface nitrate / mg L−1\text{mg}\,\text{L}^{-1}19
Chlorophyll-a / μg L−1\mu\text{g}\,\text{L}^{-1}28
Fish catch / tonnes boat−1^{-1} week−1^{-1}37
A

the depth range of the thermocline and the mean temperature decrease per metre across it.

[3]
B

the dissolved oxygen and nitrate profiles shown in Figure 7(a).

[4]
C

Using Figures 7(b) and 7(c), how upwelling affects biological productivity and fish catch.

[3]
D

how stronger and more persistent stratification could affect the Maruva ecosystem and fishery.

[4]
Question 27
HL • Paper 2
Hard
Calculator Permitted
HL • Paper 2
Hard
Calculator Permitted

Figure 8 shows selected properties of water masses in a simplified North Atlantic thermohaline circulation system. The meltwater scenario represents increased melting of land ice.

A

the increase in density as present-day surface water moves from lower latitudes to the high-latitude sinking region.

[1]
B

why the present-day high-latitude water sinks despite having a lower salinity than the lower-latitude surface water.

[2]
C

how the increased meltwater input shown in Figure 8 would affect deep-water formation and the North Atlantic conveyor belt.

[2]
D

one possible climatic consequence and one possible ocean-system consequence of a weaker conveyor belt.

[2]
Question 28
SL • Paper 2
Hard
Calculator Permitted
SL • Paper 2
Hard
Calculator Permitted

The following questions concern hydrological flows and flood-risk management within drainage basins.

A

between transfers and transformations in the hydrological cycle, using one example of each.

[4]
B

how deforestation may alter water flows and flood risk within a drainage basin.

[7]
C

Using named examples, the claim that restoring vegetation is the most effective way to manage flood risk within drainage basins.

[9]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 29
SL • Paper 2
Hard
Calculator Permitted
SL • Paper 2
Hard
Calculator Permitted

An aquifer receives renewable recharge at a mean rate of 5.8 m3 s−15.8\ \text{m}^3\,\text{s}^{-1}. Its natural groundwater outflow is 2.1 m3 s−12.1\ \text{m}^3\,\text{s}^{-1} and water is currently abstracted at 4.5 m3 s−14.5\ \text{m}^3\,\text{s}^{-1}. For the calculations in part (a), assume that these rates remain constant and that one year contains 31 536 00031\,536\,000 seconds.

A

the maximum abstraction rate that would maintain the aquifer at steady and the annual change in its stored water volume at the current abstraction rate. Show your working.

[4]
B

why the calculated steady- abstraction rate may not be environmentally sustainable.

[7]
C

Using named examples, strategies for achieving sustainable groundwater use.

[9]
Question 30
SL • Paper 2
Hard
Calculator Permitted
SL • Paper 2
Hard
Calculator Permitted

A

how the global hydrological cycle operates as a system.

[4]
B

how irrigated agriculture and urbanization may alter stores and flows in the hydrological cycle.

[7]
C

Using named examples, can deliberate manipulation of hydrological flows provide sustainable water security?

[9]
Question 31
HL • Paper 1
Hard
Calculator Permitted
HL • Paper 1
Hard
Calculator Permitted

The North Arven Sea forms part of a global thermohaline circulation system. Researchers monitored surface conditions and deep-water formation between 1990 and 2020.

Figure 8(b): Surface conditions and circulation in the North Arven Sea, 1990–2020.

YearSurface temperature / ∘^\circCPractical salinityDeep-water formation / SvNorthward heat transport / PW
19906.035.1181.20
20006.435.0171.16
20106.934.7141.05
20207.534.4110.92

A

the two water properties that drive thermohaline circulation and how each affects density.

[3]
B

the percentage decrease in deep-water formation between 1990 and 2020.

[2]
C

the relationships among temperature, salinity, deep-water formation and heat transport shown in Figure 8(b).

[4]
D

how evaporation, rivers and melting ice can have opposing effects on deep-water formation in the North Arven Sea.

[2]
E

the possible environmental significance of the observed weakening of circulation.

[3]
Question 32
HL • Paper 2
Hard
Calculator Permitted
HL • Paper 2
Hard
Calculator Permitted

A

how four properties of water support life.

[4]
B

how seasonal stratification can produce vertical differences in temperature, dissolved oxygen and mineral nutrients in a deep lake.

[7]
C

Using named examples, the claim that maintaining natural mixing processes is essential for the sustainability of aquatic ecosystems.

[9]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 33
HL • Paper 2
Hard
Calculator Permitted
HL • Paper 2
Hard
Calculator Permitted

A

between an ocean carbon sink and ocean carbon sequestration.

[4]
B

the short-term and long-term pathways of carbon after atmospheric carbon dioxide enters the ocean.

[7]
C

Using named examples, can ocean carbon uptake be relied upon to limit anthropogenic climate change?

[9]
Question 34
HL • Paper 2
Hard
Calculator Permitted
HL • Paper 2
Hard
Calculator Permitted

A

how temperature and salinity differences drive thermohaline circulation.

[4]
B

how global warming may affect ocean stratification, upwelling and thermohaline circulation.

[7]
C

Using named examples, the environmental significance of climate-driven changes to ocean circulation.

[9]

4.2 Water access, use and security
