3.1 Biodiversity and evolution

Practice exam-style IB ESS questions for Biodiversity and evolution, aligned with the syllabus and grouped by topic.

Verified by Veronica
Verified by Veronica
Paper
Difficulty
Status
Level

This content can't be printed from the browser. Use Export PDF with Pro for an offline copy.

Question 1
SL • Paper 2
Easy
Calculator Permitted
SL • Paper 2
Easy
Calculator Permitted

Biodiversity exists at several connected levels.

A

the three levels of biodiversity.

[3]
Question 2
SL • Paper 2
Easy
Calculator Permitted
SL • Paper 2
Easy
Calculator Permitted

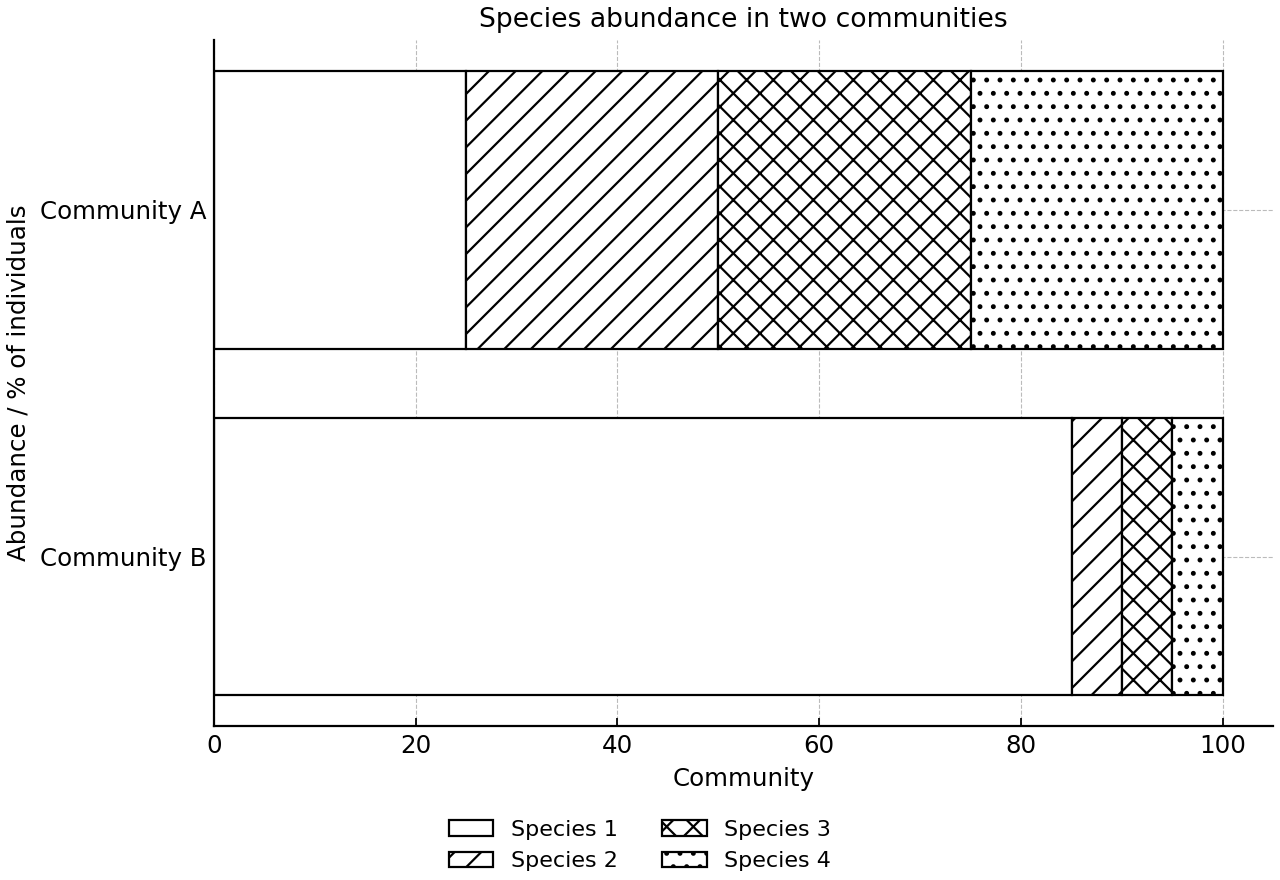

Figure 1 shows the abundance of four species in each of two communities. Each community contains 100 individuals.

A

which community has the greater species evenness.

[1]
B

why the two communities have equal species richness but different species diversity.

[2]
Question 3
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

A woodland contains several tree species that perform similar ecological roles. Following a disease outbreak, one tree species declines substantially.

A

how species diversity may increase the resilience of this woodland.

[3]
Question 4
HL • Paper 2
Medium
Calculator Permitted
HL • Paper 2
Medium
Calculator Permitted

Mutation and sexual reproduction are both sources of genetic diversity.

A

between how mutation and sexual reproduction increase genetic diversity.

[3]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 5
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

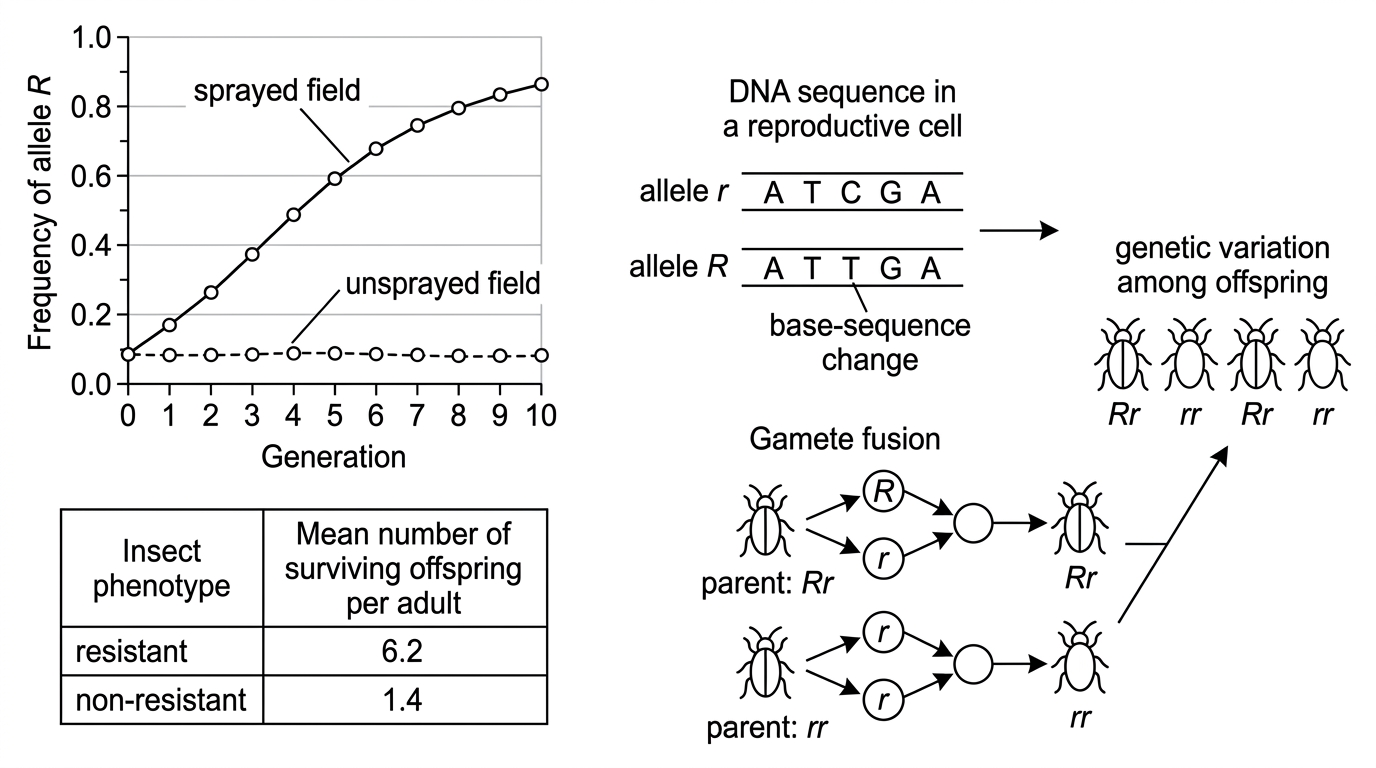

A population of insects contains heritable variation in resistance to an insecticide. The insecticide kills most susceptible insects, but some resistant insects survive.

A

an adaptation.

[1]
B

how natural selection could increase insecticide resistance in this population.

[3]
Question 6
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

A new river divides a population of small mammals. The environments on opposite sides of the river have different climates and food resources.

A

how the divided population could eventually form two species.

[4]
Question 7
HL • Paper 2
Medium
Calculator Permitted
HL • Paper 2
Medium
Calculator Permitted

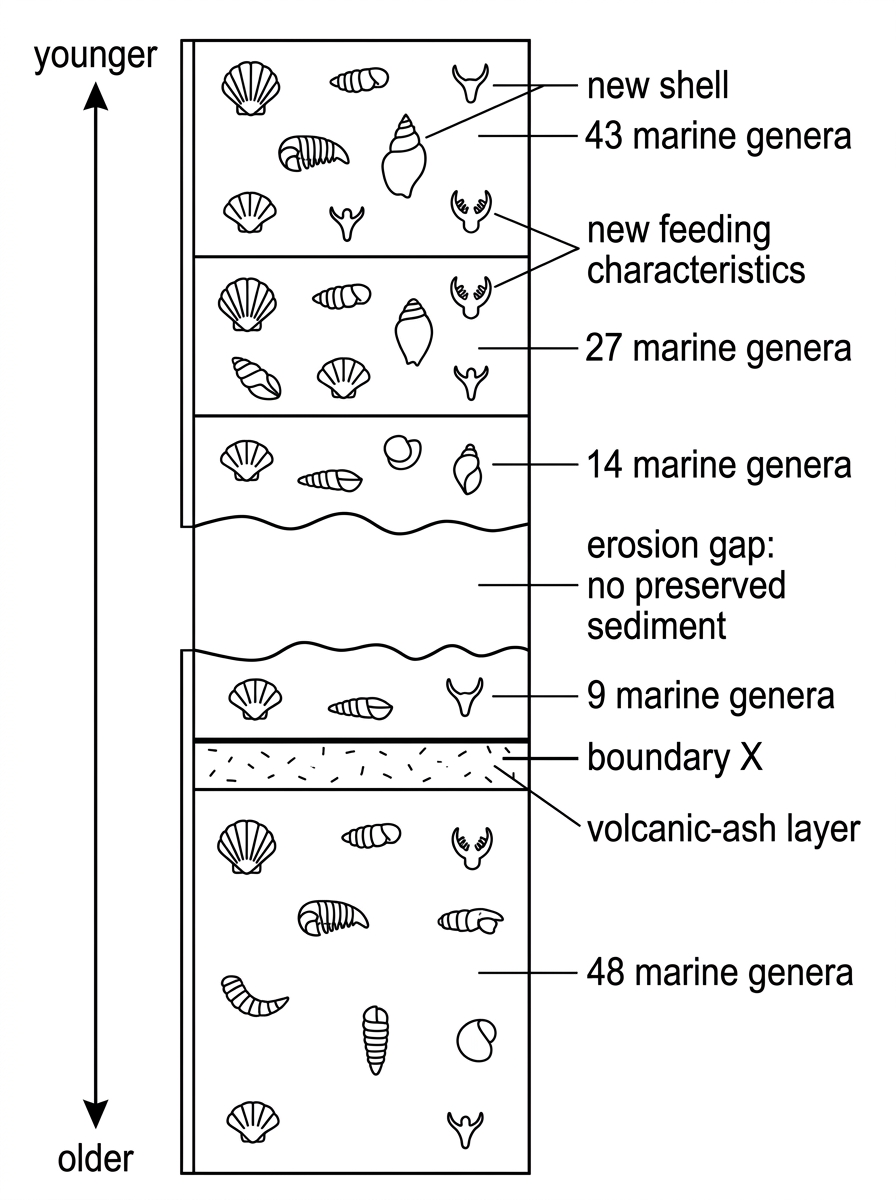

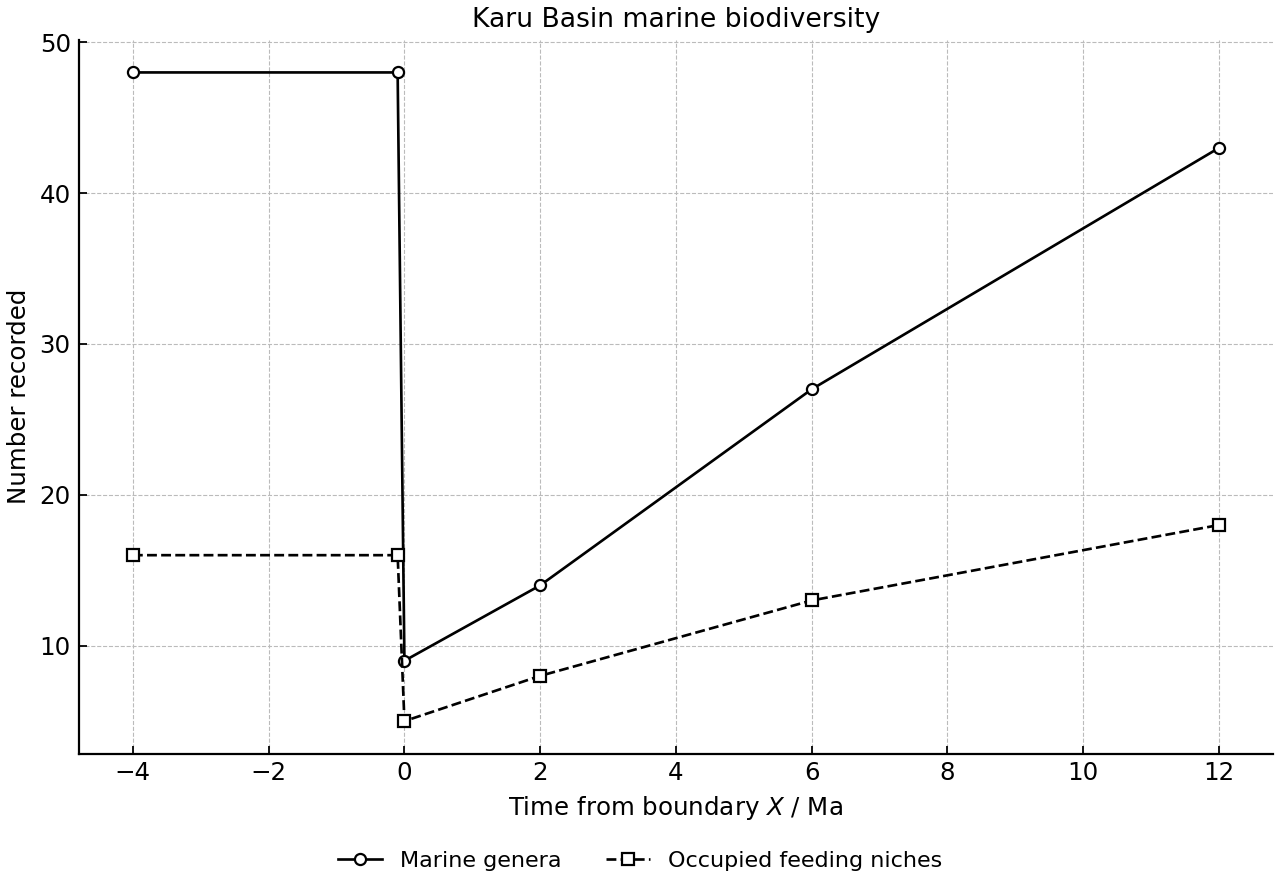

The fossil record indicates that mass extinctions have sometimes been followed by relatively rapid diversification of surviving groups.

A

why a mass extinction may be followed by a rapid rate of speciation.

[3]
Question 8
HL • Paper 2
Medium
Calculator Permitted
HL • Paper 2
Medium
Calculator Permitted

A crop variety has been bred repeatedly from a small number of parent plants selected for uniform ripening and high yield.

A

why this is an example of artificial selection.

[1]
B

how this breeding programme could reduce the resilience of the crop variety.

[3]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 9
SL • Paper 1
Medium
Calculator Permitted
SL • Paper 1
Medium
Calculator Permitted

The Vardal floodplain reserve was restored after decades of drainage and grazing. Drainage channels were blocked in 2015, native vegetation was planted and livestock were excluded. The maps are schematic representations of selected land cover and are not a complete inventory of the habitat types recorded by the survey; use the table for the numerical biodiversity indicators.

Indicator

2015

2024

Wetland habitat area / ha

18

46

Distinct habitat types

3

6

Bird species richness

21

38

Aquatic-invertebrate richness

17

31

Most abundant bird species / % of observations

62

34

Mean marsh-frog alleles / locus

3.1

4.6

A

the percentage increase in wetland habitat area between 2015 and 2024.

[2]
B

two changes in biodiversity shown by the data.

[2]
C

how the changes in biodiversity may increase the ecological resilience of the reserve.

[3]
D

the evidence that restoration has increased the biodiversity and resilience of the reserve.

[4]
Question 10
SL • Paper 1
Medium
Calculator Permitted
SL • Paper 1
Medium
Calculator Permitted

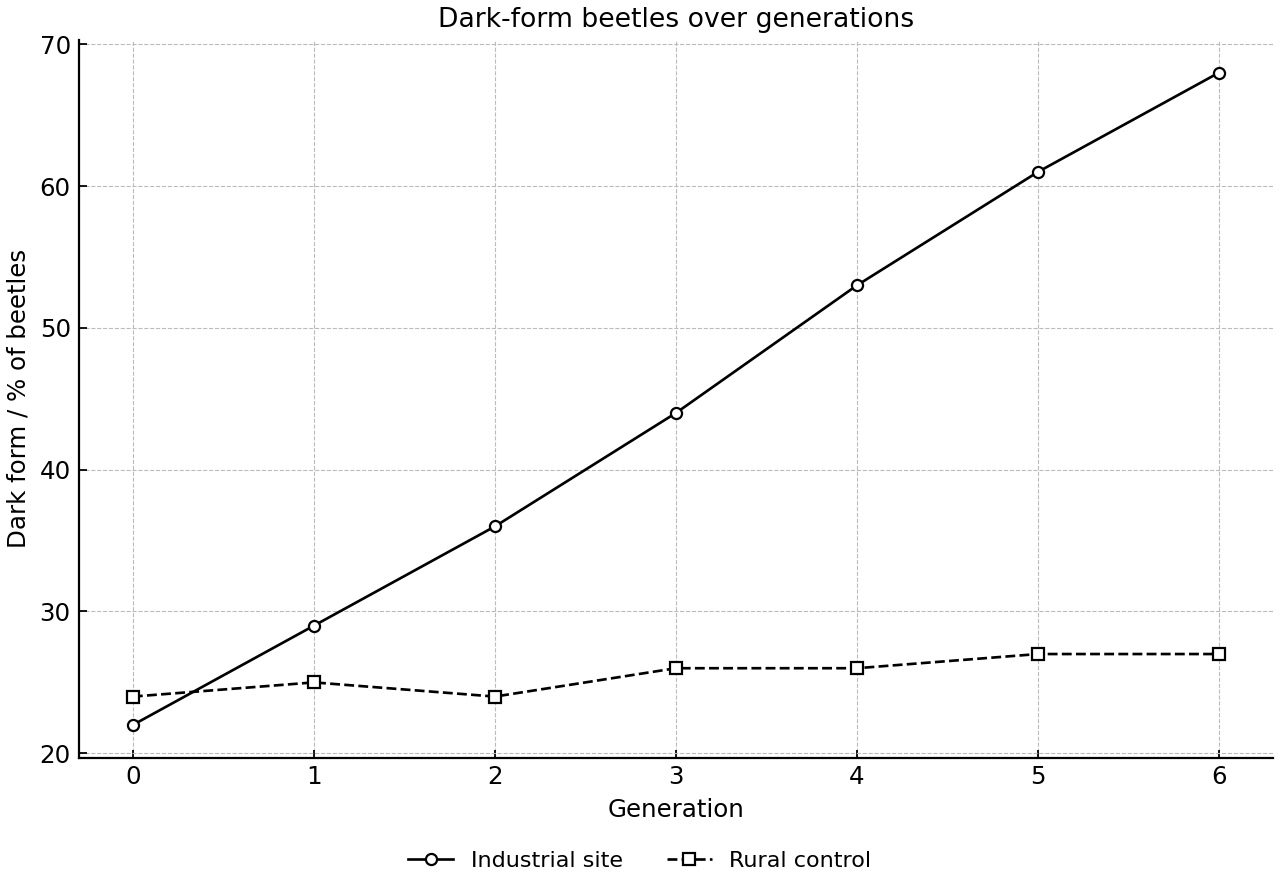

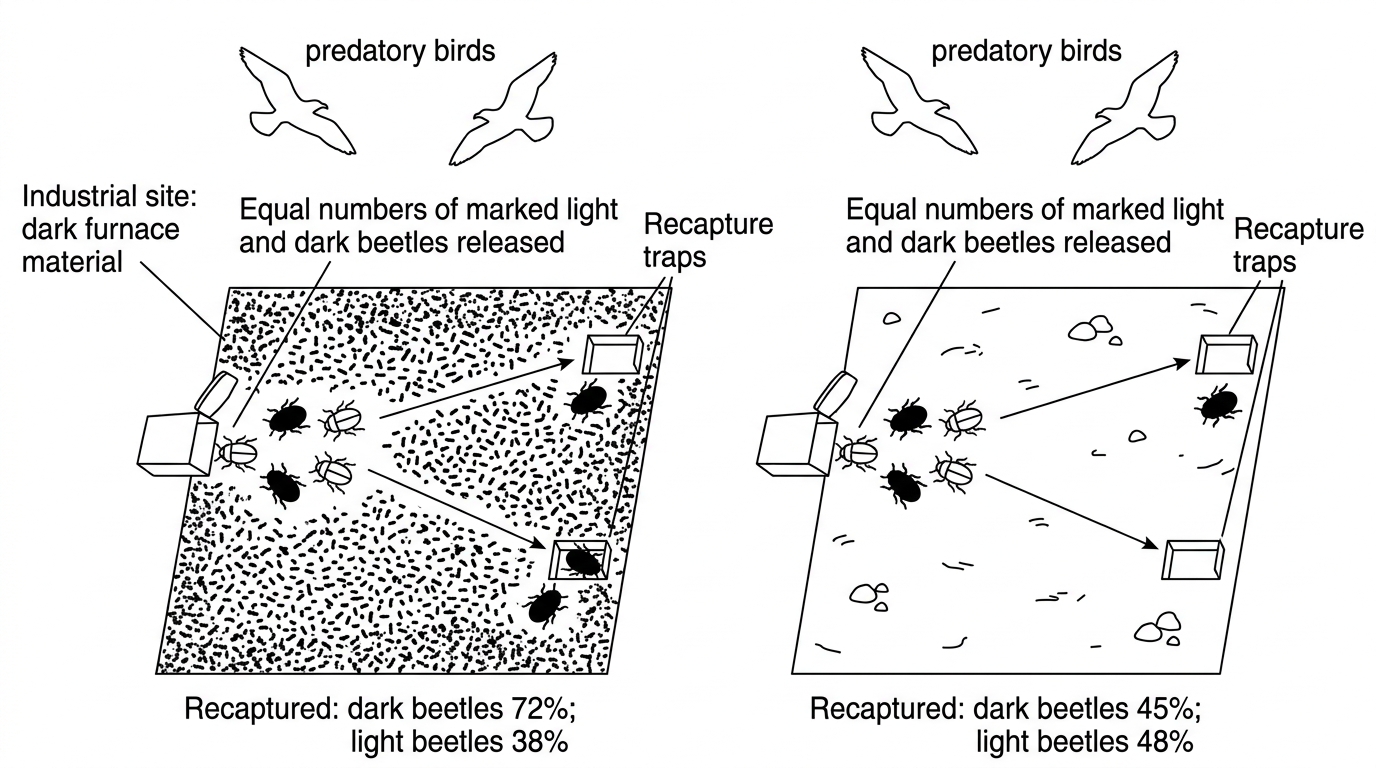

The mottled ground beetle has heritable light and dark body-colour forms. In 2018, dark furnace material was deposited on the ground surrounding an industrial site. A rural control site retained pale sandy soil. Beetles were surveyed for six generations.

A

the change in the frequency of the dark form at the two sites.

[2]
B

the difference between the percentage-point changes in dark-form frequency at the two sites.

[1]
C

how natural selection could have produced the change at the industrial site.

[4]
D

whether the data provide sufficient evidence that natural selection caused the observed change.

[3]
Question 11
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

Ecologists used equal-sized quadrats and equal sampling effort to record four plant species at two grassland sites.

Plant abundance recorded at two grassland sites.

SiteSpecies PSpecies QSpecies RSpecies STotal abundance
Site A2020202080
Site B6555580
Simpson's reciprocal indexD=N(N−1)∑n(n−1)D=\dfrac{N(N-1)}{\sum n(n-1)}
DefinitionsNN: total individualsnn: individuals of one species
A

the species richness of each site.

[1]
B

Simpson's reciprocal index, DD, for Site A. Show your working.

[2]
C

Simpson's reciprocal index, DD, for Site B. Show your working.

[2]
D

Compare the species diversity of the two sites using the data.

[2]
Question 12
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

Two coastal ecosystems were monitored for four years after the same cyclone. Ecosystem function is expressed as a percentage of its pre-cyclone value.

Coastal ecosystem function and biodiversity measures at two sites monitored after a cyclone.

High-diversity siteLow-diversity site
Ecosystem function before cyclone / %100100
Ecosystem function immediately after cyclone / %4545
Ecosystem function after 1 year / %6852
Ecosystem function after 2 years / %8658
Ecosystem function after 3 years / %9661
Ecosystem function after 4 years / %9963
Number of habitat types62
Number of common species189
Mean genetic heterozygosity0.720.31
Monitoring effortEqualEqual
A

the difference in ecosystem function between the two sites two years after the cyclone.

[1]
B

the recovery of the two sites after the cyclone.

[2]
C

Using the data, how the three components of biodiversity may have contributed to the different recovery rates.

[3]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 13
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

A lizard population contains heritable dark and pale skin-colour variants. A wildfire darkened the ground in one part of its habitat. Birds prey on lizards in both the burned and unburned areas.

Skin colour is inherited; immigration between the burned and unburned areas is negligible.

AreaGeneration 0Generation 1Generation 2Generation 3Generation 4
BurnedDark lizards / % of population2032476172
UnburnedDark lizards / % of population2021192220
BurnedDark lizards / mean surviving offspring per adultNot measured4.8Not measuredNot measuredNot measured
BurnedPale lizards / mean surviving offspring per adultNot measured2.1Not measuredNot measuredNot measured
UnburnedDark lizards / mean surviving offspring per adultNot measured2.3Not measuredNot measuredNot measured
UnburnedPale lizards / mean surviving offspring per adultNot measured4.6Not measuredNot measuredNot measured
A

the percentage-point increase in dark-coloured lizards in the burned area from generation 0 to generation 4.

[1]
B

the change in the frequency of dark-coloured lizards in the two areas.

[2]
C

how natural selection produced the observed change in the burned area.

[4]
Question 14
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

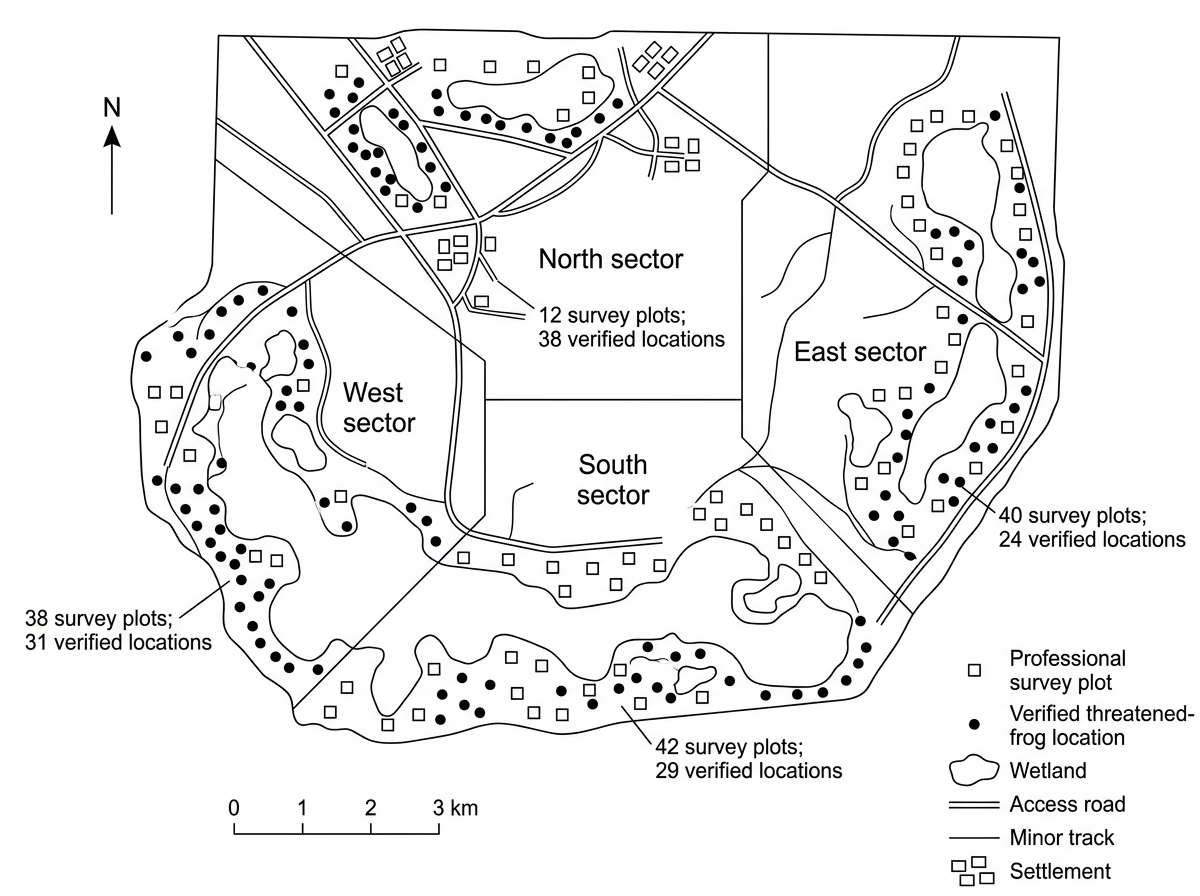

A conservation agency combined citizen-science records and professional surveys to monitor a threatened wetland frog in four sectors of a protected landscape.

Citizen-science observations and the proportion verified as correct in each reserve sector.

Reserve sectorCitizen-science observations / countVerified correct / %
North48062
East22078
South7591
West31084
A

the sector with the greatest number of citizen-science observations.

[1]
B

the number of verified citizen-science observations from the north sector.

[2]
C

Using both figures, two limitations of relying only on the citizen-science observations.

[2]
D

two ways the agency could use or improve the biodiversity information for conservation management.

[2]
Question 15
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

A student recorded the abundance of four plant species in a grassland sample. The results are shown in Table 1.

Table 1: Abundance of plant species in a grassland sample.

Plant speciesNumber of individuals, nnn(n−1)n(n-1)
P12
Q8
R5
S5

Simpson's reciprocal index is calculated using:

D=N(N−1)/∑n(n−1)D = N(N-1) / \sum n(n-1)

A

Simpson's reciprocal index, DD, for the grassland sample. Show your working.

[3]
B

one sampling condition that should be kept constant when comparing this value with another grassland.

[1]
Question 16
HL • Paper 2
Medium
Calculator Permitted
HL • Paper 2
Medium
Calculator Permitted

A remote volcanic archipelago contains many species that are endemic to individual islands.

A

why isolated islands may develop high rates of endemism.

[4]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 17
HL • Paper 2
Medium
Calculator Permitted
HL • Paper 2
Medium
Calculator Permitted

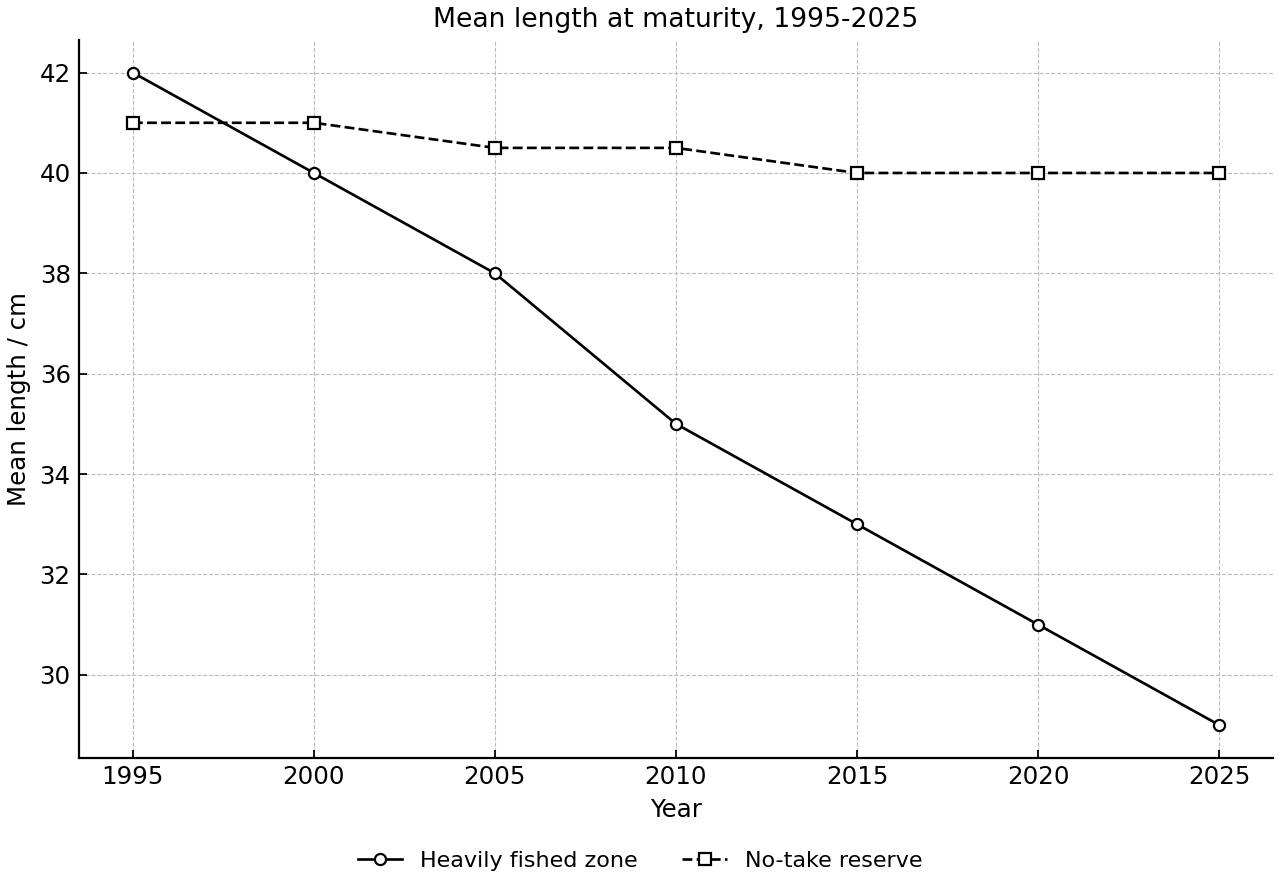

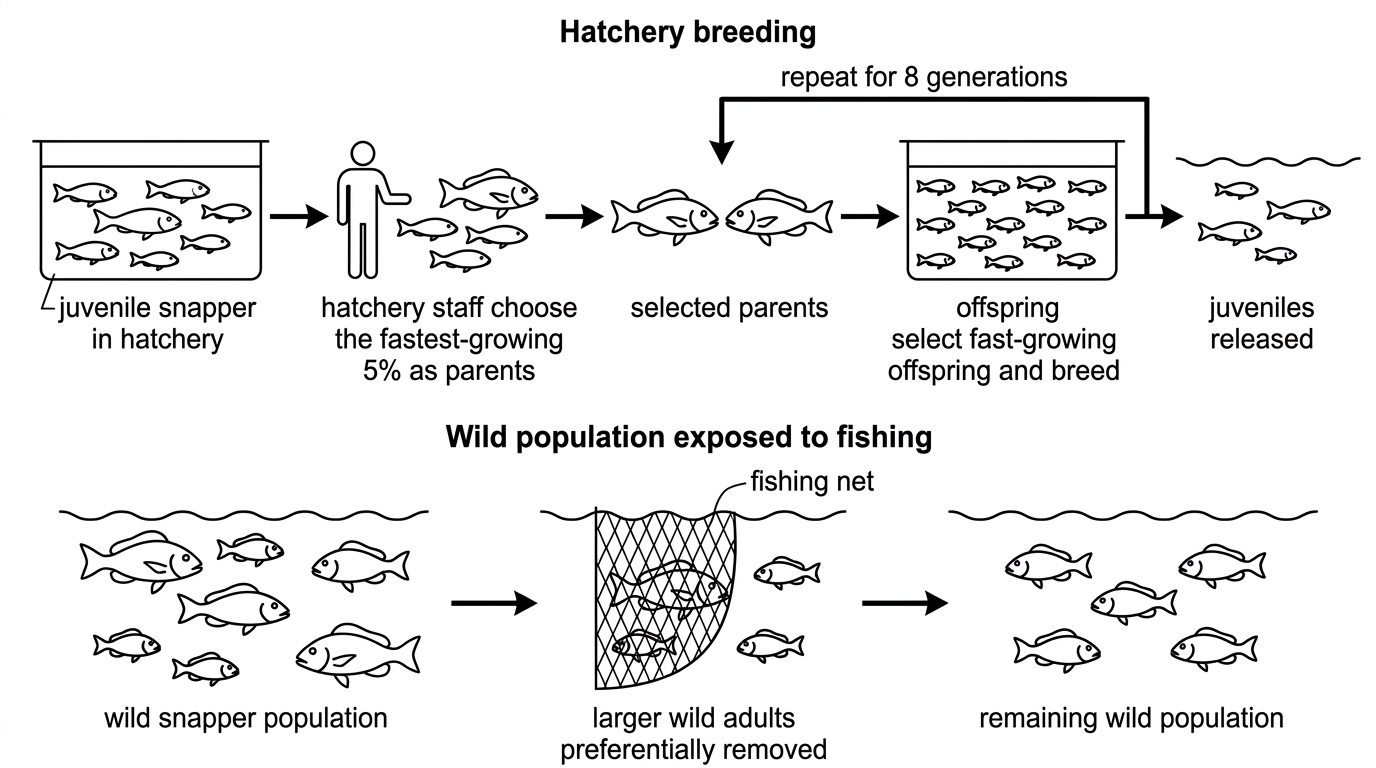

In a harvested fish population, large adults are consistently removed before they reproduce. Fish that mature earlier are more likely to reproduce before reaching the size at which they are harvested, whereas fish that mature later are more likely to be removed before reproducing. Age at maturity and adult body size both contain heritable variation.

A

how this harvesting practice could cause evolutionary change in the fish population.

[4]
Question 18
HL • Paper 2
Medium
Calculator Permitted
HL • Paper 2
Medium
Calculator Permitted

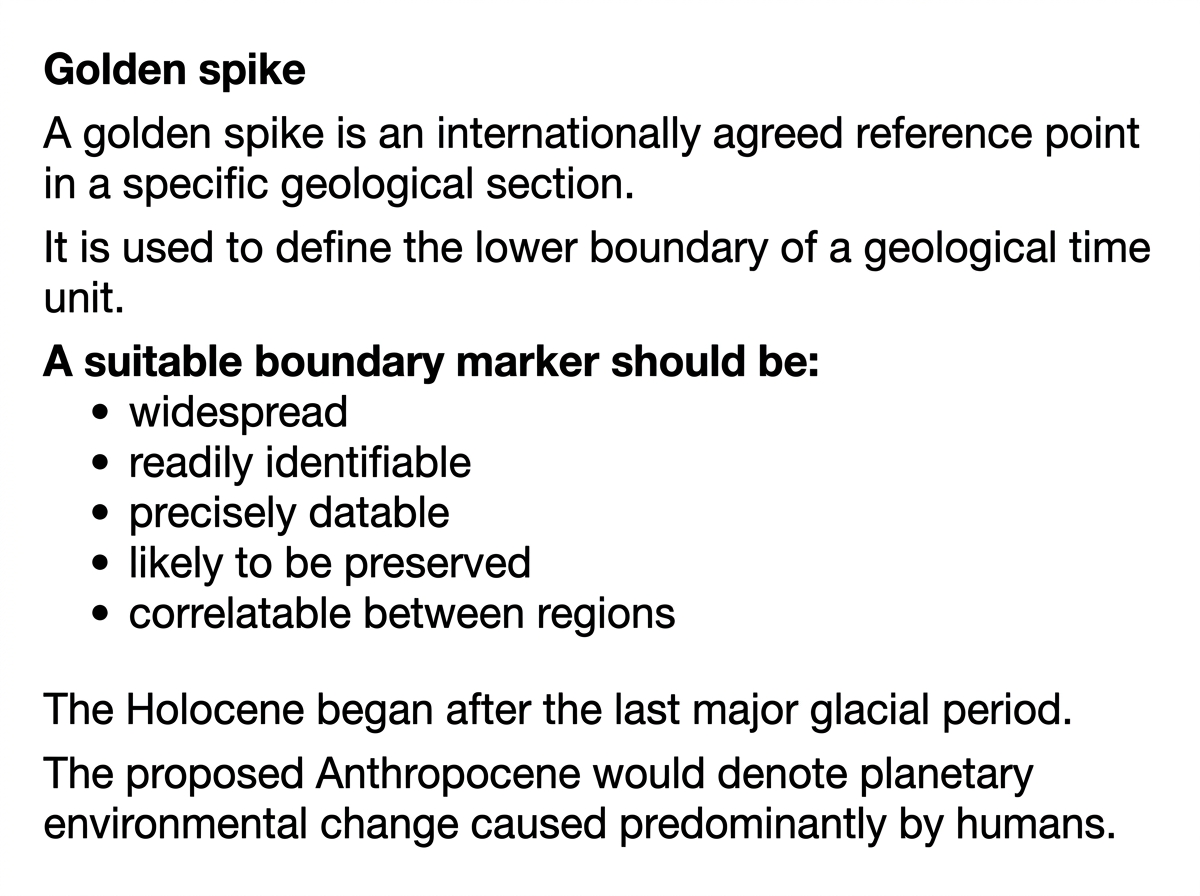

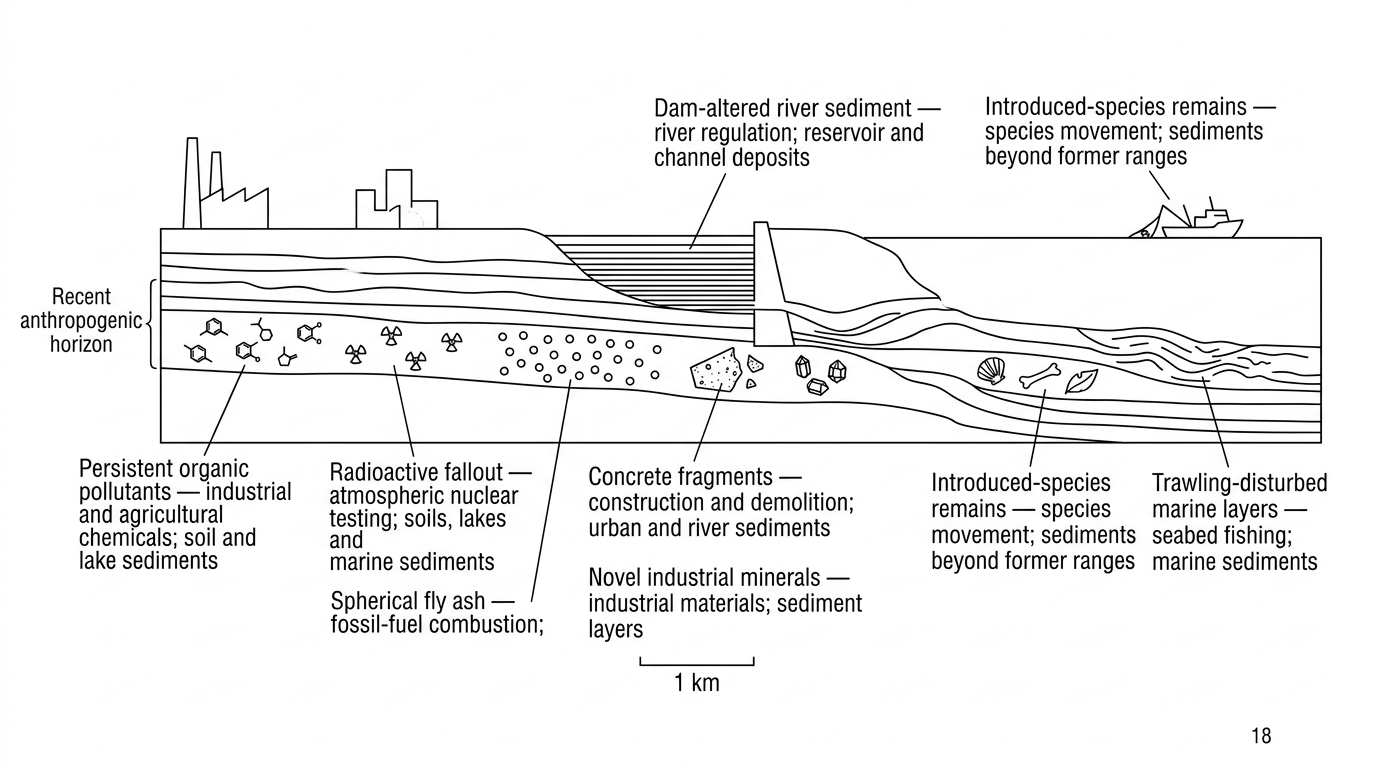

The Anthropocene has been proposed as a geological epoch separate from the Holocene.

A

one characteristic required of a suitable golden spike marking the beginning of a geological epoch.

[1]
B

three human-generated signals that may be detectable in the future geological record.

[3]
Question 19
SL • Paper 1
Hard
Calculator Permitted
SL • Paper 1
Hard
Calculator Permitted

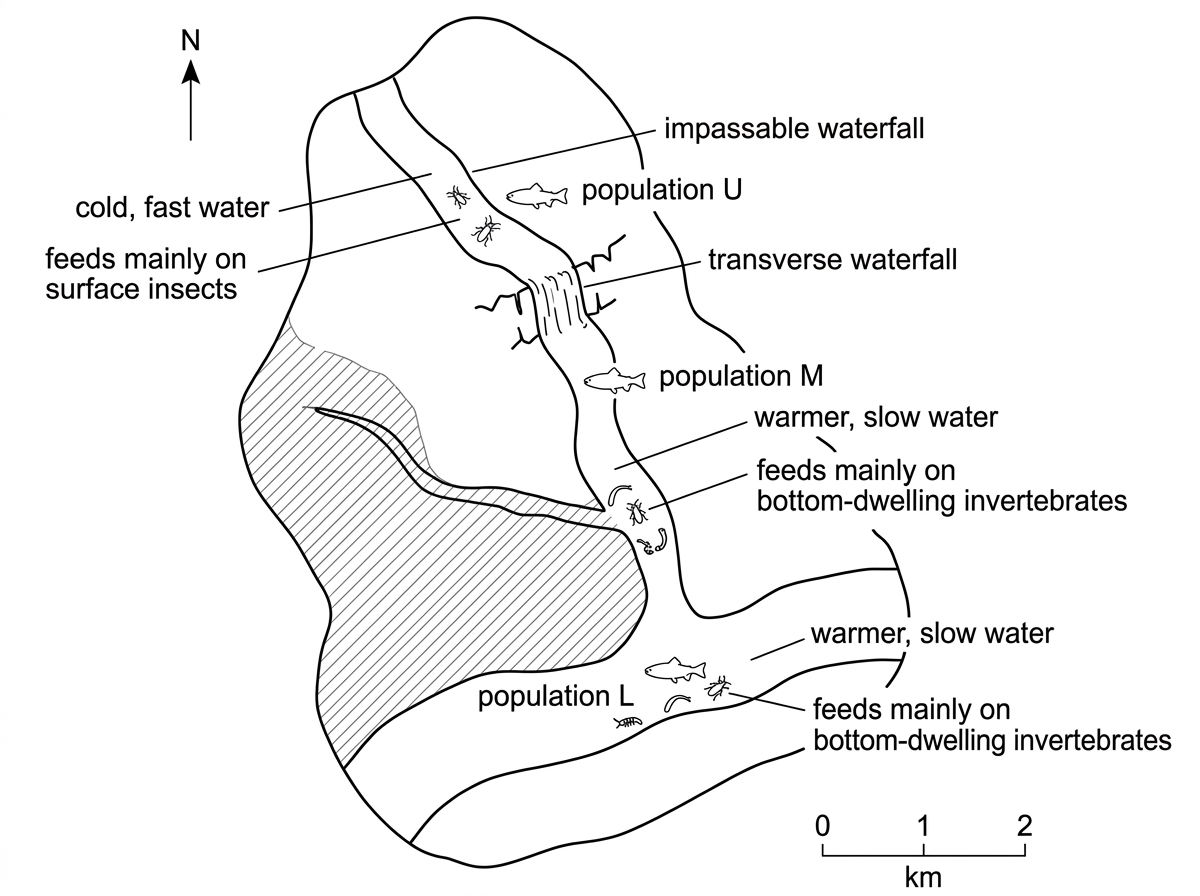

Three populations of the silver-stream minnow occupy tributaries of the River Nera. A waterfall formed about 12 000 years ago and isolated the upper tributary. Scientists investigated whether the upper population is becoming a separate species.

Breeding outcomes and genetic differences among silver-stream minnow populations.

Cross / comparisonViable offspring / %Fertile adults / %Mean genetic difference / %
U×UU \times U8881—
M×MM \times M9084—
L×LL \times L8780—
M×LM \times L75692
U×MU \times M19615
U×LU \times L14217
A

the factor that initially isolated population U.

[1]
B

two pieces of evidence that population U is reproductively isolated from the other populations.

[2]
C

how isolation could lead to the speciation of population U.

[4]
D

the claim that population U is already a separate species.

[3]
Question 20
SL • Paper 1
Hard
Calculator Permitted
SL • Paper 1
Hard
Calculator Permitted

Ground-dwelling invertebrates were sampled in two areas of the same woodland. Simpson’s reciprocal index was calculated using:

D=N(N−1)∑n(n−1)D=\frac{N(N-1)}{\sum n(n-1)}

Ground-dwelling invertebrates sampled with equal effort at two woodland sites.

SpeciesSite A countSite B count
Beetles1236
Woodlice124
Millipedes124
Snails124
Total individuals4848

A

Simpson’s reciprocal index for each site.

[4]
B

Compare the species diversity of the two samples.

[2]
C

two changes that would improve the sampling .

[2]
D

the conclusion that site A has greater invertebrate diversity than site B.

[4]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 21
HL • Paper 1
Hard
Calculator Permitted
HL • Paper 1
Hard
Calculator Permitted

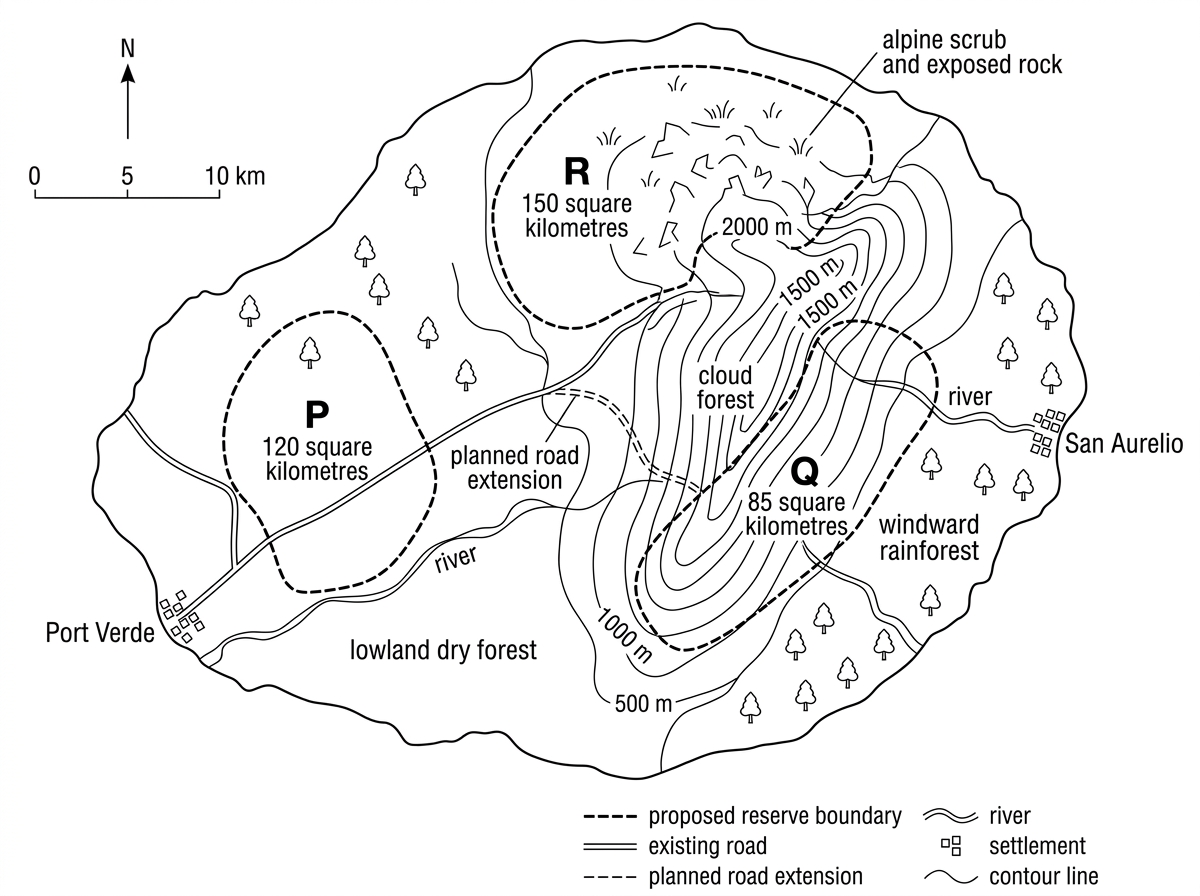

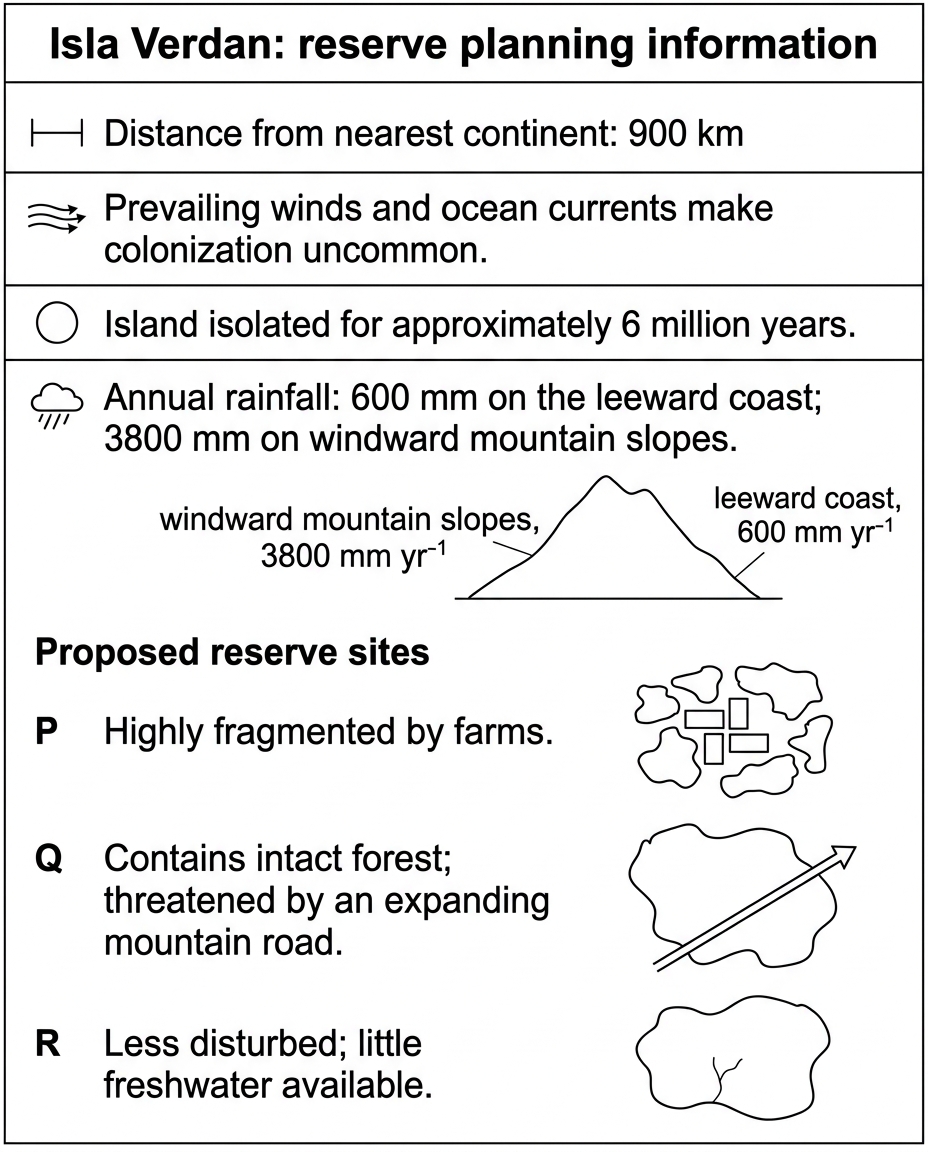

Isla Verdan is a remote tropical island with a central mountain range. A conservation agency must decide where to establish a new protected area.

Biodiversity indicators for the three proposed reserves on Isla Verdan.

ReserveHabitat typesNative vertebrate speciesEndemic vertebrate speciesThreatened vertebrate species
P3861219
Q71435146
R4743921

A

between mutation and sexual reproduction as sources of genetic diversity.

[2]
B

the relationship between habitat diversity, species richness and endemism in the proposed reserves.

[3]
C

why isolated tropical islands may have high rates of endemism.

[2]
D

which proposed reserve should receive priority for protection.

[4]
Question 22
HL • Paper 2
Hard
Calculator Permitted
HL • Paper 2
Hard
Calculator Permitted

An insect population contains a pesticide-resistance allele, R. A pesticide was applied in one field, while a second field was left unsprayed.

Results from sprayed and unsprayed insect fields; migration between fields was prevented.

GenerationRR frequency, sprayed fieldRR frequency, unsprayed fieldSprayed field, resistant: surviving offspring per adultSprayed field, non-resistant: surviving offspring per adult
00.080.08——
2——6.21.4
50.540.09——
100.860.10——
A

the process that is the ultimate source of the new allele R.

[1]
B

the increase in the frequency of allele R in the sprayed field between generations 0 and 10.

[1]
C

the contributions of mutation and sexual reproduction to genetic diversity in this population.

[2]
D

how pesticide application acted as a selective force in the sprayed field.

[3]
Question 23
HL • Paper 2
Hard
Calculator Permitted
HL • Paper 2
Hard
Calculator Permitted

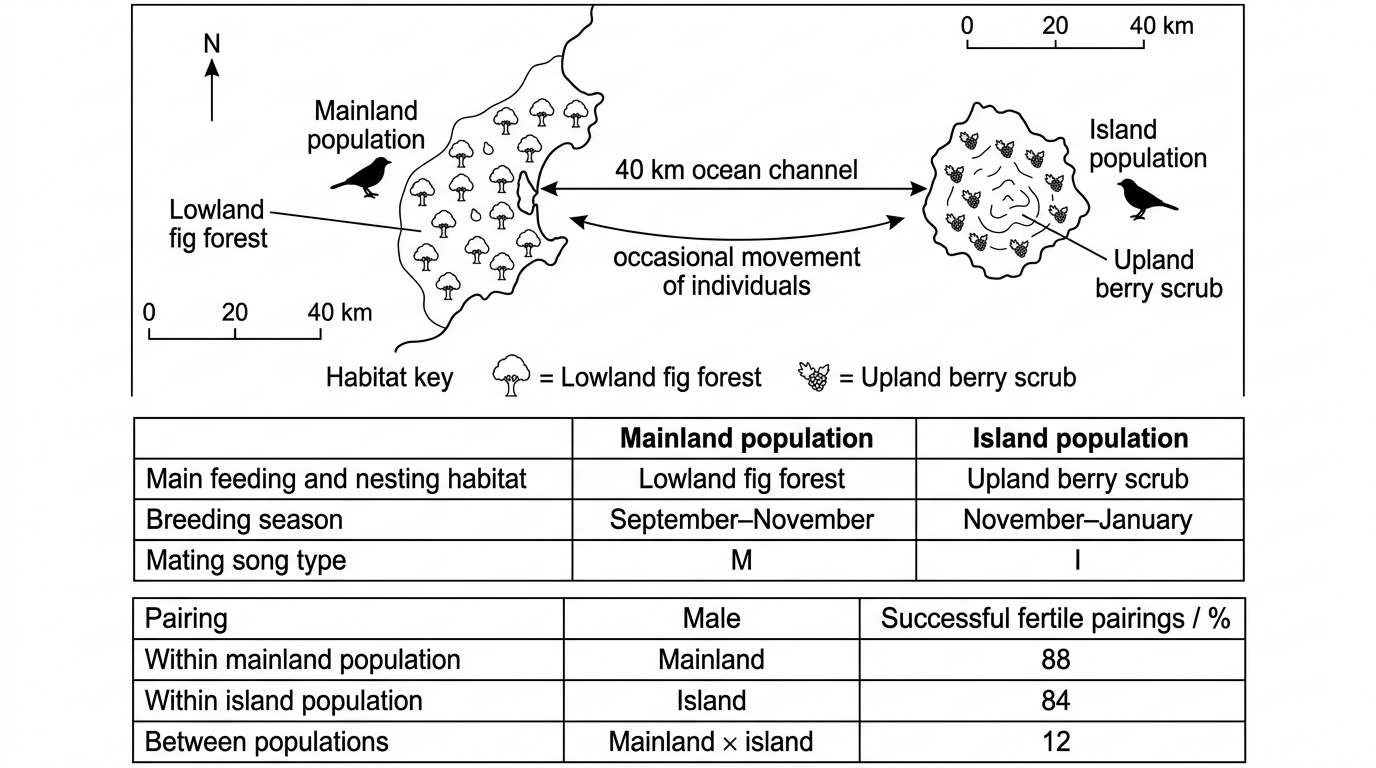

Two populations of the same ancestral fruit-eating bird occur on a mainland and a nearby island. Researchers investigated possible reproductive isolation.

A

two mechanisms that may be reproductively isolating the populations.

[2]
B

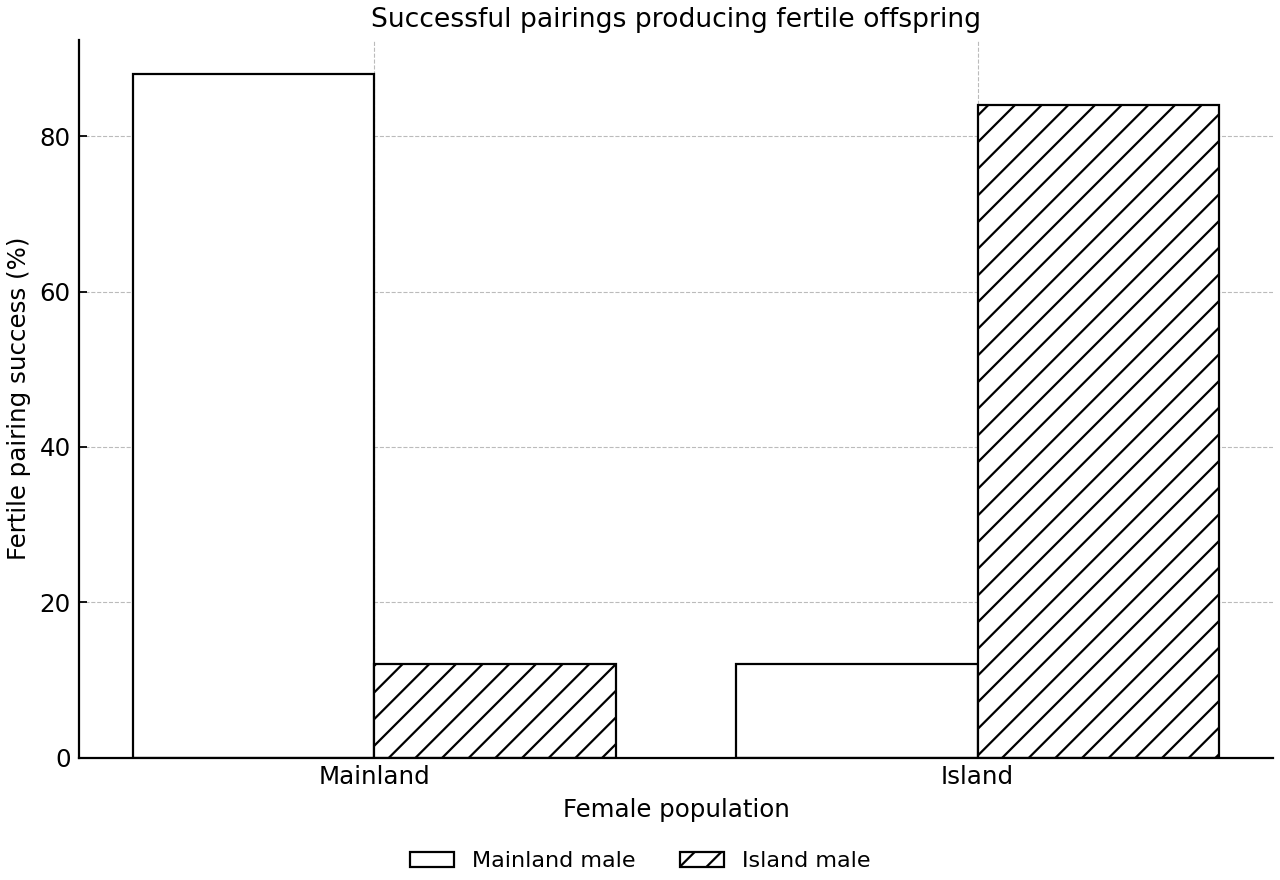

the percentage reduction in successful fertile pairings for crosses between populations compared with the mean success of pairings within populations.

[2]
C

how the evidence indicates that speciation may be occurring.

[3]
Question 24
HL • Paper 2
Hard
Calculator Permitted
HL • Paper 2
Hard
Calculator Permitted

Fossils from several correlated rock sequences were used to reconstruct biological change around a past mass-extinction event. Time zero represents the extinction boundary.

Extinction intensity and marine fossil-family diversity relative to an extinction boundary.

Time relative to boundary / MaExtinction intensity / %Marine fossil families
−2-25—
−1-19—
0−0^{-} (immediately before)—240
00 (extinction boundary)72—
0+0^{+} (immediately after)—68
+1+118—
+5+5795
+15+15—160
+30+30—225
A

the time at which extinction intensity was greatest.

[1]
B

the percentage decrease in the number of marine fossil families from immediately before to immediately after the event.

[2]
C

the pattern of biological recovery after the extinction event.

[2]
D

why mass extinctions may be followed by relatively rapid speciation.

[2]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 25
HL • Paper 1
Hard
Calculator Permitted
HL • Paper 1
Hard
Calculator Permitted

The bluefin snapper is harvested commercially. A hatchery also selectively breeds snapper for rapid growth and releases juveniles to supplement the wild population.

Comparison of wild no-take and eighth-generation hatchery bluefin snapper.

Wild no-take fishEighth-generation hatchery fish
Mean alleles per surveyed locus187
Survival after fungal disease exposure / %7431
Mean mass at age two / kg1.82.7
A

the percentage decrease in mean length at sexual maturity in the heavily fished zone.

[2]
B

how fishing may have caused evolutionary change in the wild population.

[3]
C

between the selective processes affecting the wild and hatchery populations.

[2]
D

the use of selectively bred hatchery fish to increase the commercial snapper population.

[5]
Question 26
HL • Paper 1
Hard
Calculator Permitted
HL • Paper 1
Hard
Calculator Permitted

Palaeontologists examined sedimentary rocks from the Karu Basin to investigate changes in marine biodiversity across a past mass-extinction event.

A

the hierarchy of the four named divisions of geological time from largest to smallest.

[1]
B

two pieces of evidence that boundary X represents a mass-extinction event.

[2]
C

why rates of speciation may increase after a mass extinction.

[3]
D

the fossil evidence for extinction followed by rapid speciation in the Karu Basin.

[5]
Question 27
HL • Paper 2
Hard
Calculator Permitted
HL • Paper 2
Hard
Calculator Permitted

Scientists compared three proposed markers for the lower boundary of the Anthropocene. They also examined other human-generated signals in recent sediments.

Comparison of proposed lower-boundary markers for the Anthropocene.

Proposed markerDateCores detected (out of 8)Dating uncertaintyAbruptnessLikely preservation
Atmospheric CO2CO_2 dip16103±20\pm 20 yearsGradual signalMainly in ice and peat
First widespread spherical fly-ash particles19507±3\pm 3 yearsAbrupt first appearanceDurable particles in lake and marine sediment
Carbon-14 fallout peak19648±1\pm 1 yearSharp peakGlobally distributed radioactive signature; declines through radioactive decay

A

the proposed boundary marker detected in the greatest number of sediment cores.

[1]
B

the percentage of studied cores containing the 1950 fly-ash marker.

[2]
C

Compare the suitability of the 1950 and 1964 markers as golden spikes.

[2]
D

Using both figures, whether the geological evidence supports recognizing the Anthropocene as an epoch separate from the Holocene.

[3]
Question 28
SL • Paper 2
Hard
Calculator Permitted
SL • Paper 2
Hard
Calculator Permitted

A

between habitat diversity, species diversity and genetic diversity.

[4]
B

how each level of biodiversity may contribute to the resilience of an ecological system following disturbance.

[7]
C

Using named examples, the importance of different sources of biodiversity knowledge in developing effective conservation management strategies.

[9]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 29
SL • Paper 2
Hard
Calculator Permitted
SL • Paper 2
Hard
Calculator Permitted

A

the process of evolution by natural selection.

[4]
B

how isolation and natural selection may result in the formation of a new species.

[7]
C

Using named examples, is maintaining connections between habitats the most effective way to conserve biodiversity and evolutionary potential?

[9]
Question 30
SL • Paper 2
Hard
Calculator Permitted
SL • Paper 2
Hard
Calculator Permitted

A

how species richness and evenness species diversity in a community.

[4]
B

how Simpson’s reciprocal index could be used to compare plant diversity at two sites in the same grassland ecosystem.

[7]
C

Using named examples, the value of quantitative diversity indices in making conservation-management decisions.

[9]
Question 31
HL • Paper 1
Hard
Calculator Permitted
HL • Paper 1
Hard
Calculator Permitted

Scientists compared possible geological markers for the lower boundary of a proposed Anthropocene epoch. Sediment cores were analysed from five widely separated regions.

Geological-marker observations from five sediment cores.

Core region1610 carbon-isotope signalFirst fly-ash signal / yearCarbon-14 peak / year
Northern lakeClear19501963
Tropical peatlandWeak19541964
Temperate estuaryClear19501964
Southern ice marginWeak19501965
Deep-ocean basinAbsent19571964

A

the proposed marker that is most globally synchronous in the cores and support the answer with data.

[2]
B

how three human signals shown in the resources could be preserved in the geological record.

[3]
C

Compare the suitability of the 1610, 1950 and 1964 signals as a golden spike.

[3]
D

whether the evidence supports recognizing the Anthropocene as an epoch separate from the Holocene.

[4]
Question 32
HL • Paper 2
Hard
Calculator Permitted
HL • Paper 2
Hard
Calculator Permitted

A

between mutation and sexual reproduction as sources of genetic diversity.

[4]
B

why tropical islands and tropical mountain regions often contain high species richness and endemism.

[7]
C

Using named examples, the use of biodiversity hotspots as a basis for allocating global conservation resources.

[9]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 33
HL • Paper 2
Hard
Calculator Permitted
HL • Paper 2
Hard
Calculator Permitted

A

between natural selection and artificial selection.

[4]
B

the environmental and economic importance of maintaining genetic diversity in crop and livestock populations.

[7]
C

Using named examples, can artificial selection contribute to environmentally and economically sustainable food production?

[9]
Question 34
HL • Paper 2
Hard
Calculator Permitted
HL • Paper 2
Hard
Calculator Permitted

A

how fossils and the geological timescale provide evidence for the evolution of life on Earth.

[4]
B

why a mass extinction may be followed by a relatively rapid rate of speciation.

[7]
C

the argument that the Anthropocene should be formally recognized as an epoch separate from the Holocene.

[9]

3.2 Human impact on biodiversity
