6.1 Introduction to the atmosphere

Practice exam-style IB ESS questions for Introduction to the atmosphere, aligned with the syllabus and grouped by topic.

Verified by Veronica
Verified by Veronica
Paper
Difficulty
Status
Level

This content can't be printed from the browser. Use Export PDF with Pro for an offline copy.

Question 1
SL • Paper 2
Easy
Calculator Permitted
SL • Paper 2
Easy
Calculator Permitted

A

the atmosphere and its relationship to the biosphere.

[2]
Question 2
SL • Paper 2
Easy
Calculator Permitted
SL • Paper 2
Easy
Calculator Permitted

A

three ways in which the composition of the atmosphere supports life on Earth.

[3]
Question 3
SL • Paper 2
Easy
Calculator Permitted
SL • Paper 2
Easy
Calculator Permitted

A

a greenhouse gas.

[2]
Question 4
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

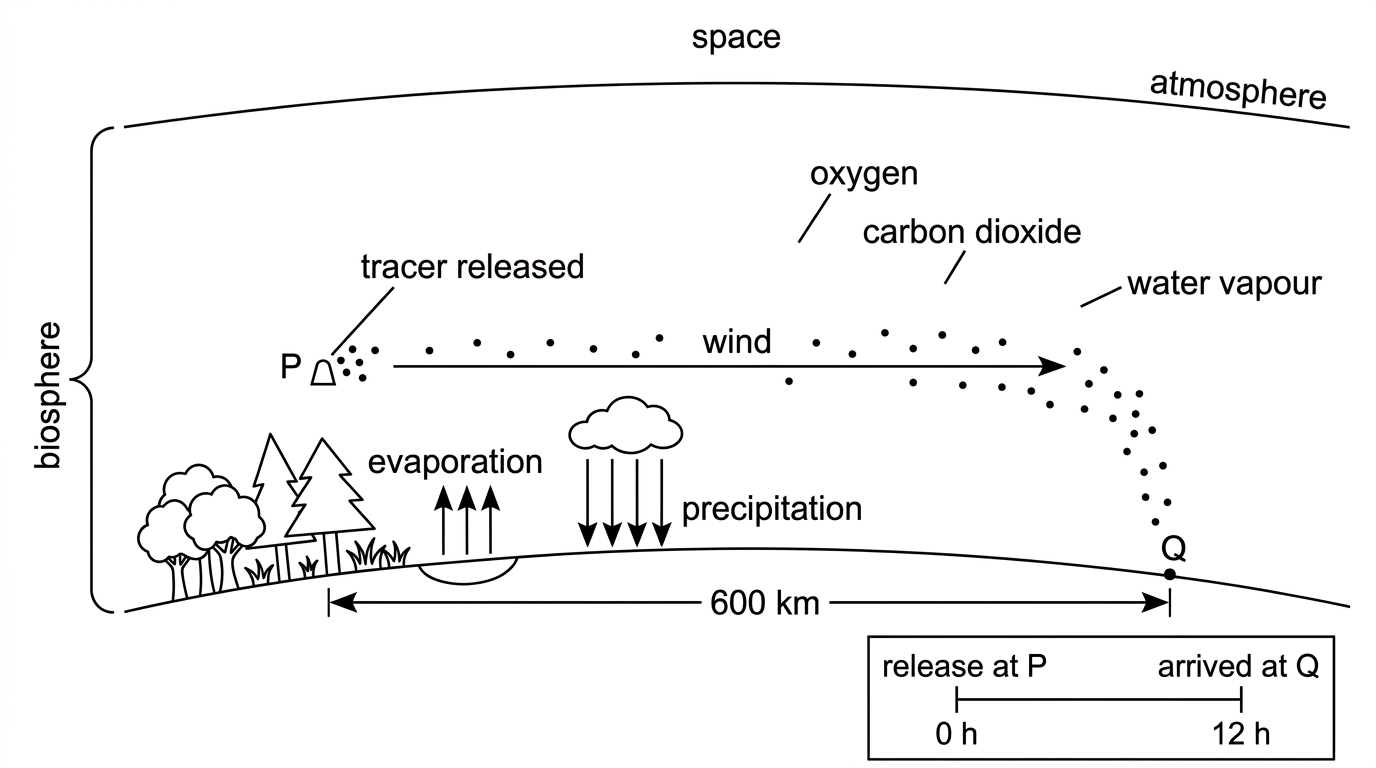

Figure 1 shows a simplified cross-section through Earth's atmosphere and the movement of an airborne tracer released at the surface.

A

the outer limit of the biosphere shown in Figure 1.

[1]
B

the mean speed at which the tracer travelled from P to Q, in km h−1\text{km h}^{-1}.

[2]
C

two ways in which the atmospheric composition and processes shown in Figure 1 support life on Earth.

[3]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 5
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

A

why the equatorial region receives more solar energy per unit area than polar regions.

[3]
Question 6
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

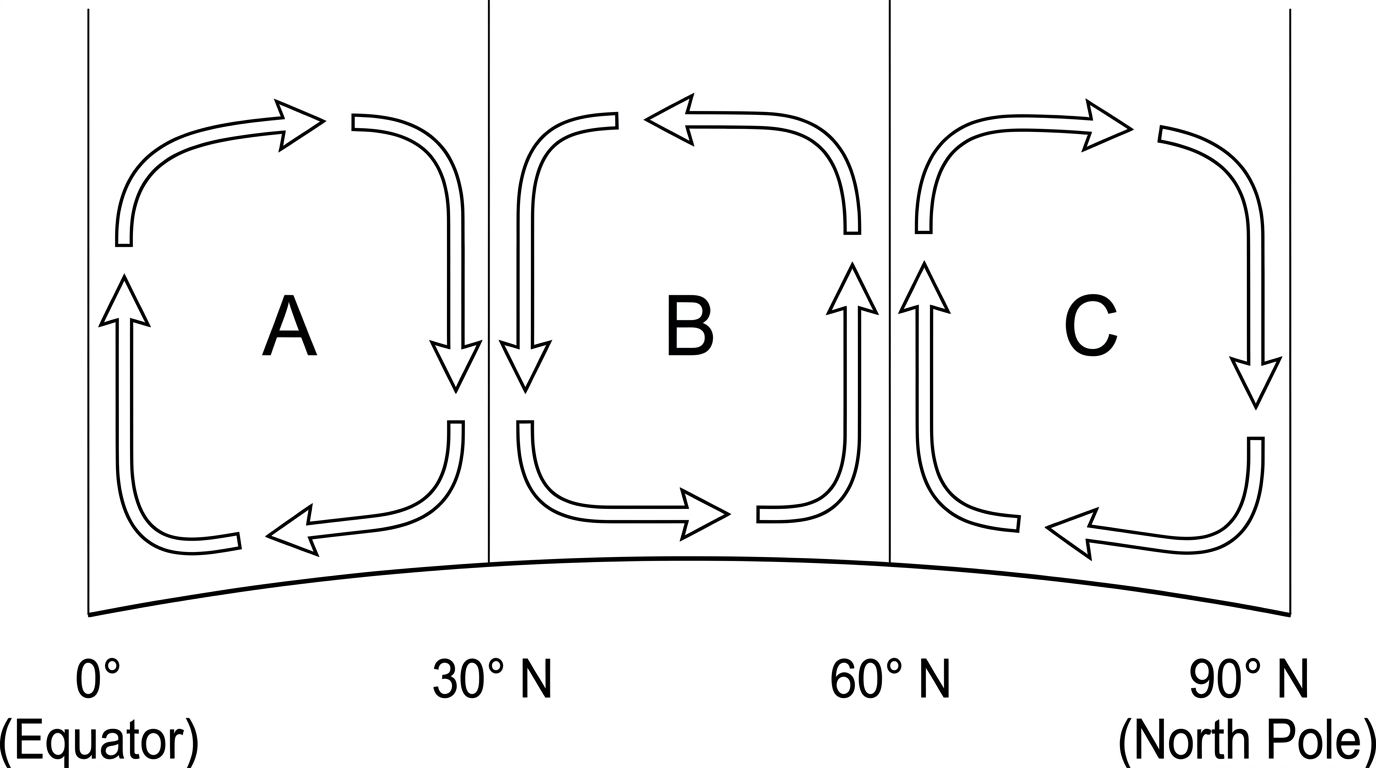

The figure shows part of the tricellular atmospheric circulation model in the Northern Hemisphere.

A

the atmospheric circulation cells labelled A, B and C.

[3]
Question 7
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

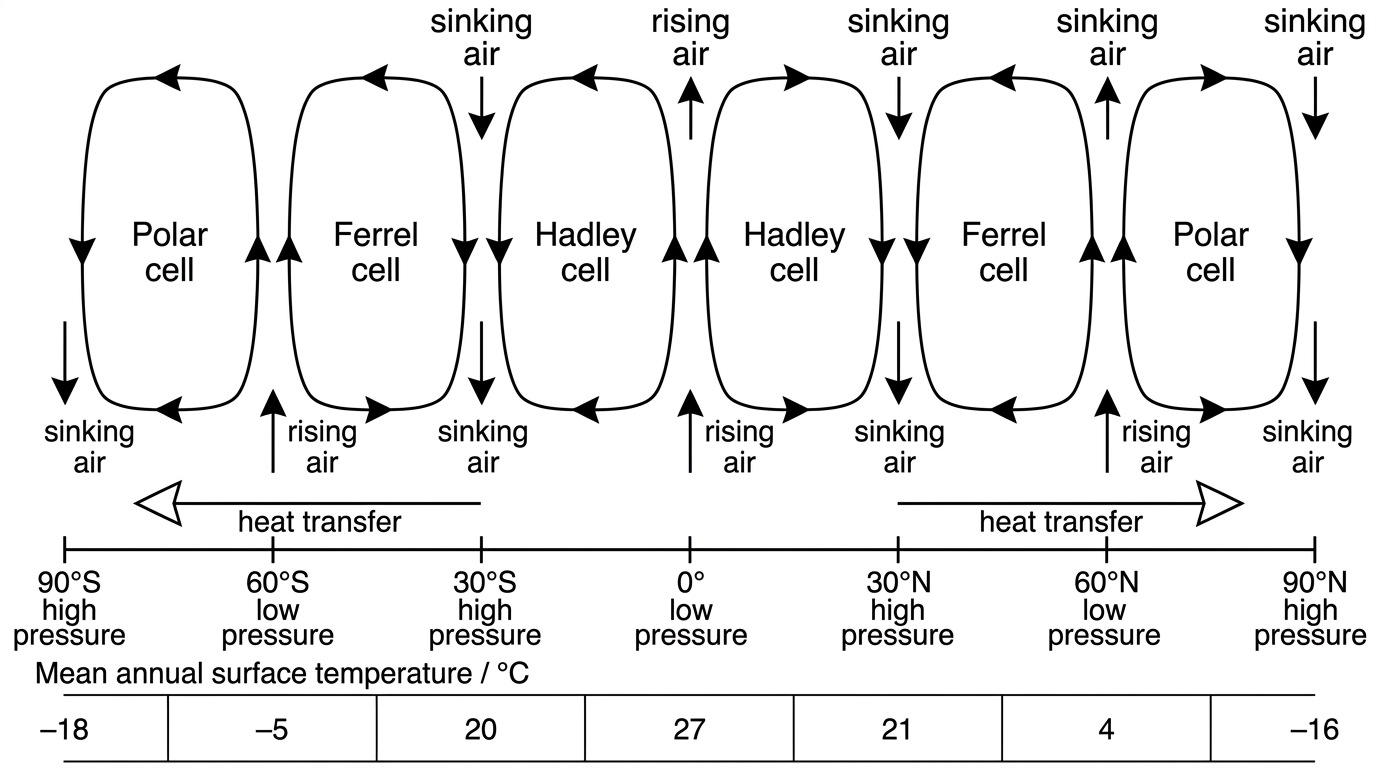

Figure 2 shows the tricellular model of atmospheric circulation and mean annual surface temperatures at selected latitudes.

A

the atmospheric circulation cell between 30∘N30^\circ\text{N} and 60∘N60^\circ\text{N}.

[1]
B

the difference in mean annual surface temperature between the equator and 90∘N90^\circ\text{N}.

[1]
C

why air rises near the equator and sinks near 30∘30^\circ latitude.

[3]
D

how the circulation shown reduces the temperature difference calculated in (b).

[2]
Question 8
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

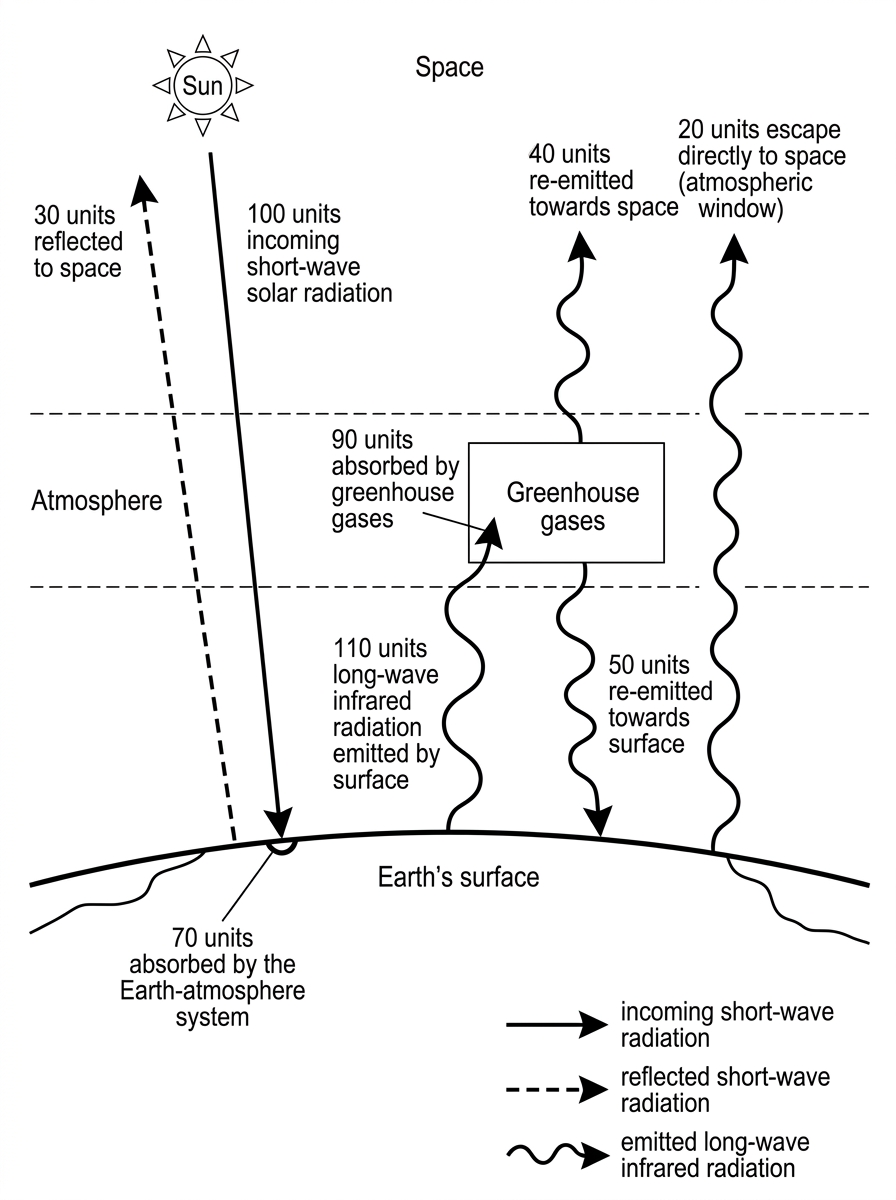

Figure 3 shows a simplified radiation budget for the Earth-atmosphere system. All values are expressed as units per 100 units of incoming solar radiation. The diagram is not intended to represent equilibrium: 10 units are temporarily retained in the Earth-atmosphere system because 100 units enter while 90 units are shown leaving to space.

A

the number of units of surface-emitted infrared radiation that escape directly to space.

[1]
B

the percentage of surface-emitted infrared radiation absorbed by greenhouse gases.

[2]
C

how the radiation pathways shown produce the natural greenhouse effect.

[3]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 9
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

Figure 4 shows results from an investigation of black-carbon deposition on snow. Incoming solar radiation was constant at 300 W m−2300\ \text{W m}^{-2}.

Results of black-carbon (soot from incomplete combustion) deposition on snow under constant incoming solar radiation of 300 W m−2300\ \text{W m}^{-2}

Black-carbon deposition / g m−2\text{g m}^{-2}Snow albedoAbsorbed solar radiation / W m−2\text{W m}^{-2}
00.8254
10.7575
20.6896
40.54138
A

the albedo of snow receiving 2 g m−22\ \text{g m}^{-2} of black carbon.

[1]
B

the percentage increase in absorbed solar radiation between deposition levels of 0 and 4 g m−24\ \text{g m}^{-2}.

[2]
C

the relationship between black-carbon deposition, albedo and absorbed solar radiation shown in Figure 4.

[2]
D

one consequence of the relationship shown for the atmospheric system.

[1]
Question 10
SL • Paper 2
Medium
Calculator Permitted
SL • Paper 2
Medium
Calculator Permitted

A

between the natural greenhouse effect and the enhanced greenhouse effect.

[4]
Question 11
SL • Paper 1
Medium
Calculator Permitted
SL • Paper 1
Medium
Calculator Permitted

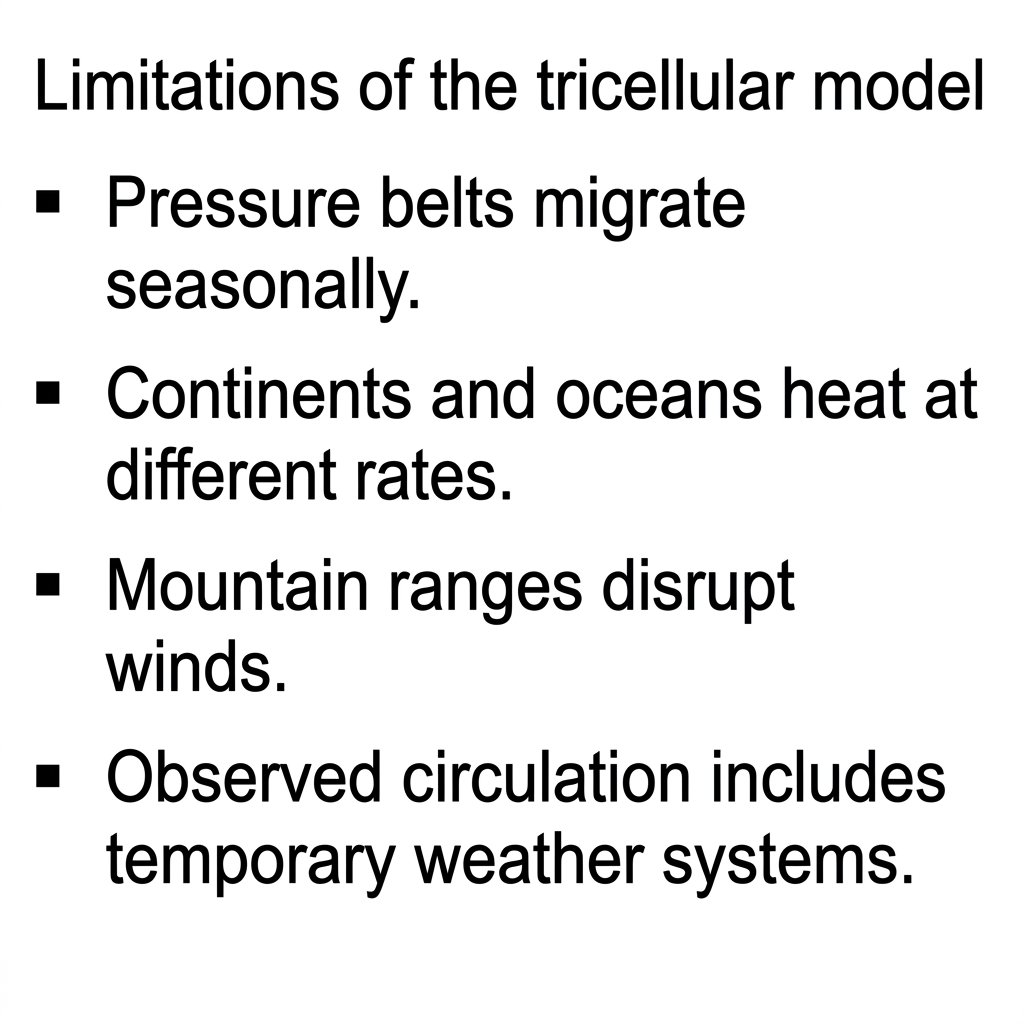

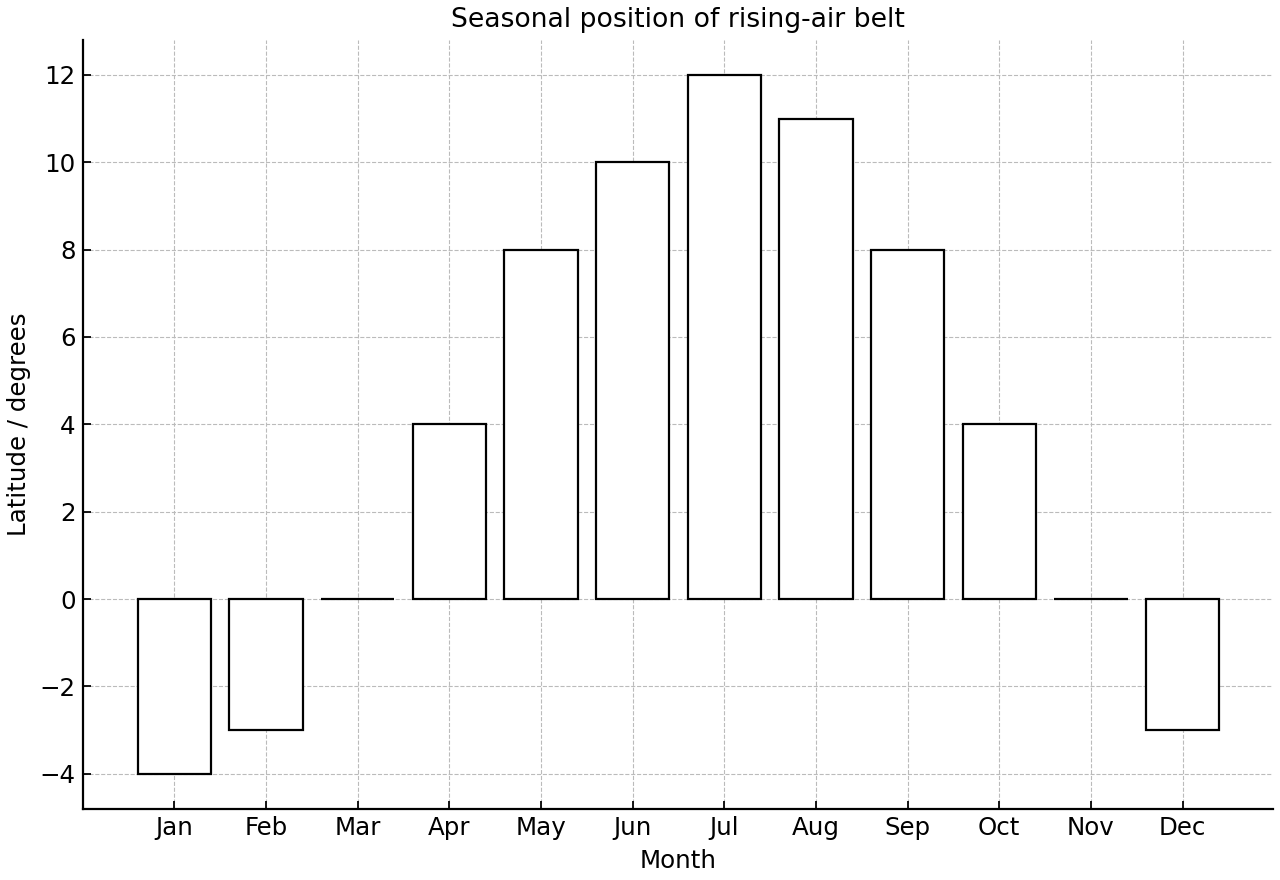

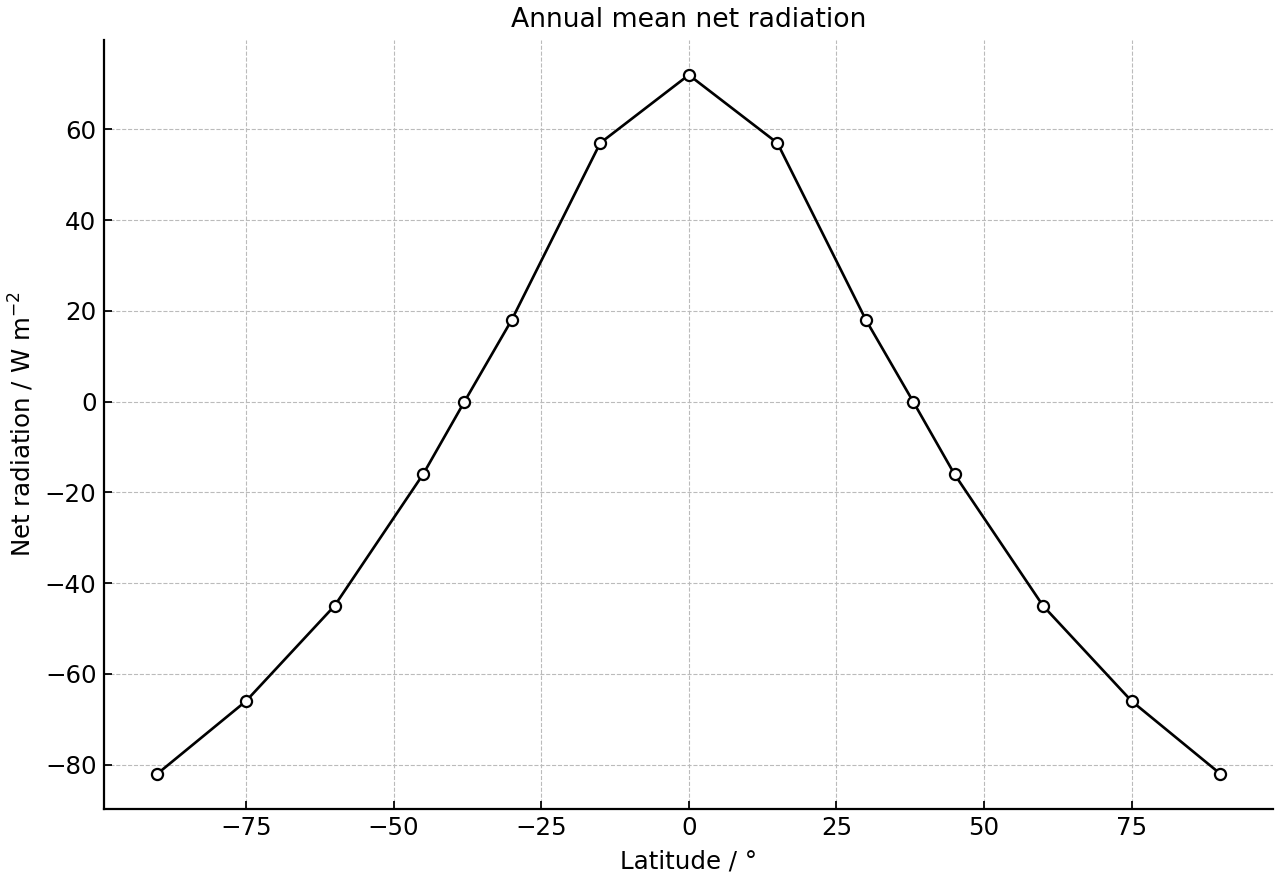

Scientists compared a simplified atmospheric-circulation model with measurements of Earth's annual mean energy balance by latitude.

A

the circulation cell extending from the equator to approximately 30∘30^\circ north.

[1]
B

the difference in annual mean net radiation between the equator and 60∘60^\circ north.

[2]
C

how differential heating produces the circulation shown in Figure 1(a).

[3]
D

the usefulness of the tricellular model for explaining the redistribution of heat around Earth.

[6]
Question 12
SL • Paper 1
Medium
Calculator Permitted
SL • Paper 1
Medium
Calculator Permitted

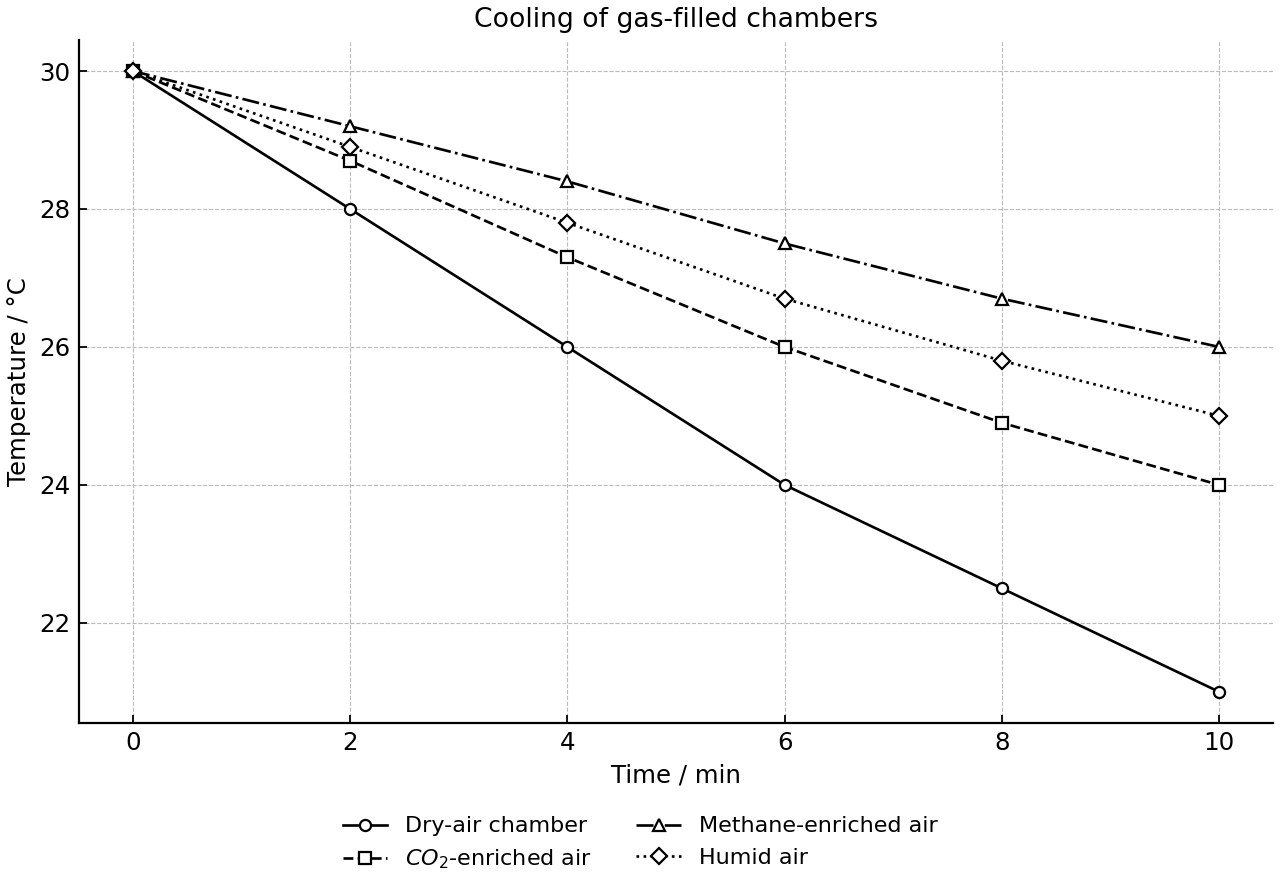

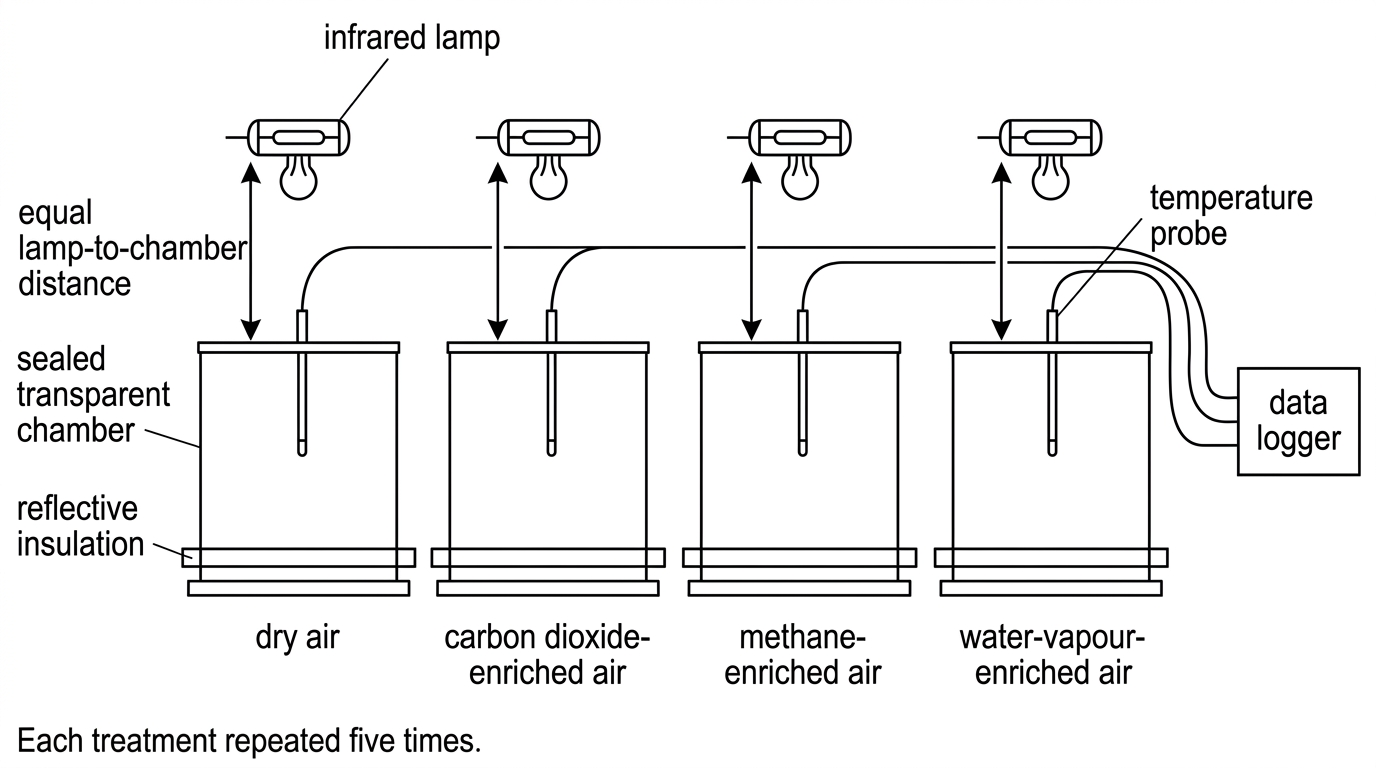

Students investigated the cooling of four sealed transparent chambers after each chamber had been heated to 30.0∘C30.0^\circ\text{C}. The chambers were identical except for their gas composition. Infrared lamps were switched off at time zero.

A

the chamber that cooled most slowly.

[1]
B

the difference in temperature decrease between the dry-air chamber and the methane-enriched chamber after 10 minutes.

[2]
C

the differences in cooling shown in Figure 2(a).

[3]
D

the use of this investigation as a model of the greenhouse effect in Earth's atmosphere.

[6]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 13
SL • Paper 1
Medium
Calculator Permitted
SL • Paper 1
Medium
Calculator Permitted

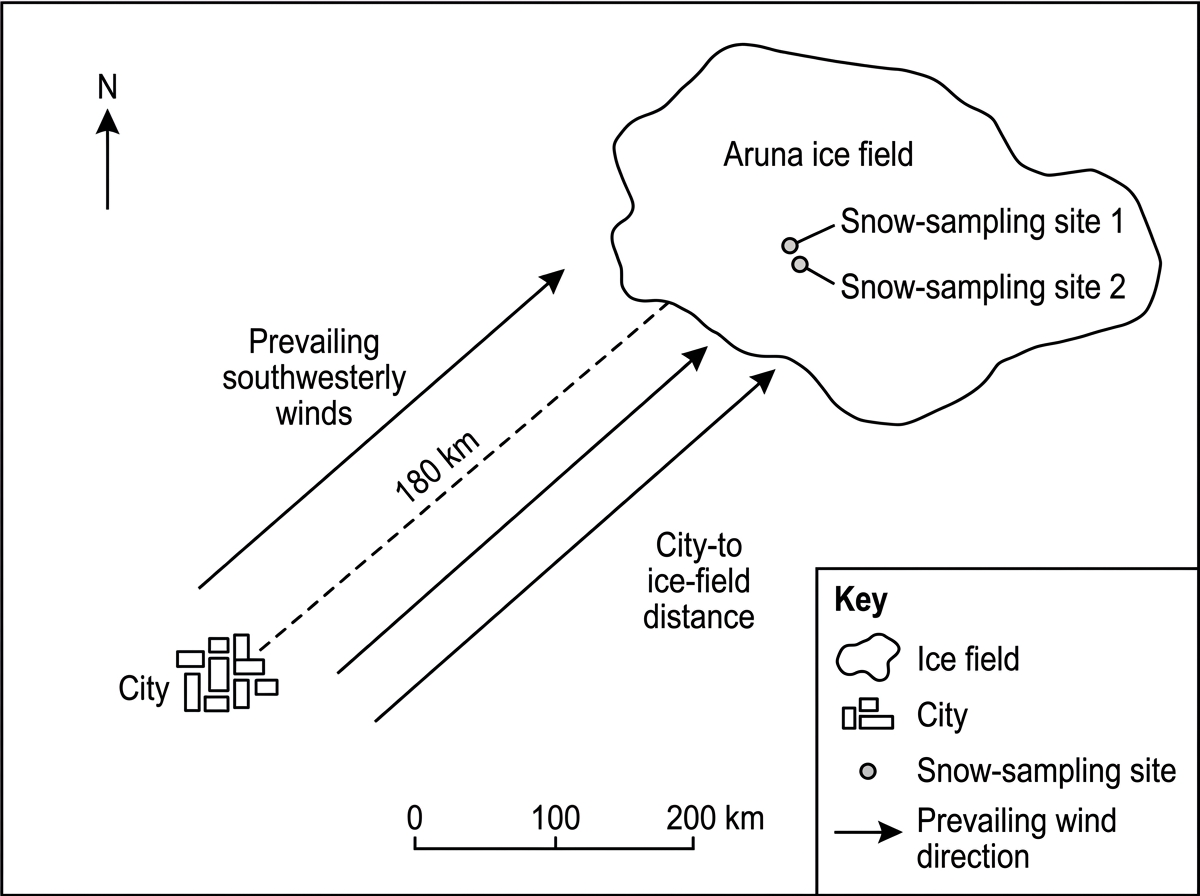

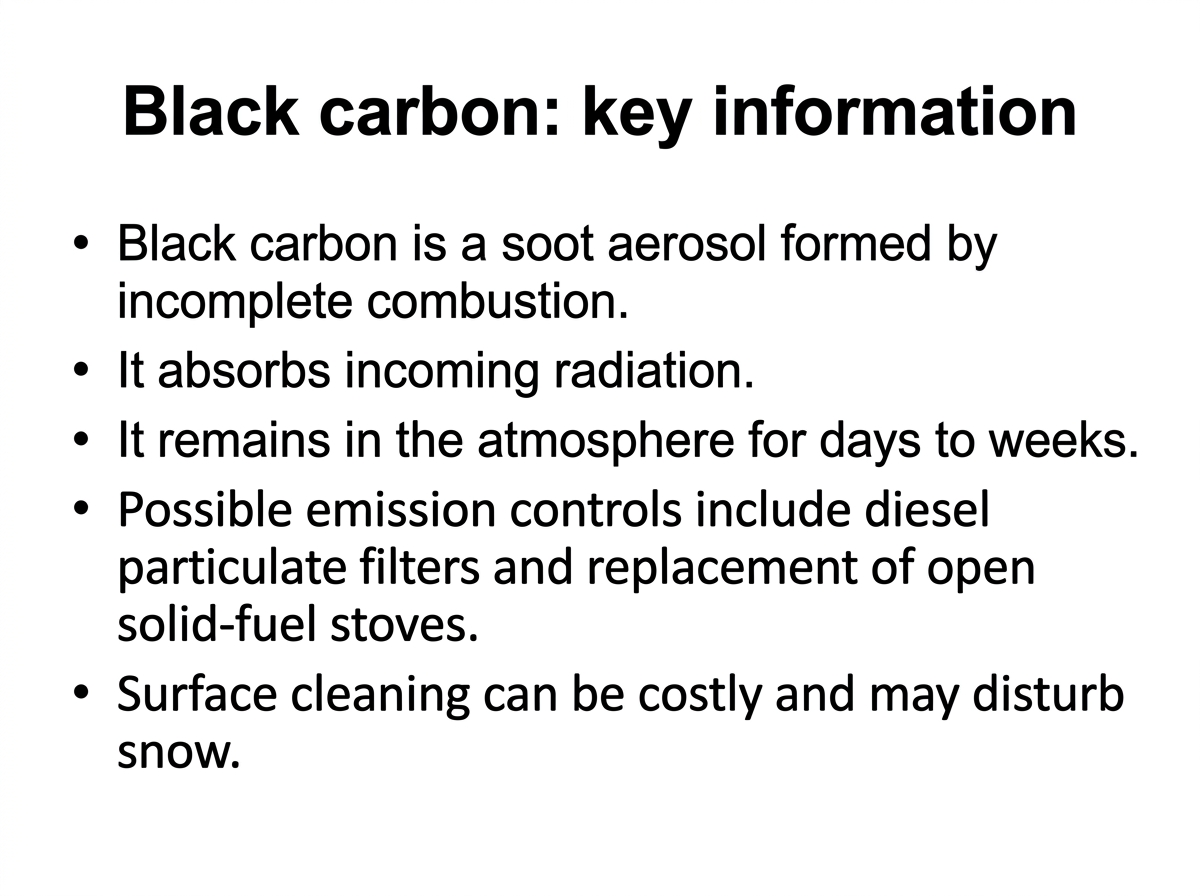

Black carbon emitted by incomplete combustion is transported by wind to the Aruna ice field. Researchers compared adjacent snow plots during a 24-hour period with equal incoming solar radiation.

Figure 3(b): Mean albedo and meltwater production over 24 hours for three snow treatments.

Snow treatmentMean albedoMeltwater production / mm per 24 h
Clean snow0.8218
Black-carbon-contaminated snow0.5543
Contaminated snow after surface cleaning0.7425

A

the difference between the albedo of clean snow and black-carbon-contaminated snow.

[1]
B

the percentage increase in meltwater production from clean snow to black-carbon-contaminated snow.

[2]
C

the relationship between black carbon, snow albedo and meltwater production shown in Figure 3(b).

[3]
D

strategies for reducing the warming effect of black carbon on the Aruna ice field.

[6]
Question 14
SL • Paper 1
Medium
Calculator Permitted
SL • Paper 1
Medium
Calculator Permitted

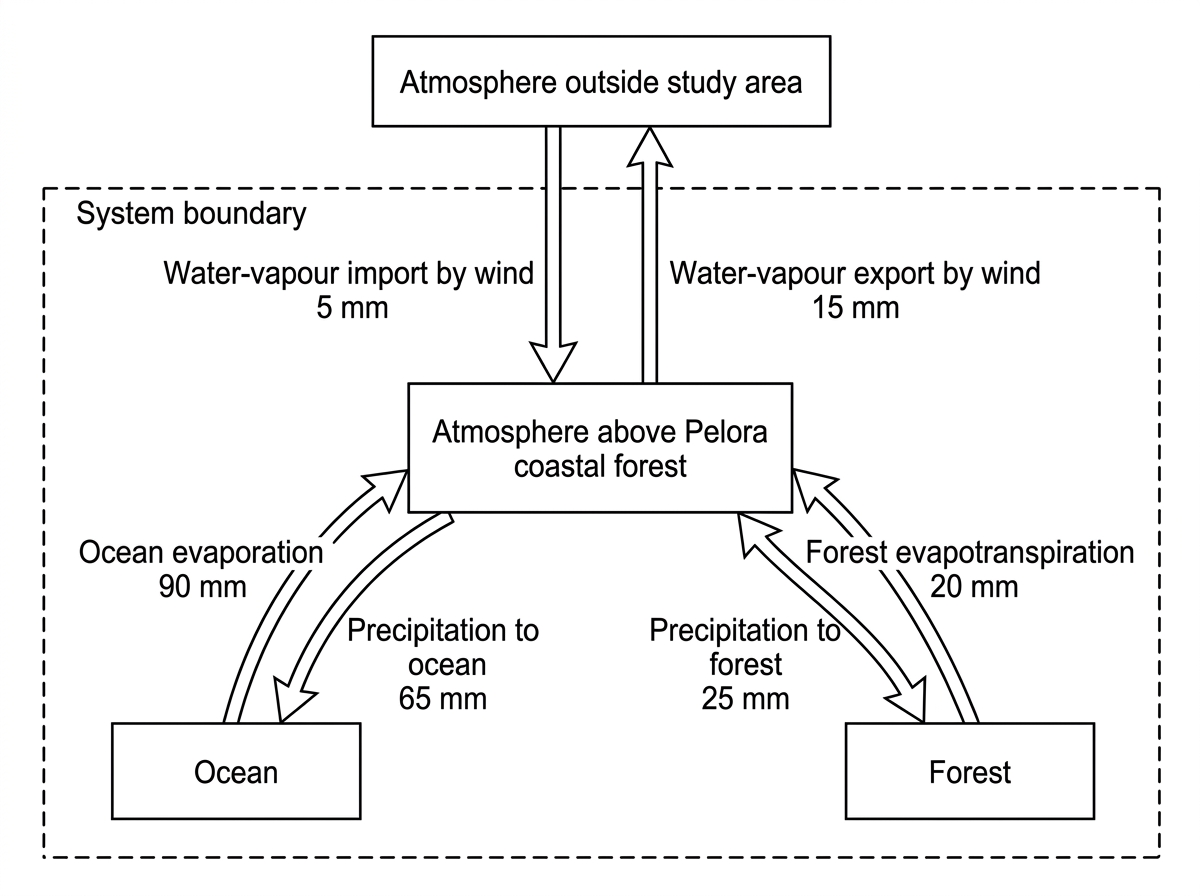

Figure 4 represents monthly water transfers involving the atmosphere above the fictional Pelora coastal forest. All transfer values are expressed as an equivalent depth of water over the study area.

A

the monthly change in atmospheric water storage within the system boundary.

[2]
B

two ways in which the composition of the atmosphere supports life.

[2]
C

how wind links the atmosphere above Pelora to other parts of the Earth system.

[3]
D

the usefulness of Figure 4(a) for representing the atmosphere as a system.

[5]
Question 15
HL • Paper 2
Medium
Calculator Permitted
HL • Paper 2
Medium
Calculator Permitted

Figure 5 shows annual global mean temperature anomaly and atmospheric water-vapour content over a 20-year period. Values are relative to the first year.

Annual changes in global mean temperature anomaly and atmospheric water-vapour content, relative to year 1.

YearTemperature anomaly / ∘C^\circ\text{C}Water-vapour change / %
10.000.0
20.050.3
30.090.6
40.140.9
50.181.1
60.161.0
70.221.4
80.261.6
90.241.5
100.312.0
110.342.2
120.332.1
130.382.5
140.412.6
150.432.8
160.473.1
170.463.0
180.523.5
190.563.7
200.604.0
A

the relationship between temperature anomaly and atmospheric water-vapour content shown in Figure 5.

[2]
B

the mean increase in atmospheric water-vapour content per 0.10∘C0.10^\circ\text{C} increase in temperature anomaly between years 1 and 20.

[2]
C

how the relationship shown may operate as a positive feedback in the atmospheric system.

[2]
D

why directly reducing atmospheric water vapour would be an inappropriate climate-change mitigation strategy.

[1]
Question 16
HL • Paper 2
Medium
Calculator Permitted
HL • Paper 2
Medium
Calculator Permitted

A

the formation of the surface low-pressure belt near the equator and the surface high-pressure belt near 30∘30^\circ latitude.

[4]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 17
HL • Paper 2
Medium
Calculator Permitted
HL • Paper 2
Medium
Calculator Permitted

A

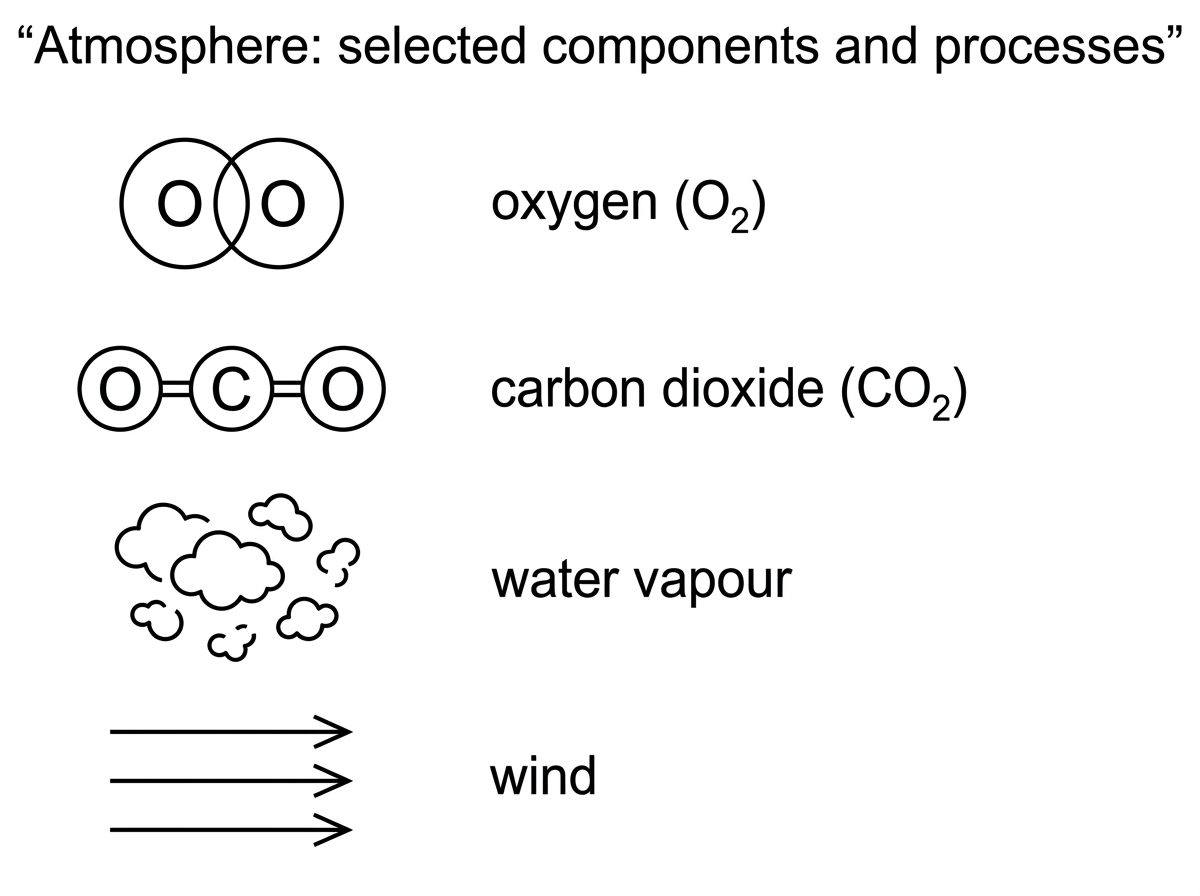

a systems diagram representing interactions between the atmosphere and other Earth systems. Include an energy input, two energy outputs, at least three storages and two transfers between storages.

[4]
Question 18
HL • Paper 2
Medium
Calculator Permitted
HL • Paper 2
Medium
Calculator Permitted

A

two ways in which black carbon can contribute to atmospheric warming.

[4]
Question 19
HL • Paper 2
Medium
Calculator Permitted
HL • Paper 2
Medium
Calculator Permitted

A

why reducing atmospheric water vapour directly is not generally proposed as a climate-change mitigation strategy.

[3]
Question 20
HL • Paper 2
Hard
Calculator Permitted
HL • Paper 2
Hard
Calculator Permitted

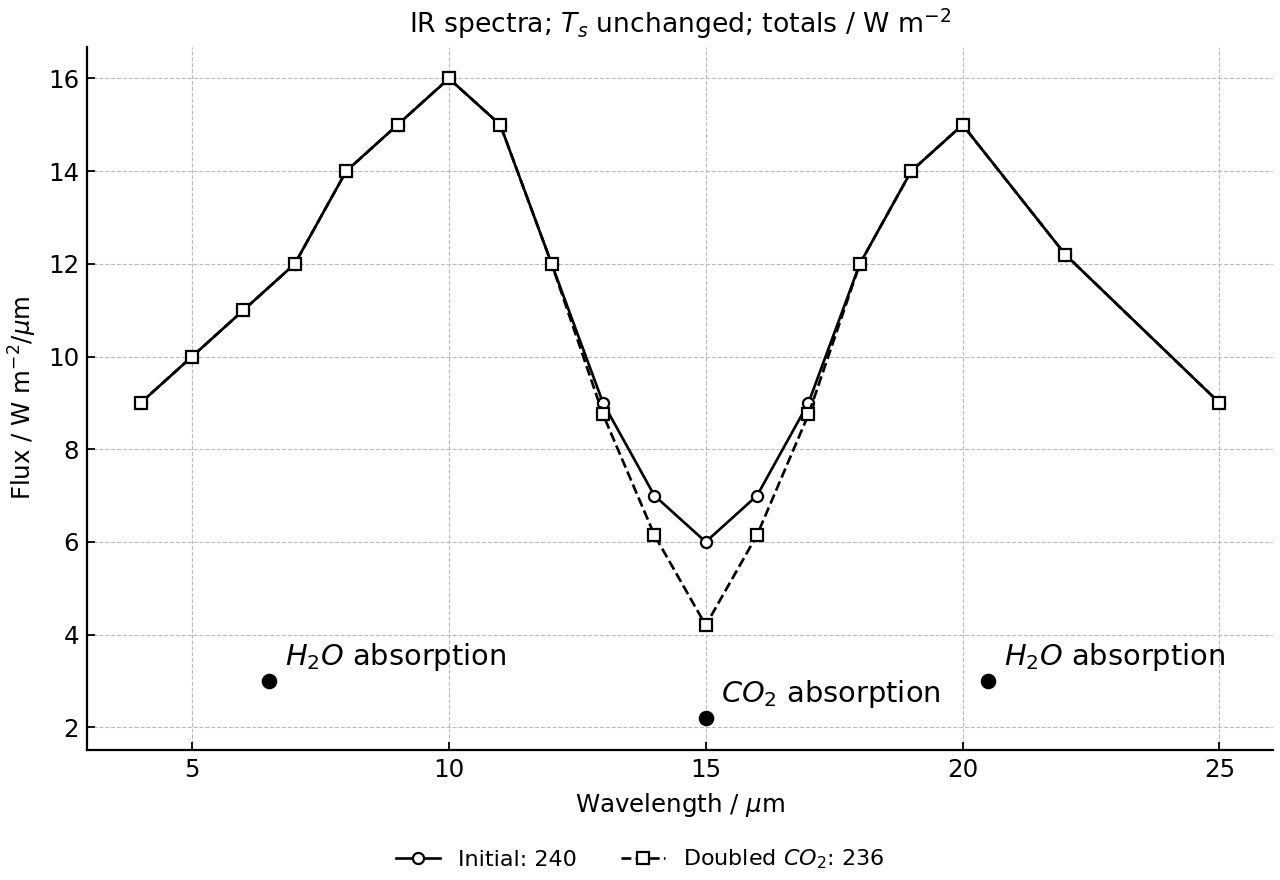

Figure 6 compares outgoing infrared radiation immediately before and immediately after atmospheric carbon dioxide concentration is doubled. Surface temperature is unchanged during this initial comparison.

A

the wavelength at which doubling carbon dioxide produces the largest decrease in outgoing infrared radiation.

[1]
B

the percentage decrease in total outgoing long-wave radiation immediately after carbon dioxide is doubled.

[2]
C

how the change shown can lead to an enhanced greenhouse effect.

[3]
D

why the two curves remain similar at some wavelengths despite the doubling of carbon dioxide.

[1]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 21
HL • Paper 2
Hard
Calculator Permitted
HL • Paper 2
Hard
Calculator Permitted

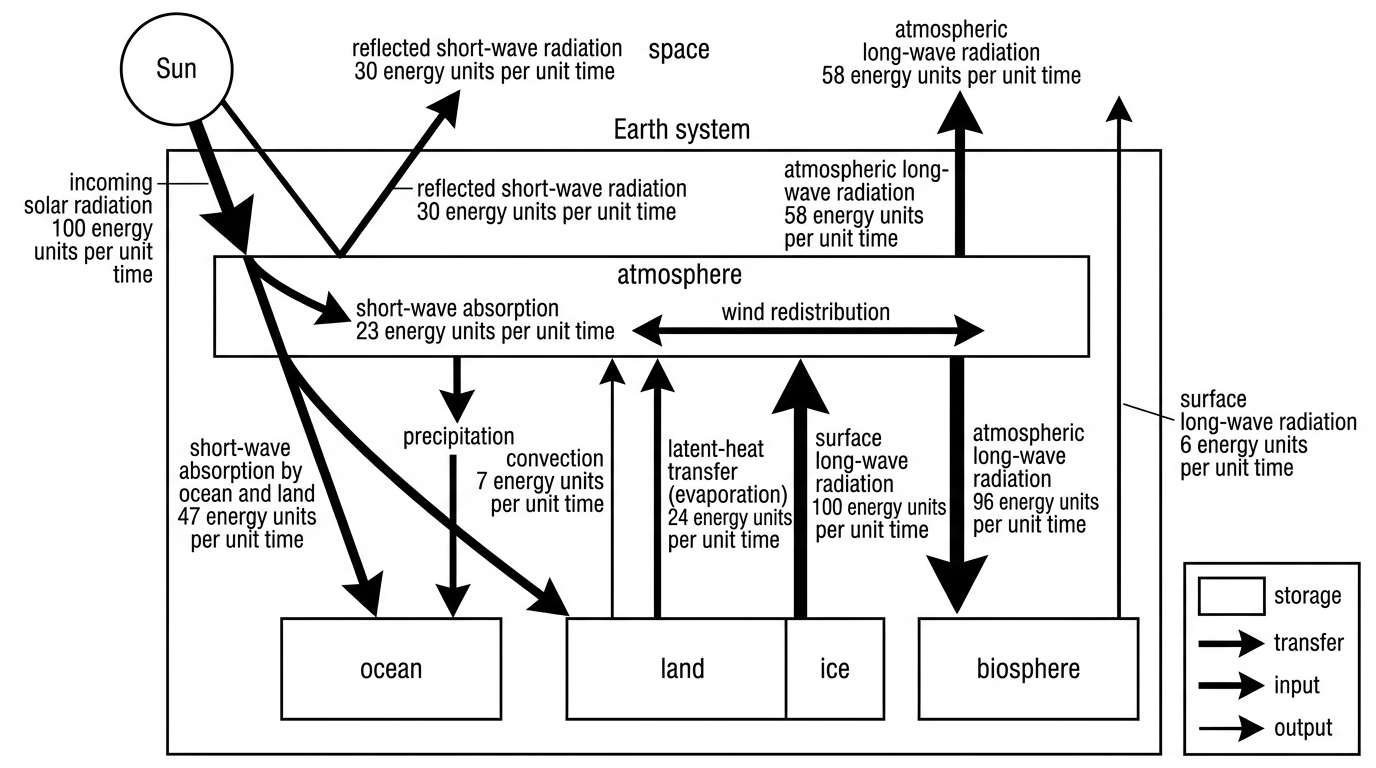

Figure 7 is a systems diagram representing selected energy transfers involving the atmosphere. All numerical energy flows are expressed as energy units per unit time.

A

the total energy transferred from the surface to the atmosphere by convection and latent-heat transfer.

[1]
B

the total energy output from the Earth system to space shown in Figure 7.

[2]
C

Using Figure 7, whether the Earth system is gaining or losing energy at the time represented.

[2]
D

how two transfers in Figure 7 link the atmosphere with other Earth-system storages.

[2]
Question 22
SL • Paper 2
Hard
Calculator Permitted
SL • Paper 2
Hard
Calculator Permitted

A

four ways in which the composition and processes of the atmosphere support life on Earth.

[4]
B

how differential heating produces the tricellular circulation model and redistributes thermal energy between the equator and the poles.

[7]
C

Using real-world examples, is atmospheric circulation the most important atmospheric process contributing to the stability of life on Earth?

[9]
Question 23
HL • Paper 2
Hard
Calculator Permitted
HL • Paper 2
Hard
Calculator Permitted

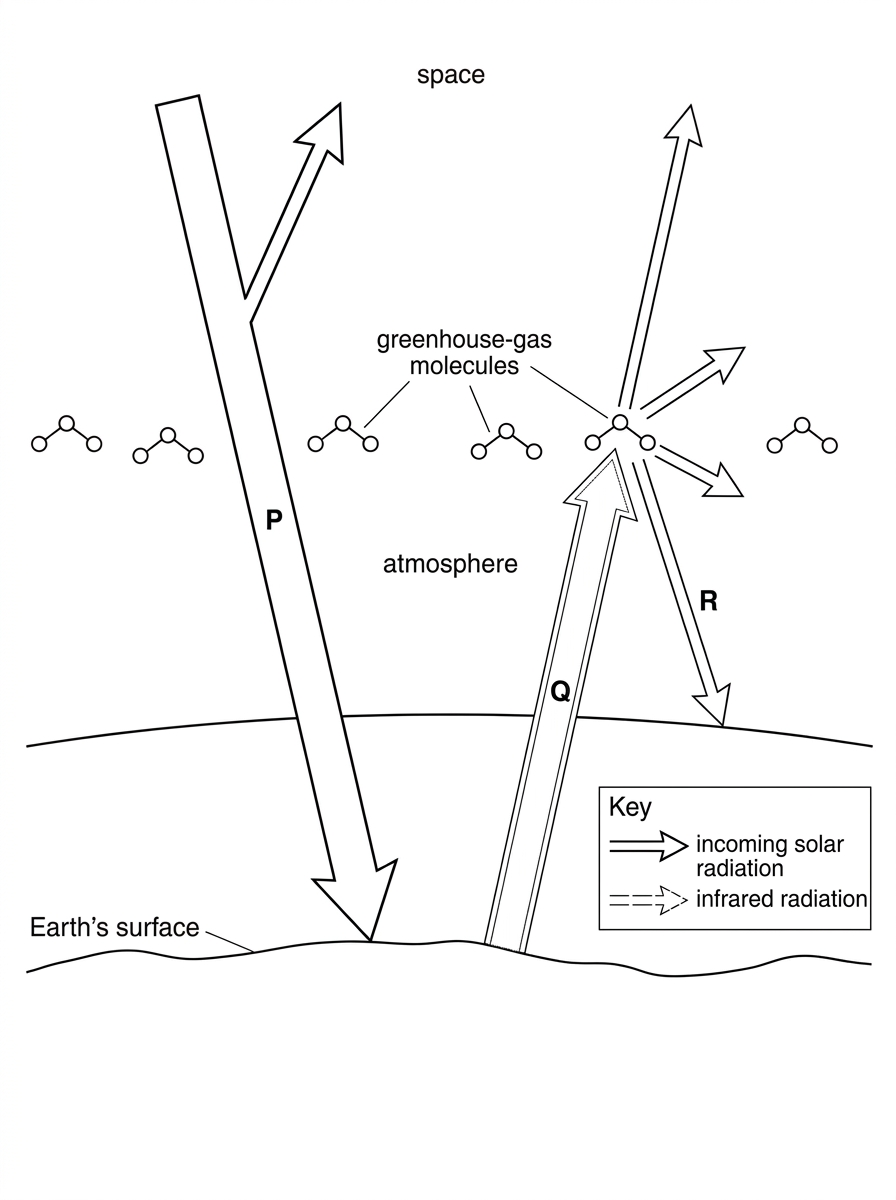

The figure represents selected radiation pathways in the atmosphere. Arrow P is incoming solar radiation, arrow Q is infrared radiation emitted by the warmed surface, and arrow R is radiation directed back towards the surface.

A

the processes that produce radiation pathway R and how an increased greenhouse-gas concentration would affect this pathway.

[4]
Question 24
HL • Paper 2
Hard
Calculator Permitted
HL • Paper 2
Hard
Calculator Permitted

A

how atmospheric circulation and the natural greenhouse effect together contribute to the stability of life on Earth.

[4]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 25
HL • Paper 1
Hard
Calculator Permitted
HL • Paper 1
Hard
Calculator Permitted

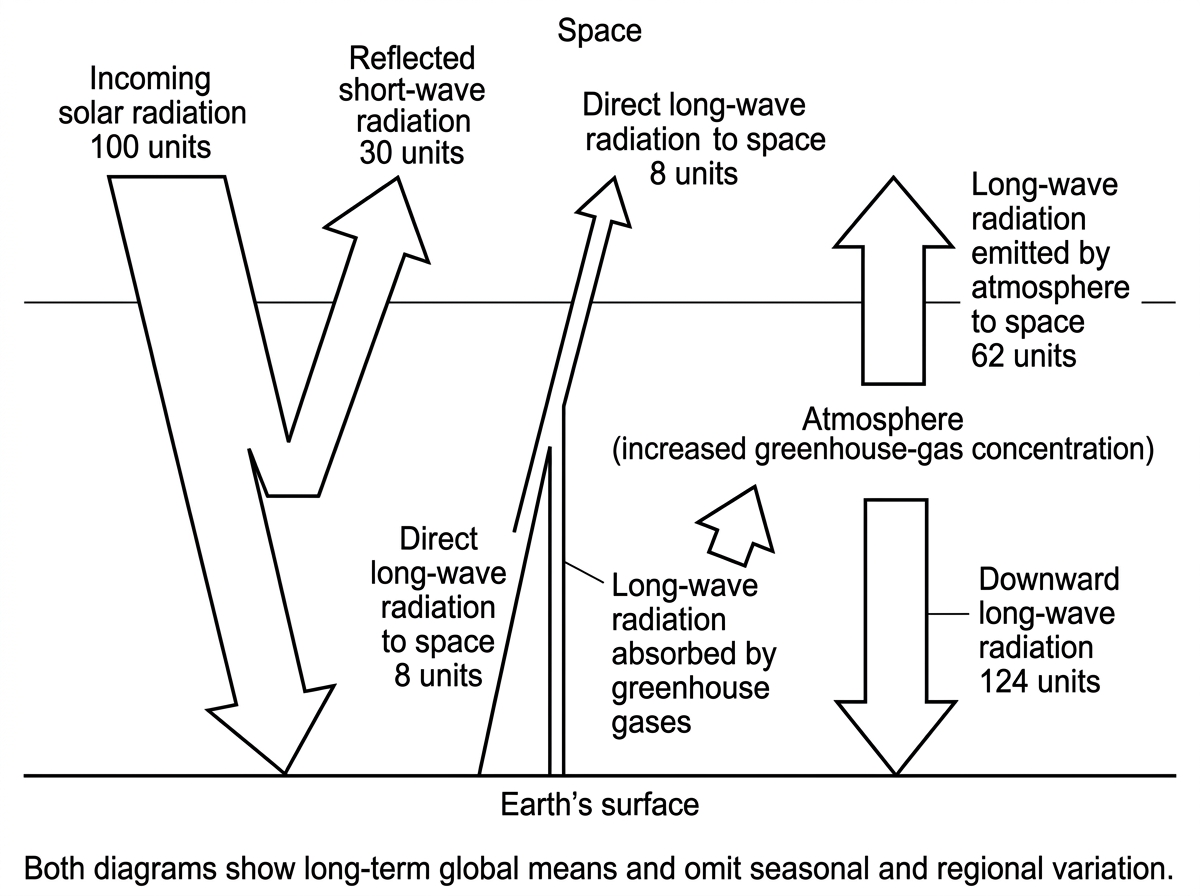

Satellite measurements and a climate model were used to two simplified global energy budgets. Values are percentages of incoming solar radiation.

A

Earth's albedo represented in Figure 5(a).

[2]
B

that both energy budgets represent equilibrium at the top of the atmosphere.

[2]
C

how the increased greenhouse-gas concentration changes the energy transfers shown.

[4]
D

the claim that the enhanced greenhouse effect prevents energy from escaping to space.

[7]
Question 26
HL • Paper 1
Hard
Calculator Permitted
HL • Paper 1
Hard
Calculator Permitted

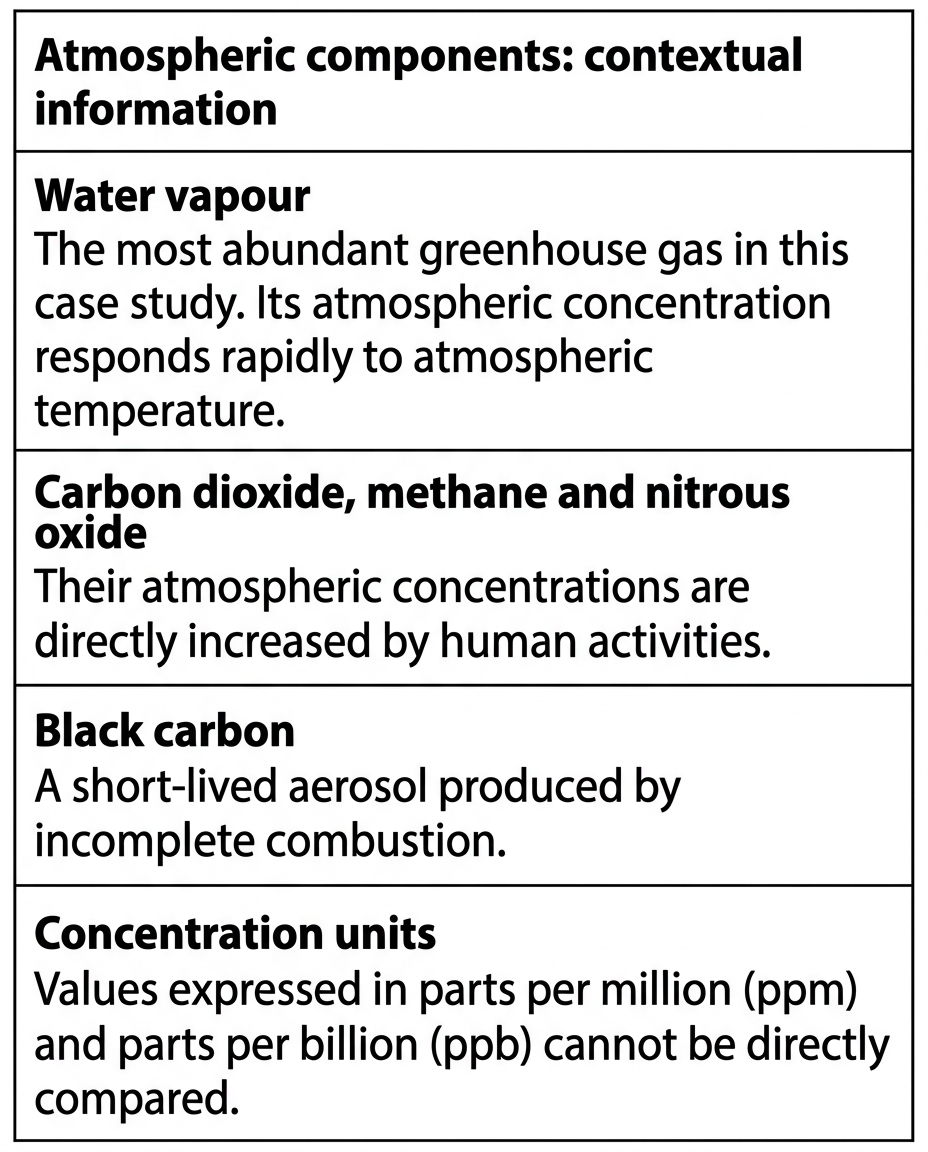

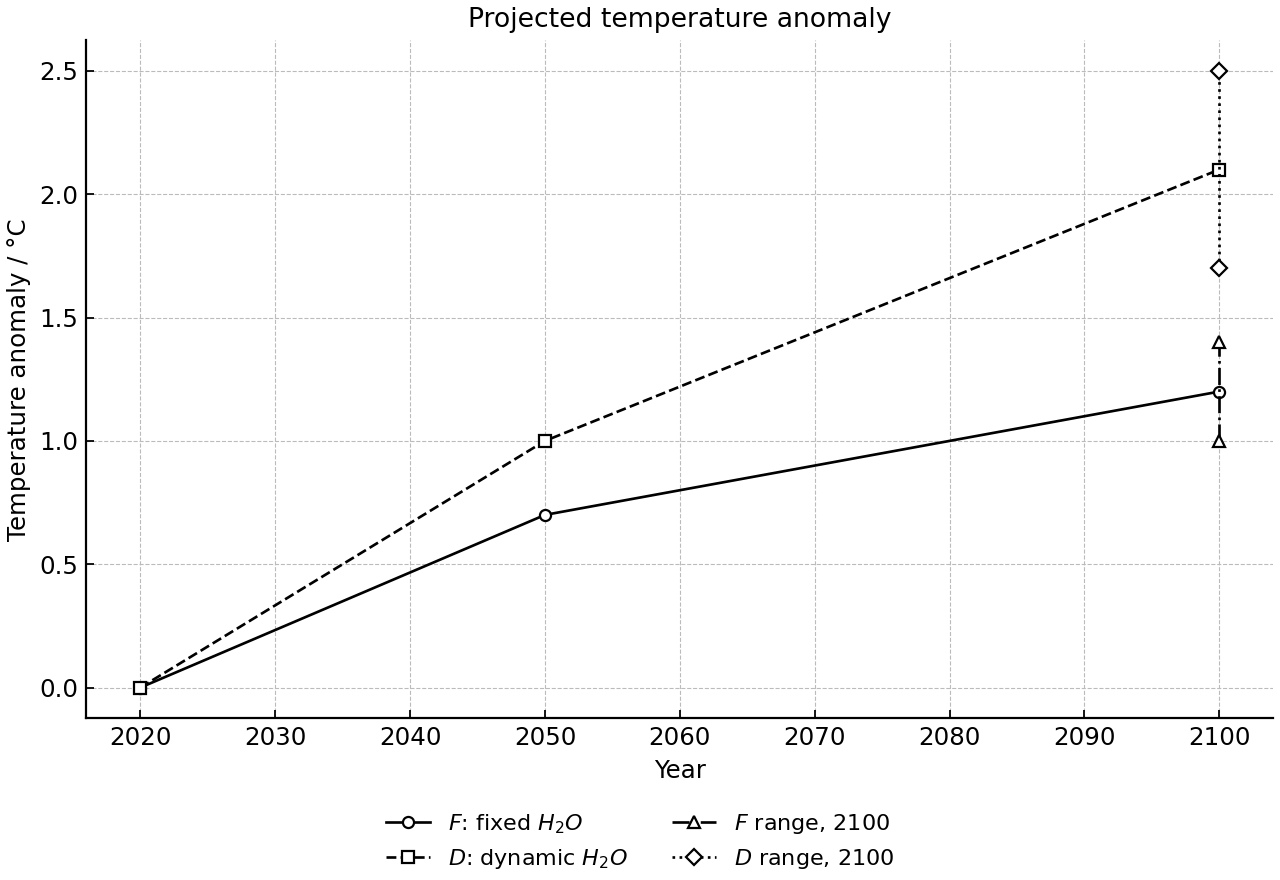

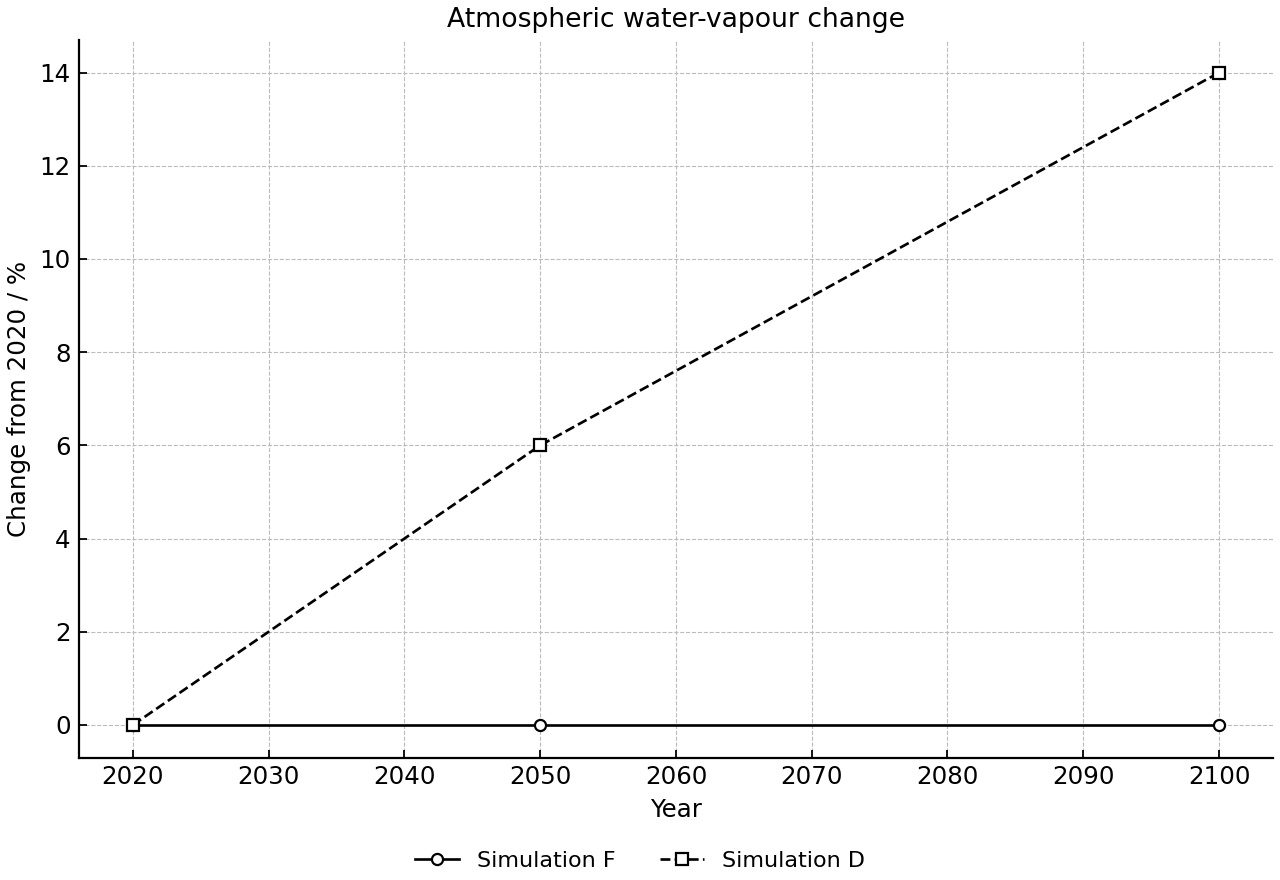

A climate-model study used the same increase in atmospheric carbon dioxide in two simulations. In simulation F, atmospheric water vapour was held fixed. In simulation D, water vapour was allowed to respond dynamically to temperature.

A

the percentage by which the 2100 temperature anomaly in simulation D exceeds that in simulation F.

[2]
B

the relationship between atmospheric water vapour and temperature in simulation D.

[2]
C

why simulation D produces a greater temperature anomaly than simulation F.

[4]
D

whether the model results support directly reducing atmospheric water vapour as a climate-change mitigation strategy.

[6]
Question 27
HL • Paper 1
Hard
Calculator Permitted
HL • Paper 1
Hard
Calculator Permitted

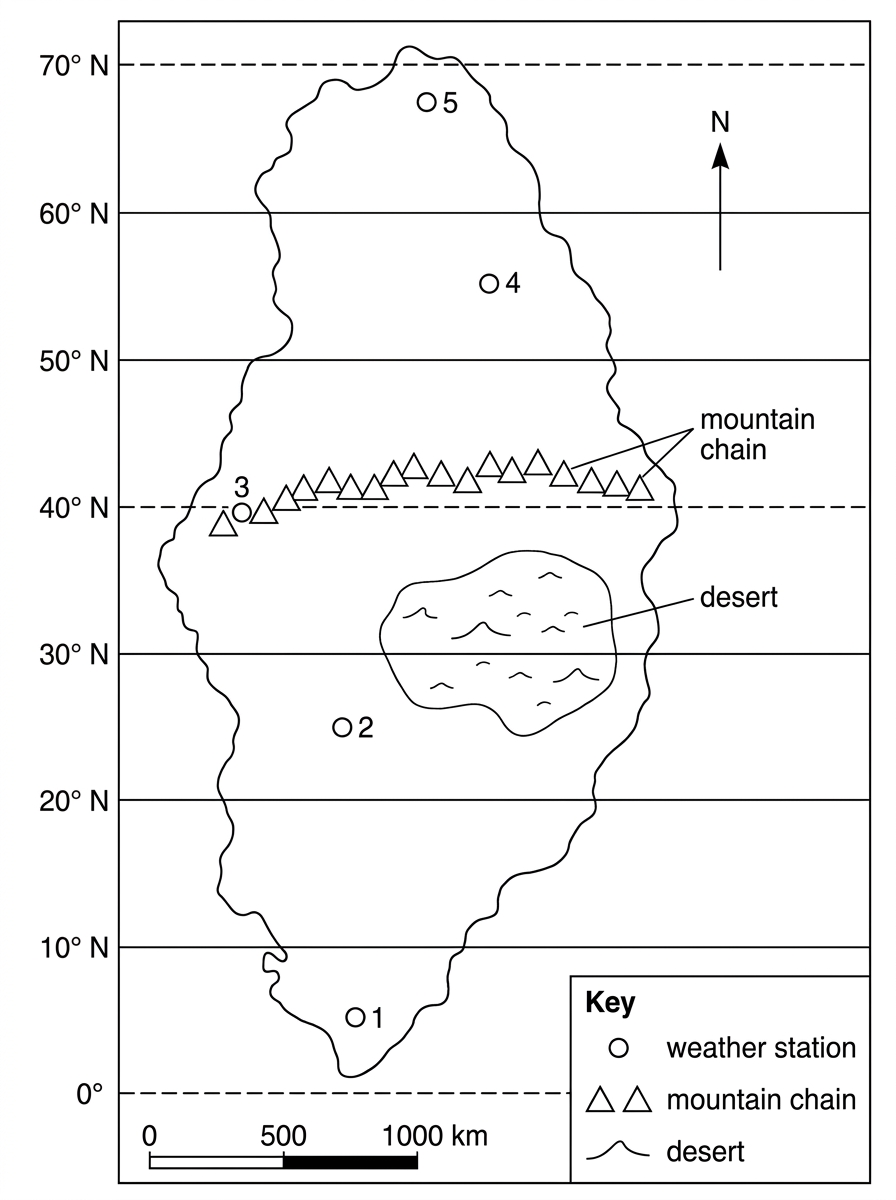

Researchers compared the tricellular model with seasonal observations over the fictional Meridia continent.

Figure 7(c): Observed agreement of prevailing surface-wind direction with tricellular-model predictions over 20 years.

StationLatitude / ∘^\circNLocationAgreement with model / %
15—82
225—76
340Beside mountain chain41
455—68
568—73
A

the circulation cell associated with station 4.

[1]
B

the difference in agreement with the model between stations 2 and 3.

[2]
C

the seasonal movement of the main rising-air belt shown in Figure 7(b).

[3]
D

the extent to which the observations support the tricellular model.

[4]
E

the use of the tricellular model to atmospheric circulation over Meridia.

[5]
Question 28
HL • Paper 2
Hard
Calculator Permitted
HL • Paper 2
Hard
Calculator Permitted

Figure 8 compares the latitude of low-pressure, high-precipitation zones in January and July with the positions predicted by a simplified annual tricellular circulation model.

Surface pressure and monthly precipitation by latitude; signed latitude is north-positive. Tricellular reference latitudes are shown for comparison.

Latitude / ∘^\circ (N +)January pressure / hPaJuly pressure / hPaJanuary precipitation / mmJuly precipitation / mmTricellular reference
-40101610134535—
-35101810155540—
-3010201016654530∘S30^\circ\text{S}
-27102110167550—
-25102010178555—
-201017101512065—
-151013101218075—
-101009100925090—
-510071007290120—
010091006265170Equator
510121006210250—
1010151006150325—
1210161005130340—
1510171006110310—
201017101180220—
251018101665140—
271017101860120—
3010171021559530∘N30^\circ\text{N}
33101610235075—
35101510224560—
40101310184045—
A

the latitude of peak precipitation in July.

[1]
B

the latitudinal shift in the zone of peak precipitation from January to July.

[2]
C

the relationship between surface pressure and precipitation shown near the tropical convergence zone.

[2]
D

how differential heating accounts for the seasonal shift calculated in (b).

[2]
E

one limitation of using the tricellular model to the pressure belts shown in Figure 8.

[1]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 29
SL • Paper 2
Hard
Calculator Permitted
SL • Paper 2
Hard
Calculator Permitted

A

between a greenhouse gas and an aerosol, giving one example of each.

[4]
B

the natural greenhouse effect and how human activities can enhance this effect.

[7]
C

Using named examples, the claim that reducing carbon dioxide emissions alone is sufficient to limit disruption of Earth's atmospheric energy balance.

[9]
Question 30
SL • Paper 2
Hard
Calculator Permitted
SL • Paper 2
Hard
Calculator Permitted

A

two characteristics of black carbon and two sources from which it may be emitted.

[4]
B

how black carbon and greenhouse gases alter Earth's energy balance in different ways.

[7]
C

Using at least two named examples, whether reducing black-carbon emissions should be given the same priority as reducing greenhouse-gas emissions.

[9]
Question 31
HL • Paper 2
Hard
Calculator Permitted
HL • Paper 2
Hard
Calculator Permitted

A

why the atmosphere may be considered both the outer boundary of the biosphere and part of an open Earth system.

[4]
B

a systems diagram representing the atmospheric system. Include a system boundary, at least four named storages, an energy input, two energy outputs and four named transfers between storages.

[7]
C

Using named examples, the usefulness of systems diagrams for understanding how the atmosphere contributes to the stability of life on Earth.

[9]
Question 32
HL • Paper 1
Hard
Calculator Permitted
HL • Paper 1
Hard
Calculator Permitted

An atmospheric agency summarized changes in selected atmospheric components since the pre-industrial period. Positive radiative forcing indicates a warming influence on Earth's energy balance.

Global mean atmospheric concentrations in the pre-industrial period and today.

Atmospheric componentPre-industrial concentration / ppm or ppbCurrent concentration / ppm or ppb
Carbon dioxide280 ppm420 ppm
Methane720 ppb1920 ppb
Nitrous oxide270 ppb336 ppb

Estimated current positive radiative forcing relative to pre-industrial conditions.

Atmospheric componentEstimated forcing / W m−2^{-2}Uncertainty / W m−2^{-2}
Carbon dioxide2.16±0.26\pm 0.26
Methane0.54±0.12\pm 0.12
Nitrous oxide0.21±0.05\pm 0.05
Black carbon0.15±0.10\pm 0.10

A

the percentage increase in atmospheric carbon dioxide concentration.

[2]
B

Compare the concentration changes of methane and nitrous oxide.

[3]
C

how the atmospheric components in Figures 8(a) and 8(b) contribute to warming.

[4]
D

the claim that carbon dioxide alone is a sufficient indicator for policies intended to reduce atmospheric warming.

[6]

Build a Practice Exam — ESS HL

Test your knowledge with a custom paper containing questions from selected topics.

Practice exam question preview
Practice exams dashboard preview
Question 33
HL • Paper 2
Hard
Calculator Permitted
HL • Paper 2
Hard
Calculator Permitted

A

between radiative forcing and an atmospheric feedback, using carbon dioxide and water vapour as examples.

[4]
B

the role of water vapour in the atmospheric system and why it is treated differently from directly emitted greenhouse gases in mitigation strategies.

[7]
C

Using named examples, whether all atmospheric warming agents should be managed using the same policy approach.

[9]
Question 34
HL • Paper 2
Hard
Calculator Permitted
HL • Paper 2
Hard
Calculator Permitted

A

the principal features of the tricellular model of atmospheric circulation in one hemisphere.

[4]
B

why observed atmospheric circulation may differ from the pattern represented by the tricellular model.

[7]
C

Using named examples, is the tricellular model sufficient for explaining the contribution of atmospheric circulation to the stability of life on Earth?

[9]

6.2 Climate change—causes and impacts
