C.3: Wave phenomena

Master IB Physics C.3: Wave phenomena with notes created by examiners and strictly aligned with the syllabus.

Verified by Kun
Verified by Kun

12 sections · ~23 min read

This content can't be printed from the browser. Use Export PDF with Pro for an offline copy.

IB Syllabus Requirements for Wave phenomena

C.3.1

Wavefronts and rays

C.3.2

Reflection, refraction and transmission at boundaries

C.3.3

Diffraction around bodies and through apertures

C.3.4

Wavefront-ray diagrams for refraction and diffraction

C.3.1

WAVEFRONTS AND RAYS

Describing waves in two and three dimensions

When a wave spreads across a surface or through space, a simple displacement–time graph doesn't show enough. We also need to show the shape of the travelling disturbance, and the direction in which energy is being transferred.

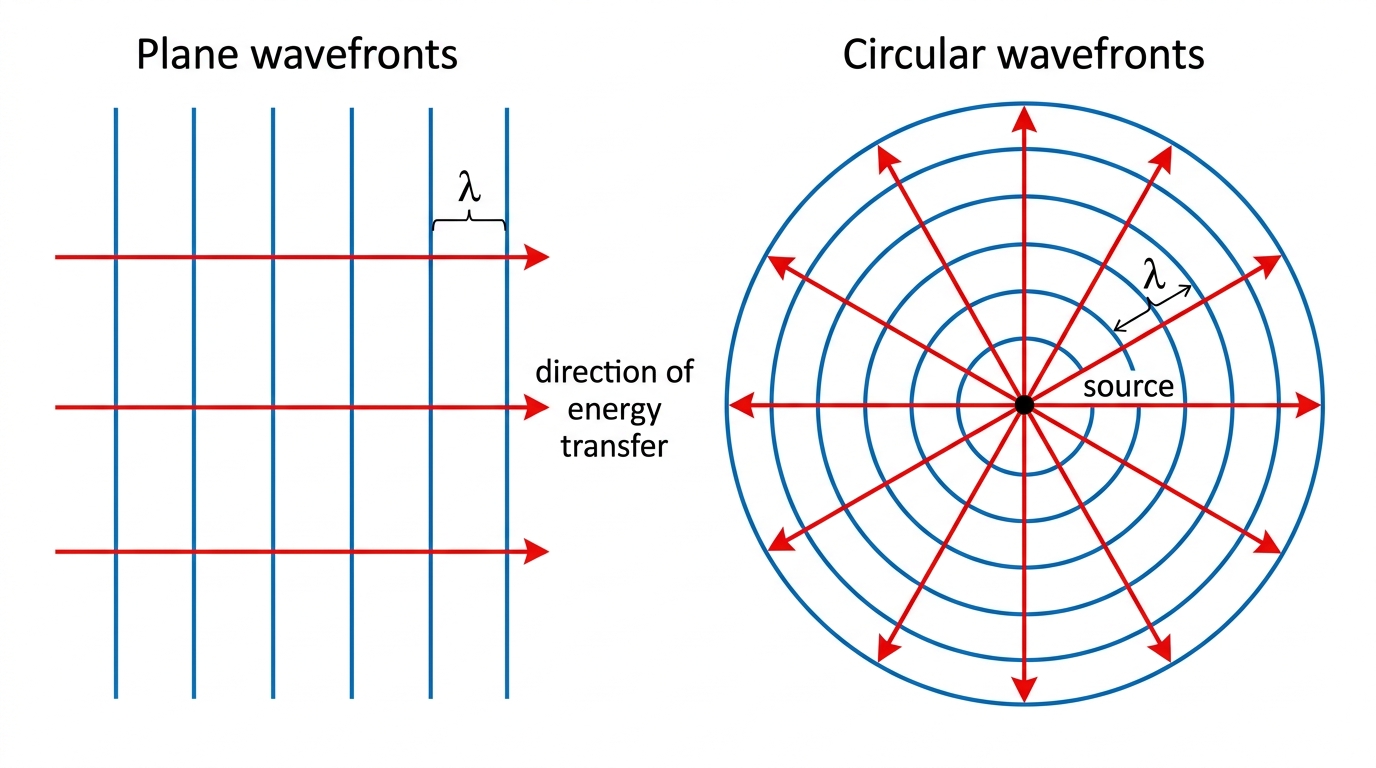

A wavefront is a line or surface of constant phase that moves with a wave. In diagrams, neighbouring wavefronts are often one wavelength apart, so their spacing gives the wavelength. With water waves, a crest line is a visible wavefront. With light, we usually can't see the wavefronts directly, but the model still helps.

A ray is a line showing the local direction of energy transfer by a wave. Rays are drawn perpendicular to wavefronts. For circular wavefronts, rays point radially outwards; for plane wavefronts, rays are parallel.

Treat this as a model, not a photograph of what is really there. Ripple tanks, for example, let us see water-wave wavefronts, then use them as an analogue for light or microwaves. The analogy is useful, but it has limits: water needs a medium and has surface effects; electromagnetic waves do not require a material medium.

In sketches, keep the geometry tidy. Draw wavefronts as equally spaced lines or arcs; rays should cross them at right angles. Close wavefronts mean a short wavelength. If the rays spread out, the energy is spreading too.

C.3.2

REFLECTION, REFRACTION AND TRANSMISSION AT BOUNDARIES

What happens at a boundary

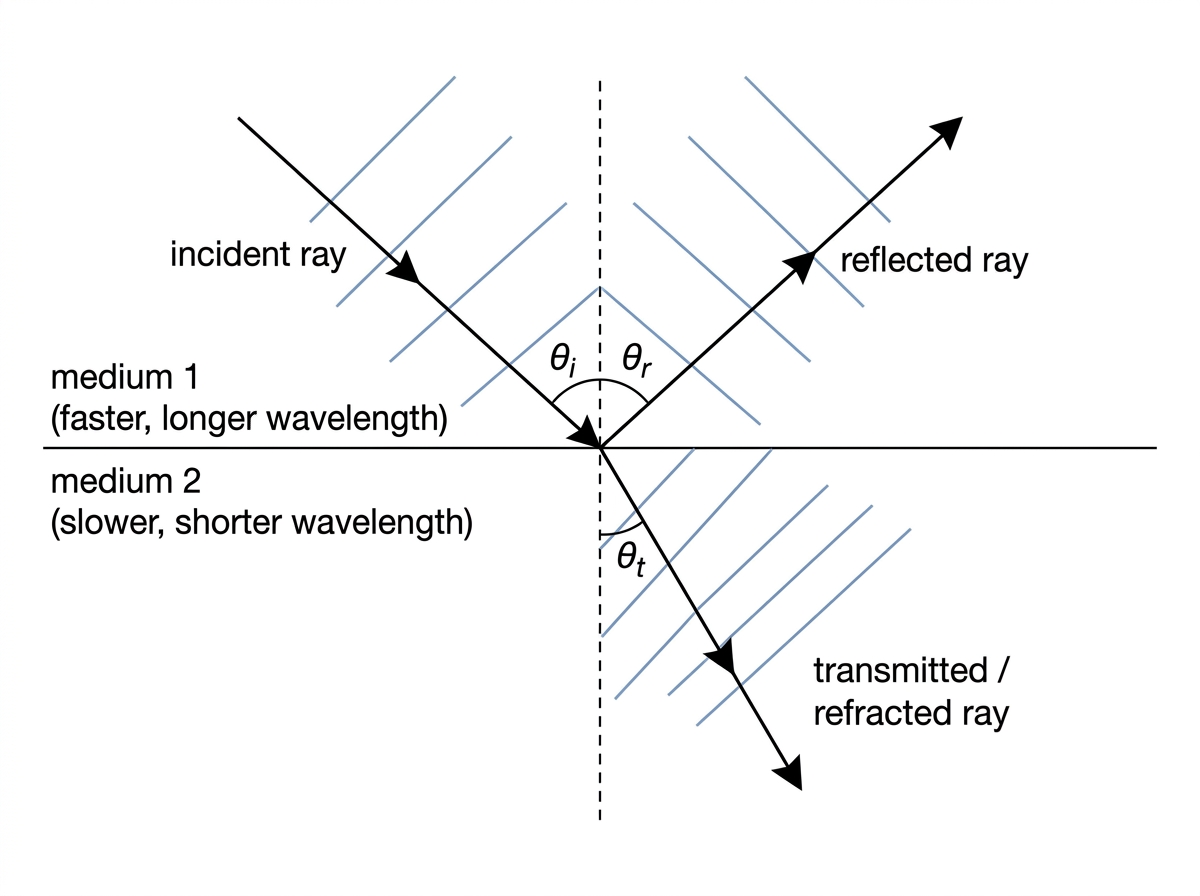

A boundary is the interface where a wave reaches a different medium or hits an obstacle. When it gets there, the incident wave may reflect, transmit, or do both.

Reflection is a wave behaviour in which a wave returns into the original medium after meeting a boundary. At a plane reflecting boundary, the angle of incidence equals the angle of reflection.

A normal is a line drawn perpendicular to a boundary at the point where a ray meets it; all incidence, reflection and refraction angles are measured from the normal, not from the surface.

Transmission is a wave behaviour in which wave energy passes into the second medium. Often, the transmitted wave changes speed, producing refraction when the wave enters obliquely. At normal incidence, speed and wavelength can change without a change in direction.

Refraction is a change in wave direction caused by a change in wave speed as the wave enters a different medium. If the incident ray follows the normal, however, the wave does not change direction even if its speed and wavelength change.

The source fixes the frequency, so the frequency does not change at the boundary. The wave equation is

v=fλv = f\lambda

If the wave slows down while ff stays unchanged, λ\lambda becomes smaller. That is why water waves entering shallower water have closer wavefronts.

Worked example: Water waves of frequency f=5.0 Hzf = 5.0\ \text{Hz} travel from deeper water, where their speed is v1=0.30 m s−1v_1 = 0.30\ \text{m s}^{-1}, into shallower water, where their speed is v2=0.20 m s−1v_2 = 0.20\ \text{m s}^{-1}. Calculate the wavelength in each region.

  1. Retain the same frequency in both regions because the source is unchanged:

    f1=f2=f=5.0 Hzf_1 = f_2 = f = 5.0\ \text{Hz}

  2. Rearrange the wave equation and substitute for the initial wavelength:

    λ1=v1f=0.30 m s−15.0 Hz=0.060 m\lambda_1 = \frac{v_1}{f} = \frac{0.30\ \text{m s}^{-1}}{5.0\ \text{Hz}} = 0.060\ \text{m}

  3. Use the same frequency for the transmitted wavelength:

    λ2=v2f=0.20 m s−15.0 Hz=0.040 m\lambda_2 = \frac{v_2}{f} = \frac{0.20\ \text{m s}^{-1}}{5.0\ \text{Hz}} = 0.040\ \text{m}

Answer

Answer: The initial wavelength is 0.060 m0.060\ \text{m} and the transmitted wavelength is 0.040 m0.040\ \text{m}. The frequency remains 5.0 Hz5.0\ \text{Hz} in both regions.

A ripple tank shows this well in practice:

  • A plane dipper can make straight wavefronts.
  • A barrier gives reflection.
  • A shallow region changes speed and produces refraction for waves entering obliquely.

When you use ripple-tank evidence, compare what you see with the accepted wave model: unchanged frequency, changed speed and changed wavelength, with a bend at the interface unless the waves enter along the normal.

For ray diagrams at boundaries in this topic, expect only incident, reflected and transmitted waves. Draw the normal first. That one line prevents most angle errors.

C.3.3

DIFFRACTION AROUND BODIES AND THROUGH APERTURES

Spreading at edges and gaps

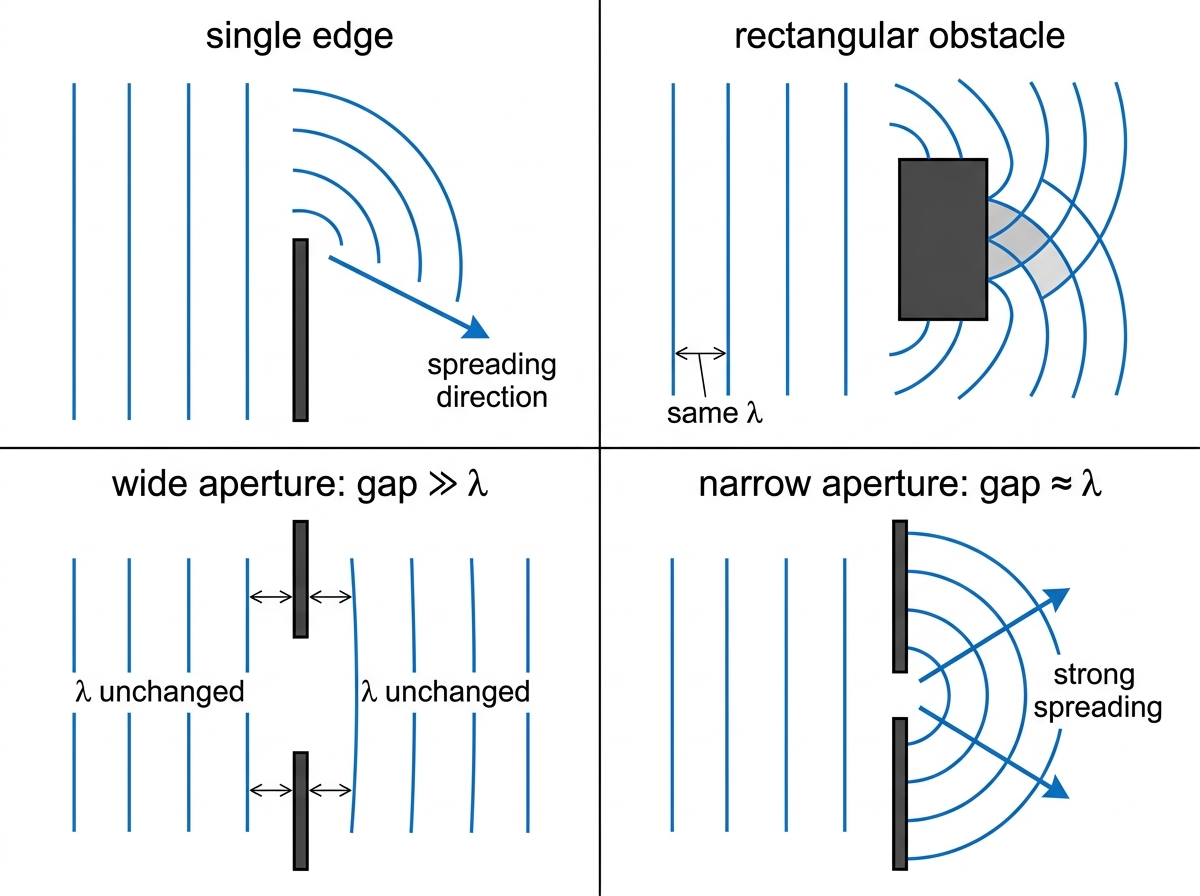

Diffraction is a wave behaviour where a wave spreads into the region beyond an edge, obstacle or aperture. It does not happen because the wave changes medium, so the wave speed, frequency and wavelength stay the same. The direction of parts of the wave changes, and so does the distribution of amplitude.

Diffraction is strongest when the aperture width or obstacle size is close to the wavelength. If the gap is wide compared with the wavelength, the spreading is only slight and mainly near the edges. When the gap is comparable with the wavelength, the emerging wavefront becomes much more curved.

The usual assumption in this topic is normal incidence: the incoming wavefronts are parallel to the slit or grating, so the rays meet it at right angles. Oblique cases do exist, but they are not the cases expected here.

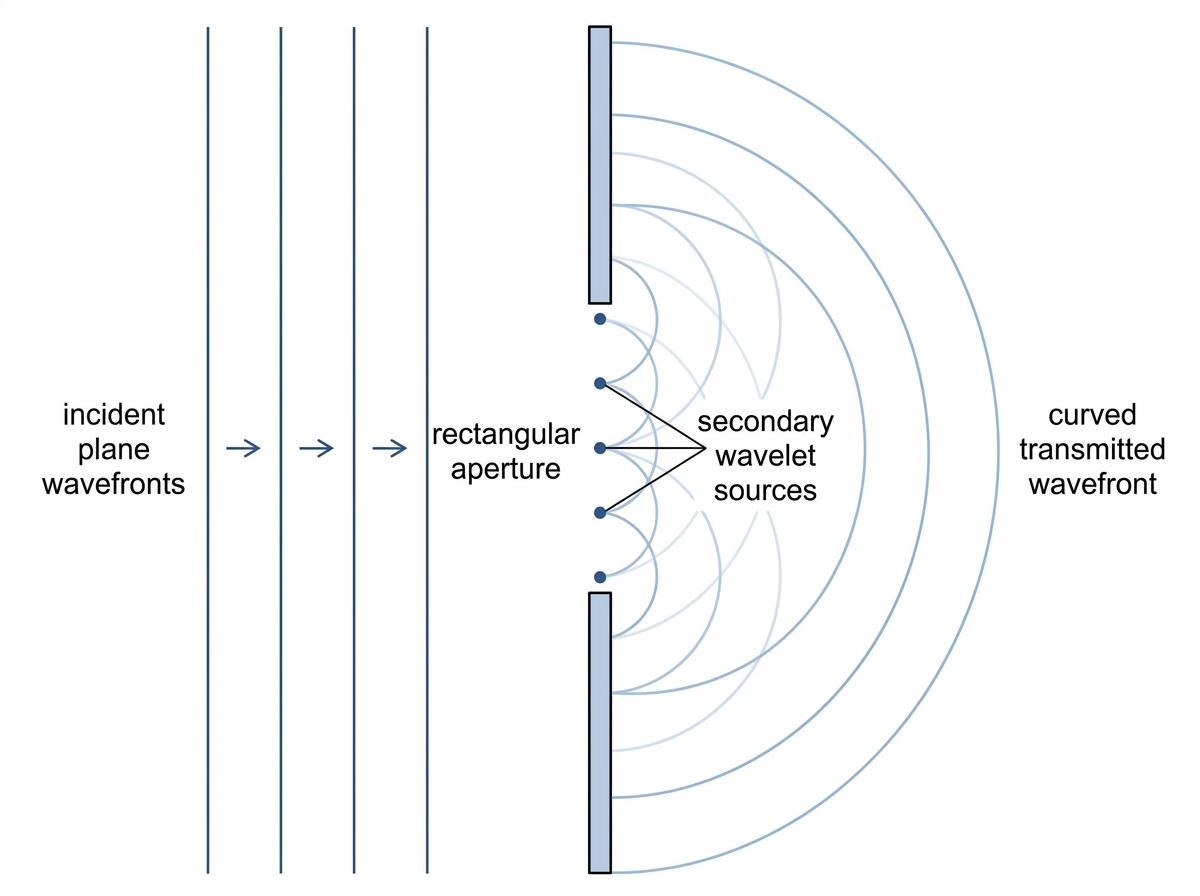

Huygens' construction is a useful way to picture it. Each point on a wavefront can be treated as a source of secondary wavelets, and the new wavefront is the envelope of those wavelets. This model helps explain why wavefronts spread at an aperture, especially at the edges. It is not a perfect historical model of light, but it works very well for sketching diffraction.

You see the same idea outside the lab. Long-wavelength radio waves can diffract around hills and reach places with no direct line of sight to the transmitter. Shorter wavelengths diffract less around the same obstacle, so coverage can disappear behind the hill. Sound travelling around a corner follows the same idea in a familiar setting.

C.3.4

WAVEFRONT-RAY DIAGRAMS FOR REFRACTION AND DIFFRACTION

How to read and draw the diagrams

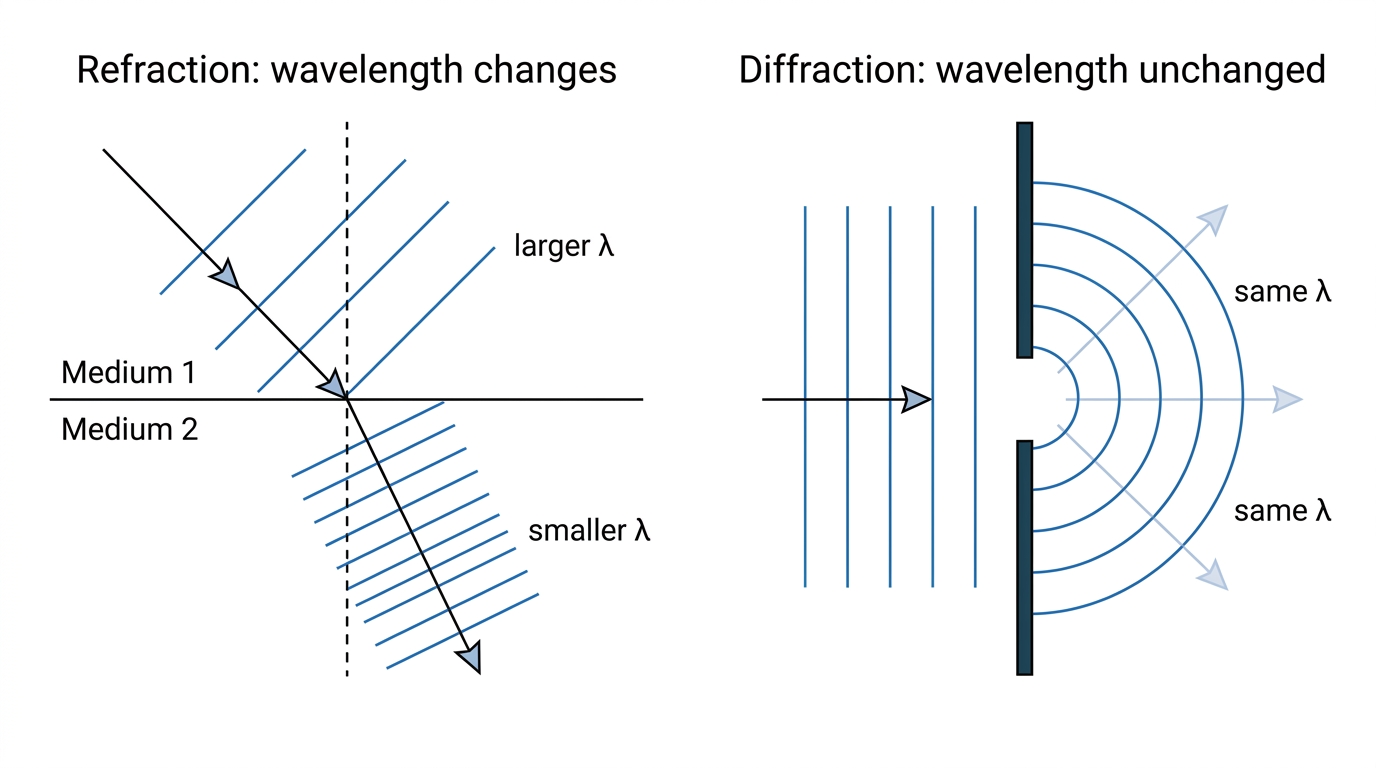

Wavefront-ray diagrams aren’t just decoration; they show the physics. Rays show the direction of travel. The spacing between wavefronts shows the wavelength. Since frequency does not change at a boundary, closer wavefronts mean a lower speed.

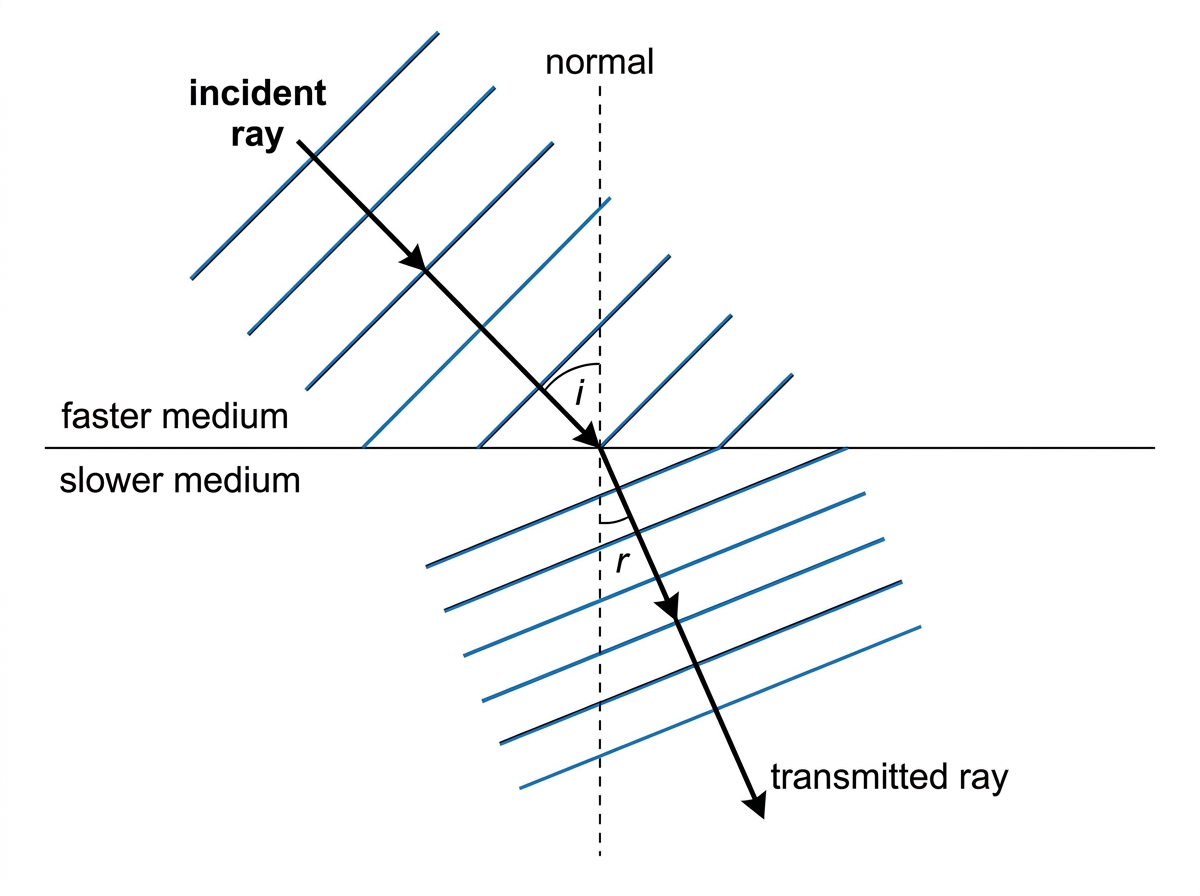

For refraction, the ray bends because one side of a wavefront reaches the new medium first, so that side changes speed first. If the transmitted wave is slower, the wavelength decreases and the ray bends towards the normal. If the transmitted wave is faster, the wavelength increases and the ray bends away from the normal.

For diffraction, wavefronts curve after an edge or aperture, but their spacing does not change. That gives you the quick visual difference from refraction: refraction changes wavelength; diffraction does not. Diffraction redistributes amplitude, so the diffracted wave is usually weaker in any one direction because the energy has spread over a larger wavefront.

When you interpret a diagram, check these four things in order:

  • Are the rays perpendicular to the wavefronts?
  • Is the normal drawn at the boundary where the ray meets it?
  • Does wavefront spacing change only when the medium changes?
  • Is the wave incident normally on slits or gratings in interference and diffraction pattern questions?

C.3.5

SNELL'S LAW, CRITICAL ANGLE AND TOTAL INTERNAL REFLECTION

Refractive index and Snell's law

The refractive index of a transparent medium compares the speed of light in a vacuum with the speed of light in that medium. It has no unit:

n=cvn=\frac{c}{v}

In IB questions, a larger refractive index means light travels more slowly in that medium.

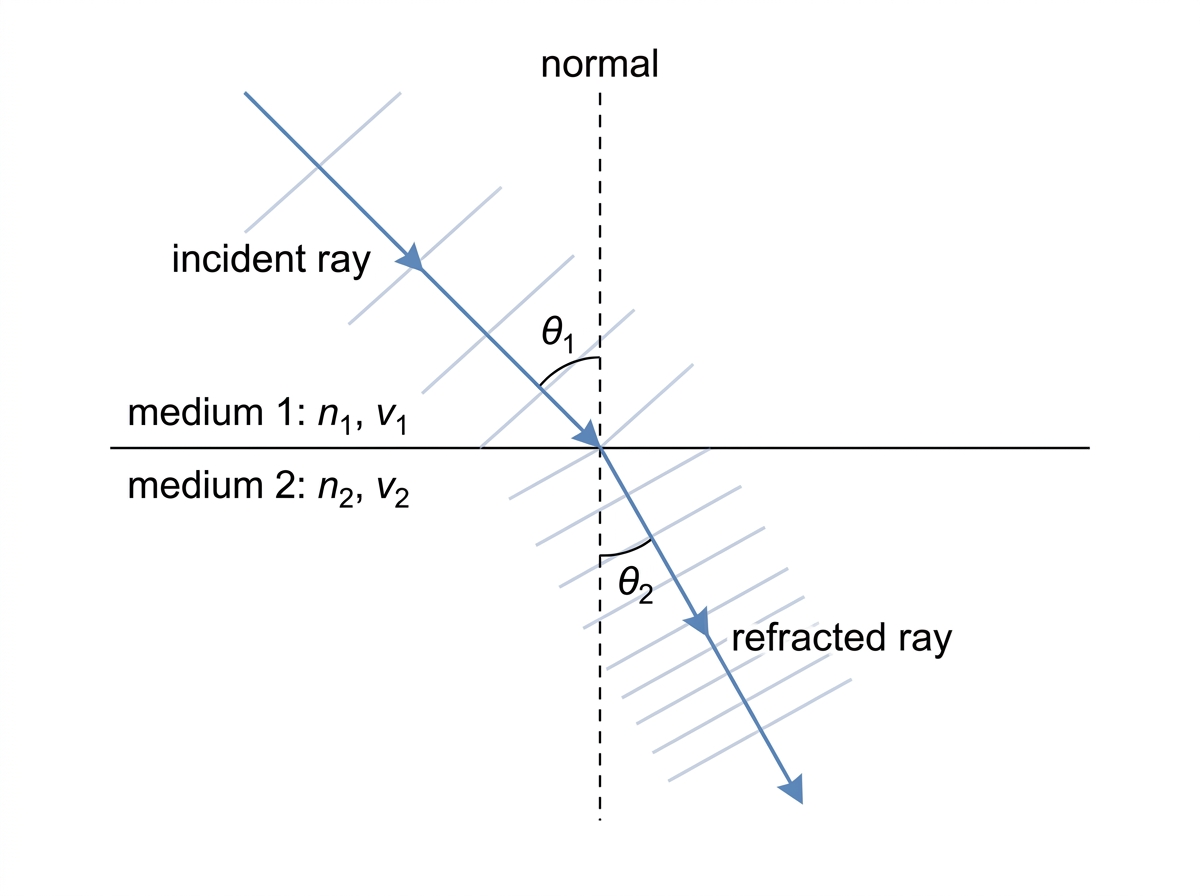

For waves going from medium 1 into medium 2, Snell's law is

n1n2=sin⁡θ2sin⁡θ1=v2v1\frac{n_1}{n_2}=\frac{\sin \theta_2}{\sin \theta_1}=\frac{v_2}{v_1}

When light enters glass from air, nn increases and the speed falls, so the ray bends towards the normal. When light leaves glass and enters air, nn decreases and the speed rises, so the ray bends away from the normal. The frequency still does not change; the wavelength changes with speed.

Worked example: Light enters glass of refractive index 1.501.50 from air at 40.0∘40.0^\circ to the normal. Taking air's refractive index as 1.001.00 and c=3.00×108 m s−1c = 3.00 \times 10^8\ \text{m s}^{-1}, calculate the speed in glass and the refracted angle.

  1. Rearrange the refractive-index equation and substitute:

    v=cn=3.00×1081.50=2.00×108 m s−1v = \frac{c}{n} = \frac{3.00 \times 10^8}{1.50} = 2.00 \times 10^8\ \text{m s}^{-1}

  2. Apply Snell's law, using degree mode:

    sin⁡θ2=n1n2sin⁡θ1=1.001.50sin⁡40.0∘\sin\theta_2 = \frac{n_1}{n_2}\sin\theta_1 = \frac{1.00}{1.50}\sin 40.0^\circ

    θ2=sin⁡−1(sin⁡40.0∘1.50)=25.4∘\theta_2 = \sin^{-1}\left(\frac{\sin 40.0^\circ}{1.50}\right) = 25.4^\circ

Answer

Answer: The speed in glass is 2.00×108 m s−12.00 \times 10^8\ \text{m s}^{-1} and the refracted angle is 25.4∘25.4^\circ, towards the normal.

A semicircular block gives a tidy laboratory method for measuring refractive index.

  1. Send a narrow ray from air into the block through the centre of the flat face. The ray then meets the curved face normally, so it does not bend there.
  2. Mark the incident and refracted paths, construct the normal at the flat face, and measure the angles with a protractor.
  3. Repeat for several angles. Either average values of sin⁡i/sin⁡r\sin i/\sin r or plot sin⁡i\sin i against sin⁡r\sin r. Taking air's refractive index as 1.001.00, the gradient equals the block's refractive index.
  4. Quote an uncertainty from the precision of the angle readings and the scatter in the repeated values.

Critical angle and total internal reflection

The critical angle is the angle of incidence in the higher-refractive-index medium that makes the refracted ray in the lower-refractive-index medium travel along the boundary. At this point, the refracted angle is 90°.

Total internal reflection is a boundary behaviour where all the wave energy reflects back into the original medium because the angle of incidence is greater than the critical angle. It can only occur when the wave is trying to enter a medium where it would travel faster; for light, that means going from higher nn to lower nn.

For light travelling from medium 1 into medium 2, with n1>n2n_1 > n_2, the critical-angle relation is

sin⁡θc=n2n1\sin \theta_c=\frac{n_2}{n_1}

Worked example: The same glass has refractive index 1.501.50 and is surrounded by air of refractive index 1.001.00. Calculate its critical angle and classify internal incidence at 35∘35^\circ and 50∘50^\circ.

  1. Substitute into the critical-angle relation:

    θc=sin⁡−1(n2n1)=sin⁡−1(1.001.50)=41.8∘\theta_c = \sin^{-1}\left(\frac{n_2}{n_1}\right) = \sin^{-1}\left(\frac{1.00}{1.50}\right) = 41.8^\circ

  2. Compare each internal incidence angle with the critical angle:

    35∘<41.8∘,50∘>41.8∘35^\circ < 41.8^\circ, \qquad 50^\circ > 41.8^\circ

Answer

Answer: The critical angle is 41.8∘41.8^\circ. At 35∘35^\circ, some light refracts and some reflects; at 50∘50^\circ, total internal reflection occurs.

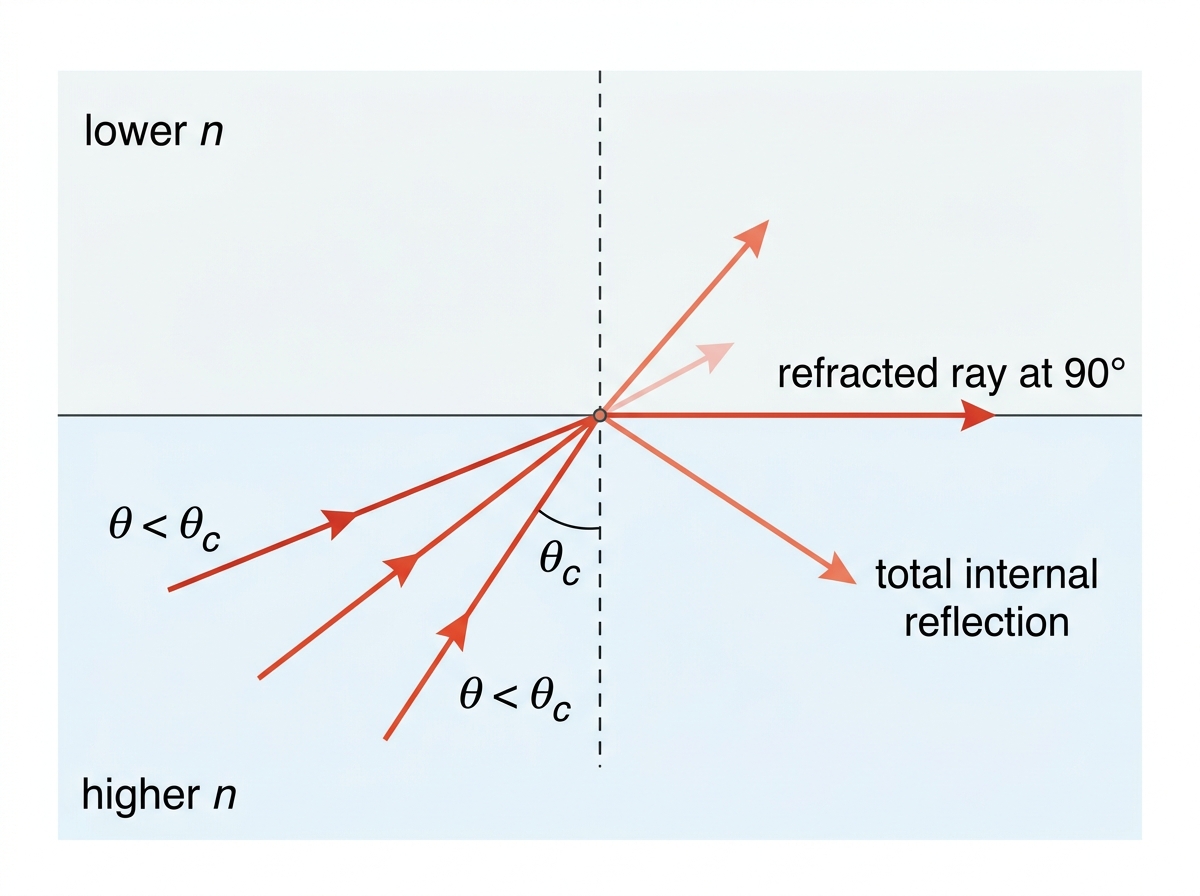

For incidence in the higher-index medium, write i=θ1i = \theta_1:

Internal incidenceOutcome
θ1<θc\theta_1 < \theta_cSome light is refracted and some is reflected.
θ1=θc\theta_1 = \theta_cThe refracted ray runs along the boundary.
θ1>θc\theta_1 > \theta_cTotal internal reflection occurs.

Common mistake: An angle above the critical angle is not enough on its own: total internal reflection requires both higher-to-lower refractive-index travel and incidence above θc\theta_c. All incidence angles are measured from the normal, not the boundary.

This explains how optical fibres guide light: repeated total internal reflection keeps the light inside the fibre. The same geometry works for non-light waves when the speed conditions allow it; the wave model matters here, not the particular type of wave.

C.3.6

SUPERPOSITION OF WAVES AND WAVE PULSES

Adding displacements, not energies

The principle of superposition applies when waves of the same type overlap: the resultant displacement at a point is the vector sum of the separate displacements that each wave would have produced there on its own.

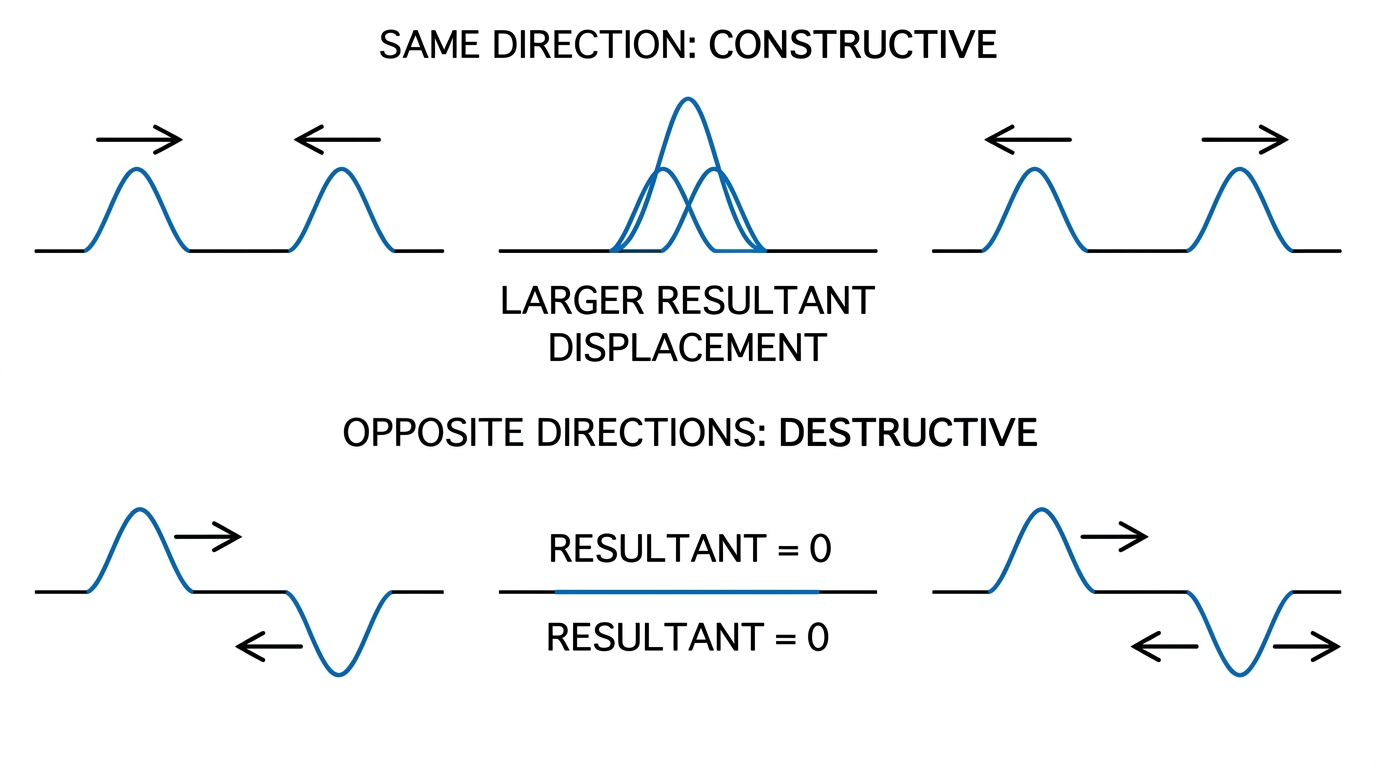

Take two pulses on a rope. If both lift the rope upwards at the same place and time, the resultant pulse is larger. If one lifts the rope up while the other pulls it down by the same amount, the rope can be momentarily flat. After that, the pulses keep moving through each other; they haven’t permanently destroyed each other.

Constructive interference is superposition in which overlapping waves produce a resultant amplitude larger than the individual amplitudes at that point. Destructive interference is superposition in which overlapping waves produce a resultant amplitude smaller than the individual amplitudes, possibly zero.

Here, the key word is “displacement”. On a rope, it means the displacement of the rope from equilibrium. In sound, it could mean the displacement of air particles or a pressure variation. For light, the wave model uses the electric and magnetic field values as the quantities that superpose.

Worked example: Two rope pulses overlap. Taking upwards as positive, calculate the resultant displacement at a point where the first pulse produces a displacement of +3.0 cm+3.0\ \text{cm}. Consider two cases: the second pulse produces (a) +2.0 cm+2.0\ \text{cm} and (b) −2.0 cm-2.0\ \text{cm} at that same position and time.

  1. For (a), both displacements are upwards, so add their positive values:

    y=(+3.0 cm)+(+2.0 cm)=+5.0 cmy = (+3.0\ \text{cm}) + (+2.0\ \text{cm}) = +5.0\ \text{cm}

  2. For (b), the second displacement is downwards, so include its negative sign:

    y=(+3.0 cm)+(−2.0 cm)=+3.0 cm−2.0 cm=+1.0 cmy = (+3.0\ \text{cm}) + (-2.0\ \text{cm}) = +3.0\ \text{cm} - 2.0\ \text{cm} = +1.0\ \text{cm}

Answer

Answer: The resultant displacement is (a) +5.0 cm+5.0\ \text{cm} and (b) +1.0 cm+1.0\ \text{cm}. Both results are upwards; in (b), the opposing displacements only partially cancel.

Exam tip: Add the signed displacements at the same position and time, not energies or unsigned amplitudes. State your positive direction and retain the sign of each displacement in your working.

A travelling wave transfers energy even when the medium itself has no net transport. In a rope wave, the rope elements oscillate about equilibrium while the disturbance and its energy travel along the rope.

C.3.7

COHERENT SOURCES IN DOUBLE-SOURCE INTERFERENCE

Why coherence is needed

Coherent sources emit waves with a constant phase difference and the same frequency. The word “constant” matters. If the phase relationship drifts randomly, the bright and dark pattern washes out before you can observe it.

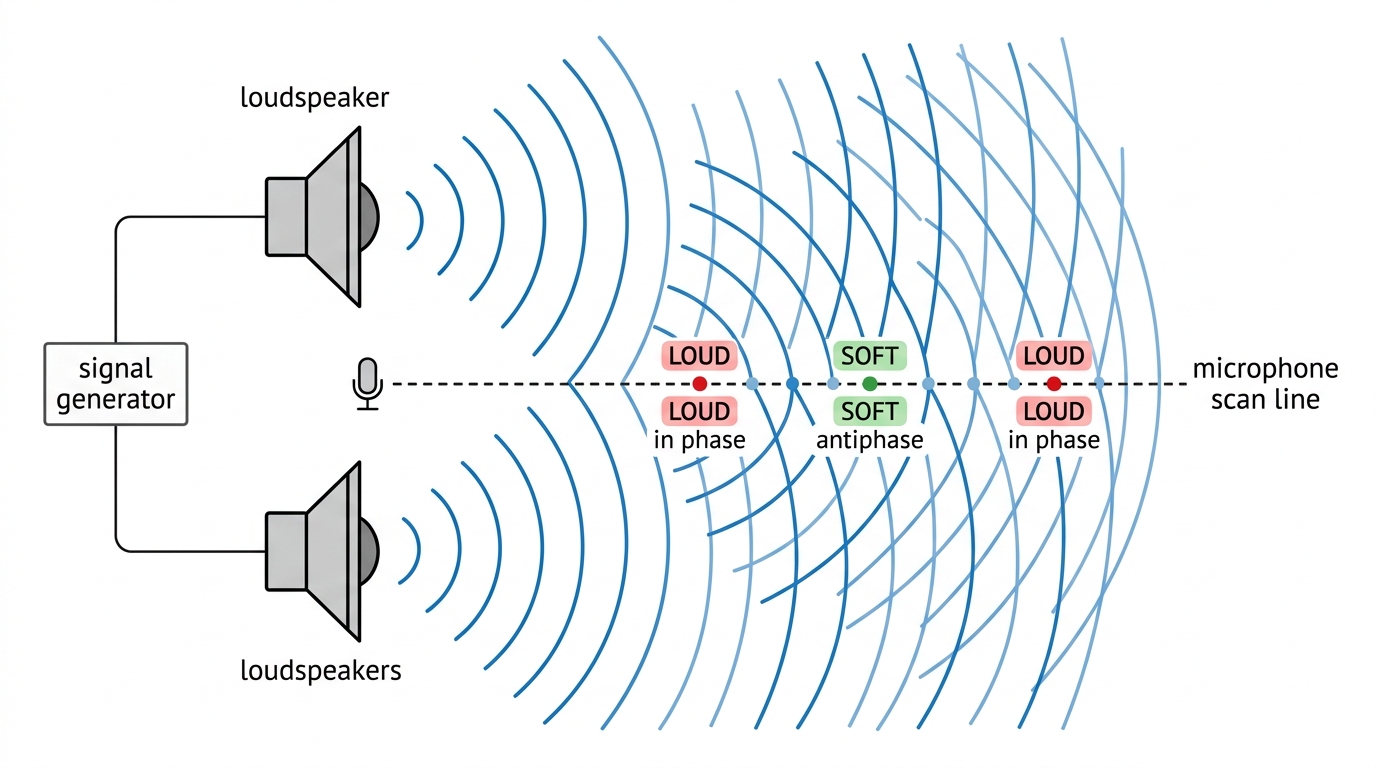

Two loudspeakers connected to the same signal generator act as coherent sound sources. Put a microphone along a line in front of them and it detects alternating loud and quiet regions. The loud regions occur where the sound waves arrive in phase; the quiet regions occur where they arrive in antiphase.

For light, coherence is harder to produce because ordinary lamps contain many independent atoms, each emitting short, unrelated wave trains. A laser helps because it is monochromatic and coherent. Young's double-slit experiment can also use one source illuminating two slits; those two slits then behave like coherent secondary sources because the same incoming wavefront reaches both of them.

Overlap is a physical requirement, not just a mathematical one. Two waves can interfere at a point only if they are present at that point at the same time.

C.3.8

CONDITIONS FOR CONSTRUCTIVE AND DESTRUCTIVE INTERFERENCE

Path difference decides the outcome

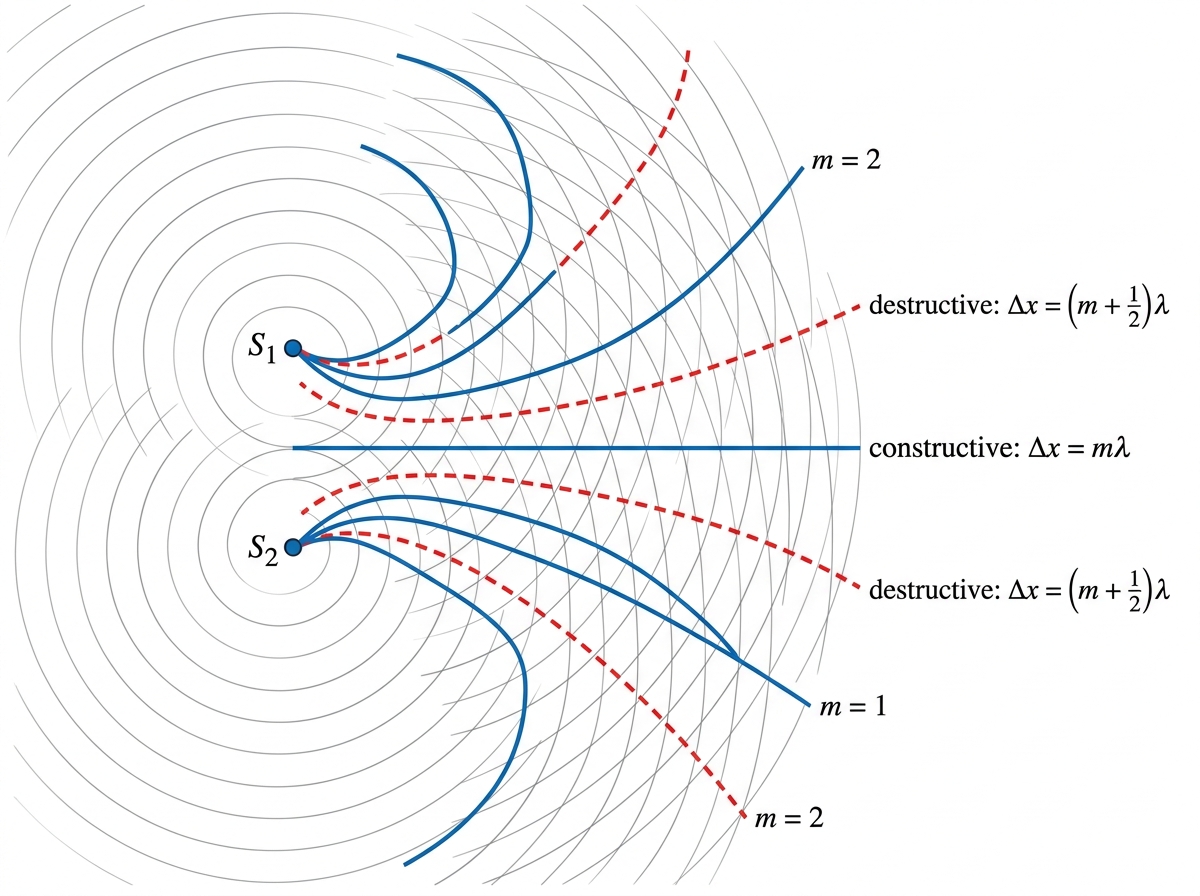

Path difference is the difference in distance travelled by two waves from their sources to the same point. Let Δx\Delta x be path difference (m), and let mm be an integer order number (no unit). For two coherent sources that start in phase, constructive interference occurs when

Δx=mλ\Delta x = m\lambda

The waves arrive in phase: crest with crest, trough with trough.

Destructive interference occurs when

Δx=(m+12)λ\Delta x = \left(m+\frac{1}{2}\right)\lambda

Here the waves arrive in antiphase: crest with trough. The result is a minimum, though not always absolute zero unless the two waves have equal amplitudes.

Worked example: Two coherent sound sources start in phase and emit waves of wavelength λ=0.40 m\lambda = 0.40\ \text{m}. At a listening point, the paths from the sources are 2.00 m2.00\ \text{m} and 2.80 m2.80\ \text{m}. Determine the interference condition, then repeat with the second path changed to 2.60 m2.60\ \text{m}.

  1. For the original paths, subtract the shorter path from the longer path:

    Δx=2.80 m−2.00 m=0.80 m\Delta x = 2.80\ \text{m} - 2.00\ \text{m} = 0.80\ \text{m}

    Δxλ=0.80 m0.40 m=2\frac{\Delta x}{\lambda} = \frac{0.80\ \text{m}}{0.40\ \text{m}} = 2

    Thus Δx=2λ\Delta x = 2\lambda: an integer number of wavelengths, so the waves arrive in phase and interfere constructively.

  2. For the changed second path:

    Δx=2.60 m−2.00 m=0.60 m\Delta x = 2.60\ \text{m} - 2.00\ \text{m} = 0.60\ \text{m}

    Δxλ=0.60 m0.40 m=1.5\frac{\Delta x}{\lambda} = \frac{0.60\ \text{m}}{0.40\ \text{m}} = 1.5

    Thus Δx=1.5λ\Delta x = 1.5\lambda: an odd half-integer number of wavelengths, so the waves arrive in antiphase and interfere destructively.

Answer

Answer: The original paths give Δx=0.80 m=2λ\Delta x = 0.80\ \text{m} = 2\lambda, producing constructive interference. The changed paths give Δx=0.60 m=1.5λ\Delta x = 0.60\ \text{m} = 1.5\lambda, producing destructive interference; complete cancellation requires equal amplitudes at the listening point.

These conditions work for sound, water waves, microwaves and light, as long as the sources are coherent and the waves overlap. In double-source questions, don’t begin with “bright” or “dark”; begin by finding the path difference.

C.3.9

YOUNG'S DOUBLE-SLIT INTERFERENCE

Fringes from two coherent slits

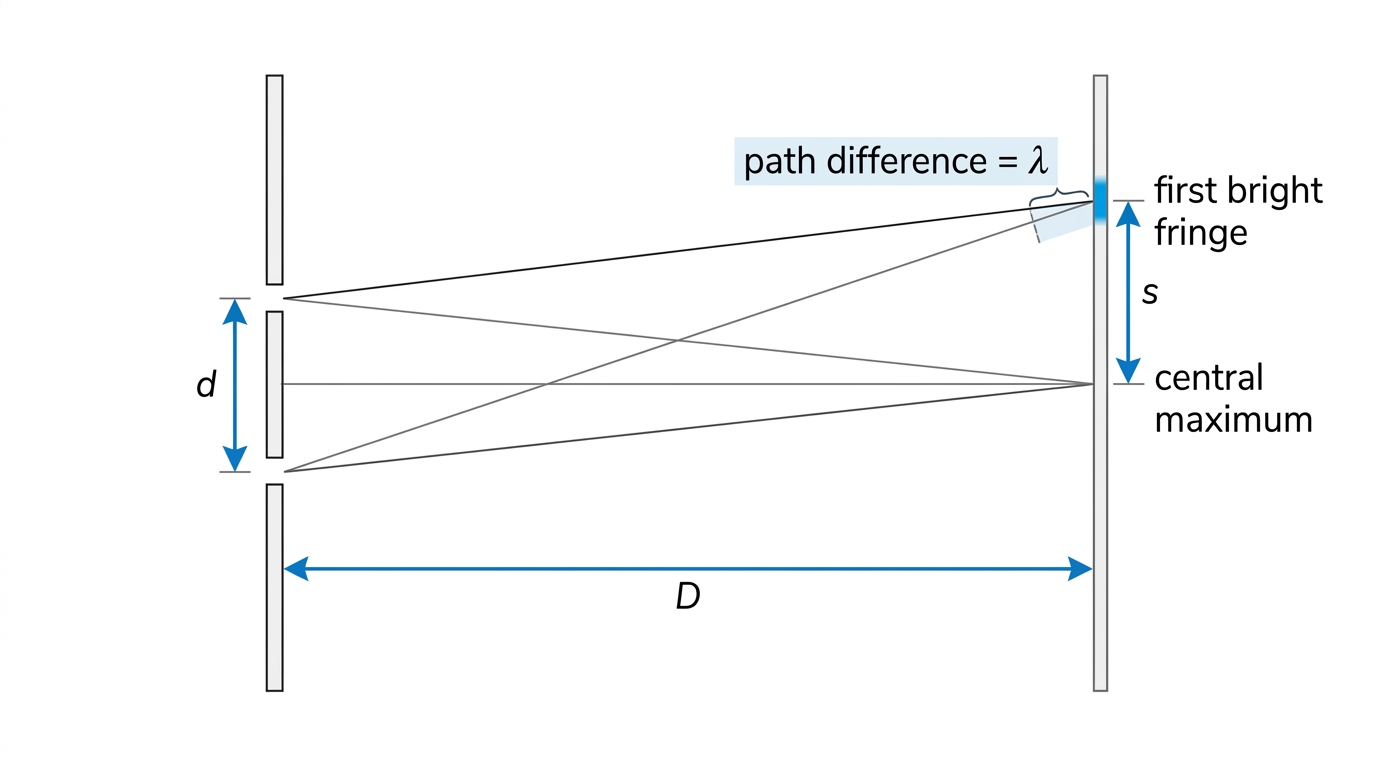

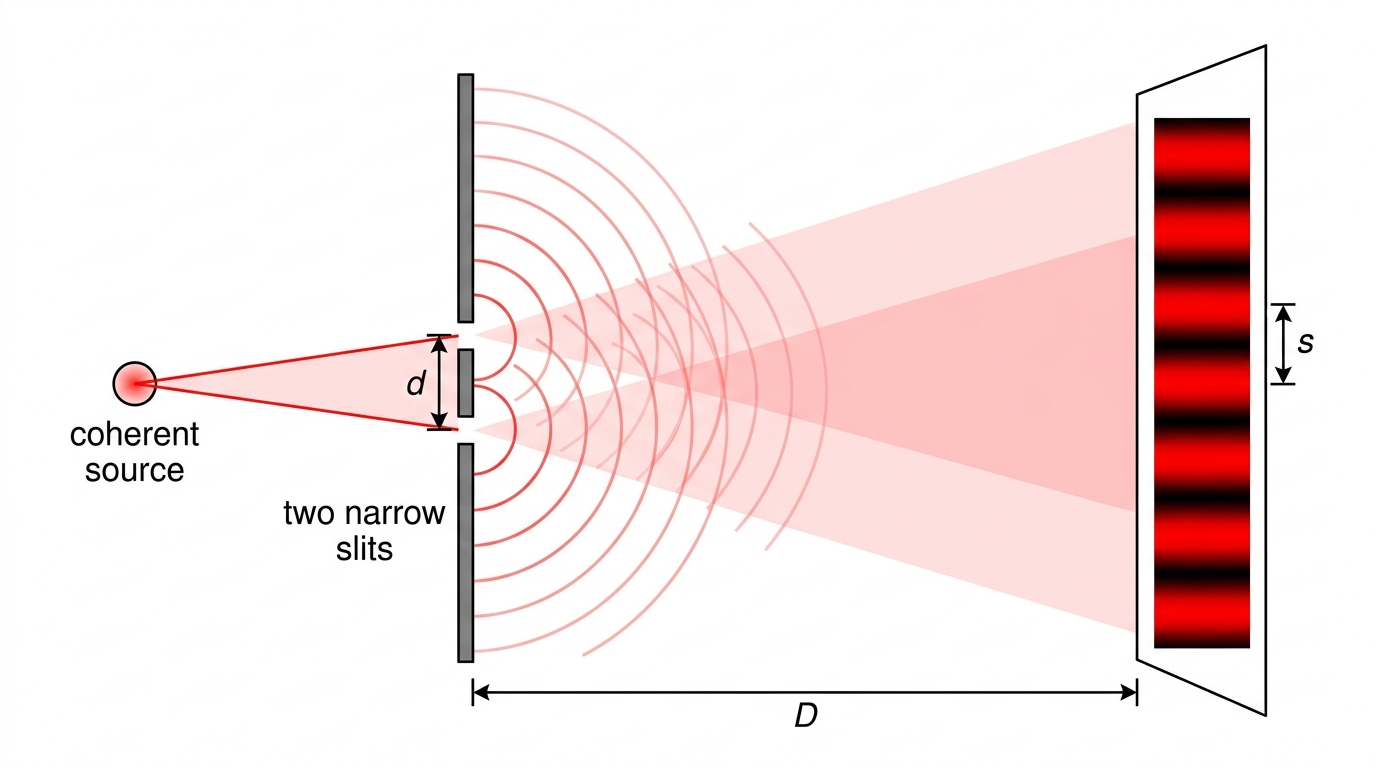

Young's double-slit experiment is an interference experiment where coherent waves from two narrow slits overlap, producing a regular pattern of maxima and minima. For light, the maxima appear as bright fringes; the minima appear as dark fringes.

The standard double-slit formula is

s=λDds=\frac{\lambda D}{d}

The formula assumes that the screen is far from the slits compared with their separation, and that the waves hit the slits normally.

For approximately uniform fringe spacing on a flat screen, measurements must also be near the central axis. Here the observation angle θ\theta is small, so sin⁡θ≈tan⁡θ≈θ\sin\theta \approx \tan\theta \approx \theta, with θ\theta in radians. This small-angle approximation and the requirement D≫dD \gg d concern the geometry between the slits and screen. Normal incidence is a separate condition: the incoming waves travel perpendicular to the plane of the slits.

The formula fits the physics nicely:

  • A larger wavelength gives wider fringe spacing.
  • Move the screen farther away and the pattern spreads out.
  • Increase the slit separation and the fringes move closer together.

You can use this directly to measure wavelength. Shine a laser through a double slit onto a distant screen. Measure across several fringe spacings, rather than only one, then divide to find s. Measure D as well, and use the known slit separation d. Laser safety matters here: keep beams below eye level where possible, avoid reflections, and never look into the direct or reflected beam.

Worked example: Eleven consecutive bright-fringe centres span 24.0 mm24.0\ \text{mm} near the central axis. The slit separation is d=0.500 mmd = 0.500\ \text{mm} and the screen distance is D=2.00 mD = 2.00\ \text{m}. Calculate the wavelength of the light.

  1. Count the intervals between the eleven centres:

    N=11−1=10N = 11 - 1 = 10

  2. Divide the total span by the number of intervals to find the fringe spacing, then convert millimetres to metres:

    s=24.0 mm10=2.40 mm=2.40×10−3 ms = \frac{24.0\ \text{mm}}{10} = 2.40\ \text{mm} = 2.40 \times 10^{-3}\ \text{m}

  3. Convert the slit separation to metres:

    d=0.500 mm=5.00×10−4 md = 0.500\ \text{mm} = 5.00 \times 10^{-4}\ \text{m}

  4. Rearrange the double-slit formula and substitute:

    λ=sdD=(2.40×10−3 m)(5.00×10−4 m)2.00 m=6.00×10−7 m\lambda = \frac{sd}{D} = \frac{(2.40 \times 10^{-3}\ \text{m})(5.00 \times 10^{-4}\ \text{m})}{2.00\ \text{m}} = 6.00 \times 10^{-7}\ \text{m}

Answer

Answer: The wavelength is λ=6.00×10−7 m=600 nm\lambda = 6.00 \times 10^{-7}\ \text{m} = 600\ \text{nm}.

Common mistake: Counting bright fringes instead of the intervals between their centres gives the wrong spacing. Eleven consecutive bright-fringe centres define ten intervals, so divide the measured span by ten, not eleven.

The same idea works with microwaves, just on a larger scale. A transmitter, a pair of metal-sheet slits, and a receiver moved sideways can show maxima and minima on a meter. This is a useful reminder that the wave model is not “a light trick”; it is a wave principle.

Young's result matters historically because a stable interference pattern is very hard to explain if light is treated only as a stream of classical particles. It gives strong evidence that light has wave-like behaviour. Later quantum experiments, using very low light intensity, showed that even when detections arrive one at a time, the accumulated pattern is still an interference pattern. That is one reason modern physics does not say “light is just a wave” or “light is just a particle”; the model chosen depends on the observation being explained.

C.3.10

SINGLE-SLIT DIFFRACTION AND INTENSITY PATTERNS

HL

The pattern from one rectangular slit

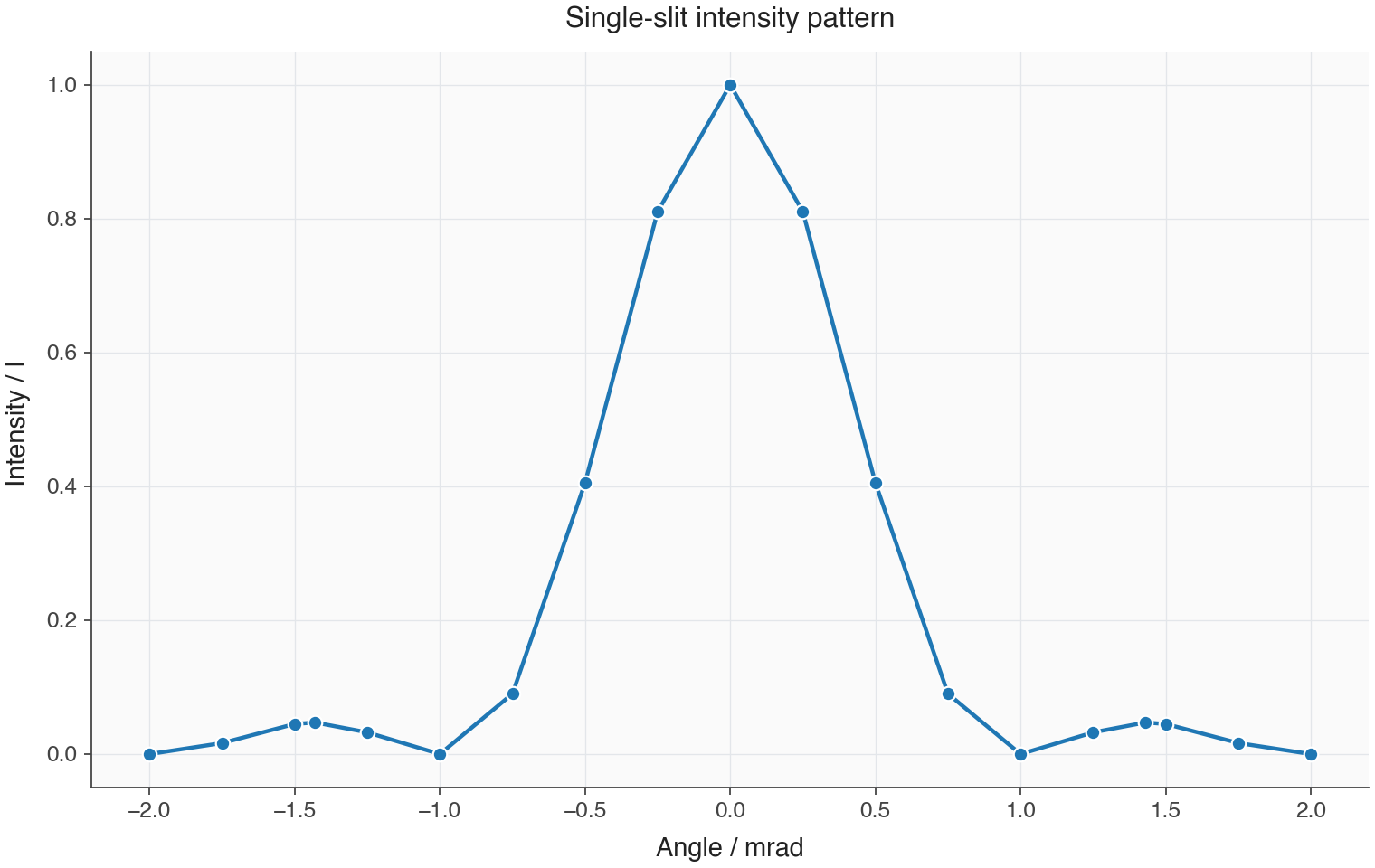

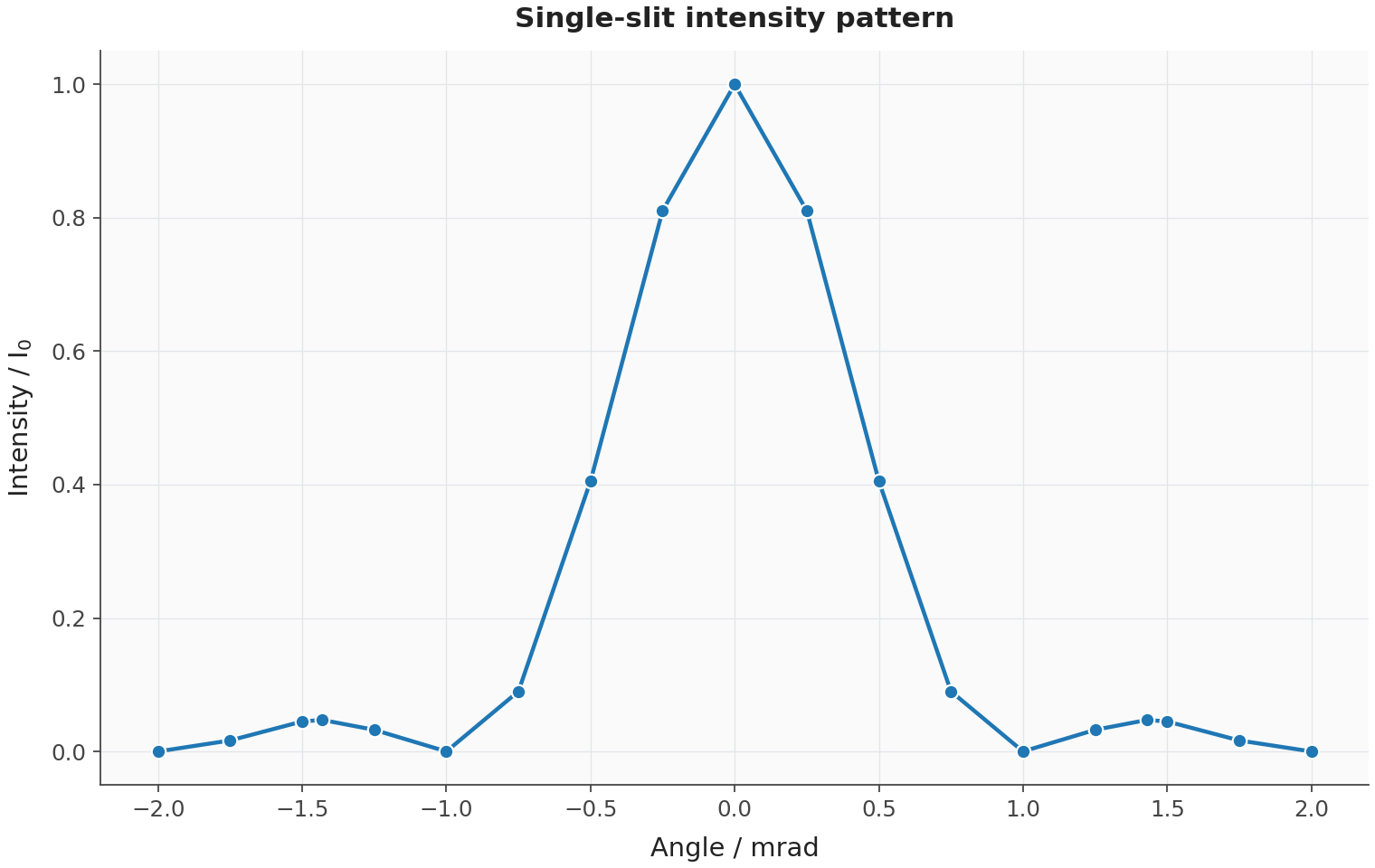

A single-slit diffraction pattern forms when monochromatic waves pass through one narrow rectangular aperture and spread out. For this topic, take the light to be monochromatic and normally incident on the slit.

The central maximum is the brightest and widest part of the pattern. On both sides, much weaker secondary maxima appear, with dark minima between them. The first secondary maximum has only a small fraction of the central intensity, so the side maxima can be hard to see in real life.

For the first diffraction minimum, the IB syllabus gives the small-angle condition as

θ=λb\theta = \frac{\lambda}{b}

The central maximum runs from the first minimum on one side to the first minimum on the other, so its angular width is about twice this value.

Worked example: Light of wavelength λ=600 nm\lambda = 600\ \text{nm} passes through a slit of width b=0.200 mmb = 0.200\ \text{mm}. A screen is placed a distance D=2.00 mD = 2.00\ \text{m} from the slit. Calculate the angle to the first minimum, its displacement from the centre of the screen, and the full width of the central maximum.

  1. Convert the wavelength and slit width to metres, then calculate the first-minimum angle:

    λ=600 nm=6.00×10−7 m\lambda = 600\ \text{nm} = 6.00 \times 10^{-7}\ \text{m}

    b=0.200 mm=2.00×10−4 mb = 0.200\ \text{mm} = 2.00 \times 10^{-4}\ \text{m}

    θ=λb=6.00×10−72.00×10−4=3.00×10−3 rad\theta = \frac{\lambda}{b} = \frac{6.00 \times 10^{-7}}{2.00 \times 10^{-4}} = 3.00 \times 10^{-3}\ \text{rad}

  2. Use the small-angle approximation to find the displacement yy from the centre to the first minimum:

    y=Dtan⁡θ≈Dθy = D\tan\theta \approx D\theta

    y≈2.00×3.00×10−3=6.00×10−3 m=6.00 mmy \approx 2.00 \times 3.00 \times 10^{-3} = 6.00 \times 10^{-3}\ \text{m} = 6.00\ \text{mm}

  3. Double this displacement to find the full central width:

    2y=2×6.00=12.0 mm2y = 2 \times 6.00 = 12.0\ \text{mm}

Answer

Answer: The first minimum is at θ=3.00×10−3 rad\theta = 3.00 \times 10^{-3}\ \text{rad}, a displacement of approximately 6.00 mm6.00\ \text{mm} from the centre. The full central maximum is approximately 12.0 mm12.0\ \text{mm} wide.

Common mistake: Using yy as the full central width gives an answer that is too small by a factor of two. The distance from the centre to the first minimum is the half-width; the full width extends between the first minima on opposite sides and is 2y2y.

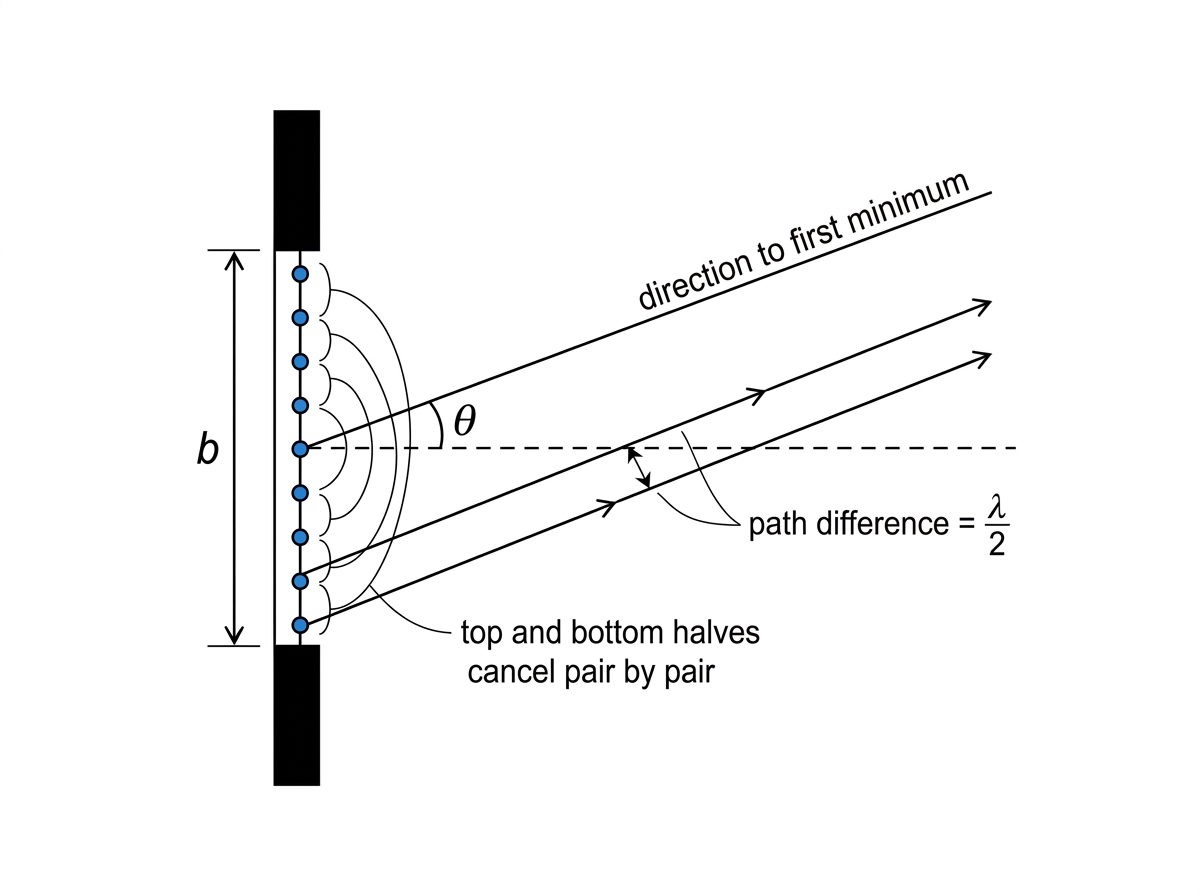

Superposition explains the formula. Treat the slit as many tiny Huygens sources. In the direction of the first minimum, each source in the top half of the slit pairs with one in the bottom half whose wave arrives half a wavelength out of phase. Pair by pair, the waves cancel.

Slit width matters in a clear qualitative way: a narrower slit spreads the diffraction pattern out, while a wider slit makes the pattern narrower. A longer wavelength spreads the pattern more as well. Red light diffracts more than blue light through the same slit.

Slit width also affects intensity. A narrower slit lets in less wave energy and spreads that energy over a wider angular range, so the pattern becomes dimmer and broader. In sketches of intensity against angle, draw a tall central maximum, first minima placed symmetrically, and much smaller side maxima.

To observe this safely, use a low-power laser, a single slit or adjustable calipers, and a screen several metres away. Measure the separation of the first minima, use the screen distance to find the small angle, and then apply the diffraction equation. Keep the laser beam and any reflections out of eyes throughout.

C.3.11

MODULATION OF DOUBLE-SLIT INTERFERENCE BY SINGLE-SLIT DIFFRACTION

HL

Real double slits are also single slits

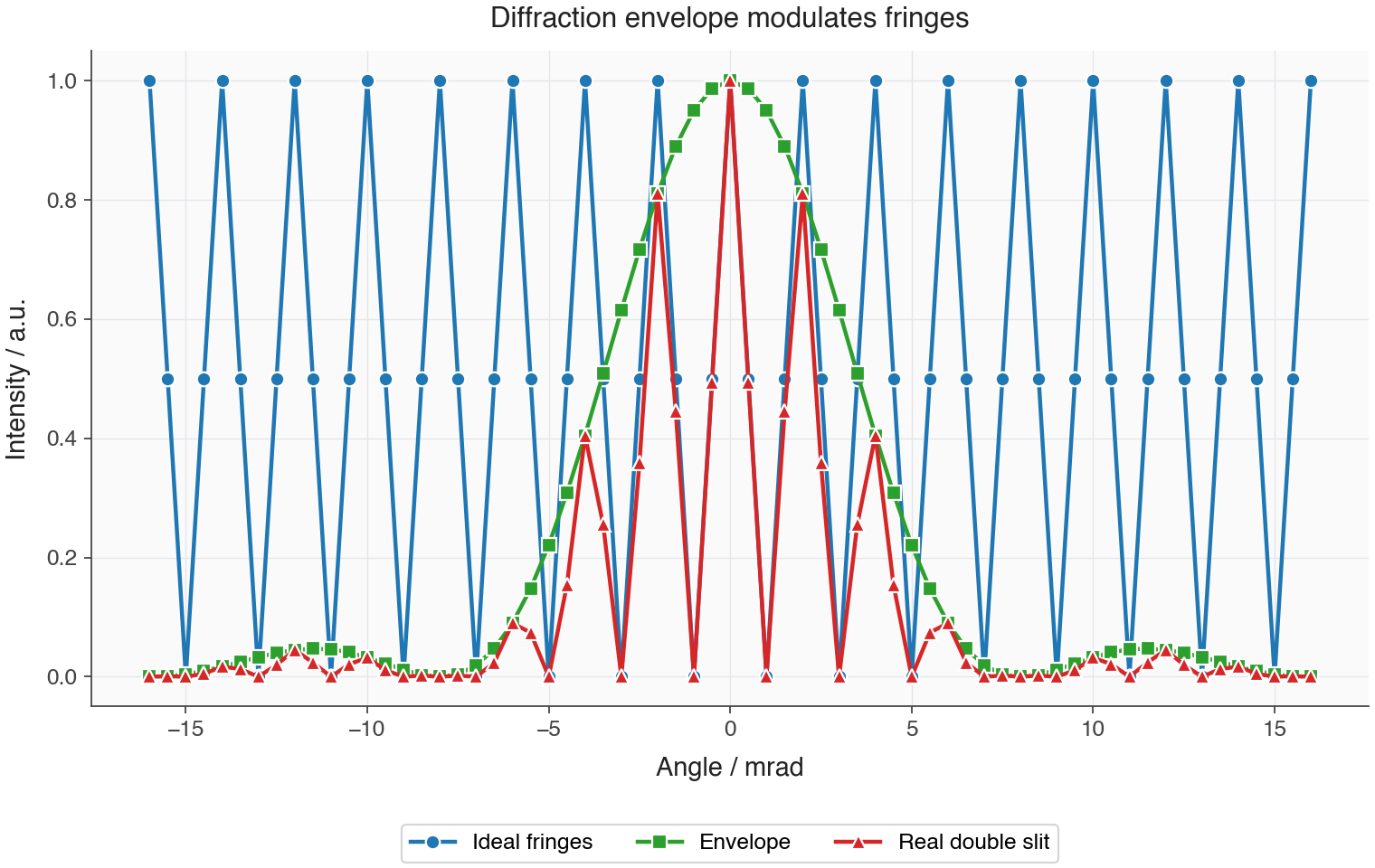

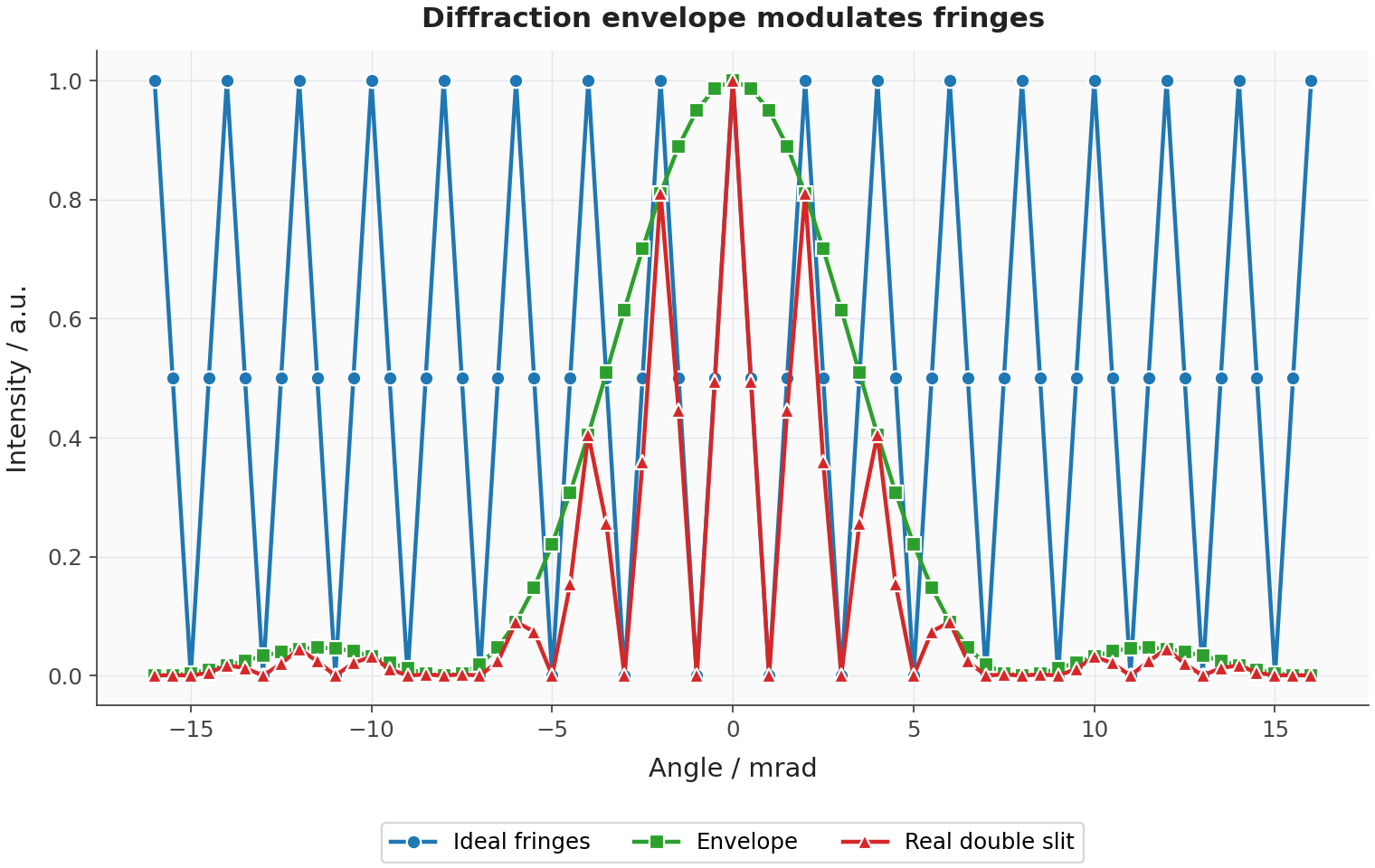

The simple double-slit model treats each slit as extremely narrow. Real slits have a finite width, so each slit also makes its own single-slit diffraction envelope. What you see is the regular double-slit interference fringe pattern sitting inside that broader diffraction envelope.

Modulation is a variation of one pattern by another pattern that controls its overall amplitude. In this case, the single-slit diffraction pattern modulates the double-slit interference pattern. The fringes are brightest near the centre, then fade as the diffraction envelope becomes small.

At angles where the single-slit pattern has a minimum, the double-slit fringes are suppressed. That happens even if the double-slit condition alone would predict a bright fringe there. These are often called missing orders or missing fringes.

Two different quantities control the pattern:

QuantityControlsEffect of increasing it
Slit separation, ddInterference fringe spacing, Δθ≈λ/d\Delta\theta \approx \lambda/dFringes become closer; more fit inside the same envelope.
Slit width, bbFirst envelope minimum, θ1≈λ/b\theta_1 \approx \lambda/bThe diffraction envelope becomes narrower.

These angular expressions use the small-angle approximation, with angles in radians.

Worked example: Light of wavelength λ=500 nm\lambda = 500\ \text{nm} passes through slits of width b=0.100 mmb = 0.100\ \text{mm} and separation d=0.400 mmd = 0.400\ \text{mm}. Find the first envelope minimum, the interference angular spacing, the first missing order and the number of bright fringes in the central envelope.

  1. The first envelope minimum satisfies bsin⁡θ1=λb\sin\theta_1 = \lambda. At small angles:

    θ1≈λb=500×10−90.100×10−3=5.00×10−3 rad=5.00 mrad\theta_1 \approx \frac{\lambda}{b} = \frac{500\times10^{-9}}{0.100\times10^{-3}} = 5.00\times10^{-3}\ \text{rad} = 5.00\ \text{mrad}

  2. The interference angular spacing is:

    Δθ≈λd=500×10−90.400×10−3=1.25×10−3 rad=1.25 mrad\Delta\theta \approx \frac{\lambda}{d} = \frac{500\times10^{-9}}{0.400\times10^{-3}} = 1.25\times10^{-3}\ \text{rad} = 1.25\ \text{mrad}

  3. At the first envelope minimum, the interference order would be:

    m=dsin⁡θ1λ=db=0.4000.100=4m = \frac{d\sin\theta_1}{\lambda} = \frac{d}{b} = \frac{0.400}{0.100} = 4

    Thus orders m=±4m=\pm4 coincide with envelope minima and are missing. Between them lie orders −3,−2,−1,0,+1,+2,+3-3,-2,-1,0,+1,+2,+3.

Answer

Answer: The first envelope minima are at θ≈±5.00 mrad\theta \approx \pm5.00\ \text{mrad} and the fringe spacing is 1.25 mrad1.25\ \text{mrad}. The fourth-order maxima are missing, leaving seven bright fringes in the central envelope.

Common mistake: Counting the fourth-order positions as bright fringes gives too many fringes. An interference maximum cannot remain bright where the diffraction envelope is zero.

C.3.12

MULTIPLE-SLIT INTERFERENCE AND DIFFRACTION GRATINGS

HL

From two slits to many

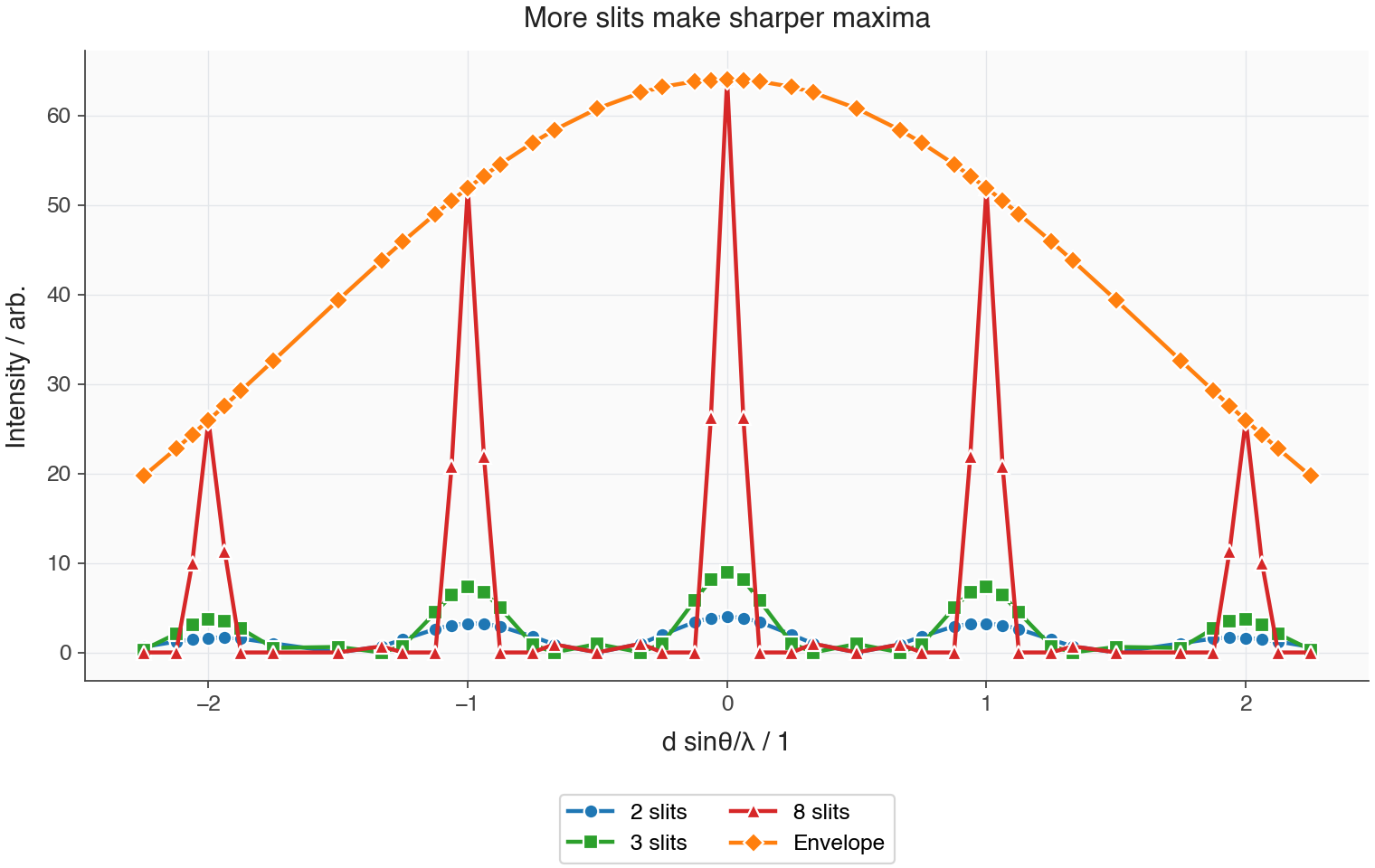

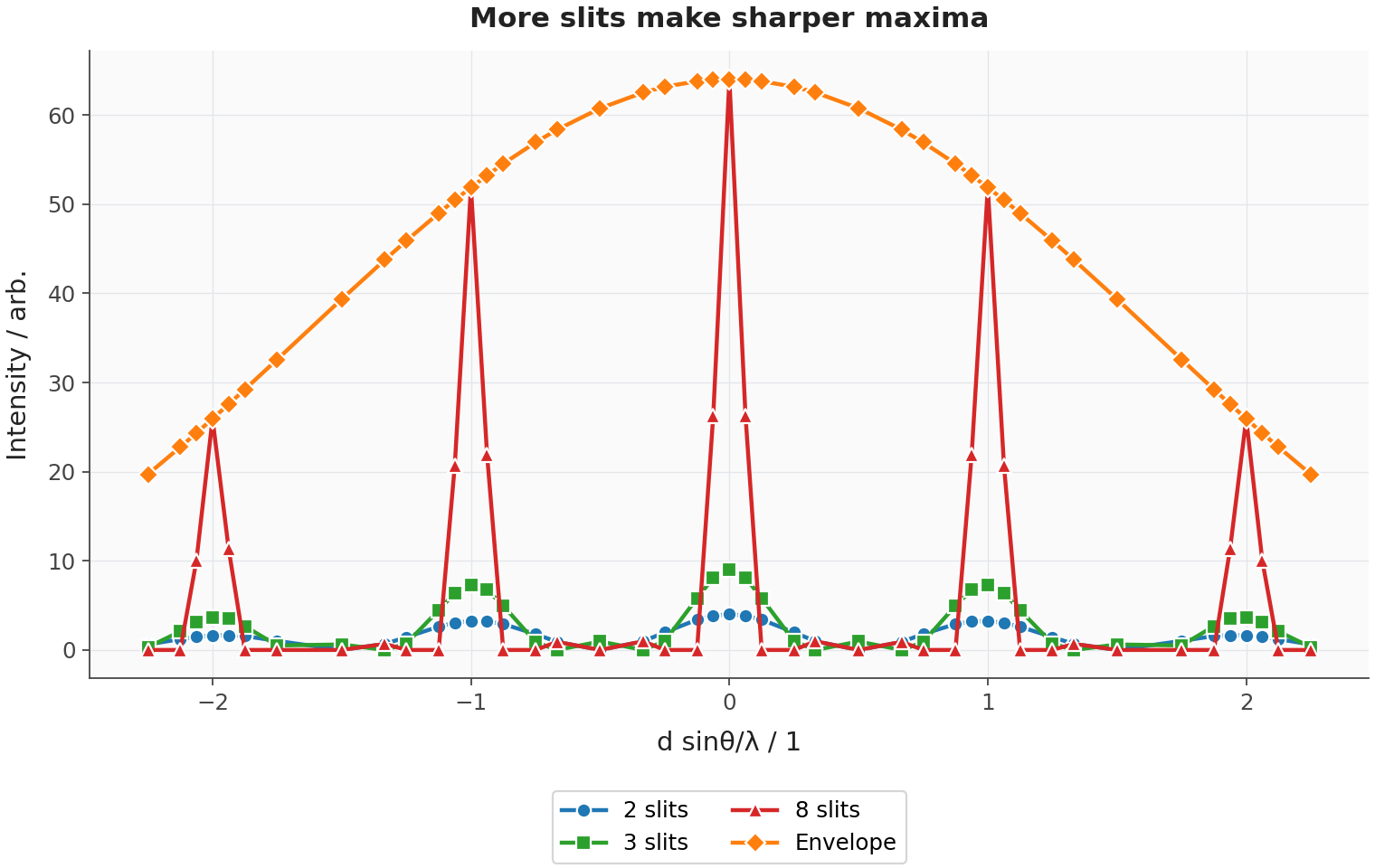

A multiple-slit interference pattern is an interference pattern produced by more than two equally spaced coherent slits. Increase the number of illuminated slits and the principal maxima stay at the same angular positions, but they become sharper and more intense.

If NN is the number of illuminated slits (no unit), the intensity of a principal maximum is proportional to N2N^2, assuming the slits are illuminated equally. Here’s the useful reason: field amplitude adds roughly in proportion to NN, while intensity is proportional to amplitude squared.

Worked example: The number of illuminated slits increases from 3 to 6. Each slit receives the same illumination as before. Find the factor by which the intensity of a principal maximum increases.

  1. Use the proportionality between principal-maximum intensity and the square of the number of illuminated slits: I6I3=(63)2=4\frac{I_6}{I_3}=\left(\frac{6}{3}\right)^2=4
Answer

Answer: The principal-maximum intensity becomes 4 times its original value; the intensity ratio is dimensionless.

For three or more slits, subsidiary maxima can appear between the principal maxima. The key effect, though, is better separation of wavelengths. The whole pattern is still limited by the single-slit diffraction envelope caused by the finite width of each slit.

Diffraction gratings

A diffraction grating is an optical component made of many equally spaced parallel slits or lines that diffract and interfere light to produce sharp maxima.

Gratings are often described by the number of lines per millimetre; the grating spacing dd is the reciprocal of that line density, converted into metres for calculations.

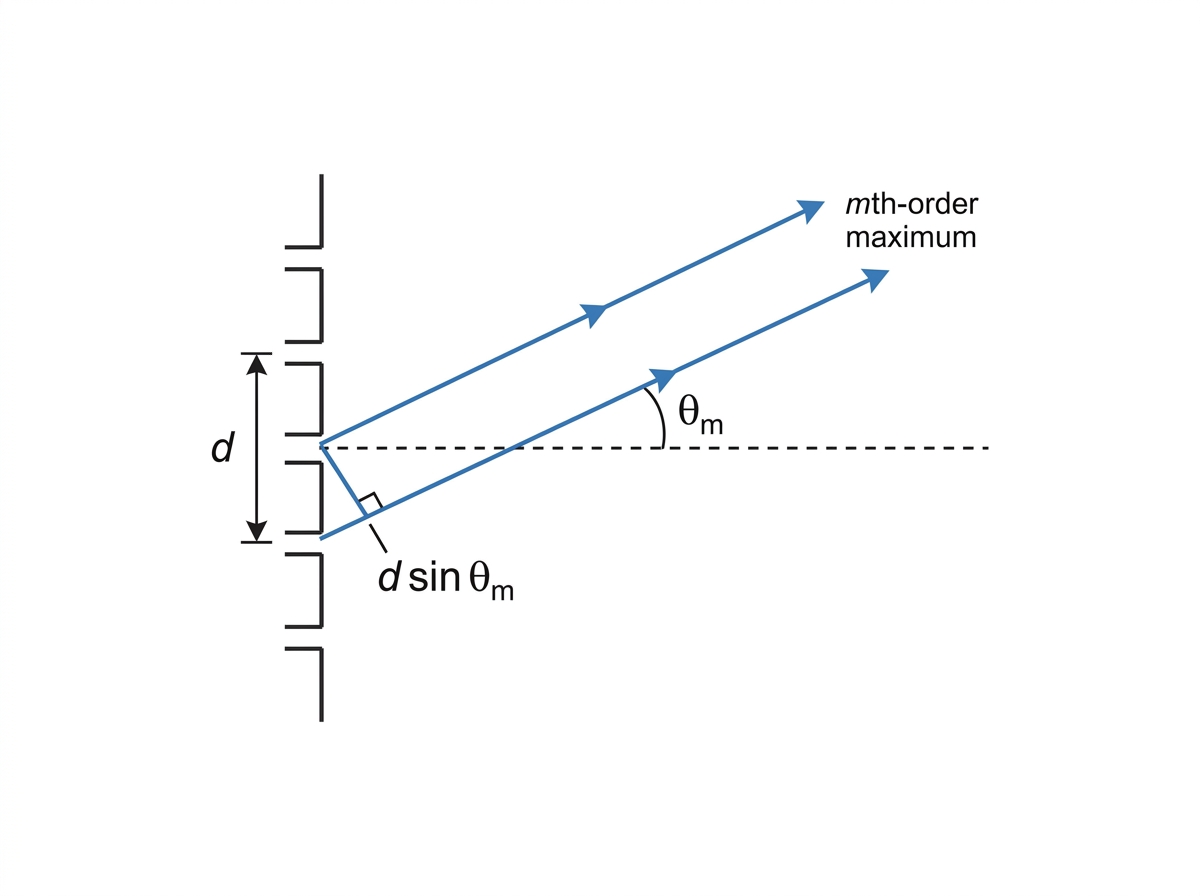

For a grating at normal incidence, the maxima satisfy

mλ=dsin⁡θmm\lambda=d\sin\theta_m

The syllabus may write the same relation as nλ=dsin⁡θn\lambda=d\sin\theta, but I prefer mm here so that it is not confused with refractive index.

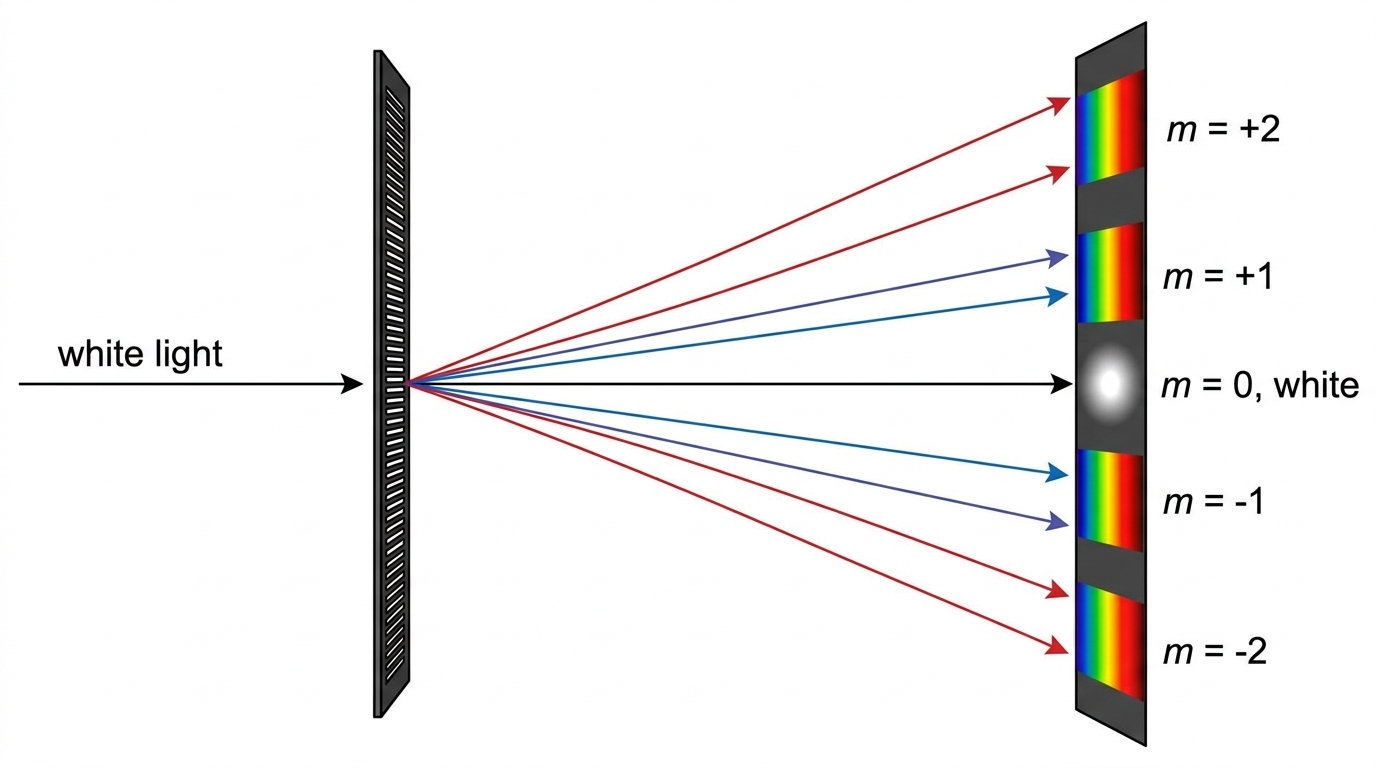

The central maximum is the zero order. All wavelengths have zero path difference there, so white light remains white. Away from the centre, each wavelength satisfies the grating equation at a different angle. Red light, with the longer wavelength, appears at a larger angle than blue light for the same order. Monochromatic light gives sharp spots or lines; white light gives spectra on both sides of the central maximum.

There is also a maximum possible order because sin⁡θm\sin\theta_m cannot exceed 1. If a calculation requires a sine greater than 1, that order simply does not exist.

Worked example: Light of wavelength 500 nm500\ \text{nm} is normally incident on a grating with 600 lines mm−1600\ \text{lines mm}^{-1}. Calculate the grating spacing, the first-order diffraction angle and the maximum integer order. Explain why order 4 is impossible.

  1. Convert the line density to lines per metre, then take its reciprocal: 600 lines mm−1=600×103 lines m−1600\ \text{lines mm}^{-1}=600\times10^3\ \text{lines m}^{-1} d=1600×103 m=1.67×10−6 md=\frac{1}{600\times10^3}\ \text{m}=1.67\times10^{-6}\ \text{m}
  2. Convert the wavelength to metres: λ=500 nm=500×10−9 m\lambda=500\ \text{nm}=500\times10^{-9}\ \text{m}
  3. Set the order to one and rearrange the grating equation. Use the unrounded spacing in the calculation: θ1=sin⁡−1(λd)=sin⁡−1(500×10−9×600×103)=17.5∘\theta_1=\sin^{-1}\left(\frac{\lambda}{d}\right)=\sin^{-1}\left(500\times10^{-9}\times600\times10^3\right)=17.5^\circ
  4. The sine cannot exceed one, so the largest permitted integer order is the integer part of the spacing-to-wavelength ratio: mmax⁡=⌊dλ⌋=⌊1600×103×500×10−9⌋=⌊3.33…⌋=3m_{\max}=\left\lfloor\frac{d}{\lambda}\right\rfloor=\left\lfloor\frac{1}{600\times10^3\times500\times10^{-9}}\right\rfloor=\lfloor3.33\ldots\rfloor=3
  5. Test order 4 directly: sin⁡θ4=4λd=4×500×10−9×600×103=1.20\sin\theta_4=\frac{4\lambda}{d}=4\times500\times10^{-9}\times600\times10^3=1.20 No real angle has a sine greater than one, so order 4 cannot occur.
Answer

Answer: The spacing is 1.67×10−6 m1.67\times10^{-6}\ \text{m}, the first-order angle is 17.5∘17.5^\circ and the maximum integer order is 3 (dimensionless). Order 4 is impossible because it would require sin⁡θ4=1.20\sin\theta_4=1.20.

A good grating experiment measures wavelength by plotting sin⁡θm\sin\theta_m against order mm. Measure the screen distance and the displacement of each order from the central maximum, convert the geometry to an angle, then use the gradient with the grating equation. Include uncertainties from distance measurements; at larger angles, uncertainty in position can noticeably affect sin⁡θm\sin\theta_m.

Were those notes helpful?

C.2 Wave model

C.4 Standing waves and resonance
