IB Syllabus Requirements for Wave model
C.2.1
Transverse and longitudinal travelling waves
C.2.2
Wavelength, frequency, time period and wave speed
C.2.3
The nature of sound waves
C.2.4
The nature of electromagnetic waves
C.2.1
TRANSVERSE AND LONGITUDINAL TRAVELLING WAVES
A wave is a disturbance that transfers energy from one place to another without requiring a net transfer of matter. A medium is a material substance whose particles or fields can be disturbed so that a wave can pass through it. In a water ripple, an air sound wave or a wave on a stretched string, neighbouring particles pass the disturbance along. After the wave has passed, each particle is back where it started on average.
A travelling wave is a wave whose pattern moves through space, carrying energy away from its source. Keep this sentence in your head: the wave travels, but the particles of the medium only oscillate about equilibrium positions. Energy is transferred even though the medium has no resultant displacement.

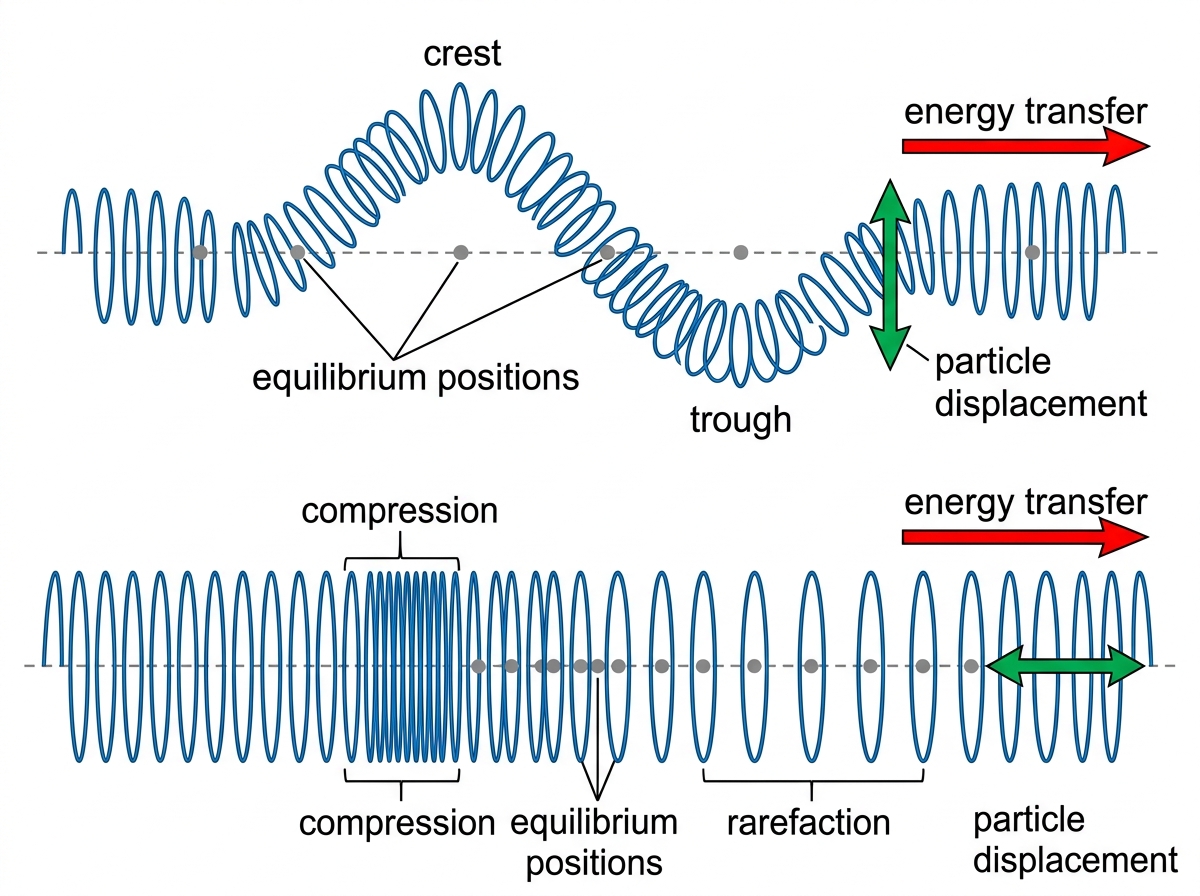

A transverse wave is a travelling wave in which the disturbance of the medium is perpendicular to the direction of energy transfer. Stretch a slinky horizontally and shake one end up and down: the pulse travels along the slinky, while each coil moves up and down. A crest is a point of maximum positive displacement on a transverse wave, and a trough is a point of maximum negative displacement.
For a transverse mechanical wave, a displacement–distance graph often looks like the actual shape of the wave at that instant. Careful, though: the graph models particle displacement against position. It isn’t a picture of the path taken by the energy.
A longitudinal wave is a travelling wave in which the disturbance of the medium is parallel to the direction of energy transfer. If a slinky is pushed and pulled along its length, the pulse travels along the slinky while each coil moves backwards and forwards along the same line.
A compression is a region in a longitudinal wave where particles of the medium are closer together than at equilibrium. A rarefaction is a region in a longitudinal wave where particles are farther apart than at equilibrium. On a displacement–distance graph for a longitudinal wave, maximum compression and maximum rarefaction occur where the particle displacement is zero, not at the peaks and troughs of the displacement graph. That surprises students every year, so pause on it: bunching depends on how neighbouring particles are displaced relative to one another.
IB questions often ask what a named particle is doing at a particular instant. Don’t say the particle is “moving along with the wave”. For a transverse wave travelling to the right, a particle may be moving up, down or momentarily at rest depending on where it is on the waveform. For a longitudinal wave travelling to the right, a particle may be moving right, left or momentarily at rest.
A displacement–distance graph is a graph that shows the displacement of all particles along a wave at one instant. It gives spatial information, such as wavelength and amplitude. A displacement–time graph is a graph that shows the displacement of one particle as time passes. It gives temporal information, such as period and amplitude.
How to read displacement–distance and displacement–time graphs for the same travelling wave.
| Feature | Displacement–distance graph | Displacement–time graph |
|---|---|---|
| Horizontal axis | Position along wave, / m | Time for one particle, / s |
| Vertical axis | Particle displacement, / m | Particle displacement, / m |
| What is fixed | One instant in time | One fixed position in the medium |
| What it shows | Shape of the wave along the medium | Oscillation of one particle as wave passes |
| Amplitude | from equilibrium to crest | from equilibrium to maximum |
| Main spacing read | Wavelength between matching points | Period between matching points |
| Useful for finding | Amplitude and wavelength | Amplitude and period |
A sequence of displacement–distance graphs drawn at equal time intervals shows the wave pattern moving while labelled particles oscillate about fixed equilibrium positions. This is the link between the wave model and simple harmonic motion: each point in the medium can oscillate while the wave pattern itself travels through the medium.
C.2.2
WAVELENGTH, FREQUENCY, TIME PERIOD AND WAVE SPEED
Wavelength is the shortest distance between two points on a wave that are in the same state of oscillation, such as crest to crest, trough to trough, compression to compression, or rarefaction to rarefaction.
Frequency is the number of complete oscillations made per unit time by a particle of the medium. You can also think of it as the number of complete wave cycles passing a fixed point per unit time.
Time period is the time taken for one complete oscillation of a particle of the medium, or the time taken for one wavelength to pass a fixed point.
Amplitude is the maximum displacement of a disturbed quantity from its equilibrium value. In a mechanical wave, this might be a particle displacement. In an electromagnetic wave, it might mean the size of the electric or magnetic field variation. So when you see “displacement” in waves, read it in context.
Wave speed is the speed at which a fixed phase point of the wave pattern, such as a crest or compression, travels through space.
For wave motion,
The hertz is just . A wave with frequency makes 50 complete oscillations each second, and 50 wavelengths pass a fixed point each second.

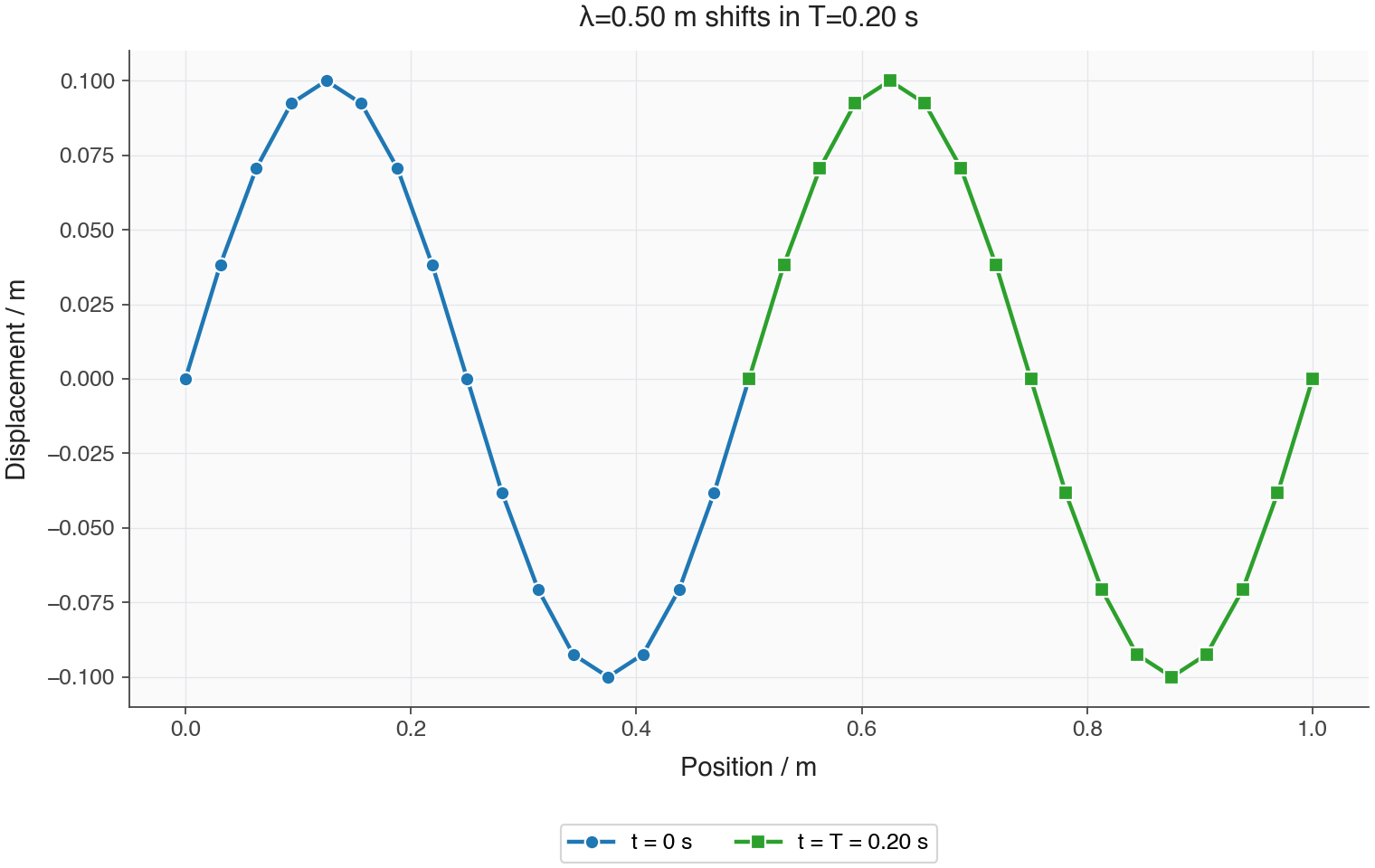

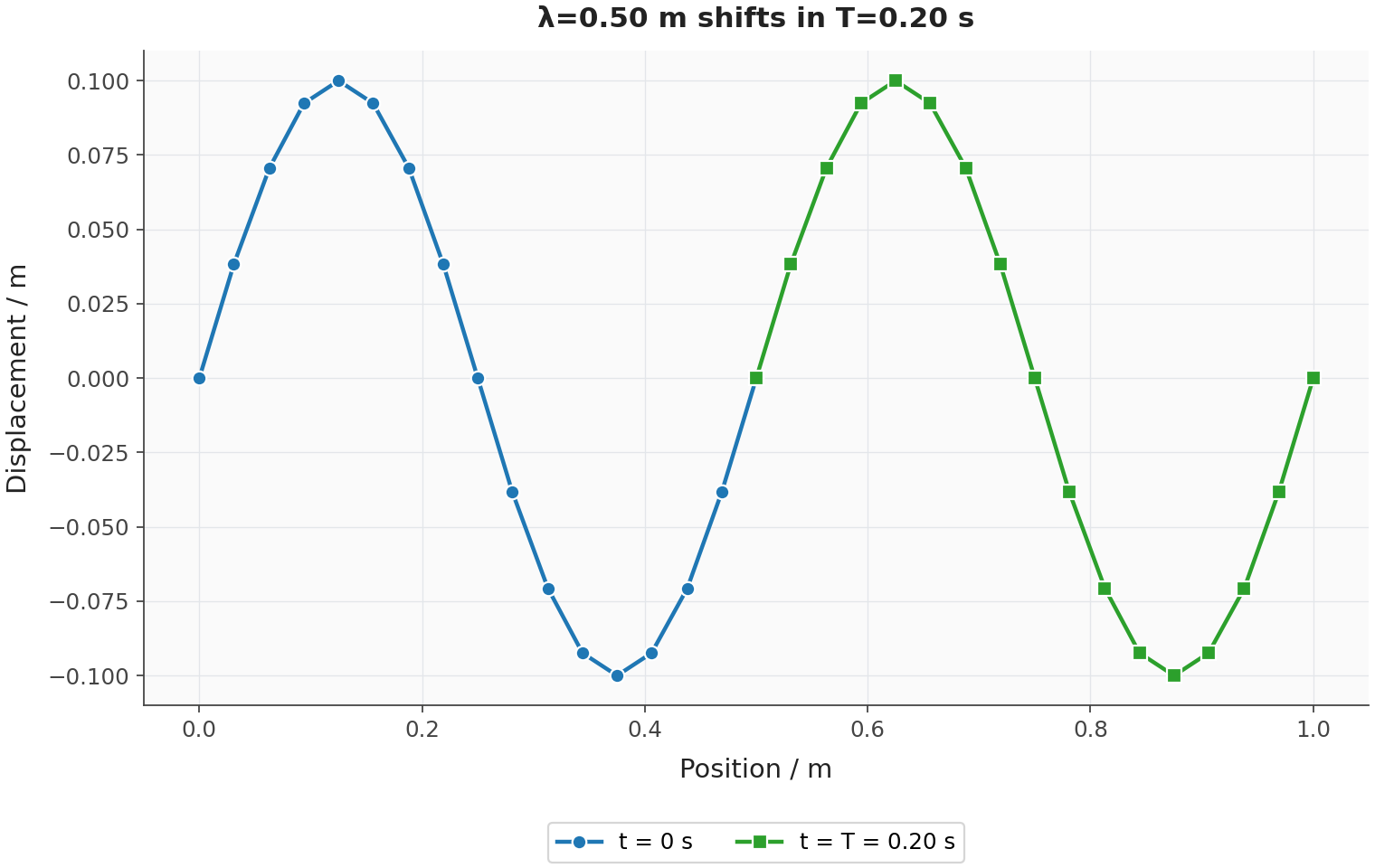

During one period, the wave pattern moves forward by one wavelength. Speed is distance divided by time, so . Since frequency is the reciprocal of period, we can write the same relationship as . This equation is not a special new kind of speed; it is ordinary kinematics applied to a repeating pattern.
What happens when frequency changes depends on the wave speed:
On a displacement–distance graph, read the amplitude from the equilibrium line to a maximum displacement. Read the wavelength between matching points in phase. This graph shows the pattern at a fixed instant: it does not directly give the period or frequency unless you also know the wave speed or have information about how the pattern changes with time.
On a displacement–time graph for one particle, the amplitude is again measured from equilibrium to maximum displacement. The period is the time for one complete cycle. This graph follows a fixed particle: it does not directly give the wavelength, because there is no spatial axis.
Exam tip: Before calculating, check the horizontal-axis quantity and its units. Measure amplitude from equilibrium, not from peak to trough. Measure a complete cycle between matching phase points, such as successive crests, rather than between any two equilibrium crossings. Convert milliseconds to seconds and centimetres to metres before substituting into the wave equation.
For a finite wave train, if a source produces cycles, the length of the wave train is
Equivalently, if the source operates for a duration , then the wave train length is
Here is the promised link to kinematics: a wavefront travelling at speed for a time covers a distance .
Worked example: A wave has period and wavelength . Calculate its frequency and speed. If the source operates for , find the number of cycles produced and the wave-train length. Check the length using the wave speed.
Find the frequency from the period:
Substitute into the wave-speed equation:
Multiply the frequency by the emission duration to find the number of cycles:
The units cancel because is a count of complete cycles.
Find the length occupied by these cycles:
Check using the distance travelled by the leading wavefront during emission:
Answer: The frequency is and the wave speed is . The source produces 6 complete cycles, forming a wave train of length ; both methods give the same length.
Two points are in phase if they have the same displacement and the same direction of motion at the same time. Points one wavelength apart are in phase. Points half a wavelength apart are in antiphase: when one is at a crest, the other is at a trough. This language helps when comparing two particles on a wave, or two microphone traces in a sound experiment.
When waves overlap, their disturbances combine at each point. This is superposition, a principle stating that the resultant displacement at a point is the vector sum of the individual displacements there. You meet the full machinery of superposition in C.3, but the idea already fits naturally inside the wave model.
C.2.3
THE NATURE OF SOUND WAVES

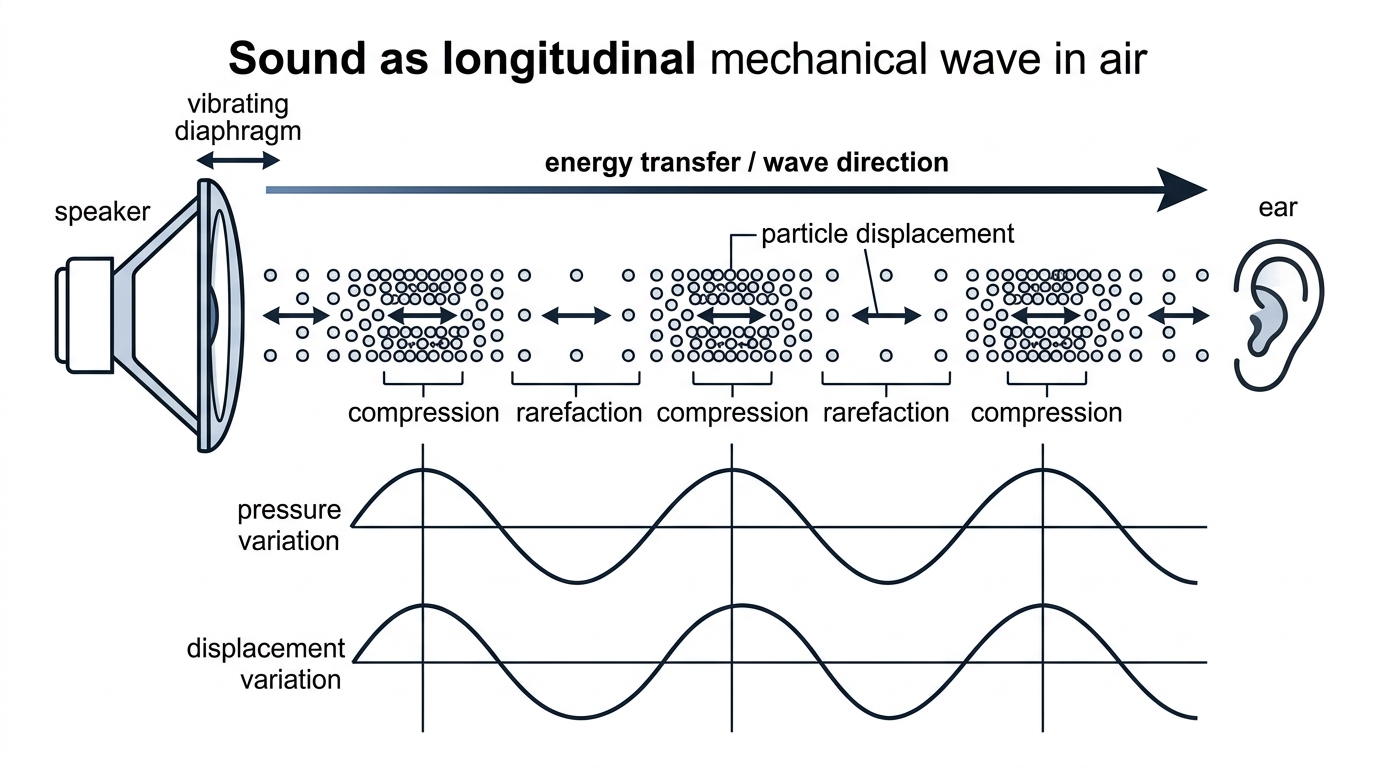

A sound wave is a longitudinal mechanical wave made up of pressure and density variations travelling through a medium. In air, a vibrating source, for example a loudspeaker cone, pushes nearby air molecules together and then lets them spread apart again. These compressions and rarefactions then move away from the source.
Sound travels through gases, liquids and solids because their particles interact and pass on a pressure disturbance. Gases and liquids cannot maintain a sideways displacement through their bulk, so sound in these media is longitudinal. In solids, particles are held in fixed arrangements by bonding forces, which allows both longitudinal and transverse mechanical waves.

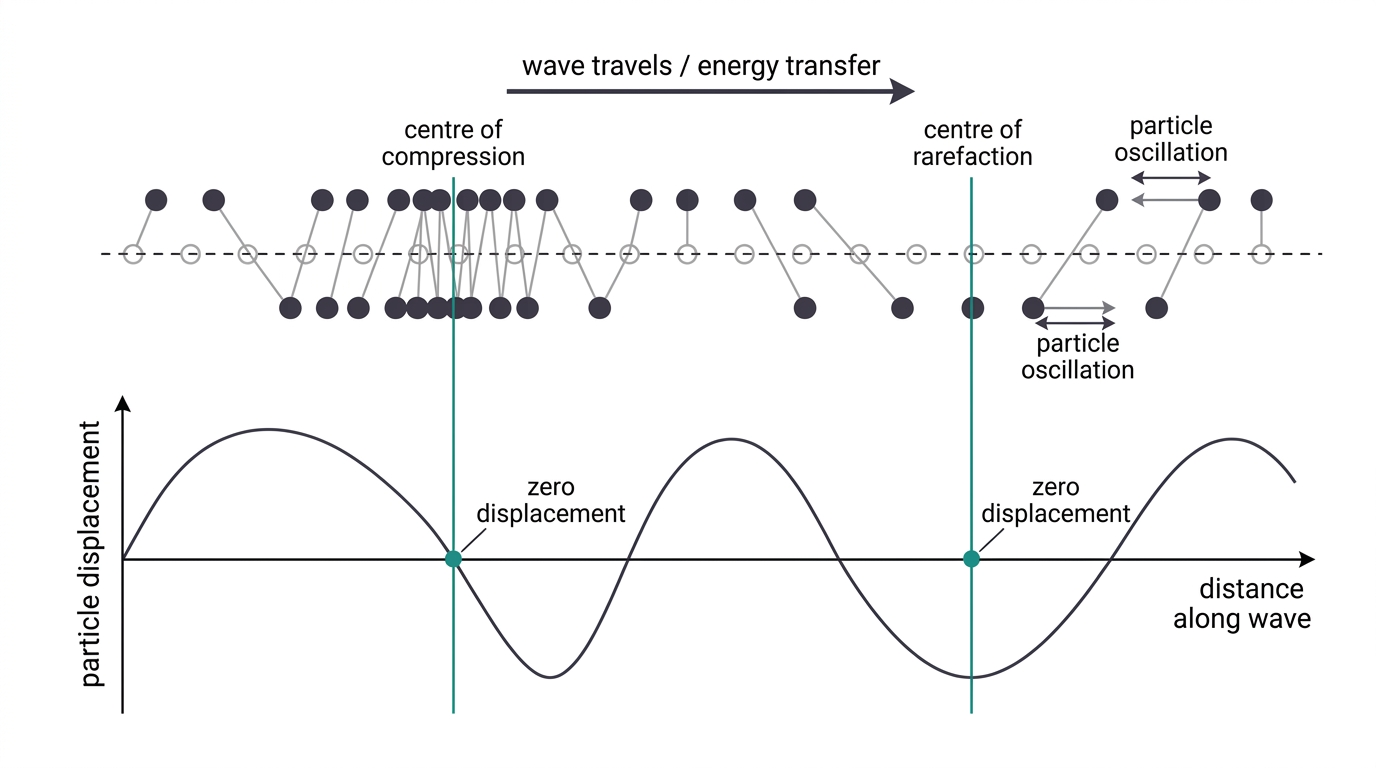

Particle displacement and pressure variation do not reach their maxima at the same positions in a sound wave. At the centre of a compression or rarefaction, particles are momentarily at their equilibrium positions, while the pressure difference from normal is greatest. Where particle displacement is maximum, the pressure is approximately normal. In phase terms, the pressure variation and particle displacement variation are a quarter of a cycle out of step.
The ear responds to pressure variations. When a sound wave reaches the eardrum, it makes the eardrum vibrate, and that vibration is converted into nerve signals. Energy has been transferred from the source to the ear; the air itself has not travelled from the loudspeaker to the listener.
As sound spreads out from a source, its amplitude usually falls. Part of the decrease comes from geometric spreading, where the same energy is shared over a larger area. Part also comes from dissipation, where wave energy is transferred into internal energy of the air and surroundings.
One simple direct method uses a sharp sound with a visible cue, such as a clapperboard. Measure a large distance, record the time delay between seeing the clap and hearing it, and then use . A large distance helps because human reaction time is not small compared with the sound travel time over a few metres. Echo methods use the round-trip distance to a large flat wall, so the sound distance is twice the wall distance.
Worked example: A wall is away. An echo returns after a sharp sound is made. Calculate the speed of sound.
Answer: The speed of sound is .
Common mistake: Using instead of for an echo gives half the correct speed. The measured delay includes travel both to the wall and back.

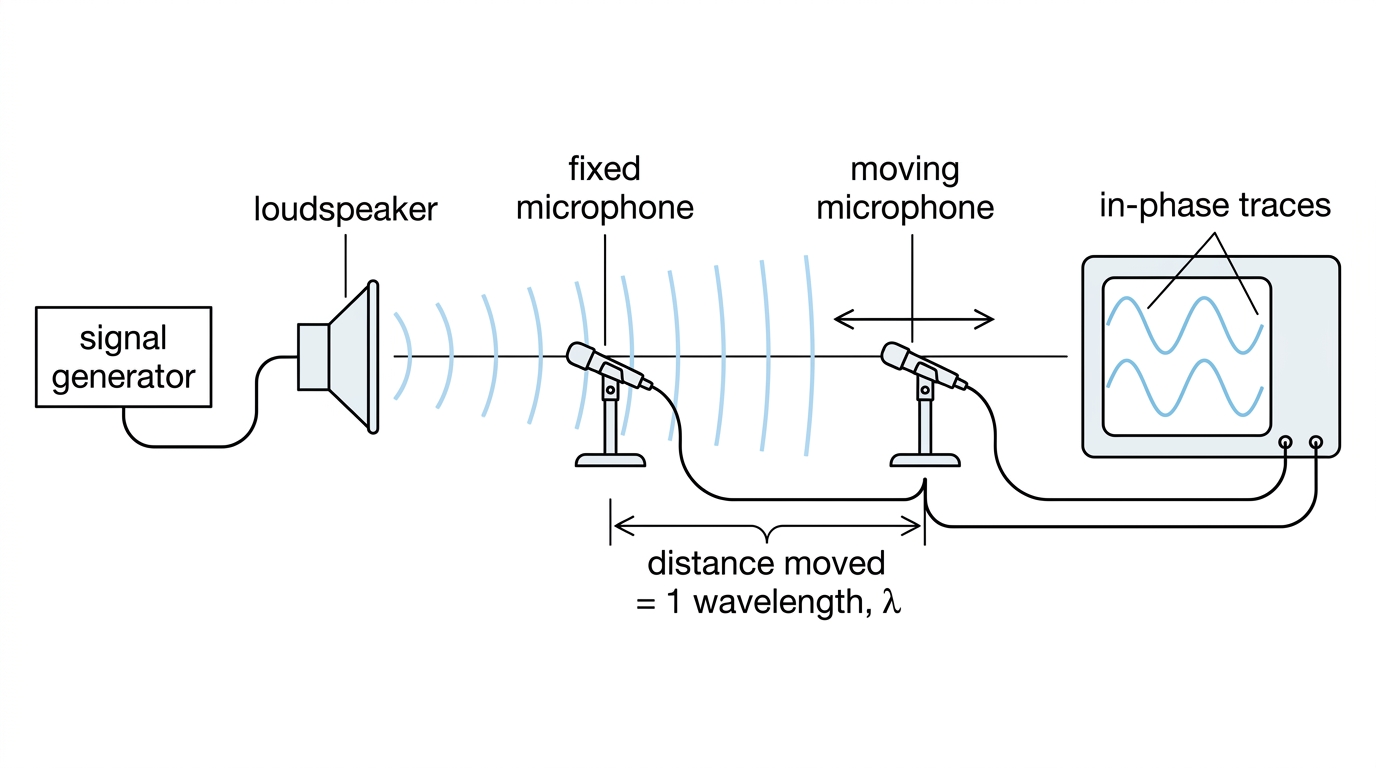

A more precise school-lab method uses two microphones and an oscilloscope.
Measuring several wavelengths and averaging reduces percentage uncertainty: the total measured distance is larger while the absolute uncertainty in the endpoint readings remains similar.
Worked example: A loudspeaker operates at . A microphone moves across five successive in-phase intervals. Calculate the wavelength and the speed of sound.
Answer: The wavelength is and the speed of sound is .
Smartphones can also work as acoustic timers, provided you think carefully about sampling rate and timing resolution. If the time interval you want to measure is only a few milliseconds, a low sampling rate gives too few samples to locate the arrival time reliably. Good experimental design here is not about having expensive kit; it is about making the travel time large enough and the timing uncertainty small enough.
C.2.4
THE NATURE OF ELECTROMAGNETIC WAVES

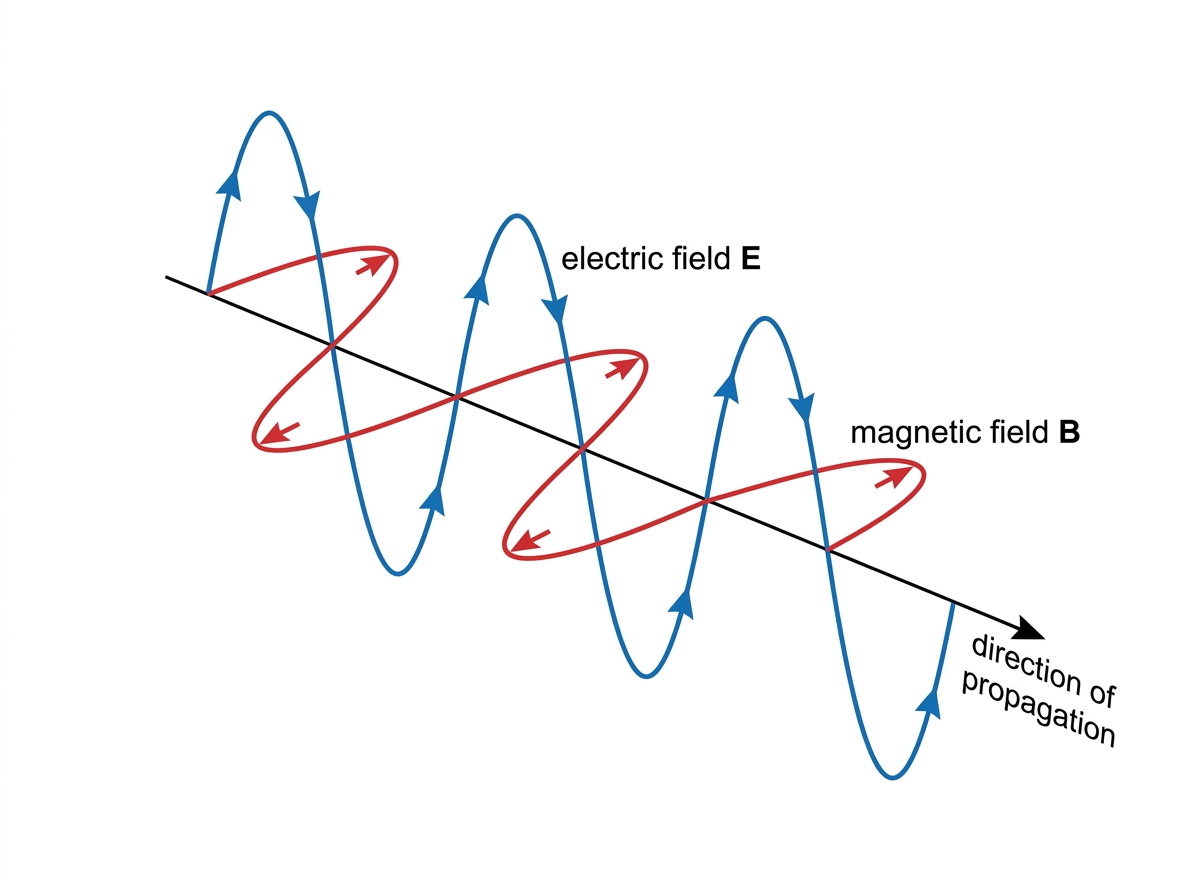

An electromagnetic wave is a travelling wave made of oscillating electric and magnetic fields, at right angles to each other, that can transfer energy through a vacuum or through a medium. We model it as transverse because the fields vary perpendicular to the direction in which the wave travels.
In a vacuum, all electromagnetic waves travel at the same speed: . The family includes radio waves, microwaves, infrared radiation, visible light, ultraviolet radiation, X-rays and gamma rays. The wave equation still applies, so when the speed is fixed, a long wavelength goes with a low frequency, while a short wavelength goes with a high frequency.
Worked example: A radio signal has frequency . Calculate its wavelength in a vacuum and identify its electromagnetic region using the spectrum table below.
Rearrange the wave equation for wavelength:
Substitute the vacuum speed and the frequency in hertz:
Compare with the spectrum table: a wavelength of lies in the radio region.
Answer: The wavelength is , in the radio region of the electromagnetic spectrum.
Worked example: Light has a vacuum wavelength of . Calculate its frequency and identify its electromagnetic region using the spectrum table below.
Rearrange the wave equation for frequency:
Substitute the vacuum speed and the wavelength in metres:
Compare with the spectrum table: lies within the visible range of approximately .
Answer: The frequency is , in the visible region of the electromagnetic spectrum.
Light, then, is not separate from electromagnetic radiation. Visible light is simply the narrow part of the electromagnetic spectrum that the human eye detects. A prism can disperse white light because different visible wavelengths travel differently through glass, so they leave the prism in different directions.

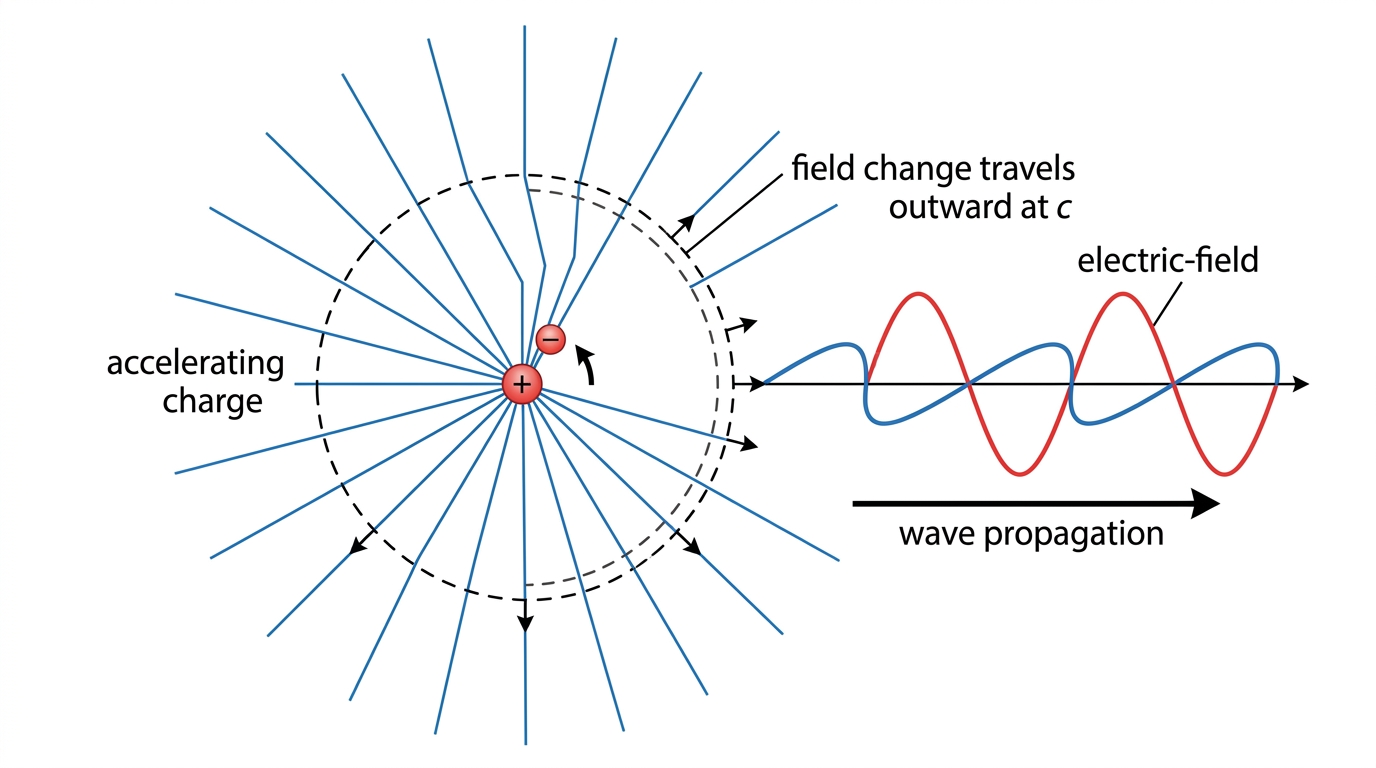

Electromagnetic radiation is produced when charged particles accelerate or when charged particles change energy state. A helpful field picture is to imagine a charge moving: information about the change in its electric field cannot show up everywhere at once. The changing field pattern moves outward at the speed of light, and the changing electric and magnetic fields keep one another going as the wave travels.
That is why electromagnetic waves do not need a material medium. In the nineteenth century, physicists suggested an invisible “aether” to carry light waves, but modern physics has no need for it. The field itself varies and carries the energy.
When electromagnetic radiation enters a different medium, its frequency is still fixed by the source, but its speed and wavelength may change. The same wave model is used for radio communication, light optics, medical imaging and astronomical observation; the details change because matter interacts differently with different wavelengths.
Example: For the question “Explain what happens to frequency and wavelength when light enters glass from a vacuum”, a model response is: the frequency remains unchanged because it is fixed by the source. The speed decreases in glass, so the wavelength decreases because .
Common mistake: Using for light in every material. This is the vacuum speed, not the speed in glass. Use the speed in the material when calculating its wavelength there; the frequency remains unchanged at the boundary.
The electromagnetic spectrum is continuous, so the named regions do not have sharp boundaries. The Physics data booklet gives approximate wavelength ranges, and you should know the order from longest to shortest wavelength: radio, microwave, infrared, visible, ultraviolet, X-rays, gamma rays.
Electromagnetic spectrum ordered from longest to shortest wavelength, with approximate regions and typical interactions or uses.
| Region | Approx. wavelength / m | Typical interactions or uses |
|---|---|---|
| Radio | Communications; diffract around large obstacles | |
| Microwave | to | Communications, radar; absorbed for heating |
| Infrared | to | Thermal emission from warm objects |
| Visible | to | Human vision; optics; atmospheric transmission |
| Ultraviolet | to | Excites or ionises atoms; partly absorbed |
| X-rays | to | Penetrate matter; medical imaging; ionising |
| Gamma rays | Highly penetrating; ionising; tissue damage risk |
The table gives approximate vacuum wavelength ranges alongside the properties and applications of each region. Boundary conventions can vary slightly because the regions overlap.
| Region | Approximate vacuum wavelength range | Properties and applications |
|---|---|---|
| Radio waves | Longer than | Long wavelengths make them useful for communication because they can diffract around large obstacles and may reflect from regions of the upper atmosphere. |
| Microwaves | Used in communications, radar and heating when molecules in food absorb their energy. | |
| Infrared radiation | Strongly linked with thermal emission from warm objects. | |
| Visible light | , or | Passes through much of Earth’s atmosphere, which is fortunate for us. |
| Ultraviolet radiation | Can excite or ionise atoms and is partly absorbed by the atmosphere. | |
| X-rays | Very short wavelengths; can penetrate matter, although they may also ionise atoms and damage living tissue. | |
| Gamma rays | Shorter than | Very short wavelengths; can penetrate matter, although they may also ionise atoms and damage living tissue. |
X-rays give a lovely nature-of-science example. Wilhelm Röntgen noticed unexpected fluorescence near a gas discharge tube and investigated it rather than dismissing it. The new radiation passed through materials opaque to visible light and was quickly used for medical imaging. The lesson is not “luck is enough”; careful attention to an anomaly can open up a new area of physics.
The wave model also helped push physics towards quantum mechanics. Light behaves as a wave in interference and diffraction, but as photons in other observations. Later, matter itself was found to show wave-like behaviour. Schrödinger’s wave mechanics is a major example of a familiar model being extended into a new domain, with all the caution that such extension requires.
C.2.5
DIFFERENCES BETWEEN MECHANICAL WAVES AND ELECTROMAGNETIC WAVES
A mechanical wave needs a material medium. Its disturbance is passed along by the motion or deformation of particles in that medium. Sound in air, waves on a string and seismic waves are mechanical waves.
An electromagnetic wave is different: it is carried by oscillating fields and can travel through a vacuum. Both types transfer energy. Both can be described using wavelength, frequency, period, amplitude and speed. They can also reflect, refract, diffract and superpose, although those behaviours are treated more fully in later wave topics.
Comparison of mechanical and electromagnetic waves.
| Feature | Mechanical waves | Electromagnetic waves |
|---|---|---|
| Need for medium | Require a material medium | Do not require a medium |
| What oscillates | Particles of the medium | Electric and magnetic fields |
| Examples | Sound, string waves, seismic waves | Radio, visible light, X-rays |
| Wave type | Can be transverse or longitudinal | Transverse in a vacuum |
| Travel in vacuum | No | Yes |
| Typical detector | Microphone, geophone or probe | Antenna, photodiode or film |
The key difference is what oscillates. The paired comparison below links this difference to the need for a medium.
| Feature | Mechanical waves | Electromagnetic waves |
|---|---|---|
| What oscillates? | Particles of the medium oscillate about equilibrium positions. | Electric and magnetic field strengths vary with time and position. |
| Is a medium needed? | Require a material medium; sound cannot cross empty space. | Can travel through a vacuum; sunlight travels from the Sun to Earth through a vacuum. |
Example: A “Compare mechanical waves and electromagnetic waves” answer could state: “Mechanical waves require a material medium, whereas electromagnetic waves can travel through a vacuum. Mechanical waves involve particle oscillations, whereas electromagnetic waves involve varying electric and magnetic fields.” If the question asks for similarities as well as differences, add: “Both transfer energy and can undergo reflection.”
Exam tip: Make each comparison a paired statement about the same feature. Two separate lists leave the examiner to infer the comparison.

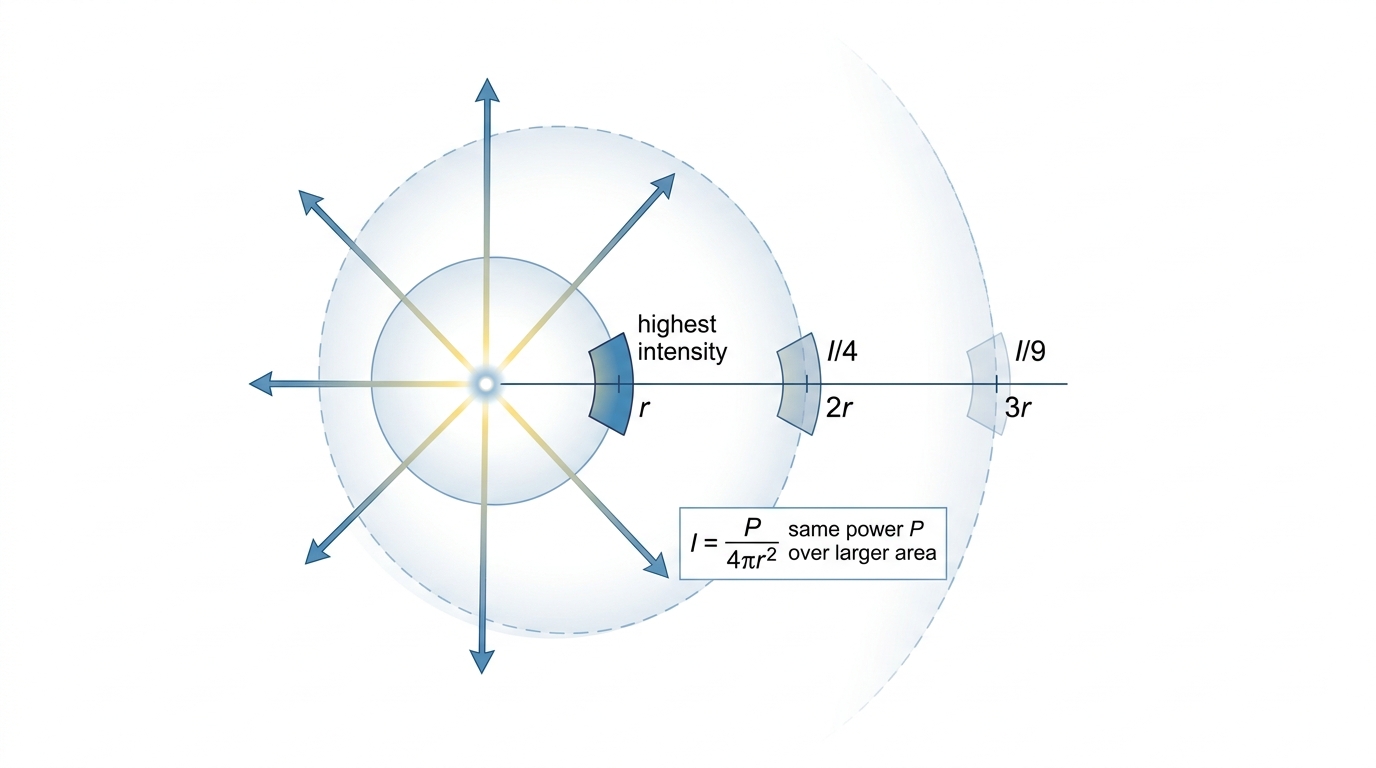

Intensity is the power transferred by a wave per unit area perpendicular to the direction of energy transfer. For a point source radiating uniformly in three dimensions,
So . The reason is straightforward: as distance increases, the same power spreads over the surface area of a larger sphere. Double the distance and the area becomes four times larger, so the intensity falls to one quarter of its original value. This inverse square idea is especially useful for electromagnetic radiation from stars, lamps and transmitters, provided absorption and beaming are not dominating the situation.
Worked example: An isotropic source emits a power of . Calculate the intensity at and from the source, then compare the values. Assume uniform emission in all directions and negligible absorption, so the emitted power passes through each surrounding sphere.
At , substitute into the intensity equation:
At :
Compare using the distances rather than the rounded intensities:
Answer: The intensities are at and at . Tripling the distance divides the intensity by nine.
Common mistake: Dividing intensity by three when distance triples ignores the square in the inverse square relationship. Apply the distance ratio squared, not the distance ratio alone.
Wave technology is useful because waves can carry energy and information without transporting matter from source to receiver.
| Wave family | Applications |
|---|---|
| Electromagnetic waves | Radio, mobile communication, radar, thermal imaging, optical fibres, X-ray imaging and radiotherapy |
| Mechanical waves | Sonar, ultrasound scans, non-destructive testing and seismology |
There is a good NOS point here: the same wave model supports many different technologies, but each application depends on how waves interact with matter. Microwaves are useful in communication and cooking for different reasons; X-rays are useful in imaging because they penetrate soft tissue more than bone, but the same ionising ability makes radiation protection essential. Physics models are powerful because they generalise — and useful because we also know where the details matter.
