C.4: Standing waves and resonance

Master IB Physics C.4: Standing waves and resonance with notes created by examiners and strictly aligned with the syllabus.

Verified by Kun
Verified by Kun

6 sections · ~20 min read

This content can't be printed from the browser. Use Export PDF with Pro for an offline copy.

IB Syllabus Requirements for Standing waves and resonance

C.4.1

Formation of standing waves

C.4.2

Nodes, antinodes, amplitude and phase

C.4.3

Standing wave patterns in strings and pipes

C.4.4

Resonance, natural frequency and driving frequency

C.4.1

FORMATION OF STANDING WAVES

Travelling waves that do not travel on

A standing wave is a wave pattern where the positions of maximum displacement and zero displacement stay fixed, because two identical travelling waves superpose as they move in opposite directions. That last phrase matters. In this course, standing waves are formed from two waves, not from three or more.

A travelling wave is a disturbance that transfers energy through a medium or field as its shape moves through space. A standing wave behaves differently. The pattern doesn’t travel along the string or pipe; each point in the medium oscillates with its own amplitude. Energy is not carried steadily along the standing-wave pattern as it is in a single travelling wave.

Exam tip: For an “Explain formation” question, give the mechanism and its result: reflection produces a wave of the same frequency travelling in the opposite direction. When the incident and reflected waves have equal amplitudes, their superposition produces fixed nodes, where displacement is always zero, and fixed antinodes, where the oscillation amplitude is greatest.

Common mistake: A standing wave is not a stationary piece of medium. The pattern stays fixed, but points in the medium oscillate unless they are at nodes.

The usual setup is straightforward: a wave reaches a boundary, reflects, and overlaps with the incoming wave. If the incident and reflected waves have the same frequency, wavelength and amplitude, their superposition can produce a fixed pattern of cancellation and reinforcement. The wave equation is

v=fλv = f\lambda

Worked example: Two oppositely travelling waves on a string form a standing wave. Each has frequency f=50 Hzf = 50\ \text{Hz} and wavelength λ=0.80 m\lambda = 0.80\ \text{m}. Calculate the speed of each contributing travelling wave.

  1. Use the wave equation: v=fλv = f\lambda
  2. Substitute the data: v=(50 Hz)(0.80 m)=40 m s−1v = (50\ \text{Hz})(0.80\ \text{m}) = 40\ \text{m s}^{-1}
Answer

Answer: Each contributing travelling wave moves at 40 m s−140\ \text{m s}^{-1}. The standing-wave pattern itself does not travel at this speed; its nodes and antinodes remain fixed.

In a real experiment, the reflected wave is often slightly weaker because the support absorbs some energy. The “zero” points may not be perfectly still, but their positions are still where the model predicts. That’s why a school string vibrator can give a convincing standing wave even though the laboratory is not a perfect physics diagram.

Reflection and boundary behaviour

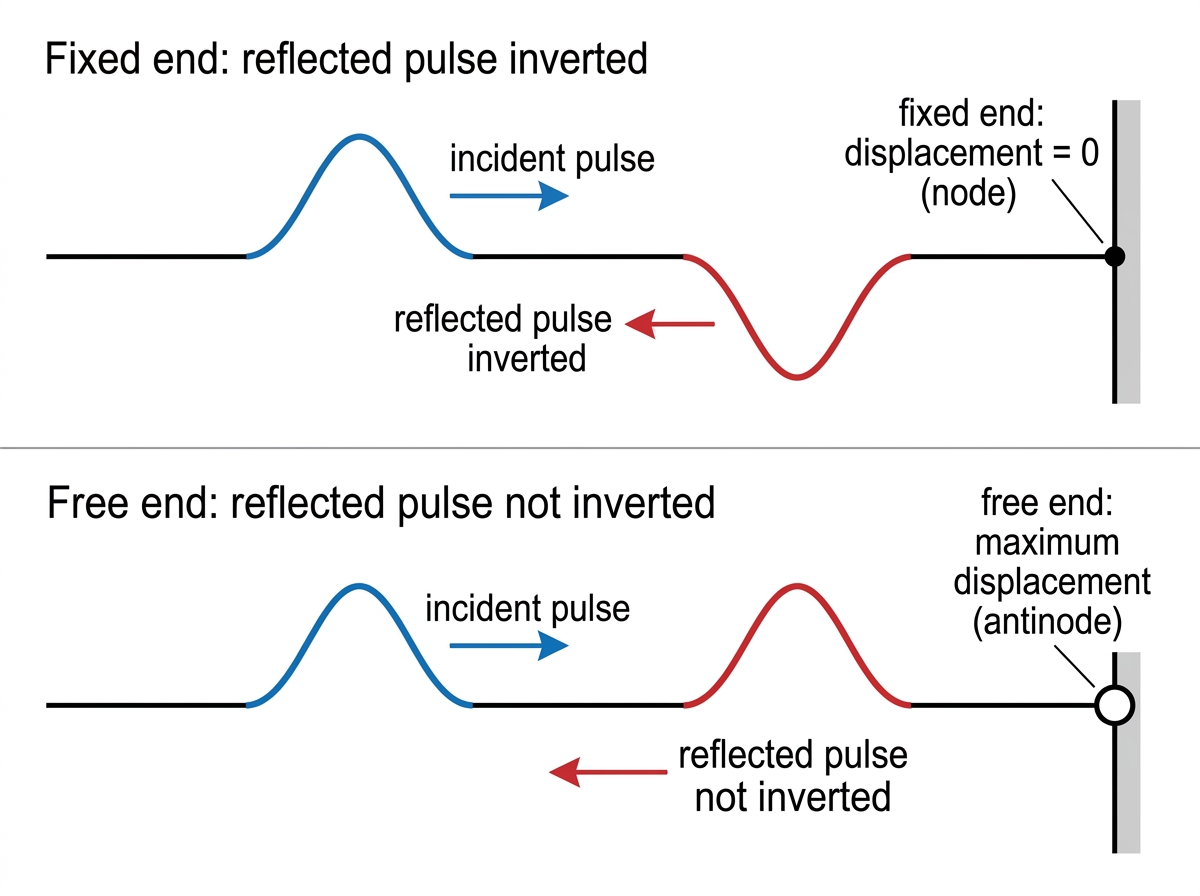

A boundary condition is a constraint at the end of a wave-bearing system that determines what displacement is allowed there. For a string fixed to a wall, the end cannot move, so the displacement at the fixed end is always zero. The reflected pulse is inverted: it returns with opposite displacement, a phase change of π\pi rad.

At a free end, the end of the string can move. The reflected pulse is not inverted, so the end becomes a place of large displacement. In both cases, the reflected wave travels back through the incident wave and the two superpose.

Seeing the pattern in the lab

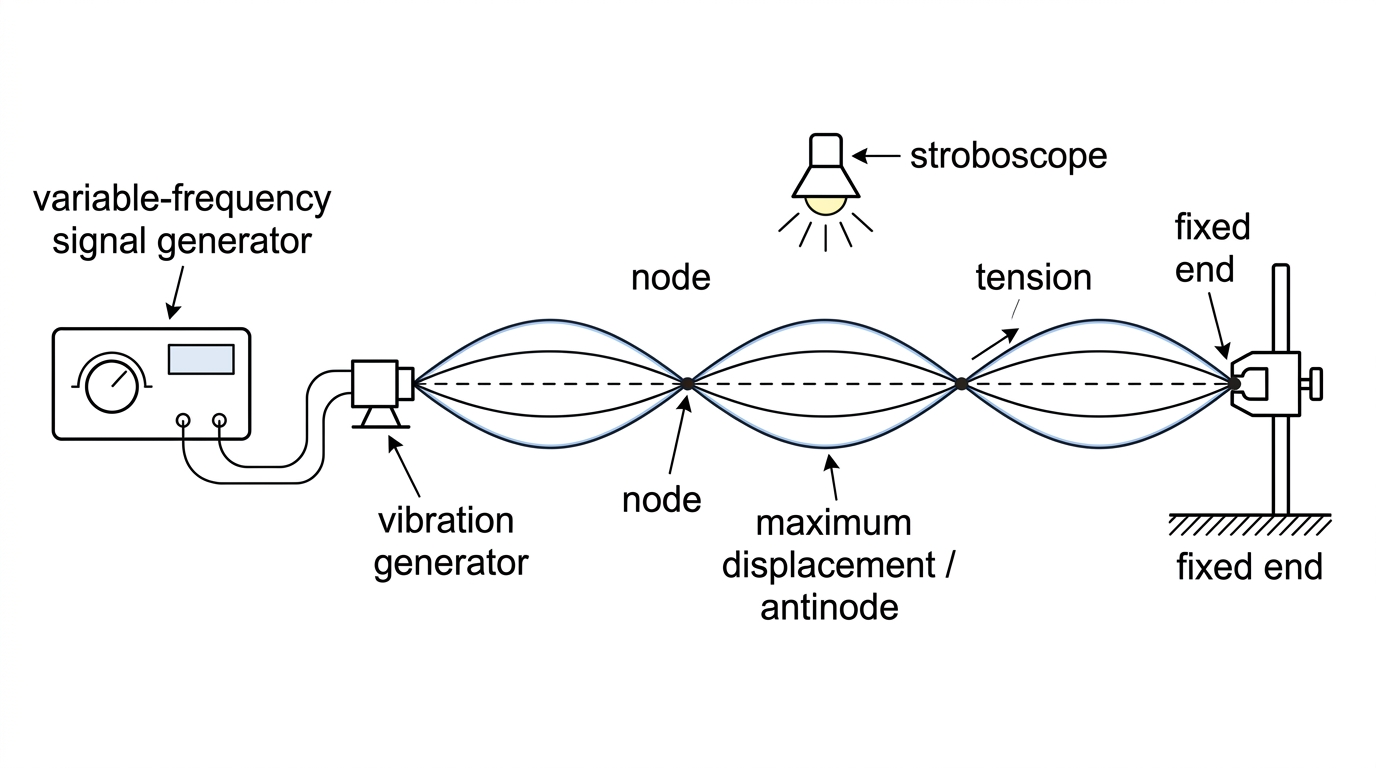

A standard way to see standing waves is to attach a string to a vibration generator, pass it over or attach it to a fixed support, and then vary the generator frequency until a clear pattern appears. Sketch each clear pattern rather than just admiring it. Successive patterns show the allowed harmonics set by the boundary conditions.

A stroboscope set close to the driving frequency can make the string look almost frozen, which helps you identify the fixed positions and the positions of maximum displacement. In this practical, useful observations include the number of loops, the positions of nodes, whether the end is fixed or free, and how sharply the pattern appears. Random errors usually come from judging amplitude and node position by eye; systematic errors can come from an uncertain string length, uneven tension, or assuming the vibrator end is a perfect node when it is actually moving slightly.

C.4.2

NODES, ANTINODES, AMPLITUDE AND PHASE

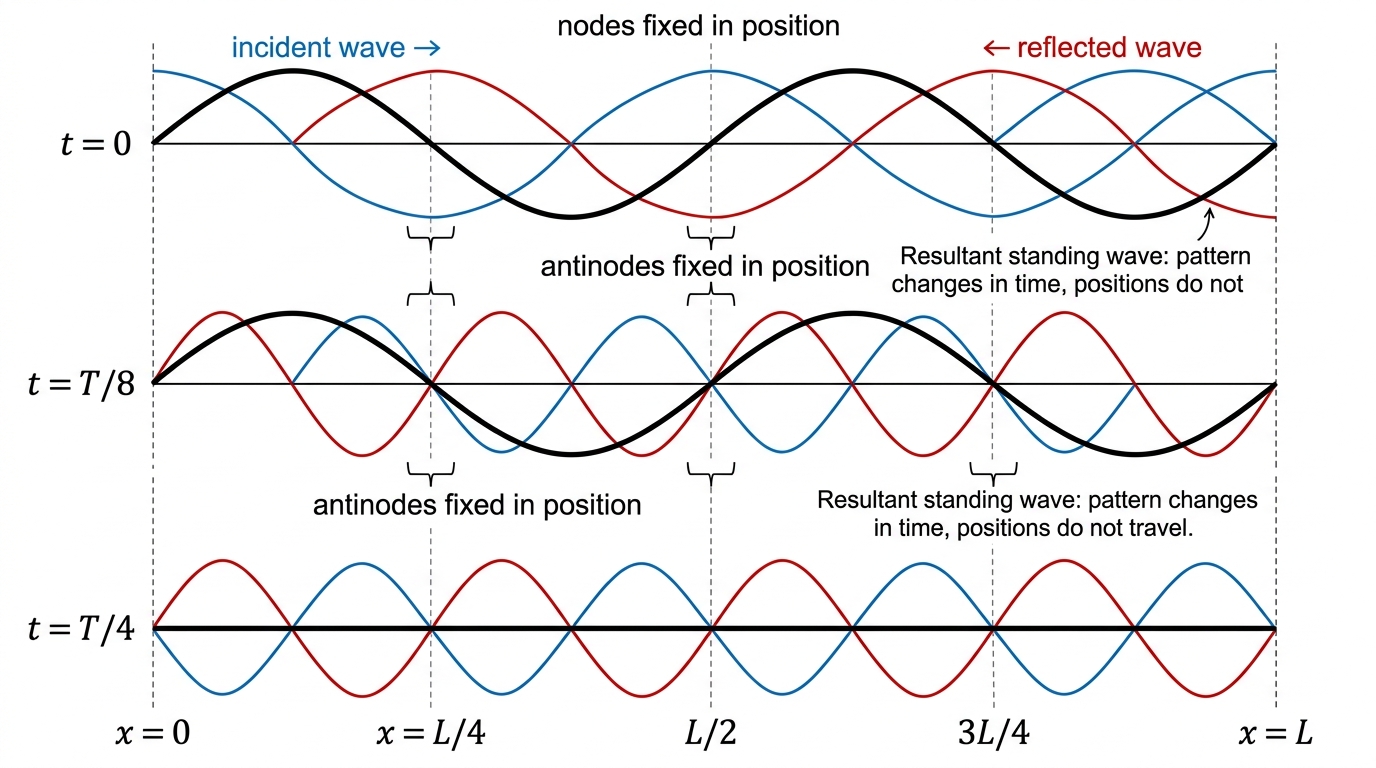

Fixed points in a moving pattern

A node is a point on a standing wave where the displacement is always zero, because the two contributing waves always cancel there. An antinode is a point on a standing wave where the displacement amplitude is maximum, because the two contributing waves reinforce most strongly there.

Adjacent nodes are separated by λ/2\lambda/2. Adjacent antinodes are also separated by λ/2\lambda/2. The distance from a node to the nearest antinode is λ/4\lambda/4. In a standing-wave diagram, these distances are often the quickest route to the wavelength.

Relative amplitude

The amplitude is not the same everywhere along a standing wave. At a node it is zero; at an antinode it is largest; between them it changes smoothly. This is a big difference from an ideal travelling wave, where every point of the medium has the same amplitude if there is no energy loss.

So, when you compare two points on a standing wave, don’t just write “same wave, same amplitude”. Check where the points are. Within a node-to-antinode interval, amplitude increases as you move towards the antinode.

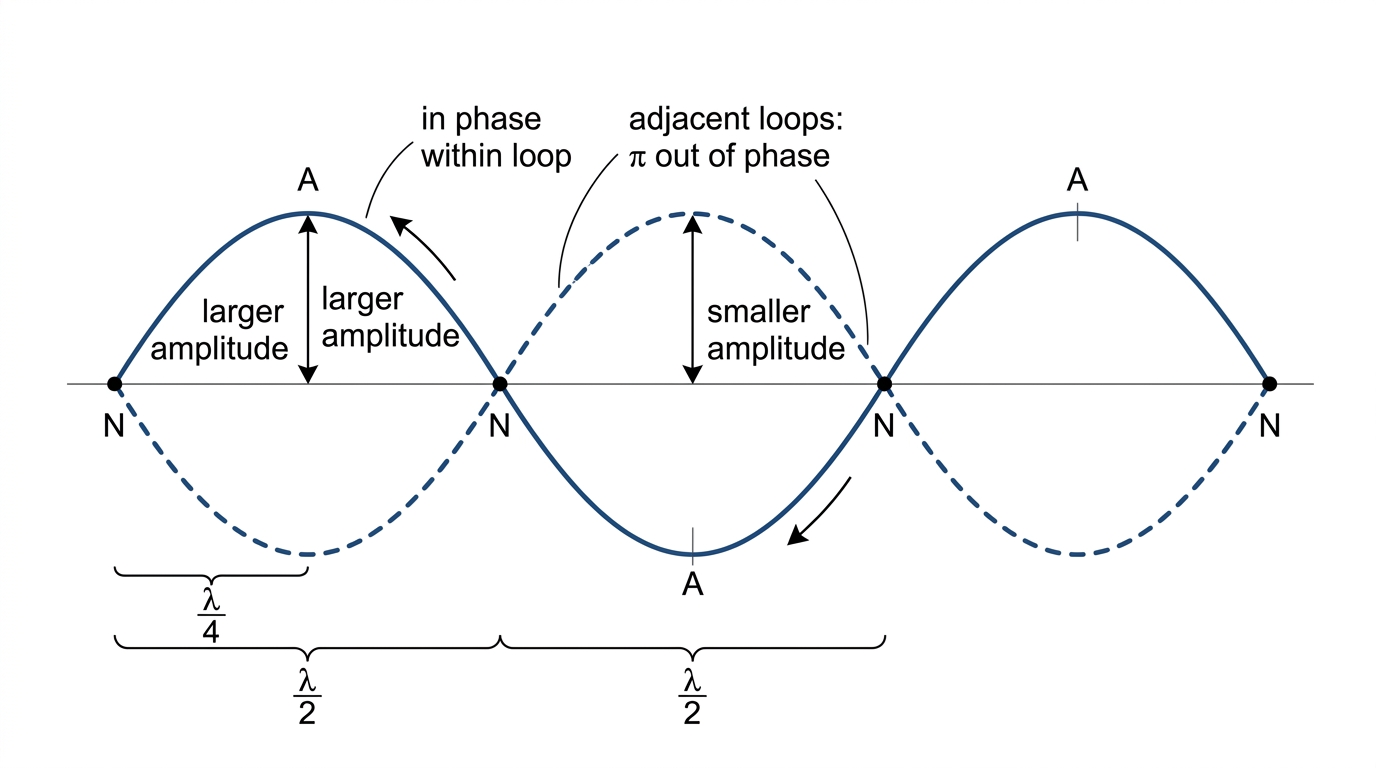

Phase along a standing wave

Points between the same pair of adjacent nodes oscillate in phase. They reach maximum positive displacement together, pass through equilibrium together, and reach maximum negative displacement together. Their amplitudes may be different, but the timing is the same.

Points in neighbouring loops, separated by a node, oscillate in antiphase. Their phase difference is π\pi rad, so when one loop is displaced upward, the next is displaced downward. In the IB style of diagram, the solid and dashed curves usually show the two extreme positions half a cycle apart, not two different waves.

Here’s the contrast with travelling waves. In a travelling wave, neighbouring points usually have a continuously changing phase difference along the wave. In a standing wave, whole regions between nodes move together, and adjacent regions are π\pi rad out of phase.

Worked example: Adjacent nodes are 0.18 m0.18\ \text{m} apart. Calculate the wavelength and the nearest node–antinode spacing. Taking a node as x=0x = 0, three non-node points lie at xA=0.045 mx_A = 0.045\ \text{m}, xB=0.090 mx_B = 0.090\ \text{m} and xC=0.225 mx_C = 0.225\ \text{m}. Identify a same-loop pair with phase difference 0 rad0\ \text{rad} and an adjacent-loop pair with phase difference π rad\pi\ \text{rad}.

  1. Adjacent-node spacing is half a wavelength:

    λ2=0.18 m\frac{\lambda}{2} = 0.18\ \text{m}

    λ=2×0.18=0.36 m\lambda = 2 \times 0.18 = 0.36\ \text{m}

  2. The nearest node–antinode spacing is a quarter wavelength:

    λ4=0.364=0.090 m\frac{\lambda}{4} = \frac{0.36}{4} = 0.090\ \text{m}

  3. Locate the points relative to the nodes at x=0x = 0, x=0.18 mx = 0.18\ \text{m} and x=0.36 mx = 0.36\ \text{m}.

    PairPosition relative to nodesPhase difference
    A and BBoth inside the loop between 00 and 0.18 m0.18\ \text{m}0 rad0\ \text{rad}
    B and CIn adjacent loops, separated by the node at 0.18 m0.18\ \text{m}π rad\pi\ \text{rad}
Answer

Answer: The wavelength is 0.36 m0.36\ \text{m} and the nearest node–antinode spacing is 0.090 m0.090\ \text{m}. A and B oscillate in phase; B and C oscillate in antiphase.

Interpreting diagrams carefully

For a transverse wave on a string, the drawn curve can be read as the actual shape of the string at an instant. This is a signed displacement-versus-position snapshot: displacement can be positive, zero or negative.

For a sound wave in a pipe, a signed displacement snapshot plots the longitudinal displacement of air molecules against their equilibrium position along the pipe axis. The drawn curve is not the shape of the air: a positive or negative vertical value represents displacement in opposite directions along the pipe, not sideways air motion. Solid and dashed extreme-position curves represent snapshots half a cycle apart.

An amplitude envelope instead gives the maximum magnitude of displacement at each position. Amplitude is non-negative, so this graph is zero at nodes and reaches a maximum at antinodes; it does not alternate between positive and negative values.

Common mistake: Treating a negative part of a snapshot as a negative amplitude. The sign tells you the direction of displacement at that instant; amplitude is the maximum magnitude of displacement and cannot be negative.

C.4.3

STANDING WAVE PATTERNS IN STRINGS AND PIPES

Harmonics and allowed wavelengths

A harmonic is an allowed standing-wave mode with a frequency that is an integer multiple of the lowest allowed frequency for that system. That lowest-frequency mode is the first harmonic. In this course, use “first harmonic”, not the alternative terms often used in music or older textbooks.

The method is usually the same: apply the boundary conditions, work out how much of a wavelength fits into length LL, then use v=fλv = f\lambda.

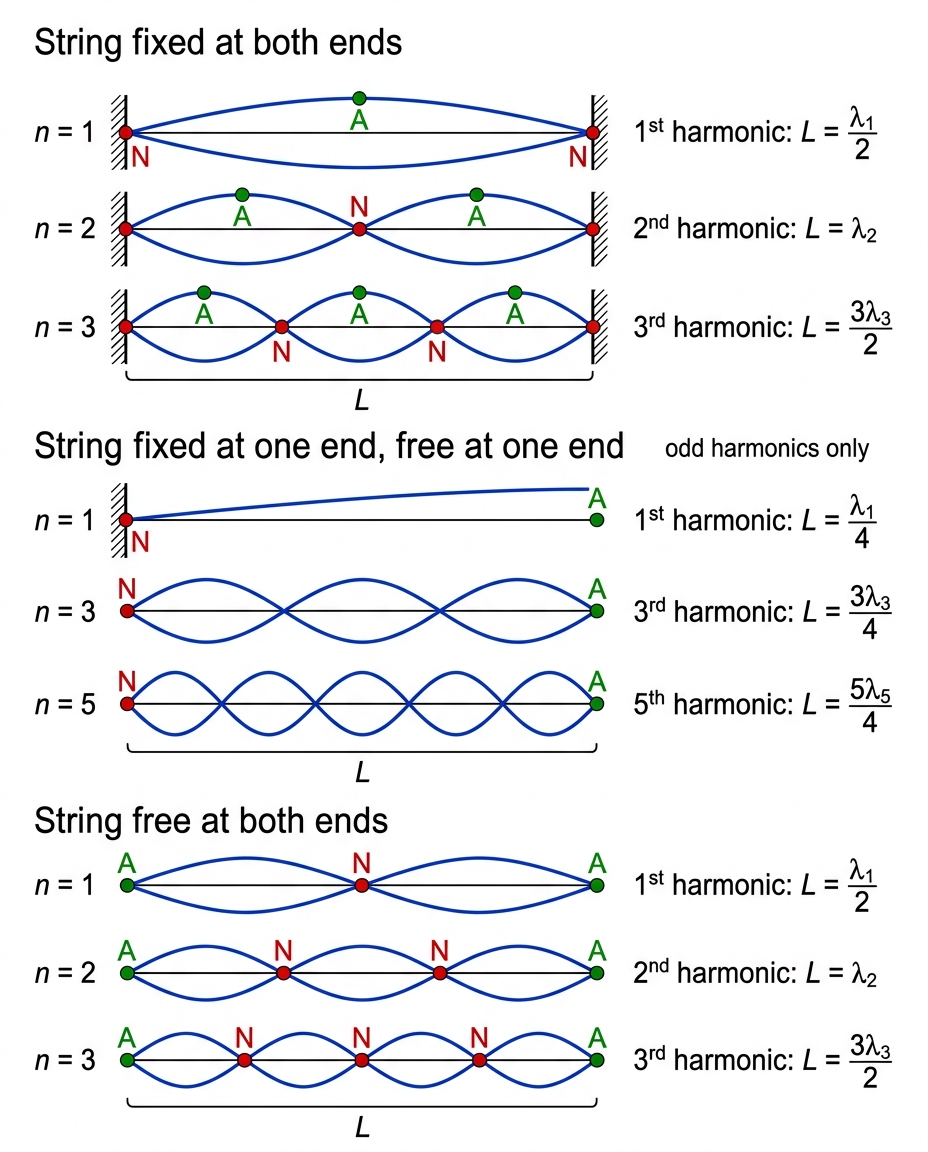

Strings: two fixed boundaries

A fixed end is a node. So, for a string fixed at both ends, both ends are nodes. The first harmonic places half a wavelength on the string:

L=λ12L = \frac{\lambda_1}{2}

In general,

L=nλn2L = \frac{n\lambda_n}{2}

so

λn=2Ln\lambda_n = \frac{2L}{n}

The frequency is

fn=nv2Lf_n = \frac{nv}{2L}

where the symbols have the meanings already given above. All integer harmonics are possible: n=1,2,3,…n = 1, 2, 3, \dots

Strings: one fixed and one free boundary

A fixed end is a node, while a free end is an antinode. With one fixed and one free boundary, the first harmonic fits one quarter of a wavelength into the length:

L=λ14L = \frac{\lambda_1}{4}

The next allowed pattern still has to keep a node at one end and an antinode at the other. That allows only odd harmonics.

For this case,

L=nλn4,λn=4LnL = \frac{n\lambda_n}{4}, \quad \lambda_n = \frac{4L}{n}

and

fn=nv4Lf_n = \frac{nv}{4L}

for n=1,3,5,…n = 1, 3, 5, \dots

This is why the second visible pattern is the third harmonic, not the second harmonic. The name comes from the frequency ratio to the first harmonic, not from the order in which you happen to draw the patterns.

Strings: two free boundaries

A free end is an antinode, so a string or flexible rod with two free ends has antinodes at both ends. Its frequency sequence matches the case with two fixed ends:

fn=nv2Lf_n = \frac{nv}{2L}

for n=1,2,3,…n = 1, 2, 3, \dots

The shapes look different because the nodes and antinodes swap positions. The allowed wavelengths and frequencies, however, follow the same integer pattern. In practice such a system has to be supported at a node; otherwise the support changes the boundary condition.

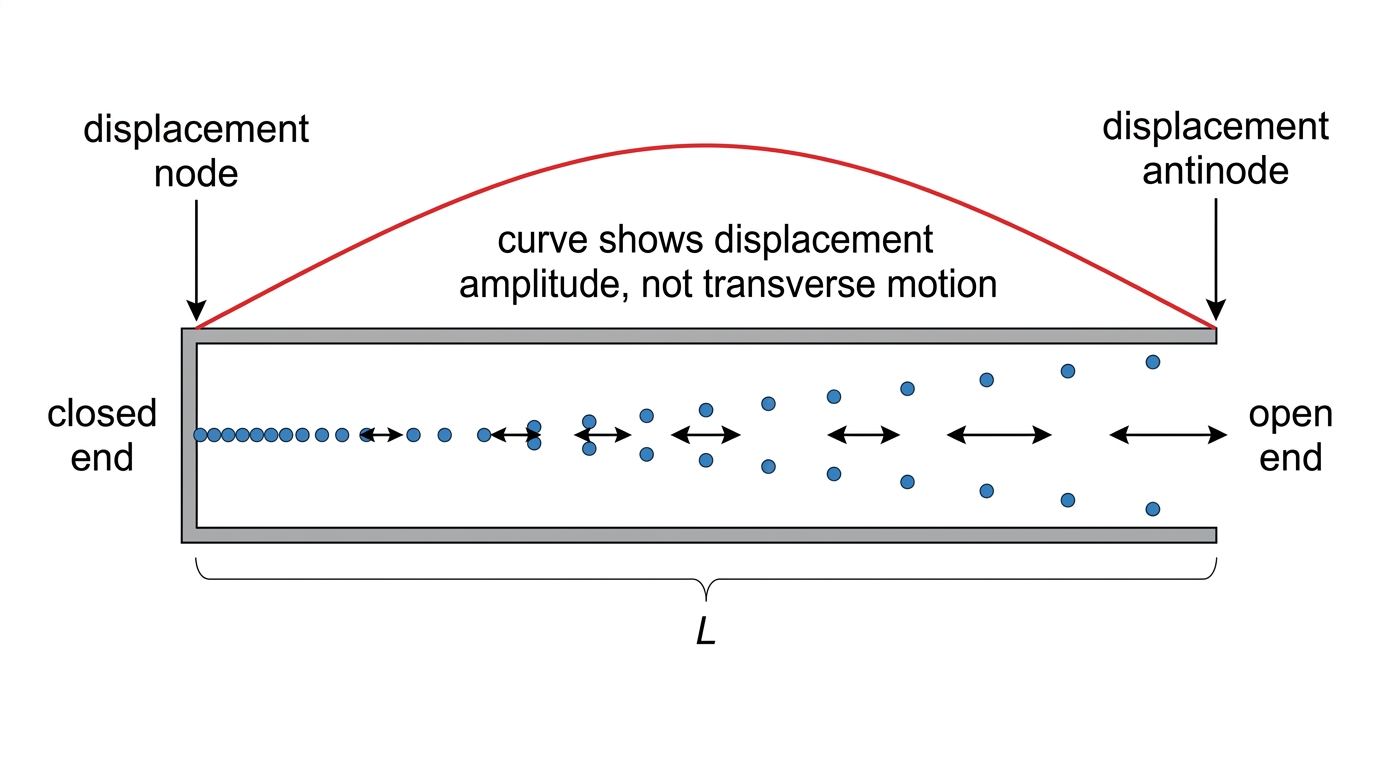

Pipes: displacement nodes and antinodes only

For standing waves in air, describe vibration modes using displacement nodes and displacement antinodes. Pressure nodes and pressure antinodes are not required here. Open-pipe end corrections are not used in this course either, so take the pipe length exactly as the length shown or given.

A closed end is a displacement node because the wall prevents air molecules from moving along the pipe axis. An open end is a displacement antinode because air molecules at the open end are free to move. Pipes are described simply as open or closed.

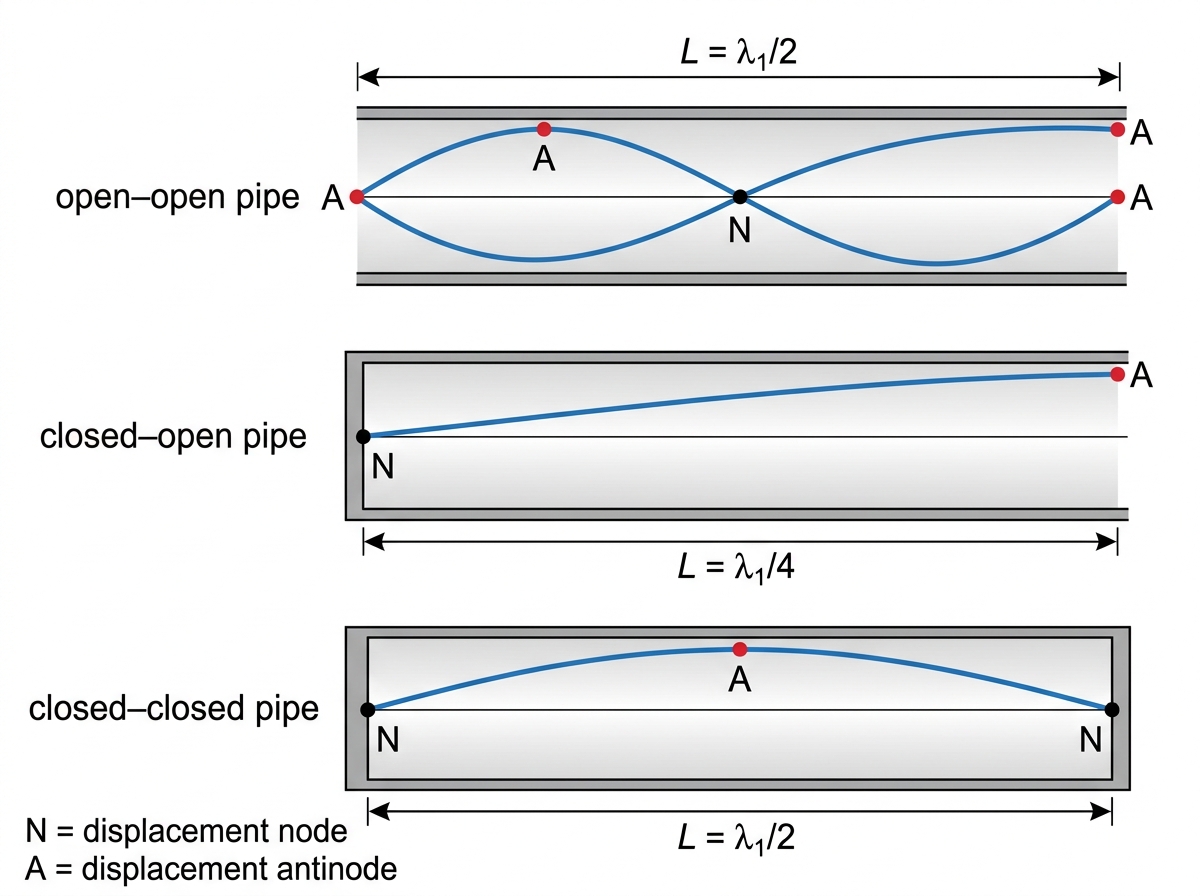

Pipe formulae from boundary conditions

For a pipe open at both ends, both ends are displacement antinodes. The allowed sequence is the same as for two free ends:

fn=nv2Lf_n = \frac{nv}{2L}

for n=1,2,3,…n = 1, 2, 3, \dots

For a pipe closed at both ends, both ends are displacement nodes. The allowed sequence is the same as for two fixed ends:

fn=nv2Lf_n = \frac{nv}{2L}

for n=1,2,3,…n = 1, 2, 3, \dots

For a pipe closed at one end and open at the other, one end is a displacement node and the other is a displacement antinode:

fn=nv4Lf_n = \frac{nv}{4L}

for n=1,3,5,…n = 1, 3, 5, \dots

A pipe closed at one end has a first harmonic at half the frequency of an open-open pipe of the same length, assuming the same wave speed. That is why instruments with different end conditions jump to different next notes when driven harder: an open-open pipe can move to the second harmonic, while a closed-open pipe has no even harmonics and jumps to the third.

Determining wavelength and frequency

To find an unknown wavelength or frequency, begin with the boundary sketch. Count how many quarter-wavelengths or half-wavelengths fit into LL. Then use v=fλv = f\lambda.

Worked example: A closed-open pipe of length L=0.60 mL = 0.60\ \text{m} vibrates in its third harmonic. The wave speed is v=340 m s−1v = 340\ \text{m s}^{-1}. Find its wavelength and frequency.

  1. Sketch a displacement node at the closed end and a displacement antinode at the open end. For the third harmonic, the sequence along the pipe is node, antinode, node, antinode. Each neighbouring node–antinode pair is separated by a quarter-wavelength, so L=3λ34L = \frac{3\lambda_3}{4}.
  2. Rearrange to give λ3=4L3\lambda_3 = \frac{4L}{3} and substitute:
λ3=4×0.60 m3=0.80 m\lambda_3 = \frac{4 \times 0.60\ \text{m}}{3} = 0.80\ \text{m}
  1. Use the wavelength to calculate the frequency:
f3=vλ3=340 m s−10.80 m=425 Hzf_3 = \frac{v}{\lambda_3} = \frac{340\ \text{m s}^{-1}}{0.80\ \text{m}} = 425\ \text{Hz}

Equivalently, combining the equations gives f3=3v4Lf_3 = \frac{3v}{4L}.

Answer

Answer: The third-harmonic wavelength is 0.80 m0.80\ \text{m} and its frequency is 425 Hz425\ \text{Hz}.

Worked example: A string fixed at both ends has length L=1.20 mL = 1.20\ \text{m} and wave speed v=120 m s−1v = 120\ \text{m s}^{-1}. Find its wavelength and frequency for n=3n = 3.

  1. Sketch nodes at both fixed ends, with three loops between them. Each loop spans half a wavelength:
L=3λ32L = \frac{3\lambda_3}{2}
  1. Rearrange and substitute:
λ3=2L3=2×1.20 m3=0.80 m\lambda_3 = \frac{2L}{3} = \frac{2 \times 1.20\ \text{m}}{3} = 0.80\ \text{m}
  1. Calculate the frequency:
f3=vλ3=120 m s−10.80 m=150 Hzf_3 = \frac{v}{\lambda_3} = \frac{120\ \text{m s}^{-1}}{0.80\ \text{m}} = 150\ \text{Hz}
Answer

Answer: The third-harmonic wavelength is 0.80 m0.80\ \text{m} and its frequency is 150 Hz150\ \text{Hz}.

When the gas in a pipe changes, or the temperature changes, the wave speed changes. For the same pipe and the same harmonic, the pipe length and boundary conditions fix the allowed wavelength, so the frequency changes in proportion to the wave speed.

C.4.4

RESONANCE, NATURAL FREQUENCY AND DRIVING FREQUENCY

Natural and forced oscillations

A natural frequency is a frequency at which a system oscillates freely after being disturbed and then left alone. A free vibration is an oscillation of a system at its own natural frequency without a continuing external periodic driver. Many systems have more than one natural frequency, although a single mass on a spring gives the clearest starting model.

Mass–spring oscillator

For a mass–spring oscillator,

f0=12πkmf_0 = \frac{1}{2\pi}\sqrt{\frac{k}{m}}

A stiffer spring raises the natural frequency; a larger mass lowers it.

Worked example: Calculate the natural frequency of a mass–spring oscillator with k=80 N m−1k = 80\ \text{N m}^{-1} and m=0.50 kgm = 0.50\ \text{kg}. Check how the frequency changes if the mass is quadrupled while the spring constant stays unchanged.

  1. Substitute into the natural-frequency formula:

    f0=12π800.50=2.01 Hzf_0 = \frac{1}{2\pi}\sqrt{\frac{80}{0.50}} = 2.01\ \text{Hz}

  2. Compare the new frequency, f0′f_0', with the original frequency:

    f0′f0=m4m=12\frac{f_0'}{f_0} = \sqrt{\frac{m}{4m}} = \frac{1}{2}

Answer

Answer: The natural frequency is 2.01 Hz2.01\ \text{Hz}. Quadrupling the mass halves the frequency.

Simple pendulum

For a simple pendulum at small amplitude,

f0=12πglf_0 = \frac{1}{2\pi}\sqrt{\frac{g}{l}}

Notice the shared pattern: a stronger “restoring effect” gives a higher frequency, while greater inertia gives a lower frequency.

Worked example: Calculate the natural frequency of a small-amplitude pendulum with l=1.00 ml = 1.00\ \text{m} and g=9.81 m s−2g = 9.81\ \text{m s}^{-2}. Check how the frequency changes if the length is quadrupled at the same gravitational field strength.

  1. Substitute into the natural-frequency formula:

    f0=12π9.811.00=0.498 Hzf_0 = \frac{1}{2\pi}\sqrt{\frac{9.81}{1.00}} = 0.498\ \text{Hz}

  2. Compare the new frequency, f0′f_0', with the original frequency:

    f0′f0=l4l=12\frac{f_0'}{f_0} = \sqrt{\frac{l}{4l}} = \frac{1}{2}

Answer

Answer: The natural frequency is 0.498 Hz0.498\ \text{Hz}. Quadrupling the length halves the frequency.

External driving

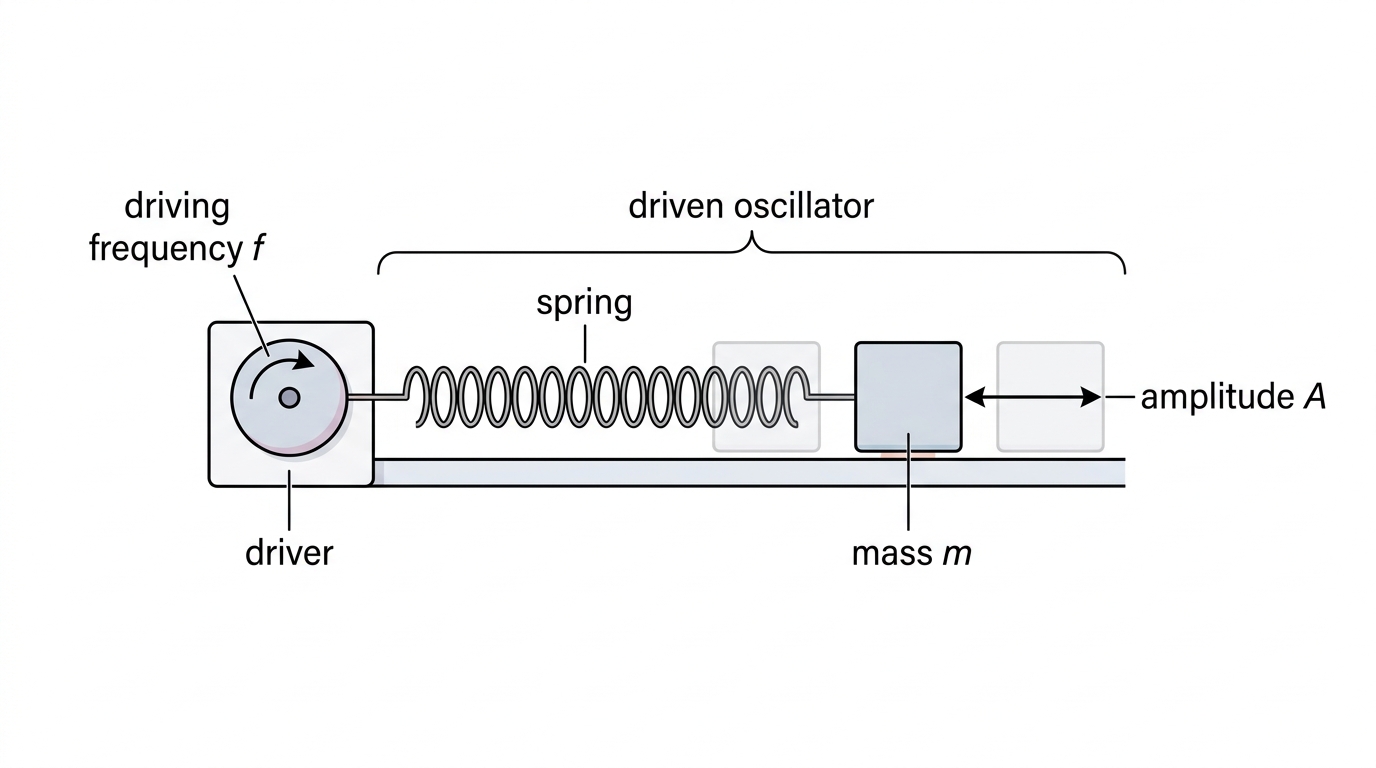

A forced vibration is an oscillation in which an external periodic force makes a system oscillate. The driving frequency is the frequency of that external periodic force. In a motor-driven mass–spring system, for example, the motor sets the driving frequency, while the mass and spring still have their own natural frequency.

Resonance as efficient energy transfer

Resonance is a phenomenon in which a driven oscillator reaches a large amplitude because the driving frequency is close to one of its natural frequencies. If the driving frequency is far from the natural frequency, the driver pushes at badly timed points in successive cycles, so the amplitude stays small.

At resonance, the timing works. The driver transfers energy to the oscillator efficiently, rather like pushing a swing at the right moment each cycle. The amplitude grows while the average input power exceeds the average power dissipated by damping. In steady state, the amplitude becomes constant when these average powers are equal; equivalently, the energy supplied per cycle by the driver equals the energy dissipated per cycle by damping.

Resonance still obeys conservation of energy. A large amplitude does not mean energy has appeared from nowhere; energy has been fed into the oscillator over many cycles and stored as kinetic and potential energy, while the driver continuously replaces losses.

Exam tip: For “Explain the large amplitude at resonance”, connect frequency matching to energy transfer, then distinguish amplitude growth from steady state. A model response is: “The driving frequency is close to the natural frequency, so energy transfers efficiently to the oscillator over successive cycles. Its amplitude grows until the average input power equals the average power dissipated by damping, giving a large, constant steady-state amplitude.”

Common mistake: Saying that the driven oscillator independently oscillates at its natural frequency. In steady state under sinusoidal driving, it oscillates at the driving frequency; the natural frequency helps determine how strongly it responds.

Resonance and simple harmonic motion

Simple harmonic motion is the ideal model for a free oscillator: the restoring force is proportional to displacement and directed towards equilibrium, and there is no energy loss. Real resonant systems usually have damping, which adds a dissipative effect that depends on motion, often on speed. Distinguish the two cases:

MotionAmplitude and frequency
Free damped motionIf the system continues to oscillate, its amplitude decreases as energy is dissipated. Damping slightly changes the free-oscillation frequency when it is not negligible.
Steady-state forced motionWith linear damping and sinusoidal driving, displacement can be sinusoidal with constant amplitude at the driving frequency. Energy supplied by the driver replaces dissipated energy.

Damping therefore does not automatically make steady-state driven displacement non-sinusoidal. A damped driven oscillator can have the same sinusoidal displacement pattern as SHM, even though its force and energy balance includes both driving and damping.

The SHM formulae still help because they identify the undamped natural frequency around which resonance occurs. That frequency alone does not determine the driven amplitude: the driving-force amplitude, driving frequency and damping also matter. The actual resonant frequency and maximum amplitude depend on both the oscillator and the energy losses in the system.

Demonstrating resonance

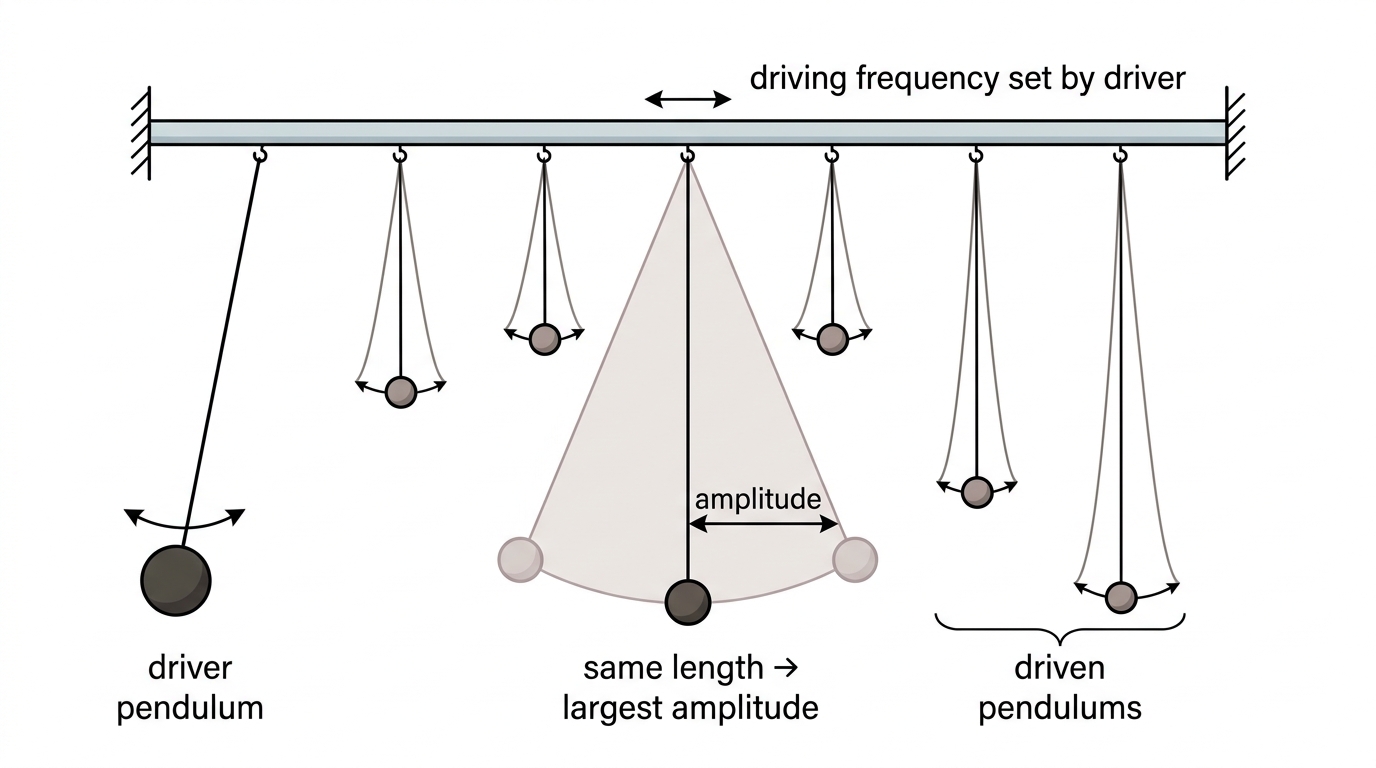

Barton’s pendulums make a lovely classroom demonstration. A heavy driver pendulum shakes a support, and several lighter pendulums of different lengths respond. The pendulum with the same length as the driver has the same natural frequency and develops the largest amplitude. Shorter and longer pendulums respond weakly because their natural frequencies do not match the driver.

In a quantitative investigation, a clamped hacksaw blade can be driven by an electromagnet connected to a variable-frequency signal generator. The free-end amplitude is measured against driving frequency, then repeated for different blade lengths or different damping. Good data collection means choosing enough frequencies near the peak, not just evenly spaced values far away from the interesting part.

Resonance of molecules and the greenhouse effect

The greenhouse effect can be modelled using resonance ideas. Gas molecules have natural modes of vibration and rotation. Infrared radiation is absorbed strongly when its frequency matches an allowed molecular mode, so energy transfers to the molecule. Greenhouse gases are effective because they absorb in infrared regions emitted by Earth’s surface.

As a Nature of Science point, this model links several areas of physics and chemistry: waves, energy transfer, molecular structure and thermal radiation. The resonance picture explains selective absorption, but a full climate model also needs emission, convection, atmospheric composition and feedbacks.

C.4.5

DAMPING, MAXIMUM AMPLITUDE AND RESONANT FREQUENCY

What damping does to resonance

Damping is a dissipative process in which mechanical energy is transferred from an oscillating system to the surroundings, usually by friction, air resistance, turbulence or internal heating. It matters at resonance because the driver is trying to build up energy while damping takes it away.

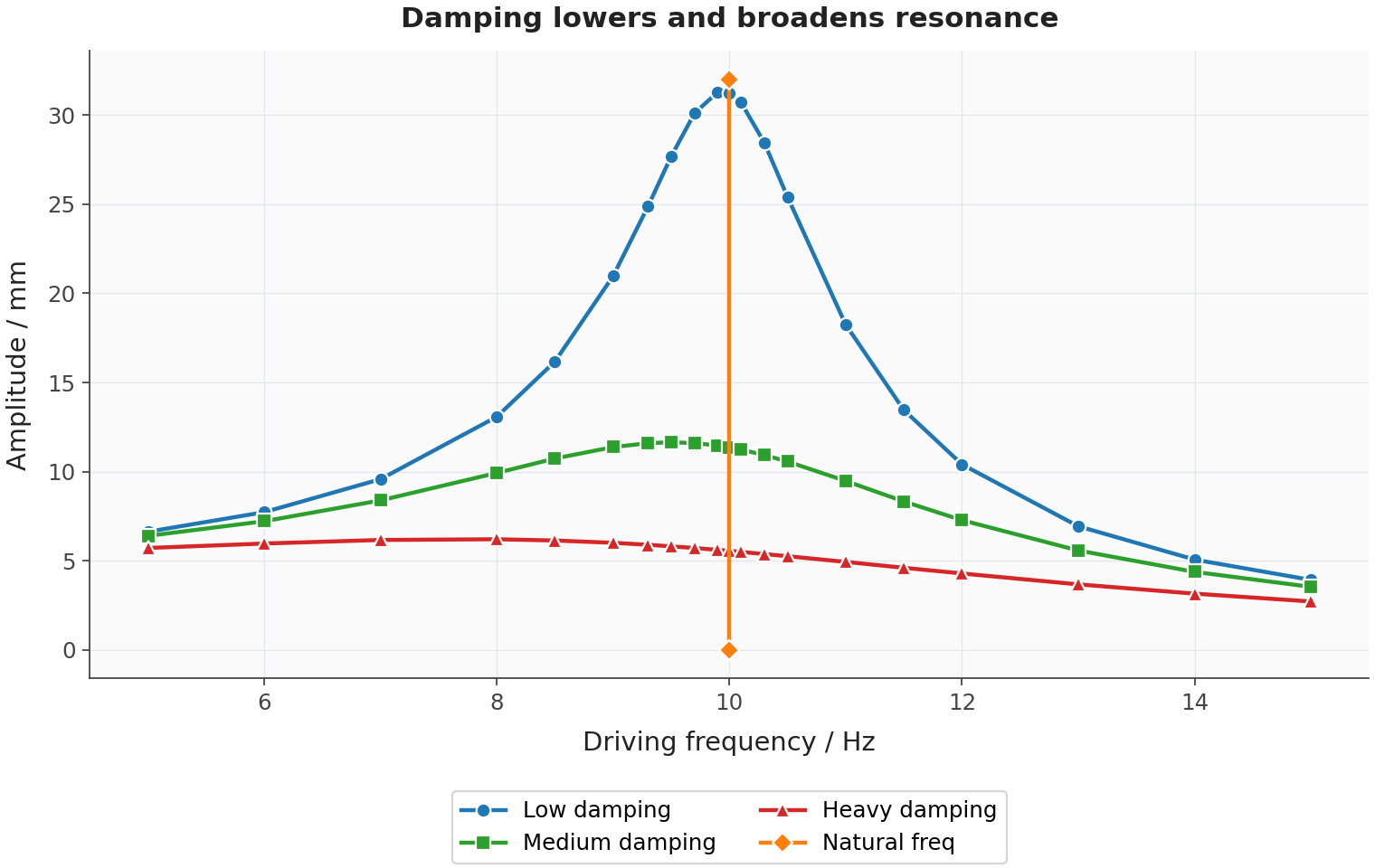

With little damping, the resonance peak is tall and narrow. The system can reach a large maximum amplitude, but only across a small range of driving frequencies. Increase the damping, and the peak drops and spreads out. The oscillator becomes less selective: it responds over a wider range, but the amplitude is never as dramatic.

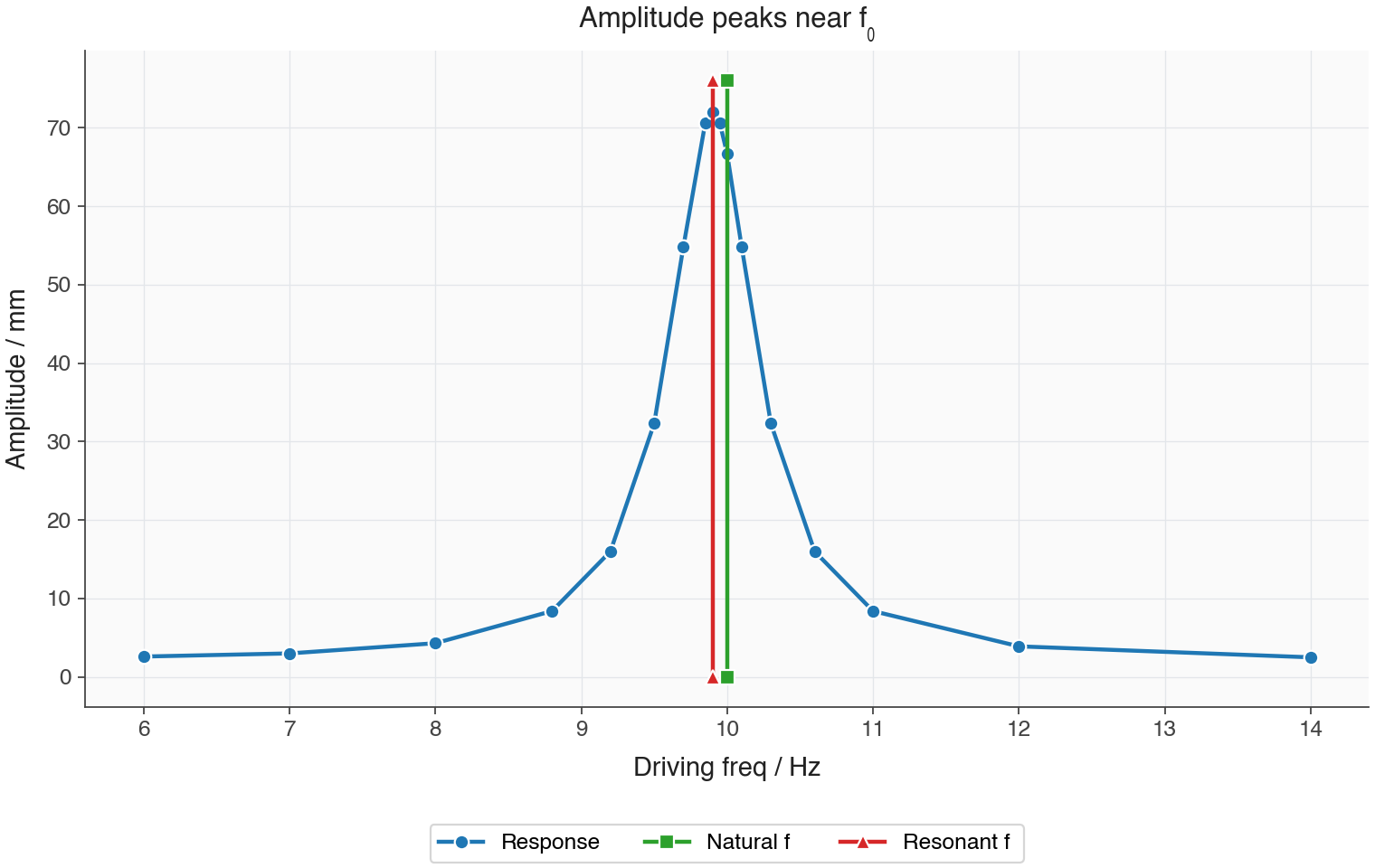

The resonant frequency is the driving frequency at which the amplitude of the driven oscillator is maximum. With zero damping, the simple model places this at the natural frequency. With light or moderate damping, the frequency for maximum amplitude is slightly less than the undamped natural frequency. As damping increases, the peak moves to a lower frequency and becomes harder to pick out. With heavy damping, there may be no clear resonance peak at all.

Only a qualitative treatment is required here. You should be able to read the family of resonance curves: more damping gives a smaller maximum amplitude, a broader response, and a resonant frequency shifted downward when amplitude is used to define resonance.

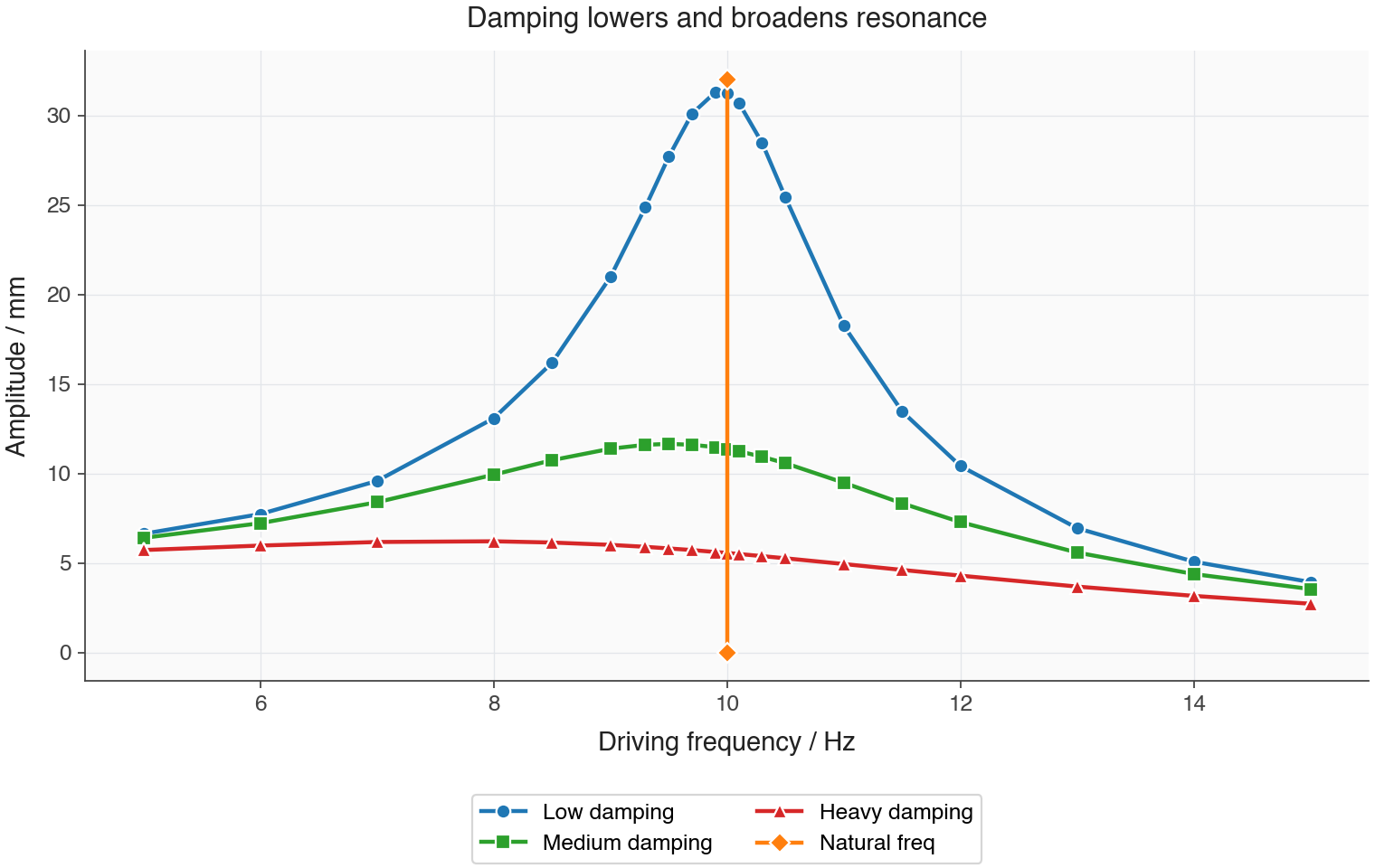

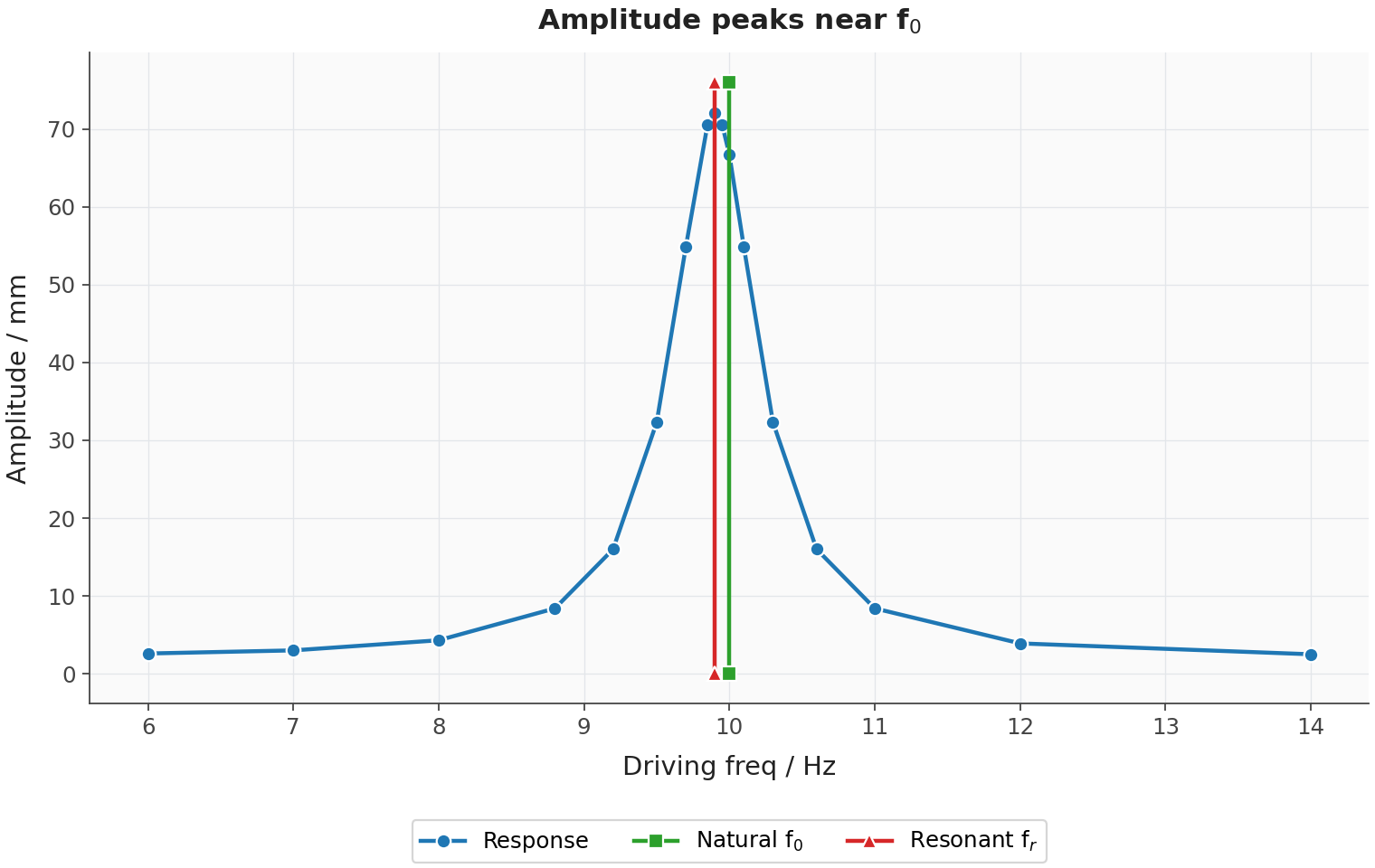

Worked example: Use the resonance curves to compare the maximum amplitude, resonant frequency and breadth of response for low and medium damping.

  1. Read the height of each peak. The maximum amplitude falls from about 31 mm31\ \text{mm} for low damping to 12 mm12\ \text{mm} for medium damping. The decrease is approximately

    31−12=19 mm31 - 12 = 19\ \text{mm}

  2. Read the driving frequency at each peak. The resonant frequency falls from about 9.9 Hz9.9\ \text{Hz} to 9.5 Hz9.5\ \text{Hz}. The decrease is approximately

    9.9−9.5=0.4 Hz9.9 - 9.5 = 0.4\ \text{Hz}

  3. Compare the shapes. The medium-damping curve has a broader response: appreciable oscillations occur over a wider range of driving frequencies.

Answer

Answer: Increasing damping from low to medium reduces the maximum amplitude from about 31 mm31\ \text{mm} to 12 mm12\ \text{mm} and shifts the resonant frequency from about 9.9 Hz9.9\ \text{Hz} to 9.5 Hz9.5\ \text{Hz}, while broadening the response. This shift concerns the displacement-resonance peak, not a change in the fixed undamped natural frequency.

Phase and energy input

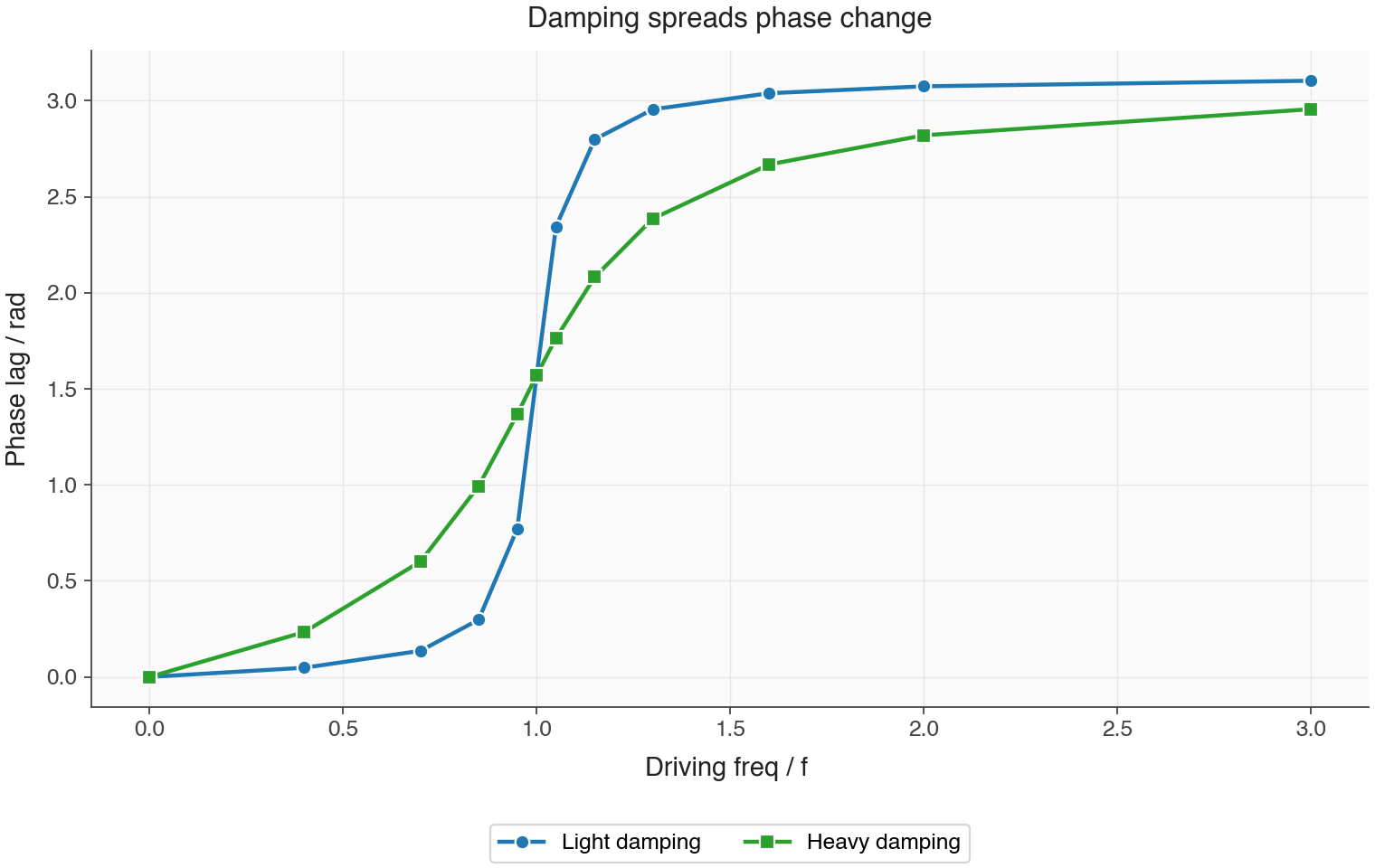

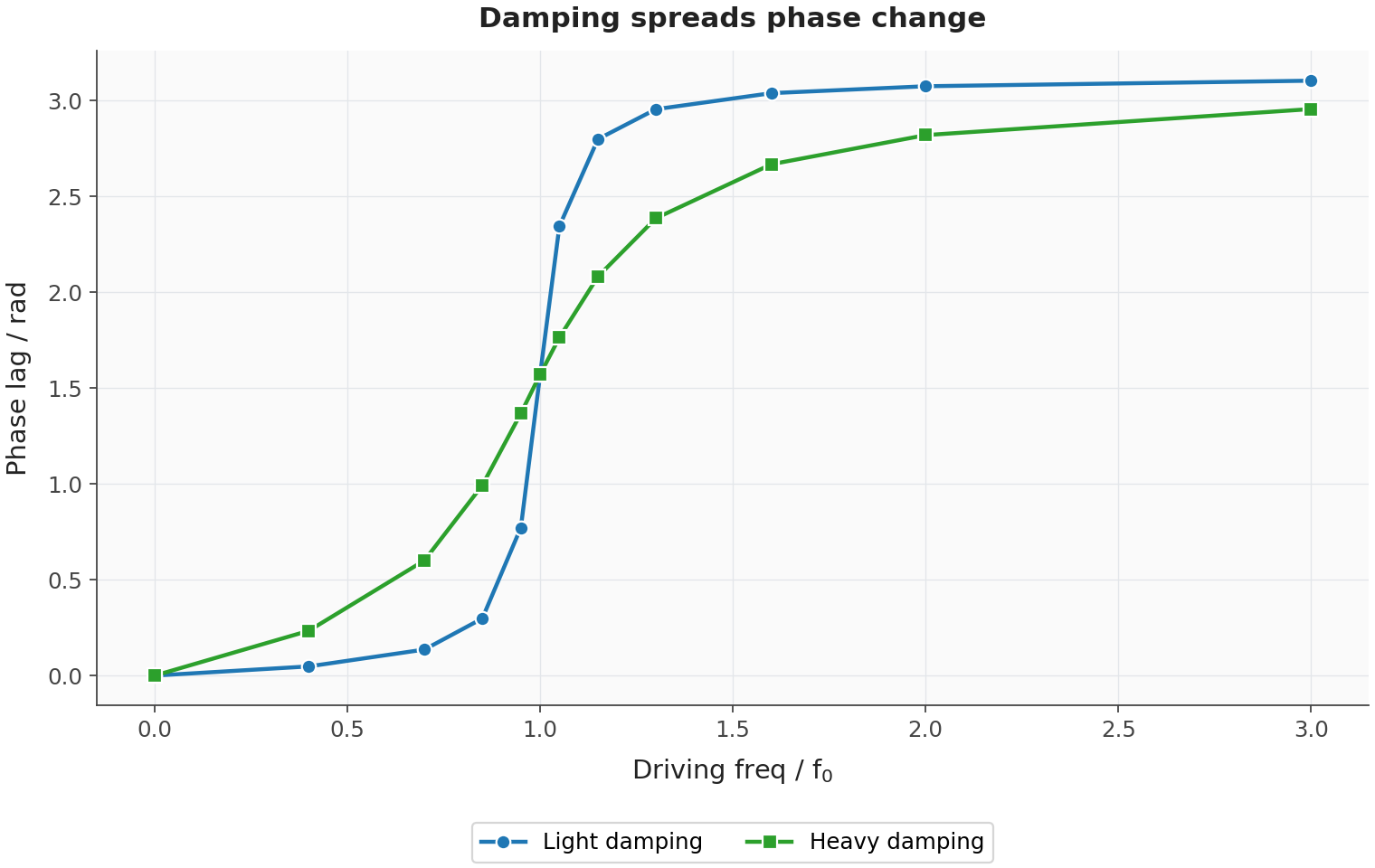

The phase graph shows the oscillator's displacement lagging the applied sinusoidal driving force. Here, “driver” refers to that force, not to the displacement of a moving support.

Driving frequencyDisplacement relative to driving force
Low compared with the undamped natural frequencyNearly in phase: the lag is close to zero.
At the undamped natural frequencyThe lag is π/2\pi/2, a quarter of a cycle.
Near the displacement-resonance peak, with light dampingThe lag is approximately π/2\pi/2.
High compared with the undamped natural frequencyNearly half a cycle out of phase: the lag approaches π\pi.

At the undamped natural frequency, the driving force is in phase with the oscillator's velocity, so it supplies energy effectively throughout the motion. With light damping, this condition occurs close to the displacement-resonance peak.

Damping changes how sharp this phase change is. Light damping gives a rapid transition around resonance; heavier damping spreads the transition over a wider frequency range.

Common mistake: Treating the displacement-resonance peak as the exact point where the phase lag is π/2\pi/2. The lag is π/2\pi/2 at the undamped natural frequency; the displacement peak lies slightly below this frequency when damping is present.

Useful and destructive resonance

Resonance is not “good” or “bad”; it is powerful. Useful resonance appears in musical instruments, microwave heating, optical cavities in lasers, and medical magnetic resonance imaging. In each case, the useful feature is selective energy transfer at particular frequencies.

Destructive resonance happens when unwanted vibrations build up. Bridges, vehicle parts, washing machines and rotating machinery can all suffer large oscillations if a driving frequency matches a natural frequency. Engineers reduce the risk by changing natural frequencies, adding damping, or avoiding operating speeds that drive the system strongly.

C.4.6

LIGHT, CRITICAL AND HEAVY DAMPING

Three damping regimes

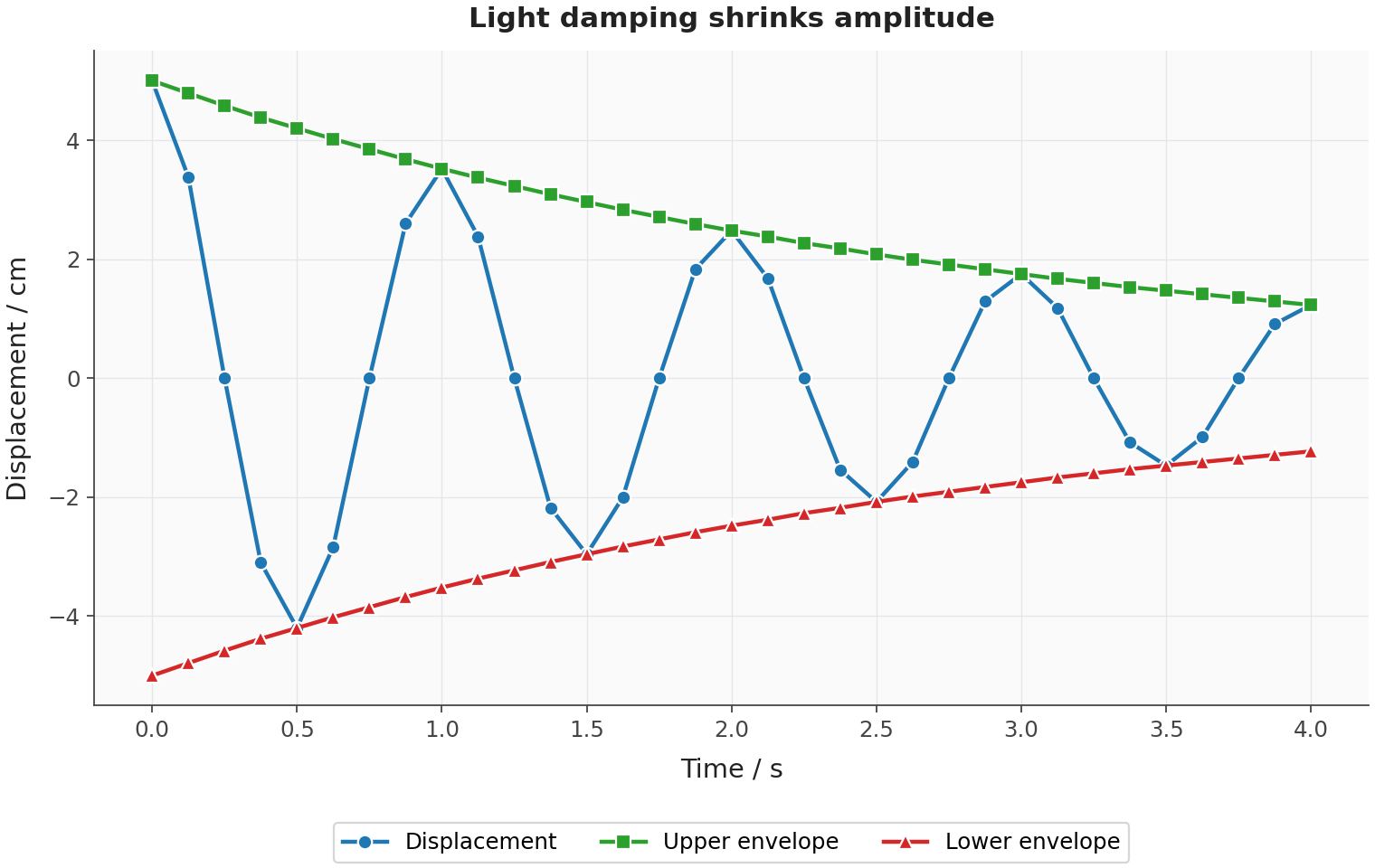

Light damping is damping where an oscillator keeps oscillating, but its amplitude steadily falls. On a displacement–time graph, the curve still crosses equilibrium again and again; the peaks just get smaller. In many lightly damped systems, the amplitude envelope is approximately exponential, so equal time intervals reduce the amplitude by the same fraction.

With light damping, the period changes only slightly compared with the undamped oscillator. Energy is being removed, but not so strongly that the oscillation stops.

Critical damping is damping where an oscillator returns to equilibrium in the shortest possible time without oscillating. It’s the Goldilocks case in many engineering designs: no overshoot, no slow drift back. Car suspension and door-closing mechanisms are designed with this idea in mind, even if the real device is more complicated than the textbook curve.

Heavy damping is damping where an oscillator returns to equilibrium without oscillating, but more slowly than in critical damping. It is sometimes called overdamping. The resistance is so strong that the system creeps back instead of snapping back.

Reading damping graphs

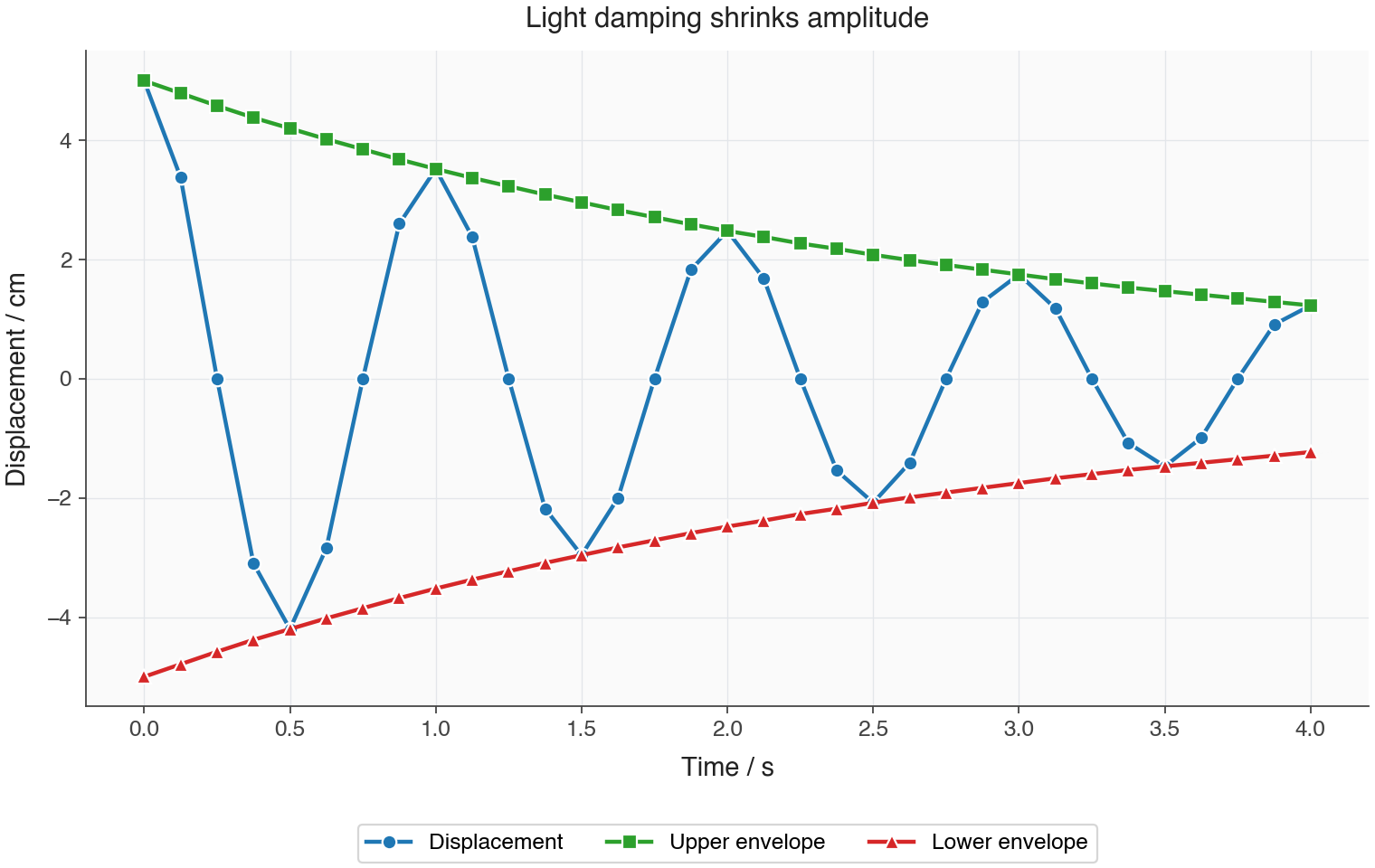

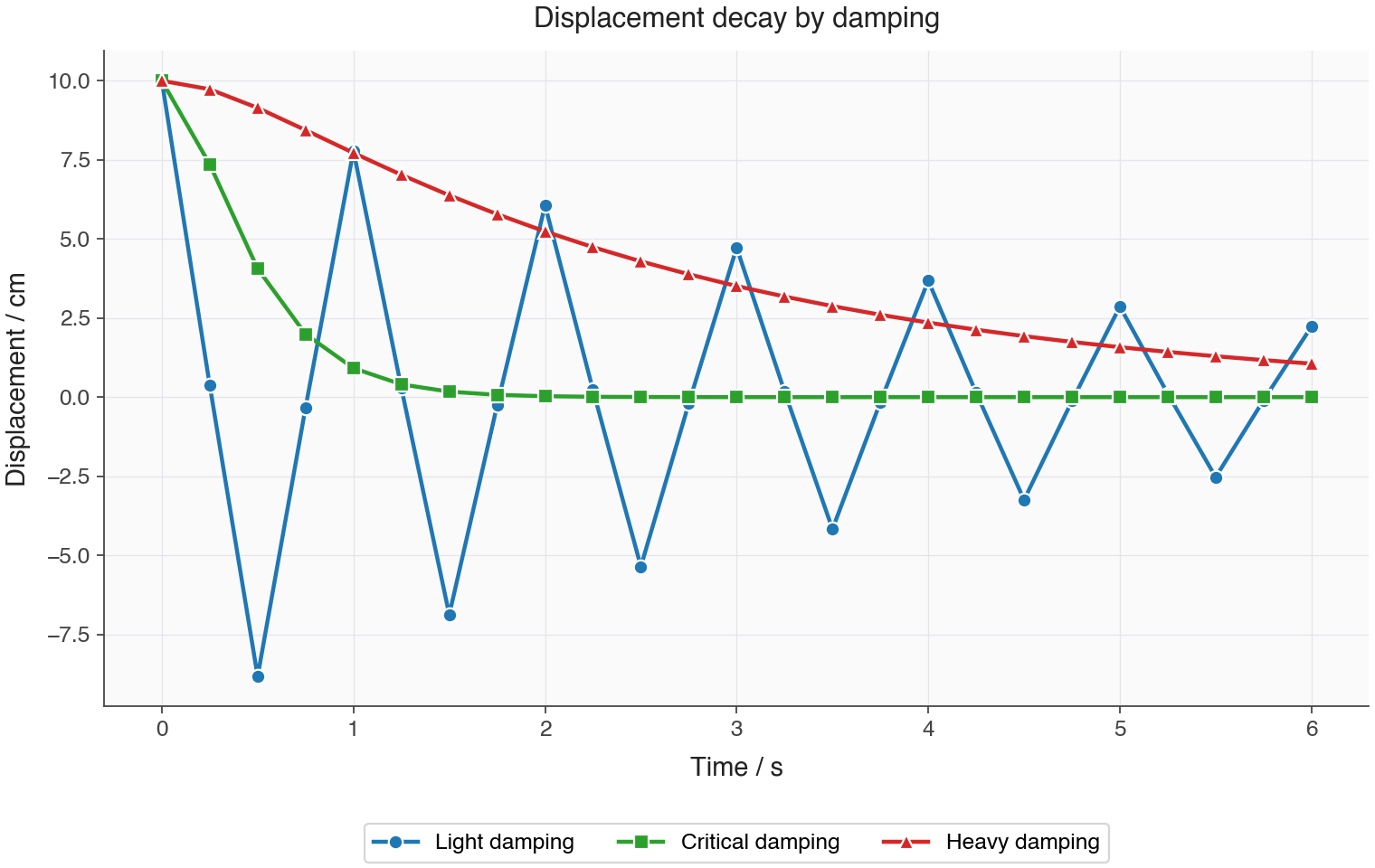

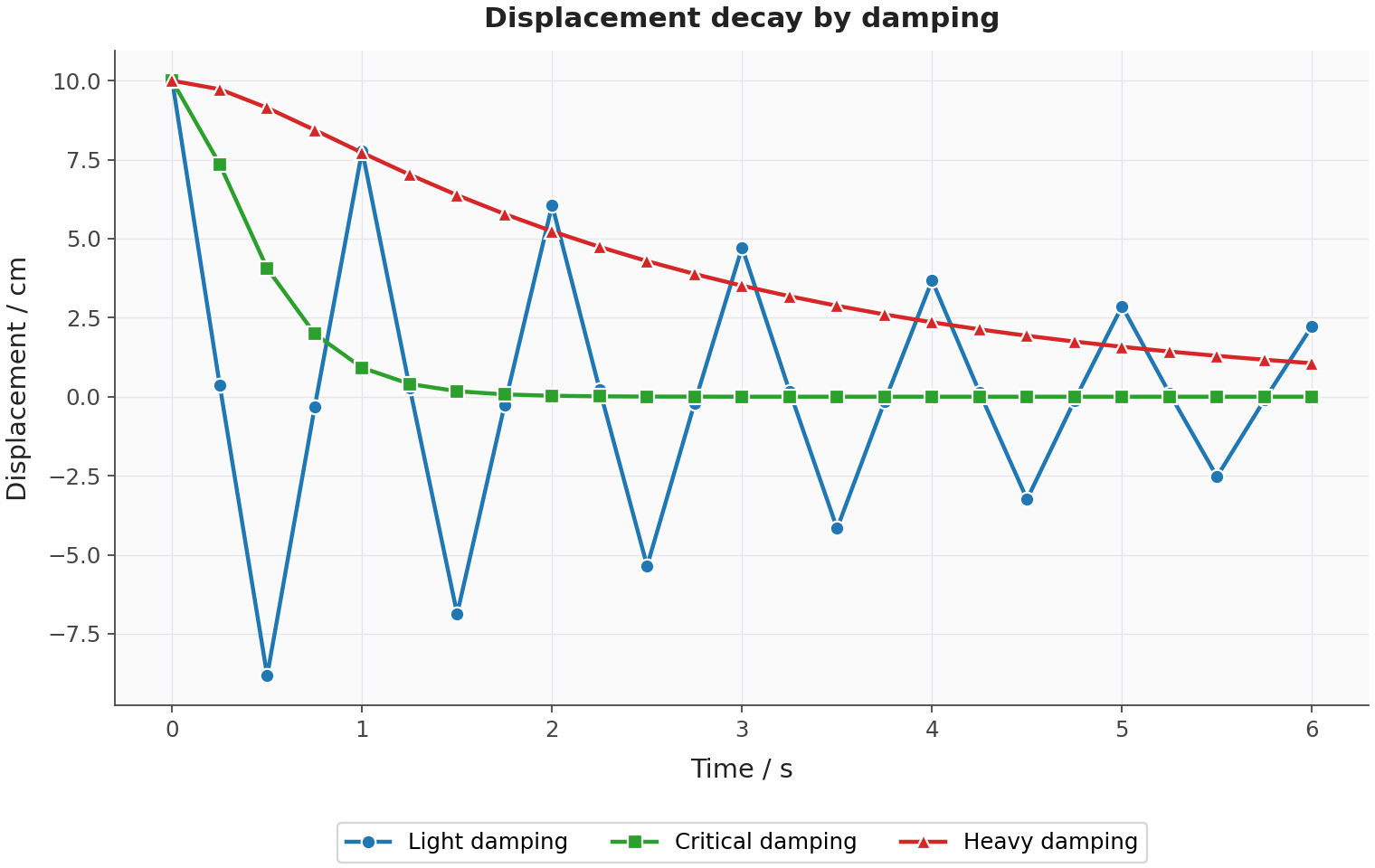

On a displacement–time graph, light damping gives repeated oscillations with decreasing amplitude. Critical damping reaches equilibrium fastest without crossing it. Heavy damping also stays on one side of equilibrium, but takes longer to settle.

On a resonance curve, light damping produces a tall, sharp maximum. Critical and heavy damping remove the dramatic peak; the response becomes smaller and less frequency-selective. Keep the two graph types separate: one shows displacement against time after release, while the other shows steady-state amplitude against driving frequency.
