A.3: Work, energy and power

Master IB Physics A.3: Work, energy and power with notes created by examiners and strictly aligned with the syllabus.

Verified by Kun
Verified by Kun

12 sections · ~24 min read

This content can't be printed from the browser. Use Export PDF with Pro for an offline copy.

IB Syllabus Requirements for Work, energy and power

A.3.1

The principle of conservation of energy

A.3.2

Work done as a transfer of energy

A.3.3

Representing energy transfers with Sankey diagrams

A.3.4

Work done by a constant force

A.3.1

THE PRINCIPLE OF CONSERVATION OF ENERGY

Energy as a conserved quantity

Energy is a scalar quantity that describes the capacity of a system to produce changes by transfer between stores or between systems. Scalar matters here: energy has a size and a unit, but no direction. The SI unit is the joule, J\text{J}. One joule is the energy transferred when a force of one newton acts through one metre in the direction of the force.

The principle of conservation of energy is a law of physics that states that the total energy of an isolated system remains constant because energy cannot be created or destroyed, only transferred or transformed. In ordinary mechanics, we usually keep track of kinetic, gravitational potential, elastic potential and thermal stores. In nuclear processes, mass-energy has to be included as well, because changes in mass are no longer negligible.

An isolated system exchanges neither energy nor matter with its surroundings. Transfers can still occur between stores or between parts within the system.

Worked example: An object falls from rest through air. Initially, it has 20 J20\ \text{J} of gravitational potential energy. Just before it reaches the chosen zero height, it has 15 J15\ \text{J} of kinetic energy, and 5 J5\ \text{J} has been transferred to internal energy. Account for the energy in the object–Earth–surroundings system, treated as isolated, and explain why its mechanical energy decreases even though total energy is conserved.

  1. Include the object, Earth and the relevant surroundings, including the air, within the system boundary. Unchanged energy stores can be omitted from the accounting.

  2. Initially, the energy being tracked is gravitational potential energy:

    Einitial=20 JE_{\text{initial}} = 20\ \text{J}

  3. At the final position, gravitational potential energy is zero relative to the chosen reference. The energy is now kinetic energy and an increase in internal energy:

    Efinal=15 J+5 J=20 JE_{\text{final}} = 15\ \text{J} + 5\ \text{J} = 20\ \text{J}

  4. Mechanical energy is the sum of kinetic and potential energy. Its decrease is:

    20 J−15 J=5 J20\ \text{J} - 15\ \text{J} = 5\ \text{J}

Answer

Answer: The total energy of the isolated object–Earth–surroundings system remains 20 J20\ \text{J} because no energy crosses its outer boundary. Mechanical energy decreases by 5 J5\ \text{J} because air resistance transfers this energy to internal energy within the system; energy is transformed, not destroyed.

That is what makes energy methods so useful. Rather than following every small detail of the motion, we can compare the energy at the start with the energy at the end. Take a curved path: the acceleration may change continuously, so the kinematic equations can become awkward or may not apply. An energy approach often solves the same problem from just the initial and final states.

Evidence, laws and uncertainty

A law of physics is an empirical statement that summarizes a repeated pattern in measurements without necessarily explaining why the pattern occurs. Conservation of energy was not accepted because one perfect experiment proved it. It was accepted because many different experiments, each with uncertainty, matched the same accounting rule when all relevant energy transfers were included.

Uncertainty does not stop laws from being developed. It tells us to test the claim against ranges of possible values, repeated measurements, different methods and clearly stated assumptions. If an apparent energy loss is larger than the experimental uncertainty, a physicist does not usually throw out conservation straight away. They first look for an unmeasured transfer:

  • Heating
  • Sound
  • Deformation
  • Rotation
  • Electrical work
  • Energy carried away from the system

Links across physics

Conservation laws turn up across the course. Charge is conserved in circuits, momentum is conserved in isolated collisions and particle interactions, and energy is conserved in mechanical, thermal, electrical and nuclear systems. Before writing any conservation statement, it helps to ask, “What is the system, and what can cross its boundary?”

For a braking bicycle, the choice of boundary determines which transfers are internal to the system. With the bicycle alone inside the boundary, mechanical energy decreases, internal energy increases in the brakes, and energy is transferred to the surrounding air. A larger boundary includes both the bicycle and the relevant surroundings: these transfers now occur within that system. Its total energy remains constant if no energy or matter crosses the larger boundary during braking.

The nested boundaries show how the same transfer can cross one system boundary but remain inside another.

Travelling waves give a neat contrast with moving objects. A travelling wave is a disturbance that transfers energy through a medium or field while the oscillating particles of a material medium have no net displacement after the wave has passed. The particles move locally, pass energy to neighbouring particles, and then return to their equilibrium positions.

Equilibrium can also be described using energy. A stable equilibrium is a state in which a small displacement increases the total energy of the system, so the system tends to return. In a gas under a piston, or in a star, the familiar force balance can often be rephrased as the system settling into an energy condition compatible with the constraints.

A.3.2

WORK DONE AS A TRANSFER OF ENERGY

What physicists mean by work

Work is an energy transfer that happens when a force acts through a displacement of its point of application. Physics uses the word more narrowly than everyday speech. You might feel tired holding a heavy bag still, but if the bag does not move, no mechanical work is done on the bag.

Work done by a force is not a separate kind of energy. It’s the way energy is transferred. When an engine lifts a load, chemical energy in the fuel is transferred, by mechanical work, into gravitational potential energy of the load. When a braking force slows a bicycle, mechanical energy is transferred mainly into internal energy of the brakes, tyres and surroundings.

The sign of work shows the direction of the transfer for the object being considered. Positive work increases the relevant energy store of the object or system; negative work takes energy from it. Resistive forces, such as friction and drag, usually do negative work on moving objects.

A useful boundary question is: “work done on what?” The same interaction can be described in different ways, depending on the chosen system. A road can do forward static friction work on a car’s tyres, while the engine transfers chemical energy through the drivetrain. Choosing the system clearly keeps the energy accounting honest.

A.3.3

REPRESENTING ENERGY TRANSFERS WITH SANKEY DIAGRAMS

Reading a Sankey diagram

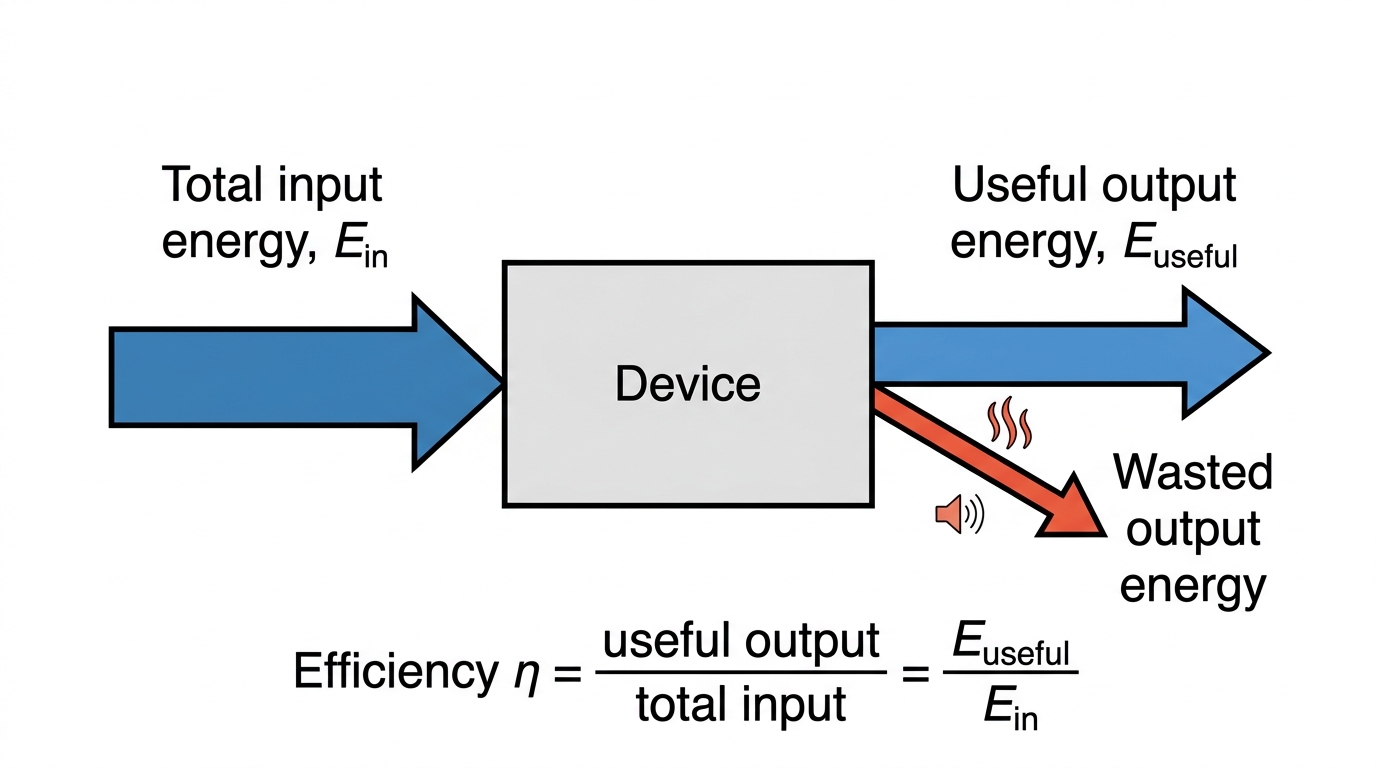

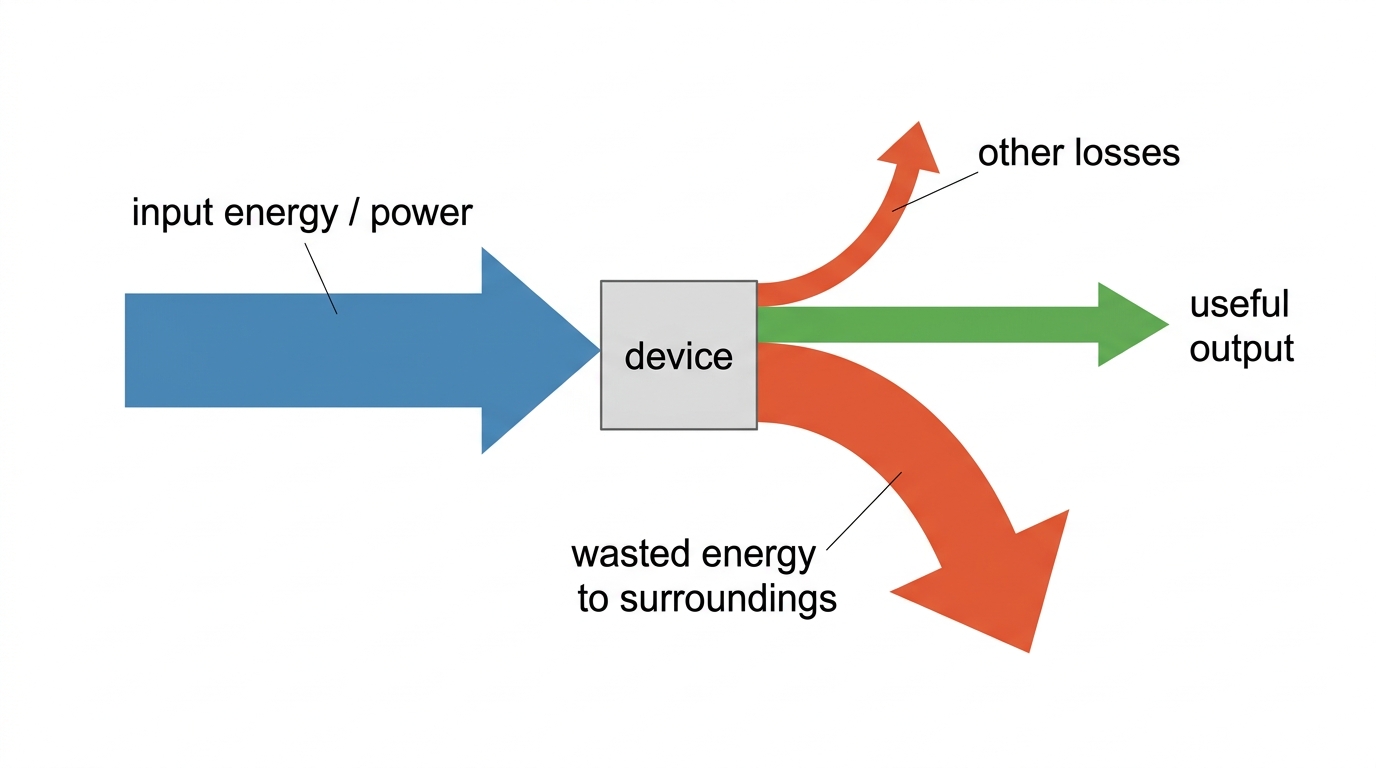

A Sankey diagram is a scaled flow diagram that shows energy or power transfers with arrows. The arrow widths are proportional to the amounts transferred. The input usually comes in from the left. Useful output carries on to the right, while wasted or degraded transfers branch away, often upward or downward.

“Wasted” does not mean destroyed. It means the energy has been transferred into stores that are not useful for the intended purpose, commonly internal energy of the surroundings. For example, a lamp may transfer only a small fraction of its input energy as visible light; most becomes heating of the lamp and air.

When you construct a Sankey diagram, choose a scale and use it consistently. If the input is 100 J100\ \text{J}, an output of 25 J25\ \text{J} should have one quarter of the input arrow width. If the input is a power, such as 200 W200\ \text{W}, apply the same rule to power flows rather than energy amounts.

Sankey diagrams are good for checking conservation. At any junction, the total width entering must equal the total width leaving, allowing for all useful and wasted transfers. If the diagram does not balance, the energy accounting is incomplete.

A.3.4

WORK DONE BY A CONSTANT FORCE

The component of force along the displacement

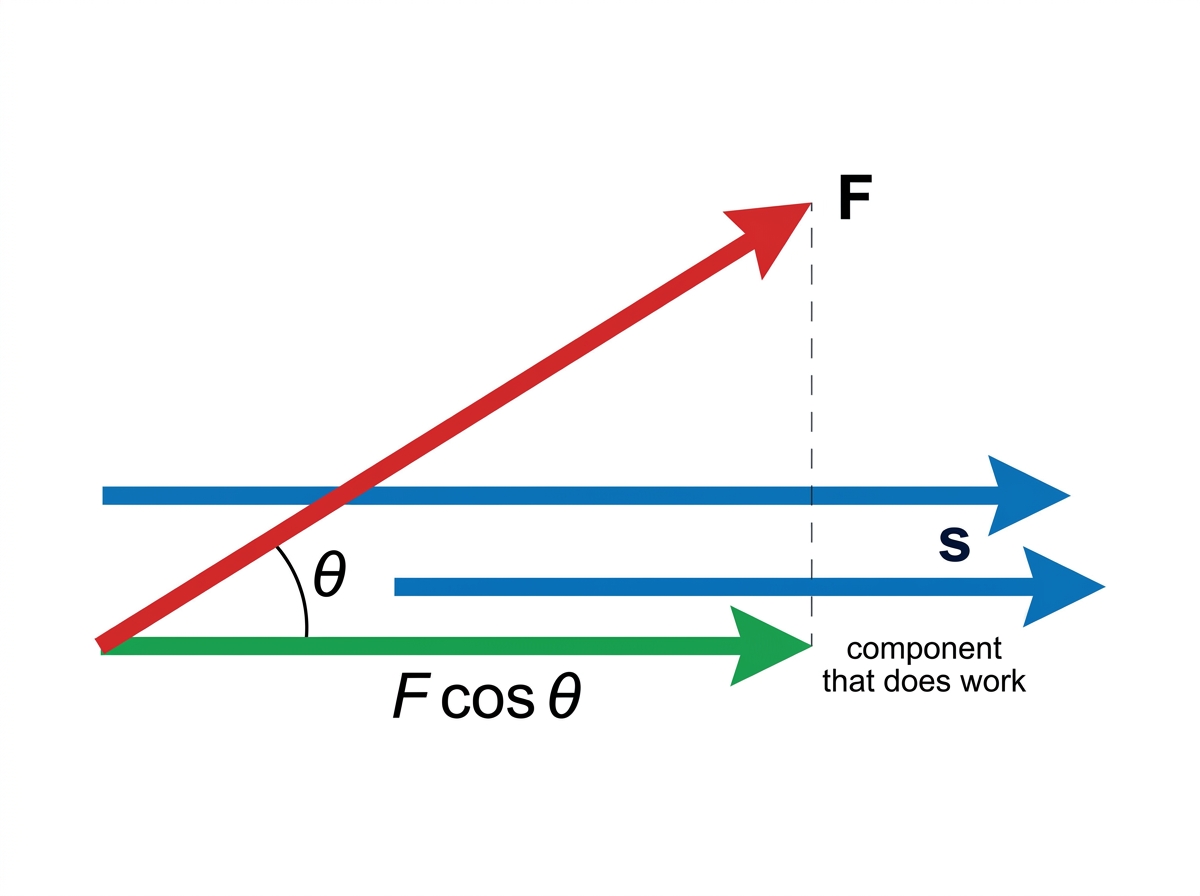

For a constant force, the work done depends only on the part of the force that acts parallel to the displacement:

W=Fscos⁡θW = Fs\cos\theta

Worked example: A body moves 4.0 m4.0\ \text{m} under a 50 N50\ \text{N} pull at 30∘30^\circ to its displacement. A 10 N10\ \text{N} friction force opposes the motion. Calculate the work done by each force.

  1. For the pull, θ=30∘\theta = 30^\circ: Wpull=50×4.0×cos⁡30∘=173 JW_{\text{pull}} = 50 \times 4.0 \times \cos 30^\circ = 173\ \text{J}
  2. Friction acts opposite the displacement, so θ=180∘\theta = 180^\circ: Wfriction=10×4.0×cos⁡180∘=−40 JW_{\text{friction}} = 10 \times 4.0 \times \cos 180^\circ = -40\ \text{J}
Answer

Answer: The pull does 173 J173\ \text{J} of work; friction does −40 J-40\ \text{J}.

Here the angle must be the angle between the two vectors: force and displacement.

  • If the force points in the same direction as the displacement, θ=0∘\theta = 0^\circ, so the work is positive and maximum.
  • If the force is perpendicular to the displacement, θ=90∘\theta = 90^\circ, so the work is zero.
  • If the force has a component opposite the displacement, the work is negative.

This deals with a classic circular-motion question. For a body moving in a circular trajectory under a centripetal force, the instantaneous displacement is tangential while the centripetal force is radial. They are perpendicular, so the centripetal force does no work. It changes the direction of the velocity, not the speed or kinetic energy.

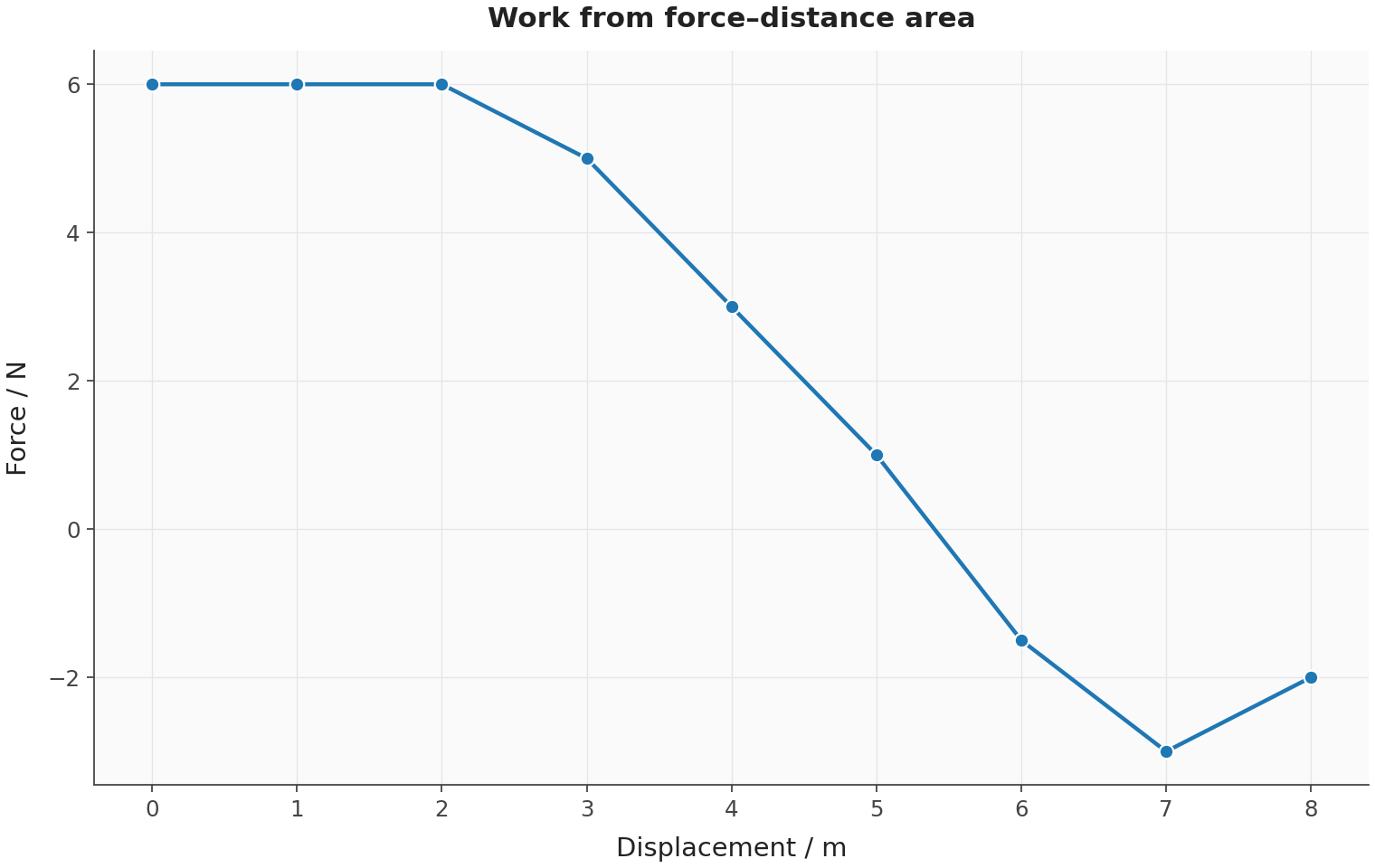

Force–distance graphs

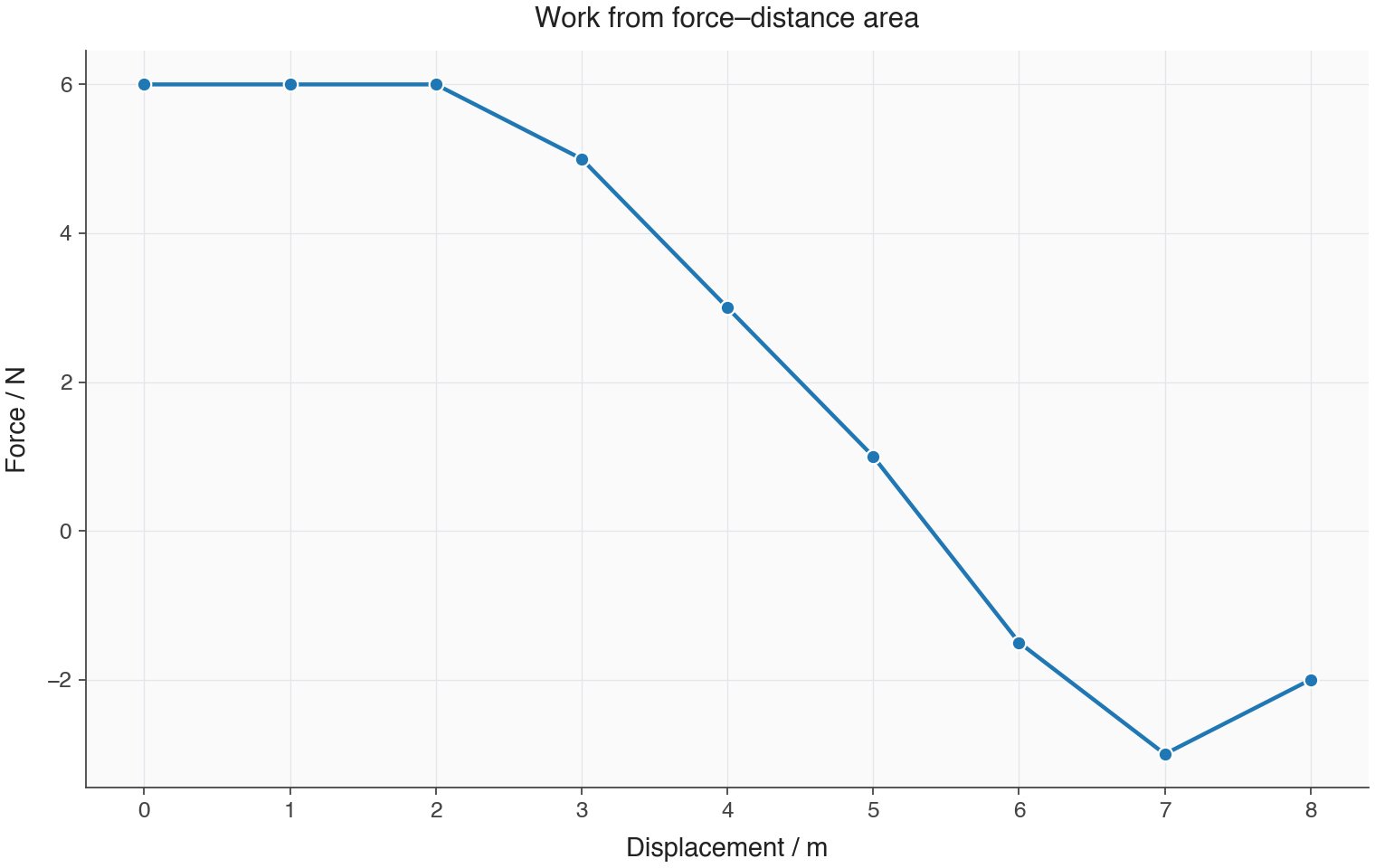

For motion in one dimension, the work done by a force is the signed area between a graph of its component along the displacement and the displacement axis. With a constant force, that area is a rectangle. With a varying force, estimate or calculate the area under the curve. Areas below the displacement axis represent negative work; split the calculation wherever the force crosses zero.

Worked example: A force–displacement graph has a positive rectangle of height 10 N10\ \text{N} from 00 to 4.0 m4.0\ \text{m}. From 4.0 m4.0\ \text{m} to 6.0 m6.0\ \text{m}, the force rises linearly from −10 N-10\ \text{N} to zero, forming a triangle below the axis. Find the total work.

  1. Rectangle: W1=10×4.0=40 N m=40 JW_1 = 10 \times 4.0 = 40\ \text{N m} = 40\ \text{J}
  2. Negative triangle: W2=−12×(6.0−4.0)×10=−10 N m=−10 JW_2 = -\frac{1}{2} \times (6.0 - 4.0) \times 10 = -10\ \text{N m} = -10\ \text{J}
  3. Signed sum: W=40+(−10)=30 JW = 40 + (-10) = 30\ \text{J}
Answer

Answer: The total work done is 30 J30\ \text{J}.

This graph method is especially useful for springs, collisions and real resistive forces, where the force may change during the motion. In practical graph work, use the units on both axes: one square on the graph represents a definite number of joules because N mN\,m is J.

A.3.5

RESULTANT WORK AND CHANGE IN ENERGY

Work done by the resultant force

A resultant force is the single force with the same overall effect as all the forces acting together on a system. In the simplest particle model, its work changes kinetic energy. Interpret the energy notation below in that context:

Wnet=ΔEsystemW_{\text{net}} = \Delta E_{\text{system}}

For this particle model, ΔEsystem\Delta E_{\text{system}} means the change in kinetic energy, not a general change in total system energy:

Wnet=ΔEkW_{\text{net}} = \Delta E_k

For an extended system, energy accounting may also involve rotation, elastic deformation, internal energy and potential energy, depending on the system boundary. Do not assume that resultant-force work calculated from centre-of-mass displacement measures changes in all these stores.

The work done by a lift force on a rising helicopter is not just the gain in gravitational potential energy if the helicopter also gains kinetic energy. The extra work increases another energy store.

When several forces act, don’t add their magnitudes and call that energy. Calculate each force’s work, with signs, and add the works; alternatively, find the resultant force in the direction of motion and calculate its work.

Worked example: A 2.0 kg2.0\ \text{kg} trolley, initially at rest, is pulled by a constant 10 N10\ \text{N} force against 4 N4\ \text{N} resistance through 3.0 m3.0\ \text{m} horizontally. Calculate each force’s work, the net work and the final speed. Treat the trolley as a particle.

  1. The pull acts along the displacement: Wpull=10×3.0=30 JW_{\text{pull}} = 10 \times 3.0 = 30\ \text{J}
  2. Resistance acts opposite to the displacement: Wresistance=−4×3.0=−12 JW_{\text{resistance}} = -4 \times 3.0 = -12\ \text{J} Weight and the normal force do no work because they are perpendicular to the displacement.
  3. Add the signed works: Wnet=30+(−12)=18 JW_{\text{net}} = 30 + (-12) = 18\ \text{J}
  4. Use the change in kinetic energy, with initial speed zero: ΔEk=12mv2=18 J\Delta E_k = \frac{1}{2}mv^2 = 18\ \text{J} v=2×182.0=4.24 m s−1v = \sqrt{\frac{2 \times 18}{2.0}} = 4.24\ \text{m s}^{-1}
Answer

Answer: Applied work is 30 J30\ \text{J}, resistive work is −12 J-12\ \text{J} and net work is 18 J18\ \text{J}. The trolley gains 18 J18\ \text{J} of kinetic energy and reaches 4.24 m s−14.24\ \text{m s}^{-1} (before rounding to significant figures).

A.3.6

MECHANICAL ENERGY AND CONSERVATION IN MECHANICAL SYSTEMS

The mechanical energy store

Kinetic energy is the energy store a body has because it is moving.

Gravitational potential energy is the energy store linked to the position of a mass in a gravitational field.

Elastic potential energy is the energy store linked to reversible deformation of an object such as a spring.

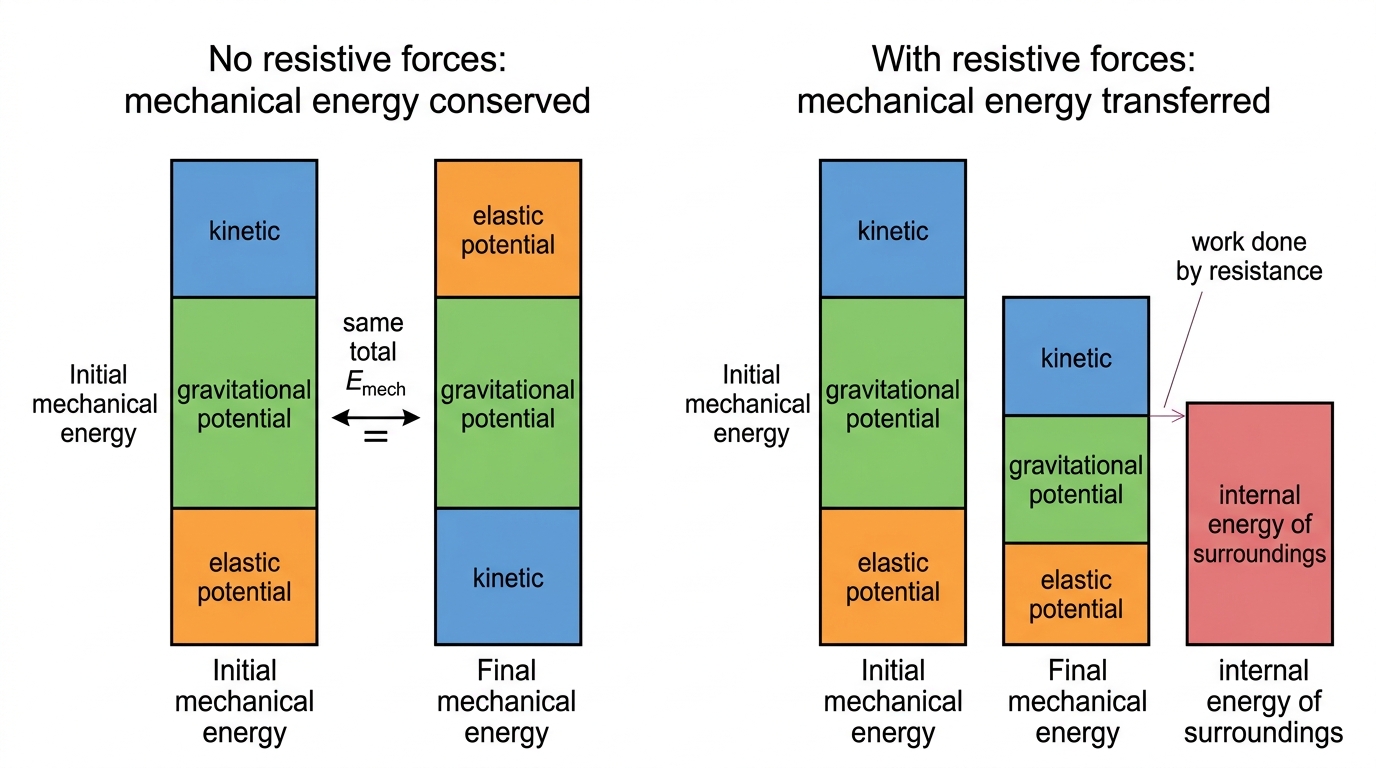

Mechanical energy means the total of the kinetic energy, gravitational potential energy and elastic potential energy in a system:

Emech=Ek+Ep+EHE_{\text{mech}} = E_k + E_p + E_H

Conservative and non-conservative forces

A conservative force does work between two points that is independent of the path taken. Gravity is the standard school example near Earth’s surface. If you lift an object from one height to another, the change in gravitational potential energy is the same for a vertical path or a sloped path, provided the start and end heights are the same.

A non-conservative force does work that depends on the path taken and usually transfers mechanical energy into non-mechanical stores. Friction and air resistance are the usual examples. Drag won’t give the mechanical energy back when the motion is reversed; most of it has gone into internal energy of the surroundings.

If there are no frictional or resistive forces, and only conservative forces do work, total mechanical energy is conserved:

ΔEmech=0\Delta E_{\text{mech}} = 0

If non-conservative forces do work, the change in total mechanical energy is treated as the work done by those forces:

ΔEmech=Wnc\Delta E_{\text{mech}} = W_{\text{nc}}

This gives a clean way to deal with real situations. A skier descending a slope gains less kinetic energy than the gravitational potential energy lost, because resistive forces have done negative work on the skier. The “missing” mechanical energy has not vanished; it has been transferred away from the mechanical store.

Worked example: A 60 kg60\ \text{kg} skier descends through a vertical height of 5.0 m5.0\ \text{m} from rest. Calculate the final speed first without resistance, then when resistive forces do 600 J600\ \text{J} of negative work. Use g=9.81 m s−2g = 9.81\ \text{m s}^{-2} and assume no change in elastic potential energy.

  1. Write the signed mechanical-energy equation before substituting values:

    ΔEk+ΔEp=Wnc\Delta E_k + \Delta E_p = W_{\text{nc}}

    (12mvf2−12mvi2)+mg(hf−hi)=Wnc\left(\frac{1}{2}mv_f^2-\frac{1}{2}mv_i^2\right)+mg(h_f-h_i)=W_{\text{nc}}

  2. Without resistance, Wnc=0W_{\text{nc}} = 0. The skier starts from rest and hf−hi=−5.0 mh_f-h_i=-5.0\ \text{m}, so:

    12mvf2−mgh=0\frac{1}{2}mv_f^2-mgh=0

    vf=2gh=2×9.81×5.0=9.90 m s−1v_f=\sqrt{2gh}=\sqrt{2\times9.81\times5.0}=9.90\ \text{m s}^{-1}

  3. With resistance, Wnc=−600 JW_{\text{nc}}=-600\ \text{J}. First calculate the change in gravitational potential energy:

    ΔEp=mg(hf−hi)=60×9.81×(−5.0)=−2943 J\Delta E_p=mg(h_f-h_i)=60\times9.81\times(-5.0)=-2943\ \text{J}

    Since the initial kinetic energy is zero:

    Ek,f+(−2943)=−600 JE_{k,f}+(-2943)=-600\ \text{J}

    Ek,f=2943−600=2343 JE_{k,f}=2943-600=2343\ \text{J}

  4. Calculate the final speed:

    vf=2Ek,fm=2×234360=8.84 m s−1v_f=\sqrt{\frac{2E_{k,f}}{m}}=\sqrt{\frac{2\times2343}{60}}=8.84\ \text{m s}^{-1}

Answer

Answer: The final speed is 9.90 m s−19.90\ \text{m s}^{-1} without resistance and 8.84 m s−18.84\ \text{m s}^{-1} with resistance. In the second case, the skier loses 2943 J2943\ \text{J} of gravitational potential energy but gains only 2343 J2343\ \text{J} of kinetic energy.

Common mistake: Treating the 600 J600\ \text{J} transferred by resistance as positive work on the skier predicts too much kinetic energy. Resistive work is negative here because the force opposes the displacement; total energy is conserved, but mechanical energy decreases.

Using energy instead of kinematics

Energy methods are often safer than kinematics when the acceleration is not constant. On a curved slide, a pendulum arc, or a roller-coaster track, the direction changes and so do the components of force. If friction is negligible, energy conservation can give the speed at a lower point without finding the detailed acceleration at every point.

Testing energy conservation with a cart

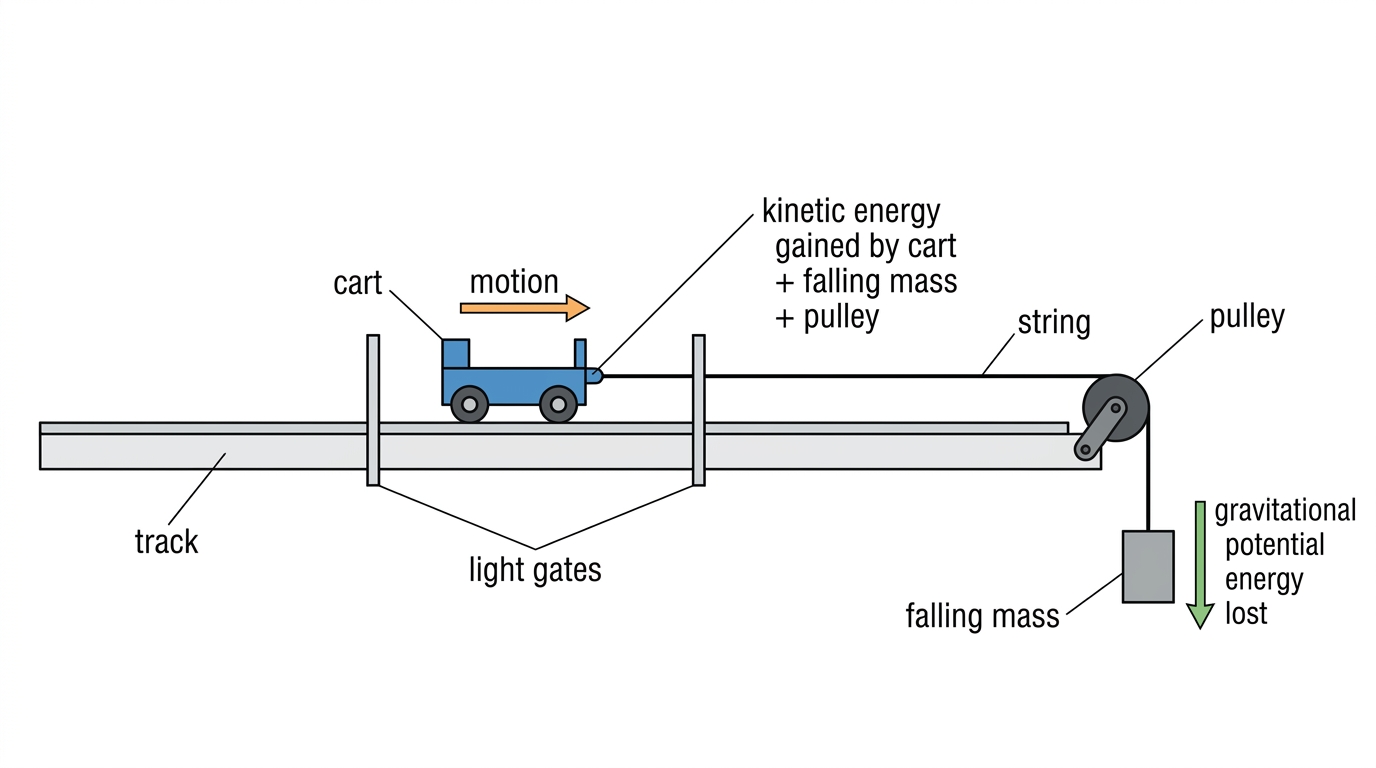

In the laboratory, a falling mass can pull a cart along a level, low-friction track. The falling mass loses gravitational potential energy, while the cart, string, pulley and falling mass gain kinetic energy. The cart’s gravitational potential energy remains constant because the track is level.

For a cart of mass MM and a hanging mass mm, released from rest, use a light, taut, inextensible string so that both masses have the same speed vv. If the hanging mass descends a distance hh, the energy equation is:

mgh=12(M+m)v2+Erot+Edissmgh=\frac{1}{2}(M+m)v^2+E_{\text{rot}}+E_{\text{diss}}

Here ErotE_{\text{rot}} is the rotational kinetic energy gained by the pulley and cart wheels, and EdissE_{\text{diss}} is the energy transferred to non-mechanical stores by resistance. The light string’s kinetic energy is neglected. Pulley and wheel rotational energies may be neglected only when they are small compared with the translational kinetic energy at the precision of the experiment.

  • Measure the masses, the hanging mass’s vertical descent and the final speed.
  • Estimate friction separately, for example from the force needed to pull the cart at constant speed along the level track. For an approximately constant opposing force FF, the energy dissipated over distance dd is FdFd.
  • Repeat trials and compare the gravitational potential energy lost with the total energy gained or dissipated, allowing for measurement uncertainty.

When rotational kinetic energy is negligible, the comparison becomes:

mgh=12(M+m)v2+Edissmgh=\frac{1}{2}(M+m)v^2+E_{\text{diss}}

A shortfall in translational kinetic energy alone can reflect friction, pulley or wheel rotation, sound, heating or measurement uncertainty; it is not evidence that energy has disappeared.

Exam tip: Do not tilt the track to compensate for friction and then count only the hanging mass’s potential-energy loss. On a tilted track, the cart’s gravitational potential energy also changes and must be included in the energy balance. Using a level track avoids this extra term.

A.3.7

KINETIC ENERGY OF TRANSLATIONAL MOTION

Translational kinetic energy

For an object moving without considering rotation, the kinetic energy of translational motion is

Ek=12mv2=p22mE_k = \frac{1}{2}\text{mv}^{2} = \frac{\text{p}^{2}}{2m}

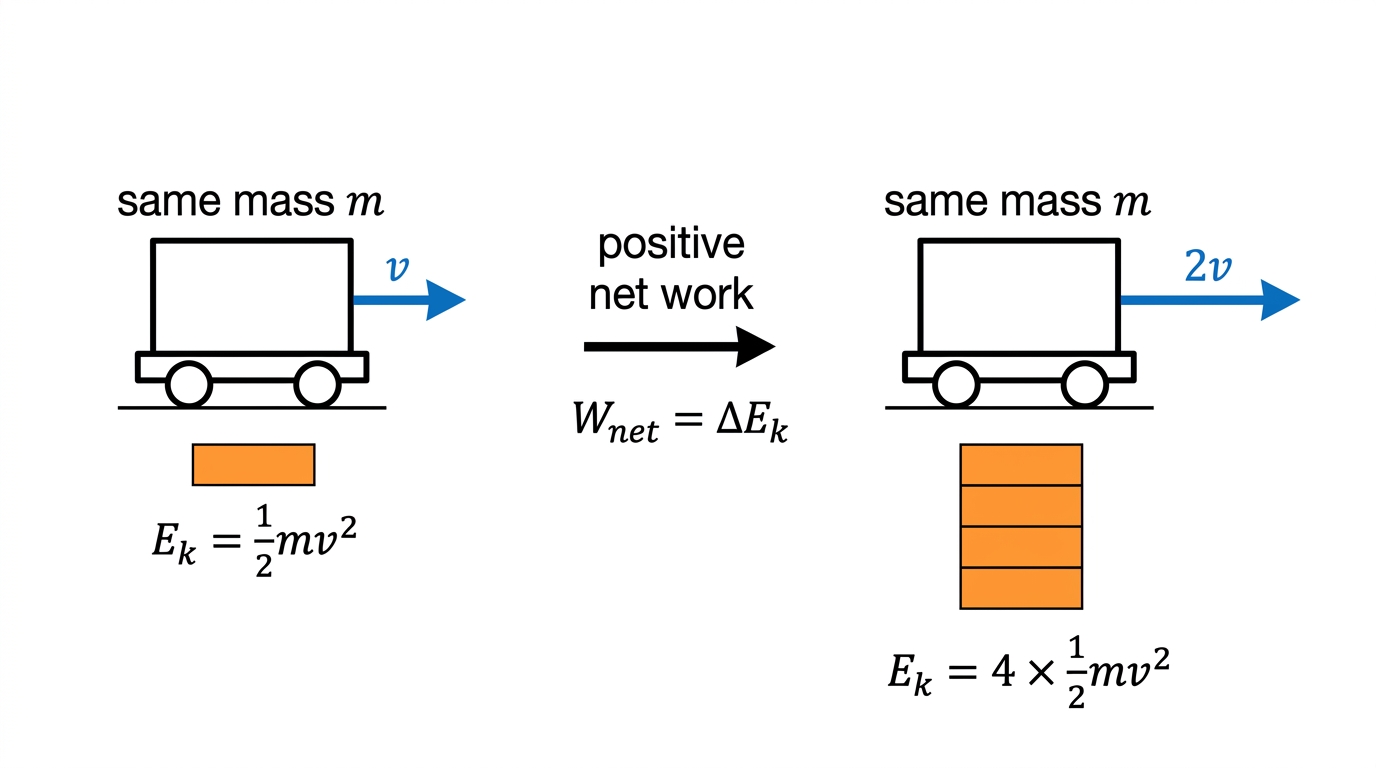

Because the speed is squared, doubling the speed makes the kinetic energy four times larger. This is why high-speed vehicles need much more energy to accelerate, and a much longer distance to stop for the same resultant braking force.

Changes in kinetic energy

For a change in speed,

ΔEk=12m(vf2−vi2)\Delta E_k = \frac{1}{2}m\left(v_\text{f}^{2} - v_\text{i}^{2}\right)

Look carefully at the structure: final speed squared minus initial speed squared. It is not the square of the change in speed.

Worked example: A 2.0 kg2.0\ \text{kg} object accelerates from 3.0 m s−13.0\ \text{m s}^{-1} to 5.0 m s−15.0\ \text{m s}^{-1}. Calculate its initial and final kinetic energies and the change in kinetic energy. Verify the final energy using momentum.

  1. Calculate the initial kinetic energy:

    Ek,i=12mvi2=12(2.0)(3.0)2=9.0 JE_{k,\text{i}} = \frac{1}{2}mv_\text{i}^{2} = \frac{1}{2}(2.0)(3.0)^2 = 9.0\ \text{J}

  2. Calculate the final kinetic energy:

    Ek,f=12mvf2=12(2.0)(5.0)2=25 JE_{k,\text{f}} = \frac{1}{2}mv_\text{f}^{2} = \frac{1}{2}(2.0)(5.0)^2 = 25\ \text{J}

  3. Subtract the initial energy from the final energy:

    ΔEk=Ek,f−Ek,i=25−9.0=16 J\Delta E_k = E_{k,\text{f}} - E_{k,\text{i}} = 25 - 9.0 = 16\ \text{J}

  4. Check the final energy using the final momentum:

    p=mvf=(2.0)(5.0)=10 kg m s−1p = mv_\text{f} = (2.0)(5.0) = 10\ \text{kg m s}^{-1}

    Ek,f=p22m=1022(2.0)=25 JE_{k,\text{f}} = \frac{p^2}{2m} = \frac{10^2}{2(2.0)} = 25\ \text{J}

Answer

Answer: The initial kinetic energy is 9.0 J9.0\ \text{J} and the final kinetic energy is 25 J25\ \text{J}, so the kinetic energy increases by 16 J16\ \text{J}. The momentum method also gives a final kinetic energy of 25 J25\ \text{J}.

Common mistake: Using the square of the speed change gives the incorrect result 12m(vf−vi)2=12(2.0)(5.0−3.0)2=4 J\frac{1}{2}m(v_\text{f}-v_\text{i})^2 = \frac{1}{2}(2.0)(5.0-3.0)^2 = 4\ \text{J}. Square each speed before subtracting; this common algebra slip changes the physics.

Link to work

The work link is direct. Positive resultant work on a moving object increases its translational kinetic energy. Negative resultant work decreases it. Braking, impact stopping distances and acceleration from rest can all be handled this way.

A.3.8

GRAVITATIONAL POTENTIAL ENERGY CLOSE TO EARTH’S SURFACE

Near-surface gravitational potential energy

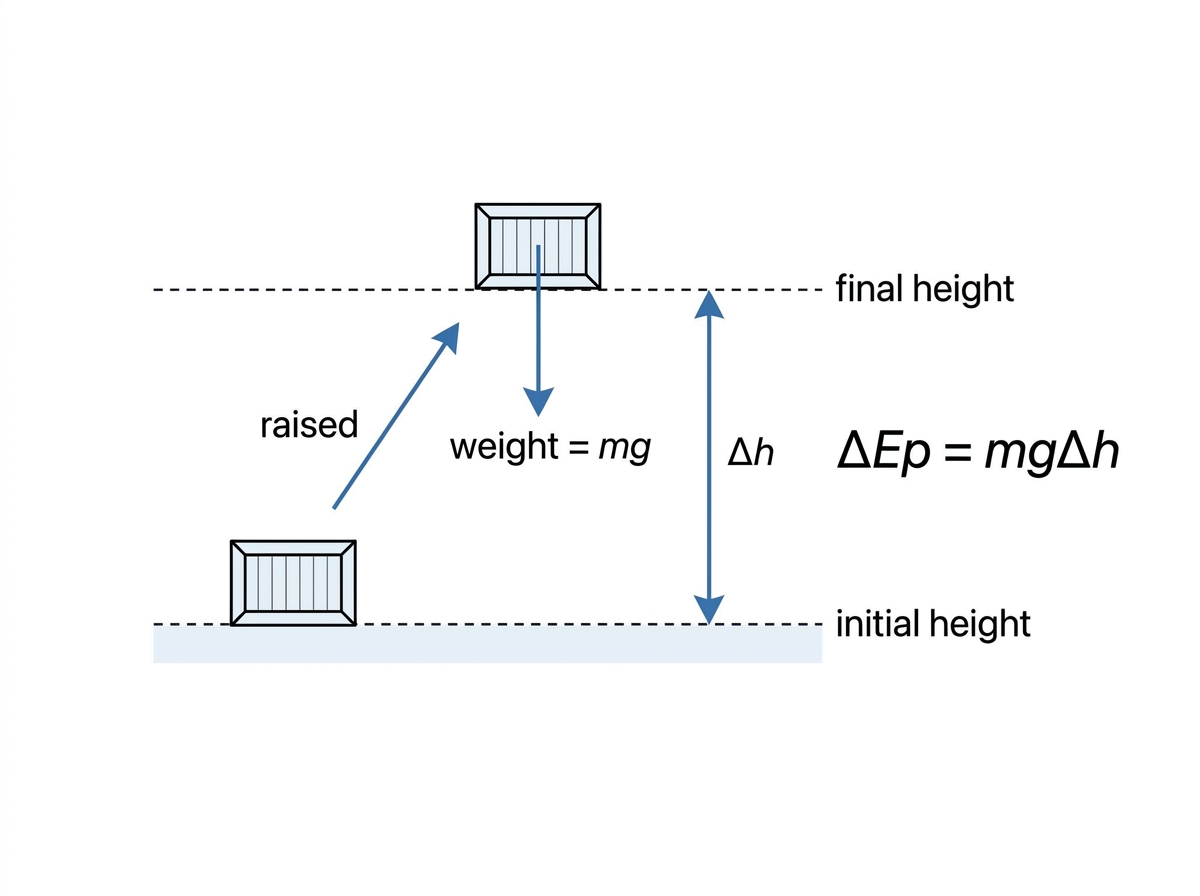

Near Earth’s surface, the change in gravitational potential energy is

ΔEp=mgΔh\Delta E_p = mg\Delta h

The symbol mm is the mass of the object, measured in kilograms (kg\text{kg}).

Choose a zero level for gravitational potential energy. Then Ep=mghE_p = mgh is valid when hh is measured vertically from that level. There is no uniquely fixed absolute value: choosing a different zero changes the assigned potential energies, but not the measurable energy difference between two heights.

  • If an object rises, Δh\Delta h is positive and its gravitational potential energy increases.
  • If it falls, Δh\Delta h is negative and its gravitational potential energy decreases.

For gravity near Earth’s surface, the path taken doesn’t matter. Lift a crate vertically through a height, or push the same crate up a smooth ramp to the same height, and it gains the same gravitational potential energy. The ramp changes the force and the distance, but not the energy change due to gravity.

Worked example: A 10 kg10\ \text{kg} crate moves up a smooth ramp of length 5.0 m5.0\ \text{m} that rises through a vertical height of 2.0 m2.0\ \text{m}. Calculate its change in gravitational potential energy using g=9.81 N kg−1g = 9.81\ \text{N kg}^{-1}, then find the change if it descends the same ramp.

  1. For the ascent, use the vertical rise, not the distance along the ramp:

    Δh=+2.0 m\Delta h = +2.0\ \text{m}

    ΔEp=mgΔh=10×9.81×2.0=196.2 J≈196 J\Delta E_p = mg\Delta h = 10 \times 9.81 \times 2.0 = 196.2\ \text{J} \approx 196\ \text{J}

  2. The 5.0 m5.0\ \text{m} is the distance travelled along the slope. It is not substituted for Δh\Delta h, because gravitational potential energy depends on vertical height.

  3. For the descent, the vertical height change reverses sign:

    Δh=−2.0 m\Delta h = -2.0\ \text{m}

    ΔEp=mgΔh=10×9.81×(−2.0)=−196.2 J≈−196 J\Delta E_p = mg\Delta h = 10 \times 9.81 \times (-2.0) = -196.2\ \text{J} \approx -196\ \text{J}

Answer

Answer: The crate gains 196 J196\ \text{J} of gravitational potential energy on ascent; its change on descent is −196 J-196\ \text{J}.

Common mistake: Work done by gravity is not the same as the change in gravitational potential energy: Wgravity=−ΔEpW_{\text{gravity}} = -\Delta E_p. For this crate, gravity does −196 J-196\ \text{J} of work during ascent and +196 J+196\ \text{J} during descent. Check whether the question asks for work done by gravity or the change in potential energy.

Why the formula is only local

The equation ΔEp=mgΔh\Delta E_p = mg\Delta h assumes that gg stays constant, so the gravitational field is effectively uniform over the height change. For ordinary heights near Earth’s surface, that approximation is good.

Far from Earth, the field lines spread out and the gravitational field strength decreases with distance from Earth’s centre. In that situation gg is no longer constant over the motion, so the simple near-surface expression has to be replaced by the more general gravitational potential energy treatment from gravitation.

Energy conservation still works in both cases. The expression used for the gravitational potential energy is the part that changes.

A.3.9

ELASTIC POTENTIAL ENERGY

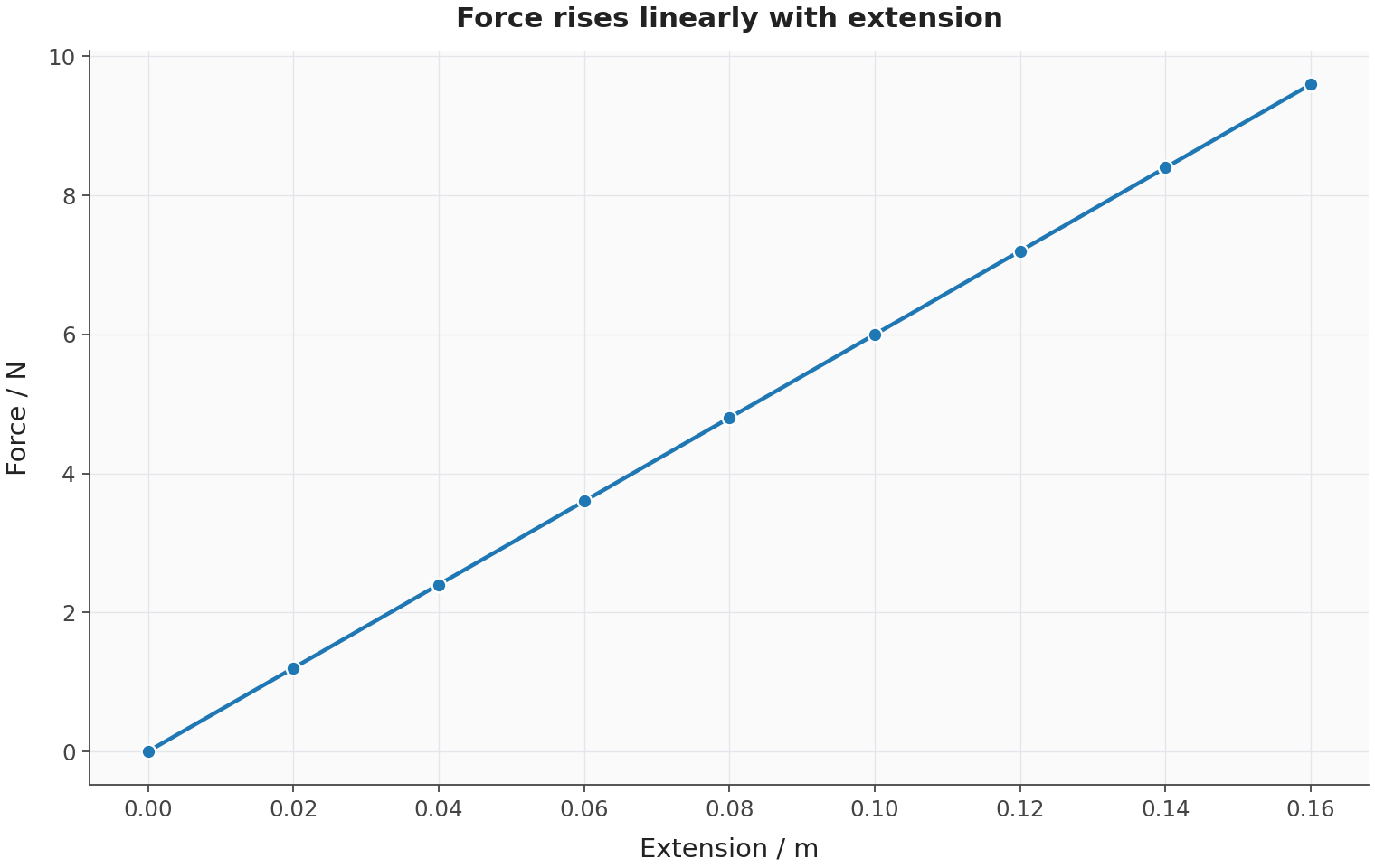

Springs and area under the force–extension graph

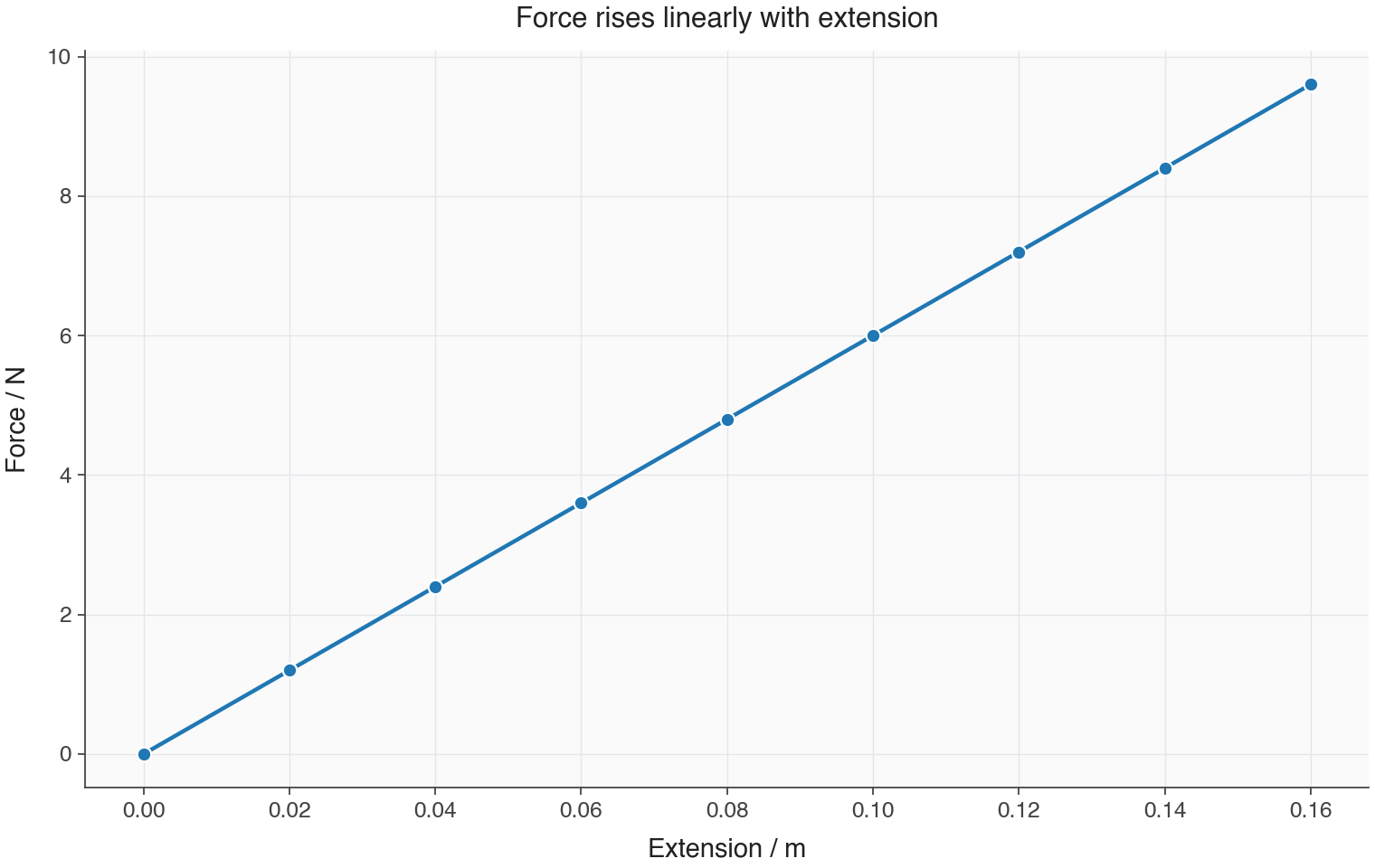

For a spring that obeys Hooke’s law,

F=kΔxF = k\Delta x

A stiffer spring has a larger spring constant, so a larger force is needed for the same extension. On a force–extension graph, Hooke’s law gives a straight line through the origin with gradient kk.

The elastic potential energy stored in the spring is the work done to stretch or compress it. On the force–extension graph, that work is the triangular area under the line:

EH=12k(Δx)2E_H = \frac{1}{2}k(\Delta x)^2

The square term is crucial: increasing the extension from Δx\Delta x to 2Δx2\Delta x quadruples the stored energy. The extra work is therefore three times the original stored energy.

Worked example: A spring has k=60 N m−1k = 60\ \text{N m}^{-1}. Find the force and stored energy at 0.10 m0.10\ \text{m} extension, then the energy and extra work when the extension doubles.

  1. Apply Hooke’s law: F=kΔx=60×0.10=6.0 NF = k\Delta x = 60 \times 0.10 = 6.0\ \text{N}
  2. Calculate the stored energy and check using the triangular area: EH=12×60×0.102=0.30 JE_H = \frac{1}{2}\times 60\times 0.10^2 = 0.30\ \text{J} EH=12×0.10×6.0=0.30 JE_H = \frac{1}{2}\times 0.10\times 6.0 = 0.30\ \text{J}
  3. Double the extension: EH=12×60×0.202=1.20 JE_H = \frac{1}{2}\times 60\times 0.20^2 = 1.20\ \text{J}
  4. Subtract the initial energy: Wextra=1.20−0.30=0.90 JW_{\text{extra}} = 1.20 - 0.30 = 0.90\ \text{J}
Answer

Answer: Initially, the force is 6.0 N6.0\ \text{N} and the stored energy is 0.30 J0.30\ \text{J}. Doubling the extension stores 1.20 J1.20\ \text{J} and requires an additional 0.90 J0.90\ \text{J} of work.

Measuring a spring constant energetically

Use a vertical launcher with a spring of negligible mass and a projectile of known mass mm. Hold the projectile initially at rest against the compressed spring. Release the projectile, keeping the spring secured; only the projectile leaves the launcher. Wear eye protection and make sure the spring can’t fly towards anyone.

For each compression, measure the maximum height several times and average it. Define the release point as the projectile’s initial compressed position, not its departure point where the spring reaches its natural length.

If air resistance, friction and energy retained in the spring are negligible, the initial elastic potential energy becomes the projectile’s gravitational potential energy at its apex. This gives

12k(Δx)2=mgh\frac{1}{2}k(\Delta x)^2 = mgh

Rearranging gives

h=k2mg(Δx)2h = \frac{k}{2mg}(\Delta x)^2

A graph of hh against (Δx)2(\Delta x)^2 should be linear, with gradient k/(2mg)k/(2mg). Hence,

k=2mg×gradientk = 2mg \times \text{gradient}

Use repeated readings to estimate height uncertainty. Add uncertainty bars, a best-fit line and reasonable maximum- and minimum-gradient lines. Compare this spring constant with the value from a direct Hooke’s-law force–extension graph to test the method and its assumptions.

A.3.10

POWER AS A RATE OF WORK DONE OR ENERGY TRANSFER

Rate of energy transfer

Power tells us how fast work is done or how fast energy is transferred. Average power over a time interval is

Pavg=ΔWΔtP_{\text{avg}} = \frac{\Delta W}{\Delta t}

Instantaneous power is

P=Fvcos⁡θP = Fv\cos\theta

  • FF is the magnitude of the force doing the work, in N\text{N}.
  • vv is the instantaneous speed, in m s−1\text{m s}^{-1}.
  • θ\theta is the angle between the force and velocity.

Average and instantaneous power coincide when power is constant. If the force also acts in the direction of motion, the expressions combine as

P=ΔWΔt=FvP = \frac{\Delta W}{\Delta t} = Fv

If the force is not parallel to the velocity, use its component along the velocity.

One watt is one joule per second. Two machines might do the same total work, but the machine that finishes in less time has the greater power.

Two machines transfer the same energy, but the shorter time gives the larger power.

MachineWork done / JTime / sPower / W
Slow hoist600060100
Fast hoist600020300

The expression P=FvP = Fv helps explain why constant-power motion usually doesn’t give constant acceleration. If a vehicle’s engine provides a fixed useful power, a higher speed means a smaller available driving force. Drag generally increases with speed as well. On a level road, maximum speed is reached when the driving force balances resistance: all useful driving power then goes into overcoming resistive forces.

Worked example: A vehicle delivers 20 kW20\ \text{kW} of useful driving power. Calculate its driving force at 10 m s−110\ \text{m s}^{-1} and at 20 m s−120\ \text{m s}^{-1}, assuming the force acts along the velocity.

  1. Convert the useful power: P=20 kW=20000 WP = 20\ \text{kW} = 20000\ \text{W}
  2. At the lower speed: F=Pv=2000010=2000 NF = \frac{P}{v} = \frac{20000}{10} = 2000\ \text{N}
  3. At the higher speed: F=Pv=2000020=1000 NF = \frac{P}{v} = \frac{20000}{20} = 1000\ \text{N}
Answer

Answer: The driving forces are 2000 N2000\ \text{N} at 10 m s−110\ \text{m s}^{-1} and 1000 N1000\ \text{N} at 20 m s−120\ \text{m s}^{-1}.

Common mistake: These are driving forces, not resultant forces: subtract resistance before calculating acceleration. Use useful mechanical output power in P=FvP = Fv, not total input power; if efficiency is given, first calculate Puseful=ηPinputP_{\text{useful}} = \eta P_{\text{input}}.

Rates elsewhere in physics

Rates of change show up all over physics. Velocity is the rate of change of displacement, acceleration is the rate of change of velocity, current is the rate of flow of charge, activity is the rate of radioactive decay, and induced emf is linked to the rate of change of magnetic flux. Power fits the same pattern: it is the rate of energy transfer.

A.3.11

EFFICIENCY IN TERMS OF ENERGY AND POWER

Useful output compared with total input

Efficiency is a dimensionless ratio comparing the useful energy or power output of a process with the total energy or power input. It is given by

η=useful work outtotal work in=useful power outtotal power in\eta = \frac{\text{useful work out}}{\text{total work in}} = \frac{\text{useful power out}}{\text{total power in}}

The definition works for both energy and power because, in a single process, the useful and total energy transfers take place over the same time interval. If a motor receives 1000 J and 250 J becomes useful lifting energy, its efficiency is 0.25 or 25%. Likewise, if it receives 1000 W and delivers 250 W of useful mechanical power, the efficiency is 25%.

No real process is perfectly efficient. Friction, electrical heating, turbulence, deformation and sound commonly transfer energy to internal energy. These transfers may be unwanted, but they still obey conservation of energy.

Efficiency measurements often come from data. For a bouncing ball, the useful output after a bounce can be represented by the gravitational potential energy at the rebound height. Since that energy is proportional to height for the same ball, the ratio of rebound height to previous drop height gives the bounce efficiency, provided air resistance and measurement uncertainty are treated sensibly.

A.3.12

ENERGY DENSITY OF FUEL SOURCES

Energy per unit volume

Energy density means the energy a fuel releases per unit volume of that fuel. Its SI unit is J m−3\text{J}\,\text{m}^{-3}, although fuel data are often given in MJ m−3\text{MJ}\,\text{m}^{-3} or GJ m−3\text{GJ}\,\text{m}^{-3}.

Fossil fuels have been used so widely partly because of their high energy density: a small volume can store a lot of transferable energy. Nuclear fuels are in a different league, with vastly larger energy densities, because nuclear processes release energy from changes in nuclear binding rather than from chemical rearrangement of atoms.

Typical volumetric energy densities; gases are at about 1 atm.

Fuel sourceTypical formEnergy density / GJ m−3m^{-3}Relative to natural gas
HydrogenGas0.0110.28×\times
Natural gasGas0.0391.0×\times
CoalSolid lump246.2 ×\times 10210^{2}×
Liquid hydrocarbonPetrol/diesel359.0 ×\times 10210^{2}×
Nuclear fuelUranium fission1.5×1091.5 \times 10^{9}3.8 ×\times 101010^{10}×

For gases, energy density depends on storage pressure and temperature, so comparisons must use the stated conditions.

Energy density by itself doesn’t tell you which fuel is “best”. Device efficiency, availability, safety, environmental impact, storage pressure or temperature, cost, and the useful form of the output energy all matter too.

Calculating the fuel volume required

In calculations, start by finding the total input energy required, including efficiency if the question gives it. Then divide by the energy released per unit volume. Watch the powers of ten: this topic jumps quickly between joules, megajoules and gigajoules.

The two steps are:

Ein=EusefulηE_{\text{in}} = \frac{E_{\text{useful}}}{\eta}

V=EinuV = \frac{E_{\text{in}}}{u}

Here, EinE_{\text{in}} is the total energy supplied by the fuel, EusefulE_{\text{useful}} is the useful output energy, and η\eta is efficiency expressed as a decimal. The symbol uu is the volumetric energy density: energy released per unit volume. Using energy in joules and uu in J m−3\text{J}\,\text{m}^{-3} gives the fuel volume VV in m3\text{m}^3.

Worked example: A device must deliver 7.0 MJ7.0\ \text{MJ} of useful energy at 40% efficiency. Its fuel has a volumetric energy density of 35 GJ m−335\ \text{GJ m}^{-3}. Calculate the volume of fuel required in cubic metres and litres.

  1. Express efficiency as a decimal:

    η=40100=0.40\eta = \frac{40}{100} = 0.40

  2. Calculate the total input energy:

    Ein=Eusefulη=7.0 MJ0.40=17.5 MJE_{\text{in}} = \frac{E_{\text{useful}}}{\eta} = \frac{7.0\ \text{MJ}}{0.40} = 17.5\ \text{MJ}

  3. Convert both energy quantities to compatible SI units:

    Ein=17.5×106 JE_{\text{in}} = 17.5 \times 10^6\ \text{J}

    u=35×109 J m−3u = 35 \times 10^9\ \text{J m}^{-3}

  4. Divide the input energy by the volumetric energy density:

    V=Einu=17.5×106 J35×109 J m−3=5.0×10−4 m3V = \frac{E_{\text{in}}}{u} = \frac{17.5 \times 10^6\ \text{J}}{35 \times 10^9\ \text{J m}^{-3}} = 5.0 \times 10^{-4}\ \text{m}^3

  5. Convert cubic metres to litres:

    V=5.0×10−4×103 L=0.50 LV = 5.0 \times 10^{-4} \times 10^3\ \text{L} = 0.50\ \text{L}

Answer

Answer: The fuel volume required is 5.0×10−4 m35.0 \times 10^{-4}\ \text{m}^3, or 0.50 L0.50\ \text{L}.

Exam tip: Divide the useful energy by efficiency to find the input energy; do not multiply. For an efficiency below 100%, the input energy must be greater than the useful output energy.

Were those notes helpful?

A.2 Forces and momentum

A.4 Rigid body mechanics
