A.2: Forces and momentum

Master IB Physics A.2: Forces and momentum with notes created by examiners and strictly aligned with the syllabus.

Verified by Kun
Verified by Kun

7 sections · ~30 min read

This content can't be printed from the browser. Use Export PDF with Pro for an offline copy.

IB Syllabus Requirements for Forces and momentum

A.2.1

Newton’s laws, force interactions and free-body diagrams

A.2.2

Contact and field forces

A.2.3

Linear momentum, impulse and Newton’s second law

A.2.4

Collisions, explosions and energy in one dimension

A.2.1

NEWTON’S LAWS, FORCE INTERACTIONS AND FREE-BODY DIAGRAMS

Forces are interactions, not possessions

A force is a vector interaction that can change a body's velocity or deform it. An object doesn't “have” a force: one body exerts a force on another. This wording matters. Every force has an agent and a body that experiences it.

A contact force acts only when bodies touch. By contrast, a field force acts between bodies without contact, through a physical field such as a gravitational, electric or magnetic field. Water exerts contact forces on a swimmer, while Earth exerts a field force. A charged particle in space can be deflected without touching anything.

Newton’s three laws

Newton’s first law states that a body remains at rest or moves with constant velocity unless a resultant external force acts on it. Constant velocity requires constant speed in a constant direction. If a hockey puck slows down, a force is acting. A spacecraft coasting at constant velocity, though, needs no resultant force to keep it going.

Newton’s second law states that the resultant force on a body is proportional to the rate of change of its velocity. For constant mass, we write F=maF = ma, where FF is the resultant force (N), mm is the mass (kg) and aa is the acceleration (m s−2\mathrm{m\,s^{-2}}). Force and acceleration point in the same direction.

A newton is an SI derived unit of force: it equals the force required to give a 1 kg mass an acceleration of 1 m s−21\,\mathrm{m\,s^{-2}} in the direction of the force. In base units, 1 N=1 kg m s−21\,\mathrm{N} = 1\,\mathrm{kg\,m\,s^{-2}}.

Remember the constant-mass assumption in F=maF = ma. Later in this topic, we use the more general momentum form of the same law.

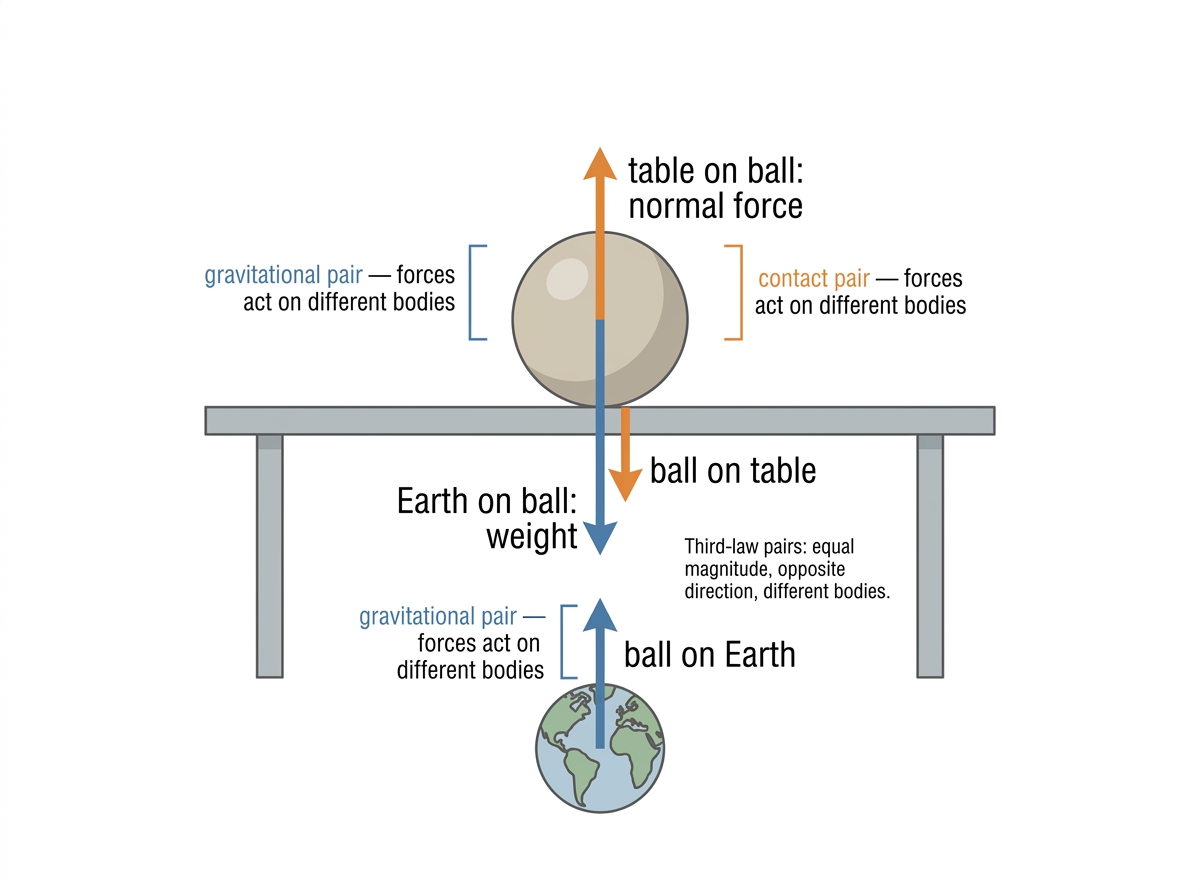

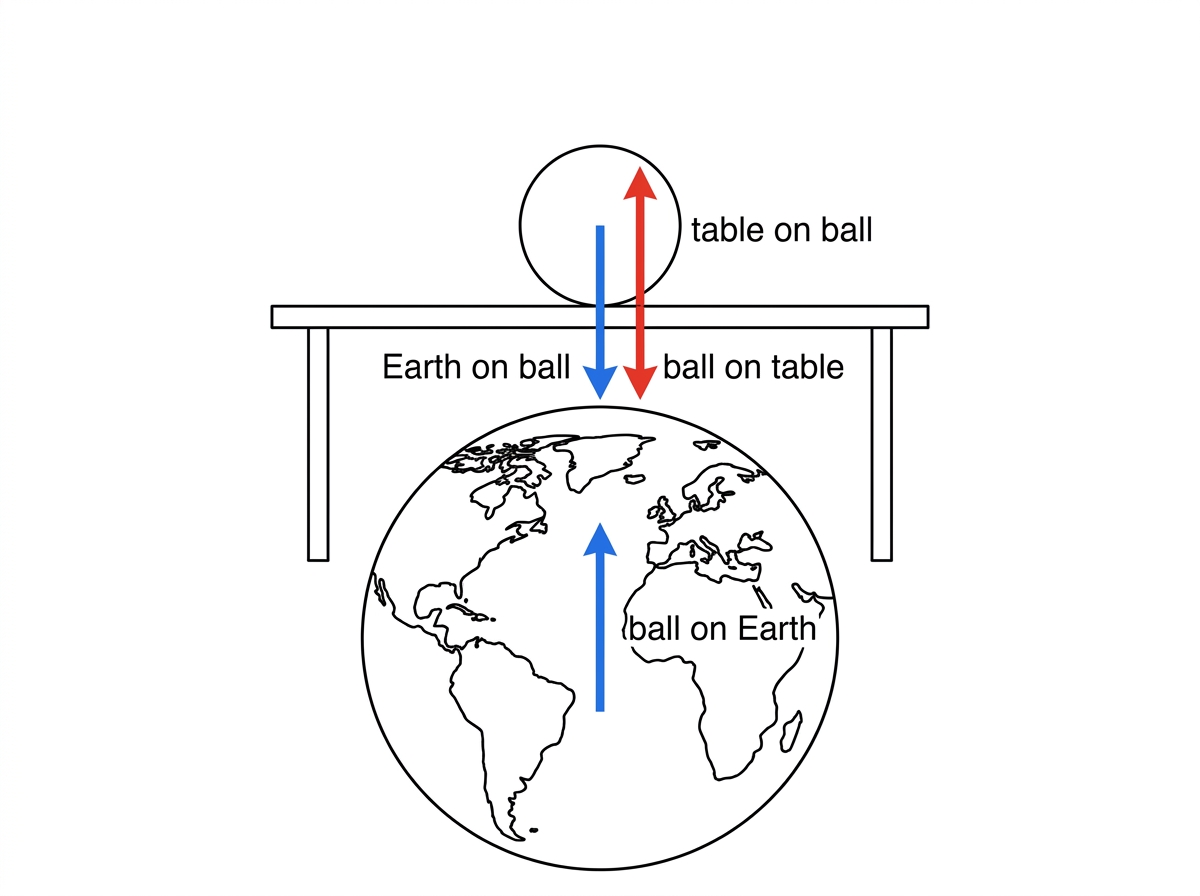

Newton’s third law describes an interaction: when body A exerts a force on body B, body B simultaneously exerts a force of equal magnitude and opposite direction, of the same type, on body A. These forces act on different bodies. They therefore do not cancel each other.

To check a third-law pair, ask whether the forces belong to the same interaction and are the same type, but act on different bodies. Consider a book's weight: Earth pulls on the book, and the partner force is the book pulling gravitationally on Earth. The table's normal force on the book is not the partner to its weight. That force belongs to a different contact interaction.

Free-body diagrams and resultants

A free-body diagram is a simplified force diagram showing only the forces acting on one chosen body. Represent the body with a dot or small block. Draw force arrows from the centre of mass unless a point of application matters, and label every force with an accepted name or symbol. The arrow directions must make physical sense.

In this syllabus, free-body diagrams and resultant-force analysis are limited to one- and two-dimensional situations. Work through them like this:

  • choose the body, not the whole story;
  • include only forces on that body;
  • label forces, for example weight, normal force, tension or friction;
  • resolve forces into perpendicular components when the directions are awkward;
  • add the vector components to find the resultant force.

A resultant force is the vector sum of all forces acting on a body. Zero resultant force gives zero acceleration. The body may be stationary, or it may be moving at constant velocity.

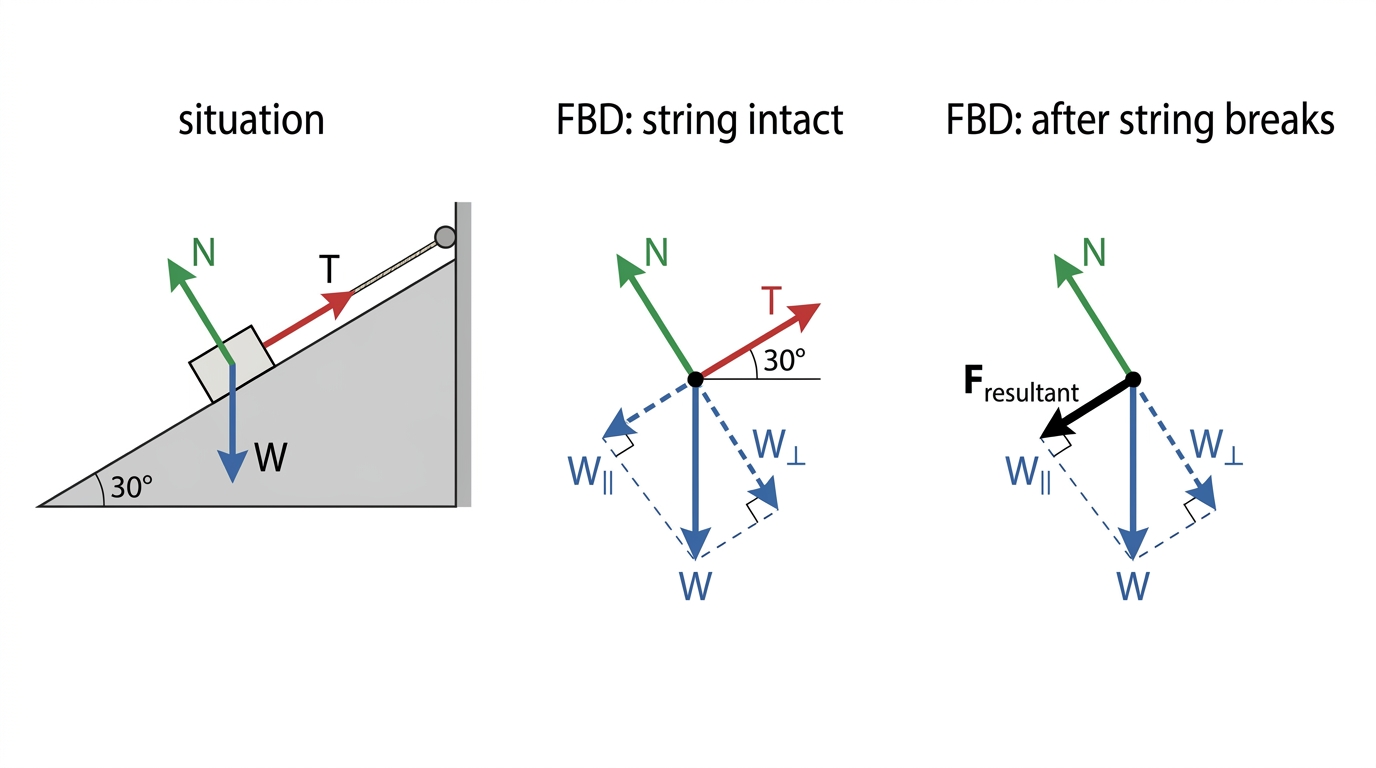

Worked example: A 2.0 kg2.0\ \text{kg} block rests on a smooth incline at 30∘30^\circ to the horizontal. A string parallel to the slope holds it in place. Calculate its weight, normal force and equilibrium tension. Then calculate the downhill resultant force and acceleration after the string is cut. Use g=9.8 m s−2g = 9.8\ \text{m s}^{-2}.

  1. Choose axes and identify the forces. Take positive xx downhill, parallel to the slope, and positive yy perpendicular to and away from the slope. Weight WW acts vertically downwards. The normal force NN acts along positive yy, while tension TT acts uphill. There is no friction because the surface is smooth.

  2. Calculate the weight, then resolve it along these axes. Use the unrounded weight when calculating the components:

    W=mg=(2.0 kg)(9.8 m s−2)=19.6 NW = mg = (2.0\ \text{kg})(9.8\ \text{m s}^{-2}) = 19.6\ \text{N}

    Wx=mgsin⁡30∘=(19.6 N)sin⁡30∘=9.8 NW_x = mg\sin 30^\circ = (19.6\ \text{N})\sin 30^\circ = 9.8\ \text{N}

    Wy=−mgcos⁡30∘=−(19.6 N)cos⁡30∘≈−17 NW_y = -mg\cos 30^\circ = -(19.6\ \text{N})\cos 30^\circ \approx -17\ \text{N}

  3. With the string holding the block, acceleration is zero on both axes:

    ∑Fy=N−mgcos⁡30∘=0\sum F_y = N - mg\cos 30^\circ = 0

    N=(19.6 N)cos⁡30∘≈17 NN = (19.6\ \text{N})\cos 30^\circ \approx 17\ \text{N}

    ∑Fx=mgsin⁡30∘−T=0\sum F_x = mg\sin 30^\circ - T = 0

    T=(19.6 N)sin⁡30∘=9.8 NT = (19.6\ \text{N})\sin 30^\circ = 9.8\ \text{N}

  4. Cutting the string makes the tension zero. The normal force still balances the perpendicular component of weight; the downhill component is now unbalanced:

    Fx=mgsin⁡30∘=9.8 NF_x = mg\sin 30^\circ = 9.8\ \text{N}

    ax=Fxm=9.8 N2.0 kg=4.9 m s−2a_x = \frac{F_x}{m} = \frac{9.8\ \text{N}}{2.0\ \text{kg}} = 4.9\ \text{m s}^{-2}

Answer

Answer: To two significant figures, the weight is 20 N20\ \text{N} vertically downwards. The normal force is 17 N17\ \text{N} perpendicular to the slope, and the equilibrium tension is 9.8 N9.8\ \text{N} uphill. After release, the resultant force is 9.8 N9.8\ \text{N} downhill and the acceleration is 4.9 m s−24.9\ \text{m s}^{-2} downhill.

Common mistake: Don't count weight and its components as separate forces: that counts the gravitational interaction twice. In a force sum, use either the weight vector or its resolved components, never both. The components are not extra forces.

Translational equilibrium

Translational equilibrium is the state of a body with zero resultant force and hence no linear acceleration. This is a direct application of Newton’s first law. The body is either at rest or moving with constant velocity.

Two forces produce equilibrium only if they have equal magnitudes, act in opposite directions and share the same line of action. With three forces, resolve components horizontally and vertically, or draw the vectors head-to-tail. A closed triangle of force vectors gives a zero resultant.

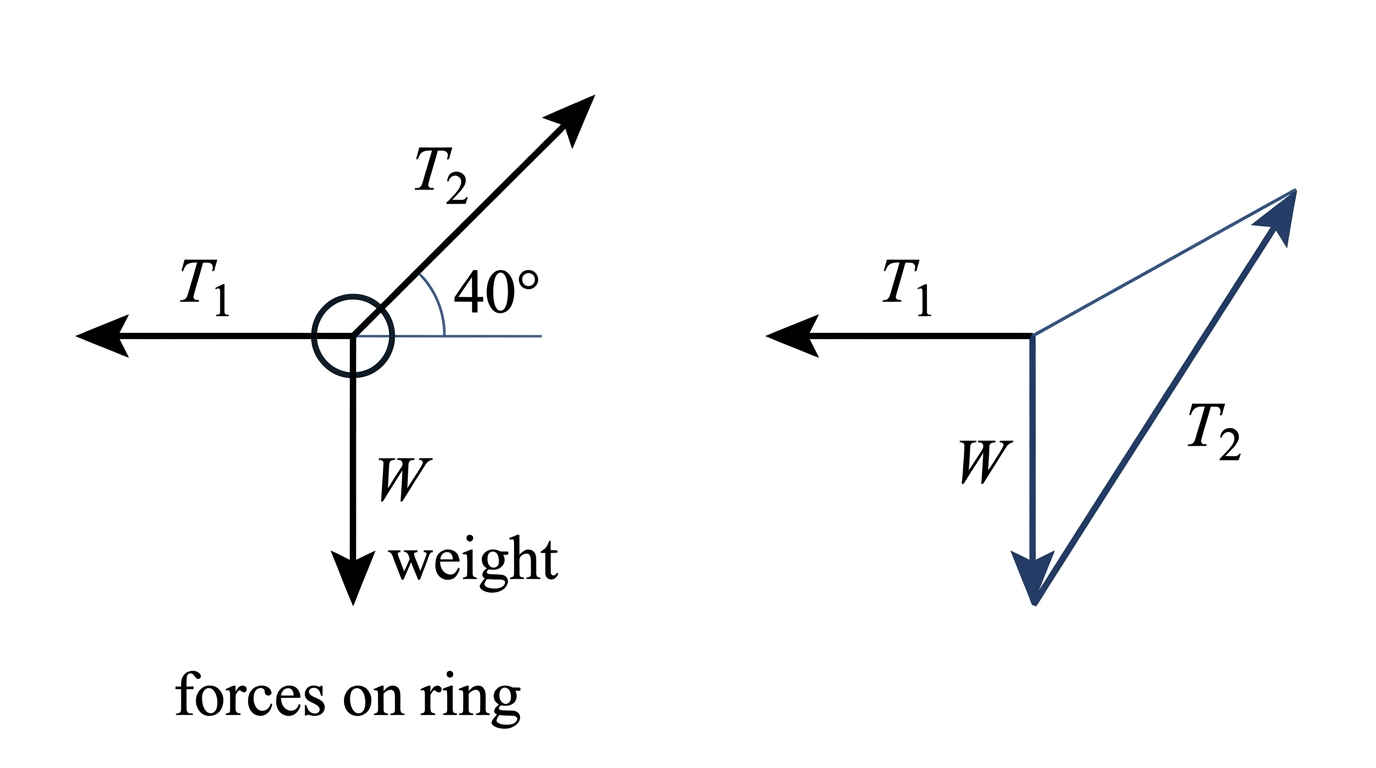

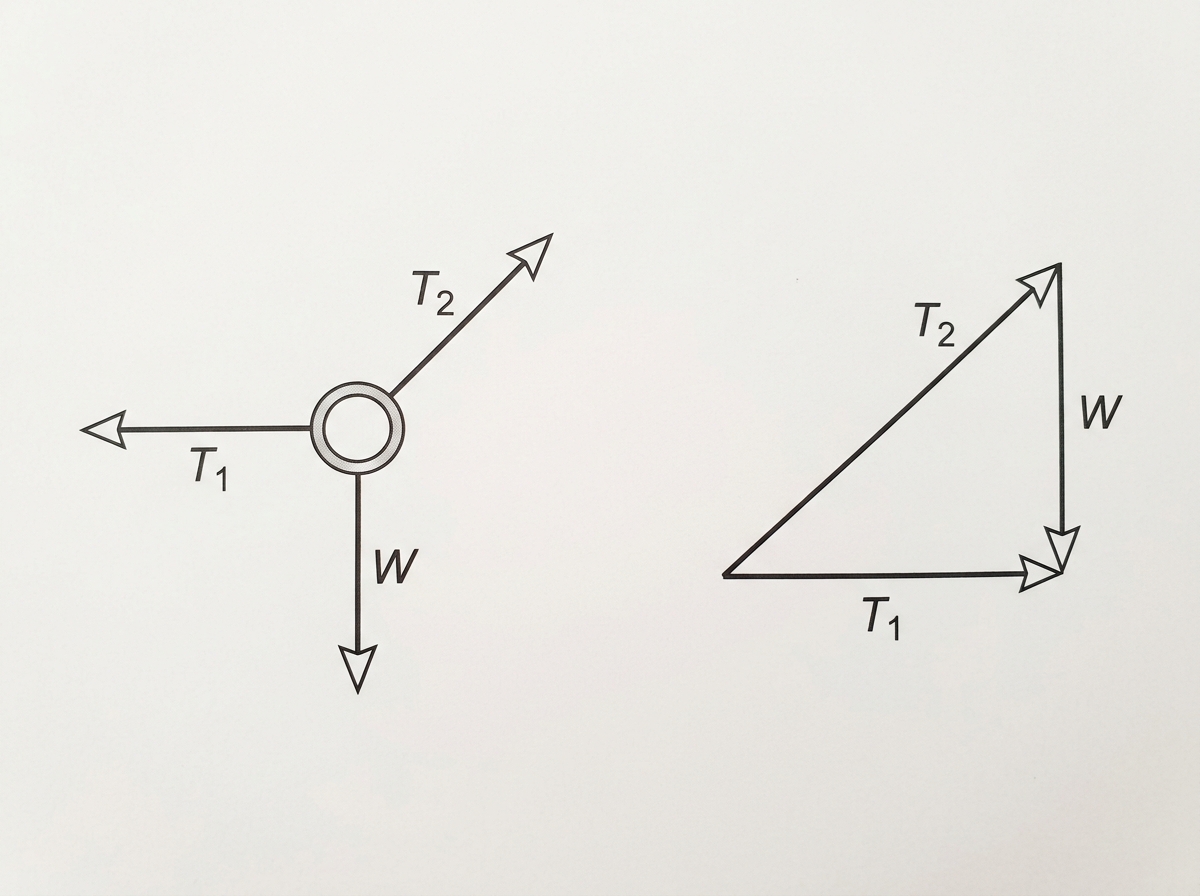

In a practical triangle-of-forces experiment, three strings meet at a small ring. Adjust the ring until it is stationary. Masses provide known weights, and the angle of one string is measured. Repeat with different masses and plot a processed quantity such as cos⁡θ\cos \theta to connect the vector diagram with the data. Equilibrium has to hold component by component; the experiment tests that directly.

A.2.2

CONTACT AND FIELD FORCES

Normal force and tension

A normal force is the component of a contact force perpendicular to the surface pressing on a body. We write it as FNF_N. Don't assume it equals the weight: its size depends on the situation. In a lift accelerating upward, the normal force on a person is larger than their weight. On a slope, it is usually smaller than the full weight.

Tension is a contact force transmitted through a stretched string, rope, cable or chain. For ideal IB problems, a light inextensible string passing over a frictionless pulley has the same tension throughout. I often use FTF_T, where FTF_T is the tension force (N), so it isn't confused with the period symbol used later in circular motion.

Worked example: A person of mass 60 kg60\ \text{kg} stands in a lift accelerating upward at 1.5 m s−21.5\ \text{m s}^{-2}. Calculate the normal force on the person, using g=9.81 m s−2g = 9.81\ \text{m s}^{-2}.

  1. Choose upward as positive. The normal force acts upward; weight acts downward. Writing the normal force as N=FNN = F_N, apply Newton’s second law:

    N−mg=maN - mg = ma

  2. Rearrange, then substitute:

    N=m(g+a)=60(9.81+1.5)=678.6 NN = m(g+a) = 60(9.81+1.5) = 678.6\ \text{N}

  3. An ideal vertical rope accelerating an otherwise identical suspended mass upward at the same rate would obey

    FT−mg=maF_T - mg = ma

    FT=m(g+a)=678.6 NF_T = m(g+a) = 678.6\ \text{N}

Answer

Answer: The normal force is approximately 679 N679\ \text{N} upward. The corresponding rope tension would also be 679 N679\ \text{N}. Both exceed the weight because the resultant force must act upward.

Weight and other field forces

A gravitational force is a field force caused by mass attracting mass. Near Earth’s surface, a body’s weight is Fg=mgF_g = mg, where FgF_g is the gravitational force or weight (N) and gg is the gravitational field strength near Earth (N kg−1^{-1}). Its numerical value equals the acceleration of free fall (m s−2^{-2}). With no resistance, all bodies in free fall have the same acceleration because gravitational and inertial mass are experimentally equivalent.

An electric force is a field force that an electric field exerts on a charged body.

A magnetic force is a field force that a magnetic field exerts on magnets, currents or moving charged particles.

To model a mass moving in a gravitational field, find the field force and use Newton’s second law to predict its acceleration. The same Newtonian approach works for a charged particle in an electric field. Magnetic forces differ in one important respect: they often act perpendicular to velocity. They can therefore bend a charged particle’s path without changing its speed.

Friction

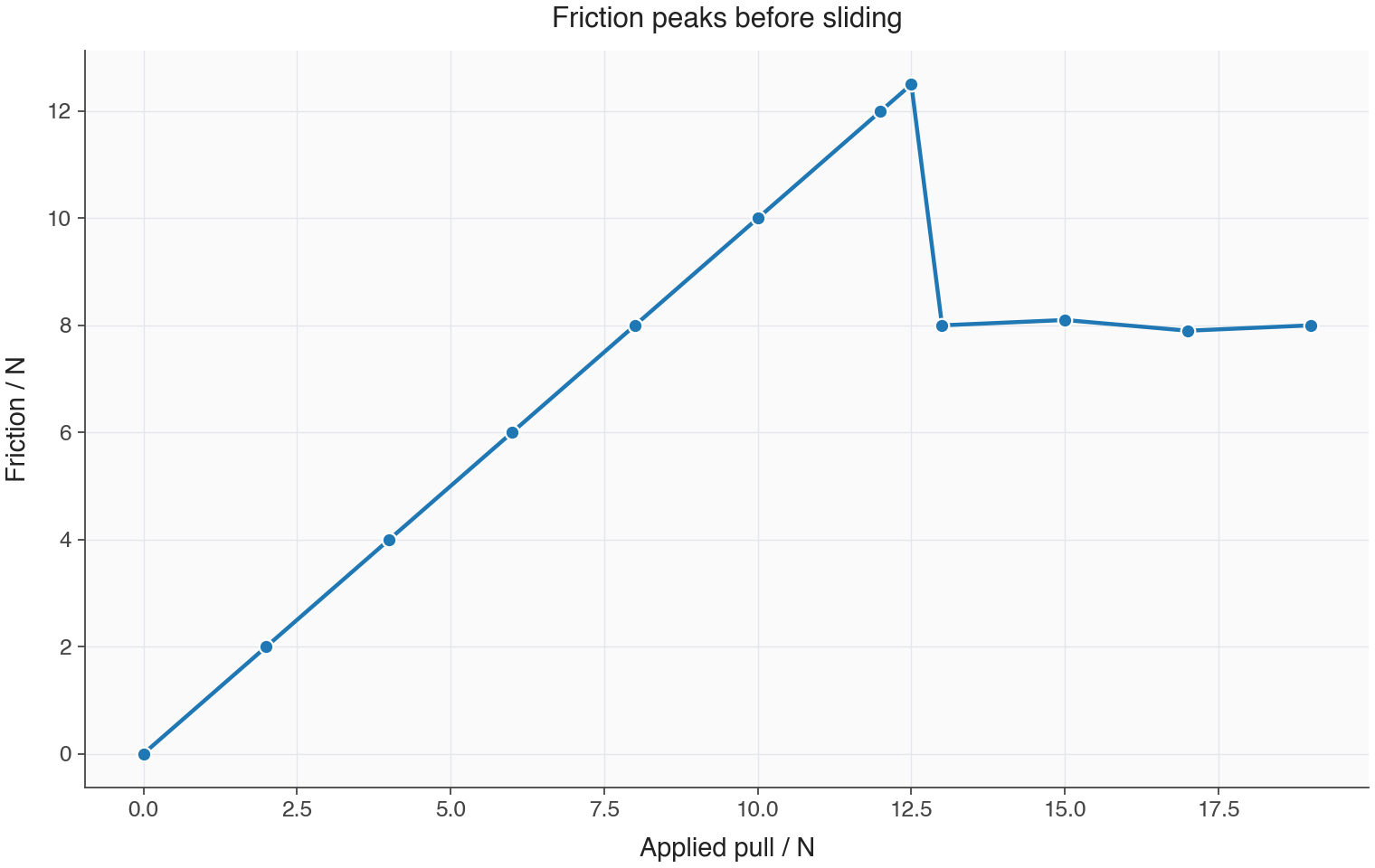

A surface frictional force is a contact force parallel to the plane of contact. It opposes relative motion, or the tendency for relative motion, between two surfaces. Static friction acts before sliding begins; dynamic friction acts while the surfaces slide.

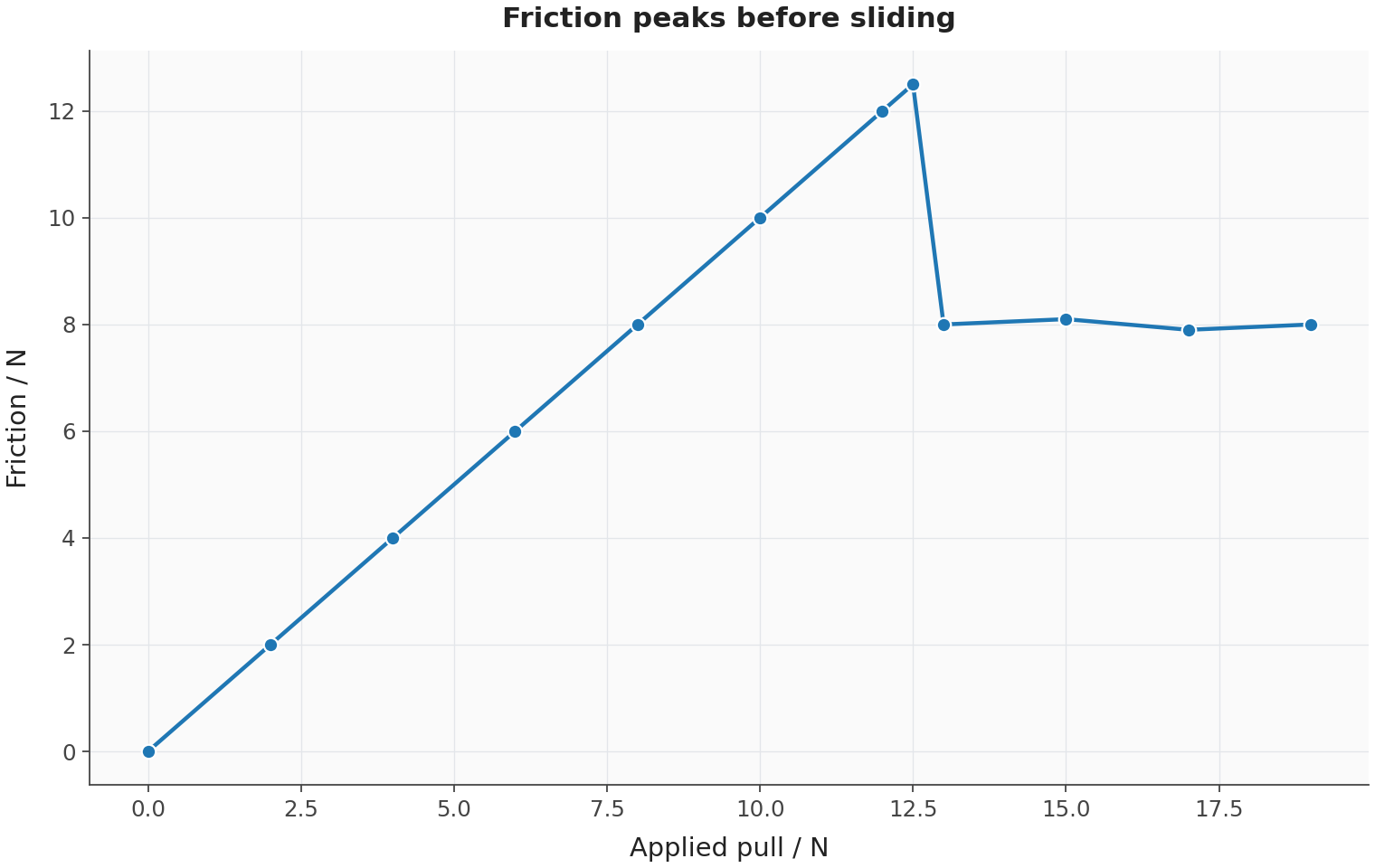

For a stationary body, Ff≤μsFNF_f \le \mu_s F_N, where FfF_f is the surface frictional force (N), and μs\mu_s is the coefficient of static friction (unitless). Pay attention to the inequality. Static friction takes whatever value is needed, up to a maximum. Once sliding occurs, Ff=μdFNF_f = \mu_d F_N, where μd\mu_d is the coefficient of dynamic friction (unitless). Usually, μd\mu_d is smaller than μs\mu_s.

Worked example: A 5.0 kg5.0\ \text{kg} block starts at rest on a horizontal surface, with μs=0.40\mu_s = 0.40 and μd=0.30\mu_d = 0.30. Compare separate horizontal pulls of 10 N10\ \text{N} and 25 N25\ \text{N}. Find the actual friction and acceleration in each case, using g=9.81 m s−2g = 9.81\ \text{m s}^{-2}.

  1. With no vertical acceleration,

    FN=mg=5.0×9.81=49.05 NF_N = mg = 5.0\times9.81 = 49.05\ \text{N}

  2. Find the limiting static friction:

    Ff,max⁡=μsFN=0.40×49.05=19.62 NF_{f,\max} = \mu_s F_N = 0.40\times49.05 = 19.62\ \text{N}

  3. Static friction can balance the 10 N10\ \text{N} pull because

    10 N<19.62 N10\ \text{N} < 19.62\ \text{N}

    So,

    Ff=10 N,a=10−105.0=0 m s−2F_f = 10\ \text{N},\qquad a = \frac{10-10}{5.0} = 0\ \text{m s}^{-2}

  4. The 25 N25\ \text{N} pull exceeds limiting static friction, so the block starts to slide. From then on, use dynamic friction:

    Ff=μdFN=0.30×49.05=14.715 NF_f = \mu_d F_N = 0.30\times49.05 = 14.715\ \text{N}

    a=25−14.7155.0=2.057 m s−2a = \frac{25-14.715}{5.0} = 2.057\ \text{m s}^{-2}

Answer

Answer: To two significant figures, the normal force is 49 N49\ \text{N} and limiting static friction is 20 N20\ \text{N}. With the 10 N10\ \text{N} pull, actual friction is 10 N10\ \text{N} and acceleration is zero. The 25 N25\ \text{N} pull gives sliding friction of 15 N15\ \text{N} and an acceleration of 2.1 m s−22.1\ \text{m s}^{-2} in the direction of the pull.

Common mistake: Static friction isn't automatically μsFN\mu_s F_N; that expression gives its maximum value. Find the friction needed to prevent sliding first, then check whether it exceeds the maximum. Use μdFN\mu_d F_N only once sliding occurs.

To measure μs\mu_s, place a block on a ramp and slowly increase the angle until the block is just about to slip. Resolving the weight gives the limiting condition tan⁡θ=μs\tan \theta = \mu_s, where θ\theta is the angle of the ramp to the horizontal (rad or degrees as stated). For dynamic friction, pull a block at constant speed with a force sensor to measure FfF_f directly. A graph of friction force against normal force has gradient μd\mu_d.

The friction equations are empirical: they describe the experimental behaviour of real surfaces rather than follow from a detailed atomic model. Even polished surfaces have tiny peaks and hollows at the microscopic level. Static friction involves deforming or breaking these contacts; lubrication reduces friction by keeping the surfaces apart.

Elastic restoring force

An elastic restoring force is a contact force exerted by a deformed elastic object in a direction that tends to restore its original shape. For an ideal spring obeying Hooke’s law, FH=−kxF_H = -kx, where FHF_H is the elastic restoring force (N), kk is the spring constant (N m−1^{-1}) and xx is the displacement from the spring’s natural length (m). The minus sign matters. It tells you that the force acts opposite to the displacement.

A spring constant is a proportionality constant measuring the force needed per unit extension of a spring. While Hooke’s law holds, a graph of force against extension has gradient kk. In the lab, take readings as you load the spring and again as you unload it. Check whether the two sets agree; disagreement hints at hysteresis or measurement problems.

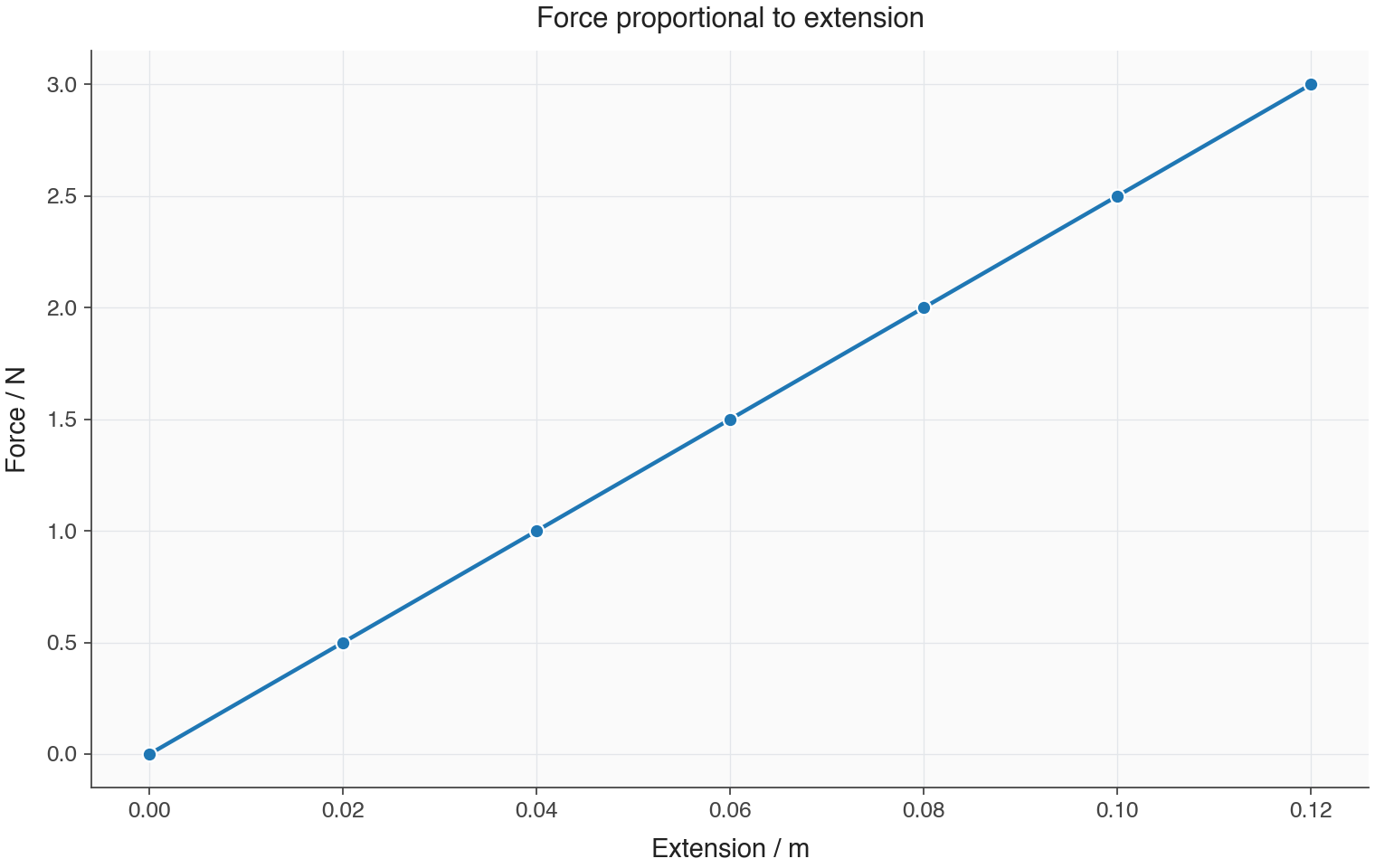

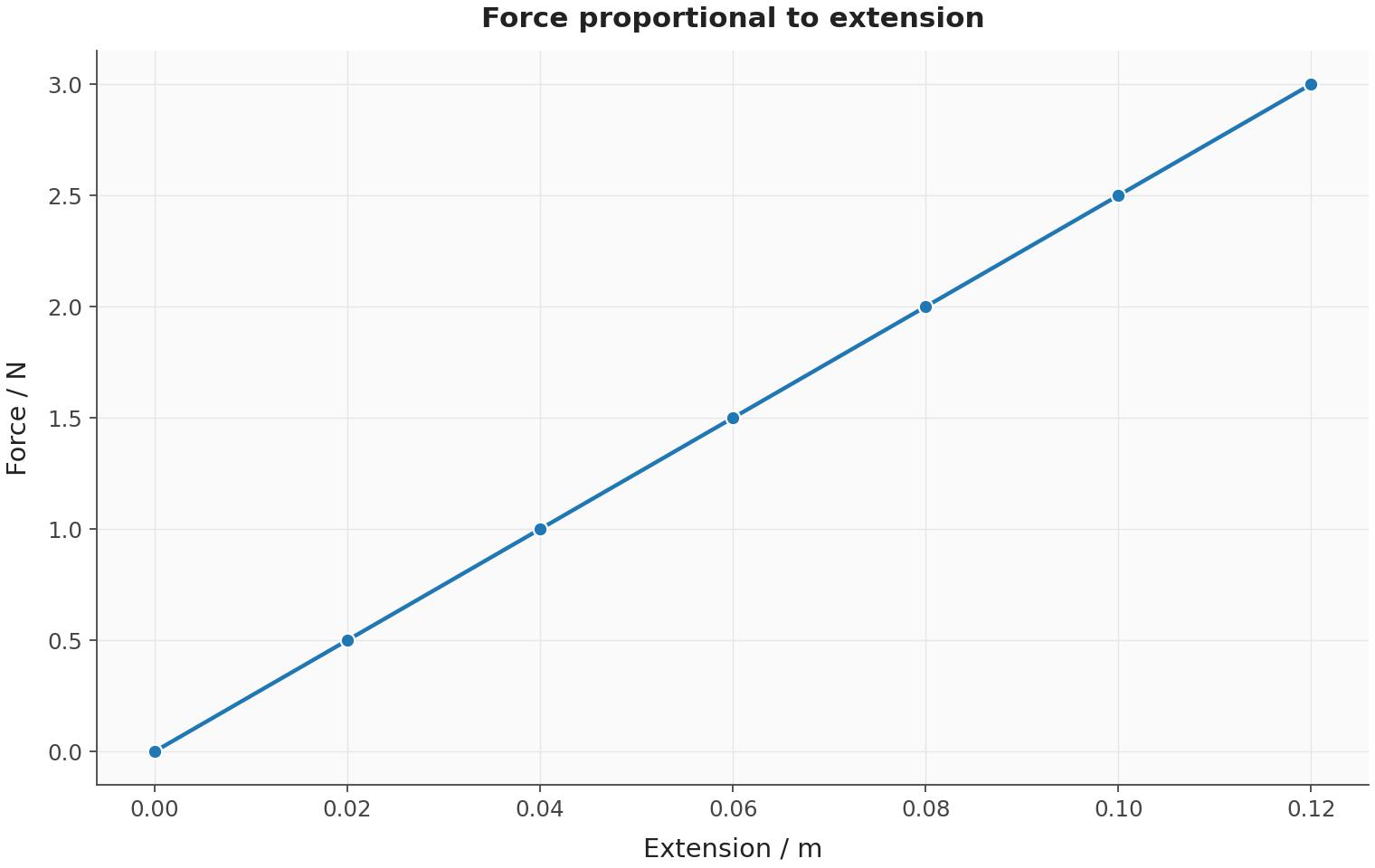

Worked example: Find the spring constant from the straight-line force–extension graph, then calculate the signed restoring force at x=+0.080 mx = +0.080\ \text{m}.

  1. Choose two points on the straight line. Divide the change in applied-force magnitude by the change in extension:

    k=ΔFΔx=25 N m−1k = \frac{\Delta F}{\Delta x} = 25\ \text{N m}^{-1}

  2. Substitute into the signed restoring-force equation:

    FH=−kx=−(25)(+0.080)=−2.0 NF_H = -kx = -(25)(+0.080) = -2.0\ \text{N}

Answer

Answer: The spring constant is 25 N m−125\ \text{N m}^{-1} and the restoring force is −2.0 N-2.0\ \text{N}. The graph shows applied-force magnitude. For positive extension, the spring’s signed restoring force is negative because it acts toward the natural length.

This connects directly to simple harmonic motion. A restoring force proportional to displacement and always directed toward equilibrium produces an acceleration back toward the equilibrium position. With little damping, the mass overshoots and reverses direction, then continues to oscillate.

Viscous drag and fluid resistance

A fluid resistance force is a resistive force that a gas or liquid exerts on a body moving through it.

A viscous drag force is a fluid resistance force caused by viscosity. It acts opposite to the relative motion through the fluid.

For a small smooth sphere moving slowly through a uniform fluid, Stokes’ law gives Fd=6πηrvF_d = 6\pi \eta r v, where FdF_d is the viscous drag force (N), η\eta is the dynamic viscosity of the fluid (Pa s), rr is the radius of the sphere (m) and vv is the velocity of the sphere relative to the fluid (m s−1^{-1}). The model assumes laminar flow around a smooth sphere in a homogeneous fluid, with no interaction between particles. At higher speeds, turbulent drag is often closer to being proportional to speed squared. Don't apply Stokes’ law without checking these conditions.

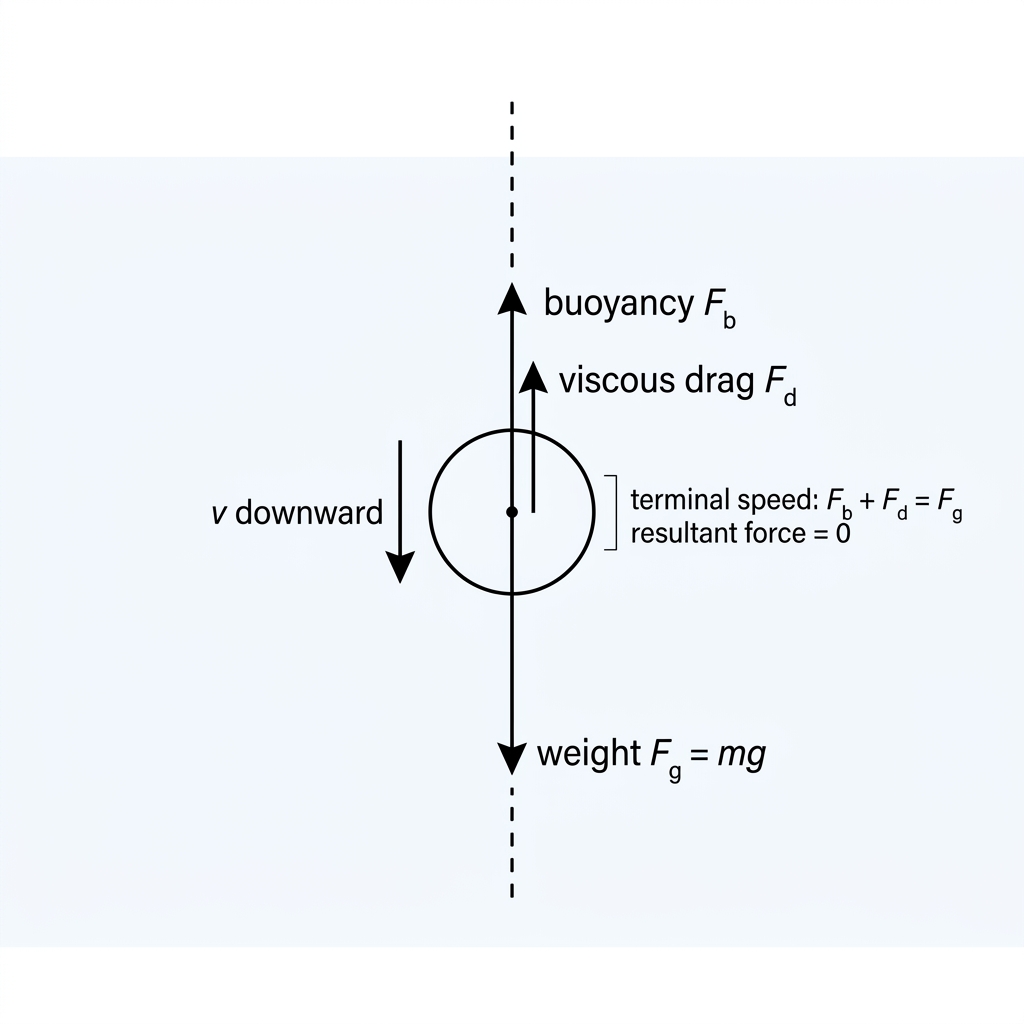

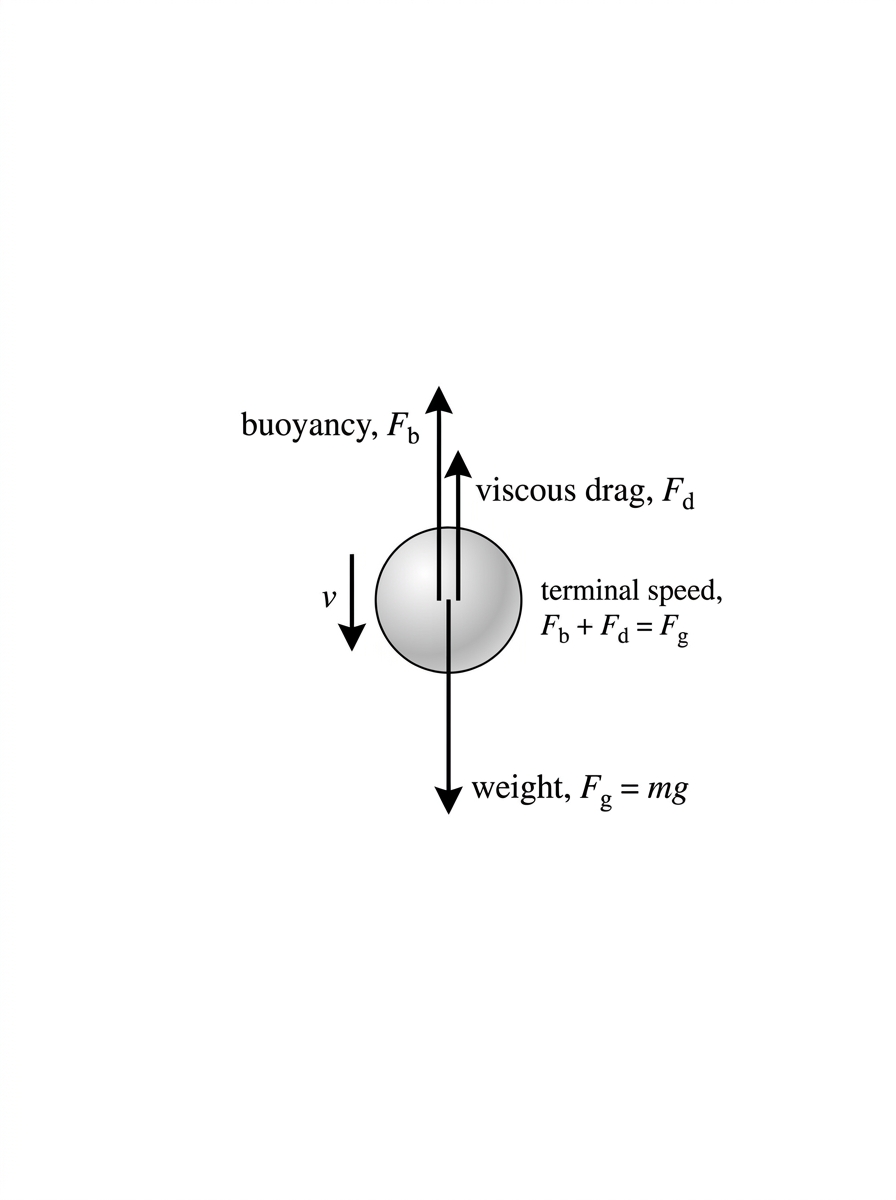

For a sphere falling through a liquid, weight acts downward while buoyancy and drag act upward. As the sphere speeds up, drag increases. Eventually the resultant force becomes zero and the sphere moves at terminal velocity. In a viscosity experiment, use timing marks or light gates after the sphere has reached terminal speed. Timing the acceleration phase would not test Stokes’ terminal-speed relationship.

Worked example: A sphere of radius 1.0 mm1.0\ \text{mm} and density 2500 kg m−32500\ \text{kg m}^{-3} falls through a fluid of density 1000 kg m−31000\ \text{kg m}^{-3} and dynamic viscosity 1.0 Pa s1.0\ \text{Pa s}. Calculate its volume, weight, buoyancy, drag at equilibrium and terminal speed. Assume Stokes’ law applies and use g=9.81 m s−2g = 9.81\ \text{m s}^{-2}.

  1. Convert the radius to SI units, then calculate the sphere’s volume:

    r=1.0 mm=1.0×10−3 mr = 1.0\ \text{mm} = 1.0\times10^{-3}\ \text{m}

    V=43πr3=43π(1.0×10−3)3=4.1888×10−9 m3V = \frac{4}{3}\pi r^3 = \frac{4}{3}\pi(1.0\times10^{-3})^3 = 4.1888\times10^{-9}\ \text{m}^3

  2. Calculate the weight using the sphere’s density:

    Fg=mg=ρsphereVgF_g = mg = \rho_{\text{sphere}}Vg

    Fg=2500×(4.1888×10−9)×9.81=1.0273×10−4 NF_g = 2500\times(4.1888\times10^{-9})\times9.81 = 1.0273\times10^{-4}\ \text{N}

  3. Fully submerged, the sphere displaces its own volume of fluid. The buoyancy is

    Fb=ρfluidVgF_b = \rho_{\text{fluid}}Vg

    Fb=1000×(4.1888×10−9)×9.81=4.1092×10−5 NF_b = 1000\times(4.1888\times10^{-9})\times9.81 = 4.1092\times10^{-5}\ \text{N}

  4. At terminal speed, acceleration is zero. Take downward as positive:

    Fg−Fb−Fd=0F_g-F_b-F_d=0

    Fd=Fg−Fb=1.0273×10−4−4.1092×10−5=6.1638×10−5 NF_d = F_g-F_b = 1.0273\times10^{-4}-4.1092\times10^{-5} = 6.1638\times10^{-5}\ \text{N}

  5. Rearrange Stokes’ law and substitute:

    vt=Fd6πηr=6.1638×10−56π(1.0)(1.0×10−3)=3.27×10−3 m s−1v_t = \frac{F_d}{6\pi\eta r} = \frac{6.1638\times10^{-5}}{6\pi(1.0)(1.0\times10^{-3})} = 3.27\times10^{-3}\ \text{m s}^{-1}

Answer

Answer: To two significant figures, the volume is 4.2×10−9 m34.2\times10^{-9}\ \text{m}^3 and the weight is 1.0×10−4 N1.0\times10^{-4}\ \text{N} downward. Buoyancy is 4.1×10−5 N4.1\times10^{-5}\ \text{N} upward, and terminal drag is 6.2×10−5 N6.2\times10^{-5}\ \text{N} upward. The terminal speed is 3.3×10−3 m s−13.3\times10^{-3}\ \text{m s}^{-1}, directed downward.

Common mistake: Terminal velocity means zero resultant force, not zero drag. For a sphere falling through a liquid, drag balances weight minus buoyancy—not weight alone.

Buoyancy

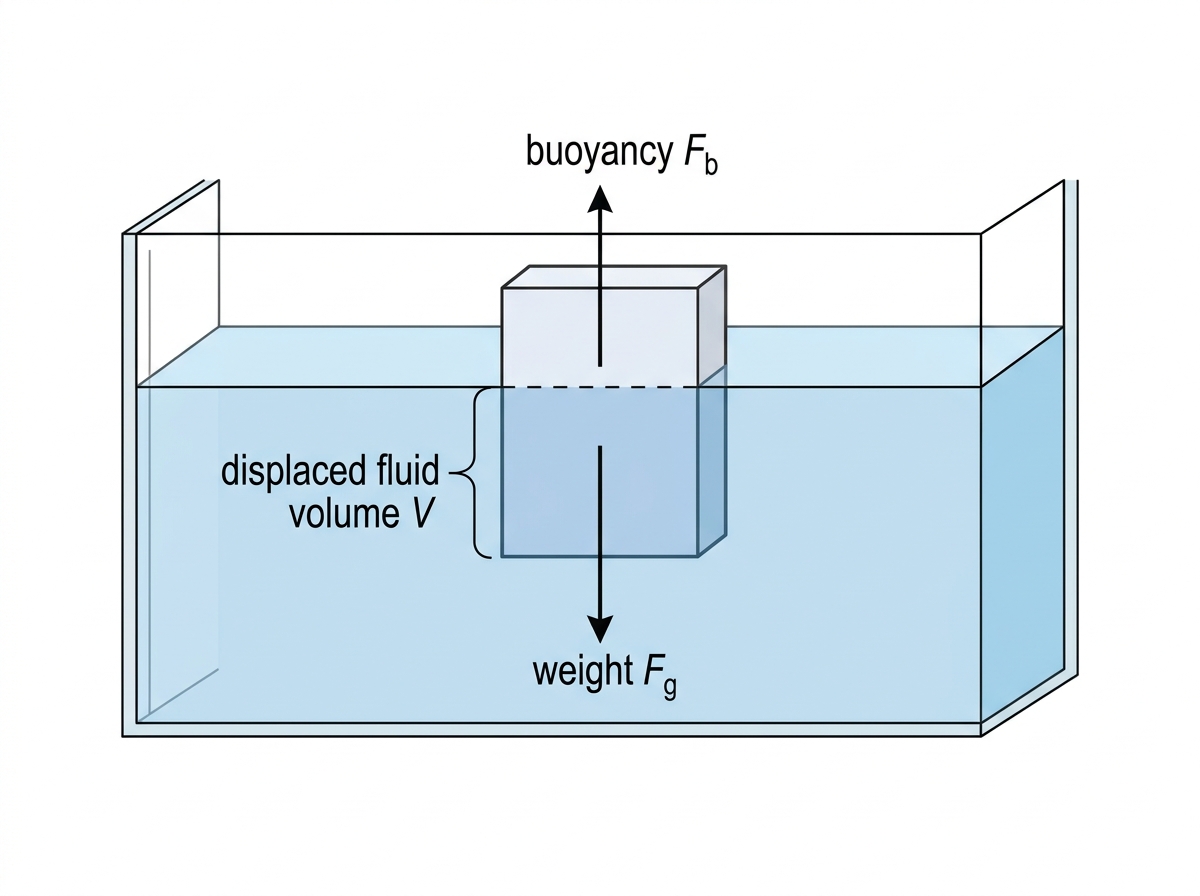

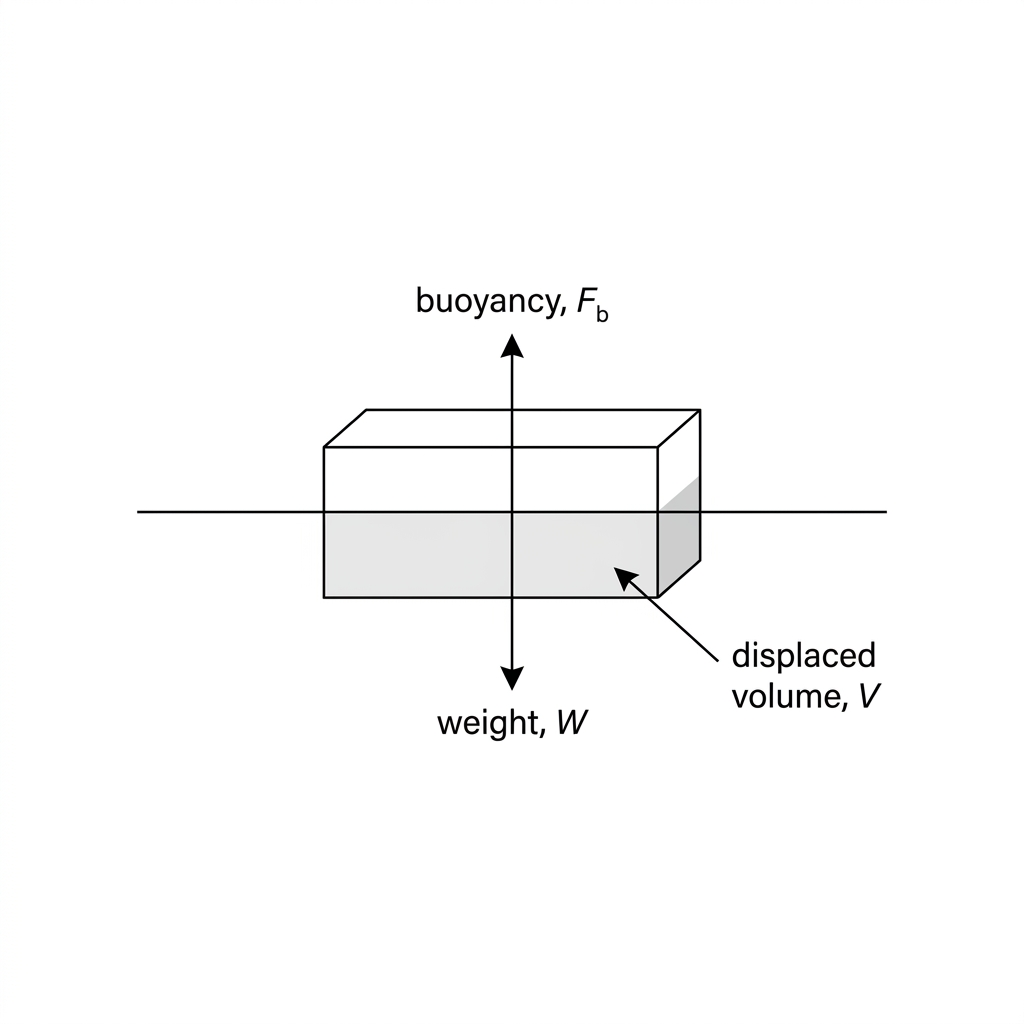

A buoyancy force is an upward force exerted by a fluid on a body because fluid pressure is greater at lower depth than at higher depth. Its magnitude is Fb=ρVgF_b = \rho V g, where FbF_b is the buoyancy force (N), ρ\rho is the density of the fluid (kg m−3^{-3}) and VV is the volume of fluid displaced (m3^3).

Archimedes’ principle states that the buoyancy force on a completely or partly submerged body equals the weight of the displaced fluid. For a floating body in equilibrium, weight equals buoyancy. The fraction of the object below the surface therefore equals the ratio of the object’s density to the fluid’s density.

Ships carry load-line marks because seawater density varies with salinity and temperature. To change their average density, submarines take water into ballast tanks or push it out. Hot-air balloons rise for the same underlying reason: the displaced air weighs more than the balloon system.

A.2.3

LINEAR MOMENTUM, IMPULSE AND NEWTON’S SECOND LAW

Momentum

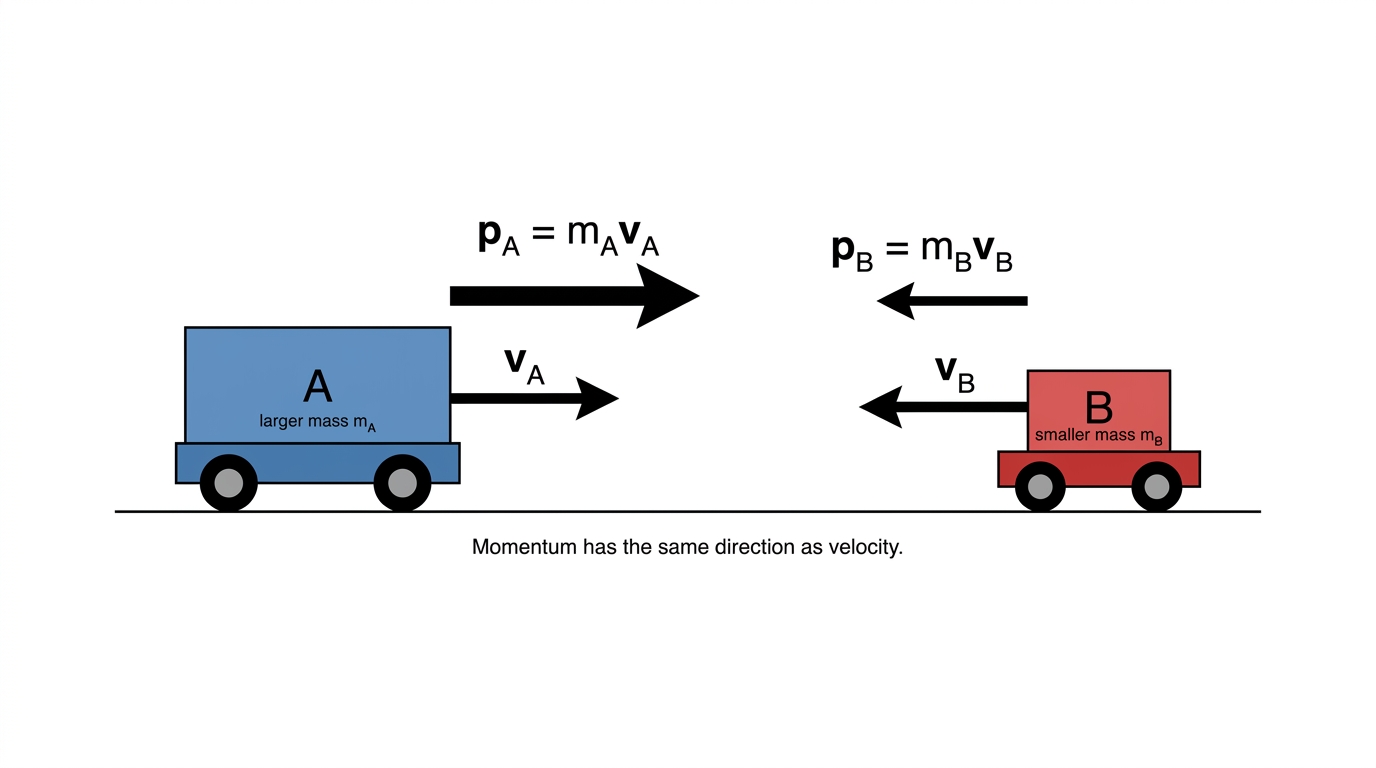

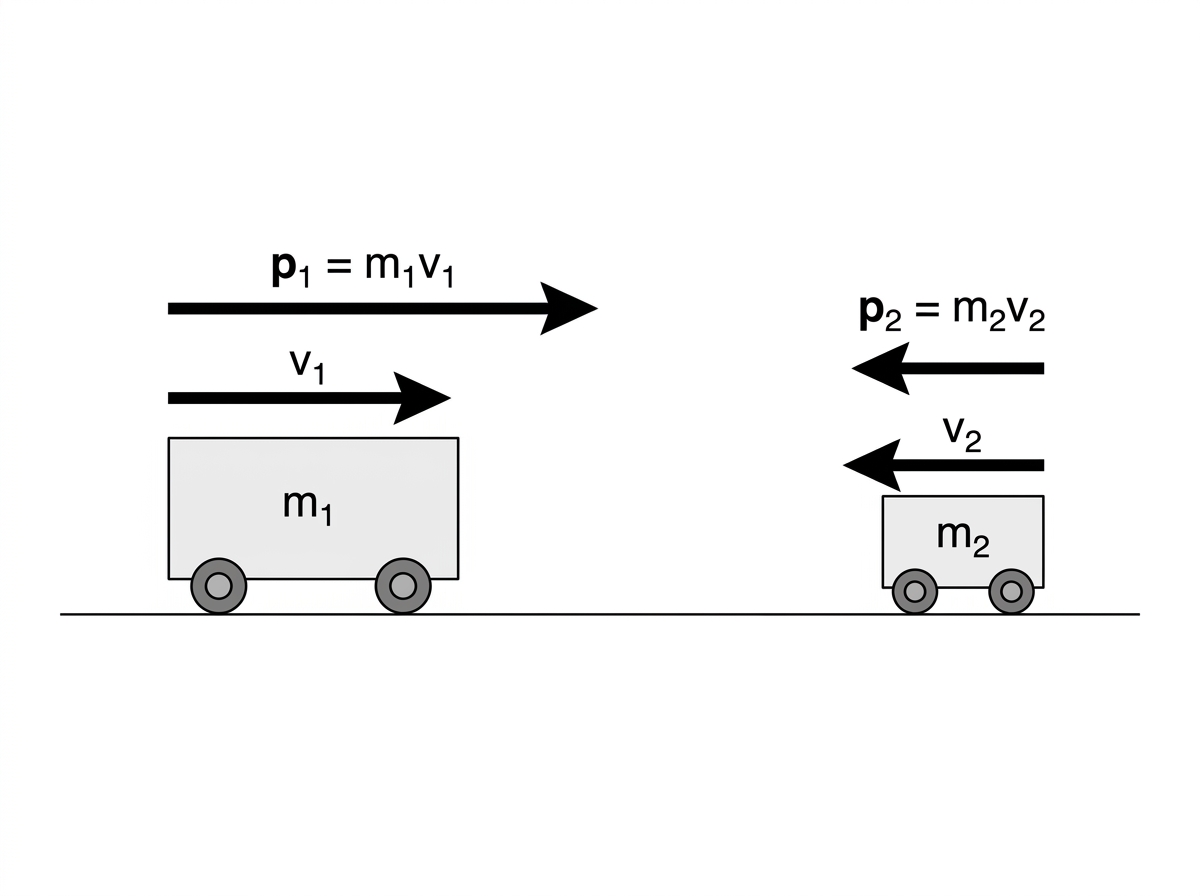

Linear momentum is the product of mass and velocity. It is a vector quantity, given by p=mvp = mv, where pp is linear momentum (kg m s−1kg\,m\,s^{-1}). Its direction is the same as the velocity; mass simply scales the vector.

Unless a resultant external force acts on a system, its total linear momentum stays constant. Internal forces can transfer momentum between parts of the system. They cannot change the system’s total momentum.

Impulse

Impulse is the product of the average resultant force and the time interval for which it acts. This vector quantity is given by J=FΔtJ = F\Delta t, where JJ is impulse (N s\text{N s}) and Δt\Delta t is the time interval or contact time (s\text{s}). Impulse equals the change in momentum, so 1 N s1\,\mathrm{N\,s} is equivalent to 1 kg m s−11\,\mathrm{kg\,m\,s^{-1}}.

The impulse-momentum theorem states that J=ΔpJ = \Delta p, where Δp\Delta p is the change in momentum (kg m s−1kg\,m\,s^{-1}). On a resultant force-time graph, the signed area under the graph gives the change in momentum. Any area below the time axis contributes a negative impulse.

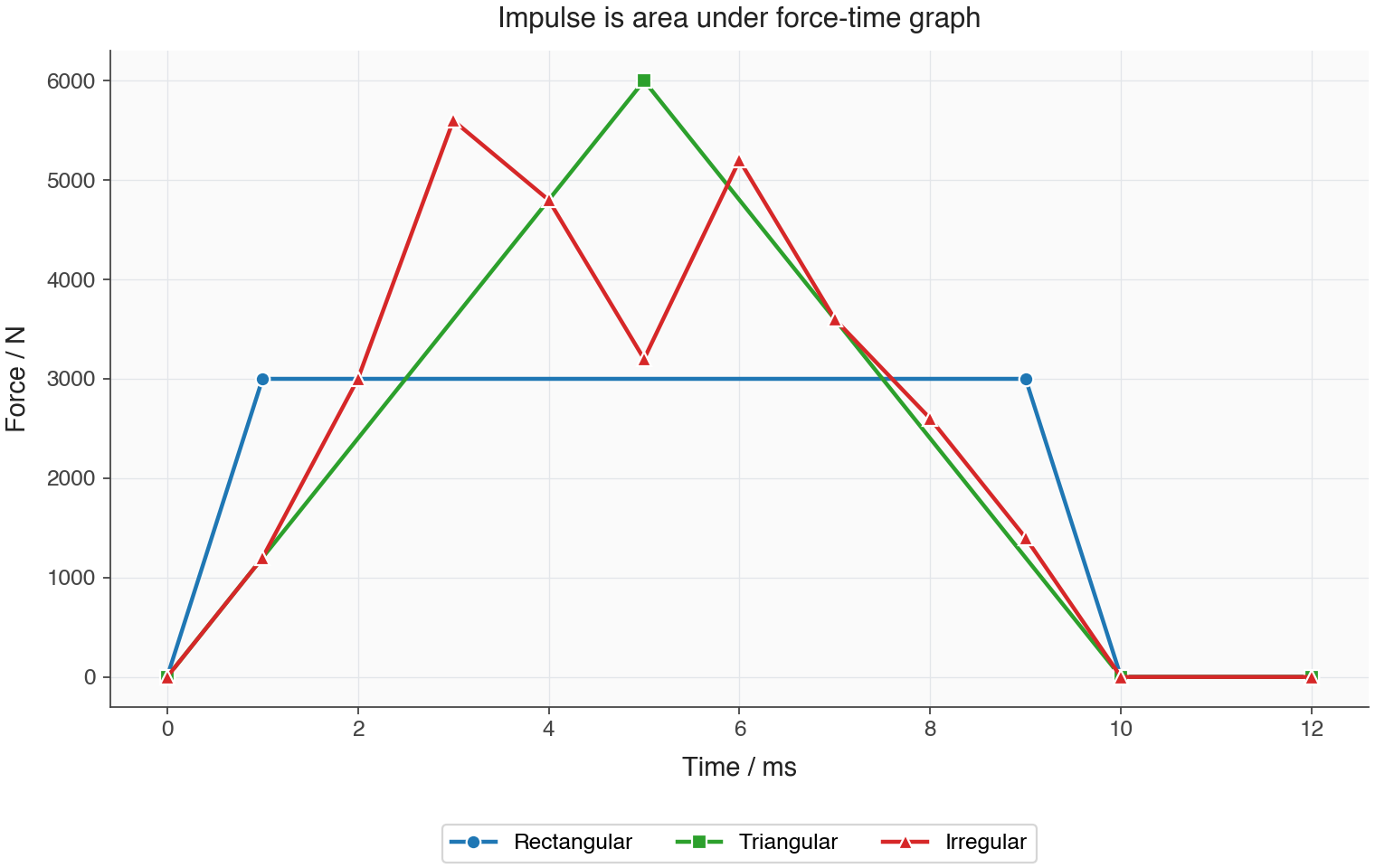

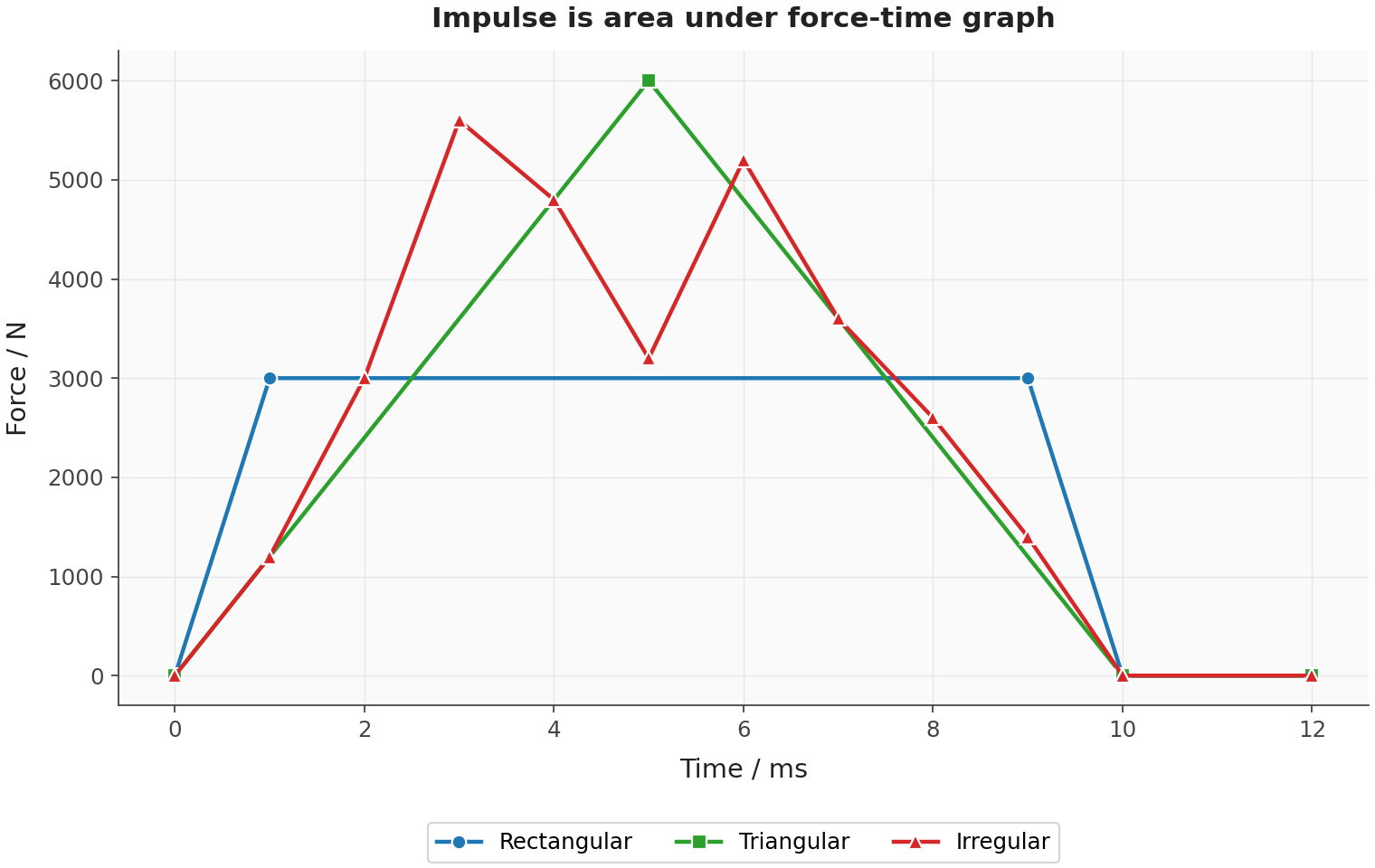

Worked example: Calculate the impulse represented by the triangular force-time pulse above. Its base is 10 ms10\ \text{ms} and its height is 6000 N6000\ \text{N}.

  1. Convert the base to seconds:

    Δt=10 ms=10×10−3 s=0.010 s\Delta t = 10\ \text{ms} = 10 \times 10^{-3}\ \text{s} = 0.010\ \text{s}

  2. Find the area of the triangle:

    J=12×base×height=12×0.010 s×6000 N=30 N sJ = \frac{1}{2} \times \text{base} \times \text{height} = \frac{1}{2} \times 0.010\ \text{s} \times 6000\ \text{N} = 30\ \text{N s}

Answer

Answer: Taking the plotted force direction as positive, the impulse is +30 N s+30\ \text{N s}. The momentum change is therefore +30 kg m s−1+30\ \text{kg m s}^{-1}.

Worked example: A 0.15 kg0.15\ \text{kg} ball changes velocity from +20 m s−1+20\ \text{m s}^{-1} to −10 m s−1-10\ \text{m s}^{-1} over 0.010 s0.010\ \text{s}. Find its initial and final momentum, signed impulse and average resultant force. Take the initial direction of motion as positive.

  1. Find the initial momentum:

    pi=mvi=0.15 kg×(+20 m s−1)=+3.0 kg m s−1p_i = mv_i = 0.15\ \text{kg} \times (+20\ \text{m s}^{-1}) = +3.0\ \text{kg m s}^{-1}

  2. Find the final momentum:

    pf=mvf=0.15 kg×(−10 m s−1)=−1.5 kg m s−1p_f = mv_f = 0.15\ \text{kg} \times (-10\ \text{m s}^{-1}) = -1.5\ \text{kg m s}^{-1}

  3. Subtract the initial momentum from the final momentum:

    J=Δp=pf−pi=−1.5−(+3.0)=−4.5 kg m s−1=−4.5 N sJ = \Delta p = p_f - p_i = -1.5 - (+3.0) = -4.5\ \text{kg m s}^{-1} = -4.5\ \text{N s}

  4. Divide by the contact time to find the average resultant force:

    Favg=ΔpΔt=−4.5 kg m s−10.010 s=−450 NF_{\text{avg}} = \frac{\Delta p}{\Delta t} = \frac{-4.5\ \text{kg m s}^{-1}}{0.010\ \text{s}} = -450\ \text{N}

Answer

Answer: The ball’s initial momentum is +3.0 kg m s−1+3.0\ \text{kg m s}^{-1}; its final momentum is −1.5 kg m s−1-1.5\ \text{kg m s}^{-1}. The impulse is −4.5 N s-4.5\ \text{N s} and the average resultant force is −450 N-450\ \text{N}. Both act opposite to the initial motion.

Common mistake: When an object reverses direction, subtracting speeds rather than signed velocities gives the wrong momentum change. Choose a positive direction first. Then subtract initial momentum from final momentum, keeping both signs.

Seat belts, airbags, crash mats and sports follow-through all use this principle. For a given change in momentum, a longer stopping time reduces the average force. The momentum change is still there, but it happens less abruptly.

To estimate the force of a kick, measure the contact time using foil contacts and a timer. Then use projectile motion from a bench to determine the ball’s launch speed. Divide the ball’s change in momentum by the contact time to find the average force. Practical improvements include:

  • Using video analysis and repeating trials.
  • Using a stiffer timing circuit contact.
  • Measuring the launch height and horizontal range carefully.

Newton’s second law in momentum form

A more general form of Newton’s second law is F=Δp/ΔtF = \Delta p/\Delta t, where FF is the average resultant external force over the interval. For a system containing the same particles, it relates external force to the change in momentum. The familiar F=maF = ma is the special case for constant mass. If matter enters or leaves the system, you must account for the momentum it transfers. You cannot apply the momentum-change formula to a rocket alone without allowing for the exhaust.

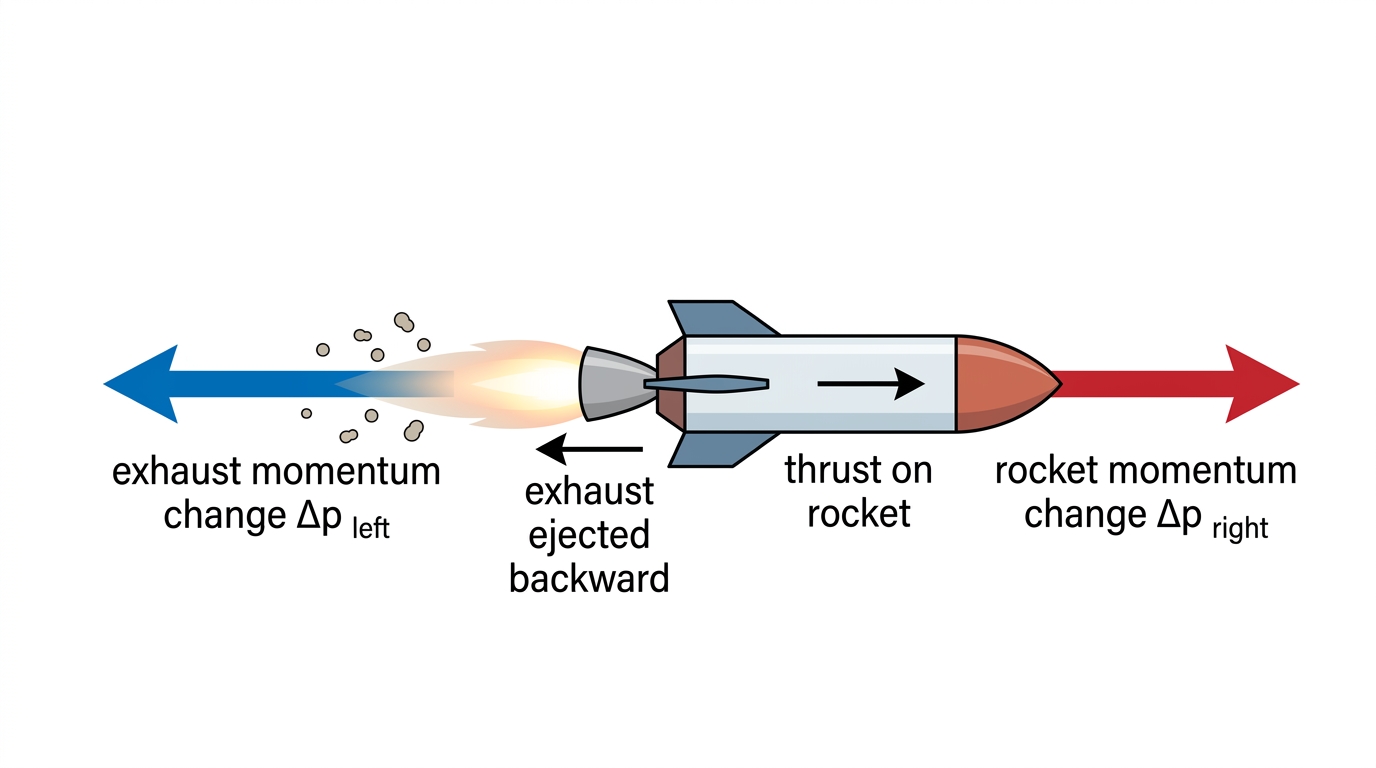

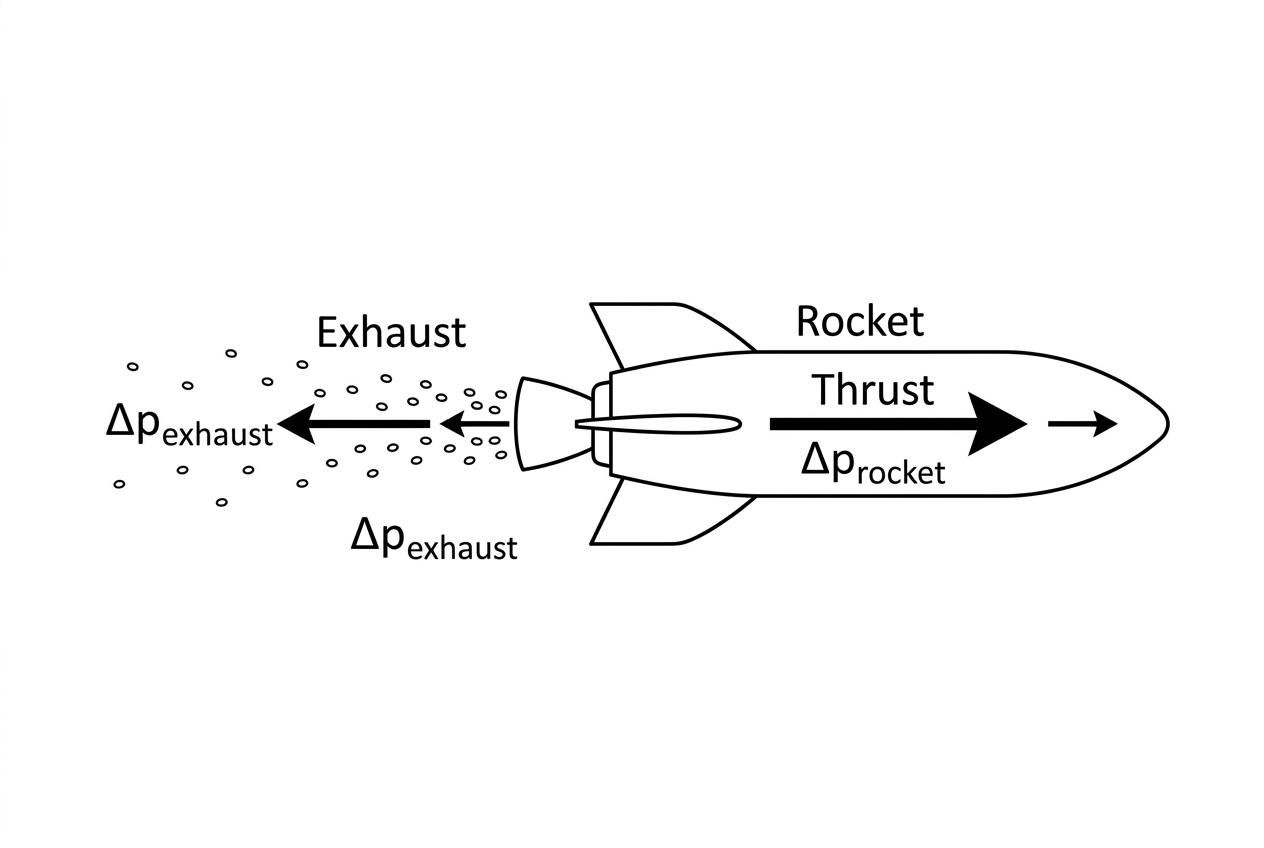

Through their interaction, the exhaust gains momentum in one direction and the rocket gains momentum in the opposite direction. A rocket does not push on the atmosphere, so it can accelerate in space. If exhaust is ejected at a relative speed ueu_e and a mass rate Δm/Δt\Delta m/\Delta t, the thrust magnitude is approximately Fthrust=ue(Δm/Δt)F_{\text{thrust}} = u_e(\Delta m/\Delta t). Here, FthrustF_{\text{thrust}} is the thrust force (N\text{N}), ueu_e is the exhaust speed relative to the rocket (m s−1m\,s^{-1}) and Δm/Δt\Delta m/\Delta t is the mass ejection rate (kg s−1kg\,s^{-1}). Use a positive magnitude for the ejection rate, not the negative rate of change of the rocket’s remaining mass. This approximation leaves out any additional thrust caused by a pressure difference at the exhaust outlet.

Worked example: A rocket ejects exhaust backwards at 2000 m s−12000\ \text{m s}^{-1} relative to the rocket. Its positive mass ejection rate is 3.0 kg s−13.0\ \text{kg s}^{-1}. Calculate the thrust magnitude, neglecting any pressure contribution.

  1. Identify the relative exhaust speed and positive ejection rate:

    ue=2000 m s−1,ΔmΔt=3.0 kg s−1u_e = 2000\ \text{m s}^{-1}, \qquad \frac{\Delta m}{\Delta t} = 3.0\ \text{kg s}^{-1}

  2. Substitute into the thrust relationship:

    Fthrust=ue(Δm/Δt)=2000 m s−1×3.0 kg s−1=6000 NF_{\text{thrust}} = u_e(\Delta m/\Delta t) = 2000\ \text{m s}^{-1} \times 3.0\ \text{kg s}^{-1} = 6000\ \text{N}

Answer

Answer: The thrust is 6000 N6000\ \text{N} forwards, opposite to the direction of the ejected exhaust.

Water leaving a hose produces a force on the nozzle in the same way. As the water speeds up from the hose to the nozzle, its momentum changes each second. The hose experiences an equal and opposite force. Firefighters know the effect without needing the equation.

Measuring momentum conservation

In a school momentum experiment, you will usually use dynamics carts, air tracks or video analysis. Measure the masses and the velocities immediately before and after the collision. To reduce the effect of external forces:

  • Level the track, or incline it slightly to compensate for friction over the measured motion.
  • Use low-friction carts or air pucks.
  • Measure velocities close to the collision, giving small resistive forces little time to act.

Always include uncertainty in the conclusion. Agreement between the initial and final total momentum values within experimental uncertainty supports conservation of momentum. If the values don’t agree, first suspect external forces, calibration, timing, alignment or rotation—not a failure of momentum conservation.

A.2.4

COLLISIONS, EXPLOSIONS AND ENERGY IN ONE DIMENSION

Isolated systems and conservation

An isolated system is a chosen collection of bodies whose resultant external force is zero or negligible during the interaction being studied. Total linear momentum is conserved in such a system.

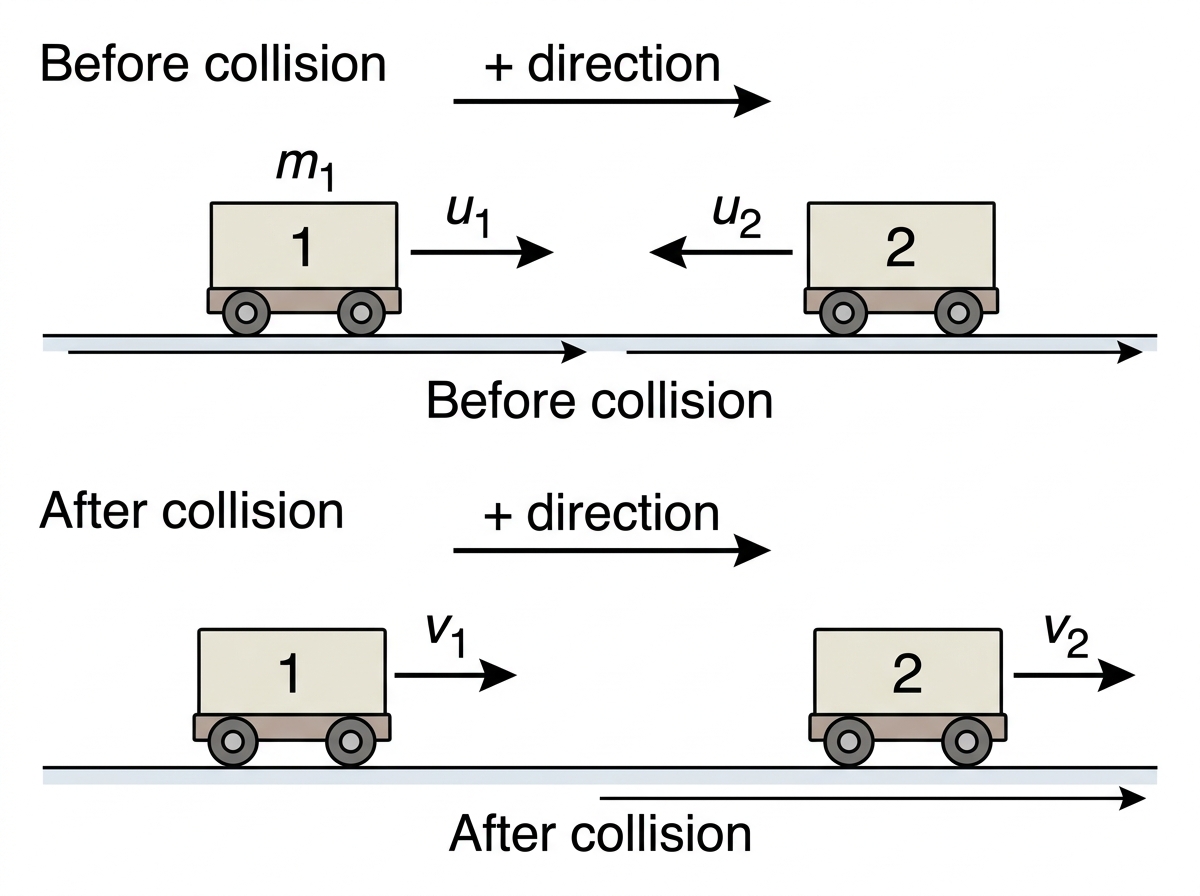

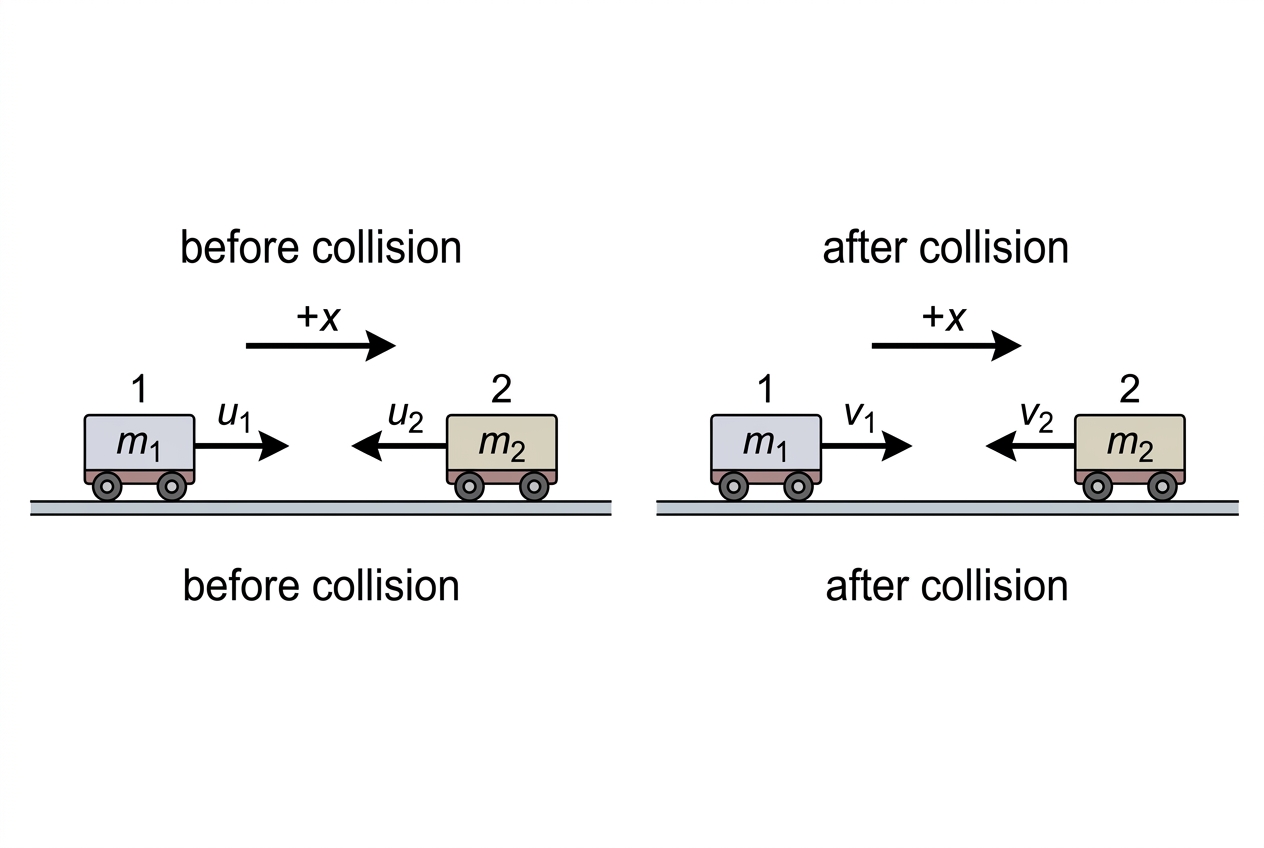

For motion in one dimension, write conservation of momentum as m1u1+m2u2=m1v1+m2v2m_1u_1 + m_2u_2 = m_1v_1 + m_2v_2. Here, m1m_1 is the mass of body 1 (kg), u1u_1 is the initial velocity of body 1 (m s−1^{-1}), m2m_2 is the mass of body 2 (kg), u2u_2 is the initial velocity of body 2 (m s−1^{-1}), v1v_1 is the final velocity of body 1 (m s−1^{-1}) and v2v_2 is the final velocity of body 2 (m s−1^{-1}). Before substituting any numbers, choose a positive direction. The signs carry the physics.

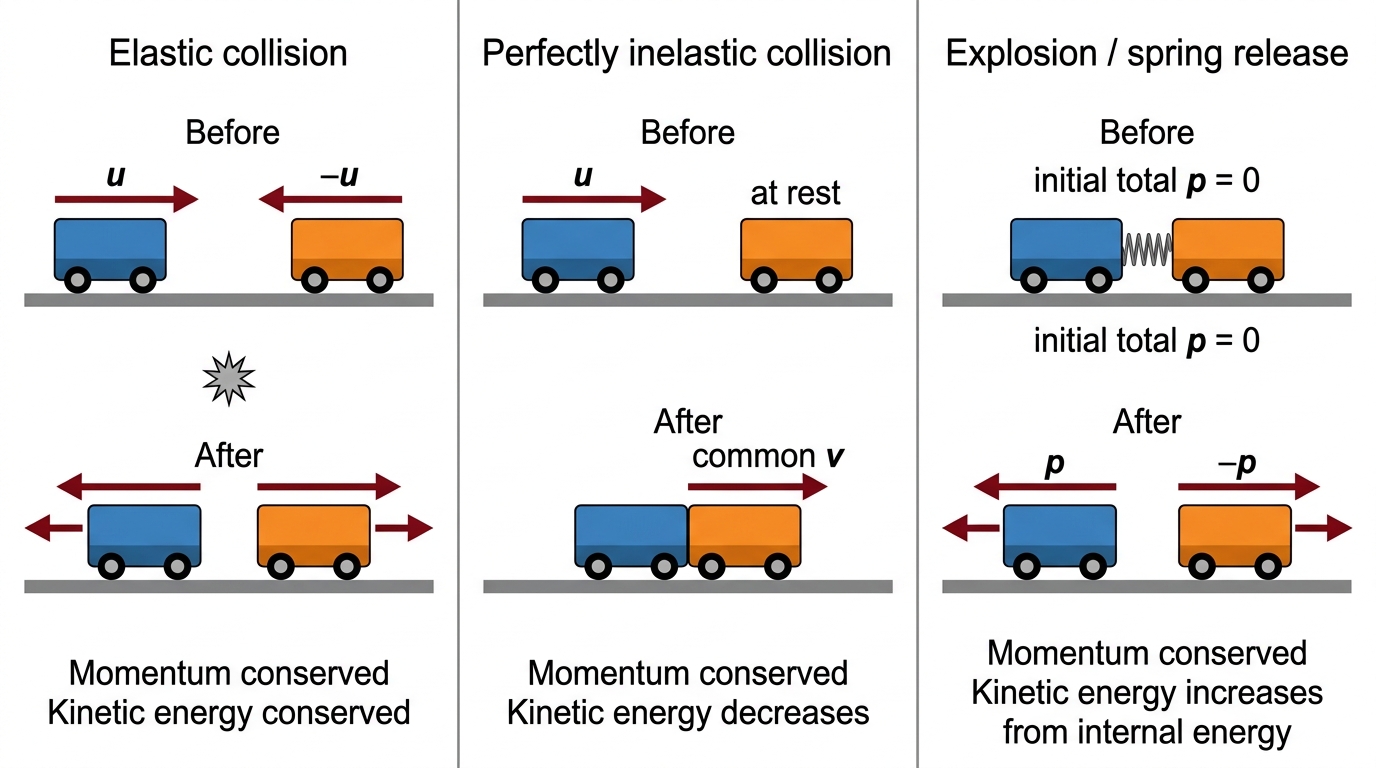

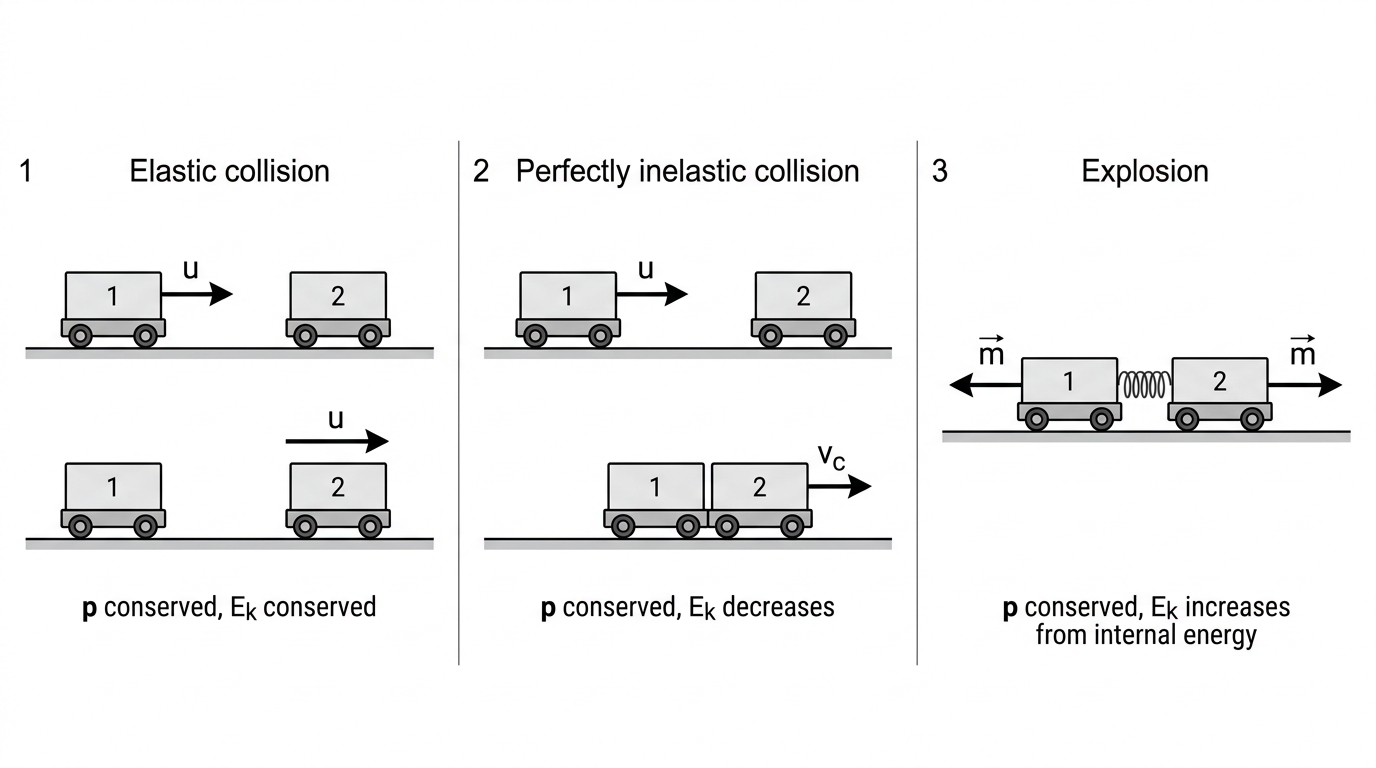

Elastic and inelastic collisions

During a collision, bodies interact for a short time, exerting large forces on each other and exchanging momentum.

  • In a perfectly elastic collision, both total kinetic energy and momentum are conserved.
  • In an inelastic collision, momentum is conserved, but kinetic energy is transferred to other forms such as internal energy, deformation or sound.
  • A perfectly inelastic collision is an inelastic collision in which the bodies stick together, moving with a common final velocity.

To check kinetic energy, use Ek=12mv2E_k = \frac{1}{2}mv^2, where EkE_k is kinetic energy (J). Compare the total before and after: if it stays the same, the collision is elastic; if it decreases, the collision is inelastic. You don't need to solve simultaneous momentum-and-energy equations for collision speeds. You should, however, be able to use energy to classify or compare collisions.

If body 2 is initially stationary and the bodies stick in a perfectly inelastic collision, vc=m1u1m1+m2v_c = \frac{m_1u_1}{m_1 + m_2}, where vcv_c is the common final velocity (m s−1^{-1}). Momentum is conserved. Kinetic energy is not.

Worked example: A 2.0 kg2.0\ \text{kg} cart moving at +3.0 m s−1+3.0\ \text{m s}^{-1} sticks to a stationary 1.0 kg1.0\ \text{kg} cart. Find their common velocity, then check momentum and compare kinetic energies. Assume negligible external impulse and take the initial motion as positive.

  1. Substitute into the momentum conservation equation: vc=2.0×(+3.0)+1.0×02.0+1.0=+2.0 m s−1v_c = \frac{2.0\times(+3.0)+1.0\times0}{2.0+1.0} = +2.0\ \text{m s}^{-1}
  2. Check total momentum: pbefore=2.0×(+3.0)=+6.0 kg m s−1p_{\text{before}} = 2.0\times(+3.0) = +6.0\ \text{kg m s}^{-1} pafter=(2.0+1.0)×(+2.0)=+6.0 kg m s−1p_{\text{after}} = (2.0+1.0)\times(+2.0) = +6.0\ \text{kg m s}^{-1}
  3. Compare total kinetic energies: Ek,before=12×2.0×3.02=9.0 JE_{k,\text{before}} = \frac{1}{2}\times2.0\times3.0^2 = 9.0\ \text{J} Ek,after=12×3.0×2.02=6.0 JE_{k,\text{after}} = \frac{1}{2}\times3.0\times2.0^2 = 6.0\ \text{J}
Answer

Answer: Both carts move at +2.0 m s−1+2.0\ \text{m s}^{-1}. Momentum is conserved, while kinetic energy decreases by 3.0 J3.0\ \text{J}. Because the carts stick, the collision is perfectly inelastic.

Worked example: Repeat the calculation with the second cart initially moving at −1.0 m s−1-1.0\ \text{m s}^{-1}. Keep the same positive direction.

vc=2.0×(+3.0)+1.0×(−1.0)2.0+1.0=+1.7 m s−1v_c = \frac{2.0\times(+3.0)+1.0\times(-1.0)}{2.0+1.0} = +1.7\ \text{m s}^{-1}

Answer

Answer: To two significant figures, the common velocity is +1.7 m s−1+1.7\ \text{m s}^{-1}, in the first cart's initial direction.

Common mistake: Don't use the stationary-target formula when body 2 is moving initially. Put both signed initial velocities into the full momentum equation. Kinetic energy uses speed squared, so it is never negative.

Explosions

An explosion converts internal energy into kinetic energy of separating parts while conserving total momentum. When the system starts from rest, the final momenta of the parts add to zero. If no external impulse acts, two fragments move in opposite directions with momenta of equal magnitude.

Recoil follows the same rule. A gun and shell begin with zero total momentum. Once fired, the shell has forward momentum; the gun has backward momentum of equal magnitude. The shell's much larger speed gives it much more kinetic energy. Equal momentum does not mean equal kinetic energy.

Worked example: Initially stationary 1.0 kg1.0\ \text{kg} and 3.0 kg3.0\ \text{kg} carts separate when a compressed spring is released. The lighter cart reaches +6.0 m s−1+6.0\ \text{m s}^{-1}. Assuming negligible external impulse, find the heavier cart's velocity and both kinetic energies.

  1. Apply momentum conservation: 0=1.0×(+6.0)+3.0v20 = 1.0\times(+6.0)+3.0v_2 v2=−2.0 m s−1v_2 = -2.0\ \text{m s}^{-1}
  2. Calculate kinetic energies: Ek,1=12×1.0×6.02=18 JE_{k,1} = \frac{1}{2}\times1.0\times6.0^2 = 18\ \text{J} Ek,2=12×3.0×2.02=6.0 JE_{k,2} = \frac{1}{2}\times3.0\times2.0^2 = 6.0\ \text{J}
Answer

Answer: The heavier cart moves at −2.0 m s−1-2.0\ \text{m s}^{-1}. Although the momenta have equal magnitudes, the lighter cart has greater speed and kinetic energy: 18 J18\ \text{J} versus 6.0 J6.0\ \text{J}. The 24 J24\ \text{J} increase in total kinetic energy comes from stored spring energy.

In nuclear power stations, momentum conservation helps explain how moderators work. Fast neutrons collide with moderator atoms, transferring momentum and energy. The neutrons slow down, making them more likely to cause further fission. Steam striking turbine blades also transfers momentum, converting the kinetic energy of moving fluid into rotation.

Momentum, energy and uncertainty

Conservation laws work across scales, from carts in the lab and gas molecules to nuclear particles and astronomical systems. That reach makes them powerful. Alongside equilibrium, conservation is one of the two quiet workhorses of mechanics.

Experiments never give perfect equality. Laws develop from repeated measurements that show stable patterns when uncertainties are included. If momentum appears not to be conserved, ask whether the system was really isolated. Could hidden particles or hidden forms of energy be involved? Is the uncertainty budget honest?

A.2.5

MOMENTUM CONSERVATION IN TWO DIMENSIONS

HL

Momentum is conserved in every direction

For a two-dimensional interaction, apply momentum conservation separately along two perpendicular axes. Pick axes that make the calculation easier: usually one along an initial velocity, with the other at right angles to it. The net external impulse on the system must be negligible during the interaction.

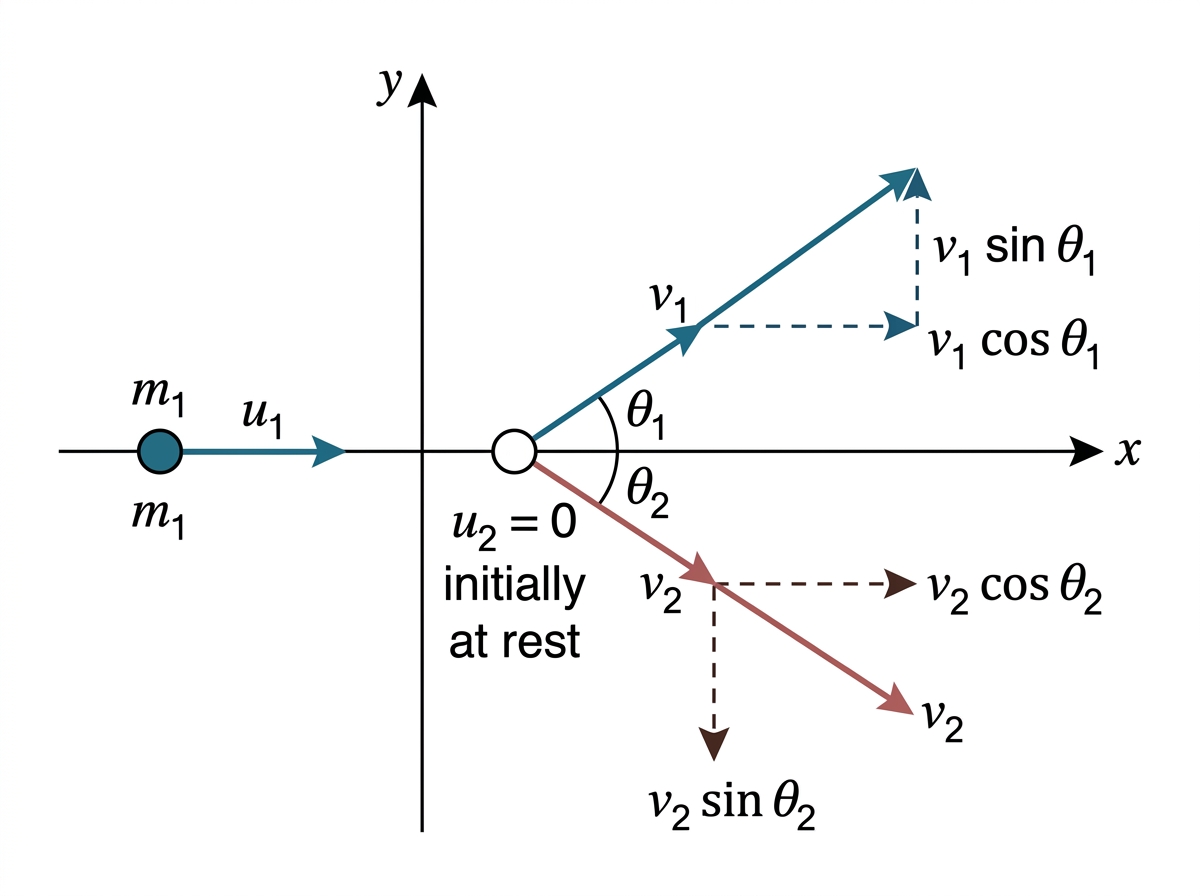

Consider an off-centre collision in which body 2 starts at rest. The component equations are m1u1=m1v1cos⁡θ1+m2v2cos⁡θ2m_1u_1 = m_1v_1\cos\theta_1 + m_2v_2\cos\theta_2 and 0=m1v1sin⁡θ1−m2v2sin⁡θ20 = m_1v_1\sin\theta_1 - m_2v_2\sin\theta_2, where θ1\theta_1 is the angle between body 1’s final velocity and the original direction (rad or degrees as stated), and θ2\theta_2 is the corresponding angle for body 2. Both angles here are positive magnitudes. Body 1 moves above the original direction; body 2 moves below it, so its vertical component is negative.

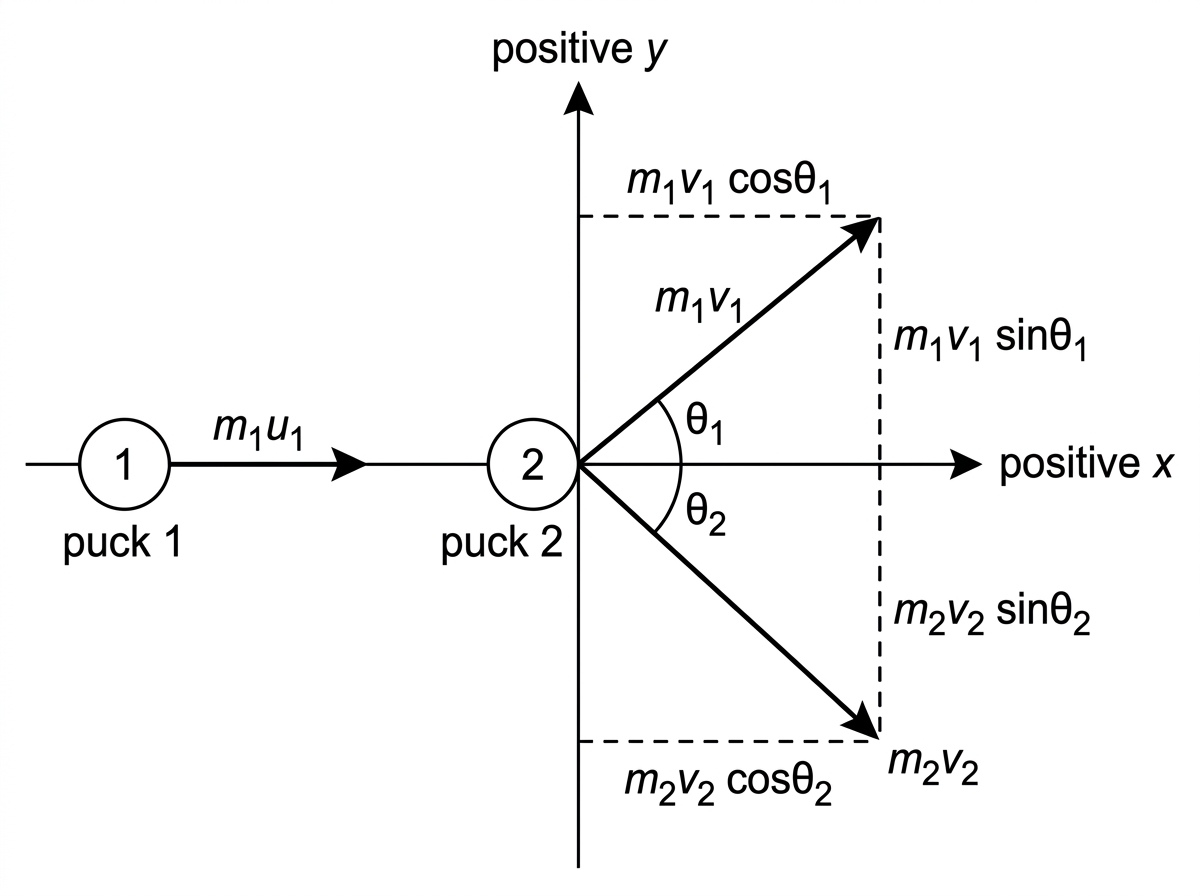

Worked example: Two pucks each have mass 0.20 kg0.20\ \text{kg}. Puck 1 starts at 5.0 m s−15.0\ \text{m s}^{-1} along the positive horizontal axis, while puck 2 is stationary. After the collision, their directions are +30∘+30^\circ and −60∘-60^\circ, respectively. Assume negligible external impulse. Find their final speeds and compare the total kinetic energies before and after the collision.

  1. Start with vertical momentum. It is initially zero, and puck 2 has a negative vertical component:

    0=(0.20 kg)v1sin⁡30∘−(0.20 kg)v2sin⁡60∘0 = (0.20\ \text{kg})v_1\sin 30^\circ - (0.20\ \text{kg})v_2\sin 60^\circ

    v2=sin⁡30∘sin⁡60∘v1=v13v_2 = \frac{\sin 30^\circ}{\sin 60^\circ}v_1 = \frac{v_1}{\sqrt{3}}

  2. Now resolve horizontally and substitute this relationship:

    (0.20 kg)(5.0 m s−1)=(0.20 kg)v1cos⁡30∘+(0.20 kg)v2cos⁡60∘(0.20\ \text{kg})(5.0\ \text{m s}^{-1}) = (0.20\ \text{kg})v_1\cos 30^\circ + (0.20\ \text{kg})v_2\cos 60^\circ

    1.0 kg m s−1=(0.20 kg)v1(cos⁡30∘+cos⁡60∘3)1.0\ \text{kg m s}^{-1} = (0.20\ \text{kg})v_1\left(\cos 30^\circ + \frac{\cos 60^\circ}{\sqrt{3}}\right)

    v1=4.33 m s−1v_1 = 4.33\ \text{m s}^{-1}

    v2=4.33 m s−13=2.50 m s−1v_2 = \frac{4.33\ \text{m s}^{-1}}{\sqrt{3}} = 2.50\ \text{m s}^{-1}

  3. Compare the total kinetic energies. Keep the extra digits in the speeds so the check is clear:

    Ek,initial=12(0.20 kg)(5.0 m s−1)2=2.50 JE_{\text{k,initial}} = \frac{1}{2}(0.20\ \text{kg})(5.0\ \text{m s}^{-1})^2 = 2.50\ \text{J}

    Ek,final=12(0.20 kg)[(4.33 m s−1)2+(2.50 m s−1)2]≈2.50 JE_{\text{k,final}} = \frac{1}{2}(0.20\ \text{kg})\left[(4.33\ \text{m s}^{-1})^2 + (2.50\ \text{m s}^{-1})^2\right] \approx 2.50\ \text{J}

Answer

Answer: The final speeds are 4.33 m s−14.33\ \text{m s}^{-1} and 2.50 m s−12.50\ \text{m s}^{-1}. Within rounding, the total kinetic energy is 2.50 J2.50\ \text{J} both before and after the collision. These results are consistent with an elastic collision.

Common mistake: Don't conserve the sum of momentum magnitudes instead of resolving the vectors. The signed horizontal components are conserved independently of the signed vertical components; the sum of the magnitudes need not be conserved. For puck 2, use either the signed angle −60∘-60^\circ or an explicit minus sign with sin⁡60∘\sin 60^\circ. Don't use both.

Kinetic energy is also conserved in an elastic collision. The IB syllabus does not, however, require you to solve simultaneous conservation-of-momentum and conservation-of-energy equations as a routine method. Use an energy comparison to decide whether kinetic energy was conserved, or to check a result when the quantities are already accessible.

When two identical masses collide elastically and one starts at rest, their final velocity directions are at right angles, unless there is no real collision or the collision is exactly head-on. You can see this result on an air table. Real data will show small deviations because of rotation, friction, imperfect elasticity and measurement uncertainty.

Explosions in two dimensions

In an explosion, an object separates into fragments as internal energy is transferred into kinetic energy. Provided the net external impulse during the explosion is negligible, the fragments' total momentum equals the object's initial momentum. Kinetic energy increases. Do not apply conservation of kinetic energy.

For an object of mass MM with initial velocity components uxu_x and uyu_y, conserve momentum separately along each axis:

Mux=∑imivixMu_x = \sum_i m_i v_{ix}

Muy=∑imiviyMu_y = \sum_i m_i v_{iy}

Here, mim_i is the mass of fragment ii; vixv_{ix} and viyv_{iy} are its signed velocity components. If a fragment moves at a signed angle θi\theta_i from the positive horizontal axis, vix=vicos⁡θiv_{ix} = v_i\cos\theta_i and viy=visin⁡θiv_{iy} = v_i\sin\theta_i.

An object initially at rest has zero initial momentum in both directions. If it splits into two fragments, they must have equal and opposite momenta, so they travel along the same line in opposite directions. Three or more fragments need not travel along one line, but their momentum vectors must still add to zero.

Once you've found the unknown fragment's velocity components, calculate its speed using v=vx2+vy2v = \sqrt{v_x^2 + v_y^2}. Use the component ratio to find its direction, checking the signs of both components to choose the correct quadrant.

Worked example: An object initially at rest explodes into three fragments. A 1.0 kg1.0\ \text{kg} fragment moves east at 6.0 m s−16.0\ \text{m s}^{-1}, while a 2.0 kg2.0\ \text{kg} fragment moves north at 4.0 m s−14.0\ \text{m s}^{-1}. The third fragment has mass 2.0 kg2.0\ \text{kg}. Assume negligible external impulse and find the third fragment's velocity.

  1. Take east as positive xx and north as positive yy. Conserve horizontal momentum:

    0=(1.0 kg)(6.0 m s−1)+(2.0 kg)v3x0 = (1.0\ \text{kg})(6.0\ \text{m s}^{-1}) + (2.0\ \text{kg})v_{3x}

    v3x=−6.0 kg m s−12.0 kg=−3.0 m s−1v_{3x} = -\frac{6.0\ \text{kg m s}^{-1}}{2.0\ \text{kg}} = -3.0\ \text{m s}^{-1}

  2. For vertical momentum:

    0=(2.0 kg)(4.0 m s−1)+(2.0 kg)v3y0 = (2.0\ \text{kg})(4.0\ \text{m s}^{-1}) + (2.0\ \text{kg})v_{3y}

    v3y=−8.0 kg m s−12.0 kg=−4.0 m s−1v_{3y} = -\frac{8.0\ \text{kg m s}^{-1}}{2.0\ \text{kg}} = -4.0\ \text{m s}^{-1}

  3. Combine the perpendicular components to calculate the speed:

    v3=(−3.0 m s−1)2+(−4.0 m s−1)2=5.0 m s−1v_3 = \sqrt{(-3.0\ \text{m s}^{-1})^2 + (-4.0\ \text{m s}^{-1})^2} = 5.0\ \text{m s}^{-1}

  4. Both components are negative: the fragment moves southwest. Find the angle ϕ\phi south of west:

    ϕ=tan⁡−1(4.0 m s−13.0 m s−1)≈53∘\phi = \tan^{-1}\left(\frac{4.0\ \text{m s}^{-1}}{3.0\ \text{m s}^{-1}}\right) \approx 53^\circ

Answer

Answer: The third fragment moves at 5.0 m s−15.0\ \text{m s}^{-1}, 53∘53^\circ south of west. Its velocity components are −3.0 m s−1-3.0\ \text{m s}^{-1} eastwards and −4.0 m s−1-4.0\ \text{m s}^{-1} northwards.

Ideal-gas link

The kinetic model of an ideal gas makes these assumptions:

  • Collisions between molecules, and between molecules and container walls, are elastic.
  • Intermolecular forces are negligible except during collisions.
  • Collision times are tiny compared with the time between collisions.

These assumptions allow the microscopic momentum changes of many particles to produce macroscopic pressure laws.

A.2.6

ANGULAR VELOCITY AND CIRCULAR-MOTION KINEMATICS

Describing circular motion

Uniform circular motion is motion around a circular path at constant speed. Its velocity isn't constant: the direction changes continuously. Nearly all circular-motion questions come back to this distinction.

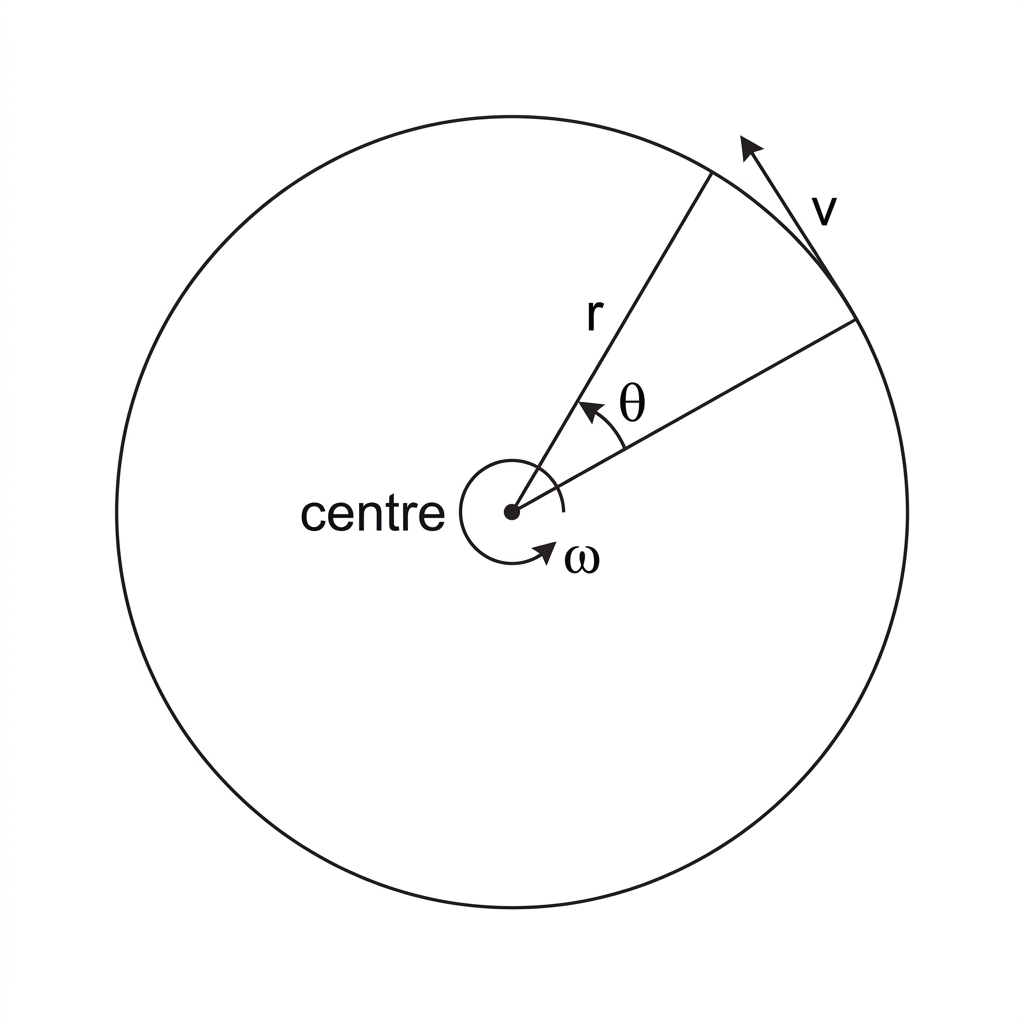

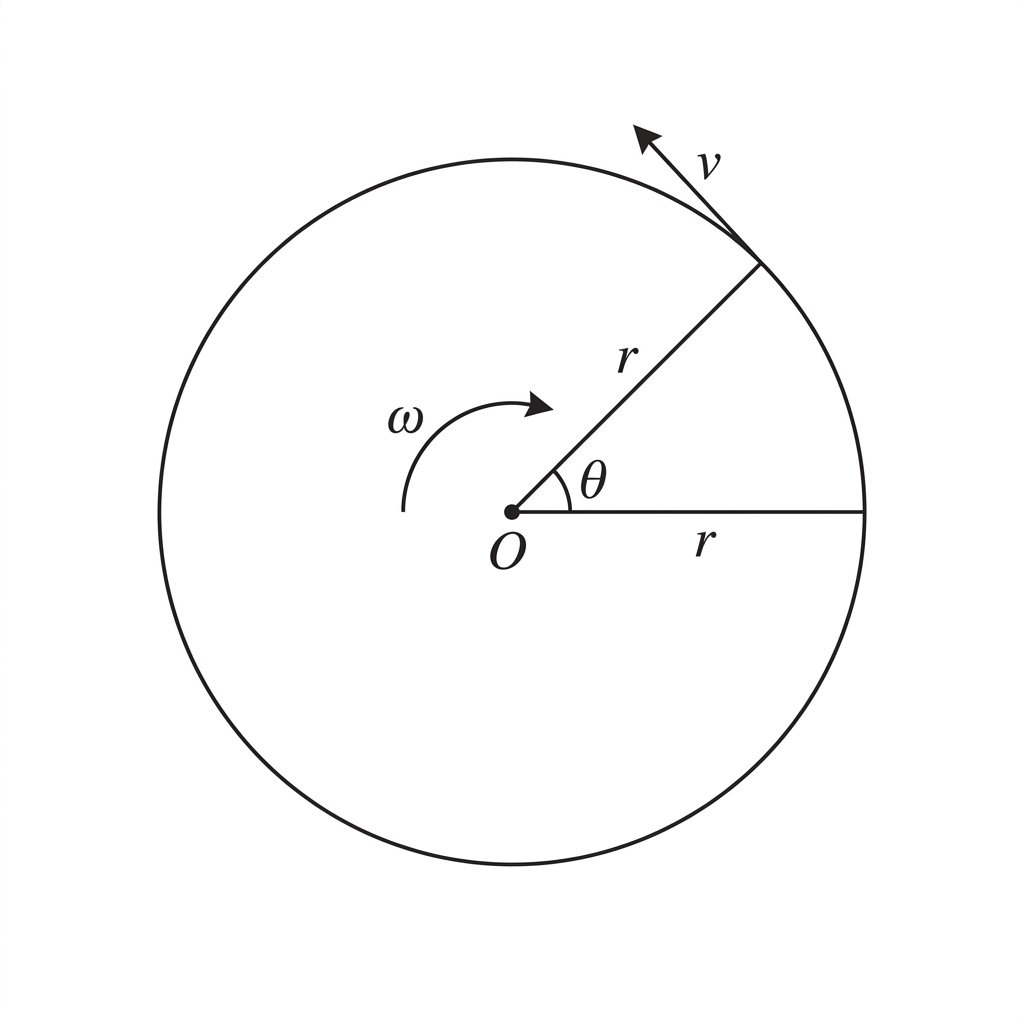

Angular displacement is the angle through which a body moves about the centre of a circular path, usually measured in radians. One complete revolution is 2π rad2\pi\ \text{rad}.

In this course, Angular velocity means the rate of change of angular displacement. Use its magnitude unless direction is explicitly discussed. The equation is ω=Δθ/Δt\omega = \Delta\theta/\Delta t, where ω\omega is angular velocity (rad s−1)(\text{rad s}^{-1}) and Δθ\Delta\theta is angular displacement (rad)(\text{rad}). When treated fully, the angular-velocity vector lies along the axis of rotation; IB calculations here use its magnitude.

The time taken for one complete revolution is the period. For circular motion, v=2πr/T=ωrv = 2\pi r/T = \omega r, where rr is the radius of the circular path (m)(\text{m}) and TT is the period (s)(\text{s}).

Each angular quantity has a corresponding linear quantity:

Angular quantityCorresponding linear quantity
Angular displacementDisplacement along the arc
Angular velocityTangential velocity

Multiply an angular quantity by the radius to get the corresponding linear quantity along the arc.

Worked example: A point is 0.40 m0.40\ \text{m} from the centre of a turntable rotating uniformly at 3030 revolutions per minute. Find the period, angular velocity, tangential speed and angular displacement over 0.50 s0.50\ \text{s}.

  1. Start with the time for one revolution. The turntable completes 3030 revolutions in 60 s60\ \text{s}:

    T=60 s30=2.0 sT = \frac{60\ \text{s}}{30} = 2.0\ \text{s}

  2. For angular velocity, divide the angle of one revolution by the period:

    ω=2π rad2.0 s=π rad s−1\omega = \frac{2\pi\ \text{rad}}{2.0\ \text{s}} = \pi\ \text{rad s}^{-1}

  3. Tangential speed comes from multiplying angular velocity by radius:

    v=ωr=(π rad s−1)(0.40 m)≈1.26 m s−1v = \omega r = (\pi\ \text{rad s}^{-1})(0.40\ \text{m}) \approx 1.26\ \text{m s}^{-1}

  4. Rearrange the angular-velocity equation for angular displacement:

    Δθ=ωΔt=(π rad s−1)(0.50 s)=π2 rad≈1.57 rad\Delta\theta = \omega\Delta t = (\pi\ \text{rad s}^{-1})(0.50\ \text{s}) = \frac{\pi}{2}\ \text{rad} \approx 1.57\ \text{rad}

Answer

Answer: The period is 2.0 s2.0\ \text{s} and the angular velocity is π rad s−1\pi\ \text{rad s}^{-1}. The tangential speed is approximately 1.26 m s−11.26\ \text{m s}^{-1}. Over 0.50 s0.50\ \text{s}, the point moves through π/2 rad\pi/2\ \text{rad}, approximately 1.57 rad1.57\ \text{rad}, or one quarter of a revolution. The decimal results are shown to three significant figures.

Common mistake: Don't substitute degrees per second or revolutions per minute directly into v=ωrv = \omega r: this gives the wrong speed. First convert angular velocity to rad s−1\text{rad s}^{-1}. With the radius in metres, the speed is then in m s−1\text{m s}^{-1}.

Rotational and linear equations

Geometry connects the equations. A circle has circumference 2πr2\pi r, so completing one revolution in time TT gives a speed of 2πr/T2\pi r/T. One revolution also corresponds to an angular displacement of 2π2\pi, giving ω=2π/T\omega = 2\pi/T. Combine these expressions to get v=ωrv = \omega r.

For the common question asking how rotational and linear equations link, explain that they describe the same motion in parallel ways. The radius converts between angular and linear quantities.

A.2.7

CENTRIPETAL ACCELERATION AND CENTRIPETAL FORCE

Centripetal acceleration

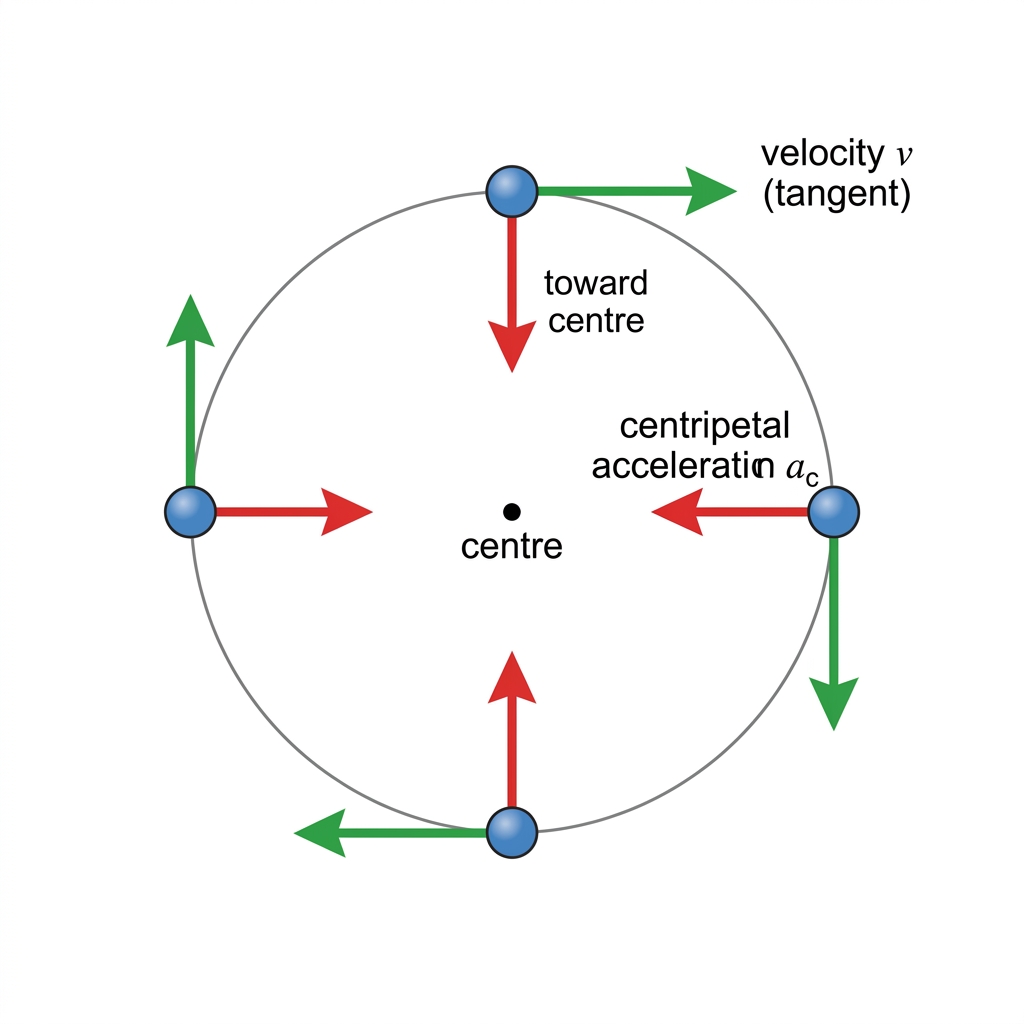

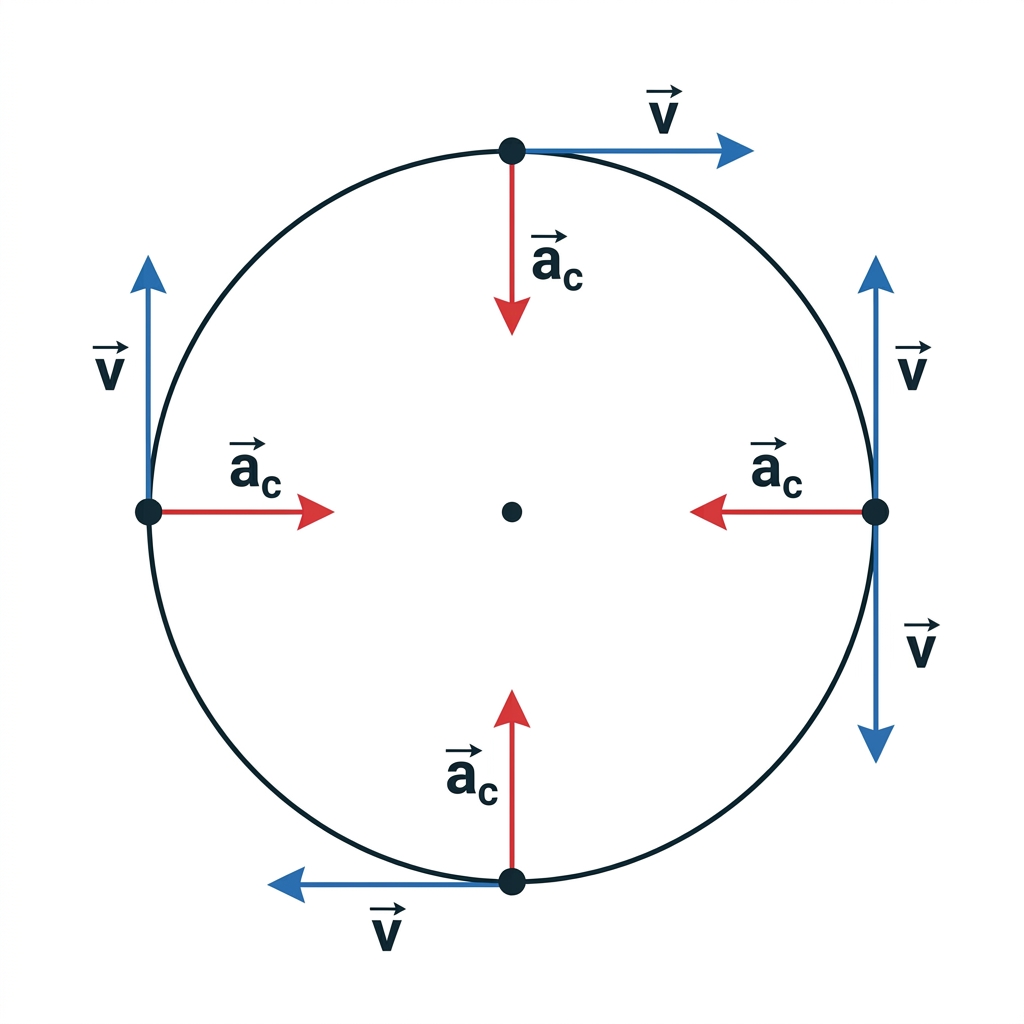

Even at constant speed, a body moving around a circle accelerates radially toward the centre. This centripetal acceleration comes from the changing direction of its velocity.

The magnitude is ac=v2r=ω2r=4π2rT2a_c = \frac{v^2}{r} = \omega^2 r = \frac{4\pi^2 r}{T^2}, where aca_c is centripetal acceleration (m s−2\mathrm{m\,s^{-2}}). At every instant, the acceleration is perpendicular to the velocity. It changes the direction of motion, but not necessarily the speed.

Centripetal force

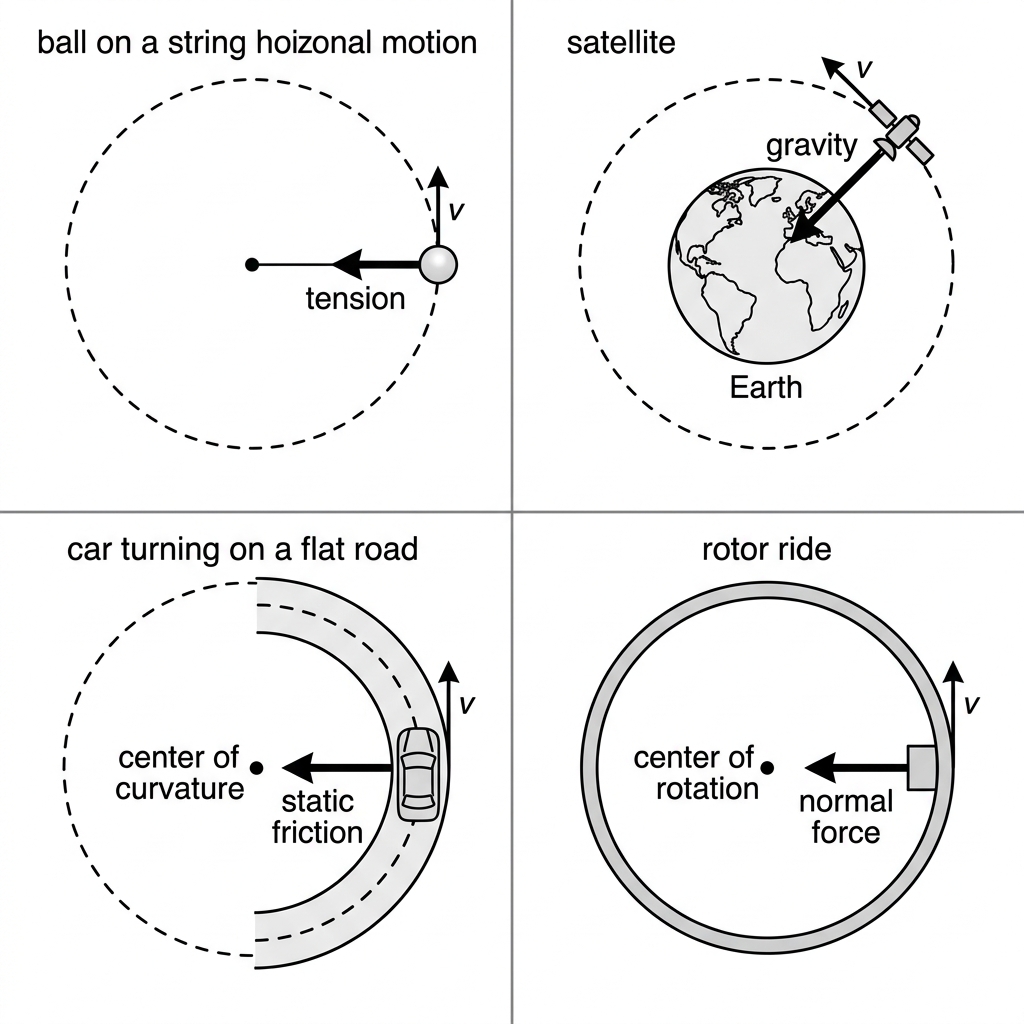

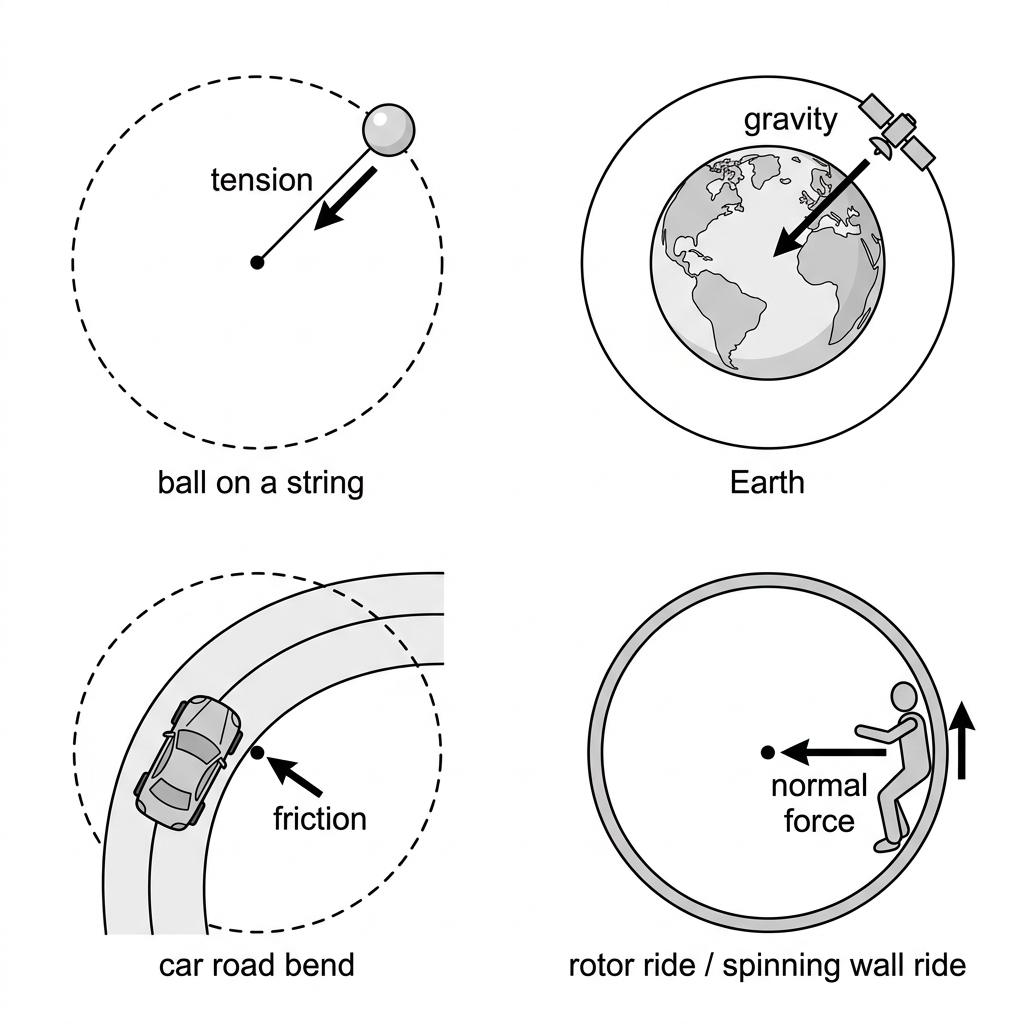

The resultant inward force needed to produce centripetal acceleration is called a centripetal force. It isn't a new type of force. Rather, a real force or combination of forces plays this role. Tension does so for a ball on a string; gravity does so for a satellite. For a car on a flat bend it is friction, for a rotor ride it is the normal force, and for a turning aircraft it is lift.

Its magnitude is Fc=mac=mv2r=mω2rF_c = ma_c = \frac{mv^2}{r} = m\omega^2 r, where FcF_c is centripetal force (N). Because the force is perpendicular to the velocity, it does no work in ideal uniform circular motion. The displacement at each instant is tangential, whereas the centripetal force is radial: no component of that force acts along the motion.

Take care with the word centrifugal. In an inertial frame, no outward force flings the object away. The object tends to continue in a straight line, while an inward force keeps changing its direction. A rotating frame allows an apparent outward force to be introduced as a useful model, but this is not an interaction force like tension or friction.

Common mistake: Don't add “centripetal force” as an extra arrow on a force diagram. Draw only the real forces. Choose inward as positive, then set their radial resultant equal to mv2/rmv^2/r.

Horizontal circular motion

Static friction supplies the centripetal force when a car turns on a horizontal road. To avoid skidding, mv2r≤μsmg\frac{mv^2}{r} \le \mu_s mg, giving vmax⁡=μsgrv_{\max} = \sqrt{\mu_s g r}, where vmax⁡v_{\max} is the maximum speed before skidding (m s−1\mathrm{m\,s^{-1}}). Notice that the mass cancels. In this simple model, the safe speed therefore depends on the road, bend radius and tyres, rather than the car’s mass.

Worked example: A 1000 kg1000\ \text{kg} car takes a flat bend of radius 50 m50\ \text{m}. The coefficient of static friction is μs=0.40\mu_s = 0.40. Find the maximum speed without skidding, then calculate the centripetal acceleration and frictional force at that speed. Use g=9.8 m s−2g = 9.8\ \text{m s}^{-2}.

  1. There is no vertical acceleration, so the normal force balances the car’s weight:

    N−mg=0,N=1000×9.8=9800 NN - mg = 0, \qquad N = 1000 \times 9.8 = 9800\ \text{N}

  2. Take inward as positive. The only horizontal force is friction, so at the limiting speed:

    +Ff,max=mvmax⁡2r,Ff,max=μsN+F_{\mathrm{f,max}} = \frac{mv_{\max}^2}{r}, \qquad F_{\mathrm{f,max}} = \mu_s N

    Ff,max=0.40×9800=3920 NF_{\mathrm{f,max}} = 0.40 \times 9800 = 3920\ \text{N}

  3. Use the radial equation to calculate the maximum speed:

    vmax⁡=Ff,maxrm=3920×501000=14 m s−1v_{\max} = \sqrt{\frac{F_{\mathrm{f,max}}r}{m}} = \sqrt{\frac{3920 \times 50}{1000}} = 14\ \text{m s}^{-1}

  4. Now find the inward acceleration:

    ac=vmax⁡2r=14250=3.92 m s−2a_c = \frac{v_{\max}^2}{r} = \frac{14^2}{50} = 3.92\ \text{m s}^{-2}

Answer

Answer: The maximum speed is 14 m s−114\ \text{m s}^{-1}. At this speed, the acceleration is 3.9 m s−23.9\ \text{m s}^{-2} inward and the static friction is 3.9×103 N3.9 \times 10^3\ \text{N} inward, to two significant figures.

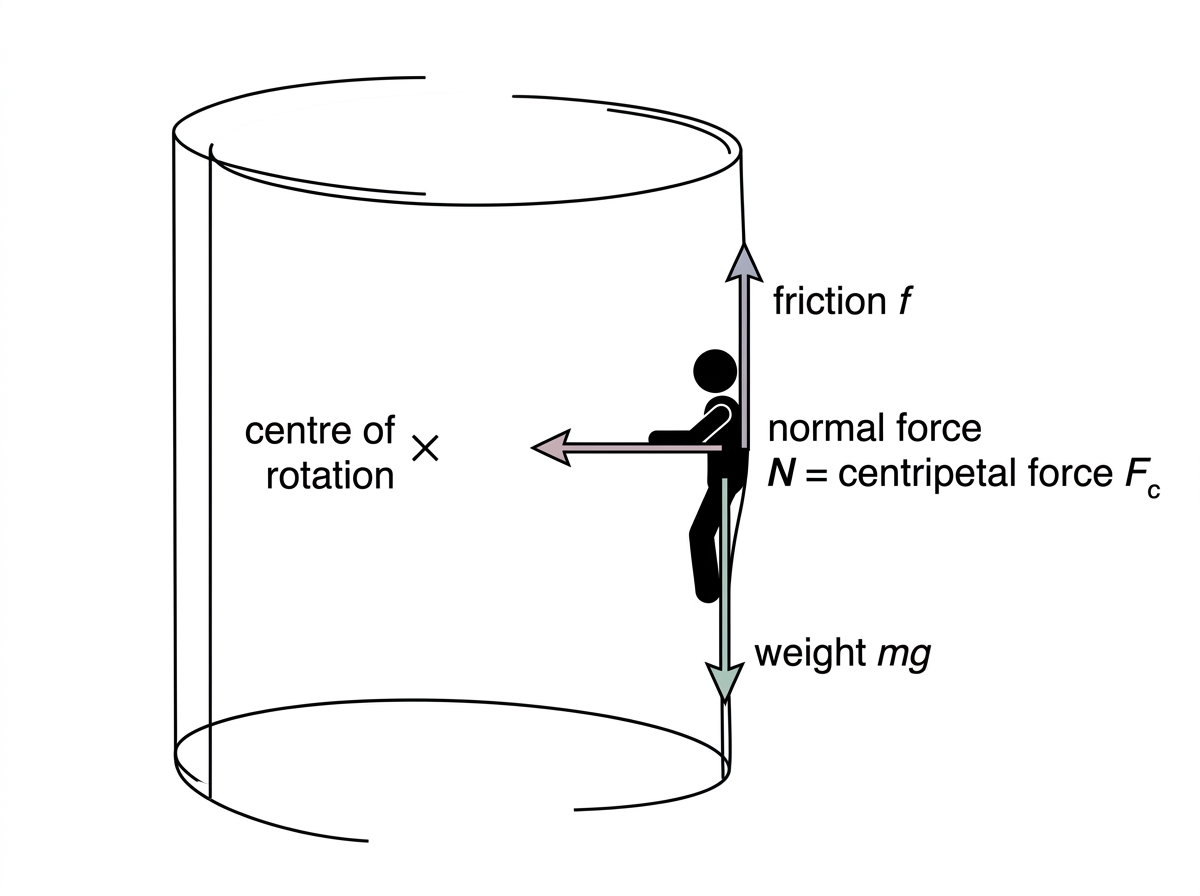

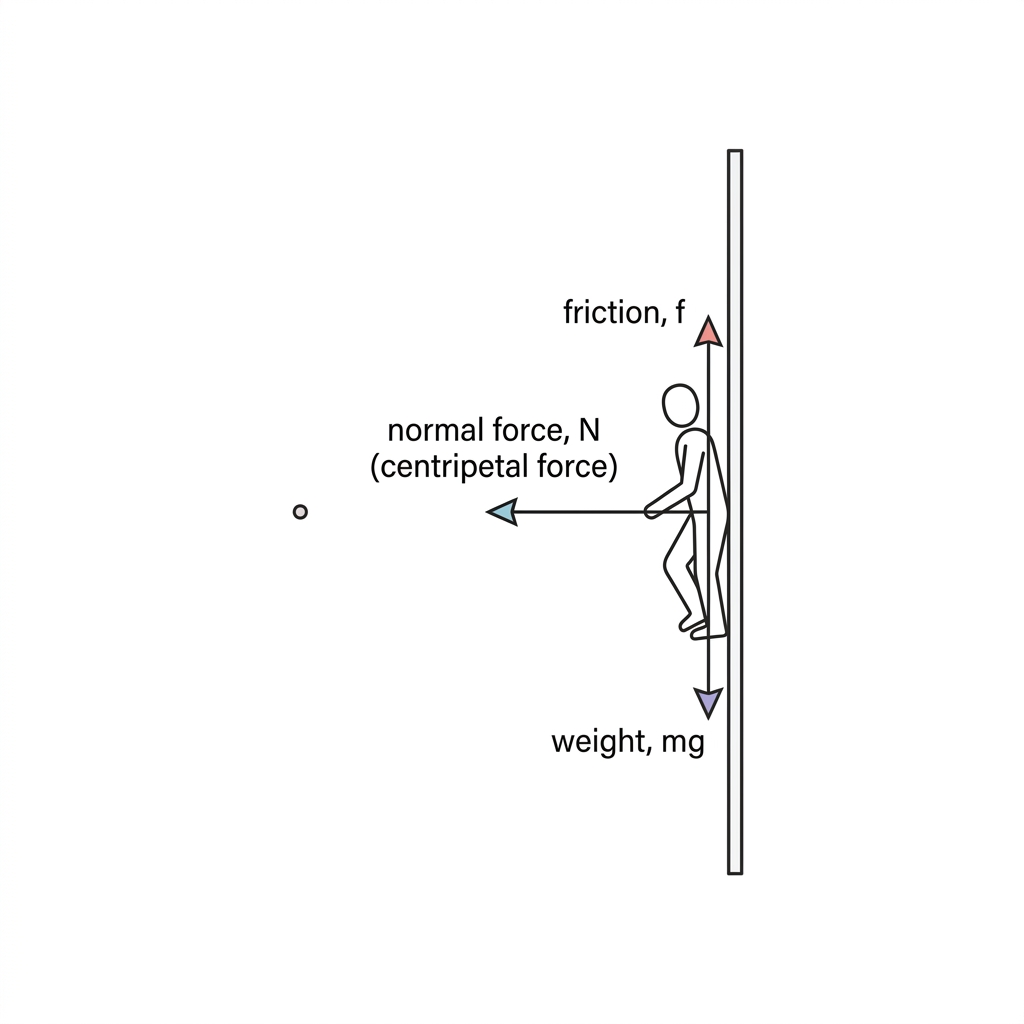

For a rotor ride, the wall’s normal force supplies the inward centripetal force. Friction stops the rider from sliding down. Keep the directions separate: the normal force acts horizontally inward, while friction acts vertically upward.

You can test Fc=mv2rF_c = \frac{mv^2}{r} with a rotating bung experiment. A hanging mass supplies a known tension. A marker fixes the rotating radius, and timing several revolutions gives the speed. With the centripetal force and rotating mass held constant, a graph of v2v^2 against rr should be linear. The main systematic issue is the string: it is not perfectly horizontal, partly because it has weight.

Banking and vertical circles

A banked surface is a curved surface tilted so that the normal force has a horizontal component toward the centre of the turn. Banking reduces the reliance on friction. You don't need quantitative banked-surface calculations, but you should understand why banking works: the normal reaction helps provide the centripetal force. On a frictionless banked road, the vertical component of this reaction balances the weight; its horizontal component supplies the inward resultant.

Circular motion can be uniform or non-uniform and can take place in a horizontal or vertical plane. As an object moves around a vertical circle, the radial component of its weight changes. Weight acts toward the centre at the top, but away from the centre at the bottom. For a mass on a string moving at speed vtopv_{\text{top}} at the top, FT,top+mg=mvtop2rF_{T,\text{top}} + mg = \frac{mv_{\text{top}}^2}{r}, where FT,topF_{T,\text{top}} is the string tension at the top (N) and vtopv_{\text{top}} is the speed at the top (m s−1\mathrm{m\,s^{-1}}). At the bottom, FT,bottom−mg=mvbottom2rF_{T,\text{bottom}} - mg = \frac{mv_{\text{bottom}}^2}{r}, where FT,bottomF_{T,\text{bottom}} is the string tension at the bottom (N) and vbottomv_{\text{bottom}} is the speed at the bottom (m s−1\mathrm{m\,s^{-1}}). The string is most likely to break at the bottom.

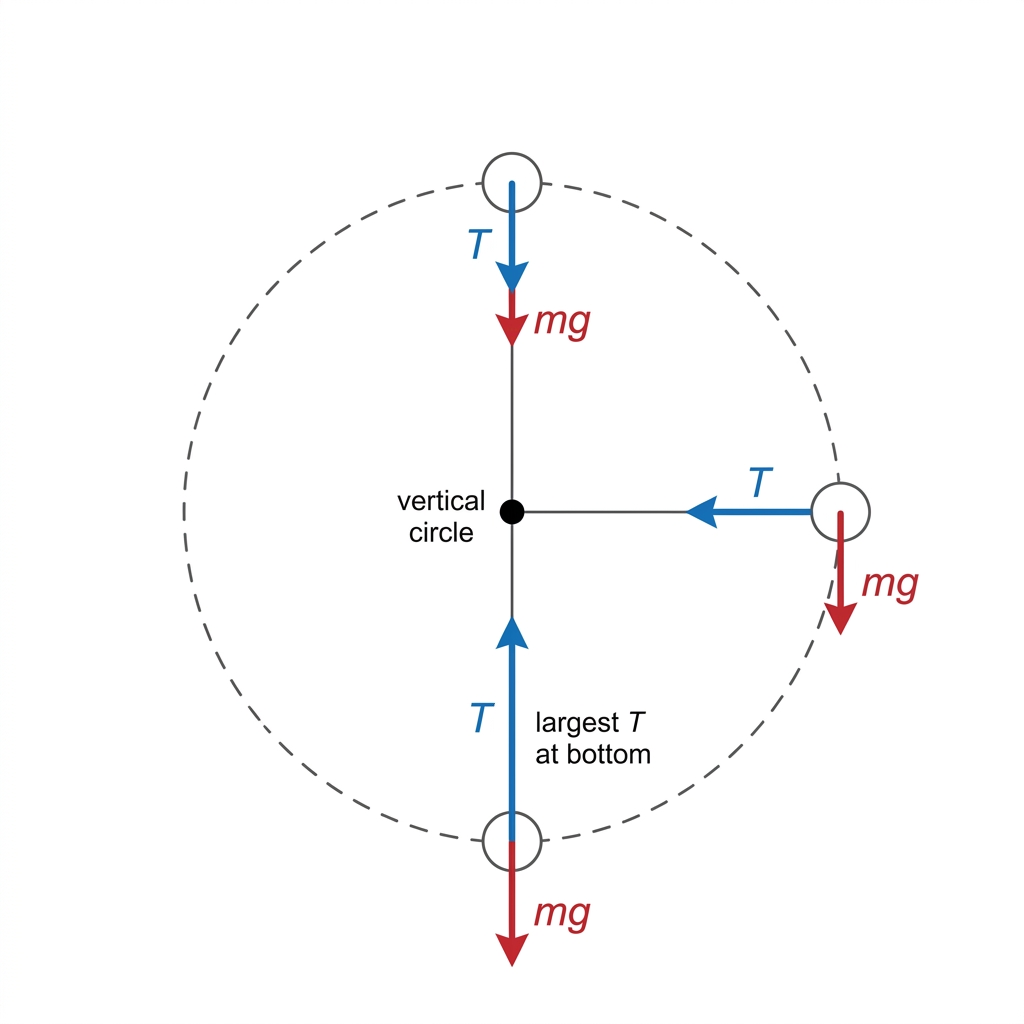

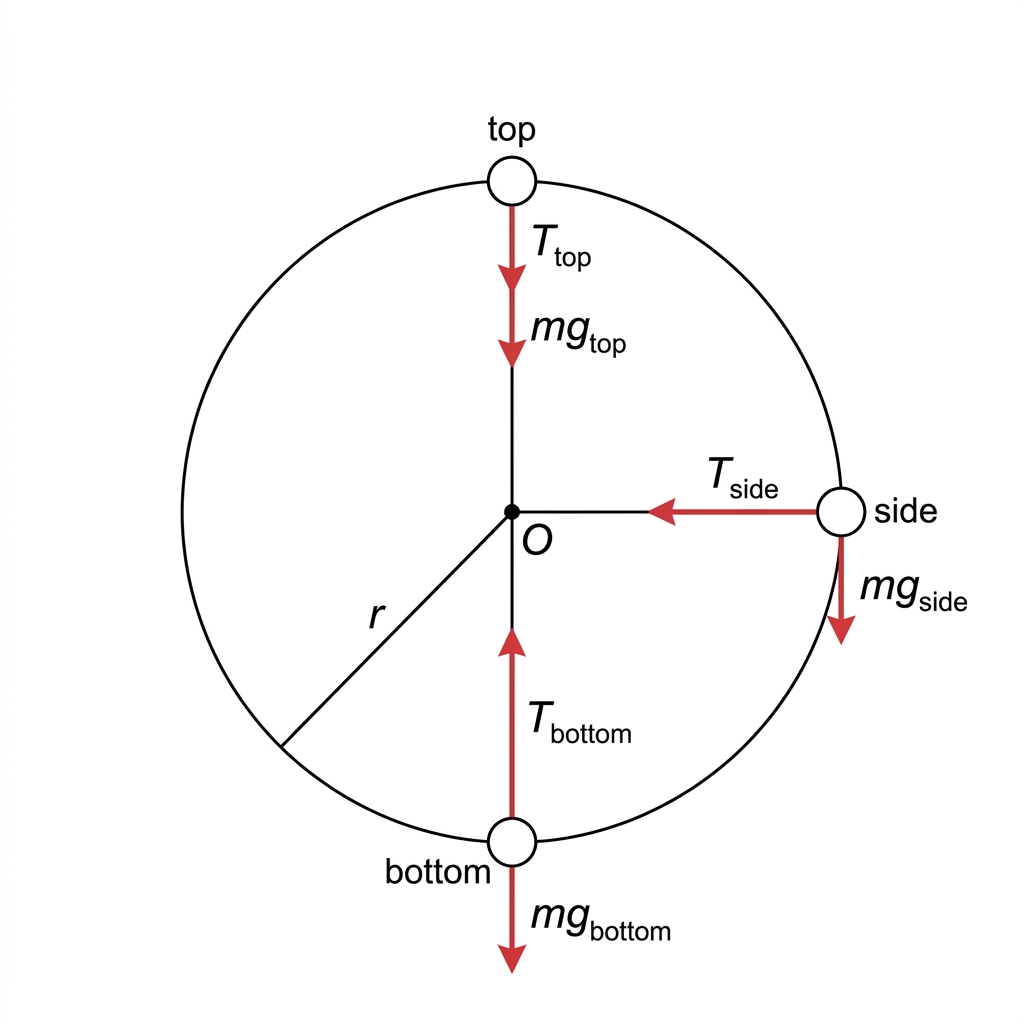

Worked example: A 0.50 kg0.50\ \text{kg} mass moves in a vertical circle on a taut 1.0 m1.0\ \text{m} string. Find the tension when its speed is 5.0 m s−15.0\ \text{m s}^{-1} at the top, and separately when its speed is 5.0 m s−15.0\ \text{m s}^{-1} at the bottom. Treat these as separate cases: do not assume that gravity alone maintains the same speed throughout a revolution. Use g=9.8 m s−2g = 9.8\ \text{m s}^{-2}.

  1. First calculate the required radial resultant and the weight:

    mv2r=0.50×5.021.0=12.5 N\frac{mv^2}{r} = \frac{0.50 \times 5.0^2}{1.0} = 12.5\ \text{N}

    mg=0.50×9.8=4.9 Nmg = 0.50 \times 9.8 = 4.9\ \text{N}

  2. At the top, inward is downward, so both tension and weight act inward:

    +FT,top+mg=mvtop2r+F_{T,\text{top}} + mg = \frac{mv_{\text{top}}^2}{r}

    FT,top=12.5−4.9=7.6 NF_{T,\text{top}} = 12.5 - 4.9 = 7.6\ \text{N}

  3. At the bottom, inward is upward. Tension acts inward; weight acts outward:

    +FT,bottom−mg=mvbottom2r+F_{T,\text{bottom}} - mg = \frac{mv_{\text{bottom}}^2}{r}

    FT,bottom=12.5+4.9=17.4 NF_{T,\text{bottom}} = 12.5 + 4.9 = 17.4\ \text{N}

Answer

Answer: The tension is 7.6 N7.6\ \text{N} at the top and 17 N17\ \text{N} at the bottom, to two significant figures. Gravity helps supply the inward resultant at the top. At the bottom, tension must also overcome the outward weight.

Quantitative force analysis for non-uniform vertical circular motion is limited to the top and bottom of the path. Elsewhere, both radial and tangential components matter, and the syllabus does not require that analysis.

Orbital motion is possible because gravity provides centripetal force. A satellite continuously falls toward Earth, while its tangential motion carries it around Earth. Here circular motion connects to gravitational fields: the gravitational force changes the direction of the satellite’s velocity, producing an orbit rather than a straight fall.

Were those notes helpful?

A.1 Kinematics

A.3 Work, energy and power
