A.1: Kinematics

Master IB Physics A.1: Kinematics with notes created by examiners and strictly aligned with the syllabus.

Verified by Kun
Verified by Kun

9 sections · ~25 min read

This content can't be printed from the browser. Use Export PDF with Pro for an offline copy.

IB Syllabus Requirements for Kinematics

A.1.1

Describing motion through space and time

A.1.2

Velocity and acceleration as rates of change

A.1.3

Displacement as change in position

A.1.4

Distance and displacement

A.1.1

DESCRIBING MOTION THROUGH SPACE AND TIME

What kinematics is trying to do

Kinematics is the part of mechanics that describes motion without explaining the forces that cause it. That last phrase is doing real work. In this topic, we ask where is it?, how fast is it moving?, and how is that motion changing? The why of the motion changing is left for forces in A.2.

We can describe a moving body quantitatively using position, velocity and acceleration. Position is a vector quantity that specifies the location of a body relative to a chosen origin. To state a position properly, you need a coordinate system, a direction convention and units. Without these, a sentence like “the ball is 3 m3\ \text{m} away” isn't really physics yet.

Example: Taking the classroom door as the origin and an east–west axis with east as positive, the trolley is at x=−3.0 mx = -3.0\ \text{m}. This means it is 3.0 m3.0\ \text{m} west of the door.

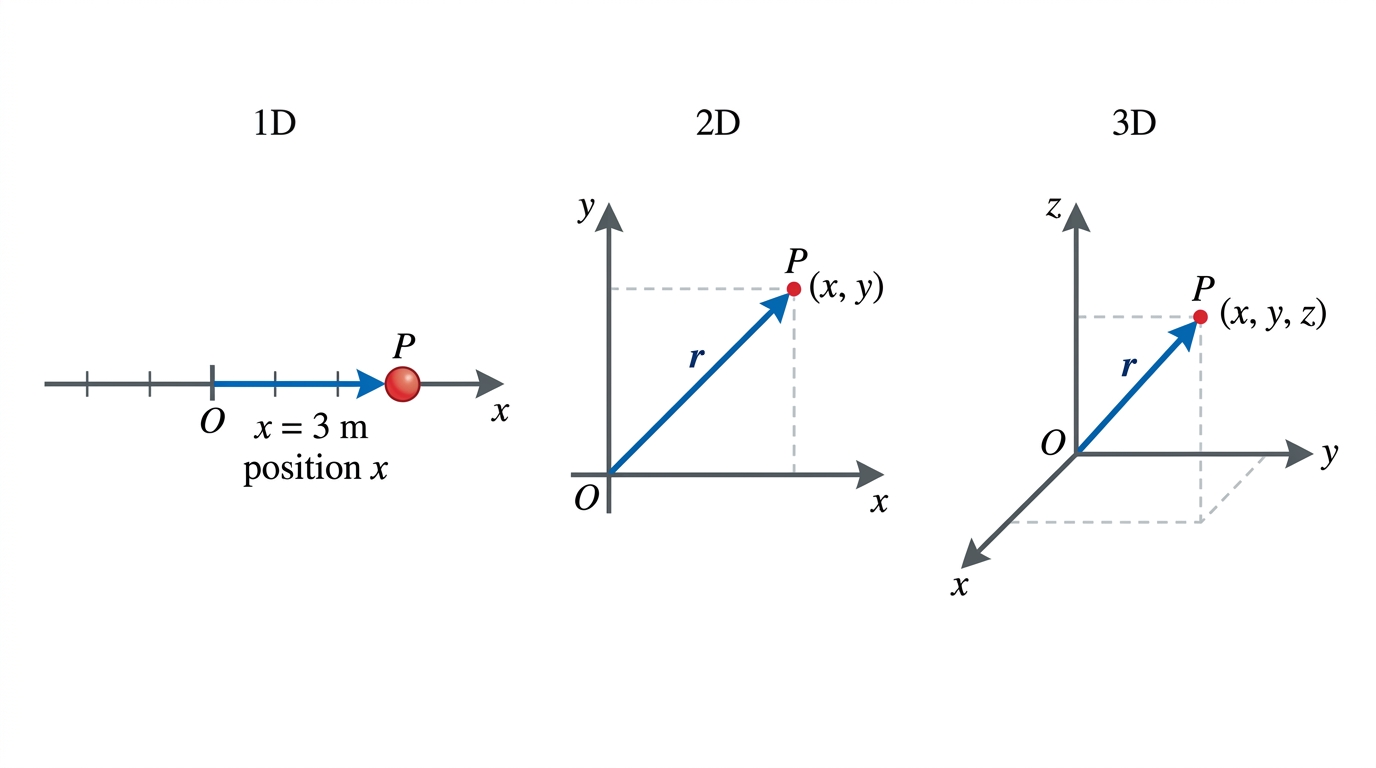

For one-dimensional motion, a single axis is enough to give position. In two dimensions, you need two coordinates; in three dimensions, three coordinates are needed. You may choose the axes, but after that, stay consistent. Projectile problems, for instance, are usually much cleaner when horizontal and vertical axes are used.

Scalars, vectors and signs

A scalar is a physical quantity with magnitude but no direction. A vector is a physical quantity with both magnitude and direction.

ScalarsVectors
Distance, speed, mass, time and energyDisplacement, velocity, acceleration and force

Exam tip: Match your answer to the command term. For “State whether velocity is scalar or vector”, answer “Vector.” For “Explain why velocity is a vector”, write “Velocity has both magnitude and direction.” Naming the category alone does not explain it.

A minus sign alone does not prove that a quantity is a vector. Temperature change, electric charge and energy can be negative in particular contexts while still being scalars. With one-dimensional vectors, though, a sign is often used as a direction code: if right is chosen as positive, then a velocity of −2 m s−1-2\ \text{m s}^{-1} means 2 m s−12\ \text{m s}^{-1} to the left.

Describing motion qualitatively and quantitatively

A qualitative description uses words such as “speeding up”, “slowing down”, “moving back towards the start” or “travelling in a curved path”. A quantitative description adds numbers, units and directions. Good physics usually needs both: the numbers show the size of the effect, while the words make clear what motion is being described.

The central modelling idea in this topic is simple: position changes with time. If we know the pattern of that change, we can predict the future position. That prediction depends on the model assumptions. Constant acceleration, negligible fluid resistance, locally flat Earth and treating the object as a point are all assumptions we will use carefully.

A.1.2

VELOCITY AND ACCELERATION AS RATES OF CHANGE

Velocity

Velocity is a vector quantity: it tells you how quickly position changes with time. In one dimension, the average velocity over a finite time interval is given by

v=Δx/Δtv = \Delta x / \Delta t

Here, vv represents average velocity. Instantaneous velocity is the rate of change of position at an instant, obtained as the time interval becomes very small. Average and instantaneous velocity coincide throughout an interval only when velocity is constant.

Speed is a scalar quantity that tells you how quickly distance is travelled. For a steady journey, speed=distance travelled÷time takenspeed = \text{distance travelled} \div \text{time taken}. The unit m s−1m\,s^{-1} literally means “metres per second”, so a speed of 4 m s−14\,m\,s^{-1} means 44 m of path length every second.

Instantaneous speed is the magnitude of instantaneous velocity. Average speed uses total distance travelled, whereas average velocity uses displacement. Their magnitudes are equal only when the motion stays in one direction along a straight path; once direction changes, they must be handled separately.

Acceleration

Acceleration is a vector quantity that tells you how quickly velocity changes with time. The average acceleration over a finite time interval is given by

a=Δv/Δta = \Delta v / \Delta t

Here, aa represents average acceleration. Instantaneous acceleration is the rate of change of velocity at an instant, obtained as the time interval becomes very small. Average and instantaneous acceleration coincide throughout an interval only when acceleration is constant.

Read the unit m s−2m\,s^{-2} carefully. An acceleration of 3 m s−23\,m\,s^{-2} means the velocity changes by 3 m s−13\,m\,s^{-1} every second, in the direction of the acceleration. Acceleration does not mean “going fast”. A train moving at constant high speed along a straight track has zero acceleration; a ball at the top of its flight has zero vertical velocity at that instant but still has downward acceleration.

Worked example: Take east as positive. An object's position changes from 2 m2\ \text{m} to 14 m14\ \text{m} in 3 s3\ \text{s}. Calculate its average velocity. During a subsequent 3 s3\ \text{s} interval, its velocity changes from +4 m s−1+4\ \text{m s}^{-1} to −2 m s−1-2\ \text{m s}^{-1}. Calculate its average acceleration and interpret both directions.

  1. Calculate displacement as final position minus initial position, then divide by the time interval:

    vavg=ΔxΔt=(14−2) m3 s=+4 m s−1v_{\text{avg}} = \frac{\Delta x}{\Delta t} = \frac{(14 - 2)\ \text{m}}{3\ \text{s}} = +4\ \text{m s}^{-1}

  2. Calculate the change in velocity as final velocity minus initial velocity, then divide by the time interval:

    aavg=ΔvΔt=[−2−(+4)] m s−13 s=−2 m s−2a_{\text{avg}} = \frac{\Delta v}{\Delta t} = \frac{[-2 - (+4)]\ \text{m s}^{-1}}{3\ \text{s}} = -2\ \text{m s}^{-2}

Answer

Answer: The average velocity is +4 m s−1+4\ \text{m s}^{-1}, directed east. The subsequent average acceleration is −2 m s−2-2\ \text{m s}^{-2}, directed west: the velocity changes westward by an average of 2 m s−12\ \text{m s}^{-1} each second.

Direction of acceleration

Acceleration points in the direction of the change in velocity, not necessarily in the direction of motion. Taking right as positive, matching signs of velocity and acceleration mean increasing speed; opposite signs mean decreasing speed. An object moving to the right while slowing down has acceleration to the left. An object moving to the left while slowing down has acceleration to the right.

These four cases show how velocity and acceleration directions determine changes in speed.

Common mistake: Negative acceleration does not necessarily mean slowing down. If velocity and acceleration are both negative, the object speeds up in the negative direction. Compare their signs rather than interpreting the acceleration sign alone.

Near Earth’s surface, freely falling bodies are often modelled using gravitational acceleration, which is an acceleration caused by Earth’s gravitational field. We usually use

g=9.81 m s−2g = 9.81\,m\,s^{-2}

or 9.8 m s−29.8\,m\,s^{-2}

In equations, its sign depends on the axis direction you choose.

A.1.3

DISPLACEMENT AS CHANGE IN POSITION

Change in position

Displacement is a vector quantity that gives the change in position of a body from its initial position to its final position. It says nothing about the route taken. A student might walk around several streets to get to school; another might somehow go straight from home to school. If they start and finish at the same places, their displacement is the same.

In one dimension, displacement is positive or negative depending on the direction convention. Calculate it by subtracting the initial position from the final position:

Δx=xfinal−xinitial\Delta x = x_{\text{final}} - x_{\text{initial}}

Worked example: Taking upwards as positive, find the displacement of a ball that starts at 1.2 m1.2\text{ m} above the ground and later reaches 0.9 m0.9\text{ m} above the ground.

  1. Apply final minus initial to the vertical positions:
Δy=yfinal−yinitial\Delta y = y_{\text{final}} - y_{\text{initial}}
  1. Substitute the positions:
Δy=0.9−1.2=−0.3 m\Delta y = 0.9 - 1.2 = -0.3\ \text{m}
Answer

Answer: The ball has a displacement of −0.3 m-0.3\text{ m}. The minus sign shows that the change in position is downward.

Common mistake: Subtracting final position from initial position reverses the sign. Always check that you have used final minus initial, with both positions measured from the same origin.

Components of displacement

A vector can be resolved into perpendicular components. For movement on a slope, the displacement along the slope can be split into a horizontal component and a vertical component. This isn’t just mathematical decoration: it’s the same habit needed later for projectile motion, where horizontal and vertical motions are analysed separately.

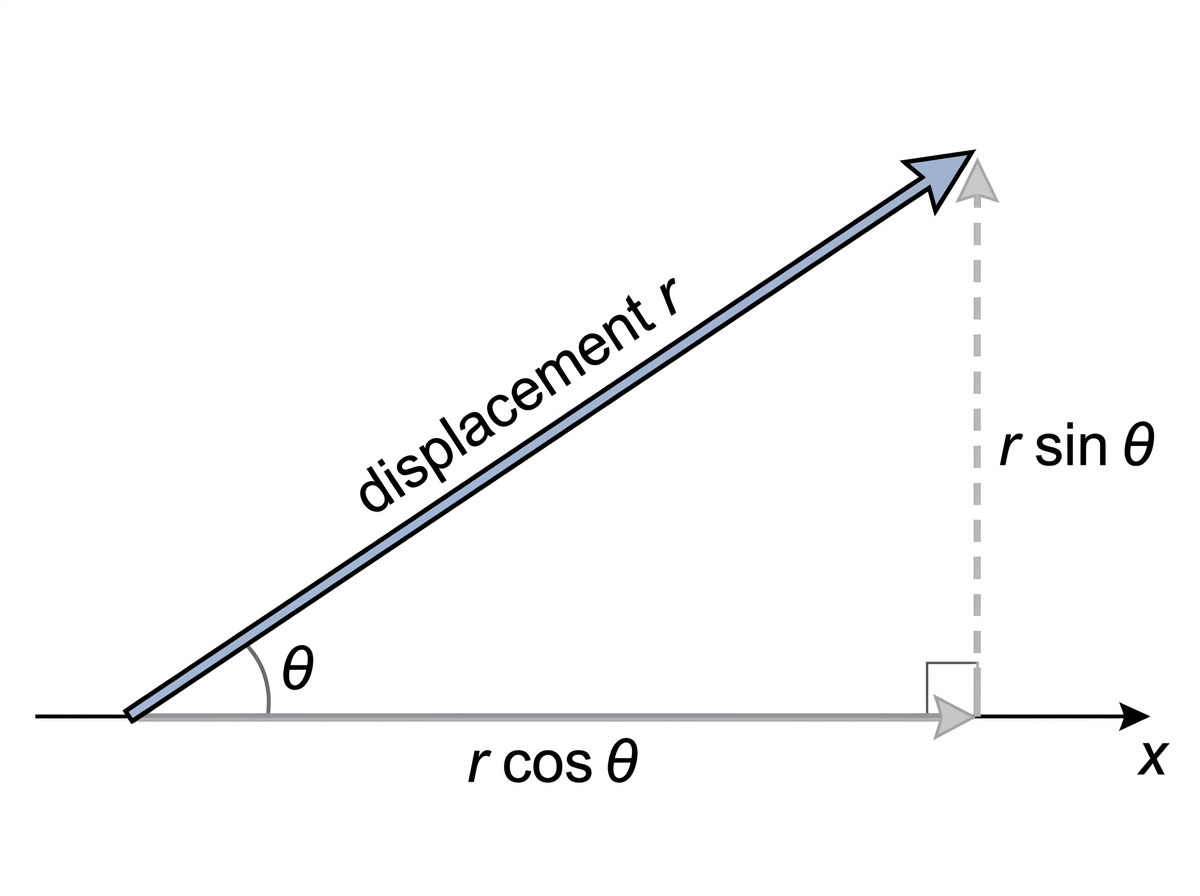

For a displacement of magnitude rr at angle θ\theta above the horizontal, the horizontal component is rcos⁡θr\cos\theta and the vertical component is rsin⁡θr\sin\theta, where rr is the magnitude of the displacement (m) and θ\theta is the angle of the displacement above the horizontal (∘^\circ or rad).

Worked example: Resolve a displacement of 10.0 m10.0\ \text{m} at 30∘30^\circ above the positive horizontal into horizontal and vertical components. Take rightwards and upwards as positive.

  1. The horizontal component is adjacent to the given angle:
rx=10.0cos⁡30∘=8.66 mr_x = 10.0\cos 30^\circ = 8.66\ \text{m}
  1. The vertical component is opposite the given angle:
ry=10.0sin⁡30∘=5.00 mr_y = 10.0\sin 30^\circ = 5.00\ \text{m}
Answer

Answer: The components are rx=+8.66 mr_x = +8.66\ \text{m} and ry=+5.00 mr_y = +5.00\ \text{m}, directed rightwards and upwards respectively.

Exam tip: Check which axis the angle is measured from before choosing sine or cosine. The component adjacent to the angle uses cosine; the opposite component uses sine. If the angle is measured from the vertical, the vertical component uses cosine instead. For an angle in degrees, set your calculator to degree mode.

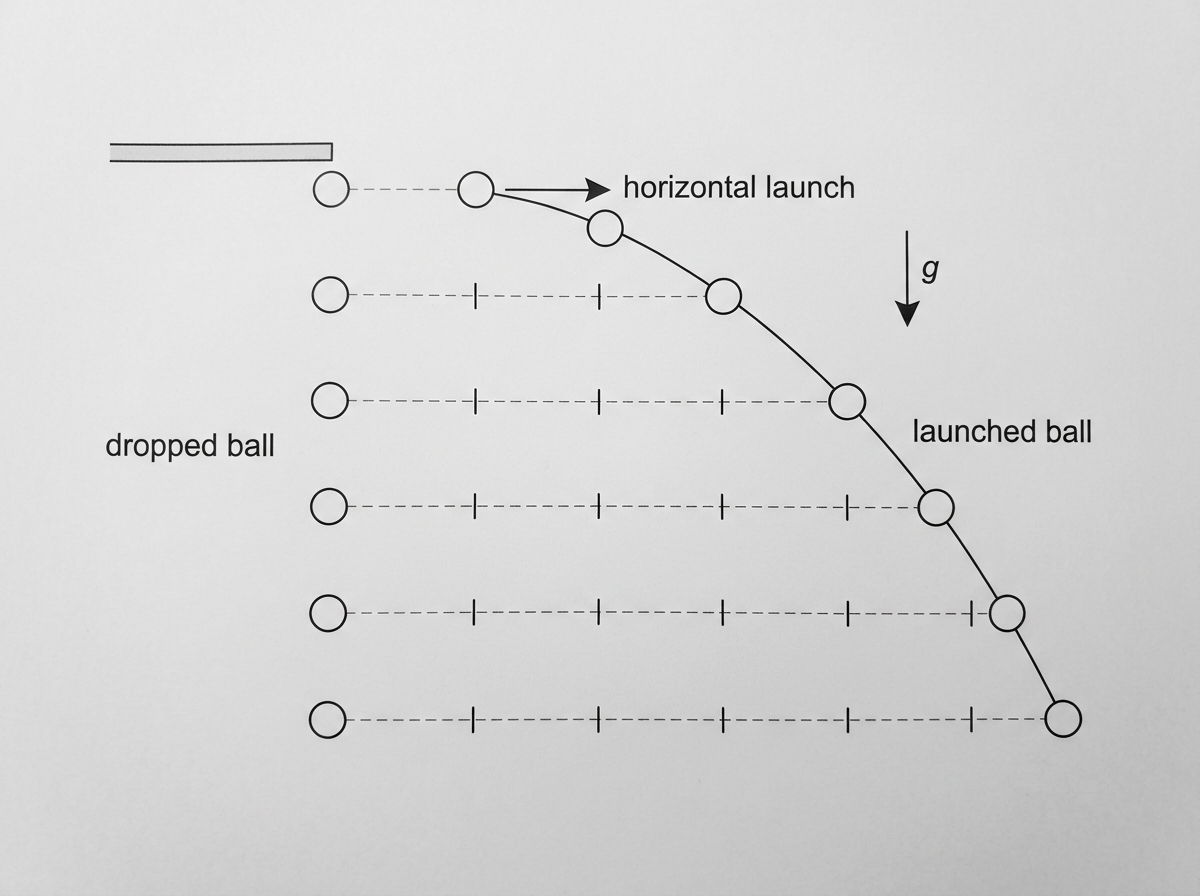

Components are useful because motion in perpendicular directions can often be analysed independently.

A.1.4

DISTANCE AND DISPLACEMENT

The important difference

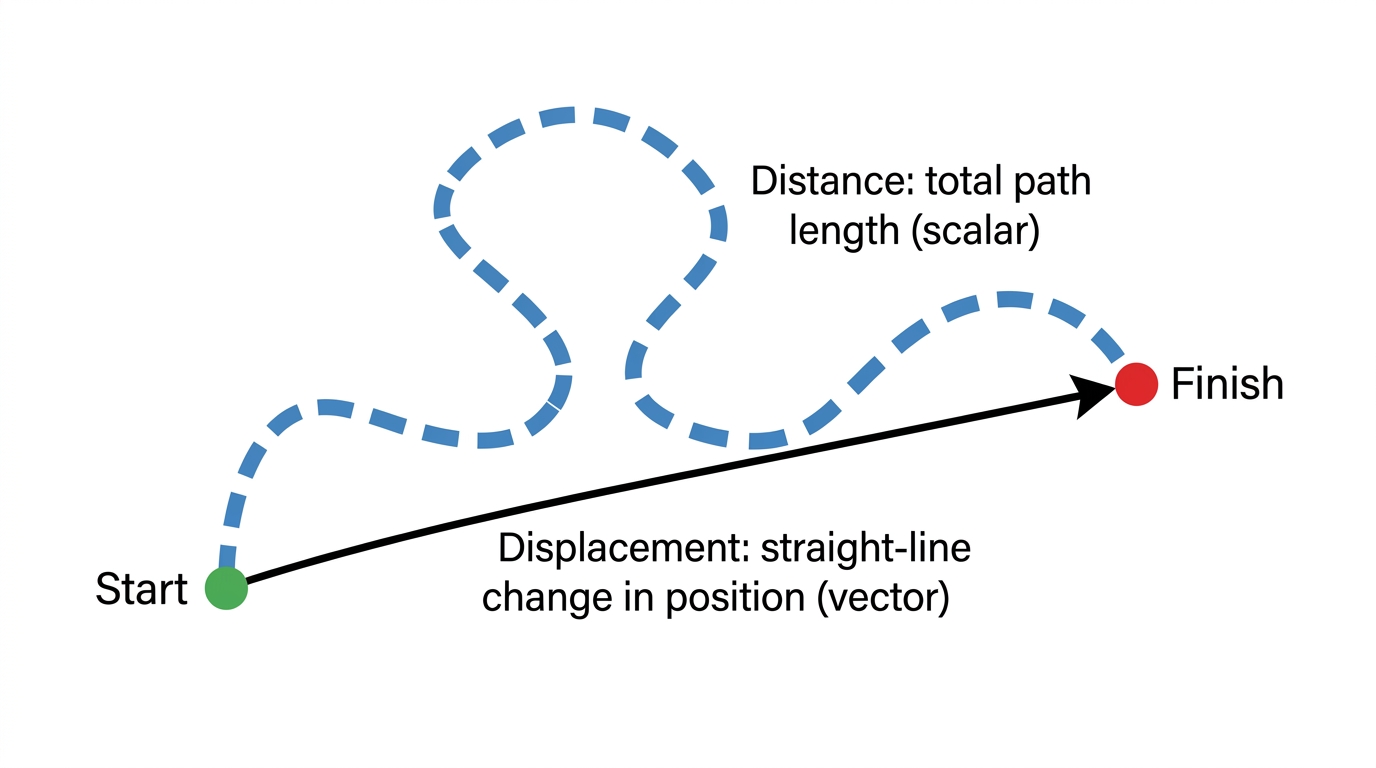

Distance is a scalar quantity: the total length of the path a body travels. Displacement is the vector change in position from start to finish. Distance follows the route taken. Displacement cares only about the start and end points.

That is why distance can never be negative, while displacement can be positive, negative or zero in one-dimensional problems. Run one full lap of a circular track and your distance is the circumference of the track. Your displacement, though, is zero, because you finish where you started.

Average speed and average velocity begin here

Since distance and displacement are different, average speed and average velocity differ too. Average speed is a scalar quantity: total distance travelled per unit time. Average velocity is a vector quantity: displacement per unit time.

For the same journey, average speed can be non-zero while average velocity is zero. That happens whenever an object returns to its starting point. In class I usually put it like this: distance remembers the journey; displacement remembers only the final change in position.

A.1.5

AVERAGE AND INSTANTANEOUS VALUES

Average values

An average value is calculated over a finite time interval. In motion, average speed uses the total distance travelled during that interval, while average velocity uses displacement during that interval.

Average acceleration comes from the overall change in velocity across the chosen interval. It doesn't describe every little change that happened inside the interval. Instead, it gives the single constant acceleration that would produce the same overall change in velocity in the same time.

Instantaneous values

An instantaneous value is a value at one particular instant, found by looking at an extremely small time interval around that instant. A car speedometer shows instantaneous speed, not the average speed for the whole journey.

On a distance–time graph, the gradient gives speed if the graph shows distance travelled. If the graph shows displacement along a chosen axis, the gradient gives velocity. For a curved graph, find the instantaneous value from the gradient of the tangent at the point of interest. Draw a large, clear tangent line; tiny triangles make reading errors much worse.

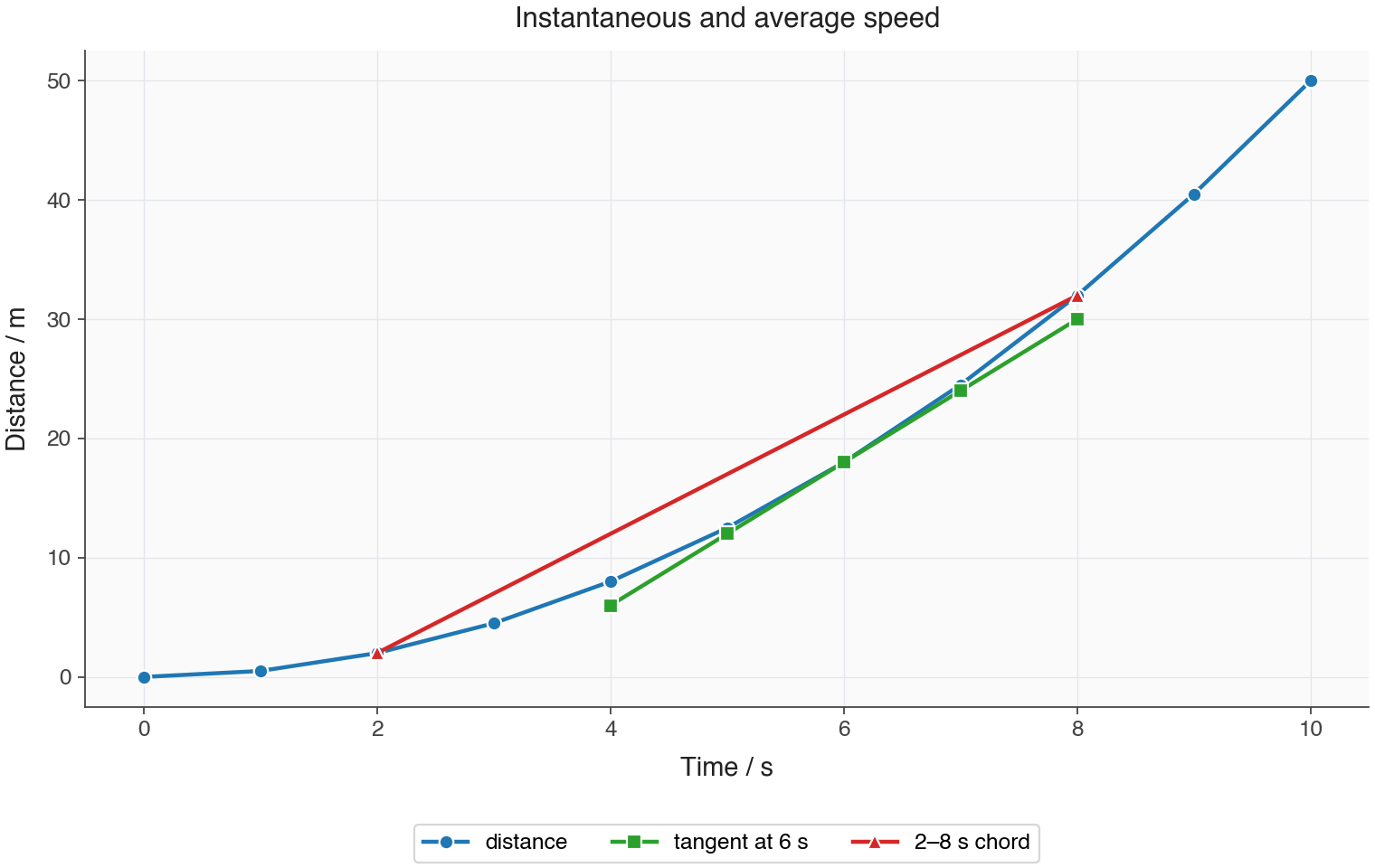

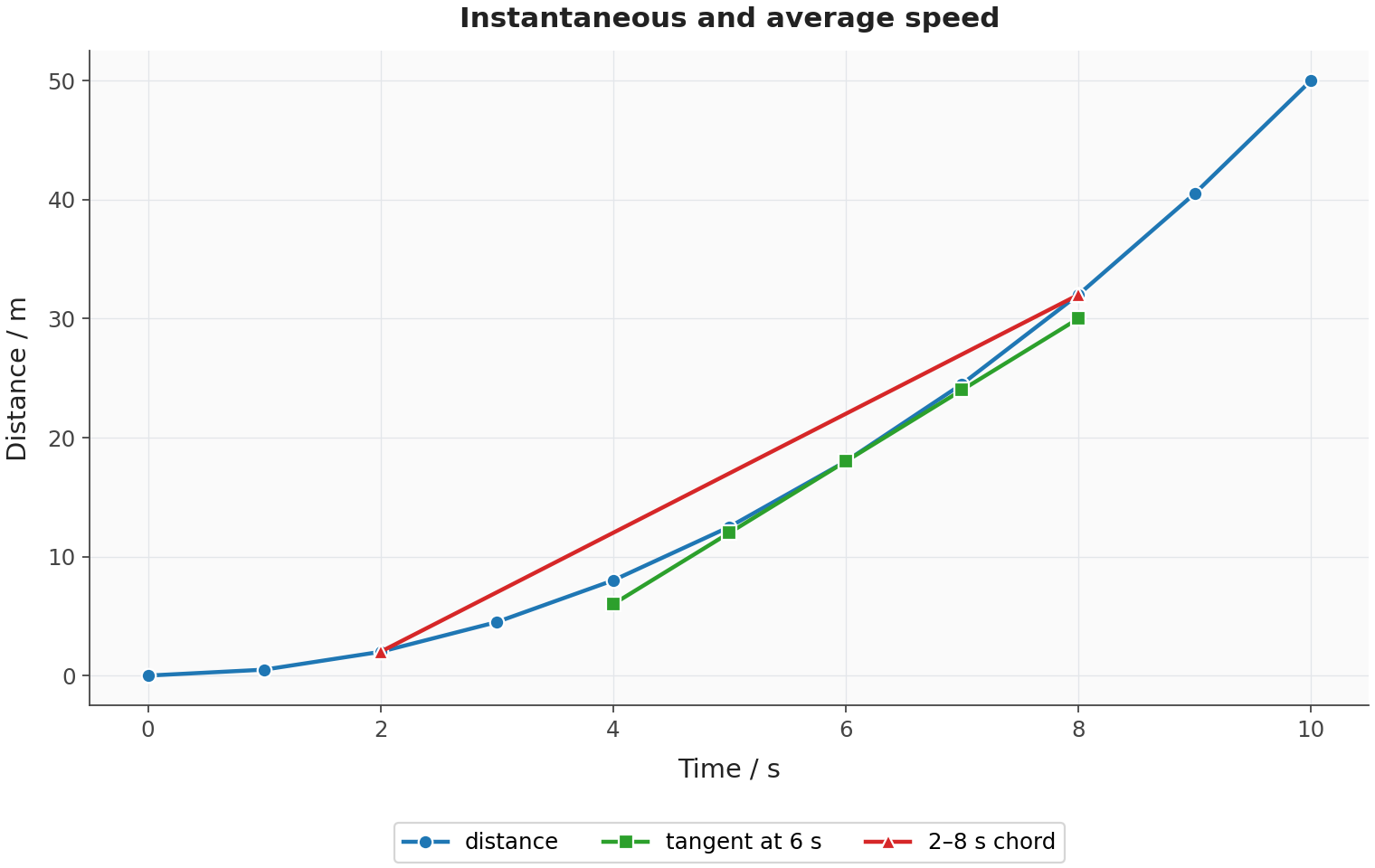

Worked example: Use the distance–time graph above to calculate the average speed from 2 s2\ \text{s} to 8 s8\ \text{s} and the instantaneous speed at 6 s6\ \text{s}.

  1. For average speed, calculate the gradient of the chord joining the two points on the curve. The distance readings are 2 m2\ \text{m} at 2 s2\ \text{s} and 32 m32\ \text{m} at 8 s8\ \text{s}:

    Average speed=distance travelledtime taken=32−28−2=306=5.0 m s−1\text{Average speed} = \frac{\text{distance travelled}}{\text{time taken}} = \frac{32 - 2}{8 - 2} = \frac{30}{6} = 5.0\ \text{m s}^{-1}

  2. For instantaneous speed at 6 s6\ \text{s}, calculate the gradient of the tangent drawn at that instant. Use the points (4 s,6 m)(4\ \text{s}, 6\ \text{m}) and (8 s,30 m)(8\ \text{s}, 30\ \text{m}) on the tangent:

    Instantaneous speed=change in distance coordinatechange in time coordinate=30−68−4=244=6.0 m s−1\text{Instantaneous speed} = \frac{\text{change in distance coordinate}}{\text{change in time coordinate}} = \frac{30 - 6}{8 - 4} = \frac{24}{4} = 6.0\ \text{m s}^{-1}

Answer

Answer: The average speed from 2 s2\ \text{s} to 8 s8\ \text{s} is 5.0 m s−15.0\ \text{m s}^{-1}; the instantaneous speed at 6 s6\ \text{s} is 6.0 m s−16.0\ \text{m s}^{-1}.

Common mistake: Using two points on the curve to calculate an instantaneous speed gives an average over that interval instead. For instantaneous speed, both gradient coordinates must lie on the tangent; they do not both have to lie on the curve.

Reading gradients and areas

Graphs are often the neatest way to determine physical quantities. The gradient of a graph gives the ratio of the change in the vertical-axis quantity to the change in the horizontal-axis quantity. The area under a graph gives the product of the two plotted quantities. That is why graph axes and units are not decoration — they tell you what the gradient or area physically means.

Velocity–time graphs

On a velocity–time graph, the gradient gives acceleration. A positive gradient means positive acceleration; a negative gradient means negative acceleration. A horizontal line shows constant velocity, so the acceleration is zero.

The signed area under a velocity–time graph gives displacement. Area above the time axis is positive displacement; area below the time axis is negative displacement. If the graph is speed–time rather than velocity–time, the area gives distance travelled.

Displacement and distance from areas

Split the velocity–time graph into triangles and rectangles at changes of gradient and at every zero crossing, including the final zero crossing at 9.2 s9.2\ \text{s}. For each shape, use its time interval as the base and its velocity magnitude as the height:

  • Triangle area: 12×base×height\frac{1}{2} \times \text{base} \times \text{height}.
  • Rectangle area: base×height\text{base} \times \text{height}.

Each area has units of s×m s−1=m\text{s} \times \text{m s}^{-1} = \text{m}. Keep the sign of each region for displacement; add the absolute areas for distance.

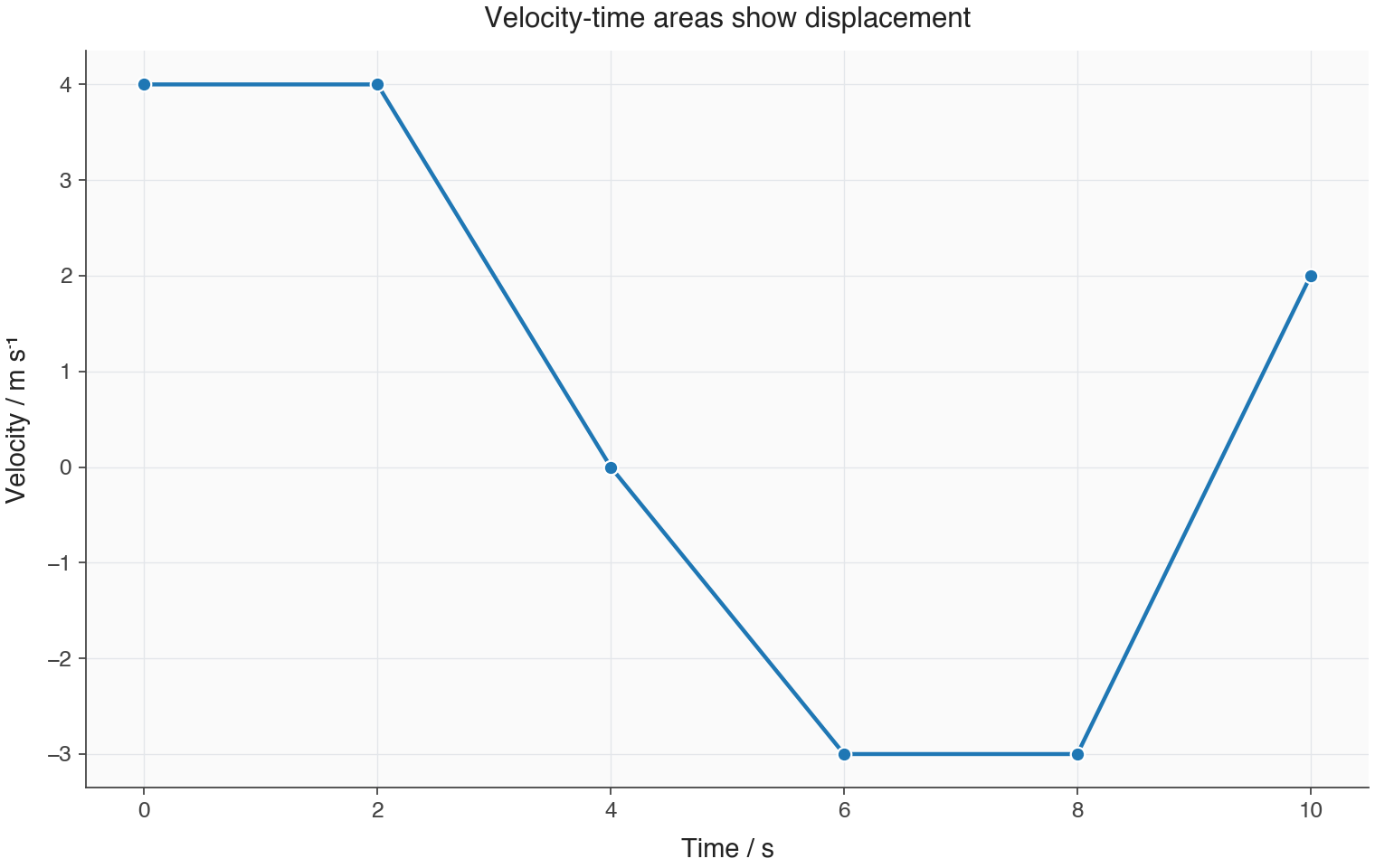

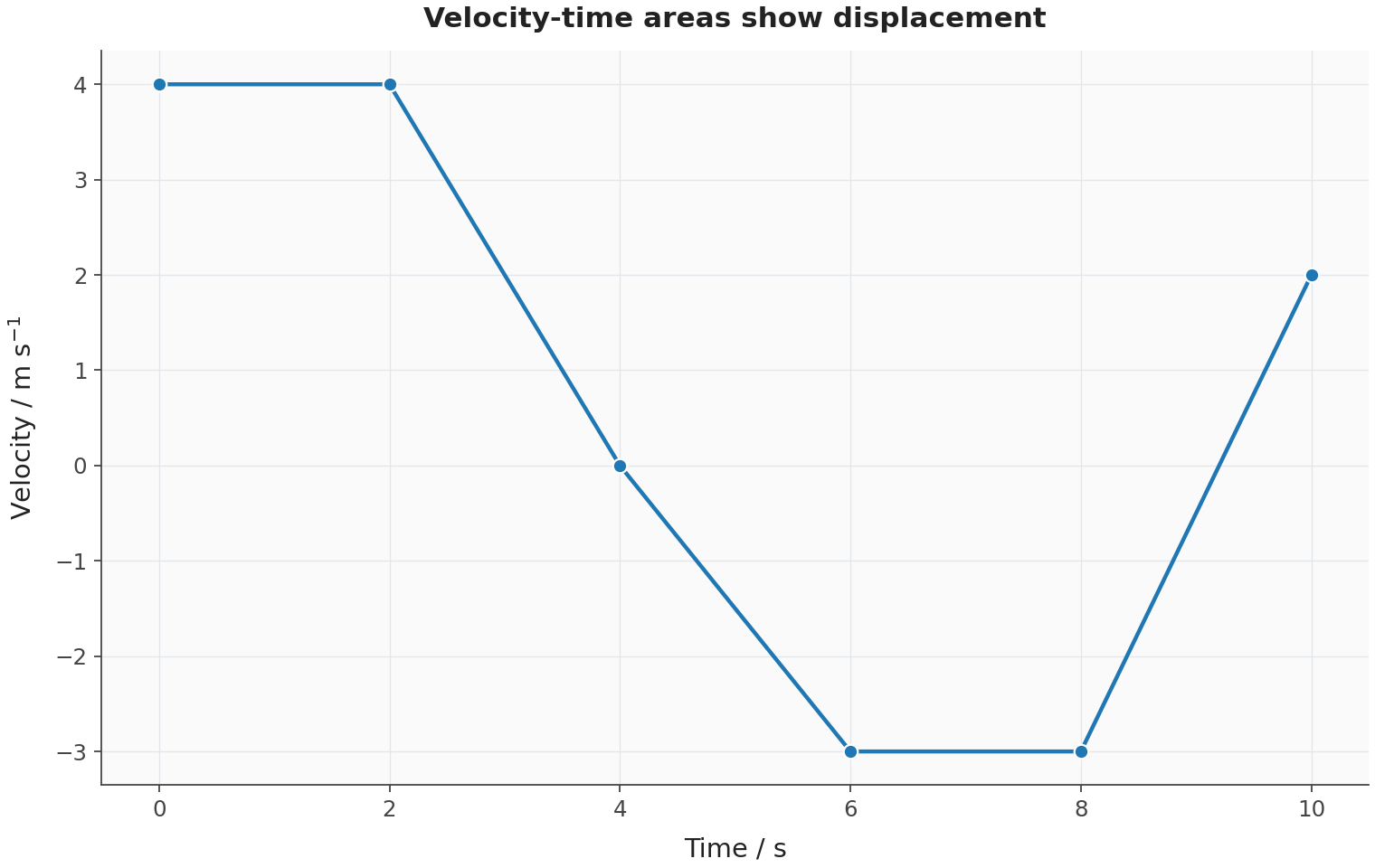

Worked example: Calculate the total displacement and total distance travelled for the velocity–time graph above.

  1. Add the triangle and rectangle areas above the time axis. Their combined positive area is 12.6 m12.6\ \text{m}.

  2. Add the magnitudes of the triangle and rectangle areas below the time axis. Their combined area magnitude is 10.6 m10.6\ \text{m}, contributing −10.6 m-10.6\ \text{m} to displacement.

  3. Add the signed areas to find displacement:

    Displacement=12.6−10.6=2.0 m\text{Displacement} = 12.6 - 10.6 = 2.0\ \text{m}

  4. Add the absolute areas to find distance travelled:

    Distance travelled=12.6+10.6=23.2 m\text{Distance travelled} = 12.6 + 10.6 = 23.2\ \text{m}

Answer

Answer: The displacement is 2.0 m2.0\ \text{m} in the positive direction, while the total distance travelled is 23.2 m23.2\ \text{m}.

Common mistake: Subtracting the area below the time axis when calculating distance gives displacement instead. Motion in the negative direction still adds to the total distance travelled.

For a curved velocity–time graph, you can estimate the area by counting squares. First work out the physical value of one square from the axis scales, then count the squares between the curve and the time axis. It is an estimate, but a sensible one, and often exactly what experimental data requires.

Measuring motion sensibly

To determine speed experimentally, you need a suitable distance measurement and a suitable time measurement. A slow object can be timed with simple equipment; a fast object may need video analysis, light gates or a sensor. The method has to fit the motion. A human reaction time is a large fraction of a 0.2 s0.2\,\text{s} event, but a tiny fraction of a 20 s20\,\text{s} event.

For falling objects, a motion sensor can record a velocity–time graph, whose gradient gives acceleration. Another option is to use an electromagnet and trapdoor timer to measure the fall time for several heights. Plotting height against time squared gives a straighter and more reliable test than trusting one fall only.

A.1.6

EQUATIONS OF UNIFORMLY ACCELERATED MOTION

When the equations apply

The kinematic equations in the data booklet apply only to uniformly accelerated motion. Uniformly accelerated motion is motion in which acceleration is constant in magnitude and direction. Once acceleration changes, these equations are no longer a safe model for the whole motion.

The four equations are:

s=u+v2ts = \frac{u + v}{2}t

v=u+atv = u + at

s=ut+12at2s = ut + \frac{1}{2}\text{at}^{2}

v2=u2+2as\text{v}^{2} = \text{u}^{2} + 2as

Set a consistent sign convention before you substitute. If upwards is positive, then downward acceleration due to gravity is negative. If right is positive, motion to the left has negative velocity. The algebra will usually behave if the signs are chosen clearly at the start.

Where the equations come from

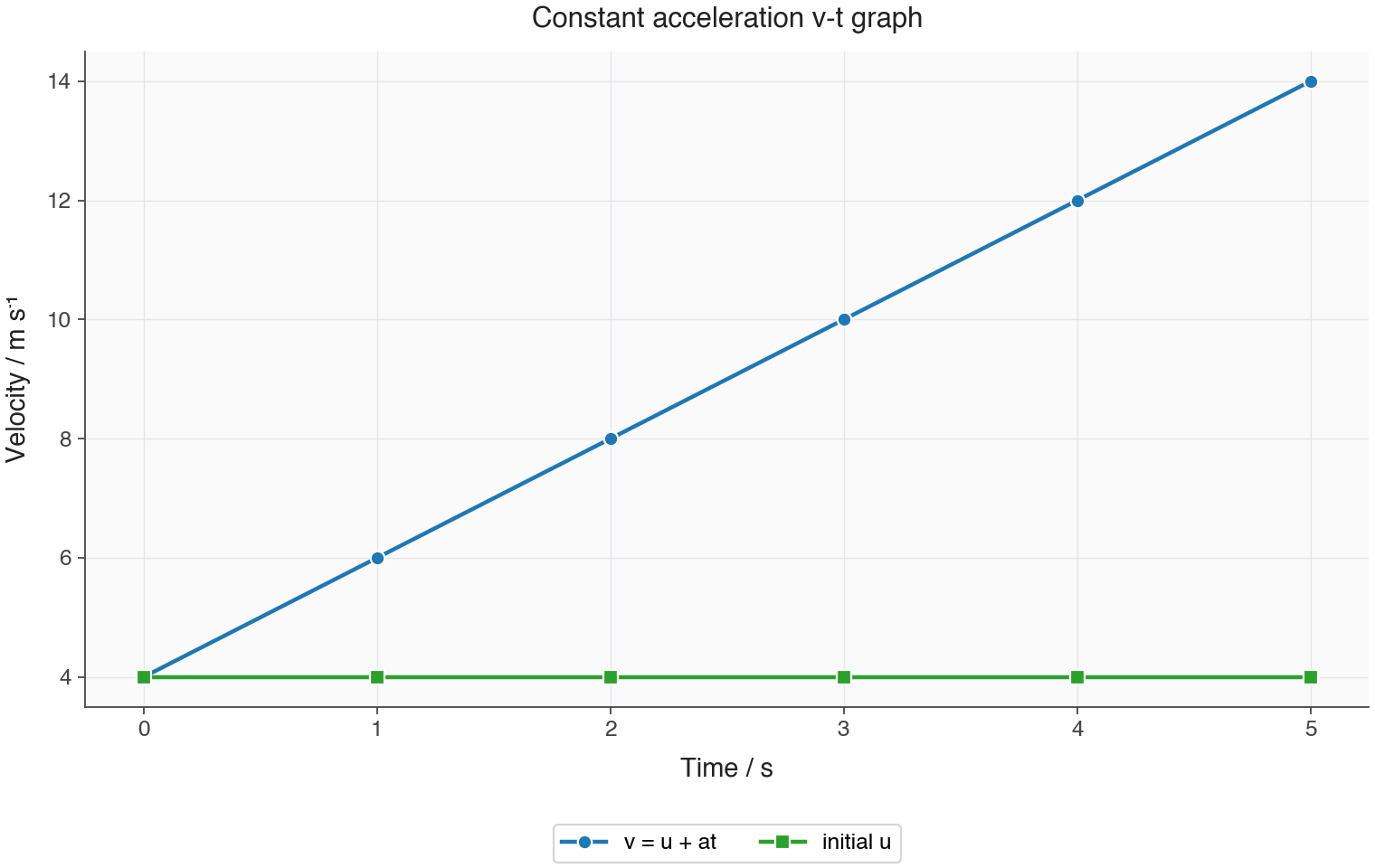

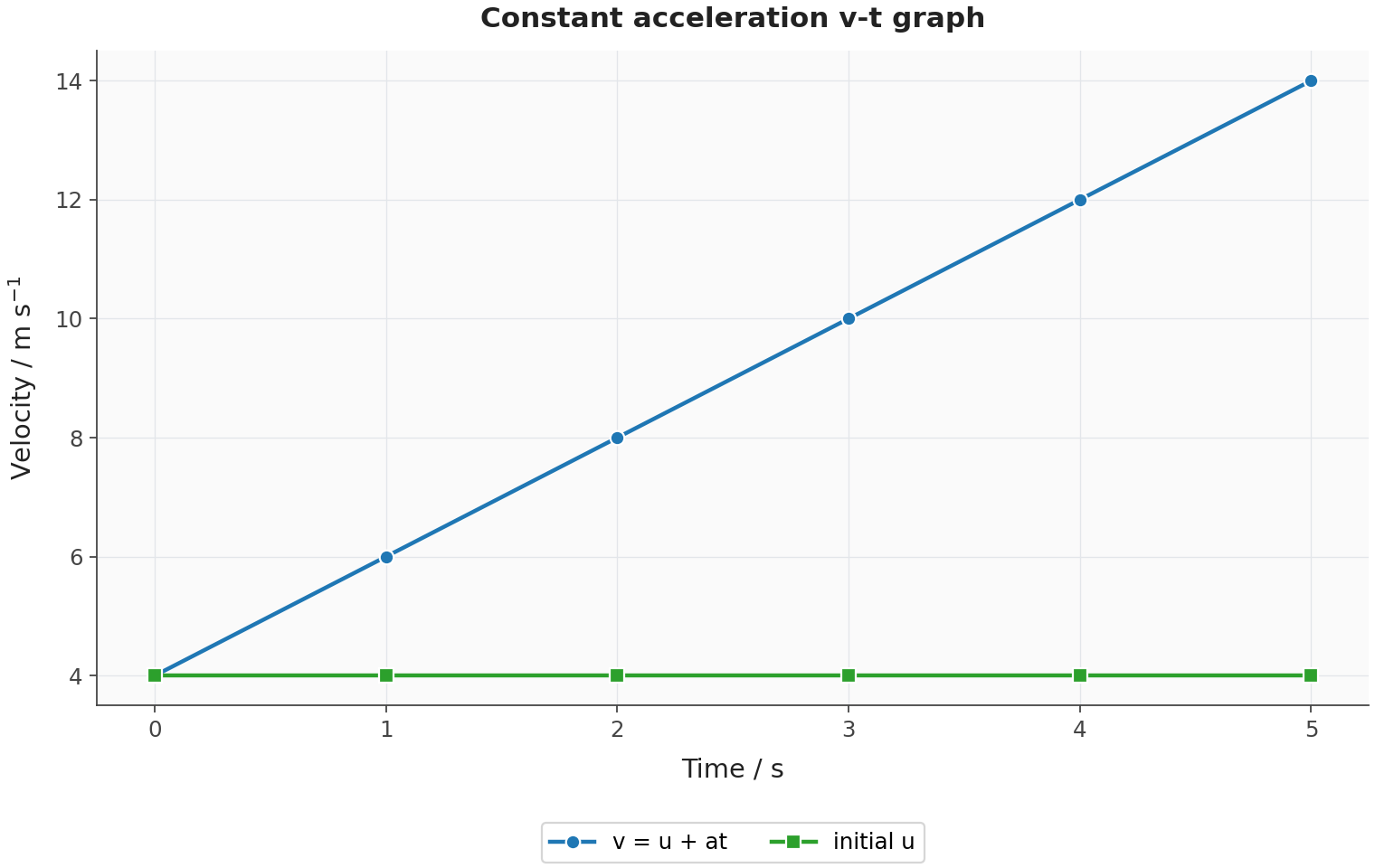

For constant acceleration, the velocity–time graph is a straight line. Its gradient gives acceleration and its area gives displacement. That’s the whole engine behind these equations.

The equation v=u+atv = u + at comes from the straight-line gradient. To get s=ut+12at2s = ut + \frac{1}{2}at^2, add the rectangle under the graph to the triangle above it. The equation s=u+v2ts = \frac{u + v}{2}t uses the mean velocity during constant acceleration. The equation v2=u2+2asv^2 = u^2 + 2as is handy when time is not known.

Choosing an equation

A neat way to proceed is to list the quantities you know and the one you want. Then choose the equation that leaves out the unwanted quantity. Don’t start by hunting for a memorised pattern; start by identifying the physics of the motion and checking that acceleration is constant.

Worked example: A cart has initial velocity 4.0 m s−14.0\ \text{m s}^{-1} and constant acceleration 2.0 m s−22.0\ \text{m s}^{-2} for 5.0 s5.0\ \text{s}. Find its final velocity and displacement, then check the displacement using mean velocity. Take the direction of motion as positive.

  1. List the known and unknown quantities.

    • Known: u=4.0 m s−1u = 4.0\ \text{m s}^{-1}, a=2.0 m s−2a = 2.0\ \text{m s}^{-2}, t=5.0 st = 5.0\ \text{s}.
    • Unknown: vv and ss.
  2. Choose the velocity equation that does not require displacement, then substitute:

    v=u+atv = u + at

    v=4.0 m s−1+(2.0 m s−2)(5.0 s)=14 m s−1v = 4.0\ \text{m s}^{-1} + (2.0\ \text{m s}^{-2})(5.0\ \text{s}) = 14\ \text{m s}^{-1}

  3. Choose the displacement equation that uses the original known quantities:

    s=ut+12at2s = ut + \frac{1}{2}at^2

    s=(4.0 m s−1)(5.0 s)+12(2.0 m s−2)(5.0 s)2s = (4.0\ \text{m s}^{-1})(5.0\ \text{s}) + \frac{1}{2}(2.0\ \text{m s}^{-2})(5.0\ \text{s})^2

    s=20 m+25 m=45 ms = 20\ \text{m} + 25\ \text{m} = 45\ \text{m}

  4. Check using mean velocity, which equals the average of the initial and final velocities because acceleration is constant:

    s=u+v2ts = \frac{u + v}{2}t

    s=4.0 m s−1+14 m s−12(5.0 s)=45 ms = \frac{4.0\ \text{m s}^{-1} + 14\ \text{m s}^{-1}}{2}(5.0\ \text{s}) = 45\ \text{m}

Answer

Answer: The final velocity is 14 m s−114\ \text{m s}^{-1} and the displacement is 45 m45\ \text{m} in the positive direction. The mean-velocity calculation gives the same displacement.

Worked example: A vehicle travelling at 20 m s−120\ \text{m s}^{-1} brakes with constant acceleration −4.0 m s−2-4.0\ \text{m s}^{-2} until it comes to rest. Find its displacement during braking. Take the initial direction of motion as positive.

  1. List the known and unknown quantities.

    • Known: u=20 m s−1u = 20\ \text{m s}^{-1}, v=0 m s−1v = 0\ \text{m s}^{-1}, a=−4.0 m s−2a = -4.0\ \text{m s}^{-2}.
    • Unknown: ss; time tt is not given or required.
  2. Choose the equation that leaves out time:

    v2=u2+2asv^2 = u^2 + 2as

  3. Rearrange and substitute, keeping the negative acceleration:

    s=v2−u22as = \frac{v^2 - u^2}{2a}

    s=(0 m s−1)2−(20 m s−1)22(−4.0 m s−2)=−400 m2 s−2−8.0 m s−2=50 ms = \frac{(0\ \text{m s}^{-1})^2 - (20\ \text{m s}^{-1})^2}{2(-4.0\ \text{m s}^{-2})} = \frac{-400\ \text{m}^2\text{ s}^{-2}}{-8.0\ \text{m s}^{-2}} = 50\ \text{m}

Answer

Answer: The displacement during braking is 50 m50\ \text{m} in the initial direction of motion. This is also the distance travelled because the vehicle does not reverse direction before stopping.

Common mistake: Substituting total path length for ss. These equations use displacement because they relate signed velocities and acceleration; the signed area under a velocity–time graph gives displacement, not total path length. If motion reverses, find the distance travelled on each side of the turning point and add their magnitudes to obtain total distance.

Exam tip: State your positive direction, show the equation before substitution, and retain signs throughout the working. Negative acceleration means acceleration in the negative direction; it does not always mean slowing down.

Modelling Newton’s laws

These equations model the consequences of Newton’s laws when the resultant force is constant and the mass is constant, because that gives constant acceleration.

Model works very wellModel is weaker
A cart on a uniform slopeReal vehicles and cyclists where forces change noticeably
A short free fall with negligible air resistanceFalling leaves where forces change noticeably

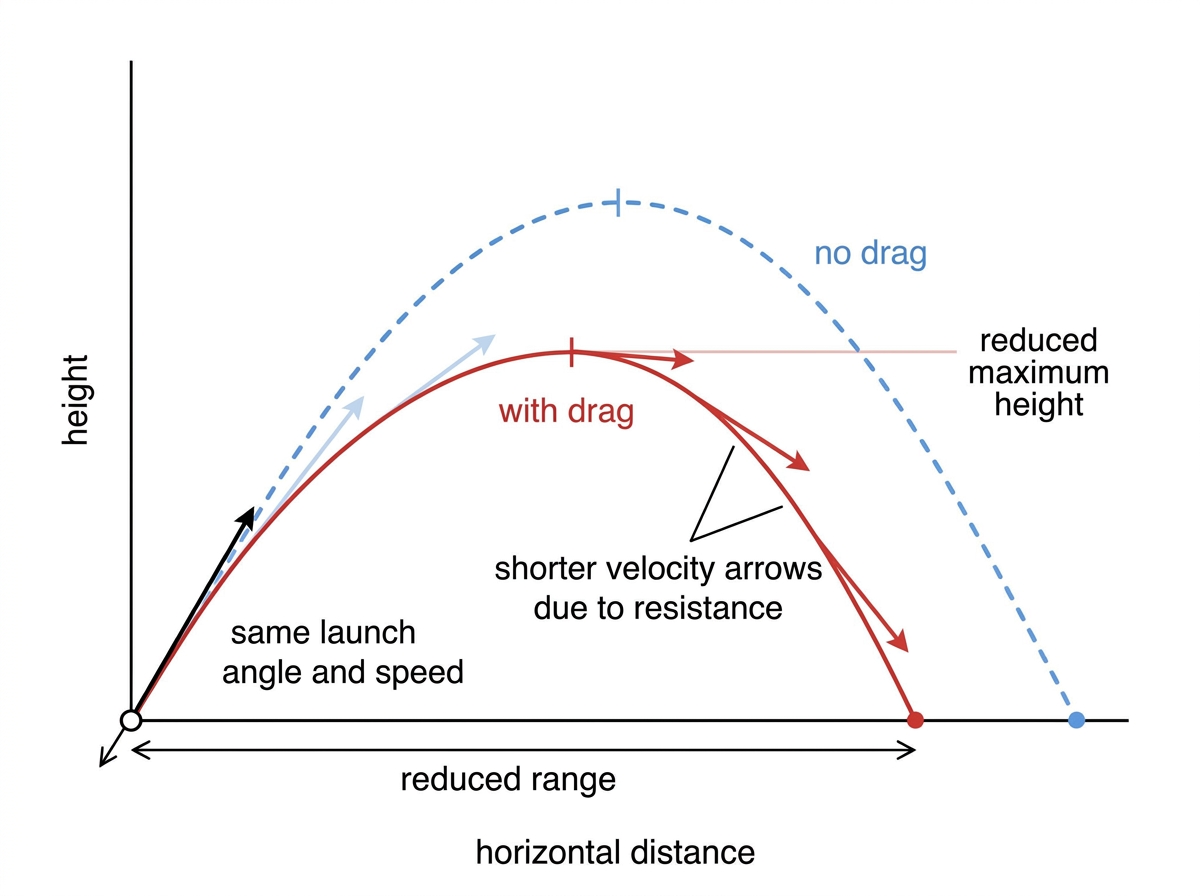

A projectile near Earth’s surface when drag can be ignoredRockets and anything where forces or mass change noticeably

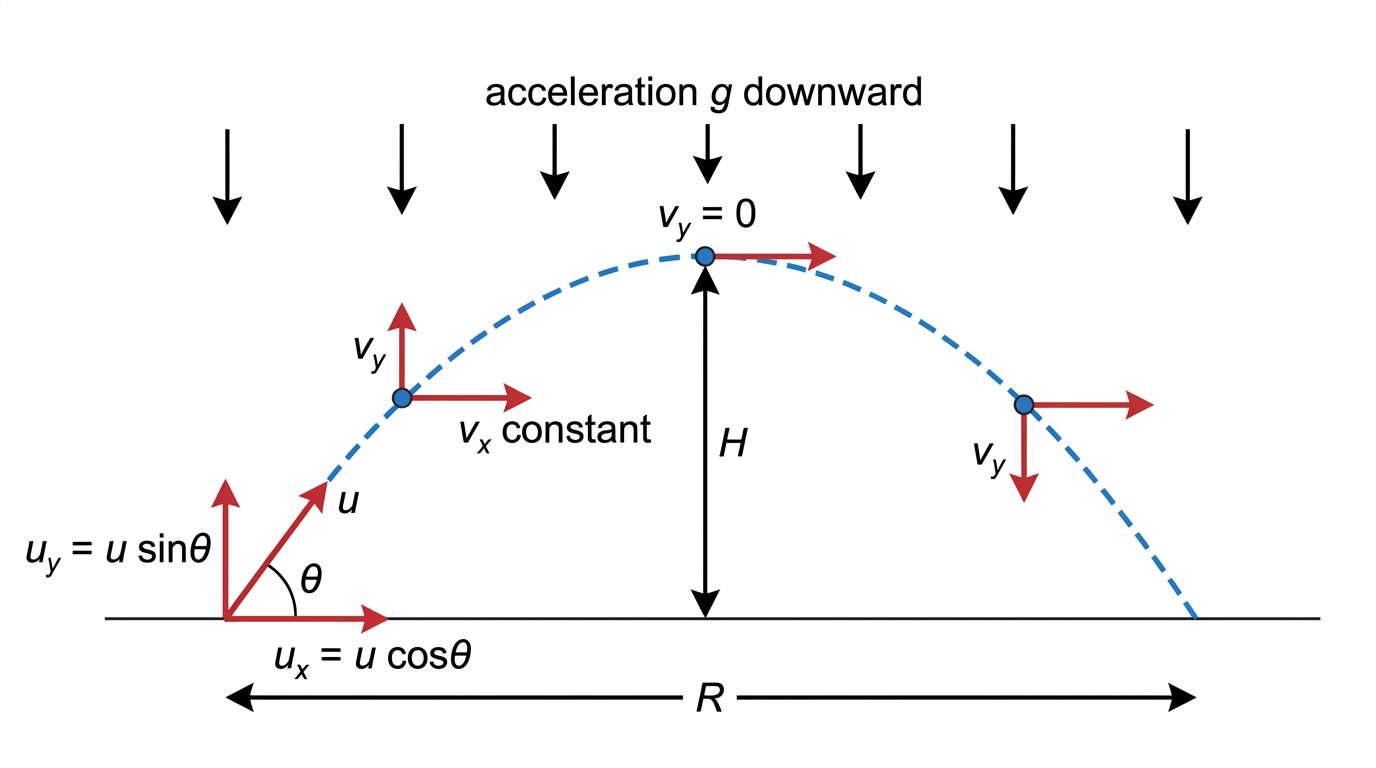

Sometimes energy gives the cleaner route. For projectile problems where air resistance is absent, conservation of energy can find speed changes due to height changes without calculating the detailed time history. But energy alone does not give the full trajectory or time of flight unless combined with kinematics. When acceleration is not constant, energy methods often become the cleaner method.

Link to rotational motion

The rotational equations met later are deliberately built to mirror these linear equations. Displacement is replaced by angular displacement, velocity by angular velocity, and acceleration by angular acceleration. The mathematics looks familiar because the definitions are parallel.

A.1.7

UNIFORM AND NON-UNIFORM ACCELERATION

Uniform acceleration

Uniform acceleration means acceleration stays constant with time. On a velocity–time graph, it shows up as a straight line. On a displacement–time graph, it gives a curve, with a gradient that changes steadily.

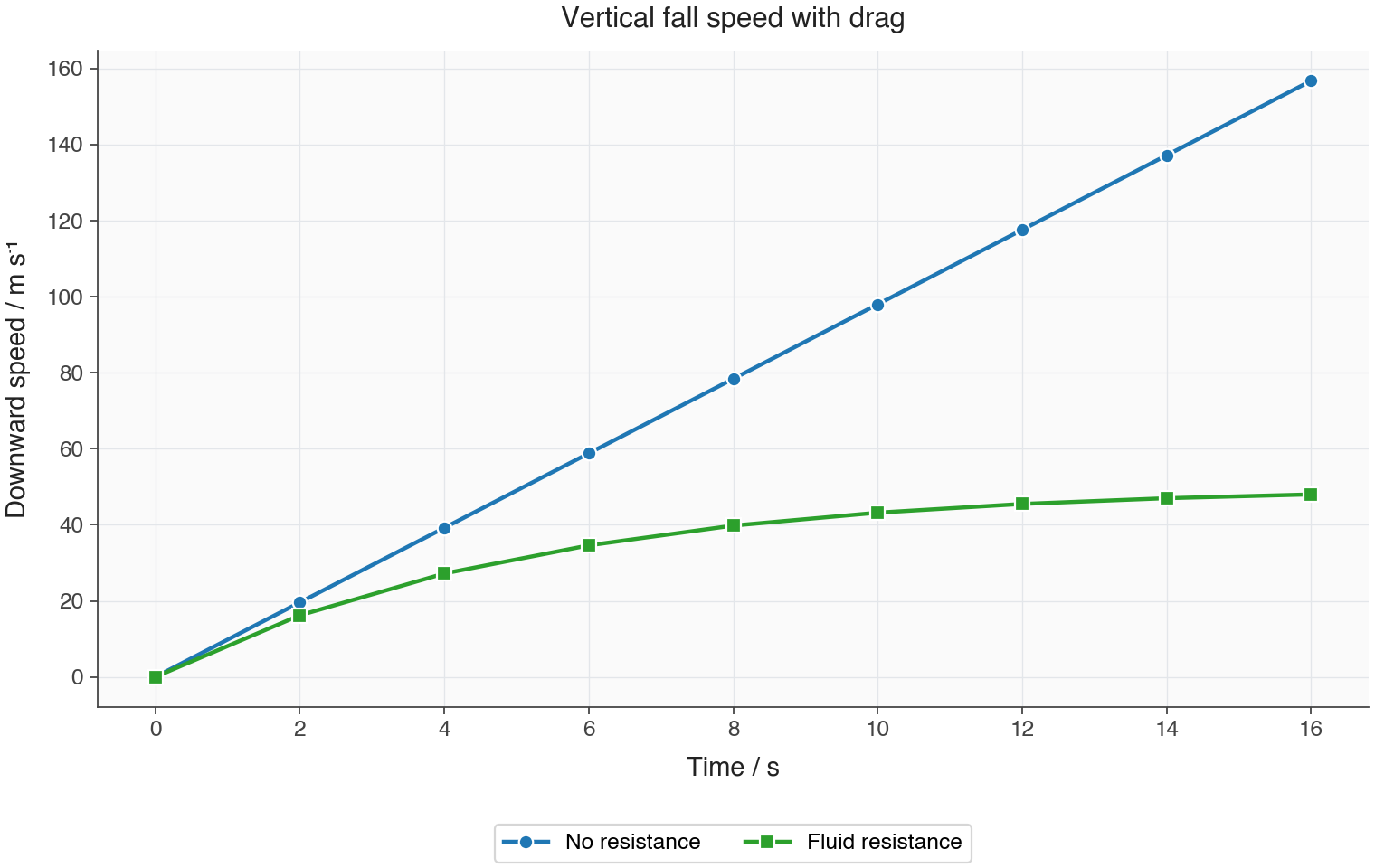

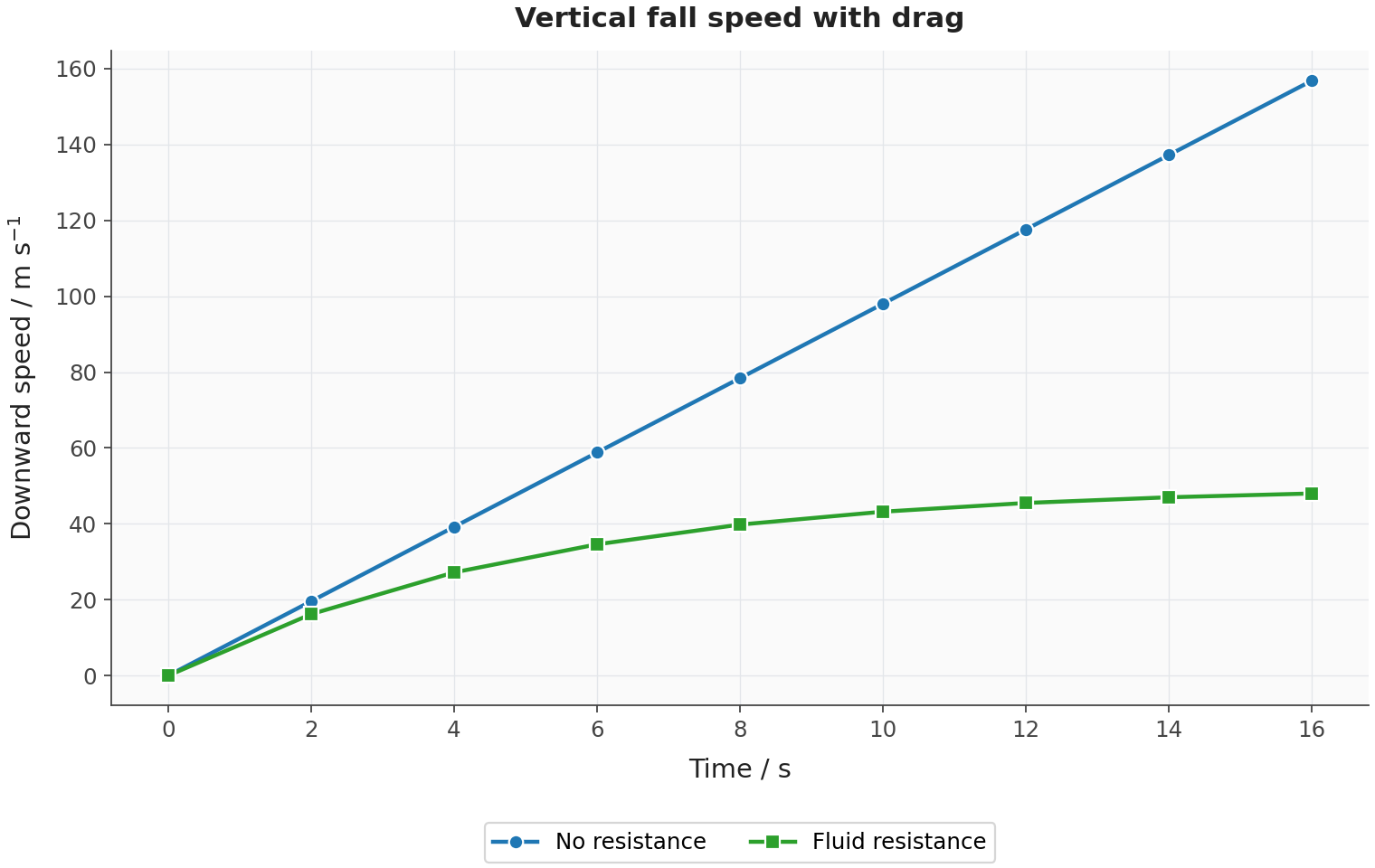

Free fall close to Earth is often treated as uniform acceleration, provided fluid resistance is negligible and the height change is small compared with Earth’s radius. Every object then has the same downward acceleration, whatever its mass. This model does not say that feathers and stones behave the same in air.

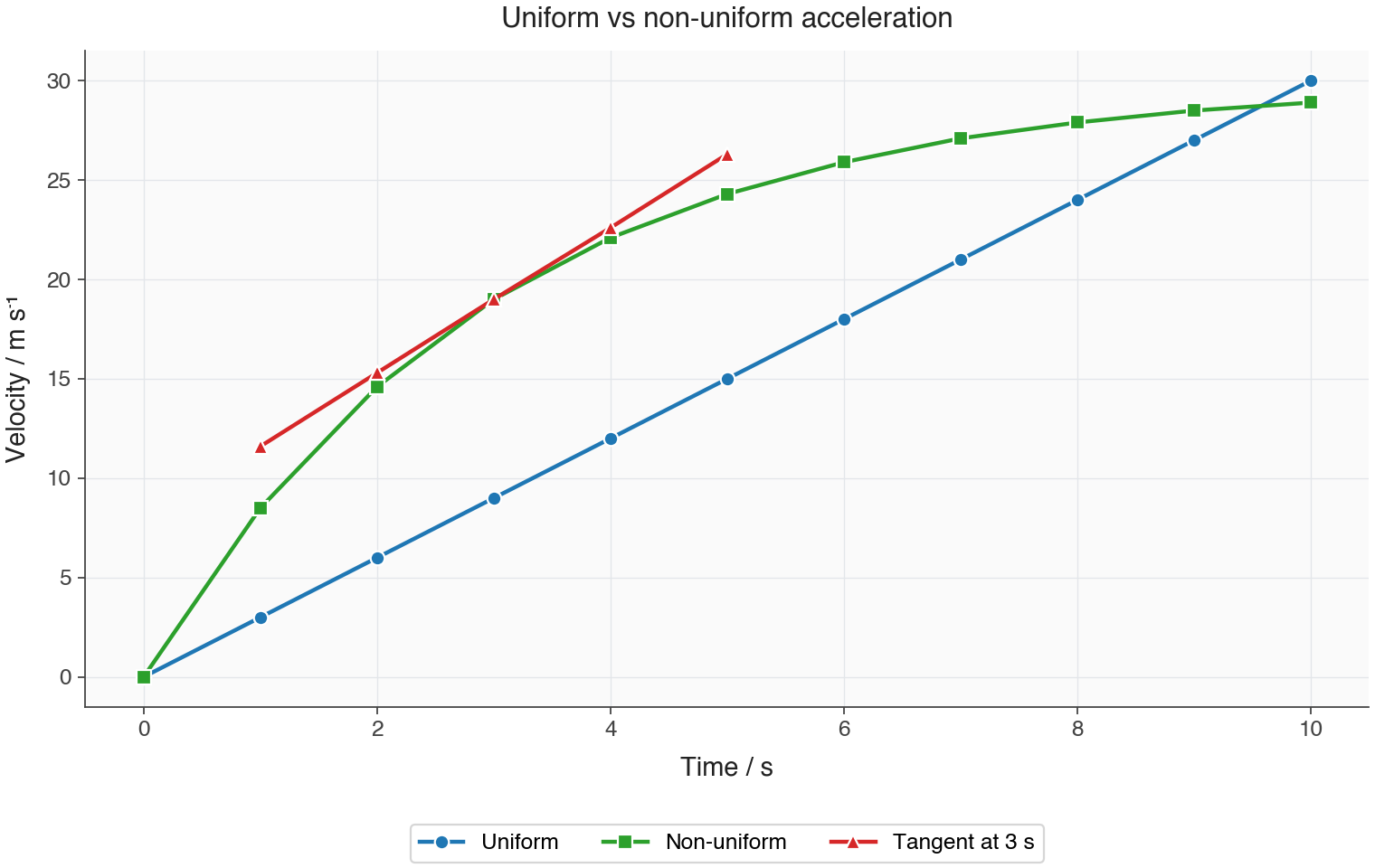

Non-uniform acceleration

Non-uniform acceleration means acceleration changes with time. The velocity–time graph is then a curve, since its gradient is changing. Motion with fluid resistance is a common example: when speed changes, the drag force changes, so the acceleration changes as well.

For non-uniform acceleration, instantaneous acceleration is still found from the gradient of the tangent to a velocity–time graph. Displacement is still the area under the graph. The simple constant-acceleration equations cannot be used for the whole motion.

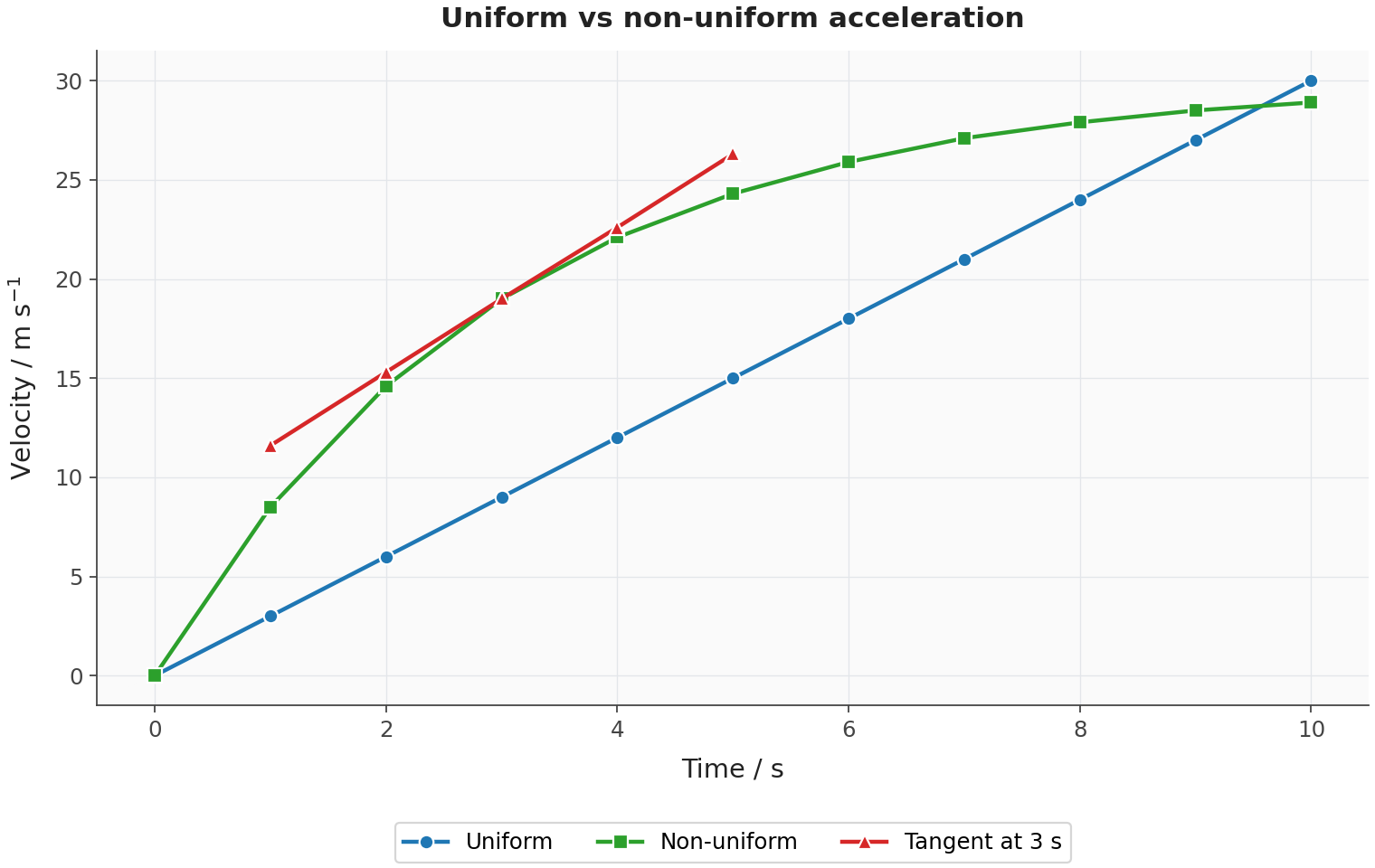

Worked example: Calculate instantaneous acceleration at 3 s3\ \text{s} using the tangent, then compare it with average acceleration over 00–3 s3\ \text{s}.

  1. Use two points on the tangent: a=26.3−11.65−1≈3.7 m s−2a = \frac{26.3 - 11.6}{5 - 1} \approx 3.7\ \text{m s}^{-2}
  2. Use the velocities at the interval endpoints: aavg=19−03−0≈6.3 m s−2a_{\text{avg}} = \frac{19 - 0}{3 - 0} \approx 6.3\ \text{m s}^{-2}
Answer

Answer: Instantaneous acceleration is approximately 3.7 m s−23.7\ \text{m s}^{-2}; average acceleration is approximately 6.3 m s−26.3\ \text{m s}^{-2}. The curve becomes less steep: acceleration was greater earlier, so the interval average exceeds the value at 3 s3\ \text{s}.

Spreadsheet and numerical models

A spreadsheet can model motion by updating velocity and position over small time steps. Use values at the start of each step:

  • vnext=v+aΔtv_{\text{next}} = v + a\Delta t
  • xnext=x+vΔtx_{\text{next}} = x + v\Delta t

Worked example: Start with x=0 mx = 0\ \text{m} and v=0 m s−1v = 0\ \text{m s}^{-1}. Use a=2 m s−2a = 2\ \text{m s}^{-2} and Δt=1 s\Delta t = 1\ \text{s}.

StepVelocity update / m s−1\text{m s}^{-1}Position update / m\text{m}
First0+2(1)=20 + 2(1) = 20+0(1)=00 + 0(1) = 0
Second2+2(1)=42 + 2(1) = 40+2(1)=20 + 2(1) = 2
Answer

Answer: After 2 s2\ \text{s}, the model gives v=4 m s−1v = 4\ \text{m s}^{-1} and x=2 mx = 2\ \text{m}.

This method approximates position even for constant acceleration. The exact constant-acceleration update is xnext=x+vΔt+12a(Δt)2x_{\text{next}} = x + v\Delta t + \frac{1}{2}a(\Delta t)^2, giving 4 m4\ \text{m} here. Smaller steps improve agreement with the kinematic equations. If acceleration depends on speed, as with drag, recalculate it each step. Modelling software thus lets us investigate motion when the algebra gets awkward.

Measuring gravitational acceleration

One practical method for estimating g is to drop an object and measure velocity against time with a motion sensor. The gradient gives the acceleration. Alternatively, release a steel sphere from an electromagnet and time its fall through different heights. For release from rest, s=12at2s = \frac{1}{2}at^2 for constant acceleration. Height against time squared should therefore give a straight line with gradient g/2g/2, provided air resistance and timing errors are small.

Worked example: A height-versus-time-squared graph has gradient 4.90 m s−24.90\ \text{m s}^{-2}. Calculate g.

g=2×4.90=9.80 m s−2g = 2 \times 4.90 = 9.80\ \text{m s}^{-2}

Answer

Answer: The gravitational acceleration is 9.80 m s−29.80\ \text{m s}^{-2} downward.

Exam tip: Be ready to explain why repeated measurements at several heights and a best-fit line are preferable to one fall: repeats reduce random uncertainty, while the line uses all measurements and reveals scatter. Neither automatically removes systematic errors.

A.1.8

PROJECTILE MOTION WITHOUT FLUID RESISTANCE

The projectile model

Projectile motion is two-dimensional motion of a body after launch when the only significant force is gravity. In A.1, quantitative projectile calculations are limited to cases where fluid resistance is absent or negligible.

Near Earth’s surface, we take gg as constant and treat the surface as locally flat. With those assumptions, the horizontal and vertical parts of the motion can be handled separately: gravity changes the vertical velocity, but it does not change the horizontal velocity.

Resolving the initial velocity

For a projectile launched at an angle, split the initial velocity into horizontal and vertical components. Here, uu is launch speed and θ\theta is the angle above the horizontal.

During flight, if fluid resistance is negligible, horizontal velocity remains constant. The vertical component follows the constant acceleration equations. Taking upward as positive:

QuantityHorizontalVertical
Initial velocity
ux=ucos⁡θu_x = u \cos \theta
where uxu_x is the initial horizontal component of velocity (m s−1m\,s^{-1}).
uy=usin⁡θu_y = u \sin \theta
where uyu_y is the initial vertical component of velocity (m s−1m\,s^{-1}).
Accelerationax=0a_x = 0ay=−ga_y = -g
Later velocity
vx=uxv_x = u_x
where vxv_x is the horizontal component of velocity at any later time (m s−1m\,s^{-1}).
vy=uy−gtv_y = u_y - g t
where vyv_y is the vertical component of velocity (m s−1m\,s^{-1}).
Displacement
sx=uxts_x = u_x t
where sxs_x is horizontal displacement (m).
sy=uyt−12gt2s_y = u_y t - \tfrac{1}{2} g t^2
where sys_y is vertical displacement (m).

Use the same elapsed time tt in both columns.

Shape of the trajectory

Without fluid resistance, the trajectory is parabolic. The IB reason is straightforward: horizontal displacement is proportional to time, while vertical displacement has a term proportional to time squared. You do not need the equation of the trajectory.

Common mistake: At the highest point, the vertical component of velocity is zero, not the whole velocity. The horizontal component remains, so the projectile has not “stopped” unless it was launched vertically.

Horizontal, angled upward and angled downward launches

For a horizontal launch, uy=0u_y = 0, so the time of flight comes from the vertical fall. Once you have that time, the range comes from horizontal velocity multiplied by time.

Worked example: A projectile leaves a horizontal ledge at 8.0 m s−18.0\ \text{m s}^{-1}, 20 m20\ \text{m} above the ground. Find its flight time, range and impact speed. Take upward as positive and g=9.81 m s−2g = 9.81\ \text{m s}^{-2}.

  1. Use sy=−20 ms_y = -20\ \text{m} and uy=0u_y = 0:
−20=−12(9.81)t2,t=409.81=2.02 s-20 = -\tfrac{1}{2}(9.81)t^2,\qquad t = \sqrt{\frac{40}{9.81}} = 2.02\ \text{s}
  1. Calculate the horizontal range using the unrounded time:
sx=8.0409.81=16.2 ms_x = 8.0\sqrt{\frac{40}{9.81}} = 16.2\ \text{m}
  1. Reconstruct impact speed from the perpendicular components:
vx=8.0 m s−1,vy=0−9.81409.81=−19.8 m s−1v_x = 8.0\ \text{m s}^{-1},\qquad v_y = 0 - 9.81\sqrt{\frac{40}{9.81}} = -19.8\ \text{m s}^{-1} v=vx2+vy2=8.02+19.82=21.4 m s−1v = \sqrt{v_x^2 + v_y^2} = \sqrt{8.0^2 + 19.8^2} = 21.4\ \text{m s}^{-1}
Answer

Answer: Flight time is 2.02 s2.02\ \text{s}, range is 16.2 m16.2\ \text{m} and impact speed is 21.4 m s−121.4\ \text{m s}^{-1}, shown to three significant figures.

For a launch above the horizontal, the projectile first rises, reaches a highest point where vy=0v_y = 0, then falls. If it lands at the same height from which it was launched, the time up equals the time down. For a launch below the horizontal, the initial vertical component is already downward, so the flight time is shorter for the same launch height and speed.

For same-level launch and landing, the time to highest point is

T=uygT = \frac{u_y}{g}

The maximum height above the launch point is

H=uy22gH = \frac{u_y^2}{2g}

The range is

R=2TuxR = 2 T u_x

Key point: For upward launches, time to apex and height above launch apply regardless of eventual landing height. Total flight time =2T= 2T and range R=2TuxR = 2Tu_x require equal launch and landing heights. For unequal heights, solve the vertical displacement equation for the landing time instead.

Worked example: Launch a projectile at 20 m s−120\ \text{m s}^{-1} and 30∘30^\circ above horizontal, landing at its launch height. Find its components, apex time, flight time, maximum height, range and impact speed. Use g=9.81 m s−2g = 9.81\ \text{m s}^{-2}.

  1. Resolve the launch velocity:
ux=20cos⁡30∘=17.3 m s−1,uy=20sin⁡30∘=10.0 m s−1u_x = 20\cos 30^\circ = 17.3\ \text{m s}^{-1},\qquad u_y = 20\sin 30^\circ = 10.0\ \text{m s}^{-1}
  1. Calculate times and height:
T=10.09.81=1.02 s,2T=2(10.09.81)=2.04 sT = \frac{10.0}{9.81} = 1.02\ \text{s},\qquad 2T = 2\left(\frac{10.0}{9.81}\right) = 2.04\ \text{s} H=10.022(9.81)=5.10 mH = \frac{10.0^2}{2(9.81)} = 5.10\ \text{m}
  1. Find range and impact components, retaining unrounded values:
R=2(10.09.81)(20cos⁡30∘)=35.3 mR = 2\left(\frac{10.0}{9.81}\right)(20\cos 30^\circ) = 35.3\ \text{m} vx=20cos⁡30∘=17.3 m s−1,vy=10.0−9.81(20.09.81)=−10.0 m s−1v_x = 20\cos 30^\circ = 17.3\ \text{m s}^{-1},\qquad v_y = 10.0 - 9.81\left(\frac{20.0}{9.81}\right) = -10.0\ \text{m s}^{-1} v=(20cos⁡30∘)2+(−10.0)2=20.0 m s−1v = \sqrt{(20\cos 30^\circ)^2 + (-10.0)^2} = 20.0\ \text{m s}^{-1}
Answer

Answer: Apex time is 1.02 s1.02\ \text{s}, total flight time 2.04 s2.04\ \text{s}, maximum height 5.10 m5.10\ \text{m} and range 35.3 m35.3\ \text{m}. Impact speed is 20.0 m s−120.0\ \text{m s}^{-1}, equal to launch speed.

Links to fields and orbits

The motion of a mass in a uniform gravitational field is mathematically similar to the motion of a charged particle entering a uniform electric field at right angles. In both situations, a constant force gives constant acceleration in one direction, while the perpendicular motion continues independently. The path is parabolic.

In a non-uniform gravitational field, the motion is different. Over large distances, the gravitational force points towards the centre of the attracting body and changes in strength, so trajectories are not simple parabolas. Circular, elliptical and escape trajectories belong to the broader study of gravitational motion.

A gravitational force allows orbital motion because it can keep changing the direction of a satellite’s velocity, giving the inward acceleration needed for a curved path. The satellite is not “force-free”; it is falling around Earth rather than falling straight down.

A.1.9

QUALITATIVE EFFECTS OF FLUID RESISTANCE ON PROJECTILES

What fluid resistance means

Fluid resistance is the resistive effect produced by a gas or liquid on a body moving through it. Air resistance is the usual projectile example; in water, the same idea appears as water resistance.

A fluid is any substance that can flow and does not have a fixed shape of its own, so both gases and liquids are fluids. As an object moves, it transfers energy to the surrounding fluid and feels a resistive force opposite to its velocity relative to the fluid. Usually, the faster it moves relative to the fluid, the larger this resistive effect becomes.

Terminal speed

Terminal speed is the constant speed a falling body reaches when the upward resistive force from the fluid balances the downward gravitational force. At terminal speed, the resultant force is zero and the acceleration is zero, even though the object is still moving.

For a body falling vertically from rest, the acceleration starts close to gg if the initial drag is small. As the speed rises, drag increases, so the acceleration falls. The speed–time graph gradually levels off, and once terminal speed is reached, the distance–time graph becomes closer to a straight line.

Worked example: Explain why a falling skydiver approaches terminal speed before opening the parachute. Assume the air is still and the skydiver's body position remains unchanged.

  1. Initially, the skydiver's speed is small, so air resistance is small compared with weight. The resultant force is downward, giving a downward acceleration close to gg.
  2. As downward speed increases, upward air resistance increases. Weight remains approximately constant, so the resultant downward force decreases.
  3. By F=maF = ma, the downward acceleration decreases. The skydiver still speeds up, but at a decreasing rate.
  4. When air resistance equals weight, the resultant force and acceleration are zero. The skydiver continues falling at constant terminal speed.
Answer

Answer: Increasing speed increases drag, reducing the resultant downward force and hence the acceleration. When drag balances weight, acceleration is zero and the skydiver falls at constant terminal speed.

Common mistake: Zero acceleration does not mean zero velocity. At terminal speed, velocity is constant and non-zero because the forces balance; the skydiver has not stopped falling.

Projectiles with fluid resistance

Once fluid resistance is included, projectile motion must account for a force opposite to the velocity relative to the fluid. In still fluid, drag acts opposite to the projectile's velocity and dissipates mechanical energy by transferring it to the surroundings.

For the same launch speed and angle, in still fluid and with landing at launch height, compare the motion with the no-drag model:

  • The range is reduced.
  • The maximum height is reduced.
  • The trajectory is no longer parabolic and is usually steeper on the way down.
  • The time of flight changes and depends on the launch conditions and drag strength.

The force also changes how velocity and acceleration develop during flight:

  • Horizontal speed decreases because the horizontal component of drag opposes the horizontal motion.
  • Vertical acceleration is no longer constant. On ascent, drag acts partly downward; on descent, it acts partly upward, opposing the downward motion.
  • Acceleration changes as the drag force changes with speed and direction.
  • Terminal speed may become relevant on the downward part of the motion.

Exam tip: Describe the component or magnitude you are comparing, rather than saying that one velocity is “smaller”. Drag and no-drag projectiles generally occupy different positions at the same elapsed time, so do not assume that drag makes total speed smaller at every equal elapsed time.

A quantitative treatment of projectile motion with fluid resistance is beyond A.1. In this topic, if a projectile question needs numbers, fluid resistance will be absent or negligible. If fluid resistance is included, expect a qualitative explanation, graph interpretation or modelling discussion rather than a simple suvat calculation.

Were those notes helpful?

A.2 Forces and momentum
