A.4: Rigid body mechanics

Master IB Physics A.4: Rigid body mechanics with notes created by examiners and strictly aligned with the syllabus.

Verified by Kun
Verified by Kun

12 sections · ~22 min read

This content can't be printed from the browser. Use Export PDF with Pro for an offline copy.

IB Syllabus Requirements for Rigid body mechanics

A.4.1

Torque of a force about an axis

HL

A.4.2

Rotational equilibrium

HL

A.4.3

Unbalanced torque and angular acceleration

HL

A.4.4

Angular displacement, angular velocity and angular acceleration

HL

A.4.1

TORQUE OF A FORCE ABOUT AN AXIS

HL

The rotational effect of a force

A rigid body is an extended object treated as if it keeps the same shape while forces act on it. The words “extended object” are doing real work here. A force has a size and a direction, but it also acts at a particular place. Push a door near the hinge and it hardly turns. Push the same door near the handle and it swings easily.

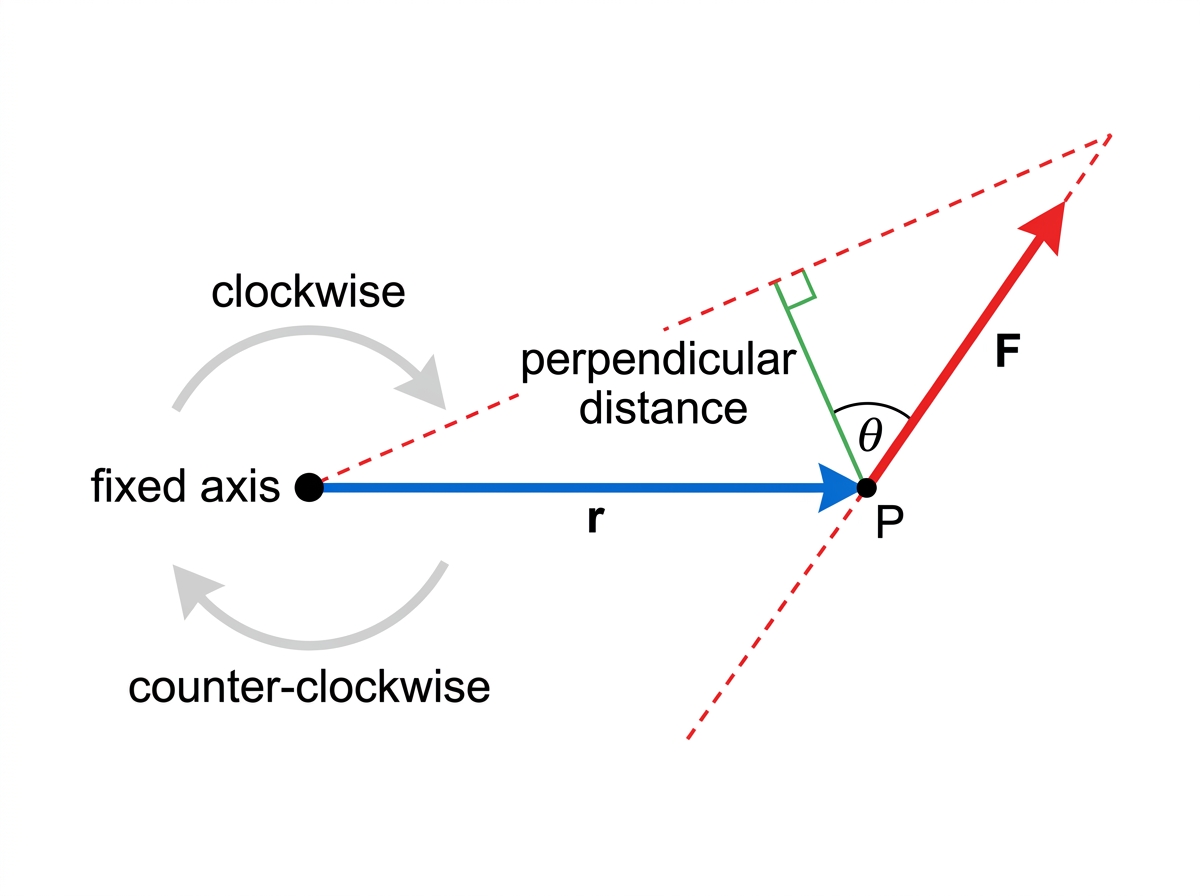

Torque is the turning effect of a force about a specified rotation axis. For a force acting at a point on a rigid body,

τ=Frsin⁡θ\tau = Fr\sin\theta

Only the part of the force perpendicular to the radius line produces the turning effect. You can say the same thing another way: torque is force multiplied by the perpendicular distance from the axis to the force’s line of action. In many questions, that perpendicular distance gives the quickest route.

Worked example: A force of 20 N20\ \text{N} acts at a point 0.30 m0.30\ \text{m} to the right of a pivot. The force points upwards and to the right, making an angle of 60∘60^\circ with the radius line from the pivot to the point of application. Calculate the torque using the angle, then check it using the perpendicular distance to the force’s line of action.

  1. Identify the angle between the radius line and the force: θ=60∘\theta = 60^\circ. Substitute into the torque equation:

    τ=Frsin⁡θ=20×0.30×sin⁡60∘=5.2 N m\tau = Fr\sin\theta = 20 \times 0.30 \times \sin 60^\circ = 5.2\ \text{N m}

  2. Extend the force’s line of action and imagine dropping a perpendicular from the pivot to that line. Its length is dd:

    d=rsin⁡θ=0.30×sin⁡60∘=0.260 md = r\sin\theta = 0.30 \times \sin 60^\circ = 0.260\ \text{m}

  3. Calculate torque using this moment arm:

    τ=Fd=20×0.260=5.2 N m\tau = Fd = 20 \times 0.260 = 5.2\ \text{N m}

Answer

Answer: The torque is 5.2 N m5.2\ \text{N m} counter-clockwise: the upward component of the force acts to the right of the pivot. Both methods give the same result.

Common mistake: Using rr automatically as the perpendicular distance gives 20×0.30=6.0 N m20 \times 0.30 = 6.0\ \text{N m} here, which is incorrect. The distance rr runs to the point of application; the moment arm dd is measured perpendicular to the force’s line of action. They are equal only when the force is perpendicular to the radius line.

Sense, not full vector treatment

Torque is formally a vector, but in this course we usually just need its rotational sense: clockwise or counter-clockwise. Pick one sense as positive and keep it for the whole calculation. If a torque answer has the wrong sign, the physics is often fine; the bookkeeping has slipped.

Torque is maximum when the force is perpendicular to the radius line. If the force points directly through the axis, the torque is zero. A force through the hinge can’t open the door.

A.4.2

ROTATIONAL EQUILIBRIUM

HL

Resultant torque zero

A body is in rotational equilibrium when its angular velocity stays constant because the resultant torque on it is zero. It might be at rest, or it might already be rotating at a steady rate. The condition is

∑τ=0\sum \tau = 0

This matches the idea of translational equilibrium. In translation, zero resultant force gives no linear acceleration. In rotation, zero resultant torque gives no angular acceleration.

Principle of moments

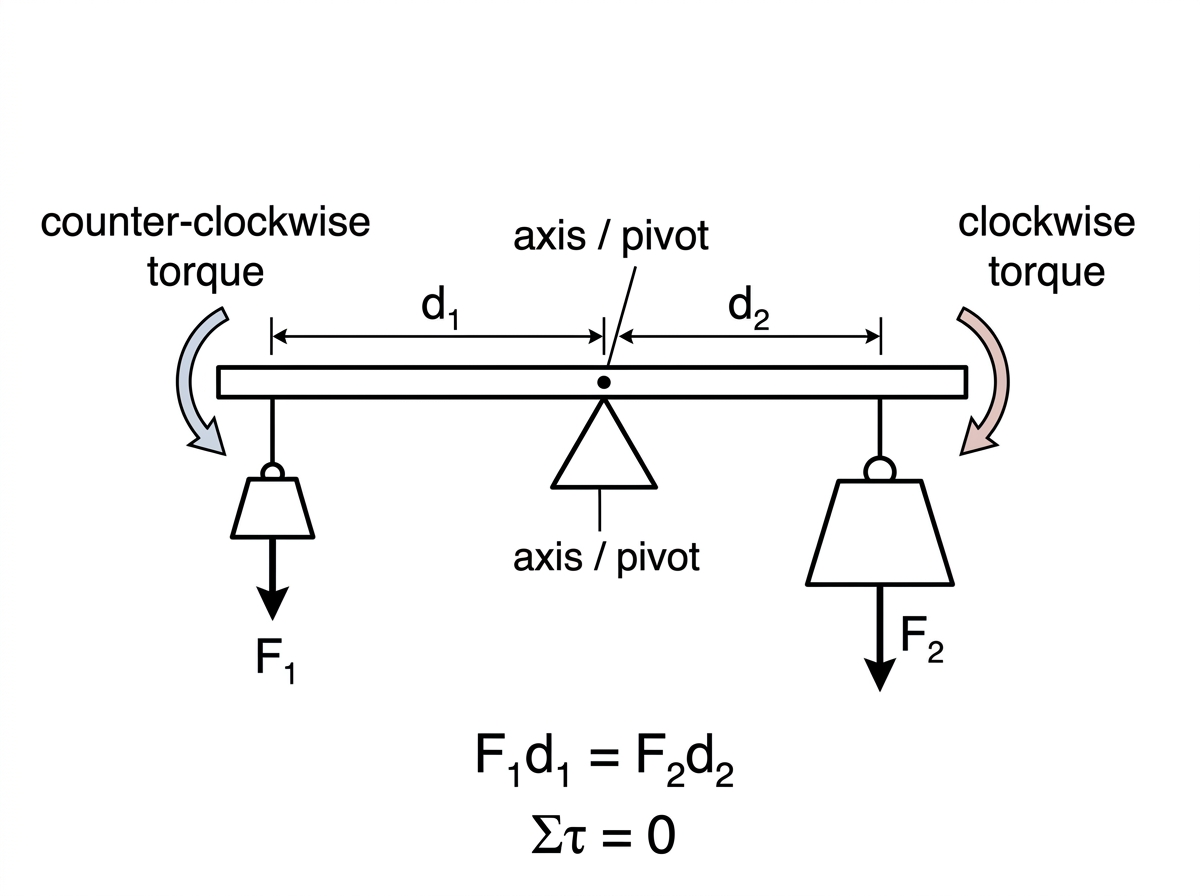

The working rule is the principle of moments: for rotational equilibrium, the total clockwise torque equals the total counter-clockwise torque about the same axis. You can choose the axis wherever it makes the calculation easier. In statics questions, a useful trick is to put the axis through an unknown force, so that force produces no torque and drops out of the equation.

Worked example: A uniform horizontal beam of length 2.0 m2.0\ \text{m} is supported at both ends. Its weight is 40 N40\ \text{N}, and a 60 N60\ \text{N} load acts 0.50 m0.50\ \text{m} from the left end. Find the upward support reactions RLR_L and RRR_R.

  1. The beam is uniform, so its weight acts at its midpoint, 1.0 m1.0\ \text{m} from the left support. Take moments about the left support: RLR_L has zero moment because its line of action passes through the pivot.

  2. Equate clockwise and counter-clockwise moments about the left support:

RR(2.0 m)=(40 N)(1.0 m)+(60 N)(0.50 m)R_R(2.0\ \text{m}) = (40\ \text{N})(1.0\ \text{m}) + (60\ \text{N})(0.50\ \text{m}) RR=40 N m+30 N m2.0 m=35 NR_R = \frac{40\ \text{N m} + 30\ \text{N m}}{2.0\ \text{m}} = 35\ \text{N}
  1. Use vertical force balance to find the other reaction:
RL+RR=40 N+60 NR_L + R_R = 40\ \text{N} + 60\ \text{N} RL=100 N−35 N=65 NR_L = 100\ \text{N} - 35\ \text{N} = 65\ \text{N}
Answer

Answer: The right reaction is 35 N35\ \text{N} upward and the left reaction is 65 N65\ \text{N} upward.

Centre of mass in rigid-body problems

The centre of mass is the point of an extended body that moves as if the body’s whole mass were concentrated there when you consider its linear motion. You do not need to calculate centres of mass in this topic, but you do need to use the idea correctly.

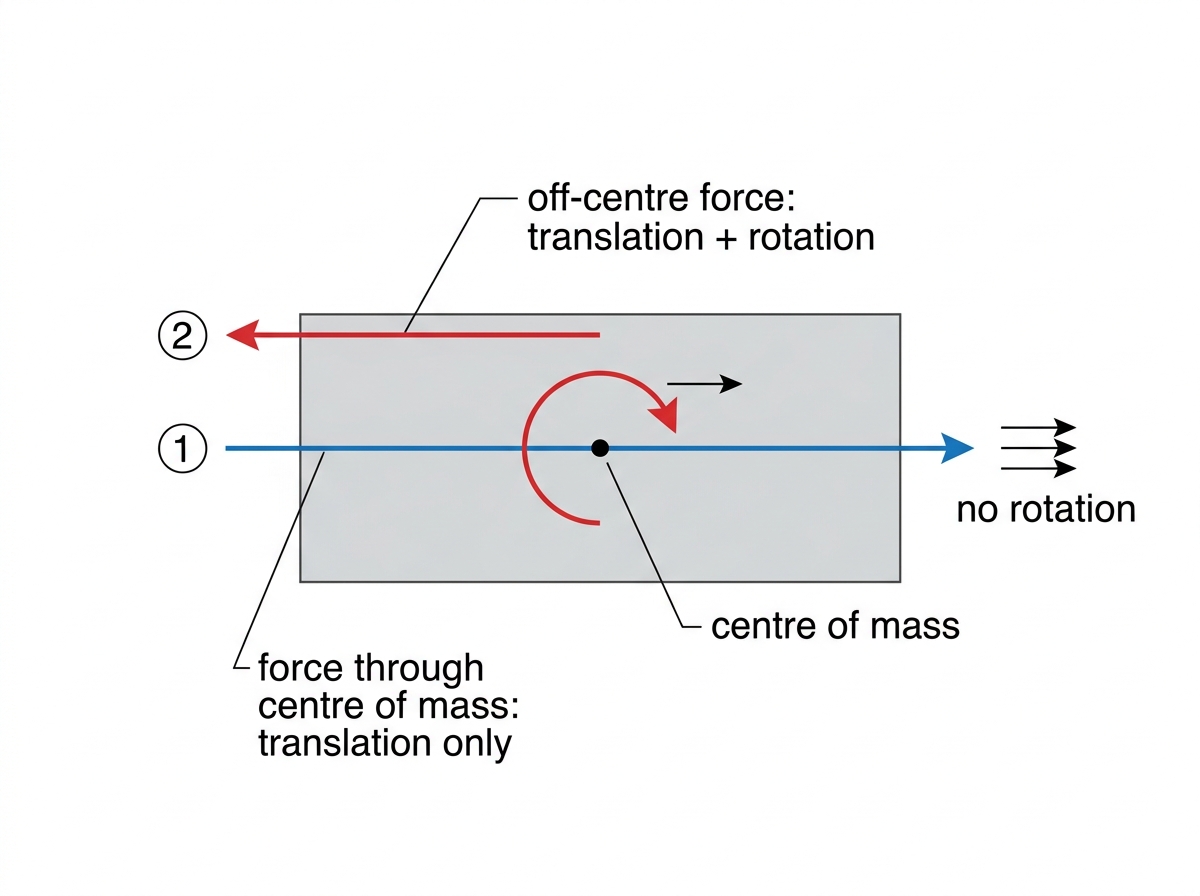

A force through the centre of mass can cause translational acceleration without rotational acceleration. A force that does not pass through the centre of mass generally causes both translation and rotation. Weight is treated as acting at the centre of mass; for a uniform regular object, this is often at the geometrical centre, but not always.

Couples

A couple is a pair of equal and opposite forces with different lines of action. A couple has zero resultant force, so on its own it does not cause linear acceleration, but it has a non-zero resultant torque and tends to cause rotation.

For a couple, the torque is the magnitude of one force multiplied by the perpendicular separation of the two lines of action. Do not use the distance between the points of application unless that distance is also perpendicular to the forces.

Worked example: Two equal and opposite parallel forces, each of magnitude 10 N10\ \text{N}, act on a rigid plate. Their lines of action have a perpendicular separation of 0.20 m0.20\ \text{m}. Calculate the couple's resultant force and torque.

  1. The forces cancel:
Fresultant=10 N−10 N=0 NF_{\text{resultant}} = 10\ \text{N} - 10\ \text{N} = 0\ \text{N}
  1. Multiply one force by the perpendicular separation dd:
τ=Fd=(10 N)(0.20 m)=2.0 N m\tau = Fd = (10\ \text{N})(0.20\ \text{m}) = 2.0\ \text{N m}
Answer

Answer: The resultant force is 0 N0\ \text{N} and the resultant torque has magnitude 2.0 N m2.0\ \text{N m}, not twice this value.

Common mistake: Multiplying FdFd by two counts the couple's torque twice. About an axis midway between the lines of action, both forces turn the body in the same sense, but each has a lever arm of d/2d/2, so their torques add to FdFd.

A.4.3

UNBALANCED TORQUE AND ANGULAR ACCELERATION

HL

The rotational form of Newton’s first idea

An unbalanced resultant torque on an extended rigid body causes angular acceleration, α\alpha (rad s−2\text{rad s}^{-2}). Put simply, if the clockwise torques and counter-clockwise torques don’t balance, the rotation changes.

This matches the idea of an unbalanced force causing linear acceleration, but there’s one extra thing to keep in mind for rotation: mass distribution matters. Two objects with the same mass can respond very differently to the same torque if one has more mass far from the axis.

Restoring torque and simple harmonic motion

A torque can act as a restoring effect too. If a twisted spring or torsion wire produces a torque proportional to angular displacement and directed back towards equilibrium, the object can undergo angular simple harmonic motion. It’s the rotational version of a mass on a spring: displacement is replaced by angular displacement, and force is replaced by torque.

You’ll meet this again when oscillations are treated formally. For now, keep the link clear: torque changes rotational motion in the same way that force changes translational motion.

A.4.4

ANGULAR DISPLACEMENT, ANGULAR VELOCITY AND ANGULAR ACCELERATION

HL

Describing rotation

Angular displacement is the angle through which a body rotates about an axis, measured in radians. Angular velocity is the rate of change of angular displacement. No formal vector treatment is needed here: choose clockwise or counter-clockwise as positive, then use signed angular velocities, especially for reversals.

The following finite-difference expression gives average angular velocity over a time interval:

ω=ΔθΔt\omega = \frac{\Delta\theta}{\Delta t}

Strictly, angular speed is the magnitude of angular velocity; the signed displacement determines the sign of this average.

Angular acceleration is the rate of change of angular velocity. Over an interval, average angular acceleration is

α=ΔωΔt\alpha = \frac{\Delta\omega}{\Delta t}

where Δω\Delta\omega is the signed change in angular velocity, measured in rad s−1\mathrm{rad}\ \mathrm{s}^{-1}. Its magnitude need not equal the change in angular speed during a reversal. Each average equals the instantaneous value when the corresponding rate is constant.

Radians are the natural unit

One complete revolution is 2π2\pi rad. Convert revolutions per minute into rad s−1\mathrm{rad}\ \mathrm{s}^{-1} before using the equations in this topic. Unit conversion is part of the physics, not just a finishing touch.

Linking angular and linear quantities

A point farther from the axis on a rotating body moves faster than a point closer in. The link is

v=ωrv=\omega r

where vv is the linear speed of a point on the body (m s−1\mathrm{m}\ \mathrm{s}^{-1}), using the magnitude of ω\omega.

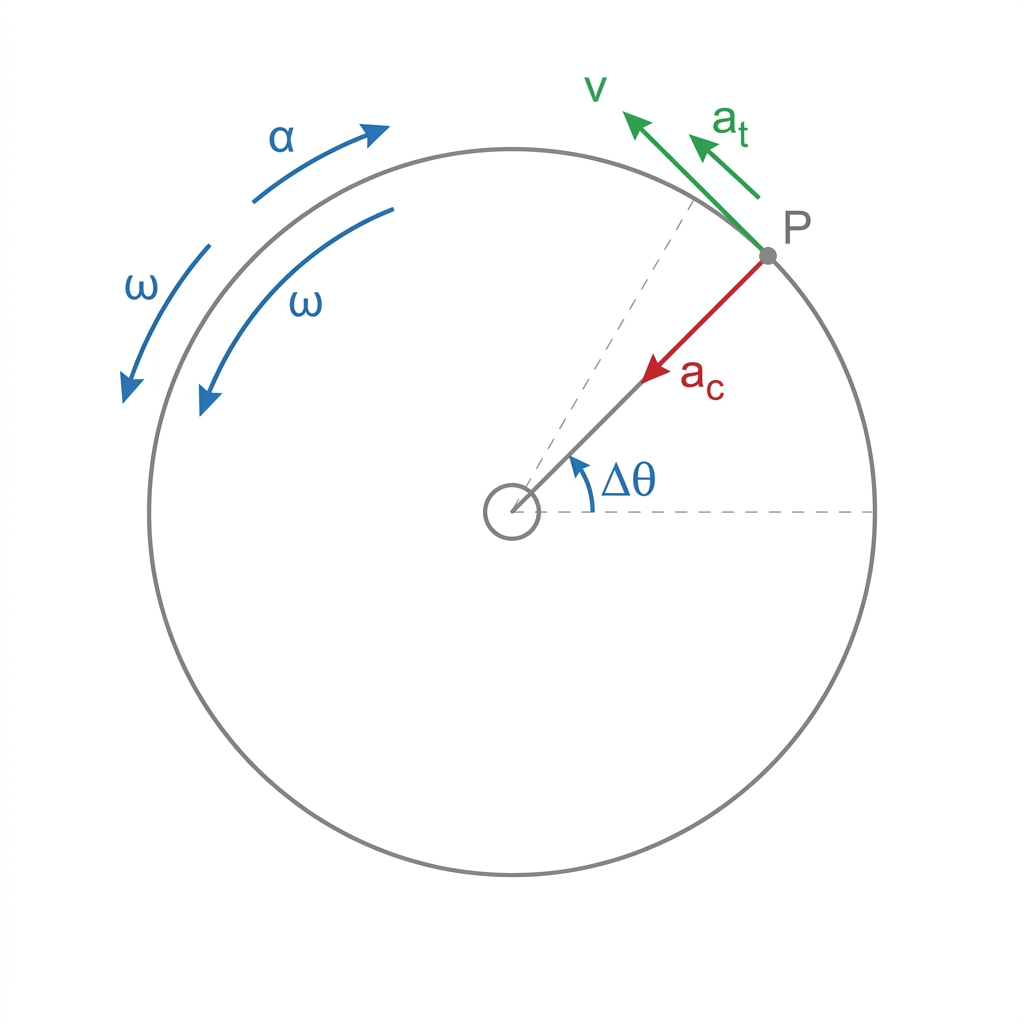

Distinguish three accelerations:

  • Angular acceleration describes how the rotation of the whole body changes.
  • Tangential acceleration, ata_t, is linear acceleration along the tangent:
at=αra_t=\alpha r

where ata_t is tangential acceleration (m s−2\mathrm{m}\ \mathrm{s}^{-2}).

  • Centripetal acceleration, aca_c, is the inward acceleration of a point moving in a circle:
ac=v2r=ω2ra_c=\frac{v^{2}}{r}=\omega^{2}r

where aca_c is centripetal acceleration (m s−2\mathrm{m}\ \mathrm{s}^{-2}).

Constant angular velocity gives α=0\alpha=0 and at=0a_t=0, but aca_c is still present for every point not on the axis.

Worked example: A wheel of radius 0.20 m0.20\ \text{m} reaches 120 rpm120\ \text{rpm} from rest in 4.0 s4.0\ \text{s}. Assuming uniform angular acceleration, find its final angular velocity, angular acceleration, angular displacement, rim speed and rim accelerations. Take its rotation as positive; retain unrounded values during calculations.

  1. Convert the final angular velocity:
ω=120×2π60=4π≈12.6 rad s−1\omega=120\times\frac{2\pi}{60}=4\pi\approx12.6\ \text{rad s}^{-1}
  1. Calculate the average (also instantaneous) angular acceleration:
α=4π−04.0=π≈3.14 rad s−2\alpha=\frac{4\pi-0}{4.0}=\pi\approx3.14\ \text{rad s}^{-2}
  1. Use average angular velocity for uniform acceleration:
Δθ=0+4π2×4.0=8π≈25.1 rad\Delta\theta=\frac{0+4\pi}{2}\times4.0=8\pi\approx25.1\ \text{rad}
  1. Calculate the rim quantities:
v=ωr=4π×0.20≈2.51 m s−1v=\omega r=4\pi\times0.20\approx2.51\ \text{m s}^{-1} at=αr=π×0.20≈0.628 m s−2a_t=\alpha r=\pi\times0.20\approx0.628\ \text{m s}^{-2} ac=ω2r=(4π)2×0.20≈31.6 m s−2a_c=\omega^2r=(4\pi)^2\times0.20\approx31.6\ \text{m s}^{-2}
Answer

Answer: The wheel reaches 12.6 rad s−112.6\ \text{rad s}^{-1} with angular acceleration 3.14 rad s−23.14\ \text{rad s}^{-2} through 25.1 rad25.1\ \text{rad}. Its final rim speed is 2.51 m s−12.51\ \text{m s}^{-1}, with tangential acceleration 0.628 m s−20.628\ \text{m s}^{-2} and inward acceleration 31.6 m s−231.6\ \text{m s}^{-2}; all points share angular displacement, angular velocity and angular acceleration, while the linear quantities depend on radius.

Where rotation turns up later

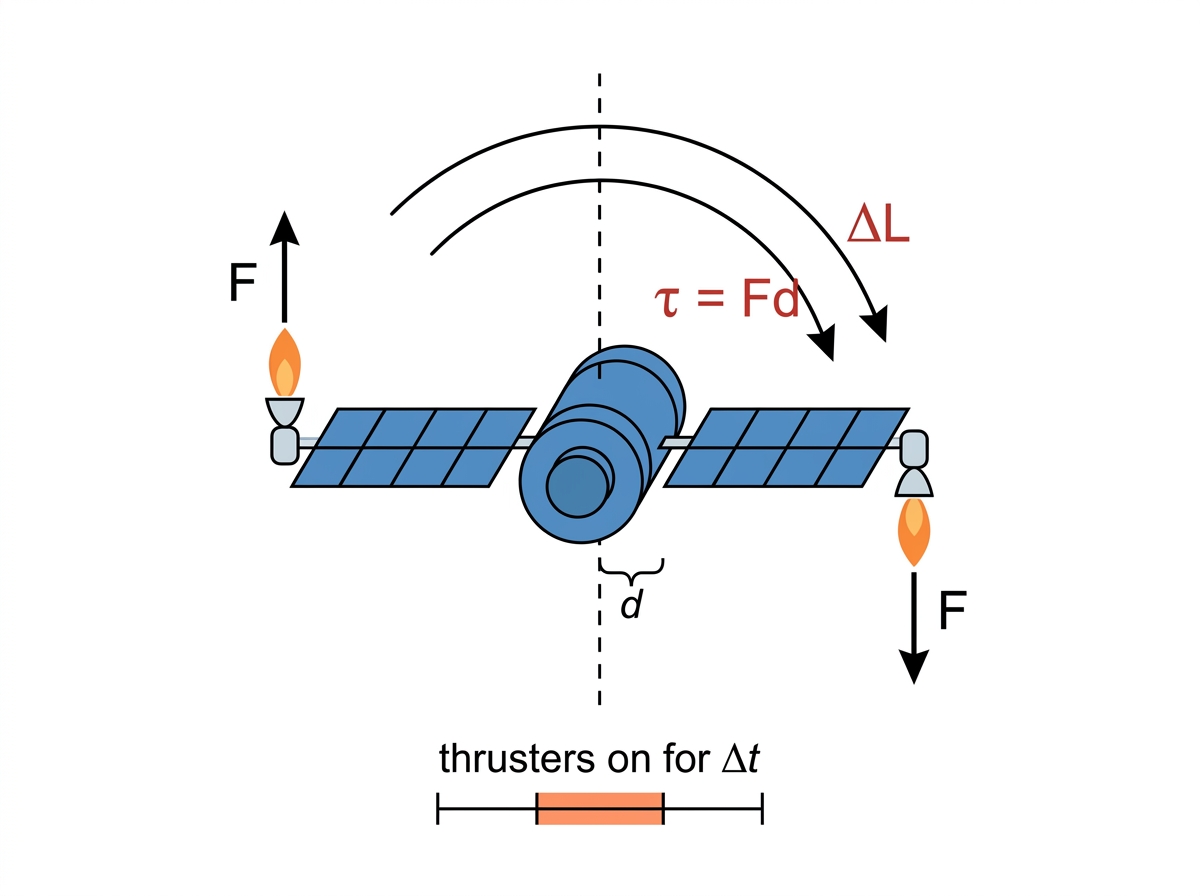

You use the same language for wheels, satellites, charged particles in magnetic fields and coils rotating in generators. For a satellite or charged particle in circular motion, angular speed tells you how quickly the radius line sweeps round. For a conducting coil, controlled rotation through a magnetic field is the starting point for generating an electric current.

A.4.5

EQUATIONS OF MOTION FOR UNIFORM ANGULAR ACCELERATION

HL

The linear equations, translated carefully

If angular acceleration stays uniform, the rotational kinematics equations follow the same pattern as the constant-acceleration equations for straight-line motion. First, make sure every angular quantity is in radians, not revolutions or degrees.

For constant α\alpha:

Δθ=ωf+ωi2t\Delta\theta = \frac{\omega_f+\omega_i}{2}t
ωf=ωi+αt\omega_f=\omega_i+\alpha t Δθ=ωit+12αt2\Delta\theta=\omega_i t+\frac{1}{2}\alpha \text{t}^{2} ωf2=ωi2+2αΔθ\omega_\text{f}^{2}=\omega_\text{i}^{2}+2\alpha\Delta\theta

Linear constant-acceleration quantities and equations matched to their rotational equivalents.

RoleLinear motionRotational motion
DisplacementΔx\Delta x / mΔθ\Delta \theta / rad
Initial velocityviv_i / m s−1^{-1}ωi\omega_i / rad s−1^{-1}
Final velocityvfv_f / m s−1^{-1}ωf\omega_f / rad s−1^{-1}
Accelerationaa / m s−2^{-2}α\alpha / rad s−2^{-2}
Average-velocity formΔx=12(vf+vi)t\Delta x = \frac{1}{2}(v_f + v_i)tΔθ=12(ωf+ωi)t\Delta \theta = \frac{1}{2}(\omega_f + \omega_i)t
Velocity updatevf=vi+atv_f = v_i + atωf=ωi+αt\omega_f = \omega_i + \alpha t
Displacement-time formΔx=vit+12at2\Delta x = v_i t + \frac{1}{2}at^2Δθ=ωit+12αt2\Delta \theta = \omega_i t + \frac{1}{2}\alpha t^2
No-time formvf2=vi2+2aΔxv_f^2 = v_i^2 + 2a\Delta xωf2=ωi2+2αΔθ\omega_f^2 = \omega_i^2 + 2\alpha\Delta \theta

Graphs say the same thing

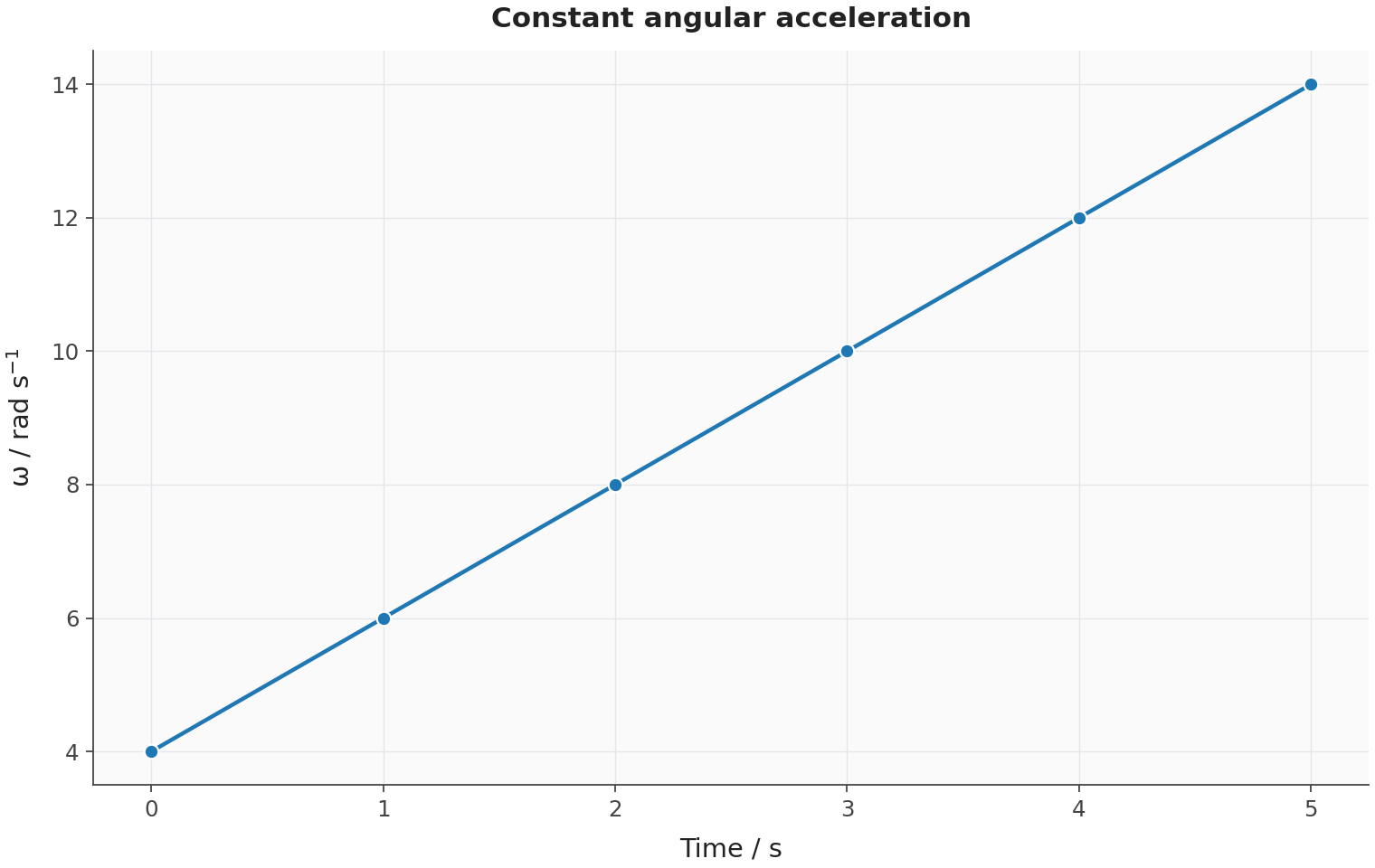

On an angular velocity–time graph, the gradient gives angular acceleration, while the area under the graph gives angular displacement. For a straight-line graph, split that area into a rectangle and a triangle. That’s where the equation with 12αt2\frac{1}{2}\alpha t^2 comes from, just as it does in linear motion graphs.

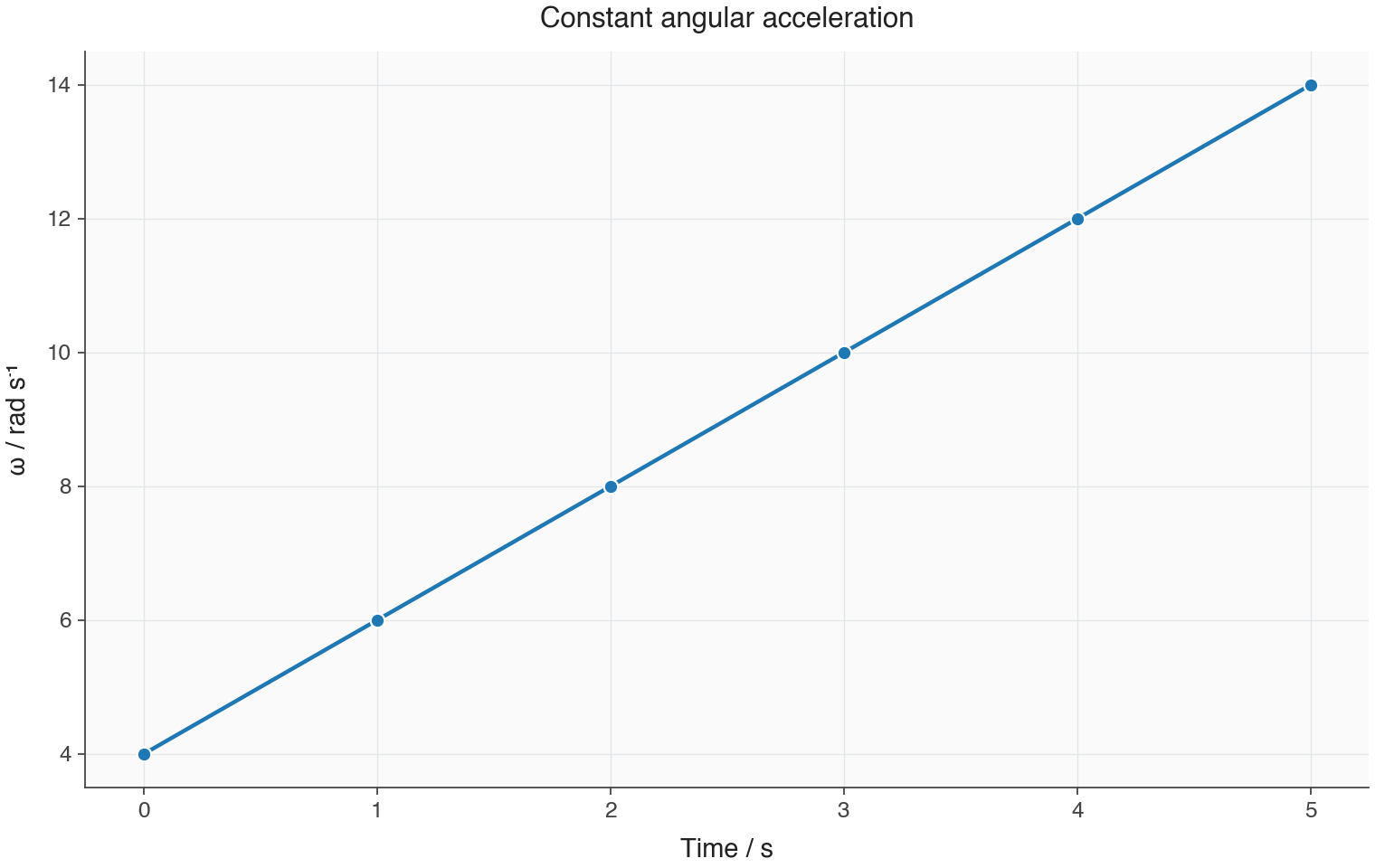

Worked example: A rotating body’s angular velocity increases uniformly from 4 rad s−14\ \text{rad s}^{-1} to 14 rad s−114\ \text{rad s}^{-1} in 5 s5\ \text{s}. Calculate its angular acceleration and angular displacement. Check the displacement using average angular velocity and the area under the graph.

  1. Calculate the gradient of the angular velocity–time graph:
α=ωf−ωit=14−45=2 rad s−2\alpha=\frac{\omega_f-\omega_i}{t}=\frac{14-4}{5}=2\ \text{rad s}^{-2}
  1. Substitute into the angular displacement equation:
Δθ=ωit+12αt2=4×5+12×2×52=45 rad\Delta\theta=\omega_i t+\frac{1}{2}\alpha t^2=4\times5+\frac{1}{2}\times2\times5^2=45\ \text{rad}
  1. Verify using average angular velocity. Because the acceleration is uniform, the average is the mean of the initial and final values:
Δθ=ωf+ωi2t=14+42×5=45 rad\Delta\theta=\frac{\omega_f+\omega_i}{2}t=\frac{14+4}{2}\times5=45\ \text{rad}
  1. Check the area as a rectangle plus a triangle. The rectangle has height 4 rad s−14\ \text{rad s}^{-1} and width 5 s5\ \text{s}; the triangle has height (14−4)=10 rad s−1(14-4)=10\ \text{rad s}^{-1} and base 5 s5\ \text{s}:
Arectangle=4×5=20 radA_{\text{rectangle}}=4\times5=20\ \text{rad} Atriangle=12×5×10=25 radA_{\text{triangle}}=\frac{1}{2}\times5\times10=25\ \text{rad} Δθ=20+25=45 rad\Delta\theta=20+25=45\ \text{rad}
Answer

Answer: The angular acceleration is 2 rad s−22\ \text{rad s}^{-2} and the angular displacement is 45 rad45\ \text{rad}. Both checks give the same displacement.

Exam tip: Choose an equation that links the known quantities to the unknown without introducing an unnecessary variable. The equation relating squared angular speeds to angular displacement contains no time, so it is useful when elapsed time is not supplied.

When not to use them

These equations only work for uniform angular acceleration. If the torque changes so that α\alpha is non-uniform, don’t force the equations onto the problem; use a graph, energy, angular momentum, or calculus-style reasoning instead.

A.4.6

MOMENT OF INERTIA AND MASS DISTRIBUTION

HL

The rotational equivalent of mass — with a warning

Moment of inertia tells you how much a body resists changes in its rotational motion about a particular axis. It is a scalar, written II, with unit kg m2\text{kg}\,\text{m}^2.

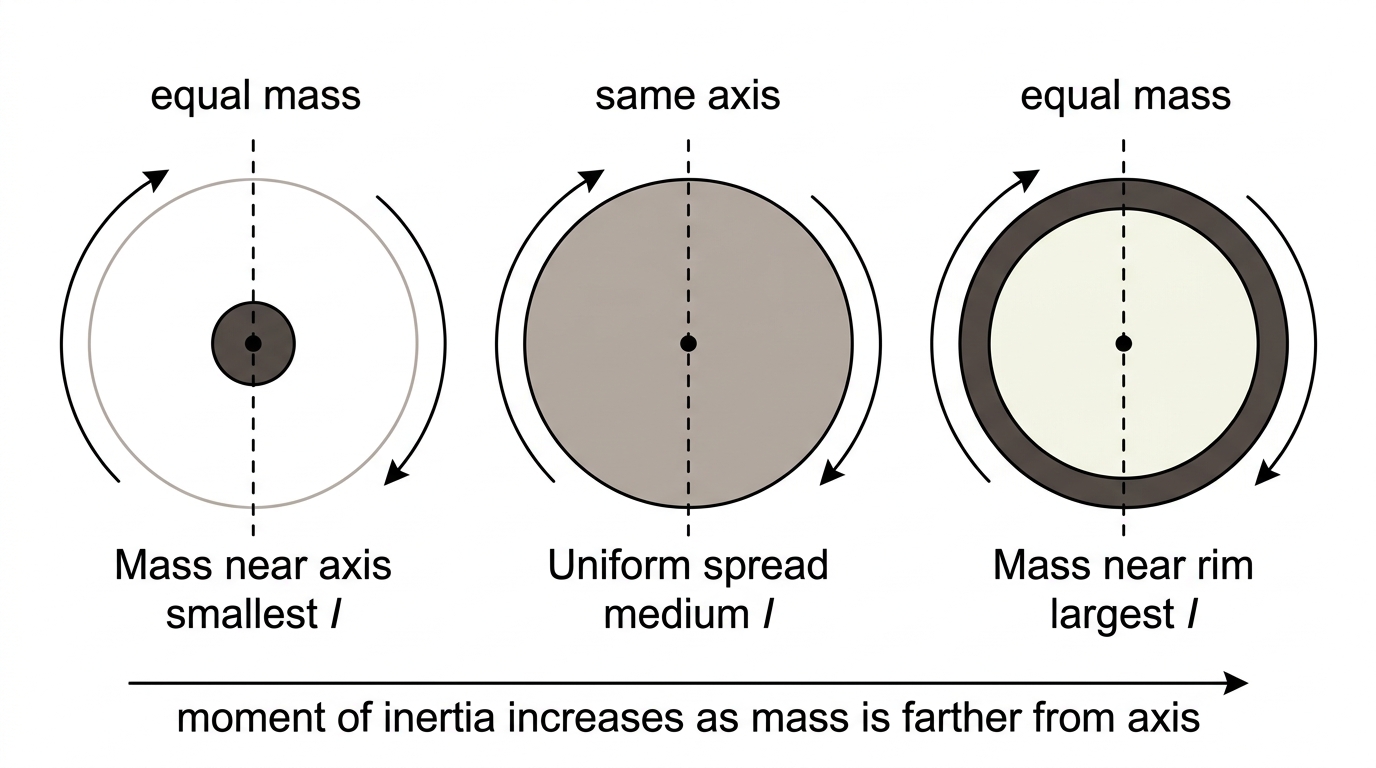

Mass by itself doesn’t decide the value. Put the same mass close to the axis and the moment of inertia is smaller than if that mass sits far from the axis. That is why a skater spins faster after pulling in their arms, and why flywheels often keep much of their mass near the rim.

Axis matters

Moment of inertia is always measured “about an axis”. A rod has one moment of inertia about its centre and another about one end. Change the axis, and the value of II usually changes too.

For many uniform shapes, the form is

I=kMR2I=\text{kMR}^{2}

You are not expected to memorise formulae for specific continuous mass distributions; they will be provided when needed.

Modelling real bodies

You can model a real wheel as a hoop if most of its mass lies near the rim. A solid disc model works better when the mass is spread through the face. The model is not “true” or “false”; it is simply more or less useful for the precision you need.

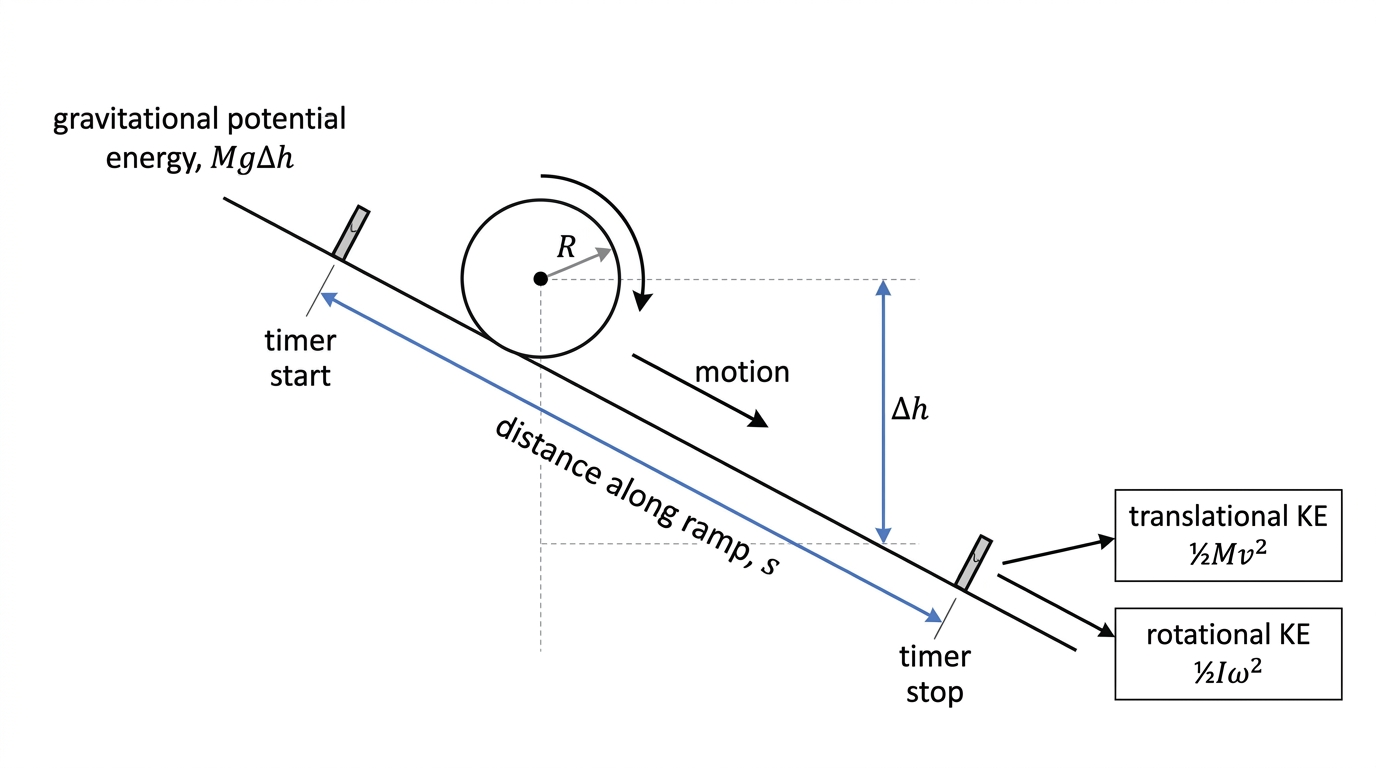

A quick practical test is to roll objects with the same mass and radius down the same ramp. A hoop, a solid cylinder and a sphere do not accelerate equally, because their moments of inertia differ. With repeated timing, a measured height change of the centre of mass, and uncertainty ranges, you can decide whether your data can distinguish one model from another.

A.4.7

MOMENT OF INERTIA FOR POINT MASSES

HL

Adding point masses

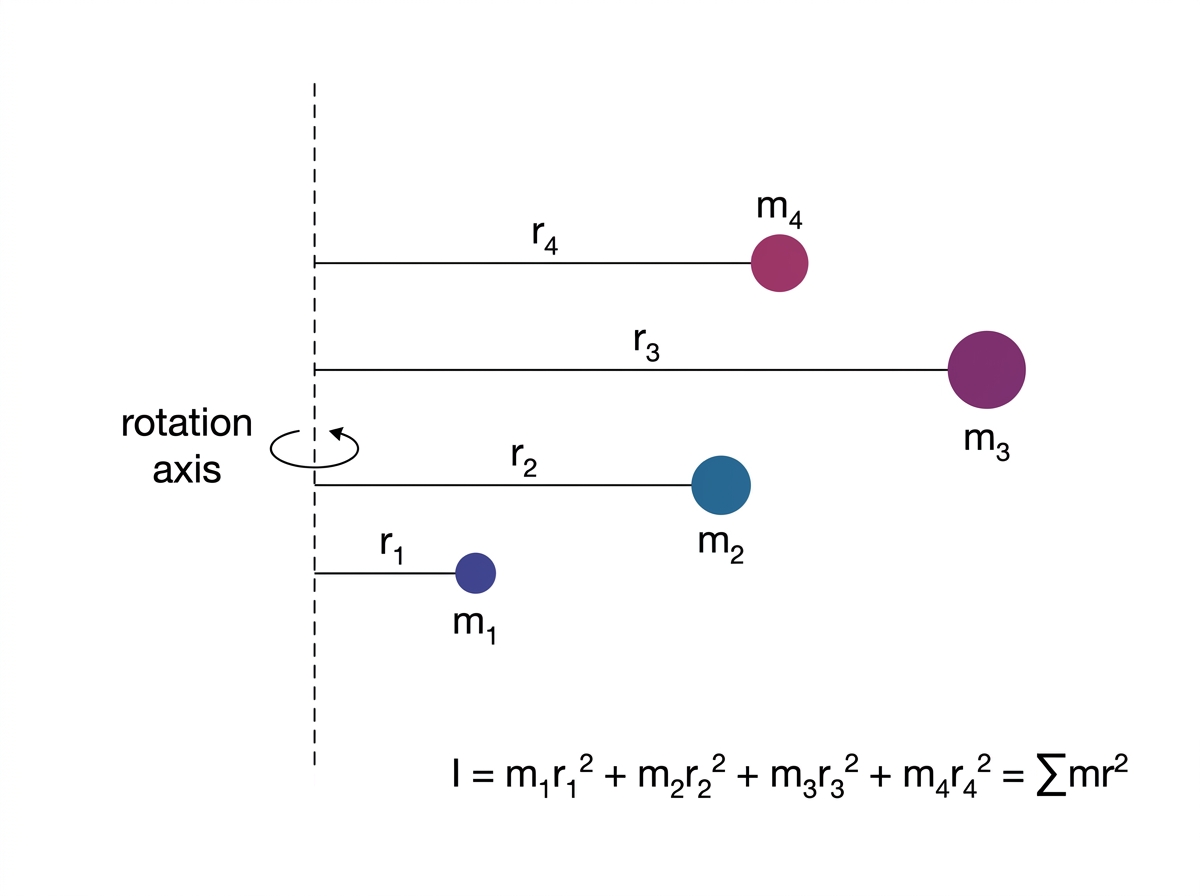

For a system made of point masses, find the moment of inertia by adding the contribution from each mass:

I=∑mr2I=\sum \text{mr}^{2}

The distance rr is the perpendicular distance of each point mass from the specified rotation axis, measured in m\text{m}. The square matters: if a mass is moved to twice the distance from the axis, its contribution to II becomes four times larger.

Example: Take two identical small masses fixed to a light rod, with each one the same distance from the central axis. Together, they contribute twice as much as one mass alone. The rod is called light when its own moment of inertia is negligible compared with that of the attached masses.

Worked example: A light rod carries a 0.20 kg0.20\ \text{kg} point mass at a perpendicular distance of 0.10 m0.10\ \text{m} from the rotation axis and a 0.30 kg0.30\ \text{kg} point mass at 0.20 m0.20\ \text{m}. Calculate the total moment of inertia. Then move the second mass to 0.40 m0.40\ \text{m} from the same axis and calculate the new total.

  1. Calculate each contribution and add them. The light rod's own contribution is negligible.

    I=m1r12+m2r22I=m_1r_1^2+m_2r_2^2

    I=0.20(0.10)2+0.30(0.20)2=0.0020+0.012=0.014 kg m2I=0.20(0.10)^2+0.30(0.20)^2=0.0020+0.012=0.014\ \text{kg m}^2

  2. Move only the second mass. Its new contribution is:

    m2r22=0.30(0.40)2=0.048 kg m2m_2r_2^2=0.30(0.40)^2=0.048\ \text{kg m}^2

    This is four times its original contribution:

    4×0.012 kg m2=0.048 kg m24\times 0.012\ \text{kg m}^2=0.048\ \text{kg m}^2

  3. Add the unchanged contribution from the first mass:

    Inew=0.0020+0.048=0.050 kg m2I_{\text{new}}=0.0020+0.048=0.050\ \text{kg m}^2

    Quadrupling the original total would instead give:

    4I=4(0.014)=0.056 kg m24I=4(0.014)=0.056\ \text{kg m}^2

Answer

Answer: The total moment of inertia increases from 0.014 kg m20.014\ \text{kg m}^2 to 0.050 kg m20.050\ \text{kg m}^2. Only the second mass's contribution quadruples; the total does not, because the first mass stays at the same distance from the axis.

Exam tip: Use the perpendicular distance from the specified rotation axis, not the distance from an arbitrary point on the rod. Masses on opposite sides of the axis both make positive contributions to II: their terms add and do not cancel.

Distributed bodies are many point masses

You can treat a continuous object as a very large number of tiny point masses. The same idea sits behind the formulae for discs, spheres and rods, although you do not need to derive those formulae. If an exam specifies the mass distribution, it will give the appropriate expression for II when needed.

A.4.8

NEWTON’S SECOND LAW FOR ROTATION

HL

Torque produces angular acceleration

For rotation about a specified fixed axis with constant moment of inertia, Newton’s second law for rotation is

τ=Iα\tau=I\alpha

Here, τ\tau is the instantaneous resultant external torque and α\alpha is the instantaneous angular acceleration. For a time interval, the equation can instead be interpreted using averages:

In that interpretation, α\alpha must also be the average angular acceleration, and II must remain constant. If II changes, use the more general angular-momentum relation τext=dLdt\tau_{\text{ext}}=\frac{dL}{dt} about the specified fixed axis.

It matches the idea that a resultant force causes acceleration, except here moment of inertia takes the role of mass, and angular acceleration takes the role of linear acceleration.

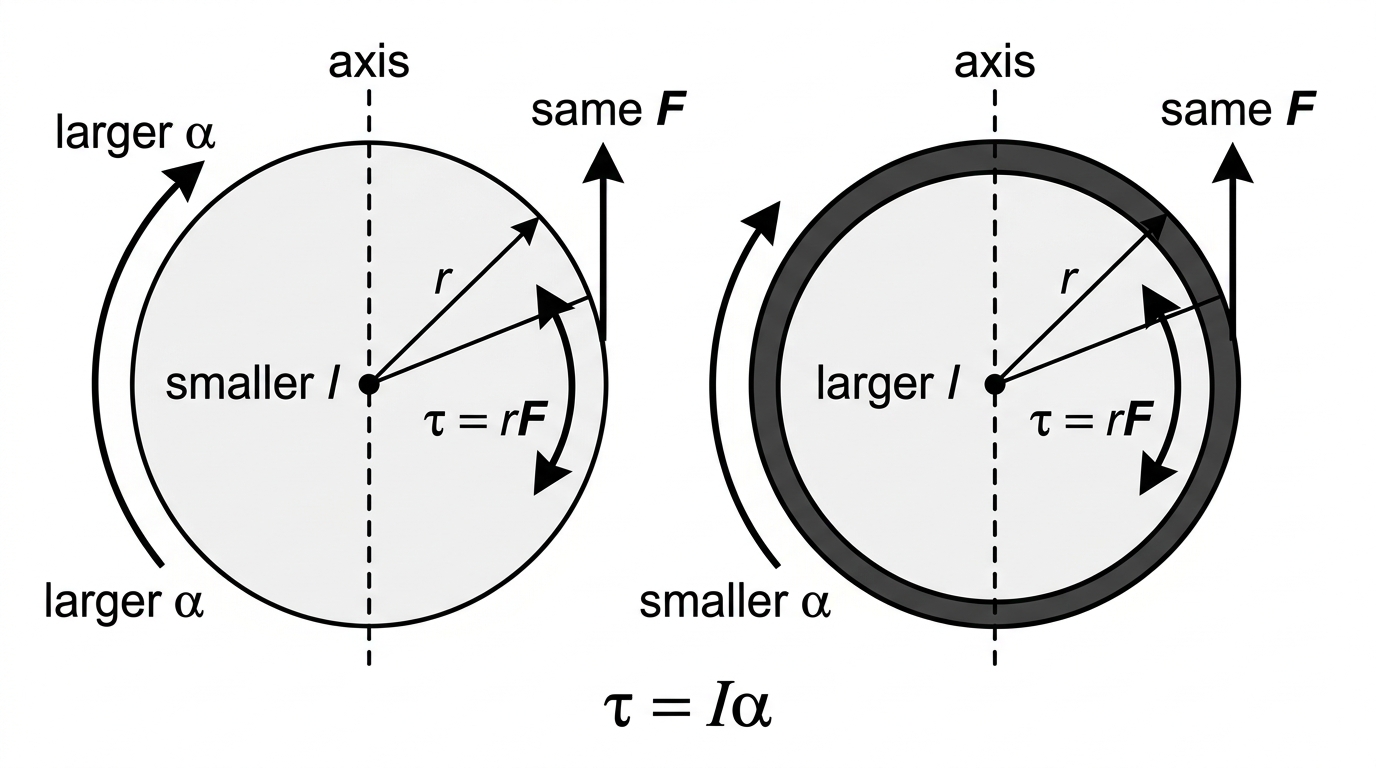

Increase the torque, and the angular acceleration increases. Increase the moment of inertia, and the same torque gives a smaller angular acceleration. That’s why a light door swings more easily than a heavy fire door, and why moving mass outward makes rotation harder to change.

Worked example: A flywheel has I=0.50 kg m2I=0.50\ \text{kg m}^2. A 12 N12\ \text{N} tangential driving force acts at radius 0.20 m0.20\ \text{m}, opposed by a friction torque of 0.40 N m0.40\ \text{N m}. Find its angular acceleration about its fixed central axle, taking the driving sense as positive.

  1. Calculate the resultant torque:

τnet=12×0.20−0.40=2.0 N m\tau_{\text{net}}=12\times0.20-0.40=2.0\ \text{N m}

  1. Apply the rotational second law:

α=τnetI=2.00.50=4.0 rad s−2\alpha=\frac{\tau_{\text{net}}}{I}=\frac{2.0}{0.50}=4.0\ \text{rad s}^{-2}

Answer

Answer: The angular acceleration is 4.0 rad s−24.0\ \text{rad s}^{-2} in the driving sense.

Translation and rotation together

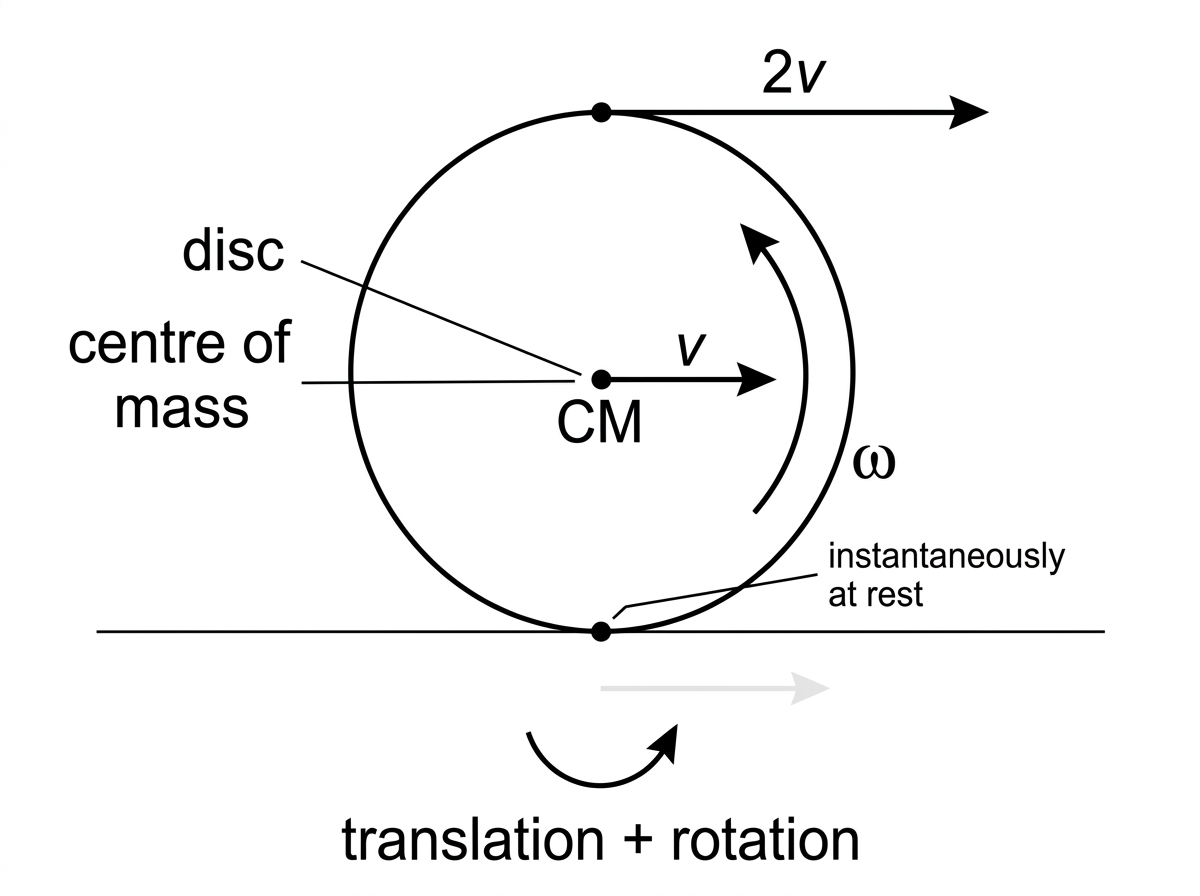

For an extended body, a force can accelerate the centre of mass and also produce angular acceleration about the centre of mass. When the force’s line of action passes through the centre of mass, it produces no torque about the centre of mass. When the line of action misses the centre of mass, there is a torque; if the resultant torque is non-zero, the body’s rotation changes. A body initially at rest begins to rotate.

Action and reaction torques

If body A exerts a torque on body B, body B exerts an equal and opposite torque on body A, with both torques measured about the same reference axis. Just like ordinary Newton’s third law pairs, the two torques act on different bodies. They don’t cancel when you consider one body on its own.

Example: A motor exerts a driving torque on its rotor, while the rotor exerts an equal and opposite reaction torque on the motor housing about the same shaft axis. These torques act on different bodies.

A.4.9

ANGULAR MOMENTUM OF AN EXTENDED BODY

HL

Rotational momentum

Angular momentum is the rotational momentum of a body. It equals its moment of inertia multiplied by its angular velocity:

L=IωL=I\omega

Since the radian is dimensionless, it is usually left out of the unit.

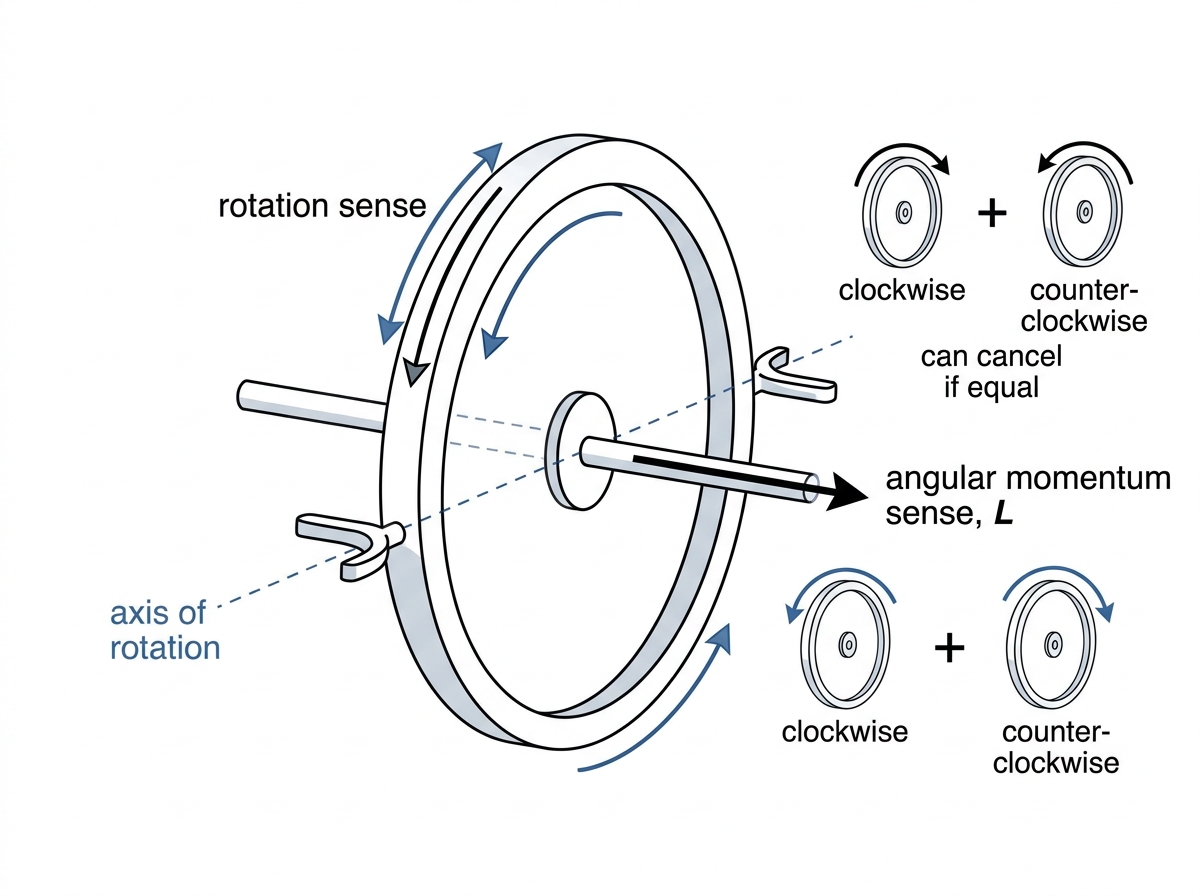

You do not need the full vector treatment here. Still, you do need to keep track of the clockwise or counter-clockwise sense. For bodies rotating about a common axis, choose a sign convention and add their signed angular momenta. If two rotating bodies have angular momenta of equal magnitude but opposite senses, their total angular momentum can be zero.

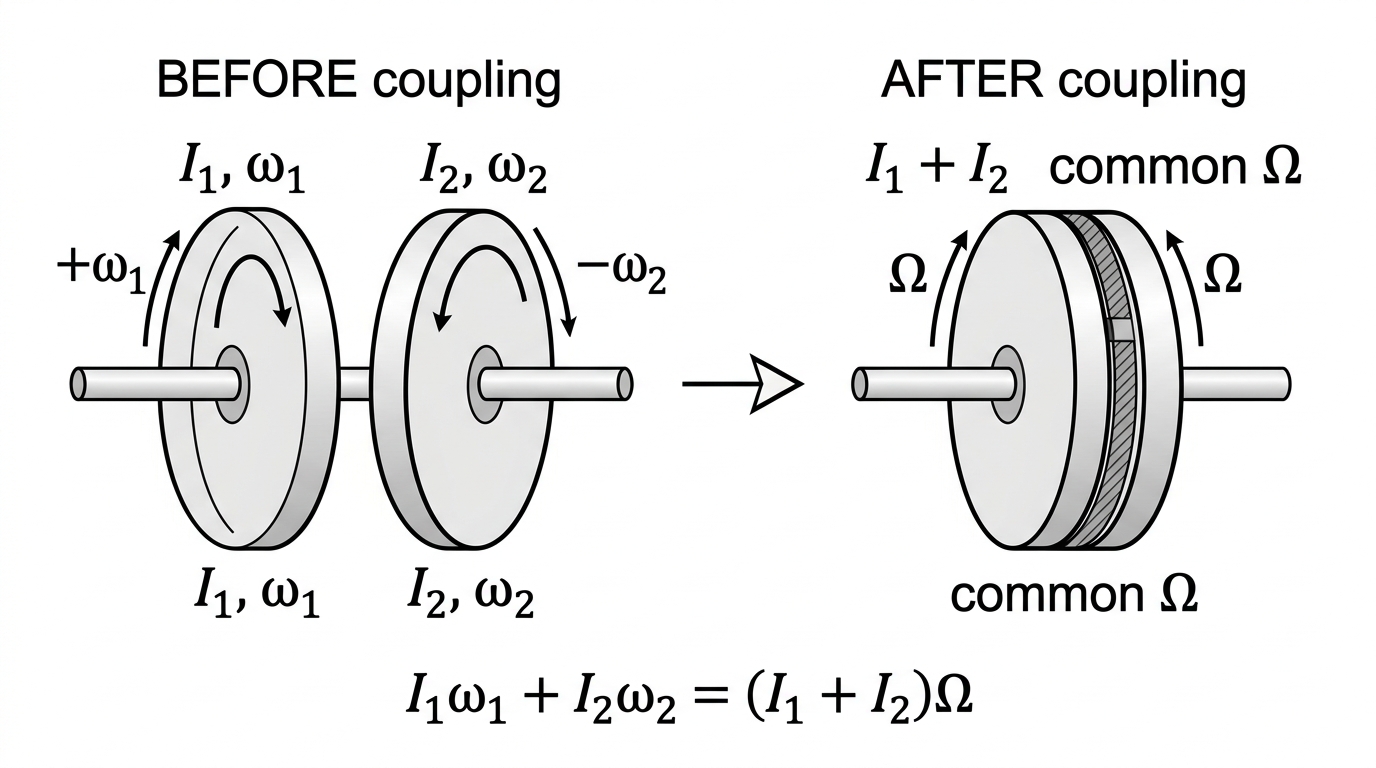

Worked example: Two coaxial wheels rotate about a common axis. Their moments of inertia are I1=0.20 kg m2I_1 = 0.20\ \text{kg m}^2 and I2=0.50 kg m2I_2 = 0.50\ \text{kg m}^2, and their angular velocities are ω1=+10 rad s−1\omega_1 = +10\ \text{rad s}^{-1} and ω2=−4 rad s−1\omega_2 = -4\ \text{rad s}^{-1}. Calculate their total angular momentum.

  1. Use the common axis and take counter-clockwise rotation as positive, viewing both wheels from the same end of the axis. The opposite direction is negative.

  2. Calculate each wheel’s signed angular momentum:

    L1=I1ω1=(0.20)(+10)=+2.0 kg m2 s−1L_1 = I_1\omega_1 = (0.20)(+10) = +2.0\ \text{kg m}^2\text{ s}^{-1}

    L2=I2ω2=(0.50)(−4)=−2.0 kg m2 s−1L_2 = I_2\omega_2 = (0.50)(-4) = -2.0\ \text{kg m}^2\text{ s}^{-1}

  3. Add the signed values:

    Ltotal=L1+L2=(+2.0)+(−2.0)=0 kg m2 s−1L_{\text{total}} = L_1 + L_2 = (+2.0) + (-2.0) = 0\ \text{kg m}^2\text{ s}^{-1}

Answer

Answer: The total angular momentum is 0 kg m2 s−10\ \text{kg m}^2\text{ s}^{-1} despite both wheels rotating. Their equal and opposite angular momenta cancel.

Exam tip: Specify the axis, calculate II about that axis, convert ω\omega to rad s−1\text{rad s}^{-1} and attach a sign before summing angular momenta. Use L=IωL = I\omega for angular momentum, not the linear momentum relation p=mvp = mv; a common axis and a consistent sign convention are required for this scalar sum.

A gyroscope gives a good physical picture. A fast-spinning wheel has a large angular momentum, so it takes a significant torque to change its rotation. That’s why spinning wheels can feel unexpectedly “stubborn” when you try to twist their axes.

A.4.10

CONSERVATION OF ANGULAR MOMENTUM

HL

The conservation law

Angular momentum stays constant unless a resultant external torque acts on the system. Internal forces and internal torques may shift angular momentum from one part of the system to another, but the total does not change.

For a system before and after an interaction,

∑Iiωi=∑Ifωf\sum I_i\omega_i=\sum I_f\omega_f

Changing moment of inertia

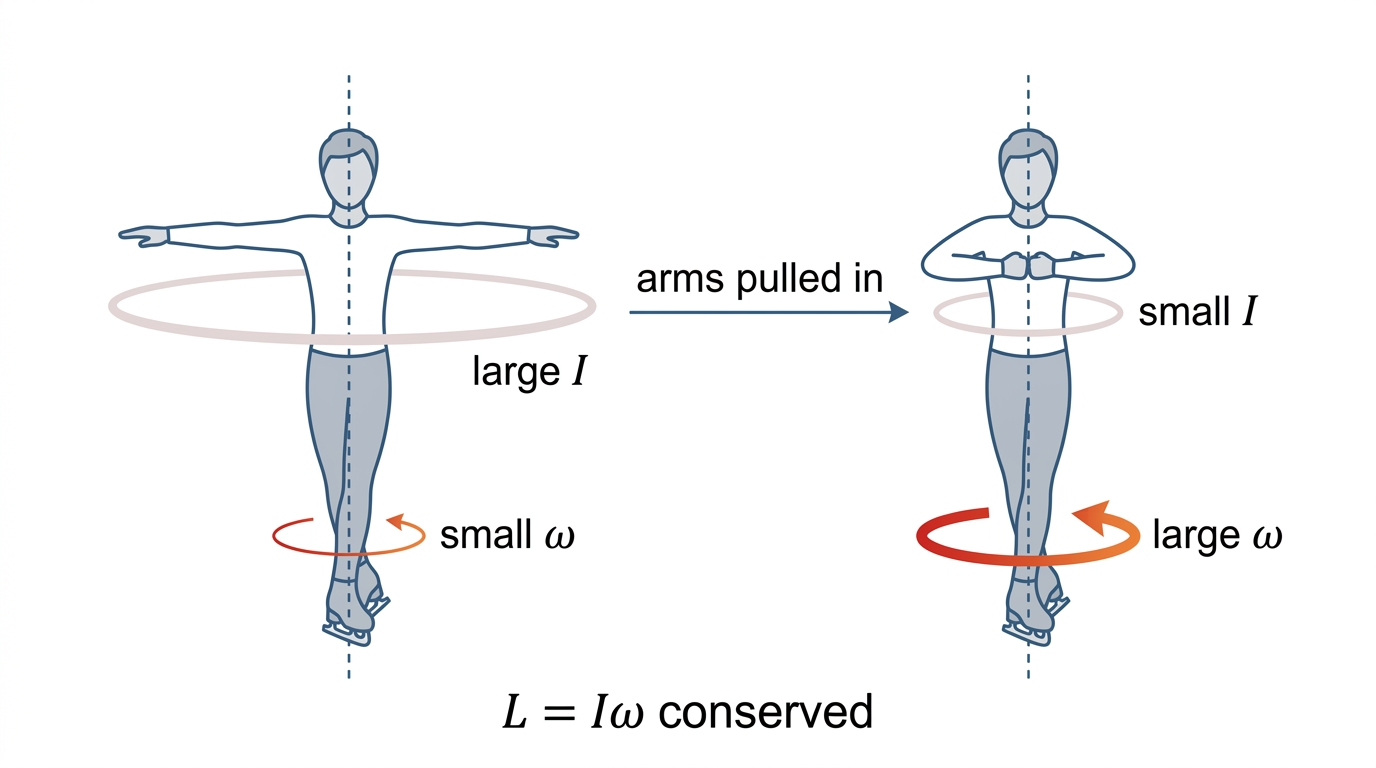

If II decreases and no external torque acts, ω\omega increases. That’s the ice-skater effect. Pulling the arms in doesn’t create angular momentum; it lowers the moment of inertia, so the angular speed rises to keep angular momentum constant.

Worked example: A skater pulls their arms in, reducing their moment of inertia from 4.0 kg m24.0\ \text{kg m}^2 to 1.6 kg m21.6\ \text{kg m}^2. Their initial angular speed is 2.0 rad s−12.0\ \text{rad s}^{-1}. Find their final angular speed, assuming negligible external angular impulse about the rotation axis during the movement.

  1. Conserve angular momentum about the rotation axis:

    Iiωi=IfωfI_i\omega_i=I_f\omega_f

  2. Rearrange and substitute:

    ωf=IiωiIf=(4.0 kg m2)(2.0 rad s−1)1.6 kg m2=5.0 rad s−1\omega_f=\frac{I_i\omega_i}{I_f}=\frac{(4.0\ \text{kg m}^2)(2.0\ \text{rad s}^{-1})}{1.6\ \text{kg m}^2}=5.0\ \text{rad s}^{-1}

Answer

Answer: The skater’s final angular speed is 5.0 rad s−15.0\ \text{rad s}^{-1}, in the original direction of rotation.

For coupled rotating bodies, signs matter. When two coaxial wheels are clamped together, angular momentum is conserved during the coupling, provided the external angular impulse about their common axis is negligible. Choose both wheels as the system: friction between them is internal, so it redistributes angular momentum without changing the system total. Rotational kinetic energy, however, need not be conserved; it may decrease because friction or deformation can transfer mechanical energy into thermal energy. A useful form is

I1ω1+I2ω2=(I1+I2)ΩI_1\omega_1+I_2\omega_2=(I_1+I_2)\Omega

Worked example: Two coaxial wheels are coupled together. Wheel 1 has I1=0.20 kg m2I_1=0.20\ \text{kg m}^2 and ω1=+12 rad s−1\omega_1=+12\ \text{rad s}^{-1}; wheel 2 has I2=0.40 kg m2I_2=0.40\ \text{kg m}^2 and ω2=−3 rad s−1\omega_2=-3\ \text{rad s}^{-1}. Find their common final angular velocity, assuming negligible external angular impulse about their common axis.

  1. Take wheel 1’s initial direction as positive. For the two-wheel system, coupling friction is internal, so conserve total angular momentum:

    I1ω1+I2ω2=(I1+I2)ΩI_1\omega_1+I_2\omega_2=(I_1+I_2)\Omega

  2. Substitute the signed angular velocities:

    Ω=(0.20 kg m2)(+12 rad s−1)+(0.40 kg m2)(−3 rad s−1)0.20 kg m2+0.40 kg m2\Omega=\frac{(0.20\ \text{kg m}^2)(+12\ \text{rad s}^{-1})+(0.40\ \text{kg m}^2)(-3\ \text{rad s}^{-1})}{0.20\ \text{kg m}^2+0.40\ \text{kg m}^2}

  3. Evaluate:

    Ω=1.2 kg m2 s−10.60 kg m2=+2.0 rad s−1\Omega=\frac{1.2\ \text{kg m}^2\ \text{s}^{-1}}{0.60\ \text{kg m}^2}=+2.0\ \text{rad s}^{-1}

Answer

Answer: The common final angular velocity is +2.0 rad s−1+2.0\ \text{rad s}^{-1}, so both wheels rotate in wheel 1’s original direction.

Orbits and Bohr’s model

Angular momentum conservation also accounts for orbiting bodies moving faster when they are closer to the central body and slower when they are farther away. It gives one route to Kepler’s second law: the radius line sweeps equal areas in equal times when there is no external torque about the central mass.

In the Bohr model of hydrogen, angular momentum cannot take just any value; it is quantised. Combining that angular momentum condition with the electrical force that provides circular motion gives the allowed orbital radius for the ground state. The model matters historically even though a modern treatment of the atom is quantum-mechanical.

Charged particles in magnetic fields show the same connection in another setting: the magnetic force can make a particle move in a circular path, so rotational language helps describe its angular speed and radius.

A.4.11

ANGULAR IMPULSE

HL

Torque acting for a time

Angular impulse is the change in angular momentum caused by a resultant torque acting for a time interval:

ΔL=τΔt=Δ(Iω)\Delta L=\tau\Delta t=\Delta(I\omega)

Think of it as the rotational form of impulse from linear mechanics. Its unit may be written as N m s, equivalent to kg m2 s−1kg\, m^2\, s^{-1}, the unit of angular momentum.

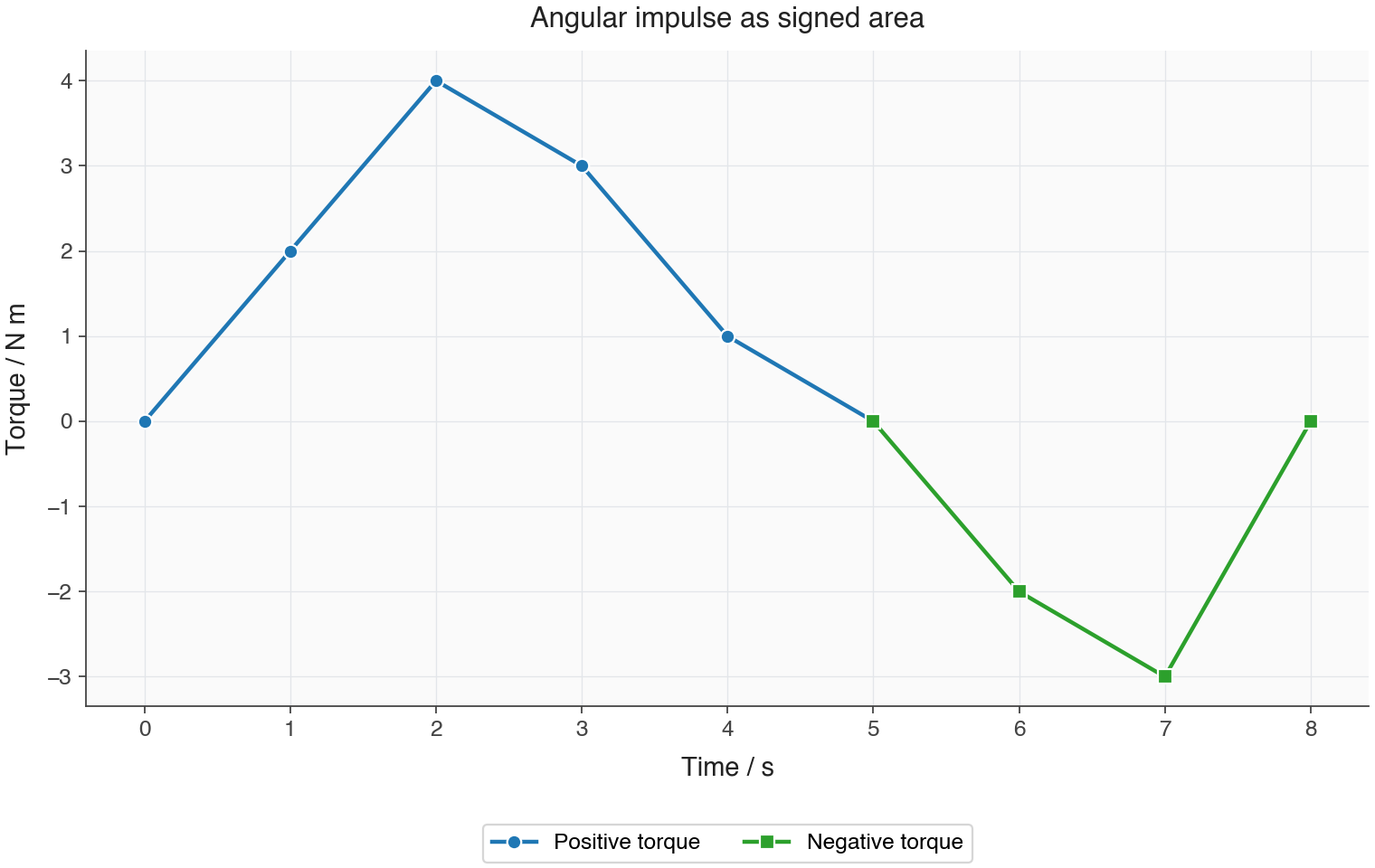

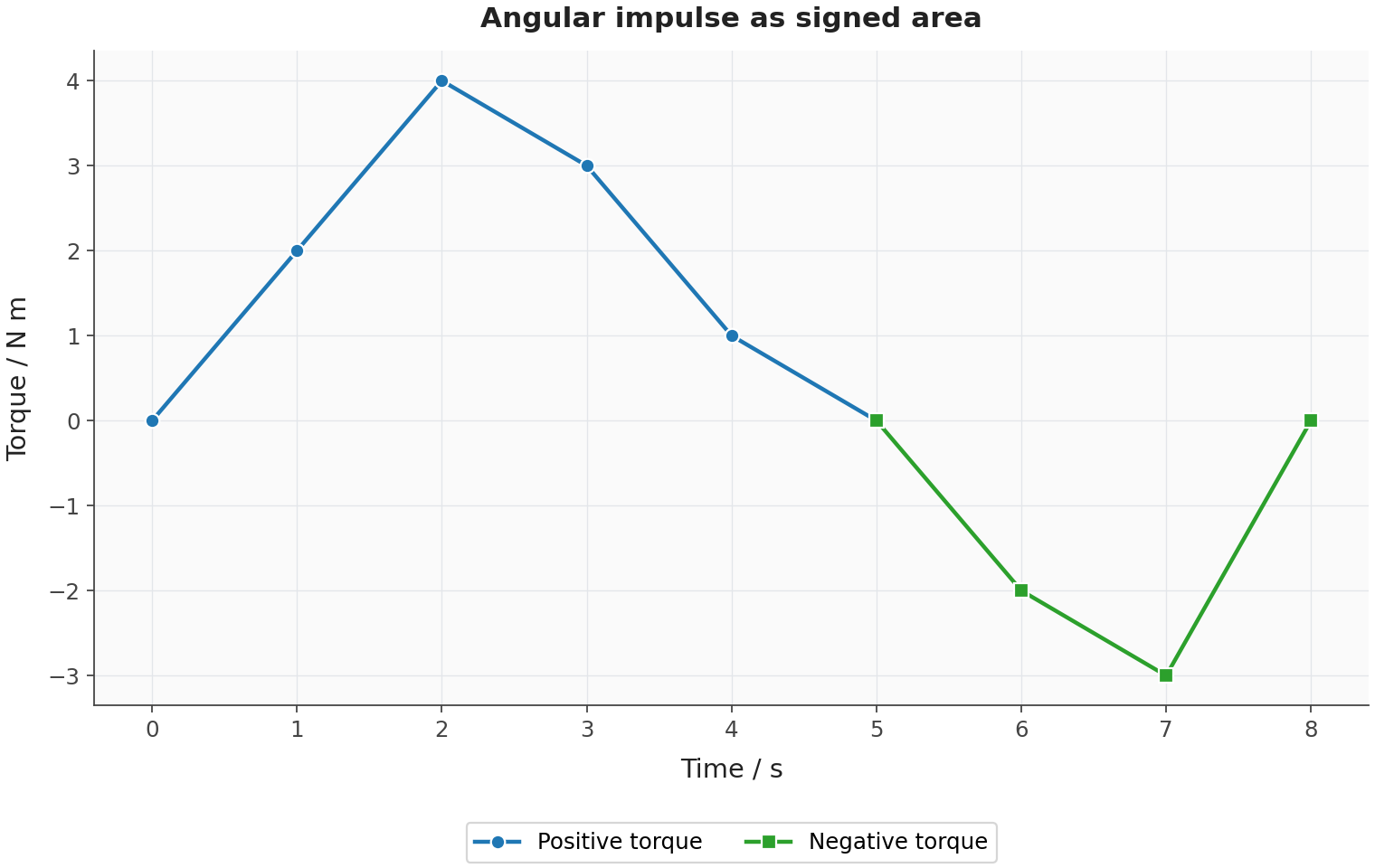

Area under a torque–time graph

When torque changes with time, the angular impulse is the area under the torque–time graph. Positive area increases angular momentum in the chosen positive rotational sense; negative area reduces it, or increases it in the opposite sense.

Changing II while rotating

Since L=IωL=I\omega, angular impulse can change angular momentum through angular speed, moment of inertia, or both. With no external torque, ΔL=0\Delta L=0, so any change in II has to be matched by a compensating change in ω\omega. If an external torque acts while II is changing, you have to account for both effects together.

That is why problems with extended bodies changing shape, or with two rotating bodies becoming coupled, are usually best handled by starting with angular momentum and then using kinematics.

A.4.12

ROTATIONAL KINETIC ENERGY

HL

Energy stored in rotation

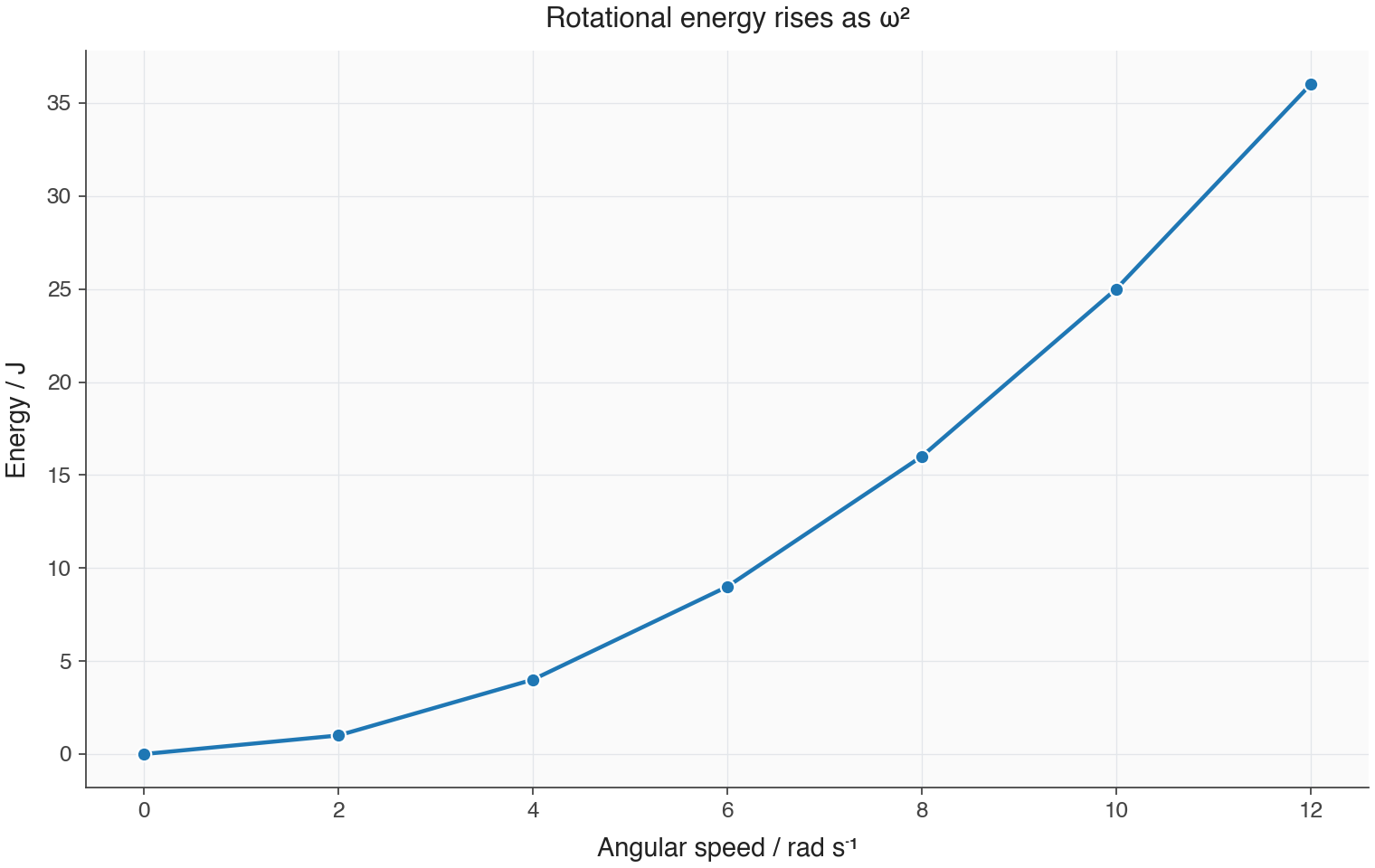

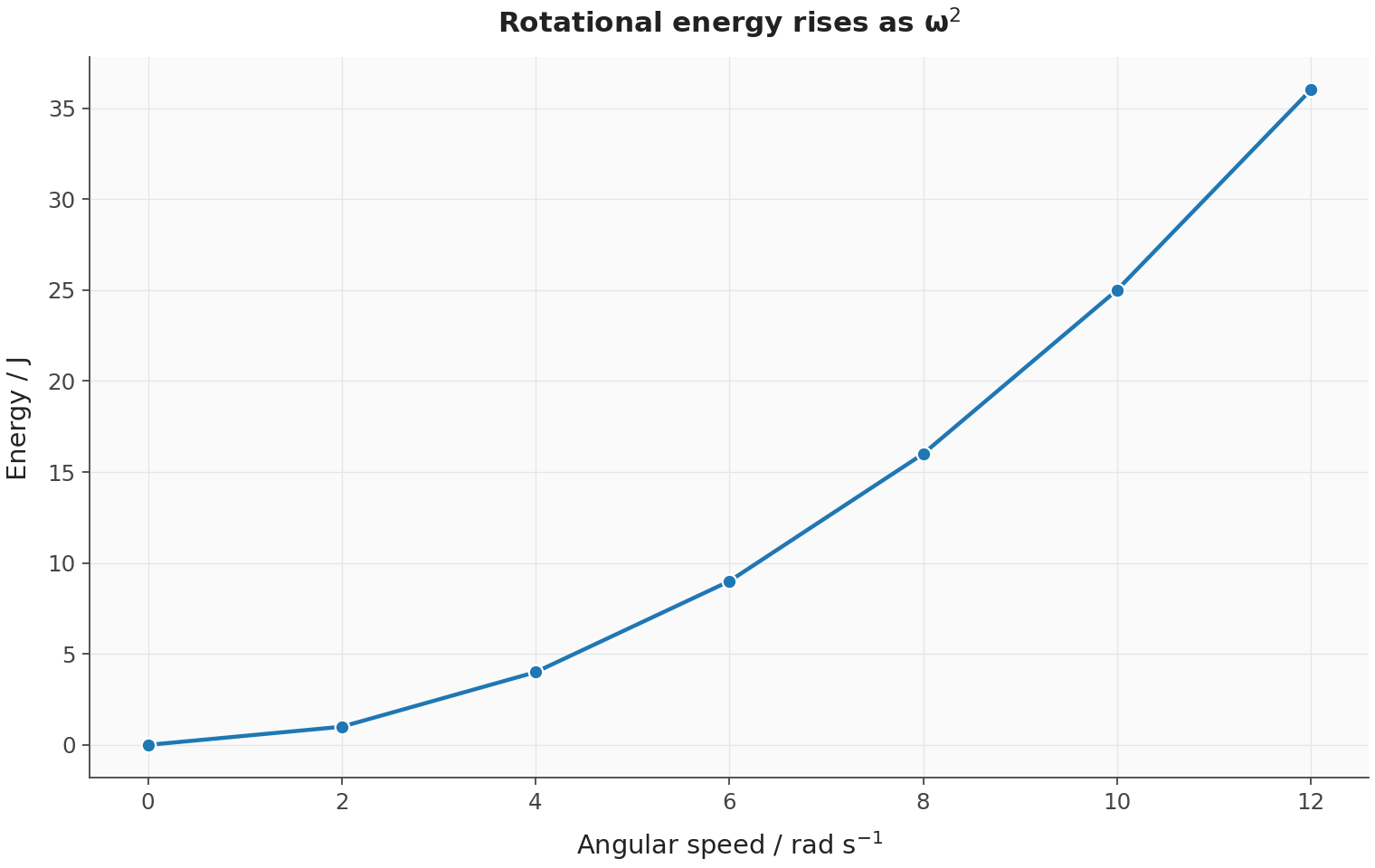

A rotating rigid body has rotational kinetic energy: energy linked to its rotation about an axis.

Ek=12Iω2=L22IE_k=\frac{1}{2}I\omega^{2}=\frac{\text{L}^{2}}{2I}

where EkE_k is rotational kinetic energy (J).

The second form helps when angular momentum is conserved. If LL stays constant and II decreases, the rotational kinetic energy increases. That extra energy has to come from work done internally or from another store — for example, a collapsing star releases gravitational energy as it spins up.

Work and power in rotational motion

When a torque acts through an angular displacement, it transfers energy to or from rotation. Force with displacement becomes torque with angular displacement. For constant torque,

W=τΔθW=\tau\Delta\theta

Instantaneous rotational power is

P=τωP=\tau\omega

Here WW is work, τ\tau is torque and Δθ\Delta\theta is angular displacement in radians.

Worked example: A flywheel experiences a constant torque of 4.0 N m4.0\ \text{N m} through 3.0 rad3.0\ \text{rad}. Calculate the work transferred and the instantaneous power when its angular speed is 5.0 rad s−15.0\ \text{rad s}^{-1}.

  1. Calculate work:

W=τΔθ=4.0×3.0=12 JW=\tau\Delta\theta=4.0\times3.0=12\ \text{J}

  1. Calculate instantaneous power:

P=τω=4.0×5.0=20 WP=\tau\omega=4.0\times5.0=20\ \text{W}

Answer

Answer: The work transferred is 12 J12\ \text{J}; the instantaneous power is 20 W20\ \text{W}.

Rolling without slipping

A body rolling without slipping has translational kinetic energy from the motion of its centre of mass, plus rotational kinetic energy about its centre of mass. The total is

12Mv2+12Iω2\frac{1}{2}\text{Mv}^{2}+\frac{1}{2}I\omega^{2}

Here MM is mass, vv is the centre-of-mass speed, and II is the moment of inertia about the axis through the centre of mass parallel to the rotation axis. The first term is translational kinetic energy; the second is rotational kinetic energy.

For rolling without slipping,

v=Rωv=R\omega

using RR as the radius of the rolling body. At the point of contact with the surface, the body is instantaneously at rest; at the top, it moves at twice the speed of the centre of mass.

If a rolling object descends through a vertical height, starting from rest with negligible dissipative losses,

MgΔh=12Mv2+12Iω2Mg\Delta h=\frac{1}{2}\text{Mv}^{2}+\frac{1}{2}I\omega^{2}

where gg is gravitational field strength (N kg−1\text{N kg}^{-1}) and Δh\Delta h is the vertical change in height of the centre of mass (m\text{m}). For equal masses, a hoop, solid cylinder and solid sphere released from the same height have the same total kinetic energy at the bottom, but different translational and rotational shares because their moments of inertia differ.

Worked example: A solid cylinder of mass 3.00 kg3.00\ \text{kg} is released from rest and rolls without slipping through a centre-of-mass drop of 0.50 m0.50\ \text{m}. Take I=12MR2I=\frac{1}{2}MR^2, g=9.81 m s−2g=9.81\ \text{m s}^{-2} and negligible dissipative losses. Find its speed and energy shares.

  1. Substitute ω=v/R\omega=v/R:

MgΔh=12Mv2+12(12MR2)(vR)2=34Mv2Mg\Delta h=\frac{1}{2}Mv^2+\frac{1}{2}\left(\frac{1}{2}MR^2\right)\left(\frac{v}{R}\right)^2=\frac{3}{4}Mv^2

  1. Solve for speed:

v=4gΔh3=4×9.81×0.503=2.56 m s−1v=\sqrt{\frac{4g\Delta h}{3}}=\sqrt{\frac{4\times9.81\times0.50}{3}}=2.56\ \text{m s}^{-1}

  1. Calculate energy shares using the unrounded speed:

Etotal=MgΔh=3.00×9.81×0.50=14.715 JE_{\text{total}}=Mg\Delta h=3.00\times9.81\times0.50=14.715\ \text{J}

Etrans=23Etotal=9.81 J,Erot=13Etotal=4.91 JE_{\text{trans}}=\frac{2}{3}E_{\text{total}}=9.81\ \text{J},\qquad E_{\text{rot}}=\frac{1}{3}E_{\text{total}}=4.91\ \text{J}

Answer

Answer: The speed is 2.56 m s−12.56\ \text{m s}^{-1}. Translation receives two-thirds of the kinetic energy (9.81 J9.81\ \text{J}), and rotation receives one-third (4.91 J4.91\ \text{J}).

Common mistake: Setting MgΔh=12Mv2Mg\Delta h=\frac{1}{2}Mv^2 ignores rotation and overestimates the speed.

In practical work, measure ramp distance, centre-of-mass vertical drop and repeated descent times. A longer ramp or electronic timing usually reduces timing uncertainty. Compare measured acceleration or descent time with the prediction using the supplied expression for II.

Were those notes helpful?

A.3 Work, energy and power

A.5 Galilean and special relativity
