C1.2: Cell respiration

Master IB Biology C1.2: Cell respiration with notes created by examiners and strictly aligned with the syllabus.

Verified by Fatima F.
Verified by Fatima F.
IB Syllabus Requirements for Cell respiration

C1.2.1

ATP as the molecule that distributes energy within cells

C1.2.2

Life processes within cells that ATP supplies with energy

C1.2.3

Energy transfers during interconversions between ATP and ADP

C1.2.4

Cell respiration as a system for producing ATP within the cell using energy released from carbon compounds

C1.2.1

ATP as the molecule that distributes energy within cells

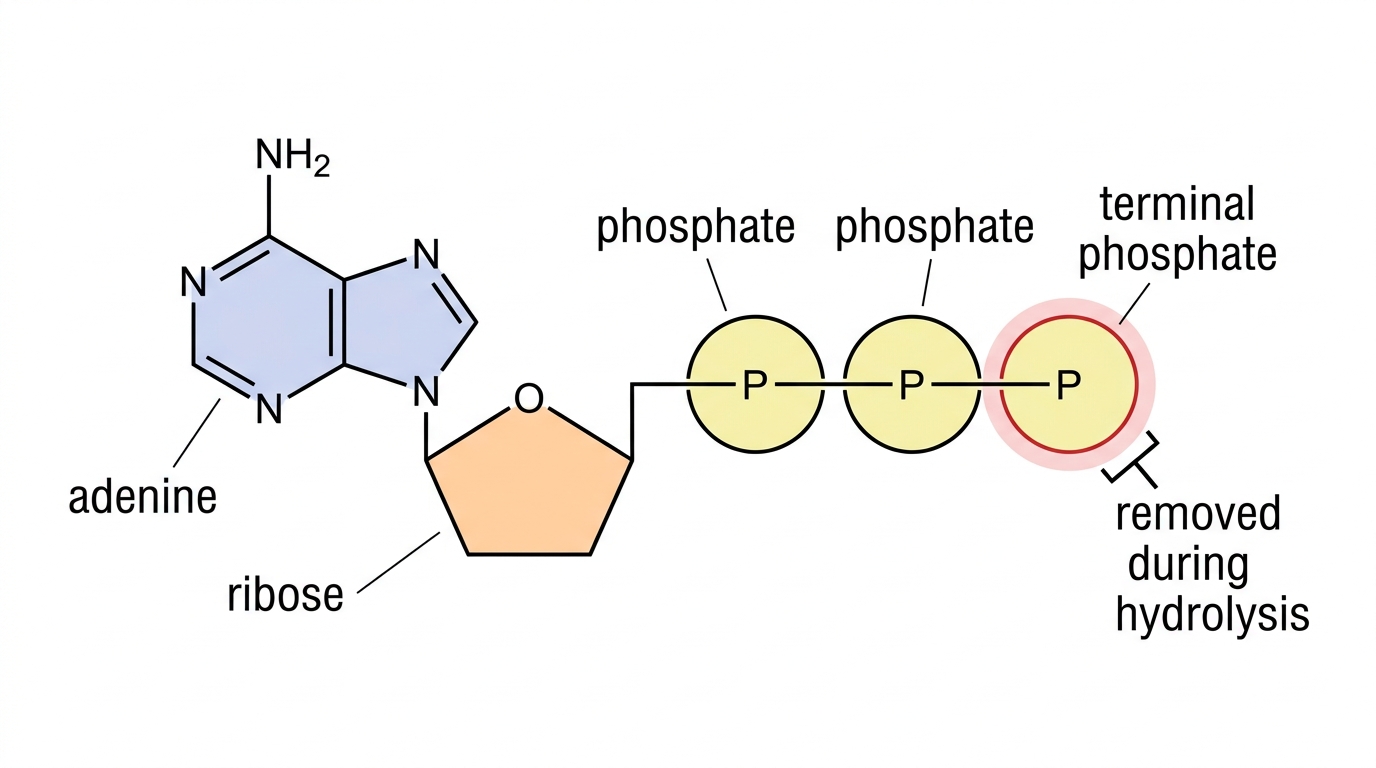

ATP is a nucleotide used as a short-term energy currency

A nucleotide is a monomer of nucleic acids that contains a nitrogenous base, a pentose sugar and one or more phosphate groups. ATP, adenosine triphosphate, is a nucleotide that contains adenine, ribose and three phosphate groups. So ATP isn’t just vague “energy” moving around the cell. Its structure lets it act as a small, soluble carrier of usable chemical potential energy, moving it from one reaction site to another inside the cell.


“Energy currency” is a useful phrase, as long as you don’t take it too literally. Cells don’t keep large ATP stores like money in a bank; they maintain a small supply that turns over very fast. ATP fits this job because it dissolves in water, stays stable enough in the near-neutral pH of cytoplasm, and is too charged to pass freely through the hydrophobic core of membranes. That matters because ATP remains where the cell can control it.

The terminal phosphate comes off and can be attached again readily. When ATP is hydrolysed to ADP and inorganic phosphate, it releases an amount of energy small enough to power many cell tasks without most of it being lost as heat. That “small packet” size is what makes ATP so useful: cells can couple ATP hydrolysis to specific jobs.

C1.2.2

Life processes within cells that ATP supplies with energy

ATP powers work inside cells

ATP provides the energy for cell processes that would otherwise happen too slowly, or would not be energetically favourable. Anabolism is metabolism that builds larger molecules from smaller molecules. During anabolic reactions, ATP helps form covalent bonds when monomers are joined to make macromolecules. DNA replication, transcription and translation all rely on ATP or closely related nucleotide energy transfers.

Cells also use ATP for active transport, which is membrane transport that moves substances against their concentration gradient using energy. As ATP is used, a pump protein changes shape, so ions or other particles can move from the lower-concentration side to the higher-concentration side. Sodium-potassium pumps and proton pumps show this same principle.

Movement is another major use of ATP. It powers whole-cell movement, movement of organelles and vesicles, and movement of chromosomes during cell division. Muscle contraction gives a clear example: actin and myosin filaments slide past each other through repeated ATP-powered shape changes.

C1.2.3

Energy transfers during interconversions between ATP and ADP

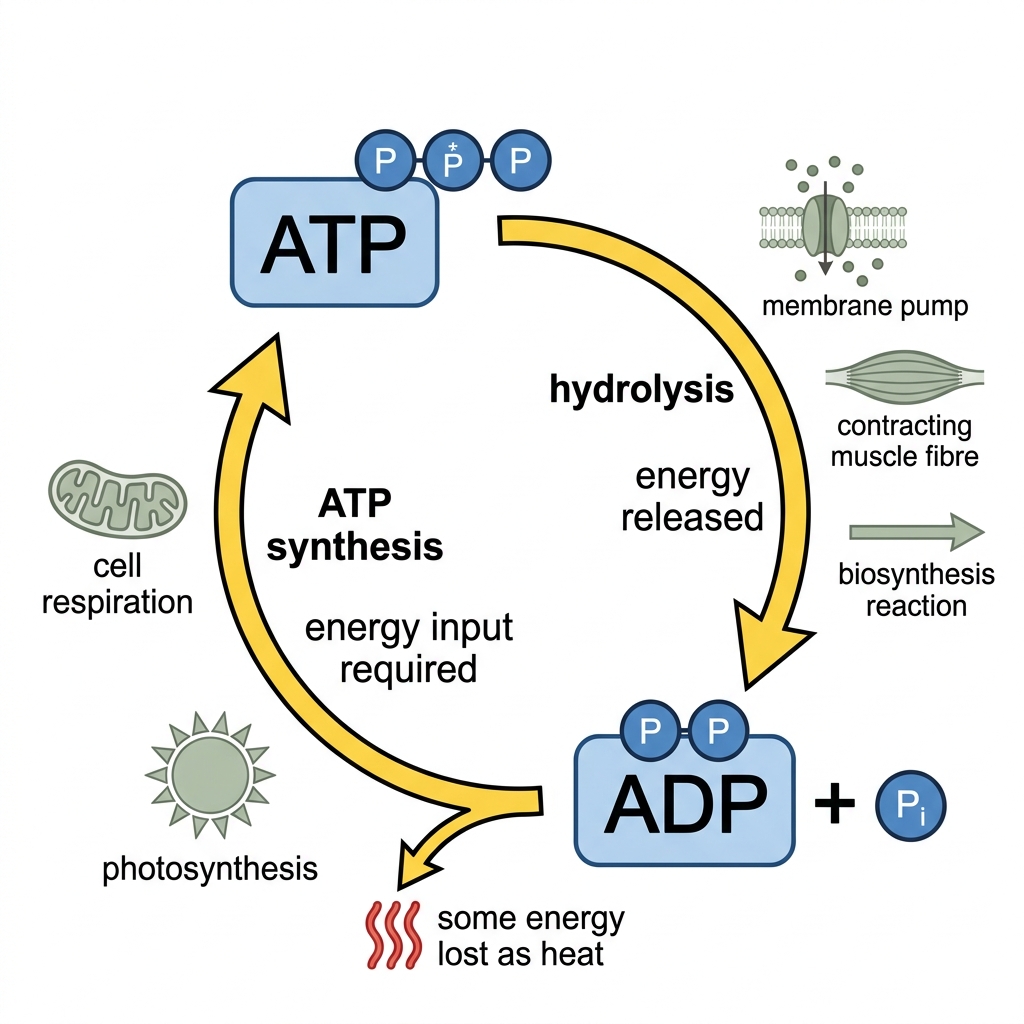

ATP hydrolysis releases energy; ATP synthesis requires energy

Hydrolysis is a chemical reaction that splits a bond by adding water. In ATP hydrolysis, adenosine triphosphate is converted into ADP, adenosine diphosphate, which is a nucleotide with adenine, ribose and two phosphate groups, plus inorganic phosphate. This overall change releases energy, which the cell can couple to work.

Phosphorylation is the addition of a phosphate group to a molecule. ATP sometimes passes its terminal phosphate straight onto another molecule, for example a membrane pump protein or a metabolic intermediate. Once phosphorylated, the molecule is often less stable or has a different shape, so it can do work or take part in another reaction.

To remake ATP, ADP and phosphate have to be joined again. That step needs an input of energy. In this topic, most of that energy comes from cell respiration, although living organisms can also regenerate ATP using light energy in photosynthesis or chemical energy in chemosynthesis.


A cell doesn't keep a large stockpile of ATP. Instead, ATP is hydrolysed and resynthesized all the time. If regeneration stops, processes such as nerve impulse transmission, active transport and muscle contraction fail very quickly. Like all energy transfers in metabolism, the ATP cycle is not perfectly efficient; some energy is dispersed as heat.

C1.2.4

Cell respiration as a system for producing ATP within the cell using energy released from carbon compounds

Cell respiration is not breathing

Cell respiration is a metabolic process in cells that releases energy from carbon compounds and uses it to synthesize ATP. In many cells, the main respiratory substrates are glucose and fatty acids. Cells can also use many other organic molecules, including some amino acids once their nitrogen-containing groups have been removed.

A respiratory substrate is an organic molecule that is oxidized in cell respiration to provide energy for ATP synthesis. Controlled oxidation is the point here. Cells don’t burn glucose in a single step; they release its energy through a sequence of enzyme-catalysed reactions, so that a useful proportion of that energy can be transferred to ATP.

Gas exchange is the movement of respiratory gases between an organism or cell and its surroundings by diffusion or ventilation-linked diffusion. It connects to cell respiration, but it isn’t the same process. Gas exchange brings in oxygen and removes carbon dioxide. Cell respiration is the intracellular metabolic system that uses respiratory substrates to make ATP. In humans, breathing and blood circulation support gas exchange, while the reactions of cell respiration take place inside cells.

C1.2.5

Differences between anaerobic and aerobic cell respiration in humans

Aerobic and anaerobic respiration in humans

Aerobic cell respiration is cell respiration that uses oxygen as the final electron acceptor and yields a relatively large amount of ATP. In humans, it starts in the cytoplasm and then continues inside mitochondria, so the aerobic pathway needs mitochondria. With glucose as the substrate, the word equation is:

glucose+oxygen→carbon dioxide+water\text{glucose} + \text{oxygen} \to \text{carbon dioxide} + \text{water}

Anaerobic cell respiration is cell respiration that produces ATP without using oxygen. In human cells, this happens in the cytoplasm. It uses carbohydrate as the substrate and produces lactate as the waste product. With glucose as the substrate, the word equation is:

glucose→lactate\text{glucose} \to \text{lactate}

Learn the comparison below as connected ideas rather than as separate facts.

FeatureAerobic respiration in humansAnaerobic respiration in humans
Oxygen requirementOxygen is requiredOxygen is not required
SubstratesCarbohydrates, lipids and some amino-acid products can be usedCarbohydrates only
ATP yield from glucoseHigh; more than 3030 ATP per glucose is typicalLow; 22 ATP per glucose
Waste productsCarbon dioxide and waterLactate
LocationStarts in cytoplasm, then mitochondriaCytoplasm only
Mitochondria required?YesNo

Key differences between aerobic and anaerobic respiration in humans.

FeatureAerobic respirationAnaerobic respiration
Oxygen requirementOxygen requiredOxygen not required
Substrates usedCarbohydrates, lipids, some amino-acid productsCarbohydrates only
ATP yield from glucoseHigh; typically >30 ATP per glucoseLow; 2 ATP per glucose
Waste productsCarbon dioxide and waterLactate
Cellular locationStarts in cytoplasm; continues in mitochondriaCytoplasm only
Mitochondria requiredYesNo

During short, intense activity, human muscle can use anaerobic respiration to supply ATP quickly when oxygen delivery cannot keep up with demand. The cost is a build-up of lactate. After vigorous exercise, the body needs extra oxygen to process that lactate; this extra requirement is often called oxygen debt.

C1.2.6

Variables affecting the rate of cell respiration

Measuring respiration rate

Rate is the amount of change in a measured variable per unit time. In a respirometer measuring oxygen uptake, use

r=ΔVΔtr = \frac{\Delta V}{\Delta t}

In school data, the units may be cm3 min−1cm^3\,min^{-1} or mm3 min−1mm^3\,min^{-1}. That’s fine, as long as you carry the units through every step.

You can estimate respiration rate from oxygen uptake, carbon dioxide production, or the loss of a respiratory substrate such as glucose. For aerobic respiration, oxygen uptake is usually the neatest measurement. With anaerobic respiration in yeast, carbon dioxide production can be tracked directly, for example by collecting gas volume, or indirectly, from the loss of mass as carbon dioxide escapes from a fermenting flask.

Respirometers and oxygen uptake

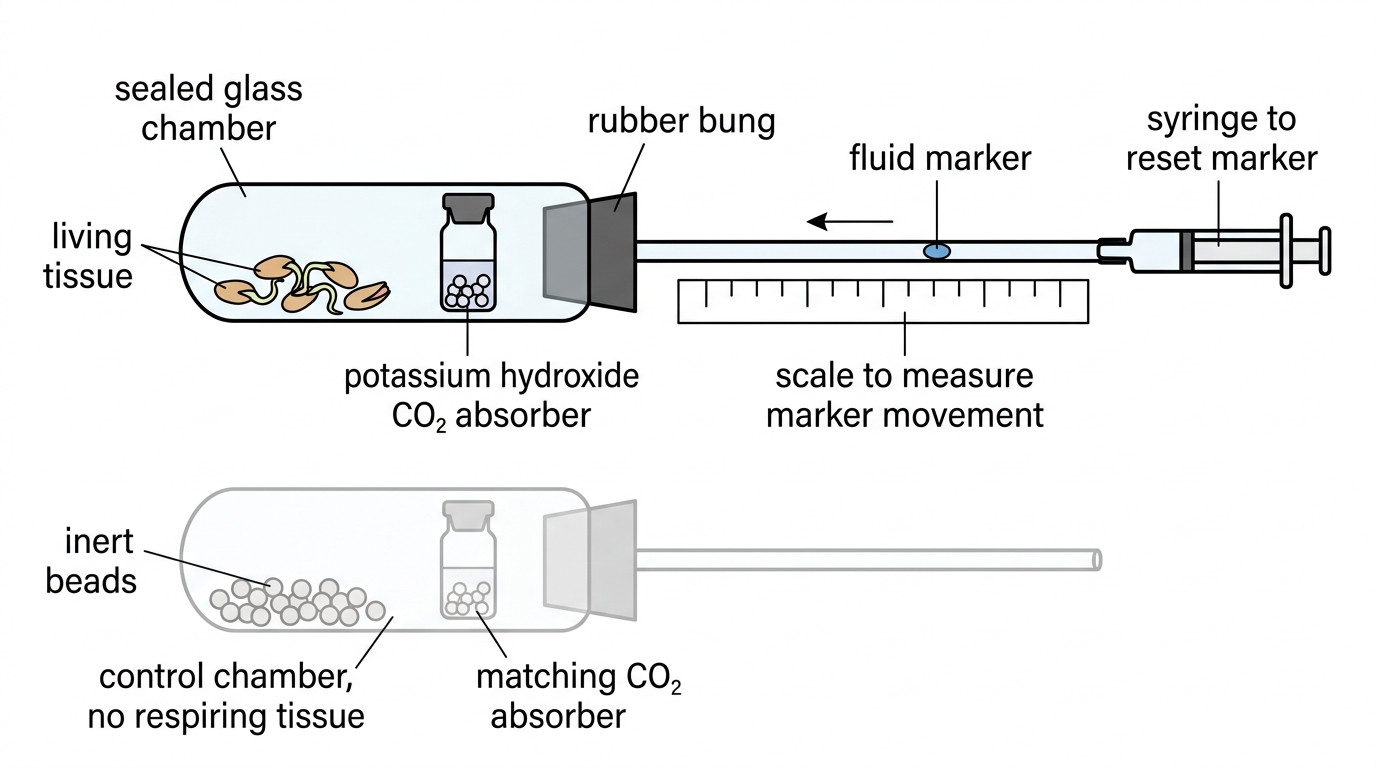

A respirometer is an apparatus that measures respiration rate by detecting gas-volume changes caused by a respiring organism or tissue in a sealed system. A typical setup has living material, a carbon dioxide absorber such as potassium hydroxide, and a capillary tube with a movable fluid marker. The alkali absorbs carbon dioxide, so any fall in gas volume is mainly caused by oxygen uptake.


Control temperature and pressure carefully. Gases expand and contract when physical conditions change, even if respiration has not changed. A thermostatically controlled water bath makes the results more reliable by holding temperature constant. To account for pressure and temperature changes unrelated to oxygen uptake, use a second, matched tube without respiring tissue as a control.

Variables that affect respiration rate

Common variables to investigate include temperature, type or mass of organism or tissue, activity level, availability of oxygen, and type or concentration of respiratory substrate. In a good investigation, change one independent variable and keep the others constant. The dependent variable is the calculated respiration rate.

With raw or secondary data, first convert distance moved in a capillary to volume if the tube diameter is known. Then calculate rates and compare means or plot a graph. For example, a rising line in oxygen uptake against temperature shows that respiration rate is increasing over that range. It does not prove the trend will continue forever, because enzymes and living tissues have tolerance limits.

C1.2.7

Role of NAD as a carrier of hydrogen and oxidation by removal of hydrogen during cell respirationHL

NAD links oxidation to later ATP production

Oxidation is a chemical process in which a substance loses electrons. Reduction is a chemical process in which a substance gains electrons. These two processes happen together in redox reactions, where electrons move from one substance to another.

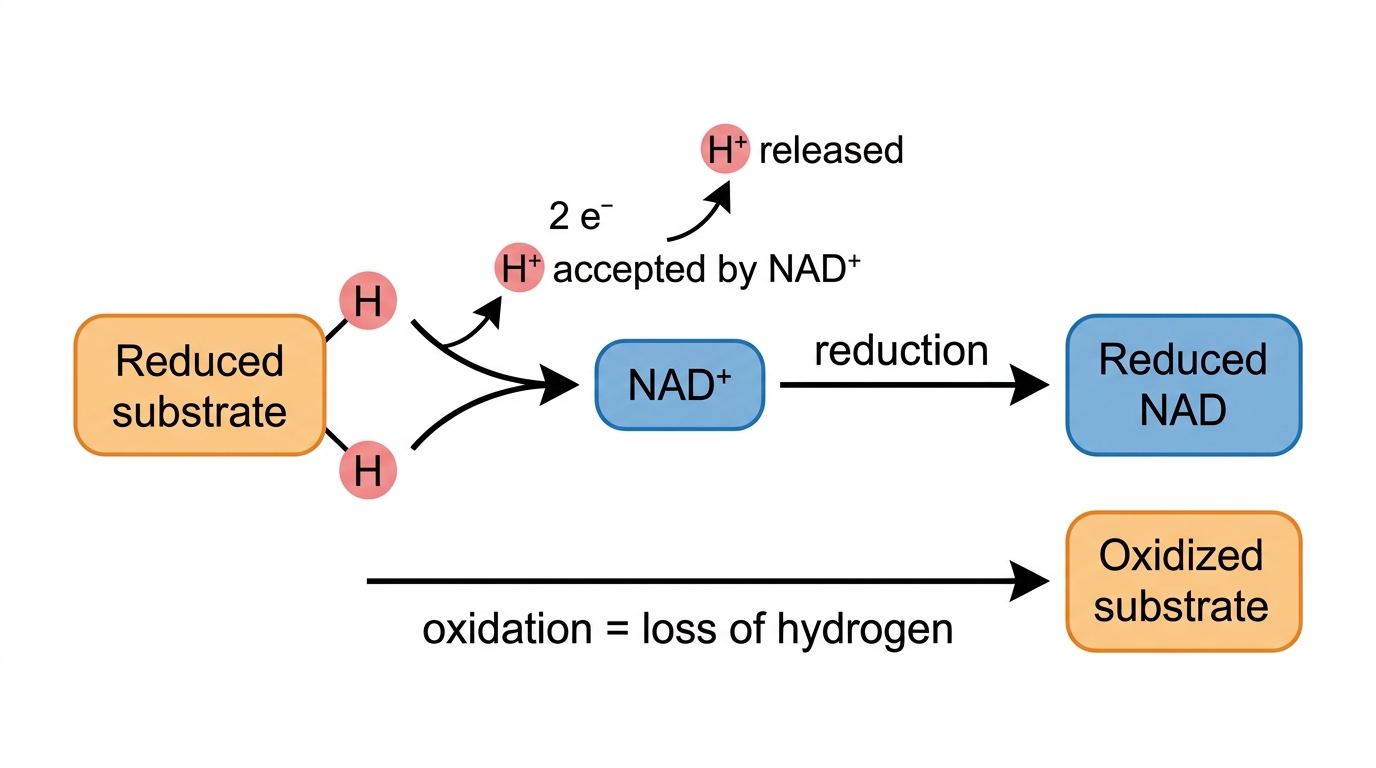

During cell respiration, many oxidations are dehydrogenation reactions. In these reactions, hydrogen atoms are removed from a substrate. The substrate is oxidized because each hydrogen atom contains an electron. Watch the detail here: removing H+H^+ alone would not remove an electron, so it would not oxidize the substrate.

NAD, nicotinamide adenine dinucleotide, is a coenzyme that carries hydrogen and electrons during cell respiration. NAD takes hydrogen from oxidized substrates and becomes reduced NAD. In simplified IB wording:

NAD+hydrogen→reduced NADNAD + hydrogen \to \text{reduced NAD}

More precisely, NAD+NAD^+ accepts two electrons and one proton, while another proton is released. The key biological point is that NAD can be reduced, then oxidized again later, allowing it to shuttle energy from earlier stages of respiration to later stages.


C1.2.8

Conversion of glucose to pyruvate by stepwise reactions in glycolysis with a net yield of ATP and reduced NADHL

Glycolysis splits glucose in the cytoplasm

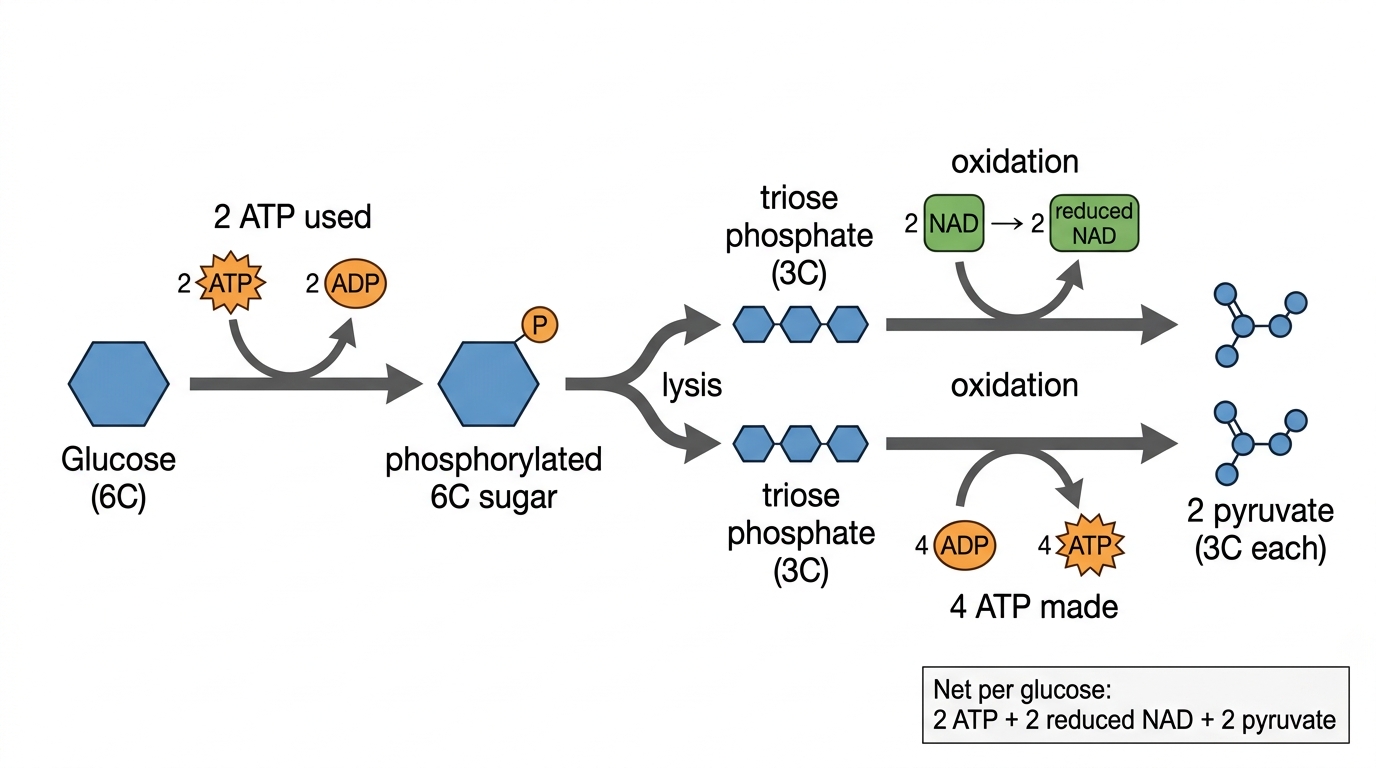

Glycolysis is a cytoplasmic metabolic pathway that converts one glucose molecule into two pyruvate molecules through enzyme-catalysed steps. A different enzyme catalyses each step. You don’t need to memorize the intermediate names; focus on the logic of the pathway.


Phosphorylation happens first. ATP\text{ATP} adds phosphate groups to glucose-derived molecules, which makes the sugar more reactive and gets it ready to split. Because ATP is used early on, glycolysis is described as having an “investment” phase.

Then comes lysis. The six-carbon phosphorylated sugar splits into two three-carbon molecules. After that point, every event happens twice for each original glucose molecule.

Oxidation follows. Hydrogen is removed from the three-carbon molecules and accepted by NAD\text{NAD}, forming reduced NAD. At this stage, glycolysis begins moving energy into a carrier molecule.

Finally, ATP is made. Phosphate groups are transferred to ADP\text{ADP} to form ATP\text{ATP}. Four ATP\text{ATP} molecules are produced in this later phase, but two were used at the start, giving a net yield of two ATP\text{ATP} per glucose. Per glucose, glycolysis produces two pyruvate, two reduced NAD and a net gain of two ATP\text{ATP}.

C1.2.9

Conversion of pyruvate to lactate as a means of regenerating NAD in anaerobic cell respirationHL

Lactate formation keeps glycolysis running without oxygen

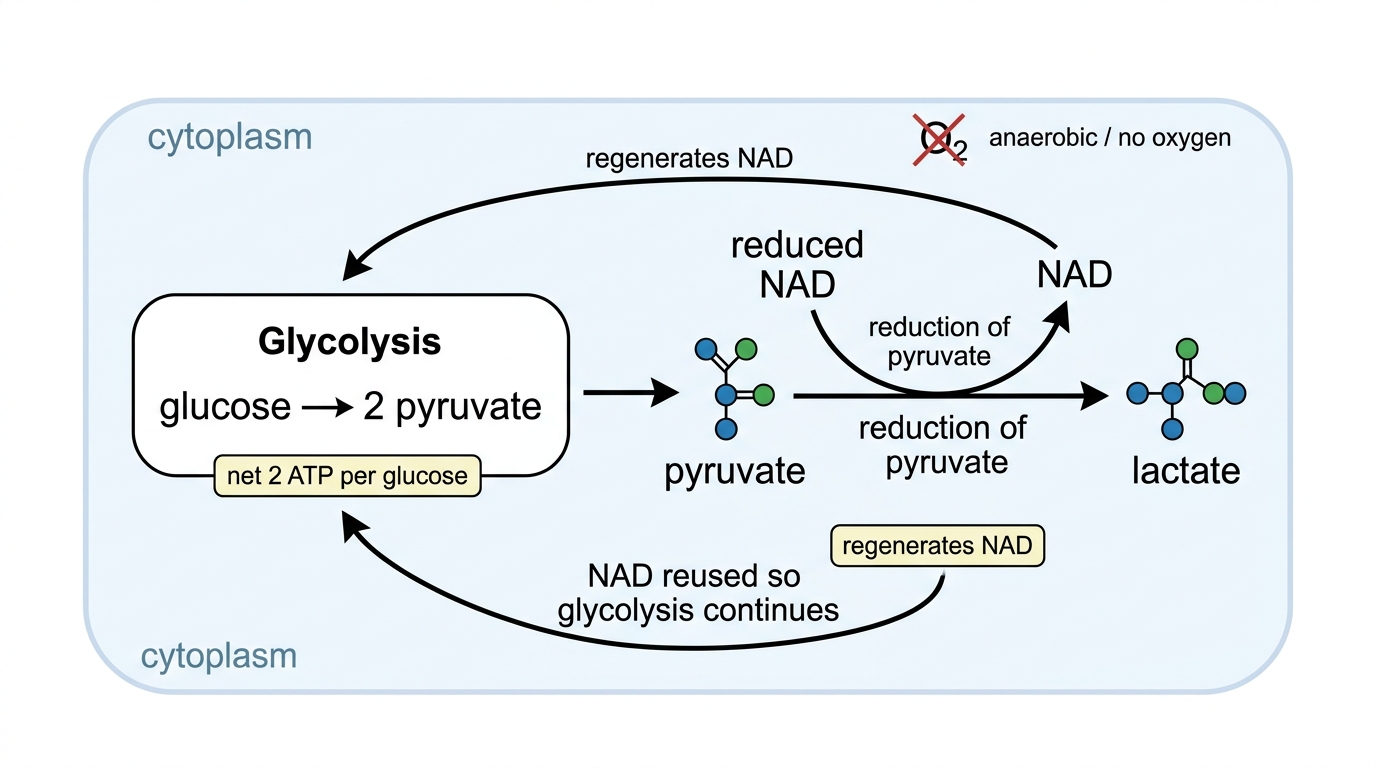

Glycolysis needs a steady supply of NAD. If all the NAD is converted to reduced NAD, the oxidation step in glycolysis stops, and ATP production by glycolysis stops as well. In human anaerobic respiration, pyruvate deals with this by accepting hydrogen from reduced NAD.

Lactate fermentation is anaerobic cell respiration in which pyruvate is reduced to lactate, regenerating NAD so glycolysis can continue. As pyruvate becomes lactate, reduced NAD is oxidized back to NAD. This happens in the cytoplasm.


The ATP yield is still just the glycolysis yield: two ATP per glucose. Lactate formation doesn’t make extra ATP directly; it regenerates NAD. That small trick lets muscle cells keep making some ATP when there isn’t enough oxygen for aerobic respiration.

C1.2.10

Anaerobic cell respiration in yeast and its use in brewing and bakingHL

Yeast regenerates NAD by making ethanol and carbon dioxide

Yeast is a unicellular fungus that can use sugars as respiratory substrates. A facultative anaerobe is an organism that can respire aerobically when oxygen is available and anaerobically when oxygen is unavailable. Yeast makes a useful example here: its anaerobic pathway uses the same glycolysis stage as humans, but it regenerates NAD by a different route.

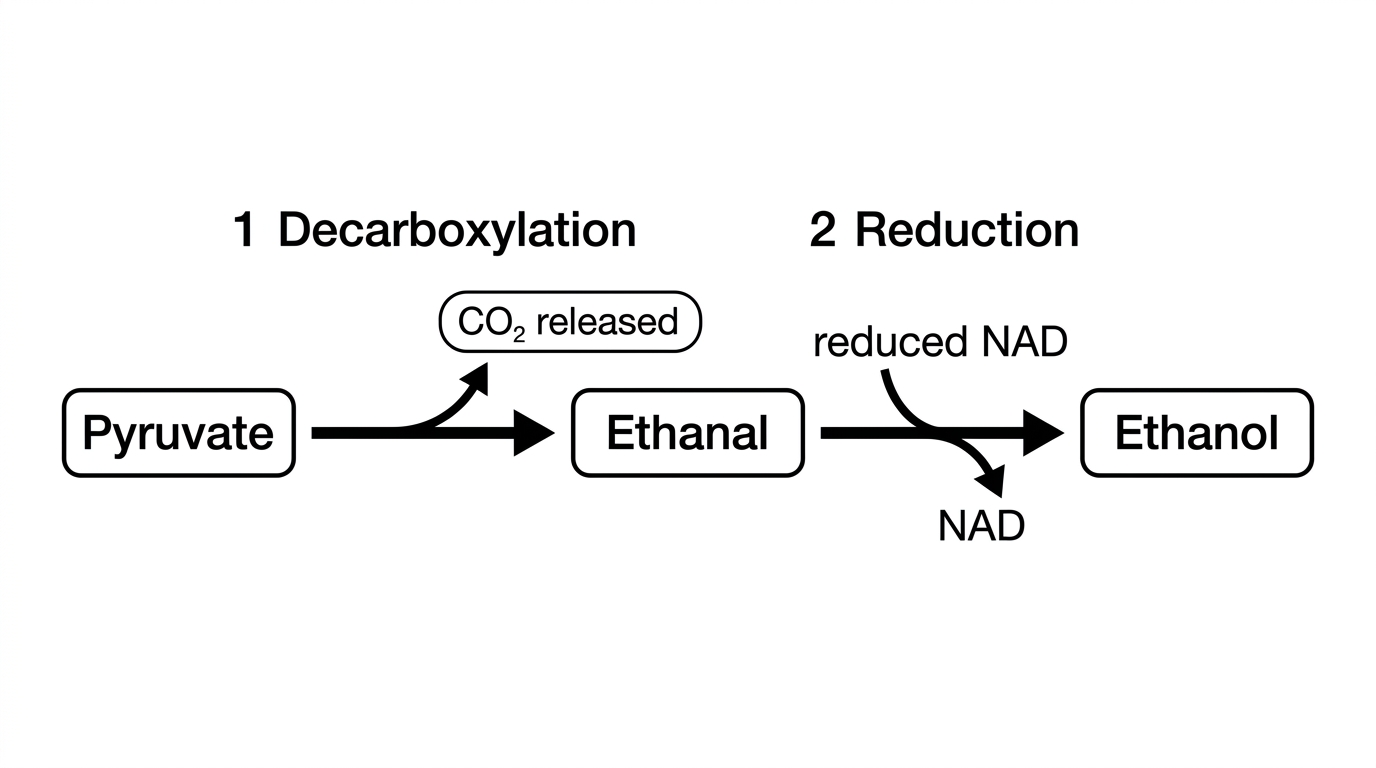

Ethanol fermentation is anaerobic cell respiration in which pyruvate is converted to ethanol and carbon dioxide, regenerating NAD. First, pyruvate is decarboxylated to form ethanal, with carbon dioxide released. Ethanal then accepts hydrogen from reduced NAD and is converted to ethanol, while NAD is regenerated.


This is why yeast matters in baking and brewing. In bread dough, carbon dioxide bubbles get trapped in the sticky dough, causing it to rise; the ethanol evaporates during baking. In brewing, ethanol is usually the desired product, while carbon dioxide either escapes or is retained depending on the drink. Fermentation stops when the sugar runs out or when ethanol becomes toxic to the yeast.

The key comparison with humans is straightforward: both humans and yeast use glycolysis, and both must regenerate NAD. In human anaerobic respiration, pyruvate is used to make lactate; in yeast, pyruvate is used to make ethanol and carbon dioxide.

C1.2.11

Oxidation and decarboxylation of pyruvate as a link reaction in aerobic cell respirationHL

The link reaction connects glycolysis to the Krebs cycle

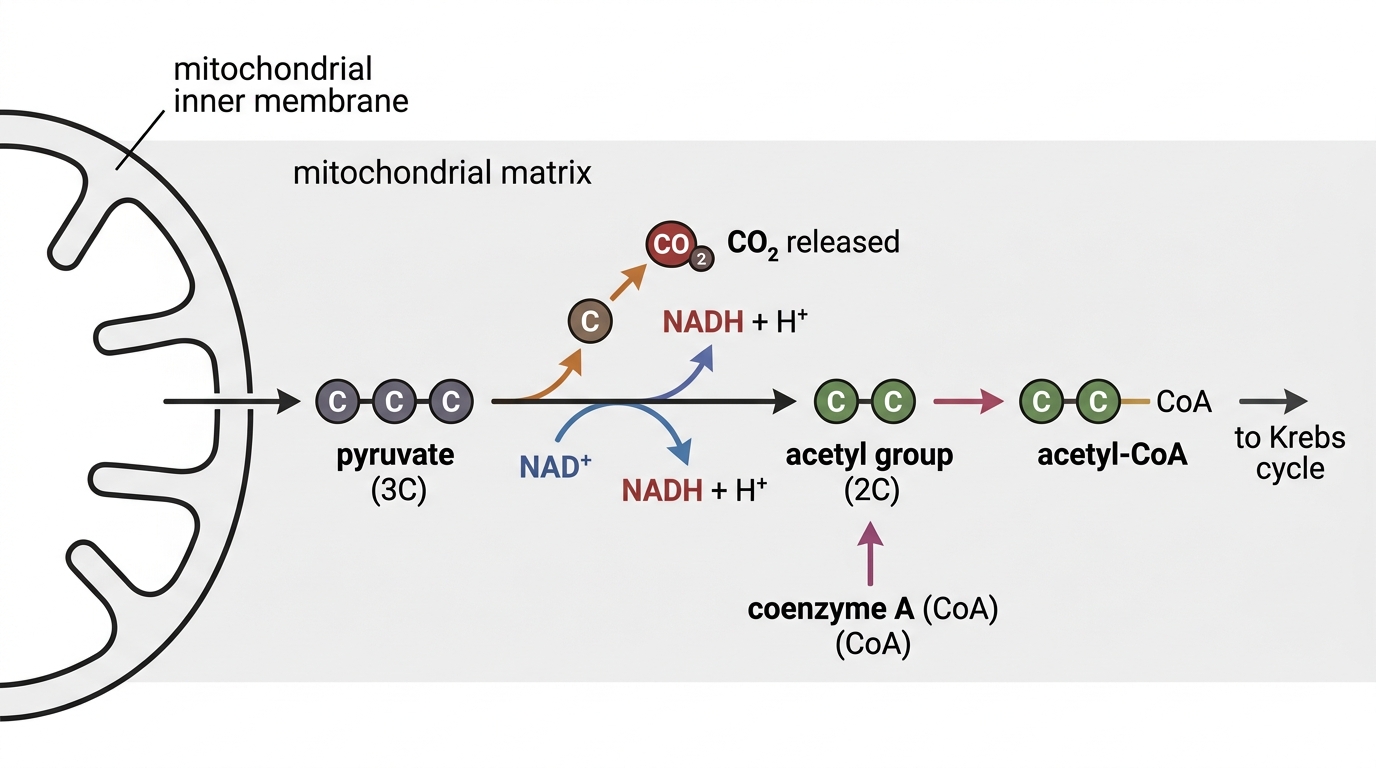

The link reaction is the aerobic respiration step that converts pyruvate into an acetyl group attached to coenzyme A in the mitochondrial matrix. Glycolysis produces pyruvate in the cytoplasm, and the pyruvate is then transported into the mitochondrion. In eukaryotic cells, the link reaction takes place in the matrix.

In the link reaction, pyruvate, a three-carbon molecule, is decarboxylated: carbon dioxide is removed. The remaining two-carbon acetyl group is oxidized as hydrogen/electrons are removed, which reduces NAD. The acetyl group is then transferred to coenzyme A, a coenzyme that carries acetyl groups into the Krebs cycle, forming acetyl-CoA.


Both carbohydrate and lipid breakdown can enter respiration at this point. Carbohydrates can be metabolized through glycolysis to pyruvate, then to acetyl groups. Fatty acids are broken down into two-carbon acetyl groups carried by coenzyme A. This makes acetyl-CoA a crossroads in aerobic respiration.

C1.2.12

Oxidation and decarboxylation of acetyl groups in the Krebs cycle with a yield of ATP and reduced NADHL

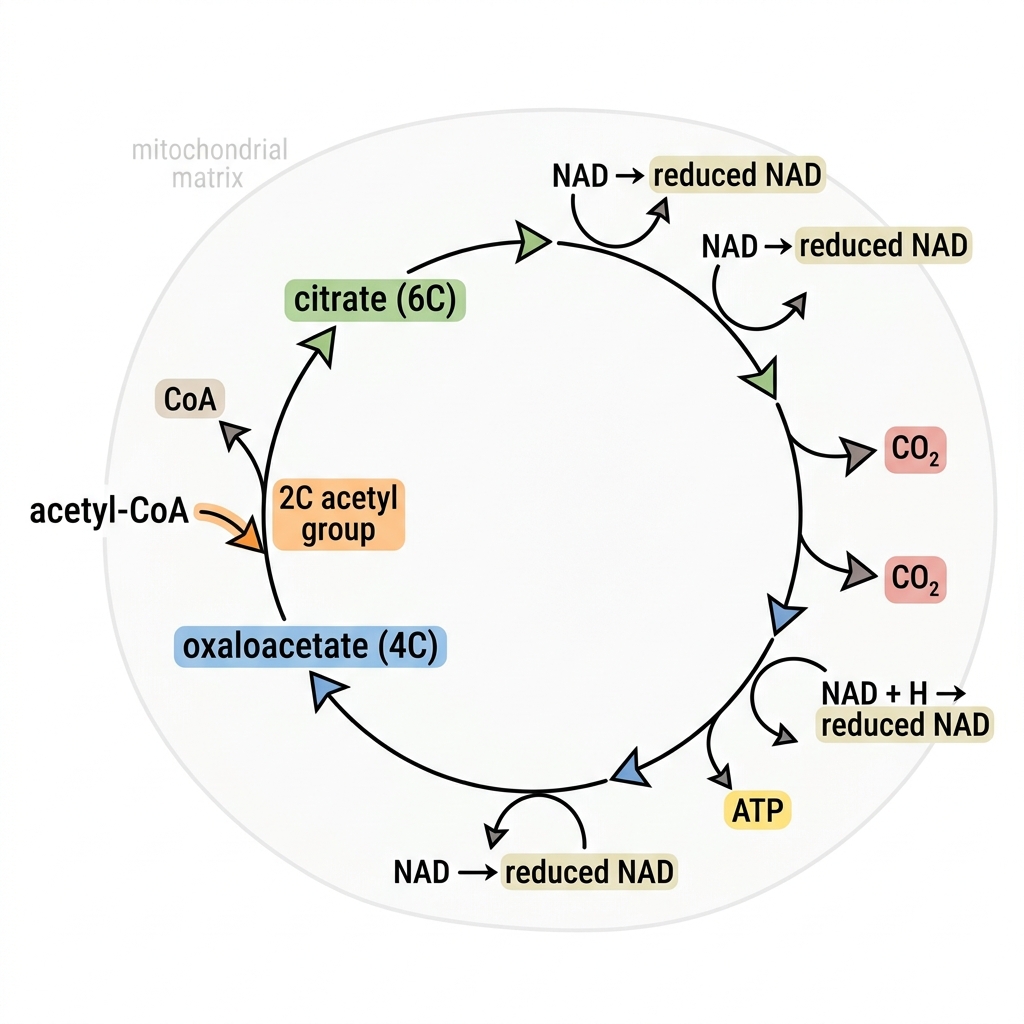

The Krebs cycle oxidizes acetyl groups and regenerates oxaloacetate

The Krebs cycle is a cyclic metabolic pathway in the mitochondrial matrix that oxidizes acetyl groups to carbon dioxide while producing reduced electron carriers and ATP. For this section, the only named intermediates you need are citrate, a six-carbon organic acid formed when an acetyl group joins oxaloacetate, and oxaloacetate, a four-carbon organic acid regenerated at the end of the Krebs cycle.

An acetyl group from acetyl-CoA is transferred to oxaloacetate, forming citrate. Enzyme-catalysed reactions then convert citrate back into oxaloacetate. That regeneration of oxaloacetate is what makes the pathway a cycle, not a straight chain of reactions.


In one turn of the Krebs cycle, two decarboxylations release two carbon dioxide molecules. Four oxidations also occur. These are dehydrogenation reactions: hydrogen is removed and accepted mainly by NAD to form reduced NAD. ATP is produced as well. The reduced NAD made in the cycle carries much of the energy released from the acetyl group to the electron transport chain.

For each acetyl group entering the cycle, carbon dioxide, reduced NAD, and ATP are produced, while oxaloacetate is regenerated. One glucose gives two pyruvates and therefore two acetyl groups, so the Krebs cycle turns twice per glucose molecule.

C1.2.13

Transfer of energy by reduced NAD to the electron transport chain in the mitochondrionHL

Reduced NAD delivers high-energy electrons to the inner mitochondrial membrane

The electron transport chain is a series of electron carriers in the inner mitochondrial membrane that pass electrons along in redox reactions. Reduced NAD hands a pair of electrons to the first carrier in the chain. When reduced NAD loses electrons and hydrogen, it is oxidized back to NAD.

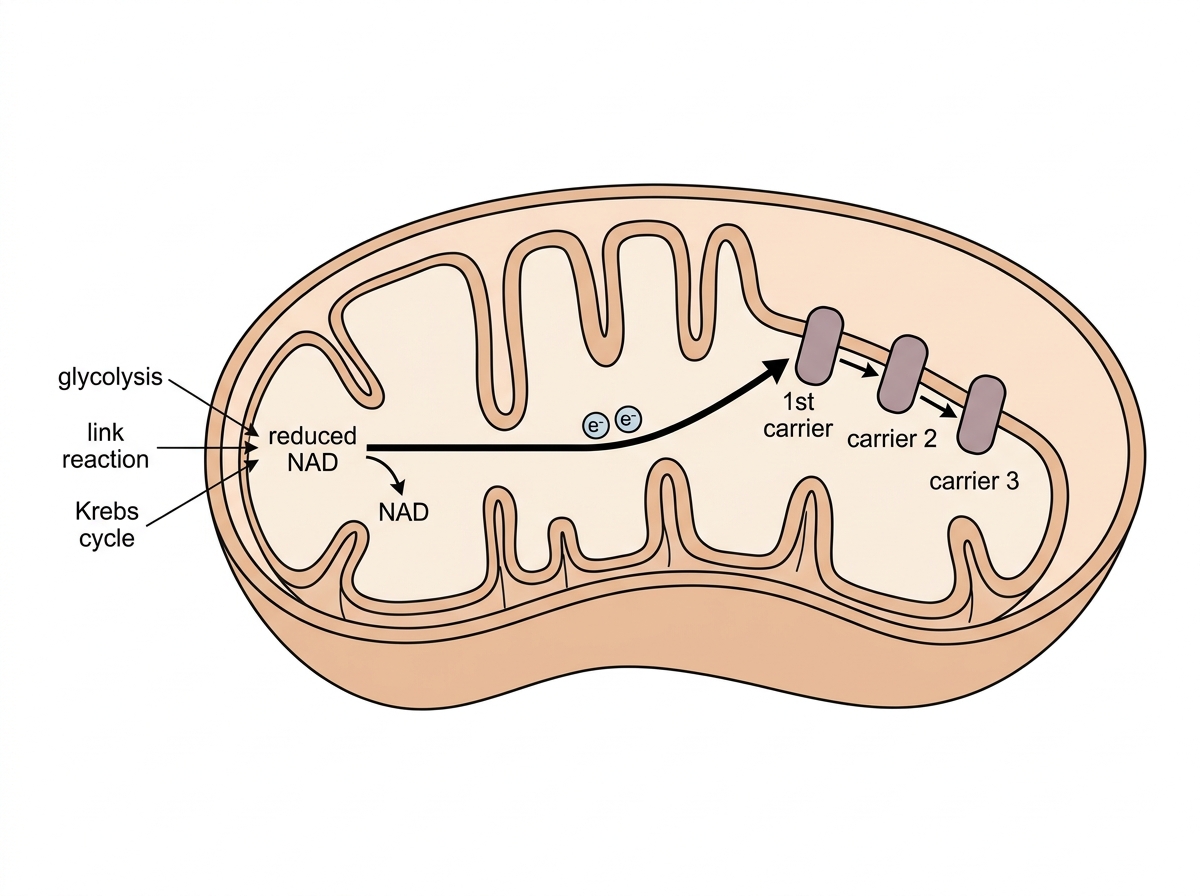

Reduced NAD is produced in glycolysis, the link reaction and the Krebs cycle. The energy released by oxidizing glucose is not all trapped straight away as ATP; a large share is held briefly in reduced NAD before it is passed to the electron transport chain.


The first electron carrier is reduced when it accepts electrons from reduced NAD. It is then oxidized again as it passes them to the next carrier. This transfers energy along the chain in small steps, rather than releasing it in one uncontrolled burst.

C1.2.14

Generation of a proton gradient by flow of electrons along the electron transport chainHL

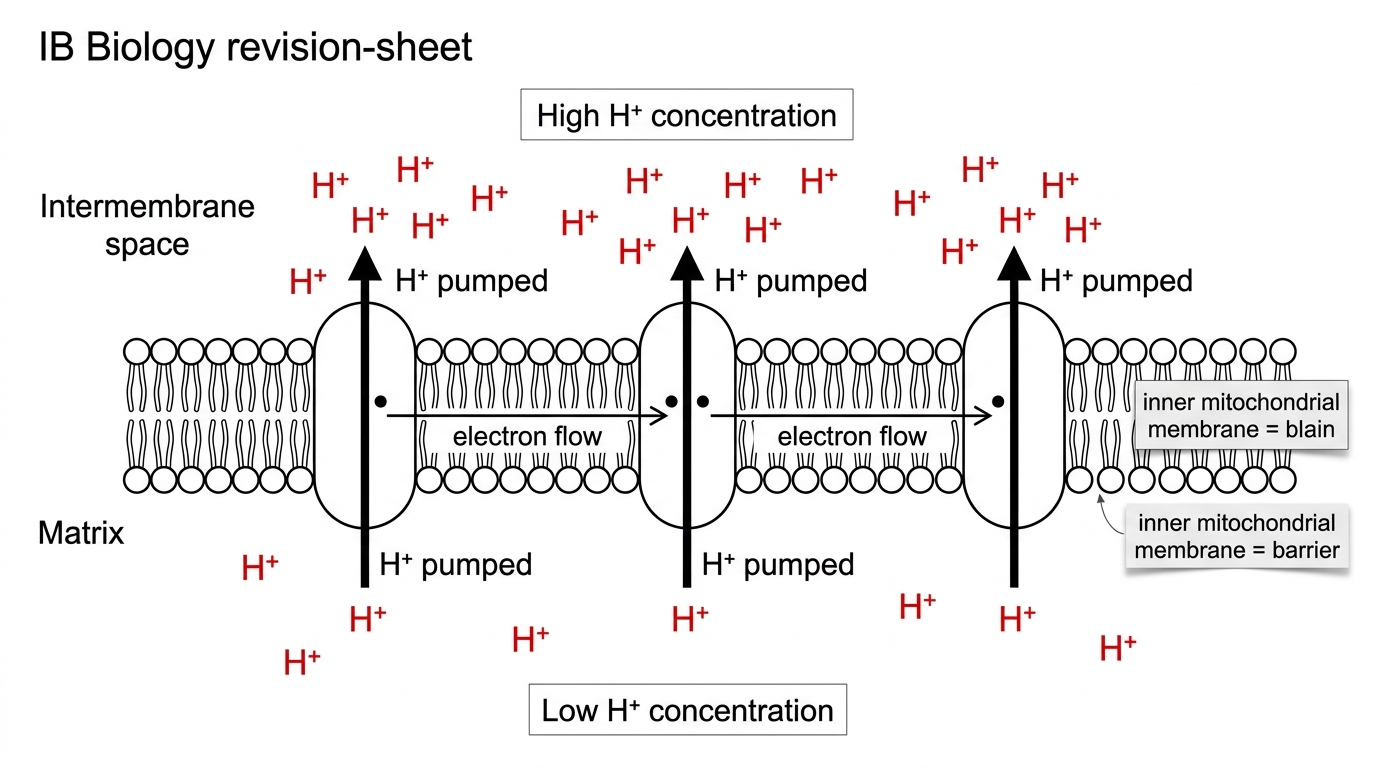

Electron flow is coupled to proton pumping

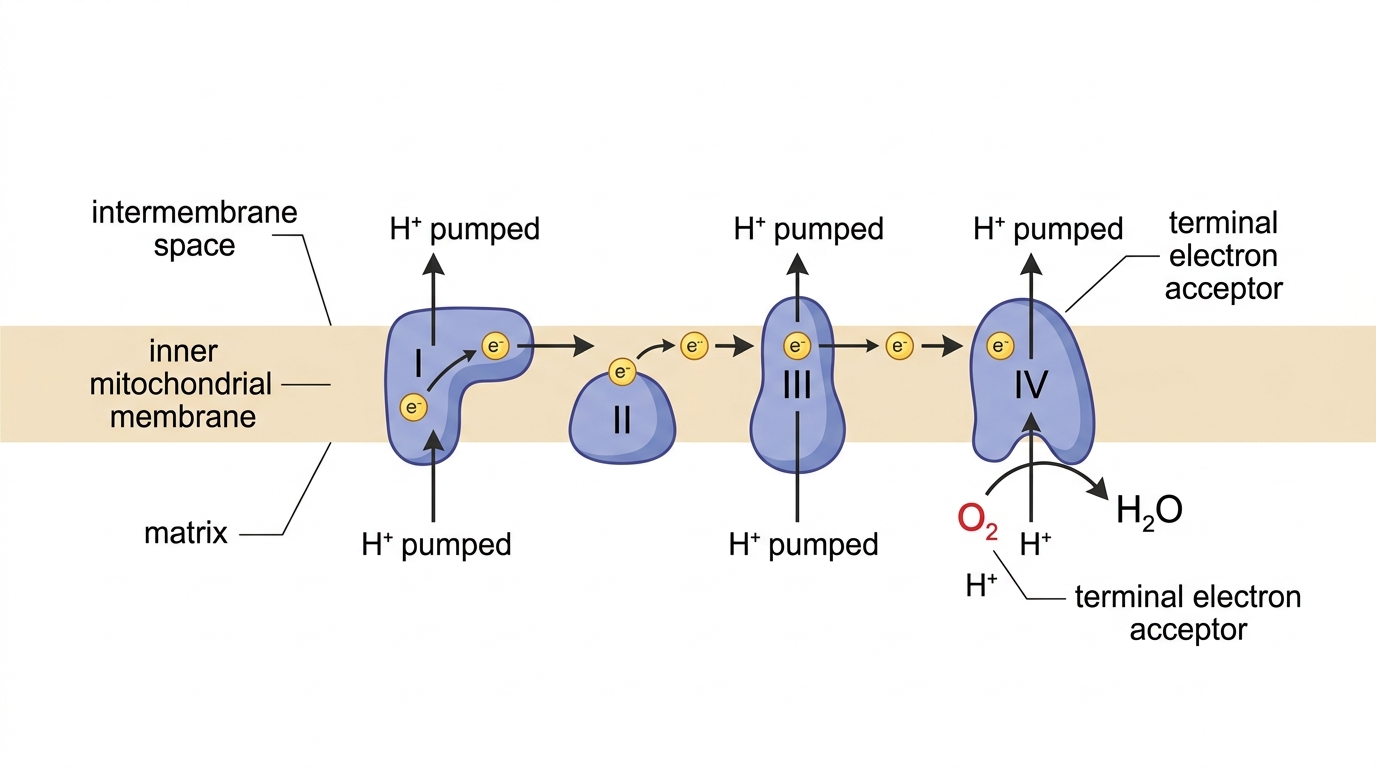

As electrons move along the electron transport chain, the carriers release energy. The cell uses that energy to pump protons from the mitochondrial matrix into the intermembrane space, across the inner mitochondrial membrane. You don’t need to learn the names of the protein complexes; focus on the direction, and what happens as a result.

A proton gradient is a difference in proton concentration across a membrane. In mitochondria, proton concentration becomes higher in the intermembrane space than in the matrix. Energy is stored because protons have been pushed against their concentration gradient.


The inner mitochondrial membrane matters because it acts as the barrier that lets the gradient build. If protons could diffuse freely back through any part of the membrane, the gradient would collapse and ATP synthesis by chemiosmosis would stop.

C1.2.15

Chemiosmosis and the synthesis of ATP in the mitochondrionHL

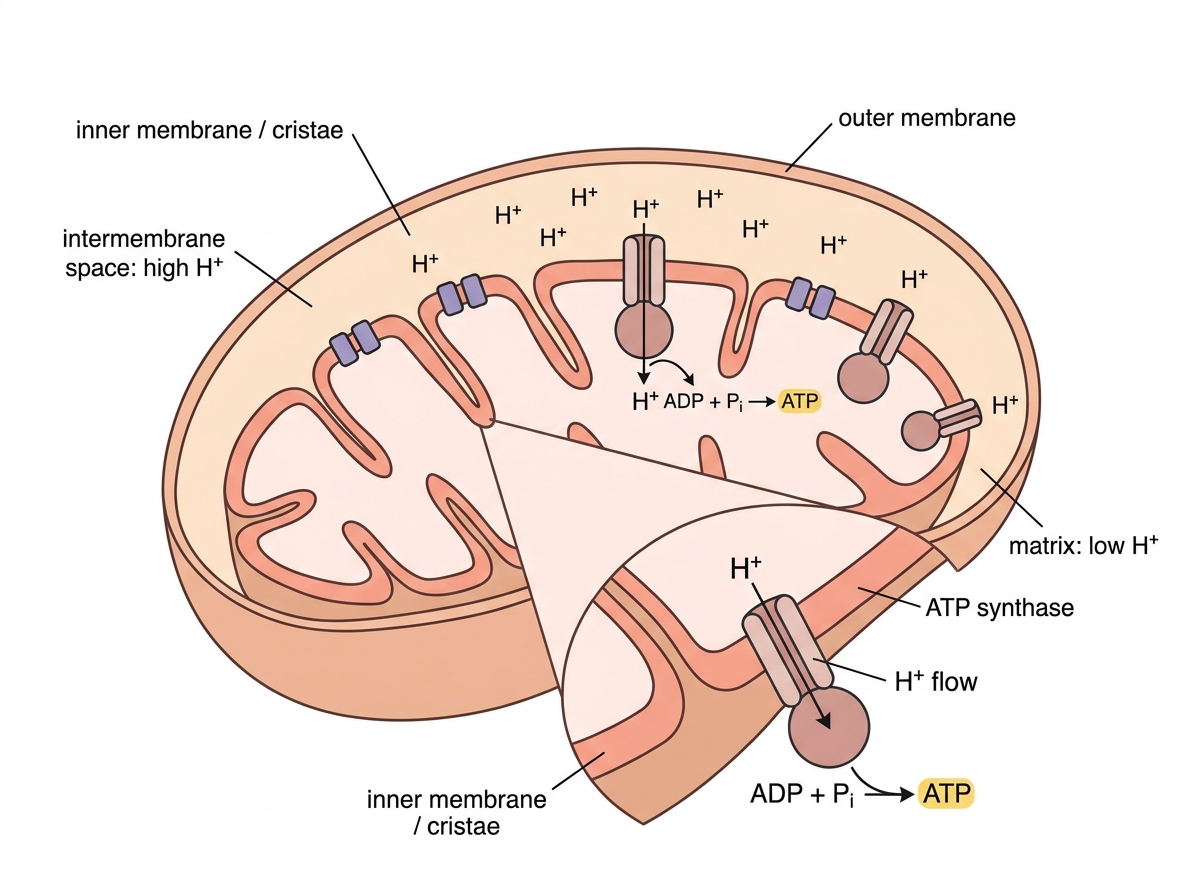

ATP synthase uses the proton gradient to phosphorylate ADP

Chemiosmosis is the process in which the diffusion of protons down an electrochemical gradient through ATP synthase provides energy for ATP synthesis. ATP synthase is a membrane enzyme that catalyses phosphorylation of ADP to ATP using energy from proton flow. In mitochondria, ATP synthase sits in the inner mitochondrial membrane.

Protons flow from the intermembrane space back into the matrix through ATP synthase. As they move, energy is released and coupled to the phosphorylation of ADP. Put simply: the gradient runs down, and ATP gets made.


ATP synthase has a membrane region that lets protons pass through, plus a catalytic region projecting into the matrix, where ADP and phosphate are joined. It’s a neat structure-function example: proton flow acts through the membrane part, while the matrix-facing part catalyses ATP formation.

Cristae are folds of the inner mitochondrial membrane. They increase the surface area available for electron transport chains and ATP synthase. More inner membrane gives more sites for chemiosmosis, which is why active cells often contain many mitochondria with extensive cristae.

C1.2.16

Role of oxygen as terminal electron acceptor in aerobic cell respirationHL

Oxygen keeps electrons moving

A terminal electron acceptor is the final substance that receives electrons at the end of an electron transport chain. In aerobic cell respiration, oxygen is that terminal electron acceptor. It takes electrons from the final carrier in the chain, along with protons from the mitochondrial matrix, and metabolic water forms.


So oxygen is not just “used somewhere” in respiration. It is needed right at the end of the electron transport chain. Without oxygen, electrons cannot leave the final carrier. The chain backs up: carriers stay reduced, reduced NAD cannot pass on electrons, and NAD is no longer available for the link reaction and Krebs cycle. These aerobic stages then stop.

Glycolysis can still carry on anaerobically if NAD is regenerated in the cytoplasm, but it produces much less ATP. Oxygen keeps electrons flowing, keeps protons being pumped, allows chemiosmosis to continue, and gives a high ATP yield.

C1.2.17

Differences between lipids and carbohydrates as respiratory substratesHL

Lipids yield more energy per gram, but carbohydrates can be used anaerobically

Carbohydrates and lipids can both be respiratory substrates, but cells feed them into respiration differently. Carbohydrates such as glucose enter glycolysis, which means they can support anaerobic respiration. Pyruvate from glycolysis can also be converted to acetyl groups for aerobic respiration.

Lipids, especially fatty acids, are broken down into two-carbon acetyl groups and enter the pathway as acetyl-CoA. Since this route feeds into the aerobic stages, lipid respiration depends on oxygen. Lipids can’t be used for anaerobic respiration in the way glucose can.

Comparison of carbohydrates and lipids as respiratory substrates.

FeatureCarbohydratesLipids
Pathway entryEnter glycolysis as glucoseFatty acids form acetyl-CoA
Anaerobic usePossible via glycolysisNot possible in this way
O₂ requirementCan be used without O₂ short termRequires O₂ for full respiration
Energy yield / kJ g⁻Âč≈17; lower≈39; higher
Chemical reasonMore oxygen-rich; less oxidizable C–HLess oxygen; more oxidizable C–H

Lipids release more energy per gram than carbohydrates because they contain less oxygen and more oxidizable carbon and hydrogen. Carbohydrates are already relatively oxygen-rich, so fully oxidizing them releases less energy. That’s why lipids work well as long-term energy stores, while carbohydrates provide readily mobilized energy, including when anaerobic ATP production may be needed.

The linking questions connect this back to wider biology. Organisms store energy in the chemical bonds of organic molecules, especially carbohydrates such as starch or glycogen and lipids such as fats and oils; ATP acts as a short-term distributor, not a long-term store. Respiration also matters at ecosystem level: it releases carbon dioxide back to the environment, transfers usable chemical energy into ATP for life processes, and disperses energy as heat. Because energy transfers are not 100% efficient, respiration contributes to the energy losses that limit food-chain length.
