Master IB Biology B2.1: Membranes and membrane transport with notes created by examiners and strictly aligned with the syllabus.
B2.1.1 Lipid bilayers as the basis of cell membranes
B2.1.2 Lipid bilayers as barriers
B2.1.3 Simple diffusion across membranes
B2.1.4 Integral and peripheral proteins in membranes
A cell membrane is a thin biological boundary, made mainly of lipids and proteins, that separates one aqueous region from another and controls exchange between them. The plasma membrane is the cell membrane at the surface of a cell; it separates the cytoplasm from the external environment. In eukaryotic cells, internal membranes also create compartments.
Membranes form their basic sheet because many membrane lipids are amphipathic molecules: molecules with hydrophilic regions that interact favourably with water and hydrophobic regions that avoid water. A phospholipid is an amphipathic lipid with a polar phosphate-containing head and two non-polar fatty acid tails. Put phospholipids in water and the heads face the aqueous solutions, while the tails turn inward, away from water.

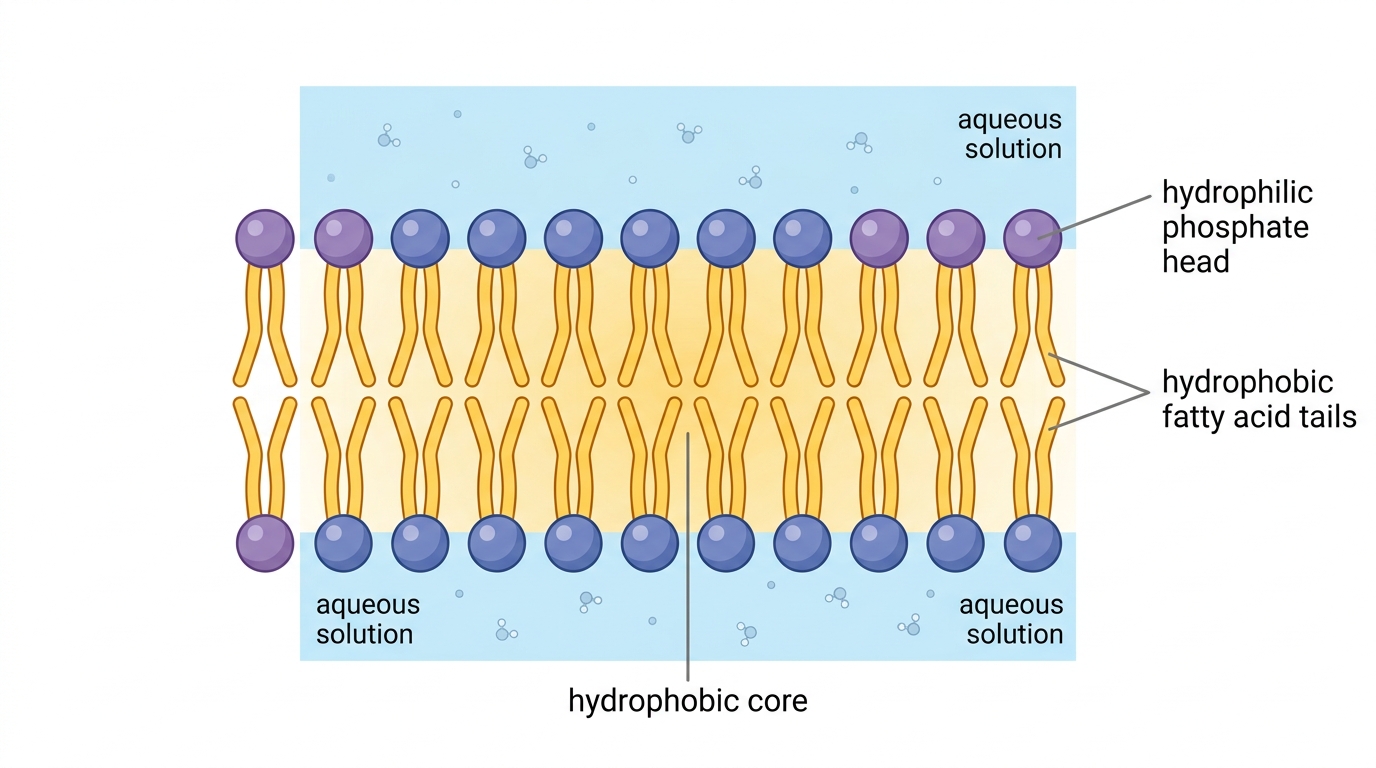

A lipid bilayer is a double layer of amphipathic lipids, with hydrophilic heads facing outward and hydrophobic tails facing inward. Phospholipids and other amphipathic lipids naturally form continuous sheet-like bilayers in water; no cell has to “build” the bilayer molecule by molecule. This arrangement lowers energy because it shields hydrophobic hydrocarbon chains from water and keeps the polar heads in contact with water.

That answers the first guiding question: lipid molecules assemble into membranes because of their amphipathic structure. Proteins then associate with the bilayer according to whether their surfaces are hydrophobic, hydrophilic, or both.

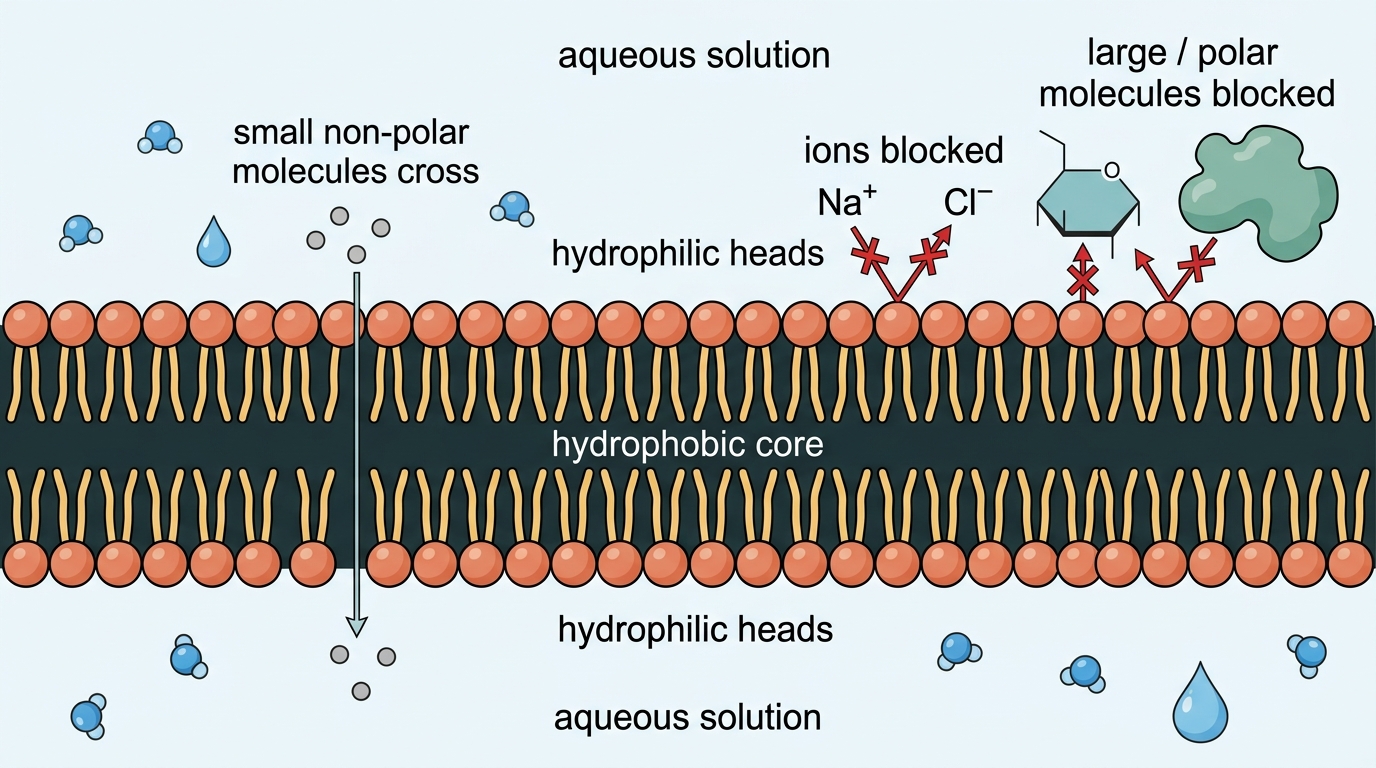

A hydrophobic substance does not interact favourably with water and is more soluble in non-polar environments. A hydrophilic substance interacts favourably with water because it is charged or polar. The middle of a membrane is hydrophobic because hydrocarbon chains form it.
That hydrophobic core has low permeability to large molecules and to hydrophilic particles, including ions and polar molecules. An ion such as Na⁺, K⁺ or Cl⁻ is strongly attracted to water. A polar molecule such as glucose interacts with water as well. For either one, moving through the non-polar membrane core is energetically unfavourable. That is why membranes can act as effective barriers between two aqueous solutions.

Size matters too. Very large molecules such as polysaccharides and proteins cannot slip between phospholipids. Small non-polar molecules pass much more easily. Small polar molecules may cross slowly, but as the particle gets bigger and more polar, the bilayer becomes less permeable to it.
This is the second guiding question in its simplest form: whether a substance can pass through the membrane depends first on size and on whether it is hydrophobic or hydrophilic. Later sections add protein channels and pumps, making the answer more selective.
Diffusion is the net movement of particles from a region of higher concentration to a region of lower concentration, caused by their continuous random motion. A concentration gradient is a difference in the concentration of a substance between two regions. Diffusion counts as passive transport: movement across a membrane that does not require direct energy input from the cell.
Particles are not “trying” to move down the gradient. They move randomly, in every direction. The net movement happens because more particles are available to cross from the high-concentration side than from the low-concentration side.

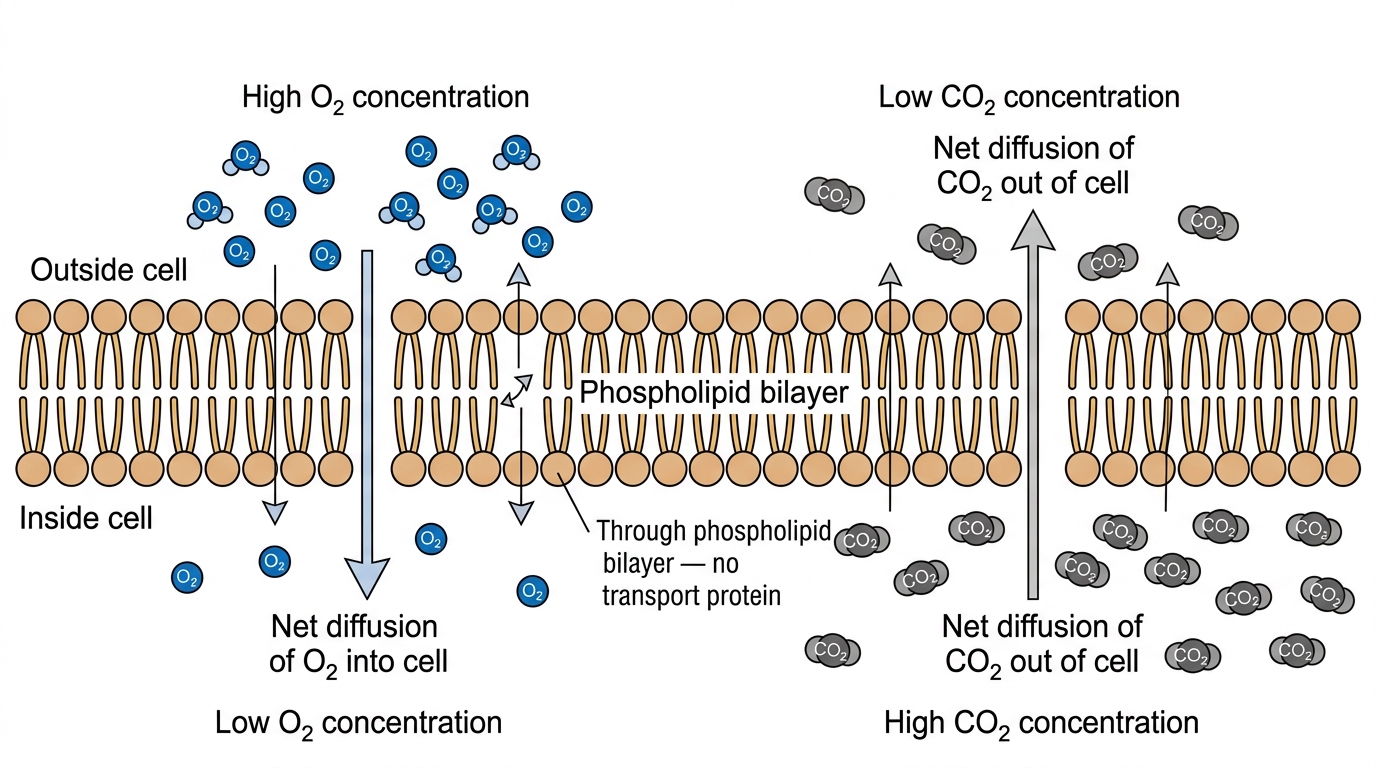

Simple diffusion is diffusion through the lipid part of a membrane, without using a transport protein. Oxygen and carbon dioxide are the classic examples. Both are small, non-polar molecules, so they can slip between phospholipids.
When a respiring cell uses oxygen, the oxygen concentration inside the cell falls. More oxygen molecules then move into the cell from outside than move the other way, so oxygen enters by simple diffusion. Carbon dioxide produced by respiration can diffuse out in the same way if its concentration is higher inside the cell.

Ions do not normally cross by simple diffusion because their charge makes them strongly hydrophilic. Small polar molecules cross slowly, and large polar molecules cross very poorly. Simple diffusion is useful, but it’s blunt: it depends on physical properties, not on whether the cell “needs” the substance.
A membrane protein is a protein associated with a biological membrane that performs functions such as transport, reception, adhesion, enzyme activity or structural support. They don’t all sit in the membrane in the same way. Their position depends on their shape, and on which regions are hydrophobic or hydrophilic.
An integral protein is a membrane protein with hydrophobic regions that are embedded in one or both lipid layers of a membrane. Some integral proteins sit mainly in one leaflet of the bilayer. Others are transmembrane proteins, which are integral proteins that extend across the whole membrane and expose hydrophilic regions to the aqueous solutions on both sides.
A peripheral protein is a membrane protein attached to one surface of a membrane without being embedded through the hydrophobic core. Peripheral proteins may attach to phospholipid heads or, very commonly, to integral proteins. The attachment can be reversible, which helps when a cell needs to change membrane activity quickly.

Membrane proteins also have orientation. The side facing the cytoplasm is not the same as the side facing outside the cell. A pump protein, for example, has to expose its binding site to the correct side first; otherwise it would move particles in the wrong direction. In this way, proteins help the membrane interact with the environment, giving the cell surface its transport, signalling and recognition abilities.

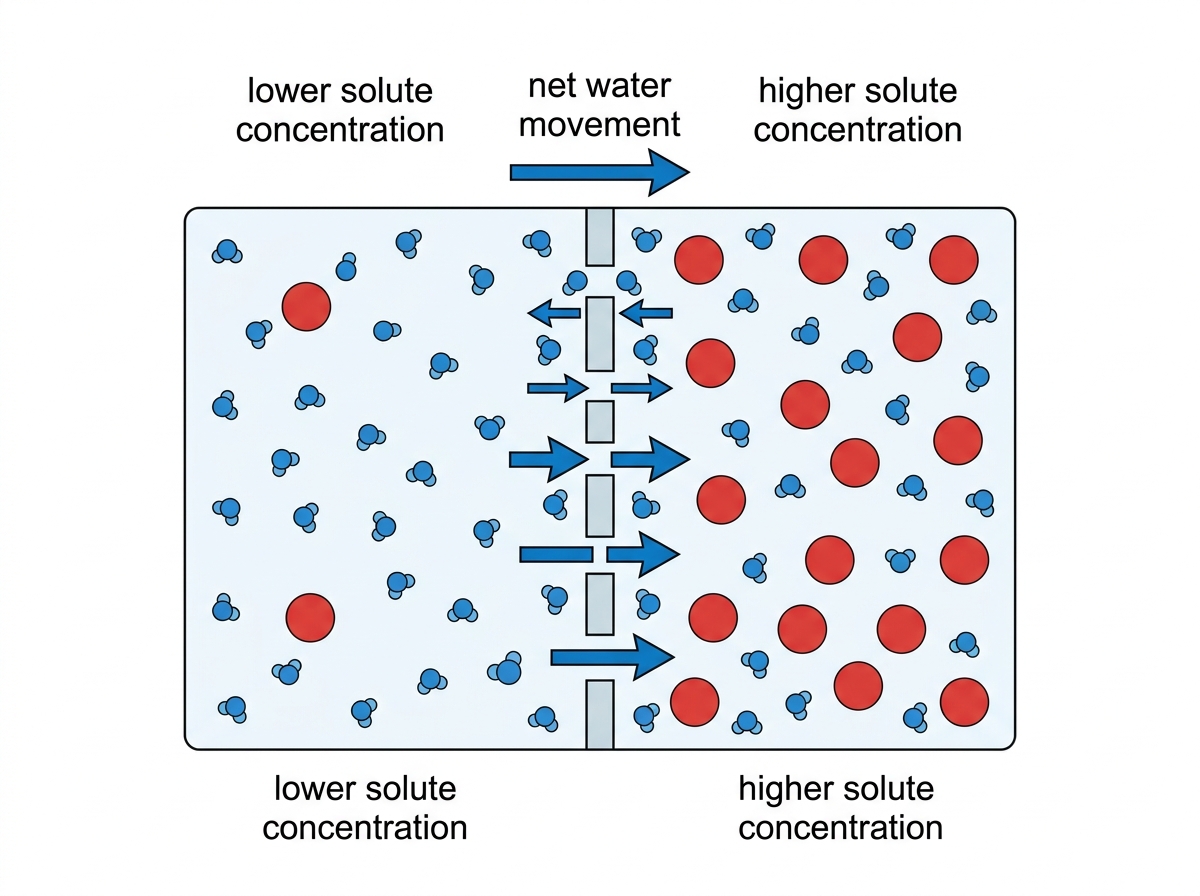

Osmosis is the net movement of water molecules across a partially permeable membrane, from a region of lower solute concentration to a region of higher solute concentration. A solute is a dissolved substance in a solution. A partially permeable membrane allows some substances to cross more easily than others.
Water molecules move randomly all the time. When one side of a membrane contains more dissolved solute, some water molecules become temporarily associated with solute particles, so they are less free to move. On the side with the lower solute concentration, more water molecules are free-moving. Many solutes cannot cross the membrane, so water shows a net movement toward the side with higher solute concentration.

A good explanation needs three parts: random movement of particles, a membrane that is less permeable to the solute than to water, and a difference in solute concentration. If the solute could cross freely at the same rate as water, the osmotic effect would not be maintained.

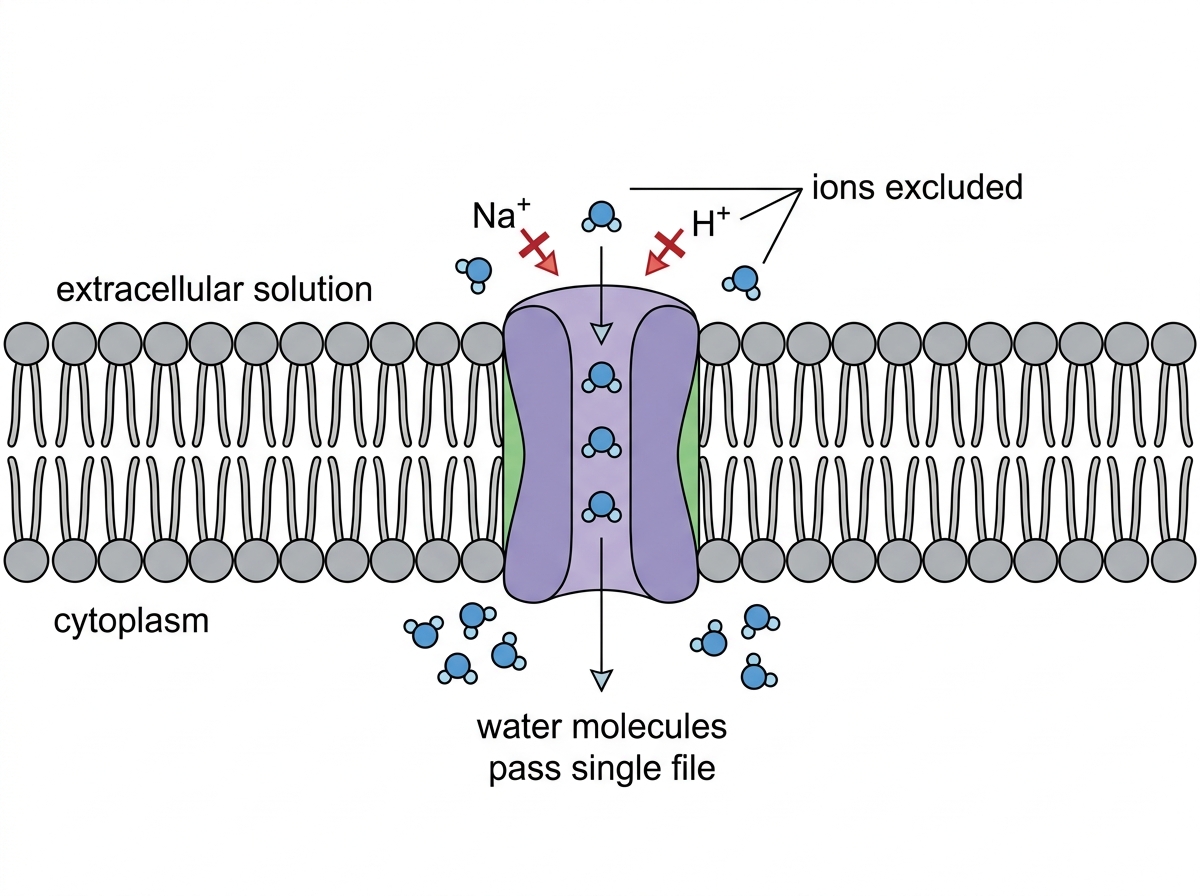

An aquaporin is an integral channel protein that lets water molecules cross a membrane rapidly and selectively. Water can move slowly through the phospholipid bilayer because it is very small, but aquaporins greatly increase water permeability in cells where water movement matters especially, such as kidney tubule cells and root hair cells.
The aquaporin pore is narrow enough for water molecules to pass in single file. Its structure helps keep out charged particles, including H⁺ ions, so the channel increases water movement without causing the cell’s ion gradients to collapse.

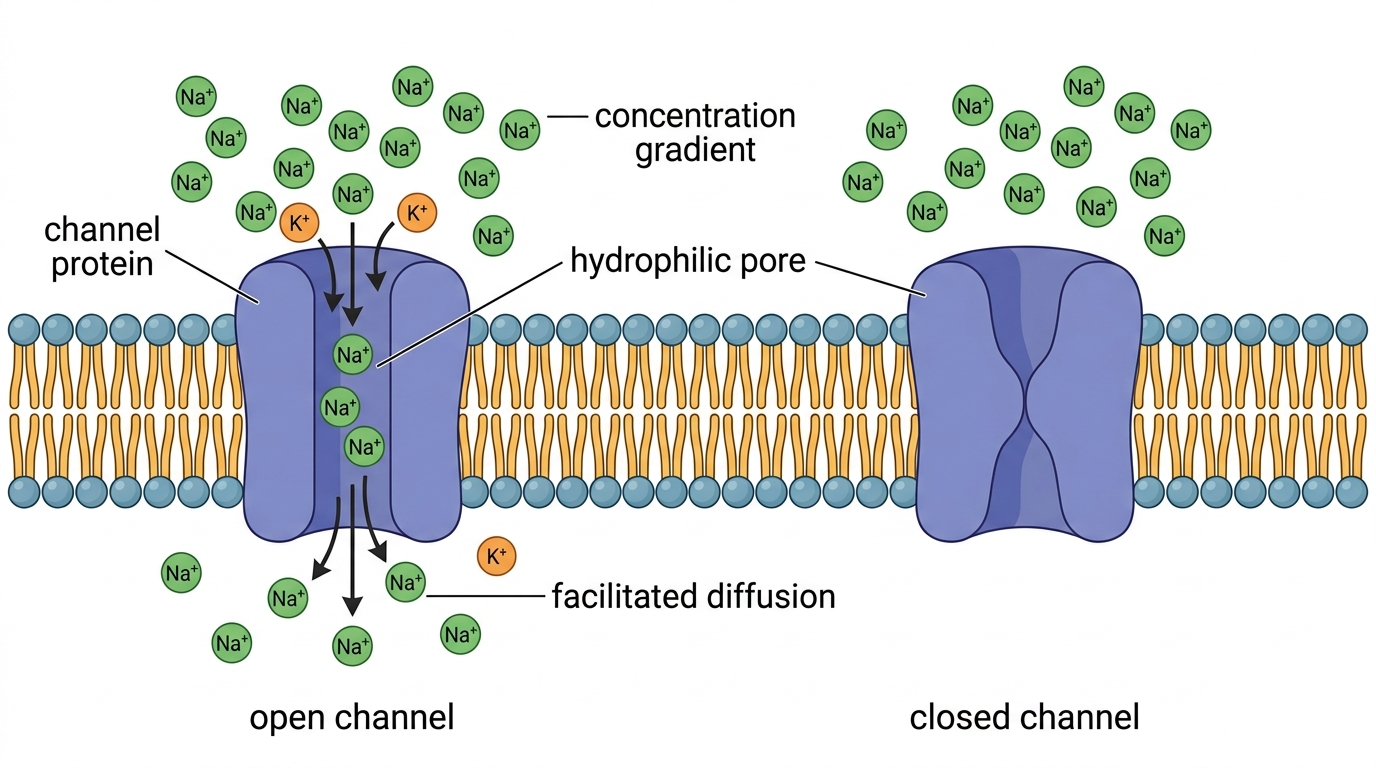

A channel protein is an integral transmembrane protein with a hydrophilic pore that lets specific particles cross a membrane. Facilitated diffusion is the passive movement of particles down a concentration gradient through a membrane transport protein.
The pore isn’t just a hole. Its diameter, charge distribution and amino acid side chains make it selective. For example, a sodium ion channel lets Na⁺ pass more readily than K⁺, while a potassium ion channel does the reverse. That selectivity explains how membranes can be permeable to one ion but not another, even when both are charged.

When a channel is open, ions diffuse through in both directions, although the net movement is from higher concentration to lower concentration. The cell does not use ATP to push ions through a channel during facilitated diffusion. If the channel is closed, the ion cannot cross by that route, so membrane permeability can change from moment to moment.

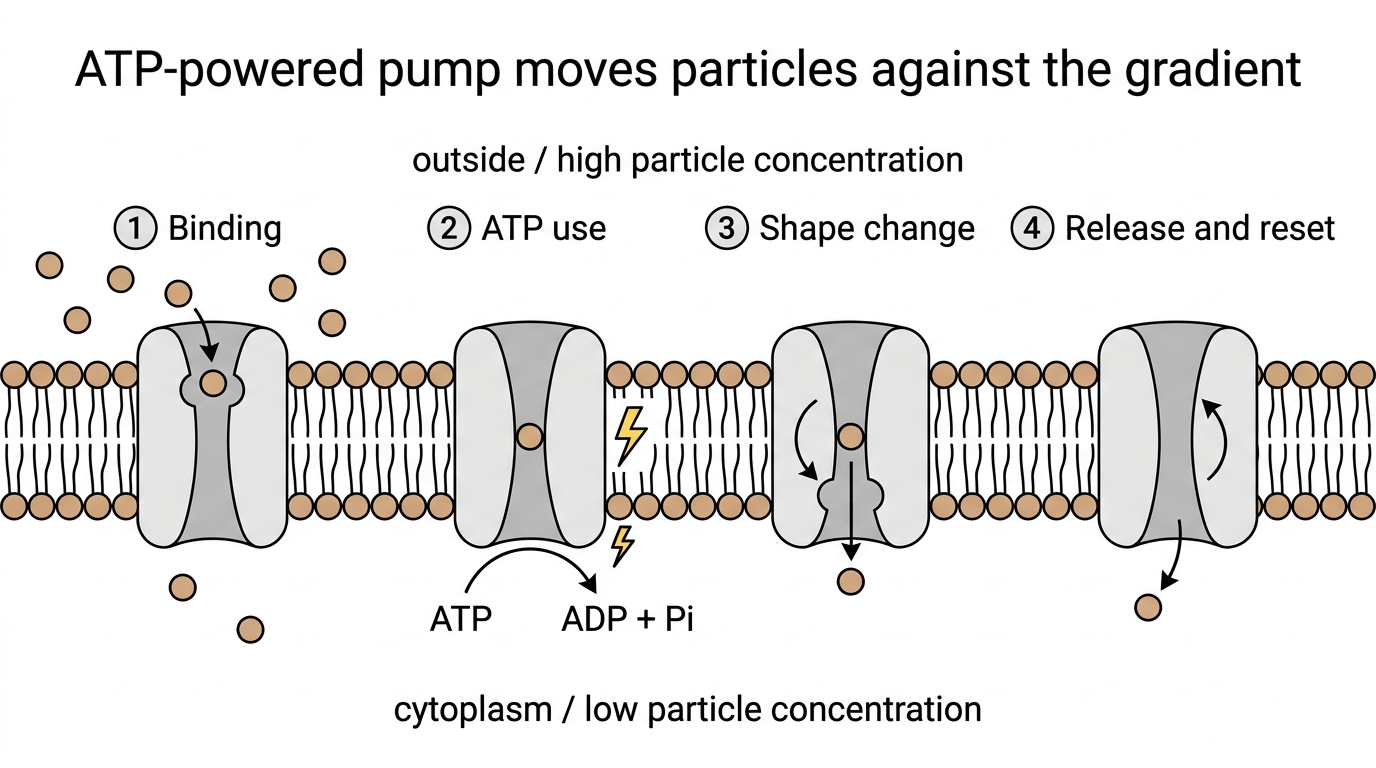

A pump protein is a membrane transport protein that uses energy to move specific particles across a membrane. Active transport means moving particles across a membrane using energy, often against a concentration gradient. The usual energy source is ATP, adenosine triphosphate, a nucleotide that transfers energy to cellular processes when it is hydrolysed.
Pump proteins differ from channels in three main ways:
A pump works by changing conformation. In one shape, it binds the particle on one side of the membrane. ATP provides the energy for a shape change, so the particle is exposed to the other side and released. The pump then returns to its original shape and can repeat the cycle.

Cells need active transport whenever they have to keep internal conditions different from the surroundings. Examples elsewhere in biology include mineral ion uptake by plant roots, active movement of ions involved in root pressure, auxin efflux carriers maintaining phytohormone gradients, and ion transport in osmoregulation by the loop of Henle.

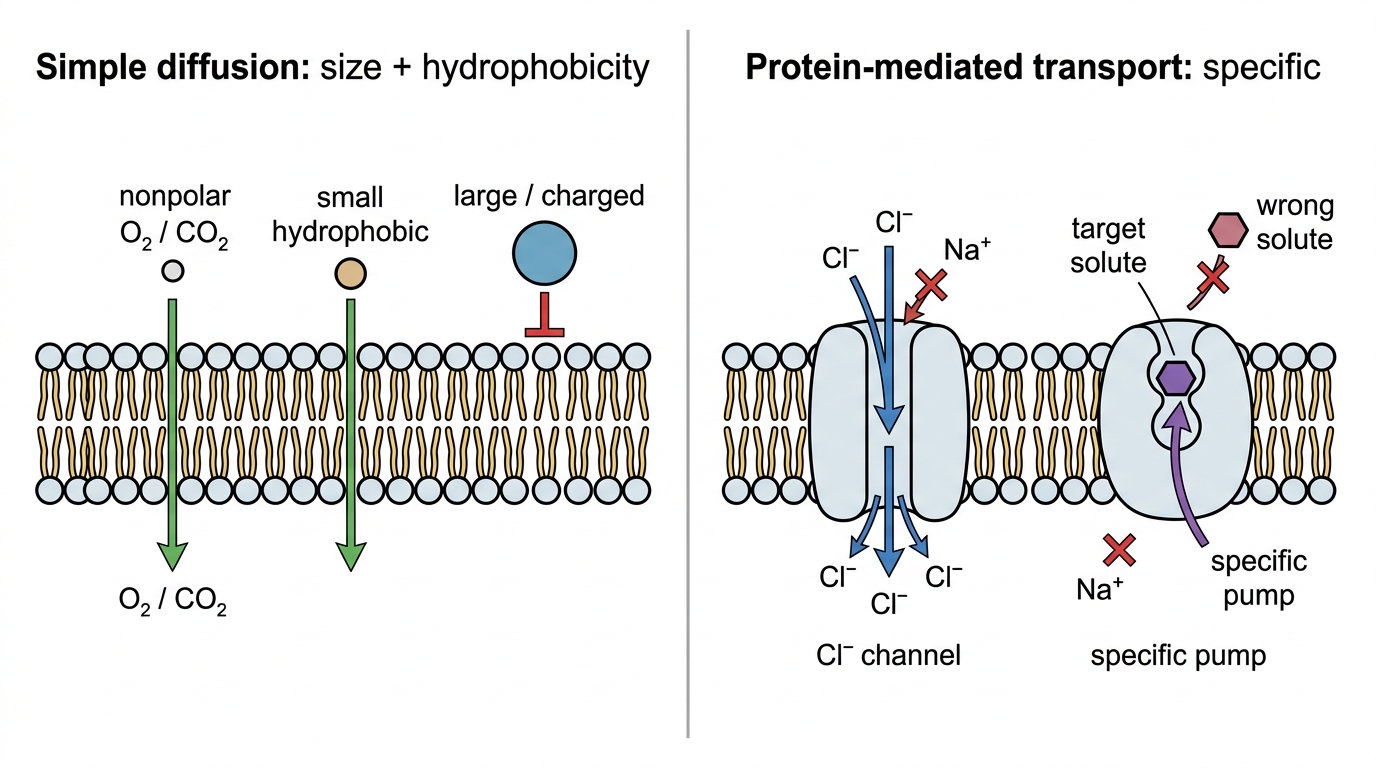

Membrane permeability means how far a membrane lets a substance pass through it. A selectively permeable membrane permits some specific substances to cross while restricting others.
Simple diffusion through the lipid bilayer is not selective in the biological sense. The bilayer doesn’t “choose” oxygen because it is useful, or reject another small hydrophobic molecule because it is not. In simple diffusion, permeability depends mainly on particle size and on whether the particle is hydrophobic or hydrophilic.
Facilitated diffusion and active transport work differently because proteins are specific. A chloride channel permits Cl⁻ diffusion when open. A pump may bind one particle and not a closely related one. That’s why membranes containing proteins can regulate the chemical composition of cytoplasm far more precisely than a lipid bilayer alone.

You may see the terms semi-permeable, partially permeable and selectively permeable. For living membranes, “selectively permeable” is the most informative term because it includes the role of specific proteins, not just the passive passage of small particles.

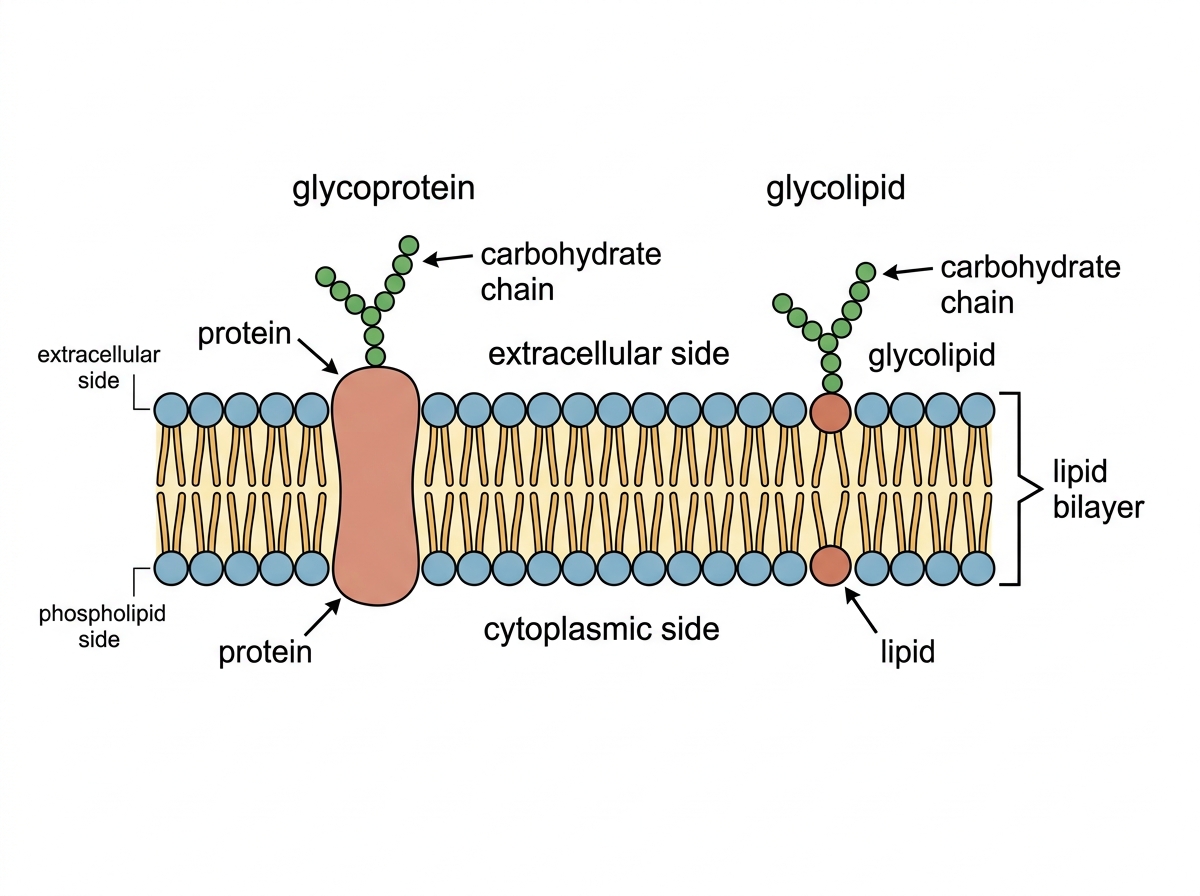

A glycoprotein is a conjugated protein with one or more carbohydrate chains covalently attached to the polypeptide. In membranes, the protein part associates with the bilayer, and the carbohydrate part projects from the extracellular side.
A glycolipid is a membrane lipid with a carbohydrate chain attached to it. The lipid part sits in the membrane; the carbohydrate part faces the extracellular side too. That outward-facing arrangement matters because the carbohydrate chains form part of the cell’s public identity card.

Glycoproteins and glycolipids take part in cell recognition, the process by which cells identify other cells or molecules by surface features. They help cells distinguish self from non-self, contribute to immune recognition, and let cells interact correctly with neighbours.
They also contribute to cell adhesion, the attachment of cells to each other or to extracellular material. In animal cells, many surface carbohydrates together make a carbohydrate-rich outer layer. This layer helps adjacent cells bind and keeps tissues organised.

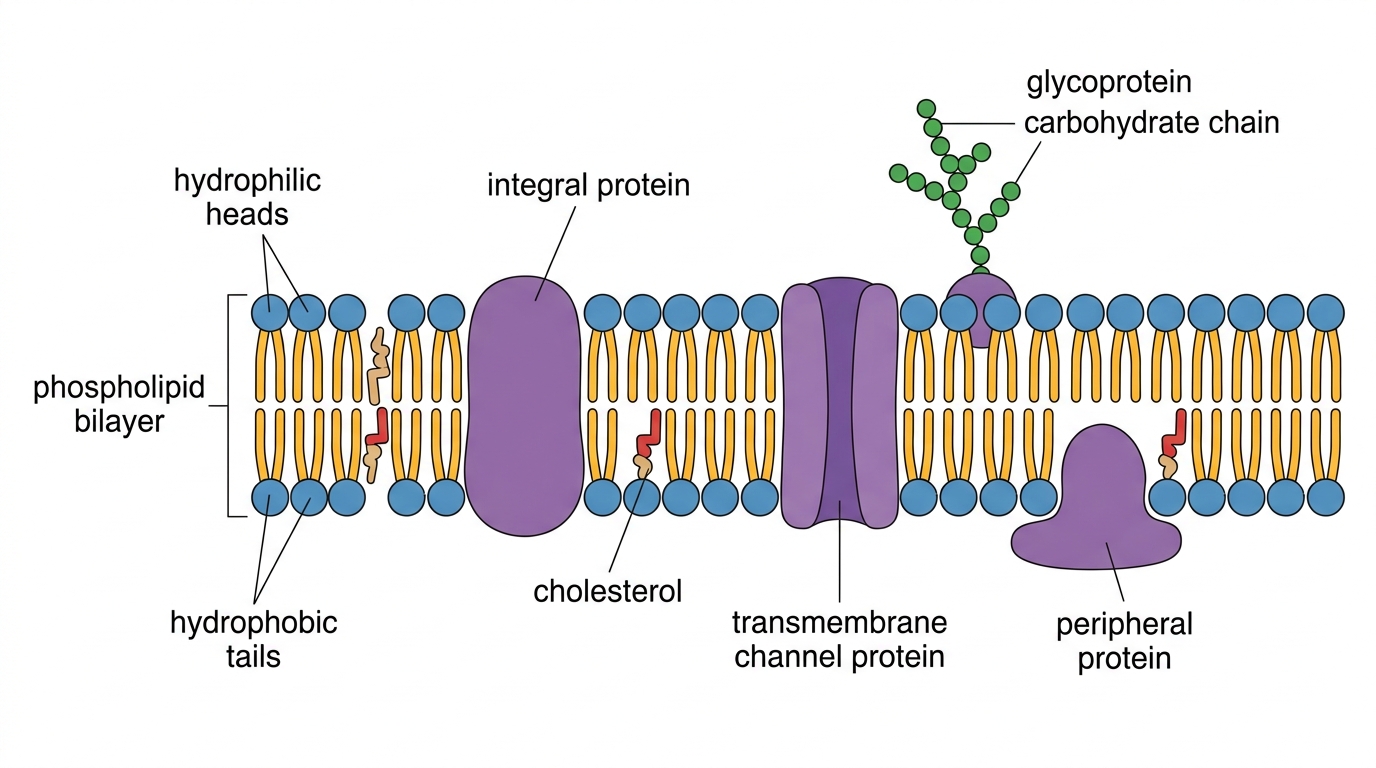

The fluid mosaic model describes membrane structure: phospholipids make a fluid bilayer, with proteins and other molecules embedded in it or attached to it. “Fluid” means many membrane components can move sideways within the plane of the membrane. “Mosaic” means the membrane is a patchwork of different proteins and other components.
In a two-dimensional drawing of the model, include:

Form matches function here. The lipid bilayer acts as a flexible barrier. Transport proteins allow selective permeability. Glycoproteins and glycolipids help with recognition and adhesion. Cholesterol adjusts fluidity. So the cell surface is not just passive wrapping; it works as an active interface between the cell and its environment.
Membrane fluidity is the ability of lipid and protein molecules in a membrane to move laterally within the bilayer. The membrane needs enough fluidity to bend, fuse and let proteins work, but if it becomes too fluid, it can turn too permeable or weak.

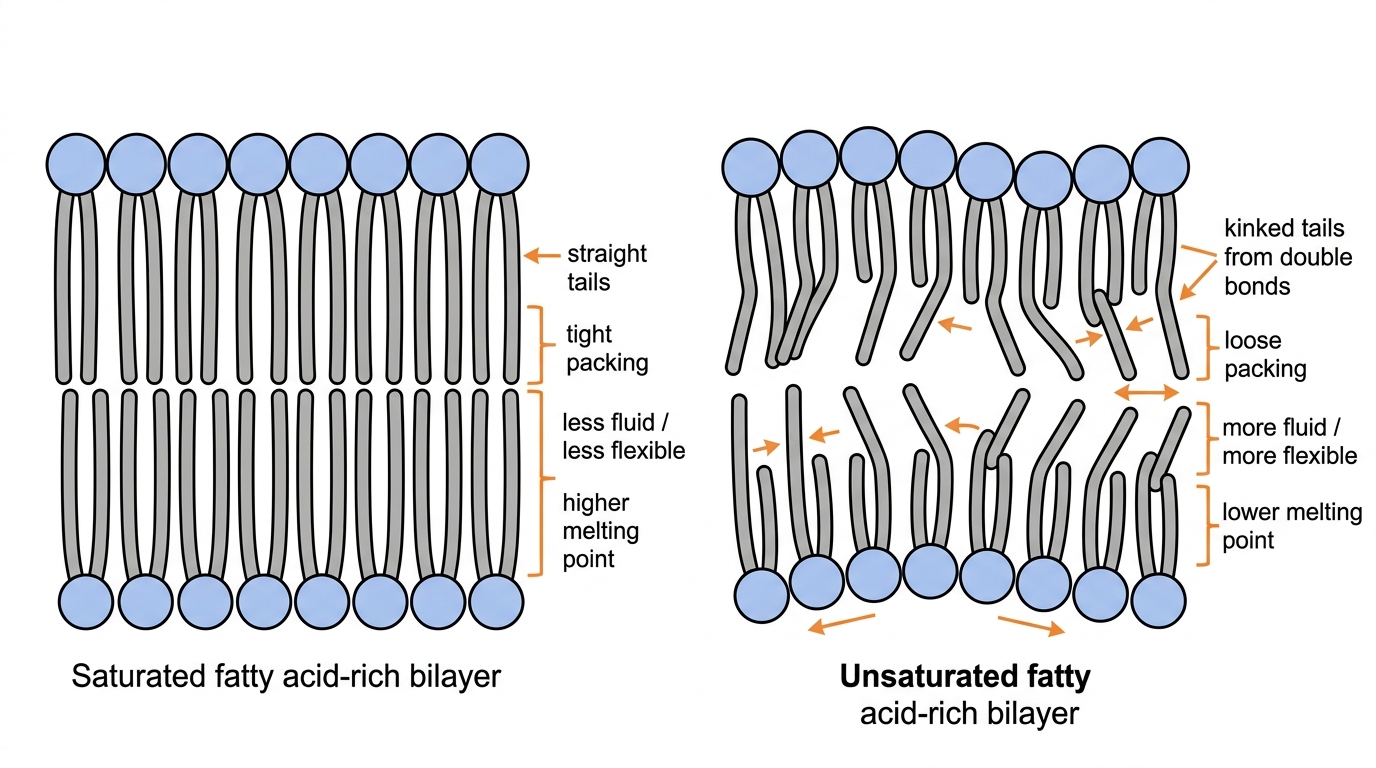

A saturated fatty acid is a fatty acid with no carbon-carbon double bonds in its hydrocarbon chain. Because the chain is relatively straight, saturated tails pack closely together. This raises melting point and makes membranes stronger and less fluid at higher temperatures.
An unsaturated fatty acid is a fatty acid with one or more carbon-carbon double bonds in its hydrocarbon chain. Double bonds put bends into the chain, so unsaturated tails cannot pack as tightly. This lowers melting point and helps membranes stay fluid and flexible at temperatures experienced by the cell.

Cells can adjust membrane composition to match their conditions. Cold-water fish give a useful habitat example: species living in very cold seas tend to have a higher proportion of unsaturated fatty acids in membrane lipids than related fish from warmer water. That extra unsaturation stops membranes becoming too stiff in the cold.

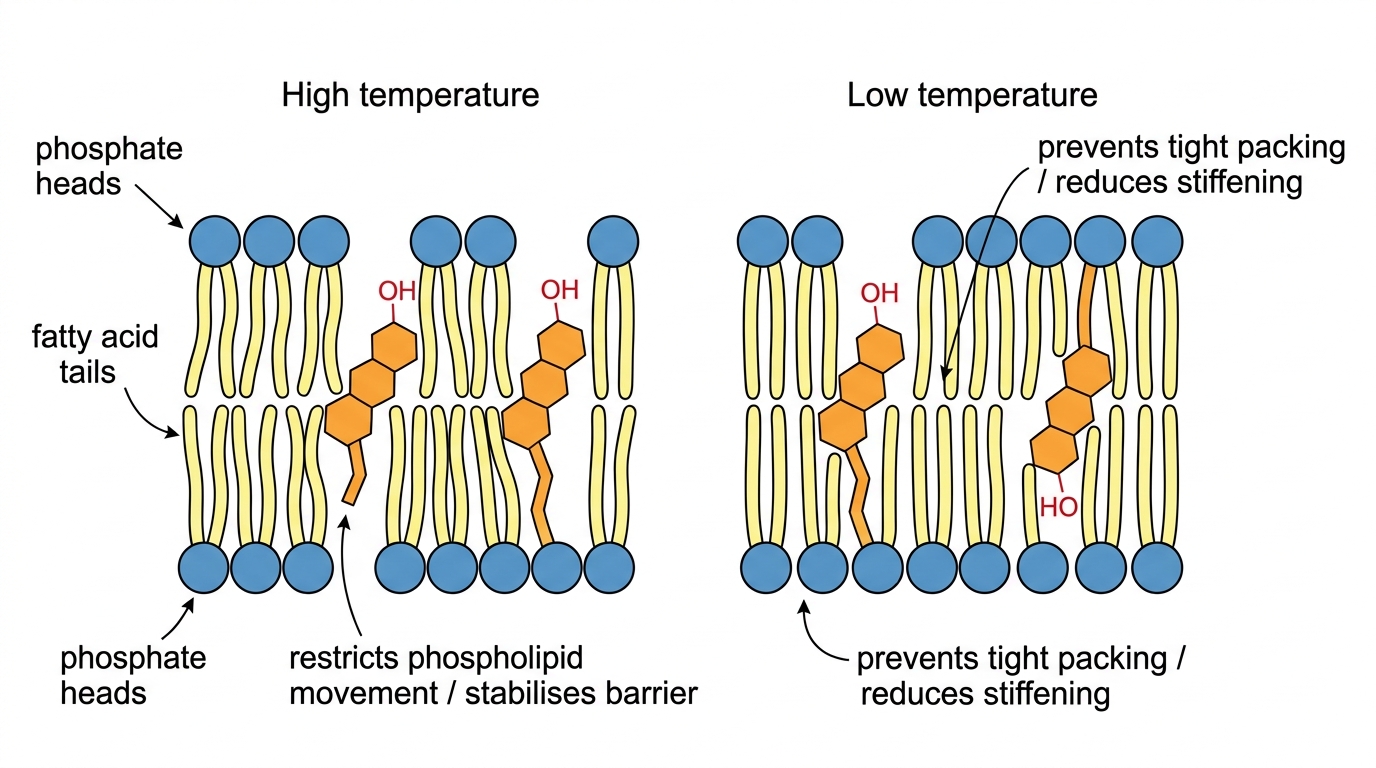

Cholesterol is a steroid lipid found in animal cell membranes. It has a small hydrophilic hydroxyl group and a mostly hydrophobic ring-and-tail region. Because of this structure, it sits in a particular way in the bilayer: the hydroxyl group lies near the phospholipid heads, while the hydrophobic region sits among the fatty acid tails.

Cholesterol acts as a fluidity modulator, a membrane component that adjusts membrane fluidity under different temperature conditions. When temperatures are higher, cholesterol restricts phospholipid movement and stabilizes the membrane, so it remains an effective barrier to hydrophilic particles. When temperatures are lower, cholesterol stops phospholipid tails from packing too tightly, reducing stiffening.
So cholesterol doesn’t simply “make membranes more fluid” or “make membranes less fluid”. It buffers fluidity: it helps stop the membrane becoming too runny when warm and too rigid when cold.
A vesicle is a small membrane-bound sac that encloses fluid or other material. Vesicles form because membranes are fluid: a patch of membrane can curve, pinch off, travel through cytoplasm, and later fuse with another membrane.

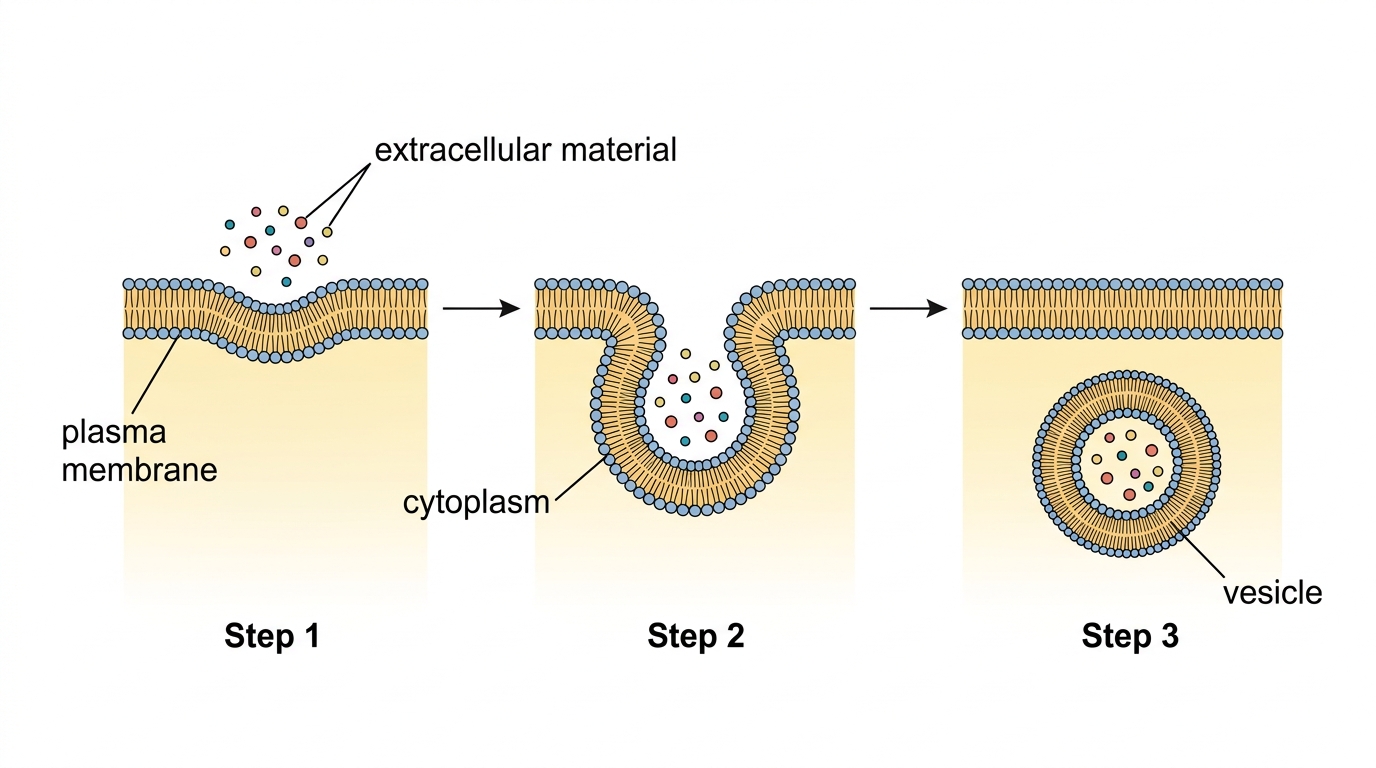

Endocytosis is the uptake of material into a cell by inward folding of the plasma membrane to form a vesicle. The enclosed material may be extracellular fluid, dissolved substances, large molecules or even particles. Cells in the placenta take up maternal antibodies this way, and some white blood cells use it to engulf pathogens.

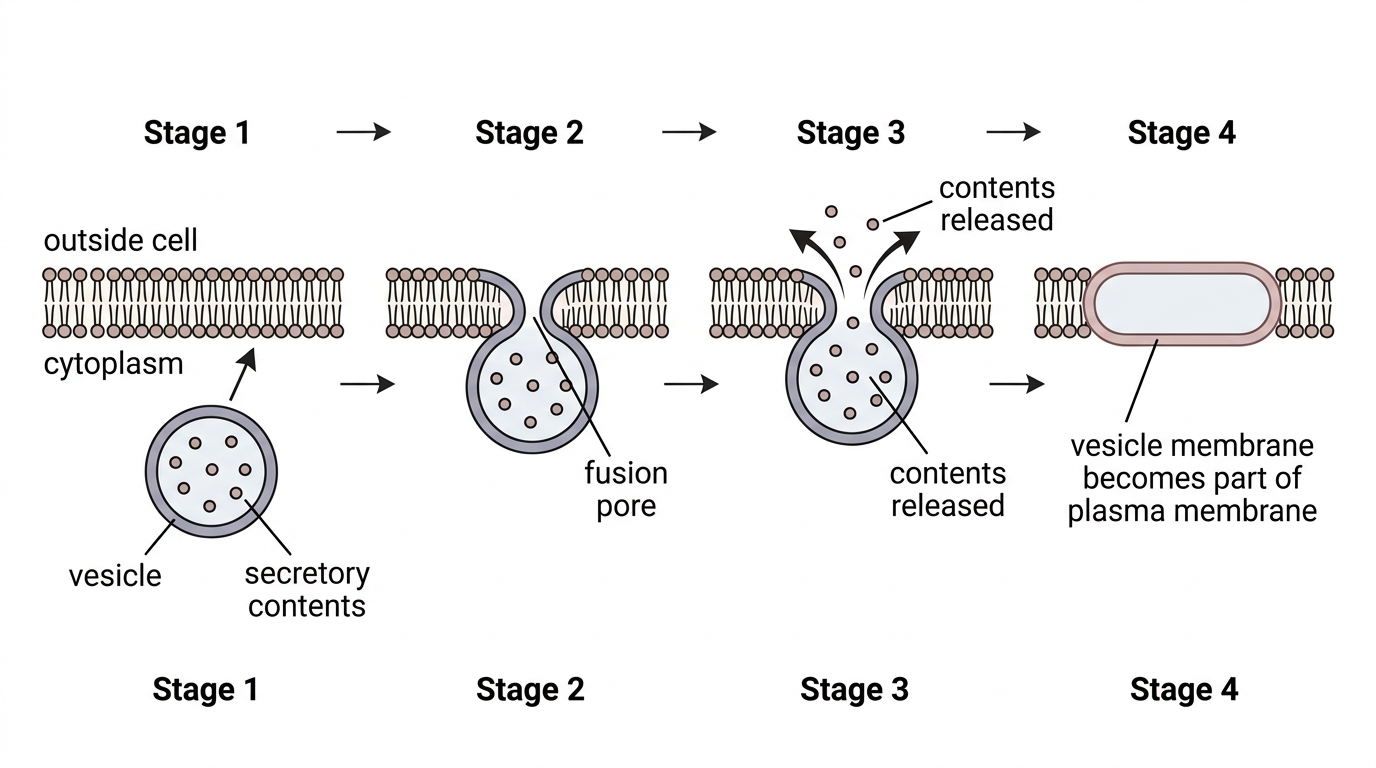

Exocytosis is the release of material from a cell when a vesicle fuses with the plasma membrane and expels its contents outside. Secretory cells use exocytosis to release useful products, such as digestive enzymes or protein hormones. Some unicellular organisms also use vesicles that fuse with the plasma membrane to expel excess water.

Vesicles move membrane too. Proteins made on rough endoplasmic reticulum can be carried in vesicles to the Golgi apparatus and then to the plasma membrane. Once those vesicles fuse, their membrane becomes part of the target membrane. Growing cells can increase plasma membrane area in this way.
A gated ion channel is an ion channel that opens or closes in response to a specific stimulus. In neurons, it gives the membrane a fast way to change permeability in a controlled way. The ions still move by facilitated diffusion when the channel is open; gating simply decides whether the pathway is available.

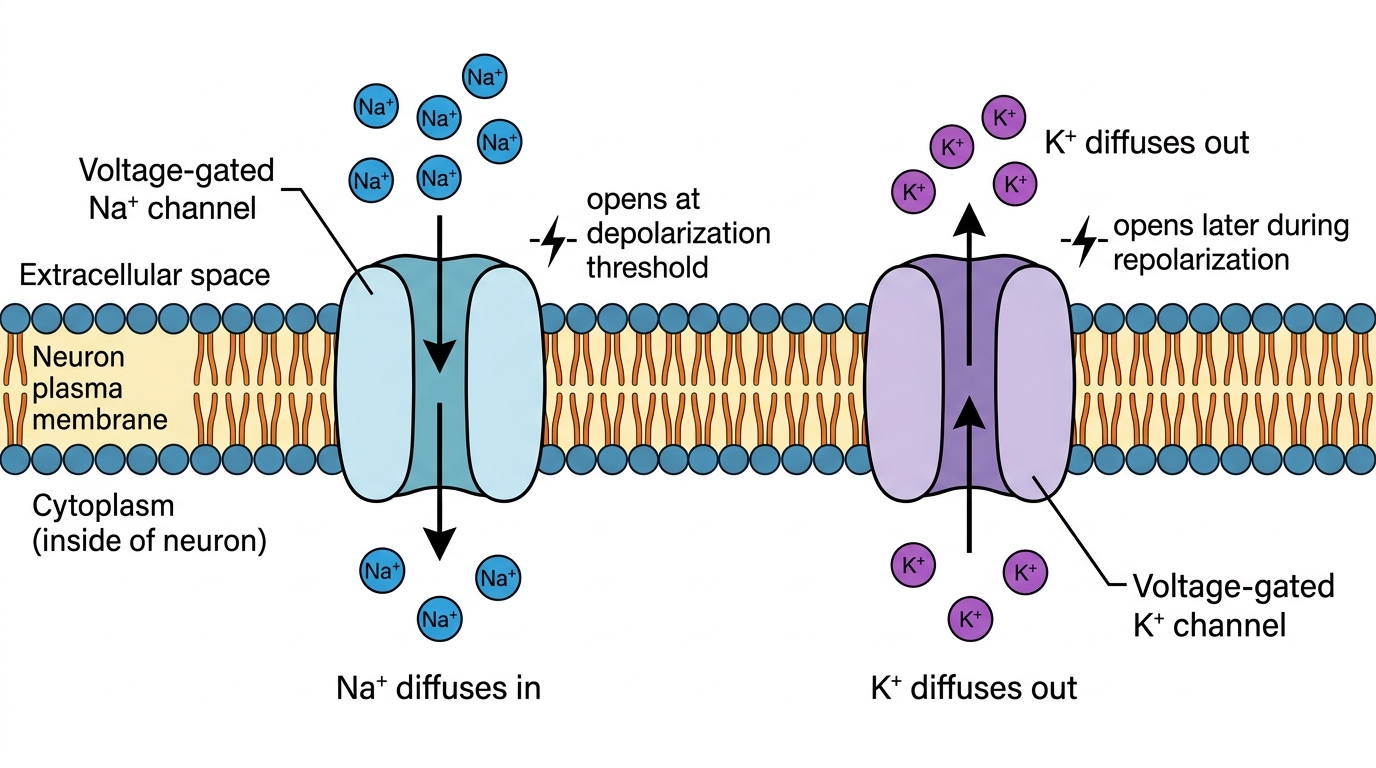

A voltage-gated ion channel is a gated ion channel that opens or closes in response to a change in membrane potential. Sodium and potassium channels in neuron membranes are examples. When voltage-gated Na⁺ channels open, Na⁺ diffuses into the neuron. When voltage-gated K⁺ channels open, K⁺ diffuses out. These ion movements are central to nerve impulses.

Selectivity is very exact. A potassium channel can let K⁺ pass while keeping Na⁺ out, even though both ions are positive. The pore’s width and chemical environment determine which hydrated ion can interact correctly with amino acids in the channel.

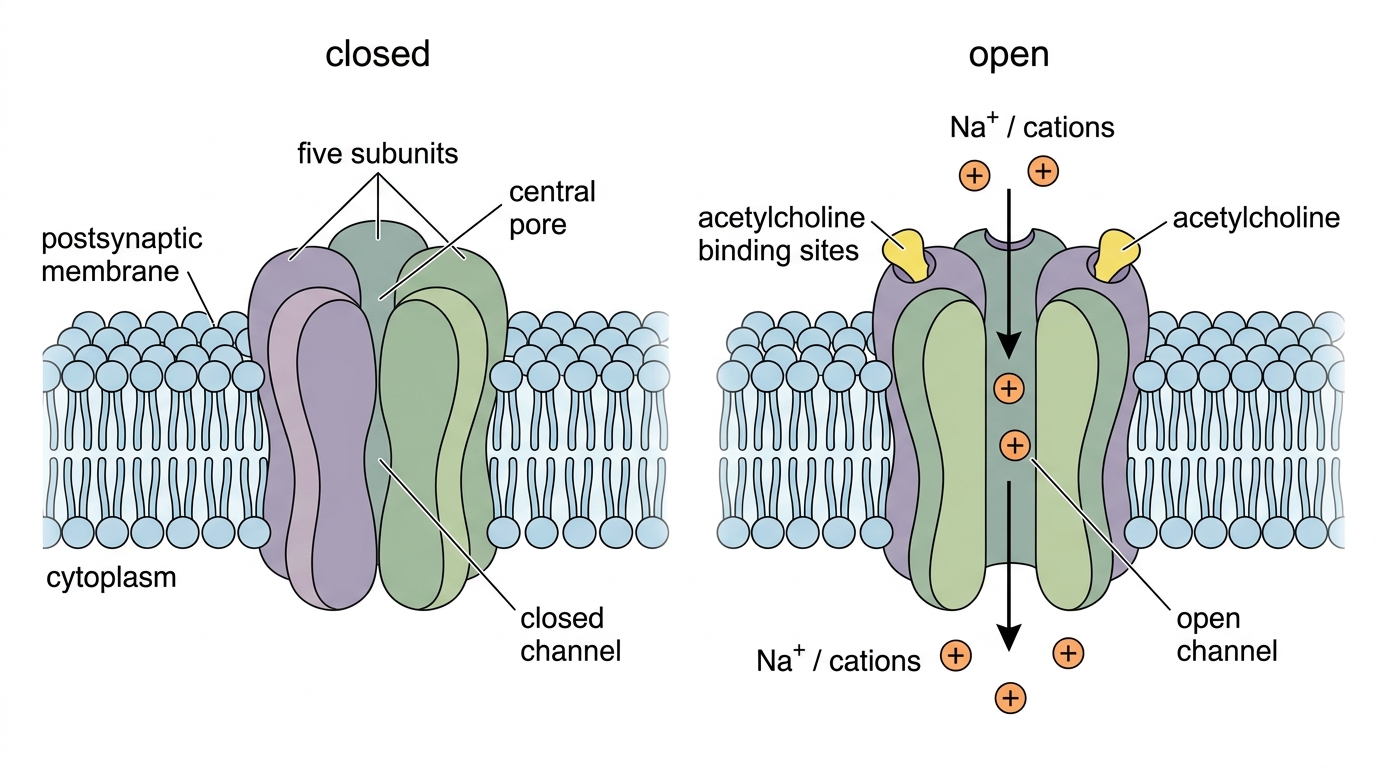

A neurotransmitter-gated ion channel is a gated ion channel that opens or closes when a neurotransmitter binds to it. A nicotinic acetylcholine receptor is a neurotransmitter-gated cation channel that opens when acetylcholine binds. It has multiple transmembrane subunits arranged around a pore. Acetylcholine binding causes a conformational change, which opens the pore so positive ions, including Na⁺, can diffuse through. When acetylcholine detaches, the channel closes again.

An exchange transporter is a membrane transport protein that moves two or more different particles in opposite directions across a membrane. In neurons, the sodium-potassium pump is the main example.

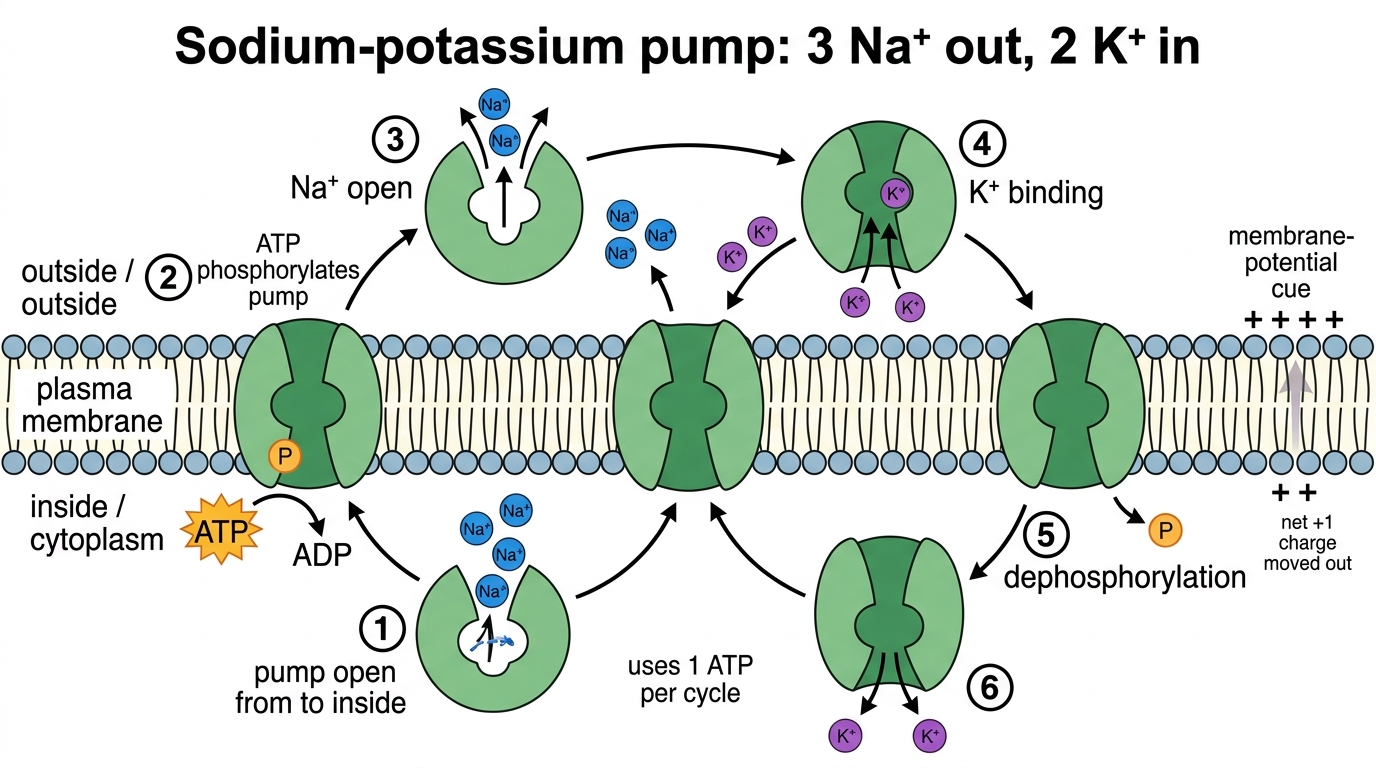

A sodium-potassium pump is an ATP-driven exchange transporter that moves Na⁺ out of a cell and K⁺ into a cell. Each cycle uses energy from one ATP to pump three Na⁺ ions out and two K⁺ ions in. That keeps steep Na⁺ and K⁺ concentration gradients across the plasma membrane.

A membrane potential is a voltage across a membrane caused by an unequal distribution of charge on the two sides. Sodium-potassium pumps help generate membrane potentials because they move more positive charge out than in. More importantly, they maintain the ion gradients that let gated channels change the voltage rapidly during nerve signalling.
Active transport matters here because ATP-powered pumps maintain gradients. Without those gradients, nerve impulses, many forms of absorption and many homeostatic processes would fail.

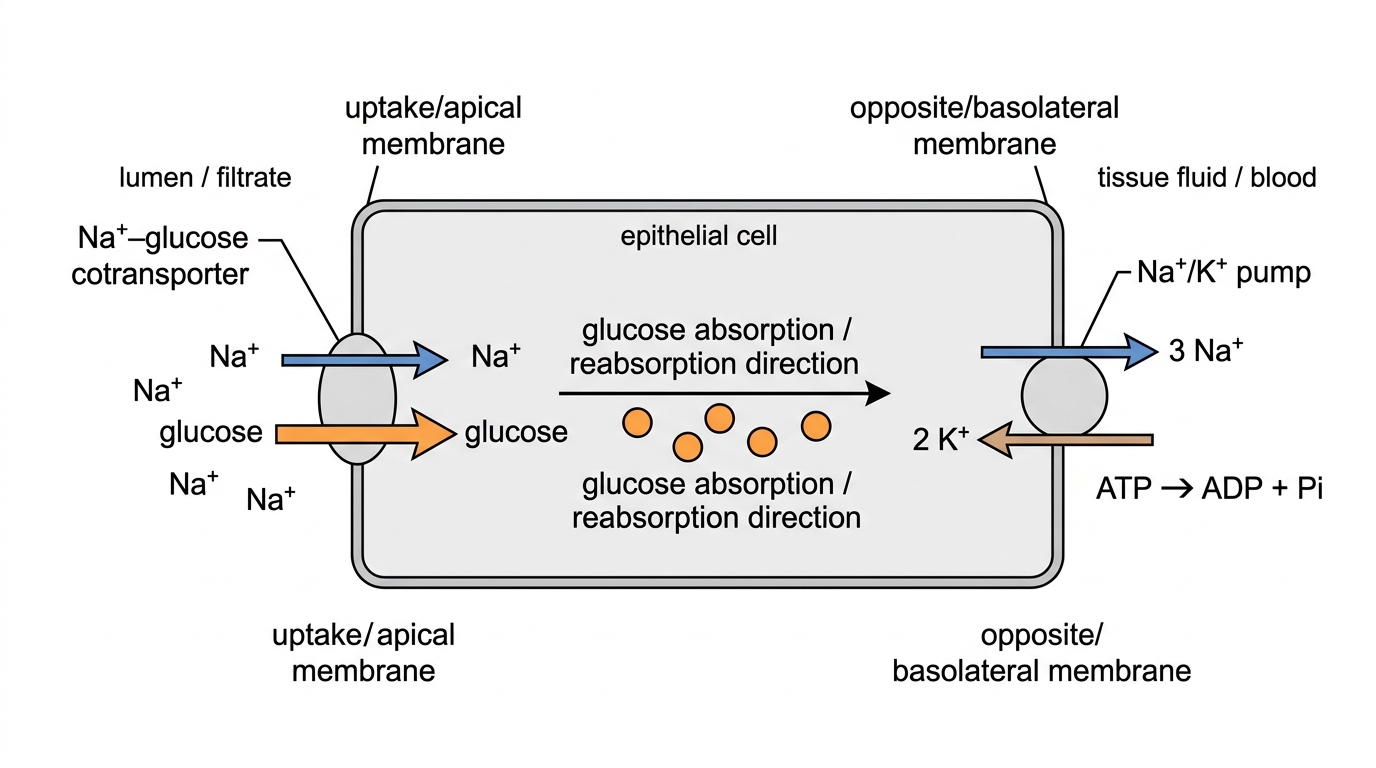

A cotransporter is a membrane transport protein that carries two substances across a membrane at the same time. A sodium-dependent glucose cotransporter carries Na⁺ and glucose into a cell together, using the energy released when Na⁺ moves down its concentration gradient.
Glucose can move into the cell against its own concentration gradient. The cotransporter doesn’t hydrolyse ATP directly. Instead, sodium-potassium pumps elsewhere in the membrane use ATP to keep the Na⁺ concentration low inside the cell. That Na⁺ gradient then pulls glucose uptake along.
Indirect active transport is active transport where ATP creates an ion gradient, and that gradient then powers the movement of another substance. It is also called secondary active transport. It is not passive, because the system depends on ATP, even though the cotransporter itself does not use the ATP.

This mechanism matters in glucose absorption by epithelial cells of the small intestine and in glucose reabsorption by cells in the nephron. In both cases, sodium-dependent glucose cotransporters on the uptake side bring glucose into the cell. Sodium-potassium pumps on the opposite side maintain the sodium gradient, so the process can keep running.
A tissue is a group of cells with related structure and function working together. Cells don’t form a tissue just by touching; they need to attach in organised, controlled patterns. A cell-cell junction is a specialized region where adjacent cells are connected to each other.

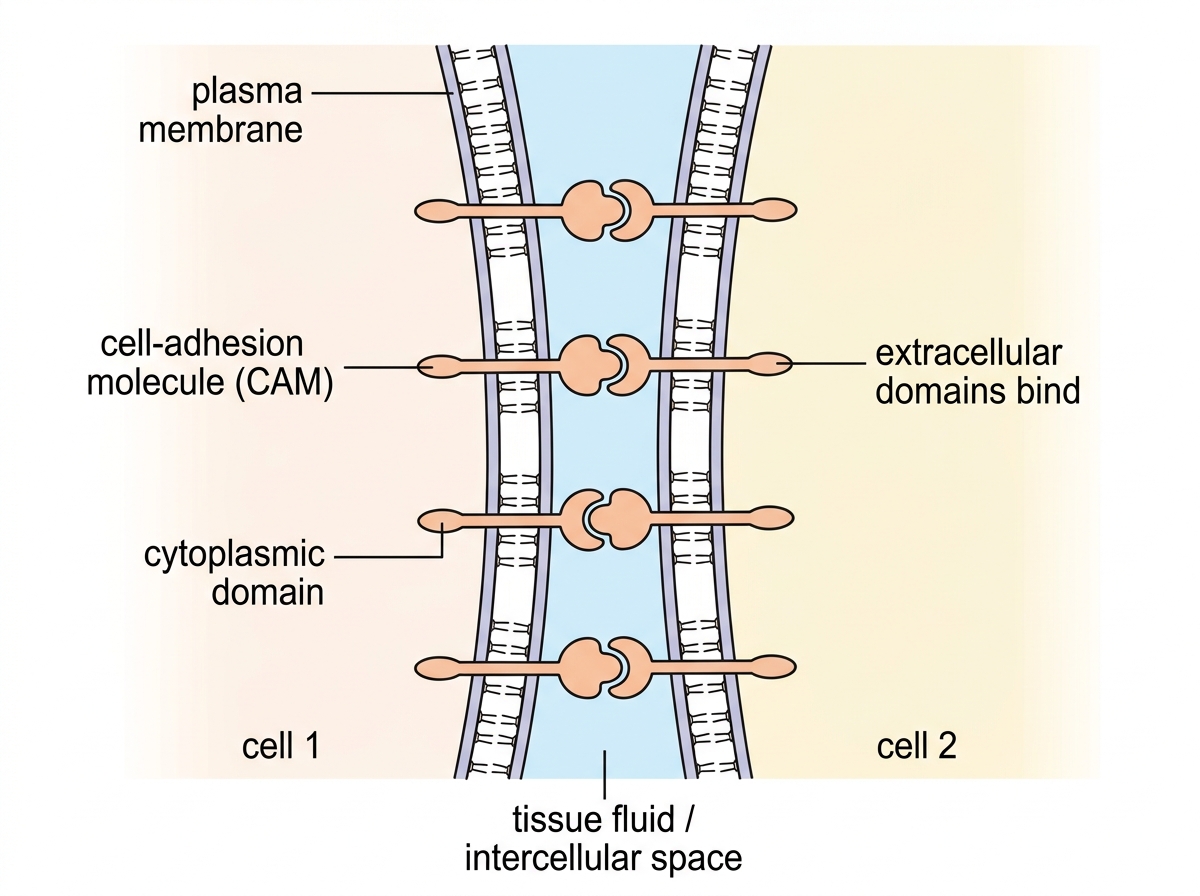

Cell-adhesion molecules, or CAMs, are membrane proteins that bind cells to other cells or to extracellular material. Different forms of CAM are used for different types of cell-cell junction, though you don’t need the detailed names for each junction type. What matters here is that CAM structure matches junction function.
Most of the time, part of a CAM sits embedded in the phospholipid bilayer, while another part projects into the extracellular space. CAMs on neighbouring cells bind through their extracellular domains, forming a junction. In some cases, the same CAM type binds to itself on a similar cell; in others, different CAMs bind and link different cell types together.

Cell adhesion maintains tissue and organ architecture. Some junctions restrict movement of substances between cells; others support communication or mechanical attachment. Cell membranes, then, do much more than contain cytoplasm: they allow cells to recognize, bind and coordinate with their environment. This connects directly to immune cell interactions, glycolipid-based recognition and receptor signalling at the cell surface.
