IB Syllabus Requirements for Gas laws
B.3.1
Pressure as force per unit area
B.3.2
Amount of substance and the Avogadro constant
B.3.3
Ideal gases as modelled systems
B.3.4
Empirical gas laws and the combined gas law
B.3.1
PRESSURE AS FORCE PER UNIT AREA

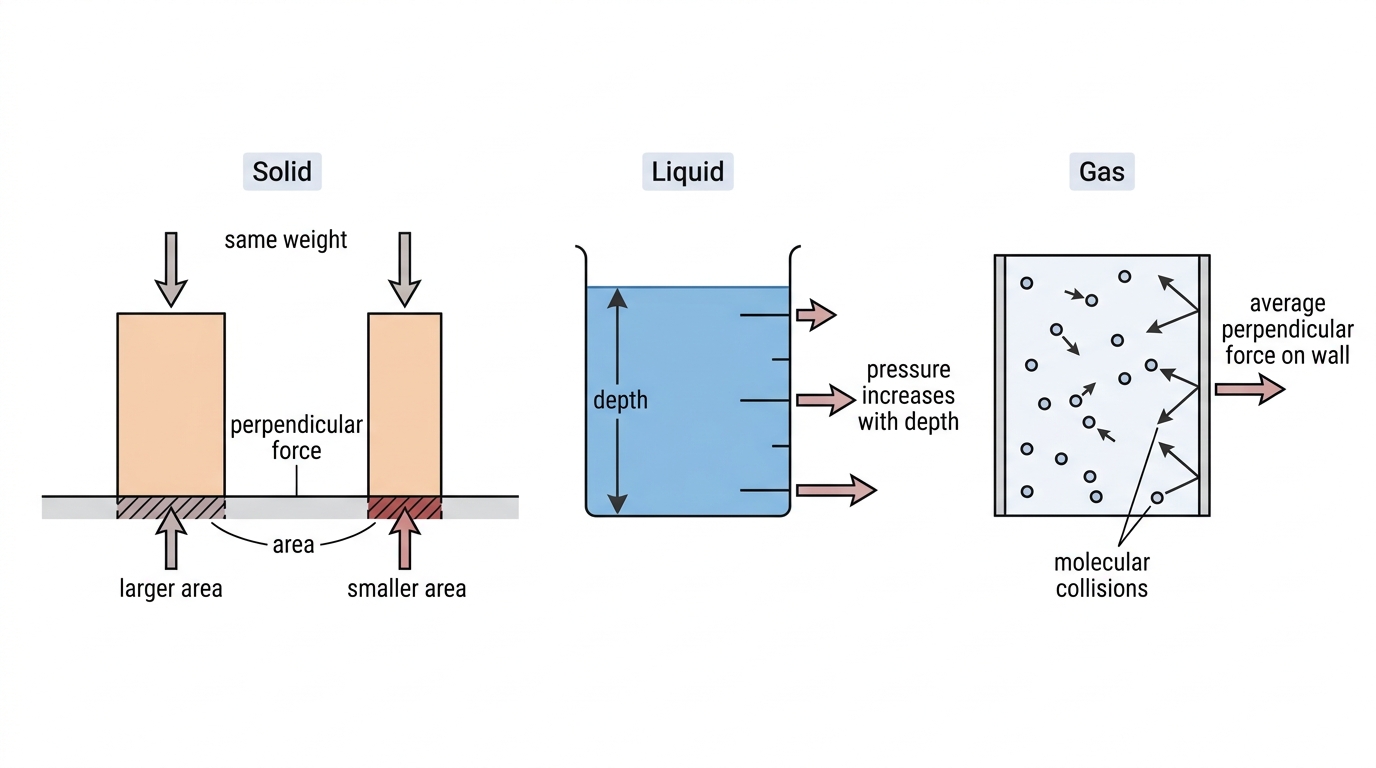

Pressure is a scalar quantity: it measures the normal force exerted per unit area on a surface. In symbols,
One pascal is one newton per square metre.
Don’t skip the word perpendicular. When a gas molecule hits a wall, only the component of force normal to the wall contributes to the pressure. A shoe on a floor, water pushing on a dam, and gas in a cylinder all use the same definition; the microscopic origin of the force is what changes.
For a solid resting on a surface, the force is usually its weight spread over the contact area. Keep the force the same but make the contact area smaller, and the pressure increases — that’s why a sharp pin works so well. In a liquid, pressure at depth comes from the weight of liquid above and acts in all directions. In a gas, pressure comes from countless tiny collisions of molecules with the container walls. Each collision is brief, but there are so many of them that the wall feels a steady force.
Worked example: A load acts normally over a contact area of . Calculate the pressure, then find the new pressure when the contact area is halved while the force stays the same.
Convert the contact area into square metres. Since , :
Substitute the normal force and area into the pressure equation:
Halve the area and calculate again using the same force:
Answer: The initial pressure is . Halving the contact area doubles the pressure to .
Common mistake: Converting square centimetres as though they were centimetres gives the wrong area. Square the length conversion factor: . Also, must be the normal force, not any component parallel to the surface; use the weight only when it equals the normal force.
A useful scale to remember is atmospheric pressure near sea level: about . Everyday pressure differences can be much smaller or much larger than this; the equation above links those differences to measurable forces.
B.3.2
AMOUNT OF SUBSTANCE AND THE AVOGADRO CONSTANT
Amount of substance is a base physical quantity for the number of elementary entities present, expressed in moles. It is calculated using
The Avogadro constant has the exact value .
A mole contains exactly specified elementary entities. These could be atoms, molecules, ions or electrons, so say clearly what you’re counting. One mole of helium atoms and one mole of nitrogen molecules have the same number of particles, but not the same mass.
Molar mass is the mass of one mole of a substance. In chemistry-style calculations the common unit is , while SI gas-law calculations usually work more safely with . For example, for a molecular gas made of two atoms per molecule, the molecular molar mass refers to the whole molecule, not one atom.
For a sample of mass and molar mass , calculate the amount of substance using
Use matching mass units: grams with , or kilograms with . Then calculate the number of gas particles using .
Worked example: A sample contains of nitrogen gas, , with molar mass . Calculate its amount of substance, number of molecules and number of nitrogen atoms.
Express the molar mass in either suitable unit:
Divide the measured mass by the molar mass, keeping the mass units consistent:
Calculate the number of nitrogen molecules:
Each molecule contains two nitrogen atoms. Using the unrounded molecule count:
Answer: The sample contains of , or molecules and nitrogen atoms.
Common mistake: Dividing a mass in grams by a molar mass in gives an amount of substance that is too large by a factor of . Also, counts the specified entities: for gas it counts molecules, so multiply by two to find the number of nitrogen atoms.
This counting method connects the microscopic picture of a gas with its macroscopic behaviour. A pressure gauge doesn’t report on a single molecule; it shows the collective effect of roughly particles per mole.
B.3.3
IDEAL GASES AS MODELLED SYSTEMS
Kinetic theory is a microscopic model that explains bulk gas behaviour by looking at many particles moving randomly and colliding with one another and with the container walls. Its strength is the link it makes between familiar mechanics — velocity, momentum, kinetic energy and force — and thermodynamic quantities such as pressure and temperature.
An ideal gas is a theoretical gas model in which the particles have negligible volume, move in continuous random motion, collide elastically, and exert no intermolecular forces except during collisions. An elastic collision conserves total kinetic energy as well as total momentum. In an elastic collision with a stationary rigid wall, the particle’s velocity component normal (perpendicular) to the wall reverses direction, while its tangential (parallel) components remain unchanged. The particle’s speed is therefore unchanged; momentum is transferred to the wall, with total momentum conserved for the particle–wall system.
A real gas is a physical gas whose particles have finite size and can exert attractive or repulsive intermolecular forces, especially when close together.

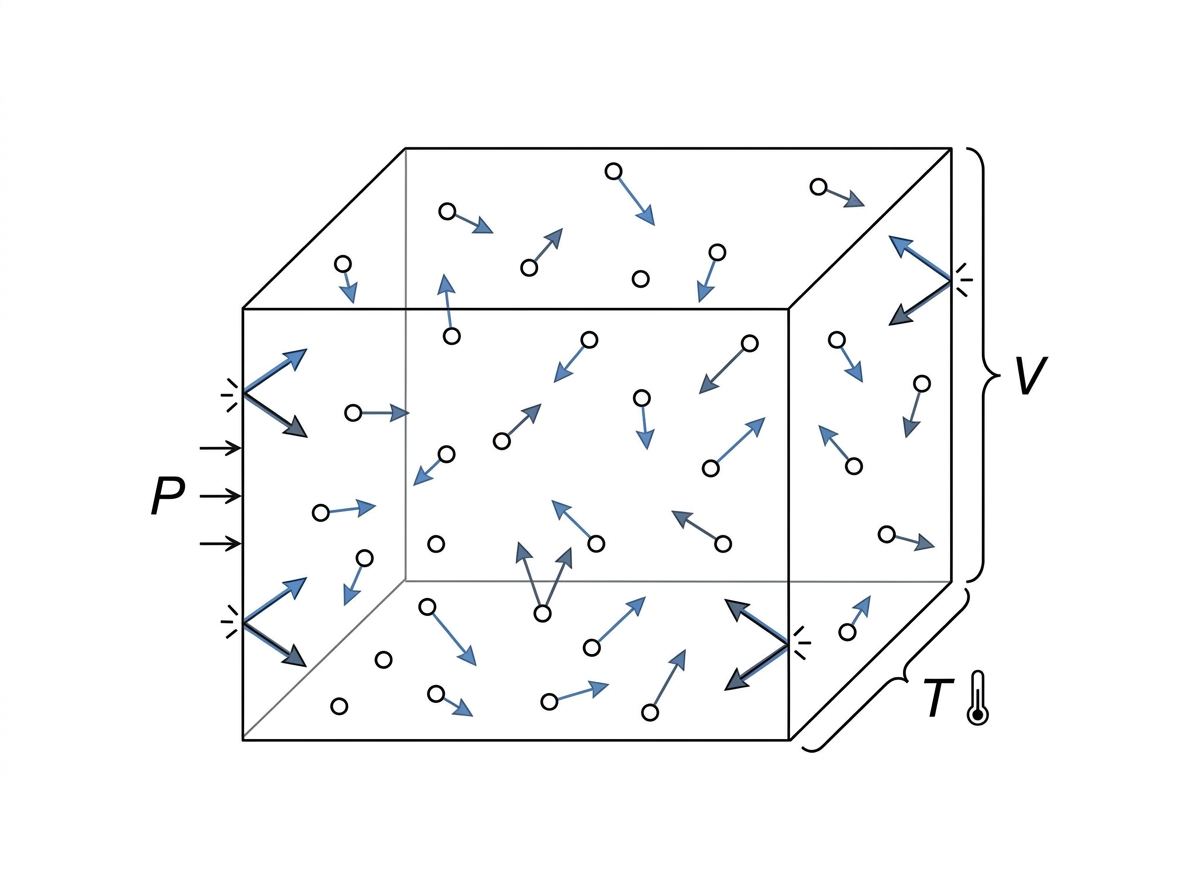

For any gas sample, we describe the macroscopic state using pressure , volume (), thermodynamic temperature (), and amount of substance . The ideal gas model predicts these bulk quantities from the average behaviour of a vast number of particles, rather than by trying to track every molecule separately.
The assumptions of the kinetic model are kept deliberately simple:
Evidence for random molecular motion is indirect, but it is strong. Diffusion is the spreading of particles from a region of higher concentration to lower concentration due to random molecular motion. Brownian motion is the irregular motion of small visible particles suspended in a fluid, caused by collisions with invisible molecules.
Example: Perfume vapour spreading through still air demonstrates diffusion: perfume molecules move randomly, producing a net spread from the higher concentration near the source towards regions of lower concentration.
Example: Smoke particles viewed under a microscope follow irregular tracks, demonstrating Brownian motion. Uneven collisions with invisible air molecules continually change each smoke particle’s velocity.
Common mistake: The visible smoke particles are not individual gas molecules. In an exam, distinguish the observed motion of the smoke particles from the invisible molecular collisions that cause it.
These observations make the kinetic model feel less like a mathematical trick and more like a physical picture of what the gas is doing.
Models matter in physics because they simplify. That simplification has a cost: every model has a domain of validity. The ideal gas is not “true”; it is useful when its assumptions are close enough to reality.
B.3.4
EMPIRICAL GAS LAWS AND THE COMBINED GAS LAW
The early gas laws were empirical laws: general relationships worked out from experiment before scientists had a detailed microscopic explanation. They apply to fixed amounts of gas, with one variable controlled at a time.
Boyle’s law is the empirical law that, for a fixed amount of gas at constant temperature, pressure is inversely proportional to volume:
On a pressure–volume graph, an isothermal change gives a curve. Compress the gas, and the pressure rises. If is plotted against , the same relationship becomes a straight line through the origin.
Charles’s law is the empirical law that, for a fixed amount of gas at constant pressure, volume is directly proportional to thermodynamic temperature:
The pressure law is the empirical law that, for a fixed amount of gas at constant volume, pressure is directly proportional to thermodynamic temperature:
Temperature has to be in kelvin. Celsius temperature differences are fine, but Celsius temperatures themselves don't work in ratios such as or . It's a small detail, but it can spoil an otherwise good answer.
These ideal graph shapes show direct proportionality and the quantities held fixed.
For a fixed amount of gas, the three restricted laws combine to give
Use this to compare two states of the same gas sample when pressure, volume and temperature all change. It is still not the full ideal gas equation, since the amount of gas is held constant.
Worked example: Boyle’s law: a gas at occupies . Calculate its pressure when compressed to . The amount of gas and temperature are held constant.
Answer: The final pressure is ; halving the volume doubles the pressure.
Worked example: Charles’s law: a gas occupies at . Calculate its volume at . The amount of gas and pressure are held constant.
Answer: The final volume is .
Worked example: The pressure law: a gas has a pressure of at . Calculate its pressure at . The amount of gas and volume are held constant.
Answer: The final pressure is .
Worked example: The combined gas law: a fixed amount of gas initially occupies at and . Calculate its final volume at and . Only the amount of gas is held constant.
Answer: The final volume is . The pressure and temperature increase by the same factor, so their effects on volume cancel.
Graph signatures for the empirical gas laws with fixed amount of gas.
| Law or plot | Fixed conditions | Axes and units | Relationship | Graph form |
|---|---|---|---|---|
| Boyle: P–V | Temperature and amount fixed | / Pa against / | ; constant | Inverse curve; higher curves lie above lower |
| Boyle: P–1/V | Temperature and amount fixed | / Pa against / | Straight line through origin | |
| Charles | Pressure and amount fixed | / against / K | ; constant | Straight line through origin; temperature must be kelvin |
| Pressure law | Volume and amount fixed | / Pa against / K | ; constant | Straight line through origin; temperature must be kelvin |

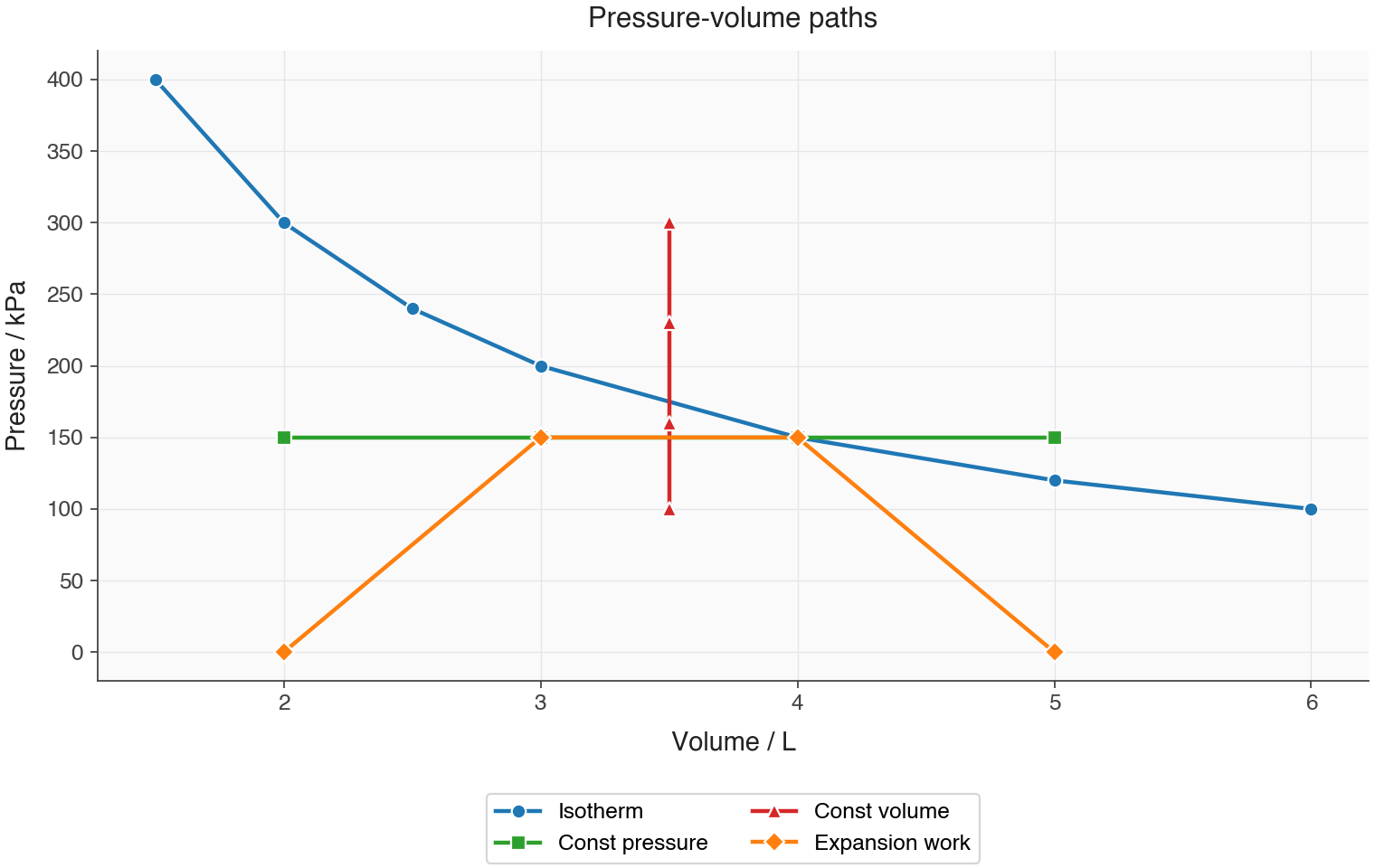

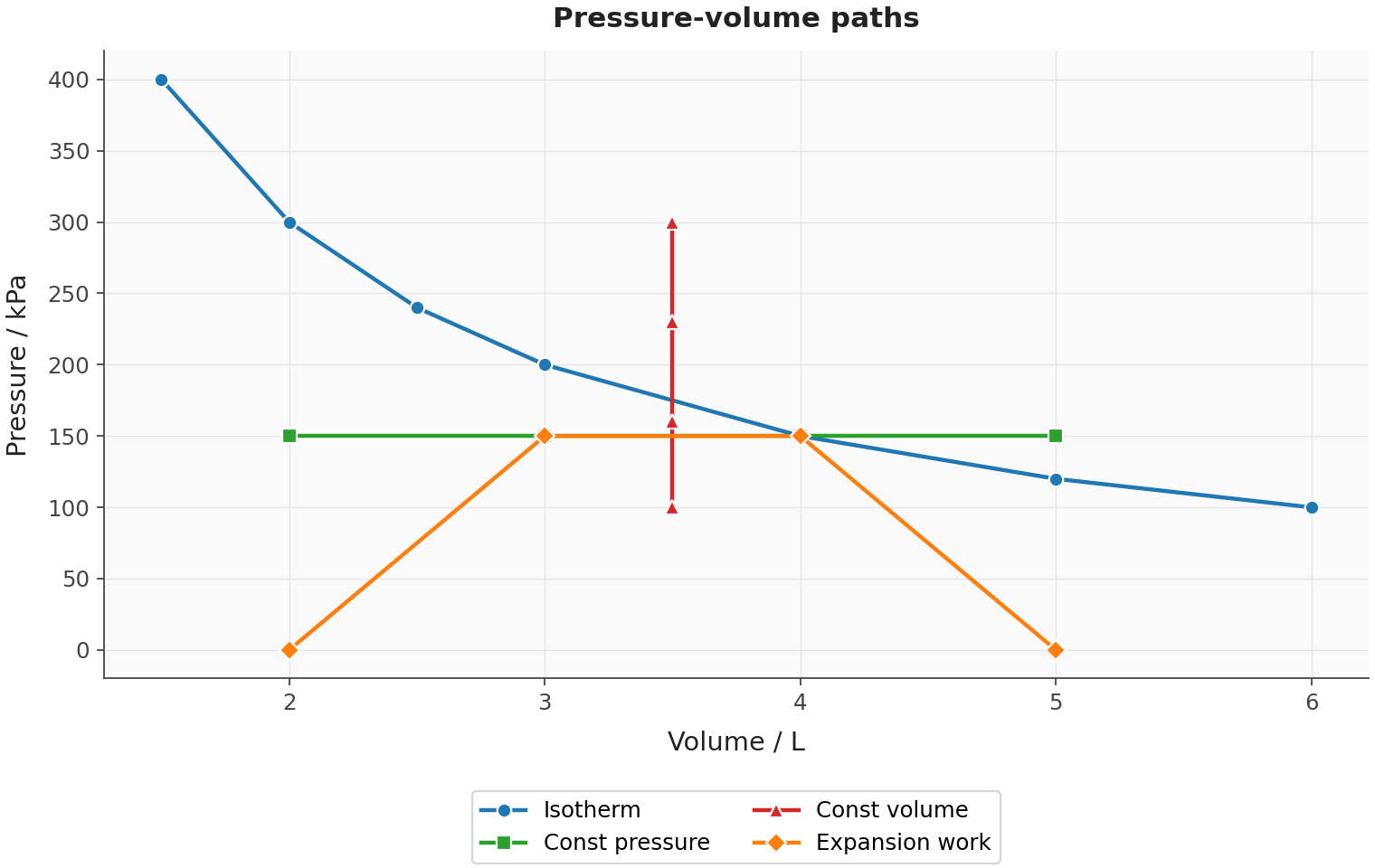

A pressure–volume diagram is a graph showing changes of state of a gas, with pressure on the vertical axis and volume on the horizontal axis. For an ideal gas:
Work done by a gas is an energy transfer that occurs when gas pressure moves a boundary such as a piston. On a pressure–volume diagram, expansion to the right shows the gas doing work on its surroundings; compression to the left shows work being done on the gas. This links directly to heat engines: high kinetic energy gas particles can push a piston or turbine blade, transferring energy from a hot source towards a colder sink while useful work is obtained.
To verify Boyle’s law, trap a fixed mass of gas, change its volume slowly, measure the pressure, and give the gas time to return to room temperature after each compression. If temperature has really been controlled, a plot of against should be linear, with an intercept consistent with zero.
To verify Charles’s law, keep the gas pressure constant, vary the temperature using a water bath, and use the length of a gas column as a quantity proportional to volume. A graph of length against temperature should be linear and can be extrapolated to estimate absolute zero.
To verify the pressure law, trap a fixed volume of gas, vary its temperature, and measure the pressure once thermal equilibrium is reached. The connecting tube to the pressure gauge should have a small volume, because gas in that tube may not be at the water-bath temperature.
Exam tip: A straight line establishes a linear relationship; direct proportionality also requires an intercept consistent with zero within experimental uncertainty. A suitable conclusion is: “The graph of against is a straight line with an intercept consistent with zero, supporting for a fixed amount of gas at constant temperature.” Slow compression allows heat exchange with the surroundings, and waiting for thermal equilibrium lets the gas return to room temperature before a reading. These are essential temperature controls: compression can warm the gas, so without them the pressure change would not be due to volume alone.
Good data need a sensible range of temperatures or volumes, enough readings to show the trend, controlled environmental conditions, and graphs interpreted as lines or curves rather than just collections of points. Interpolation is safer than extrapolation; extrapolating towards absolute zero is useful historically, but it assumes the gas remains gaseous and ideal over a huge range.
B.3.5
THE IDEAL GAS EQUATION
An equation of state relates the state variables of a system in thermal equilibrium. For an ideal gas, the molar form is
This one equation includes Boyle’s law, Charles’s law and the pressure law as special cases.
| Gas law | Quantities held constant | Relationship |
|---|---|---|
| Boyle’s law | and | |
| Charles’s law | and | |
| Pressure law | and |
There is also a molecular form:
The two constants are related by
So gives the gas constant per mole, while gives it per particle. It’s a neat piece of physics: the same gas law works for a laboratory sample measured in moles or for a collection described molecule by molecule. Here, is the amount of gas in moles, is the number of particles, and is the Avogadro constant; the two descriptions are connected by .
The product has units of energy, since . That isn’t a coincidence. In the kinetic model, is linked to molecular kinetic energy.
In calculations, use SI units unless a ratio means conversion is not needed. Pressure in pascals, volume in cubic metres, and temperature in kelvin keep and consistent.
Worked example: An ideal gas has an absolute pressure of , a volume of and a temperature of . Calculate the amount of gas and the number of particles using both forms of the ideal gas equation. Check that .
Convert the data to SI units. Use approximately for the temperature throughout the calculation.
Rearrange the molar form and substitute.
Rearrange the molecular form and substitute.
is a count, so it has no physical unit; state the result as a number of particles.
Check using .
Answer: The gas contains , or particles. The two methods agree to three significant figures.
Common mistake: Do not pair with or with : use for an amount in moles and for a particle count. Use absolute pressure, not gauge pressure; if gauge pressure is supplied, add the external atmospheric pressure. Temperature must be in kelvin, not degrees Celsius.
B.3.6
GAS PRESSURE FROM MOLECULAR MOMENTUM CHANGES
Gas pressure doesn’t come from molecules continuously “pressing” on the walls. It comes from collisions, over and over again. When a molecule bounces off a wall, the component of its momentum perpendicular to that wall changes. The wall has to exert a force on the molecule to change its momentum; by Newton’s third law, the molecule exerts an equal and opposite force on the wall.
Here, mechanics connects directly with thermodynamics. Force is the rate of change of momentum, and pressure is force per unit area. Add together the effects of huge numbers of random collisions, and they show up as a smooth macroscopic pressure.

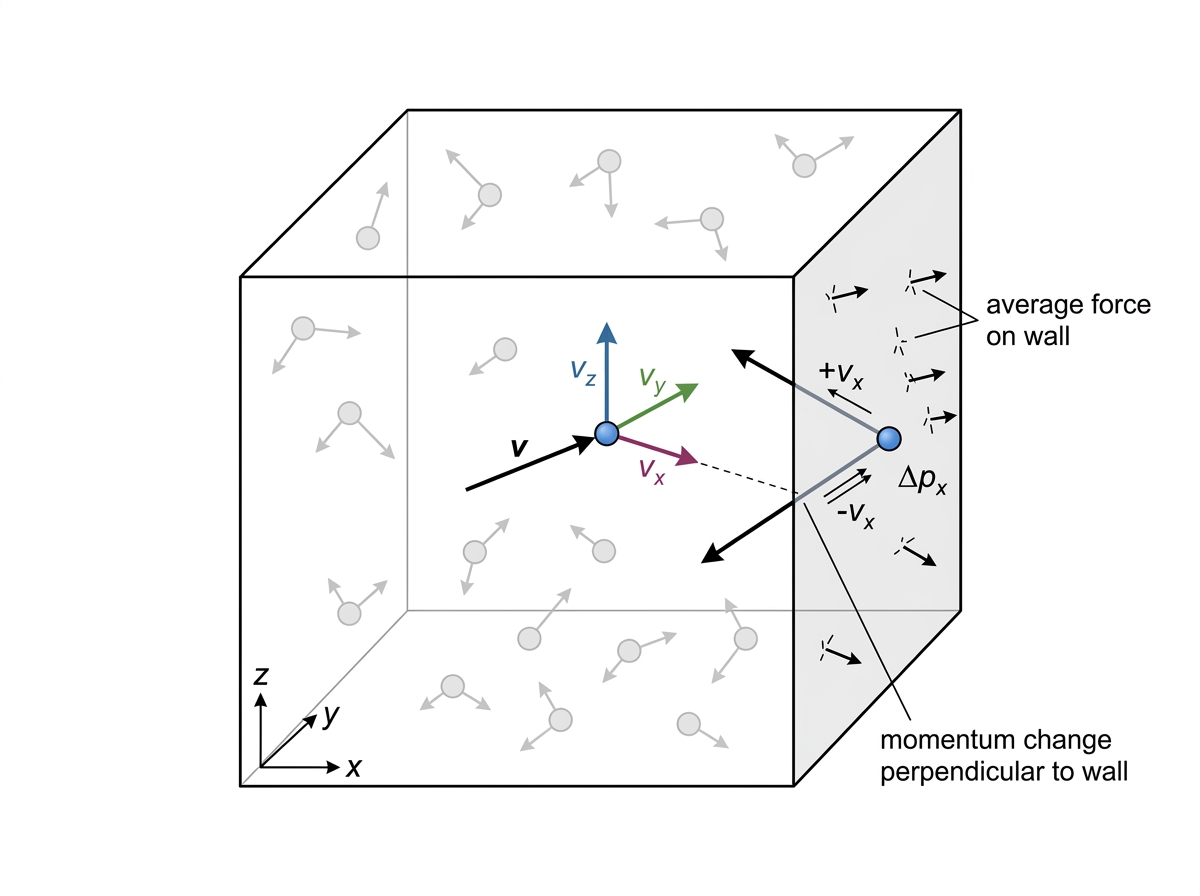

A full derivation starts with a molecule in a cubic box of side , with volume . Assume elastic collisions with the walls and negligible time spent in collisions. Resolve the molecule’s velocity into components , and .
Consider a molecule of mass approaching a wall with . Its perpendicular velocity component reverses on impact, so its momentum change is
The momentum transferred to the wall has magnitude .
Before hitting the same wall again, the molecule travels to the opposite wall and back. The time between successive impacts on the same wall is
The average force exerted by this molecule on that wall is therefore
The wall area is . Summing the contributions of identical molecules gives
Random motion is equally likely in all directions: this is isotropy. Therefore,
Since for each molecule,
The factor comes from the three spatial directions. On average, only one third of the molecular motion contributes to collisions with any one pair of opposite walls; more precisely, one third of the mean squared speed is associated with each direction.
Using the gas density , the result is
The same result is written below with denoting the rms speed, not an individual molecule’s velocity:
Root mean square speed is found by squaring molecular speeds, averaging the squared values, then taking the square root:
It is not the same as mean velocity. For a gas at rest as a whole, the mean velocity is zero because the directions cancel out. The rms speed, though, is not zero, because squaring removes the signs.
Worked example: Find the rms speed of three particles with speeds , and .
Square the speeds and calculate their mean:
Take the square root:
Answer: The rms speed is , to three significant figures.
Worked example: A gas has pressure and density . Calculate its rms molecular speed.
Rearrange the pressure–density equation:
Substitute the data:
Answer: The rms molecular speed is , or to show three significant figures.
Common mistake: Substituting mean velocity into the pressure equation would predict zero pressure for a stationary gas. Use rms speed: molecules still move and transfer momentum to the walls even when their mean velocity is zero.
This equation helps explain several macroscopic observations qualitatively:
B.3.7
INTERNAL ENERGY OF AN IDEAL MONATOMIC GAS
Translational kinetic energy is the kinetic energy linked to the motion of a particle’s centre of mass through space. For an ideal gas molecule, the average translational kinetic energy is related to temperature by
Here, is the root-mean-square speed, , not the average speed of the molecules.
This idea matters throughout the topic. Temperature is not just “how hot something feels”; for an ideal gas, it measures the average translational kinetic energy of the particles. In this way, a microscopic quantity — molecular kinetic energy — becomes part of the development of the gas laws.
Exam tip: At the same temperature, ideal helium and argon atoms have the same average translational kinetic energy, but the lighter helium atoms have a greater rms speed. The relation also applies to ideal molecular gases, whereas applies only to an ideal monatomic gas: molecular gases may also store energy in rotation and vibration.

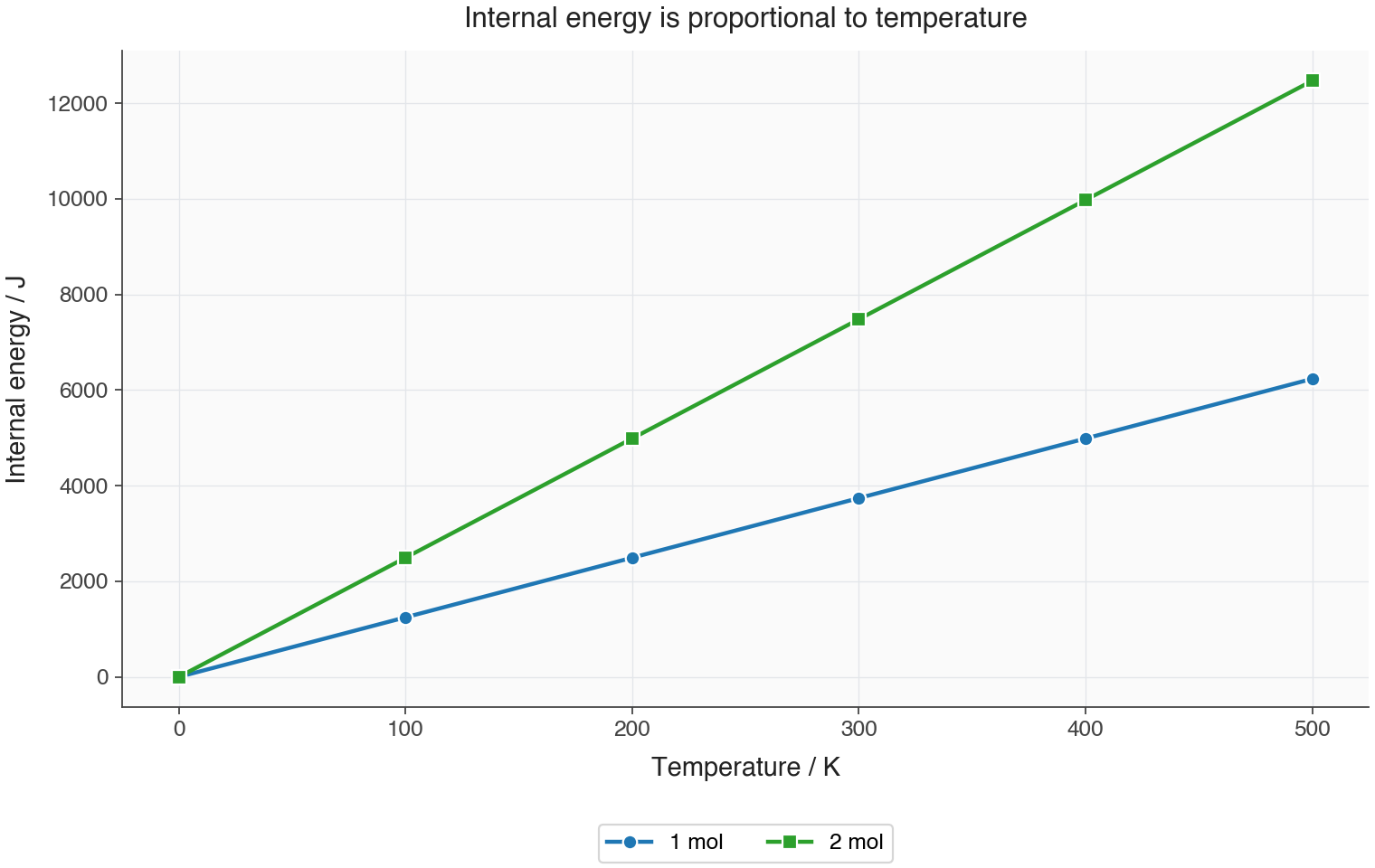

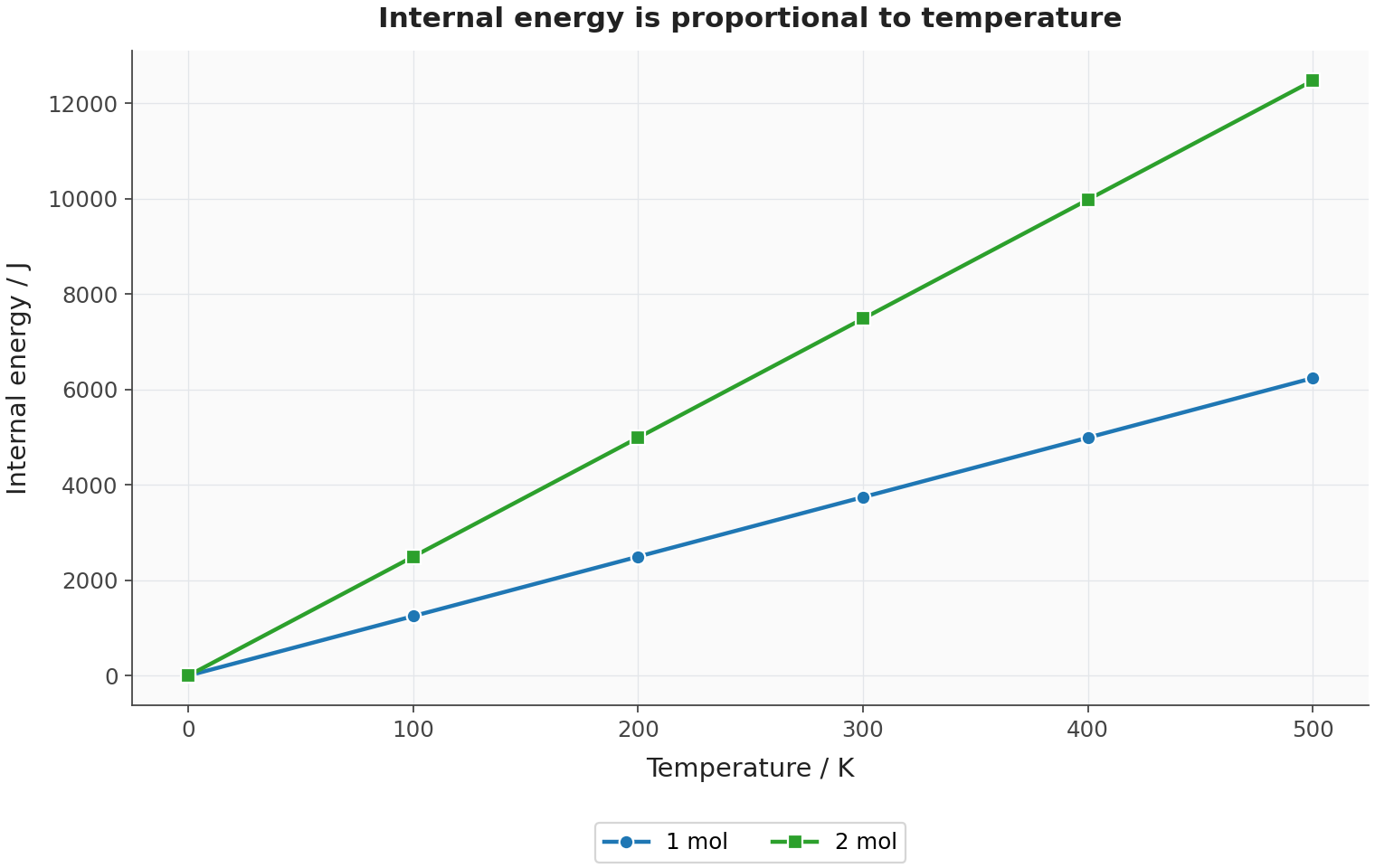

A monatomic gas is a gas whose particles are single atoms rather than multi-atom molecules. In an ideal monatomic gas, this model does not include internal molecular rotation or vibration, and there are no intermolecular potential energy stores. So its internal energy is simply the total translational kinetic energy of all the atoms:
Equivalently,
Here, is the number of atoms, is the amount of gas in moles, and is the molar gas constant. The first expression adds the average energy of each atom across atoms; the second uses the amount in moles instead.
For a temperature change,
A temperature change in kelvin has the same numerical size as the temperature change in degrees Celsius.
Worked example: A sample contains of ideal helium at . Calculate the average translational kinetic energy per atom and the total internal energy. Then calculate the change in internal energy when the sample is heated to . Use and .
Answer: At , the average energy per helium atom is and the sample’s total internal energy is . Heating it to increases its internal energy by .
High kinetic energy gas particles can do work when their collisions move a boundary. In a cylinder, hot gas at high pressure pushes a piston outwards. As the boundary moves, the particles lose some energy to the surroundings. This is the basic physics behind a heat engine: energy is transferred from a hot body to a cold body, with some of that energy transfer arranged to do useful mechanical work.
B.3.8
WHEN REAL GASES BEHAVE IDEALLY
A real gas comes closest to an ideal gas when its particles are far apart and moving fast, so intermolecular attractions don’t make much difference. In practice, this means high temperature, low pressure and low density. Under these conditions, the particles take up very little volume compared with the gas as a whole, and they spend less time interacting strongly with one another.
The approximation gets worse at low temperature, high pressure and high density. The particles sit closer together, intermolecular forces start to matter, and the finite size of the molecules can’t be ignored anymore. Real gases can also liquefy. An ideal gas cannot, because the ideal model includes no attractive forces that could hold particles together as a liquid.

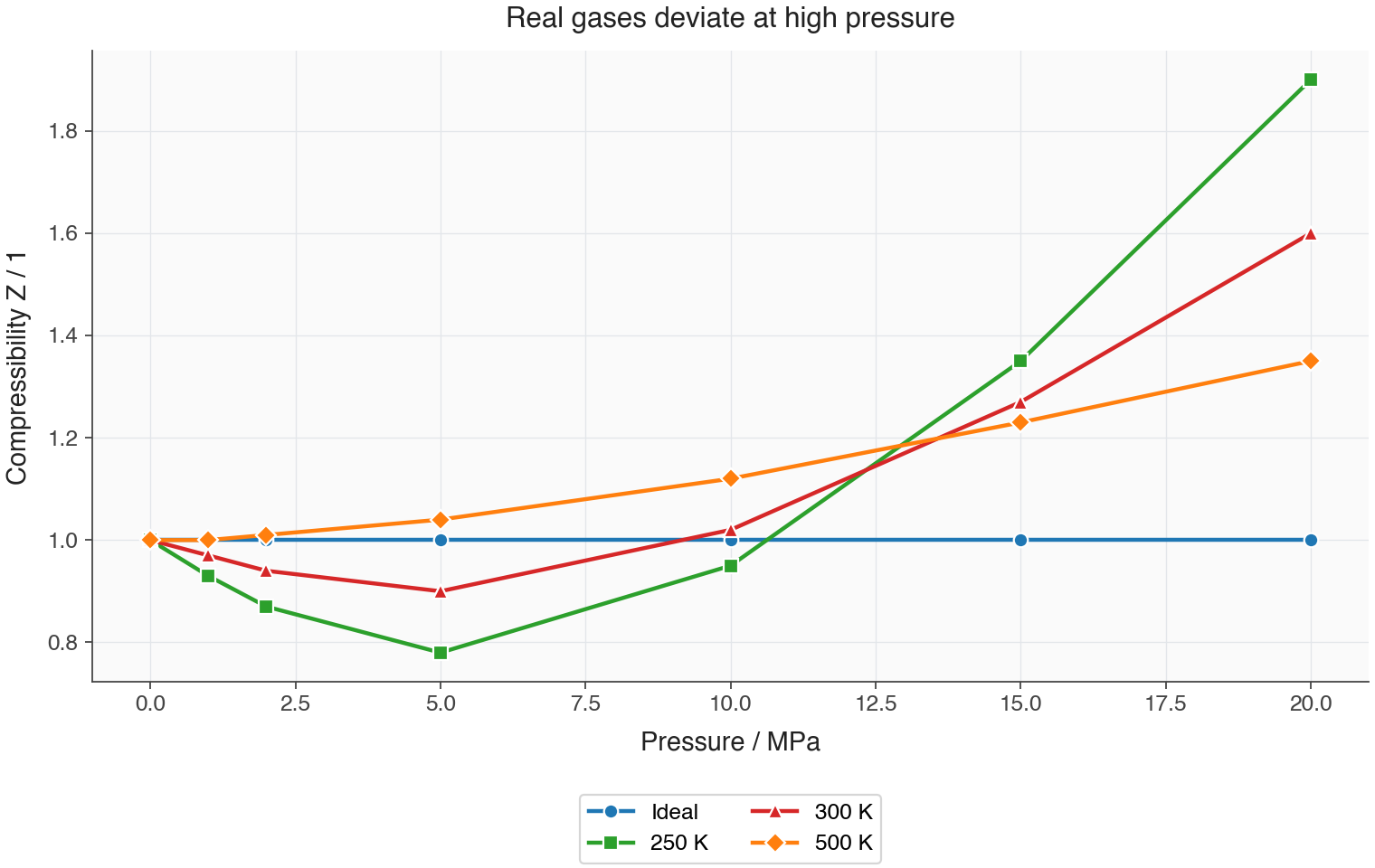

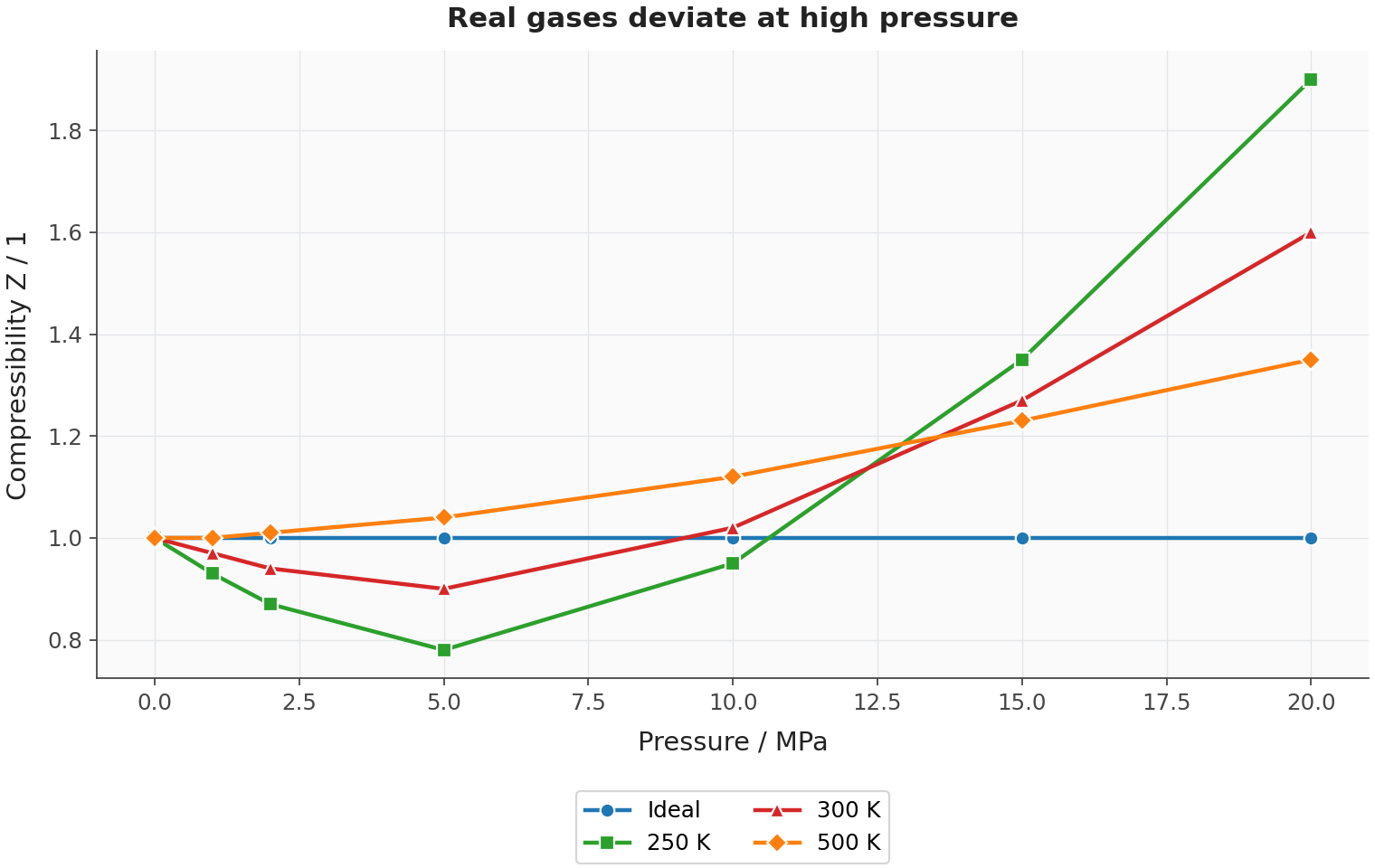

The dimensionless compressibility factor is , where is the amount of gas and is the molar gas constant. Ideal behaviour corresponds to . Values below 1 indicate that attractions dominate the departure from ideal behaviour; values above 1 indicate that finite molecular size and repulsive effects dominate. The plotted curves are illustrative rather than measured data for a particular gas.
A simple way to put it: ideal behaviour is most likely when the gas is far from condensation. Close to condensation, or when the gas is strongly compressed, the assumptions of negligible molecular volume and negligible intermolecular forces break down.
Example: Carbon dioxide () at room temperature and about behaves approximately ideally. Cooling it towards condensation makes attractions more significant relative to molecular kinetic energy. Strong compression reduces molecular separation, so interactions and finite molecular volume become harder to ignore.
Exam tip: For an “explain” question, connect each condition to a model assumption: “At low pressure, particles are widely separated, so their own volume is a negligible fraction of the gas volume and attractions have little effect. At high temperature, their average kinetic energy is large compared with intermolecular interaction energies, so attractions have relatively little influence on their motion.”
Common mistake: Merely listing “high temperature, low pressure” identifies the conditions but does not explain why the gas behaves ideally.
The gap between ideal and real gases is not a failure of physics. It just shows that models are built for particular purposes. The ideal gas model is very good at showing the link between pressure, temperature, volume and molecular motion. More detailed models of real gases add corrections for molecular size and intermolecular forces, often using constants that depend on the particular gas.
The same pattern appears across physics. We use simplified models — point masses, frictionless pulleys, uniform fields, ideal waves, ideal circuits and quantized energy levels — because they make complicated phenomena easier to understand. The skill is not pretending that the model is reality; it is knowing what the model explains, what it leaves out, and when those missing details start to matter.
