B.5: Current and circuits

Master IB Physics B.5: Current and circuits with notes created by examiners and strictly aligned with the syllabus.

Verified by Kun
Verified by Kun

15 sections · ~22 min read

This content can't be printed from the browser. Use Export PDF with Pro for an offline copy.

IB Syllabus Requirements for Current and circuits

B.5.1

Cells as sources of emf

B.5.2

Chemical cells and solar cells as energy sources

B.5.3

Circuit diagrams and components

B.5.4

Direct current as a flow of charge carriers

B.5.1

CELLS AS SOURCES OF EMF

What a cell does

An electric cell is a device that transfers energy to moving charges in a circuit by converting energy from another store into electrical energy. It isn’t a tiny electron pump; the metal wires already have mobile charge carriers inside them. What the cell does is set up an electric field around the circuit, and that field causes the charges to drift.

Electromotive force is an energy-per-charge quantity. It describes the energy a source supplies to charge as the charge passes through it. The name is a historical one: emf is not a force. Its unit is the volt, the same as potential difference, since both are measured as joules per coulomb.

Worked example: A cell supplies 6.0 J6.0\ \text{J} of energy to 4.0 C4.0\ \text{C} of charge. Calculate its emf and explain what the value means.

  1. Write the energy-per-charge relationship, where WW is the energy supplied and qq is the charge:

    ε=Wq\varepsilon = \frac{W}{q}

  2. Substitute the values:

    ε=6.0 J4.0 C=1.5 V\varepsilon = \frac{6.0\ \text{J}}{4.0\ \text{C}} = 1.5\ \text{V}

Answer

Answer: The cell has an emf of 1.5 V1.5\ \text{V}: it supplies 1.5 J1.5\ \text{J} of energy per coulomb of charge, not a force of 1.5 N1.5\ \text{N}.

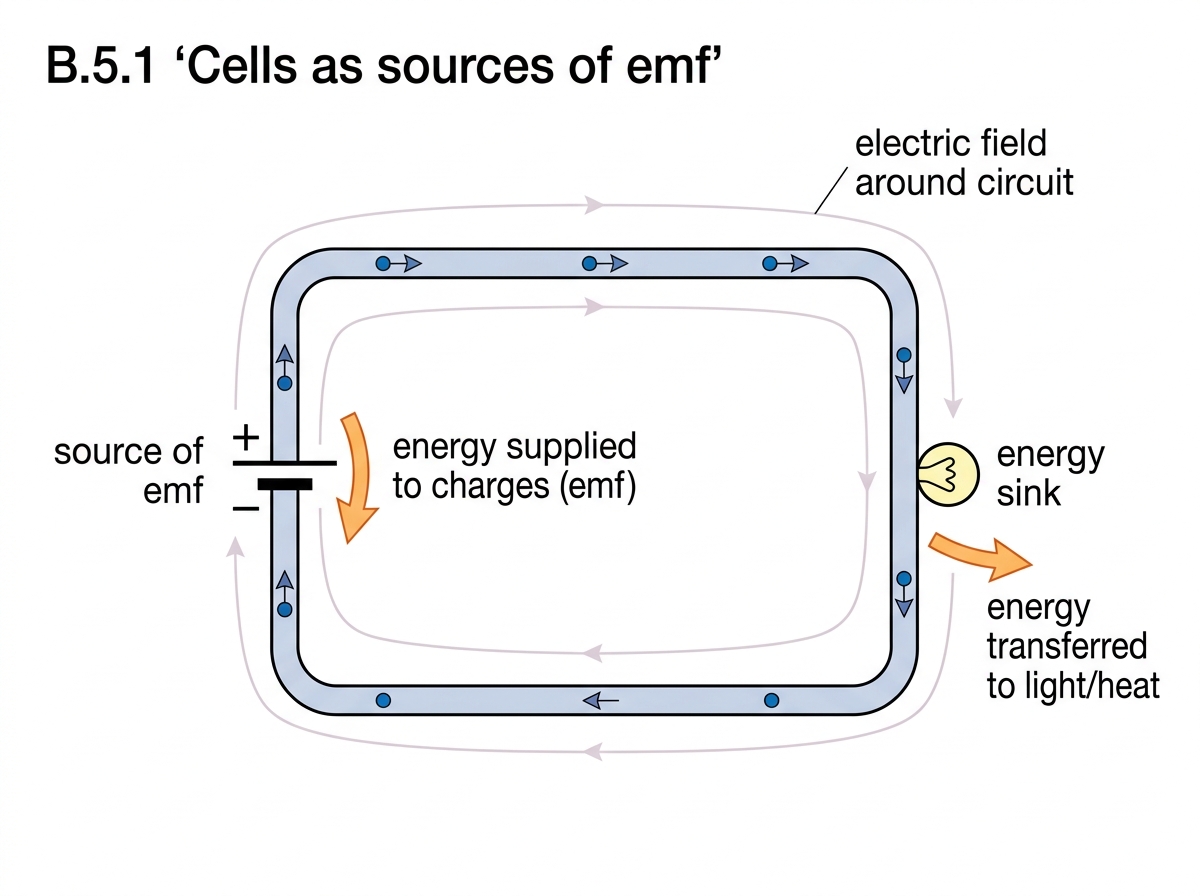

A complete dc circuit works like a system with a source and sinks. The cell acts as the source, transferring energy to charges. Resistors, lamps and motors act as sinks, transferring that energy into internal energy, light or mechanical work. This is why comparing a circuit with a heat engine or the atmosphere makes sense: each involves flows driven by differences, with energy transferred between parts of a system. The difference provides the drive. A heat engine is driven by a temperature difference; a chemical cell is driven by chemical reactions.

Direct-current operation

A cell in this topic is treated as a direct-current source, meaning a source that drives charge round the external circuit in one direction only. Alternating-current circuits are not needed here. If a question says “cell” or shows a simple battery symbol, assume dc unless told otherwise.

B.5.2

CHEMICAL CELLS AND SOLAR CELLS AS ENERGY SOURCES

Chemical cells

A chemical cell is an electric cell that transfers chemical energy to electrical energy through chemical reactions at its electrodes. A primary cell is a chemical cell designed to be used until its reactants are depleted, then discarded. A secondary cell is a chemical cell whose discharge reactions can be reversed during charging, so it can be used many times.

Chemical cells are portable and quiet. They’re also convenient, since they can supply steady dc without mains electricity. That makes them useful when flexibility matters, such as in small sensors, handheld devices, emergency lighting and transport applications. The trade-off is clear enough: cells store a finite amount of energy, add mass, may have limited lifetimes, and use materials that must be mined, transported and recycled responsibly.

Solar cells

A solar cell is an electrical energy source that converts electromagnetic radiation into electrical energy using a photovoltaic material. A single solar cell has a small emf, so practical panels connect many cells together to produce useful currents and voltages.

Solar cells draw their input energy from the Sun, and no fuel is consumed during operation. Their drawbacks matter too. Output depends on illumination, panels can be expensive to install, and storage is usually needed if energy is required at night or during poor weather.

SourceMain advantagesMain limitations
Primary chemical cellSimple, portable, often cheap initiallySingle-use; disposal and resource issues
Secondary chemical cellRechargeable, useful for portable and high-current systemsLimited cycle life; mass and replacement cost can be significant
Solar cellUses incoming solar radiation; low operating emissionsIntermittent output; often needs storage and power electronics

Compares primary cells, secondary cells and solar cells as circuit energy sources.

SourceEnergy inputRechargeable?Typical advantagesTypical limitationsCommon circuit use
Primary chemical cellStored chemical energyNoSimple, portable, cheap initiallySingle-use; finite energy; disposal issuesSmall sensors, torches, handheld devices
Secondary chemical cellStored chemical energyYesReusable; can supply portable dc and high currentsLimited cycle life; adds mass; replacement costEmergency lighting, phones, transport batteries
Solar cellIncoming electromagnetic radiationNot rechargeable; output depends on lightNo fuel used during operation; useful where sunlight is availableIntermittent output; installation cost; storage often neededSolar panels supplying loads or charging storage cells

B.5.3

CIRCUIT DIAGRAMS AND COMPONENTS

Why circuit diagrams matter

A circuit diagram uses symbols to show how electrical components are connected. It doesn’t show where they happen to be placed on the bench. The real circuit might look messy, but the diagram should make the electrical relationships easy to read.

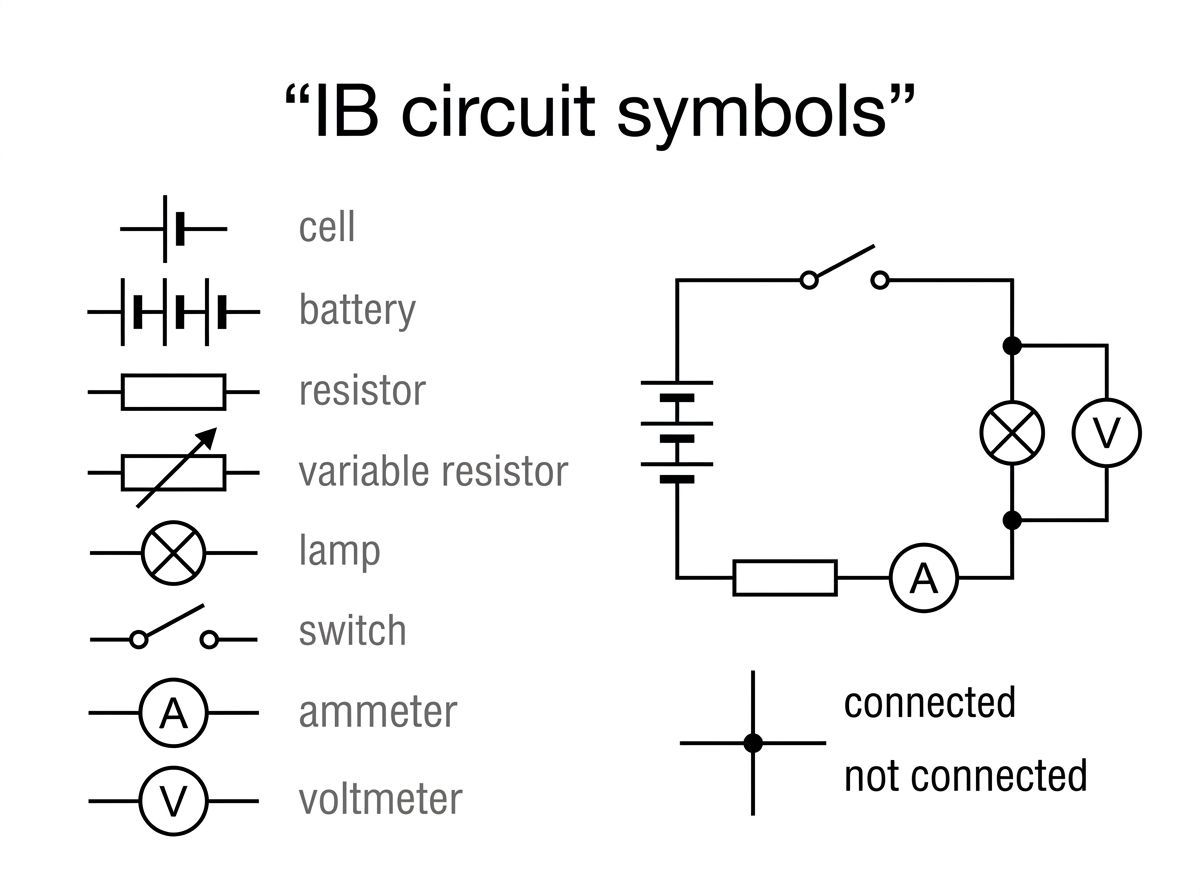

Use the circuit symbols from the IB Physics data booklet. Watch the cell and battery symbols carefully: a battery is a collection of cells connected together, even though people often say “battery” when they mean a single cell.

A dot at a junction shows that wires are electrically connected. If two drawn wires cross with no dot, treat them as not joined. When they matter, component values, meter ranges and supply values are usually written beside the relevant symbol.

Building and checking circuits

When you build a circuit, translate the diagram one connection at a time. In a measurement circuit, put the ammeter in series with the component whose current you want, and put the voltmeter in parallel with the component whose potential difference you want. If the circuit doesn’t behave as expected, check the power supply, loose leads, meter ranges, and whether the actual layout matches the diagram.

B.5.4

DIRECT CURRENT AS A FLOW OF CHARGE CARRIERS

Current and charge flow

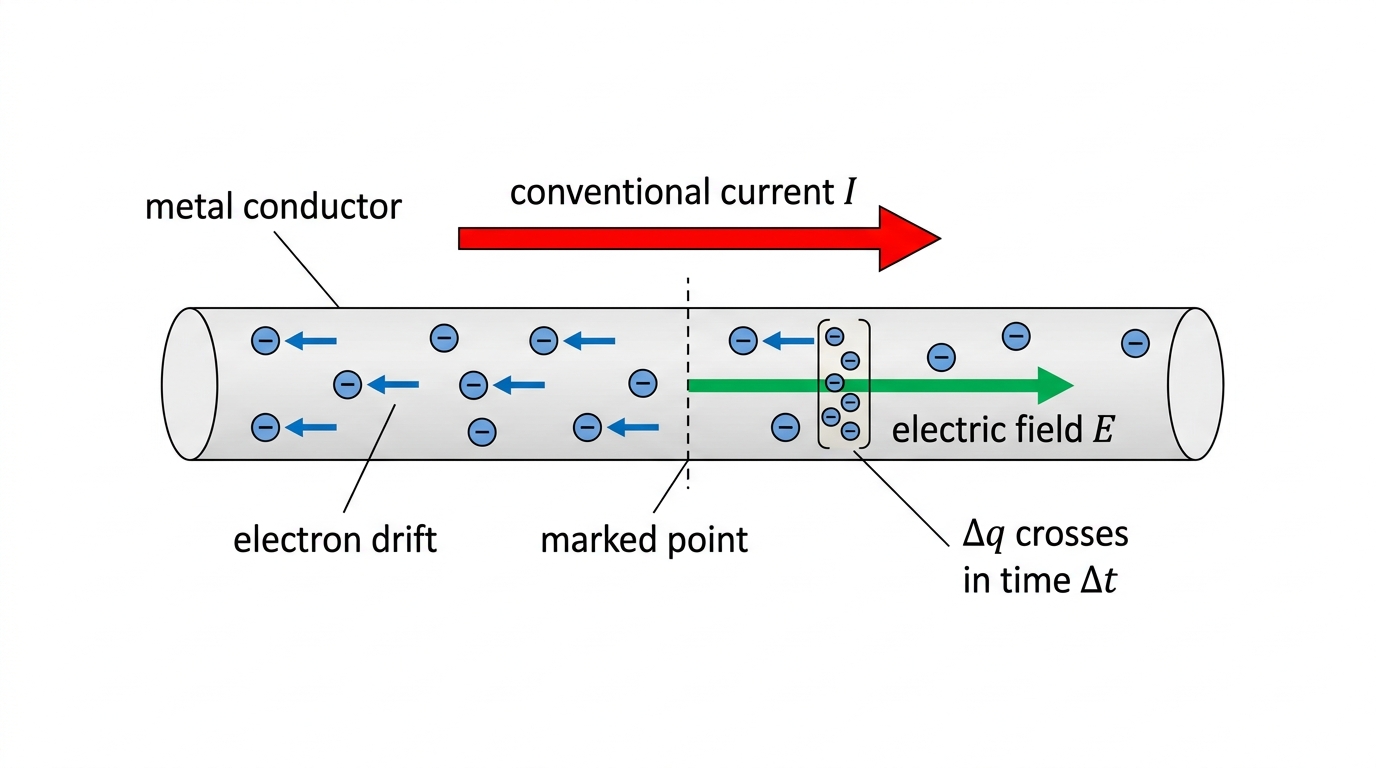

An electric current is the rate at which electric charge flows through a point in a circuit.

A charge carrier is a mobile charged particle that contributes to current. In metals, the charge carriers are electrons; in liquids and gases, they may be positive and negative ions.

For a direct current,

I=Δq/ΔtI = \Delta q/\Delta t

Worked example: A charge of 18 C18\ \text{C} passes a point in a wire in 12 s12\ \text{s}. Calculate the current, then find the charge passing that point in 2.0 min2.0\ \text{min} at the same current.

  1. Substitute the charge and time into the current equation:

    I=ΔqΔt=18 C12 s=1.5 AI = \frac{\Delta q}{\Delta t} = \frac{18\ \text{C}}{12\ \text{s}} = 1.5\ \text{A}

  2. Convert the second time interval to seconds:

    Δt=2.0 min×60 s min−1=120 s\Delta t = 2.0\ \text{min} \times 60\ \text{s min}^{-1} = 120\ \text{s}

  3. Rearrange the current equation to calculate charge:

    Δq=IΔt=1.5 A×120 s=180 C\Delta q = I\Delta t = 1.5\ \text{A} \times 120\ \text{s} = 180\ \text{C}

Answer

Answer: The current is 1.5 A1.5\ \text{A}, and the charge passing in 2.0 min2.0\ \text{min} is 180 C180\ \text{C}.

Common mistake: Substituting a time in minutes while using current in amperes gives the wrong charge. Convert minutes to seconds first: an ampere is one coulomb per second, not one coulomb per minute.

A coulomb is a large amount of charge compared with the charge on a single electron. Since charge in coulombs can be written in ampere seconds, use C=A sC = A\,s when reducing units to SI base units.

Conventional current and electron current

Conventional current is a model for current direction: it points the way positive charge would move in a circuit. In a metal wire, electrons drift the other way because they are negatively charged. We still use conventional current because many electricity and magnetism rules were developed using that direction.

Electrons drift slowly through a metal. A lamp lights almost immediately, but not because one electron shoots from the switch to the lamp. The electromagnetic disturbance is set up through the circuit very quickly, so charges throughout the circuit begin to drift almost together.

Fields link

An electric field is a region where an electric charge experiences a force. In this topic, the field matters as the cause of charge-carrier drift.

Later fields topics compare electric, gravitational and magnetic fields:

  • Electric and gravitational fields can both have inverse-square forms around point sources, but electric fields involve positive and negative charge whereas gravitational fields involve mass only.
  • Magnetic fields are different again because isolated magnetic poles are not observed.

B.5.5

ELECTRIC POTENTIAL DIFFERENCE

Energy per unit charge

Electric potential difference is the energy transferred per charge: the work done per unit positive charge as it moves between two points along the path of the current.

V=W/qV = W/q

One volt means one joule per coulomb. A large potential difference across a component, then, means each coulomb of charge transfers a large amount of energy there.

Worked example: A charge of 3.0 C3.0\ \text{C} passes through a lamp with a potential difference of 6.0 V6.0\ \text{V} across it. Calculate the energy transferred in the lamp.

  1. Rearrange the potential difference equation to find energy transferred: W=qVW = qV
  2. Substitute the charge and potential difference: W=3.0 C×6.0 V=18 JW = 3.0\ \text{C} \times 6.0\ \text{V} = 18\ \text{J}
Answer

Answer: The lamp transfers 18 J18\ \text{J} of electrical energy into internal energy and light. Energy is transferred; the charge is not consumed.

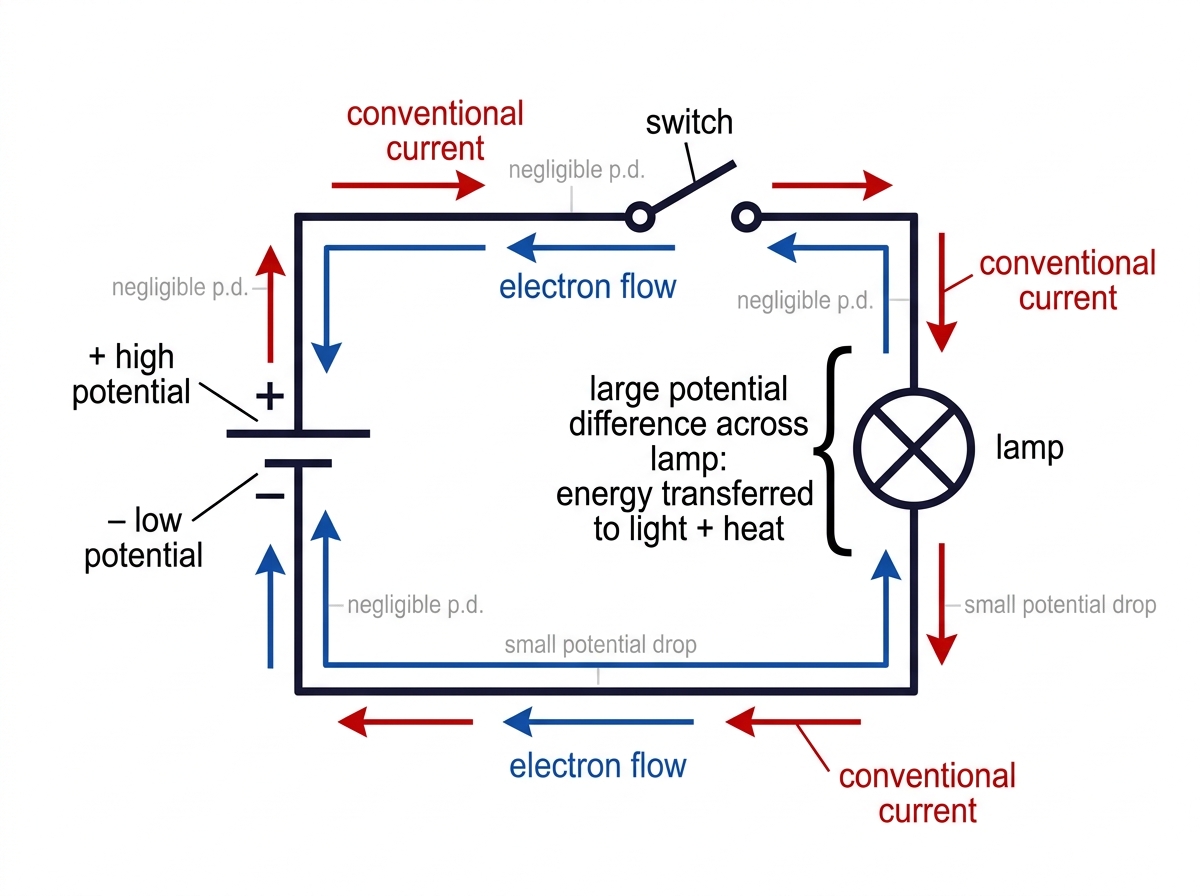

In a simple lamp circuit, the cell gives energy to the charges. The connecting wires are usually treated as having negligible potential difference, because very little energy is transferred to them. Across the lamp, the potential difference is significant: the lamp is designed to transfer electrical energy into internal energy and light.

Positive charge, if free to move, goes from higher potential to lower potential. Electrons move the other way, but the energy accounting still works when we use conventional current and positive charge.

B.5.6

CONDUCTORS AND INSULATORS

Mobility of charge carriers

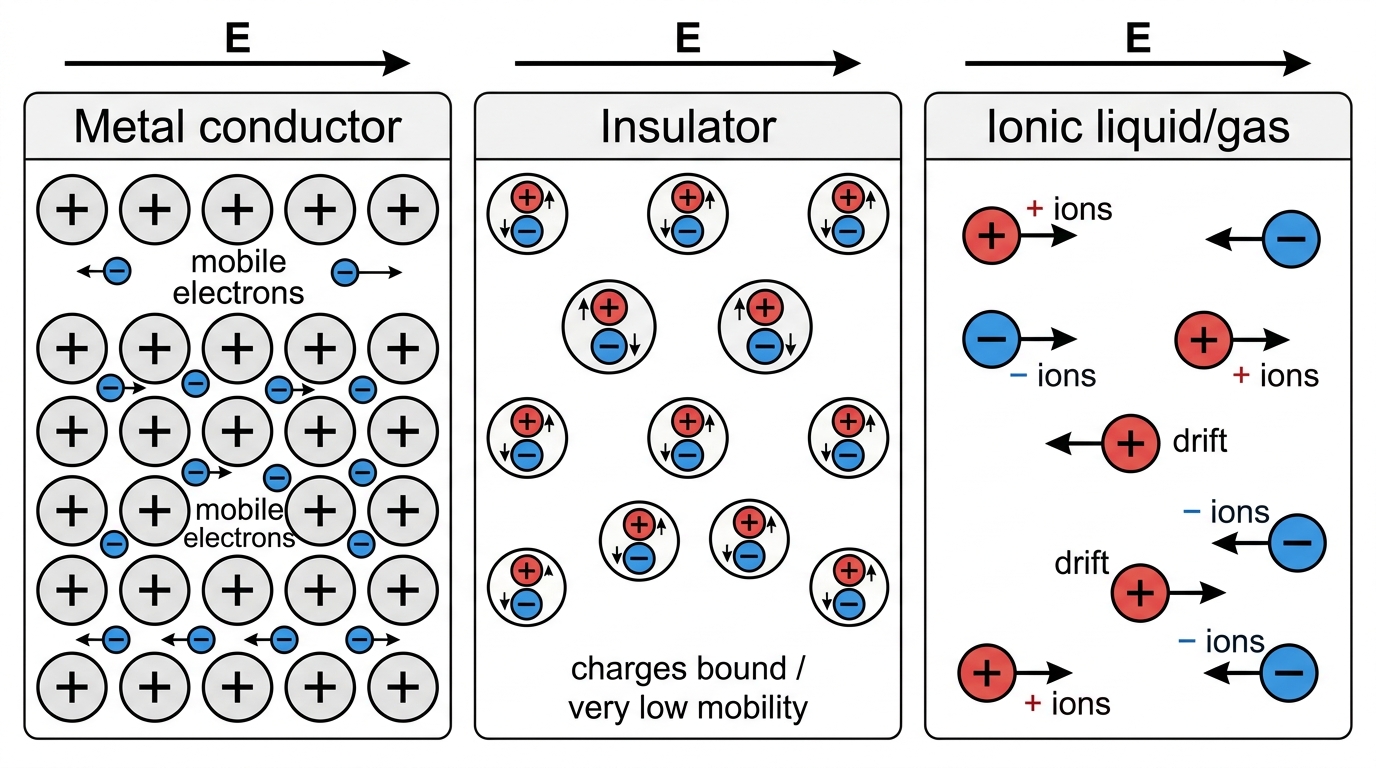

An electrical conductor is a material with charge carriers mobile enough to produce a significant current when an electric field is applied. In a metal, the outer electrons are delocalized, so they can drift through a lattice of positive ions.

An electrical insulator is a material where charge carriers have very low mobility. Under ordinary conditions, an applied electric field produces little current. Charged particles may still be present; they just aren’t free to travel through the material.

A semiconductor is a material with charge-carrier availability between that of a conductor and an insulator. Its availability can change strongly with conditions such as temperature or illumination, which is the idea behind thermistors and LDRs later in the topic.

In liquids and gases, conduction can happen when ions are free to move. Positive ions drift in the direction of the electric field; negative ions drift the other way. The same rule applies in every material: current requires mobile charge carriers.

B.5.7

ELECTRIC RESISTANCE AND ITS ORIGIN

Microscopic origin

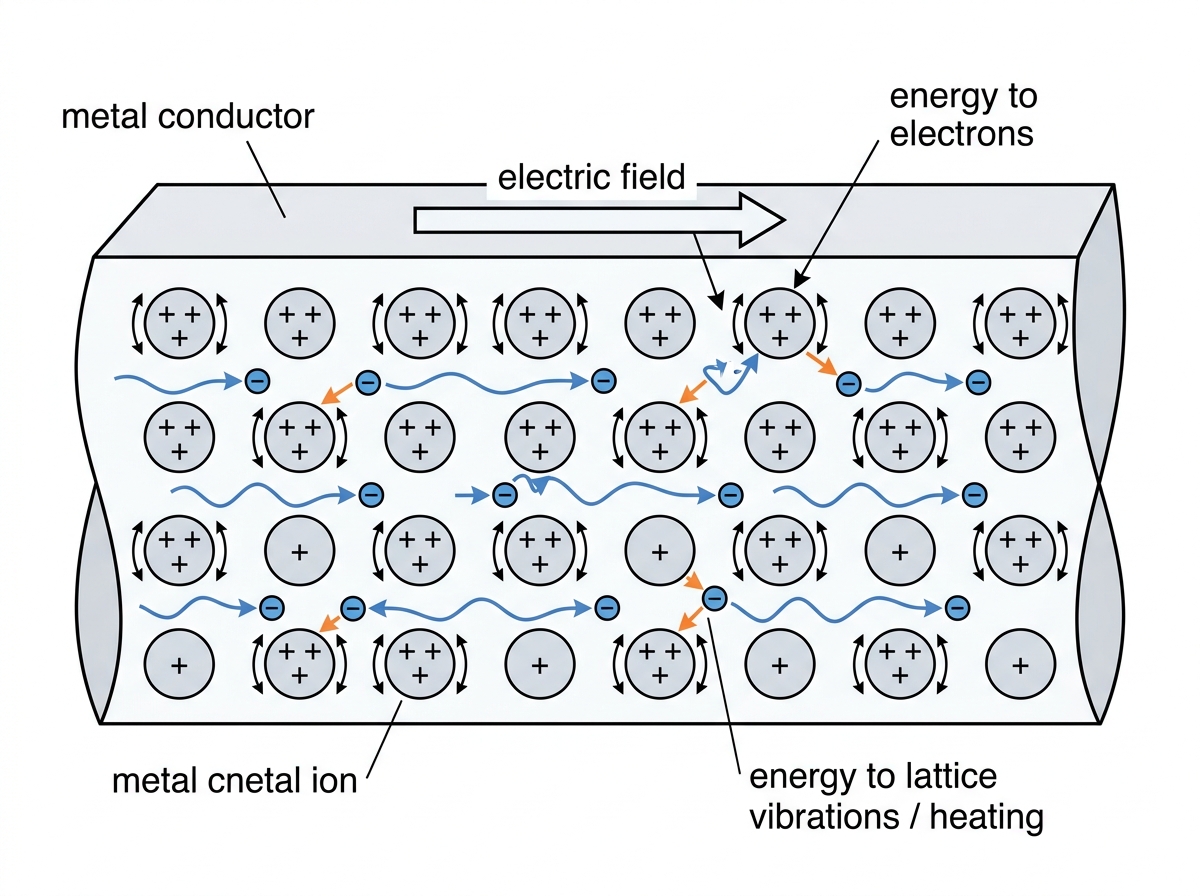

Electric resistance is a property of a component or material that describes how strongly it transfers electrical energy from moving charges to the material for a given current. In a metal, electrons gain energy from the electric field, then pass energy to the vibrating ion lattice through interactions. Seen on the larger scale, that energy transfer shows up as heating.

The particle model is useful here. Resistance is not some mysterious “friction in the wire”; it’s an energy-transfer process between mobile charge carriers and the material structure. In a hotter metal, the lattice vibrates more vigorously, so electrons interact more often and resistance usually increases.

This connects straight back to thermal physics. Energy transferred to the lattice increases the internal energy of the conductor. If energy leaves the conductor more slowly than electrical work supplies it, the temperature rises.

Measuring resistance in practice

To measure the resistance of a wire, connect an ammeter in series and a voltmeter across the wire. Record several pairs of current and potential-difference readings, keeping the current small enough that the wire’s temperature does not change appreciably. Calculate the resistance for each pair, then use a mean value, with uncertainties and significant figures matched to the instrument precision.

B.5.8

ELECTRICAL RESISTANCE

Definition and units

Electrical resistance is the ratio of the potential difference across a component to the current through it:

R=V/IR = V/I

One ohm is the same as one volt per ampere. So, for a component with resistance 1 Ω\Omega, a potential difference of 1 V1\ \text{V} across it gives a current of 1 A1\ \text{A}, as long as its resistance has that value under those conditions.

You can use this definition for any component, ohmic or non-ohmic. For a non-ohmic component, V/IV/I may change when the current changes.

Worked example: A component has a measured potential difference of 4.5 V4.5\ \text{V} across it and a current of 150 mA150\ \text{mA} through it. Calculate its resistance under these conditions.

  1. Convert the current to amperes: I=150 mA=0.150 AI = 150\ \text{mA} = 0.150\ \text{A}
  2. Substitute into the resistance definition: R=VI=4.50.150=30 ΩR = \frac{V}{I} = \frac{4.5}{0.150} = 30\ \Omega
Answer

Answer: The component's resistance is 30 Ω30\ \Omega at this potential difference and current.

Meters and their effect

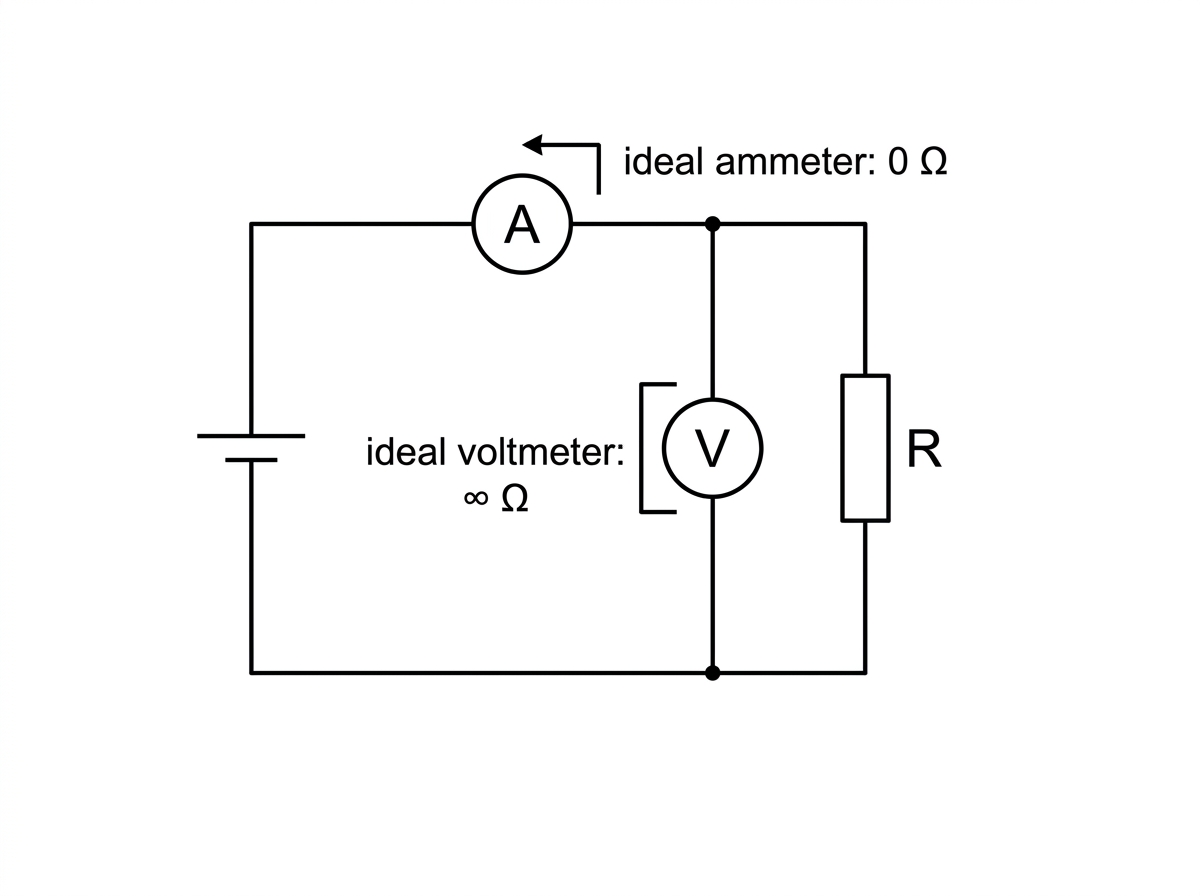

An ideal ammeter has zero resistance, so adding it in series does not alter the circuit current. An ideal voltmeter has infinite resistance, so connecting it in parallel draws no current. Unless the question says otherwise, IB problems assume ammeters and voltmeters are ideal.

Real meters do have resistance. When a non-ideal meter is given, treat its resistance as constant and include it in the circuit: an ammeter adds resistance in series, while a voltmeter makes a parallel branch across the component it is measuring.

Worked example: A 6.0 V6.0\ \text{V} source is connected in series with a 10 Ω10\ \Omega resistor and an ammeter of resistance 2.0 Ω2.0\ \Omega. The source has negligible internal resistance. Calculate the current and compare it with the current for an ideal ammeter.

  1. Add the resistances in series: Rtotal=10+2.0=12 ΩR_{\text{total}} = 10 + 2.0 = 12\ \Omega
  2. Use the potential difference across the whole series circuit: I=VRtotal=6.012=0.50 AI = \frac{V}{R_{\text{total}}} = \frac{6.0}{12} = 0.50\ \text{A}
  3. For an ideal ammeter, the added resistance is zero: Iideal=6.010=0.60 AI_{\text{ideal}} = \frac{6.0}{10} = 0.60\ \text{A}
Answer

Answer: The non-ideal ammeter gives a current of 0.50 A0.50\ \text{A} rather than the ideal 0.60 A0.60\ \text{A} because its resistance increases the total series resistance.

B.5.9

RESISTIVITY

Separating material from shape

Resistivity is a property of the material itself at a specified temperature. It tells you how strongly that material opposes current flow, without depending on the sample’s particular length or cross-sectional area. Comparisons between samples must therefore use the same temperature.

ρ=RA/L\rho = RA/L

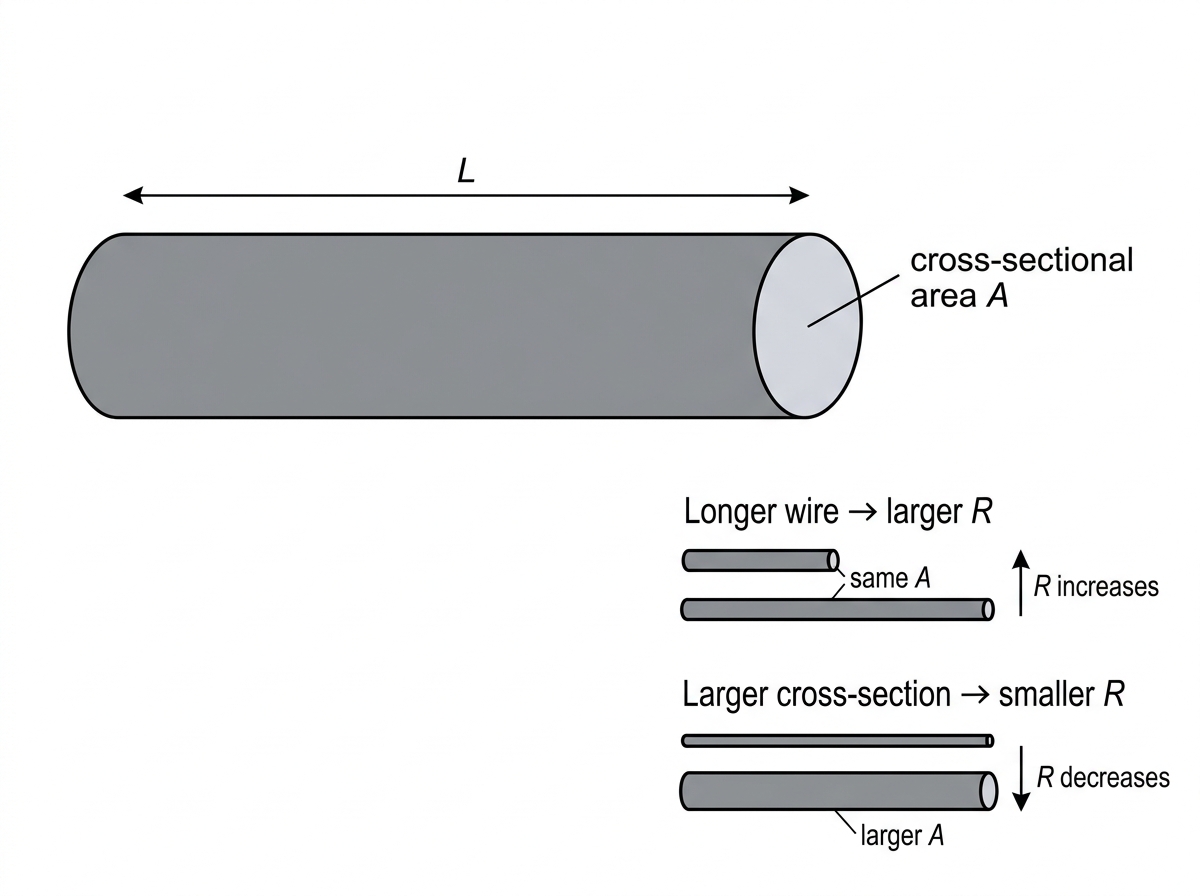

Rearrange it to get R=ρL/AR = \rho L/A. A longer wire therefore has a larger resistance; a thicker wire has a smaller one. For a circular wire, increasing the diameter reduces resistance because the area depends on diameter squared. Doubling the diameter at fixed material, temperature and length makes the area four times larger, so the resistance becomes one-quarter of its original value.

Worked example: A uniform circular wire has length L=2.0 mL = 2.0\ \text{m}, diameter d=0.40 mmd = 0.40\ \text{mm} and resistance R=8.0 ΩR = 8.0\ \Omega. Calculate its resistivity.

  1. Convert the diameter to SI units:

    d=0.40 mm=4.0×10−4 md = 0.40\ \text{mm} = 4.0 \times 10^{-4}\ \text{m}

  2. Calculate the circular cross-sectional area:

    A=πd24=π(4.0×10−4 m)24=1.26×10−7 m2A = \frac{\pi d^2}{4} = \frac{\pi(4.0 \times 10^{-4}\ \text{m})^2}{4} = 1.26 \times 10^{-7}\ \text{m}^2

  3. Substitute into the resistivity equation, retaining the unrounded area in the calculation:

    ρ=RAL=(8.0 Ω)[π(4.0×10−4 m)2/4]2.0 m=5.0×10−7 Ω m\rho = \frac{RA}{L} = \frac{(8.0\ \Omega)\bigl[\pi(4.0 \times 10^{-4}\ \text{m})^2/4\bigr]}{2.0\ \text{m}} = 5.0 \times 10^{-7}\ \Omega\,\text{m}

Answer

Answer: The resistivity is 5.0×10−7 Ω m5.0 \times 10^{-7}\ \Omega\,\text{m}, to two significant figures.

The unit is ohm metre, Ω m\Omega\,\text{m}, not ohm per metre. That small wording difference matters.

Finding resistivity experimentally

A good resistivity experiment measures the resistance of a uniform sample, along with its dimensions. For a wire:

  • Measure the length between the contacts.
  • Measure the diameter at several positions with a micrometer or digital callipers before calculating the area.
  • Keep the temperature constant throughout the measurements. Use a small current and switch it off between readings to limit heating, which can change the resistivity.

To test the relationships at constant temperature, plot RR against LL for wires of the same material and diameter, or plot RR against 1/d21/d^2 for equal lengths of the same material.

Thermal and electrical conduction

There’s a useful parallel with thermal conduction. In a metal, free electrons help carry charge and also contribute to thermal energy transfer. The large-scale equations look similar as well: a gradient drives a flow.

Type of conductionDriving gradientAssociated flow
Electrical conductionPotential gradientElectric current
Thermal conductionTemperature gradientRate of thermal energy transfer

The details are different, but the modelling idea is the same: microscopic carriers produce a measurable macroscopic transport property.

B.5.10

OHM’S LAW

The law, carefully stated

Ohm’s law is an empirical rule: the potential difference across a metallic conductor is directly proportional to the current through it, as long as the conductor’s physical conditions stay constant.

In this syllabus, you treat a metal conductor at constant temperature as an ohmic device. That temperature condition isn’t just a tidy add-on; it’s central to the law. If the conductor heats up noticeably, the relationship may no longer be proportional.

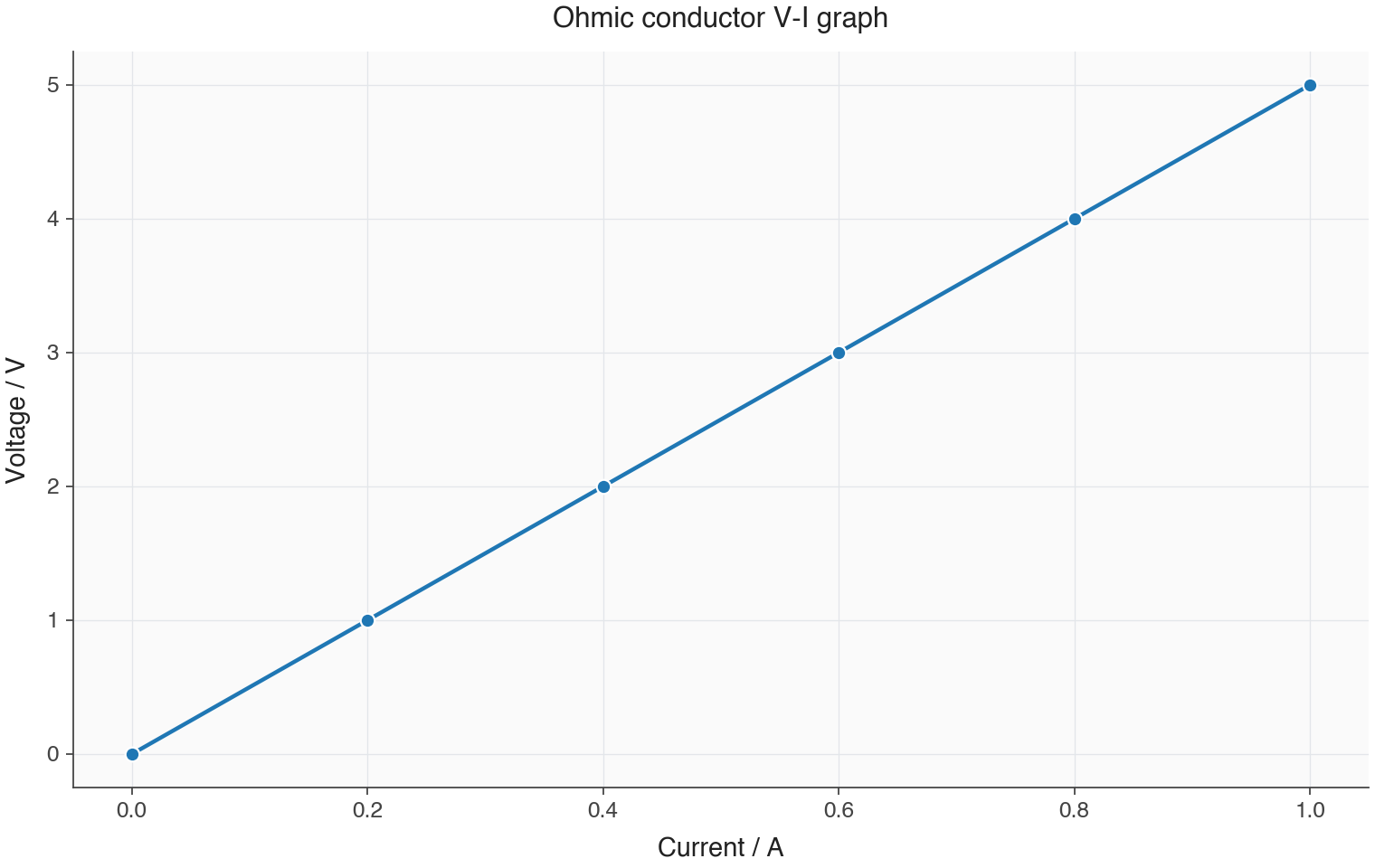

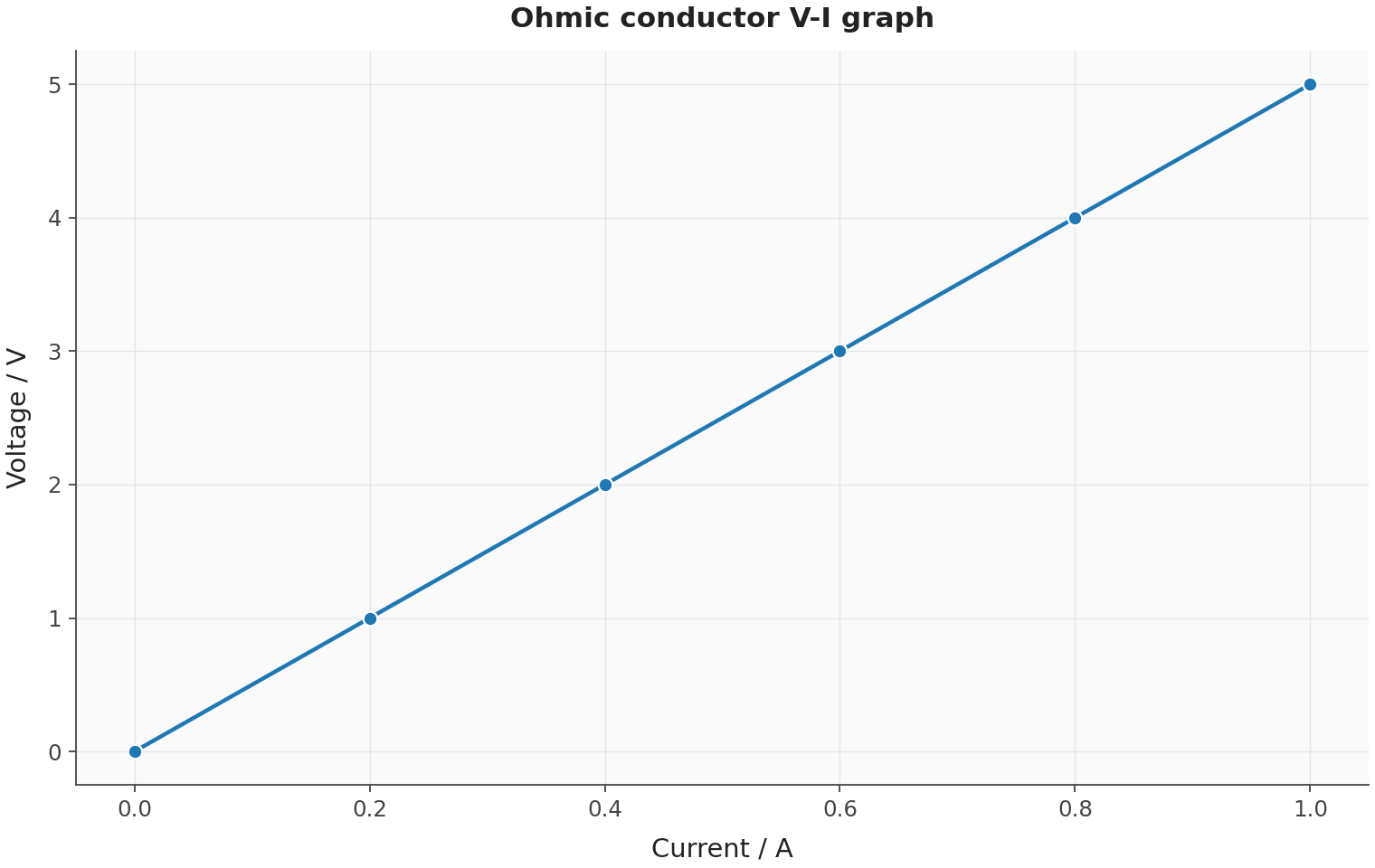

A straight-line graph of VV against II through the origin shows constant resistance. The gradient gives the resistance. Watch the wording here: R=VIR = \frac{V}{I} is the definition of resistance, not Ohm’s law. Ohm’s law is the proportional relationship under fixed physical conditions.

Investigating an ohmic conductor

To test a metal wire, change the supply potential difference gently, measure II and VV, then plot VV on the vertical axis against II on the horizontal axis. Keep the range small enough that the wire temperature stays effectively constant. A straight best-fit line through the origin supports ohmic behaviour.

B.5.11

OHMIC AND NON-OHMIC BEHAVIOUR, INCLUDING HEATING

Ohmic and non-ohmic devices

An ohmic conductor has potential difference directly proportional to current, provided the physical conditions stay constant. A non-ohmic conductor does not have potential difference directly proportional to current, so its resistance changes as the operating conditions change.

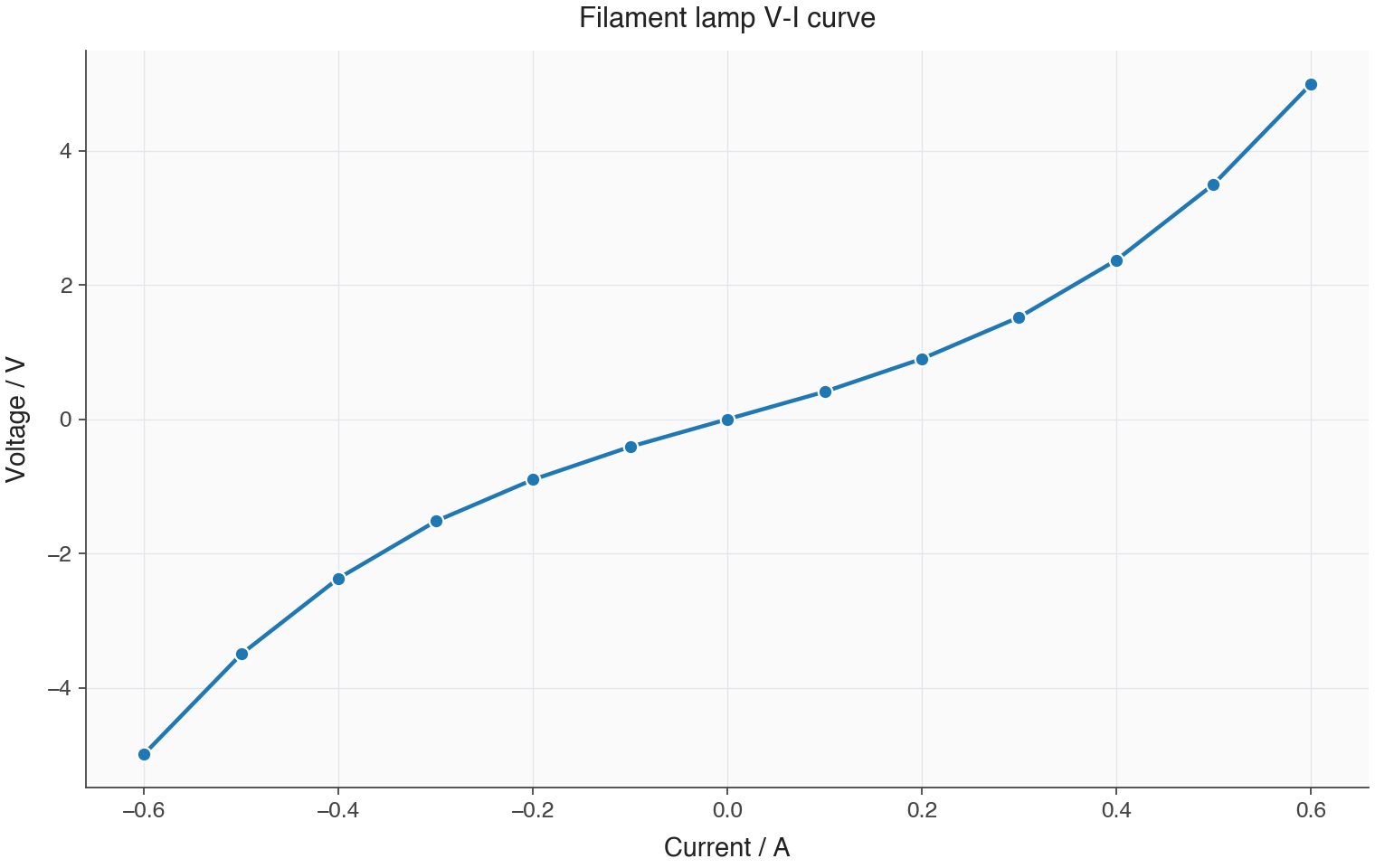

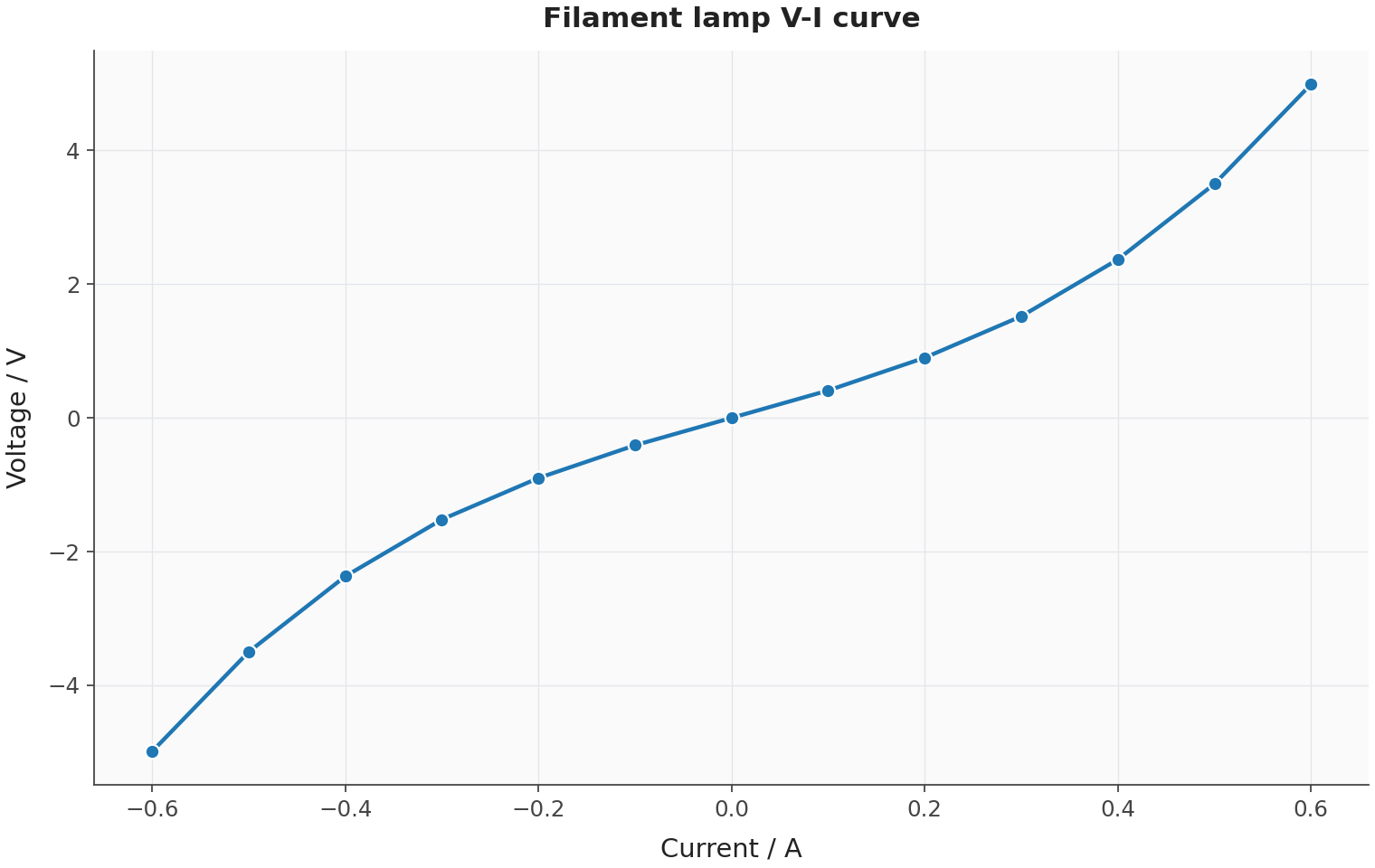

A filament lamp is the standard lab example. As the current rises, the filament heats up. Its hotter lattice vibrates more strongly, and moving electrons transfer energy to it more easily. Resistance increases, so the VV-II graph bends instead of staying as a straight line.

You can explain resistor heating using ideas from elsewhere in physics: the electric field does work on charge carriers, interactions with the lattice transfer energy, and the material’s internal energy increases. That’s conservation of energy, together with the particle model of matter.

Investigating non-ohmic behaviour

For a lamp investigation, use the same basic ammeter-voltmeter circuit as for a wire, but take readings in both current directions. Plot VV against II with the origin in the centre, so the positive and negative readings can be compared. The curve should pass through the origin, but it should not be straight. Calculate RR from VI\frac{V}{I} for individual points; do not use the tangent gradient as the resistance.

B.5.12

ELECTRICAL POWER DISSIPATED BY A RESISTOR

Rate of energy transfer

Electrical power is the rate at which a component transfers electrical energy.

P=IV=I2R=V2RP = IV = I^2R = \frac{V^2}{R}

These three forms say the same thing, just rearranged using the resistance relationship. Choose the form that uses the quantities you know:

Quantities knownPower equation
Current and potential differenceP=IVP = IV
Current and resistanceP=I2RP = I^2R
Potential difference and resistanceP=V2RP = \frac{V^2}{R}

Over a time interval, the energy transferred is

E=PΔtE = P\Delta t

Put this together with the power equations for heating calculations involving resistors, lamps, heaters and other devices where electrical energy is converted mainly to internal energy.

Worked example: A 6.0 Ω6.0\ \Omega resistor is connected across a 12 V12\ \text{V} supply for 3.0 min3.0\ \text{min}. Calculate the current, power dissipated and energy transferred, assuming the resistance stays constant. Check the power using all three forms of the power equation.

  1. Use the potential difference and resistance to find the current:

    I=VR=126.0=2.0 AI = \frac{V}{R} = \frac{12}{6.0} = 2.0\ \text{A}

  2. Since potential difference and resistance are given, choose P=V2RP = \frac{V^2}{R}:

    P=1226.0=24 WP = \frac{12^2}{6.0} = 24\ \text{W}

    Check using the other two forms:

    P=IV=2.0×12=24 WP = IV = 2.0 \times 12 = 24\ \text{W}

    P=I2R=(2.0)2×6.0=24 WP = I^2R = (2.0)^2 \times 6.0 = 24\ \text{W}

  3. Convert the time to seconds before calculating energy:

    Δt=3.0 min=3.0×60 s=180 s\Delta t = 3.0\ \text{min} = 3.0 \times 60\ \text{s} = 180\ \text{s}

    E=PΔt=24×180=4320 J=4.3×103 JE = P\Delta t = 24 \times 180 = 4320\ \text{J} = 4.3 \times 10^3\ \text{J}

Answer

Answer: The current is 2.0 A2.0\ \text{A} and the power dissipated is 24 W24\ \text{W}, confirmed by all three power equations. The energy transferred in 3.0 min3.0\ \text{min} is 4.3×103 J4.3 \times 10^3\ \text{J} to two significant figures.

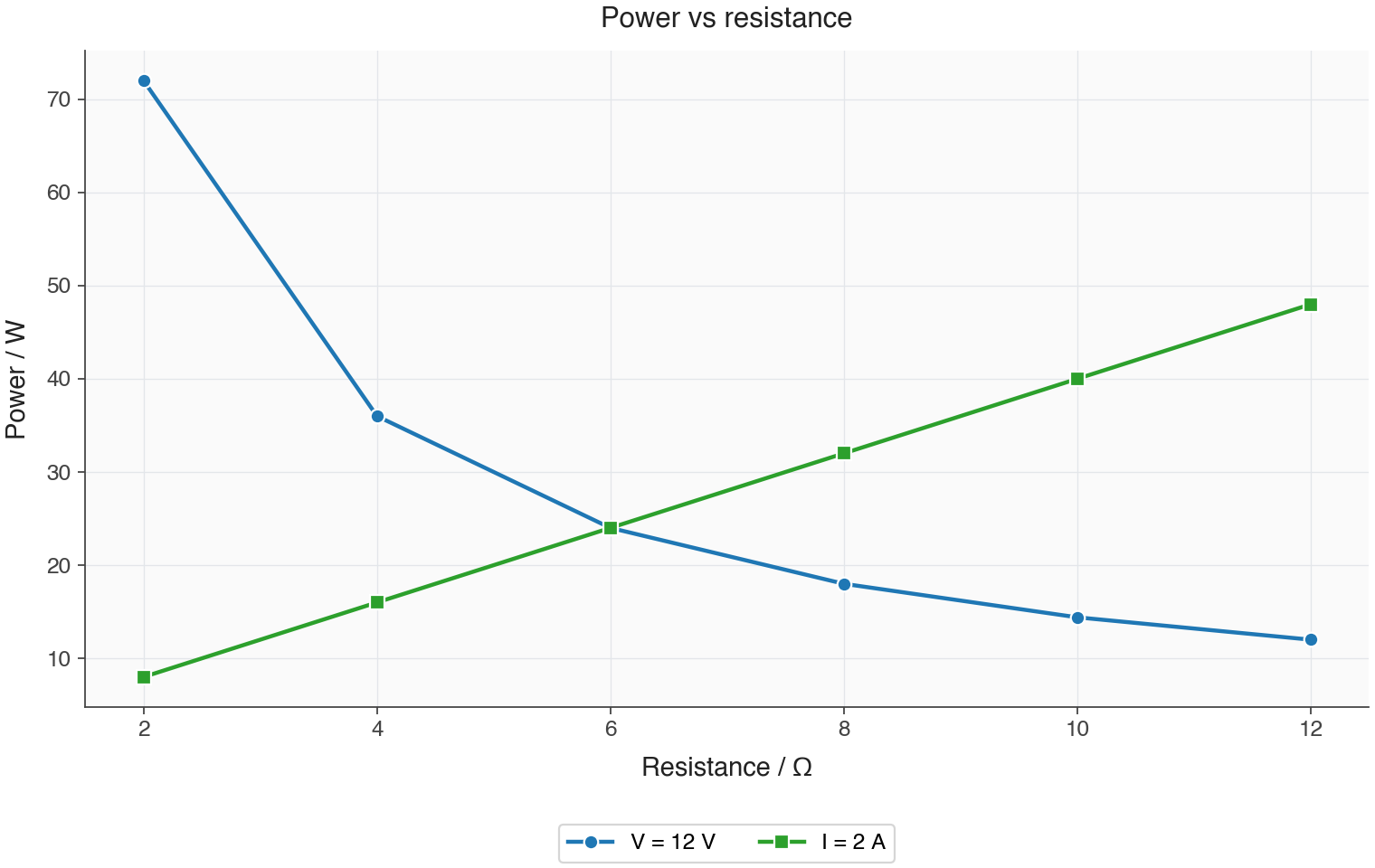

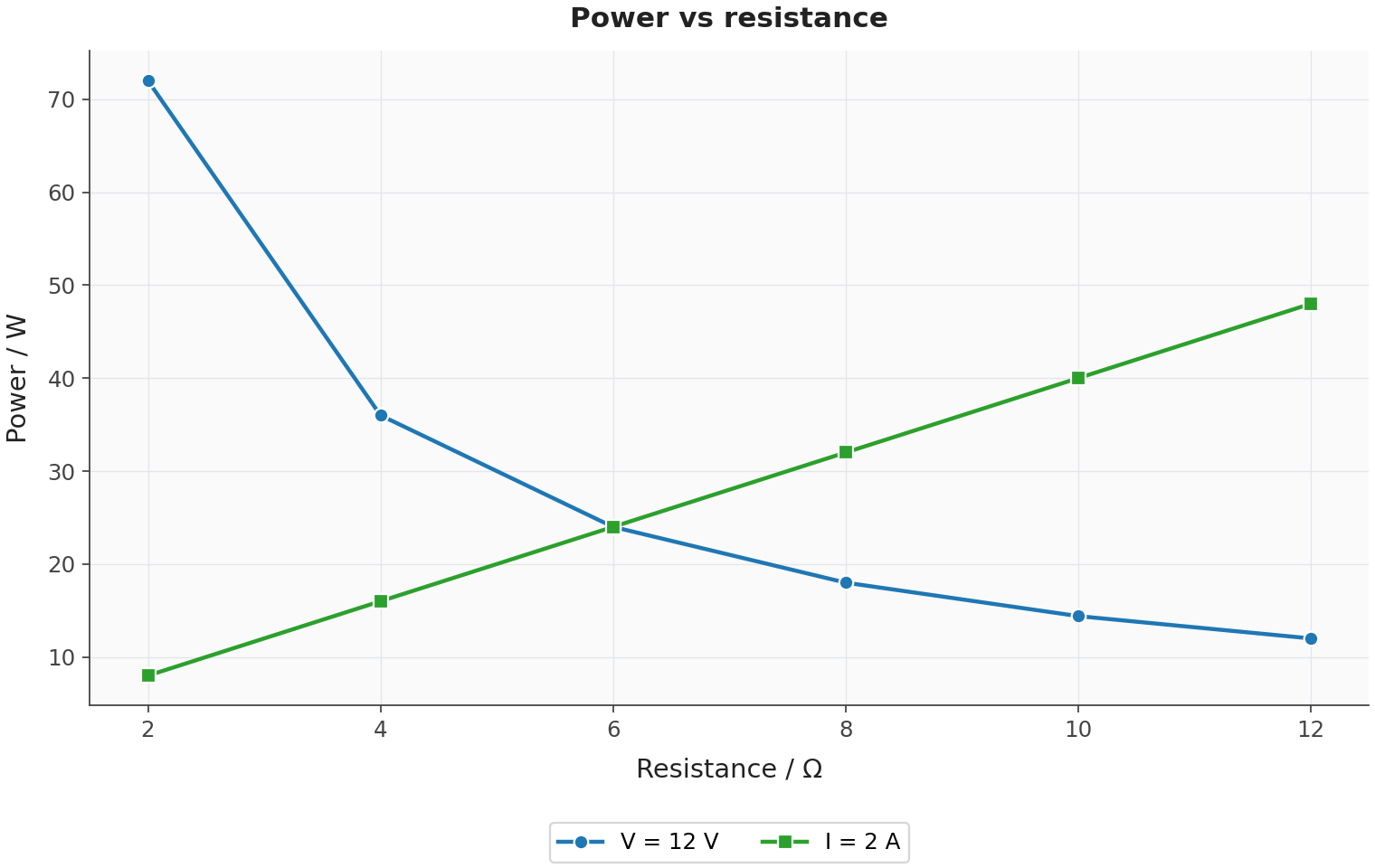

For a resistor connected to the same supply potential difference, a lower resistance gives a higher power because P=V2RP = \frac{V^2}{R}. For a resistor carrying the same current, a higher resistance gives a higher power because P=I2RP = I^2R. Always check which quantity stays constant.

B.5.13

RESISTORS IN SERIES AND PARALLEL CIRCUITS

Series circuits

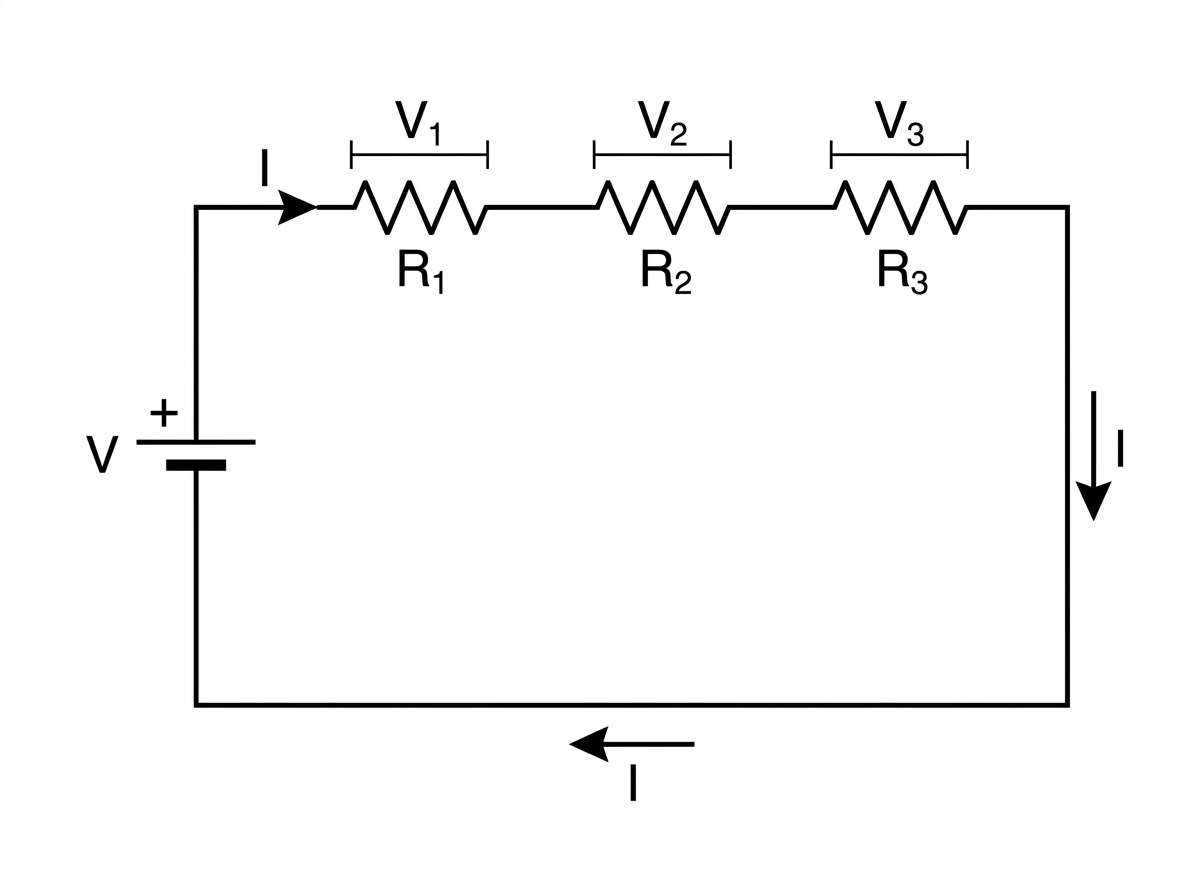

A series connection is an arrangement where components are joined one after another, so the same current passes through every component.

For resistors in series:

I=I1=I2=…I = I_1 = I_2 = \dots V=V1+V2+…V = V_1 + V_2 + \dots
Rs=R1+R2+…R_s = R_1 + R_2 + \dots

The current stays the same because charge cannot pile up indefinitely between components. The potential differences add because each coulomb transfers energy as it passes through each component in turn.

Parallel circuits

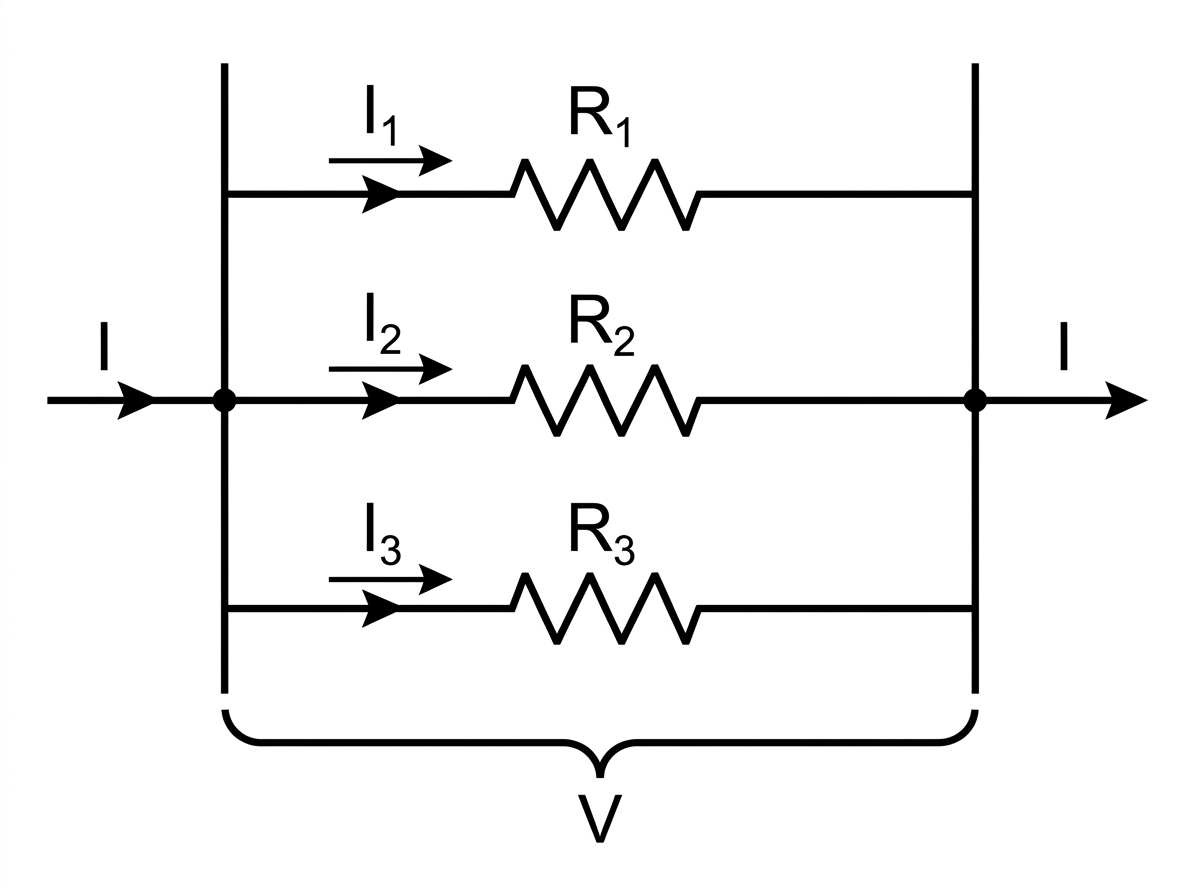

A parallel connection is an arrangement where components are connected across the same two nodes, so each branch has the same potential difference.

For resistors in parallel:

I=I1+I2+…I = I_1 + I_2 + \dots V=V1=V2=…V = V_1 = V_2 = \dots
1Rp=1R1+1R2+…\frac{1}{R_p} = \frac{1}{R_1} + \frac{1}{R_2} + \dots

Branch currents add because charge flow splits at a junction and recombines later. A parallel combination has an equivalent resistance smaller than the smallest branch resistance, because adding a branch gives charge another route.

RuleSeriesParallel
ConnectionOne pathSame two nodes
CurrentSame throughoutBranch currents add
Potential differenceComponent drops addSame across branches
Equivalent resistanceRs=R1+R2+…R_s = R_1 + R_2 + \dots1Rp=1R1+1R2+…\frac{1}{R_p} = \frac{1}{R_1} + \frac{1}{R_2} + \dots

Practical check

You can check these rules with a multimeter used as an ohmmeter. Disconnect the supply and isolate the combination from other conducting paths before measuring, so the reading represents the intended resistor network. First measure the individual resistor values, noting tolerances. Then measure combinations in series and in parallel. For a complicated network, simplify the obvious parallel groups first, then combine the series parts. Repeat until one equivalent resistance remains.

Worked example: A 3.0 Ω3.0\ \Omega resistor is in series with parallel 6.0 Ω6.0\ \Omega and 3.0 Ω3.0\ \Omega resistors across a 10 V10\ \text{V} supply. Find the equivalent resistance, currents and potential differences.

The schematic shows the mixed circuit used in the calculation.

  1. Combine the parallel resistors: Rp=(16.0+13.0)−1=2.0 ΩR_p = (\frac{1}{6.0} + \frac{1}{3.0})^{-1} = 2.0\ \Omega.
  2. Add the series resistor: Rtotal=3.0+2.0=5.0 ΩR_{\text{total}} = 3.0 + 2.0 = 5.0\ \Omega.
  3. Calculate the supply current: I=VRtotal=105.0=2.0 AI = \frac{V}{R_{\text{total}}} = \frac{10}{5.0} = 2.0\ \text{A}.
  4. Find the potential differences: Vseries=IR=2.0×3.0=6.0 VV_{\text{series}} = IR = 2.0 \times 3.0 = 6.0\ \text{V}; Vp=10−6.0=4.0 VV_p = 10 - 6.0 = 4.0\ \text{V}.
  5. Calculate branch currents: I6.0=4.06.0≈0.67 AI_{6.0} = \frac{4.0}{6.0} \approx 0.67\ \text{A}; I3.0=4.03.0≈1.33 AI_{3.0} = \frac{4.0}{3.0} \approx 1.33\ \text{A}.
  6. Check: 0.67+1.33=2.0 A0.67 + 1.33 = 2.0\ \text{A}, matching the supply current. Also, 2.0 Ω<3.0 Ω<6.0 Ω2.0\ \Omega < 3.0\ \Omega < 6.0\ \Omega, so RpR_p is below either branch resistance.
Answer

Answer: The equivalent resistance is 5.0 Ω5.0\ \Omega and supply current is 2.0 A2.0\ \text{A}. The series resistor drops 6.0 V6.0\ \text{V}; each parallel branch drops 4.0 V4.0\ \text{V}, carrying 0.67 A0.67\ \text{A} and 1.33 A1.33\ \text{A} respectively.

B.5.14

EMF AND INTERNAL RESISTANCE OF CELLS

A model of a real cell

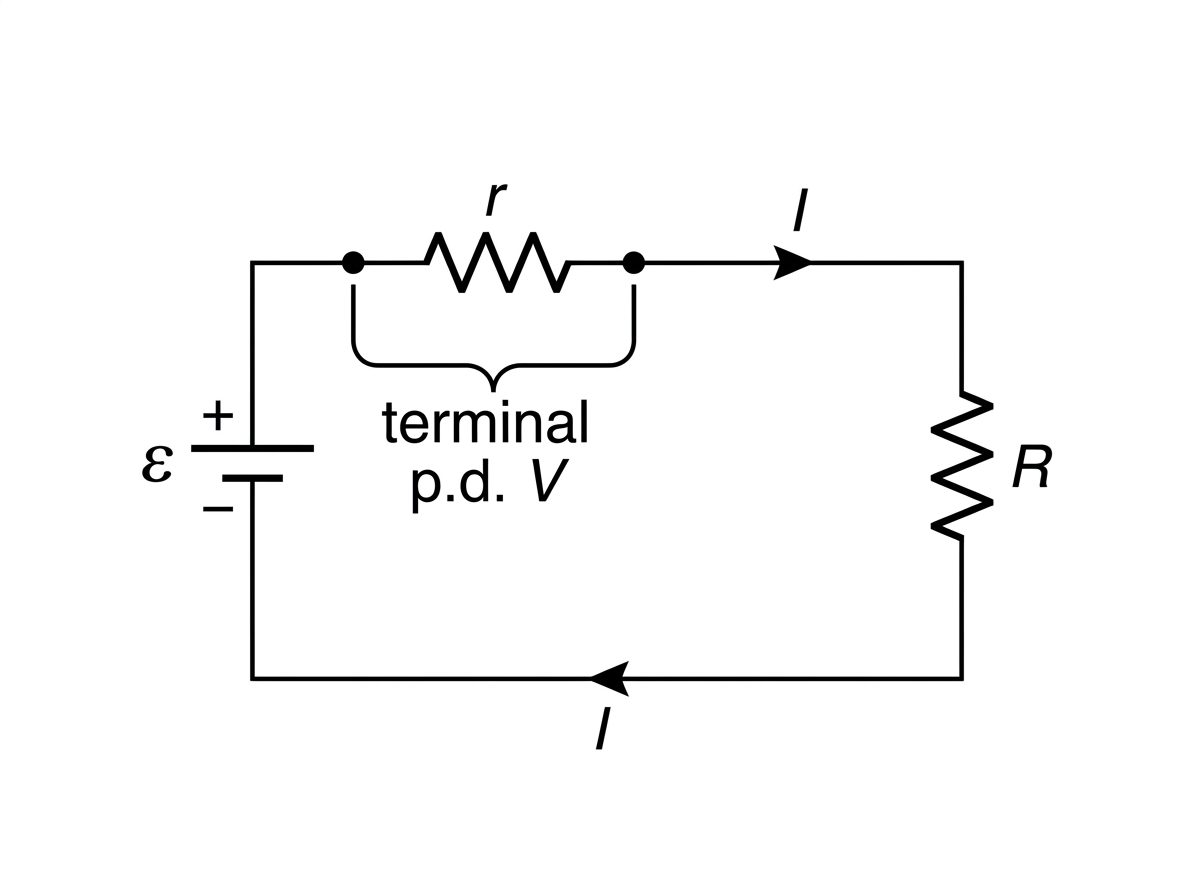

A real cell can be modelled as an ideal source of emf in series with an internal resistance, which is a resistance inside the cell that causes energy transfer within the cell when current flows.

ε=I(R+r)\varepsilon = I(R + r)

When current flows, the external circuit gets a smaller potential difference than the emf. Some energy per coulomb is transferred inside the cell instead. The terminal potential difference is given by V=ε−IrV = \varepsilon - Ir. The term IrIr is sometimes called the lost volts; it isn’t lost in terms of energy conservation, just unavailable to the external circuit.

Worked example: A cell has emf ε=1.5 V\varepsilon = 1.5\ \text{V} and internal resistance r=0.50 Ωr = 0.50\ \Omega. It is connected to an external resistor of resistance R=2.5 ΩR = 2.5\ \Omega. Calculate the current, the lost volts and the terminal potential difference. Check the terminal potential difference using the external resistor.

  1. Calculate the current using the total resistance:

    I=εR+r=1.52.5+0.50=0.50 AI = \frac{\varepsilon}{R + r} = \frac{1.5}{2.5 + 0.50} = 0.50\ \text{A}

  2. Calculate the lost volts:

    Ir=0.50×0.50=0.25 VIr = 0.50 \times 0.50 = 0.25\ \text{V}

  3. Subtract the lost volts from the emf:

    V=ε−Ir=1.5−0.25=1.25 VV = \varepsilon - Ir = 1.5 - 0.25 = 1.25\ \text{V}

  4. Check using the potential difference across the external resistor:

    V=IR=0.50×2.5=1.25 VV = IR = 0.50 \times 2.5 = 1.25\ \text{V}

Answer

Answer: The current is 0.50 A0.50\ \text{A}, the lost volts are 0.25 V0.25\ \text{V} and the terminal potential difference is 1.25 V1.25\ \text{V}. The check using IRIR gives the same terminal potential difference.

The emf of a cell is the open-circuit terminal potential difference: the terminal potential difference when no current is drawn. If the load resistance decreases, the current increases and the terminal potential difference usually falls.

Measuring emf and internal resistance

To measure ε\varepsilon and rr, connect a variable resistor across the cell, then measure the terminal potential difference and current for several settings.

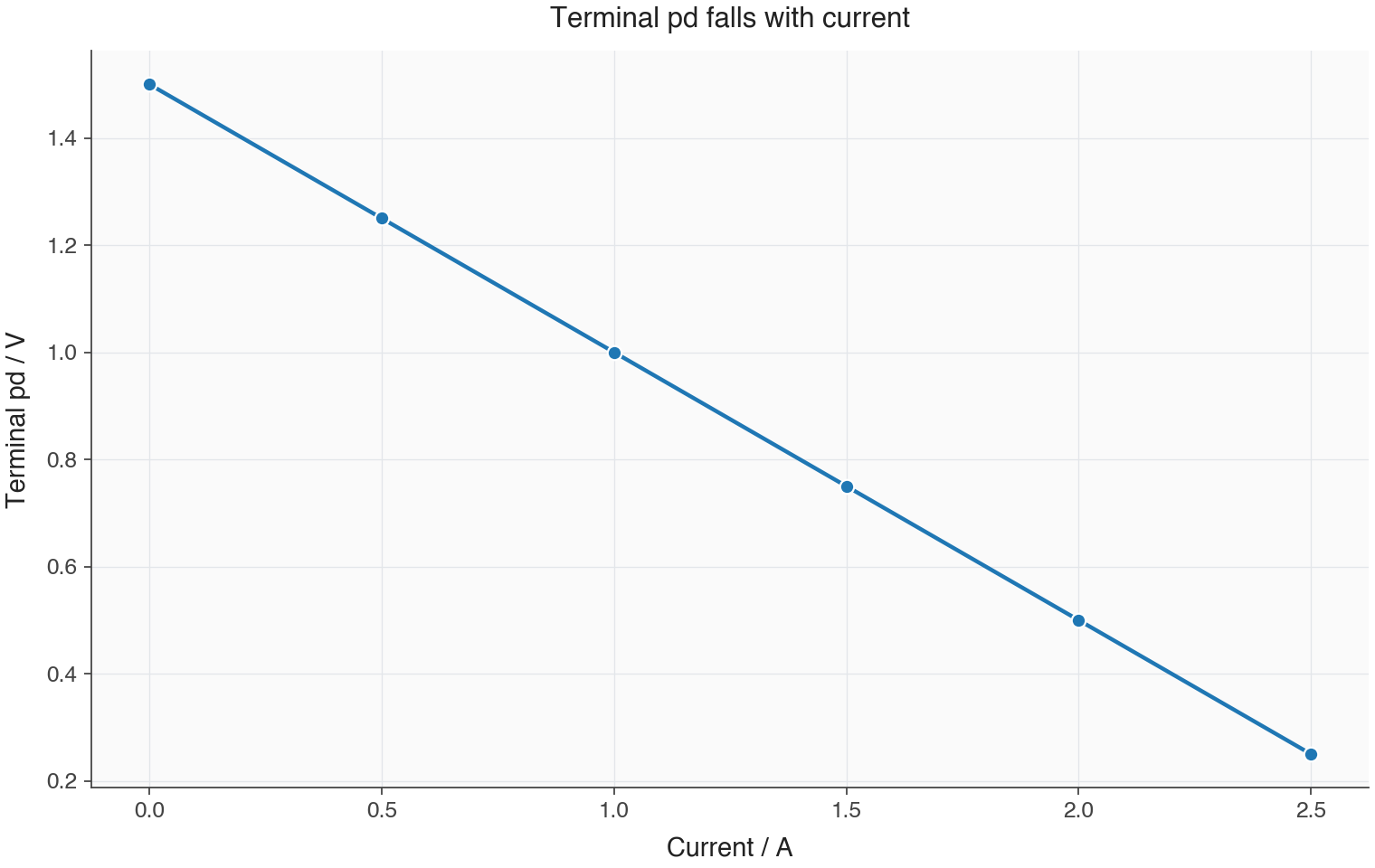

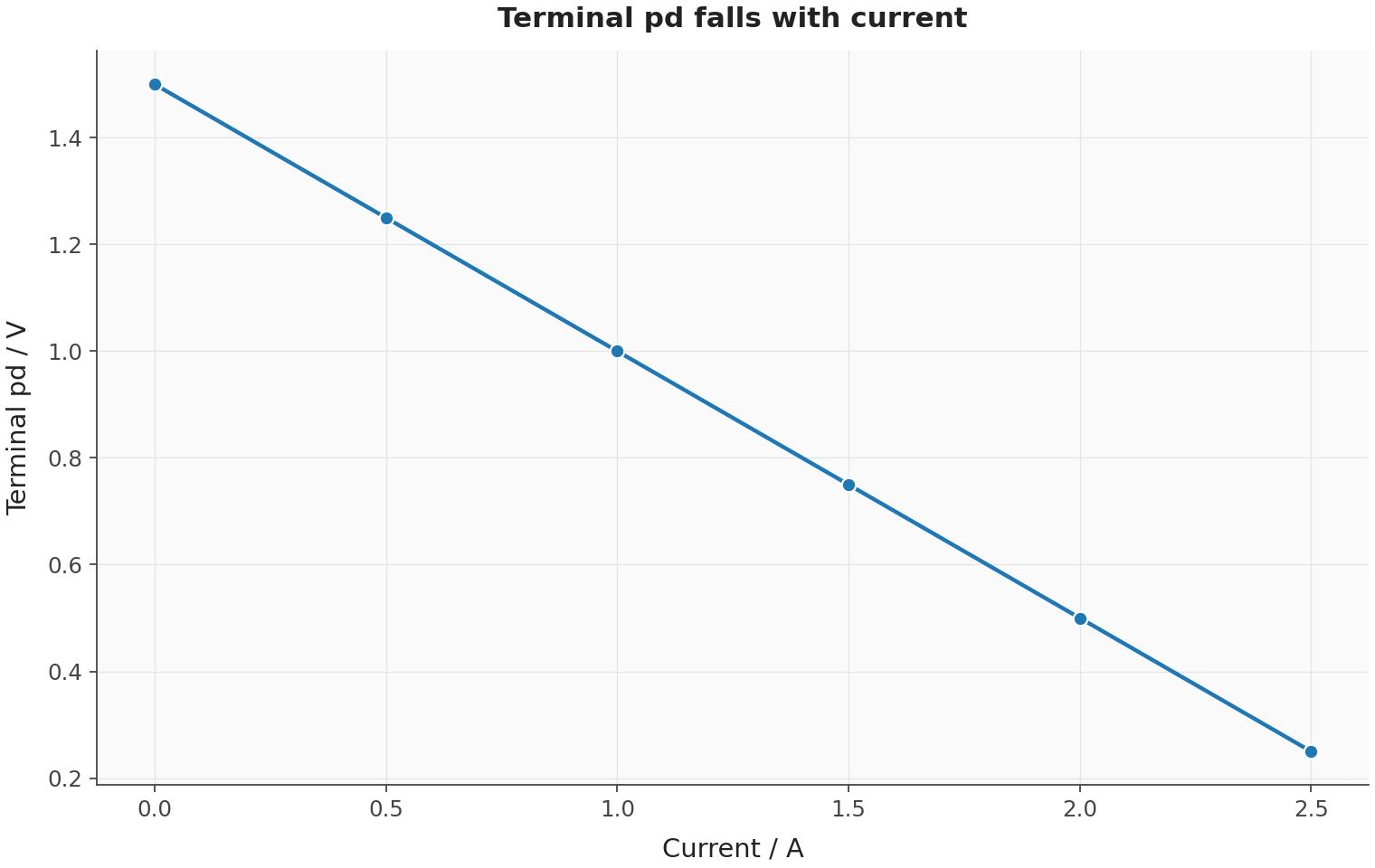

  • Plot VV on the vertical axis against II on the horizontal axis.
  • Since V=ε−IrV = \varepsilon - Ir is a straight-line equation, the vertical intercept gives ε\varepsilon and the gradient is −r-r.
  • Use a range that does not overheat or rapidly discharge the cell.

Worked example: A best-fit line on a graph of terminal potential difference against current passes through I=0 AI = 0\ \text{A}, V=1.50 VV = 1.50\ \text{V} and I=2.0 AI = 2.0\ \text{A}, V=0.50 VV = 0.50\ \text{V}. Determine the emf and internal resistance.

  1. Calculate the gradient using the two points on the line:

    gradient=ΔVΔI=0.50−1.502.0−0=−0.50 V A−1\text{gradient} = \frac{\Delta V}{\Delta I} = \frac{0.50 - 1.50}{2.0 - 0} = -0.50\ \text{V A}^{-1}

  2. Use the relationship between gradient and internal resistance:

    gradient=−r\text{gradient} = -r

    r=−(−0.50)=+0.50 Ωr = -(-0.50) = +0.50\ \Omega

  3. Read the vertical intercept, where the current is zero:

    ε=1.50 V\varepsilon = 1.50\ \text{V}

Answer

Answer: The cell has internal resistance r=+0.50 Ωr = +0.50\ \Omega and emf ε=1.50 V\varepsilon = 1.50\ \text{V}.

A simple model with fixed emf and fixed internal resistance is deliberately idealized. It still helps, because it predicts the main trend: higher current means more energy transferred inside the cell and a lower terminal potential difference.

B.5.15

VARIABLE RESISTANCE

Devices whose resistance can change

A variable resistor is a resistor whose resistance can be adjusted, or one whose resistance changes because of a physical condition. In this syllabus, variable resistance is limited to thermistors, light-dependent resistors and potentiometers.

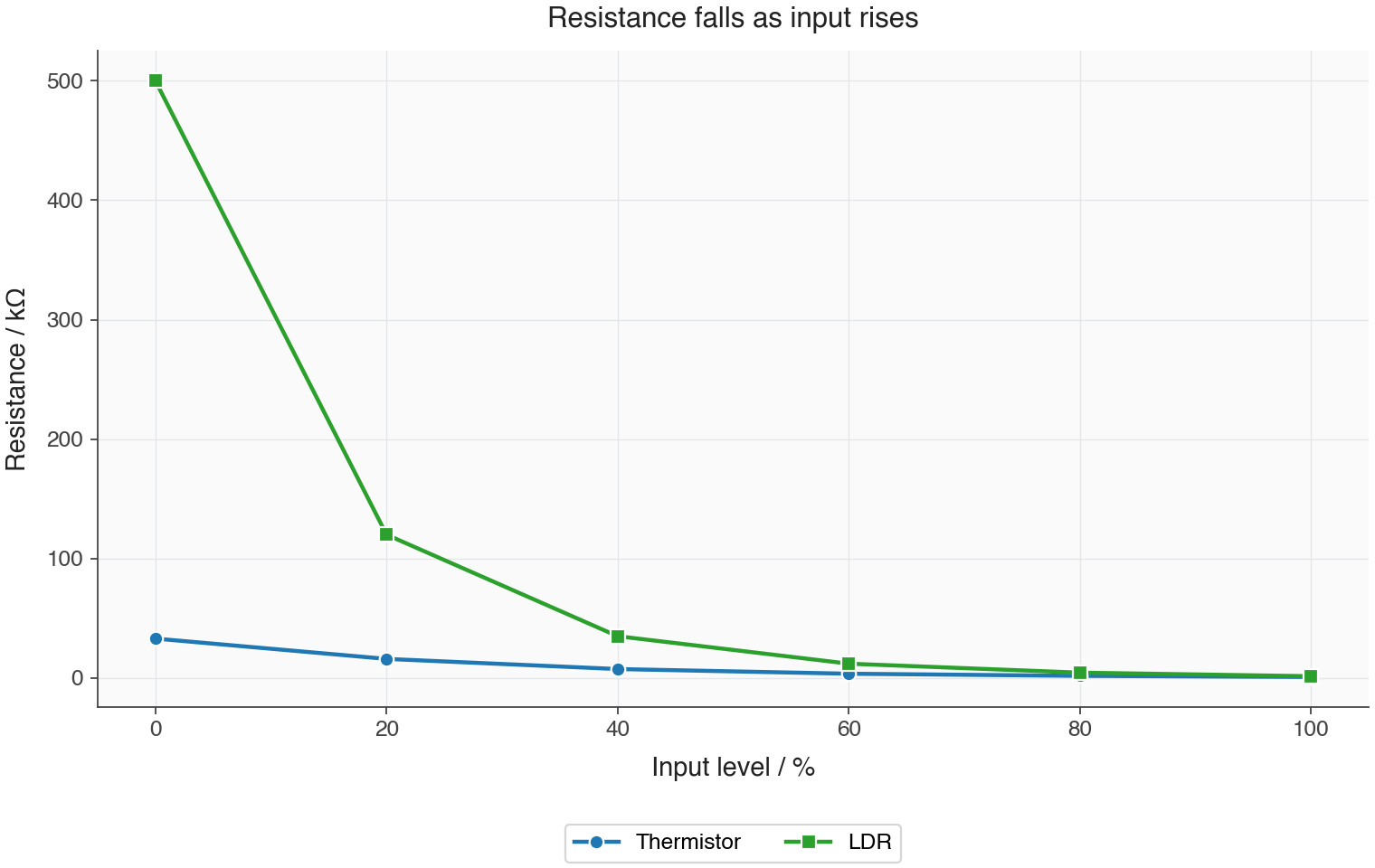

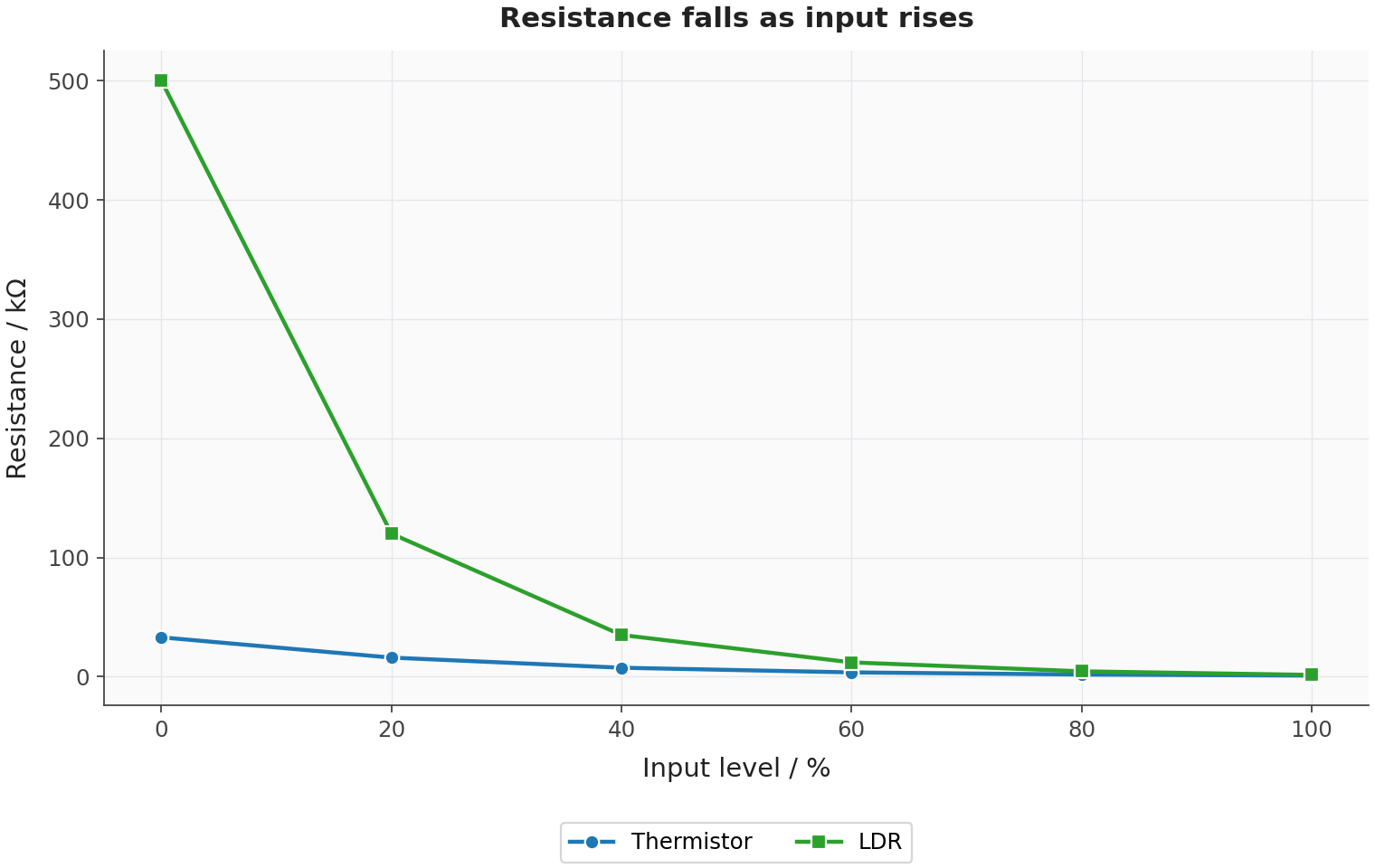

A thermistor is a semiconductor resistor whose resistance varies with temperature. Here, the type used is a negative-temperature-coefficient thermistor: as temperature increases, resistance decreases. The explanation comes from the particles in the material. A higher temperature makes the lattice vibrate more, which on its own would make charge motion harder, but it also releases many more mobile charge carriers in the semiconductor. That increase in carriers has the larger effect.

A light-dependent resistor is a semiconductor resistor whose resistance decreases as light intensity increases. Incoming photons transfer energy to the material and free more charge carriers, so the same potential difference can produce a larger current.

Potentiometers and potential dividers

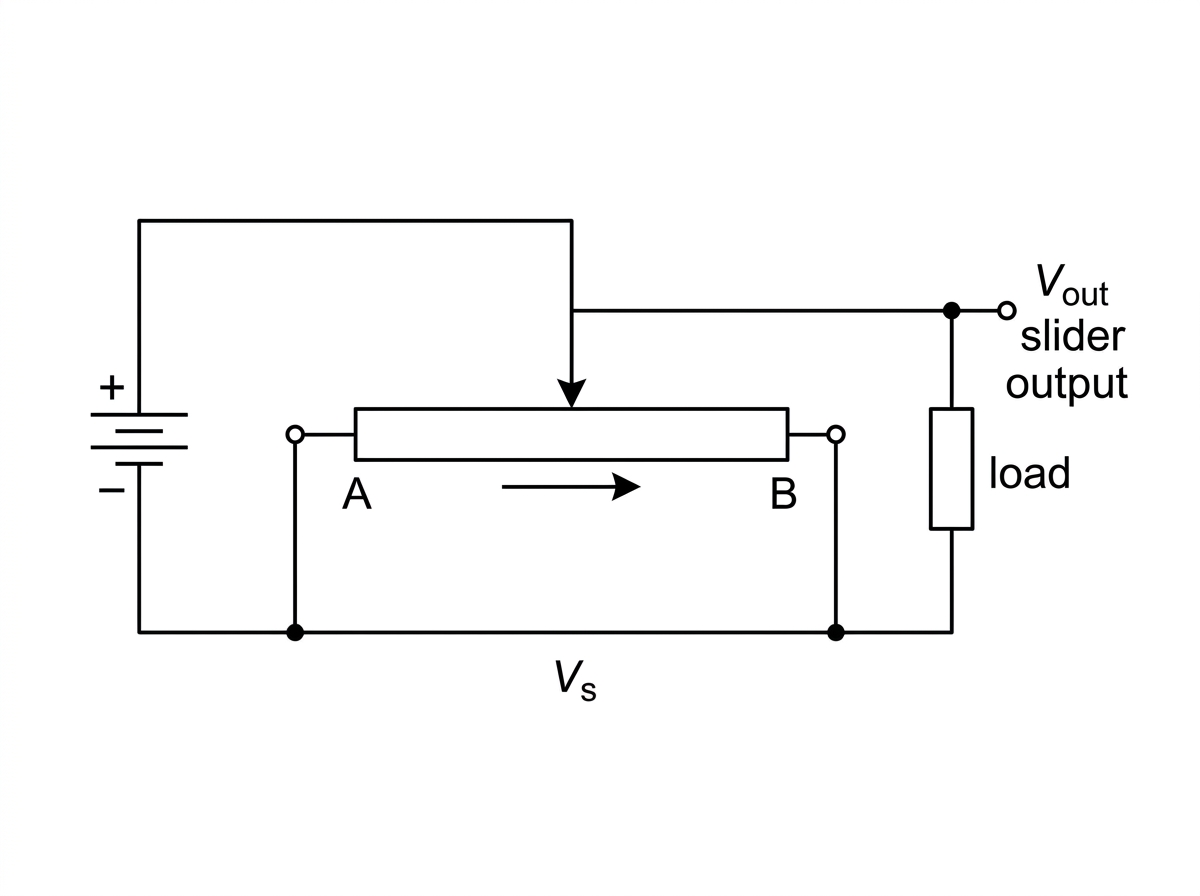

A potentiometer is a three-terminal variable resistor used as a potential divider, with a sliding contact that selects a fraction of the supply potential difference. In this arrangement, it can give a smoothly adjustable output potential difference from nearly zero up to nearly the full supply value.

A two-terminal variable resistor in series can control current, but it may not give a wide range of potential difference across a load unless its maximum resistance is much larger than the load resistance. A potentiometer is usually the better choice when the aim is to supply an adjustable voltage to another part of a circuit.

In a sensor circuit, a thermistor or LDR is often connected in series with a fixed resistor. The supply potential difference is shared in proportion to resistance, so as the sensor resistance changes, the potential difference across the sensor and across the fixed resistor change in predictable opposite ways.

This unloaded divider measures the output across the lower LDR.

Calculating the sensor output

Consider an upper fixed resistor of resistance RfixedR_{\text{fixed}} and a lower LDR of resistance RLDRR_{\text{LDR}}, connected across a supply potential difference VsV_s. Define VoutV_{\text{out}} as the potential difference across the LDR, measured from the lower supply rail to the junction of the resistors.

Assume negligible loading: the device connected to the output draws negligible current. The same current II therefore flows through both resistors. Their total series resistance gives

I=VsRfixed+RLDRI = \frac{V_s}{R_{\text{fixed}} + R_{\text{LDR}}}

Applying V=IRV = IR to the LDR gives the potential-divider equation:

Vout=IRLDR=VsRLDRRfixed+RLDRV_{\text{out}} = IR_{\text{LDR}} = V_s\frac{R_{\text{LDR}}}{R_{\text{fixed}} + R_{\text{LDR}}}

Worked example: An unloaded potential divider has a 6.0 V6.0\ \text{V} supply, an upper 2.0 kΩ2.0\ \text{k}\Omega fixed resistor and a lower LDR. Calculate the output across the LDR when its resistance is 4.0 kΩ4.0\ \text{k}\Omega, then when brighter light reduces its resistance to 1.0 kΩ1.0\ \text{k}\Omega.

  1. For RLDR=4.0 kΩR_{\text{LDR}} = 4.0\ \text{k}\Omega, substitute into the divider equation. Both resistances use the same unit, so their ratio is dimensionless:

    Vout=(6.0 V)4.0 kΩ2.0 kΩ+4.0 kΩ=4.0 VV_{\text{out}} = (6.0\ \text{V})\frac{4.0\ \text{k}\Omega}{2.0\ \text{k}\Omega + 4.0\ \text{k}\Omega} = 4.0\ \text{V}

  2. In brighter light, RLDR=1.0 kΩR_{\text{LDR}} = 1.0\ \text{k}\Omega:

    Vout=(6.0 V)1.0 kΩ2.0 kΩ+1.0 kΩ=2.0 VV_{\text{out}} = (6.0\ \text{V})\frac{1.0\ \text{k}\Omega}{2.0\ \text{k}\Omega + 1.0\ \text{k}\Omega} = 2.0\ \text{V}

Answer

Answer: The output across the LDR falls from 4.0 V4.0\ \text{V} to 2.0 V2.0\ \text{V} as the light becomes brighter.

Common mistake: Assuming that brighter light always increases the output voltage. The trend depends on where the output is measured: across the LDR it decreases, but across the fixed resistor it increases. In this example, the output across the fixed resistor rises from 2.0 V2.0\ \text{V} to 4.0 V4.0\ \text{V}.

Were those notes helpful?

B.4 Thermodynamics
