R1.1 Measuring enthalpy changes

Practice exam-style IB Chemistry questions for Measuring enthalpy changes, aligned with the syllabus and grouped by topic.

Verified by Dennis M.
Verified by Dennis M.
Paper
Difficulty
Status
Level
Question 1
SL ‱ Paper 1A
Easy
Calculator Permitted

Magnesium reacts with hydrochloric acid in an open beaker. The reacting chemicals are defined as the system and the temperature of the solution increases.

The energy transfer and classification of the system are:

A.

Energy is transferred from the system to the surroundings; open system

B.

Energy is transferred from the surroundings to the system; open system

C.

Energy is transferred from the system to the surroundings; isolated system

D.

Energy is transferred from the surroundings to the system; closed system

Question 2
SL ‱ Paper 1A
Easy
Calculator Permitted

The distinction between heat and temperature is:

A.

Heat is energy transferred due to a temperature difference; temperature is related to average particle kinetic energy

B.

Heat is average particle kinetic energy; temperature is energy transferred due to a temperature difference

C.

Heat and temperature both depend only on the mass of the reacting chemicals

D.

Heat and temperature both measure the total chemical potential energy of a sample

Question 3
SL ‱ Paper 1A
Easy
Calculator Permitted

The standard state of water when standard thermochemical data are quoted at 298 K298\ \text{K} and 100 kPa100\ \text{kPa} is:

A.

H2O(s)H_2O(s), because standard states refer to pure substances only

B.

H2O(l)H_2O(l), because liquid water is the most stable state under these conditions

C.

H2O(aq)H_2O(aq), because standard enthalpy changes are measured in solution

D.

H2O(g)H_2O(g), because water evaporates at room temperature

Question 4
SL ‱ Paper 1A
Easy
Calculator Permitted

Ammonium nitrate dissolves in water and the temperature of the solution decreases.

The sign of the enthalpy change for the dissolving process is:

A.

Positive, because energy is transferred from the system to the surroundings

B.

Positive, because energy is transferred from the surroundings to the system

C.

Negative, because the temperature of the system decreases

D.

Negative, because energy is transferred from the surroundings to the system

Question 5
SL ‱ Paper 1A
Easy
Calculator Permitted

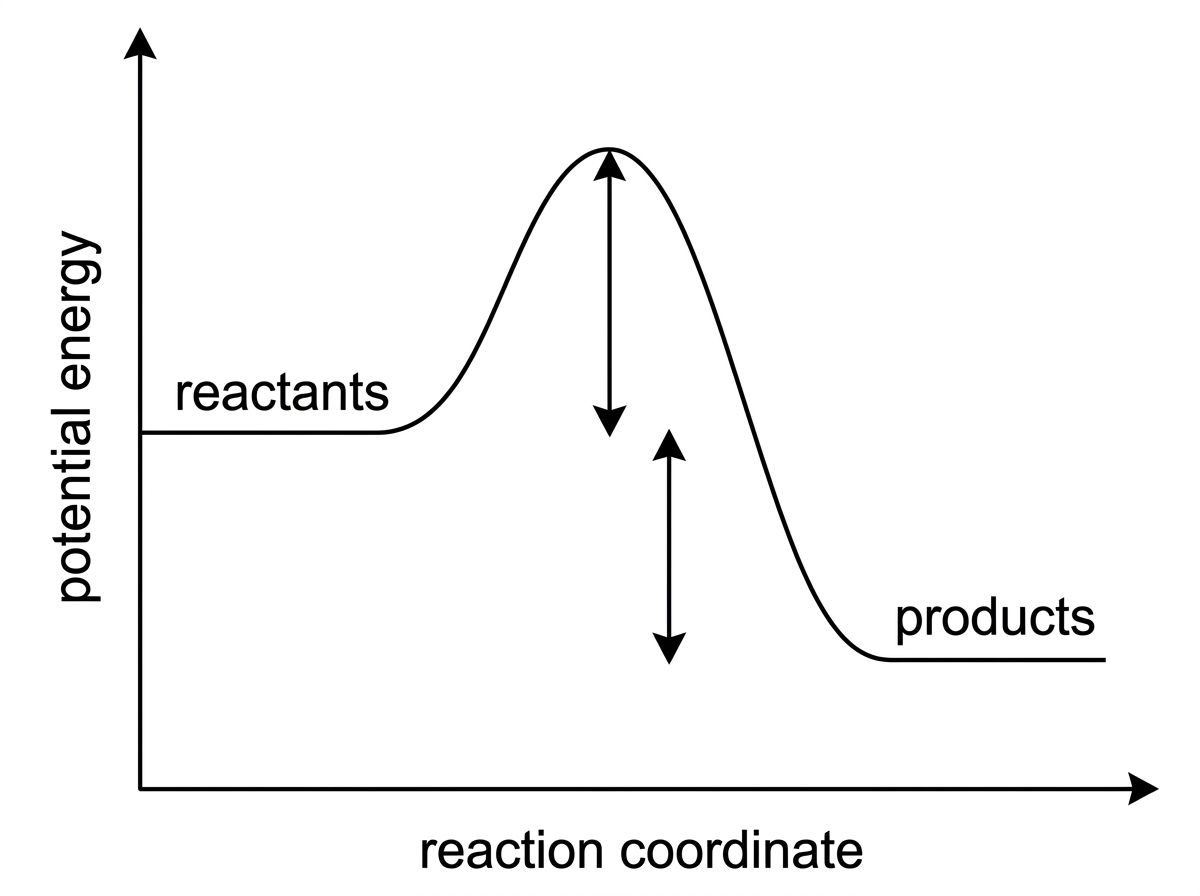

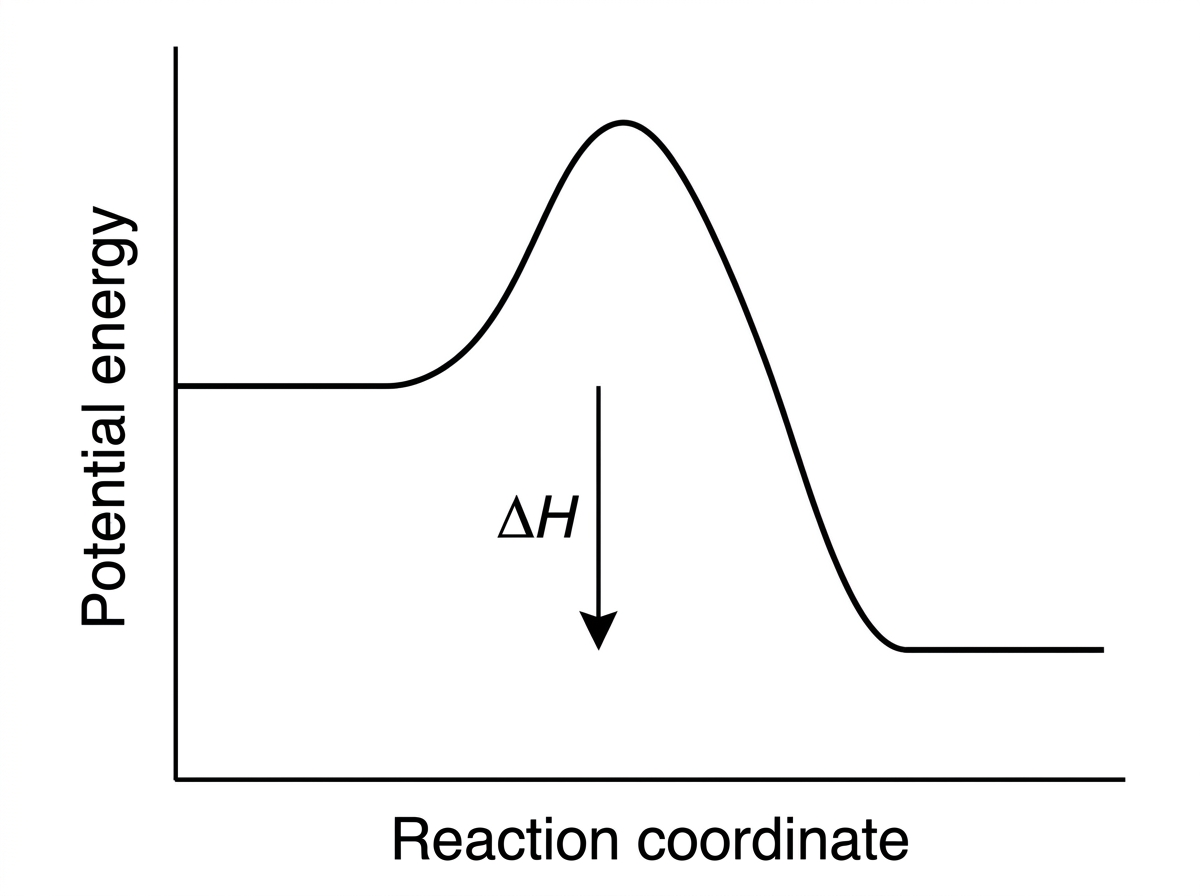

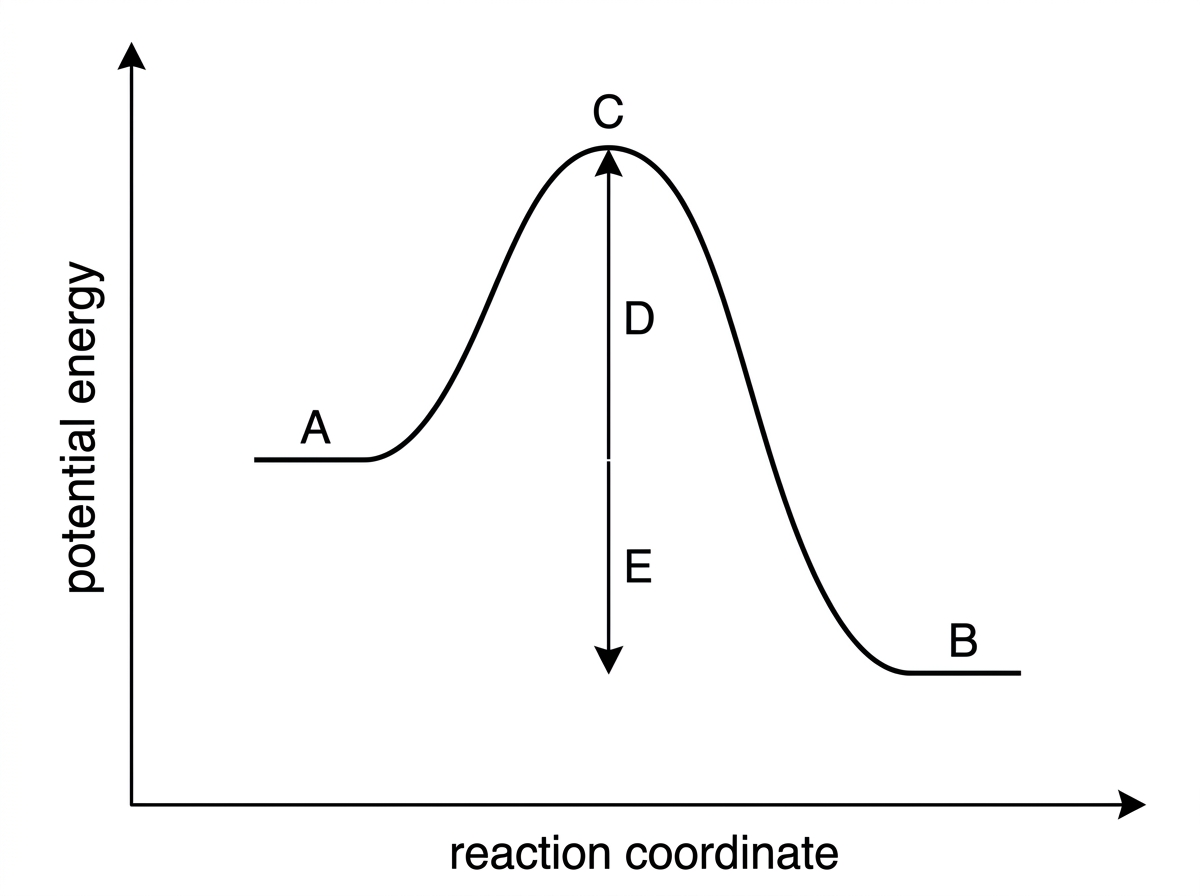

The energy profile shown represents a reaction.

The correct interpretation of the profile is:

A simple energy profile with vertical axis labelled “Potential energy” and horizontal axis labelled “Reaction coordinate”. The reactants are shown on a horizontal line at a higher potential energy than the products. A single smooth curve rises from the reactants to one peak and then falls to the products. A vertical arrow labelled $\Delta H$ points downward from the reactant level to the product level. No numerical values are included.
A.

The reaction is exothermic and the products are more stable than the reactants

B.

The reaction is exothermic and the products are less stable than the reactants

C.

The reaction is endothermic and the products are less stable than the reactants

D.

The reaction is endothermic and the products are more stable than the reactants

Question 6
SL ‱ Paper 1A
Easy
Calculator Permitted

A reaction in a polystyrene cup increases the temperature of 50.0 g50.0\ \text{g} of aqueous solution by 8.0 K8.0\ \text{K}. The specific heat capacity of the solution is assumed to be 4.18 J g−1 K−14.18\ \text{J g}^{-1}\ \text{K}^{-1}.

The heat energy gained by the solution is:

A.

16.7 kJ16.7\ \text{kJ}

B.

1.67 kJ1.67\ \text{kJ}

C.

0.334 kJ0.334\ \text{kJ}

D.

167 kJ167\ \text{kJ}

Question 7
SL ‱ Paper 2
Easy
Calculator Permitted

A student adds a strip of magnesium to dilute hydrochloric acid in an open beaker. The temperature of the solution increases during the reaction.

Mg(s)+2HCl(aq)→MgCl2(aq)+H2(g)\text{Mg}(s) + 2\text{HCl}(aq) \to \text{MgCl}_2(aq) + \text{H}_2(g)

A

Identify the system and the surroundings in this experiment.

[2]
Write your answer here...
B

Distinguish between heat and temperature.

[1]
Write your answer here...

0

Question 8
SL ‱ Paper 2
Easy
Calculator Permitted

A student dissolves ammonium nitrate in water. The temperature changes from 21.4∘C21.4^\circ\text{C} to 15.2∘C15.2^\circ\text{C}.

A

State whether the process is exothermic or endothermic.

[1]
Write your answer here...
B

Explain the sign of the enthalpy change for this process.

[2]
Write your answer here...

0

Question 9
SL ‱ Paper 2
Easy
Calculator Permitted

Thermochemical data are commonly quoted as standard enthalpy changes.

A

Define standard enthalpy change of reaction.

[2]
Write your answer here...
B

State the standard state of water at 298 K298\ \text{K} and 100 kPa100\ \text{kPa}.

[1]
Write your answer here...

0

Question 10
HL ‱ Paper 1A
Medium
Calculator Permitted

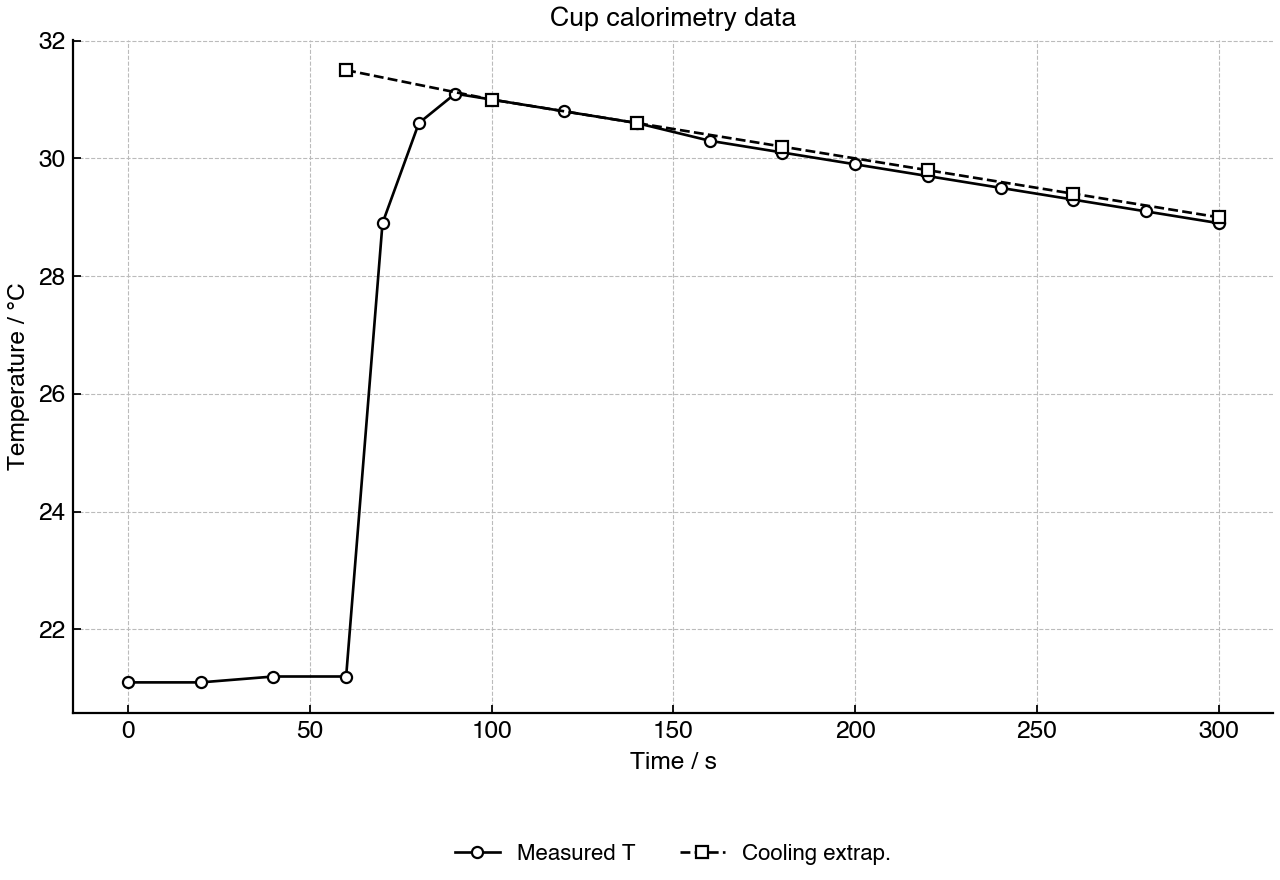

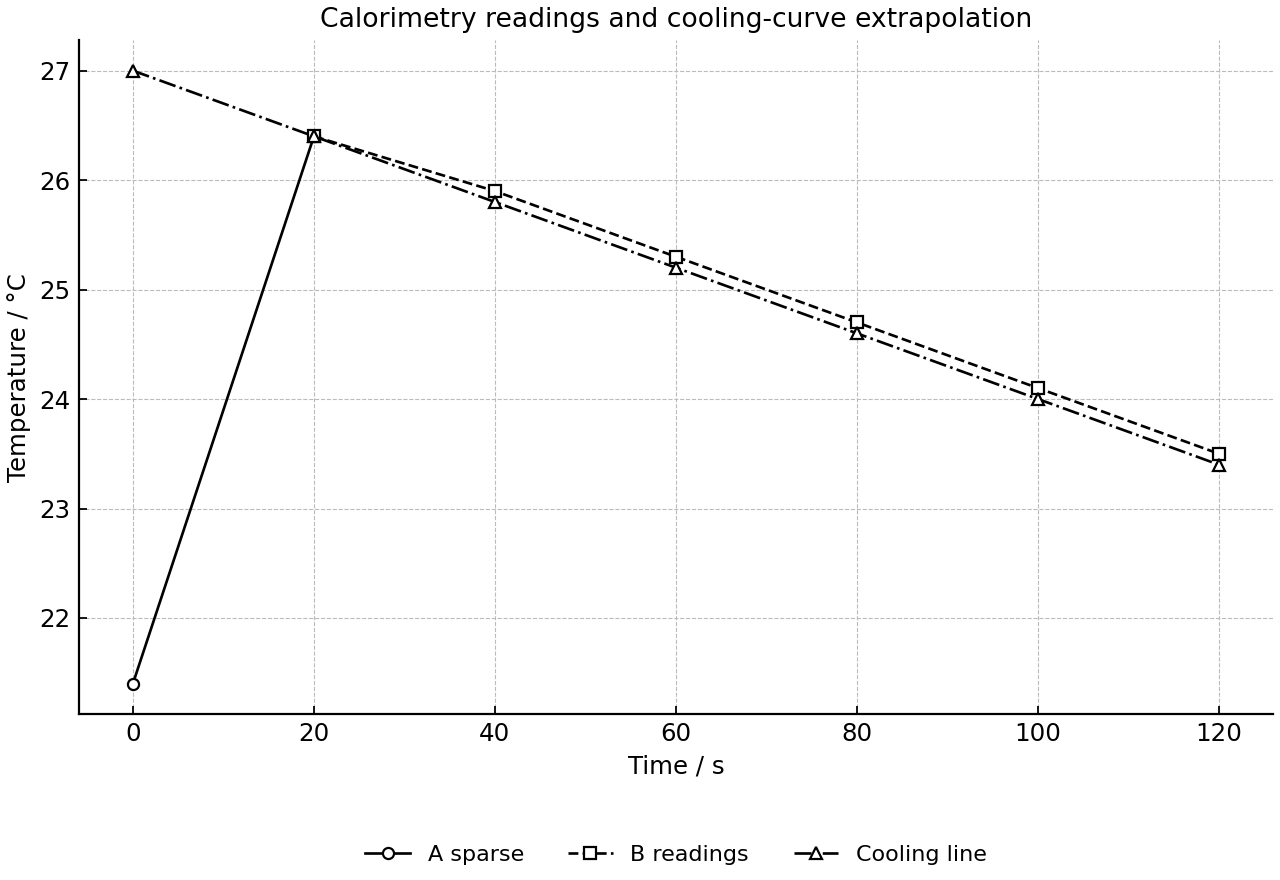

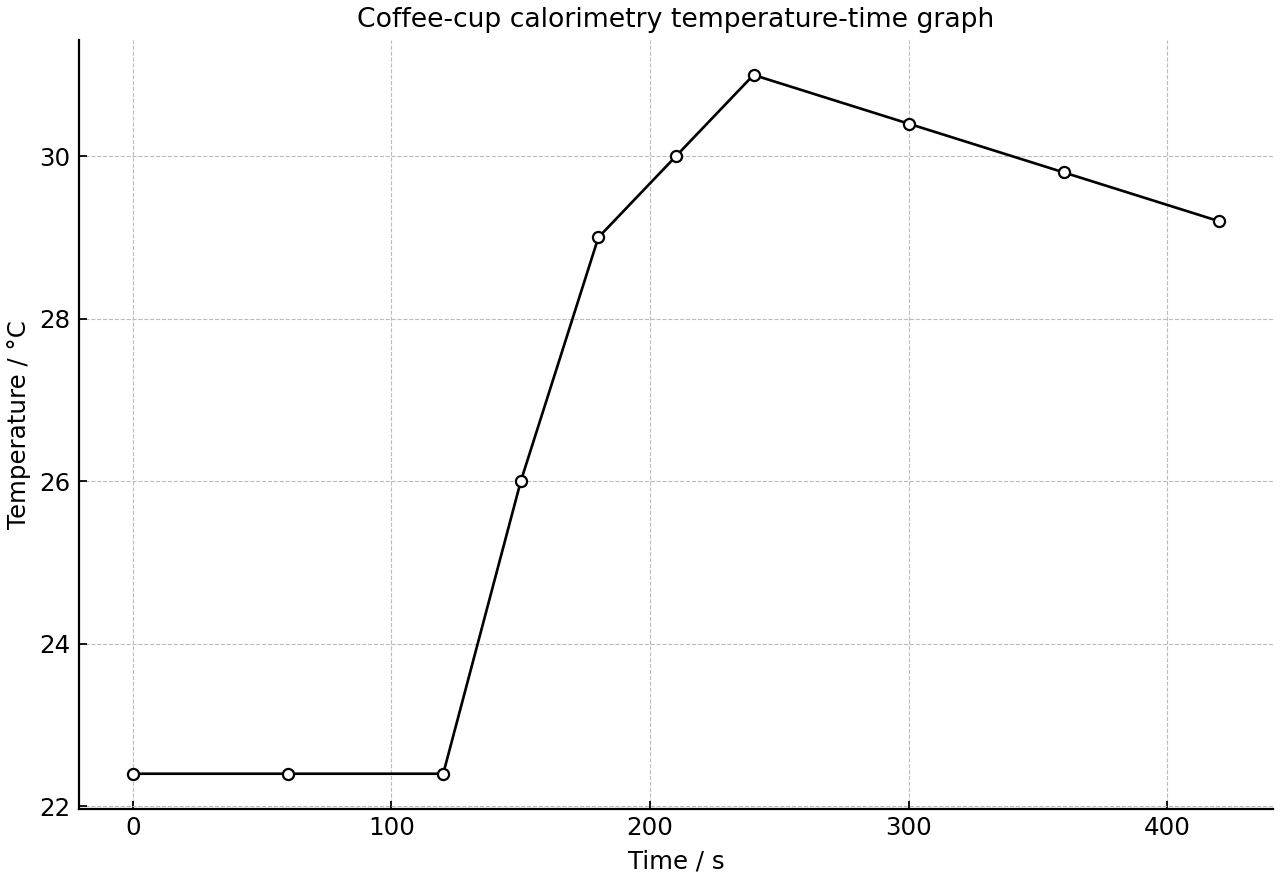

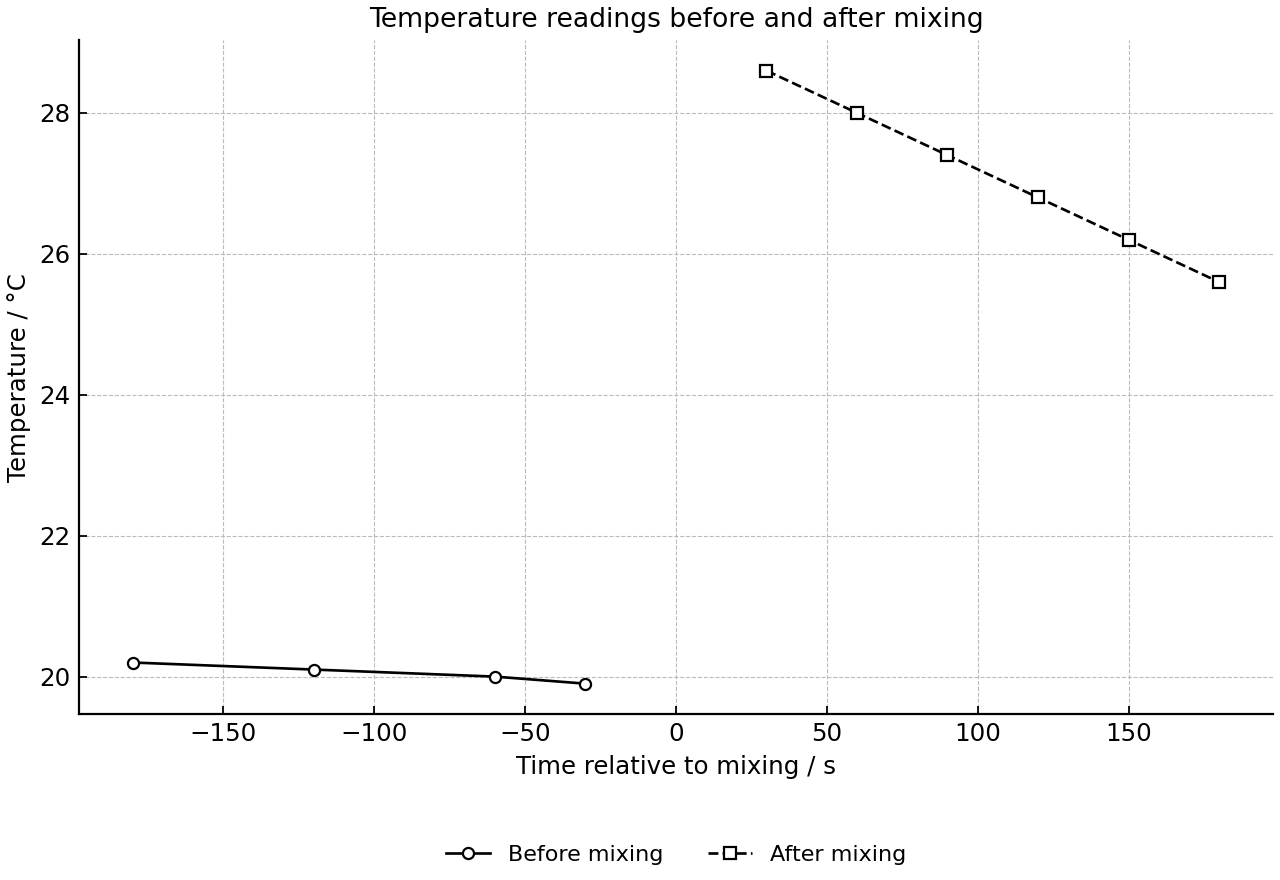

In a coffee-cup calorimetry experiment, the temperature is recorded before and after mixing the reactants at time tmt_m.

The temperature value that gives the most reliable estimate of ΔT\Delta T is obtained by:

Temperature-time graph for a coffee-cup calorimetry run.
A.

using the highest recorded temperature after mixing

B.

extrapolating the cooling curve back to the mixing time

C.

averaging all temperatures recorded before and after mixing

D.

using the final temperature after the solution has cooled

Question 11
HL ‱ Paper 1A
Medium
Calculator Permitted

An energy profile has reactants at 120 kJ mol−1120\ \text{kJ mol}^{-1}, products at 70 kJ mol−170\ \text{kJ mol}^{-1} and a maximum at 190 kJ mol−1190\ \text{kJ mol}^{-1}.

The forward activation energy and ΔH\Delta H for the reaction are:

A.

Ea=70 kJ mol−1E_a = 70\ \text{kJ mol}^{-1}; ΔH=+50 kJ mol−1\Delta H = +50\ \text{kJ mol}^{-1}

B.

Ea=120 kJ mol−1E_a = 120\ \text{kJ mol}^{-1}; ΔH=−50 kJ mol−1\Delta H = -50\ \text{kJ mol}^{-1}

C.

Ea=70 kJ mol−1E_a = 70\ \text{kJ mol}^{-1}; ΔH=−50 kJ mol−1\Delta H = -50\ \text{kJ mol}^{-1}

D.

Ea=190 kJ mol−1E_a = 190\ \text{kJ mol}^{-1}; ΔH=+50 kJ mol−1\Delta H = +50\ \text{kJ mol}^{-1}

Question 12
HL ‱ Paper 1A
Medium
Calculator Permitted

A combustion calorimetry experiment gives an experimental value for ΔHc\Delta H_c that is less negative than the data-book value.

The best explanation is:

A.

Some energy heats the air and apparatus rather than only the water

B.

The specific heat capacity of water is zero during combustion

C.

The oxygen is always the limiting reactant in the flame

D.

The fuel becomes the surroundings after it has been burned

Question 13
SL ‱ Paper 2
Medium
Calculator Permitted

A reaction has a positive enthalpy change, ΔH>0\Delta H > 0.

A

State the relative stability of the reactants and products.

[1]
Write your answer here...
B

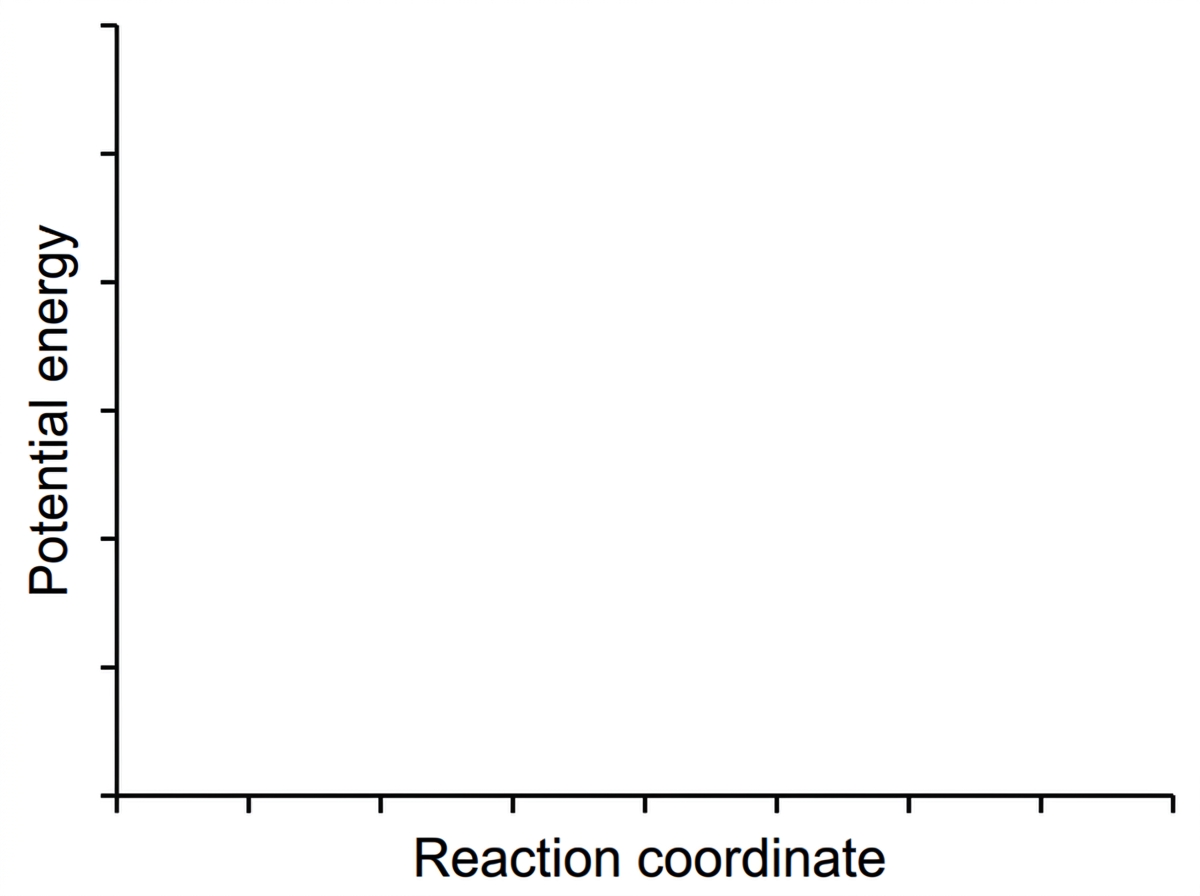

Sketch an energy profile for the reaction, including EaE_a and ΔH\Delta H.

[3]
Write your answer here...

0

Question 14
SL ‱ Paper 2
Medium
Calculator Permitted

A student mixes 50.0 cm350.0\ \text{cm}^3 of 1.00 mol dm−31.00\ \text{mol dm}^{-3} hydrochloric acid with 50.0 cm350.0\ \text{cm}^3 of 1.00 mol dm−31.00\ \text{mol dm}^{-3} sodium hydroxide solution in a polystyrene cup. The temperature rises from 22.5∘C22.5^\circ\text{C} to 29.2∘C29.2^\circ\text{C}.

Assume the density of the solution is 1.00 g cm−31.00\ \text{g cm}^{-3} and the specific heat capacity is 4.18 J g−1K−14.18\ \text{J g}^{-1}\text{K}^{-1}.

A

Calculate the heat transferred to the solution, in kJ\text{kJ}.

[2]
Write your answer here...
B

Calculate the amount, in mol, of water formed.

[1]
Write your answer here...
C

Determine the enthalpy change of neutralization, in kJ mol−1\text{kJ mol}^{-1}.

[1]
Write your answer here...

0

Question 15
HL ‱ Paper 2
Medium
Calculator Permitted

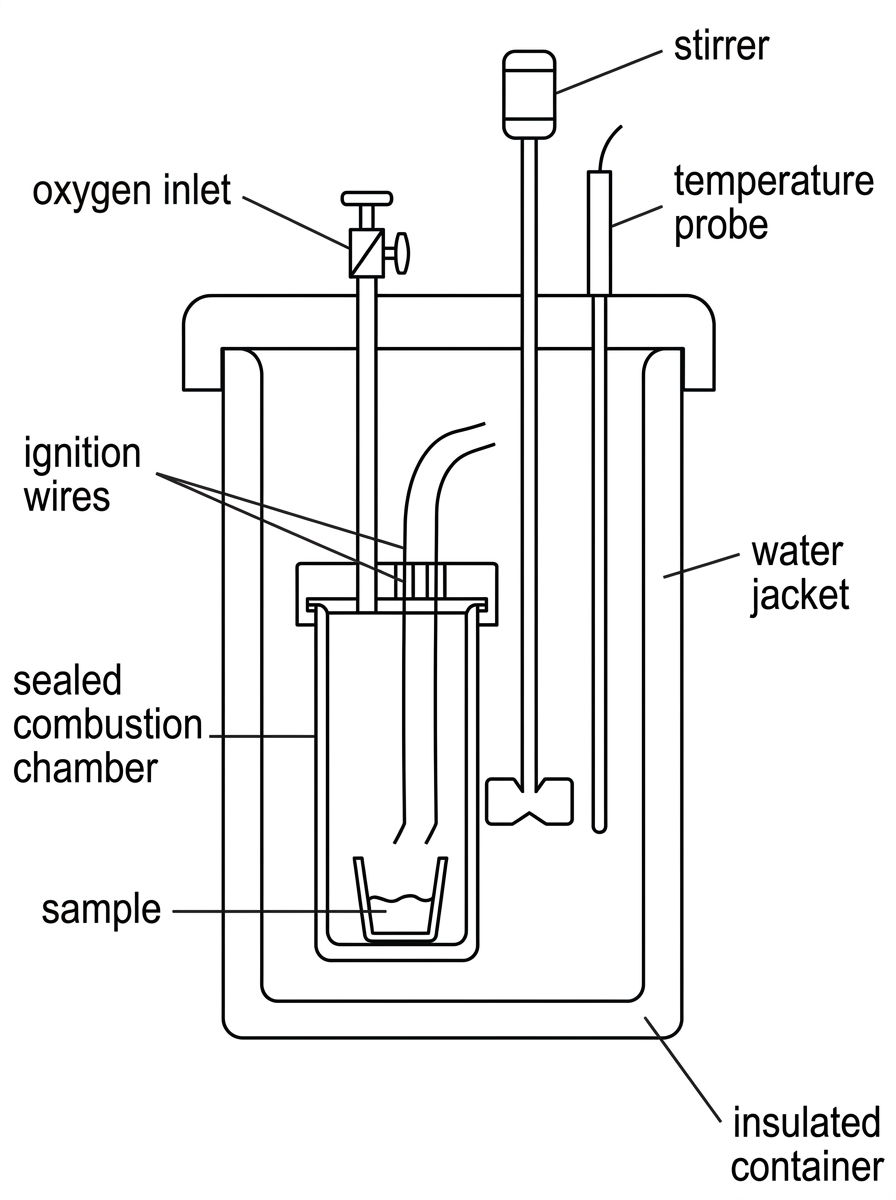

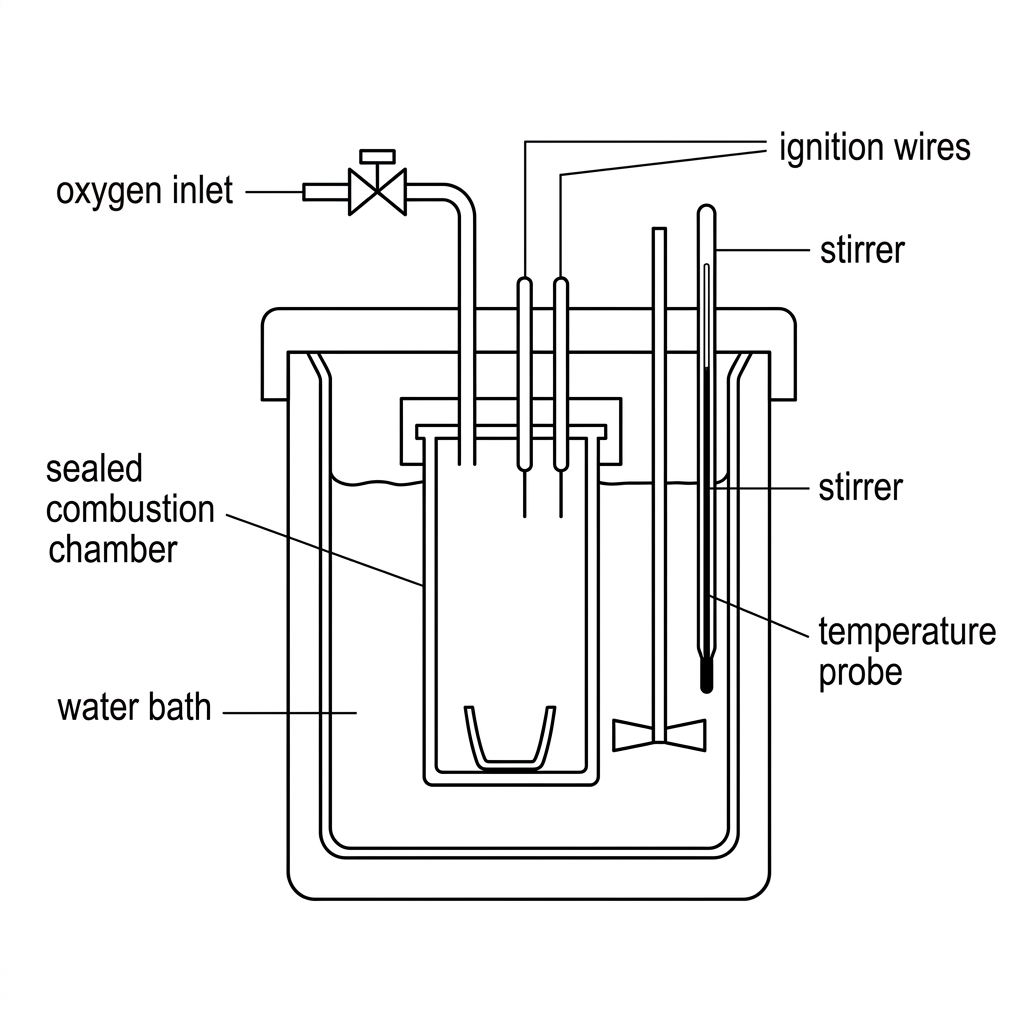

A bomb calorimeter can be used instead of a spirit burner to measure the energy released by combustion of a food sample.

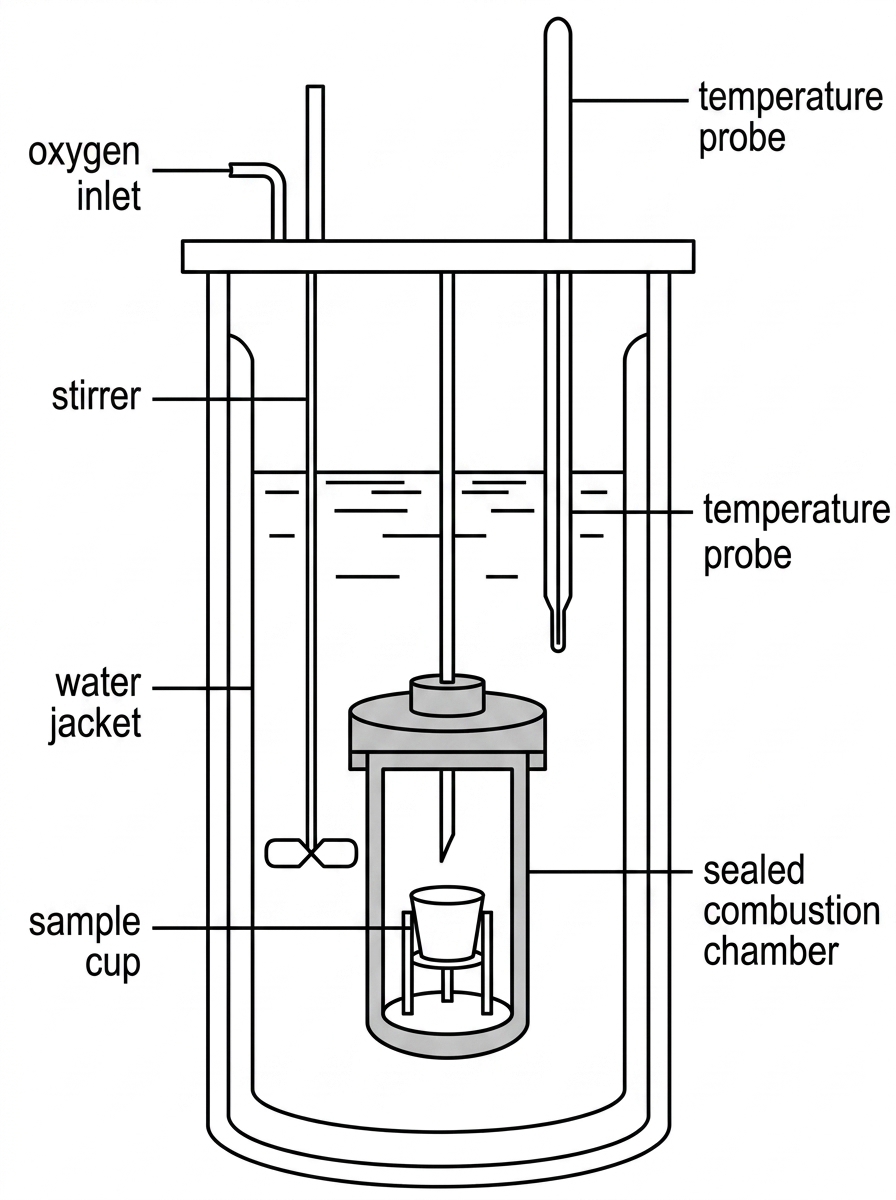

Simplified bomb calorimeter. The diagram shows a sealed strong combustion chamber containing a sample and oxygen, surrounded by water in an insulated container. Labels identify ignition wires, oxygen inlet or oxygen atmosphere, water jacket, stirrer and temperature probe. The diagram must not include numerical results.
A

State one reason why combustion is more complete in a bomb calorimeter than in a spirit-burner experiment.

[1]
Write your answer here...
B

Explain how the design improves the precision or accuracy of the temperature measurement.

[2]
Write your answer here...

0

Question 16
SL ‱ Paper 1B
Medium
Calculator Permitted

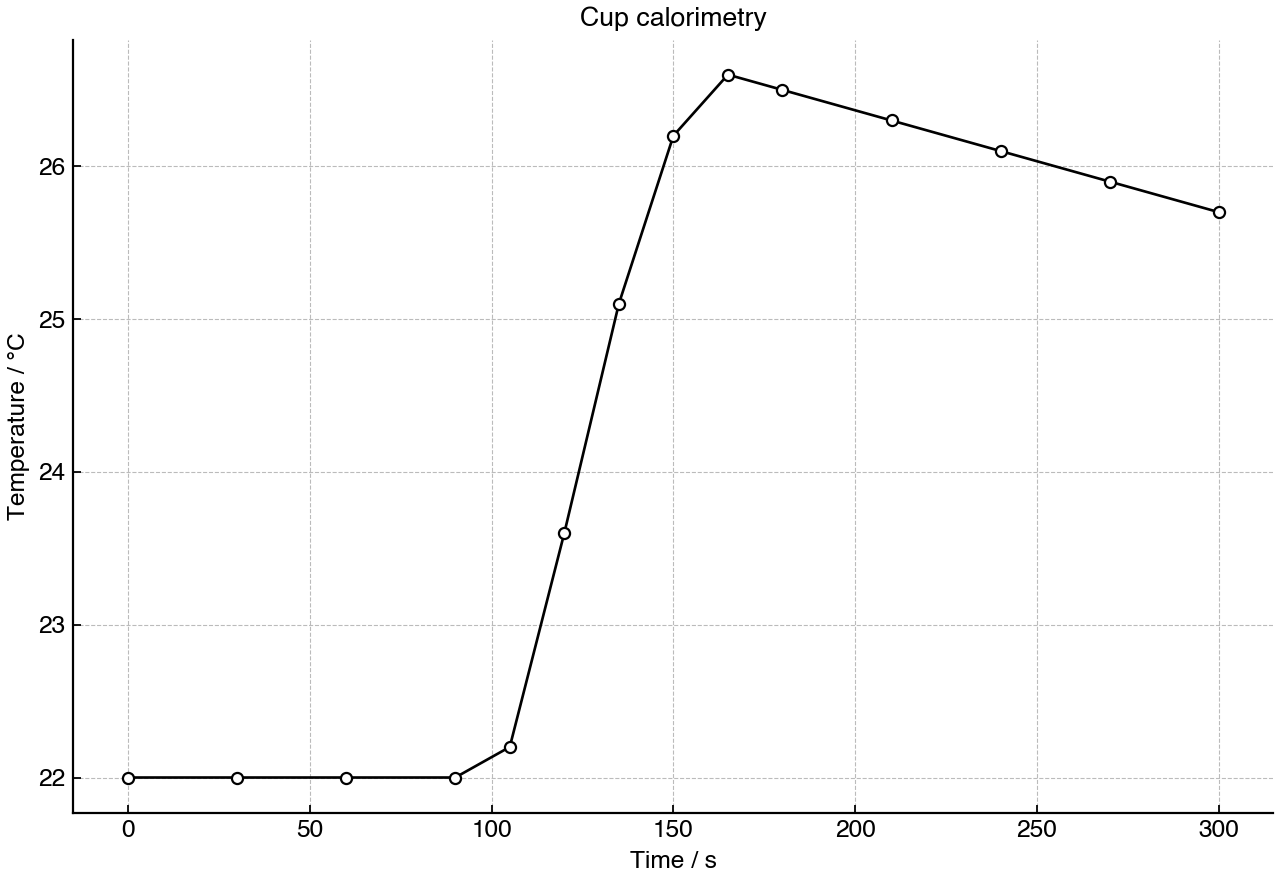

A student determines the enthalpy change for the reaction between magnesium and hydrochloric acid using a polystyrene cup calorimeter. The acid is in excess. The solution is assumed to have the same specific heat capacity as water, 4.18 J g−1 K−14.18\ \text{J g}^{-1}\ \text{K}^{-1}, and a density of 1.00 g cm−31.00\ \text{g cm}^{-3}.

Measurement / unitValue
Volume of hydrochloric acid / cm^350.0
Initial temperature / °C20.0
Highest temperature reached / °C32.0
Mass of magnesium / g0.120
A

Calculate the temperature change, ΔT\Delta T, for the solution.

[1]
Write your answer here...
B

Calculate the heat energy transferred to the solution, in kJ.

[1]
Write your answer here...
C

Determine the enthalpy change of reaction, in kJ mol−1\text{kJ mol}^{-1}, with respect to magnesium.

[2]
Write your answer here...

0

Question 17
SL ‱ Paper 1B
Medium
Calculator Permitted

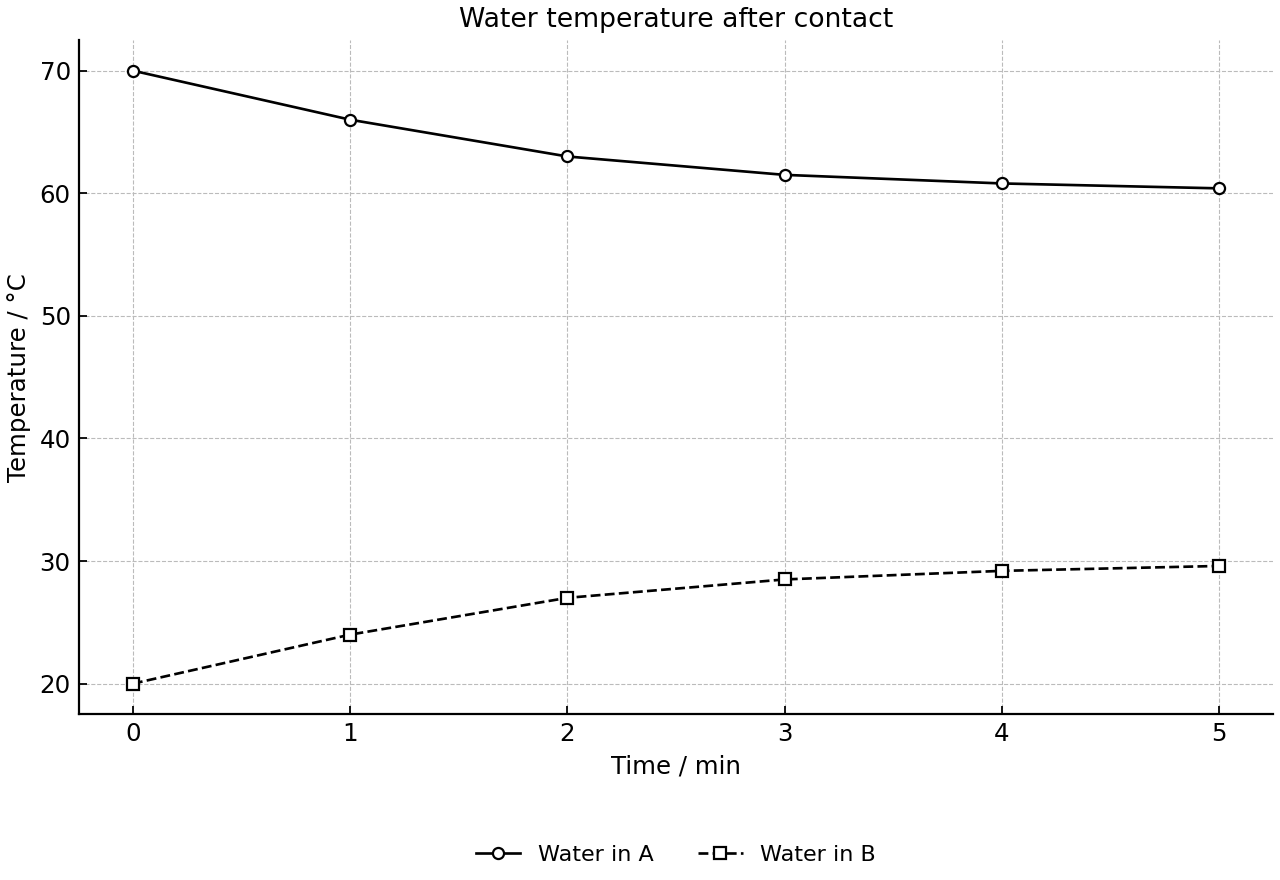

Temperature probes were placed in two beakers. Beaker A contained water at a higher initial temperature than the metal block added to it. Beaker B contained water at a lower initial temperature than the metal block added to it. The graph shows the temperature changes after contact.

Temperature of water in two beakers after contact with a metal block.
A

State the beaker in which energy is transferred from the metal block to the water as heat.

[1]
Write your answer here...
B

Explain why the temperature changes become smaller with time in both beakers.

[2]
Write your answer here...

0

Question 18
HL ‱ Paper 1A
Medium
Calculator Permitted

A spirit burner containing ethanol is used to heat 100.0 g100.0\ \text{g} of water. The temperature of the water increases by 26.3 K26.3\ \text{K}. The mass of ethanol burned is 0.230 g0.230\ \text{g} and Mr(ethanol)=46.0M_r(\text{ethanol}) = 46.0. Assume c(water)=4.18 J g−1 K−1c(\text{water}) = 4.18\ \text{J g}^{-1}\ \text{K}^{-1}.

The experimental enthalpy change of combustion of ethanol is:

A.

−2200 kJ mol−1-2200\ \text{kJ mol}^{-1}

B.

+47.8 kJ mol−1+47.8\ \text{kJ mol}^{-1}

C.

−47.8 kJ mol−1-47.8\ \text{kJ mol}^{-1}

D.

+2200 kJ mol−1+2200\ \text{kJ mol}^{-1}

Question 19
HL ‱ Paper 1A
Medium
Calculator Permitted

In a neutralization experiment, 50.0 cm350.0\ \text{cm}^3 of 1.00 mol dm−31.00\ \text{mol dm}^{-3} hydrochloric acid is mixed with 50.0 cm350.0\ \text{cm}^3 of 1.00 mol dm−31.00\ \text{mol dm}^{-3} sodium hydroxide. The temperature rise is 6.70 K6.70\ \text{K}. The density of the solution is 1.00 g cm−31.00\ \text{g cm}^{-3} and c=4.18 J g−1 K−1c = 4.18\ \text{J g}^{-1}\ \text{K}^{-1}.

The enthalpy change of neutralization per mole of water formed is:

A.

−28.0 kJ mol−1-28.0\ \text{kJ mol}^{-1}

B.

+28.0 kJ mol−1+28.0\ \text{kJ mol}^{-1}

C.

+56.0 kJ mol−1+56.0\ \text{kJ mol}^{-1}

D.

−56.0 kJ mol−1-56.0\ \text{kJ mol}^{-1}

Question 20
HL ‱ Paper 1A
Medium
Calculator Permitted

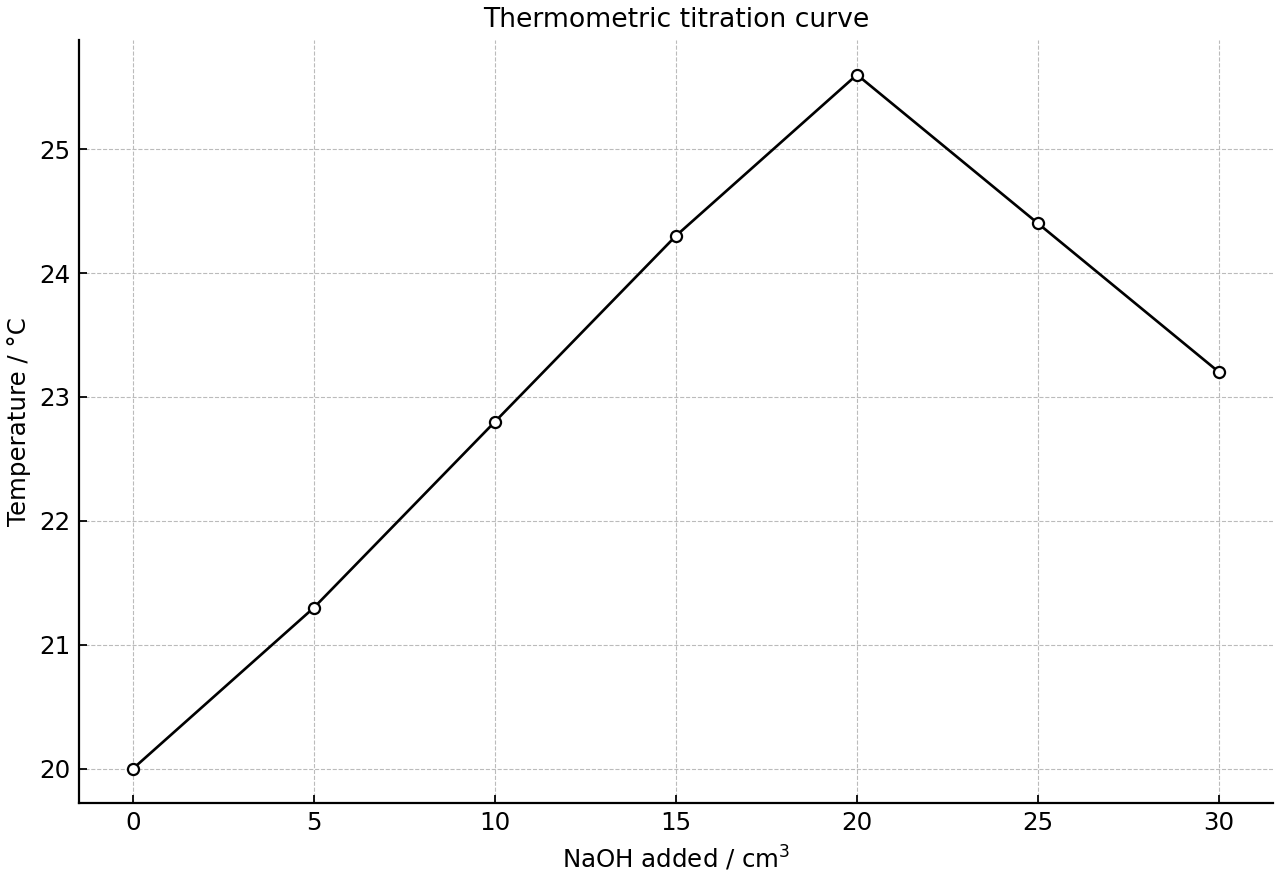

A thermometric titration is carried out by adding sodium hydroxide solution to 25.0 cm325.0\ \text{cm}^3 of hydrochloric acid. The maximum temperature occurs after 20.0 cm320.0\ \text{cm}^3 of 0.200 mol dm−30.200\ \text{mol dm}^{-3} sodium hydroxide has been added.

The concentration of the hydrochloric acid is:

A.

0.160 mol dm−30.160\ \text{mol dm}^{-3}

B.

0.200 mol dm−30.200\ \text{mol dm}^{-3}

C.

0.250 mol dm−30.250\ \text{mol dm}^{-3}

D.

0.100 mol dm−30.100\ \text{mol dm}^{-3}

Question 21
SL ‱ Paper 2
Medium
Calculator Permitted

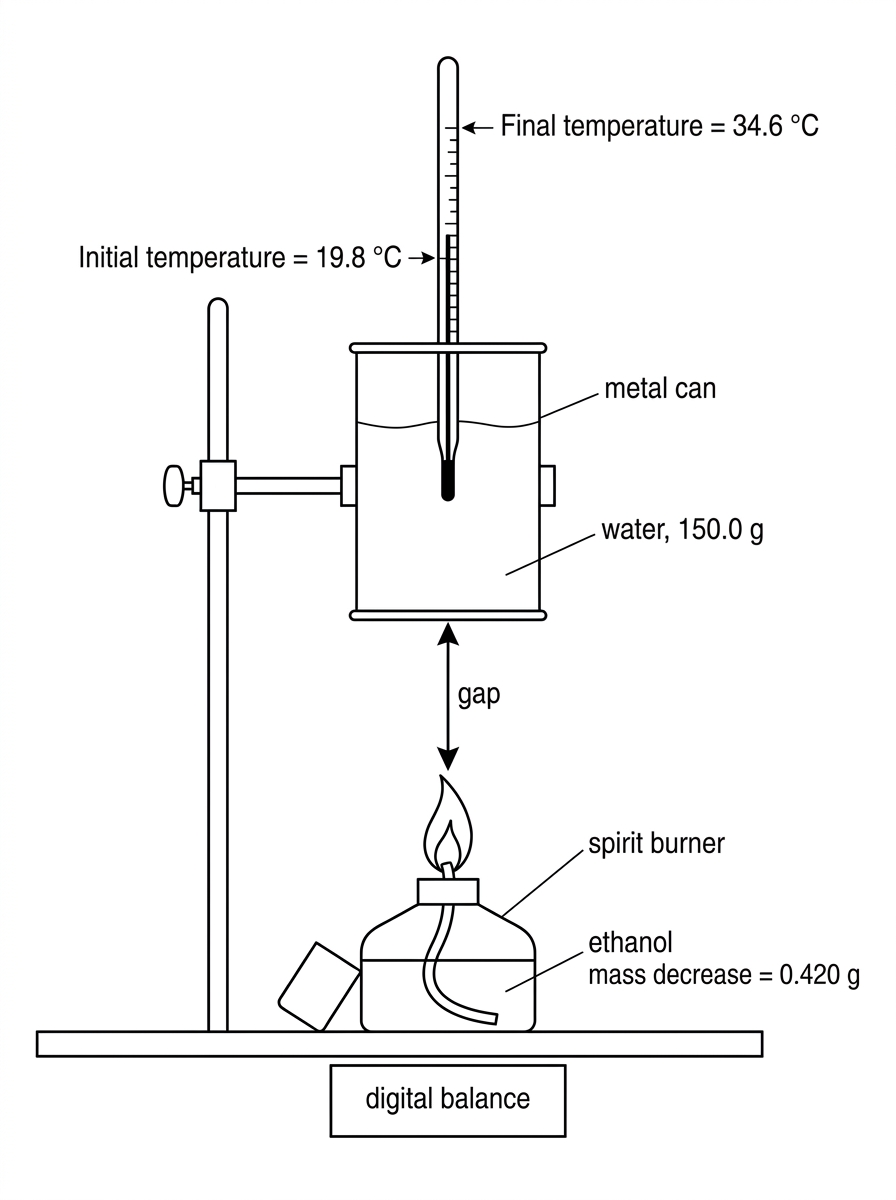

Ethanol is burned in a spirit burner to heat 150.0 g150.0\ \text{g} of water. The temperature of the water increases from 19.8∘C19.8^\circ\text{C} to 34.6∘C34.6^\circ\text{C}. The mass of the spirit burner decreases by 0.420 g0.420\ \text{g}.

Use c(water)=4.18 J g−1K−1c(\text{water}) = 4.18\ \text{J g}^{-1}\text{K}^{-1} and M(C2H5OH)=46.08 g mol−1M(\text{C}_2\text{H}_5\text{OH}) = 46.08\ \text{g mol}^{-1}.

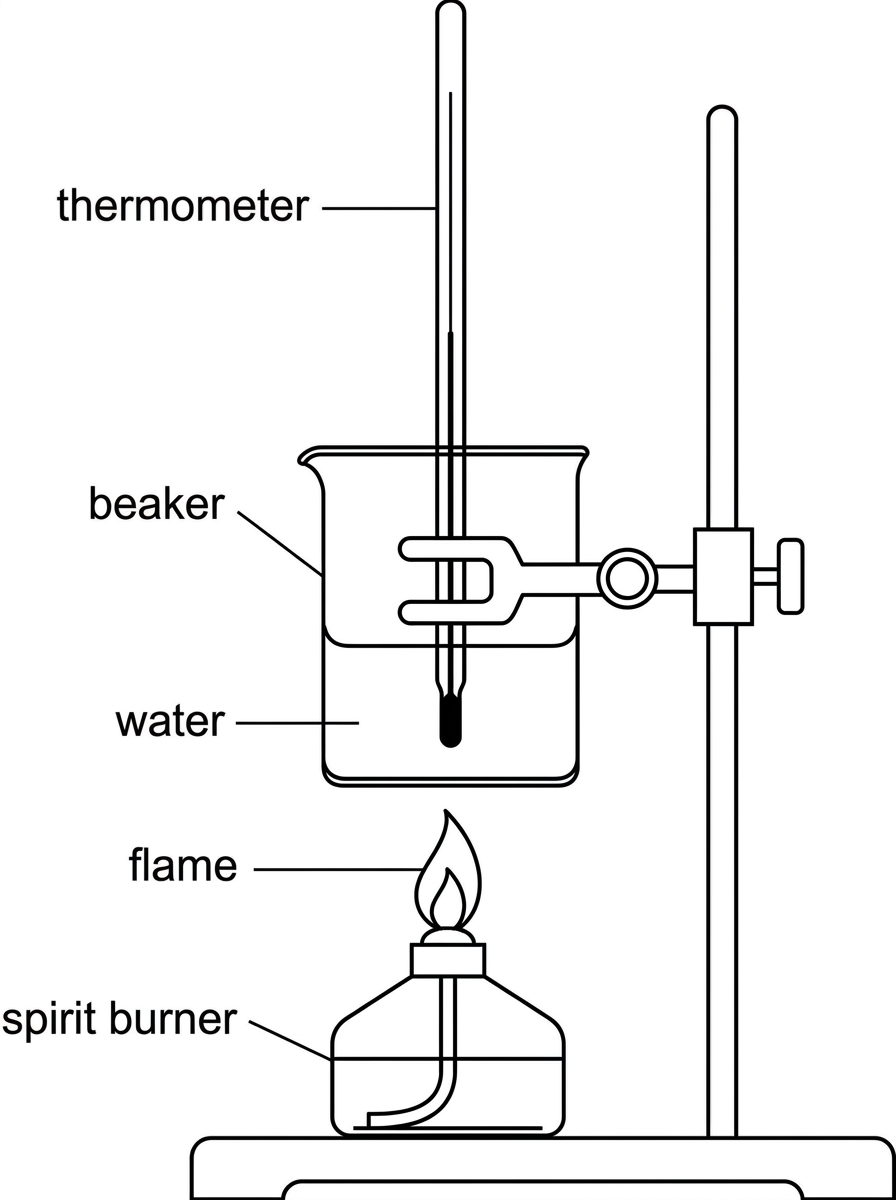

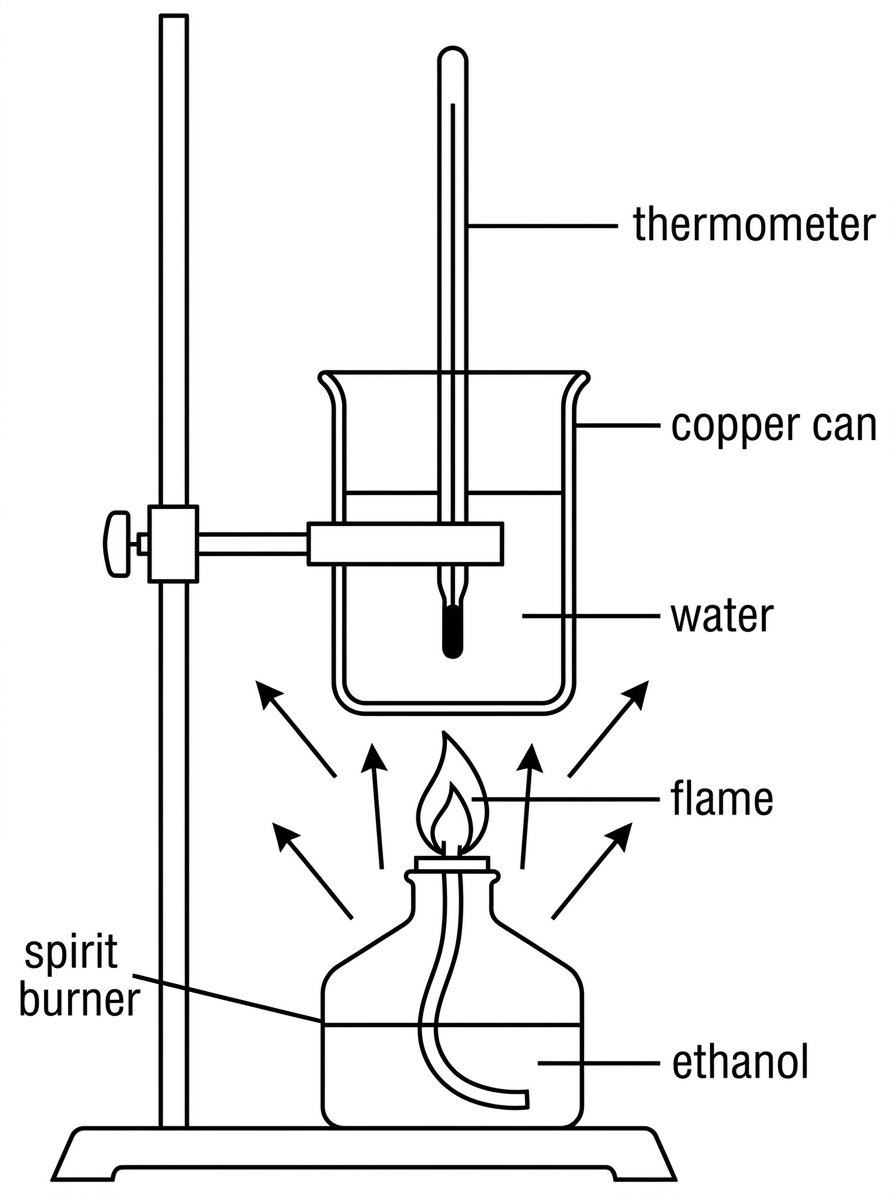

Apparatus for combustion calorimetry using a spirit burner below a metal can or beaker of water. Labels show the spirit burner containing ethanol, flame, water in the container, thermometer, clamp or support, and the gap between flame and container. The diagram must not show calculated heat or enthalpy values.
A

Calculate the heat transferred to the water, in kJ\text{kJ}.

[1]
Write your answer here...
B

Calculate the experimental enthalpy change of combustion of ethanol, in kJ mol−1\text{kJ mol}^{-1}.

[2]
Write your answer here...
C

Suggest why the experimental value is less exothermic than a data-book value.

[1]
Write your answer here...

0

Question 22
HL ‱ Paper 2
Medium
Calculator Permitted

A reaction is carried out in a polystyrene cup and the temperature is recorded using a data logger. The reactants are mixed at 3.0 min3.0\ \text{min}. Extrapolation of the cooling curve gives a maximum temperature of 35.4∘C35.4^\circ\text{C} at the mixing time. The initial temperature was 22.0∘C22.0^\circ\text{C}.

The total mass of solution is 80.0 g80.0\ \text{g}, c=4.18 J g−1K−1c = 4.18\ \text{J g}^{-1}\text{K}^{-1}, and the limiting reactant has amount 0.0200 mol0.0200\ \text{mol}.

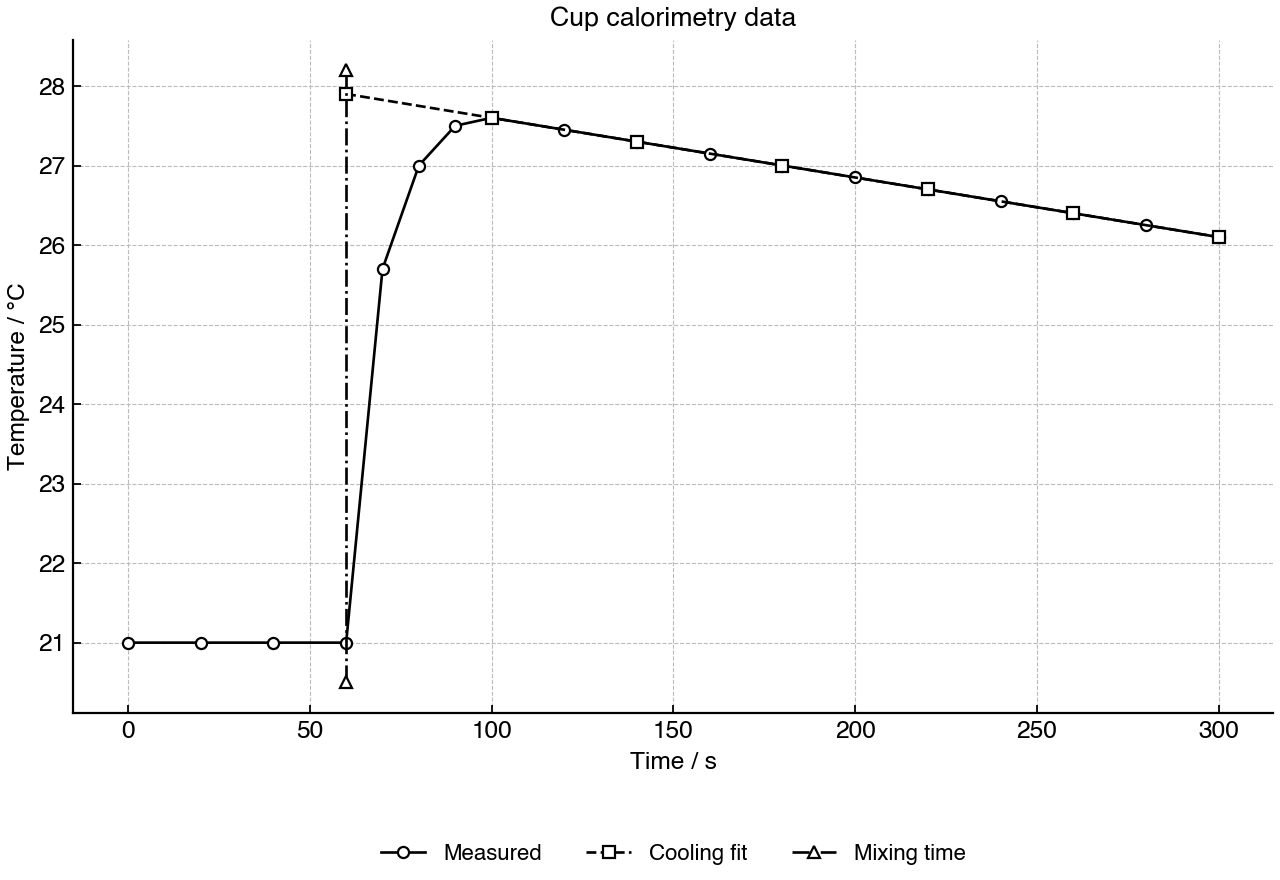

Temperature-time trace with measured readings and cooling fit.
A

Explain why the cooling curve is extrapolated back to the mixing time.

[1]
Write your answer here...
B

Calculate the temperature change used for the enthalpy calculation.

[1]
Write your answer here...
C

Calculate the enthalpy change of reaction, in kJ mol−1\text{kJ mol}^{-1}.

[2]
Write your answer here...

0

Question 23
HL ‱ Paper 2
Medium
Calculator Permitted

Sulfuric acid reacts with sodium hydroxide according to the equation:

H2SO4(aq)+2NaOH(aq)→Na2SO4(aq)+2H2O(l)\text{H}_2\text{SO}_4(aq) + 2\text{NaOH}(aq) \to \text{Na}_2\text{SO}_4(aq) + 2\text{H}_2\text{O}(l)

A student mixes 20.0 cm320.0\ \text{cm}^3 of 0.400 mol dm−30.400\ \text{mol dm}^{-3} sulfuric acid with 25.0 cm325.0\ \text{cm}^3 of 1.20 mol dm−31.20\ \text{mol dm}^{-3} sodium hydroxide. The temperature increases by 9.5 K9.5\ \text{K}. Assume the density of the final solution is 1.00 g cm−31.00\ \text{g cm}^{-3} and c=4.18 J g−1K−1c = 4.18\ \text{J g}^{-1}\text{K}^{-1}.

A

Determine the limiting reactant.

[2]
Write your answer here...
B

Calculate the heat transferred to the solution.

[1]
Write your answer here...
C

Calculate ΔH\Delta H for the reaction as written.

[1]
Write your answer here...

0

Question 24
HL ‱ Paper 2
Medium
Calculator Permitted

A student determines the enthalpy change of a neutralization reaction using a polystyrene cup. The experimental value is −48 kJ mol−1-48\ \text{kJ mol}^{-1}, while a data-book value is −57 kJ mol−1-57\ \text{kJ mol}^{-1}.

A

Explain why heat loss causes the experimental value to be less exothermic.

[2]
Write your answer here...
B

Suggest two improvements to reduce this systematic error.

[2]
Write your answer here...

0

Question 25
HL ‱ Paper 2
Medium
Calculator Permitted

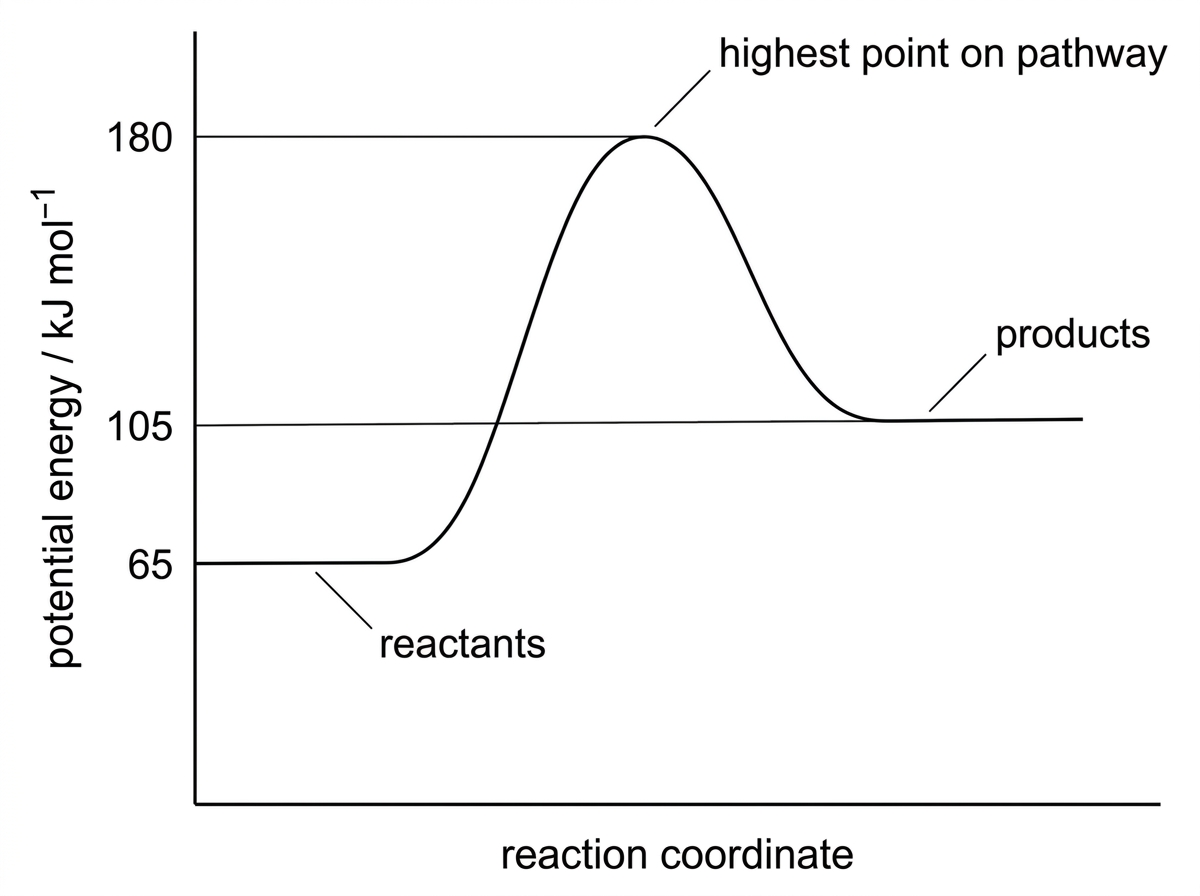

The energy profile for a reaction shows the reactants at 65 kJ mol−165\ \text{kJ mol}^{-1}, the products at 105 kJ mol−1105\ \text{kJ mol}^{-1}, and the highest point on the pathway at 180 kJ mol−1180\ \text{kJ mol}^{-1}.

Energy profile with potential energy on the y-axis and reaction coordinate on the x-axis. Reactants, products and the highest point on the reaction pathway are labelled. The profile shows products above reactants and a single peak above both. The diagram supports reading relative energy levels without showing the calculated values of $E_a$ or $\Delta H$.
A

Calculate ΔH\Delta H for the reaction.

[1]
Write your answer here...
B

Calculate the activation energy for the forward reaction.

[1]
Write your answer here...
C

Explain whether the products or reactants are more stable.

[2]
Write your answer here...

0

Question 26
SL ‱ Paper 1B
Medium
Calculator Permitted

The energy profile for a reaction is shown.

An energy profile diagram with potential energy on the vertical axis and reaction coordinate on the horizontal axis. Reactants, products, peak of the curve, activation energy arrow, and enthalpy change arrow are labelled with letters but not named. Products should be at a lower potential energy than reactants.
A

State whether the reaction is endothermic or exothermic.

[1]
Write your answer here...
B

Identify the labelled arrow that represents ΔH\Delta H.

[1]
Write your answer here...
C

Explain the relative stability of the reactants and products.

[2]
Write your answer here...

0

Question 27
SL ‱ Paper 1B
Medium
Calculator Permitted

A student investigates the enthalpy change of combustion of ethanol using a spirit burner to heat water. The specific heat capacity of water is 4.18 J g−1 K−14.18\ \text{J g}^{-1}\ \text{K}^{-1} and Mr(ethanol)=46.1M_r(\text{ethanol})=46.1.

Measurement / unitValue
Burner + ethanol mass before heating / g61.872
Burner + ethanol mass after heating / g61.232
Water mass / g150.0
Initial water temperature / °C20.0
Final water temperature / °C36.5
A

Calculate the amount, in mol, of ethanol burned.

[1]
Write your answer here...
B

Calculate the heat energy gained by the water, in kJ.

[2]
Write your answer here...
C

Determine the experimental enthalpy change of combustion of ethanol, in kJ mol−1\text{kJ mol}^{-1}.

[1]
Write your answer here...
D

Suggest why the experimental value is less exothermic than a data-book value.

[1]
Write your answer here...

0

Question 28
SL ‱ Paper 1B
Medium
Calculator Permitted

A thermometric titration is carried out by adding sodium hydroxide solution to hydrochloric acid in a polystyrene cup. The temperature is recorded after each addition.

Recorded temperature against volume of NaOH added during a titration.
A

Use the graph to estimate the equivalence volume.

[1]
Write your answer here...
B

Explain why the temperature reaches a maximum near the equivalence volume.

[2]
Write your answer here...
C

Suggest one reason for using extrapolated lines rather than the single highest recorded temperature.

[1]
Write your answer here...

0

Question 29
HL ‱ Paper 2
Medium
Calculator Permitted

In a thermometric titration, sodium hydroxide solution is added to 25.00 cm325.00\ \text{cm}^3 of hydrochloric acid of unknown concentration. The sodium hydroxide concentration is 1.00 mol dm−31.00\ \text{mol dm}^{-3}. The temperature rises to a maximum when 20.0 cm320.0\ \text{cm}^3 of sodium hydroxide has been added.

Assume the total mass of solution at the maximum temperature is 45.0 g45.0\ \text{g}, c=4.18 J g−1K−1c = 4.18\ \text{J g}^{-1}\text{K}^{-1}, and the temperature rise at the maximum is 5.6 K5.6\ \text{K}.

Thermometric titration curve of temperature against volume of sodium hydroxide added.
A

State the volume of sodium hydroxide at the equivalence point.

[1]
Write your answer here...
B

Calculate the concentration of the hydrochloric acid.

[1]
Write your answer here...
C

Calculate the enthalpy change of neutralization, in kJ mol−1\text{kJ mol}^{-1}.

[2]
Write your answer here...

0

Question 30
SL ‱ Paper 1B
Hard
Calculator Permitted

A student dissolves ammonium nitrate in water in a polystyrene cup and records the temperature every 30 s30\ \text{s}. The solution is assumed to have a mass of 100.0 g100.0\ \text{g} and specific heat capacity 4.18 J g−1 K−14.18\ \text{J g}^{-1}\ \text{K}^{-1}.

Temperature of the solution during dissolution of ammonium nitrate.
A

State the evidence from the graph that dissolving ammonium nitrate is endothermic.

[1]
Write your answer here...
B

Calculate the heat energy change of the solution, in kJ, using the corrected temperature change from the graph.

[2]
Write your answer here...
C

Explain the sign of the enthalpy change for dissolving ammonium nitrate.

[1]
Write your answer here...
D

Suggest one improvement to reduce uncertainty in the corrected temperature change.

[1]
Write your answer here...

0

Question 31
HL ‱ Paper 1B
Hard
Calculator Permitted

Two students determine the enthalpy change for the same neutralization reaction. Student A uses the maximum recorded temperature. Student B records temperatures before and after mixing and extrapolates both lines to the mixing time.

Temperature readings around the mixing time in a neutralization experiment.
A

Identify which method gives the larger magnitude for ΔH\Delta H.

[1]
Write your answer here...
B

Explain why the extrapolated temperature gives a more reliable value of ΔT\Delta T.

[2]
Write your answer here...
C

Evaluate whether heat loss is a random or systematic error in this experiment.

[2]
Write your answer here...

0

Question 32
HL ‱ Paper 1B
Hard
Calculator Permitted

A reaction is investigated in a coffee-cup calorimeter. Solutions of potassium hydroxide and nitric acid are mixed. The density of each solution is 1.00 g cm−31.00\ \text{g cm}^{-3} and the specific heat capacity is 4.18 J g−1 K−14.18\ \text{J g}^{-1}\ \text{K}^{-1}.

PropertyKOH(aq)HNO3(aq)After mixing
Concentration / mol dm^-31.001.00—
Volume added / cm^325.020.045.0
Initial temperature / °C21.222.0—
Final temperature / °C——28.0
Density / g cm^-31.001.00—
Specific heat capacity / J g^-1 K^-14.184.18—
A

Determine the limiting reactant.

[2]
Write your answer here...
B

Calculate the heat energy transferred to the solution, in kJ.

[1]
Write your answer here...
C

Calculate the enthalpy change of reaction in kJ mol−1\text{kJ mol}^{-1} for the limiting reactant.

[1]
Write your answer here...
D

Suggest why the starting temperature of the mixture should be taken as the mass-weighted average of the two initial temperatures.

[1]
Write your answer here...

0

Question 33
HL ‱ Paper 1B
Hard
Calculator Permitted

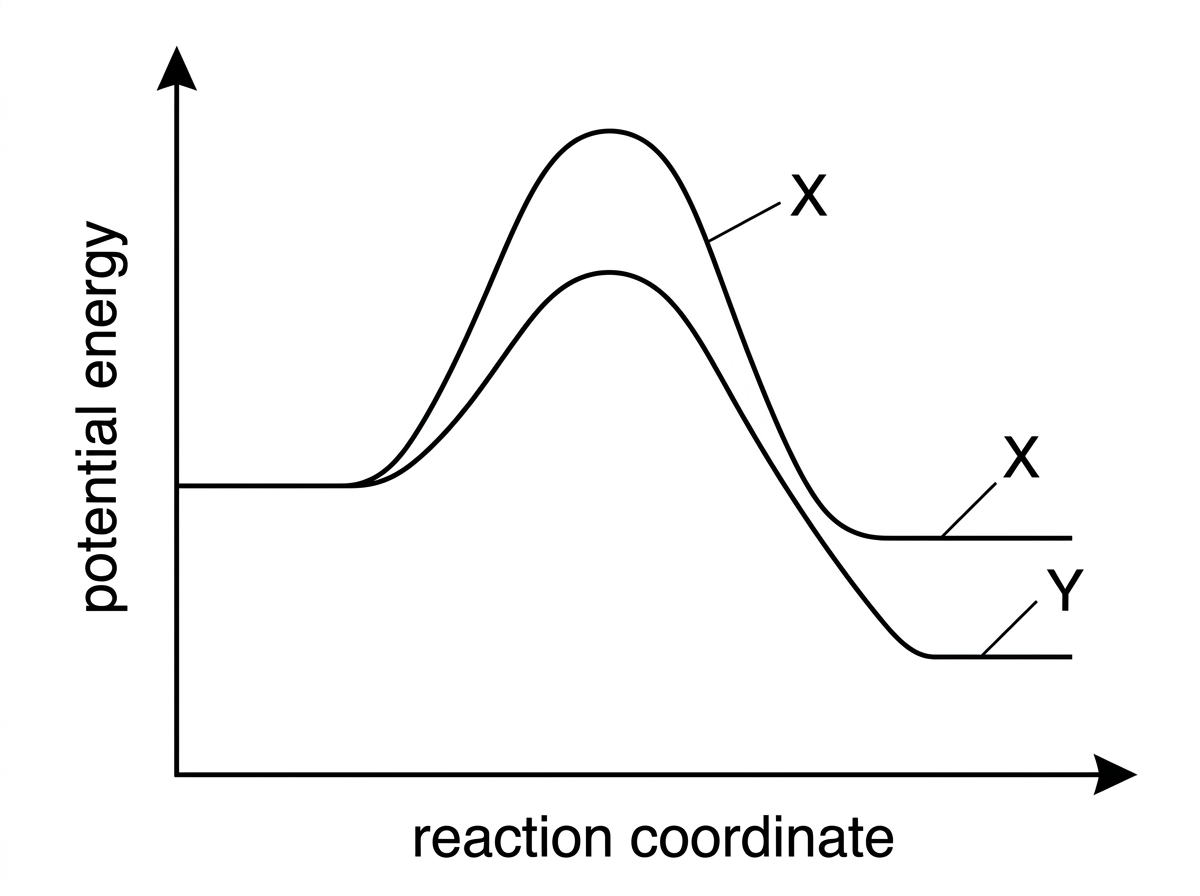

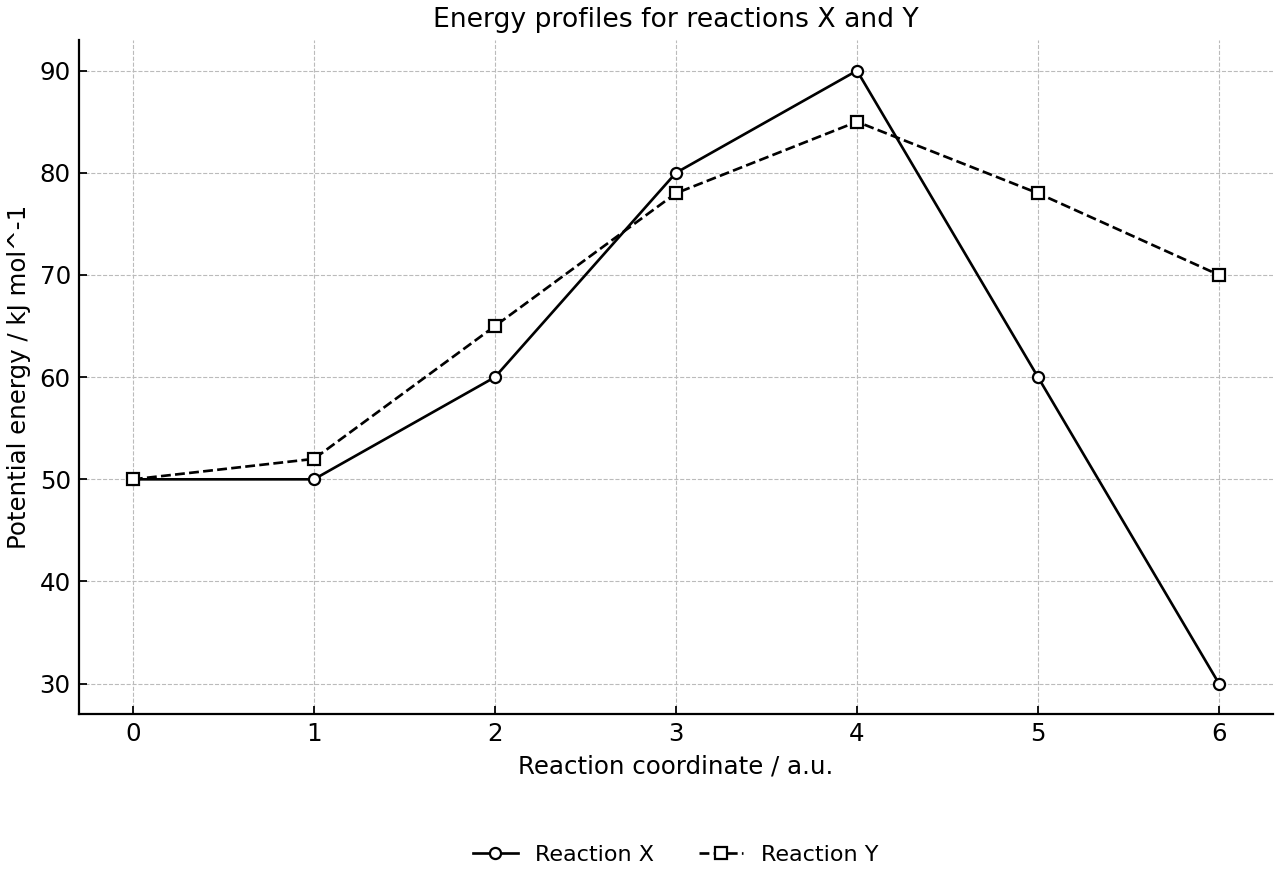

Energy profiles for two reactions, X and Y, are shown on the same axes.

Energy profiles for two reactions on the same axes.
A

Identify the reaction with products that are less stable than the reactants.

[1]
Write your answer here...
B

Compare the signs of ΔH\Delta H for reactions X and Y.

[2]
Write your answer here...
C

Suggest why the reaction coordinate axis should not be labelled as time.

[1]
Write your answer here...

0

Question 34
SL ‱ Paper 2
Hard
Calculator Permitted

A student determines the enthalpy change for the reaction between magnesium and hydrochloric acid using a polystyrene cup calorimeter.

Mg(s)+2HCl(aq)→MgCl2(aq)+H2(g)\text{Mg}(s)+2\text{HCl}(aq)\to \text{MgCl}_2(aq)+\text{H}_2(g)

A 0.240 g0.240\ \text{g} sample of magnesium is added to 50.0 cm350.0\ \text{cm}^3 of excess hydrochloric acid. The temperature increases from 20.4 ∘C20.4\ ^\circ\text{C} to 36.8 ∘C36.8\ ^\circ\text{C}. Assume that the solution has density 1.00 g cm−31.00\ \text{g cm}^{-3} and specific heat capacity 4.18 J g−1K−14.18\ \text{J g}^{-1}\text{K}^{-1}.

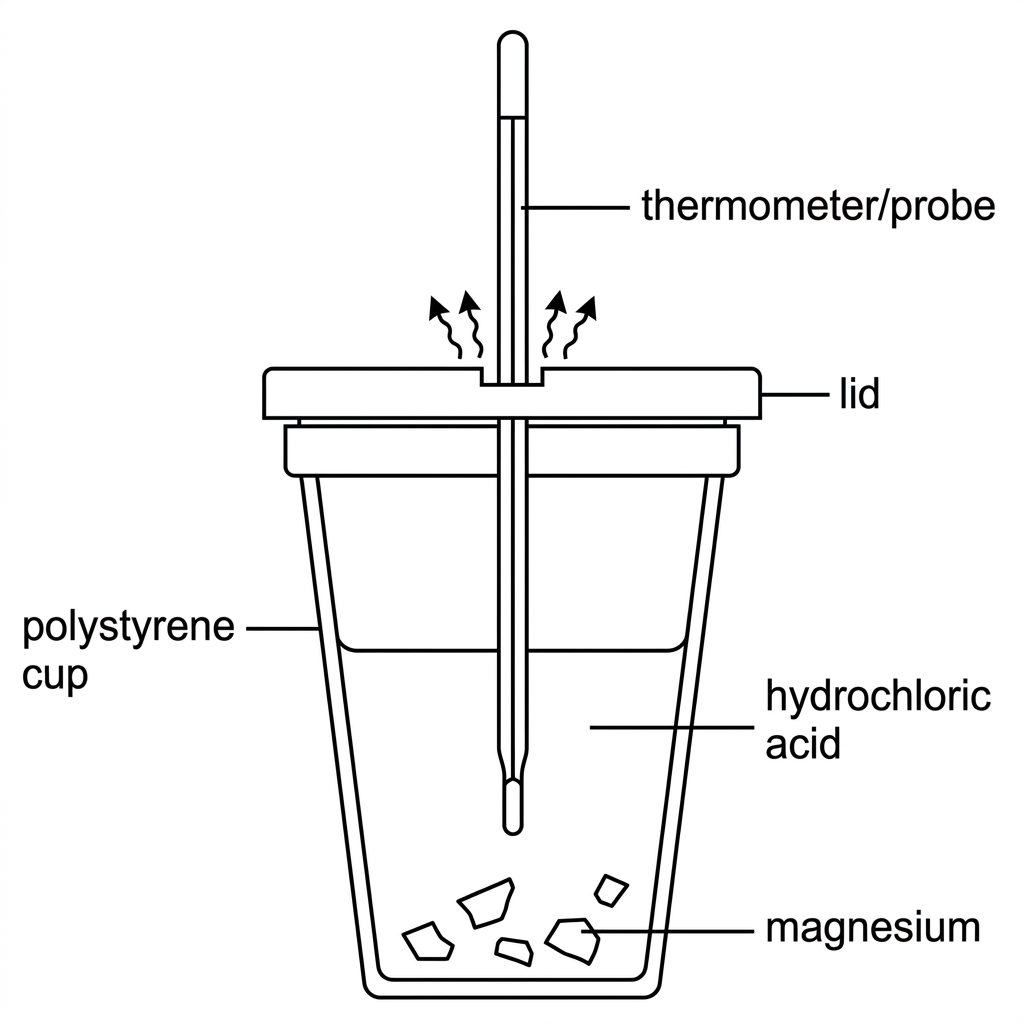

A simple polystyrene cup calorimeter with a lid, thermometer or temperature probe, and reaction mixture. Labels should identify the polystyrene cup, lid, thermometer/probe, and reacting chemicals. The diagram must show that gas can escape but must not include calculated values.
A

The chemicals reacting in the cup are considered to be the system.

I.

State whether the system is open, closed or isolated.

[1]
Write your answer here...
II.

Explain why the temperature rise indicates that the reaction is exothermic.

[1]
Write your answer here...
B

Calculate the enthalpy change of reaction, in kJ mol−1\text{kJ mol}^{-1}, with respect to magnesium.

[4]
Write your answer here...
C

Evaluate one reason why the experimental value is likely to be less exothermic than the data-book value.

[1]
Write your answer here...

0

Question 35
SL ‱ Paper 2
Hard
Calculator Permitted

Solid ammonium nitrate dissolves in water and the temperature of the mixture decreases. The dissolving process is represented as:

NH4NO3(s)→NH4+(aq)+NO3−(aq)\text{NH}_4\text{NO}_3(s)\to \text{NH}_4^+(aq)+\text{NO}_3^-(aq)

A

Consider the energy transfer during the dissolving process.

I.

State the sign of ΔH\Delta H for the dissolving process.

[1]
Write your answer here...
II.

Explain the temperature change in terms of the system and surroundings.

[1]
Write your answer here...
B

Sketch an energy profile for the dissolving process. Include labelled axes, reactants, products, EaE_a and ΔH\Delta H.

[3]
Write your answer here...
C

Distinguish between heat and temperature in the context of this experiment.

[1]
Write your answer here...

0

Question 36
SL ‱ Paper 2
Hard
Calculator Permitted

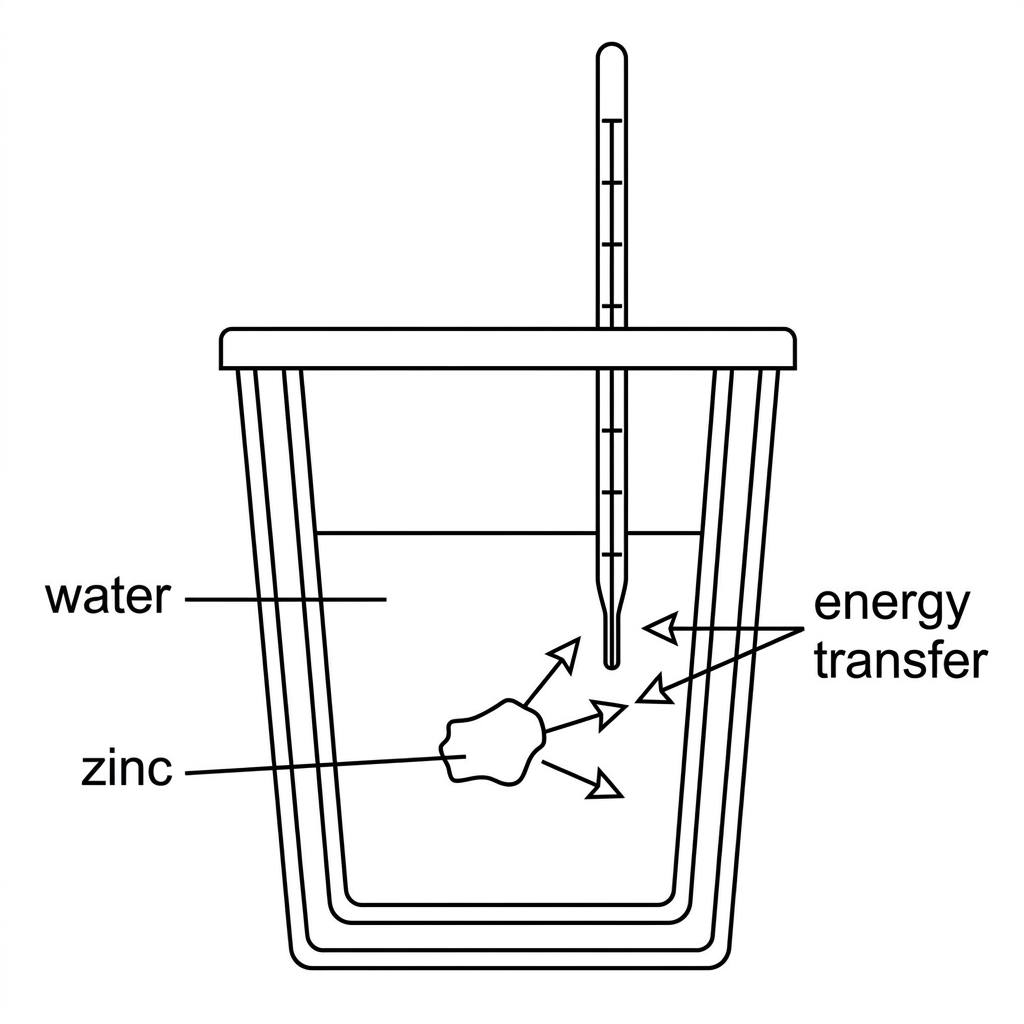

A hot piece of zinc metal is placed into cooler water in an insulated cup. The zinc cools and the water warms until both reach the same final temperature.

A labelled insulated cup containing water and a piece of metal, with a thermometer. Arrows should indicate energy transfer from the hot metal to the cooler water. The diagram should not contain numerical values.
A

The zinc and water may be modelled as an isolated system.

I.

State what is meant by an isolated system.

[1]
Write your answer here...
II.

Explain how conservation of energy applies to the zinc and water.

[1]
Write your answer here...
B

The water has a mass of 80.0 g80.0\ \text{g} and its temperature increases by 9.5 K9.5\ \text{K}. Calculate the heat energy gained by the water.

[2]
Write your answer here...
C

Compare heat and temperature using this example.

[2]
Write your answer here...

0

Question 37
HL ‱ Paper 1B
Hard
Calculator Permitted

A student compares three physical or chemical changes using the same insulated cup and the same mass of water. The temperature change and the direction of energy transfer are summarized.

ProcessTemperature change / °CDirection of energy transfer
Process A+6from system to surroundings
Process B-3from surroundings to system
Process C-9from surroundings to system
A

Identify the process that is most endothermic.

[1]
Write your answer here...
B

Compare the direction of energy transfer for the exothermic and endothermic processes.

[2]
Write your answer here...
C

Explain why temperature and heat should not be used as if they mean the same thing when interpreting the table.

[1]
Write your answer here...

0

Question 38
HL ‱ Paper 1B
Hard
Calculator Permitted

A food sample is burned under two different calorimetry conditions: an open flame heating a can of water and a sealed oxygen bomb calorimeter. The same mass of food is burned in each trial.

QuantityOpen canBomb calorimeterAccepted
Sample mass burned / g2.002.00—
Chamberopensealed—
Atmosphereairexcess O2—
Temperature measurementthermometerstirrer + probe—
Measured energy content / kJ g^-116.523.624.0
A

State which method is expected to give a value closer to the accepted energy content of the food.

[1]
Write your answer here...
B

Explain two features of the bomb calorimeter that improve the reliability of the result.

[2]
Write your answer here...
C

The open-can method gives a smaller energy value per gram. Evaluate whether this difference is mainly due to conservation of energy being invalid in the open method.

[2]
Write your answer here...

0

Question 39
HL ‱ Paper 1B
Hard
Calculator Permitted

A student burns propan-1-ol to heat water. The experiment is repeated with different distances between the spirit burner and the copper calorimeter. The student calculates ΔHc\Delta H_c for each trial. Mr(propan-1-ol)=60.1M_r(\text{propan-1-ol})=60.1.

TrialDistance / cmMass of water / gTemperature increase / KPropan-1-ol burned / g
12.020028.00.920
24.020024.00.920
36.020020.00.920
A

Using one trial from the table, calculate ΔHc\Delta H_c for propan-1-ol in kJ mol−1\text{kJ mol}^{-1}.

[3]
Write your answer here...
B

Describe the relationship between burner-to-calorimeter distance and the magnitude of the experimental enthalpy change.

[1]
Write your answer here...
C

Suggest a reason for this relationship.

[1]
Write your answer here...

0

Question 40
SL ‱ Paper 2
Hard
Calculator Permitted

A spirit burner containing ethanol is used to heat 150.0 g150.0\ \text{g} of water in a copper can. The mass of the burner decreases by 0.460 g0.460\ \text{g} and the water temperature increases from 18.2 ∘C18.2\ ^\circ\text{C} to 41.7 ∘C41.7\ ^\circ\text{C}.

Assume that all heat absorbed is absorbed by the water and that the specific heat capacity of water is 4.18 J g−1K−14.18\ \text{J g}^{-1}\text{K}^{-1}.

A spirit burner below a metal can or beaker containing water, clamped above a flame. Labels should include spirit burner, ethanol, flame, water, thermometer, and copper can or beaker. The image should communicate significant heat loss to air but must not provide numerical calculations.
A

The ethanol is the limiting reactant and oxygen is in excess.

I.

Calculate the amount, in mol, of ethanol burned.

[1]
Write your answer here...
II.

Calculate the heat energy absorbed by the water, in kJ.

[2]
Write your answer here...
B

Calculate the experimental enthalpy change of combustion of ethanol, in kJ mol−1\text{kJ mol}^{-1}.

[2]
Write your answer here...
C

Evaluate two limitations of this method that would affect the calculated value of ΔHc\Delta H_c.

[3]
Write your answer here...

0

Question 41
SL ‱ Paper 2
Hard
Calculator Permitted

A thermometric titration is carried out by adding aqueous sodium hydroxide to 25.0 cm325.0\ \text{cm}^3 of hydrochloric acid in a polystyrene cup. Both solutions have the same concentration. The temperature is recorded after each addition.

Temperature of the reaction mixture as sodium hydroxide is added.
A

The temperature-volume graph is used to identify the equivalence point.

I.

Explain why the maximum temperature occurs at the equivalence point.

[1]
Write your answer here...
II.

State one assumption made when using the temperature change to calculate the heat released.

[1]
Write your answer here...
B

At the equivalence point, the total volume of solution is 50.0 cm350.0\ \text{cm}^3 and the corrected temperature rise is 6.8 K6.8\ \text{K}. Calculate the enthalpy change of neutralization, in kJ mol−1\text{kJ mol}^{-1}, for the formation of one mole of water. The concentration of the acid is 1.00 mol dm−31.00\ \text{mol dm}^{-3}.

[4]
Write your answer here...
C

Suggest why extrapolating two straight-line sections of the graph gives a more reliable temperature rise than using the highest recorded temperature.

[1]
Write your answer here...

0

Question 42
SL ‱ Paper 2
Hard
Calculator Permitted

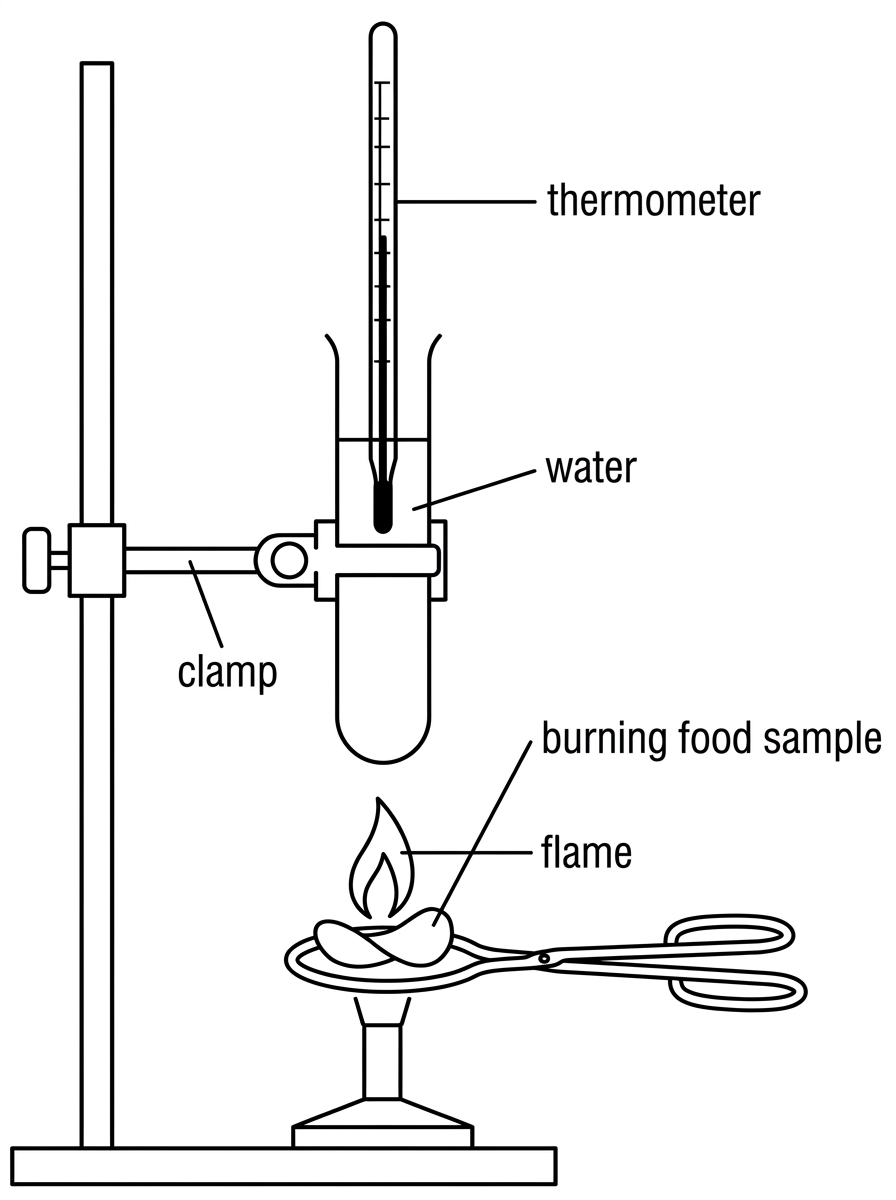

A food sample is burned below a boiling tube containing 100.0 g100.0\ \text{g} of water. The water temperature rises from 22.0 ∘C22.0\ ^\circ\text{C} to 36.5 ∘C36.5\ ^\circ\text{C} when 0.800 g0.800\ \text{g} of the food is burned.

A simple food calorimetry setup with a burning food sample below a boiling tube or metal can of water. Labels should include water, thermometer, burning food sample, clamp, and flame. The visual should suggest that the apparatus is open to the air.
A

The experiment is used to estimate the energy content of the food.

I.

Calculate the energy transferred to the water, in kJ.

[2]
Write your answer here...
II.

Calculate the experimental energy content of the food in kJ g−1\text{kJ g}^{-1}.

[1]
Write your answer here...
B

Discuss why the experimental energy content is likely to be lower than the actual energy content.

[3]
Write your answer here...
C

Suggest one safety precaution for this experiment.

[1]
Write your answer here...

0

Question 43
HL ‱ Paper 2
Hard
Calculator Permitted

A reaction is carried out in a well-insulated calorimeter. The heat capacity of the calorimeter itself is not negligible.

60.0 cm360.0\ \text{cm}^3 of solution of density 1.00 g cm−31.00\ \text{g cm}^{-3} increases in temperature by 7.40 K7.40\ \text{K}. The calorimeter has heat capacity 85.0 J K−185.0\ \text{J K}^{-1}. The limiting reactant amount is 0.0150 mol0.0150\ \text{mol}.

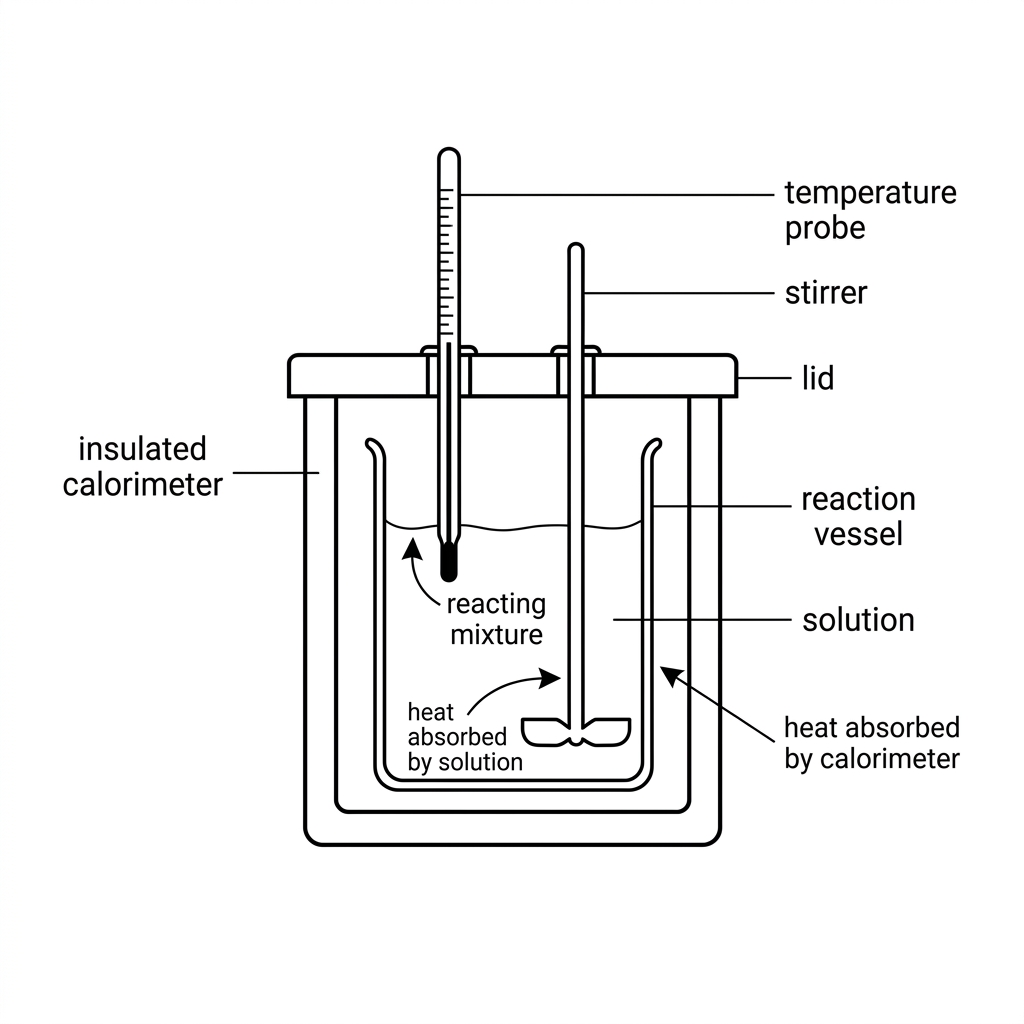

A labelled insulated calorimeter with a reaction vessel, lid, stirrer, and temperature probe. The diagram should show that both solution and calorimeter absorb heat. No numerical calculations should be displayed.
A

The observed temperature change is used to calculate the heat released by the reaction.

I.

Calculate the heat absorbed by the solution.

[2]
Write your answer here...
II.

Calculate the total heat absorbed by the solution and calorimeter.

[2]
Write your answer here...
B

Calculate the molar enthalpy change of reaction.

[2]
Write your answer here...
C

Evaluate the effect of ignoring the heat capacity of the calorimeter on the calculated value of ΔH\Delta H.

[2]
Write your answer here...

0

Question 44
HL ‱ Paper 2
Hard
Calculator Permitted

A carbonate reacts with hydrochloric acid in a polystyrene cup. The reaction is endothermic and carbon dioxide is produced.

MCO3(s)+2HCl(aq)→MCl2(aq)+H2O(l)+CO2(g)\text{MCO}_3(s)+2\text{HCl}(aq)\to \text{MCl}_2(aq)+\text{H}_2\text{O}(l)+\text{CO}_2(g)

A 1.48 g1.48\ \text{g} sample of MCO3\text{MCO}_3 is added to 100.0 cm3100.0\ \text{cm}^3 of 0.500 mol dm−30.500\ \text{mol dm}^{-3} hydrochloric acid. The molar mass of MCO3\text{MCO}_3 is 84.0 g mol−184.0\ \text{g mol}^{-1}. The temperature decreases by 3.20 K3.20\ \text{K}.

A

Determine the limiting reactant.

I.

Calculate the amounts, in mol, of MCO3\text{MCO}_3 and HCl\text{HCl} initially present.

[2]
Write your answer here...
II.

Identify the limiting reactant.

[1]
Write your answer here...
B

Calculate the enthalpy change of reaction, in kJ mol−1\text{kJ mol}^{-1}, with respect to MCO3\text{MCO}_3. Assume the hydrochloric acid solution has density 1.00 g cm−31.00\ \text{g cm}^{-3} and neglect the mass of the solid carbonate.

[3]
Write your answer here...
C

Discuss how escape of carbon dioxide affects whether the reacting mixture is best modelled as an open or closed system, and the possible effect on the enthalpy calculation.

[2]
Write your answer here...

0

Question 45
HL ‱ Paper 2
Hard
Calculator Permitted

Nitrogen and oxygen can react at very high temperatures to form nitrogen monoxide.

N2(g)+O2(g)→2NO(g)\text{N}_2(g)+\text{O}_2(g)\to 2\text{NO}(g)

This reaction is endothermic even though new bonds are formed in the product.

A

Consider the energy changes associated with bonding.

I.

State whether bond breaking or bond forming absorbs energy.

[1]
Write your answer here...
II.

Explain why formation of NO\text{NO} from N2\text{N}_2 and O2\text{O}_2 is endothermic.

[2]
Write your answer here...
B

Sketch an energy profile for the reaction and label EaE_a and ΔH\Delta H.

[3]
Write your answer here...
C

Discuss the relative stability of reactants and products in this reaction.

[2]
Write your answer here...

0

Question 46
HL ‱ Paper 2
Hard
Calculator Permitted

A student determines the enthalpy change of hydration of an anhydrous salt using a polystyrene cup calorimeter. A 3.20 g3.20\ \text{g} sample of the salt is added to 40.0 g40.0\ \text{g} of water. The molar mass of the salt is 160.0 g mol−1160.0\ \text{g mol}^{-1}. The corrected temperature rise is 11.2 K11.2\ \text{K}.

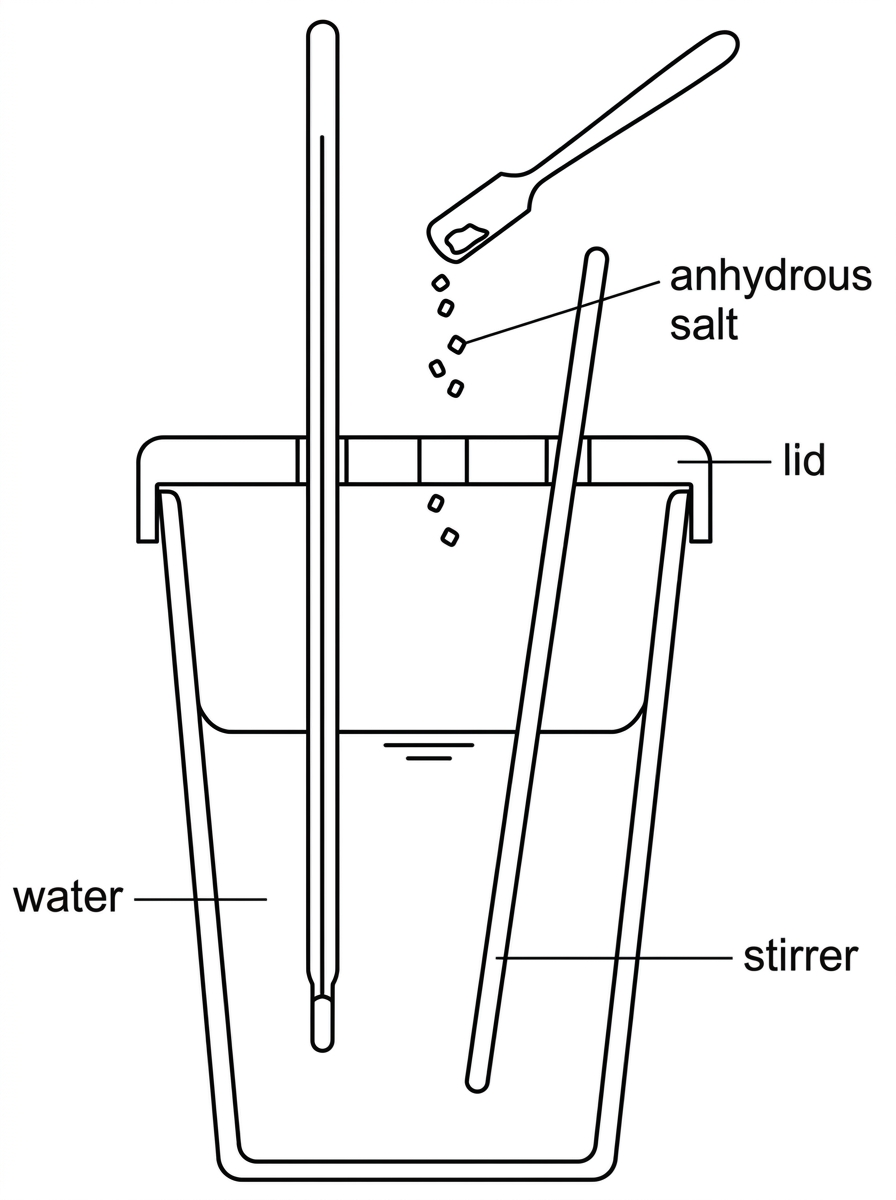

A polystyrene cup calorimeter with anhydrous salt being added to water. Labels should include anhydrous salt, water, thermometer or probe, lid, and stirrer. The image should not show the calculation or final temperature.
A

The hydration process releases heat.

I.

Calculate the heat energy gained by the water.

[2]
Write your answer here...
II.

Calculate the amount, in mol, of anhydrous salt used.

[1]
Write your answer here...
III.

Calculate the enthalpy change of hydration, in kJ mol−1\text{kJ mol}^{-1}.

[1]
Write your answer here...
B

Evaluate two assumptions in the calculation that could affect the accuracy of the enthalpy change.

[3]
Write your answer here...
C

State whether the hydrated product is more or less stable than the anhydrous salt and water, and justify your answer.

[1]
Write your answer here...

0

Question 47
HL ‱ Paper 2
Hard
Calculator Permitted

Two students measure the enthalpy change for the same exothermic aqueous reaction. Student A records only initial and highest temperatures. Student B records temperature every 20 s20\ \text{s} and extrapolates the cooling curve back to the mixing time.

Sparse readings and cooling-curve back-extrapolation.
A

Interpret the two temperature-time methods.

I.

Explain why Student A's method tends to underestimate the magnitude of ΔH\Delta H.

[1]
Write your answer here...
II.

Explain the purpose of extrapolating the cooling curve in Student B's method.

[1]
Write your answer here...
B

Student B obtains an extrapolated temperature rise of 5.60 K5.60\ \text{K} for 75.0 g75.0\ \text{g} of solution. The amount of limiting reactant is 0.0125 mol0.0125\ \text{mol}. Calculate ΔH\Delta H for the reaction.

[3]
Write your answer here...
C

Evaluate whether Student B's method eliminates all experimental error.

[2]
Write your answer here...

0

Question 48
HL ‱ Paper 2
Hard
Calculator Permitted

A bomb calorimeter is calibrated by burning 0.500 g0.500\ \text{g} of benzoic acid, which releases 13.2 kJ g−113.2\ \text{kJ g}^{-1}. The temperature rise is 2.64 K2.64\ \text{K}. In a second experiment, 0.420 g0.420\ \text{g} of a liquid fuel is burned in the same calorimeter and the temperature rise is 3.10 K3.10\ \text{K}.

A labelled bomb calorimeter with a sealed combustion chamber surrounded by water, oxygen inlet, ignition wires, stirrer, and temperature probe. The visual should show the sealed chamber and surrounding water bath but must not include calculated heat capacities.
A

The calibration is used to determine the calorimeter heat capacity.

I.

Calculate the energy released by the benzoic acid.

[1]
Write your answer here...
II.

Calculate the heat capacity of the calorimeter, in kJ K−1\text{kJ K}^{-1}.

[2]
Write your answer here...
B

Calculate the energy released per gram of the liquid fuel.

[2]
Write your answer here...
C

Evaluate why a bomb calorimeter gives more reliable combustion data than an open spirit-burner experiment.

[2]
Write your answer here...

0


R1.2 Energy cycles in reactions
