R3.4 Electron-pair sharing reactions

Practice exam-style IB Chemistry questions for Electron-pair sharing reactions, aligned with the syllabus and grouped by topic.

Verified by Dennis M.
Verified by Dennis M.
Paper
Difficulty
Status
Level
Question 1
SL • Paper 1A
Easy
Calculator Permitted

In the reaction shown, NH3NH_3 reacts with bromomethane.

CH3Br+NH3→CH3NH3++Br−CH_3Br + NH_3 \to CH_3NH_3^+ + Br^-

What is the role of NH3NH_3 in this reaction?

A.

Nucleophile, because it accepts an electron pair from carbon

B.

Electrophile, because it accepts the bromide ion

C.

Electrophile, because it donates a proton to bromomethane

D.

Nucleophile, because it donates a lone pair from nitrogen

Question 2
SL • Paper 1A
Easy
Calculator Permitted

The reaction of chloroethane with cyanide ions is shown.

CH3CH2Cl+CN−→CH3CH2CN+Cl−CH_3CH_2Cl + CN^- \to CH_3CH_2CN + Cl^-

What is the leaving group?

A.

CH3CH2CNCH_3CH_2CN

B.

CN−CN^-

C.

Cl−Cl^-

D.

CH3CH2+CH_3CH_2^+

Question 3
HL • Paper 1A
Easy
Calculator Permitted

Chloride ion reacts with aluminium chloride to form [AlCl4]−[AlCl_4]^-.

AlCl3+Cl−→[AlCl4]−AlCl_3 + Cl^- \to [AlCl_4]^-

What are the Lewis acid and Lewis base in this reaction?

A.

Lewis acid: Cl−Cl^-; Lewis base: [AlCl4]−[AlCl_4]^-

B.

Lewis acid: [AlCl4]−[AlCl_4]^-; Lewis base: AlCl3AlCl_3

C.

Lewis acid: AlCl3AlCl_3; Lewis base: Cl−Cl^-

D.

Lewis acid: Cl−Cl^-; Lewis base: AlCl3AlCl_3

Question 4
SL • Paper 1A
Easy
Calculator Permitted

Bromomethane can undergo heterolytic fission of the C-Br bond.

What products are formed in this bond fission?

A.

CH4+Br+CH_4 + Br^+

B.

CH3++Br−CH_3^+ + Br^-

C.

⋅CH3+Br⋅\cdot CH_3 + Br\cdot

D.

CH3−+Br+CH_3^- + Br^+

Question 5
SL • Paper 1A
Easy
Calculator Permitted

Ethene reacts with hydrogen bromide by electrophilic addition.

CH2=CH2+HBr→CH3CH2BrCH_2=CH_2 + HBr \to CH_3CH_2Br

What is the electrophilic atom attacked first by the C=CC=C bond?

A.

The bromide ion formed

B.

A carbon atom in ethene

C.

The Br atom in HBrHBr

D.

The H atom in HBrHBr

Question 6
SL • Paper 1A
Easy
Calculator Permitted

Propene reacts with bromine in the dark.

What is the organic product of this electrophilic addition reaction?

A.

CH3CBr2CH3CH_3CBr_2CH_3

B.

CH2BrCH2CH2BrCH_2BrCH_2CH_2Br

C.

CH3CH2CH2BrCH_3CH_2CH_2Br

D.

CH3CHBrCH2BrCH_3CHBrCH_2Br

Question 7
HL • Paper 1A
Easy
Calculator Permitted

A complex contains Fe3+Fe^{3+}, five neutral H2OH_2O ligands and one Cl−Cl^- ligand.

What is the charge on the complex?

A.

1+1+

B.

3+3+

C.

1−1-

D.

2+2+

Question 8
HL • Paper 1A
Easy
Calculator Permitted

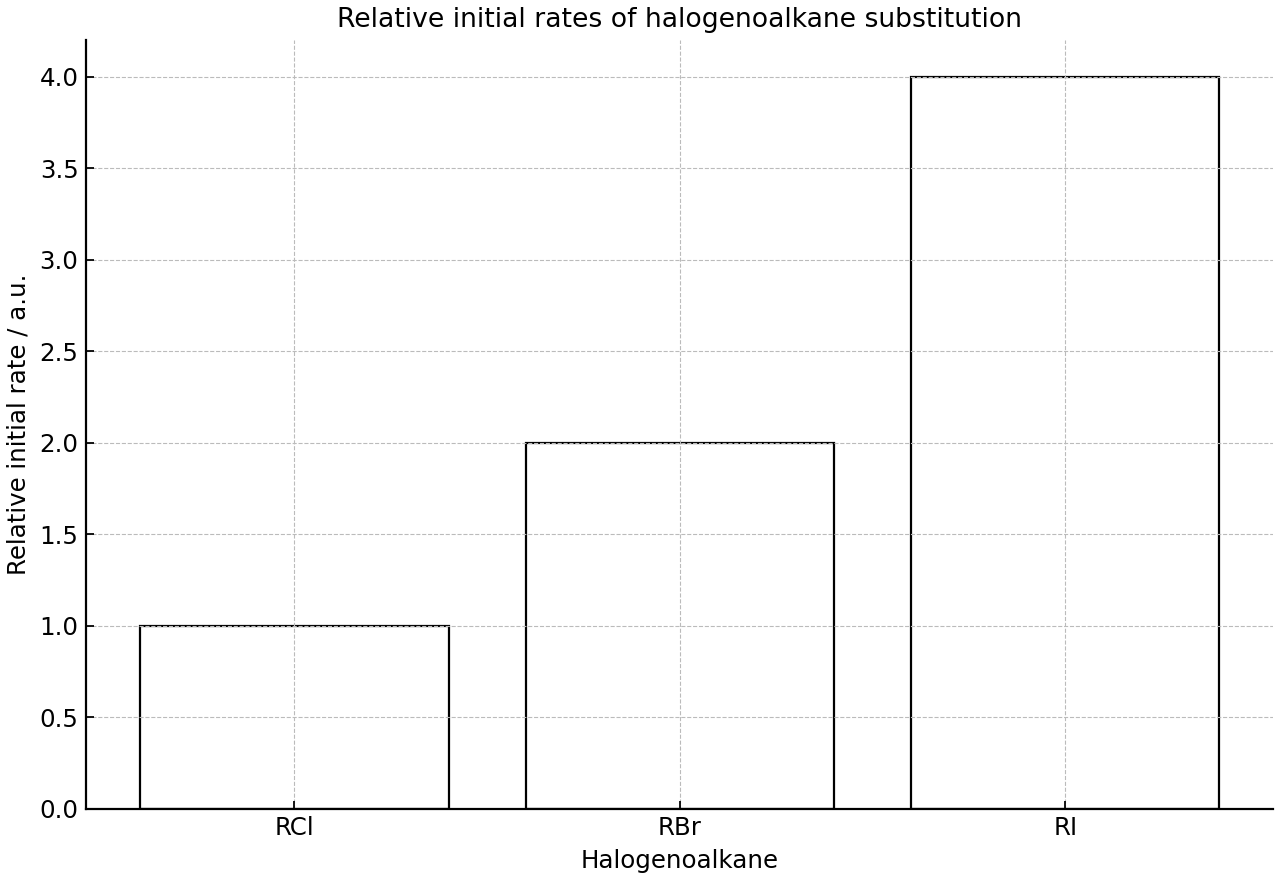

Three primary halogenoalkanes, RClRCl, RBrRBr and RIRI, react separately with aqueous hydroxide ions under the same conditions.

What is the expected order of increasing rate of substitution?

A.

RI<RBr<RClRI < RBr < RCl

B.

RBr<RCl<RIRBr < RCl < RI

C.

RCl<RBr<RIRCl < RBr < RI

D.

RCl<RI<RBrRCl < RI < RBr

Question 9
SL • Paper 2
Easy
Calculator Permitted

Ammonia reacts with bromomethane according to the equation:

CH3Br+NH3→CH3NH3++Br−CH_3Br + NH_3 \to CH_3NH_3^+ + Br^-

A

State the nucleophile in this reaction.

[1]
Write your answer here...
B

Explain why this species acts as a nucleophile.

[1]
Write your answer here...

0

Question 10
SL • Paper 2
Easy
Calculator Permitted

Electrophiles can be positively charged or neutral species containing an electron-deficient atom.

A

State the electrophilic atom in hydrogen bromide when it reacts with an alkene.

[1]
Write your answer here...
B

Explain why BF3BF_3 can act as an electrophile.

[1]
Write your answer here...

0

Question 11
SL • Paper 1A
Medium
Calculator Permitted

Hex-3-ene undergoes hydration in acidified conditions.

CH3CH2CH=CHCH2CH3+H2O→CH_3CH_2CH=CHCH_2CH_3 + H_2O \to product

What is the product?

A.

CH3CH2CH2CH2CH2CH2OHCH_3CH_2CH_2CH_2CH_2CH_2OH

B.

CH3CH2CH(OH)CH2CH2CH3CH_3CH_2CH(OH)CH_2CH_2CH_3

C.

CH3CH(OH)CH2CH2CH2CH3CH_3CH(OH)CH_2CH_2CH_2CH_3

D.

CH3CH2CHBrCH2CH2CH3CH_3CH_2CHBrCH_2CH_2CH_3

Question 12
HL • Paper 1A
Medium
Calculator Permitted

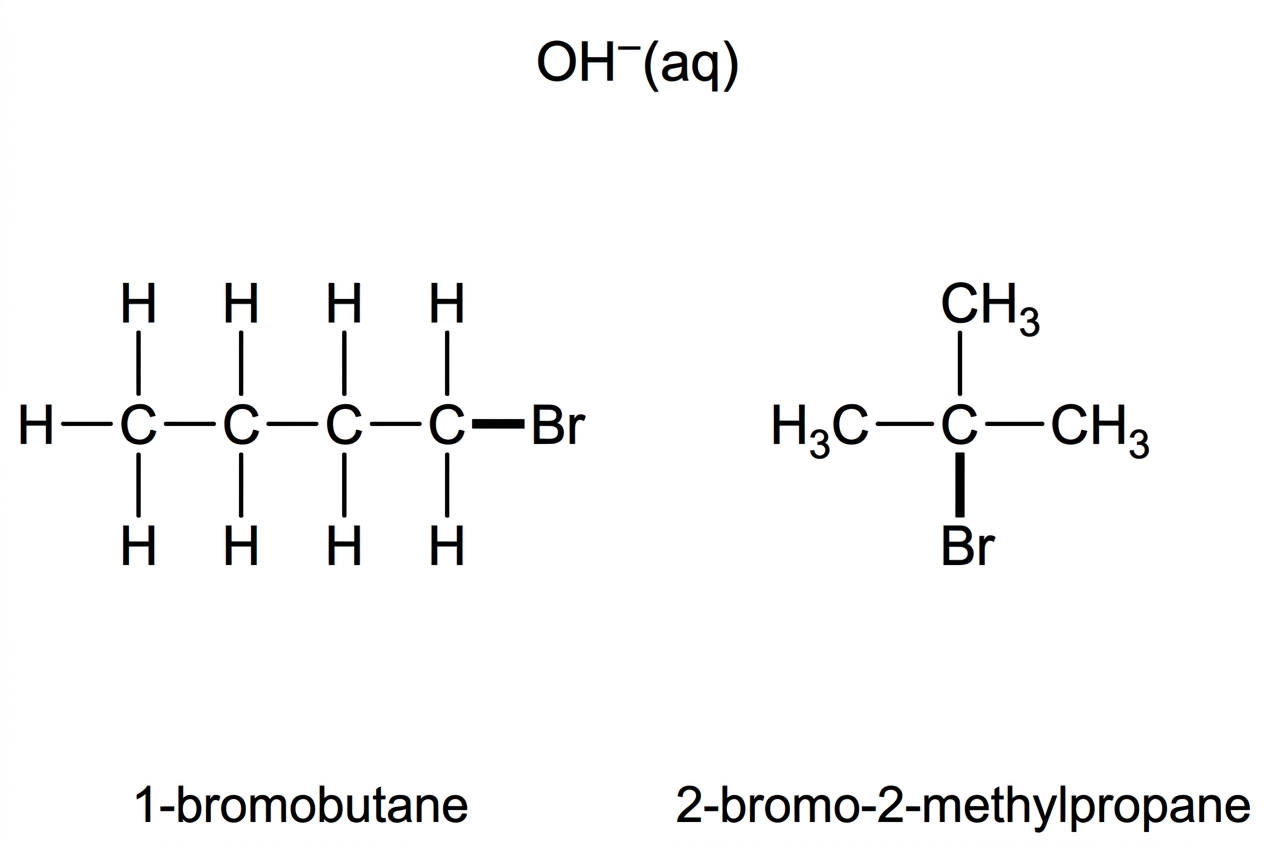

1-bromobutane reacts with hydroxide ions mainly by an SN2S_N2 mechanism.

What combination is characteristic of this mechanism?

A.

Two steps; rate =k[RX][OH−]= k[RX][OH^-]; retention of configuration only

B.

Two steps; rate =k[RX]= k[RX]; nucleophile absent from the rate-determining step

C.

One concerted step; rate =k[RX][OH−]= k[RX][OH^-]; inversion of configuration

D.

One concerted step; rate =k[RX]= k[RX]; carbocation intermediate formed

Question 13
HL • Paper 1A
Medium
Calculator Permitted

2-methylpropene reacts with hydrogen bromide.

What is the major organic product?

A.

CH3C(OH)(CH3)2CH_3C(OH)(CH_3)_2

B.

CH3CH2CH2CH2BrCH_3CH_2CH_2CH_2Br

C.

CH3CBr(CH3)2CH_3CBr(CH_3)_2

D.

CH3CH(CH3)CH2BrCH_3CH(CH_3)CH_2Br

Question 14
SL • Paper 2
Medium
Calculator Permitted

Aqueous sodium hydroxide reacts with chloroethane to form ethanol.

CH3CH2Cl+OH−→CH3CH2OH+Cl−CH_3CH_2Cl + OH^- \to CH_3CH_2OH + Cl^-

A

State the leaving group in this reaction.

[1]
Write your answer here...
B

Describe the movement of electron pairs during the substitution reaction.

[2]
Write your answer here...

0

Question 15
SL • Paper 2
Medium
Calculator Permitted

Iodomethane can undergo heterolytic fission of its carbon-iodine bond.

A

Define heterolytic fission.

[1]
Write your answer here...
B

Write an equation for the heterolytic fission of iodomethane and state the direction of the curly arrow.

[2]
Write your answer here...

0

Question 16
SL • Paper 2
Medium
Calculator Permitted

Pent-2-ene is shaken with bromine water in the dark.

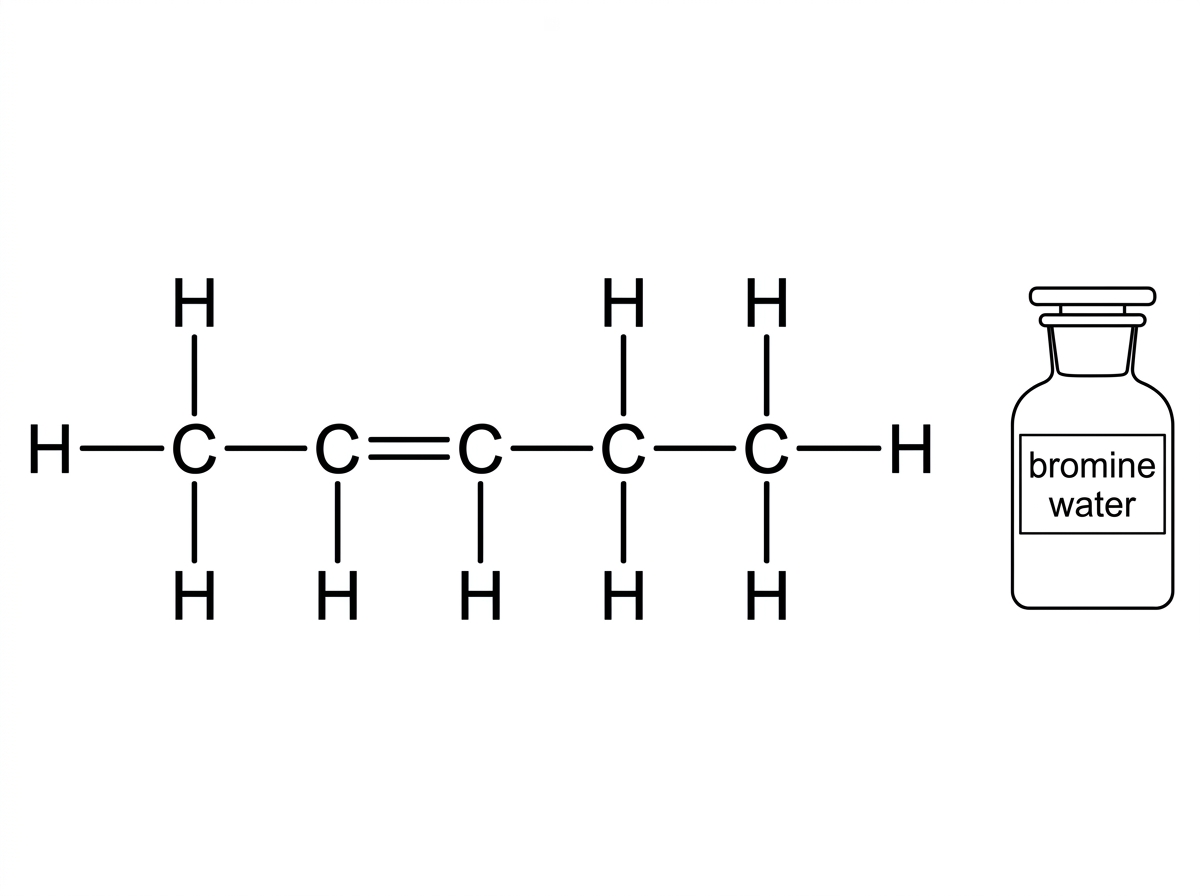

A simple displayed structural formula of pent-2-ene showing a five-carbon chain with a carbon-carbon double bond between carbon 2 and carbon 3. A labelled bottle or reagent text indicates bromine water, with no product shown.
A

Write the condensed structural formula of the organic product.

[1]
Write your answer here...
B

State the observation.

[1]
Write your answer here...
C

Explain why pentane does not give the same observation in the dark.

[1]
Write your answer here...

0

Question 17
SL • Paper 1B
Medium
Calculator Permitted

Several species were tested as possible nucleophiles in reactions with electron-deficient organic molecules.

Species testedBond formed with electron-deficient carbon?
OH−Yes
NH3Yes
Br−Yes
H2ONo
(CH3)4N+No
A

Identify two species in the table that can act as nucleophiles.

[1]
Write your answer here...
B

Explain why NH3NH_3 can act as a nucleophile even though it is neutral.

[1]
Write your answer here...
C

Suggest why (CH3)4N+(CH_3)_4N^+ does not act as a nucleophile at nitrogen.

[1]
Write your answer here...

0

Question 18
SL • Paper 1B
Medium
Calculator Permitted

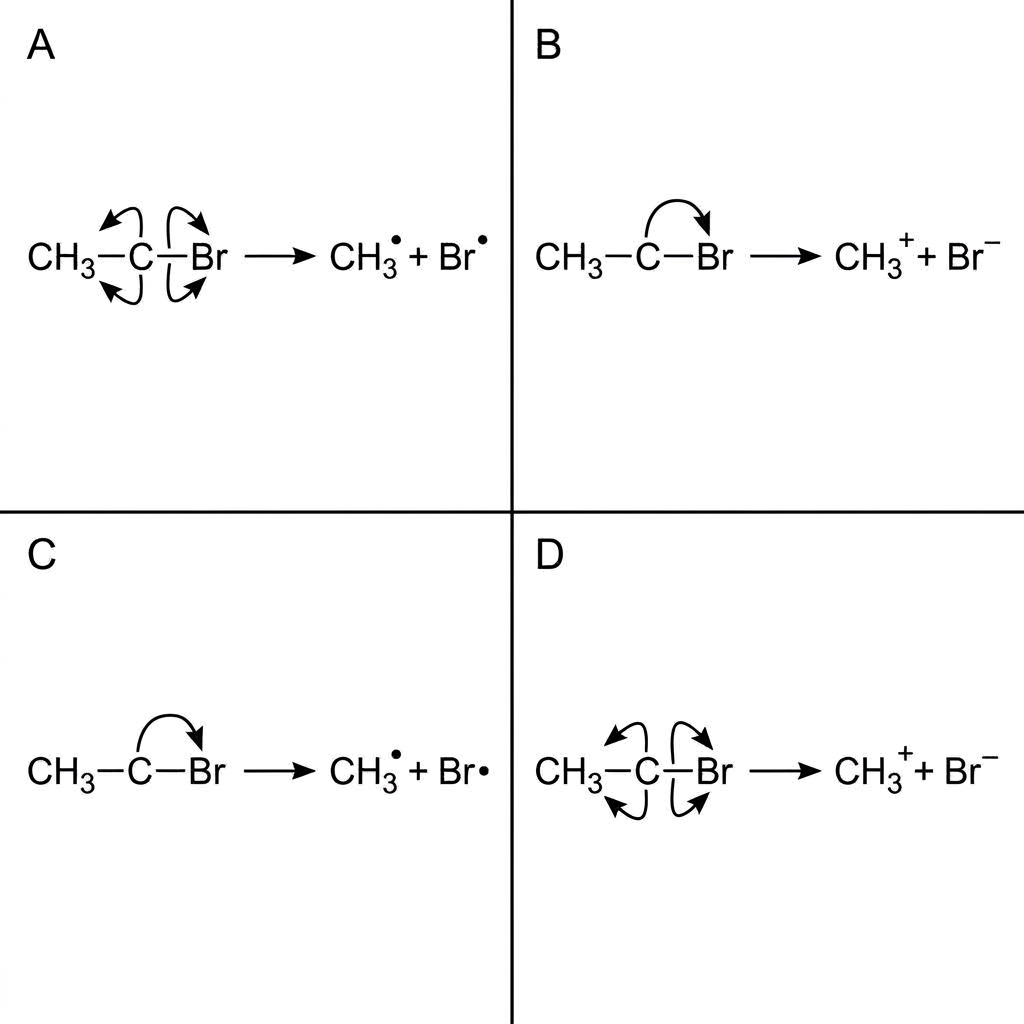

Four possible representations of bond fission in bromomethane are shown.

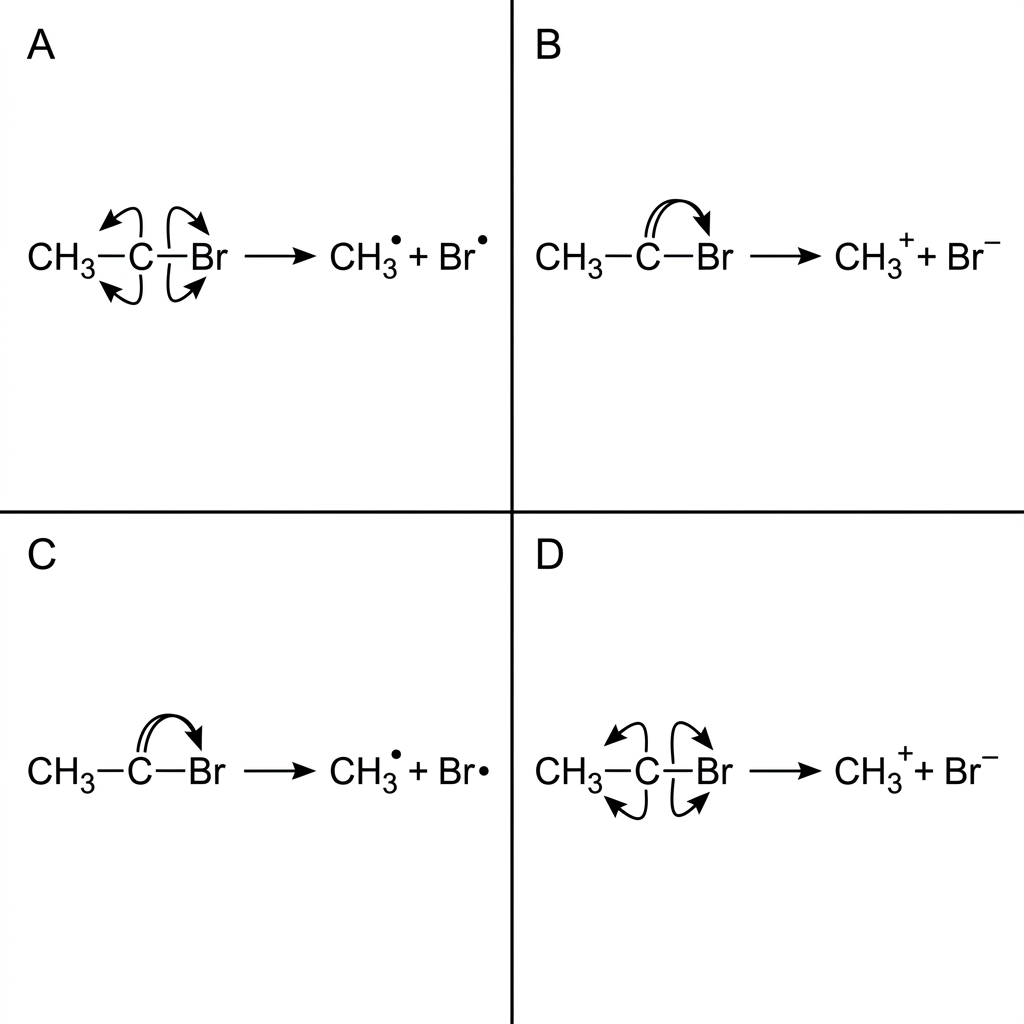

Four labelled diagrams, A to D, showing possible breaking of the C-Br bond in bromomethane. The diagrams differ in whether a double-barbed curly arrow or single-barbed fish-hook arrows are used and whether the products are ions or radicals. The correct heterolytic representation is included but not indicated.
A

Identify the diagram that represents heterolytic fission.

[1]
Write your answer here...
B

Write an equation for heterolytic fission of bromomethane.

[1]
Write your answer here...
C

Explain why the bromine-containing product has a negative charge.

[1]
Write your answer here...

0

Question 19
SL • Paper 1B
Medium
Calculator Permitted

The flowchart summarizes addition reactions of symmetrical alkenes.

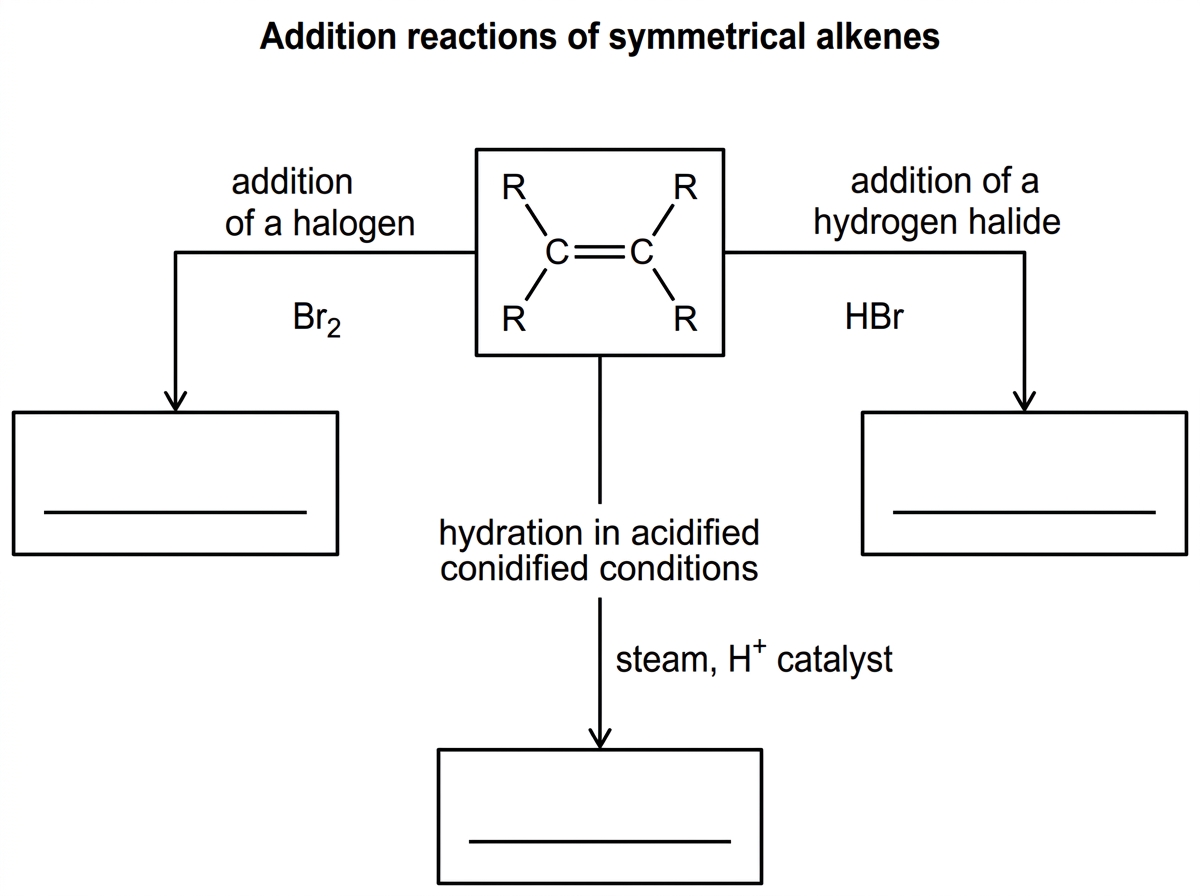

A flowchart showing a symmetrical alkene at the centre with three branches labelled addition of a halogen, addition of a hydrogen halide, and hydration in acidified conditions. Reagents are shown on each branch, but product names and formulas are left blank.
A

State the reaction type shown in all three branches of the flowchart.

[1]
Write your answer here...
B

Write an equation for the reaction of but-2-ene with hydrogen bromide.

[1]
Write your answer here...
C

Name the alcohol formed by hydration of hex-3-ene.

[1]
Write your answer here...
D

Explain why the C=CC=C bond in an alkene is susceptible to attack by electrophiles.

[1]
Write your answer here...

0

Question 20
HL • Paper 1A
Medium
Calculator Permitted

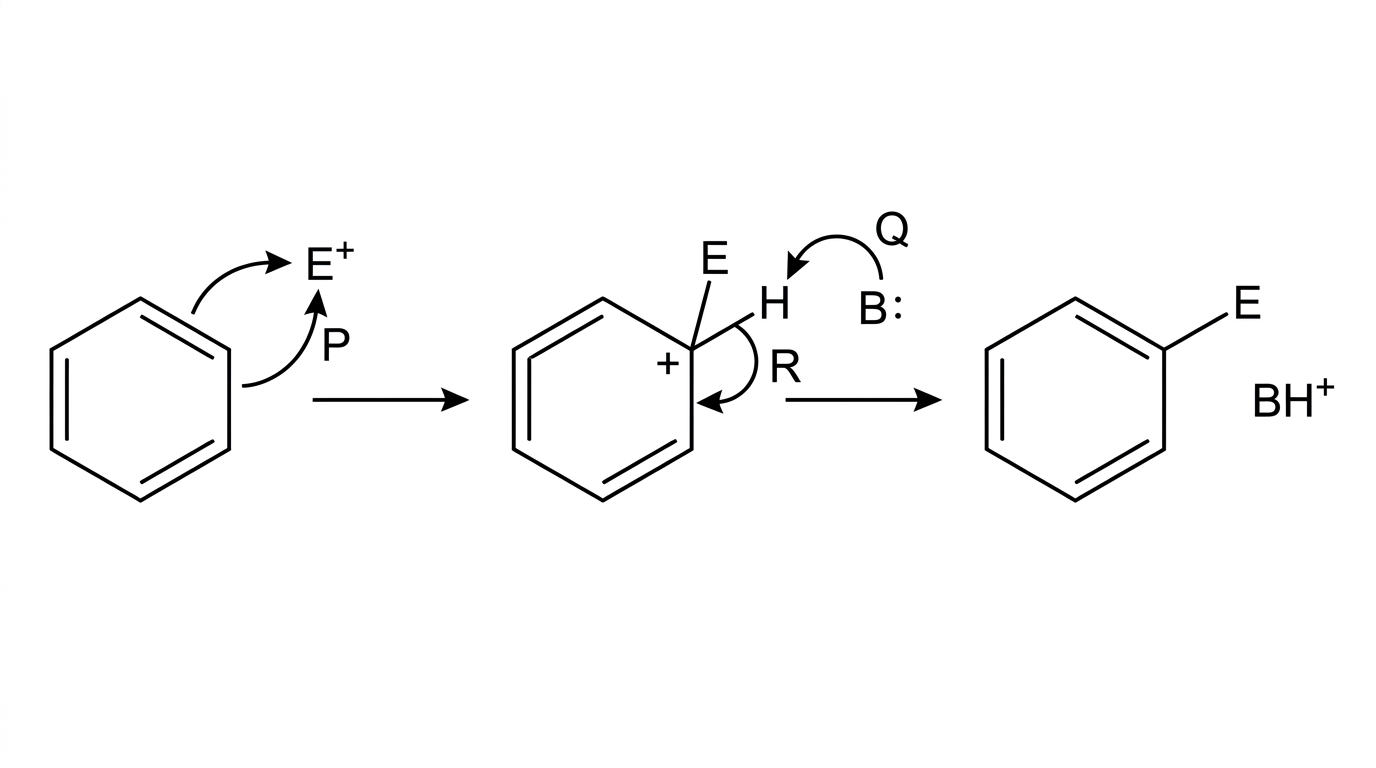

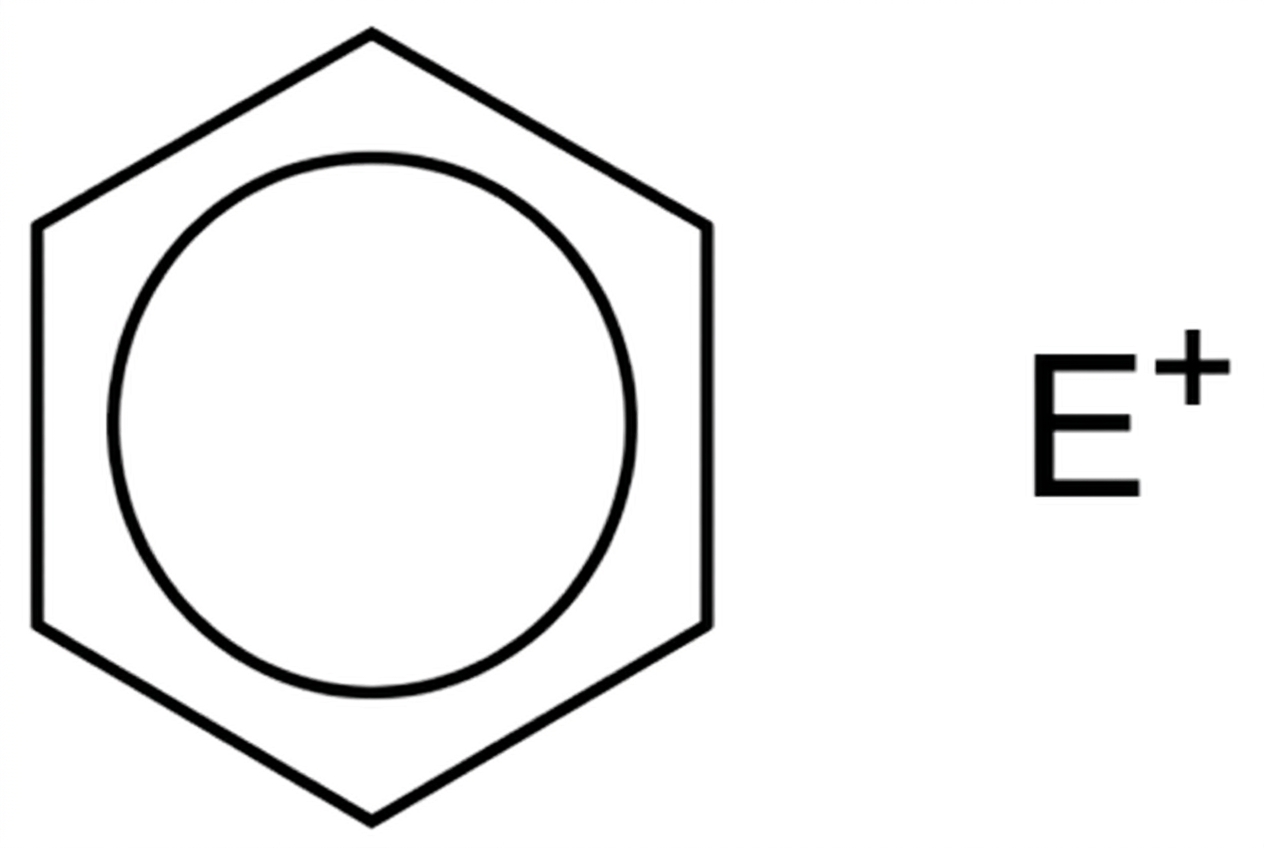

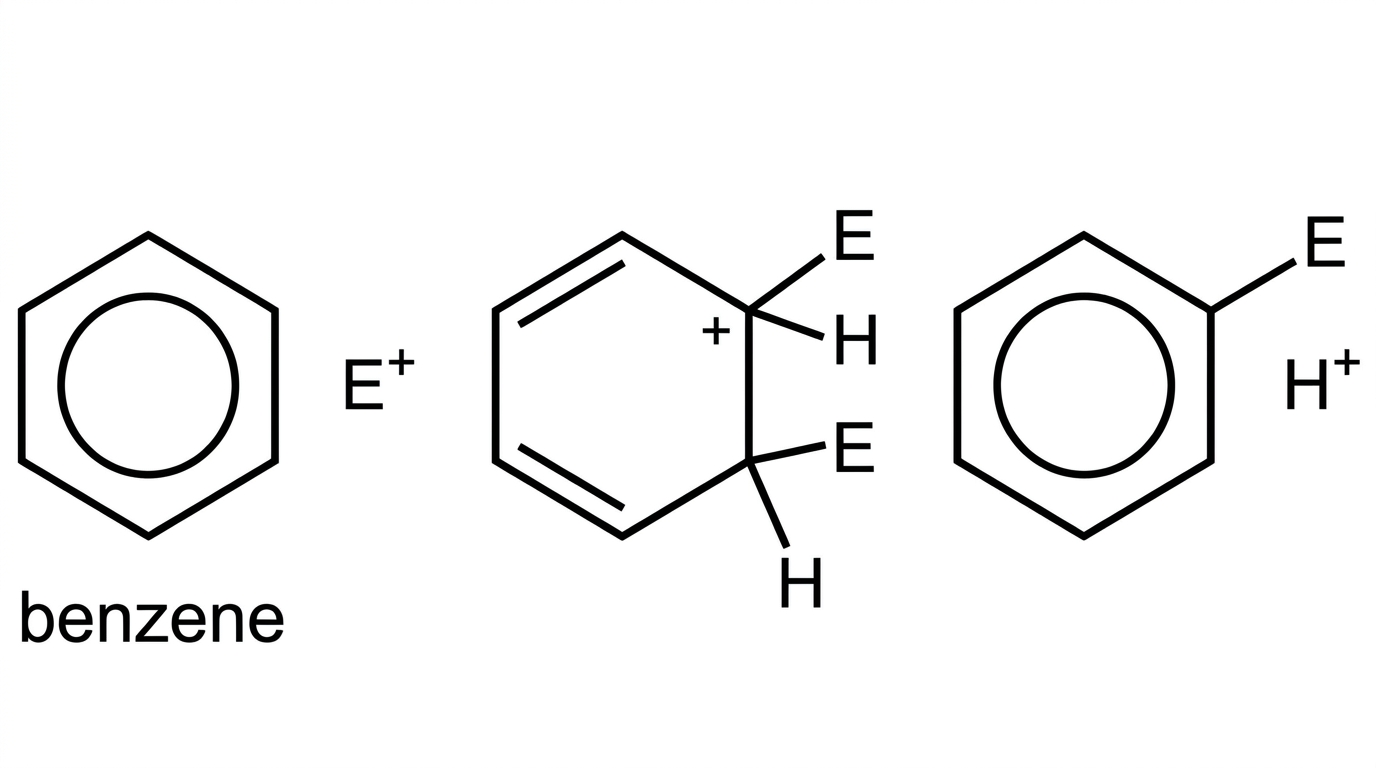

Benzene reacts with a charged electrophile, E+E^+, by electrophilic substitution rather than electrophilic addition.

What is the main reason substitution is favoured?

A.

Substitution restores the aromatic delocalized π\pi system after attack by E+E^+

B.

Substitution occurs because benzene has localized C=C bonds like an alkene

C.

Substitution avoids formation of any carbocation intermediate

D.

Substitution breaks all six C-C bonds in the benzene ring

Question 21
SL • Paper 2
Medium
Calculator Permitted

Hex-3-ene reacts with steam in the presence of an acid catalyst.

A

State the type of reaction.

[1]
Write your answer here...
B

Write the condensed structural formula of the alcohol formed.

[1]
Write your answer here...
C

Explain why only one structural alcohol is formed from hex-3-ene.

[1]
Write your answer here...

0

Question 22
HL • Paper 2
Medium
Calculator Permitted

Ammonia reacts with boron trifluoride to form a Lewis acid-base adduct.

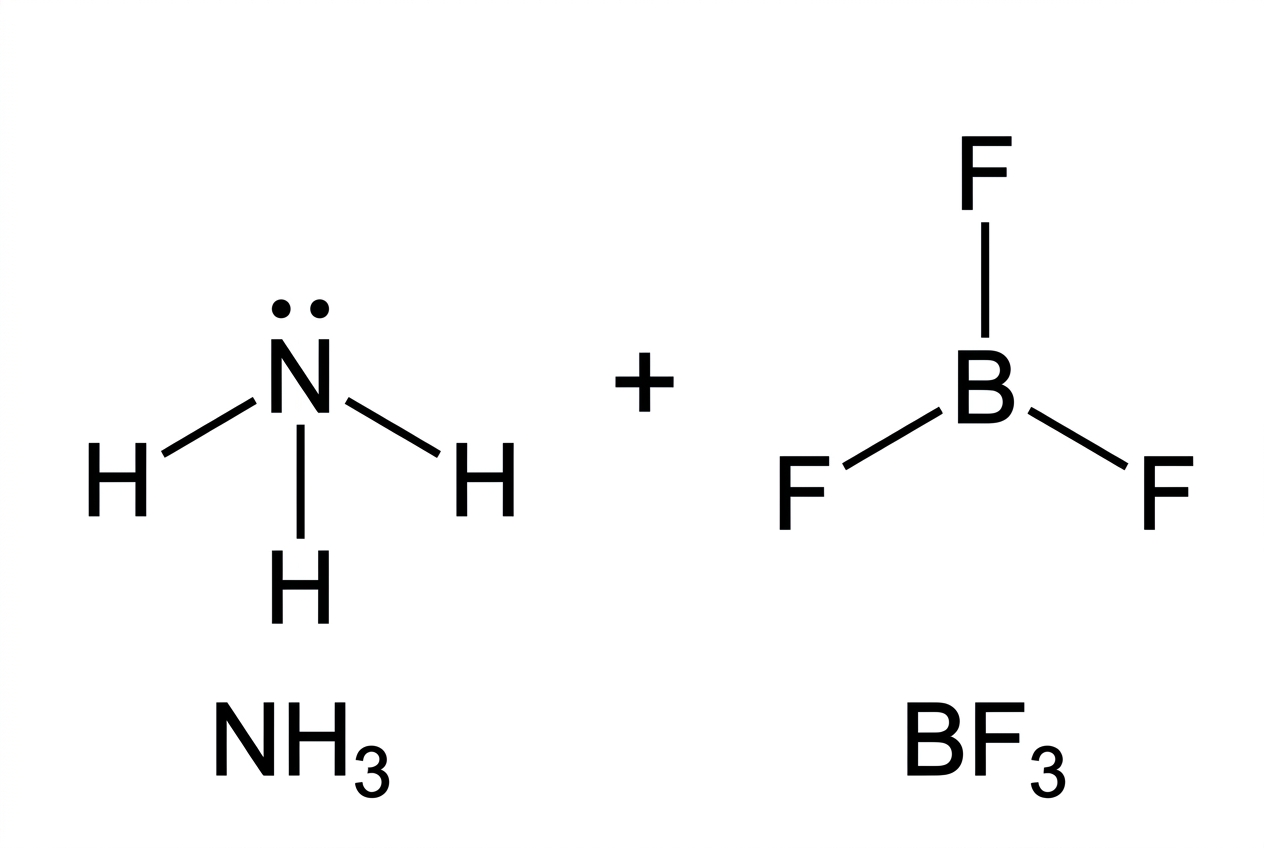

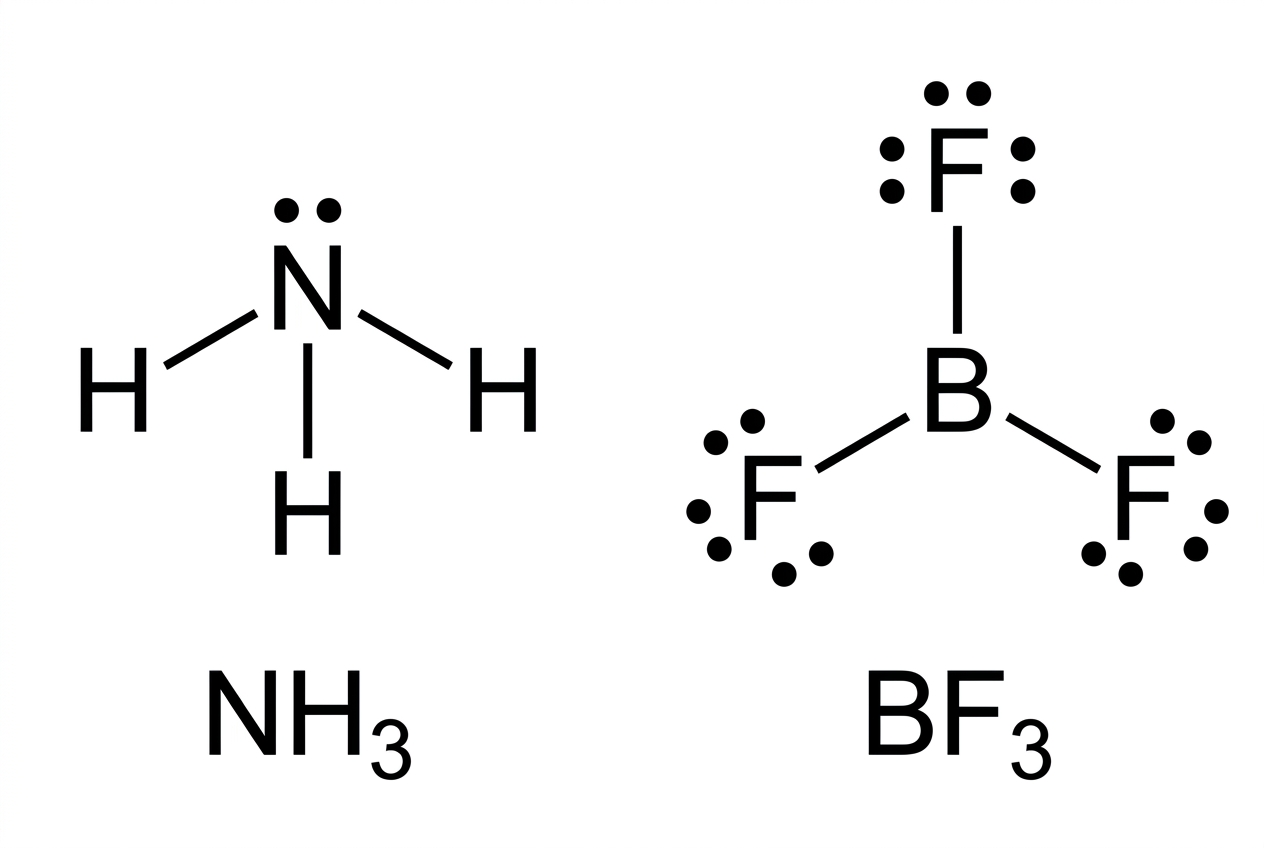

Lewis structures of separate reactants ammonia and boron trifluoride. Ammonia is shown with nitrogen bonded to three hydrogens and one lone pair. Boron trifluoride is shown as trigonal planar with boron bonded to three fluorine atoms and no coordinate bond between the reactants.
A

Identify the Lewis acid and the Lewis base.

[2]
Write your answer here...
B

Draw the product, showing the coordination bond.

[1]
Write your answer here...

0

Question 23
HL • Paper 2
Medium
Calculator Permitted

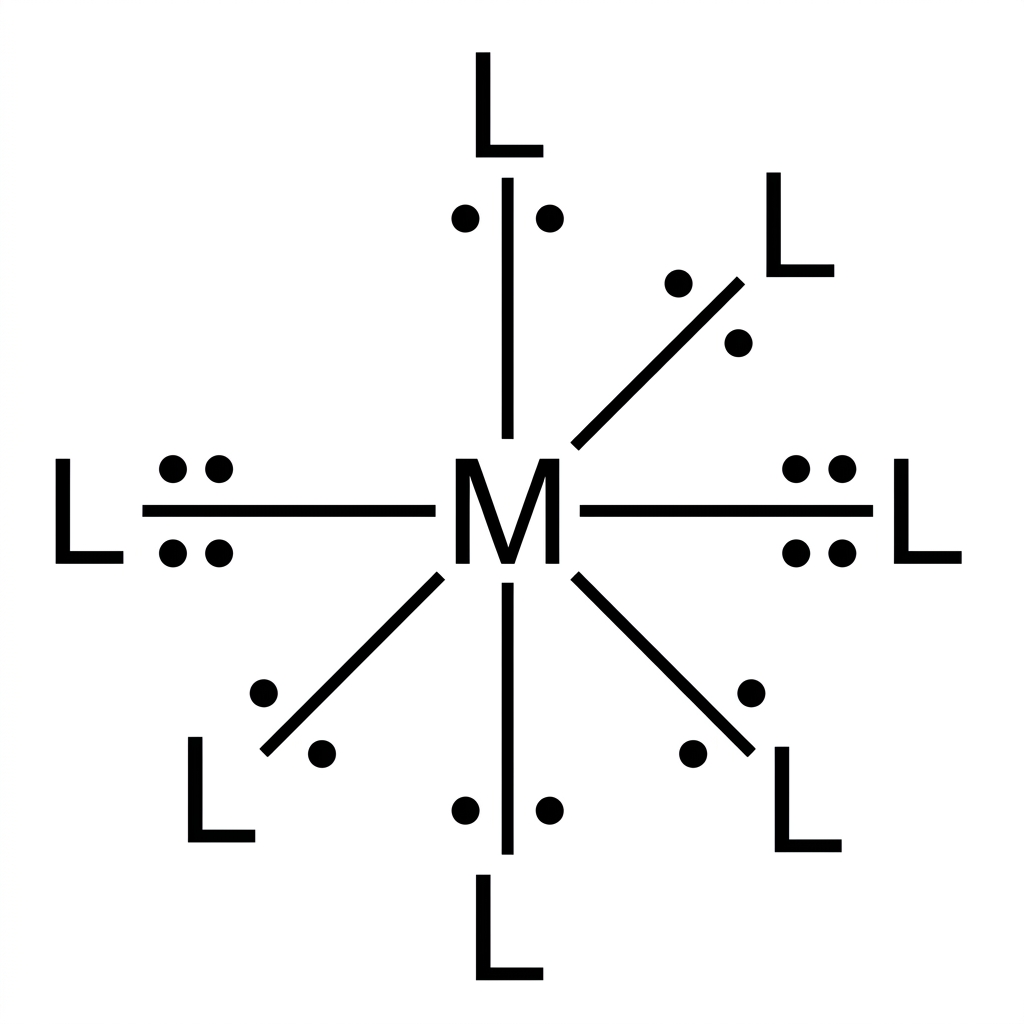

Complex ions contain ligands bonded to a central transition element ion by coordination bonds.

A

Deduce the oxidation state of iron in [Fe(CN)6]3−[\text{Fe(CN)}_6]^{3-}.

[1]
Write your answer here...
B

Deduce the charge on [NiCl2(NH3)4][\text{NiCl}_2(\text{NH}_3)_4] if nickel is in the +2+2 oxidation state.

[1]
Write your answer here...
C

Explain why NH3NH_3 acts as a ligand in transition metal complexes.

[1]
Write your answer here...

0

Question 24
HL • Paper 2
Medium
Calculator Permitted

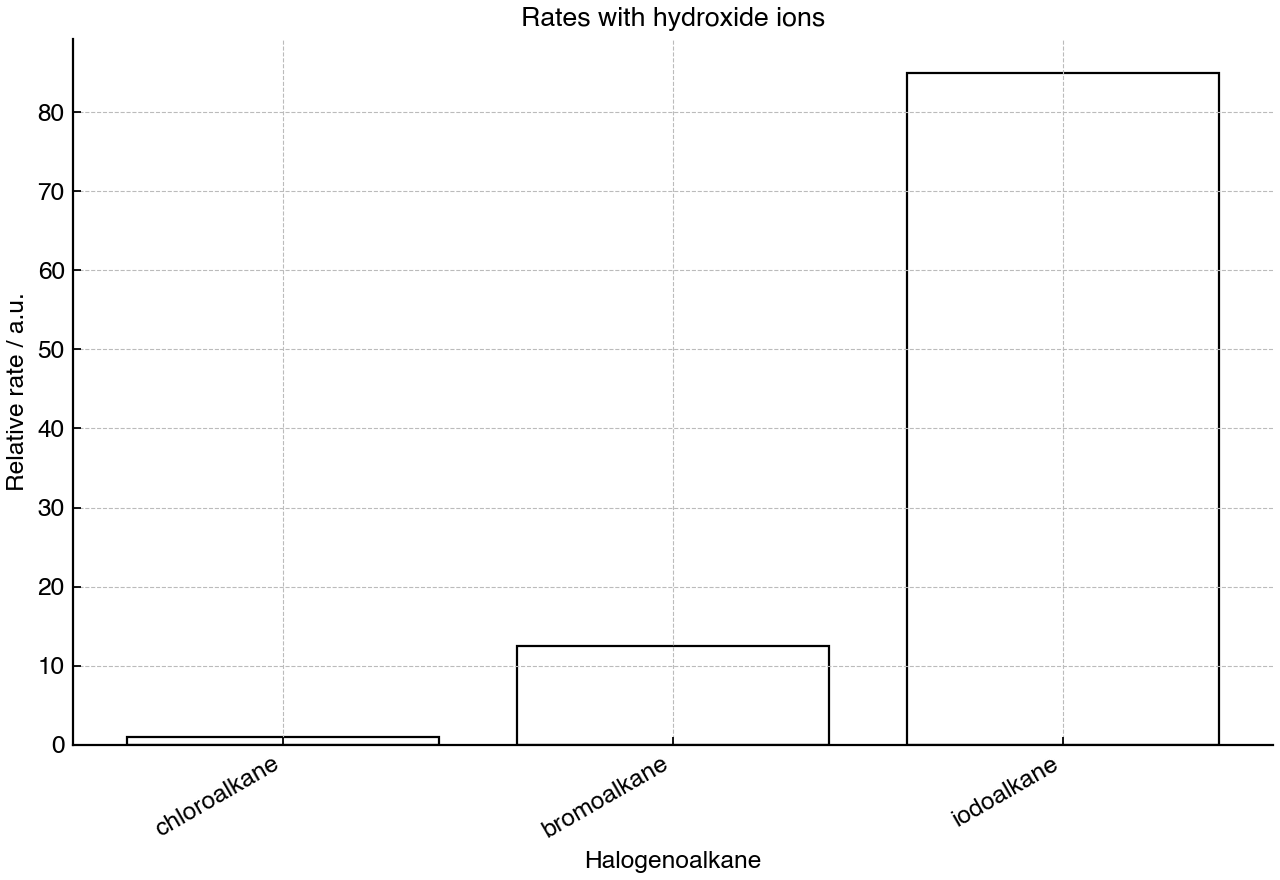

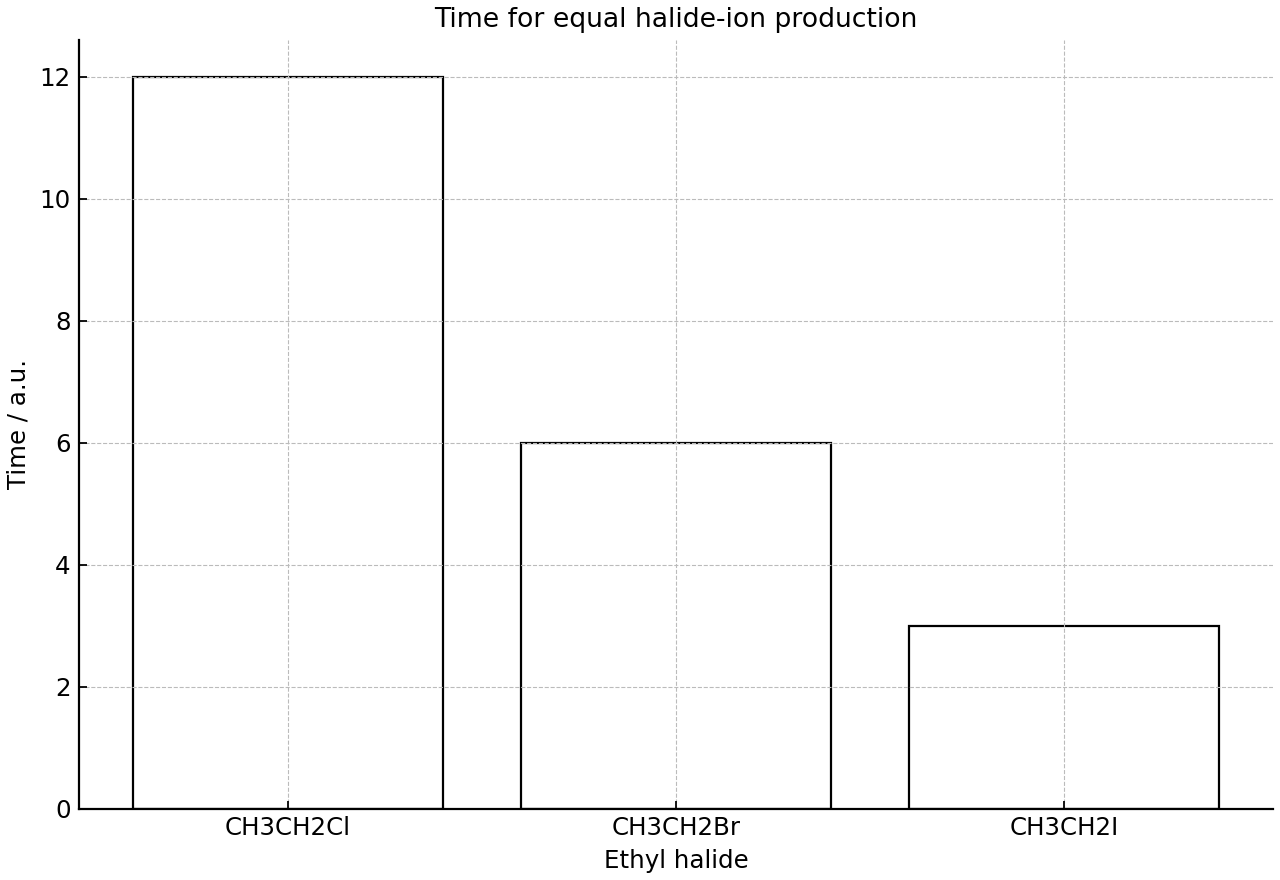

Three halogenoalkanes, CH3CH2ClCH_3CH_2Cl, CH3CH2BrCH_3CH_2Br and CH3CH2ICH_3CH_2I, are reacted separately with the same concentration of aqueous hydroxide ions under identical conditions.

A

State the order of increasing rate of nucleophilic substitution.

[1]
Write your answer here...
B

Explain the order in terms of the leaving group.

[2]
Write your answer here...
C

Write the rate equation expected for an SN2S_N2 reaction between bromoethane and hydroxide ions.

[1]
Write your answer here...

0

Question 25
SL • Paper 1B
Medium
Calculator Permitted

Chloroethane reacts with aqueous hydroxide ions in a nucleophilic substitution reaction.

CH3CH2Cl+OH−→CH3CH2OH+Cl−CH_3CH_2Cl + OH^- \to CH_3CH_2OH + Cl^-

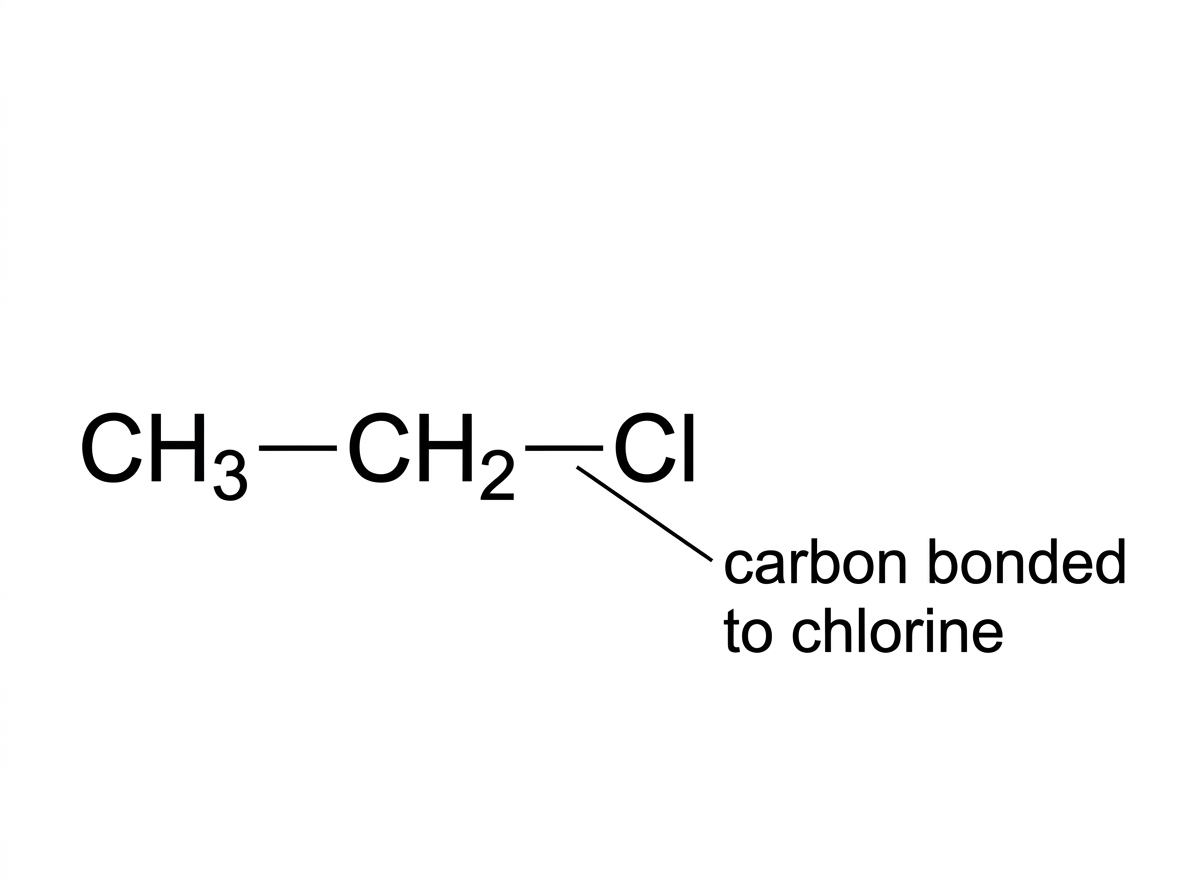

An annotated black-and-white structural diagram of chloroethane and the hydroxide ion before reaction. The carbon bonded to chlorine is labelled, chlorine is shown as more electronegative than carbon, and the hydroxide ion $OH^-$ is drawn with an oxygen lone pair. Do not show curly arrows, product structures, or a positive charge on the carbon.
A

State the leaving group in this reaction.

[1]
Write your answer here...
B

Draw curly arrows on the diagram to show the movement of electron pairs in the substitution reaction.

[2]
Write your answer here...
C

Explain why the carbon bonded to chlorine is attacked by the nucleophile.

[1]
Write your answer here...

0

Question 26
SL • Paper 1B
Medium
Calculator Permitted

The table shows reactions involving electron-pair acceptors.

ReactionSpecies / site markers
1H3N: + BF3 (electron-poor B)
2CH3C(=O)H (carbonyl Cδ+, Oδ−)
3CH2=CH2 + HBr (C=C π bond; Hδ+—Brδ−)
A

Identify the electrophile in the reaction between NH3NH_3 and BF3BF_3.

[1]
Write your answer here...
B

Identify the electrophilic atom in a carbonyl compound shown in the table.

[1]
Write your answer here...
C

Explain why HBrHBr can provide an electrophilic site for reaction with an alkene.

[2]
Write your answer here...

0

Question 27
SL • Paper 1B
Medium
Calculator Permitted

Samples of hydrocarbons were shaken with bromine water in the dark. The observations and structural formulas are shown.

HydrocarbonStructural formulaObservation with bromine water (dark)
methaneCH4orange remains orange
ethaneCH3CH3orange remains orange
etheneCH2=CH2orange turns colourless
propeneCH3CH=CH2orange turns colourless
A

State the type of hydrocarbon that decolourizes bromine water in the dark.

[1]
Write your answer here...
B

Deduce the product formed when ethene reacts with bromine.

[1]
Write your answer here...
C

Explain why an alkane does not decolourize bromine water in the dark under these conditions.

[2]
Write your answer here...
D

Write an equation for hydration of ethene to form the alcohol.

[1]
Write your answer here...

0

Question 28
HL • Paper 1B
Medium
Calculator Permitted

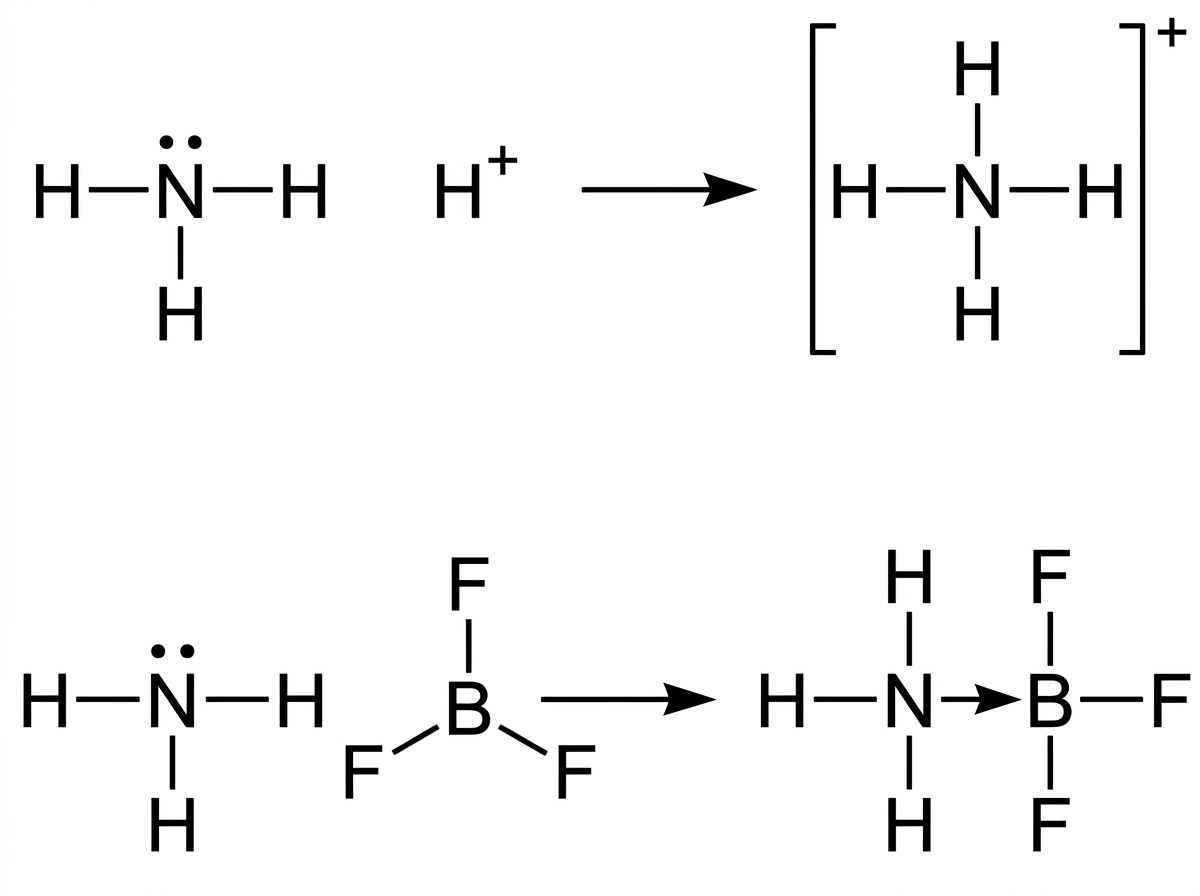

Two reactions are represented using Lewis formulas.

Two displayed Lewis-formula reactions. One shows $NH_3$ reacting with $H^+$ to form $NH_4^+$. The other shows $NH_3$ reacting with $BF_3$ to form an adduct. Lone pairs on nitrogen and the incomplete octet at boron are shown. No acid-base roles are labelled.
A

Identify the Lewis base in both reactions.

[1]
Write your answer here...
B

Identify the Lewis acid in the reaction between NH3NH_3 and BF3BF_3.

[1]
Write your answer here...
C

Compare the two reactions in terms of Brønsted-Lowry and Lewis acid-base theory.

[2]
Write your answer here...

0

Question 29
HL • Paper 1B
Medium
Calculator Permitted

The table shows several complex ions and the charges of their ligands.

Complex ionLigands presentCharge on each ligand
[CoCl4]4 chloride ligands (Cl-)-1 each
[Fe(OH)(H2O)5]2+1 hydroxide ligand (OH-), 5 water ligands (H2O)OH-: -1; H2O: 0
[Cr(NH3)6]3+6 ammonia ligands (NH3)0 each
A

State the role of a ligand in forming a complex ion.

[1]
Write your answer here...
B

Deduce the charge on [CoCl4][CoCl_4] when cobalt has oxidation state +2+2.

[1]
Write your answer here...
C

Deduce the oxidation state of iron in [Fe(OH)(H2O)5]2+[Fe(OH)(H_2O)_5]^{2+}.

[1]
Write your answer here...
D

Explain why a transition metal cation can act as a Lewis acid in complex ion formation.

[1]
Write your answer here...

0

Question 30
HL • Paper 2
Medium
Calculator Permitted

Compound A is 1-bromopropane. Compound B is 2-bromo-2-methylpropane. Both react with aqueous hydroxide ions by nucleophilic substitution.

Two labelled displayed structural formulas: A, 1-bromopropane with bromine on a terminal carbon; B, 2-bromo-2-methylpropane shown as (CH3)3CBr, with a bromine atom explicitly attached to the tertiary carbon and only three methyl groups around it. No mechanism arrows or products are shown.
A

State the most likely mechanism for each compound.

[2]
Write your answer here...
B

Explain the different mechanisms in terms of structure.

[2]
Write your answer here...

0

Question 31
HL • Paper 2
Medium
Calculator Permitted

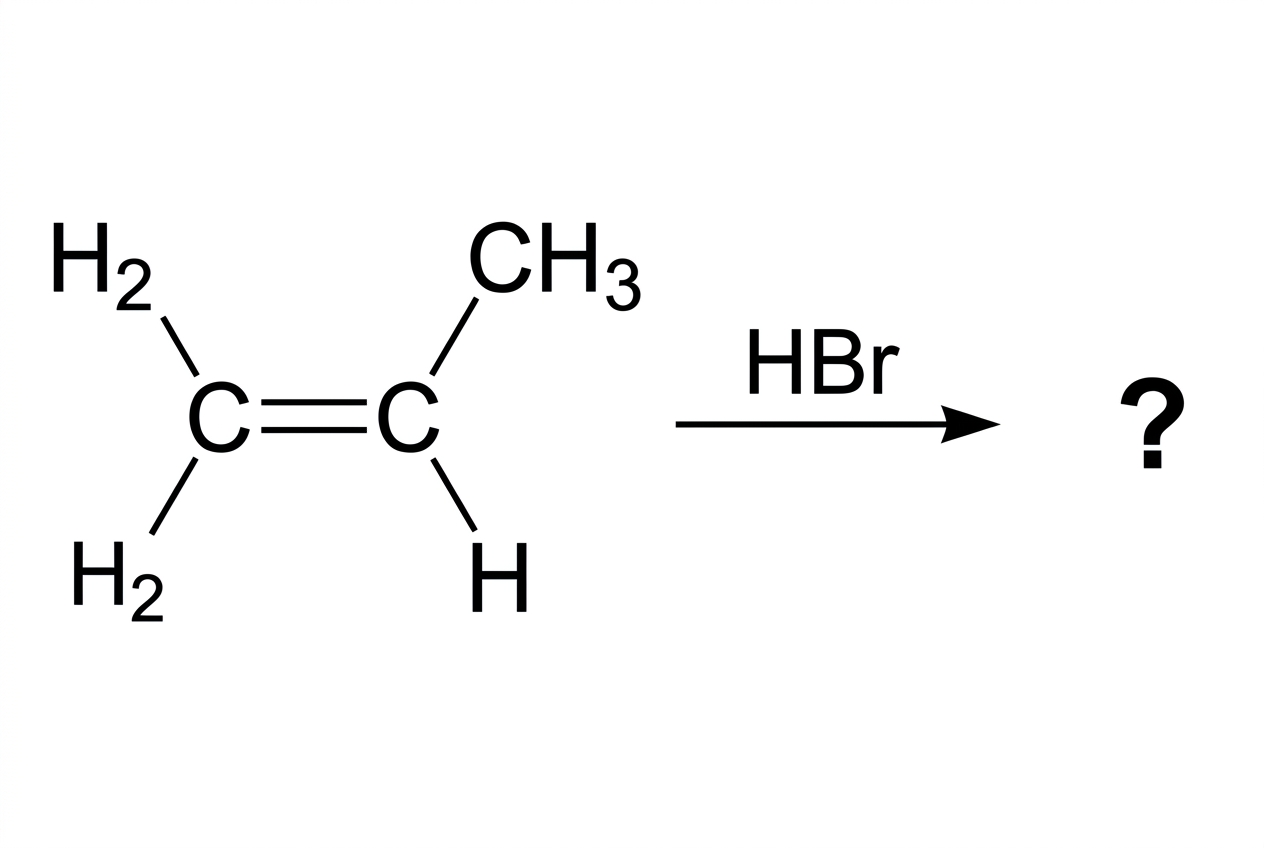

Propene reacts with hydrogen bromide by electrophilic addition.

A reaction scheme showing propene on the left and hydrogen bromide above a reaction arrow. The product side is blank or indicated by a question mark. No carbocation or product structure is shown.
A

State the major organic product.

[1]
Write your answer here...
B

Explain why this product is formed in greater amount than the alternative product.

[2]
Write your answer here...
C

Describe the electron-pair movement in the first step of the mechanism.

[1]
Write your answer here...

0

Question 32
HL • Paper 2
Medium
Calculator Permitted

Benzene reacts with a charged electrophile, E+E^+, by electrophilic substitution.

A simple reaction setup with a benzene ring and a generic charged electrophile labelled E plus. No products, intermediates, charges on the ring, or curly arrows are shown.
A

Explain why benzene tends to undergo substitution rather than addition.

[1]
Write your answer here...
B

Draw the mechanism for the reaction of benzene with E+E^+, using curly arrows.

[3]
Write your answer here...

0

Question 33
HL • Paper 1B
Hard
Calculator Permitted

The initial rate of hydrolysis of a tertiary halogenoalkane, RXRX, was measured at constant temperature with different concentrations of RXRX and hydroxide ions.

Run[RX] / mol dm^-3[OH-] / mol dm^-3Initial rate / mol dm^-3 s^-1
10.100.102.0 × 10^-4
20.200.104.0 × 10^-4
30.200.204.0 × 10^-4
40.300.306.0 × 10^-4
A

Deduce the order of reaction with respect to RXRX.

[1]
Write your answer here...
B

Deduce the order of reaction with respect to OH−OH^-.

[1]
Write your answer here...
C

Write the rate equation for the reaction.

[1]
Write your answer here...
D

Suggest the substitution mechanism consistent with the rate data.

[1]
Write your answer here...
E

Explain why the rate data are consistent with the mechanism suggested in (d).

[1]
Write your answer here...

0

Question 34
HL • Paper 1B
Hard
Calculator Permitted

Comparable primary halogenoalkanes were reacted separately with the same nucleophile under identical conditions. The relative initial rates are shown.

Relative initial rates for nucleophilic substitution of three primary halogenoalkanes under identical conditions.
A

State the order of increasing rate for the three halogenoalkanes.

[1]
Write your answer here...
B

Identify the best leaving group among Cl−Cl^-, Br−Br^- and I−I^-.

[1]
Write your answer here...
C

Explain the trend in rate using bond strength.

[1]
Write your answer here...
D

Suggest why the primary halogenoalkanes are expected to react mainly by an SN2S_N2 mechanism.

[1]
Write your answer here...

0

Question 35
SL • Paper 2
Hard
Calculator Permitted

1-bromopropane reacts with hot aqueous sodium hydroxide to form propan-1-ol.

A structural formula of 1-bromopropane showing a three-carbon chain with Br bonded to a terminal carbon, and a separate hydroxide ion with lone pairs shown on oxygen. The terminal carbon bonded to Br should be indicated as the site of reaction, but no curly arrows or products should be shown.
A

Consider the roles of the reacting species.

I.

Identify the nucleophile, the leaving group and the electrophilic atom in this reaction.

[3]
Write your answer here...
II.

Write an equation for the substitution reaction using structural formulas.

[1]
Write your answer here...
B

Explain the electron-pair movement involved in the reaction.

[3]
Write your answer here...

0

Question 36
SL • Paper 2
Hard
Calculator Permitted

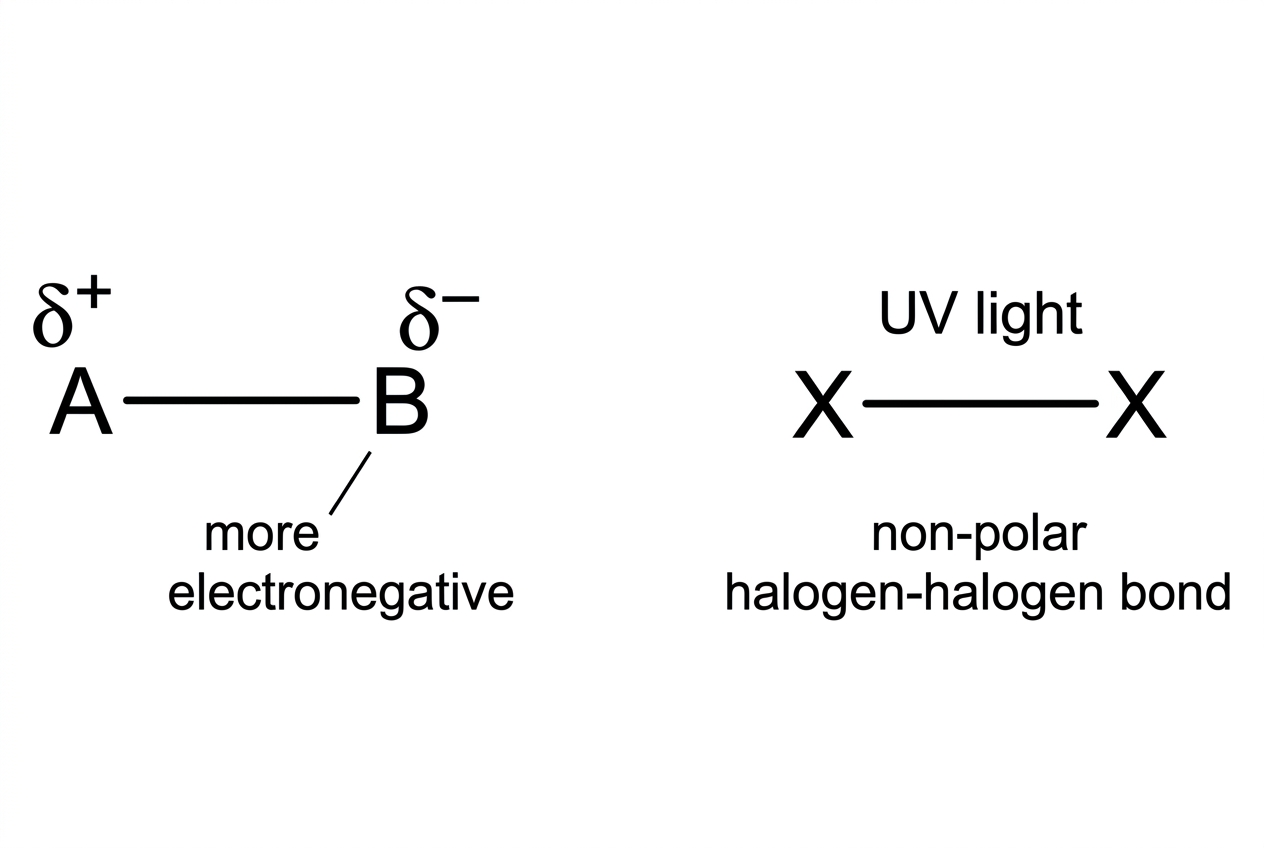

Bond fission can produce either ions or radicals depending on how the bonding electrons are shared between the fragments.

Two generic covalent bonds shown side by side: A-B and X-X. The first should be labelled as a polar bond with B more electronegative than A; the second should be labelled as a non-polar halogen-halogen bond under UV light. No products or electron-movement arrows should be shown.
A

Consider heterolytic fission of bromomethane.

I.

Define heterolytic fission.

[1]
Write your answer here...
II.

Write an equation for heterolytic fission of bromomethane.

[1]
Write your answer here...
III.

State where the curly arrow should start and end for this heterolytic fission.

[1]
Write your answer here...
B

Compare heterolytic fission with homolytic fission of a halogen molecule under ultraviolet light.

[3]
Write your answer here...

0

Question 37
SL • Paper 2
Hard
Calculator Permitted

But-2-ene is used to make several products by addition reactions.

A displayed structural formula of but-2-ene showing the C=C bond between the two central carbon atoms. Reagent labels Br2, HBr and steam/acidified water should be shown separately around the structure, without products or reaction arrows that reveal regiochemistry.
A

Deduce products formed when but-2-ene undergoes addition reactions.

I.

Write the equation for the reaction of but-2-ene with bromine.

[1]
Write your answer here...
II.

Write the equation for the reaction of but-2-ene with hydrogen bromide.

[1]
Write your answer here...
III.

Write the equation for hydration of but-2-ene.

[1]
Write your answer here...
IV.

State why only one structural product is expected in each reaction in (a)(ii) and (a)(iii).

[1]
Write your answer here...
B

sample of but-2-ene and a sample of butane are each shaken with bromine water in the dark. Explain the difference in observations.

[3]
Write your answer here...

0

Question 38
HL • Paper 2
Hard
Calculator Permitted

Ammonia reacts with boron trifluoride to form the adduct H3N→BF3H_3N\to BF_3.

Lewis formulas of NH3 and BF3 before reaction. NH3 should show a lone pair on nitrogen; BF3 should show boron bonded to three fluorine atoms with an incomplete octet. No product coordinate bond or curly arrow should be shown.
A

Apply Lewis acid-base theory to this reaction.

I.

Identify the Lewis acid and Lewis base.

[2]
Write your answer here...
II.

Explain the electron-pair roles of the two species.

[1]
Write your answer here...
B

Draw the Lewis formula of the product, showing the origin of the coordination bond.

[2]
Write your answer here...
C

Explain why this reaction is not a Brønsted-Lowry acid-base reaction.

[2]
Write your answer here...

0

Question 39
HL • Paper 1B
Hard
Calculator Permitted

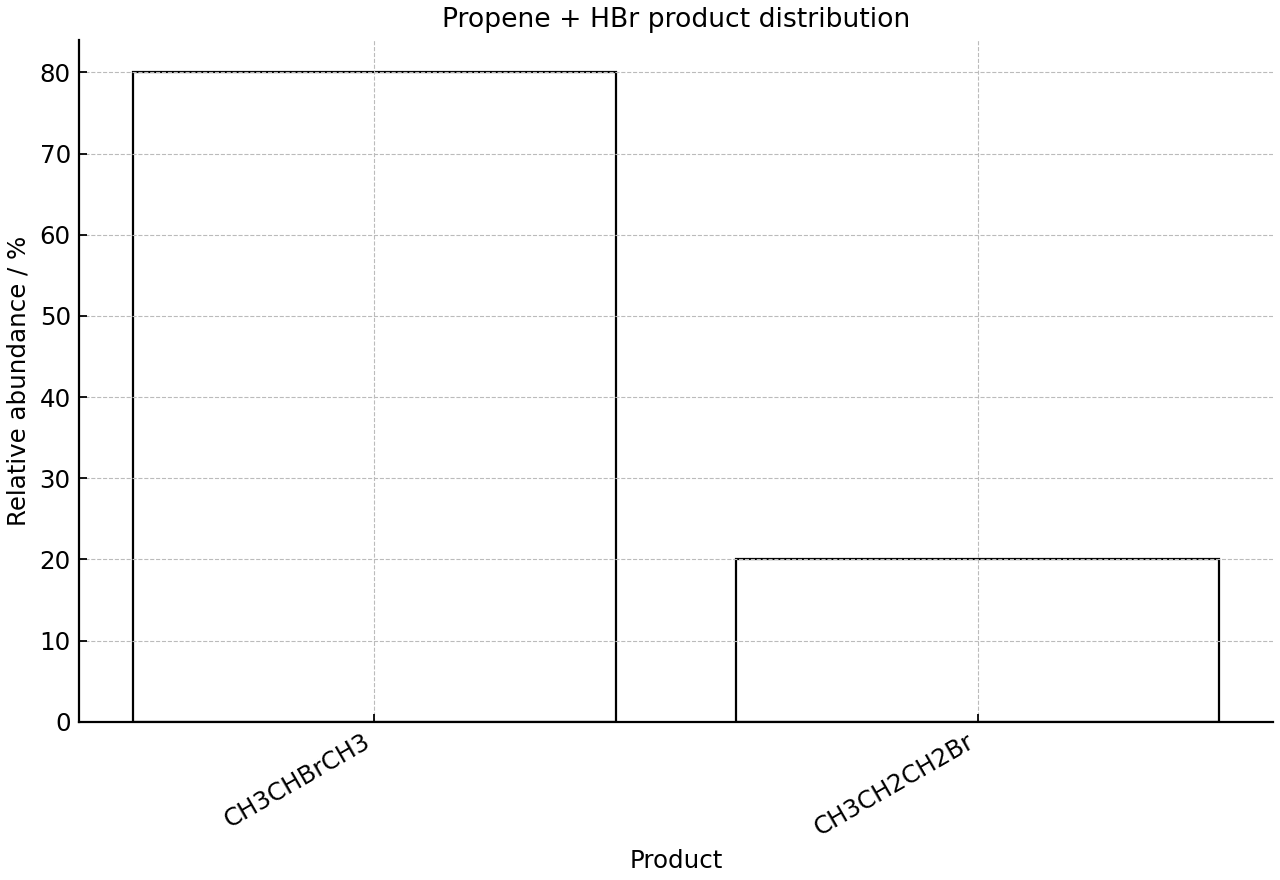

Propene reacts with hydrogen bromide to form two structural isomers. The product distribution is shown.

Relative abundance of propene + HBr products.
A

State the major product of the reaction.

[1]
Write your answer here...
B

Identify the more stable carbocation intermediate formed in the first step.

[1]
Write your answer here...
C

Explain why the carbocation identified in (b) leads to the major product.

[2]
Write your answer here...
D

Draw curly arrows for the first step leading to the major-product carbocation.

[1]
Write your answer here...

0

Question 40
HL • Paper 1B
Hard
Calculator Permitted

The mechanism of electrophilic substitution of benzene by a charged electrophile, E+E^+, is represented in outline.

An incomplete two-step mechanism for benzene reacting with $E^+$. The first panel shows benzene and $E^+$ before reaction. The second panel shows a carbocation intermediate with a C-E bond, one hydrogen still bonded to the substituted carbon, an incomplete delocalized ring and a positive charge on the ring. The final panel shows substituted benzene and a proton. Some curly arrows are omitted for students to interpret.
A

State why benzene usually undergoes substitution rather than addition.

[1]
Write your answer here...
B

Draw the curly arrow for the first step of the mechanism.

[1]
Write your answer here...
C

Explain why the intermediate shown is less stable than benzene.

[1]
Write your answer here...
D

Describe how aromaticity is restored in the second step.

[1]
Write your answer here...
E

Write the overall equation for electrophilic substitution of benzene by E+E^+.

[1]
Write your answer here...

0

Question 41
SL • Paper 2
Hard
Calculator Permitted

The ability of a species to donate or accept an electron pair determines its role in an electron-pair sharing reaction.

First reaction:

CH3CH2Cl+NH3→CH3CH2NH3++Cl−CH_3CH_2Cl + NH_3 \to CH_3CH_2NH_3^+ + Cl^-

Second reaction:

CH2=CH2+HBr→CH3CH2BrCH_2=CH_2 + HBr \to CH_3CH_2Br

A

Use the first and second reactions above to answer the following questions.

I.

Identify the nucleophile in the first reaction and explain your choice.

[2]
Write your answer here...
II.

Identify the electrophilic atom in the first reaction and explain your choice.

[1]
Write your answer here...
III.

Identify the electrophile in the first step of the second reaction.

[1]
Write your answer here...
B

Discuss the statement: “All negatively charged species are nucleophiles and all neutral species are not nucleophiles.”

[2]
Write your answer here...

0

Question 42
SL • Paper 2
Hard
Calculator Permitted

Alkenes are described as useful starting molecules because the carbon-carbon double bond can be converted into different functional groups.

A reaction scheme with ethene at the centre and three unlabeled arrows leading to three boxes. The arrows should be labelled Br2, HCl, and H2O with acid catalyst/steam. The product boxes should be blank.
A

Ethene is reacted separately with bromine, hydrogen chloride and water under suitable conditions.

I.

Deduce the product of the reaction with bromine.

[1]
Write your answer here...
II.

Deduce the product of the reaction with hydrogen chloride.

[1]
Write your answer here...
III.

Deduce the product of hydration.

[1]
Write your answer here...
B

Explain why the carbon-carbon double bond in ethene is susceptible to electrophilic attack.

[2]
Write your answer here...
C

Evaluate the use of bromine water as a test to distinguish an alkene from an alkane.

[3]
Write your answer here...

0

Question 43
SL • Paper 2
Hard
Calculator Permitted

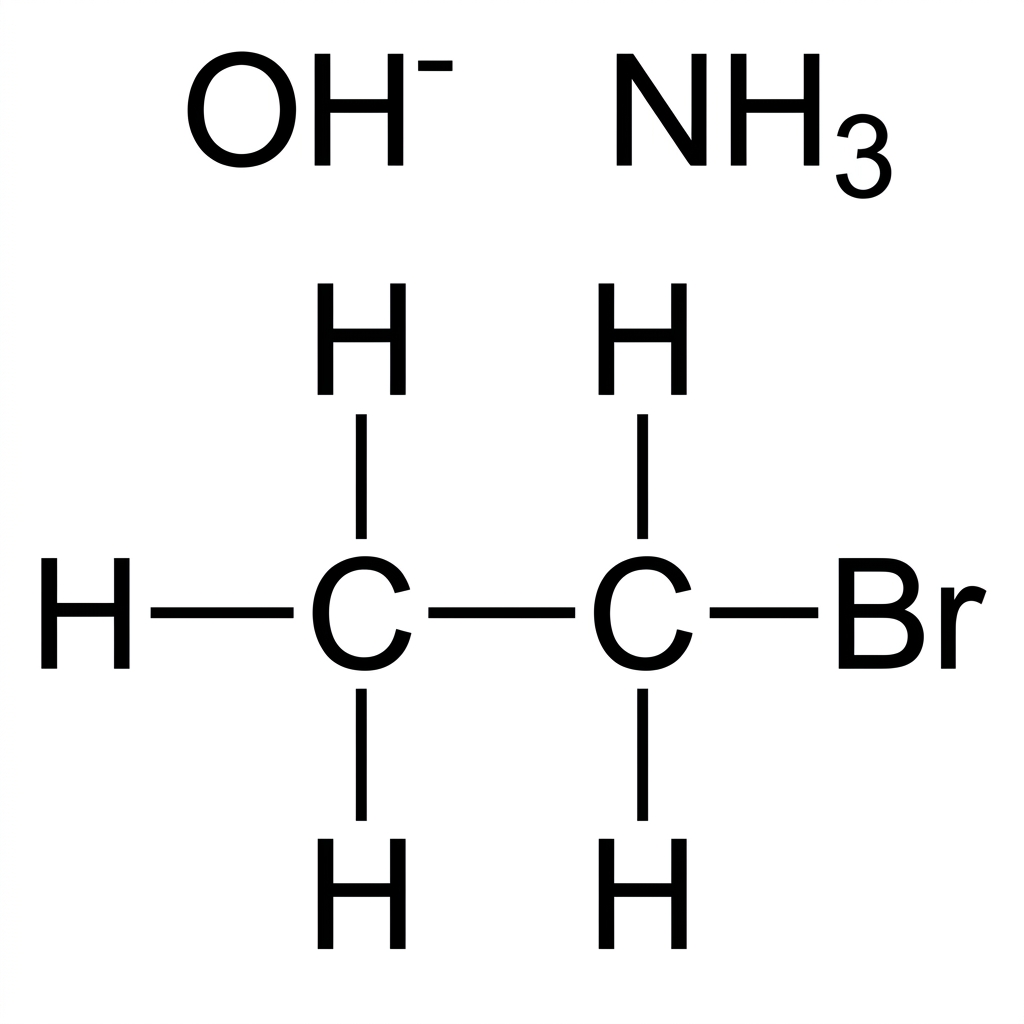

Bromoethane can be converted into different organic products by reaction with nucleophiles.

A displayed structural formula of bromoethane with two separate reagent labels, OH- and NH3, shown near the molecule. The visual should not show products or electron-pair arrows.
A

Bromoethane is reacted separately with hydroxide ions and ammonia.

I.

Write an equation for the reaction with hydroxide ions.

[1]
Write your answer here...
II.

Write an equation for the reaction with ammonia to form the organic cation.

[1]
Write your answer here...
III.

Identify the nucleophile in each reaction.

[2]
Write your answer here...
B

Explain why both reactions are classified as nucleophilic substitution reactions.

[3]
Write your answer here...

0

Question 44
HL • Paper 2
Hard
Calculator Permitted

Transition element cations form complex ions with ligands such as H2OH_2O, NH3NH_3, Cl−Cl^- and CN−CN^-.

An octahedral complex ion diagram with a central transition metal labelled M and six ligand positions around it. Ligands should be represented generically as L with lone pairs pointing toward M. No charges or specific complex formula should be calculated or shown.
A

Deduce charges and oxidation states for complex ions.

I.

Deduce the charge on [CoCl4][CoCl_4] if cobalt is in the +2+2 oxidation state.

[1]
Write your answer here...
II.

Deduce the oxidation state of iron in [Fe(OH)(H2O)5]2+[Fe(OH)(H_2O)_5]^{2+}.

[1]
Write your answer here...
III.

Deduce the charge on [Fe(CN)6][Fe(CN)_6] if iron is in the +3+3 oxidation state.

[1]
Write your answer here...
B

Explain the formation of [Cu(NH3)4(H2O)2]2+[Cu(NH_3)_4(H_2O)_2]^{2+} in terms of Lewis acid-base theory.

[3]
Write your answer here...
C

Discuss whether a coordination bond is a different type of covalent bond after it has formed.

[2]
Write your answer here...

0

Question 45
HL • Paper 2
Hard
Calculator Permitted

The rate of nucleophilic substitution depends on the identity of the halogen in a halogenoalkane. Three compounds, CH3CH2ClCH_3CH_2Cl, CH3CH2BrCH_3CH_2Br and CH3CH2ICH_3CH_2I, are reacted separately with the same concentration of hydroxide ions under identical conditions.

Relative time to produce the same amount of halide ion from three ethyl halides.
A

Predict the relative rates for the three reactions.

I.

Rank the halogenoalkanes from fastest to slowest reaction.

[1]
Write your answer here...
II.

Identify the best leaving group among Cl−Cl^-, Br−Br^- and I−I^-.

[1]
Write your answer here...
B

Explain the trend in rate in terms of bonding and ion stability.

[3]
Write your answer here...
C

Evaluate why the comparison is only valid when the organic group and reaction conditions are kept the same.

[2]
Write your answer here...

0

Question 46
HL • Paper 2
Hard
Calculator Permitted

1-bromobutane and 2-bromo-2-methylpropane react with aqueous hydroxide ions by different nucleophilic substitution mechanisms.

Displayed structural formulas of 1-bromobutane and 2-bromo-2-methylpropane shown side by side, each with the C-Br bond highlighted. Hydroxide ion should be shown as a reagent. No mechanisms, transition states or products should be shown.
A

Compare the mechanisms and rate laws for the two halogenoalkanes.

I.

State the mechanism and rate equation expected for 1-bromobutane.

[2]
Write your answer here...
II.

State the mechanism and rate equation expected for 2-bromo-2-methylpropane.

[2]
Write your answer here...
B

Explain why the primary halogenoalkane favours the SN2S_N2 mechanism.

[2]
Write your answer here...
C

Explain why the tertiary halogenoalkane favours the SN1S_N1 mechanism.

[2]
Write your answer here...

0

Question 47
HL • Paper 2
Hard
Calculator Permitted

Symmetrical alkenes undergo electrophilic addition with halogens, hydrogen halides and water in acidified conditions.

A reaction scheme showing but-2-ene as the alkene, with separate reagents Br2, HBr, and H2O/H+ shown. Include space beside the bromine reaction for a mechanism drawing, but do not show products, carbocations or curly arrows.
A

Consider the addition of bromine to but-2-ene.

I.

Explain why bromine can act as an electrophile as it approaches the alkene.

[1]
Write your answer here...
II.

Draw the electron-pair movement for the first step of the mechanism.

[2]
Write your answer here...
B

Explain why addition of HBr to but-2-ene gives only one structural product, and state the product.

[2]
Write your answer here...
C

Describe the role of the acid catalyst in the hydration of a symmetrical alkene.

[3]
Write your answer here...

0

Question 48
HL • Paper 2
Hard
Calculator Permitted

Carbocation stability is used to explain the major products of addition reactions of unsymmetrical alkenes and the substitution reactions of benzene with electrophiles.

Displayed structural formulas of propene and benzene shown separately. Propene should be shown with HBr and H2O/H+ as possible reagents. Benzene should be shown with a generic electrophile E+ nearby. No products, intermediates or curly arrows should be shown.
A

Propene reacts with hydrogen bromide.

I.

Predict the major product.

[1]
Write your answer here...
II.

Explain why this product is favoured.

[2]
Write your answer here...
B

Propene is hydrated in acidified conditions. Predict the major product and explain the role of water in the mechanism.

[2]
Write your answer here...
C

Discuss why benzene reacts with a charged electrophile, E+E^+, by substitution rather than addition.

[3]
Write your answer here...

0


R3.3 Hydrogen sharing reactions
