The metallic model: from particles to properties

The main idea here is simple, but it explains a lot: an element behaves more like a metal when its outer electrons are easily shared across many atoms instead of being held by one atom. Elements with low electronegativity usually have stronger metallic character because their valence electrons delocalize more readily. Across a period, metallic character generally decreases; down a group, it generally increases.

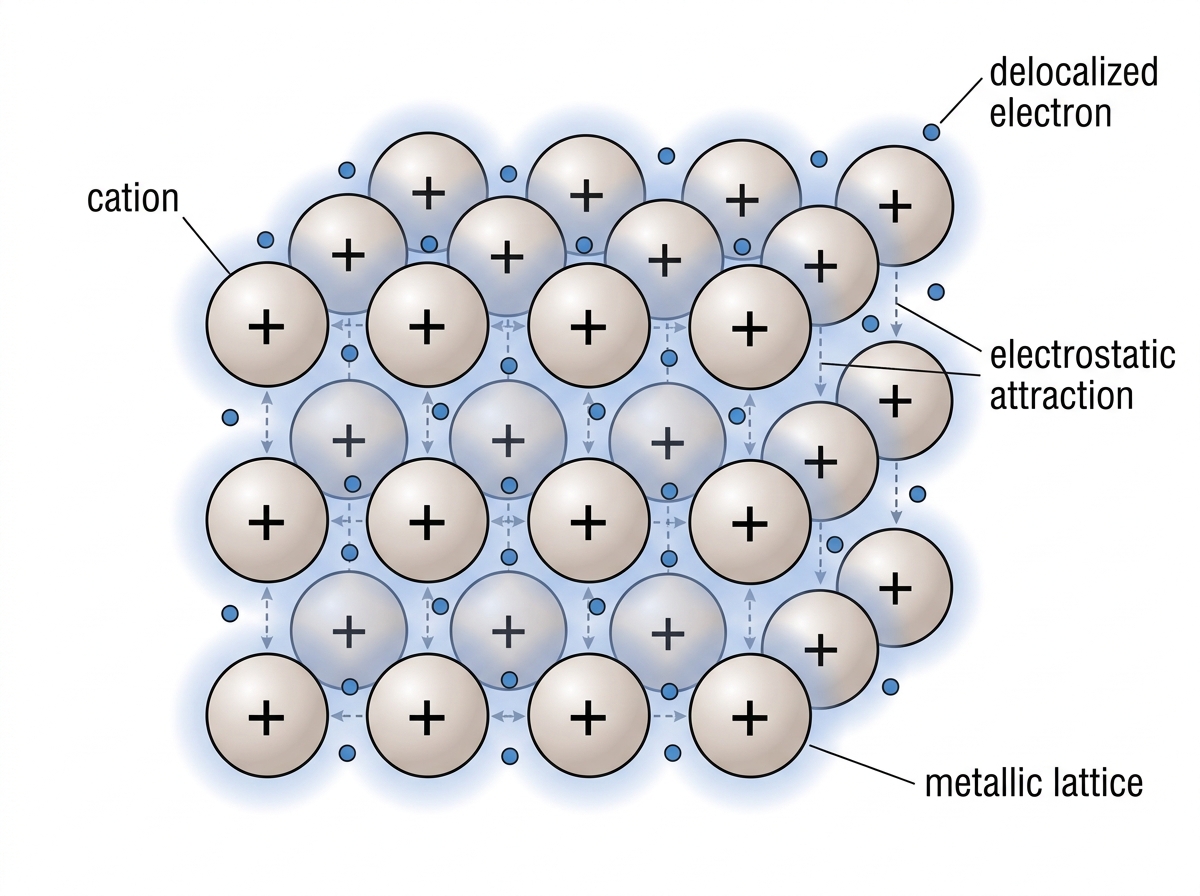

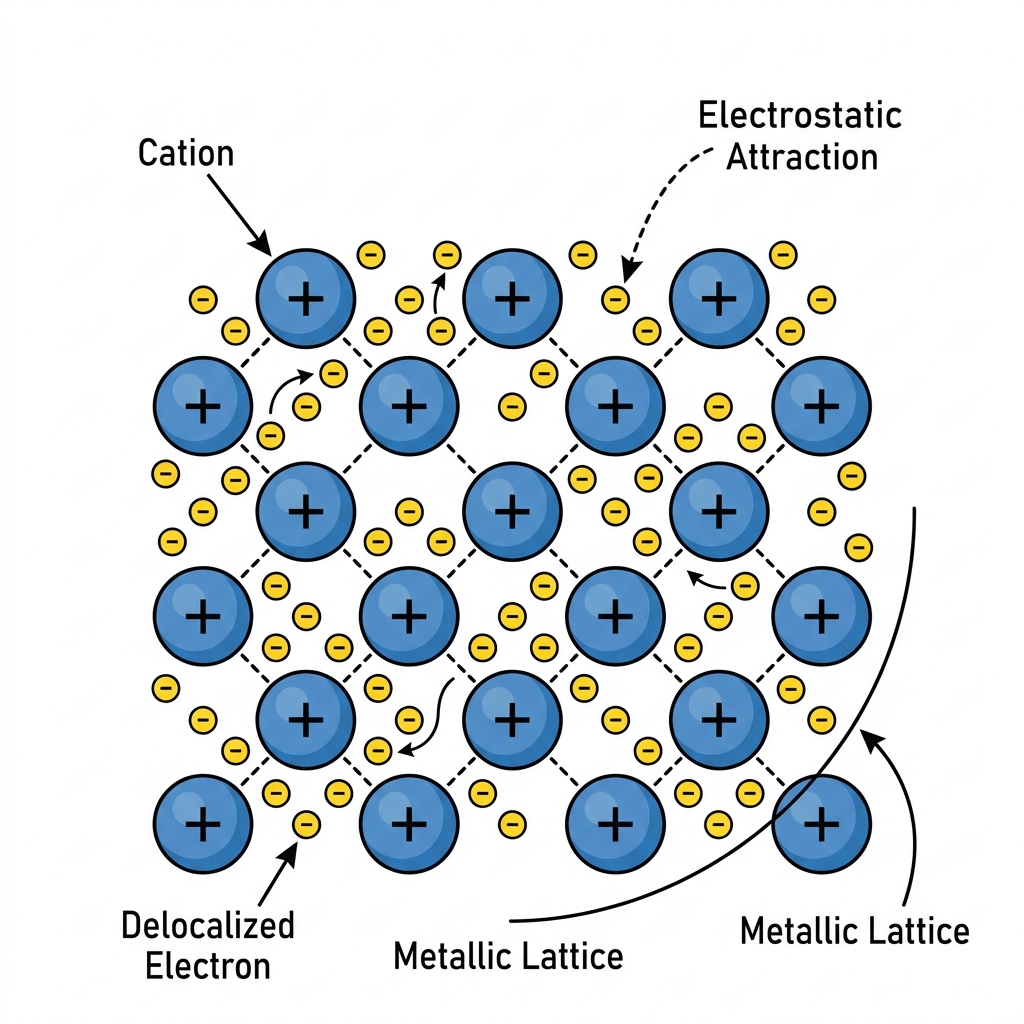

A metallic bond is an electrostatic attraction that acts between a lattice of positive metal ions and delocalized electrons. A lattice is a regular three-dimensional arrangement of particles that repeats through a solid. A cation is a positively charged ion formed when an atom loses one or more electrons. A delocalized electron is an electron that is not fixed between two particular atoms and can move through a larger structure.

In the metallic model, metal atoms give their outer-shell electrons to a mobile electron cloud. The atoms left behind are modelled as closely packed positive ions, with these mobile electrons around them. The attraction is not a single line joining two atoms, as in a simple covalent bond. It extends through the whole metallic structure.

Electrical conductivity

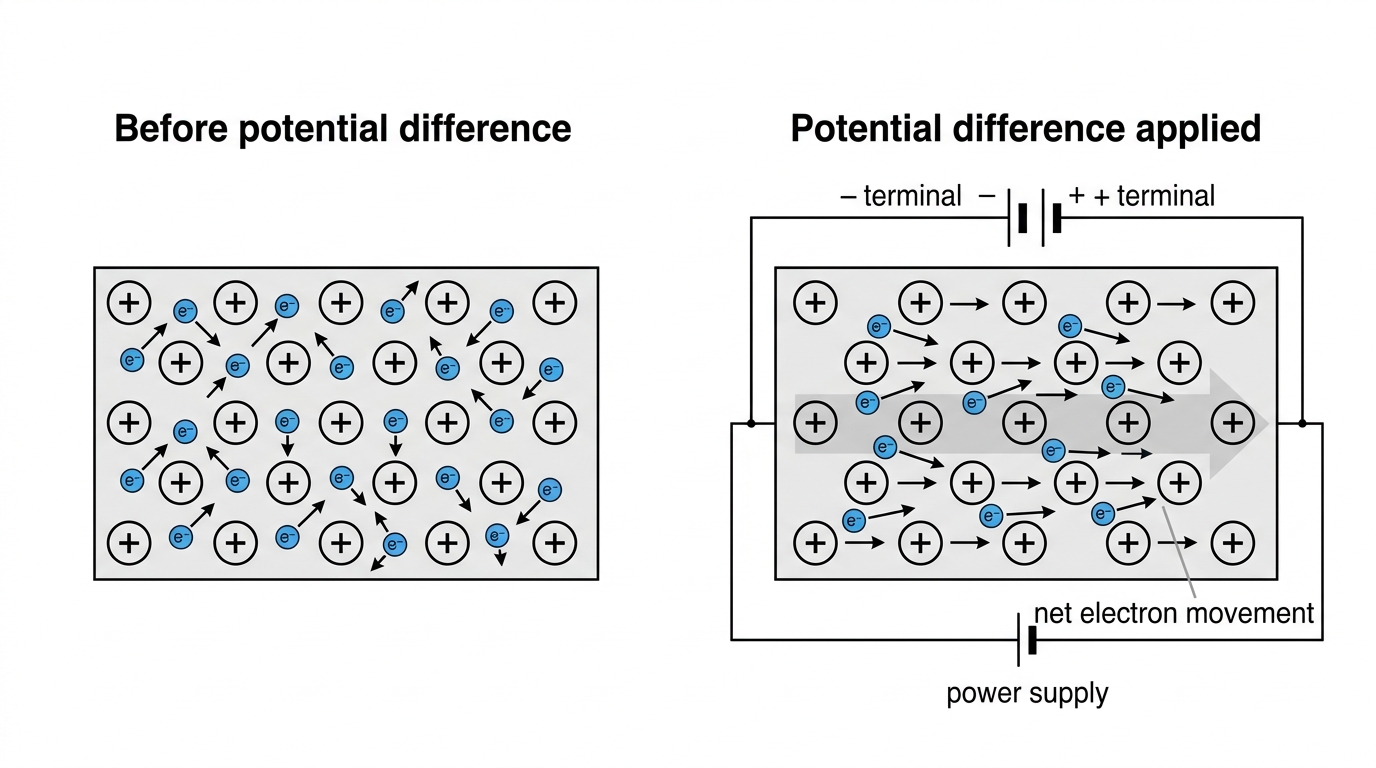

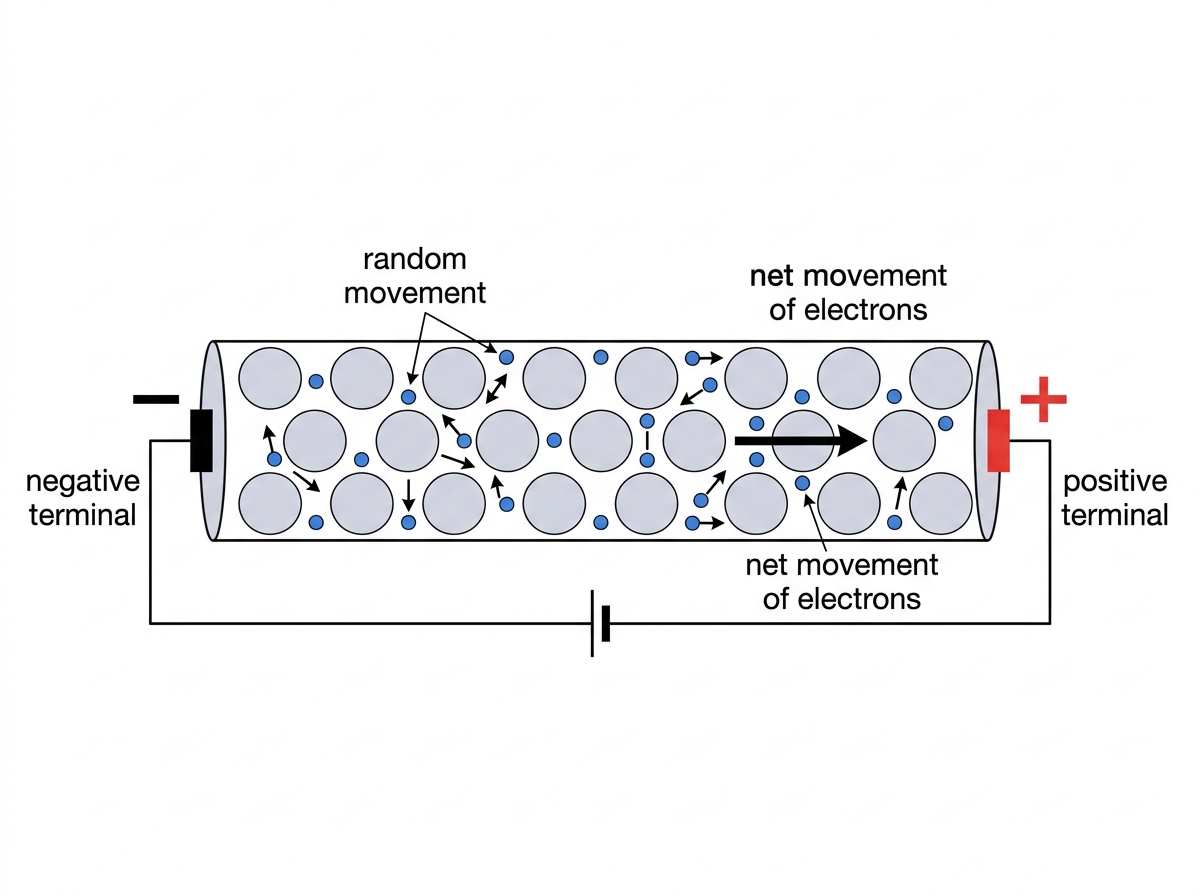

Electrical conductivity is the ability of a material to allow electric charge to move through it. Metals conduct electricity because they have mobile charged particles: the delocalized electrons. In a piece of metal with no potential difference applied, these electrons move randomly. Apply a potential difference, and there is a net movement of electrons through the metal towards the positive terminal.

That is why metals such as copper and aluminium work well in electrical wiring. The same property is a problem if the metal is being used as a handle for an electrical device, where insulation is needed instead of conduction. Link the use to the property, not just to the word “metal”.

Thermal conductivity

Thermal conductivity is the ability of a material to transfer thermal energy through itself. Metals are good thermal conductors for two linked reasons. Their ions are closely packed, so vibrations pass from one ion to the next. Their mobile delocalized electrons can also carry kinetic energy rapidly through the lattice after collisions with vibrating ions.

This explains why metals are used in saucepans, heat sinks and radiators: energy moves quickly from one region of the metal to another. It also explains why the handle of a metal spoon in hot soup soon feels hot. The particles have not travelled from the soup to your hand; energy has.

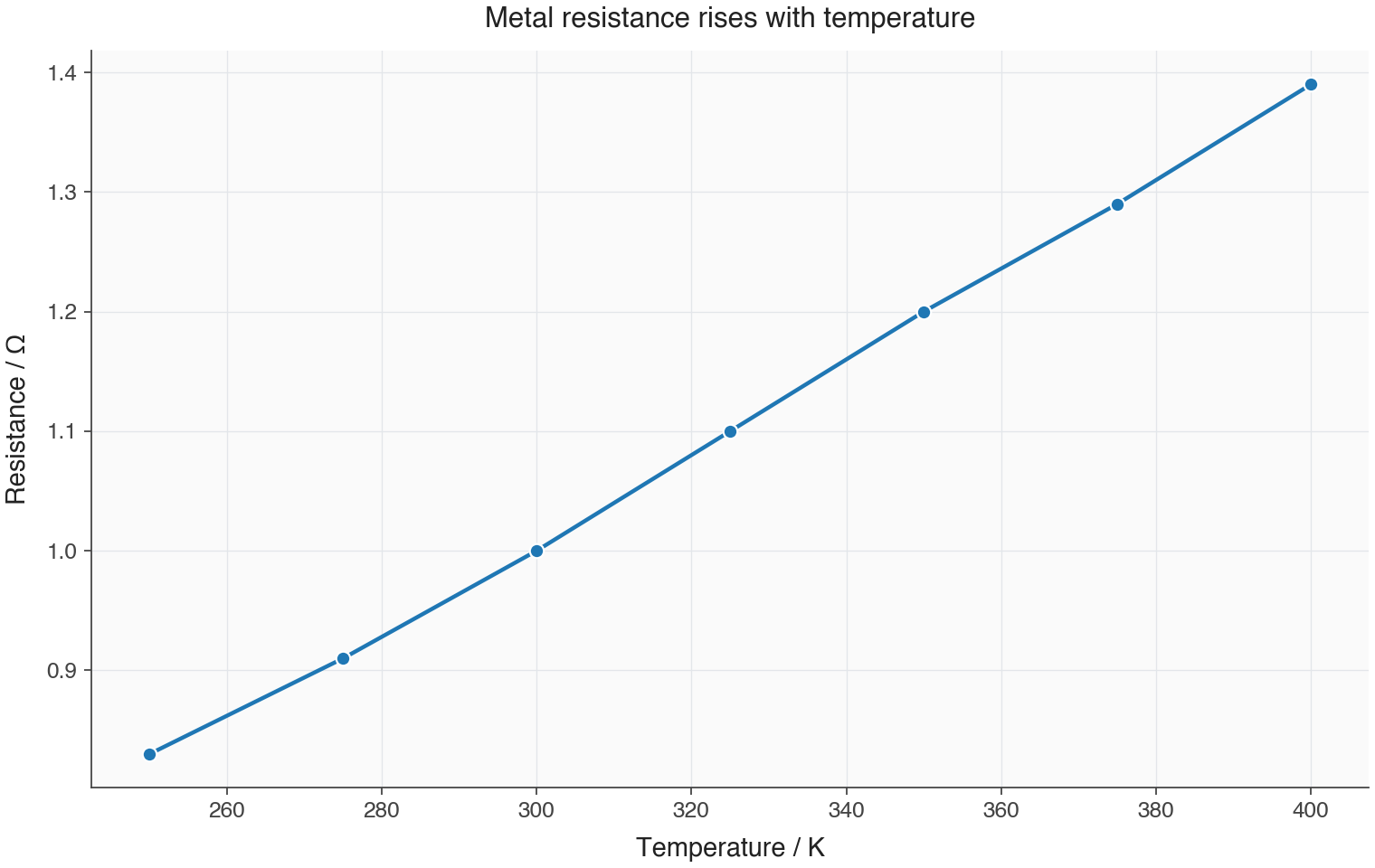

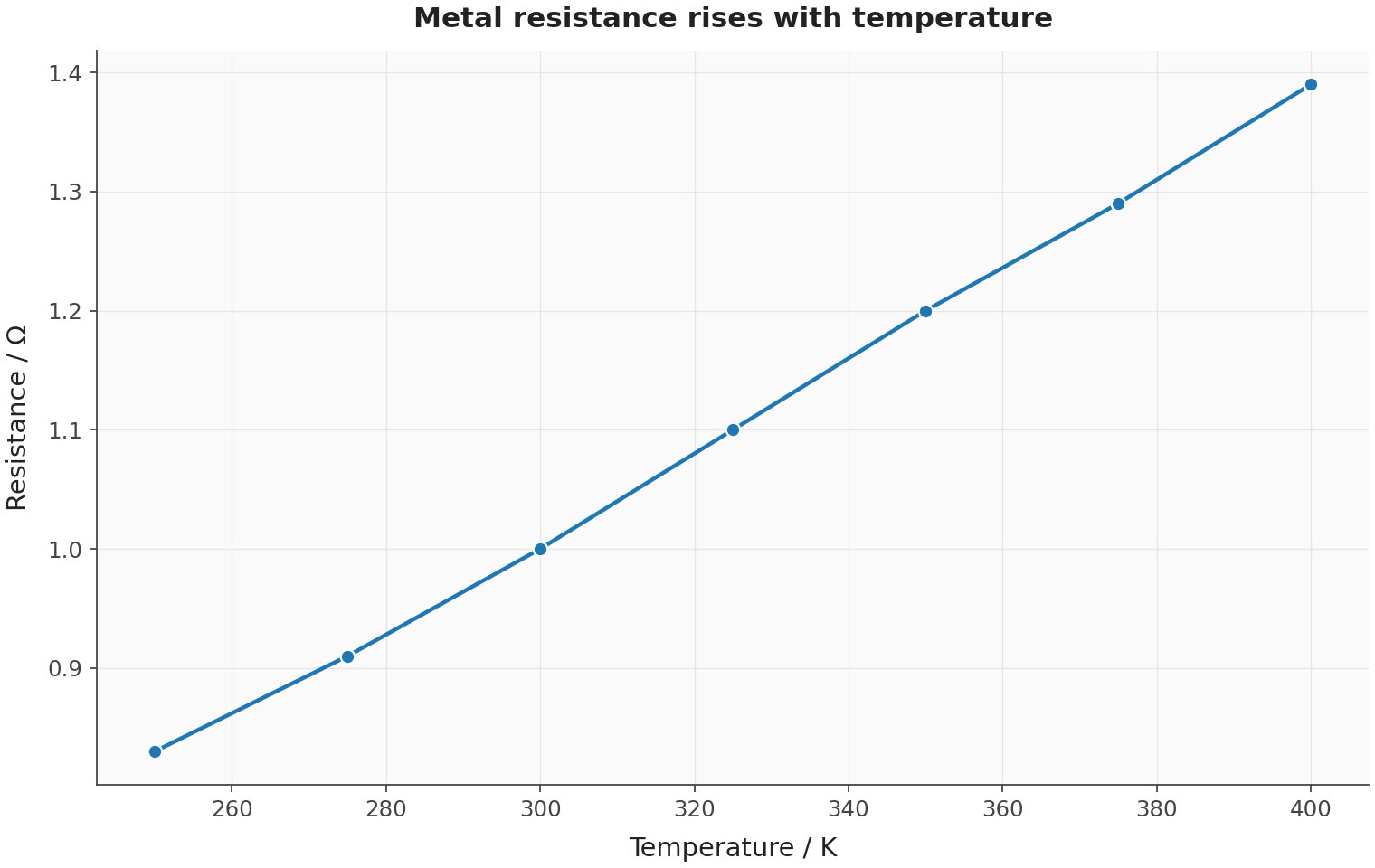

As temperature increases, the ions in a metal vibrate more vigorously. These vibrations get in the way of delocalized electrons more often, so the electrical resistance of most metals increases with temperature. A superconductor is a material that has zero electrical resistance below a particular critical temperature. That is not the normal behaviour of metals at room temperature, but it does show that conductivity depends on particle behaviour, not just on a label.

Malleability, ductility and non-directional bonding

Malleability is the ability of a solid to be hammered or pressed into a new shape without shattering. Ductility is the ability of a solid to be drawn out into a wire. Metals have these properties because metallic bonding is non-directional: the attraction acts between the whole array of cations and the surrounding delocalized electrons, not between one fixed pair of atoms.

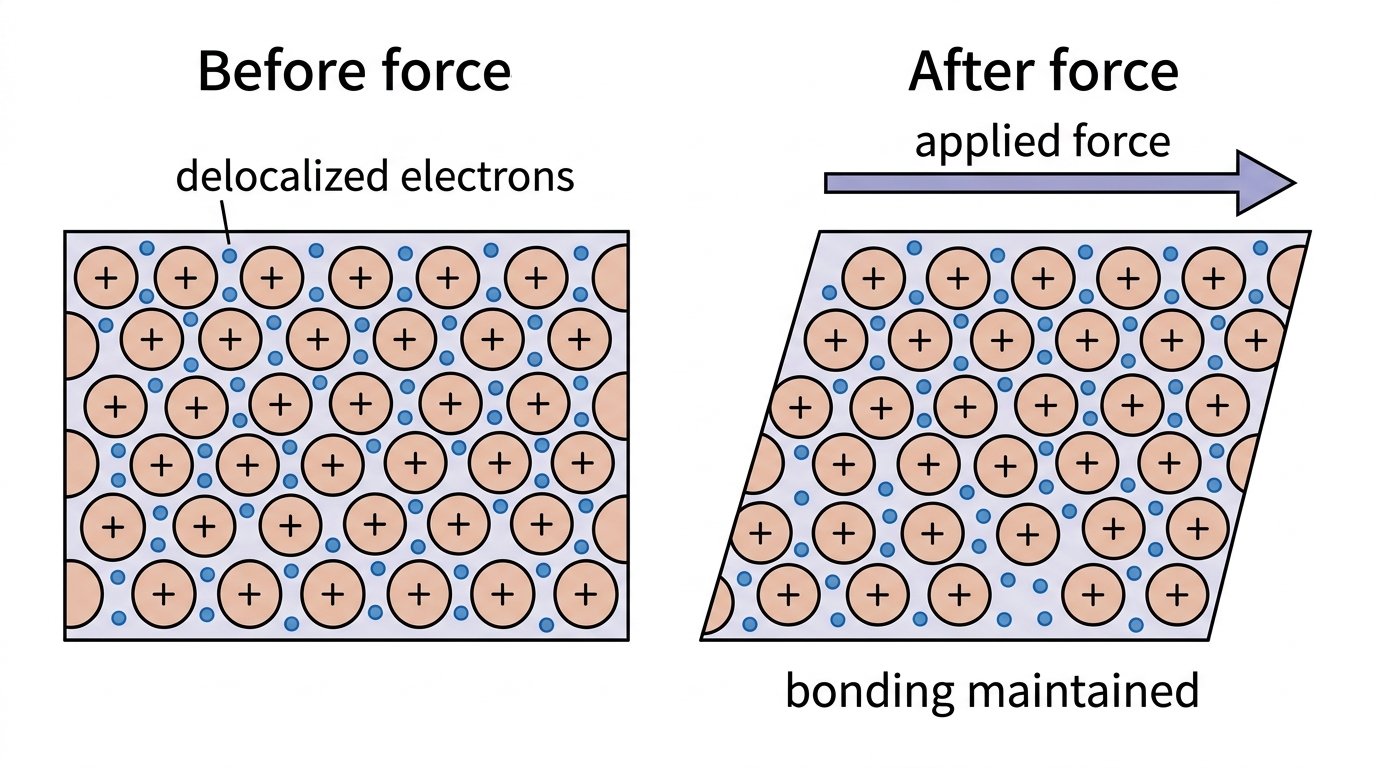

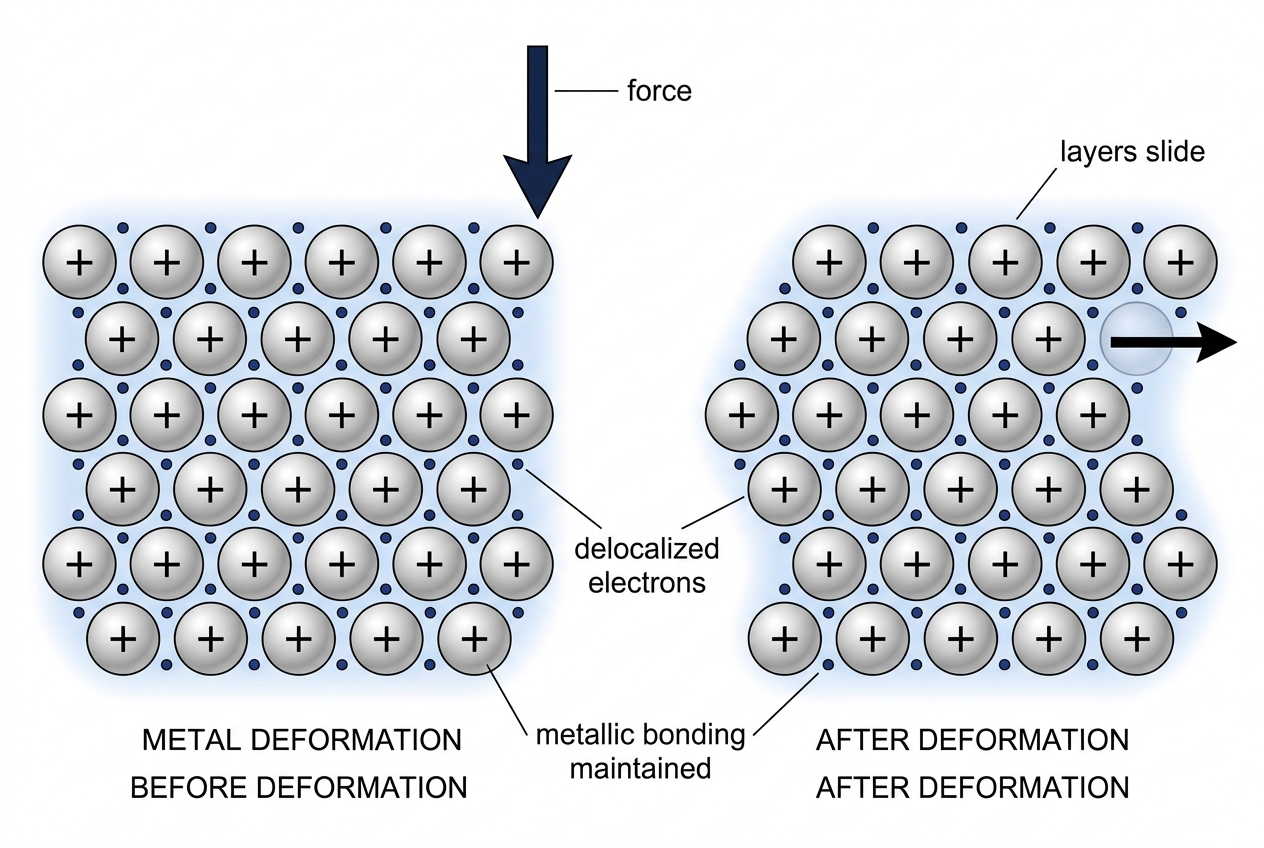

When a force is applied, layers of metal ions can slide past each other. The delocalized electrons still surround the shifted ions, so the metallic bonding is maintained while the metal changes shape. An ionic crystal behaves very differently. If its layers slide, like charges can end up next to each other and the crystal may split.

Malleability makes aluminium useful for foil and car body panels. Ductility, together with electrical conductivity, makes metals useful for cables. In real material choice, strength, density, corrosion resistance and cost also matter, so “metallic bonding” begins the explanation rather than finishing the design decision.

Lustre and uses of metals

Lustre is the shiny appearance of a material caused by reflection of visible light from its surface. Metals are often lustrous because their delocalized electrons interact strongly with incoming light and re-emit it. Thin layers of metals such as silver or aluminium can therefore be used in mirrors and reflective coatings.

Characteristic metallic properties connect directly to uses:

Evidence from experimental data

Measurable data support the metallic model. Useful experimental data include electrical conductivity, thermal conductivity, melting point, boiling point, density, hardness and malleability. When these values are collected across a period or down a group, the trends can be compared with changes in atomic structure and bonding.

In period 3, sodium, magnesium and aluminium have metallic structures and high electrical conductivity. Silicon is a semiconductor with a covalent network structure, while the later elements are poor electrical conductors because they do not contain mobile delocalized electrons in a metallic lattice. This is a clear example of periodic data showing a gradual change from metallic to non-metallic behaviour.

Period 3 changes from metallic to non-metallic character.

A sensible database investigation starts with a focused research question, such as how thermal conductivity changes down group 1 or how melting point changes across the metallic elements of period 3. The data set should be large enough to show a trend, values should come from a reliable database, and the same property should be compared under comparable conditions. Graphs help because they show whether a relationship is smooth, irregular or interrupted by a change in structure.

Link to metal reactivity

Reactivity trends of metals can also be predicted from the periodic table. For many s-block metals, reactivity increases down a group because the outer electron is farther from the nucleus and is lost more easily. Across a period from left to right, metals generally become less reactive as they hold their outer electrons more strongly. These reactivity trends deal with electron loss, whereas the physical properties in this topic depend on delocalized electrons in the solid metal. The ideas are connected, but they are not the same explanation.

What makes a metallic bond stronger?

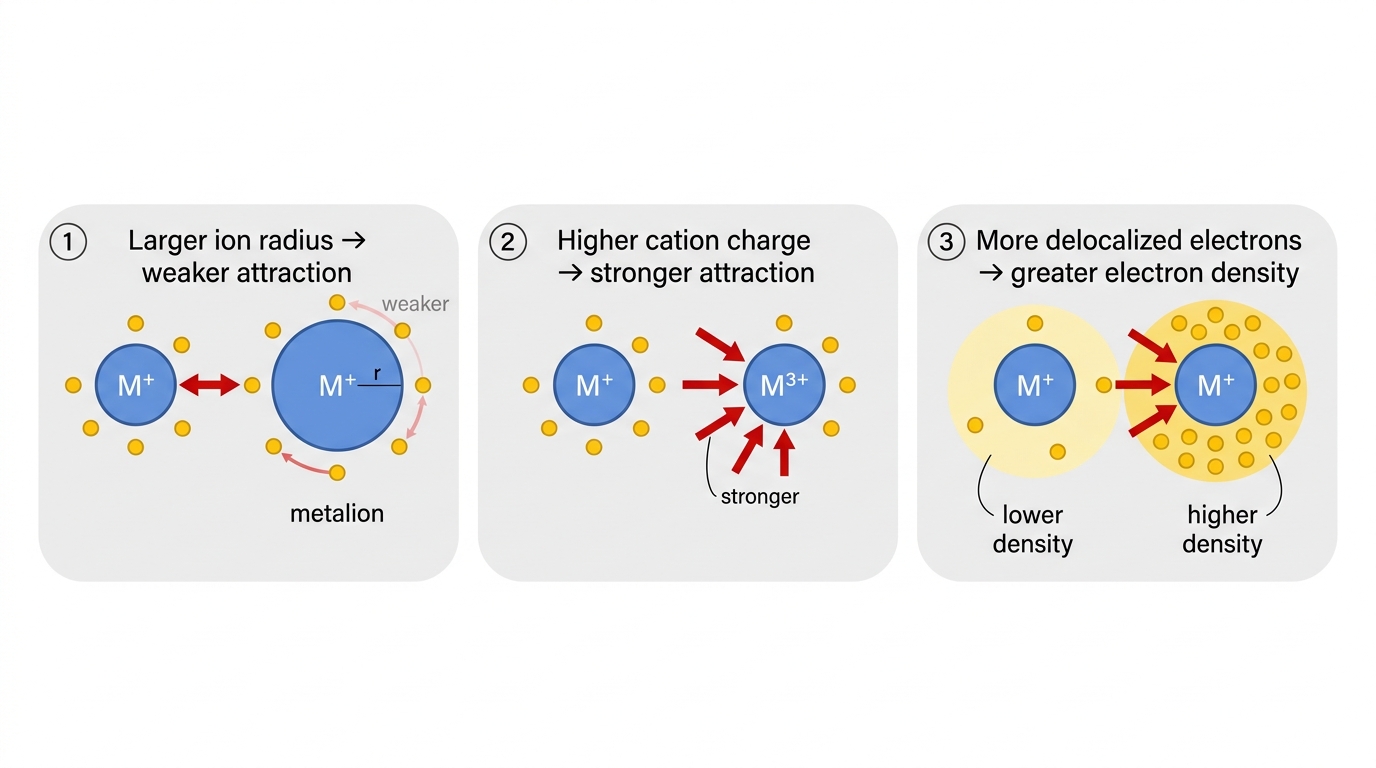

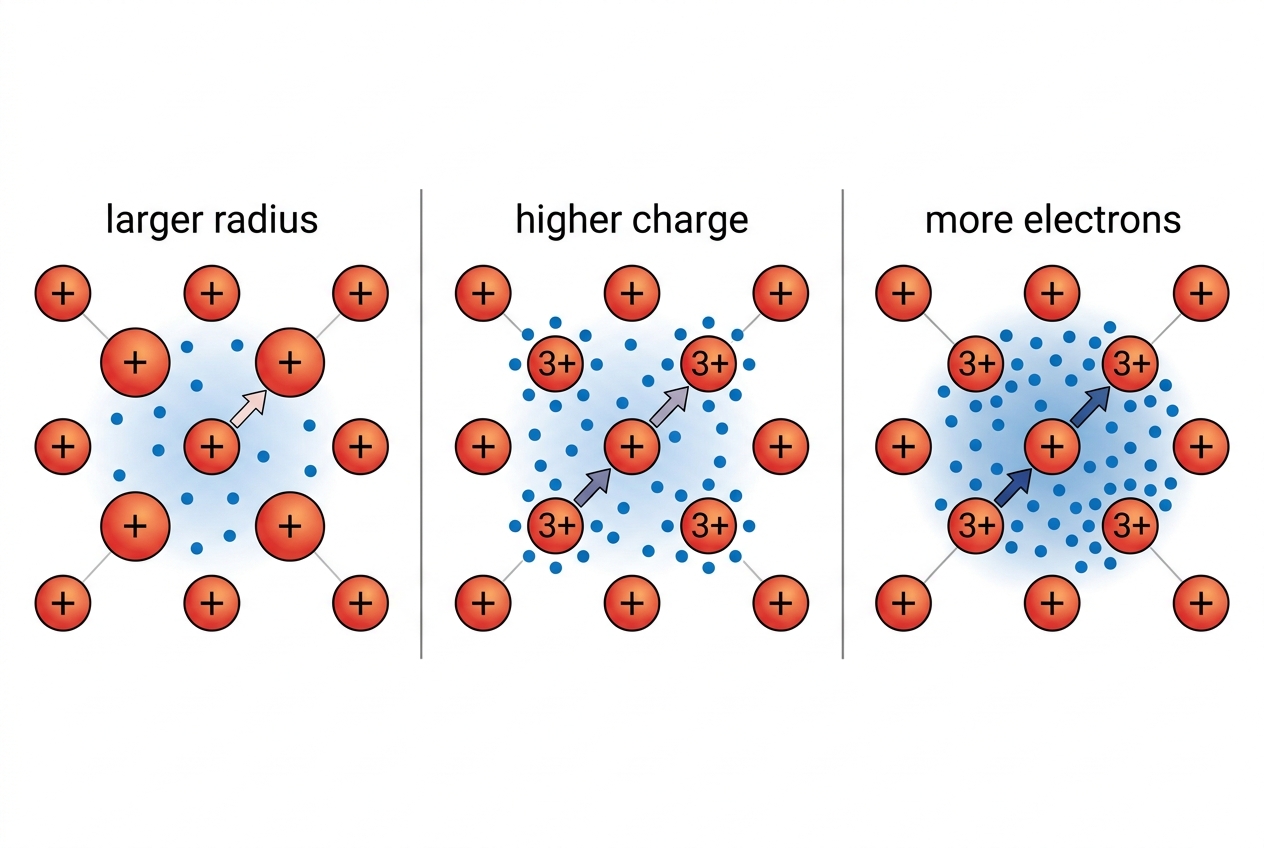

Metallic bond strength depends on how strongly the metal cations attract the delocalized electrons. For this syllabus, keep the explanation simple: stronger metallic bonding is favoured by higher cation charge, smaller metal ion radius and greater electron density in the delocalized electron cloud.

Ionic radius is the distance from the centre of an ion to the outer region of its electron cloud, usually compared in picometres or metres. A larger metal ion holds its positive charge farther from the delocalized electrons, so the electrostatic attraction is weaker. With a smaller metal ion, the cation and the electron cloud can attract over a shorter distance.

Electron density is the amount of electronic charge present in a given volume of space. In a metal, more delocalized electrons per metal ion produce a denser electron cloud, so the attraction to the cations is stronger.

Melting point as evidence for metallic bond strength

Melting point is the temperature at which a solid and liquid are in equilibrium at a stated pressure. In metals, a higher melting point usually points to stronger metallic bonding. More energy is needed to overcome enough attractions for the regular solid lattice to break down into a liquid.

It isn't a perfect one-factor test. Crystal structure and other details can affect the value. Still, for the s- and p-block metals in this topic, melting point is a very useful comparison.

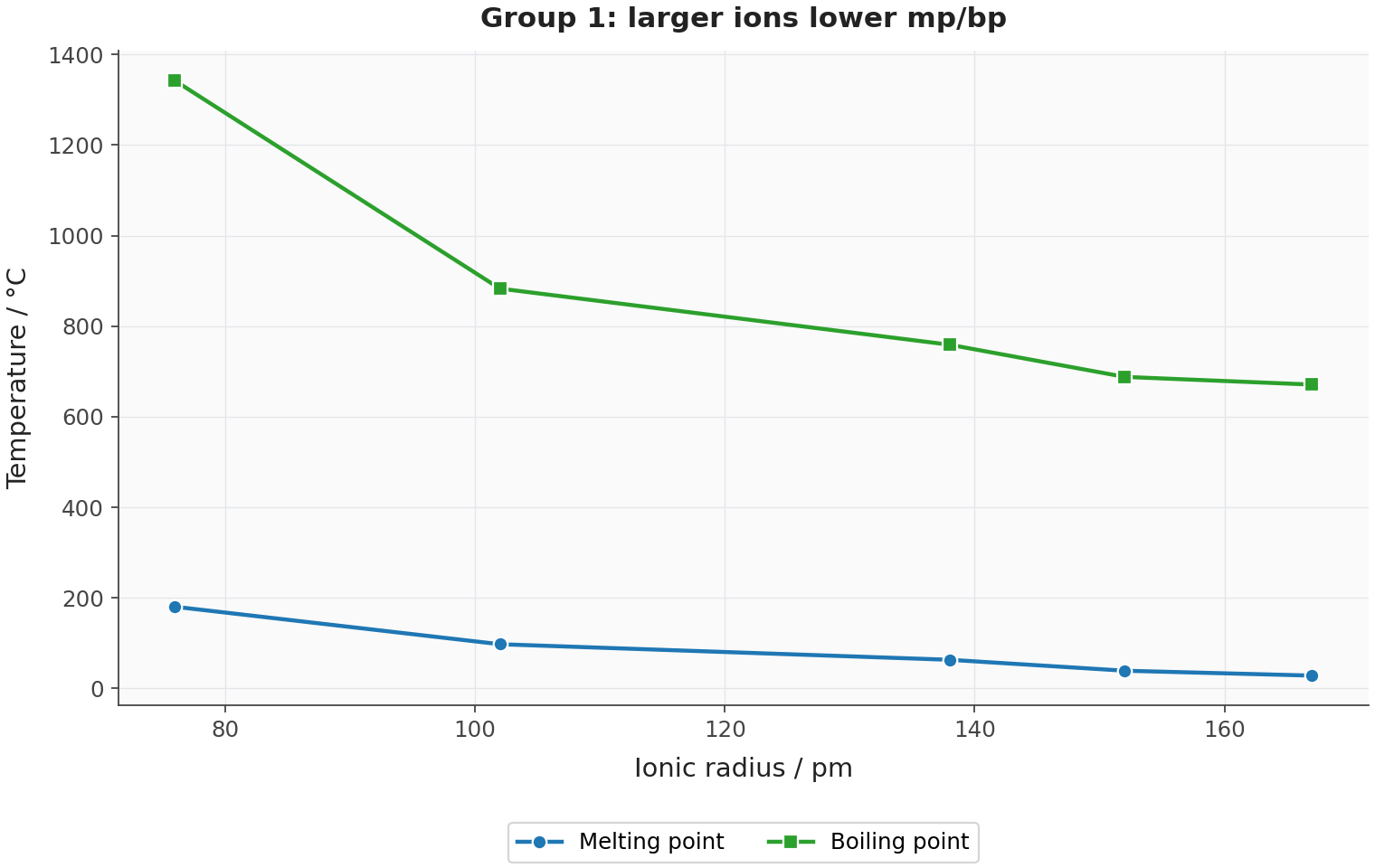

Down a group: increasing radius weakens the metallic bond

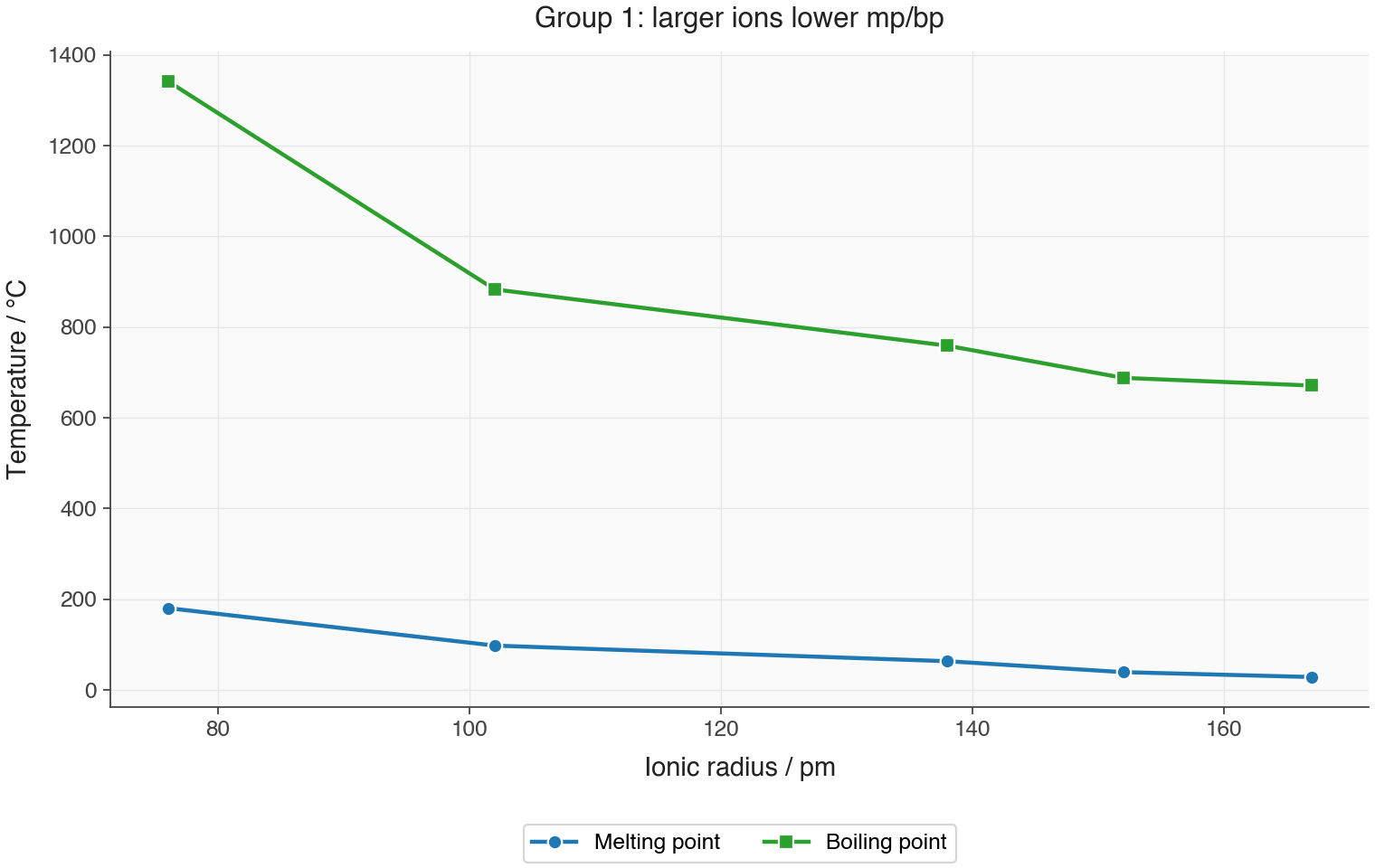

In group 1, the cation charge stays the same: each metal forms a 1+ ion in the simple metallic model. Going down the group, the metal ions get larger. The delocalized electrons sit, on average, farther from the centres of positive charge, so the attraction weakens. The melting points therefore decrease down the group.

That is why lithium has a higher melting point than sodium, and sodium has a higher melting point than potassium. The trend is not because the atoms “contain more electrons” in a vague sense. The key idea is the increased distance between the cations and the delocalized electron cloud.

When using data to make predictions, a plot of melting point against position in the group can make the trend easier to see. Extrapolation to rubidium or caesium needs care: a graph can suggest a value beyond the measured data, but the further you move outside the known range, the less secure the prediction is. A good evaluation compares the prediction with reliable data and comments on whether the pattern was close to linear or curved.

Across a period: charge, radius and electron density change together

Across period 3, the metallic elements sodium, magnesium and aluminium show a strong increase in melting point from sodium to the other two metals. Three changes push the bond strength in the same direction:

• the cation charge increases from 1+ to 2+ to 3+, giving stronger attraction to the electron cloud;
• the metal ion radius decreases, so cations attract delocalized electrons over a shorter distance;
• the number of delocalized electrons per atom increases, so electron density is greater.

In this simple model, aluminium therefore has stronger metallic bonding than magnesium because aluminium forms smaller, more highly charged cations and contributes more delocalized electrons per ion. Magnesium has much stronger metallic bonding than sodium for the same reasons, although the exact melting point comparison between magnesium and aluminium is close because real structures are more complicated than the model.

Period 3 metallic elements: factors linked to stronger metallic bonding.

Relating bond strength to uses

Stronger metallic bonding usually gives higher melting points and often greater hardness or strength, which matters when selecting a metal for a demanding use. A cooking pan must not melt on a hob and must conduct heat well. A power cable needs to conduct electricity and be ductile enough to draw into long wires. A car body panel needs malleability and suitable strength. An artificial hip joint needs strength, low reactivity in the body and resistance to wear.

This is materials selection, not just a single bonding argument. One property rarely decides the use on its own. Metallic bonding explains many useful features, but cost, density, corrosion, abundance, toxicity and recyclability also influence the final choice.

Link to alloys

An alloy is a metallic material made by combining a metal with one or more other elements. Metals can form alloys because metallic bonding is non-directional, so the delocalized electrons can still hold a mixed lattice of particles together. Atoms of a different size disrupt the easy sliding of metal layers, often making the alloy harder than the pure metal. This link belongs fully to materials, but the essential feature starts here: mobile delocalized electrons can bind a lattice even when the lattice contains more than one type of atom.

Transition elements and d-electrons

A transition element is an element whose atoms have an incomplete d sublevel, or one that forms at least one ion with an incomplete d sublevel. Most d-block elements fit this definition, but not all of them do. Zinc is the standard classroom exception: Zn has a full 3d sublevel, and $Zn^{2+}$ also has a full 3d sublevel, so zinc is not classified as a transition element by this definition.

The chemical properties of transition elements, such as variable oxidation states, coloured compounds and catalytic behaviour, are covered elsewhere. This section stays with the physical side: metallic bonding, high melting point and electrical conductivity.

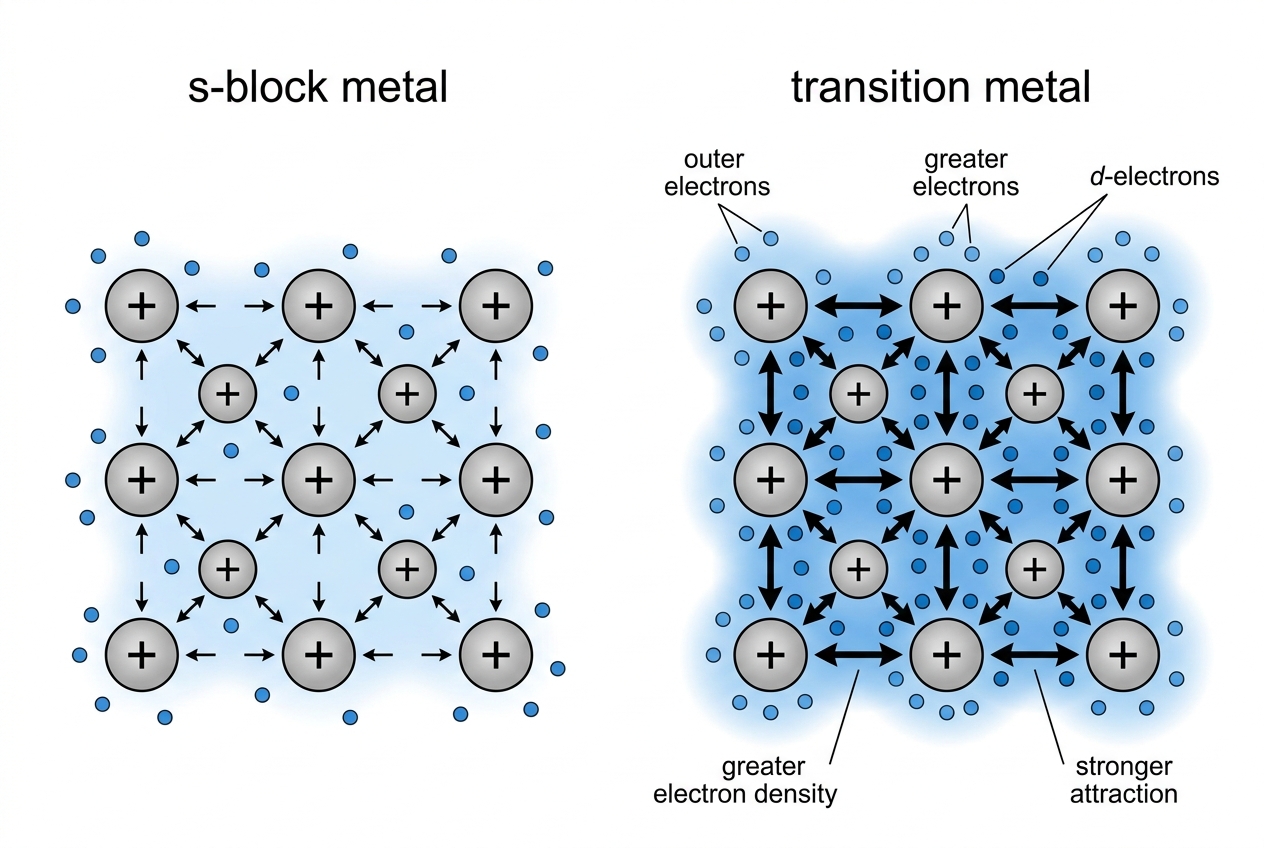

Delocalized d-electrons strengthen metallic bonding

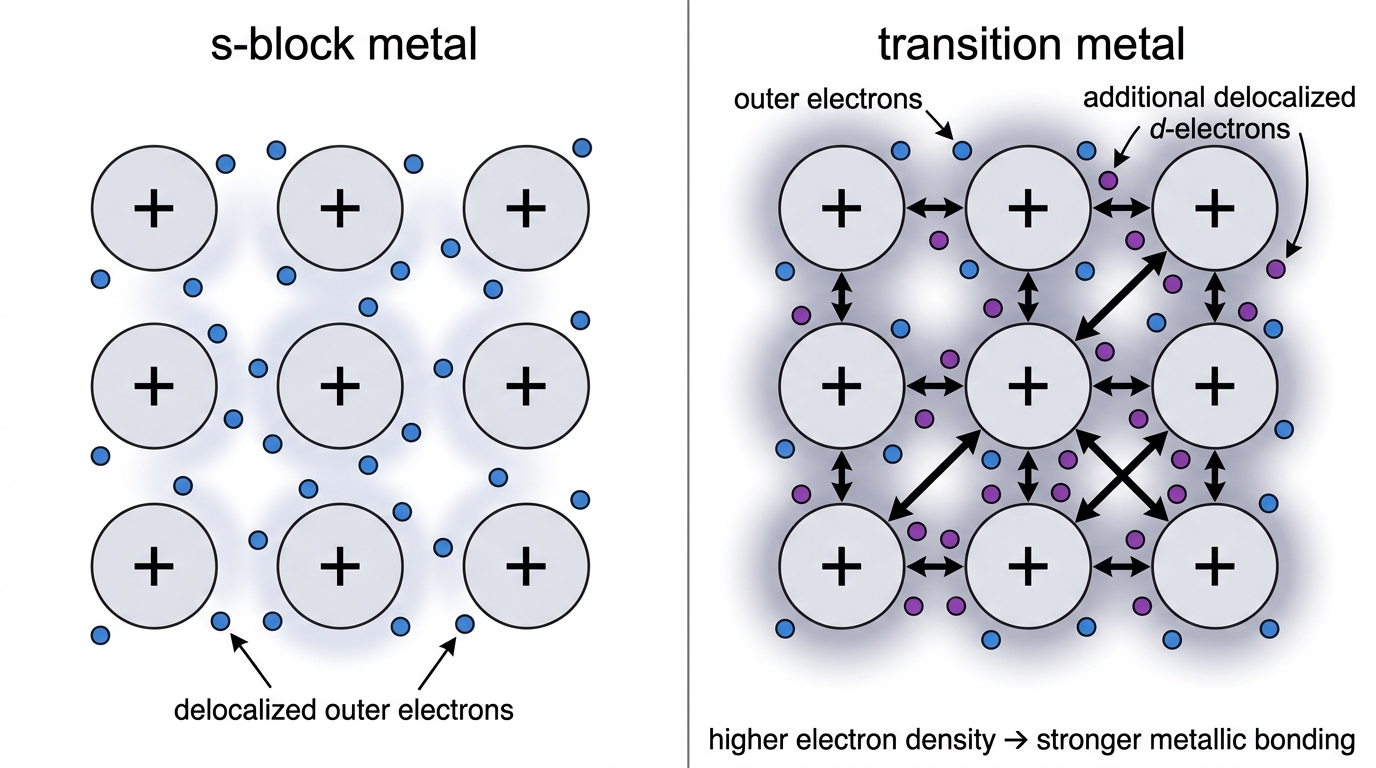

In transition elements, electrons from d sublevels can join the delocalized electron system, along with outer-shell electrons. That creates a high density of delocalized electrons around the positive metal ions. The cations and the electron cloud attract each other strongly.

Strong metallic bonding is why many transition elements have high melting points compared with group 1 and group 2 metals. Tungsten, for example, is useful in very high-temperature applications because its metallic bonding is strong enough for the solid structure to remain intact at temperatures that would melt many other metals.

Electrical conductivity in transition elements

Transition elements conduct electricity well because they contain many delocalized electrons that can move when a potential difference is applied. The idea is the same as for any metal, with an extra contribution: delocalized d-electrons increase the number of mobile charge carriers in the metallic structure.

That doesn’t make every transition metal equally conductive. The lattice, temperature, impurities and electron arrangements all affect measured values. The model gives the general reason for conductivity, not every numerical detail.

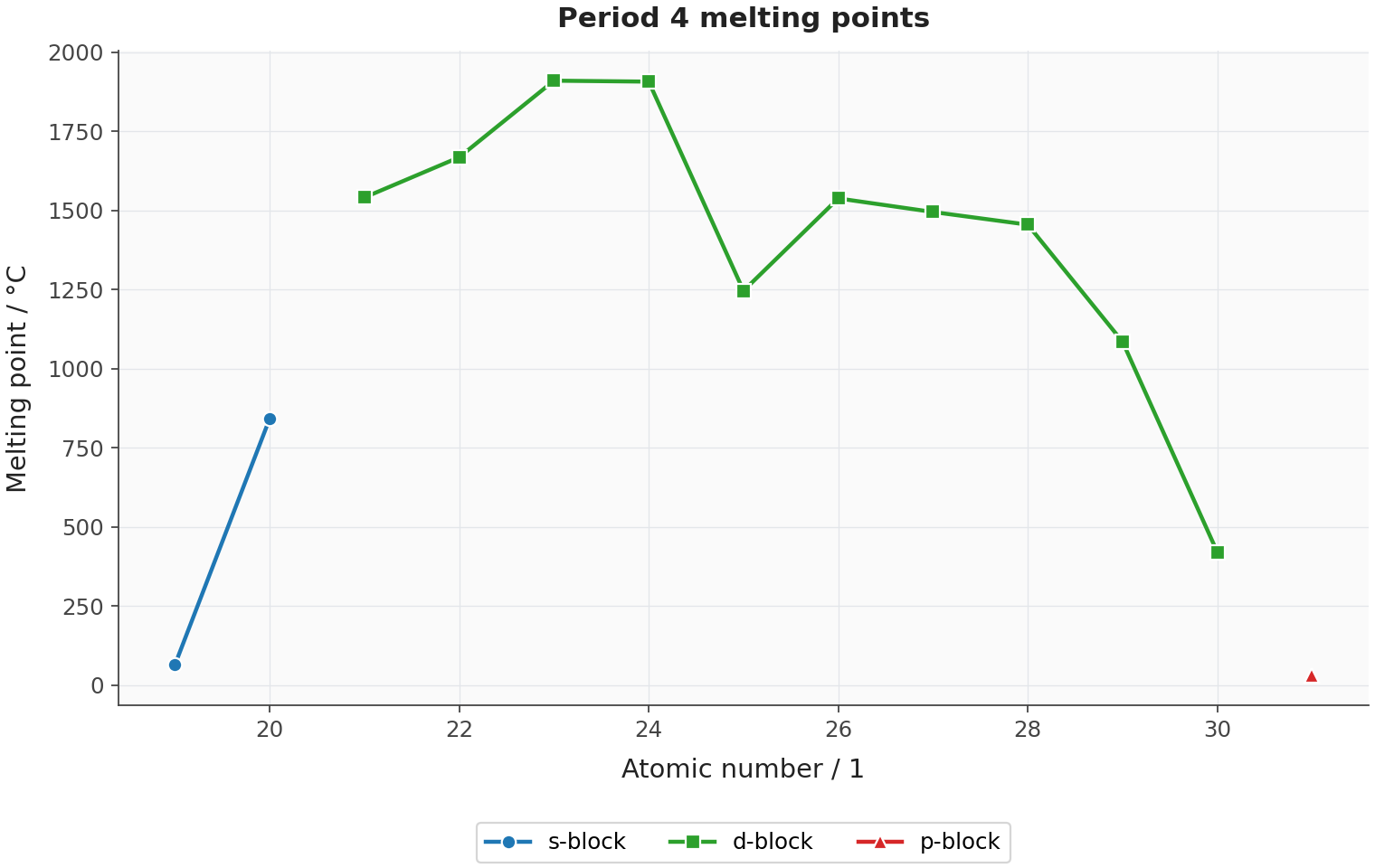

Why d-block melting point trends are less tidy

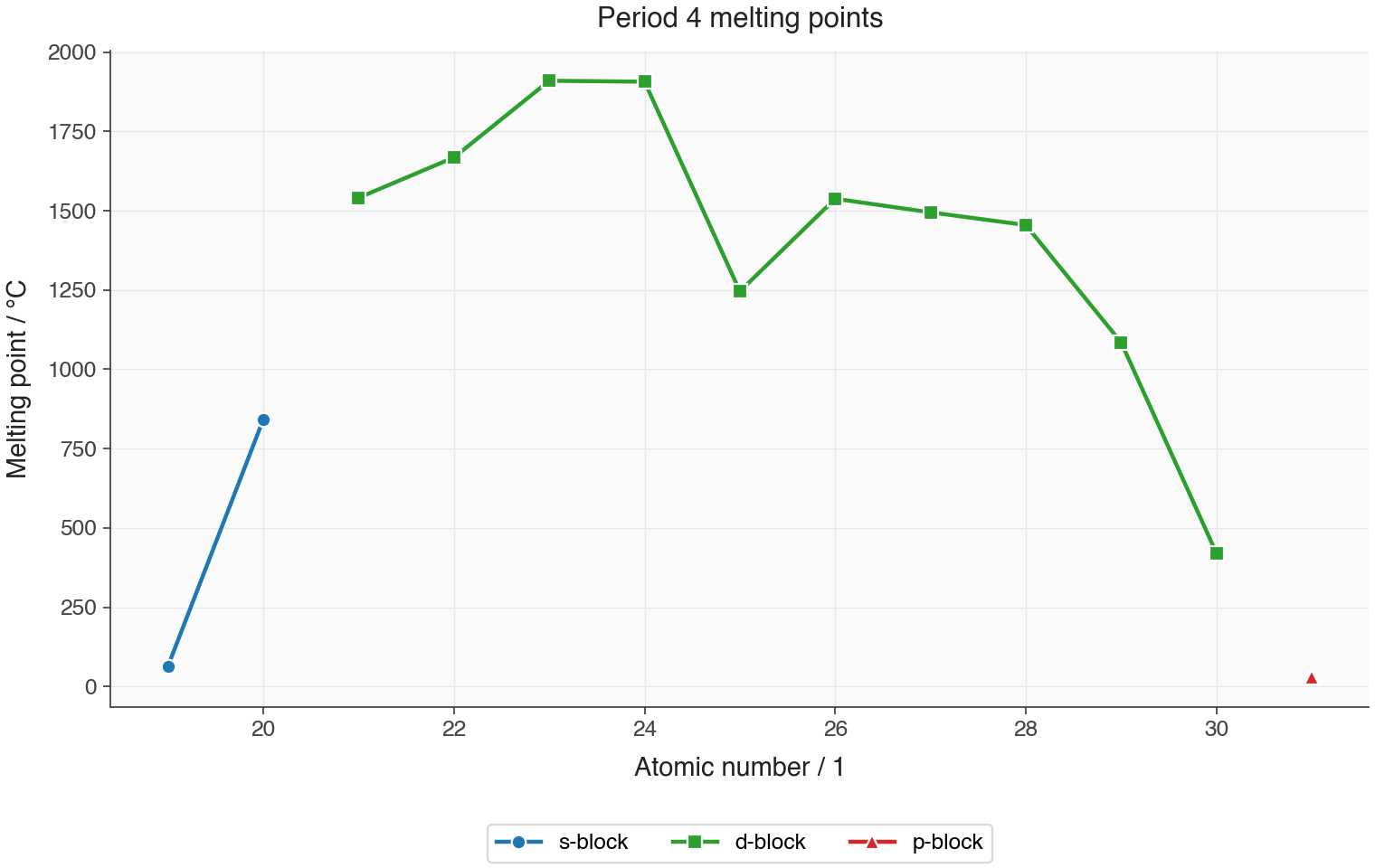

Across the s- and p-block metals, changes in cation charge, radius and number of delocalized electrons often give clear broad trends in melting point. Across the d-block, the pattern is less smooth because the d sublevel is being filled, and the number of electrons involved in metallic bonding does not change in a simple one-electron-per-group way. Electron configurations, d-electron involvement and detailed crystal structures all affect the measured melting points.

So, when you look across a row of transition elements, don’t expect the neat sodium-to-magnesium-to-aluminium style of explanation to work as cleanly. The same metallic model still applies, but more variables are changing at the same time.
