R3.3: Hydrogen sharing reactions

Master IB Chemistry R3.3: Hydrogen sharing reactions with notes created by examiners and strictly aligned with the syllabus.

IB Syllabus Requirements for Hydrogen sharing reactions

R3.3.1 Radicals

R3.3.2 Homolytic fission and initiation

R3.3.3 Radical substitution of alkanes

What a radical is

A radical is a molecular entity with at least one unpaired electron. The definition is broad on purpose: a radical may be a single atom, a molecule, a cation or an anion, as long as the species contains an unpaired electron.

We show radicals with a dot, •, placed beside the atom carrying the unpaired electron. So Cl• is a chlorine atom with an unpaired electron, while •CH₃ is a methyl radical with the unpaired electron on carbon. In a larger species, that dot matters. It shows where the radical character sits.

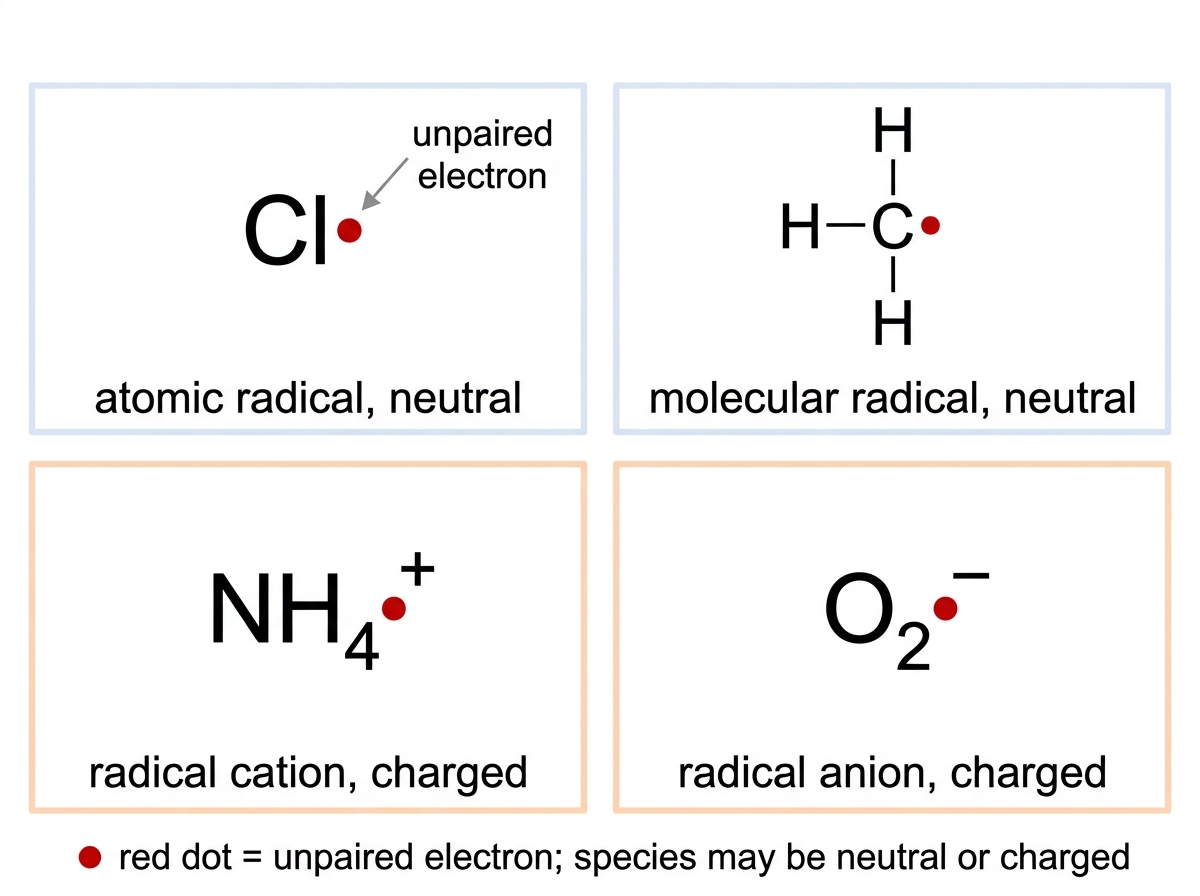

A molecular entity is a distinct atom, molecule, ion or radical that can be treated as an individual chemical species. So the word “radical” does not automatically mean “neutral”. Examples include:

  • atom radical: Cl•
  • molecular radical: •CH₃
  • radical cation: NH₄•⁺
  • radical anion: O₂•⁻

Because the electron is unpaired, radicals are highly reactive: pairing that electron in a new covalent bond is usually favourable. In many organic reactions, radicals appear as short-lived intermediates, which are species formed during a reaction mechanism but not usually isolated as final products.

Why electron sharing is the theme

In ordinary covalent bonding, two atoms share a pair of electrons. Radical chemistry works differently, because single electrons move around. A radical can collide with a stable molecule, take part in bond breaking and bond making, then leave a new radical behind. That is the basis of a chain reaction: one reactive radical generates another reactive radical, so the process keeps going.

Two radicals can also meet and form a normal covalent bond. This removes unpaired electrons from the system and stops that particular chain. Later, we’ll call that termination. For now, the main idea is straightforward: radicals are reactive because they have unpaired electrons, and their formulae must show those unpaired electrons clearly.

Homolytic fission

Homolytic fission is bond breaking where each bonded atom takes one electron from the shared pair, producing two radicals. It differs from heterolytic fission, where both electrons move to one atom and ions are formed.

For a halogen molecule, the general equation is:

X₂ → 2X•

For chlorine:

Cl₂ → 2Cl•

This occurs when enough energy is supplied, usually from ultraviolet light or heat. UV light matters especially for halogens, as it can provide the energy needed to break the X–X bond.

Fish-hook arrows

A single-barbed arrow, often called a fish-hook arrow, is a curved arrow showing the movement of one electron. Use it in radical mechanisms. A normal double-barbed curly arrow shows the movement of an electron pair, so it isn’t the right arrow for homolytic fission.

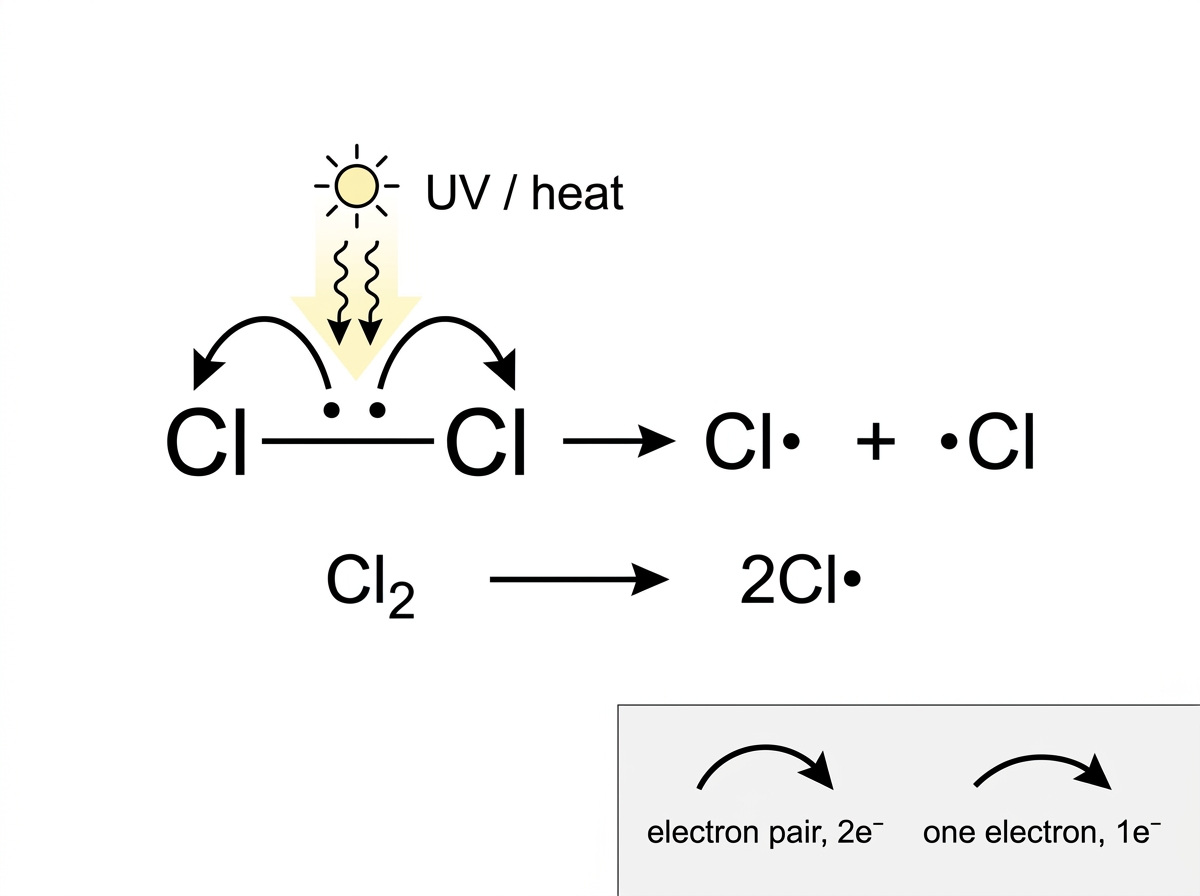

In homolytic fission of Cl₂, draw one fish-hook arrow from the Cl–Cl bond to the left chlorine atom, and another fish-hook arrow from the same bond to the right chlorine atom. The two electrons in the covalent bond split evenly.


Be precise when drawing these arrows. The tail starts at the electron source, such as the covalent bond or an unpaired electron. The head finishes where that single electron goes. In radical chemistry, the arrowhead is single-barbed because only one electron is moving.

Initiation in a chain reaction

An initiation step is the first step in a radical chain reaction, producing radicals from non-radical reactants. In halogenation reactions, initiation is usually homolytic fission of the halogen molecule:

Cl₂ → 2Cl•

or, for bromine:

Br₂ → 2Br•

A chain reaction is a reaction sequence where a reactive intermediate made in one step causes further steps of the same type to happen. The initiation step gets the chain going by making the first radicals.

Reverse process and bond strength links

Homolytic fission can run in reverse: two radicals join to form a covalent bond. In that process, two single electrons pair up and make a bond, for example:

Cl• + Cl• → Cl₂

This also counts as a termination reaction when it happens during a radical chain mechanism.

CFCs in the atmosphere can release chlorine radicals more readily than fluorine radicals because the relevant C–Cl bonds are weaker than C–F bonds. A weaker bond needs less energy for homolytic fission, so UV radiation in the atmosphere is more able to break C–Cl bonds than C–F bonds.

Chlorine radicals can break down ozone, O₃, in the stratosphere, but typically do not break down oxygen, O₂, in the same way. That tells us the bonding in O₂ is stronger and less easily disrupted than the bonding arrangement in O₃. Put simply, ozone is more vulnerable to radical attack than oxygen.

Why alkanes need radical conditions

A substitution reaction is a reaction where one atom or group in a molecule is replaced by another atom or group. In radical substitution of alkanes, a halogen atom replaces a hydrogen atom in the alkane.

Alkanes do not react much under ordinary conditions. Their C–C and C–H bonds are strong, and the molecules are essentially non-polar, so many polar reagents are not attracted to them. This is why alkanes are often described as kinetically stable: reactions may be possible, but the activation energy is high, so they happen slowly unless suitable conditions are used.

Alkanes are also thermodynamically unstable with respect to combustion. Reacting with oxygen to form carbon dioxide and water is energetically favourable. A bottle of hexane does not burst into flames at room temperature because combustion is not unfavourable; the reaction simply has a high activation energy.

Radical substitution gives alkanes a way into more reactive organic chemistry. When a non-polar C–H bond is replaced with a polar C–Cl or C–Br bond, the product is a halogenoalkane, which is much more useful for further reactions.

Overall reaction

For methane reacting with chlorine under UV light or heat, the overall substitution is:

CH₄ + Cl₂ → CH₃Cl + HCl

The product CH₃Cl is chloromethane. In practice, radical substitution usually produces a mixture, since more than one substitution can occur and different radical combinations can terminate the chain.

The three stages

Radical substitution has three stages: initiation, propagation and termination.

Initiation produces radicals. For chlorination:

Cl₂ → 2Cl•

This is homolytic fission of the chlorine molecule, caused by UV light or heat.

Propagation is a chain step where a radical reacts with a non-radical molecule to make a new radical. The key idea is that radicals are regenerated, so the chain keeps going.

First propagation step:

Cl• + CH₄ → HCl + •CH₃

The chlorine radical removes a hydrogen atom from methane. This forms hydrogen chloride and a methyl radical.

Second propagation step:

•CH₃ + Cl₂ → CH₃Cl + Cl•

The methyl radical reacts with chlorine to form chloromethane and regenerate a chlorine radical. That chlorine radical can then repeat the first propagation step.


For a general alkane, R–H, and a halogen, X₂, the propagation pattern is:

X• + R–H → H–X + R•

R• + X₂ → R–X + X•

Here R represents an alkyl group and X represents a halogen atom, usually chlorine or bromine in this syllabus context.

Termination

Termination is a step where two radicals combine to form a non-radical product. It removes radicals, so termination slows the chain reaction and eventually stops it.

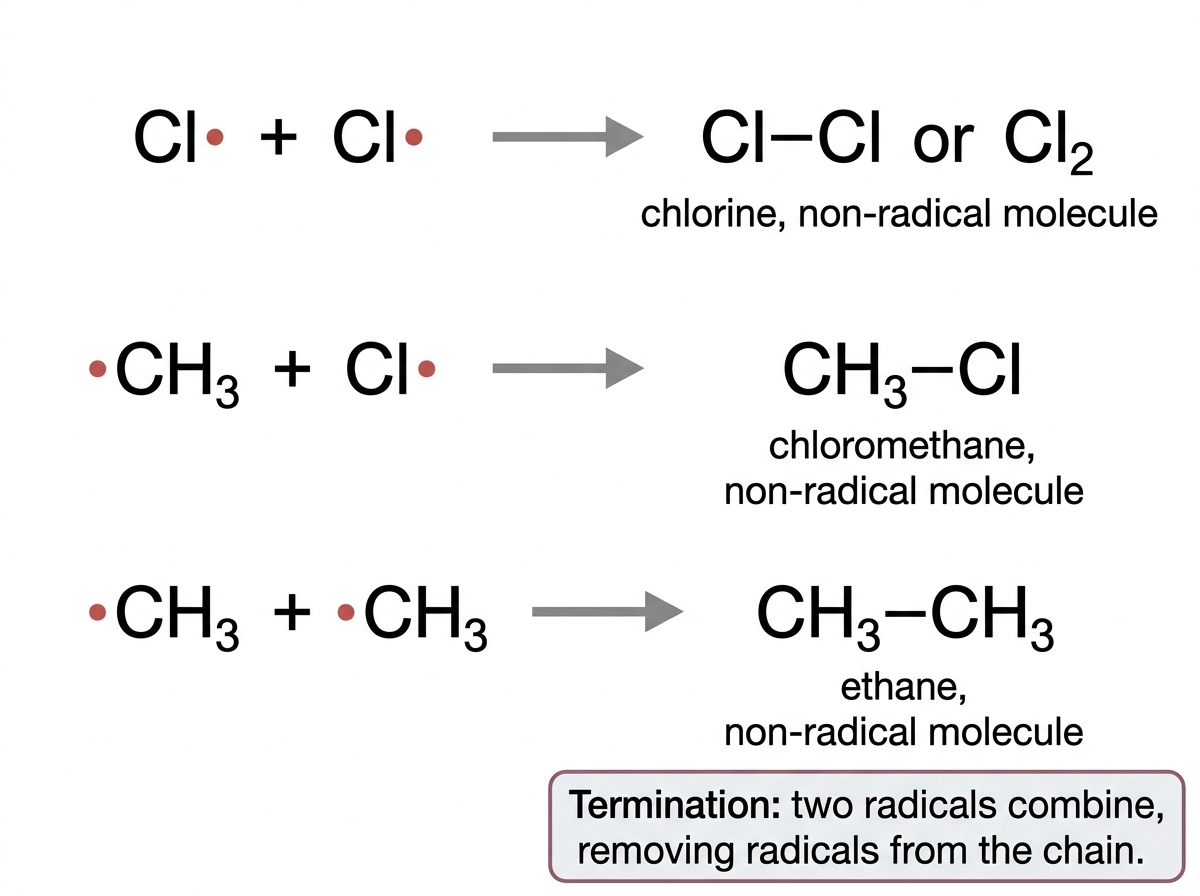

For methane chlorination, possible termination steps include:

Cl• + Cl• → Cl₂

•CH₃ + Cl• → CH₃Cl

•CH₃ + •CH₃ → C₂H₆

These equations help explain why a mixture forms. Some termination gives the useful halogenoalkane, some reforms chlorine, and some produces a larger alkane such as ethane.


Product mixtures and choice of halogen

Radical substitution with chlorine or bromine can be used to halogenate alkanes, but it is not usually perfectly selective. Once a halogenoalkane forms, further substitution may occur, giving products with more than one halogen atom. Larger alkanes may also contain more than one type of C–H bond, so substitution can happen at different carbon atoms.

Fluorine is generally too reactive for controlled radical substitution of alkanes, often causing extensive bond breaking and complex mixtures. Iodine is not reactive enough for the corresponding radical iodination to proceed effectively. For IB purposes, chlorine and bromine are the sensible halogens to think about for alkane radical substitution.
