IB Syllabus Requirements for Quantum physics

E.2.1

The photoelectric effect as evidence of the particle nature of light

HL

E.2.2

Threshold frequency for releasing photoelectrons from a metal

HL

E.2.3

Einstein’s photoelectric equation using work function and maximum kinetic energy

HL

E.2.4

Diffraction of particles as evidence of the wave nature of matter

HL

E.2.1

THE PHOTOELECTRIC EFFECT AS EVIDENCE OF THE PARTICLE NATURE OF LIGHT

HL

What the effect is

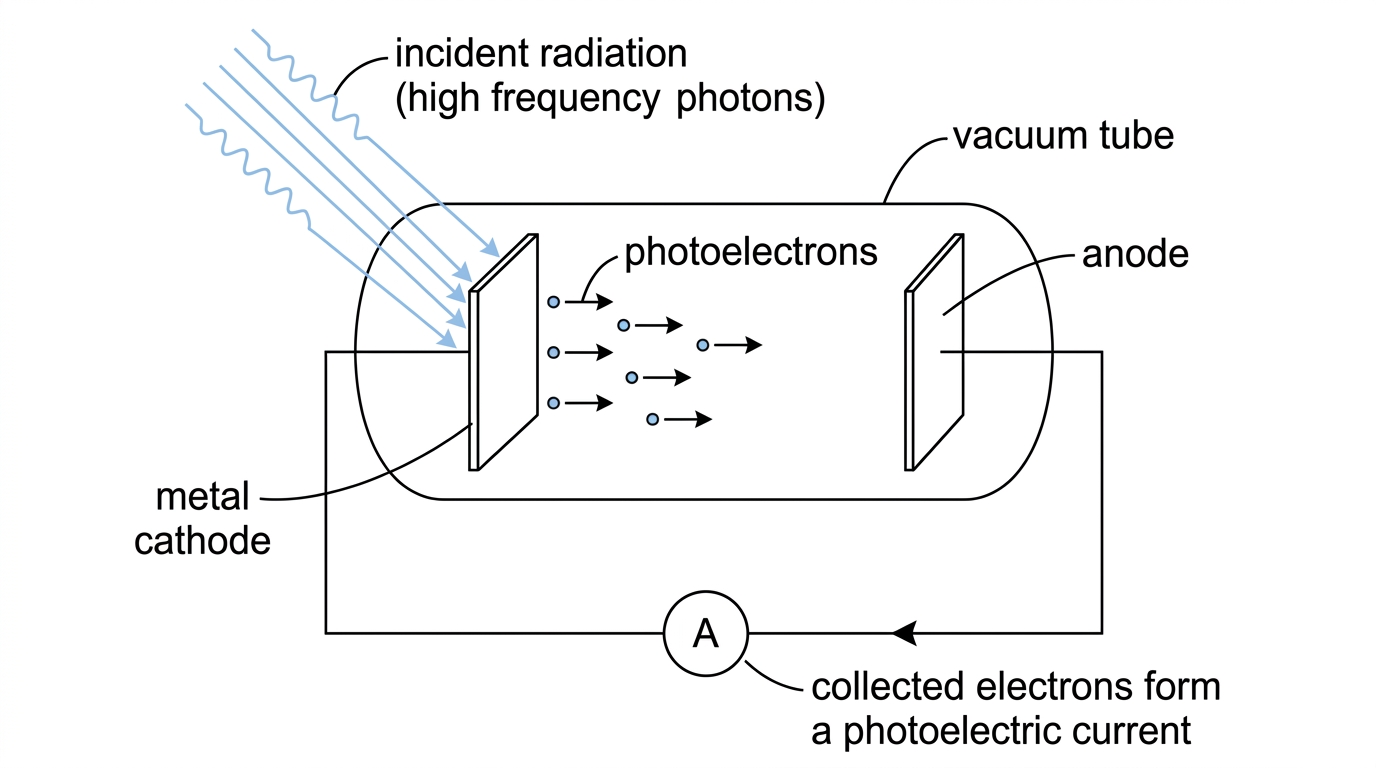

The photoelectric effect is the emission of electrons from a material surface when electromagnetic radiation of high enough frequency strikes it. The electrons that leave are called photoelectrons; they have escaped from the surface after gaining energy from the incoming radiation.

A clean metal surface can, in this sense, turn light into an electric current. Shine suitable radiation on it, electrons leave, and if a second electrode collects them, charge moves through the external circuit. That is the basic idea behind a photoelectric cell.

A photon is a quantum of electromagnetic radiation that transfers energy and momentum in discrete interactions. The energy of one photon is

Eγ=hfE_\gamma = hf

For light in vacuum,

c=fλc = f\lambda

Worked example: Calculate the frequency and photon energy of light with wavelength 500 nm500\ \text{nm} in vacuum. Use c=3.00×108 m s−1c = 3.00 \times 10^8\ \text{m s}^{-1} and h=6.63×10−34 J sh = 6.63 \times 10^{-34}\ \text{J s}.

  1. Convert the wavelength to metres:

    λ=500 nm=500×10−9 m=5.00×10−7 m\lambda = 500\ \text{nm} = 500 \times 10^{-9}\ \text{m} = 5.00 \times 10^{-7}\ \text{m}

  2. Rearrange c=fλc = f\lambda and substitute:

    f=cλ=3.00×108 m s−15.00×10−7 m=6.00×1014 Hzf = \frac{c}{\lambda} = \frac{3.00 \times 10^8\ \text{m s}^{-1}}{5.00 \times 10^{-7}\ \text{m}} = 6.00 \times 10^{14}\ \text{Hz}

  3. Calculate the energy of one photon:

    Eγ=hf=(6.63×10−34 J s)(6.00×1014 s−1)=3.98×10−19 JE_\gamma = hf = (6.63 \times 10^{-34}\ \text{J s})(6.00 \times 10^{14}\ \text{s}^{-1}) = 3.98 \times 10^{-19}\ \text{J}

Answer

Answer: The frequency is 6.00×1014 Hz6.00 \times 10^{14}\ \text{Hz} and the energy of each photon is 3.98×10−19 J3.98 \times 10^{-19}\ \text{J}.

Why this is particle evidence

The main observations are awkward — genuinely awkward — for a purely classical wave model of light:

  • Below a certain frequency, no electrons are emitted, however intense the radiation is.
  • Above that frequency, emission begins without a measurable delay, even when the radiation is very weak.
  • Increasing intensity increases the number of photoelectrons emitted per second, but it does not increase the maximum kinetic energy of each photoelectron.
  • Increasing frequency increases the maximum kinetic energy of the photoelectrons.

Classical wave theory treats the energy of light as spread continuously across the wavefront, with intensity proportional to amplitude squared. On that view, a very weak beam should eventually give an electron enough energy if we wait long enough. A more intense beam should also give electrons more energy. The experiment does not behave like that. One photon interacts with one electron; if the photon has enough energy, the electron can leave at once.

The work function, Φ\Phi, is the minimum energy needed to remove an electron from the material surface. Below the threshold frequency, hf<Φhf < \Phi.

Example: An exam question asks: “Explain why increasing the intensity of radiation below the threshold frequency does not cause photoelectric emission.” Each photon has energy hf<Φhf < \Phi, so an electron cannot gain enough energy from one photon to escape the surface. Increasing intensity at the same frequency increases the number of incident photons per second, not the energy of each photon, so no photoelectrons are emitted.

Common mistake: Merely saying “light consists of photons” does not complete the explanation. Link the observation to the energy requirement: below threshold, hf<Φhf < \Phi, and increasing intensity at fixed frequency does not increase hfhf.

This is a neat case of falsification in physics. The wave model of light was not thrown away — diffraction and interference still require it — but the claim that light is only a wave could no longer stand. Einstein’s explanation put the particle description at the centre of the story.

The Bohr model does not save a wave-only explanation here. The Bohr model is an atomic model that describes electrons in quantized states of a hydrogen-like atom. The photoelectric effect concerns electrons near the surface of a metal, where bonding and conduction behaviour matter, and the Bohr model was not built to describe that. It is a useful historical model, not a general theory of metal surfaces.

E.2.2

THRESHOLD FREQUENCY FOR RELEASING PHOTOELECTRONS FROM A METAL

HL

The frequency cut-off

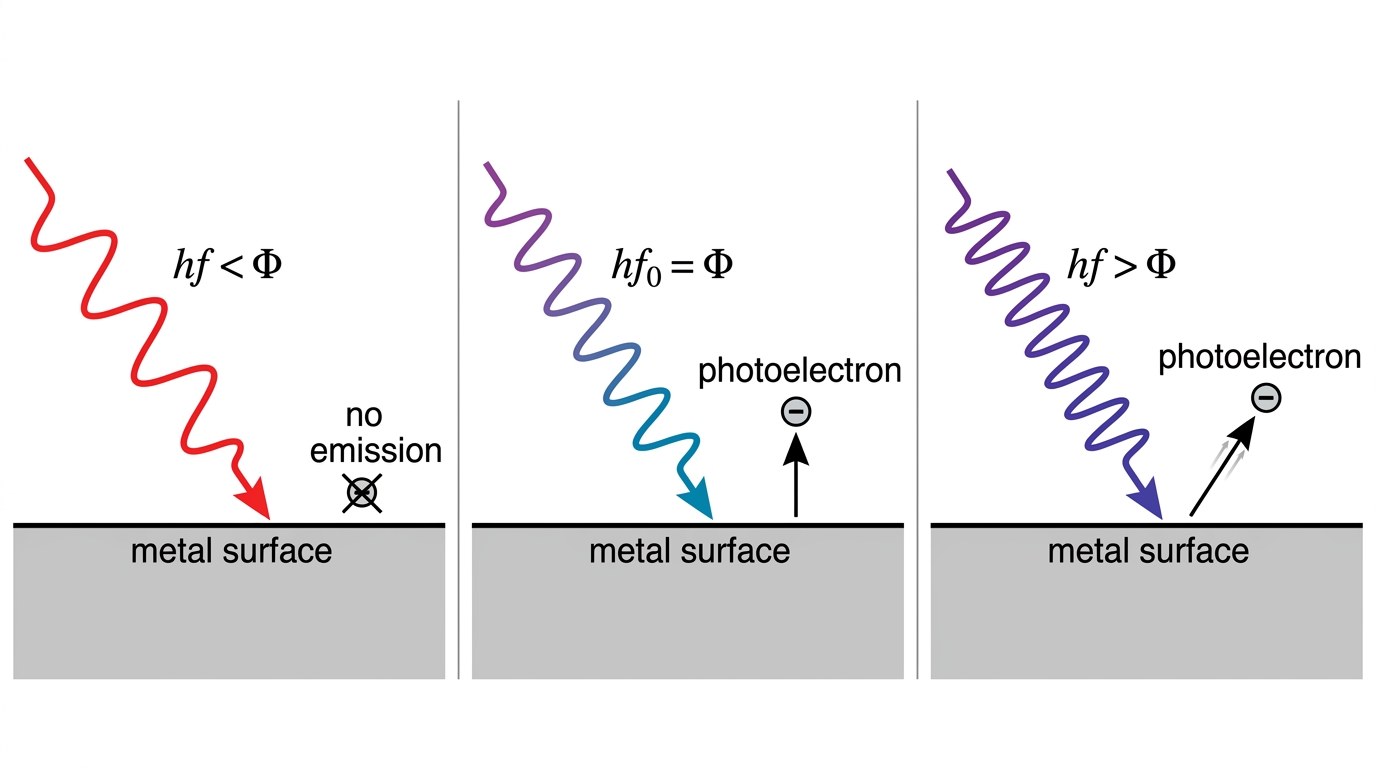

The threshold frequency is the minimum frequency of incident electromagnetic radiation needed to release photoelectrons from a specified metal surface. It is written

f0f_0

Watch the word “minimum”: it refers to frequency, not intensity. A weak ultraviolet source can release electrons from some metals, while a very bright red source may release none. Examiners like this detail because it tests the photon model, rather than the loose idea that “more light means more energy”.

Work function and threshold condition

The work function is the minimum energy required for an electron to escape from a specified metal surface. It is written

Φ\Phi

At the threshold frequency,

hf0=Φhf_0 = \Phi.

Worked example: A metal surface has a work function of 2.00 eV2.00\ \text{eV}. Calculate its threshold frequency and decide whether light of wavelength 700 nm700\ \text{nm} or 400 nm400\ \text{nm} releases photoelectrons. Use 1 eV=1.602×10−19 J1\ \text{eV} = 1.602 \times 10^{-19}\ \text{J}, h=6.626×10−34 J sh = 6.626 \times 10^{-34}\ \text{J s} and c=3.00×108 m s−1c = 3.00 \times 10^8\ \text{m s}^{-1}.

  1. Convert the work function to joules:

    Φ=2.00×1.602×10−19=3.204×10−19 J≈3.20×10−19 J\Phi = 2.00 \times 1.602 \times 10^{-19} = 3.204 \times 10^{-19}\ \text{J} \approx 3.20 \times 10^{-19}\ \text{J}

  2. Rearrange the threshold equation. Retain the unrounded work function during the calculation:

    f0=Φh=3.204×10−196.626×10−34=4.84×1014 Hzf_0 = \frac{\Phi}{h} = \frac{3.204 \times 10^{-19}}{6.626 \times 10^{-34}} = 4.84 \times 10^{14}\ \text{Hz}

  3. Calculate the frequency of each light source using f=c/λf = c/\lambda:

    f700=3.00×108700×10−9=4.29×1014 Hzf_{700} = \frac{3.00 \times 10^8}{700 \times 10^{-9}} = 4.29 \times 10^{14}\ \text{Hz}

    f400=3.00×108400×10−9=7.50×1014 Hzf_{400} = \frac{3.00 \times 10^8}{400 \times 10^{-9}} = 7.50 \times 10^{14}\ \text{Hz}

Answer

Answer: The threshold frequency is 4.84×1014 Hz4.84 \times 10^{14}\ \text{Hz}. The 700 nm700\ \text{nm} red light does not release photoelectrons because its frequency is below the threshold; the 400 nm400\ \text{nm} violet light does because its frequency is above the threshold.

If f<f0f < f_0, each photon has too little energy, so no photoelectrons are emitted. If f=f0f = f_0, the photon energy is just enough for escape, and an electron would leave with essentially no kinetic energy. If f>f0f > f_0, the extra photon energy becomes kinetic energy of the emitted electron.

Different metals have different threshold frequencies because their surface electrons are bound with different strengths. The surface condition matters too: oxide layers, impurities and crystal structure can change the effective work function.

E.2.3

EINSTEIN’S PHOTOELECTRIC EQUATION USING WORK FUNCTION AND MAXIMUM KINETIC ENERGY

HL

Energy accounting, one photon at a time

Einstein explained the photoelectric effect by applying conservation of energy to one photon and one electron. The photon is absorbed. Some of its energy frees the electron from the metal; the rest, if there is any, becomes kinetic energy of the photoelectron.

The maximum kinetic energy of the emitted photoelectrons is given by

Emax⁡=hf−ΦE_{\max} = hf - \Phi

“Maximum” is doing real work here: electrons do not all start in equally favourable positions inside the metal. Some lose energy on the way out, while the least hindered ones can escape with Emax⁡E_{\max}.

Since Φ=hf0\Phi = hf_0, the same equation can be written as

Emax⁡=h(f−f0)E_{\max} = h(f - f_0)

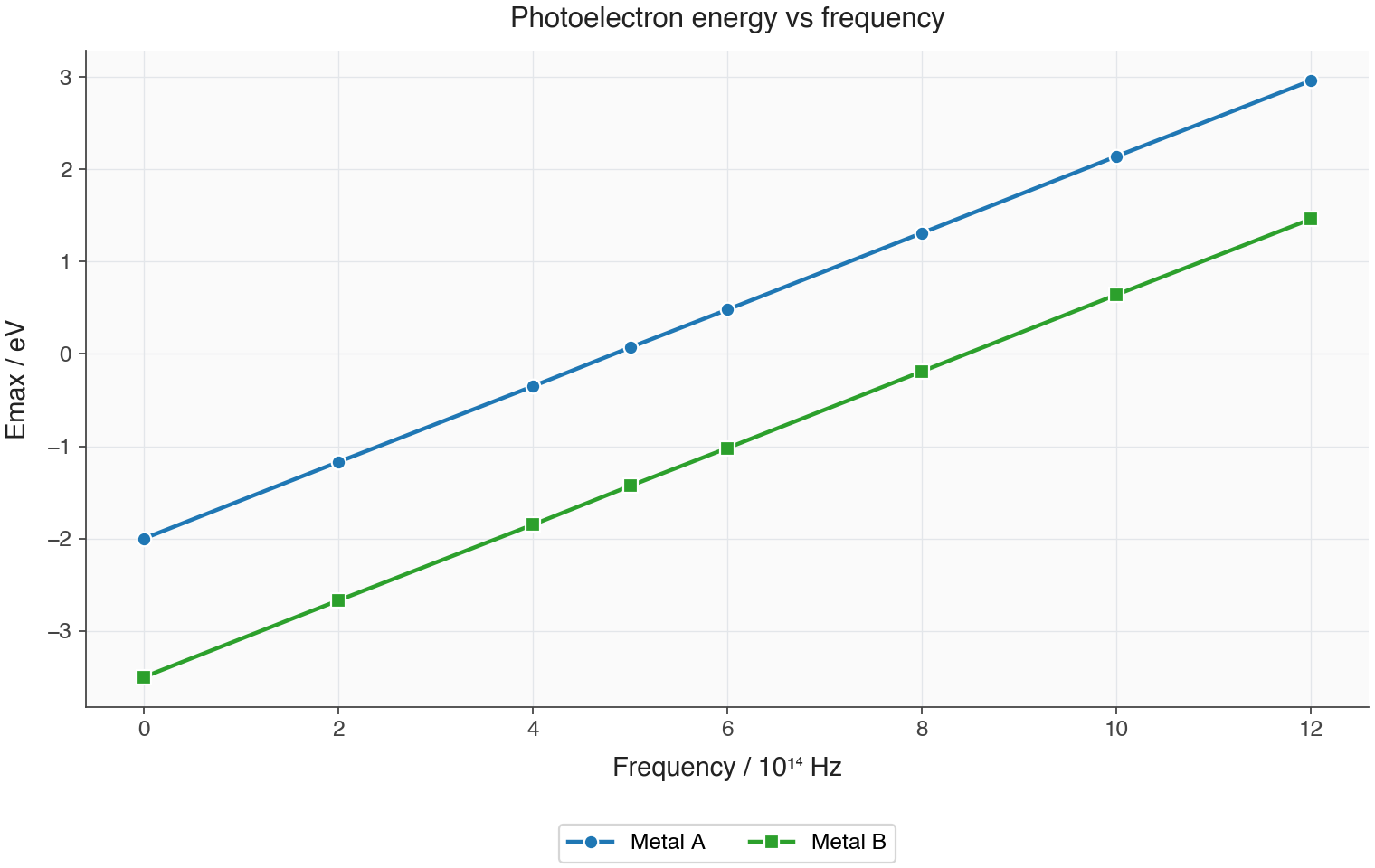

What the graph says

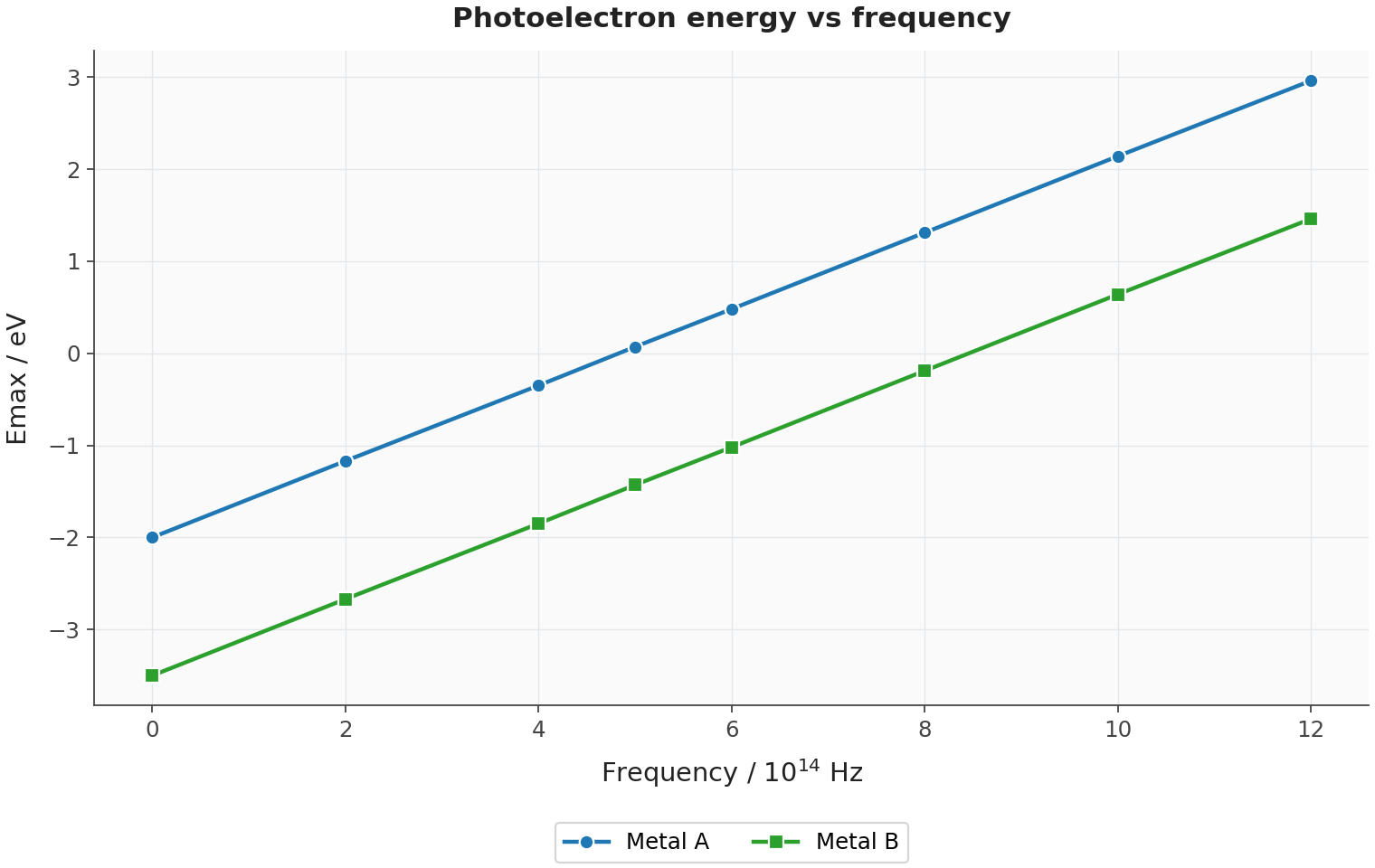

If Emax⁡E_{\max} is plotted against ff, the result is a straight line above the threshold. The gradient is hh when energy is in joules and frequency in hertz. The frequency-axis intercept is f0f_0; extrapolating to the energy axis gives −Φ-\Phi. Negative energies on this extension are not photoelectron data: below threshold there is no photoemission. Changing the metal changes Φ\Phi, so the line shifts, but its gradient is still the Planck constant when expressed in SI units. An eV-based gradient must be converted to J s\text{J s} before reporting hh in SI units.

The graph also shows why intensity does not appear in Einstein’s equation. At a fixed frequency above the threshold, increasing intensity gives more photons per second, so the emission rate increases. The energy of each photon is unchanged, so Emax⁡E_{\max} is unchanged too.

Stopping potential as a measurement

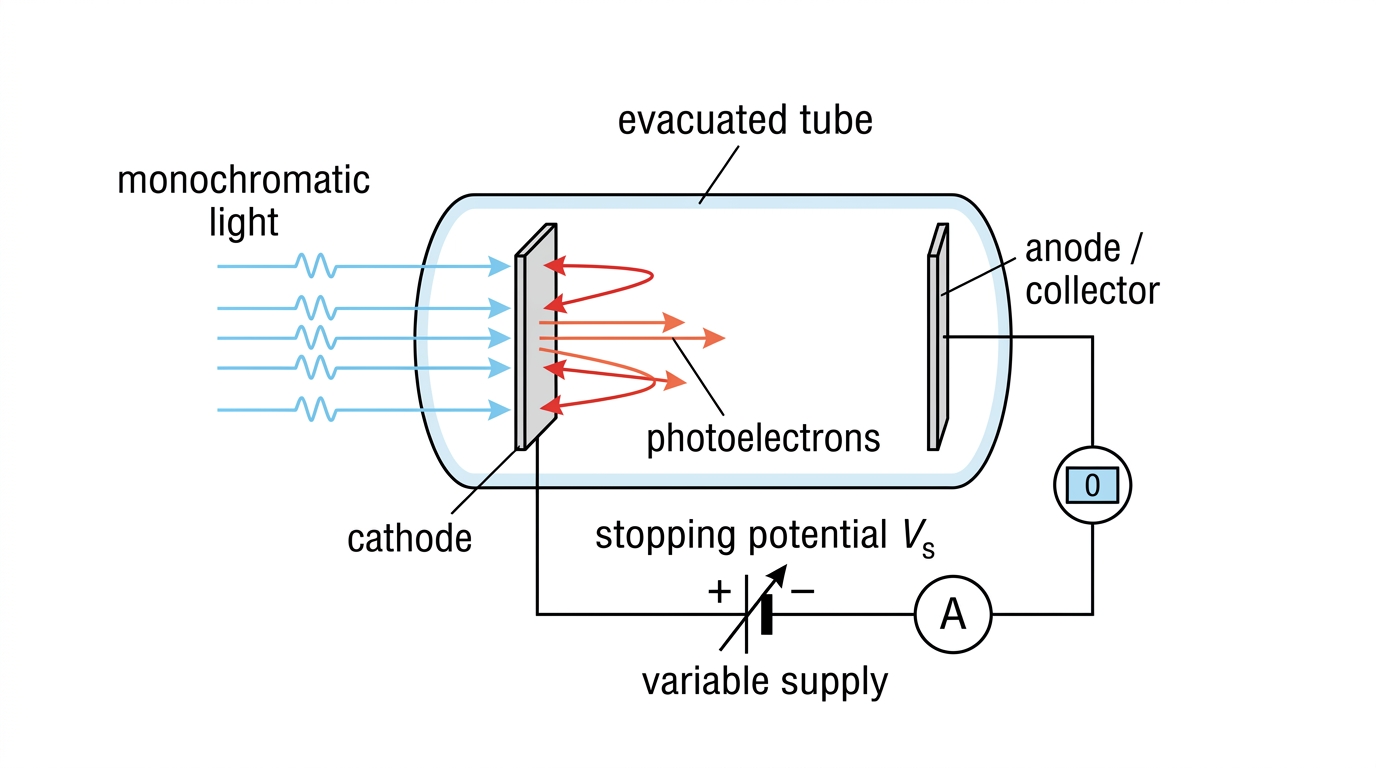

In a photoelectric cell, the collector can be made negative enough to repel even the fastest photoelectrons. The stopping potential is the potential difference that just reduces the photoelectric current to zero. It is written VsV_s, where VsV_s is the stopping potential (V).

The maximum kinetic energy is then

Emax⁡=eVsE_{\max} = eV_s

This makes the electronvolt useful here: a photoelectron stopped by 1 V has lost 1 eV of kinetic energy.

Worked example: Light of wavelength λ=400 nm\lambda = 400\ \text{nm} illuminates a metal with Φ=2.00 eV\Phi = 2.00\ \text{eV}. Calculate the photon energy, maximum photoelectron kinetic energy and stopping potential.

  1. Calculate the photon energy:
Eγ=hcλ=(6.626×10−34 J s)(3.00×108 m s−1)400×10−9 m=4.97×10−19 JE_\gamma = \frac{hc}{\lambda} = \frac{(6.626\times10^{-34}\ \text{J s})(3.00\times10^8\ \text{m s}^{-1})}{400\times10^{-9}\ \text{m}} = 4.97\times10^{-19}\ \text{J} Eγ=4.97×10−19 J1.602×10−19 J eV−1=3.10 eVE_\gamma = \frac{4.97\times10^{-19}\ \text{J}}{1.602\times10^{-19}\ \text{J eV}^{-1}} = 3.10\ \text{eV}
  1. Subtract the work function, then convert to joules:
Emax⁡=3.10 eV−2.00 eV=1.10 eVE_{\max} = 3.10\ \text{eV} - 2.00\ \text{eV} = 1.10\ \text{eV} Emax⁡=(1.10 eV)(1.602×10−19 J eV−1)=1.76×10−19 JE_{\max} = (1.10\ \text{eV})(1.602\times10^{-19}\ \text{J eV}^{-1}) = 1.76\times10^{-19}\ \text{J}
  1. Calculate the stopping potential:
Vs=Emax⁡e=1.76×10−19 J1.602×10−19 C=1.10 VV_s = \frac{E_{\max}}{e} = \frac{1.76\times10^{-19}\ \text{J}}{1.602\times10^{-19}\ \text{C}} = 1.10\ \text{V}
Answer

Answer: The photon energy is 3.10 eV3.10\ \text{eV}; the maximum kinetic energy is 1.10 eV=1.76×10−19 J1.10\ \text{eV} = 1.76\times10^{-19}\ \text{J}, giving Vs=1.10 VV_s = 1.10\ \text{V}.

Common mistake: Subtracting a work function in eV from a photon energy in joules mixes units. Convert both energies to the same unit before subtracting.

E.2.4

DIFFRACTION OF PARTICLES AS EVIDENCE OF THE WAVE NATURE OF MATTER

HL

Particle diffraction

Diffraction is the spreading and redistribution of a wave after it passes through an aperture or around an obstacle. It shows up most clearly when the aperture or obstacle is about the same size as the wavelength. So if particles produce a diffraction pattern, they are acting like waves in that experiment.

The classic evidence comes from electron diffraction. In the Davisson–Germer experiment, electrons were fired at a nickel crystal, and the scattered intensity had strong maxima at particular angles. In school versions, electrons pass through a thin graphite film and make bright and dark rings on a fluorescent screen. Those rings are the clue, not just a central bright patch: the electrons have been scattered into directions fixed by wave interference.

A scattering experiment and minimum intensity

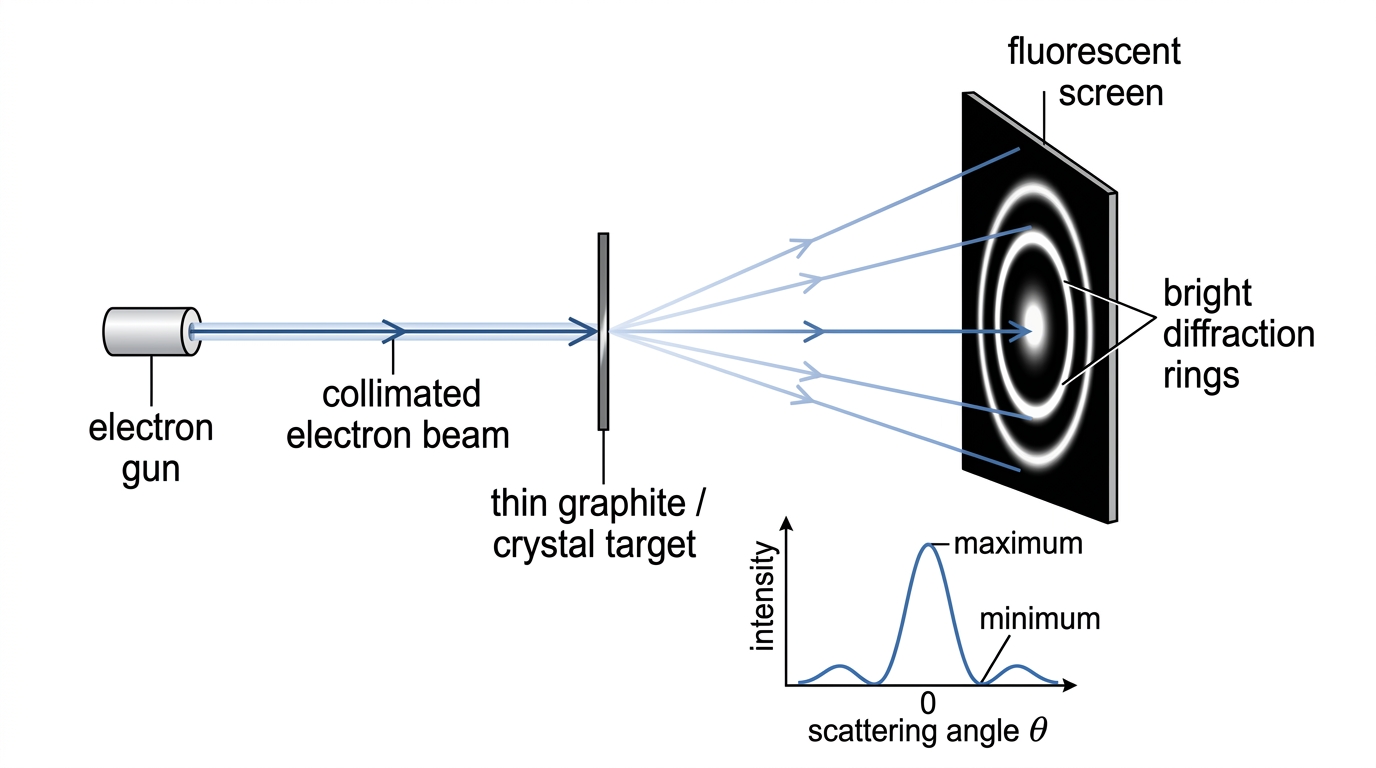

One clean way to picture the measurement is to send a collimated beam of electrons through a narrow slit or a thin crystalline target, then move a detector across different scattering angles. If the electrons behaved only as tiny pellets, the spread would be mainly geometrical. Instead, the detected intensity rises to maxima and drops to minima.

Both arrangements demonstrate interference, but their diffraction conditions differ:

ArrangementOrigin of the patternCondition discussed here
Thin crystalline targetScattering by regularly spaced atomic planes produces interference maxima.Crystal maxima follow a different condition from single-slit minima.
Single slitProbability amplitudes from different parts of the slit interfere.The following equation gives single-slit minima only.

For a single slit of width aa, minima occur approximately when

asin⁡θn=nλdBa \sin \theta_n = n\lambda_{\mathrm{dB}}

Worked example: Electrons with de Broglie wavelength λdB=0.100 nm\lambda_{\mathrm{dB}} = 0.100\ \text{nm} pass through a single slit of width a=1.00 nma = 1.00\ \text{nm}. Calculate the angle of the first minimum. This is a single-slit calculation, not an equation for the graphite rings.

  1. For the first minimum, n=1n = 1. Rearrange the single-slit equation:

    sin⁡θ1=λdBa\sin\theta_1 = \frac{\lambda_{\mathrm{dB}}}{a}

  2. Substitute the wavelength and slit width in the same units:

    sin⁡θ1=0.100 nm1.00 nm=0.100\sin\theta_1 = \frac{0.100\ \text{nm}}{1.00\ \text{nm}} = 0.100

  3. Take the inverse sine in degree mode:

    θ1=sin⁡−1(0.100)=5.74∘\theta_1 = \sin^{-1}(0.100) = 5.74^\circ

Answer

Answer: The first minimum is at an angle of 5.74∘5.74^\circ from the central direction, on either side.

Put a detector at one of these θn\theta_n positions and it records minimum intensity, because the probability amplitudes from different parts of the slit cancel.

That idea links wave optics to quantum physics: what is waving is not a little material ripple in space, but a probability amplitude whose interference controls where particles are likely to be detected.

Exam tip: When explaining the evidence for wave behaviour, identify the maxima and minima in the detected intensity and link them to interference. Spreading alone is not sufficient evidence.

E.2.5

MATTER EXHIBITS WAVE–PARTICLE DUALITY

HL

The dual description

Wave–particle duality is a quantum model where something like light or an electron shows wave-like behaviour in some experiments, and particle-like behaviour in others. The object is not swapping back and forth between a tiny ball and a water wave. The point is that neither classical picture works fully by itself.

Matter looks particle-like when it is detected: an electron reaches one point on a screen and transfers a localized amount of charge and energy. It looks wave-like while it propagates through a diffraction or interference arrangement: after many electrons have been detected, their final distribution forms a pattern with maxima and minima.

What counts as wave evidence?

Waves show superposition, diffraction and interference. So evidence for wave behaviour is more than a beam simply spreading out; it means there are systematic regions of high and low intensity, produced by reinforcement and cancellation.

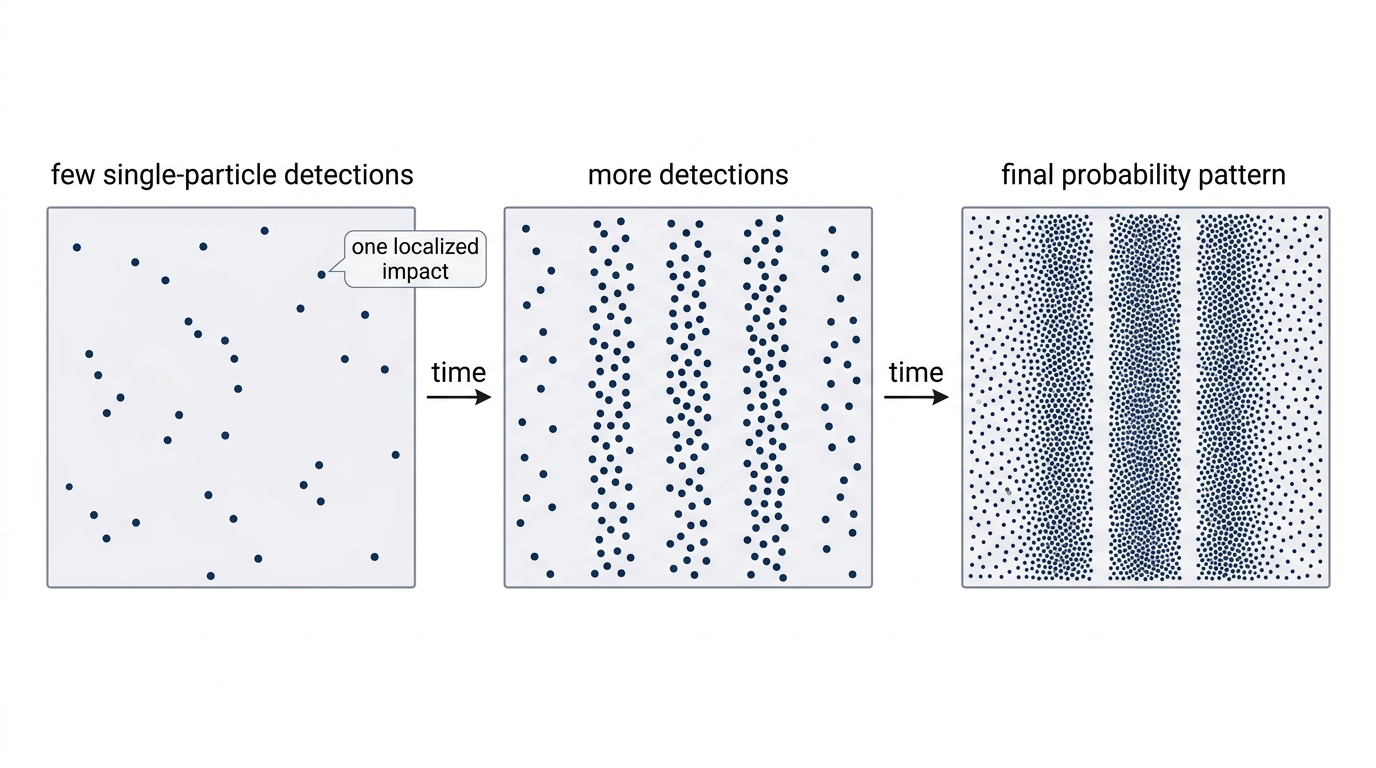

The unsettling part is that this pattern still builds up when particles pass through the apparatus one at a time. Each electron is detected as a localized event. After many detections, though, the same interference pattern appears. The wave model predicts the probability distribution; particle detection gives the individual dots.

If you try to find out which slit an electron or photon passes through, you change the experiment. A measurement that can give path information disturbs the state enough to remove the two-source interference pattern. In quantum physics, observation is not always passive.

E.2.6

THE DE BROGLIE WAVELENGTH FOR PARTICLES

HL

De Broglie’s proposal

The de Broglie wavelength is the wavelength linked to a moving particle because of its momentum. It is given by

λdB=hp\lambda^{\mathrm{dB}} = \frac{h}{p}

For a non-relativistic particle,

p=mvp = mv

Large everyday objects therefore have absurdly tiny de Broglie wavelengths. A tennis ball does not diffract around a doorway in any observable way; its wavelength is fantastically smaller than atomic and nuclear scales.

Worked example: Calculate the momentum and de Broglie wavelength of a tennis ball of mass 0.060 kg0.060\ \text{kg} moving at 30 m s−130\ \text{m s}^{-1}. Use h=6.63×10−34 J sh = 6.63 \times 10^{-34}\ \text{J s}.

  1. Calculate the momentum:
p=mv=0.060×30=1.8 kg m s−1p = mv = 0.060 \times 30 = 1.8\ \text{kg m s}^{-1}
  1. Substitute the momentum into the de Broglie equation:
λdB=hp=6.63×10−341.8=3.7×10−34 m\lambda^{\mathrm{dB}} = \frac{h}{p} = \frac{6.63 \times 10^{-34}}{1.8} = 3.7 \times 10^{-34}\ \text{m}
Answer

Answer: The momentum is 1.8 kg m s−11.8\ \text{kg m s}^{-1} and the wavelength is 3.7×10−34 m3.7 \times 10^{-34}\ \text{m}, far too small for observable diffraction around a doorway.

Electrons are the useful case

Electrons have small mass, so their de Broglie wavelengths can be comparable with atomic spacings. For an electron accelerated from rest through a potential difference VV,

λdB=h2meeV\lambda^{\mathrm{dB}} = \frac{h}{\sqrt{2m_e eV}}

This equation assumes negligible initial kinetic energy and non-relativistic motion: eV≪mec2eV \ll m_e c^2. Here, ee is the magnitude of the electron charge, so eVeV is the energy gained from the accelerating potential difference.

Common mistake: VV denotes voltage here, whereas vv denotes speed. The energy gained is eVeV, not evev; use p=mevp = m_e v only when the electron's speed is known and its motion is non-relativistic.

Worked example: Calculate the de Broglie wavelength of an electron accelerated from rest through 150 V150\ \text{V}. Use h=6.63×10−34 J sh = 6.63 \times 10^{-34}\ \text{J s}, me=9.11×10−31 kgm_e = 9.11 \times 10^{-31}\ \text{kg} and e=1.60×10−19 Ce = 1.60 \times 10^{-19}\ \text{C}.

  1. Equate the electrical energy gained to the kinetic energy:
eV=12mev2eV = \frac{1}{2}m_e v^2
  1. Use p=mevp = m_e v to express the momentum in terms of voltage:
p2=me2v2=2meeVp^2 = m_e^2 v^2 = 2m_e eV p=2meeVp = \sqrt{2m_e eV}
  1. Substitute into the de Broglie equation:
λdB=h2meeV=6.63×10−342×(9.11×10−31)×(1.60×10−19)×150=1.00×10−10 m\lambda^{\mathrm{dB}} = \frac{h}{\sqrt{2m_e eV}} = \frac{6.63 \times 10^{-34}}{\sqrt{2 \times (9.11 \times 10^{-31}) \times (1.60 \times 10^{-19}) \times 150}} = 1.00 \times 10^{-10}\ \text{m}
Answer

Answer: The electron's wavelength is 1.00×10−10 m1.00 \times 10^{-10}\ \text{m}, comparable with atomic spacings in crystals. This makes electron diffraction by crystals observable.

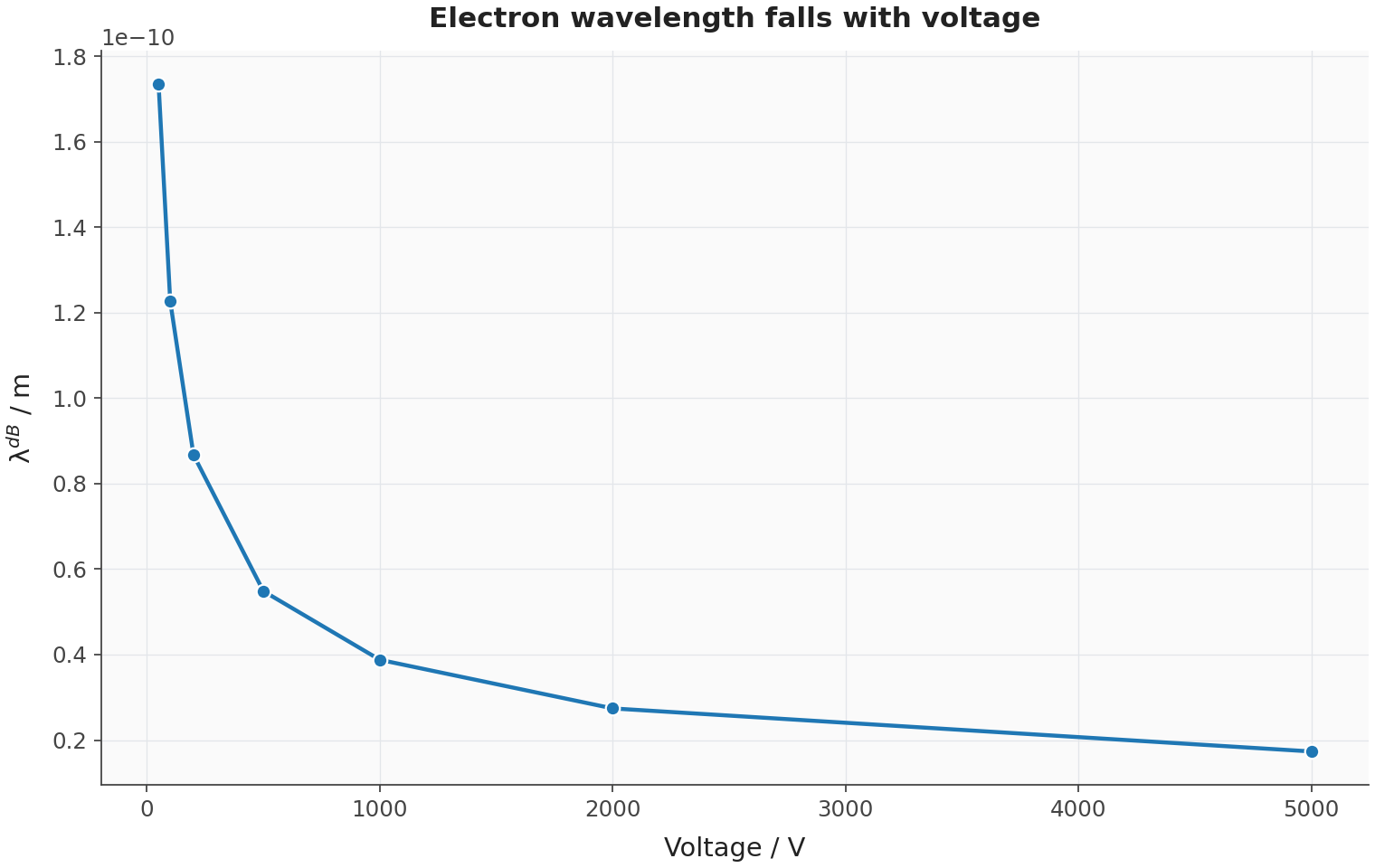

Increasing the accelerating potential difference gives the electron more momentum and decreases the de Broglie wavelength. In an electron diffraction tube, the ring pattern contracts. Decreasing the potential difference does the opposite: the wavelength increases and the rings spread out.

This is a neat practical check on the idea. Change a particle quantity — accelerating voltage, hence momentum — and the wave pattern shifts just as the wavelength equation predicts.

E.2.7

COMPTON SCATTERING AS ADDITIONAL EVIDENCE OF THE PARTICLE NATURE OF LIGHT

HL

The scattering idea

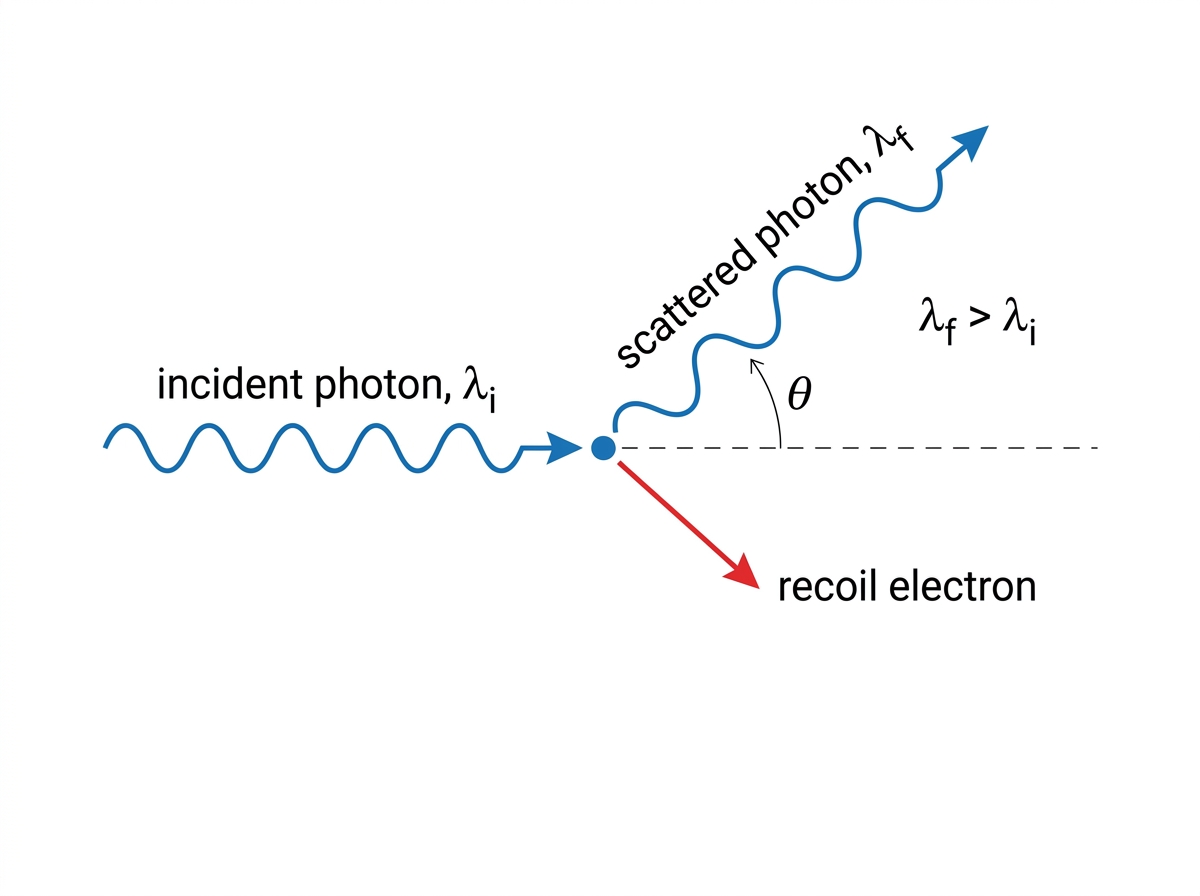

Compton scattering is an inelastic scattering interaction where a photon hits a loosely bound or free electron, then comes out in a new direction with lower energy. It gives extra evidence for the particle nature of light, since the result only makes sense when the photon is treated as something with energy and momentum.

For a photon, the momentum magnitude is

pγ=h/λp_\gamma = h / \lambda

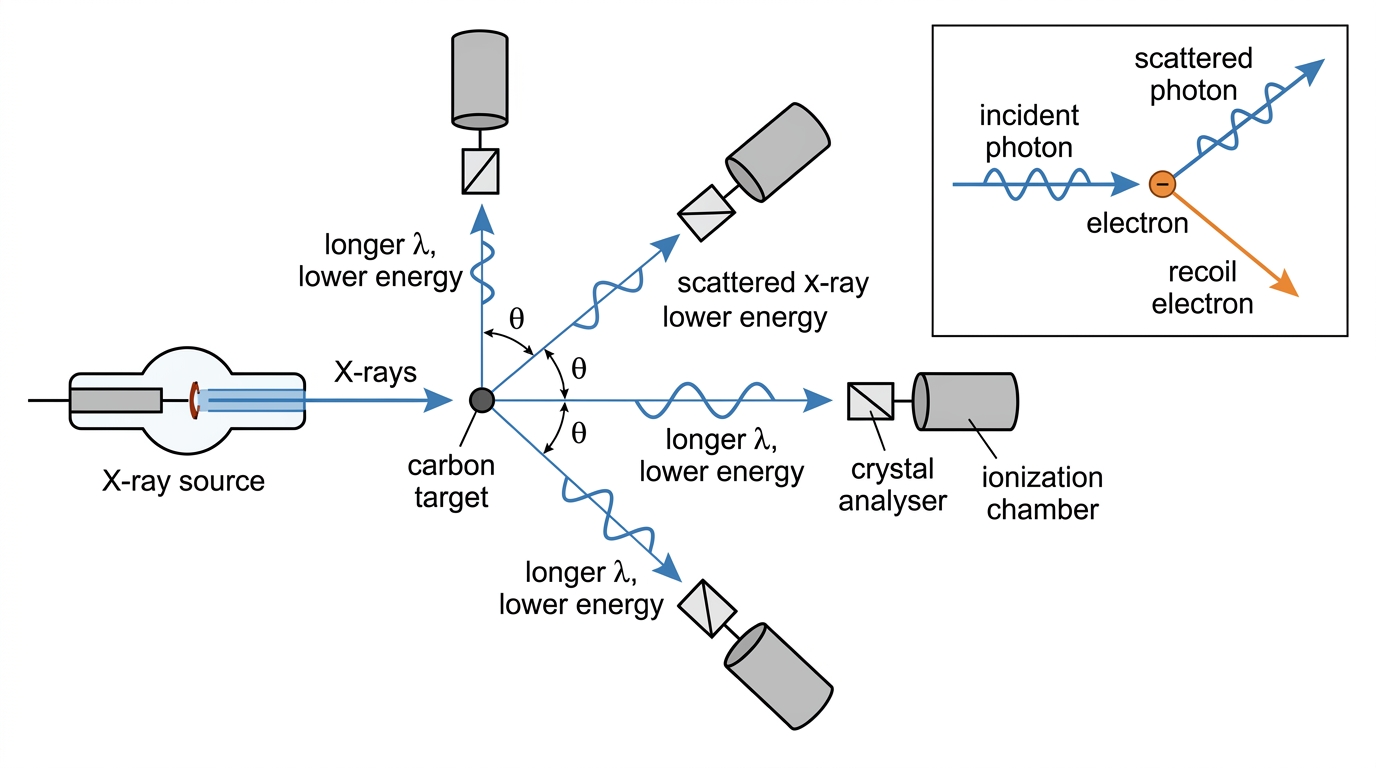

In Compton’s experiment, X-ray photons were aimed at a low atomic number target such as carbon. A crystal analyser and an ionization detector picked up the scattered X-rays at different angles. The measured spectrum included a wavelength-shifted peak, and the size of the shift depended on the scattering angle.

Why it is stronger than the photoelectric evidence

The photoelectric effect gives strong evidence, but the incoming photon is absorbed and no longer exists. Its particle nature has to be inferred from the electron that is emitted. In Compton scattering, the incoming photon and the outgoing photon can both be studied: the photon is not just absorbed; it leaves with a measurable change in wavelength and direction.

So the conservation-law model is more direct. You can compare energy and momentum before the interaction with energy and momentum after it, just like in a collision problem.

Similar to, but not the same as, solid-ball collisions

The link with two solid balls colliding is that total energy and total momentum are conserved, and the scattered energy depends on angle. The difference is that a photon has zero rest mass, travels at speed cc, and has to be described using quantum and relativistic ideas. A solid ball collision involves many atoms and contact forces; Compton scattering is a single photon–electron interaction.

E.2.8

PHOTONS SCATTER OFF ELECTRONS WITH INCREASED WAVELENGTH

HL

Increased wavelength means lost photon energy

In Compton scattering, the scattered photon leaves with a longer wavelength than the incoming photon when energy is transferred to the electron. Since Eγ=hcλE_\gamma = \frac{hc}{\lambda}, that longer wavelength corresponds to less photon energy. The energy difference goes into the recoil electron.

The electron picks up momentum as well. In the general non-collinear case, it recoils at an angle to the original photon direction, so momentum must be conserved in two dimensions rather than treated as a simple straight-line rebound. Straight-through photon scattering and exact backscattering are collinear limiting cases. For an initially stationary free electron, straight-through scattering transfers no energy or momentum to the electron.

Common mistake: Using the electron recoil angle in the Compton wavelength-shift equation. The angle θ\theta in Δλ=hmec(1−cos⁡θ)\Delta\lambda = \frac{h}{m_e c}(1-\cos\theta) is the photon scattering angle, measured between the incoming and scattered photon directions—not the electron recoil angle.

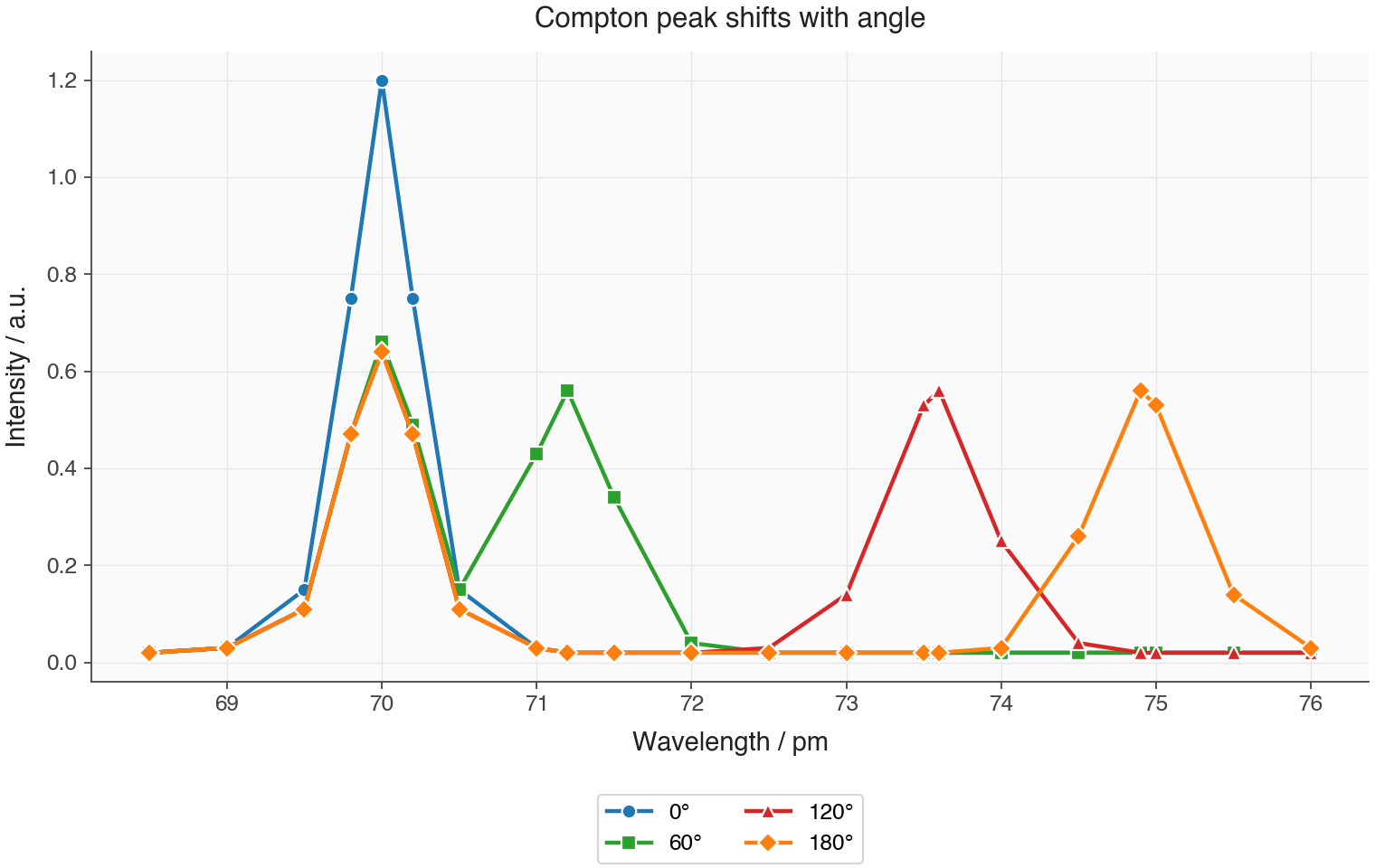

The two peaks in real data

Real Compton spectra often contain two peaks:

  • The unshifted peak stays at the original wavelength. It comes from scattering from the atom as a whole or from tightly bound electrons, where the atom takes up the recoil. Because the atom has a much larger mass than an electron, the wavelength change is too small to detect.
  • The shifted peak is the Compton peak, produced when the photon scatters from electrons that can be treated as free during the interaction.

As the photon scattering angle gets larger, the wavelength increase gets larger too. In the straight-through direction the shift is zero; at larger angles, the shifted peak moves to longer wavelength, reaching its maximum shift at exact backscattering.

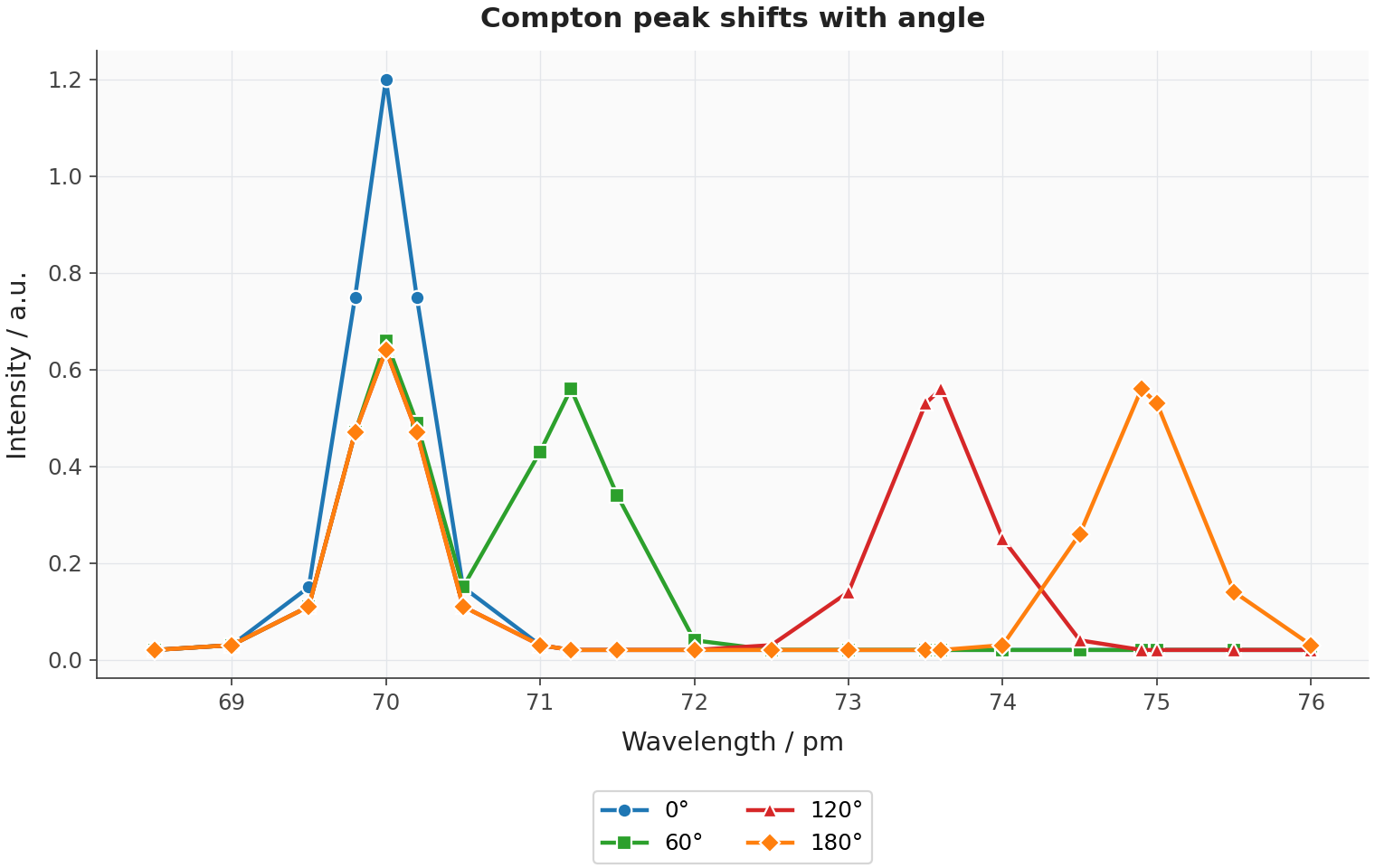

Worked example: Interpret the plotted spectrum at a photon scattering angle of 120∘120^\circ. Identify the peaks, calculate the incident and scattered photon energies, and find the recoil electron's kinetic energy. Treat the electron as initially stationary and free. Use h=6.63×10−34 J sh = 6.63\times10^{-34}\ \text{J s} and c=3.00×108 m s−1c = 3.00\times10^8\ \text{m s}^{-1}.

  1. Read the peak positions and convert picometres to metres. The unshifted peak gives the incident wavelength; the shifted peak gives the scattered wavelength:

    λi=70.0 pm=70.0×10−12 m\lambda_i = 70.0\ \text{pm} = 70.0\times10^{-12}\ \text{m}

    λs≈73.6 pm=73.6×10−12 m\lambda_s \approx 73.6\ \text{pm} = 73.6\times10^{-12}\ \text{m}

  2. Calculate the incident photon energy:

    Ei=hcλi=(6.63×10−34)(3.00×108)70.0×10−12=2.84×10−15 JE_i = \frac{hc}{\lambda_i} = \frac{(6.63\times10^{-34})(3.00\times10^8)}{70.0\times10^{-12}} = 2.84\times10^{-15}\ \text{J}

  3. Calculate the scattered photon energy:

    Es=hcλs=(6.63×10−34)(3.00×108)73.6×10−12≈2.70×10−15 JE_s = \frac{hc}{\lambda_s} = \frac{(6.63\times10^{-34})(3.00\times10^8)}{73.6\times10^{-12}} \approx 2.70\times10^{-15}\ \text{J}

  4. Apply energy conservation, retaining unrounded values in the subtraction:

    Ke=Ei−Es=hc(1λi−1λs)K_e = E_i-E_s = hc\left(\frac{1}{\lambda_i}-\frac{1}{\lambda_s}\right)

    Ke≈(6.63×10−34)(3.00×108)(170.0×10−12−173.6×10−12)=1.39×10−16 JK_e \approx (6.63\times10^{-34})(3.00\times10^8)\left(\frac{1}{70.0\times10^{-12}}-\frac{1}{73.6\times10^{-12}}\right) = 1.39\times10^{-16}\ \text{J}

Answer

Answer: The unshifted peak is at 70.0 pm70.0\ \text{pm} and the Compton peak is near 73.6 pm73.6\ \text{pm}. The incident and scattered photon energies are 2.84×10−15 J2.84\times10^{-15}\ \text{J} and approximately 2.70×10−15 J2.70\times10^{-15}\ \text{J}, giving a recoil electron kinetic energy of approximately 1.39×10−16 J1.39\times10^{-16}\ \text{J}.

E.2.9

THE COMPTON WAVELENGTH SHIFT EQUATION

HL

The equation you use, not derive

For Compton scattering, use

λf−λi=Δλ=(hmec)(1−cos⁡θ)\lambda_f - \lambda_i = \Delta\lambda = \left(\frac{h}{m_e c}\right)(1 - \cos\theta)

You do not need to derive this equation. You do need to know what it says.

Worked example: A photon with incident wavelength λi=70.0 pm\lambda_i = 70.0\ \text{pm} scatters through θ=60.0∘\theta = 60.0^\circ. Calculate its wavelength shift and its final wavelength. Use h=6.63×10−34 J sh = 6.63 \times 10^{-34}\ \text{J s}, me=9.11×10−31 kgm_e = 9.11 \times 10^{-31}\ \text{kg} and c=3.00×108 m s−1c = 3.00 \times 10^8\ \text{m s}^{-1}.

  1. Calculate the constant factor:
hmec=6.63×10−34(9.11×10−31)(3.00×108)=2.43×10−12 m\frac{h}{m_e c} = \frac{6.63 \times 10^{-34}}{(9.11 \times 10^{-31})(3.00 \times 10^8)} = 2.43 \times 10^{-12}\ \text{m}
  1. Substitute the photon scattering angle, keeping unrounded values during the calculation:
Δλ=(6.63×10−34(9.11×10−31)(3.00×108))(1−cos⁡60.0∘)=1.21×10−12 m=1.21 pm\Delta\lambda = \left(\frac{6.63 \times 10^{-34}}{(9.11 \times 10^{-31})(3.00 \times 10^8)}\right)(1 - \cos 60.0^\circ) = 1.21 \times 10^{-12}\ \text{m} = 1.21\ \text{pm}
  1. Add the shift to the incident wavelength:
λf=λi+Δλ=70.0 pm+1.21 pm=71.2 pm\lambda_f = \lambda_i + \Delta\lambda = 70.0\ \text{pm} + 1.21\ \text{pm} = 71.2\ \text{pm}
Answer

Answer: The wavelength shift is Δλ=1.21 pm\Delta\lambda = 1.21\ \text{pm}; the scattered photon's wavelength is λf=71.2 pm\lambda_f = 71.2\ \text{pm}.

Common mistake: Reporting Δλ\Delta\lambda as the final wavelength misses the addition of λi\lambda_i. Also, θ\theta is the photon's scattering angle, not the electron's recoil angle; set your calculator to match the angle units given.

How the angle changes the shift

  • If θ=0∘\theta = 0^\circ, then cos⁡θ=1\cos\theta = 1 and Δλ=0\Delta\lambda = 0: a photon travelling straight on has no Compton wavelength shift.
  • As θ\theta increases, 1−cos⁡θ1 - \cos\theta increases, so the wavelength shift increases.
  • The shift depends on the scattering angle and fundamental constants, not on the incident wavelength itself.

The factor h/(mec)h / (m_e c) is called the Compton wavelength of the electron. It fixes the scale of the effect. That is why Compton scattering shows up most clearly for X-rays and gamma rays: their wavelengths are small enough that the shift is a measurable fraction of the original wavelength.

Exam tip: Physical photon scattering angles lie between 0∘0^\circ and 180∘180^\circ. At θ=180∘\theta = 180^\circ, 1−cos⁡180∘=21 - \cos 180^\circ = 2, so the maximum shift is Δλmax⁡=2h/(mec)=4.85 pm\Delta\lambda_{\max} = 2h/(m_e c) = 4.85\ \text{pm}, using unrounded constants. Check that any calculated shift satisfies 0≤Δλ≤4.85 pm0 \le \Delta\lambda \le 4.85\ \text{pm} for scattering by an initially stationary electron.

Were those notes helpful?

E.1 Structure of atom

E.3 Radioactive decay
