IB Syllabus Requirements for Gravitational fields

D.1.1

Kepler’s three laws of orbital motion

D.1.2

Newton’s universal law of gravitation

D.1.3

Extended bodies as point masses

D.1.4

Gravitational field strength

D.1.1

KEPLER’S THREE LAWS OF ORBITAL MOTION

The observational laws

Kepler’s laws are empirical rules for the motion of planets and other orbiting bodies. They came from careful astronomical data, rather than from a theory of force. Newton later showed that gravity leads to these same rules.

Kepler’s first law says that an orbiting planet follows an ellipse with the Sun at one focus. A focus is one of two special points inside an ellipse; the Sun usually isn’t at the geometrical centre. A circle is the special case where the two foci coincide.

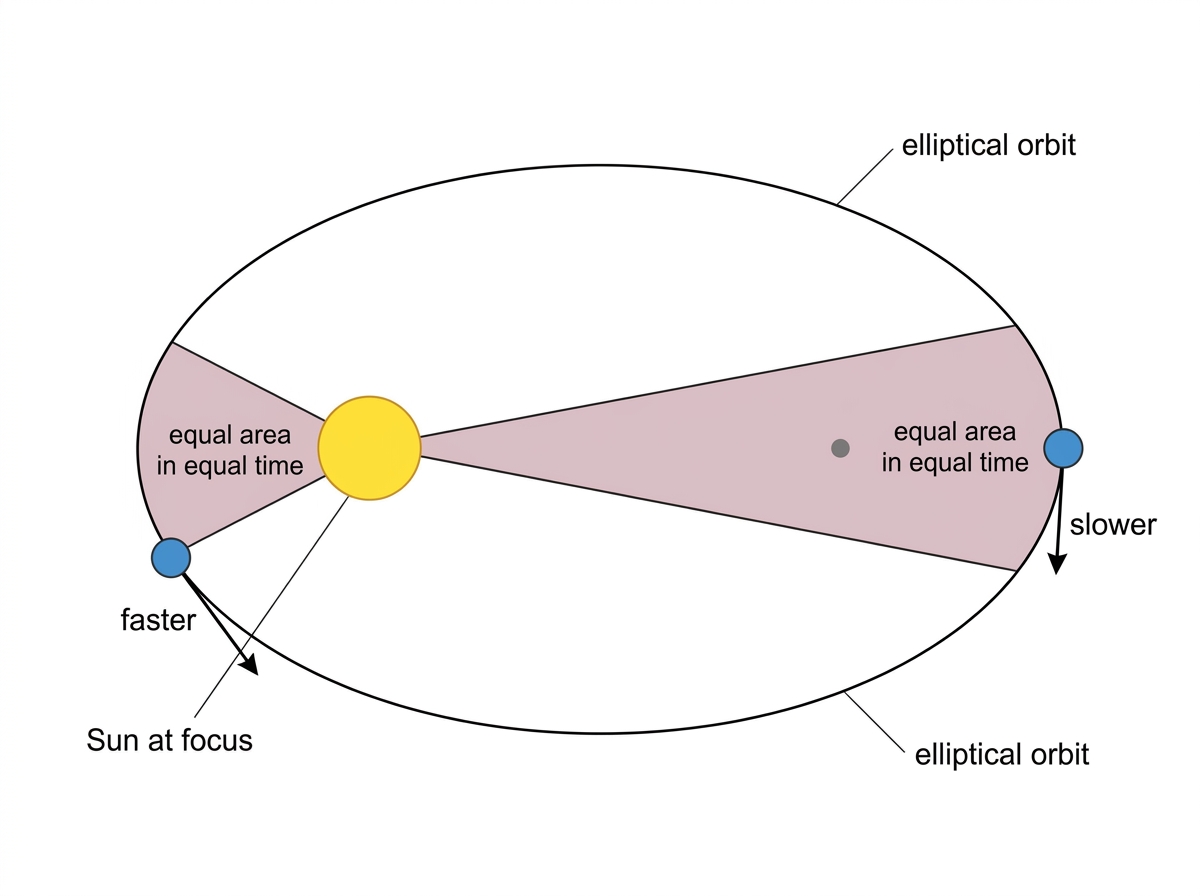

Kepler’s second law says that the line from the Sun to the planet sweeps out equal areas in equal times. In practical terms, the planet moves faster when it is closer to the Sun and slower when it is farther away.

Kepler’s third law says that T2∝a3T^2 \propto a^3, where TT is orbital period (s)(\text{s}) and aa is the semi-major axis of the elliptical orbit (m)(\text{m}). In the circular orbits used for IB calculations, this becomes T2∝r3T^2 \propto r^3, where rr is the orbital radius measured from the centre of the central body (m)(\text{m}).

Worked example: A planet orbits the Sun with a semi-major axis four times Earth’s. Taking Earth’s orbital period as TE=1 yearT_E = 1\ \text{year}, calculate the planet’s orbital period. Assume both planets have negligible mass compared with the Sun.

  1. Write the third law for each orbit using the proportionality constant kk: T2=ka3,TE2=kaE3T^2 = ka^3, \qquad T_E^2 = ka_E^3 Both planets orbit the same central mass, the Sun, so they have the same kk.
  2. Divide the equations. The common constant cancels: T2TE2=ka3kaE3=(aaE)3\frac{T^2}{T_E^2} = \frac{ka^3}{ka_E^3} = \left(\frac{a}{a_E}\right)^3
  3. Substitute the semi-major axis ratio: T2TE2=43=64\frac{T^2}{T_E^2} = 4^3 = 64
  4. Take the positive square root and substitute Earth’s period: T=64 TE=8×1 year=8 yearsT = \sqrt{64}\,T_E = 8 \times 1\ \text{year} = 8\ \text{years}
Answer

Answer: The planet’s orbital period is 8 years8\ \text{years}.

Common mistake: Applying this ratio method to orbits around different central masses. The proportionality constant depends on the central mass, so it does not cancel when comparing, for example, a moon orbiting Earth with a planet orbiting the Sun. Also, four times the semi-major axis does not mean four times the period: take the square root after cubing the distance ratio.

Circular models and real orbits

In this topic, calculations assume circular orbital motion unless the question is explicitly qualitative. That’s a model, not a claim that nature draws perfect circles. Real planets and comets often follow elliptical orbits; in an elliptical orbit the total energy stays constant, while kinetic energy and gravitational potential energy continually trade places as the separation changes.

Uniform circular motion resembles a real orbit because a central force continually changes the direction of the velocity. It differs from many real orbits because the circular model keeps radius and speed constant, while both change in an elliptical orbit.

Binary star systems show another limit of the “small object around a fixed large object” picture. If the two stars have comparable masses, both orbit their common centre of mass. To determine the nature of the stars, astronomers use measurements such as orbital period, separation or angular separation with distance, radial speeds from spectral shifts, spectra for temperature and composition, and luminosity changes if the stars eclipse each other.

Models that work, and models that fail

The old planetary model of the atom borrowed the idea of orbiting from astronomy: electrons were pictured moving around the nucleus rather like planets around the Sun. The attraction is an inverse-square force in both cases, so the analogy is tempting. But it breaks down because a classical orbiting electron is accelerating and should radiate energy continuously, spiralling into the nucleus. That failure teaches a useful lesson: a model can be productive and still not be the final story.

D.1.2

NEWTON’S UNIVERSAL LAW OF GRAVITATION

The inverse-square force

Newton’s universal law of gravitation says that any two point masses attract one another. The size of the force is proportional to both masses and inversely proportional to the square of the distance between them:

F=Gm1m2/r2F = Gm_1m_2 / r^2

The force is always attractive. Each mass pulls on the other with the same size of force, but in the opposite direction, as required by Newton’s third law. The inverse-square term is the key feature here: double the separation, and the force drops to one quarter of its original value.

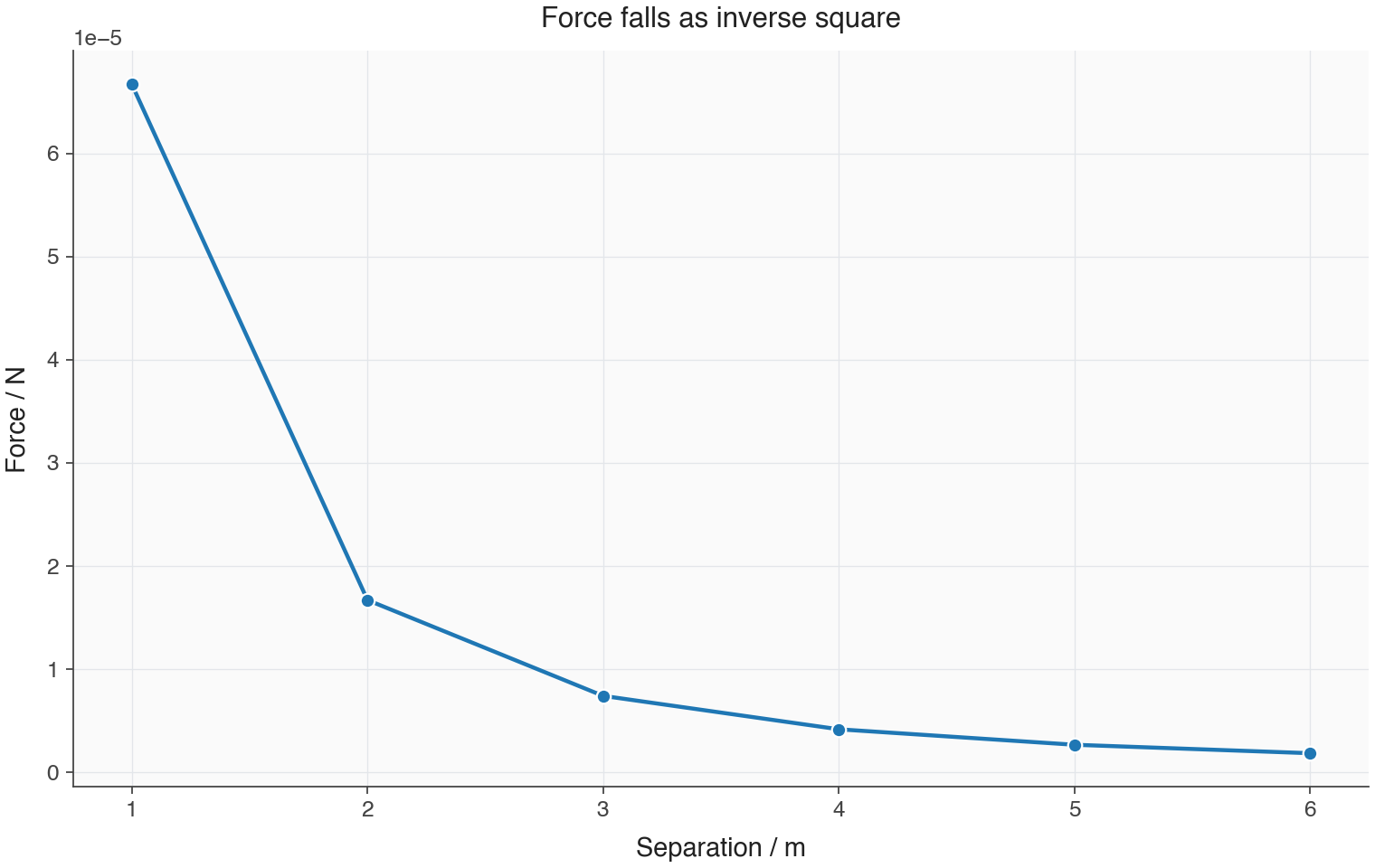

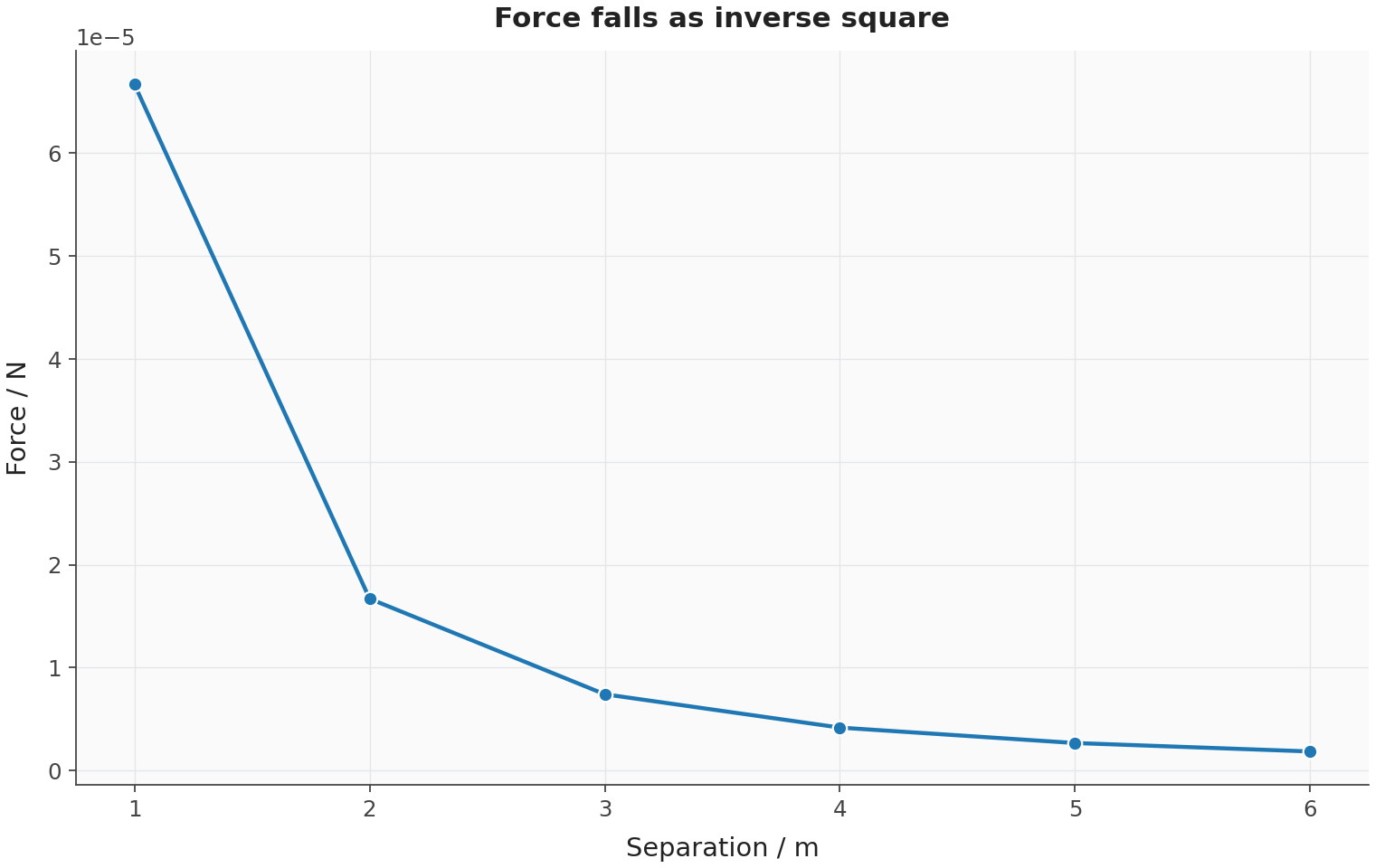

Worked example: Calculate the gravitational force between the graph’s two masses, each of mass 1000 kg1000\ \text{kg}, at a centre-to-centre separation of 2.0 m2.0\ \text{m}. Use G=6.67×10−11 N m2 kg−2G = 6.67 \times 10^{-11}\ \text{N m}^2\text{ kg}^{-2}, and identify the force on each body.

  1. Write Newton’s law:

    F=Gm1m2r2F = \frac{Gm_1m_2}{r^2}

  2. Substitute both masses and square the entire separation:

    F=(6.67×10−11 N m2 kg−2)(1000 kg)(1000 kg)(2.0 m)2F = \frac{(6.67 \times 10^{-11}\ \text{N m}^2\text{ kg}^{-2})(1000\ \text{kg})(1000\ \text{kg})}{(2.0\ \text{m})^2}

  3. Evaluate the force:

    F=6.67×10−5 N m24.0 m2=1.67×10−5 NF = \frac{6.67 \times 10^{-5}\ \text{N m}^2}{4.0\ \text{m}^2} = 1.67 \times 10^{-5}\ \text{N}

Answer

Answer: Each body experiences a force of 1.67×10−5 N1.67 \times 10^{-5}\ \text{N} towards the other body. These forces are equal in magnitude and opposite in direction, and act on different bodies.

Exam tip: Use the centre-to-centre distance, not the gap between the surfaces. Square the entire separation in the denominator: write (2.0 m)2(2.0\ \text{m})^2, not 2.0 m2.0\ \text{m}. If converting a distance to metres, convert first and then square.

Constants and measurement

A physical constant is a quantity with a fixed value within a theory, so measurements made in different places and at different times can be compared. GG is small, so gravitational forces between laboratory-sized objects are tiny.

Physicists determine constants through carefully designed experiments and, in modern SI, some constants are also used to define units. Their values are not just entries in the data booklet; they are part of the shared language physicists use to calculate consistently.

From point masses to spherical masses

The formula above applies to point masses. For a uniform sphere, or any spherically symmetric mass distribution, the gravitational field outside the sphere is the same as if all its mass were concentrated at its centre. This is why we can use Earth’s mass at Earth’s centre when calculating the gravitational force on a satellite outside Earth.

D.1.3

EXTENDED BODIES AS POINT MASSES

When size can be ignored

An extended body is an object whose physical size is not negligible compared with the distances being considered. A planet, moon, asteroid or satellite is an extended body, not a mathematical point.

We can treat an extended body as a point mass if its size is small compared with its separation from other bodies. The same model works for a uniform or spherically symmetric sphere when we are considering points outside it. In those cases, its mass acts as though it were concentrated at its centre of mass.

A centre of mass is the point representing the average position of an object’s mass distribution. A centre of gravity is the point through which the resultant weight of an object acts in a particular gravitational field. In a uniform gravitational field, these two points are the same. If the field changes significantly across the object, they need not be exactly the same.

When the point-mass model breaks

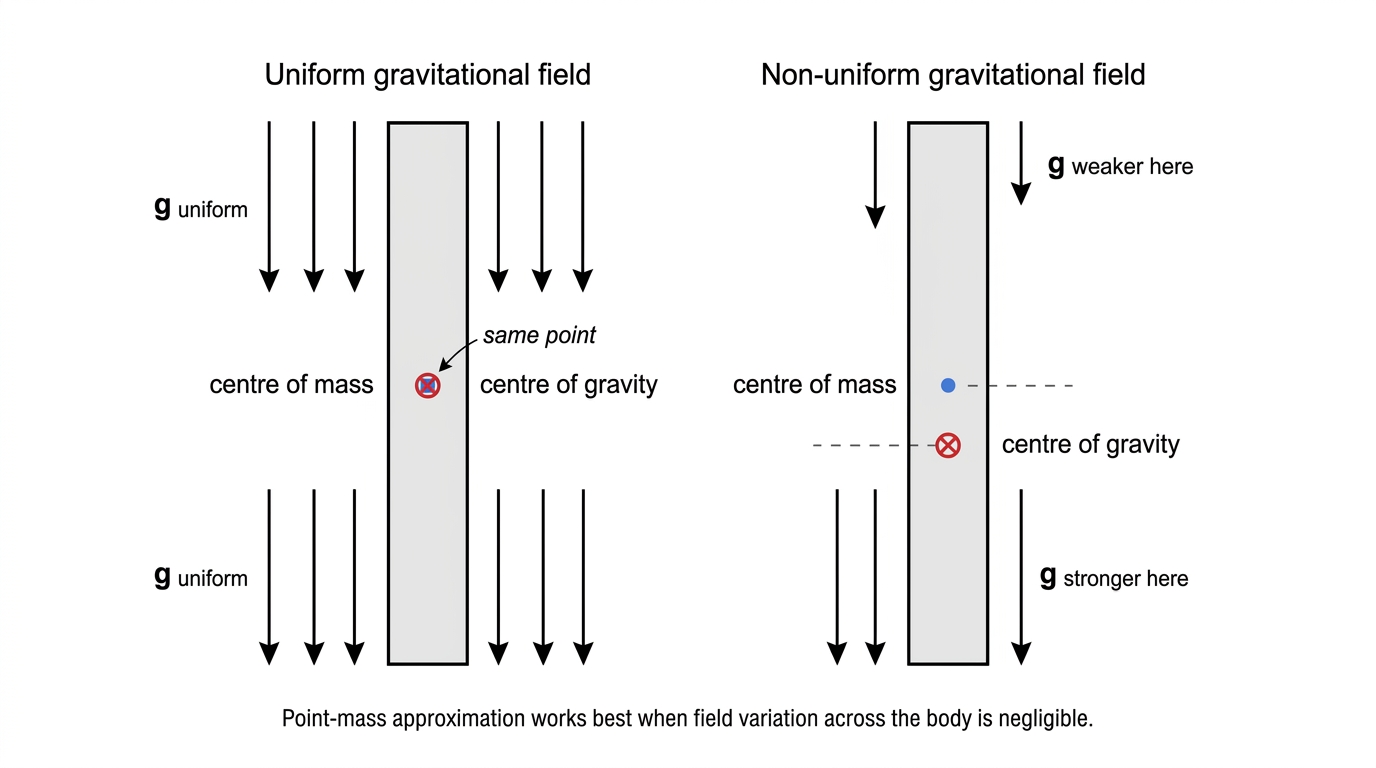

The point-mass model becomes weak when the gravitational field varies appreciably across the object. Tides are the standard example. The Moon’s field is slightly stronger on the near side of Earth than on the far side, so different parts of Earth’s oceans experience different gravitational effects. That variation across an extended body is exactly what the point-mass approximation hides.

D.1.4

GRAVITATIONAL FIELD STRENGTH

Field idea

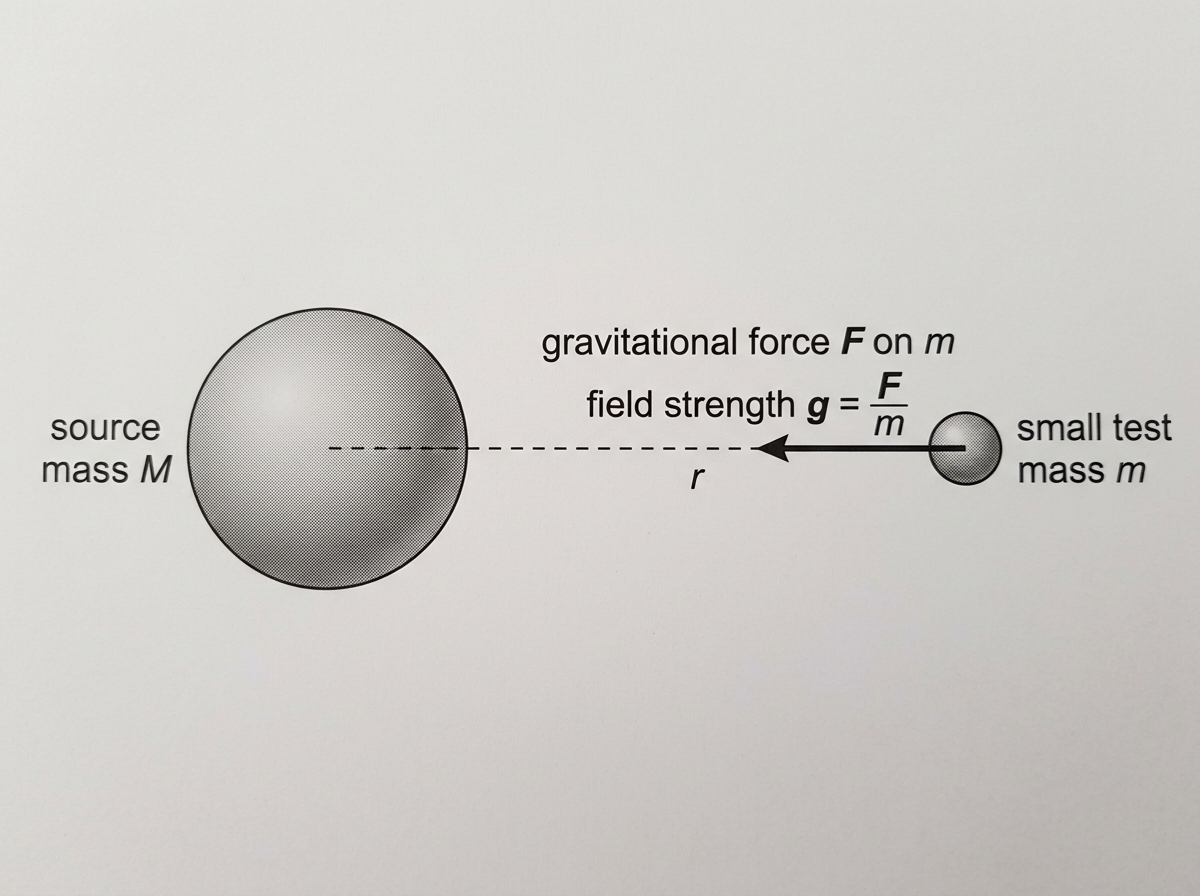

A gravitational field is a region of space where a mass experiences a gravitational force. Describing the field is useful because we can say what a source mass does to the space around it before any second mass is placed there.

Gravitational field strength is a vector quantity: the gravitational force per unit mass on a small test mass at a point. The test mass has to be small enough that it doesn’t noticeably alter the field being measured.

g=F/mg = F / m

Using Newton’s law for a point mass or a uniform spherical mass,

g=GM/r2g = GM / r^2, where MM is the source mass producing the field (kg).

The direction of gg matches the direction of the force on the test mass. For an isolated spherical mass, it points radially inward.

Worked example: Calculate Earth’s surface field and the force on a 2.0 kg2.0\ \text{kg} test mass. Use M=5.97×1024 kgM = 5.97 \times 10^{24}\ \text{kg}, R=6.37×106 mR = 6.37 \times 10^6\ \text{m} and G=6.67×10−11 N m2 kg−2G = 6.67 \times 10^{-11}\ \text{N m}^2\text{ kg}^{-2}.

  1. Substitute the source mass and surface radius: g=(6.67×10−11)(5.97×1024)(6.37×106)2=9.81 N kg−1g = \frac{(6.67 \times 10^{-11})(5.97 \times 10^{24})}{(6.37 \times 10^6)^2} = 9.81\ \text{N kg}^{-1}
  2. Use the test mass to find its force: F=mg=2.0×9.81=19.6 NF = mg = 2.0 \times 9.81 = 19.6\ \text{N}
Answer

Answer: The field is approximately 9.81 N kg−19.81\ \text{N kg}^{-1} inward; the force is 19.6 N19.6\ \text{N} inward. Earth’s source mass determines the field; the test mass determines the force it experiences.

Resultant field strength

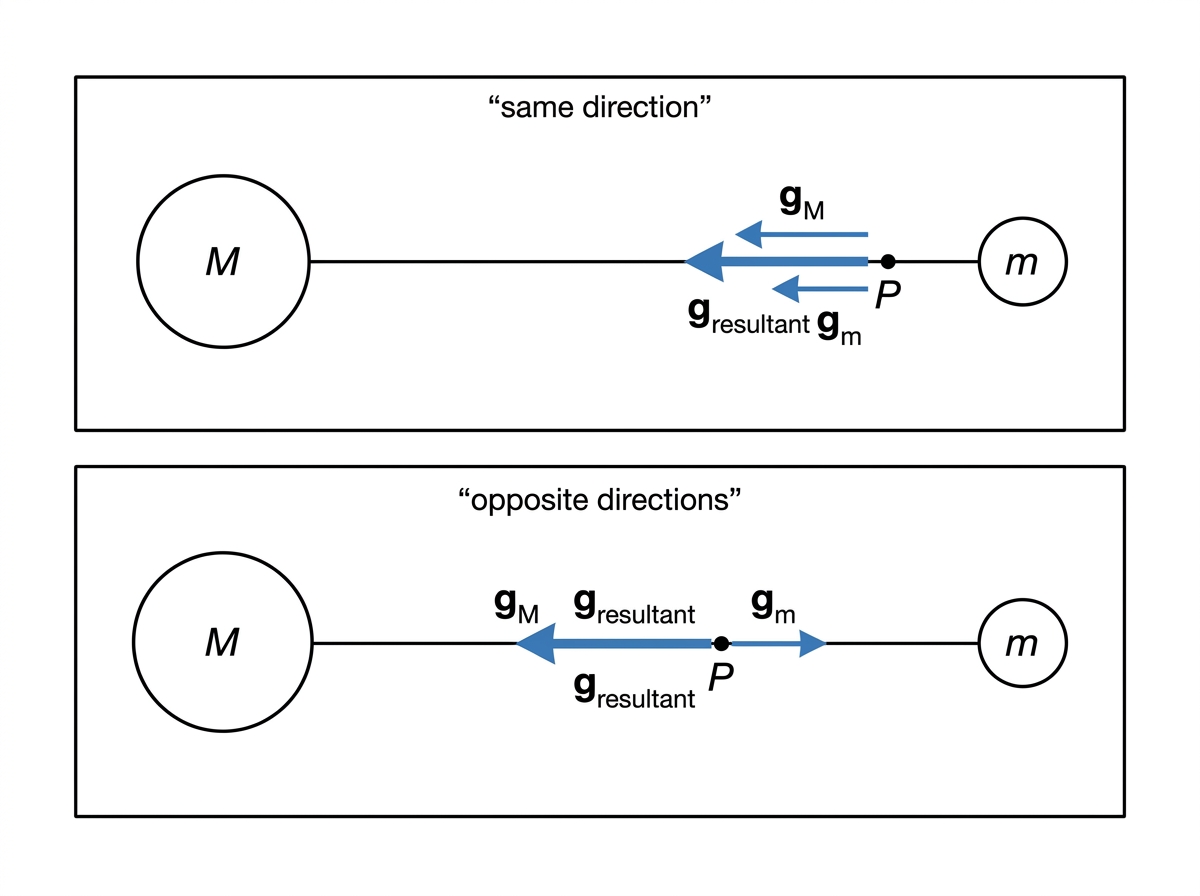

Gravitational field strength is a vector, so fields add vectorially. In this topic, resultant field strength calculations are limited to points on the line joining two bodies. Along that line, the two field contributions point either the same way or in opposite directions, so the calculation reduces to signed addition of magnitudes.

Worked example: Masses 4.0×1012 kg4.0 \times 10^{12}\ \text{kg} (left) and 1.0×1012 kg1.0 \times 10^{12}\ \text{kg} (right) are separated by 30 km30\ \text{km}. Find the midpoint field and zero-field point. Choose right as positive.

  1. Each midpoint distance is 15 km=1.5×104 m15\ \text{km} = 1.5 \times 10^4\ \text{m}: gL=−(6.67×10−11)(4.0×1012)(1.5×104)2=−1.19×10−6 N kg−1g_L = -\frac{(6.67 \times 10^{-11})(4.0 \times 10^{12})}{(1.5 \times 10^4)^2} = -1.19 \times 10^{-6}\ \text{N kg}^{-1} gR=+(6.67×10−11)(1.0×1012)(1.5×104)2=+2.96×10−7 N kg−1g_R = +\frac{(6.67 \times 10^{-11})(1.0 \times 10^{12})}{(1.5 \times 10^4)^2} = +2.96 \times 10^{-7}\ \text{N kg}^{-1}
  2. Add signed contributions, using unrounded values: g=gL+gR=−8.9×10−7 N kg−1g = g_L + g_R = -8.9 \times 10^{-7}\ \text{N kg}^{-1}
  3. Between the masses, equal magnitudes cancel. Let xx be the distance from the larger mass: 4.0×1012x2=1.0×1012(30 km−x)2,x30 km−x=2,x=20 km\frac{4.0 \times 10^{12}}{x^2} = \frac{1.0 \times 10^{12}}{(30\ \text{km} - x)^2},\qquad \frac{x}{30\ \text{km} - x} = 2,\qquad x = 20\ \text{km}
Answer

Answer: The midpoint field is 8.9×10−7 N kg−18.9 \times 10^{-7}\ \text{N kg}^{-1} toward the larger mass. The zero-field point is 20 km20\ \text{km} from the larger mass, between the bodies.

Field strength and acceleration

Close to a planet’s surface, gg is also the acceleration of free fall. Newton’s second law gives F=maF = ma, where aa is acceleration (m s−2m\,s^{-2}). Combine this with g=F/mg = F / m, and for a freely falling object with gravity as the only force, a=ga = g. That is why N kg−1N\,kg^{-1} and m s−2m\,s^{-2} are equivalent units.

Near the surface of a massive body, the radial field can often be treated as uniform: over a small height change, the field lines are essentially parallel and equally spaced. On a planetary scale, though, the field is radial and becomes weaker with distance.

D.1.5

GRAVITATIONAL FIELD LINES

Reading field lines

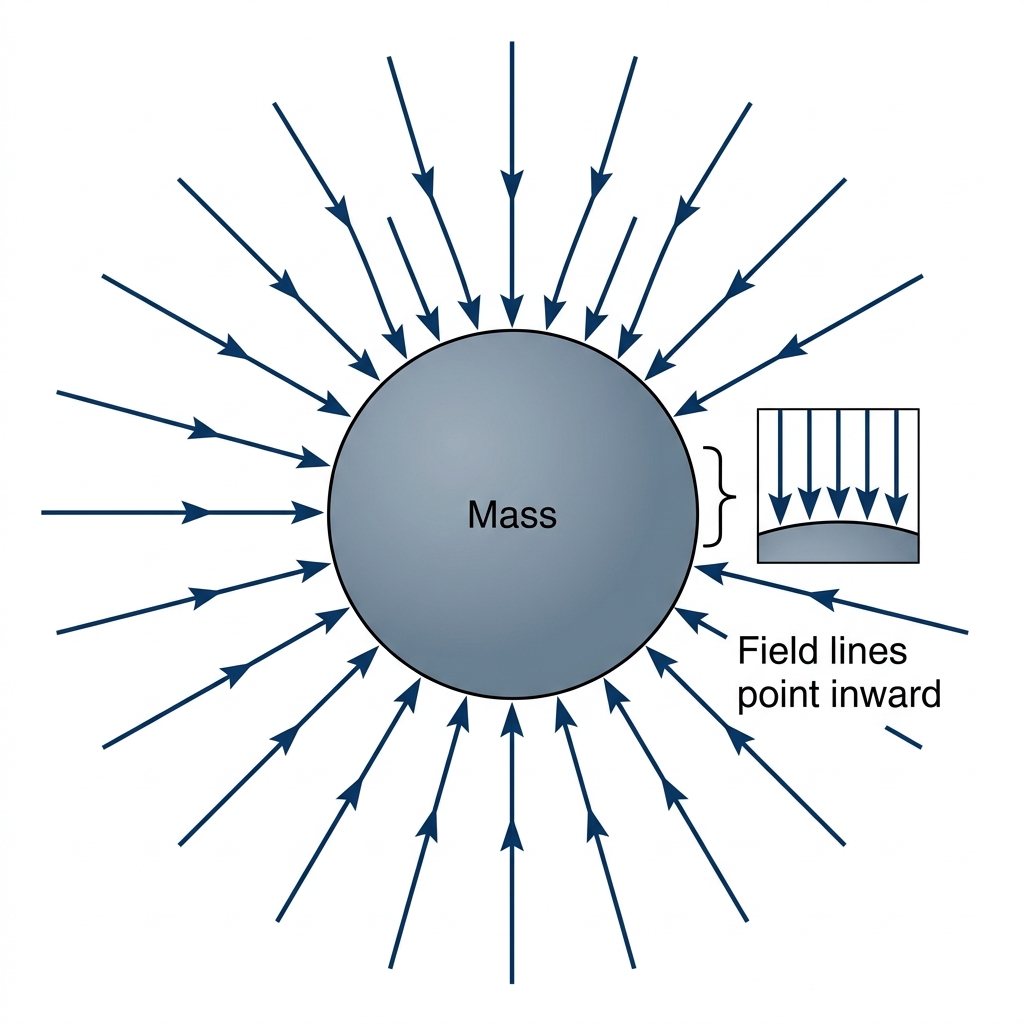

A gravitational field line is a curve whose tangent shows the direction of the gravitational field at each point. In gravity, the arrows point toward mass, since gravity is attractive.

Line spacing shows field strength: lines packed closer together mean a stronger field. Around a point mass or a uniform spherical mass, the field lines are radial, with the line density increasing as you move inward.

Sketching field lines

When you sketch gravitational field lines, use two rules. Arrows point in the direction a small test mass would accelerate. The line density should match the field strength. For a single spherical planet, draw radial lines pointing inward, with the lines closer together near the planet.

This shared field language is useful beyond this topic. The same ideas — source, test object, field strength, vector direction, field lines and potential — appear again in electric and magnetic fields. Using consistent terminology reduces ambiguity when physicists move between different kinds of interaction.

D.1.6

GRAVITATIONAL POTENTIAL ENERGY AS WORK TO ASSEMBLE A SYSTEM

HL

Energy belongs to the system

Gravitational potential energy is energy stored in a system of masses because of where those masses are in a gravitational field. For gravity on a large scale, we usually define this energy relative to infinite separation.

The gravitational potential energy of a system is the work done by an external agent to assemble the system from infinite separation of its components, with no change in kinetic energy. “Infinity” is not somewhere we travel to; it is a reference condition where the gravitational interaction tends to zero.

This works well because gravity is a long-range inverse-square interaction. At any finite separation, the masses still attract each other. As the separation tends to infinity, the force tends to zero. We choose the gravitational potential energy at infinite separation to be zero.

Work signs during assembly

For a bound gravitational system, bringing the masses together from infinity releases energy, so the final gravitational potential energy is negative. During slow, constant-speed assembly, an external agent exerts an outward restraining force while the masses move inward. Gravity does positive work; the external agent does negative work and removes the released energy:

Wexternal=ΔEp<0W_{\text{external}} = \Delta E_p < 0

Wgravity=−ΔEp>0W_{\text{gravity}} = -\Delta E_p > 0

The negative sign is not a trick: it tells us that energy must be supplied to separate the masses back to infinity.

Worked example: Assembly from infinite separation releases 20 MJ20\ \text{MJ} while speed is unchanged. Find the final potential energy, the external agent’s work and the energy needed to separate the system back to infinity.

  1. Initially, Ep,i=0E_{p,i} = 0. The system loses potential energy: Ep,f=0−20 MJ=−20 MJE_{p,f} = 0 - 20\ \text{MJ} = -20\ \text{MJ}
  2. With no change in kinetic energy: Wexternal=ΔEp=−20 MJW_{\text{external}} = \Delta E_p = -20\ \text{MJ}
  3. To return to infinity with no change in kinetic energy: Wexternal=0−(−20 MJ)=+20 MJW_{\text{external}} = 0 - (-20\ \text{MJ}) = +20\ \text{MJ}
Answer

Answer: The final potential energy is −20 MJ-20\ \text{MJ} and the external agent does −20 MJ-20\ \text{MJ} of work during assembly. The negative potential energy means that +20 MJ+20\ \text{MJ} must be supplied to separate the masses back to infinity.

D.1.7

GRAVITATIONAL POTENTIAL ENERGY OF A TWO-BODY SYSTEM

HL

Two-body potential energy

For two point masses, or two uniform spherical masses treated as point masses, the gravitational potential energy is

Ep=−Gm1m2rE_p = -\frac{Gm_1m_2}{r}
The separation rr is measured between the centres of mass of the two bodies. The zero of EpE_p is taken to be at infinite separation. Increase rr, and EpE_p becomes less negative, moving towards zero. Decrease rr, and EpE_p becomes more negative.

Orbit energy changes

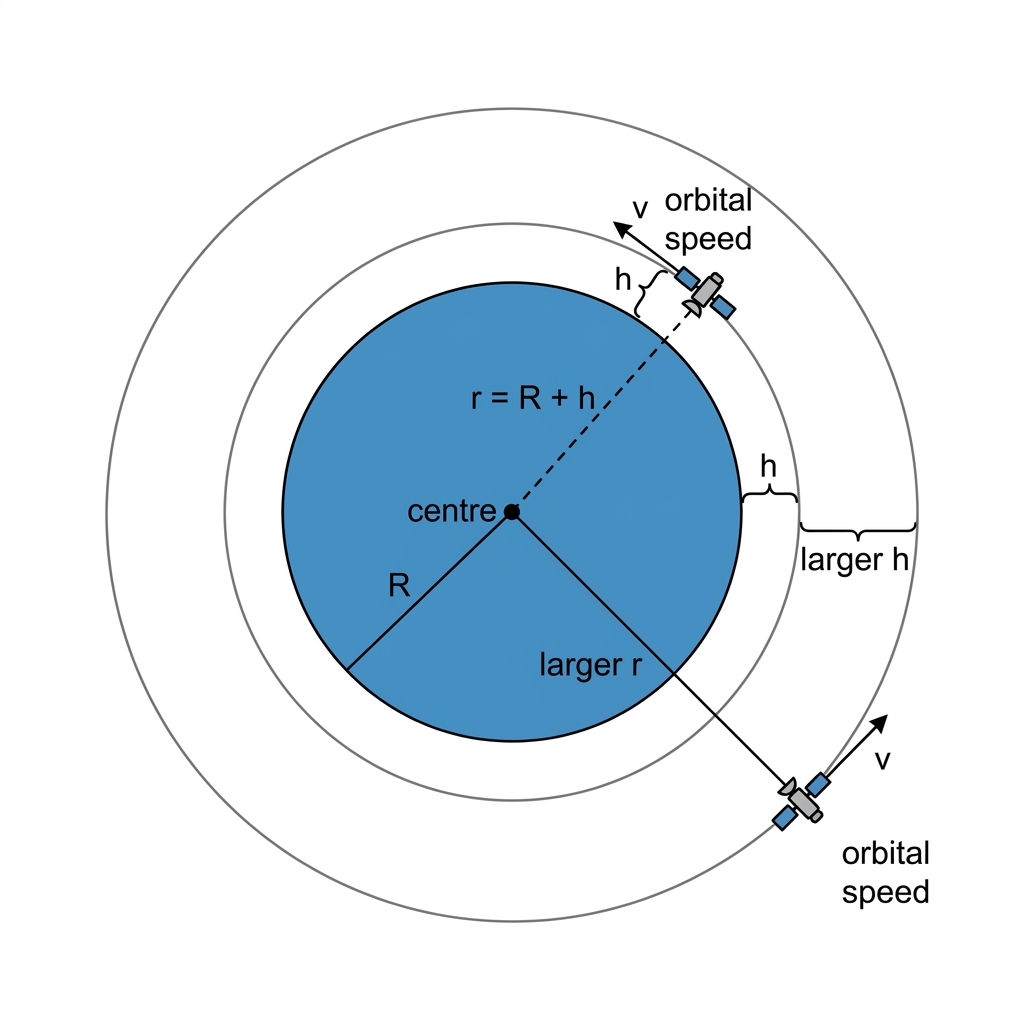

Raising a satellite to a higher orbit increases its gravitational potential energy, since the satellite–planet system is less tightly bound. If it’s moved slowly from one radius to a larger radius, energy must be supplied. If it moves inward, energy is released from the gravitational field.

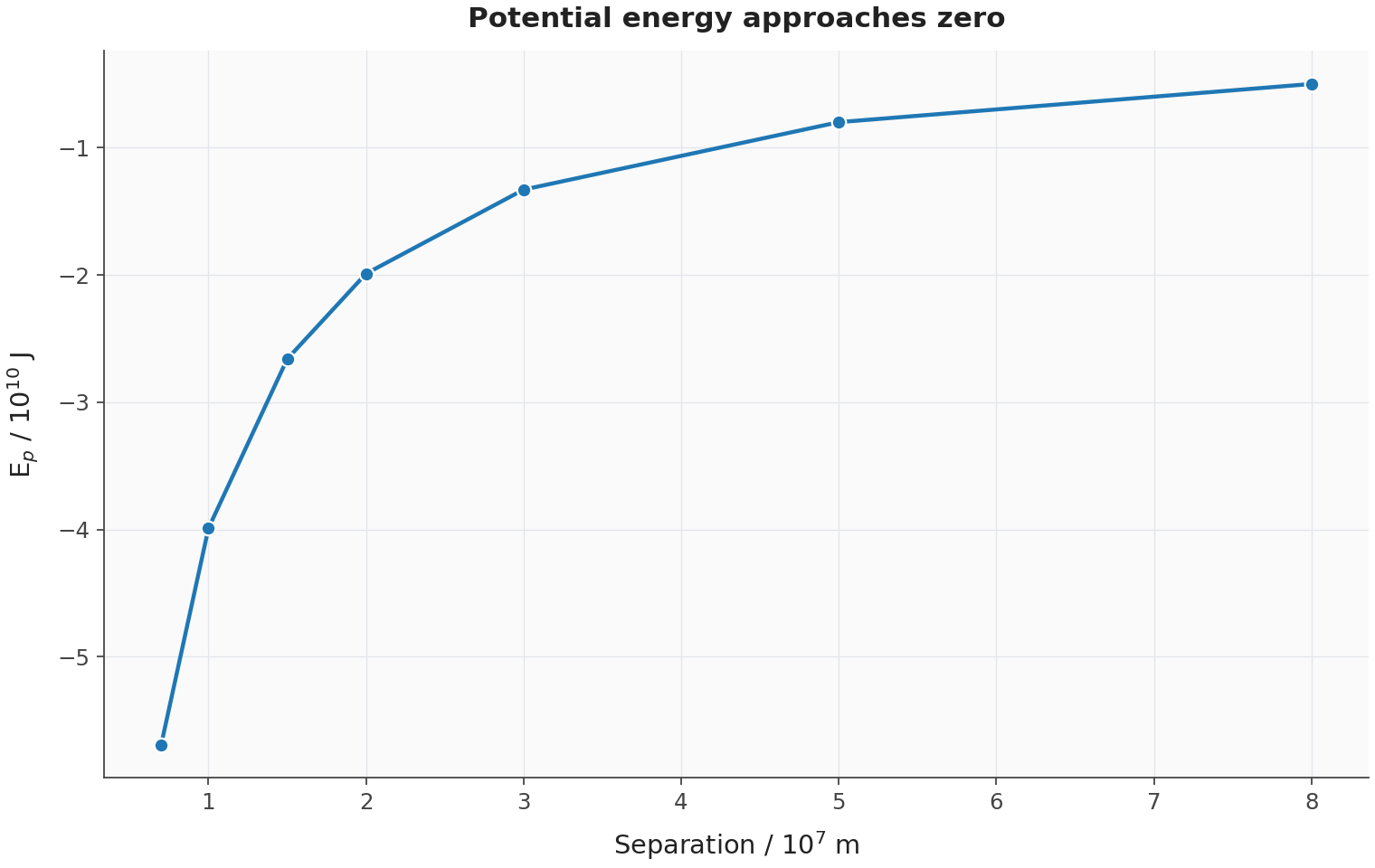

Worked example: Calculate the gravitational potential-energy change when a satellite of mass m=1000 kgm = 1000\ \text{kg} moves slowly around Earth from r1=7.0×106 mr_1 = 7.0 \times 10^6\ \text{m} to r2=1.0×107 mr_2 = 1.0 \times 10^7\ \text{m}. Both radii are measured from Earth's centre. Use GM=3.986×1014 m3 s−2GM = 3.986 \times 10^{14}\ \text{m}^3\ \text{s}^{-2}, where MM is Earth's mass.

  1. Calculate the initial potential energy:

    Ep1=−GMmr1=−(3.986×1014)(1000)7.0×106 J≈−5.69×1010 JE_{p1} = -\frac{GMm}{r_1} = -\frac{(3.986 \times 10^{14})(1000)}{7.0 \times 10^6}\ \text{J} \approx -5.69 \times 10^{10}\ \text{J}

  2. Calculate the final potential energy:

    Ep2=−GMmr2=−(3.986×1014)(1000)1.0×107 J≈−3.99×1010 JE_{p2} = -\frac{GMm}{r_2} = -\frac{(3.986 \times 10^{14})(1000)}{1.0 \times 10^7}\ \text{J} \approx -3.99 \times 10^{10}\ \text{J}

  3. Subtract initial from final, retaining extra digits during the calculation:

    ΔEp=Ep2−Ep1\Delta E_p = E_{p2} - E_{p1}

    ΔEp=[−3.986×1010−(−5.6942857…×1010)] J≈+1.71×1010 J\Delta E_p = \left[-3.986 \times 10^{10} - \left(-5.6942857\ldots \times 10^{10}\right)\right]\ \text{J} \approx +1.71 \times 10^{10}\ \text{J}

Answer

Answer: The gravitational potential energy increases by approximately 1.71×1010 J1.71 \times 10^{10}\ \text{J}. The positive change means energy must be supplied when moving the satellite slowly outward with negligible change in kinetic energy.

Common mistake: A negative final potential energy does not mean the energy change is negative. Always calculate final minus initial. Also, this ΔEp\Delta E_p is not the total-energy change between circular orbits: orbital kinetic energy changes too. For a circular orbit, Etotal=−GMm/(2r)E_{\text{total}} = -GMm/(2r), so the total-energy change between these circular orbits is half the calculated potential-energy change.

Near-surface approximation

The familiar near-surface expression for a small height change is

ΔEp≈mgΔh\Delta E_p \approx mg\Delta h

Here Δh=hfinal−hinitial\Delta h = h_{\text{final}} - h_{\text{initial}} is the change in height above the surface. This expression works only as an approximation in a nearly uniform field: treating gg as approximately constant requires a height range small compared with the planetary radius, near the surface. For large changes in rr, use the inverse-distance expression for EpE_p instead of treating gg as constant.

D.1.8

GRAVITATIONAL POTENTIAL

HL

Potential is energy per unit mass

Gravitational potential at a point is a scalar quantity equal to the work done by an external agent per unit test mass in bringing a small mass from infinity to that point without changing its speed, and hence with no change in kinetic energy. Gravity does work of the opposite sign: as the mass moves inward, gravity does positive work and the external agent does negative work.

For a point mass or a uniform spherical mass,

Vg=−GMrV_g = -\frac{GM}{r}

We define gravitational potential as zero at infinity. Closer to an isolated mass, VgV_g is negative, since gravity is attractive and the system is bound.

Potential and potential energy are not the same thing. Potential describes the field at a point; potential energy depends on the mass placed there as well. A mass in a gravitational potential has Ep=mVgE_p = mV_g.

Worked example: Calculate Earth's surface potential, then the potential energies of objects of mass 2.0 kg2.0\ \text{kg} and 4.0 kg4.0\ \text{kg} there. Use G=6.67×10−11 N m2 kg−2G = 6.67 \times 10^{-11}\ \text{N m}^2\text{ kg}^{-2}, Earth's mass M=5.97×1024 kgM = 5.97 \times 10^{24}\ \text{kg} and radius r=6.37×106 mr = 6.37 \times 10^6\ \text{m}.

  1. Substitute into the potential equation:

Vg=−(6.67×10−11)(5.97×1024)6.37×106≈−6.25×107 J kg−1V_g = -\frac{(6.67 \times 10^{-11})(5.97 \times 10^{24})}{6.37 \times 10^6} \approx -6.25 \times 10^7\ \text{J kg}^{-1}

  1. Calculate each potential energy, retaining extra digits to show the comparison:
MassSubstitutionPotential energy
2.0 kg2.0\ \text{kg}Ep=2.0×(−6.25×107)E_p = 2.0 \times (-6.25 \times 10^7)−1.25×108 J-1.25 \times 10^8\ \text{J}
4.0 kg4.0\ \text{kg}Ep=4.0×(−6.25×107)E_p = 4.0 \times (-6.25 \times 10^7)−2.50×108 J-2.50 \times 10^8\ \text{J}
Answer

Answer: Both objects experience Vg≈−6.25×107 J kg−1V_g \approx -6.25 \times 10^7\ \text{J kg}^{-1}. Doubling the mass doubles the magnitude of the negative potential energy; the potential is unchanged.

Common mistake: Potential is a scalar, not a force. Its negative sign indicates energy relative to infinity, not a direction.

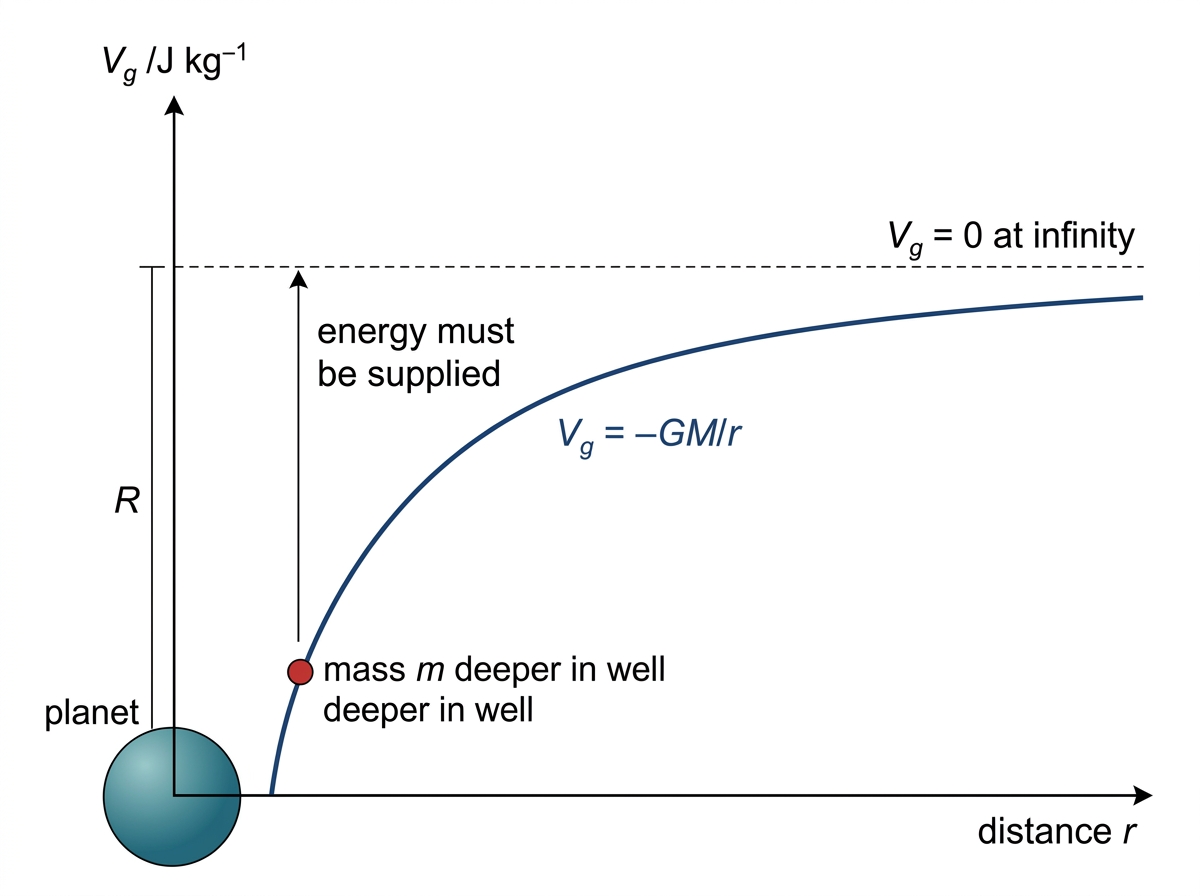

It can help to picture gravitational potential as a well. A mass near a planet sits deep in that well. You have to supply energy to move it upward toward zero potential at infinity. The same potential picture lets us map gravitational fields without drawing a vector at every point.

D.1.9

GRAVITATIONAL FIELD STRENGTH AS POTENTIAL GRADIENT

HL

Slope of the potential graph

Gravitational field strength depends on how quickly gravitational potential changes with position. Take outward as positive. In the expression below, gg denotes the signed radial component averaged over a small interval, not the positive field magnitude:

g=−ΔVg/Δrg = -\Delta V_g / \Delta r

At a point, write gr=−dVg/drg_r = -\mathrm{d}V_g/\mathrm{d}r. For a sufficiently small interval, gr≈−ΔVg/Δrg_r \approx -\Delta V_g/\Delta r; this estimates the local gradient. Field strength as a magnitude is ∣gr∣|g_r|.

The minus sign gives the direction. Gravitational potential increases outward, toward zero, while the gravitational field points inward, toward decreasing rr.

On a graph of VgV_g against rr, the magnitude of gg is the magnitude of the tangent gradient. On a graph of gg against rr, interpreting gg as the signed component grg_r, the signed area between two radii equals the negative of the potential change:

ΔVg=−∫r1r2gr dr\Delta V_g = -\int_{r_1}^{r_2} g_r\,\mathrm{d}r

For outward motion, grg_r is negative, so the signed area is negative and the potential change is positive.

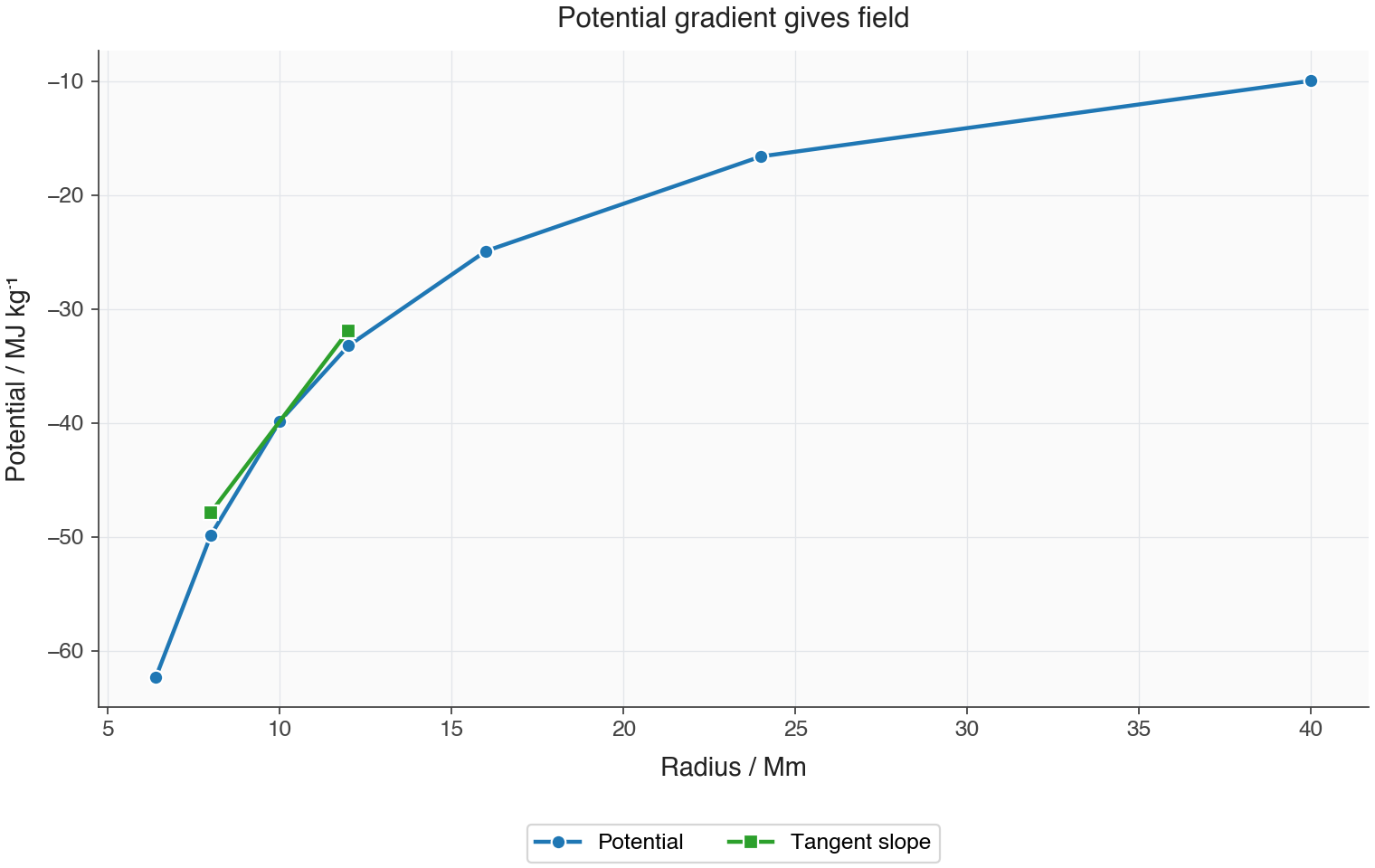

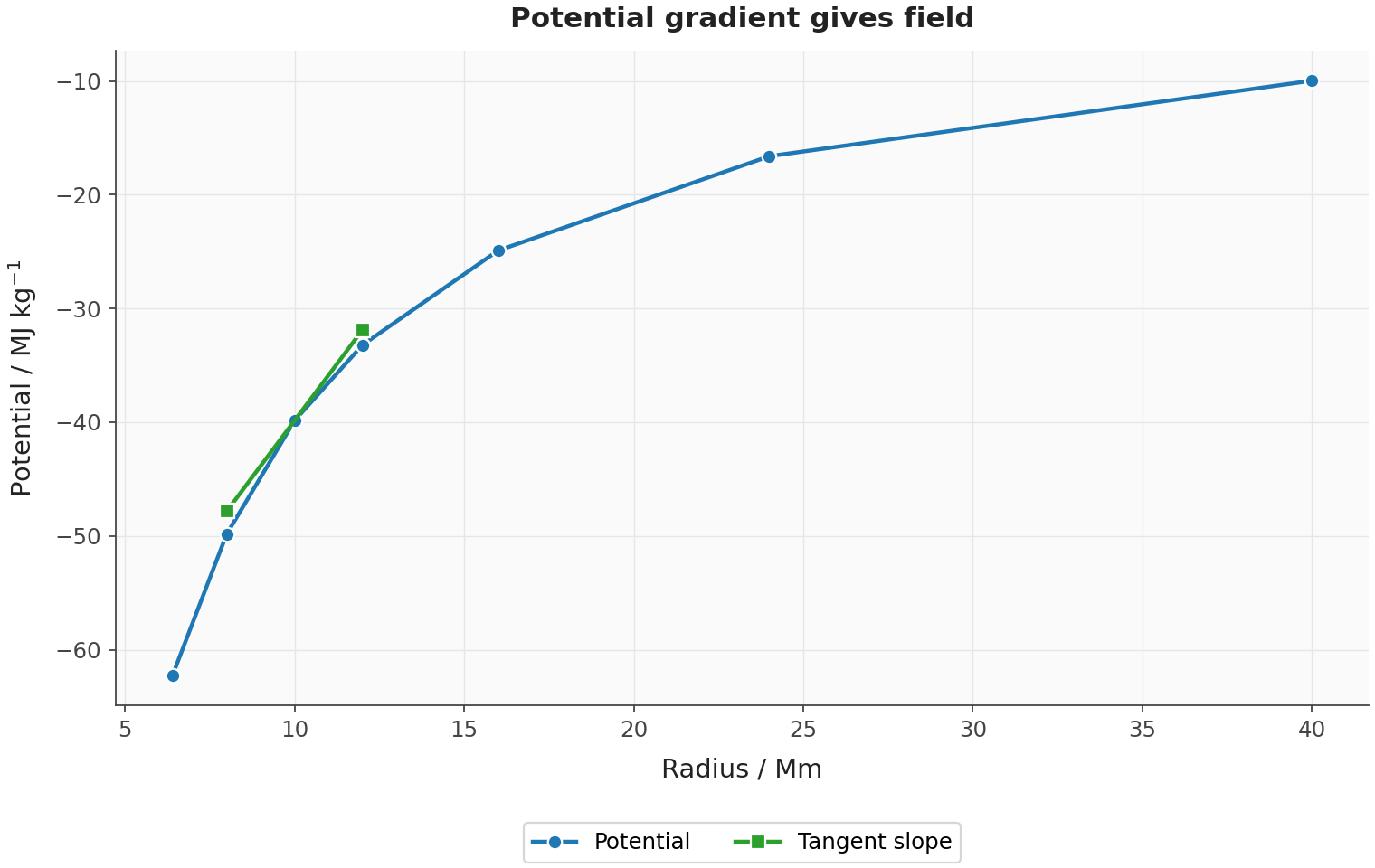

Worked example: Find the field at r=10 Mmr = 10\ \text{Mm} using the displayed tangent endpoints, which give ΔVg=15.94 MJ kg−1\Delta V_g = 15.94\ \text{MJ kg}^{-1} and Δr=4.0 Mm\Delta r = 4.0\ \text{Mm}.

  1. Convert both axis readings to SI units:

    ΔVg=15.94×106 J kg−1,Δr=4.0×106 m\Delta V_g = 15.94 \times 10^6\ \text{J kg}^{-1}, \qquad \Delta r = 4.0 \times 10^6\ \text{m}

  2. Use the tangent gradient to estimate the signed field:

    gr≈−15.94×1064.0×106≈−3.99 N kg−1g_r \approx -\frac{15.94 \times 10^6}{4.0 \times 10^6} \approx -3.99\ \text{N kg}^{-1}

Answer

Answer: The signed radial component is approximately −3.99 N kg−1-3.99\ \text{N kg}^{-1}: a field strength of 3.99 N kg−13.99\ \text{N kg}^{-1} directed inward.

Common mistake: Ignoring axis multipliers or losing the direction. Both mega-prefixes mean 10610^6 and cancel here; a negative radial component means inward, not a negative magnitude.

Mapping fields using potential

Potential is a scalar, so it’s usually easier to map than vector field strength. From a potential map or graph, the field direction is “downhill” in potential, and the field magnitude comes from how steeply the potential changes with distance.

D.1.10

WORK DONE USING GRAVITATIONAL POTENTIAL DIFFERENCE

HL

Work from potential difference

When a mass moves between two points in a gravitational field and its kinetic energy does not change, the work done by an external agent is

W=mΔVgW = m\Delta V_g

Use ΔVg=Vg,final−Vg,initial\Delta V_g = V_{g,\text{final}} - V_{g,\text{initial}}. If the final point is farther from the planet, the potential is less negative. So ΔVg\Delta V_g is positive, and work must be supplied.

Worked example: An external agent moves a 500 kg500\ \text{kg} spacecraft at unchanged speed from a gravitational potential of −6.0×107 J kg−1-6.0\times10^7\ \text{J kg}^{-1} to −4.0×107 J kg−1-4.0\times10^7\ \text{J kg}^{-1}. Calculate the work done by the external agent and by gravity, then check the signs for the reverse move.

  1. Subtract the initial potential from the final potential, keeping the negative signs:

    ΔVg=(−4.0×107)−(−6.0×107)=+2.0×107 J kg−1\Delta V_g = (-4.0\times10^7)-(-6.0\times10^7) = +2.0\times10^7\ \text{J kg}^{-1}

  2. Calculate the external work. The unchanged speed means there is no change in kinetic energy:

    Wexternal=mΔVg=500×(+2.0×107)=+1.0×1010 JW_{\text{external}} = m\Delta V_g = 500\times(+2.0\times10^7) = +1.0\times10^{10}\ \text{J}

  3. Gravity does work equal to the negative of the change in gravitational potential energy:

    Wgravity=−mΔVg=−1.0×1010 JW_{\text{gravity}} = -m\Delta V_g = -1.0\times10^{10}\ \text{J}

  4. For the reverse move at unchanged speed, reverse the subtraction:

    ΔVg=(−6.0×107)−(−4.0×107)=−2.0×107 J kg−1\Delta V_g = (-6.0\times10^7)-(-4.0\times10^7) = -2.0\times10^7\ \text{J kg}^{-1}

    Wexternal=500×(−2.0×107)=−1.0×1010 JW_{\text{external}} = 500\times(-2.0\times10^7) = -1.0\times10^{10}\ \text{J}

    Wgravity=+1.0×1010 JW_{\text{gravity}} = +1.0\times10^{10}\ \text{J}

Answer

Answer: Moving outward requires external work of +1.0×1010 J+1.0\times10^{10}\ \text{J}, while gravity does −1.0×1010 J-1.0\times10^{10}\ \text{J} of work. For the reverse move, the signs swap: gravity supplies energy and the external agent removes it to keep the speed unchanged.

Lifting versus entering orbit

This equation is often the neatest route through launch-energy calculations. For example, when a spacecraft moves from a planet’s surface to a parking orbit, the gravitational part of the energy requirement comes from the potential difference. To place the spacecraft in orbit, you also need the kinetic energy it has in the circular orbit.

For an ideal launch, take a spacecraft initially at rest on a non-rotating spherical planet of mass MM and radius RR. Its final circular orbit has radius rr, measured from the planet’s centre. Ignoring losses, the external work is Wideal=ΔEp+ΔEkW_{\text{ideal}} = \Delta E_p + \Delta E_k: the potential-only contribution is mΔVgm\Delta V_g, while the kinetic contribution supplies the orbital speed.

The energy account separates lifting the spacecraft from giving it orbital speed.

Common mistake: Treating mΔVgm\Delta V_g as the full energy needed to enter orbit ignores the change in kinetic energy. It gives only the change in gravitational potential energy; include ΔEk\Delta E_k whenever the final speed differs from the initial speed.

A real launch needs more fuel than the ideal mechanical-energy change suggests. Some energy is lost to atmospheric drag, some goes into lifting fuel that will later be burned, and rockets do not convert chemical energy perfectly into useful mechanical energy.

D.1.11

EQUIPOTENTIAL SURFACES

HL

Surfaces of equal potential

An equipotential surface is a surface where every point has the same gravitational potential. If a mass moves along one of these surfaces, no work is done against gravity, as long as its speed stays unchanged, because ΔVg=0\Delta V_g = 0.

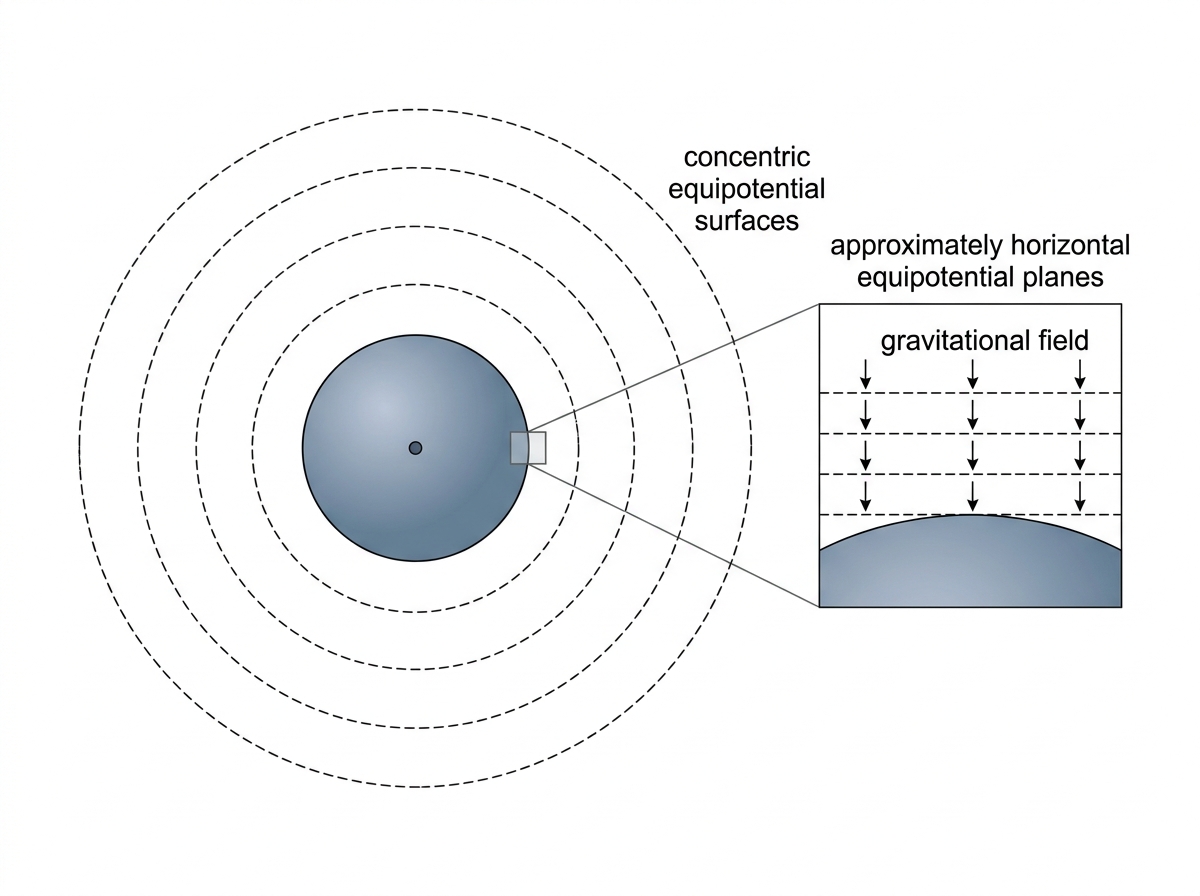

For a single isolated spherical mass, the equipotential surfaces form concentric spheres centred on the mass. Near a planet’s surface, where the field is approximately uniform, they are approximately horizontal planes.

Map contours give a good local analogy. Walking along a contour line involves no change in height, so gravitational potential energy does not change. Crossing contours, however, corresponds to a change in gravitational potential.

D.1.12

EQUIPOTENTIAL SURFACES AND GRAVITATIONAL FIELD LINES

HL

Right-angle relationship

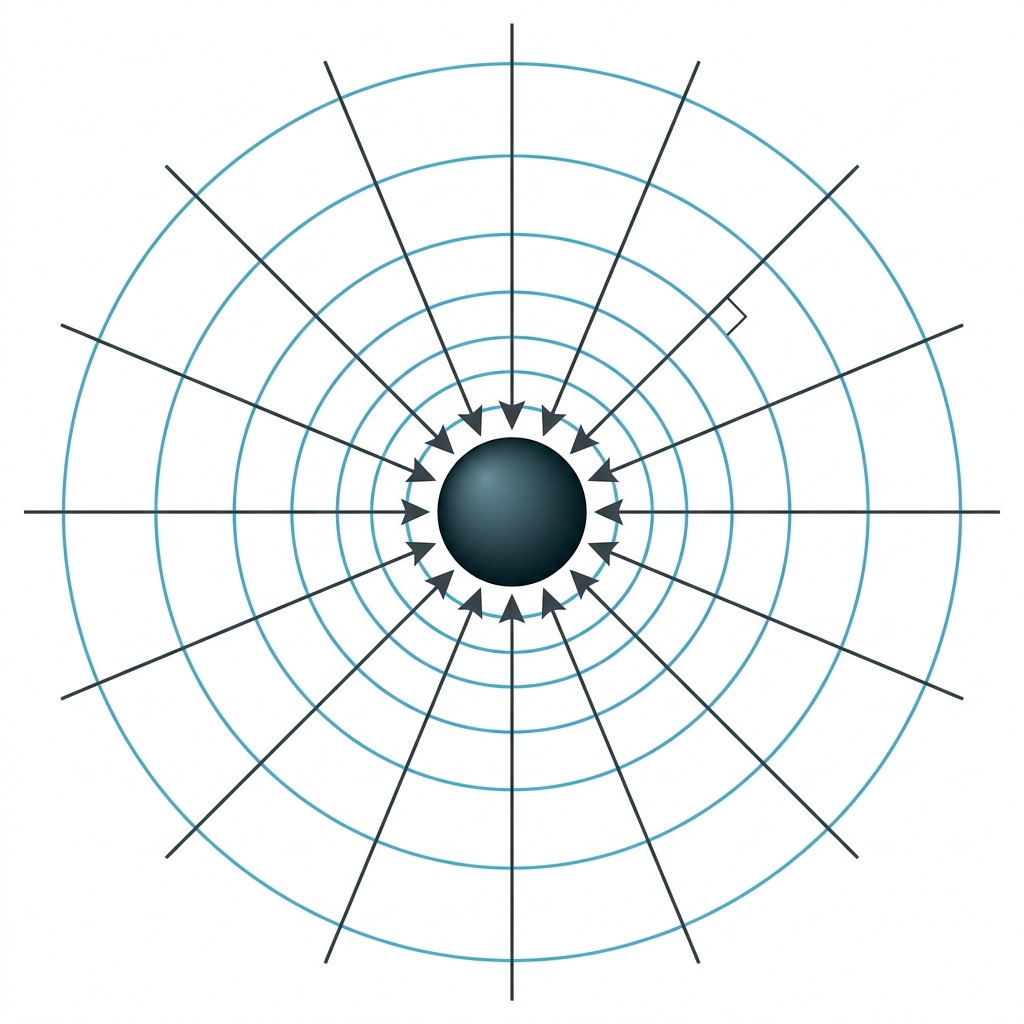

Gravitational field lines meet equipotential surfaces at right angles. If they didn’t, part of the gravitational force would act along the surface, so a mass moving along an equipotential would gain or lose energy — which contradicts the idea of equal potential.

Close equipotential surfaces show that potential changes quickly with distance, so the gravitational field is strong, provided successive surfaces represent equal potential changes, ΔVg\Delta V_g. With the same potential change between surfaces, wider spacing means a weaker field.

A potential map therefore shows direction and strength: field lines cross equipotentials at right angles and point toward lower potential, meaning more negative values. To estimate the field strength locally, divide the magnitude of the potential difference by the perpendicular separation:

g≈∣ΔVg∣Δrg \approx \frac{|\Delta V_g|}{\Delta r}

Here, Δr\Delta r is measured perpendicular to the equipotential surfaces. This gives an average field strength across the gap and approximates the local field strength when the field varies little across it.

Common mistake: Comparing surface spacing without checking the potential labels. Spacing alone indicates relative field strength only for equal potential increments; arbitrary selections of equipotential values cannot be compared by spacing alone.

Worked example: Adjacent equipotential surfaces differ by 100 J kg−1100\ \text{J kg}^{-1} in each of two regions. Their perpendicular separation is 20 m20\ \text{m} in region A and 50 m50\ \text{m} in region B. Estimate the field strength in each region, state its direction and explain which field is stronger.

  1. In region A, substitute the potential difference and perpendicular separation:
gA≈100 J kg−120 m=5 N kg−1g_A \approx \frac{100\ \text{J kg}^{-1}}{20\ \text{m}} = 5\ \text{N kg}^{-1}
  1. In region B:
gB≈100 J kg−150 m=2 N kg−1g_B \approx \frac{100\ \text{J kg}^{-1}}{50\ \text{m}} = 2\ \text{N kg}^{-1}
Answer

Answer: The field strengths are approximately 5 N kg−15\ \text{N kg}^{-1} in A and 2 N kg−12\ \text{N kg}^{-1} in B, directed perpendicular to the surfaces toward the more negative potential. Region A has the stronger field because the same potential change occurs over a shorter distance, giving a greater magnitude of potential gradient.

D.1.13

ESCAPE SPEED

HL

Energy condition for escape

Escape speed is the minimum speed an unpowered object needs at a point in a gravitational field if it is to reach infinity with zero speed left.

For escape from a point at radius r from a mass M,

vesc=2GM/rv_{\text{esc}} = \sqrt{2GM / r}

You get this by setting the total mechanical energy to zero: the positive kinetic energy exactly cancels the negative gravitational potential energy. The mass of the escaping object does not affect the result. Energy conditions for escape at the same radius r from a mass M.

CaseSpecific KE kk / J kg−1^{-1}Specific GPE uu / J kg−1^{-1}Total ε\varepsilon / J kg−1^{-1}Outcome
Bound orbit<GM/r< GM/r−GM/r-GM/r<0< 0Cannot reach infinity without extra energy
Just escapeGM/rGM/r−GM/r-GM/r00Reaches infinity with zero speed
Escape excess>GM/r> GM/r−GM/r-GM/r>0> 0Reaches infinity with speed remaining

Deriving and calculating escape speed

Assume an isolated, spherical body, with gravitational potential energy defined as zero at infinity. Neglect atmospheric drag and other bodies' gravitational fields. After reaching escape speed, the object receives no further propulsion.

Worked example: Derive the escape-speed formula and calculate the escape speed from Earth's surface. Use G=6.67×10−11 N m2 kg−2G = 6.67 \times 10^{-11}\ \text{N m}^2\text{ kg}^{-2}, Earth's mass M=5.97×1024 kgM = 5.97 \times 10^{24}\ \text{kg} and Earth's radius r=6.37×106 mr = 6.37 \times 10^6\ \text{m}.

  1. At the minimum escape speed, the object reaches infinity with zero kinetic and potential energy. Conservation of mechanical energy gives

    12mvesc2−GMmr=0\frac{1}{2}mv_{\text{esc}}^2 - \frac{GMm}{r} = 0

  2. Divide by the escaping object's mass, mm:

    12vesc2−GMr=0\frac{1}{2}v_{\text{esc}}^2 - \frac{GM}{r} = 0

  3. Rearrange and take the positive square root:

    vesc2=2GMrv_{\text{esc}}^2 = \frac{2GM}{r}

    vesc=2GMrv_{\text{esc}} = \sqrt{\frac{2GM}{r}}

  4. Substitute the Earth data:

    vesc=2(6.67×10−11)(5.97×1024)6.37×106 m s−1v_{\text{esc}} = \sqrt{\frac{2(6.67 \times 10^{-11})(5.97 \times 10^{24})}{6.37 \times 10^6}}\ \text{m s}^{-1}

Answer

Answer: Earth's surface escape speed is approximately 1.12×104 m s−1=11.2 km s−11.12 \times 10^4\ \text{m s}^{-1} = 11.2\ \text{km s}^{-1}, independent of the escaping object's mass.

Escaping from rest or from orbit

An object already moving in a parking orbit has orbital kinetic energy, so it needs less extra energy than an object starting from rest at the same radius. Escape is not about simply “getting far away”; the condition is that the total mechanical energy is at least zero.

At a fixed radius, the energy conditions can be compared per unit mass. For a circular parking orbit:

State at radius rrKinetic energy per unit massTotal mechanical energy per unit massMinimum extra energy per unit mass for escape
At rest00−GM/r-GM/rGM/rGM/r
In a circular orbitGM/(2r)GM/(2r)−GM/(2r)-GM/(2r)GM/(2r)GM/(2r)
At escape speedGM/rGM/r0000

That is why energy gives a neat way to estimate launch requirements. To escape a planet's potential well, a spacecraft must be given enough energy to reach zero total mechanical energy. From a circular parking orbit, this means increasing its kinetic energy from the orbital value to the escape value.

Common mistake: Escape does not mean that gravitational force becomes zero above some finite altitude. Gravity continues to act at every finite distance; escape means having sufficient mechanical energy to reach arbitrarily large separation without further propulsion.

D.1.14

ORBITAL SPEED

HL

Speed for a circular orbit

For a body moving in a circular orbit around a much larger mass, gravity supplies the centripetal force. Its orbital speed is

vorbital=GM/rv_{\text{orbital}} = \sqrt{GM / r}

Be careful with rr: it’s measured from the centre of the planet or star, not from the surface. If a satellite is at height hh above a planet of radius RR, then

r=R+hr = R + h

For circular orbits in this topic, combine circular motion with gravity to get the orbital period relation: T2=4π2r3/(GM)T^2 = 4\pi^2 r^3 / (GM). This is the circular-orbit version of Kepler’s third law for a small orbiting body around a much larger central mass.

Worked example: Find the speed and period of an Earth satellite at h=400 kmh = 400\ \text{km}. Use R=6.37×106 mR = 6.37 \times 10^6\ \text{m} and GM=3.982×1014 m3 s−2GM = 3.982 \times 10^{14}\ \text{m}^3\text{ s}^{-2}.

  1. Measure radius from Earth’s centre: r=6.37×106+4.00×105=6.77×106 mr = 6.37 \times 10^6 + 4.00 \times 10^5 = 6.77 \times 10^6\ \text{m}
  2. Equate gravitational and centripetal forces; satellite mass cancels: GMmr2=mv2r,v=GMr=3.982×10146.77×106≈7.67×103 m s−1\frac{GMm}{r^2} = \frac{mv^2}{r}, \qquad v = \sqrt{\frac{GM}{r}} = \sqrt{\frac{3.982 \times 10^{14}}{6.77 \times 10^6}} \approx 7.67 \times 10^3\ \text{m s}^{-1}
  3. Divide circumference by speed, using unrounded values: T=2πrv≈5.55×103 s=92.4 minT = \frac{2\pi r}{v} \approx 5.55 \times 10^3\ \text{s} = 92.4\ \text{min} Substituting v2=GM/rv^2 = GM/r gives T2=(2πr)2/v2=4π2r3/(GM)T^2 = (2\pi r)^2/v^2 = 4\pi^2r^3/(GM).
Answer

Answer: The orbital speed is approximately 7.67×103 m s−17.67 \times 10^3\ \text{m s}^{-1} and the period is 92.4 min92.4\ \text{min}.

Energy in a circular orbit

The kinetic energy in a circular orbit is

Ek=GMm/(2r)E_k = GMm / (2r)

Combining this with Ep=−GMm/rE_p = -GMm / r gives the total mechanical energy

E=−GMm/(2r)E = -GMm / (2r)

Use this formula for energy changes when a satellite moves from one circular orbit to another. A higher circular orbit has a less negative total energy, so work must be done on the satellite to move it there.

For a satellite starting from rest on the surface of a non-rotating planet, the ideal energy needed to place it in a circular orbit is the final total orbital energy minus the initial gravitational potential energy at the surface. “Non-rotating” matters because otherwise the satellite already has kinetic energy due to the planet’s rotation.

Worked example: Calculate the orbital energies and ideal launch energy for the same satellite with mass 1000 kg1000\ \text{kg}.

  1. Calculate final energies: Ek=(3.982×1014)(1000)2(6.77×106)≈+2.94×1010 JE_k = \frac{(3.982 \times 10^{14})(1000)}{2(6.77 \times 10^6)} \approx +2.94 \times 10^{10}\ \text{J} Ep=−2Ek≈−5.88×1010 J,E=−Ek≈−2.94×1010 JE_p = -2E_k \approx -5.88 \times 10^{10}\ \text{J}, \qquad E = -E_k \approx -2.94 \times 10^{10}\ \text{J}
  2. Initially, kinetic energy is zero: Ei=−GMmR=−(3.982×1014)(1000)6.37×106≈−6.25×1010 JE_i = -\frac{GMm}{R} = -\frac{(3.982 \times 10^{14})(1000)}{6.37 \times 10^6} \approx -6.25 \times 10^{10}\ \text{J}
  3. Subtract initial from final total energy: ΔE=[−2.94−(−6.25)]×1010=3.31×1010 J\Delta E = [-2.94 - (-6.25)] \times 10^{10} = 3.31 \times 10^{10}\ \text{J} Using only ΔEp\Delta E_p gives 0.37×1010 J0.37 \times 10^{10}\ \text{J}: this misses the final kinetic energy, 2.94×1010 J2.94 \times 10^{10}\ \text{J}.
Answer

Answer: The ideal launch requirement is approximately 3.31×1010 J3.31 \times 10^{10}\ \text{J}, ignoring losses.

D.1.15

ATMOSPHERIC DRAG AND ORBIT DECAY

HL

Small drag, big long-term effect

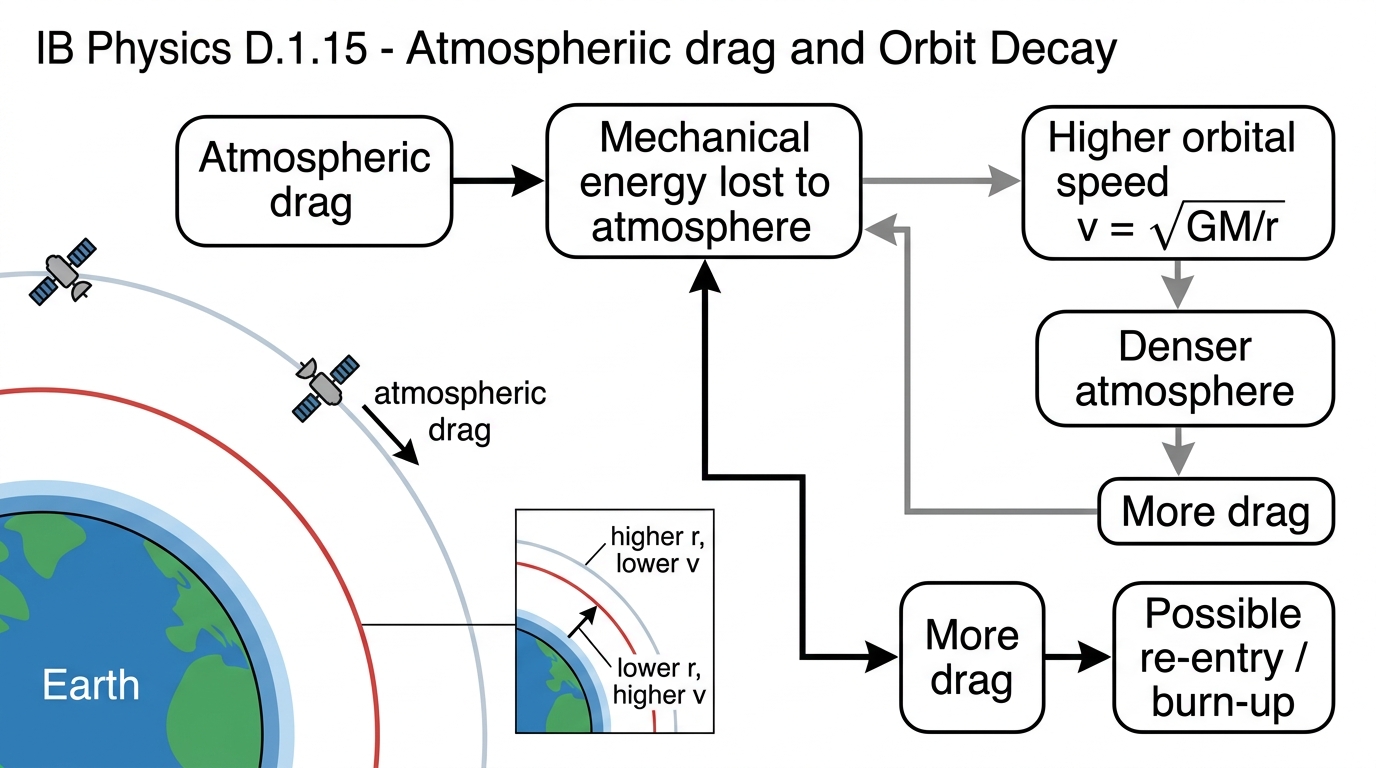

Atmospheric drag is a resistive force produced when a satellite collides with gas particles in the upper atmosphere. The atmosphere may be extremely thin, but a low-orbit satellite can still lose mechanical energy bit by bit.

The slightly counter-intuitive part is this: when a satellite loses energy to a small viscous drag force, it drops into a lower orbit and its orbital speed increases. Its total mechanical energy becomes more negative, its orbital radius decreases, and since vorbital=GM/rv_{\text{orbital}} = \sqrt{GM / r}, the speed for the new lower circular orbit is larger. This describes slow decay through approximately circular orbits.

It’s worth being precise about the energy bookkeeping. As the orbit decays, gravitational potential energy decreases — it becomes more negative. Kinetic energy increases, though not by as much. The total mechanical energy still decreases, because energy has been transferred to the atmosphere as internal energy.

Worked example: Compare the energy changes for a 1000 kg1000\ \text{kg} satellite slowly decaying between approximately circular Earth orbits, from r1=7.0×106 mr_1 = 7.0 \times 10^6\ \text{m} to r2=6.9×106 mr_2 = 6.9 \times 10^6\ \text{m}. Use GM≈3.984×1014 m3 s−2GM \approx 3.984 \times 10^{14}\ \text{m}^3\ \text{s}^{-2} and define each change as final minus initial.

  1. Calculate the gravitational potential energy change using Ep=−GMm/rE_p = -GMm/r:

ΔEp=−(3.984×1014)(1000)(16.9×106−17.0×106)≈−8.25×108 J\Delta E_p = -(3.984 \times 10^{14})(1000)\left(\frac{1}{6.9 \times 10^6}-\frac{1}{7.0 \times 10^6}\right) \approx -8.25 \times 10^8\ \text{J}

  1. For circular orbits, Ek=GMm/(2r)E_k = GMm/(2r), so:

ΔEk=−12ΔEp≈+4.12×108 J\Delta E_k = -\frac{1}{2}\Delta E_p \approx +4.12 \times 10^8\ \text{J}

  1. Add the changes, using unrounded values:

ΔE=ΔEp+ΔEk=12ΔEp≈−4.12×108 J\Delta E = \Delta E_p + \Delta E_k = \frac{1}{2}\Delta E_p \approx -4.12 \times 10^8\ \text{J}

Answer

Answer: Potential energy decreases by approximately 8.25×108 J8.25 \times 10^8\ \text{J}, while kinetic energy increases by approximately 4.12×108 J4.12 \times 10^8\ \text{J}. The satellite loses approximately 4.12×108 J4.12 \times 10^8\ \text{J} overall.

Common mistake: Drag does not act forward or instantaneously accelerate the satellite: it opposes motion and does negative work. The higher speed describes the later, lower near-circular orbit.

Exam tip: For an ‘explain’ response, link the steps: drag removes mechanical energy, making total energy more negative; the near-circular orbital radius decreases, so the circular-orbit speed increases.

That’s why low-Earth satellites need occasional boosts. Without them, the radius falls, the satellite reaches denser air, drag increases, and the decay can become fast enough for re-entry and burn-up. Engineers can also make use of atmospheric drag on purpose, for example by increasing a spacecraft’s effective area to lower an orbit without using as much fuel.

Were those notes helpful?

D.2 Electric and magnetic fields
